1 Introduction
The Silver Spring Networks eBridge is a FCC Part 15.247 compliant device that enables
communication between Silver Spring Networks AMI network and intelligent endpoint device
(IED) connected to either the serial or Ethernet port of the eBridge. The eBridge transmits in
the 902 to 928 MHz, ISM band and transfers data from the IEDs to Silver Spring Networks Access
Points, Relays and/or other continuous power device acting as network relays.
2 eBridge Labeling
The SSN eBridge has two labels relevant to unit assembly – the FCC & Part Number label and
the SSN MAC Address label. Both labels are located on the top side of the eBridge PCBA. The
barcode format is Code 3 of 9.
Figure 1 is an example of the FCC ID label that can be found in the location indicated in
eBridge Labeling
Integrator's Guide
Silver Spring Networks
3
Figure 3. The size of the label is 1.5” x 1.0” inches. The barcode format is Code 3 of 9.
Figure 1 – FCC & Part Number Label for eBridge PCBA
Figure 2 is an example of the MAC address label that can be found in the location indicated in
SSN PN 123-456789
FCC ID: OWS-NICxxx IC: 5975A-NICxxx
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
996-000015A
eBridge Labeling
Integrator's Guide
Silver Spring Networks
4
Figure 3. The barcode format is Code 3 of 9.
Figure 2 – MAC Address Label for eBridge PCBA
1234567890123456
eBridge Labeling
Integrator's Guide
Silver Spring Networks
5

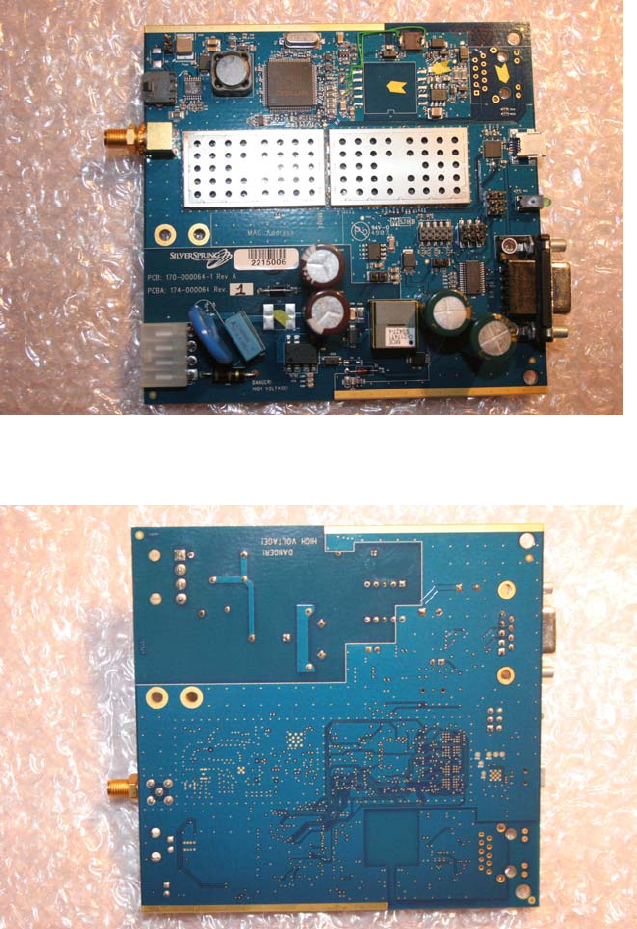

Figure 3 – Top Side of eBridge PCBA
Figure 4 – Bottom Side of eBridge PCBA
eBridge Labeling
Integrator's Guide
Silver Spring Networks
6
FCC and Government Guidelines
Silver Spring Networks eBridge
FCC ID: OWS-NIC506 IC: 5975A-NIC506
The eBridge is REQUIRED to be professionally installed within the host IED by a properly trained
technician. Improper installation could void the user’s authority to operate the equipment.
Figure 5 – Sample Label for eBridge PCBA
NOTE: For FCC compliance, the following text MUST be included in eBridge manuals and
user’s guides.
User installation is prohibited.
The host meter should be installed so that people will not come within 20 cm (8 in.) of the
antenna.
The antenna of this transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
This equipment has been tested and found to comply with Part 15 of the FCC Rules. This
equipment generates, uses and can radiate radio frequency energy, and if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
disconnected.
Consult the dealer or an experienced Radio/TV technician for help.
CAUTION: Changes or modifications not expressly approved by Silver Spring Networks could
void the user’s authority to operate the equipment.
FCC ID: OWS-NIC506 IC: 5975A-NIC506
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
eBridge Labeling
Integrator's Guide
Silver Spring Networks
7
2.1 FCC Guidelines for Devices Containing a Transmitter
Module
The following is an extract from FCC PART 15 UNLICENSED MODULAR TRANSMITTER
APPROVAL, DA 00-1407, Released: June 26, 2000, Section 6 describing labeling
requirements for devices containing a modular transmitter.
Section 6. The modular transmitter must be labeled with its own FCC ID
number, and, if the FCC ID is not visible when the module is installed inside
another device, then the outside of the device into which the module is
installed must also display a label referring to the enclosed module. This
exterior label can use wording such as the following: “Contains Transmitter
Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar
wording that expresses the same meaning may be used. The Grantee may
either provide such a label, an example of which must be included in the
application for equipment authorization, or, must provide adequate
instructions along with the module which explain this requirement.
In the latter case, a copy of these instructions must be included in the application for
equipment authorization."
Figure 6 – Sample Label for IEDs Containing an eBridge
2.2 Safety Information
WARNING!: Severe shock and explosion hazard! Touching energized parts can result in massive
equipment damage, and severe injury or death. Short-circuiting energized parts will result in
blinding flash and explosion. Opening and closing electrical circuits can also produce dangerous
and explosive arc flashes. Involuntary muscular reactions associated with electrical shock may
result in other injuries. Observe the following safety guidelines.
Careful planning of every job is essential. Nothing should be taken for granted. Do not take
chances!
Read and follow all approved policies and procedures provided by your employer associated
with the procedures in this manual.
The procedures in this manual must only be performed by qualified workers in accordance
with local utility safety practices, utility requirements, and applicable OSHA and NFPA
standards.
The information contained in this document is intended to aid qualified personnel, and is
not a replacement for the proper training required to make a person qualified.
Silver Spring Networks assumes no liability for the customer’s failure to follow these safety
guidelines.
Contains FCC ID: OWS-NIC506, IC: 5975A-NIC506
