copertina NEF series electronic 20-11-2006 10:04 Pagina 1

Colori compositi

C M Y CM MY CY CMY K

USE AND MAINTENANCE

USO E MANUTENZIONE

UTILISATION ET ENTRETIEN

BETRIEB UND WARTUNG

USO Y MANTENIMIENTO

NEF SERIES

E LECTRONIC INJECTION SYSTEM

Publication edited by

Marketing - Adv. & Promotion

Print L31900018 - 10/06

MARINE ENGINES

ENGLISH

NEF SERIES

ELECTRONIC INJECTION

SYSTEM

N40 ENT M25

N60 ENT M37

N60 ENT M40

N67 ENT M45

USE AND MAINTENANCE

INTRODUCTION

We would like to thank you for buying an IVECO MOTORS product,

and compliment you on your choice of engine.

Before you carry out any operation involving the engine or its fittings,

please read the contents of this manual carefully; compliance with the

instructions provided in the manual is the best way to guarantee trouble-

free, long term operation of the engine.

The contents of this manual refer to the standard configuration of the

engine, and the illustrations are purely indicative. Some instructions are

provided by giving the sequence of operations to be carried out in order

to allow the engine and/or its fittings to perform in a certain way. In

some cases they will be dependent on the configuration of the

commands and the set-up of the vessel on which the engine is installed;

for any points that differ from the contents of this manual, please consult

the instructions provided by the Boatbuilder or a specific manual.

The information provided below was current at the date of publication.

The Manufacturer reserves the right to make modifications at any time

without prior notice, for technical or commercial reasons or to update

the engines to comply with legal requirements in the various Countries.

The Manufacturer declines all liability for any errors or omissions.

Please remember that the IVECO MOTORS Technical Service

Network is available to offer you its experience and professional skills,

wherever you may be.

CONTENTS Page

GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Liability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Engine technical data N40 ENT M25. . . . . . . . . . . . . . . . . . . . . . . .4

Engine technical data N60 ENT M37/M40 . . . . . . . . . . . . . . . . . . .6

Engine technical data N40 ENT M25. . . . . . . . . . . . . . . . . . . . . . . .8

Signs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

USE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Preliminary checks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Starting and stopping the engine . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Starting and stopping the engine from

the analogue control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Recognising alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Starting and stopping the engine from

the digital control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Recognising alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Managing the engine from the Relay box . . . . . . . . . . . . . . . . . . .21

Proper use of the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Special warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Running in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

CONTROLS AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . .25

Maintenance personnel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Accident prevention . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

How to proceed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Moving the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Disposal of waste . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Page

LONG PERIODS OF INACTIVITY . . . . . . . . . . . . . . . . . . . . . . .36

Preparing the engine for a long period of inactivity . . . . . . . . . . .36

Restarting the engine after a long period of inactivity . . . . . . . . .37

ENGINE MALFUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

EMERGENCIES ON BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

IN APPENDIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Oil viscosity level according to surrounding temperatures . . . . . . .

ENGLISH

 GENERAL INFORMATION

GUARANTEE

In order to ensure that your engine gives the best possible performance

and to take advantage of the IVECO MOTORS guarantee, you must

follow the indications provided in this publication with great care; failure

to do so may result in invalidation of the guarantee.

SPARE PARTS

Always use Original IVECO MOTORS Spare parts. This is essential to

keep the engine in original running order.

The use of non-original spare parts will not only invalidate the guarantee,

but will mean that IVECO MOTORS will not be considered liable in any

way during the whole working life of the engine.

LIABILITY

The Manufacturer will only be considered liable subject to performance

of the control and maintenance operations indicated and described in

this manual; to this effect, proof that these operations have been

performed must be provided. Any special maintenance operations that

may be necessary must be carried out by qualified technicians from

authorised Workshops in the IVECO MOTORS Network, using the

instruments and equipment provided for the purpose.

SAFETY

The following information is intended to encourage caution when using

the engine, so as to avoid damage to persons or property as a result of

improper or incorrect behaviour.

The engines must only be used for the purposes indicated by the

Manufacturer.

Any tampering, modification and use of non-original spare parts

may compromise proper operation of the engine and safe

navigation;

never, under any circumstances

make

modifications to the

wiring and to the units equipping the engine,

or connect them to other power systems.

Pay particular attention to moving parts of the engine, to high

temperature components and to circuits containing pressurised

fluids; its electrical equipment houses electrical currents and

voltage.

The exhaust fumes produced by the engine are bad for your health.

The engine must only be moved using suitable lifting tackle, making

use of the U-bolts provided on the engine for that purpose.

The engine must not be started up and used until the vessel in

which it installed has satisfied all necessary safety requirements, or

until the vessel has been guaranteed to comply with local laws and

regulations.

The operations required to guarantee the best possible use and

preservation of the engine must only be carried out by persons of

proven experience, equipment with tools considered suitable by

IVECO MOTORS.

For the purpose of safety, further recommendations are given in the

chapter CONTROLS AND MAINTENANCE.

ENGINE TECHNICAL DATA N40 ENT M25

The technical code and serial number are indicated on a plate, which is

located on different parts of the engine, according to the model: flywheel

casing, tappet cover, coolant tank.

(*)Net power to the flywheel in compliance with ISO 3046-1. Test

conditions: T 25 °C; atmospheric pressure 100 kPa; relative

humidity 30%.

Code N40 ENT M25

Engine family F4

Cycle 4-stroke diesel

Number and arrangement

of cylinders 4, in line

Bore x stroke 102 x 120 mm

Total displacement 3.900 cm3

Air system Supercharged aftercooled

(TCA or TAA)

Injection type Direct/Common rail

electronically managed

Engine direction of rotation Anticlockwise

(seen from flywheel side)

Dry weight 490 kg

Electrical system 12 V (24 V on request)

Accumulator/s

- capacity 180 Ah or above

- discharge current 800 A or above

Available settings (*) N40 ENT M25

A1 184 kW (250 CV) @ 2800 rpm

B 147

kW (200 CV) @ 2800 rpm

C 125 kW (170 CV) @ 2800 rpm

WARNING

Any alteration of the above mentioned characteristics, in particular

modification of the data stored in the injection system electronic

units or the characteristics of the engine and its fittings, is strictly

prohibited, penalty invalidation of the guarantee and absence of

all liability on the part of IVECO MOTORS.

ENGLISH

Engine NEF N40 ENT M25

1. Exhaust gas and sea water discharge - 2. Turbocharger - 3. Engine

coolant-sea water heat exchanger - 4. Coolant outlet manifold from

engine - 5. Oil filter - 6. Lifting U-bolt - 7. Coolant filler cap -

8. Thermostat valve location - 9. Alternator - 10. Manifold

connecting the cooling circuit to the coolant tank - 11. Coolant

infeed to engine - 12. Water-heater system tap or plug -

13. Connection to battery positive terminal - 14. Coolant discharge

plug - 15. Electrical starter motor - 16. Removable anode.

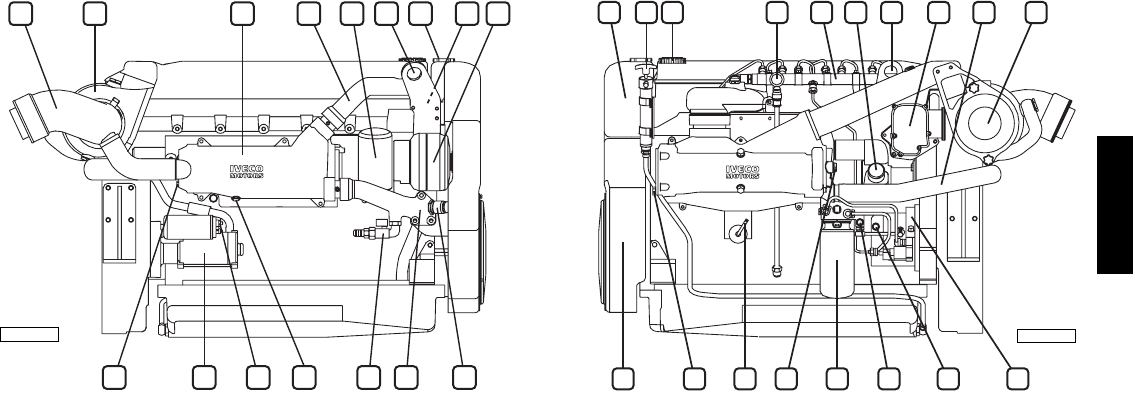

Engine NEF N40 ENT M25

1. Coolant expansion tank - 2. Oil extraction pump - 3. Oil dipstick -

4. Oil filler cap - 5. Common rail divider - 6. Sea water pump inlet -

7. Lifting U-bolt - 8. Oil vapour filter - 9. Sea water circuit connector

pipe - 10. Air filter - 11. High-pressure pump for common rail system -

12. Fuel inlet from tank - 13. Fuel outlet to tank - 14. Fuel filter -

15. Removable anode - 16. Accelerator voltage divider lever - 17. Sea

water discharge plug - 18. Auxiliary member pulley casing.

    

  

 

 



04_363_N

      

  

04_364_N

ENGINE TECHNICAL DATA N60 ENT M37 / M40

The technical code and serial number are indicated on a plate, which is

located on different parts of the engine, according to the model: flywheel

casing, tappet cover, coolant tank.

(*)Net power to the flywheel in compliance with ISO 3046-1. Test

conditions: T 25 °C; atmospheric pressure 100 kPa; relative

humidity 30%.

Code N60 ENT M37 / M40

Engine family F4

Cycle 4-stroke diesel

Number and arrangement

of cylinders 6, in line

Bore x stroke 102 x 120 mm

Total displacement 5.900 cm3

Air system Supercharged aftercooled

(TCA or TAA)

Injection type Direct/Common rail

electronically managed

Engine direction of rotation Anticlockwise

(seen from flywheel side)

Dry weight 595 kg

Electrical system 12 V (24 V on request)

Accumulator/s

- capacity 180 Ah or above

- discharge current 800 A or above

Available settings (*) N60 ENT M37

A1 272 kW (370 CV) @ 2800 rpm

243

kW (330 CV) @ 2800 rpm

C 199 kW (270 CV) @ 2800 rpm

Available settings (*) N60 ENT M40

A1 294 kW (400 CV) @ 3000 rpm

A2 272 kW (370 CV) @ 3000 rpm

243

kW (330 CV) @ 3000 rpm

C 199 kW (270 CV) @ 3000 rpm

WARNING

Any alteration of the above mentioned characteristics, in particular

modification of the data stored in the injection system electronic

units or the characteristics of the engine and its fittings, is strictly

prohibited, penalty invalidation of the guarantee and absence of

all liability on the part of IVECO MOTORS.

ENGLISH

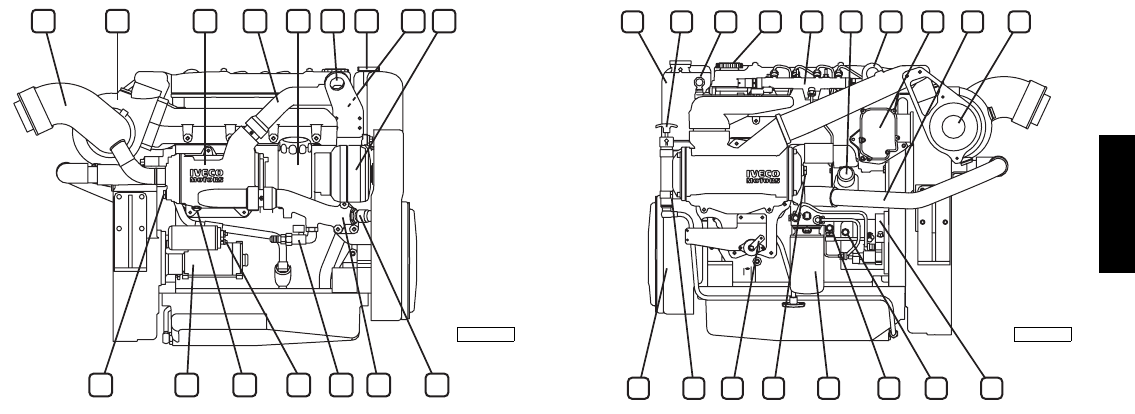

Engine NEF N60 ENT M37/M40

1. Exhaust gas and sea water discharge - 2. Turbocharger - 3. Engine

coolant-sea water heat exchanger - 4. Coolant outlet manifold from

engine - 5. Oil filter - 6. Lifting U-bolt - 7. Coolant filler cap -

8. Thermostat valve location - 9. Alternator - 10. Manifold

connecting the cooling circuit to the coolant tank - 11. Coolant

infeed to engine - 12. Water-heater system tap or plug - 13. Coolant

discharge plug - 14. Connection to battery positive terminal -

15. Electrical starter motor - 16. Removable anode.

Engine NEF N60 ENT M37/M40

1. Coolant expansion tank - 2. Oil extraction pump - 3. Oil filler cap -

4. Oil dipstick - 5. Common rail divider - 6. Sea water pump inlet -

7. Lifting U-bolt - 8. Oil vapour filter - 9. Sea water circuit connector

pipe - 10. Air filter - 11. High-pressure pump for common rail system -

12. Fuel inlet from tank - 13. Fuel outlet to tank - 14. Fuel filter -

15. Removable anode - 16. Accelerator voltage divider lever - 17. Sea

water discharge plug - 18. Auxiliary member pulley casing.

2 3 54 6 9

11 1015 14

7 8

1216 13

04_352_N

1 32 4 75 6 8 109

1114 12131518 1617

04_353_N

ENGINE TECHNICAL DATA N67 ENT M45

The technical code and serial number are indicated on a plate, which is

located on different parts of the engine, according to the model: flywheel

casing, tappet cover, coolant tank.

(*)Net power to the flywheel in compliance with ISO 3046-1. Test

conditions: T 25 °C; atmospheric pressure 100 kPa; relative

humidity 30%.

Code N67 ENT M45

Engine family F4

Cycle 4-stroke diesel

Number and arrangement

of cylinders 6, in line

Bore x stroke 102 x 120 mm

Total displacement 5.900 cm3

Air system Supercharged aftercooled

(TCA or TAA)

Injection type Direct/Common rail

electronically managed

Engine direction of rotation Anticlockwise

(seen from flywheel side)

Dry weight 595 kg

Electrical system 12 V (24 V on request)

Accumulator/s

- capacity 180 Ah or above

- discharge current 800 A or above

Available settings (*) N67 ENT M45

A1 331 kW (450 CV) @ 3000 rpm

A2 309 kW (420 CV) @ 3000 rpm

272

kW (370 CV) @ 3000 rpm

C 258 kW (350 CV) @ 3000 rpm

WARNING

Any alteration of the above mentioned characteristics, in particular

modification of the data stored in the injection system electronic

units or the characteristics of the engine and its fittings, is strictly

prohibited, penalty invalidation of the guarantee and absence of

all liability on the part of IVECO MOTORS.

ENGLISH

Engine NEF N67 ENT M45

1. Exhaust gas and sea water discharge - 2. Turbocharger - 3. Engine

coolant-sea water heat exchanger - 4. Coolant outlet manifold from

engine - 5. Oil filter - 6. Lifting U-bolt - 7. Coolant filler cap -

8. Thermostat valve location - 9. Alternator - 10. Manifold

connecting the cooling circuit to the coolant tank - 11. Coolant

infeed to engine - 12. Water-heater system tap or plug - 13. Coolant

discharge plug - 14. Connection to battery positive terminal -

15. Electrical starter motor - 16. Removable anode.

Engine NEF N67 ENT M45

1. Coolant expansion tank - 2. Oil extraction pump - 3. Oil filler cap -

4. Oil dipstick - 5. Common rail divider - 6. Sea water pump inlet -

7. Lifting U-bolt - 8. Oil vapour filter - 9. Sea water circuit connector

pipe - 10. Air filter - 11. High-pressure pump for common rail system -

12. Fuel inlet from tank - 13. Fuel outlet to tank - 14. Fuel filter -

15. Removable anode - 16. Accelerator voltage divider lever - 17. Sea

water discharge plug - 18. Auxiliary member pulley casing.

2 3 54 6 9

11 1015 14

7 8

1216 13

04_352_N

1 32 4 75 6 8 109

1114 12131518 1617

04_353_N

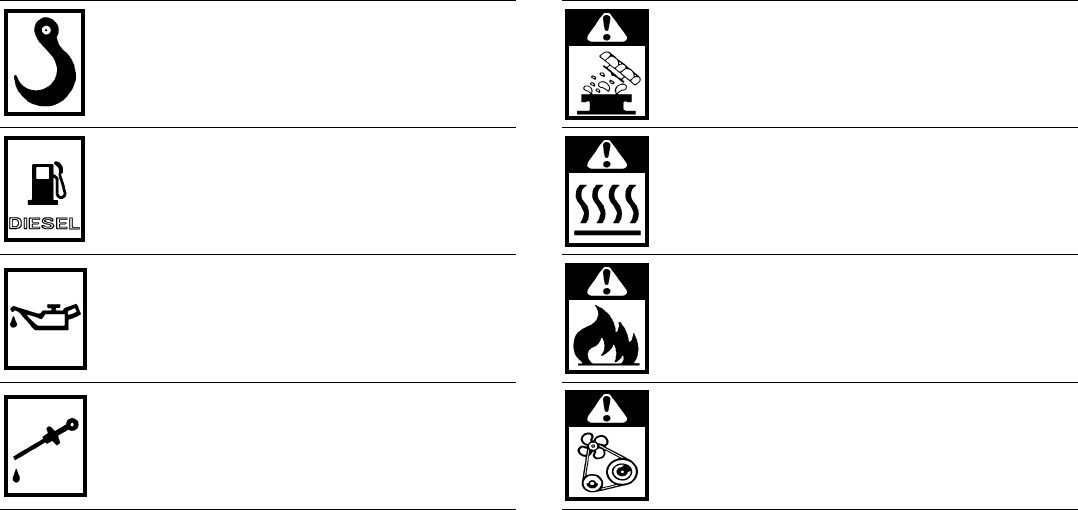

SIGNS

Certain warning signs are affixed to the engine, and their meanings are

indicated below.

NOTE: The signs with an exclamation mark on them underline a

potential danger.

Lifting point (engine only).

Fuel Cap

(on the fuel tank, if there is one).

Oil Cap.

Oil dipstick.

Danger of burning:

Expulsion of hot water under pressure.

Danger of burning:

Presence of high temperature parts.

Danger of fire:

Fuel present.

Danger of impact or catching

on moving parts:

Presence of fans, pulleys, belts or the like.

ENGLISH

 USE

PRELIMINARY CHECKS

Before starting the engine each time:

Make sure that the sea-water inlet valve is open. Operation of the

sea water pump without water would cause irreparable damage to

the internal rotor within a very few seconds.

Check the level of technical fluids (fuel, engine oil and coolant).

STARTING AND STOPPING THE ENGINE

For vessels equipped with instrument panels that

are not manufactured by IVECO MOTORS

The start-up and shut-down operations described below apply to an on-

board control panel manufactured by IVECO MOTORS; if the vessel is

fitted with an instrument panel that has been customised by the

Boatbuilder or Fitter, these operations may vary according to the various

choices made during construction. In these cases, follow the start-up/

shut-down sequence and use the instrument panel description provided

by the Boatbuilder on specific documentation.

CAUTION!

Before starting the engine, make sure that no

combustible vapours or gasses are present in the

engineroom.

STARTING AND STOPPING THE ENGINE

FROM THE ANALOGUE CONTROL PANEL

Procedure for start-up from the main IVECO

MOTORS control panel (supplied on demand)

Make sure that the electrical switch indicating ENGINE ROOM -

BRIDGE on the Relay Box unit (normally located in the engine room) is

in the BRIDGE position, then proceed as follows:

1. Lift the protective cover over the key switch (8), insert the key and

turn it to the right to position 8B.

2. Make sure that the analogue instruments are showing values that

conform with the relevant physical parameters (temperature,

battery voltage and oil pressure).

3. Wait for the beeper to stop sounding and for the alarm indicator

lights on the indicator module (5) to switch off, with the exception

of the “alternator recharge” and “low oil pressure” indicators. At

the same time, check that the indicator test has been performed

successfully (information on how to interpret this test and

indications on the module are given in the relevant paragraph).

4. Turn the key to position 8C; once the engine has started, release

the key and do not accelerate.

5. Make sure that the analogue instruments are showing values that

conform with the relevant physical parameters (temperature,

battery voltage and oil pressure).

6. If the engine does not start, after releasing the key it will only be

possible to turn it back to the start position after first returning the

switch to the rest position 8A.

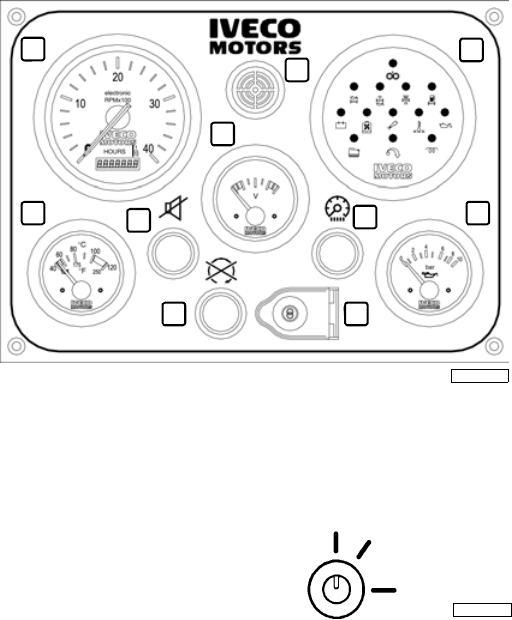

1. Coolant temperature indicator - 2. Rev counter and hour counter -

3. Voltmeter - 4. Beeper - 5. Indicator and alarm module - 6. Engine oil

pressure indicator - 7. Control panel instrument light switch - 8. Key

switch to start/stop the engine - 9. Button to stop the engine -

10. Button to disable the beeper.

04_354_N

04_356_N

Detail of the key switch

ENGLISH

Procedure for start-up from IVECO MOTORS

secondary or fly-bridge control panel (supplied on

demand)

1. Enable the secondary control panel, by turning the key

switch on the main panel to position 8B (see warnings and

procedure given in previous paragraph).

2. Wait for the beeper to stop sounding and for the alarm indicators

on the indicator module (3) to switch off, with the exception of the

“alternator recharge” and “low oil pressure” indicators. At the same

time, check that the indicator test has been performed successfully

(information on how to interpret this test and indications on the

module are given in the relevant paragraph).

3. Press the green button (5) and release it when the engine has

started.

4. Check that the rev indicator shows a plausible value. 1. Rev counter and hour counter - 2. Beeper - 3. Indicator and alarm

module - 4. Button to disable the beeper - 5. Engine start button -

6. Engine stop button.

1 3

04_355_N

Stopping the engine

Before stopping the engine it is recommended you run it for a few

minutes at minimum speed with no load; this will allow the temperature

to drop evenly and will avoid harmful thermal shocks.

A. The engine is normally stopped from the main IVECO MOTORS

control panel by turning the key switch to the rest position 8A or

by turning a similar command on the customised control panel.

B. The IVECO MOTORS secondary control panel is stopped by

pressing the red button (6) on the control panel.

The main IVECO MOTORS control panel for engines equipped with an

“excited” device (on request or as prescribed by the Certification

Body), is stopped by pressing the red button (9).

To re-start the engine from the main control panel:

1. Return the key switch to the rest position 8A to reset all the on-

board control panel functions.

2. Proceed as indicated.

To re-start the engine from the secondary control panel:

1. Make sure that the panel has been enabled (key switch on the main

control panel turned to position 8B).

2. Press the green button (5) and release it when the engine has

started, making sure that the rev indicator is showing a plausible

reading.

ENGLISH

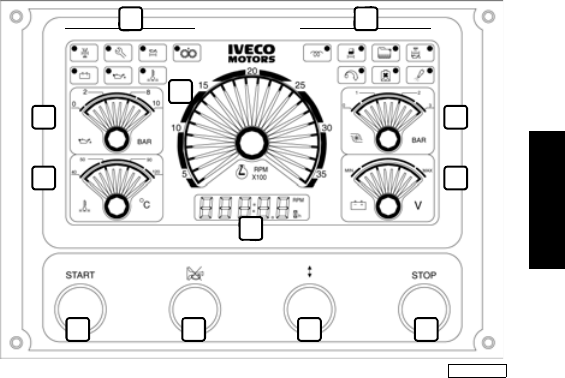

RECOGNISING ALARMS

IVECO MOTORS on-board control panels with analogue instruments

are fitted with an electronic module that includes the indicator lights and

the interface, timer and alarm storage circuits.

The figure illustrates the dial and the key indicates the meaning of the

alarm signals sent by all the indicator lights; some types of engine and

relevant equipment only make some of the above mentioned functions

available.

If the Boatyard uses different technical options there may also be

changes to the above.

Operation

When the key switch is turned to position 8B the signals and alarms

module will perform an efficiency test on all the indicator lights, lasting 5

seconds, with the exception of the “Pre-lubrication”, “Pre-post heating”,

“EDG system malfunction” indicators, and simultaneously the beeper

sounds.

It is possible to stop the beeper before the end of the test, by pressing

the relevant button.

During start-up and for the following 15 seconds, all alarm functions are

disabled; after this period, each alarm detected by the sensors provided

on the engine will result in the relevant indicator flashing and a

simultaneous warning sound from the beeper. If the beeper is disabled

by pressing the relevant button, the indicator light will turn on without

flashing and the alarm will be stored until the engine is next stopped.

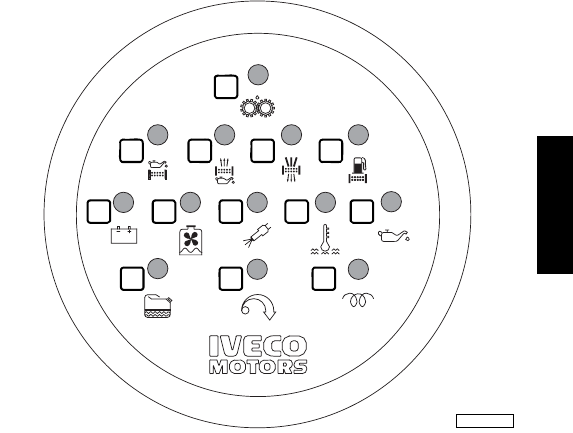

1. Maximum allowed rotation speed exceeded (on request) - 2. Water

in the fuel pre-filter - *3. Engine coolant level low - 4. Alternator

malfunction - *5. Oil filter blocked - * 6. Oil vapour filter blocked -

*7. Pre-lubrication in progress - 8. Air filter blocked - *9. Fuel filter

blocked - 10. Coolant temperature high - 11. Oil pressure low -

*12. Pre-post heating - 13. Malfunction in EDC electronic injection

system.

*Alarm functions not available with standard setup.

12 12

11101334

5 6 8 9

04_234_N

STARTING AND STOPPING THE ENGINE

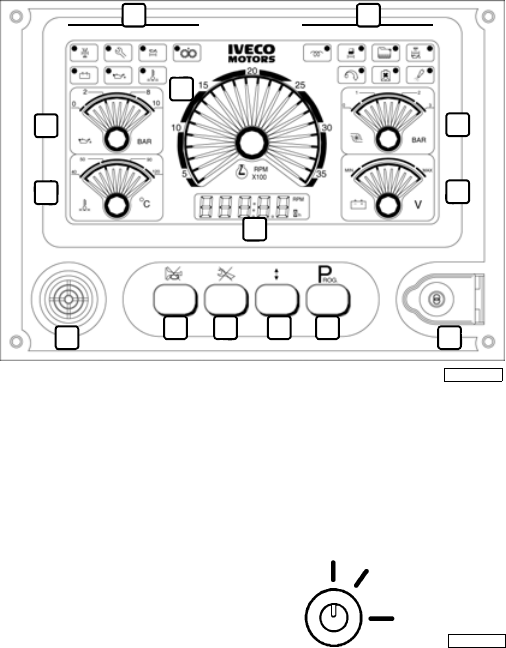

FROM THE DIGITAL CONTROL PANEL

Procedure for start-up from the main IVECO

MOTORS control panel (supplied on demand)

Make sure that the electrical switch indicating ENGINE ROOM -

BRIDGE on the Relay Box unit (normally located in the engine room) is

in the BRIDGE position, then proceed as follows:

1. Lift the protective cover over the key switch (8), insert the key and

turn it to the right to position 8B.

2. Make sure that the instruments with analogue displays are showing

values that conform with the relevant physical parameters.

3. Wait for the beeper to stop sounding and for the alarm indicator

lights to switch off, with the exception of the “Alternator

malfunction” and “Low oil pressure” indicators. At the same time,

check that the indicator test has been performed successfully (see

the section on RECOGNIZING ALARMS).

4. Turn the key to position 8C; once the engine has started, release

the key and do not accelerate.

5. Make sure that the instruments with analogue displays are showing

values that conform with the relevant physical parameters

(temperature, battery voltage and oil pressure).

6. If the engine does not start, after releasing the key it will only be

possible to turn it back to the start position after first returning the

switch to the rest position 8A.

1. Engine coolant temperature indicator - 2. Lubrication circuit pressure

indicator - 3. Service and alarm signals - 4. Rev counter - 5. Supercharged

air pressure indicator - 6. Voltmeter - 7. Alpha-numeric display - 8. Key

switch to start/stop the engine - 9. Accessory function programming

button - 10. Button used to scroll through and select additional

information - 11. Button to reset the “planned maintenance” indicator -

12. Button to disable the beeper- 13. Beeper.

91112

3 3

04_357_N

04_356_N

Detail of the key switch

ENGLISH

Procedure for start-up from IVECO MOTORS

secondary or fly-bridge control panel (supplied on

demand)

1. Enable the secondary control panel, by turning the key switch

on the main panel to position 8B (requirements and procedure

given in previous paragraph).

2. Wait for the beeper to stop sounding and for the alarm indicator

lights to switch off, with the exception of the “Alarm malfunction”

and “Low oil pressure” indicators. At the same time, check that the

indicator test has been performed successfully (see the section on

RECOGNIZING ALARMS).

3. Press the green START button (11) and release it when the engine

has started, making sure that the instruments with analogue displays

are showing values that conform with the new physical parameters.

1. Engine coolant temperature indicator - 2. Lubrication circuit pressure

indicator - 3. Service and alarm signals - 4. Rev counter - 5. Supercharged

air pressure indicator - 6. Voltmeter - 7. Alpha-numeric display -

8. Button to stop the engine - 9. Button used to scroll through and select

additional information - 10. Button to disable the beeper- 11. Engine

start button.

3 3

1011 9 8

04_358_N

Stopping the engine

Before stopping the engine it is recommended you run it for a few

minutes at minimum speed with no load; this will allow the temperature

to drop evenly and will avoid harmful thermal shocks.

A. From the main IVECO MOTORS control panel: turn the

key switch to the rest position 8A.

B. From the secondary IVECO MOTORS control panel:

press the red STOP button (8).

To re-start the engine from the main control panel:

1. Return the key switch to the rest position 8A to reset all the on-

board control panel functions.

2. Proceed as indicated in the relevant paragraph.

To re-start the engine from the secondary control panel:

1. Make sure that the panel has been enabled (key switch on the main

control panel turned to position 8B).

START button (11) and release it when the engine has started,

making sure that the instruments with analogue displays are

showing plausible values.

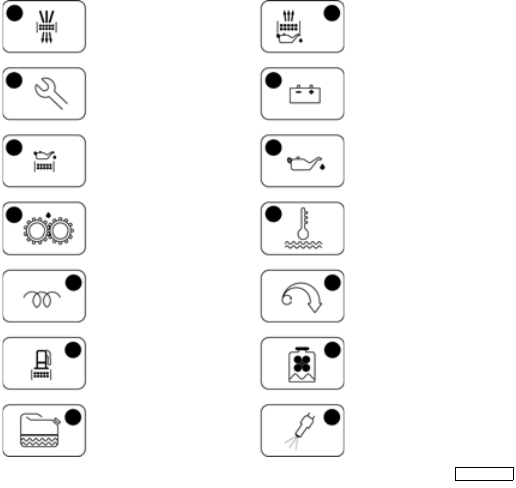

RECOGNISING ALARMS

The following shows the meaning of the symbols associated with each

of the indicator lights on the main and secondary control panels some

types of engine and relevant equipment only make some of the above

mentioned functions available. If the Boatyard uses different technical

options there may also be changes to the above.

* Alarm functions not available with standard setup

04_359_N

* Oil vapour filter

blocked

Alternator

malfunction

Oil pressure low

Coolant

temperature high

Over-revs

* Coolant level low

EDC engine control

system malfunction

* Air filter

blocked

Maintenance

interval expired

* Oil filter

blocked

* Pre-lubrication

in progress

* Pre-post

heating

* Fuel filter

blocked

Water in the

fuel filter

ENGLISH

Operation

When the key switch is turned to position 8B an efficiency test will be

performed on all the indicator lights, lasting 5 seconds, with the

exception of the “Pre-lubrication”, “Pre-post heating”, “EDC electronic

injection system malfunction” indicators, and simultaneously the beeper

sounds; It is possible to stop the beeper before the end of the test, by

pressing the relevant button.

During start-up and for the following 15 seconds, all alarm functions are

disabled; after this period, each alarm detected by the sensors provided

on the engine will result in the relevant indicator flashing and a

simultaneous warning sound from the beeper. If the beeper is disabled

by pressing the relevant button, the indicator light will turn on without

flashing and the alarm will be stored until the engine is stopped.

Alpha-numeric display

This provides the following information:

• engine running speed

• total running hours (see note A)

• exhaust gas temperature (on request)

• instant fuel consumption (see note B)

The information required is selected by pressing the “Scroll select”

button on both the control panels, main and secondary.

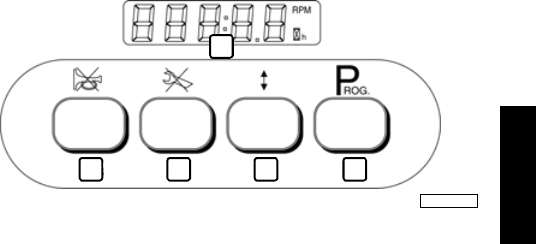

Detail of the main control panel

7. Alpha-numeric display - 9. Accessory function programming button -

10. Button used to scroll through and select additional information -

11. Button to reset the “planned maintenance” indicator - 12. Button

to disable the beeper.

(A)The control panel's internal electronics are programmed to count

the working hours and issue warnings when the time limit for

ordinary maintenance operations expires; this function requires

that the counter be reset after each maintenance operation, which

is carried out from the main control panel as follows:

- Pressing and holding the “Prog” (9) and “Scroll select” buttons (10),

turn the key switch from position 8A to position 8B and wait for

the display to show the pre-set value (e.g: 600 hours). Release the

buttons and press the “Prog” (9) button again once only to start

the new count.

912 11 10

04_360_N

If the set value does not correspond with the one foreseen for the type

of oil being used (see requirements in the sections on REFUELLING and

FREQUENCY) proceed as follows:

- After displaying the value in hours set previously, release the

buttons and press just the “Scroll select” button (10) repeatedly

until the prescribed value (as indicated in the section

FREQUENCY) is shown and flashes, after which press the “Prog”

button (9) to confirm the value and start the new count.

(B)The information on instant fuel consumption requires the

maximum input value to be correctly programmed with respect to

the performance of the engine fitted on the vessel; to check this,

proceed as follows:

- If the value does not correspond, modify it by pressing and holding

the “Prog” button (9) until the display shows the maximum input

value (e.g: 131 mg/strk), then release the button and compare the

value with the ones provided in the table below.

- If the value does not correspond, modify it by pressing the “Scroll

select” button (10) repeatedly until the prescribed value is

displayed (flashing).

- Press and hold the “Prog” button (9) until the display shows the

engine running speed, which indicates that the value has been

stored.

If the programming operations have not been carried out correctly the

display will indicate “P.Err”; in this case, it will be necessary to repeat the

procedure from the beginning.

N40 ENT M25

N60 ENT M37

N60 ENT M40

N67 ENT M45

Maximum power CV Maximum input mg/strk

250 128

200 108

170 95

Maximum power CV Maximum input mg/strk

370 131

330 116

270 98

Maximum power CV Maximum input mg/strk

400 132

370 131

330 117

270 98

Maximum power CV Maximum input mg/strk

331 450

309 420

272 370

258 350

ENGLISH

MANAGING THE ENGINE FROM THE RELAY

BOX

The engine fittings include a unit, known as the “Relay box” and normally

installed in the engine room, using which it is possible to manage the

following functions:

Selection of the control panel: bridge or engine room.

Starting and stopping the engine.

Increase and decrease of the engine speed.

Self-diagnosis (only to be used by Technical Service Network staff).

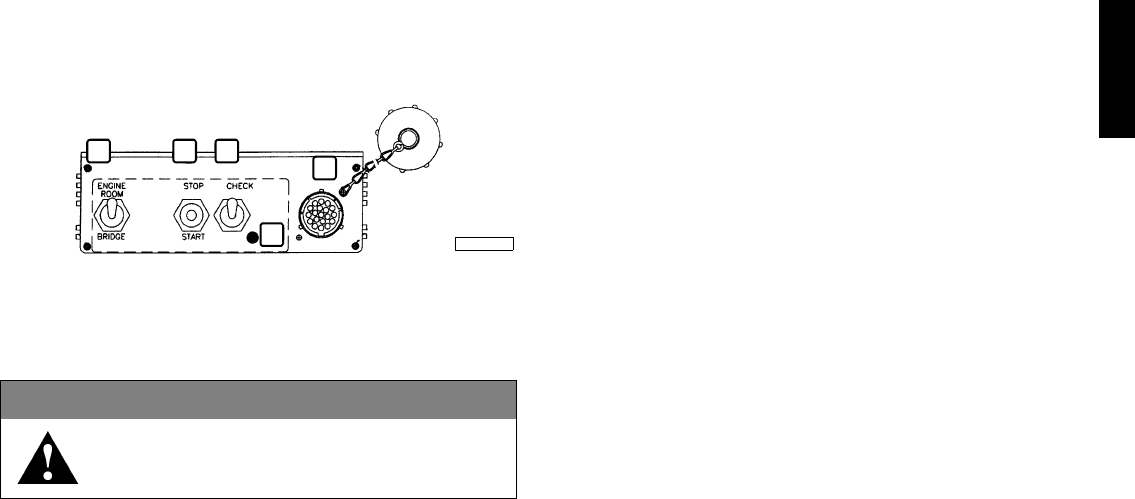

1. Control panel selector - 2. Manual start/stop and accelerator

command - 3. Self-diagnosis test and blink code emission button - 4. Led

indicating EDC and blink code malfunctions - 5. Connector for diagnosis

instrument.

Start-up procedure

1. Turn switch 1 to the ENGINE ROOM position to enable the

adjacent START-STOP button (2); this operation disables all

the on-board control panel functions on the bridge and

fly-bridge.

2. Press button 2 in the START position until the engine starts, then

release it.

Running speed management procedure

Press button 2 in the START position, with the engine turning, to

accelerate and decelerate; each time the button is pressed the engine

will accelerate or decelerate in sequence.

1. To accelerate: press and hold button 2 in the START position until

the required engine speed is achieved, then release it; the speed will

be maintained.

2. To decelerate: press button 2 again in the START position until the

required decrease in speed is achieved, then release it.

Stopping procedure

1. Press button 2 in the STOP position until the engine has come to

a complete stop, then release it.

2. Return switch 1 to the BRIDGE position to allow use of the

commands on the on-board control panels and prevent use of the

START-STOP button in the “Relay box”.

Self-diagnosis procedure

Use of the CHECK button (3) enables Technical Service Network staff

to obtain the self-diagnosis information stored in the electronic Unit

controlling the engine; the LED indicator 4 indicates the code by

emitting flashes of light.

CAUTION!

Never switch the ENGINE ROOM / BRIDGE selector

when the engine is turning.

1 2 3

04_074_N

FOR PROPER USE OF THE ENGINE

Do not continue to press the starter, when the engine has started.

Do not remain in dock while waiting for the engine to warm up,

but after starting, commence navigation at low speed; the working

temperature will be reached properly with the engine running at

medium speeds.

Do not operate the engine at minimum speed for long periods, as

this encourages the production of harmful exhaust and does not

guarantee optimum performance.

The engine speed must be increased and decreased gradually, to

allow regular combustion and proper operation of all engine

components.

The maximum cruising speed must not be more than 90% of the

speed corresponding to maximum power (see section on ENGINE

TECHNICAL DATA).

During navigation, check that:

• The engine coolant temperature does not reach the alarm

threshold.

• The oil pressure remains within normal values.

SPECIAL WARNINGS

Coolant temperature high

If the temperature indicated on the instrument is considered too high,

or if the alarm is displayed, reduce speed and return to port to check

the state of the sea water intake and cooling system circuits; also check

and have checked:

• tension of the water pump and alternator command belts.

• operation of the thermostat valve.

• whether or not the heat exchangers are clean.

Low lubricant pressure

If the pressure indicated by the instrument is considered insufficient, or

if the “low oil pressure” indicator lights up, stop the engine and check

the oil level. Top up if necessary (see CONTROL AND

MAINTENANCE section).

If the condition persists, return to port at low speed and contact an

Authorised Service Centre.

CAUTION!

When the engine is warm, a pressure liable to cause

hot liquid to be expelled with extreme violence is

created within the cooling circuits. This results in a

danger of burning. Only open the coolant tank cap if

strictly necessary, and only when the engine is cold.

ENGLISH

Water in the fuel pre-filter

It is a good rule to drain the water from the filters, before the relevant

indicator comes on.

Avoid using the engine with the fuel tank only a small reserve of fuel; this

encourages the formation of condensation and makes it more likely you

will suck up dirt or air, resulting in engine stoppage.

Air filter blocked and exhaust circuit inefficient

Inspect the cleanliness of the air intakes and discharge pipes on a regular

basis. The maintenance intervals indicated in this manual only take into

account the performance of engine components, and not any additional

fittings installed by the Boatbuilder and any external events.

Alternator malfunction

Check it or have it checked periodically for cleanliness, wear and proper

tensioning of the drive belt.

Irregularities in the electrical system

Periodically check, particularly during the winter, to ensure that the

batteries are clean and in full working order, checking and topping up as

indicated in the section CONTROLS AND MAINTENANCE, always

taking due note of the WARNINGS provided. If it should be necessary

to replace them, always comply with the characteristics indicated in the

section ENGINE TECHNICAL DATA.

RUNNING IN

Thanks to modern engine construction technology, no particular running

in procedure is required. However, it is recommended that, for the first

50 hours, you do not use the engine at high power for long periods.

CAUTION!

When refuelling, always pay great care to ensure that

no solid or liquid pollutants enter the fuel tank; you

must also remember that smoking and live flames are

prohibited when refuelling.

CAUTION!

Visually check that the exhaust circuit is not blocked or

damaged, so as to prevent dangerous fumes within the

vessel.

CAUTION!

The drive members are located under protective

casings. These must only be removed when the engine

is not turning.

REFUELLING

(I)Use a mixture of water and 50% PARAFLU 11 even during the

summer months. As an alternative to PARAFLU 11, you can use another

product that complies with international specifications SAE J 1034.

(2) Use lubricants that comply with international specifications ACEA

E3 - E5 (high power engines), API CF - CH4 (associated with fuels

with a percentage sulphur < 0.5%), MIL - L - 2104 F.

The viscosity level of oil to be used depending on surrounding

temperatures in given in the table provided in the appendix.

Oil consumption is considered acceptable when it reaches a

maximum of 0.5% of fuel consumption.

(3)The amounts indicated refer to initial refuelling, and include filling

the engine, sump and filter.

(4)Only use normal commercial diesel fuel (EN 590 standards). Do

not use additives. Do not use fuels derived from the synthesis of

organic substances and vegetable oils (Biodiesel).

Low temperature diesel

EN 590 specifications distinguish different classes of diesel fuel,

identifying the characteristics of those best suited to low temperatures.

It is entirely up to the Oil companies to comply with these regulations,

which foresee that fuels suited to the climactic and geographic

conditions of the various Countries be distributed.

Filling up with marine gear oil

For the amount and types of oil to be used in the marine gear, please

see the manual provided by the Manufacturer.

Parts to be supplied N40 ENT

litres (kg)

N60 ENT

litres (kg)

Cooling

circuit (1) 21.5 24.5

Lubrication

circuit (2)

total capacity (3) 12.5 (11.5) 16.5 (15)

Periodic changing:

oil sump at minimum level

oil sump at maximum level

9 (8)

11 (10)

9 (8)

14.5 (13)

Fuel

tank (4) - -

WARNING

Refuelling from drums or tanks may result in pollution of the diesel

fuel, with the risk of damage to the injection system; if necessary,

filter the fuel in a suitable manner or allow sedimentation of the

impurities before refuelling.

ENGLISH

 CONTROLS AND MAINTENANCE

MAINTENANCE PERSONNEL

The engine control and maintenance operations described in the

following chapter require training, experience and compliance with

current safety regulations; for this reason they must be carried out by

special technicians, as indicated below.

Controls: by workshop technicians or the vessel user if necessary.

Periodic maintenance: by qualified personnel

equipped with suitable equipment and adequate means

of protection. Operations marked by the key symbol

(see illustration).

Special maintenance: by qualified personnel from

Authorised Service Centres who have detailed technical

information and specific equipment. Operations marked

by the key symbol (see illustration).

The Authorised Service Centres are the ones in the IVECO MOTORS

Technical Service Network.

ACCIDENT PREVENTION

Always wear heavy-duty footwear and overalls.

Never wear loose, flapping garments, rings, bracelets and/or

necklaces in the vicinity of engines or moving parts.

Always wear protective gloves and goggles when:

• filling up batteries with acid solution

• refuelling with inhibitors or antifreeze

• replacing or topping up lubricant (hot engine oil may cause burns and

scalds. Only carry out these operations when the oil has dropped to

a temperature of below 50°C).

When working in the engine compartment, pay particular attention

to how you move, to avoid contact with moving parts or high

temperature components.

Wear goggles and use high pressure air jets (maximum air pressure

used to clean is 200 kPa (2 bar, 30 psi, 2 kg/cm2).

Wear a protective helmet when working in an area were there are

suspended loads or systems installed at head-height.

Use protective hand cremes.

Immediately replace wet overalls.

Always keep the engine clean, removing oil, grease and coolant

stains.

Store cloths in flame-proof containers.

Do not leave foreign bodies on the engine.

Use suitable, safe containers for used oil.

When completing a repair, make suitable provisions to stop the

engine taking in air if, after start-up, an uncontrolled increase in engine

speed were to occur.

FREQUENCY

The maintenance intervals indicated below take into account the typical

working factors for various types of engine use; the most suitable interval

for maintenance operations for the various applications will be indicated

by the maintenance staff, according to the way and working conditions

in which the engine is used.

CAUTION!

Do not carry out maintenance operations when the

electric power supply is turned on: always check to ensure

that the appliances are properly earthed. During diagnosis

and maintenance operations, make sure that your hands

and feet are dry, and whenever possible use insulating

stands

Controls Frequency

Check oil level in engine Daily

Check oil level in marine gear Daily

Check engine coolant level Daily

Check exhaust pipe/s for damage Daily

Drain water from the fuel pre-filter 150 hours (1)

Check/top up electrolyte level in batteries and

clean terminals

Half-yearly

Planned maintenance Frequency

Clean air filter/s 300 hours (2) (7)

Check corrosion of zinc anodes 300 hours (4) (7)

Check state of oil vapour filter 300 hours (7)

Drain/suck condensation from fuel

tank/s

300 hours (1) (7)

Change engine oil 600 hours (5) (7)

Change oil filter/s 600 hours (5) (7) (8)

Change fuel filter/s 600 hours (1) (7) (8)

Change fuel pre-filter 600 hours (1) (7)

C ha n ge oi l i n t he m a r in e g e ar se e re l e va nt de t a il s

Inspect sea chest yearly

Check tension and state of belt yearly

Change coolant 1200 hours or 2

years

Change air filter 2

years

Change oil vapour filter/s 2

years

(5)

ENGLISH

I) Maximum period when using good quality fuel , (EN 590 standard);

this is reduced if the fuel is contaminated and alarms are triggered

due to blockage of the filters and presence of water in the pre-filter.

When blockage of the filter is indicated, it must be replaced. If the

water in pre-filter indicator does not go out after drainage, the pre-

filter must be replaced.

2) The frequency with which operations are carried out will depend

on the working conditions and efficiency/wear of the product. If the

engine is not used for long periods of time, check it before you start

it.

3) N.C.

4) The anode must be replaced if corrosion has exceeded 50% of the

volume of zinc.

5) Replace lubricants according to the frequency indicated in the

REFUELLING table.

6) Sea water/combustion air heat exchanger: clean both the air and

water sections; engine coolant/sea water heat exchanger: clean the

sea water section; optional sea water/marine gear oil heat

exchanger: clean the sea water section.

7) Must be performed annually, even if the required number of

working hours are not reached.

8) Only use filters with the following characteristics:

- filtration level < 12 μm

- filtering efficiency ß > 200.

Special maintenance Frequency

Check wear in sea water pump rotor 900 hours

Replace belt 1200 hours or 2

years

Clean heat exchangers 2 years (6)

Clean the turbocharger 2 years (5)

Adjust play in valves-rocker arms 3000 hours

WARNING

When using fuel with a percentage sulphur exceeding 0.5%, or

when using oils that do not comply with the specifications provided

in the refuelling table, the times at which the engine oil, engine oil

filter and oil vapour filter must be changed will vary according to

the use and working conditions of the engine itself; for further

information, please consult the technicians responsible for

maintenance.

REQUIREMENTS

1. Do not disconnect the batteries with the engine running.

2. Do not carry out arc welding operations in the vicinity of the engine

without first removing electrical cables and electronic units.

3. After each maintenance operation involving disconnection of the

battery/batteries, make sure that the terminals have been properly

locked onto the poles.

4. Do not use battery chargers to start the engine.

5. Disconnect the on-board network battery/batteries when

recharging.

6. Do not paint the appliances, components and electrical connectors

equipping the engine.

7. Disconnect the battery/batteries before any electrical operations.

8. Contact the Boatyard before installing electronic equipment on

board (two-way radios, echo-sounding equipment, etc.).

HOW TO PROCEED

Check oil level in engine

Only proceed with the engine stopped and at a low temperature, so as

to avoid the risk of burning.

Using the dipstick (1), check that the oil level is between the "Min"

and "Max" levels.

If the level is too low, top up through the inlet on the cylinder head,

after first removing the relevant cap (2).

WARNING

 After topping up, make sure that the oil level does not exceed the

"Max" limit marked on the dipstick.

 Make sure that the dipstick is inserted properly and the filler

cap is turned in a clockwise direction until it stops turning

completely.

04_007_N

ENGLISH

Check oil level in marine gear

Check the oil level in the marine gear following the indications provided

in the marine gear Manufacturer's manual.

Check coolant level

Only proceed with the engine stopped and at a low temperature, so as

to avoid the risk of burning.

Remove the loading tank pressurisation cap (3 - previous page).

Visually check the coolant level.

Top up the tank if necessary, using a mixture of 50% clean water

(not distilled) and Paraflù 11 (see REFUELLING table).

Check exhaust pipe/s for damage

Visually check that the exhaust system is not blocked or damaged.

Make sure that there is no risk of dangerous fumes within the

vessel. Contact the Boatyard if necessary.

Draining water from the fuel pre-filter

The high risk of refuelling with fuel that is polluted by foreign bodies and

water means that it is necessary to perform this control even if no alarm

is shown on the on-board control panel.

Proceed with the engine stopped.

Place a container under the pre-filter

to collect the fluid.

Unscrew the tap plug (1) in the

bottom part of the pre-filter; in some

lay-outs the plug includes a sensor to

detect the presence of water in the

diesel.

Drain off liquid until only “diesel” can

be seen.

Close the plug again, tightening it

completely by hand.

Dispose of the drained fluids

according to current requirements.

Checking the level of electrolyte solution in

the batteries

Place the batteries on a level surface, then proceed as follows.

Visually check that the fluid level is between the "Min" and "Max"

limits; in the absence of references, check that the fluid covers the

Lead plates inside the elements by approximately 5 mm.

If necessary, top up with distilled water only those elements in

which the level is below minimum.

CAUTION!

Only open the coolant tank cap when the engine is

cold.

104_361_N

Contact specialised technical staff if the battery needs recharging.

Have the efficiency of the battery recharging system tested if a

voltage of less than 11 V (for 12 V rated systems) or 22 V (for

24 V rated systems) is detected with the engine running.

On this occasion, make sure that the terminals and clamps are

clean, properly locked and protected by vaseline.

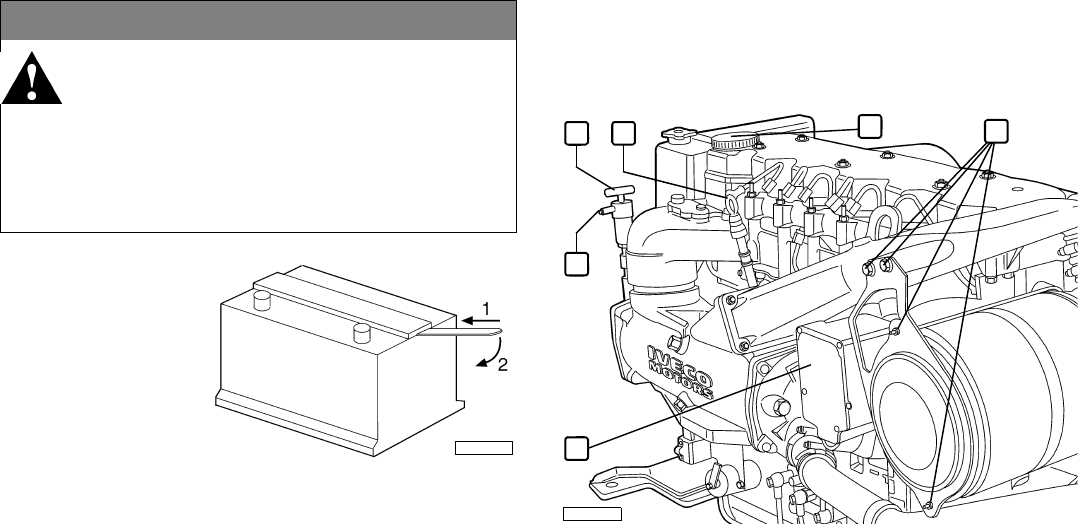

Some types of battery have

a single cover for all the

inspection plugs. To access

the elements, use a lever as

shown in the figure.

Cleaning the air filter

Remove the filter by loosening the screws (4) indicated in the

figure.

Blow dehumidified compressed air through the filter element, from

the inside outward (maximum pressure 200 kPa), or wash with

water only. Do not use detergents; do not use diesel.

Replace the filter if any breakages are found.

Replace the filter once every 2 years.

Restore normal operating conditions after positioning the filter in

its housing.

CAUTION!

The batteries contain sulphuric acid, which is

extremely caustic and corrosive; always wear protective

gloves and goggles when topping them up. Whenever

possible it is recommended that this control be carried

out by specialised personnel.

 Do not smoke or use live flames near the batteries

during controls, and make sure that the room you are

working in is adequately ventilated.

04_362_N

04_007_N

ENGLISH

Check corrosion of zinc anodes

Only proceed with the engine stopped and at a low temperature:

Provide suitable containers to ensure that no water is dispersed

inside the vessel during removal of the anodes.

Remove the anodes, unscrewing them from their housings (see

location in the section ENGINE TECHNICAL DATA).

Make sure that corrosion has not exceeded 50% of the volume of

zinc. If this is the case, change them.

Replace the anodes in their housings, locking them to the

prescribed torque.

Check state of oil vapour filter (figure on page 30)

Only proceed with the engine stopped and at a low temperature, so as

to avoid the risk of burning:

Unfasten the screws and remove the cover (5) to the filter

compartment.

Remove the two filters and check them for deposits; if any deposits

are found, replace them.

Replace the cover in its housing.

Changing engine oil (figure on page 30)

Only proceed with the engine stopped and at a low temperature, so as

to avoid the risk of burning.

Place a container under the hand pump (1) outlet pipe (2), to

collect the used oil.

Unscrew the filler cap, turn the hand pump provided (2), which is

set up to extract the oil only, until the oil sump is completely empty.

Fill up with fresh oil through the feeder hole (3) on the timer cover,

using the types and amounts of oil indicated in the table

REFUELLING. Screw down the filler cap.

Using the dipstick (6), check that the oil level is between the "Min"

and "Max" levels.

Dispose of used oil according to current requirements.

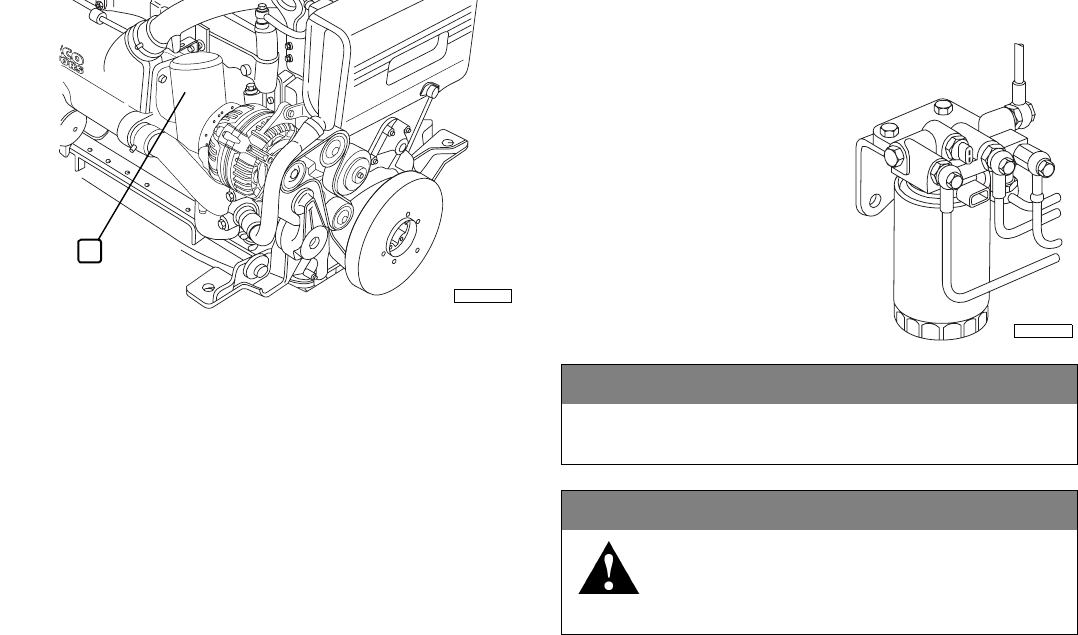

Changing the engine oil filter

Only proceed with the engine stopped and at a low temperature, so as

to avoid the risk of burning.

Only use filters with a filtration level equivalent to the ones you are

replacing (see section FREQUENCY).

Place a container under the filter support (1), to collect the used oil.

Unscrew the filter and remove it.

Carefully clean the surfaces of the support that are in contact with

the filter seal.

Damp the new filter seal with a thin layer of oil.

Hand screw the new filter into place until the seal gasket touches

the support, then lock by a further 3/4 of a turn.

Dispose of the old filter according to current requirements.

Changing the fuel filter

Only proceed with the engine stopped and at a low temperature

Remove the filter by unscrewing it.

Check that the new filter has

performance levels that satisfy the

needs of the engine (e.g. by

comparing them with the old one.

See section on FREQUENCY).

Damp the new filter seal with diesel

or engine oil.

Hand screw the new filter into

place until the seal gasket touches

the support, then lock by a further

3/4 of a turn.

04_006_N

WARNING

Do not fill up the new filter before fitting it to the support, to avoid

introducing harmful impurities into the injection system and circuit.

CAUTION!

Do not attempt to bleed in any way, as this is

unnecessary and extremely dangerous, and also, if the

high pressure circuit connectors are loosened there will

be negative effects on start-up of the engine.

04_351_N

ENGLISH

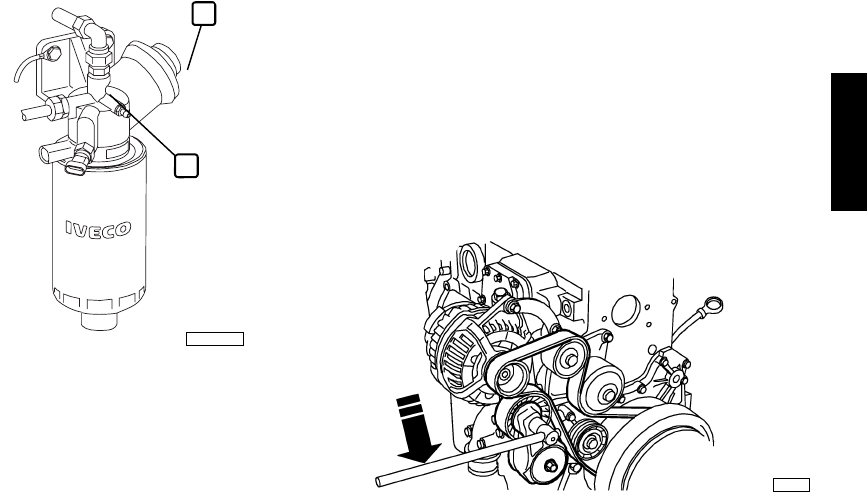

Changing the fuel pre-filter

Only proceed with the engine stopped and at a low temperature

Remove the pre-filter by

unscrewing it.

Check that the new filter has

performance levels that satisfy

the needs of the engine (e.g. by

comparing them with the old

one).

Damp the new filter seal with

diesel or engine oil.

Hand screw the new filter into

place until the seal gasket

touches the support, then lock

by a further 3/4 of a turn.

Loosen the bleeder screw (2)

on the pre-filter support and

activate the hand pump (1)

until the supply circuit is full. Ensure that any fuel coming out is not

dispersed into the environment.

Lock the bleeder screw tightly.

Start the engine and run it at minimum speed for a few minutes to

eliminate any residual air.

NOTE: should it be necessary to accelerate the bleeding phase, the

hand pump can be used during start-up.

Check tension and state of the auxiliary member

drive belt

Only proceed with the engine stopped and at a low temperature, so as

to avoid the risk of burning.

Remove the casing protecting the pulleys.

Check that the pulleys are not torn or worn, and that there are no

lubricants or fuel on them. If this is not the case, replace them.

At the same time, make sure that the tensioning device is working

properly, proceeding as indicated in the figure.

Replace the guard casing in its housing, and lock all the seal

elements.

04_361_N

74178

Replace coolant

Only proceed with the engine stopped and at a low temperature, so as

to avoid the risk of burning.

Provide suitable containers to ensure that no coolant is dispersed

into the environment.

Remove the plugs on the circuit components and wait until the

circuit has drained completely (the location of plugs is given in the

section ENGINE TECHNICAL DATA). After emptying, replace the

plugs in their housings, making sure that the seal rings are all

undamaged.

Fill up the circuit as indicated in the table REFUELLING.

Bleed the circuit and top-up if necessary.

Change oil vapour filter (figure on page 30)

Only proceed with the engine stopped and at a low temperature, so as

to avoid the risk of burning.

Unfasten the screws and remove the cover (5) to the filter

compartment.

Remove the two filters, and dispose of them according to current

requirements.

Insert the new filters and replace the cover.

Drain/suck condensation from fuel tank/s

Inspect sea chest

Check sea water pump rotor

Clean heat exchangers

Clean the turbocharger

Adjust play in valves-rocker arms

The method used to change the oil in the marine gear is indicated in the

relevant documentation supplied by the Manufacturer of the marine

gear itself.

WARNING

The operations listed below must only be carried out by qualified

staff from the IVECO MOTORS Service Centres or by staff from the

Boatbuilders.

The methods used to perform them are described in the Technical

and Repair Manuals.

ENGLISH

MOVING THE ENGINE

The operations necessary to embark and disembark the engine must

only be carried out by technicians from Authorised Service Centres.

When lifting the engine only, use the U-bolts indicated in this manual

in the section ENGINE TECHNICAL DATA and marked on the engine

with special stickers.

Lifting must be carried out using a rocker arm that keeps the metal

cables supporting the engine parallel, using all the U-bolts provided

simultaneously; the use of a single U-bolt only is not allowed.

The engine lifting system must have a capacity and size suited to the

weight and dimensions of the engine; check that there is no interference

between the lifting system and the engine components.

Do not lift the engine before removing the transmission members that

are coupled to it.

DISPOSAL OF WASTE

The engine is made up of parts and elements that, if discarded, may

cause damage to the environment.

The materials listed below must be handed over to specialised

Collection Centres; the laws in force in the various Countries foresee

severe penalties for transgressors:

Starter batteries.

Used lubricants.

Mixtures of water and antifreeze.

Filters.

Additional cleaning materials (e.g. greasy or fuel-soaked cloths).

 LONG PERIODS OF INACTIVITY

PREPARING THE ENGINE FOR A LONG

PERIOD OF INACTIVITY

In order to prevent oxidation of the internal parts of the engine and of

certain components in the injection system, when the engine is

expected to be inoperative for periods of more than two months, the

following operations must be carried out in preparation for this:

1. Drain the lubricant from the sump, after first warming up the

engine.

2. Fill the engine with protective oil type 30/M (or alternatively oil that

complies with MIL 2160B type 2 specifications), up to the

"minimum" level indicated on the dipstick. Start the engine and keep

it running for approximately 5 minutes.

3. Drain the fuel from the injection circuit, from the filter and from the

injection pump pipes.

4. Connect the fuel circuit to a tank containing CFB (ISO 4113)

protective fluid, and feed in the fluid by putting the circuit under

pressure and running the engine for approximately 2 minutes, after

first disabling the injection system. This operation can be performed

by polarising terminal 50 of the starter motor with a positive

voltage equivalent to the rated voltage of the system, using a

conductor provided for that purpose.

5. Nebulise approximately 60 g of 30/M protective oil (10 g per litre

displacement) into the turbocompressor suction inlet, during the

pressurised filling operation described in the previous point.

6. Close all the suction, delivery, ventilation and bleeder openings in

the engine with suitable plugs, or seal them with adhesive tape.

7. Drain the residual 30/M protective oil from the sump. This oil can

be used again for a further 2 preparation operations.

8. Fit signs reading ENGINE WITHOUT OIL to the engine and to the

on-board control panel.

9. Drain the coolant, if it has not been mixed with suitable antifreeze

and corrosion inhibitors, and affix a sign to indicate the fact.

In the event of prolonged inactivity, the operations described must be

repeated every 6 months, following the procedure given below:

A) drain the 30/M protective oil from the sump;

B) repeat the operations described from point 2 to point 7.

Should you intend to protect external parts of the engine, proceed by

spraying OVER 19 AR protective liquid on unpainted metal parts, such

as the flywheel, pulleys and the like, avoiding belts, connector cables and

electrical equipment.

ENGLISH

RESTARTING THE ENGINE AFTER A LONG

PERIOD OF INACTIVITY

1. Drain the residual 30/M protective oil from the sump.

2. Fill the engine, as prescribed, with lubricant of the type and amount

indicated in the table REFUELLING.

3. Drain the CFB protective fluid from the fuel circuit, carrying out this

operation as indicated under point 3. of PREPARING THE

ENGINE FOR A LONG PERIOD OF INACTIVITY.

4. Remove the plugs and/or seals from the suction, delivery,

ventilation and bleeder openings in the engine, restoring it to a

normal state of use. Connect the turbocharger suction inlet to the

air filter.

5. Connect the fuel circuits to the vessel’s fuel tank, completing the

operations as indicated in point 4. of PREPARING THE ENGINE

FOR A LONG PERIOD OF INACTIVITY. During filling operations,

connect the fuel return pipe to a collection tank, so as to prevent

any residual CFB protective fluid from flowing into the vessel’s fuel

tank.

6. Check the engine and fill it up with coolant as prescribed.

7. Start the engine and keep it running until the idling speed rate has

stabilised completely.

8. Check that the instruments on the on-board control panel/s are

showing plausible values, and that no alarms are shown.

9. Stop the engine.

10.Remove the ENGINE WITHOUT OIL signs from the engine and

from the on-board control panel.

 ENGINE MALFUNCTIONS

The electronic unit overseeing management and control of all operation

of the engine is capable of recognising any malfunctions that may occur,

and of adopting strategies that will allow you to navigate in full safety.

The event, signalled by light-up of the EDC MALFUNCTION indicator

on the on-board control panels, results in programmed limitation of

power within certain thresholds, set according to the severity of the

case.

In the case of temporary malfunctions the reduction in performance will

remain in force until the engine is stopped.

Accelerator electronic circuit malfunction

When certain problems in the accelerator electric circuit are recognised,

the Electronic Unit controlling the engine adopts a strategy known as

“accelerated minimum speed running”, that will enable navigation to

continue in emergency mode.

The possible operating modes are as follows:

A. The accelerator lever does not “respond”: the running speed

stabilises at 750 rpm. to allow the vessel to proceed slowly and be

manouevered simply by turning the marine gear on and off, with-

out accelerating.

B. The accelerator lever “responds partially”: the minimum running

speed is set to 750 rpm. When the accelerator lever is moved to

approximately half way, the speed gradually increases up to 2000

rpm.; when the lever is returned to minimum the speed rapidly

decreases to 750 rpm.

NOTE: In mode “A” it is possible to proceed at speeds higher than the

accelerated minimum, managing start/stop, acceleration and

deceleration functions as illustrated in the section MANAGING THE

ENGINE FROM THE RELAY BOX. Should it be necessary to operate

the engine as above, always comply with the accident

prevention rules provided in the Section “Controls and

maintenance.

CAUTION!

The engine electronic control unit can adopt safety

strategies at any time during navigation, should

conditions arise that are considered to put the engine

at risk.

When conditions of this kind occur, proceed with the

greatest possible care and attention, first making sure

that all those on board are secure and holding on to

safe hand-holds.

CAUTION!

Management of the engine from the “Relay box”

involves inhibition of the bridge controls; as a result of

this, when running the vessel from the bridge, the

only way to stop propeller thrust in the engine

quickly is using the marine gear disengagement lever.

ENGLISH

 EMERGENCIES ON BOARD

The user of a vessel that has been constructed according to safety

regulations, when following the instructions provided in this manual and

the indications given on the engine labels, will be working in safe

conditions.

Should improper conduct result in accidents, always request the

intervention of trained first aid specialists immediately.

In an emergency and while awaiting the arrival of first aid specialists,

follow the instructions given below.

Engine malfunctions

When navigating with a malfunctioning engine, take the greatest possible

care when manouevering and make sure that all those aboard are

holding firmly to safe hand-holds (see section on ENGINE

MALFUNCTIONS).

In case of fire

Extinguish the fire using the fire-fighting equipment provided aboard, and

in the manner indicated by Fire prevention authorities (the fire-fighting

equipment required on board is compulsory under current safety

legislation).

Burns and scalds

1. Extinguish any flames on the burned person's clothing, by:

• throwing water over them;

• using a powder fire-extinguisher, without directing the jet at the

person's face;

• covering with blankets or rolling the victim on the ground.

2. Do not attempt to remove pieces of clothing that may have stuck

to the skin;

3. In the case of scalding, immediately but carefully remove any

clothing that may be soaked in the hot liquid;

4. Cover the burn with a special burn dressing or sterile bandage.

Carbon monoxide intoxication (CO)

Carbon monoxide from the engine exhaust is without smell, and is

dangerous both because it causes intoxication, and because when

combined with air it forms an explosive mixture.

In closed rooms, carbon monoxide is extremely dangerous, as it can

reach critical concentrations within a very short time.

When assisting an intoxicated person in a closed room:

1. Ventilate the room immediately, to reduce the concentration of

gas.

2. When entering the room, hold your breath, do not light flames,

lights or ring electric doorbells or phones, to avoid the risk of

explosion.

3. Carry the intoxicated person out into the fresh air or into a well

ventilated room, resting him on one side if he is unconscious.

Electrocution

The engine's electrical 12 V or 24 V electrical system does not involve

the risk of electrocution, however, in the event of a short-circuit caused,

for example, by a metal tool, there is a risk of burning due to overheating

of the object through which the electrical current runs. In these

circumstances:

1. Remove the object that caused the short-circuit, using means that

provide sufficient heat insulation.

2. Switch off the power at the main switch, if there is one.

Injuries and fractures

The vast number of possible circumstances and the specific nature of

operations required means that the intervention of a medical team is

necessary.

1. In the event of bleeding, keep the edges of the wound pressed

together until help arrives.

2. If there is any suspicion of a fracture, do not move the injured part

and only move the patient if absolutely necessary.

Caustic burns

Caustic skin burns are caused by contact with extremely acid or alkaline

substances.

For electric maintenance technicians these are typically caused by acid

from batteries; in these circumstances, proceed as follows:

1. Remove any clothing soaked in the caustic substance.

2. Wash the area with lots of running water, avoiding parts that have

not been burned.

If either battery acid, lubricants or diesel come into contact with the

eyes: wash the eyes with water for at least 20 minutes, keeping the

eyelids open so that the water flows over the eyeball (move the eye in

all directions to wash more thoroughly).

ENGLISH

   

6$(:

6$(:

6$(

6$(

6$(:

6$(:

6$(:

6$(:PLQHUDOEDVH

6$(:VHPLV\QWKHWLFEDVH

6$(:VHPLV\QWKHWLFEDVH

6$(:V\QWKHWLFEDVH

6$(:V\QWKHWLFEDVH

              &

)

                 

Iveco N60 Ent M37 Users Manual N4 N6 MARINO ELET_ENG

Navigation menu

Versions of this User Manual:

Views

Navigation
