Engineering Bulletin EBA-2008-11 ECS Software Version 5.10
Feature Descriptions and Installation Guide
59
Optional Equipment Installation
Follow the instructions below to install IX-5930 and IX-5910 Optional Equipment:
IX-59BTINF Bluetooth Headset Adapter Installation
(The IX-5810 Digital Key Telephone requires the IX-58BTINF)
This unit allows the connection of an IX-5930 or IX-5910 IP Key Telephone to a Bluetooth
headset.
To add an IX-59BTINF unit to an IX-5930 or IX-5910 IP Key Telephone:
1. Turn the IX-5930/IX-5910 Telephone so that the bottom (pedestal) of the telephone is facing
up and disconnect all cords (Headset and Handset).
2. Using a Phillips head screwdriver, remove the six screws from the bottom of the IX-5930/IX-
5910 Telephone. Carefully, place the screws aside.
3. With the six screws removed, separate the upper and lower housing from the telephone.

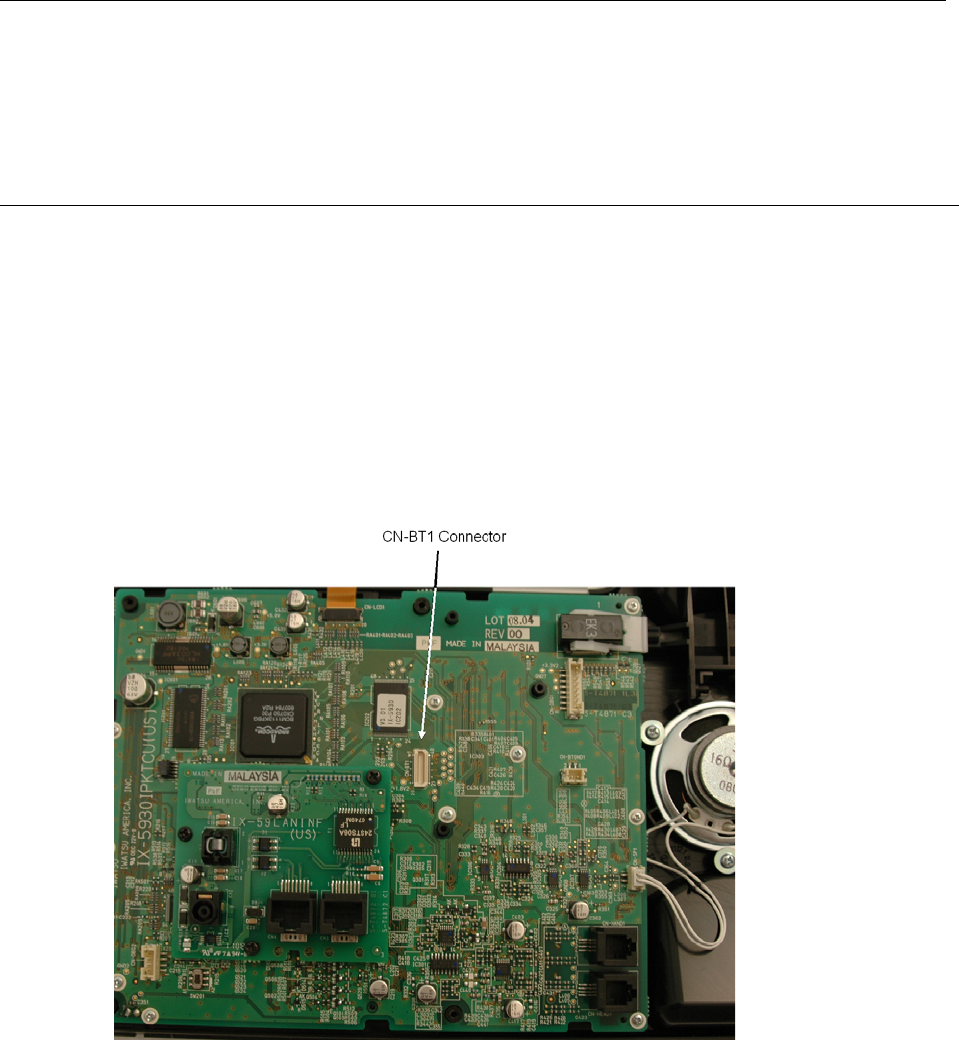

4. Insert the IX-59BTINF CN902 connector into the CN-BT1 connector on the IX-5930
motherboard (IX-5930IPKTCU) or the IX-5910 motherboard (IX-5910IPKTCU).
![](/img.php?id=1005865&img=bg2.png)
Engineering Bulletin EBA-2008-11 ECS Software Version 5.10
Feature Descriptions and Installation Guide
60

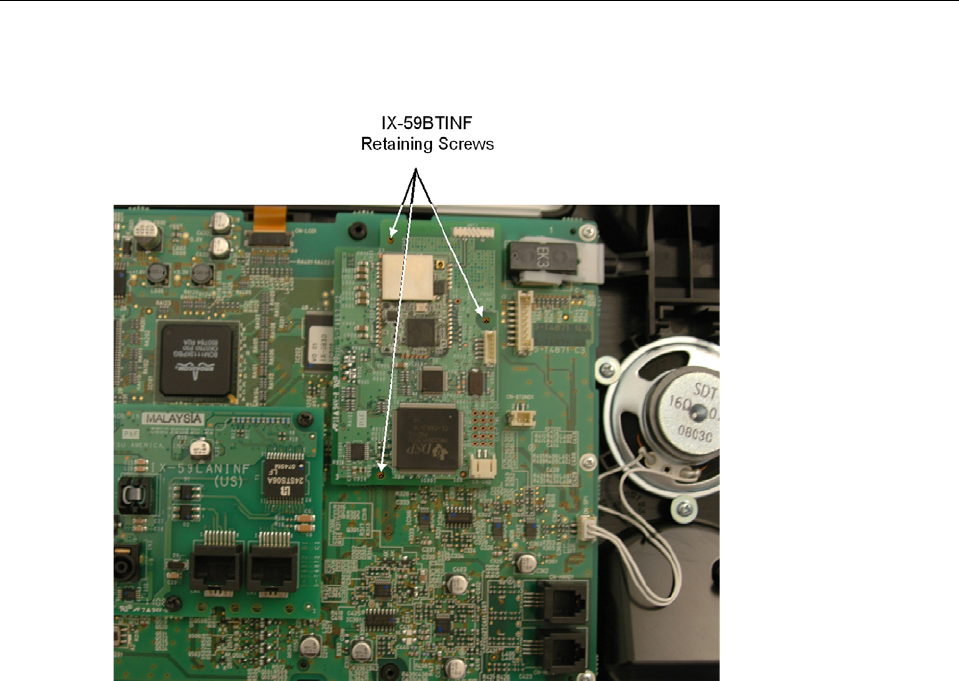

5. When the IX-59BTINF board is connected, insert the three retaining screws (provided with the
IX-59BTINF) to secure the IX-59BTINF to the IX-5930IPKTCU/ IX-5910IPKTCU
motherboard.
6. Reattach the top and bottom sections of the telephone using the Phillips head screws set aside
from the second step.
7. Reconnect all cords.
NOTE: For instruction on pairing and connecting Bluetooth Headsets please see Bluetooth Headset Setup
on page 88.
