BH-1000 Bluetooth Headset of User Manual
Overview
Any device that you want to use with the Bluetooth Headset has to be compatible with Bluetooth
wireless technology and support the Headset Profile.
To be able to use the Headset together with a mobile phone, you need to have a phone with built-in
Bluetooth capability, or another Bluetooth audio gateway connected to it.
Putting On the Headset. Ear hook
①
Microphone
1. Put on the Headset with the ear hook behind your ear.
2. Make sure the microphone is pointing towards your mouth.
②
Pairing the Headset
Before you start using the Headset for the first time, you must pair the Headset with the device you
want to use it with, for example a mobile phone.
-Before you start pairing, you must reset the Headset. And then Headset will go to pairing mode.
1. Press the three keys, Volume Up, Down and Talk button simultaneously with the Headset
turned on.
To ensure, press the keys (Up, Down and Talk button) in 2 or three times.
Up
Talk ON/OFF
Dow
2. Wait until hear a short melody tone and then turn the Headset off.
3. After 1 or more seconds, Turn the Headset on.
-Using a mobile phone with built-in Bluetooth capability
1. You pair the Headset with your phone by adding it to a list of paired devices in the phone.
They then recognize each other when they connect.
2. To pair the Headset with the phone, refer to manual which provided mobile phone provider.
NOTE: The Headset passkey is 1234
Making call and Receiving Calls.
Once you have paired the Headset with your Bluetooth Audio-gateway, you can make and receiving
calls using the Headset as long as it is turned on and within range of the phone (up to 10m/ 30ft.
with no solid objects in the way)
In connection with making and receiving calls you press the Headset Talk button to
. Make a call
. Answer a call
. End a call
. Transfer the sound from the phone to the Headset.
Making Call
To make a call using the phone keys
1. Make sure the phone and the Headset are on and within range of each other.
2. Enter the number as you normally would.
3. With an Ericsson, Motorola or other phones with built-in Bluetooth capability:
When the call has been set up, transfer the sound to the Headset by pressing the Headset
Talk button.
4. To end the call, press the Headset Talk button.
Answering Calls
To answer a call using the Headset Talk button
1. When the phone rings, press the Headset Talk button once.
you can hear melody(short).
2. End the call by pressing the Headset Talk button, At this time also you can hear different
melody(long) from calling melody.
![](/img.php?id=293037&img=bg3.png)
Adjusting the Volume
You can adjust the volume in the Headset earpiece via either the Headset volume buttons or by
using the phone.
To changing the listening volume using the phone
1. Use the volume control keys as you normally would
To changing the listening volume using the Headset earpiece
1. Use Up key to increase the volume, or Down key to decrease the volume.
Charging
The Headset(BH-1000) comes with a built-in rechargeable battery(Li-Polymer).
The batteries are not fully charged when you buy the Headset and we recommend that you charge
the Headset until the indicator light turns green before using these for the first time.
Indicator not use

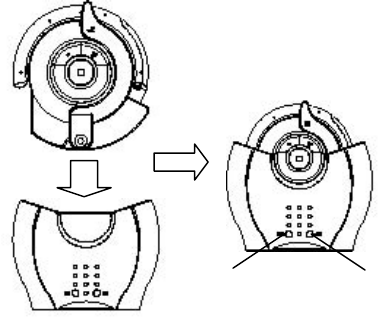

How to charge the Headset
1. Connect AC/DC Adapter(power supply) to
the cradle.
2. Put the Headset into the cradle to
charge it. The cradle indicator light(HD)
flashes green. If the battery is low,
the light flashes red.
Battery Information
The battery delivered with your Headset and Audio-gateway are not fully charged. We recommend
that you fully charge these before you use these for the first time.
* Notice1 : The changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
* IMPORTANT NOTE : To comply with the FCC RF exposure compliance requirements, no
change to the antenna or the device is permitted. Any change to the antenna or the device could
result in the device exceeding the RF exposure requirements and void user’s authority to operate
the device.
FCC INFORMATION
The Federal Communication Commission Radio Frequency Interference Statement
includes the following paragraph:
The equipment has been tested and found to comply with the limits for a Class B Digital
Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction, may cause harmful interference to radio communication. However, there is no grantee
that interference will not occur in a particular installation. If this equipment dose cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
The user should not modify or change this equipment without written approval Form J
communications Co., Ltd. Modification could void authority to use this equipment.
