Introduction
Congratulations and thank you for purchasing the Bluetooth Headset.
The Headset features the breakthrough Bluetooth wireless technology
that lets you createefficient communications with your Bluetooth
technology-enableddevice. Please review this manual carefully to
ensure you get themost from your product.
Product Features
The Bluetooth Headset is compliant with Bluetooth standard version 1.1
and provides:
Support for the Headset and Hands-Free Profiles:
Compatibility with Bluetooth technology-enabled devices
Built-in security: up to 128-bit encryption and authentication
1
3
2
Introduction
System Requirements
Compatible with all Bluetooth v1.1,
including, but not limited to:
Sony Ericsson T610, T616, T618, T68i, P800
Nokia 3650, 3600, 6310, 6310i, 8910, 8910i, 6600, N-Gage.
Philips FisioR 820, 825
Ericsson T39m, T68m
Package Contents
Bluetooth Headset
5V DC, 300mA Power Supply
User Manual
Specifications
Model: BA-2011-J
Bluetooth Compliance: Version 1.1
Operating Frequency: 2.4 to 2.4835GHz
Spread Spectrum: FHSS (Frequency Hopping Spread Spectrum)
Modulation: GFSK (Gussian Frequency Shift Keying)
RF Output: 0 dBm, Class 2
Sensitivity: < 0.1% BER at -81 dBm
Frequency Stability: +/- 10PPM
Operation Range: 10m (33 ft.)*
Design: Left and right ear
Battery: Rechargeable lithium polymer Battery
Supported Profiles
Supported Profiles
The services supported by your Headset are defined as "Profiles".
Available Profiles include:
Hands-Free
Headset
4
Specifications
Antenna: Integrated, 0 +/- adbi
LED Indicator: Power/Pairing
Charger: 5.0V DC, 300mA
Typical Power Consumption: TX: 150mA, Rx 80mA
Dimensions: 64mm (L) x 24mm (W) x 21mm (H)
Weight: 21 grams
* 10m range is dependent upon environment, number of users, and
other wireless devices within immediateproximity.Specifications are
subject to change without notice.
5
1
1
2
2
3
5
6
8
11
22
25
8 9
10 11
12 13
6 7

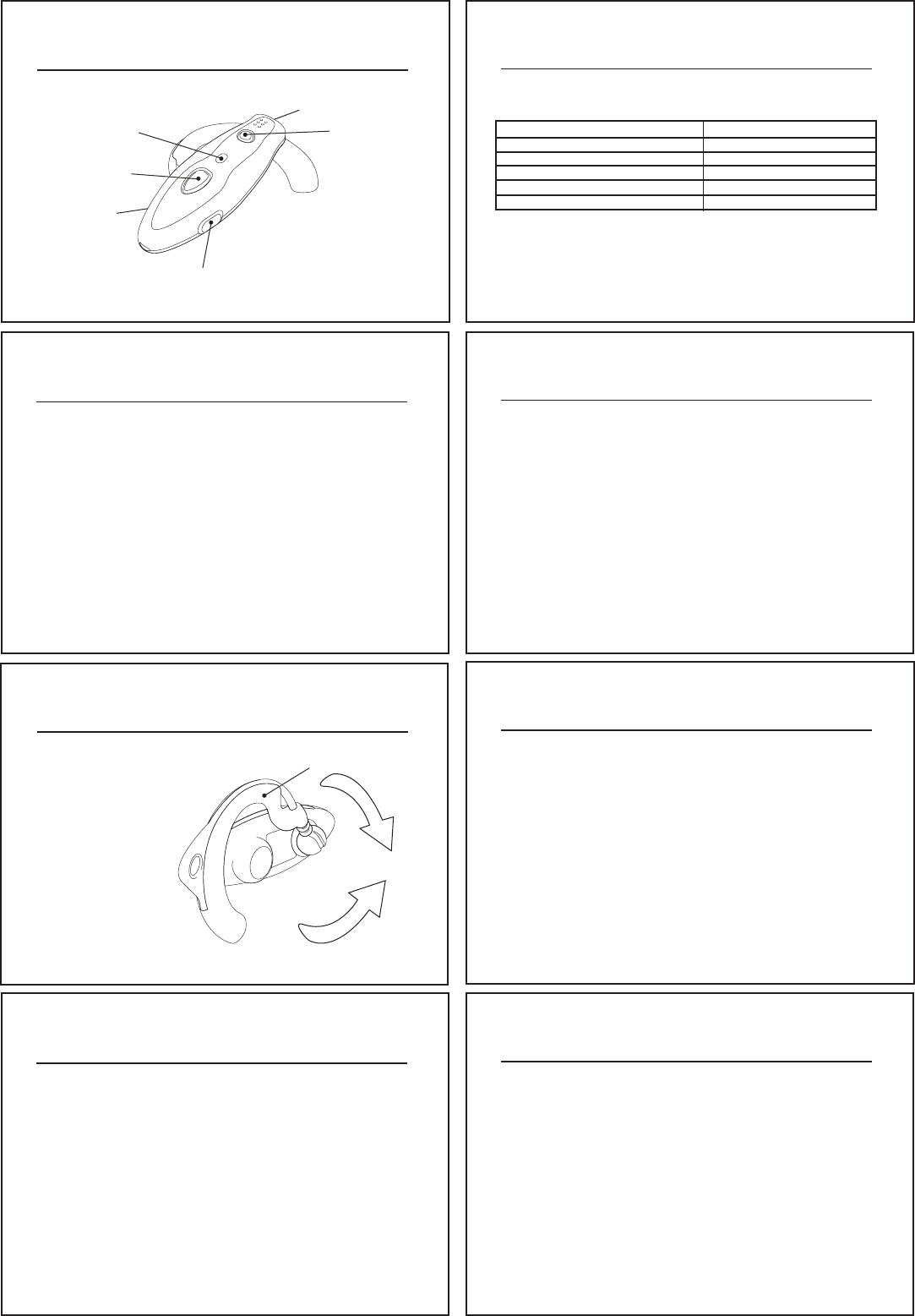

Getting to Know your Hands-Free Headset
LED Window
Talk / End
Power On-Off
Volume up
Volume down
Pairing
Ear Hook
DC Plug
Mute
Status Indicators
Status Indicators
LED:
5 quick blue flashes
5 quick red flashes
Continues blue/red flashing
Flashes blue once every 3 seconds
3 quick blue flashes every 3 seconds
Status:
Headset is being turned on
Headset is being turned off
Headset is in pairing mode
Headset is paired but not active
Headset paired and active
Before you Begin
Warning:
The Bluetooth Hands-Free
Headset and charger have magnets
in them that allow them to dock with
each other. Keep magnets at least two
feet away from computer hard drives,
and other magnetic storage media,
monitors, televisions, VCRs, videotapes,
cameras, camera film, and credit
cards, as the magnets may corrupt or
destroy stored data.
Before you Begin
Charge your Headset
Your Bluetooth Headset is equipped with a rechargeable
lithium polymer battery and must be charged prior to use.
1. Plug one end of the power adapter into the Headset and
the other end into an available electrical outlet.
2. The charging indicator on the charger will illuminate red.
3. Charge the Headset until the red charger indicator light goes out
(approximately two hours).
Note: The red indicator light will be on while the Headset is charging
and will turn off when charging is complete.
Before you Begin
Adjust the Earpiece
The earpiece was designed
to comfortably fit around the
left or right ear.
Pairing to a Bluetooth Technology-Enabled Phone
For specific instructions to pair your phone, find your model on the
following pages or refer to your mobile telephone user guide.
Note: For security purposes, the Headset will remain in pairing mode
for 60 seconds. If the paring process is not completed within 60
seconds, repeat the entire pairing procedure.
Pairing to a Bluetooth Technology-Enabled Phone
Pairing Process for Nokia 6310 and 6310i
1. Ensure that your Headset is turned off.
2. Press and hold down the Power button. After approximately eight
seconds, the blue light will flash five times, indicating the Headset
is powered on. DO NOT RELEASE THE BUTTON until you
see an alternating blue and red light. This indicates the Headset is in
pairing mode.
3. Select "Menu" and then go to "Bluetooth".
4. Make sure your Bluetooth capability is turned ON.
5. Scroll down to "Search for Audio Accessories".
6. Your phone will find the Headset and list it under
"Found Devices".
Pairing to a Bluetooth Technology-Enabled Phone
7. Select " Headset" to initiate the pairing.
8. Enter the passkey or pin "0000" (four zeros). You should see the
LED lights switch from flashing blue/red to flashing blue every
three seconds.
Your Headset is now ready to use.
Switching
14 15
16 17
18 19
20 21
Pairing to a Bluetooth Technology-Enabled Phone
Pairing Process for Nokia 3650 and N-Gage
1. Ensure that your Headset is turned off.
2. Press and hold down the talk button. After approximately eight
seconds, the blue light will flash five times, indicating the Headset
is powered on. DO NOT RELEASE THE BUTTON until you
see an alternating blue and red light. This indicates the Headset is in
pairing mode.
3. Select "Menu" and then go to the "Tools" folder.
4. Select "Bluetooth".
5. Make sure your Bluetooth capability is turned ON.
6. Scroll to the "Paired Devices" tab and select "Options".
7. Under "Options" select "New Paired Devices".
Pairing to a Bluetooth Technology-Enabled Phone
8. Your phone will search and find the Headset.
9. Select " Headset" to initiate the pairing.
10. Enter the passkey or pin "0000" (four zeros). You should see the
LED lights switch from flashing blue/red to flashing blue every
three seconds.
11. Exit the Menu.
12. On your Headset, initiate a connection to your mobile phone by
pushing the talk button once. After a few seconds you will be
asked on your mobile phone to accept a connection from the
Bluetooth Headset.
Your Headset is now ready to use.
Pairing to a Bluetooth Technology-Enabled Phone
Pairing Process for Sony Ericsson T68i
1. Ensure that your Headset is turned off.
2. Press and hold down the talk button. After approximately eight
seconds, the blue light will flash five times, indicating the Headset
is powered on. DO NOT RELEASE THE BUTTON until you
see an alternating blue and red light. This indicates the Headset is in
pairing mode.
3. Go to the Menu screen for your T68i.
4. Select the "Connect" icon, then select "Bluetooth".
5. Go to "Paired Devices" and "Add a Device".
6. Select "Phone Initiates".
7. Select "Hands-Free" (make sure your Headset is flashing
blue/red).
Pairing to a Bluetooth Technology-Enabled Phone
8. Your phone will find the Headset and list it under
"Found Devices".
9. Select "Headset" to initiate the pairing.
10. Enter the passkey or pin "0000" (four zeros). You should see the
LED lights switch from flashing blue/red to flashing blue every
three seconds.
11. Your Headset is now ready to use.
Pairing to a Bluetooth Technology-Enabled Phone
Pairing Process for Sony Ericsson T610, T616, T618
1. Ensure that your Headset is turned off.
2. Press and hold down the talk button. After approximately eight
seconds, the blue light will flash five times, indicating the Headset
is powered on. DO NOT RELEASE THE BUTTON until you
see an alternating blue and red light. This indicates the Headset is in
pairing mode.
3. Go to the Menu screen for your T610 series.
4. Select the "Connect" icon, then select "Bluetooth".
5. Select "Hands-free Devices".
6. Select "My Hands-free" and "Add a new hands-free device".
7. Your phone will find the Headset and list it under
"Found Devices".
Pairing to a Bluetooth Technology-Enabled Phone
8. Select " Headset" to initiate the pairing.
9. Enter the passkey or pin "0000" (four zeros). You should see the
LED lights switch from flashing blue/red to flashing blue every
three seconds.
10. Your Headset is now ready to use.
Pairing to a Bluetooth Technology-Enabled Phone
Pairing Process for Sony Ericsson P800
1. Ensure that your Headset is turned off.
2. Press and hold down the talk button. After approximately eight
seconds, the blue light will flash five times, indicating the Headset
is powered on. DO NOT RELEASE THE BUTTON until you
see an alternating blue and red light. This indicates the Headset is in
pairing mode.
3. From the application selection screen, select
"Control Panel".
4. Select the "Connections" tab, then select "Bluetooth" from " " the list.
5. Select the "Settings" tab and bring down the "Operation Mode"
drop-down menu.
Pairing to a Bluetooth Technology-Enabled Phone
6. Select "Auto", then select the "Add" button.
7. Once you've done this, the P800 will detect all the discoverable
Bluetooth devices within its range.
8. Once the P800 has detected your Headset, select it, and
when prompted for the passkey, enter "0000" and
select "Done".
9. You have now successfully paired your Bluetooth Hands-Free
Headset with your P800 phone.
10. You may select the "Done" button to return to the Control Panel.
22 23
24 25
26 27
28 29
Using your Heaset
Switching the Headset On and Off
To turn your Headset on, remove the Headset from the Power adapter,
then press and hold the talk button until the LED indicator
flashes blue five times. The LED indicator will flash blue every three
seconds while the Headset is on.
To turn your Headset off, press and hold the talk button until the LED
indicator flashes red five times.
Fitting the Headset
Decide on which side of your head you will wear the Headset, and
using your hand on that side, slide the ear hook gently over and
around your ear in a circular motion. Adjust the ear hook to your ear
by molding it around the contour of your ear.
Using your Heaset
In order to put the Headset on, use a rotating motion around the
center of your ear until the ear hook is completely positioned around
the ear.
Answering a Call
To answer a call, wait until your Headset rings, then press the talk
button once to answer.
Ending a Call
To end a call, press the talk button at any time during a phone call.
Making a Call
To make a call, dial using your mobile phone.
Voice Dialing
If your mobile phone allows voice dialing, push the talk button to
initiate it through your Headset.
Using your Heaset
Switching a Call
To make headset switching to mobile phone, then press the
talk button for 5 seconds.
Volume Control
To increase the volume on the Headset, push the volume button.
To decrease the volume on the Headset, push the button.
Information
Regulatory Notices
To identify this product, refer to the part or model number on the
product label.
Federal Communications Commission Notices
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However,
Information
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
* Increase the separation between the equipment
and receiver.
* Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
* Consult the dealer or an experienced radio/TV technician
for help.
Information
Modifications
The FCC requires the user to be notified that any changes or
modifications made to this device that are not expressly approved
by the manufacturer may void the user's authority to operate
the equipment.
European Community Notice
Hereby, BA-2100J that Bluetooth Headset is in compliance with the
essential requirements and other relevant provisions of Directive
1999/5/EC.
Information
Products bearing the CE marking comply with the R&TTE Directive
(1999/5/EC), EMC Directive (89/336/EEC), and the Low Voltage
Directive (73/23/EEC) issued by the commission of the European
Community Compliance with these directives implies conformity to
the following European Norms (in parentheses are the equivalent
international standards and regulations):
* EN 60950 (IEC60950) - Product Safety
* ETS 300 328 - Technical requirements for radio equipment
* EN 301 489-17 - General EMC requirements for
radio equipment
This product may be used in all EU and EFTA countries.
Information
Wireless Notice Wireless Notice
In some situations or environments, the use of wireless devices may
be restricted. Such restrictions may apply aboard airplanes, in
hospitals, near explosives, in hazardous locations, etc. If you are
uncertain of the policy that applies to the use of this device, please
ask for authorization to use it prior to turning it on.
30
Information
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
. Consult the dealer or an experienced radio/TV technician for help.
31
Information
FCC Caution :To assure continued compliance, any changes or modifications
not expressly approved by the party responsible for compliance could void the
user's authority to operate this equipment. (Example - use only shielded interface cables when
connecting to computer or peripheral devices).
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause undesired operation.

Navigation menu
