APPENDIX I: MANUAL
Please refer to the following pages.
Quality Motorcycle Audio

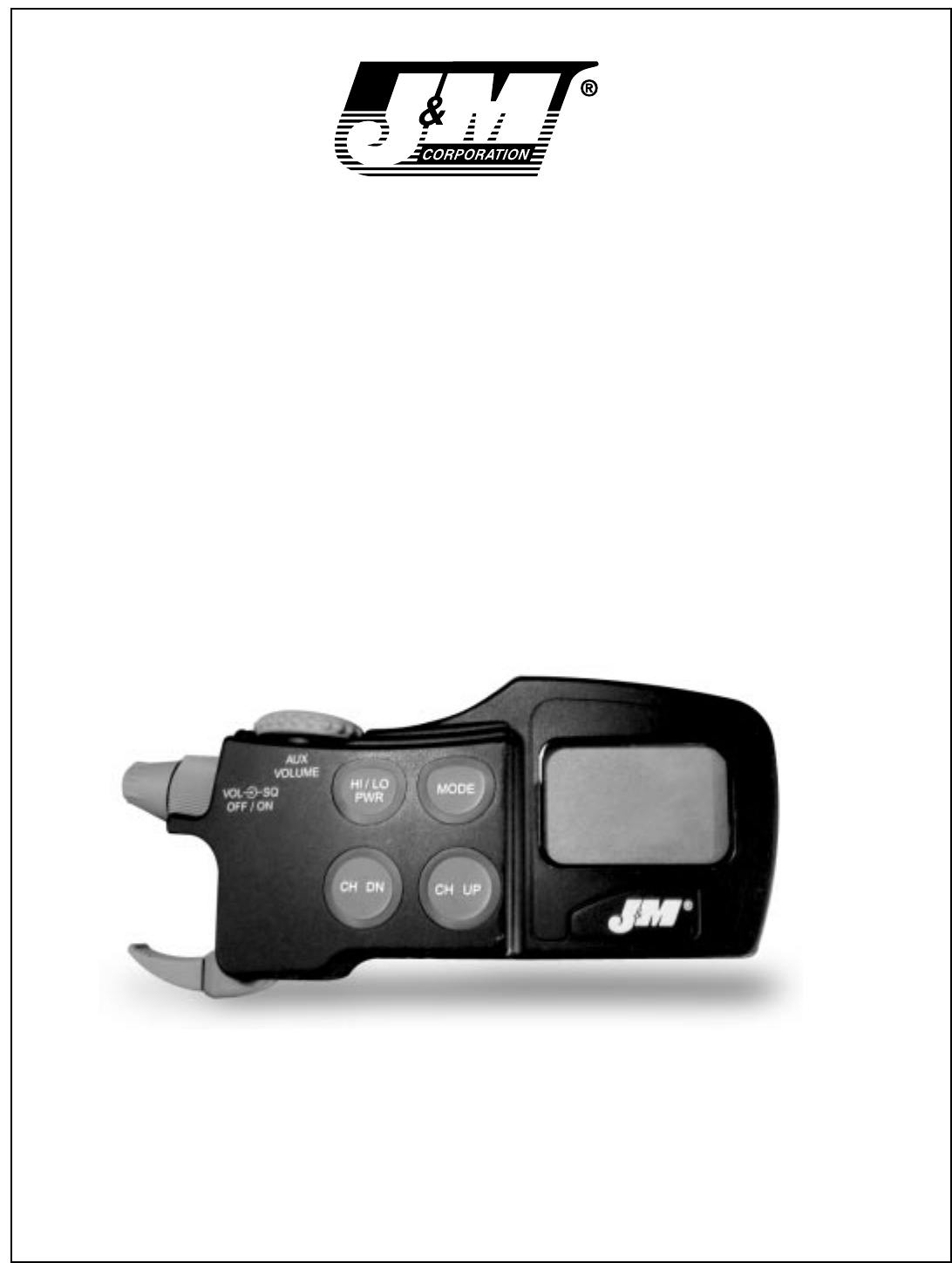

JMCB-2003
Handlebar-mounted 40 Channel
Citizen’s Band Transceiver (CB)/
Weather Radio with Rider-Passenger Intercom
and Auxiliary Audio Input
Owner’s Manual
© COPYRIGHT 2003 J&M CORPORATION. ALL RIGHTS RESERVED
Table of Contents
Product Description Section 1.
FCC Regulations Section 2.
Performance Features Section 3.
Package Contents Section 4.
Controls and Functions Section 5.
Installation Instructions Section 6.
Operation Instructions Section 7.
Antenna Information Section 8.
CB Channel Frequency Chart Section 9.
Specifications Section 10.
Warranty Statement Section 11.
2. FCC Regulations
You do not need an FCC license to operate this radio in the United States. However, you
must know and be familiar with Part 95 of the FCC Rules in regard to Subpart D of the
Citizen’s Band Radio Service, a copy of which is enclosed in the JMCB-2003 packaging.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
1. Product Description
The JMCB-2003 is a compact Citizen’s Band radio designed to operate in the 26.965
MHz to 27.405 MHz band. This lightweight unit also features rider-to-passenger
intercom, an auxiliar y audio input for an audio source such as an MP-3 player, and ten
weather channels, consisting of seven NOAA frequencies and three international marine
frequencies.
3. Performance Features
• Maximum legal RF output Power (4W) with high-level modulation (in accordance
with FCC Part 95 rules).
• Radio receives current National Weather Service broadcasts on one or more of
seven separate frequencies and periodic marine weather information on three
separate frequencies.
• Hi/Lo TX Power selection button
• Built-in automatic gain control (AGC)
• Phase locked loop synthesizer provides clear voice transmission and reception
on all CB channels
• Integrated rider-passenger intercom
• Auxiliary audio input (stereo)
4. Package Contents
• CB unit JMCB-2003
• 12V Power harness
• Headset connection cables
• Auxiliary audio input cable
• Owner’s manual
• Copy of FCC Part 95, Subpart D
• Copy of NOAA Weather Network frequency list

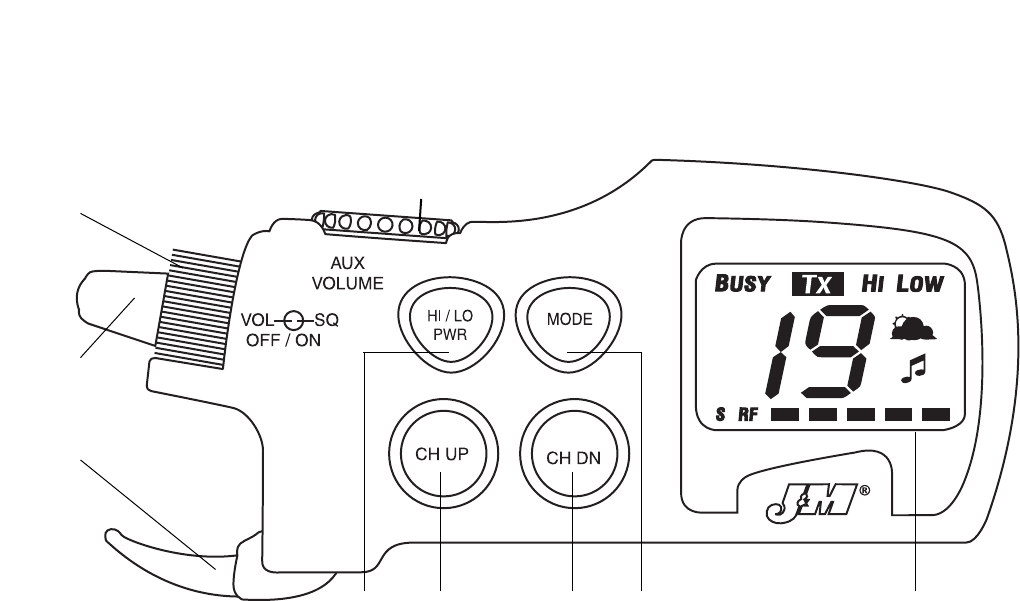

5 Controls and Functions
A. Auxiliary Audio Volume—Controls auxiliary audio/input volume to the headsets.
B. Squelch Control—Allows CB background noise to be eliminated when no signal is present.
C. On/Off CB and Intercom Volume Control—In the inward position the knob turns the
entire unit on and off and controls the CB volume. In the pulled-out position, the knob
controls the intercom volume.
D. Push-To-Talk Lever—Activates CB radio transmission mode.
E. Hi/Lo Power Selector Button—Controls CB TX power level.
F. Channel Up—Selects any one of the 40 channels available on the CB radio. It is
also used to select any one of the 10 weather channels in the Weather Mode.
G. Channel Down—Selects any one of the 40 channels available on the CB radio. It is
also used to select any one of the 10 weather channels in the Weather Mode.
H. Mode—Used to select CB channels, weather channels or keypad beep.
I. LCD Display—Identifies CB or weather channe, Tx (transmit), Wx (weather mode), and
signal/power strength.
A.
B.
C.
D.
E. F. G. H. I.

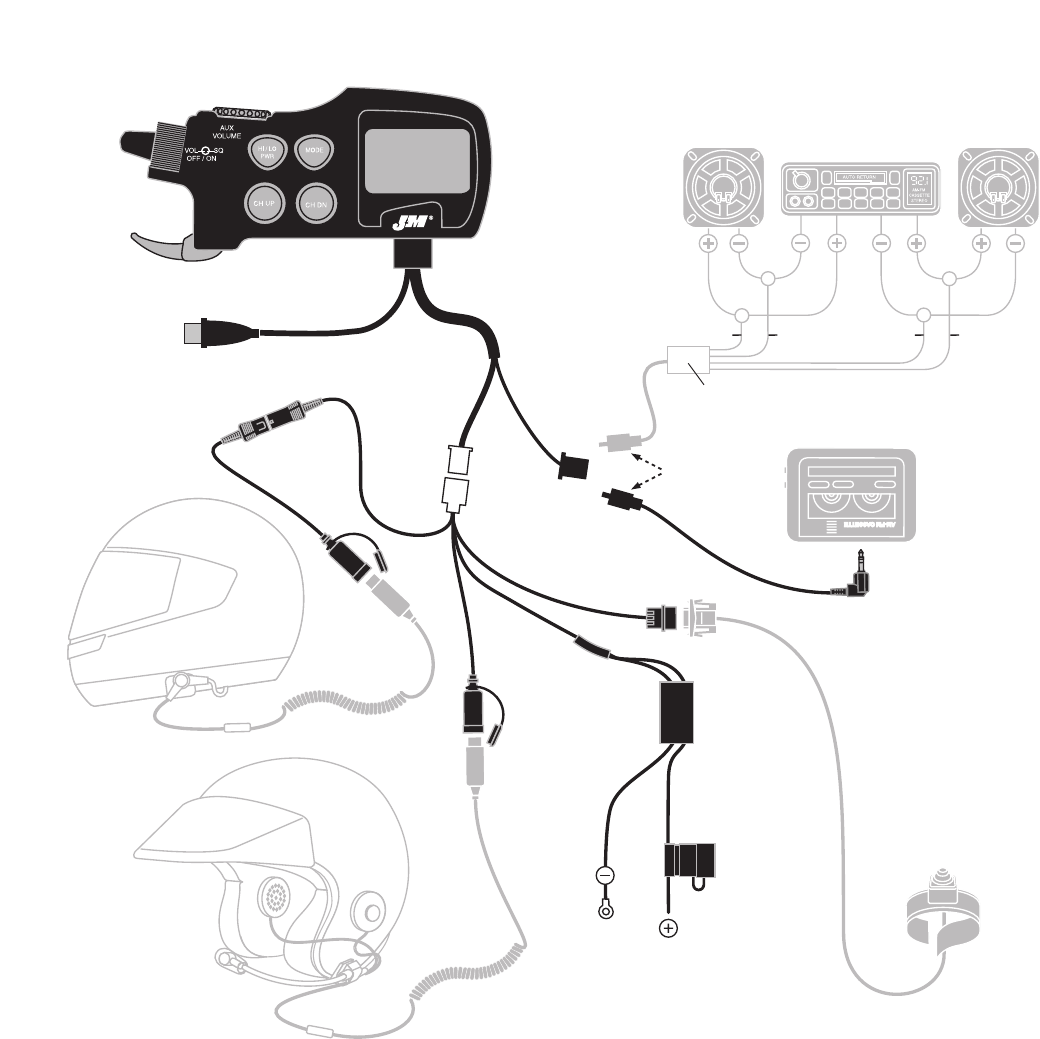

J. Helmet Headset Plugs—Allows hookup to J&M helmet headsets.
K. 12V DC Power Cord—Provides power and ground for the JMCB-2003.
L. PL-258 Connector—Antenna connector for a rear-mounted CB antenna.
M. 3-Pin Connector—Connects auxiliary audio input to a Walkman®-type music device
or other type of stereo radio system.
N. Auxiliary Audio Cable—Connects to a Walkman®-type music device.
to
rear-mounted
CB antenna
(not included)
personal
stereo/CD/
MP3/cassette
music device
(not included)
optional
passenger
CB transmit switch
J&M #PCS-485
(not included)
automotive-type radio adapter
J&M #FGA-290
(not included)
black
3-pin plug
ground to
frame
fuse
holder
inline
noise
filter
12 volt switchable
Left speaker
(not included) Right speaker
(not included)
Fairing mounted
radio or booster amp
(not included)
WHITE WHITE / REDRED
RED / WHITE
OR
black
3-pin
plug
white
9-pin
plug
female
6-pin din
6-pin
locking din
6-pin din
driver's
helmet headset
(not included)
passenger's
helmet headset
(not included)
J.
J.
K.
L.
M.
N.
6. Installation Instructions
1) Mount the JMCB-2003 to the left handlebar using the mounting bracket kit that is
applicable to your specific make and model of motorcycle. (Mounting Bracket Kits are
sold separately.)
2) Route the wires from the CB radio down the handlebar. Plug in the white 9-pin plug
from the supplied wiring harness. Connect the power wire (red) to a switchable power
source or accessor y terminal so that the unit is automatically turned off when the igni-
tion is turned off. Connect the black wire to a frame ground (not to the battery nega-
tive). If it becomes necessary to replace the fuse, use a 5 amp fuse for the red wire.
3) Connect the black 3-pin plug to the auxiliary audio cable and route the cable to the
auxiliary audio source.
4) Route all other cables where desired and hook them up according to the wiring dia-
gram.
5) Secure all wires and cables with the zip ties provided.
7. Operation of the JMCB-2003
1) With a helmet headset connected to the JMCB-2003 turn the ignition switch to the
ON position.
2) Rotate the SQUELCH knob on the JMCB-2003 fully clockwise.
3) Adjust the OFF/ON CB volume knob to a comfortable volume level and select the
desired CB channel.
4) Rotate the SQUELCH knob counterclockwise until the background noise is removed.
5) Plug in your auxiliary audio/music device and adjust the AUX VOL control on the
JMCB-2003 fully clockwise to maximum volume. Adjust the volume on the auxiliary
audio source to a maximum level just before distortion and then adjust the AUX VOL
control on the JMCB-2003 down to comfortable level. Further volume adjustments
while riding should be made with the CB mounted AUX VOL control only.
6) The intercom volume can be adjusted by pulling out the CB VOL OFF/ON knob.
Turning the knob clockwise will increase the intercom volume. When the intercom has
been adjusted to a comfortable level, push the VOL OFF/ON knob back to the inward
position.
7) Weather channels can be accessed by depressing the MODE button once then using
the CH UP and CH DN buttons to select one of the ten weather channels.
The National Weather Service uses several special radio frequencies to provide con-
tinuous reports of the local weather conditions and forecasts throughout the United
States. Taped weather messages are repeated every four to six minutes on a 24-hour
basis and are routinely revised every one to three hours, or more frequently if needed.
During severe weather, the routine weather broadcasts will be interrupted with spe-
cial weather warning messages.
The JMCB-2003 is designed to receive all these special weather frequencies plus
three international marine frequencies. An NOAA Weather Radio Network Frequency
pamphlet is enclosed to identify the frequencies specifically broadcast for your geo-
graphical area.
The JMCB-2003 receives CB, National Weather Service and international marine
weather broadcast frequencies as listed below:
CB Channels 1-40 26.965 to 27.405 MHz
Weather Channels 01WX 162.550 MHz
02WX 162.400 MHZ
03WX 162.475 MHz
04WX 162.425 MHz
05WX 162.450 MHz
06WX 162.500 MHz
07WX 162.525 MHz
Int’l Marine 08WX 161.650 MHz
09WX 161.775 MHz
00WX 163.275 MHz
8) Function indication “beep” can be turned on or off by depressing the MODE button
two (2) times. The LCD display will show the word ON or OFF. To turn the beep on or
off, switch between the CHL UP and CHL DN buttons.
8. Antenna Information
The maximum allowable CB transmitting power is limited by FCC regulations. The
antenna is a major component in the strength of the CB radio’s transmission signal
and its reception range.

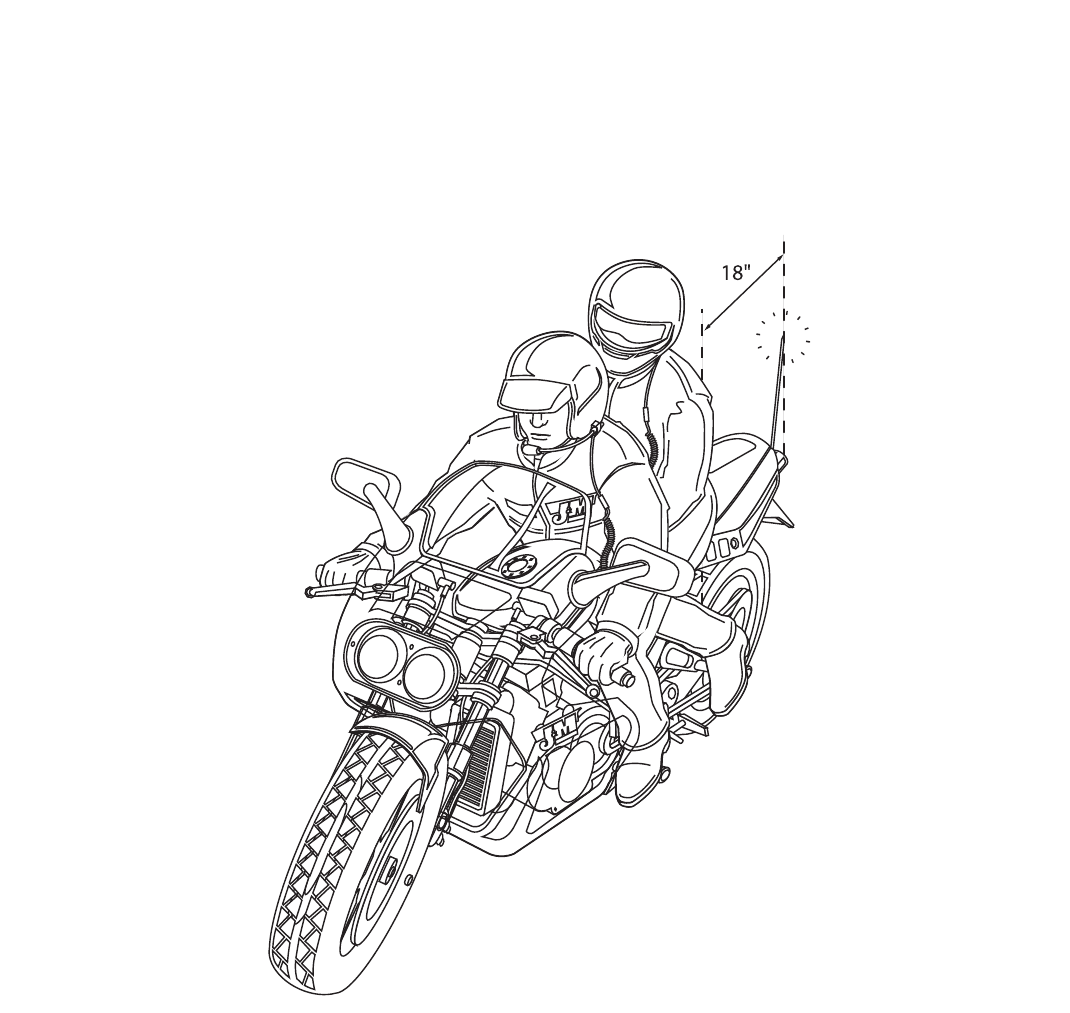

A minimum distance of 18” between the CB antenna and the operator or passenger of
the motorcycle should be maintained.
Channel
1 26.965 MHz
2 26.975 MHz
3 26.985 MHz
4 27.005 MHz
5 27.015 MHz
6 27.025 MHz
7 27.035 MHz
8 27.055 MHz
9 27.065 MHz Emergency Channel
10 27.075 MHz
11 27.085 MHz
12 27.105 MHz
13 27.115 MHz
14 27.125 MHz
15 27.135 MHz
16 27.155 MHz
17 27.165 MHz
18 27.175 MHz
19 27.185 MHz Highway Channel
20 27.205 MHz
Channel
21 27.215 MHz
22 27.225 MHz
23 27.255 MHz
24 27.235 MHz
25 27.245 MHz
26 27.265 MHz
27 27.275 MHz
28 27.285 MHz
29 27.295 MHz
30 27.305 MHz
31 27.315 MHz
32 27.325 MHz
33 27.335 MHz
34 27.345 MHz
35 27.355 MHz
36 27.365 MHz
37 27.375 MHz
38 27.385 MHz
39 27.395 MHz
40 27.405 MHz
9. CB Channel Frequency Chart
WARNING: Do not try to make any internal adjustments.
Any internal adjustments must be made only by qualified technical personnel.
Internal adjustments and/or modifications can lead to illegal operation as defined
by FCC Rules and REgulations, Part 95. Illegal operation can result in serious con-
sequences.
10. Specifications
CB Channels 40
CBFrequency Range26.965 to 27.405 MHz
Weather Channels 10
Weather Frequency Range
Receive Frequencies 162.550 MHz - 163.275 MHz
CB/Weather frequency control Phase locked loop (PLL) synthesizer
Operation temperature range – 4°F to +122°F
Channel display Liquid crystal display (LCD)
Power source 13.2V DC
Dimensions 6.5” x 3” x 1.75”
(165.1 mm x 76.2 mm x 44.5 mm)
Weight .8 lb
Receiver AM dual conversion superheterodyne
Transmitter 4 watts (maximum FCC allowable)
Noise and Interference
Motorcycle audio systems are by their very nature noisy. While we do not guarantee this
system to be completely free from electrical noises and interference, we have taken
many steps to achieve that goal: the power supply system is well filtered and the cables
associated with the unit are shielded.
Most modern day motorcycles have resistor-type spark plugs installed by the factory. It may
be necessary to insure that resistor-type spark plugs are installed on your motorcycle.
Two Year Warranty
J&M Corporation warrants each new product it manufactures to be free
from defective materials and workmanship and agrees to remedy any
such defect or replace the unit (at our option), provided the unit is deliv-
ered to us, intact, for our examination, with all transportation charges
prepaid to our factory, within two (2) years from the date of the sale to
the original purchaser. The provisions of the warranty shall not apply to
any unit which has been subject to misuse, neglect, incorrect mechani-
cal or electrical installation, unauthorized modifications, accident, nor to
units which have been repaired or altered outside of our factory.
Thank you for the confidence you have shown by purchasing one of J&M’s innovative
products. If you have any questions during installation, or require further assistance, you
may call us at 1-800-358-0881 from 8:00 a.m. to 5:00 p.m. Mountain Standard Time,
Monday through Friday.
1415 S. Cherry Avenue, Tucson, Arizona 85713-1997 U.S.A.
(800) 358-0881 • www.jmcorp.com • audio@jmcorp.com
7/2003
