Camera EYE-02:Package content:II.BA1243EYE-02 camera1Camera lens2PIR motion sensor3Green light 4Red light5Infra red ilumination6GSM Antenna7Power button8AC adaptor socket9USB connector10 Battery coverBatteryInstalation CDKey-fob6897105ScrewdriverUser manualAC adapterWall mounting screwsConnecting cableUSB cable
JR_EYE-02.ENG.MAN.Manual.12.D - 1 -EYE-02 is a security and monitoring camera which communicates wirelessly via the GSM network. EYE-02 integrates the following built-in detectors that allows to detect an intruder:  Detects movement by sensive detecon of human body temperature. Recognizes the specic sound of breaking window glass Recognizes any unwanted change in the camera‘s posion and angle Detects changes in a scene by taking snapshots regularly and comparing them• EYE-02 is simple to install and congure (suitable for DIY installaons) • EYE-02 sends an alarm record using MMS, e-mail, SMS or voice call. Copies of pictures and videos can be stored on the memory card or can be stored at a web server. Alarm Receiving Centers are also supported.• EYE-02 allows 24 hour monitoring via its night view mode.• EYE-02 is compable with a wide range of external wireless devices (refer to the table on the inside back cover of this manual). 1.1 Basic Features ........................................................... 11.2 EYE-02 Camera Descripon ..................................... 21.3 EYE-02 Camera Internal Parts ................................. 22.1 Package Contents ..................................................... 22.2 Installaon ................................................................ 33.1 Remote Control ........................................................ 43.2 Working Modes ........................................................ 43.3 CONFIG Mode ........................................................... 53.4 Detectors .................................................................. 53.5 Proles ...................................................................... 63.6 Reports ..................................................................... 73.7 SECURITY SETTINGS ................................................. 84.1 Set-Up and Conguraon via PC ............................. 84.2 SMS Commands ....................................................... 94.3 Event Reports ......................................................... 114.4 Video Record Seng (Available through JabloTool only) ....................................................................... 124.5 GSM Network Seng ...........................................135.1 Call Control ............................................................. 145.2 Night View .............................................................. 145.3 Monitoring ............................................................. 145.4 Switching OFF and ON ............................................ 145.5 Baery Mode .........................................................155.6 Micro SD card ......................................................... 155.7 Reset to Factory Defaults ...................................... 165.8 External Wireless Devices ..................................... 165.9 Outdoor Installaon............................................... 178.1 Baery Informaon ............................................... 188.2 Warranty................................................................. 188.3 Safety Instrucons ................................................. 19

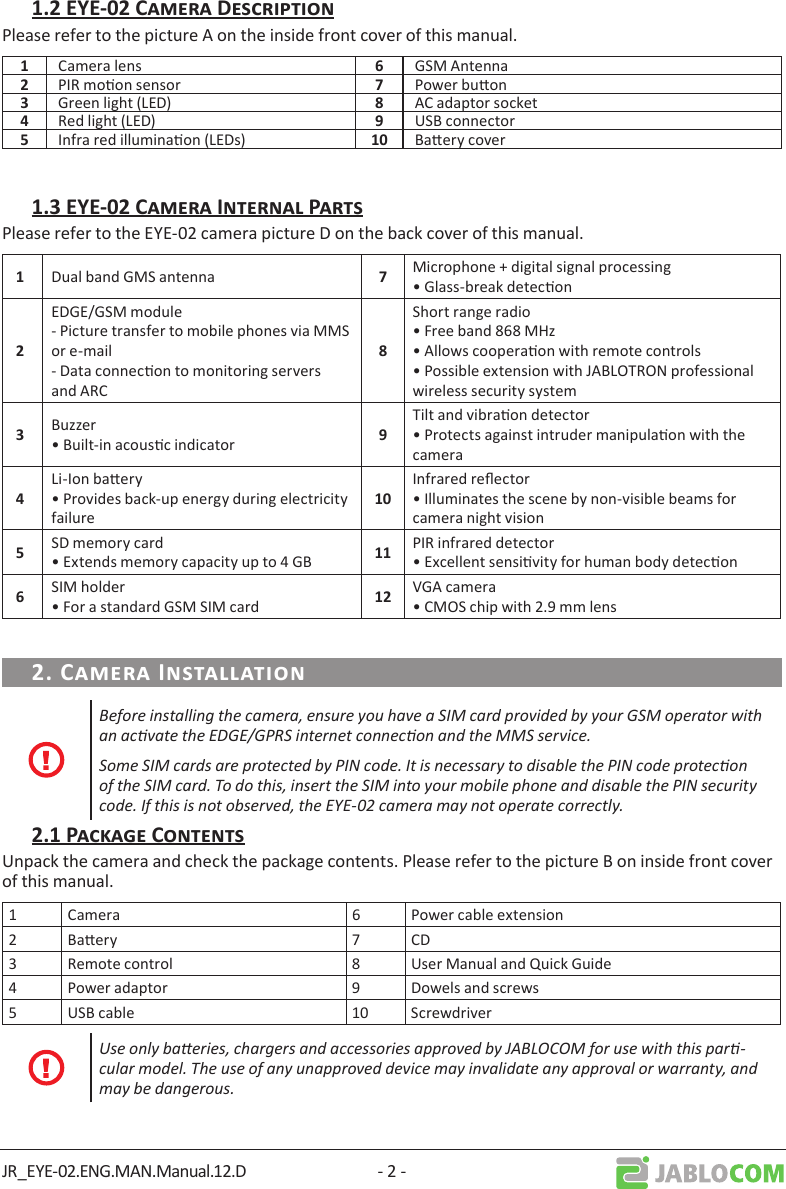

JR_EYE-02.ENG.MAN.Manual.12.D - 2 -Please refer to the picture A on the inside front cover of this manual.Camera lens GSM AntennaPIR moon sensor Power buonGreen light (LED) AC adaptor socketRed light (LED) USB connectorInfra red illuminaon (LEDs)  Baery coverPlease refer to the EYE-02 camera picture D on the back cover of this manual.Dual band GMS antenna Microphone + digital signal processing• Glass-break deteconEDGE/GSM module- Picture transfer to mobile phones via MMS or e-mail- Data connecon to monitoring servers and ARCShort range radio• Free band 868 MHz• Allows cooperaon with remote controls• Possible extension with JABLOTRON professional wireless security systemBuzzer• Built-in acousc indicator Tilt and vibraon detector• Protects against intruder manipulaon with the cameraLi-Ion baery• Provides back-up energy during electricity failureInfrared reector• Illuminates the scene by non-visible beams for camera night visionSD memory card• Extends memory capacity up to 4 GB  PIR infrared detector• Excellent sensivity for human body deteconSIM holder• For a standard GSM SIM card  VGA camera• CMOS chip with 2.9 mm lensBefore installing the camera, ensure you have a SIM card provided by your GSM operator with an acvate the EDGE/GPRS internet connecon and the MMS service.Some SIM cards are protected by PIN code. It is necessary to disable the PIN code protecon of the SIM card. To do this, insert the SIM into your mobile phone and disable the PIN security code. If this is not observed, the EYE-02 camera may not operate correctly.Unpack the camera and check the package contents. Please refer to the picture B on inside front cover of this manual.1 Camera 6 Power cable extension2 Baery 7 CD3 Remote control 8 User Manual and Quick Guide4 Power adaptor 9 Dowels and screws5 USB cable 10 ScrewdriverUse only baeries, chargers and accessories approved by JABLOCOM for use with this par-cular model. The use of any unapproved device may invalidate any approval or warranty, and may be dangerous.

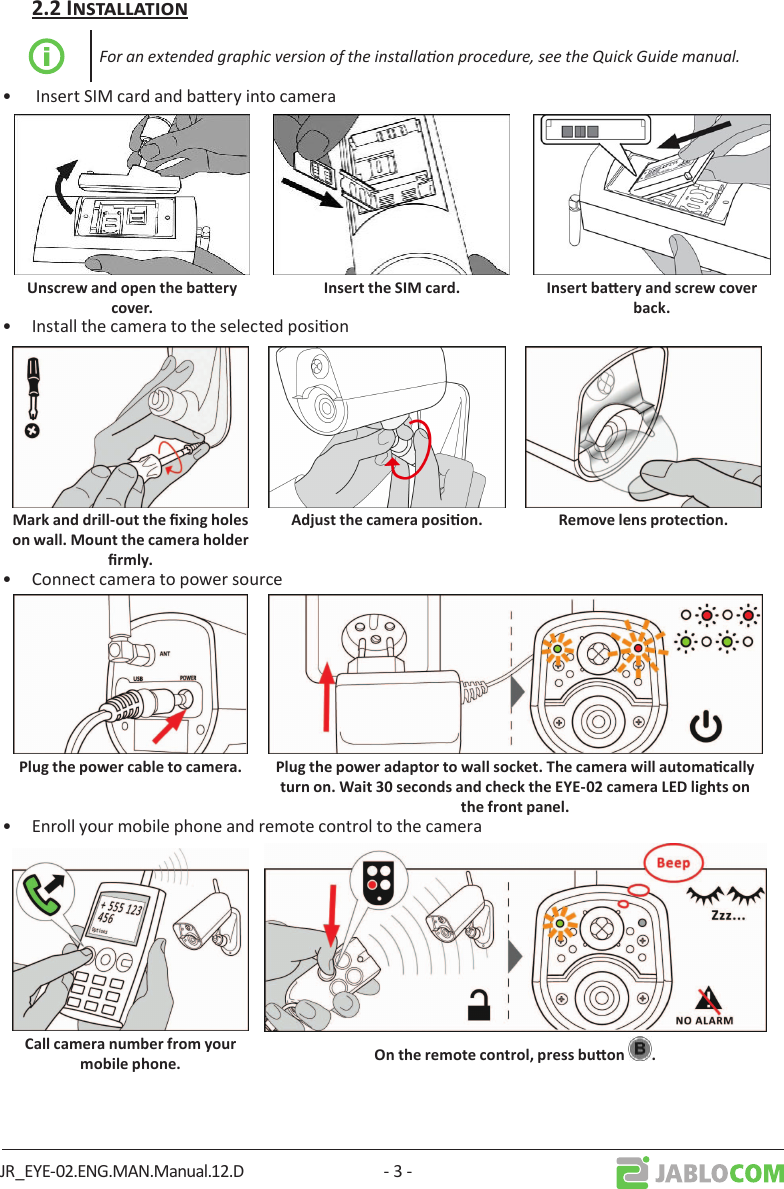

JR_EYE-02.ENG.MAN.Manual.12.D - 3 -For an extended graphic version of the installaon procedure, see the Quick Guide manual.• Insert SIM card and baery into camera • Install the camera to the selected posion • Connect camera to power source • Enroll your mobile phone and remote control to the camera  

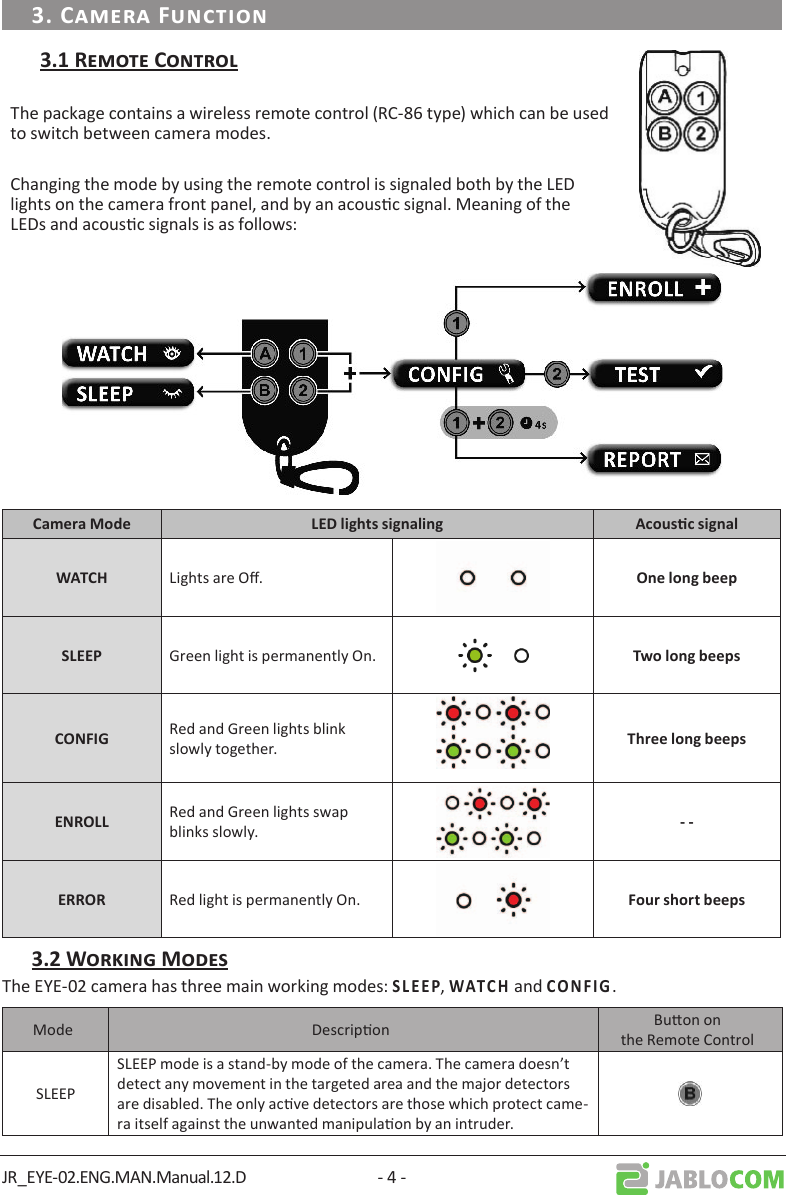

JR_EYE-02.ENG.MAN.Manual.12.D - 4 -The package contains a wireless remote control (RC-86 type) which can be used to switch between camera modes. Changing the mode by using the remote control is signaled both by the LED lights on the camera front panel, and by an acousc signal. Meaning of the LEDs and acousc signals is as follows:   Lights are O.  Green light is permanently On.  Red and Green lights blink slowly together.  Red and Green lights swap blinks slowly.  Red light is permanently On. The EYE-02 camera has three main working modes:    ,    and  . Mode Descripon Buon on the Remote ControlSLEEPSLEEP mode is a stand-by mode of the camera. The camera doesn’t detect any movement in the targeted area and the major detectors are disabled. The only acve detectors are those which protect came-ra itself against the unwanted manipulaon by an intruder.

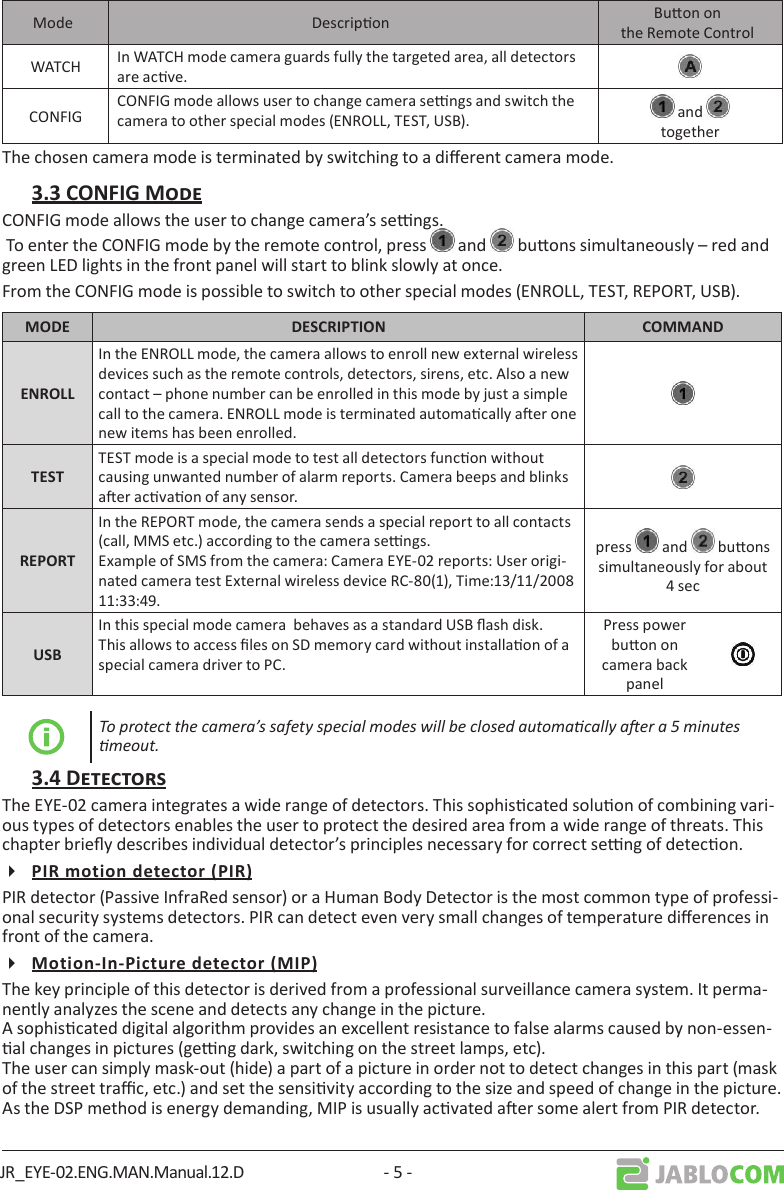

JR_EYE-02.ENG.MAN.Manual.12.D - 5 -Mode Descripon Buon on the Remote ControlWATCH In WATCH mode camera guards fully the targeted area, all detectors are acve.CONFIGCONFIG mode allows user to change camera sengs and switch the camera to other special modes (ENROLL, TEST, USB). and togetherThe chosen camera mode is terminated by switching to a dierent camera mode.CONFIG mode allows the user to change camera’s sengs. To enter the CONFIG mode by the remote control, press and buons simultaneously – red and green LED lights in the front panel will start to blink slowly at once.From the CONFIG mode is possible to switch to other special modes (ENROLL, TEST, REPORT, USB).  In the ENROLL mode, the camera allows to enroll new external wireless devices such as the remote controls, detectors, sirens, etc. Also a new contact – phone number can be enrolled in this mode by just a simple call to the camera. ENROLL mode is terminated automacally aer one new items has been enrolled.TEST mode is a special mode to test all detectors funcon without causing unwanted number of alarm reports. Camera beeps and blinks aer acvaon of any sensor.In the REPORT mode, the camera sends a special report to all contacts (call, MMS etc.) according to the camera sengs.Example of SMS from the camera: Camera EYE-02 reports: User origi-nated camera test External wireless device RC-80(1), Time:13/11/2008 11:33:49.press and buons simultaneously for about 4 secIn this special mode camera behaves as a standard USB ash disk. This allows to access les on SD memory card without installaon of a special camera driver to PC.Press power buon on camera back panelTo protect the camera’s safety special modes will be closed automacally aer a 5 minutes meout.The EYE-02 camera integrates a wide range of detectors. This sophiscated soluon of combining vari-ous types of detectors enables the user to protect the desired area from a wide range of threats. This chapter briey describes individual detector’s principles necessary for correct seng of detecon.PIR detector (Passive InfraRed sensor) or a Human Body Detector is the most common type of professi-onal security systems detectors. PIR can detect even very small changes of temperature dierences in front of the camera.The key principle of this detector is derived from a professional surveillance camera system. It perma-nently analyzes the scene and detects any change in the picture. A sophiscated digital algorithm provides an excellent resistance to false alarms caused by non-essen-al changes in pictures (geng dark, switching on the street lamps, etc). The user can simply mask-out (hide) a part of a picture in order not to detect changes in this part (mask of the street trac, etc.) and set the sensivity according to the size and speed of change in the picture. As the DSP method is energy demanding, MIP is usually acvated aer some alert from PIR detector.

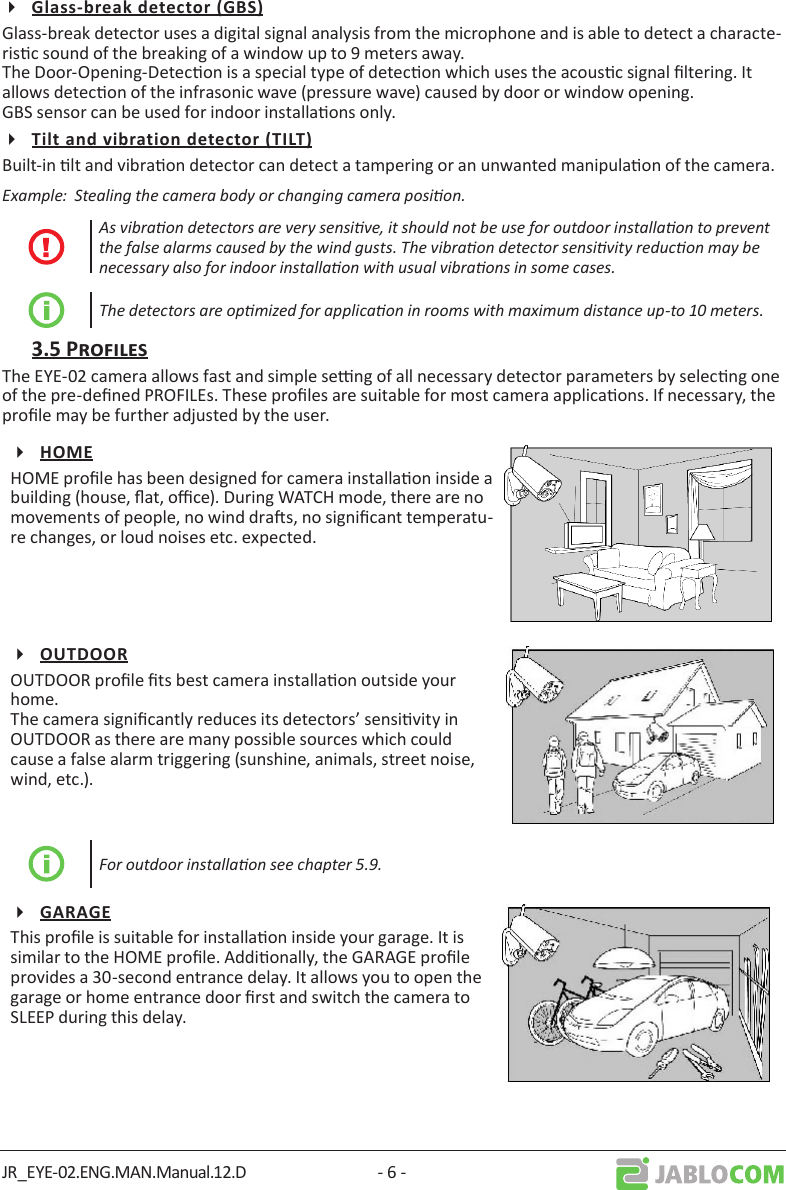

JR_EYE-02.ENG.MAN.Manual.12.D - 6 -Glass-break detector uses a digital signal analysis from the microphone and is able to detect a characte-risc sound of the breaking of a window up to 9 meters away. The Door-Opening-Detecon is a special type of detecon which uses the acousc signal ltering. It allows detecon of the infrasonic wave (pressure wave) caused by door or window opening. GBS sensor can be used for indoor installaons only.Built-in lt and vibraon detector can detect a tampering or an unwanted manipulaon of the camera. Example: Stealing the camera body or changing camera posion. As vibraon detectors are very sensive, it should not be use for outdoor installaon to prevent the false alarms caused by the wind gusts. The vibraon detector sensivity reducon may be necessary also for indoor installaon with usual vibraons in some cases.The detectors are opmized for applicaon in rooms with maximum distance up-to 10 meters.The EYE-02 camera allows fast and simple seng of all necessary detector parameters by selecng one of the pre-dened PROFILEs. These proles are suitable for most camera applicaons. If necessary, the prole may be further adjusted by the user.HOME prole has been designed for camera installaon inside a building (house, at, oce). During WATCH mode, there are no movements of people, no wind dras, no signicant temperatu-re changes, or loud noises etc. expected.OUTDOOR prole ts best camera installaon outside your home. The camera signicantly reduces its detectors’ sensivity in OUTDOOR as there are many possible sources which could cause a false alarm triggering (sunshine, animals, street noise, wind, etc.).For outdoor installaon see chapter 5.9.This prole is suitable for installaon inside your garage. It is similar to the HOME prole. Addionally, the GARAGE prole provides a 30-second entrance delay. It allows you to open the garage or home entrance door rst and switch the camera to SLEEP during this delay.

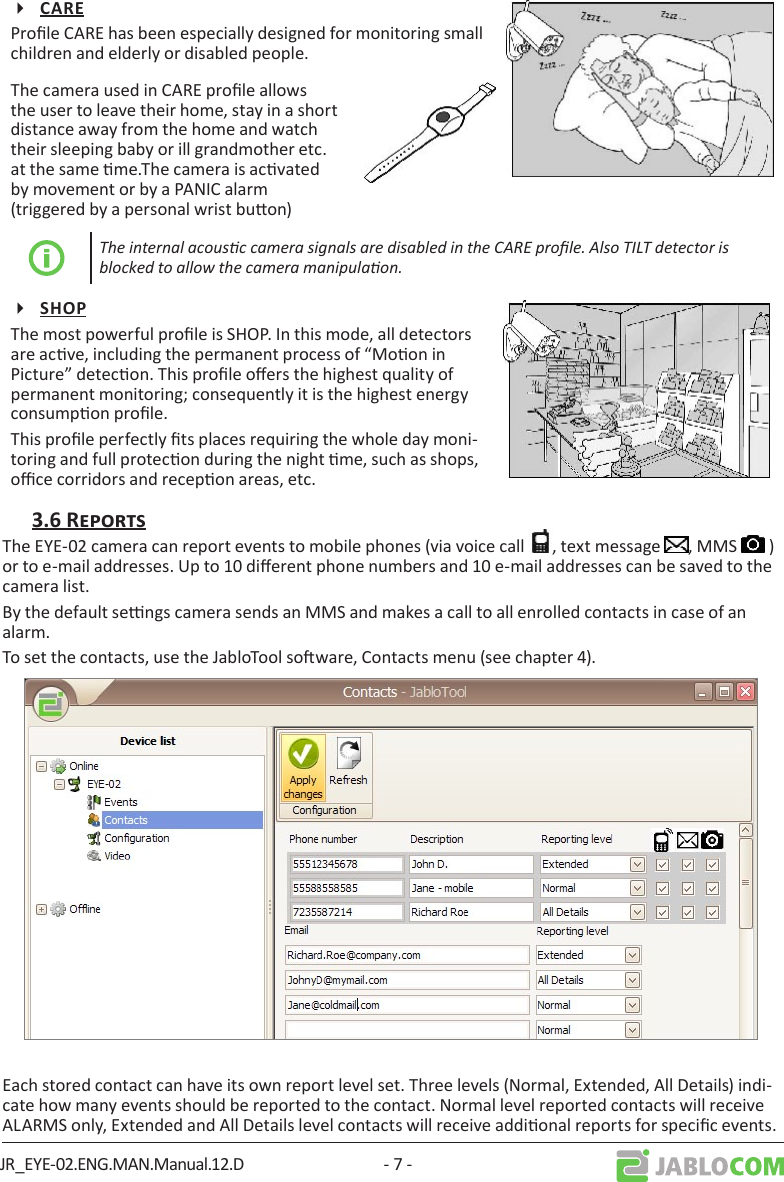

JR_EYE-02.ENG.MAN.Manual.12.D - 7 -Prole CARE has been especially designed for monitoring small children and elderly or disabled people.The camera used in CARE prole allows the user to leave their home, stay in a short distance away from the home and watch their sleeping baby or ill grandmother etc. at the same me.The camera is acvated by movement or by a PANIC alarm (triggered by a personal wrist buon)The internal acousc camera signals are disabled in the CARE prole. Also TILT detector is blocked to allow the camera manipulaon.The most powerful prole is SHOP. In this mode, all detectors are acve, including the permanent process of “Moon in Picture” detecon. This prole oers the highest quality of permanent monitoring; consequently it is the highest energy consumpon prole.This prole perfectly ts places requiring the whole day moni-toring and full protecon during the night me, such as shops, oce corridors and recepon areas, etc.The EYE-02 camera can report events to mobile phones (via voice call , text message , MMS ) or to e-mail addresses. Up to 10 dierent phone numbers and 10 e-mail addresses can be saved to the camera list.By the default sengs camera sends an MMS and makes a call to all enrolled contacts in case of an alarm.To set the contacts, use the JabloTool soware, Contacts menu (see chapter 4).Each stored contact can have its own report level set. Three levels (Normal, Extended, All Details) indi-cate how many events should be reported to the contact. Normal level reported contacts will receive ALARMS only, Extended and All Details level contacts will receive addional reports for specic events.

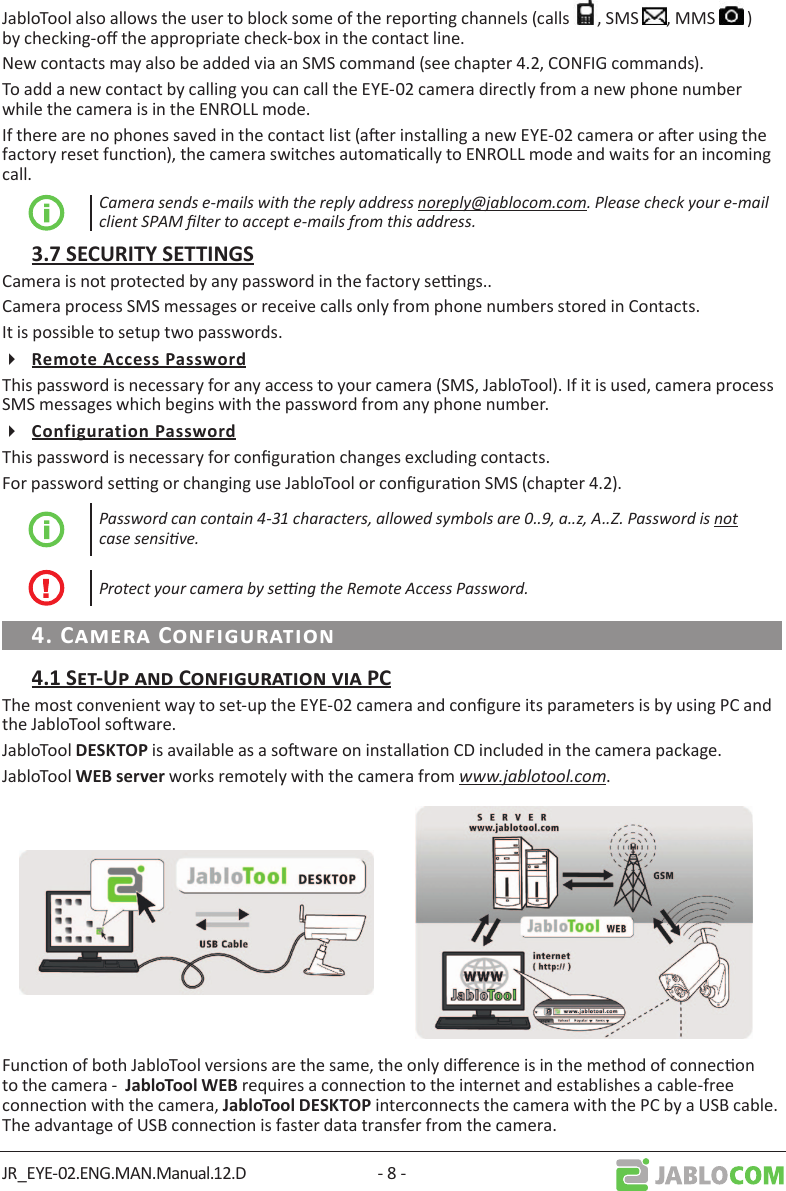

JR_EYE-02.ENG.MAN.Manual.12.D - 8 -JabloTool also allows the user to block some of the reporng channels (calls , SMS , MMS ) by checking-o the appropriate check-box in the contact line.New contacts may also be added via an SMS command (see chapter 4.2, CONFIG commands).To add a new contact by calling you can call the EYE-02 camera directly from a new phone number while the camera is in the ENROLL mode. If there are no phones saved in the contact list (aer installing a new EYE-02 camera or aer using the factory reset funcon), the camera switches automacally to ENROLL mode and waits for an incoming call.Camera sends e-mails with the reply address noreply@jablocom.com. Please check your e-mail client SPAM lter to accept e-mails from this address.Camera is not protected by any password in the factory sengs.. Camera process SMS messages or receive calls only from phone numbers stored in Contacts. It is possible to setup two passwords.This password is necessary for any access to your camera (SMS, JabloTool). If it is used, camera process SMS messages which begins with the password from any phone number.This password is necessary for conguraon changes excluding contacts.For password seng or changing use JabloTool or conguraon SMS (chapter 4.2).Password can contain 4-31 characters, allowed symbols are 0..9, a..z, A..Z. Password is not case sensive. Protect your camera by seng the Remote Access Password.The most convenient way to set-up the EYE-02 camera and congure its parameters is by using PC and the JabloTool soware.JabloTool  is available as a soware on installaon CD included in the camera package. JabloTool  works remotely with the camera from www.jablotool.com.Funcon of both JabloTool versions are the same, the only dierence is in the method of connecon to the camera -  requires a connecon to the internet and establishes a cable-free connecon with the camera,  interconnects the camera with the PC by a USB cable. The advantage of USB connecon is faster data transfer from the camera.

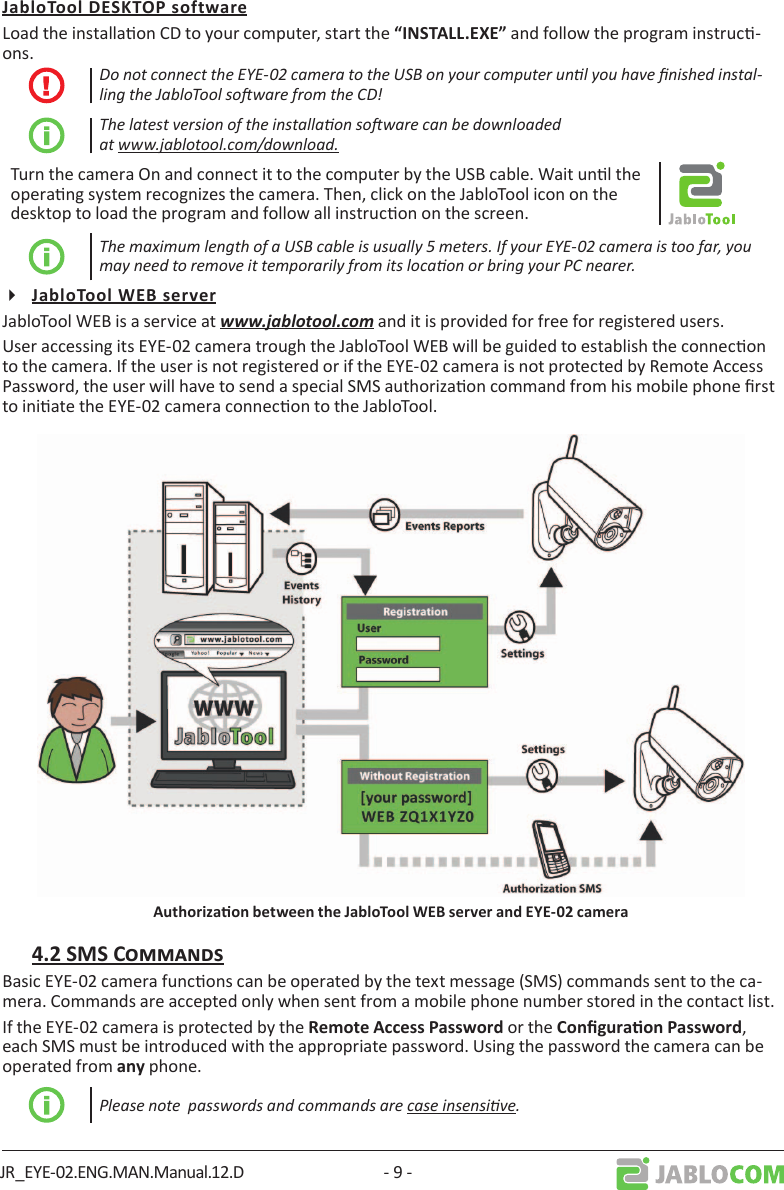

JR_EYE-02.ENG.MAN.Manual.12.D - 9 -Load the installaon CD to your computer, start the  and follow the program instruc-ons.Do not connect the EYE-02 camera to the USB on your computer unl you have nished instal-ling the JabloTool soware from the CD!The latest version of the installaon soware can be downloaded at www.jablotool.com/download.Turn the camera On and connect it to the computer by the USB cable. Wait unl the operang system recognizes the camera. Then, click on the JabloTool icon on the desktop to load the program and follow all instrucon on the screen.The maximum length of a USB cable is usually 5 meters. If your EYE-02 camera is too far, you may need to remove it temporarily from its locaon or bring your PC nearer.JabloTool WEB is a service at www.jablotool.com and it is provided for free for registered users. User accessing its EYE-02 camera trough the JabloTool WEB will be guided to establish the connecon to the camera. If the user is not registered or if the EYE-02 camera is not protected by Remote Access Password, the user will have to send a special SMS authorizaon command from his mobile phone rst to iniate the EYE-02 camera connecon to the JabloTool. Basic EYE-02 camera funcons can be operated by the text message (SMS) commands sent to the ca-mera. Commands are accepted only when sent from a mobile phone number stored in the contact list. If the EYE-02 camera is protected by the  or the , each SMS must be introduced with the appropriate password. Using the password the camera can be operated from  phone.Please note passwords and commands are case insensive.

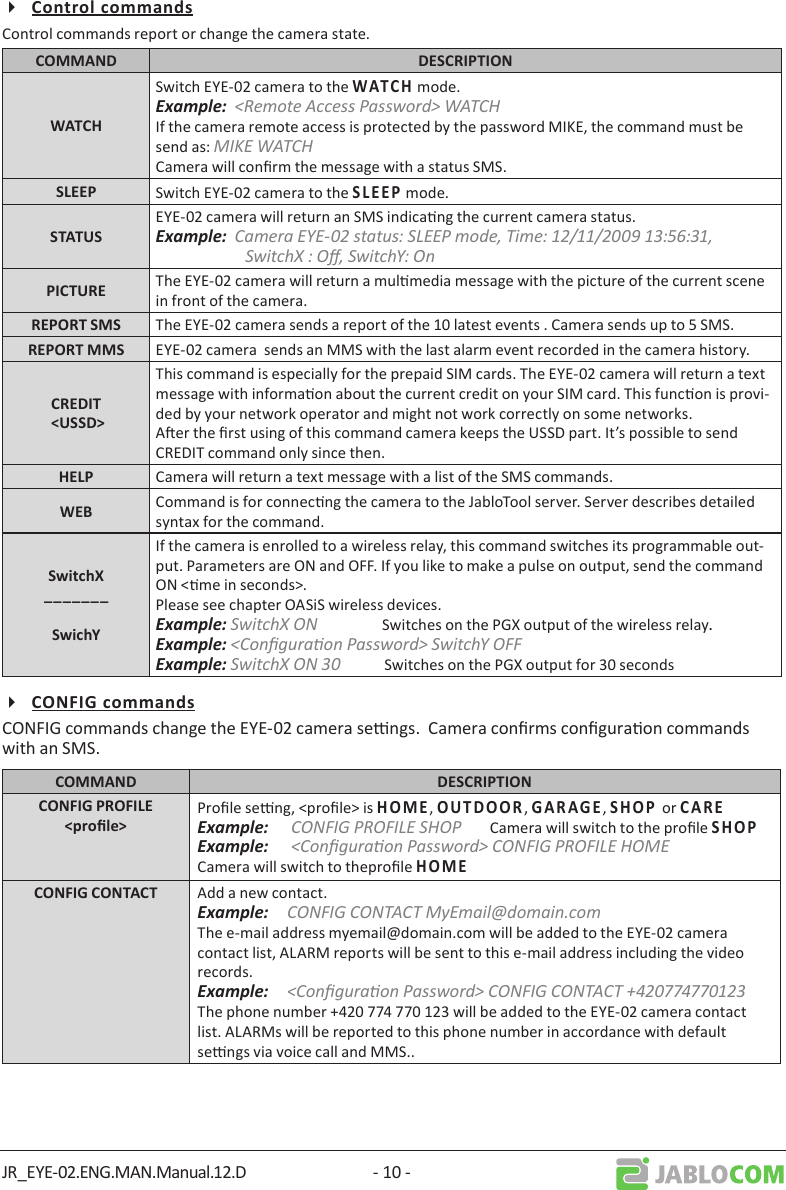

JR_EYE-02.ENG.MAN.Manual.12.D - 10 -Control commands report or change the camera state. Switch EYE-02 camera to the    mode.Example: <Remote Access Password> WATCHIf the camera remote access is protected by the password MIKE, the command must be send as: MIKE WATCHCamera will conrm the message with a status SMS. Switch EYE-02 camera to the     mode.EYE-02 camera will return an SMS indicang the current camera status.Example: Camera EYE-02 status: SLEEP mode, Time: 12/11/2009 13:56:31, SwitchX : O, SwitchY: On The EYE-02 camera will return a mulmedia message with the picture of the current scene in front of the camera. The EYE-02 camera sends a report of the 10 latest events . Camera sends up to 5 SMS. EYE-02 camera sends an MMS with the last alarm event recorded in the camera history.This command is especially for the prepaid SIM cards. The EYE-02 camera will return a text message with informaon about the current credit on your SIM card. This funcon is provi-ded by your network operator and might not work correctly on some networks.Aer the rst using of this command camera keeps the USSD part. It’s possible to send CREDIT command only since then.  Camera will return a text message with a list of the SMS commands. Command is for connecng the camera to the JabloTool server. Server describes detailed syntax for the command.If the camera is enrolled to a wireless relay, this command switches its programmable out-put. Parameters are ON and OFF. If you like to make a pulse on output, send the command ON <me in seconds>.Please see chapter OASiS wireless devices. Example: SwitchX ON Switches on the PGX output of the wireless relay.Example: <Conguraon Password> SwitchY OFFExample: SwitchX ON 30 Switches on the PGX output for 30 secondsCONFIG commands change the EYE-02 camera sengs. Camera conrms conguraon commands with an SMS. Prole seng, <prole> is   ,       ,    ,   or   Example: CONFIG PROFILE SHOP Camera will switch to the prole   Example: <Conguraon Password> CONFIG PROFILE HOMECamera will switch to theprole    Add a new contact.Example: CONFIG CONTACT MyEmail@domain.comThe e-mail address myemail@domain.com will be added to the EYE-02 camera contact list, ALARM reports will be sent to this e-mail address including the video records.Example: <Conguraon Password> CONFIG CONTACT +420774770123The phone number +420 774 770 123 will be added to the EYE-02 camera contact list. ALARMs will be reported to this phone number in accordance with default sengs via voice call and MMS..

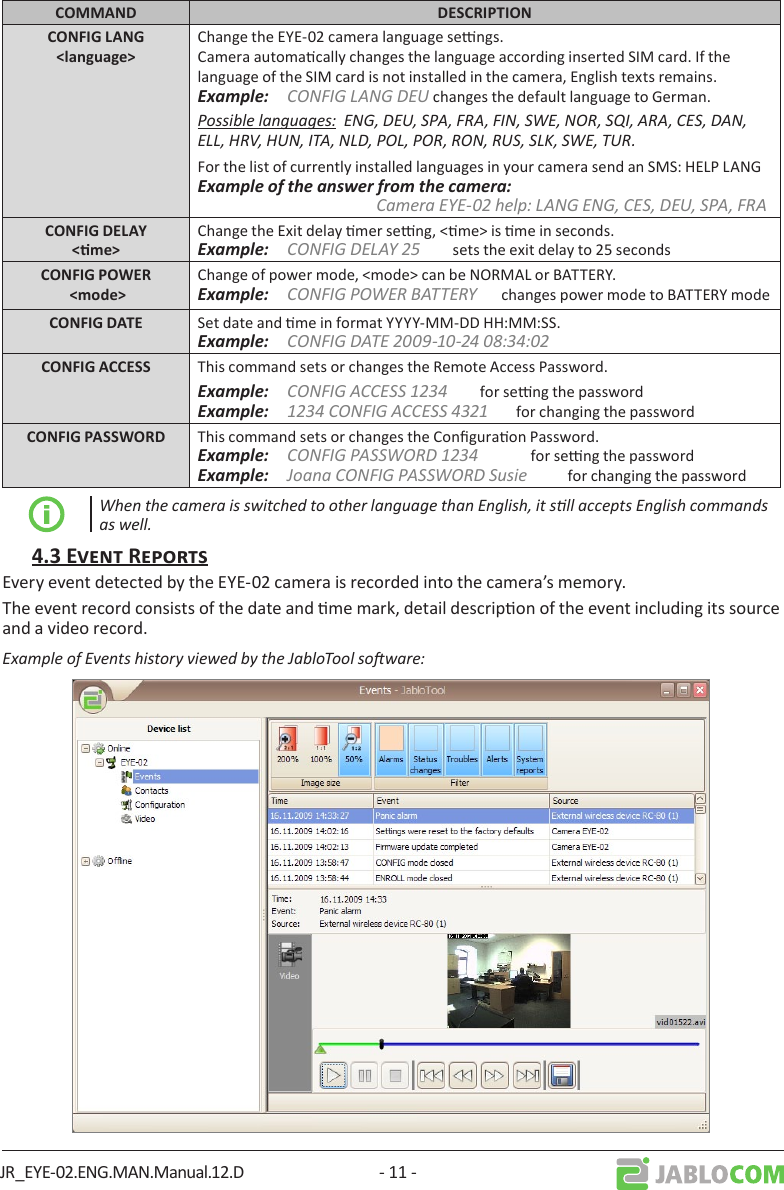

JR_EYE-02.ENG.MAN.Manual.12.D - 11 - Change the EYE-02 camera language sengs. Camera automacally changes the language according inserted SIM card. If the language of the SIM card is not installed in the camera, English texts remains. Example: CONFIG LANG DEU changes the default language to German.Possible languages: ENG, DEU, SPA, FRA, FIN, SWE, NOR, SQI, ARA, CES, DAN, ELL, HRV, HUN, ITA, NLD, POL, POR, RON, RUS, SLK, SWE, TUR.For the list of currently installed languages in your camera send an SMS: HELP LANGExample of the answer from the camera: Camera EYE-02 help: LANG ENG, CES, DEU, SPA, FRAChange the Exit delay mer seng, <me> is me in seconds.Example: CONFIG DELAY 25 sets the exit delay to 25 secondsChange of power mode, <mode> can be NORMAL or BATTERY.Example: CONFIG POWER BATTERY changes power mode to BATTERY mode Set date and me in format YYYY-MM-DD HH:MM:SS.Example: CONFIG DATE 2009-10-24 08:34:02 This command sets or changes the Remote Access Password. Example: CONFIG ACCESS 1234 for seng the passwordExample: 1234 CONFIG ACCESS 4321 for changing the password This command sets or changes the Conguraon Password. Example: CONFIG PASSWORD 1234 for seng the passwordExample: Joana CONFIG PASSWORD Susie for changing the passwordWhen the camera is switched to other language than English, it sll accepts English commands as well.Every event detected by the EYE-02 camera is recorded into the camera’s memory.The event record consists of the date and me mark, detail descripon of the event including its source and a video record.Example of Events history viewed by the JabloTool soware:

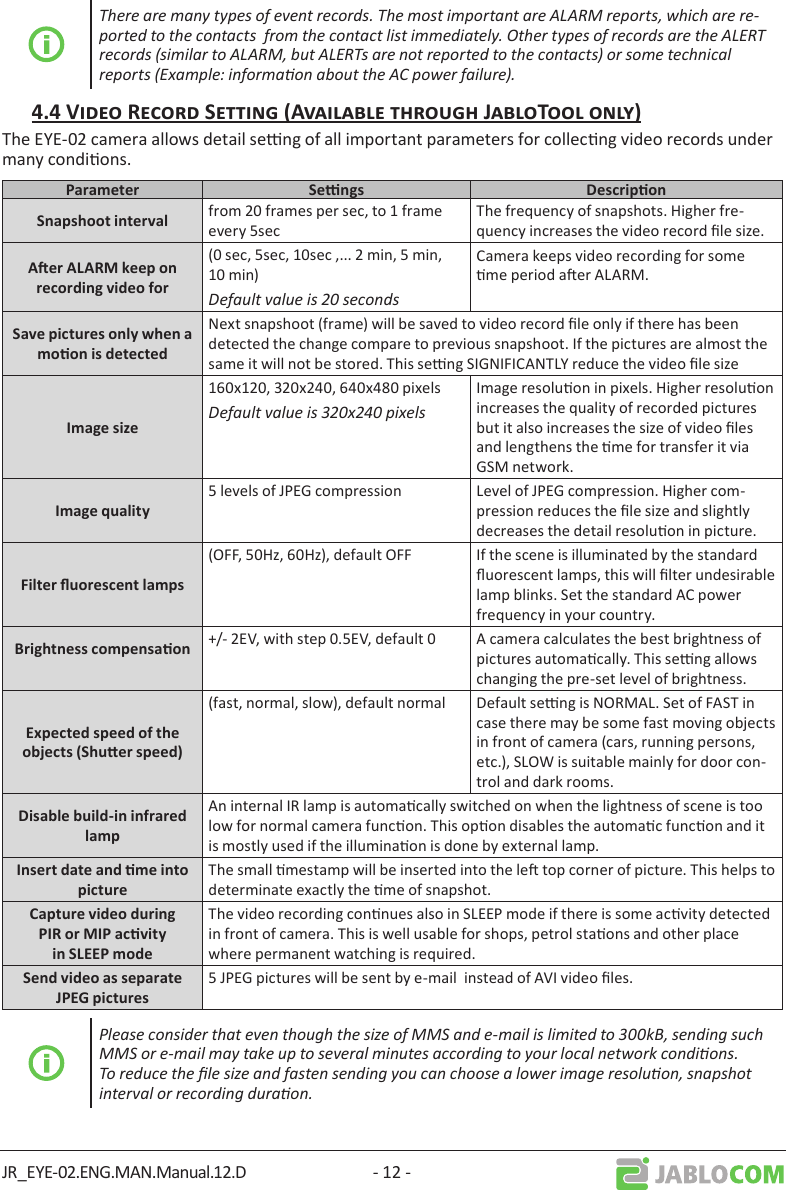

JR_EYE-02.ENG.MAN.Manual.12.D - 12 -There are many types of event records. The most important are ALARM reports, which are re-ported to the contacts from the contact list immediately. Other types of records are the ALERT records (similar to ALARM, but ALERTs are not reported to the contacts) or some technical reports (Example: informaon about the AC power failure).The EYE-02 camera allows detail seng of all important parameters for collecng video records under many condions.   from 20 frames per sec, to 1 frame every 5secThe frequency of snapshots. Higher fre-quency increases the video record le size.(0 sec, 5sec, 10sec ,... 2 min, 5 min, 10 min)Default value is 20 secondsCamera keeps video recording for some me period aer ALARM.Next snapshoot (frame) will be saved to video record le only if there has been detected the change compare to previous snapshoot. If the pictures are almost the same it will not be stored. This seng SIGNIFICANTLY reduce the video le size160x120, 320x240, 640x480 pixelsDefault value is 320x240 pixelsImage resoluon in pixels. Higher resoluon increases the quality of recorded pictures but it also increases the size of video les and lengthens the me for transfer it via GSM network.5 levels of JPEG compression Level of JPEG compression. Higher com-pression reduces the le size and slightly decreases the detail resoluon in picture.(OFF, 50Hz, 60Hz), default OFF If the scene is illuminated by the standard uorescent lamps, this will lter undesirable lamp blinks. Set the standard AC power frequency in your country. +/- 2EV, with step 0.5EV, default 0 A camera calculates the best brightness of pictures automacally. This seng allows changing the pre-set level of brightness.(fast, normal, slow), default normal Default seng is NORMAL. Set of FAST in case there may be some fast moving objects in front of camera (cars, running persons, etc.), SLOW is suitable mainly for door con-trol and dark rooms. An internal IR lamp is automacally switched on when the lightness of scene is too low for normal camera funcon. This opon disables the automac funcon and it is mostly used if the illuminaon is done by external lamp.The small mestamp will be inserted into the le top corner of picture. This helps to determinate exactly the me of snapshot.The video recording connues also in SLEEP mode if there is some acvity detected in front of camera. This is well usable for shops, petrol staons and other place where permanent watching is required.5 JPEG pictures will be sent by e-mail instead of AVI video les.Please consider that even though the size of MMS and e-mail is limited to 300kB, sending such MMS or e-mail may take up to several minutes according to your local network condions. To reduce the le size and fasten sending you can choose a lower image resoluon, snapshot interval or recording duraon.

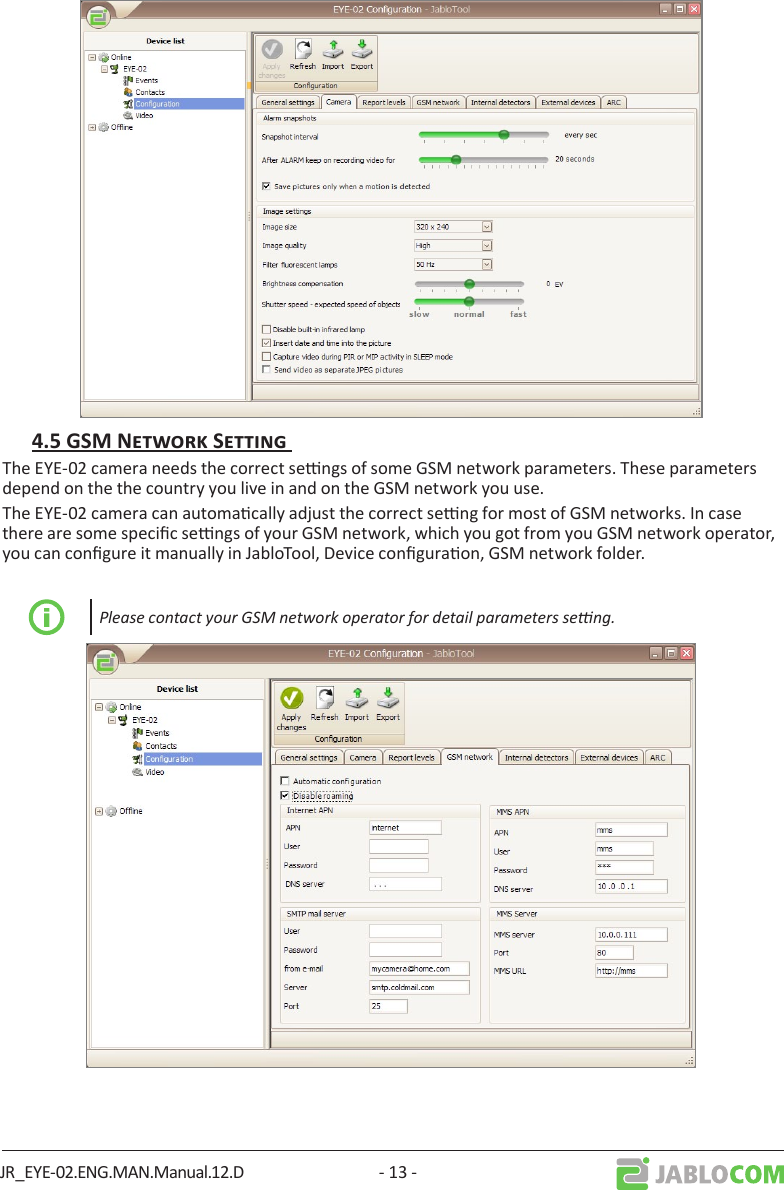

JR_EYE-02.ENG.MAN.Manual.12.D - 13 -The EYE-02 camera needs the correct sengs of some GSM network parameters. These parameters depend on the the country you live in and on the GSM network you use. The EYE-02 camera can automacally adjust the correct seng for most of GSM networks. In case there are some specic sengs of your GSM network, which you got from you GSM network operator, you can congure it manually in JabloTool, Device conguraon, GSM network folder. Please contact your GSM network operator for detail parameters seng.

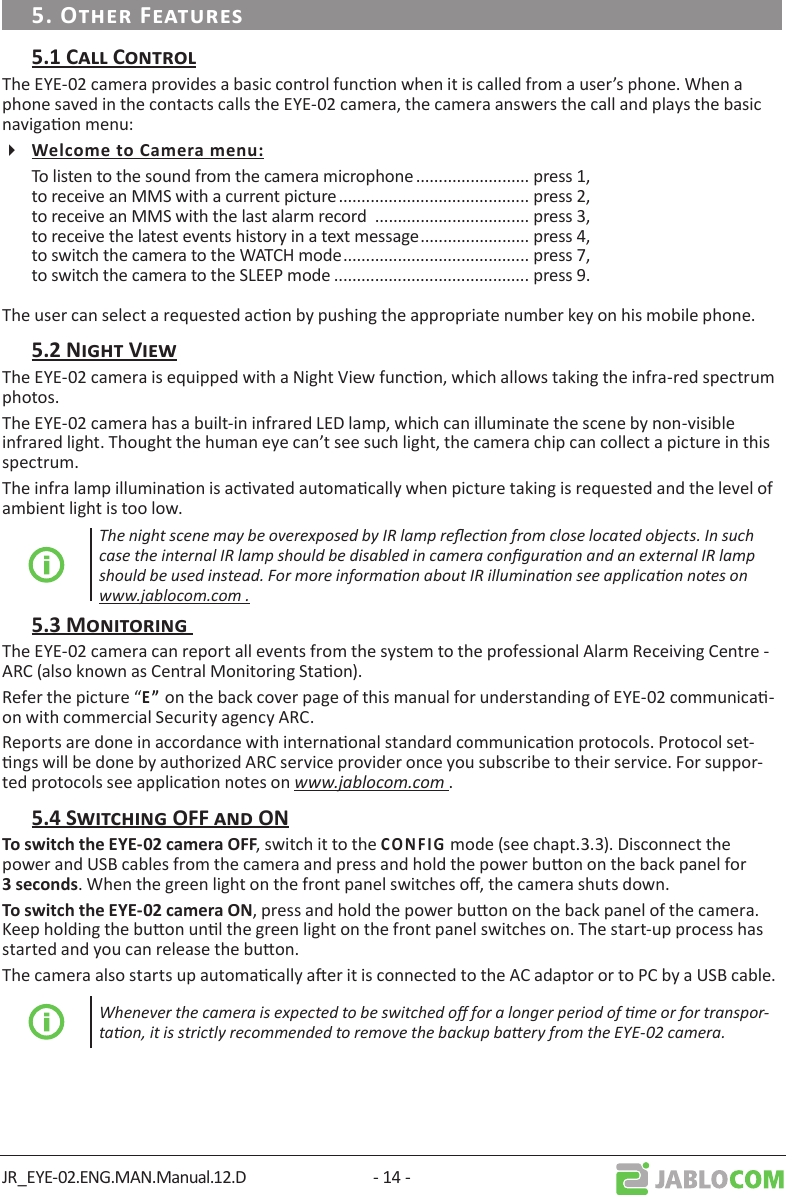

JR_EYE-02.ENG.MAN.Manual.12.D - 14 -The EYE-02 camera provides a basic control funcon when it is called from a user’s phone. When a phone saved in the contacts calls the EYE-02 camera, the camera answers the call and plays the basic navigaon menu:To listen to the sound from the camera microphone ......................... press 1, to receive an MMS with a current picture .......................................... press 2,to receive an MMS with the last alarm record .................................. press 3,to receive the latest events history in a text message ........................ press 4,to switch the camera to the WATCH mode ......................................... press 7,to switch the camera to the SLEEP mode ........................................... press 9.The user can select a requested acon by pushing the appropriate number key on his mobile phone.The EYE-02 camera is equipped with a Night View funcon, which allows taking the infra-red spectrum photos.The EYE-02 camera has a built-in infrared LED lamp, which can illuminate the scene by non-visible infrared light. Thought the human eye can’t see such light, the camera chip can collect a picture in this spectrum.The infra lamp illuminaon is acvated automacally when picture taking is requested and the level of ambient light is too low. The night scene may be overexposed by IR lamp reecon from close located objects. In such case the internal IR lamp should be disabled in camera conguraon and an external IR lamp should be used instead. For more informaon about IR illuminaon see applicaon notes on www.jablocom.com .The EYE-02 camera can report all events from the system to the professional Alarm Receiving Centre - ARC (also known as Central Monitoring Staon).Refer the picture “ on the back cover page of this manual for understanding of EYE-02 communica-on with commercial Security agency ARC.Reports are done in accordance with internaonal standard communicaon protocols. Protocol set-ngs will be done by authorized ARC service provider once you subscribe to their service. For suppor-ted protocols see applicaon notes on www.jablocom.com ., switch it to the   mode (see chapt.3.3). Disconnect the power and USB cables from the camera and press and hold the power buon on the back panel for . When the green light on the front panel switches o, the camera shuts down., press and hold the power buon on the back panel of the camera. Keep holding the buon unl the green light on the front panel switches on. The start-up process has started and you can release the buon. The camera also starts up automacally aer it is connected to the AC adaptor or to PC by a USB cable.Whenever the camera is expected to be switched o for a longer period of me or for transpor-taon, it is strictly recommended to remove the backup baery from the EYE-02 camera.

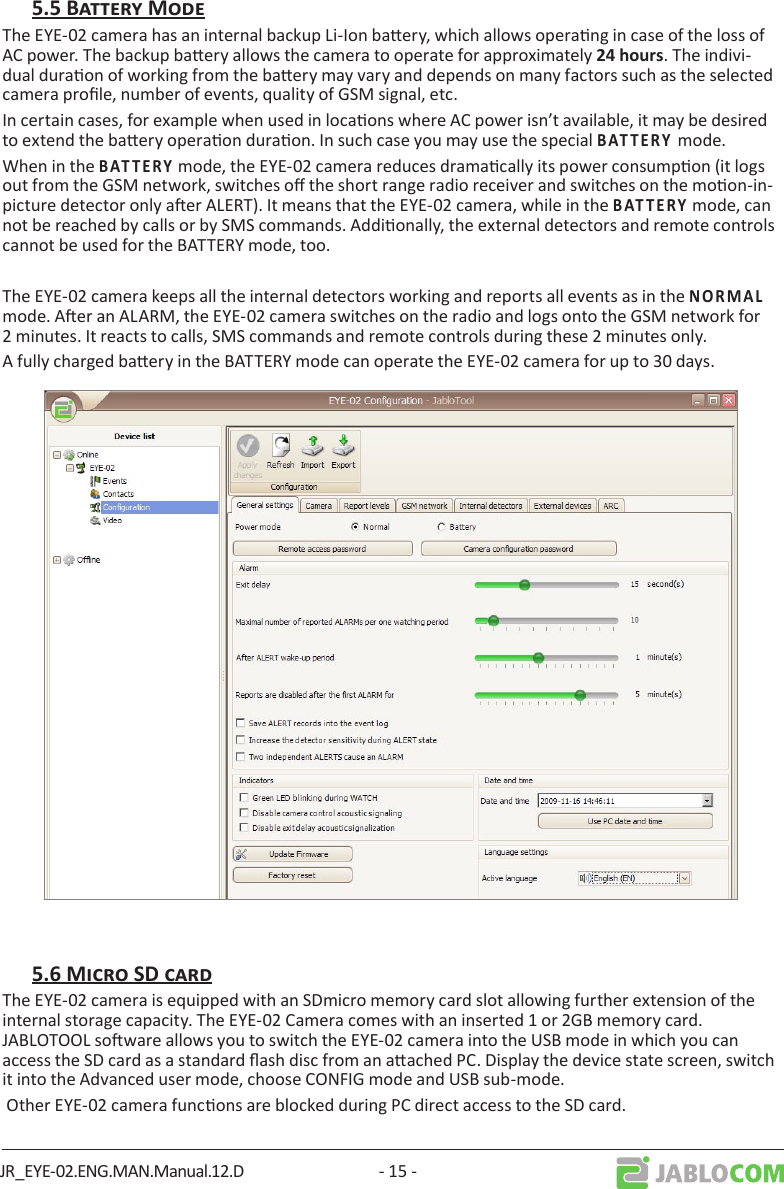

JR_EYE-02.ENG.MAN.Manual.12.D - 15 -The EYE-02 camera has an internal backup Li-Ion baery, which allows operang in case of the loss of AC power. The backup baery allows the camera to operate for approximately . The indivi-dual duraon of working from the baery may vary and depends on many factors such as the selected camera prole, number of events, quality of GSM signal, etc.In certain cases, for example when used in locaons where AC power isn’t available, it may be desired to extend the baery operaon duraon. In such case you may use the special       mode.When in the       mode, the EYE-02 camera reduces dramacally its power consumpon (it logs out from the GSM network, switches o the short range radio receiver and switches on the moon-in-picture detector only aer ALERT). It means that the EYE-02 camera, while in the       mode, can not be reached by calls or by SMS commands. Addionally, the external detectors and remote controls cannot be used for the BATTERY mode, too.The EYE-02 camera keeps all the internal detectors working and reports all events as in the      mode. Aer an ALARM, the EYE-02 camera switches on the radio and logs onto the GSM network for 2 minutes. It reacts to calls, SMS commands and remote controls during these 2 minutes only.A fully charged baery in the BATTERY mode can operate the EYE-02 camera for up to 30 days.The EYE-02 camera is equipped with an SDmicro memory card slot allowing further extension of the internal storage capacity. The EYE-02 Camera comes with an inserted 1 or 2GB memory card. JABLOTOOL soware allows you to switch the EYE-02 camera into the USB mode in which you can access the SD card as a standard ash disc from an aached PC. Display the device state screen, switch it into the Advanced user mode, choose CONFIG mode and USB sub-mode. Other EYE-02 camera funcons are blocked during PC direct access to the SD card.

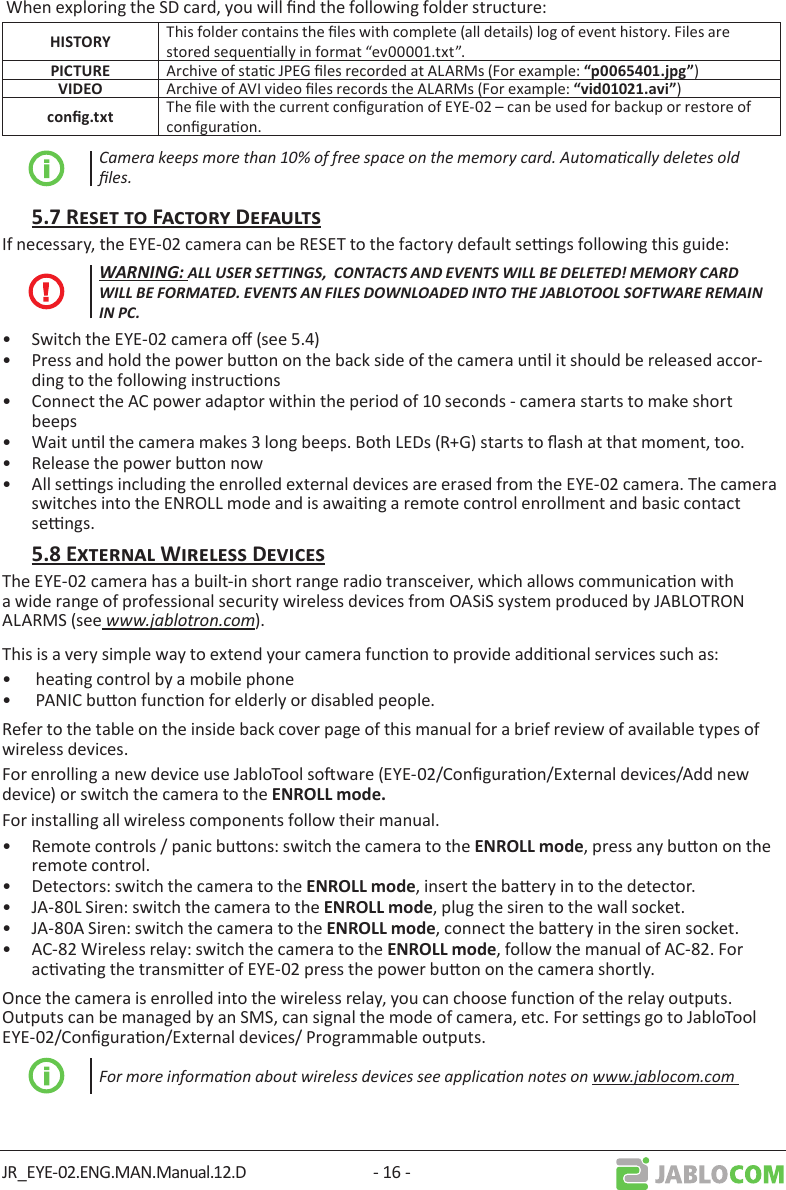

JR_EYE-02.ENG.MAN.Manual.12.D - 16 - When exploring the SD card, you will nd the following folder structure:  This folder contains the les with complete (all details) log of event history. Files are stored sequenally in format “ev00001.txt”. Archive of stac JPEG les recorded at ALARMs (For example: ) Archive of AVI video les records the ALARMs (For example: ) The le with the current conguraon of EYE-02 – can be used for backup or restore of conguraon.Camera keeps more than 10% of free space on the memory card. Automacally deletes old les. If necessary, the EYE-02 camera can be RESET to the factory default sengs following this guide:WARNING: ALL USER SETTINGS, CONTACTS AND EVENTS WILL BE DELETED! MEMORY CARD WILL BE FORMATED. EVENTS AN FILES DOWNLOADED INTO THE JABLOTOOL SOFTWARE REMAIN IN PC.• Switch the EYE-02 camera o (see 5.4)• Press and hold the power buon on the back side of the camera unl it should be released accor-ding to the following instrucons• Connect the AC power adaptor within the period of 10 seconds - camera starts to make short beeps • Wait unl the camera makes 3 long beeps. Both LEDs (R+G) starts to ash at that moment, too.• Release the power buon now• All sengs including the enrolled external devices are erased from the EYE-02 camera. The camera switches into the ENROLL mode and is awaing a remote control enrollment and basic contact sengs.The EYE-02 camera has a built-in short range radio transceiver, which allows communicaon with a wide range of professional security wireless devices from OASiS system produced by JABLOTRON ALARMS (see www.jablotron.com).This is a very simple way to extend your camera funcon to provide addional services such as: • heang control by a mobile phone • PANIC buon funcon for elderly or disabled people. Refer to the table on the inside back cover page of this manual for a brief review of available types of wireless devices.For enrolling a new device use JabloTool soware (EYE-02/Conguraon/External devices/Add new device) or switch the camera to theFor installing all wireless components follow their manual.• Remote controls / panic buons: switch the camera to the , press any buon on the remote control.• Detectors: switch the camera to the , insert the baery in to the detector.• JA-80L Siren: switch the camera to the , plug the siren to the wall socket.• JA-80A Siren: switch the camera to the , connect the baery in the siren socket.• AC-82 Wireless relay: switch the camera to the , follow the manual of AC-82. For acvang the transmier of EYE-02 press the power buon on the camera shortly.Once the camera is enrolled into the wireless relay, you can choose funcon of the relay outputs. Outputs can be managed by an SMS, can signal the mode of camera, etc. For sengs go to JabloTool EYE-02/Conguraon/External devices/ Programmable outputs.For more informaon about wireless devices see applicaon notes on www.jablocom.com

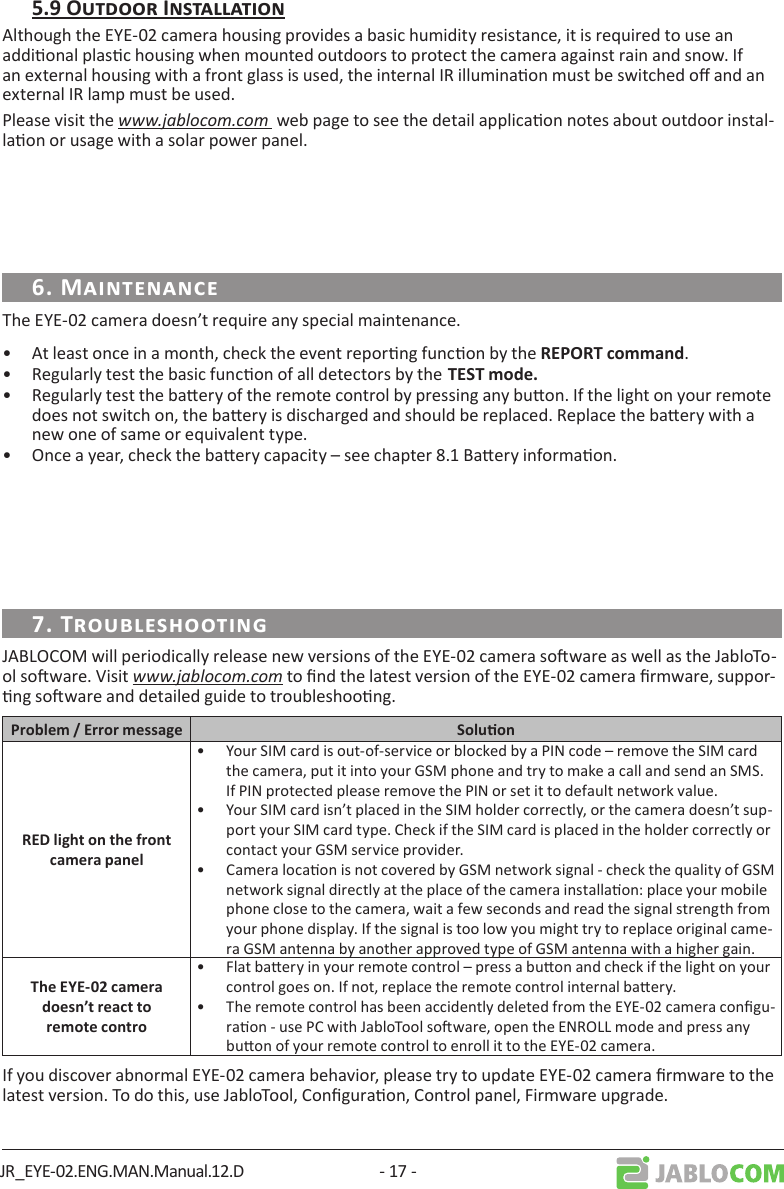

JR_EYE-02.ENG.MAN.Manual.12.D - 17 -Although the EYE-02 camera housing provides a basic humidity resistance, it is required to use an addional plasc housing when mounted outdoors to protect the camera against rain and snow. If an external housing with a front glass is used, the internal IR illuminaon must be switched o and an external IR lamp must be used.Please visit the www.jablocom.com web page to see the detail applicaon notes about outdoor instal-laon or usage with a solar power panel.The EYE-02 camera doesn’t require any special maintenance. • At least once in a month, check the event reporng funcon by the .• Regularly test the basic funcon of all detectors by the• Regularly test the baery of the remote control by pressing any buon. If the light on your remote does not switch on, the baery is discharged and should be replaced. Replace the baery with a new one of same or equivalent type.• Once a year, check the baery capacity – see chapter 8.1 Baery informaon.JABLOCOM will periodically release new versions of the EYE-02 camera soware as well as the JabloTo-ol soware. Visit www.jablocom.com to nd the latest version of the EYE-02 camera rmware, suppor-ng soware and detailed guide to troubleshoong. • Your SIM card is out-of-service or blocked by a PIN code – remove the SIM card the camera, put it into your GSM phone and try to make a call and send an SMS. If PIN protected please remove the PIN or set it to default network value.• Your SIM card isn’t placed in the SIM holder correctly, or the camera doesn’t sup-port your SIM card type. Check if the SIM card is placed in the holder correctly or contact your GSM service provider.• Camera locaon is not covered by GSM network signal - check the quality of GSM network signal directly at the place of the camera installaon: place your mobile phone close to the camera, wait a few seconds and read the signal strength from your phone display. If the signal is too low you might try to replace original came-ra GSM antenna by another approved type of GSM antenna with a higher gain.• Flat baery in your remote control – press a buon and check if the light on your control goes on. If not, replace the remote control internal baery.• The remote control has been accidently deleted from the EYE-02 camera congu-raon - use PC with JabloTool soware, open the ENROLL mode and press any buon of your remote control to enroll it to the EYE-02 camera.If you discover abnormal EYE-02 camera behavior, please try to update EYE-02 camera rmware to the latest version. To do this, use JabloTool, Conguraon, Control panel, Firmware upgrade.

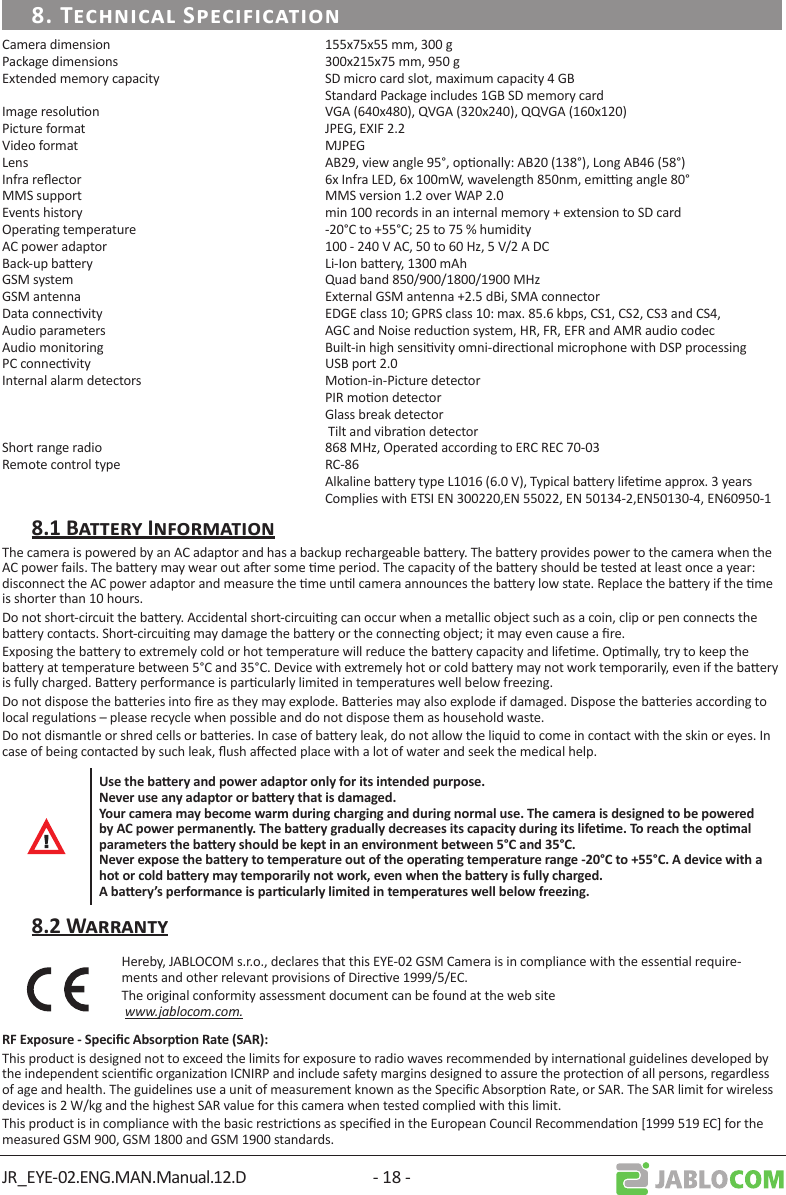

JR_EYE-02.ENG.MAN.Manual.12.D - 18 -Camera dimension 155x75x55 mm, 300 gPackage dimensions 300x215x75 mm, 950 gExtended memory capacity SD micro card slot, maximum capacity 4 GB Standard Package includes 1GB SD memory card Image resoluon VGA (640x480), QVGA (320x240), QQVGA (160x120)Picture format JPEG, EXIF 2.2Video format MJPEGLens AB29, view angle 95°, oponally: AB20 (138°), Long AB46 (58°)Infra reector 6x Infra LED, 6x 100mW, wavelength 850nm, eming angle 80°MMS support MMS version 1.2 over WAP 2.0Events history min 100 records in an internal memory + extension to SD cardOperang temperature -20°C to +55°C; 25 to 75 % humidityAC power adaptor 100 - 240 V AC, 50 to 60 Hz, 5 V/2 A DCBack-up baery Li-Ion baery, 1300 mAh GSM system Quad band 850/900/1800/1900 MHzGSM antenna External GSM antenna +2.5 dBi, SMA connectorData connecvity EDGE class 10; GPRS class 10: max. 85.6 kbps, CS1, CS2, CS3 and CS4,Audio parameters AGC and Noise reducon system, HR, FR, EFR and AMR audio codecAudio monitoring Built-in high sensivity omni-direconal microphone with DSP processingPC connecvity USB port 2.0Internal alarm detectors Moon-in-Picture detector PIR moon detector Glass break detector Tilt and vibraon detectorShort range radio 868 MHz, Operated according to ERC REC 70-03Remote control type RC-86 Alkaline baery type L1016 (6.0 V), Typical baery lifeme approx. 3 years Complies with ETSI EN 300220,EN 55022, EN 50134-2,EN50130-4, EN60950-1The camera is powered by an AC adaptor and has a backup rechargeable baery. The baery provides power to the camera when the AC power fails. The baery may wear out aer some me period. The capacity of the baery should be tested at least once a year: disconnect the AC power adaptor and measure the me unl camera announces the baery low state. Replace the baery if the me is shorter than 10 hours.Do not short-circuit the baery. Accidental short-circuing can occur when a metallic object such as a coin, clip or pen connects the baery contacts. Short-circuing may damage the baery or the connecng object; it may even cause a re.Exposing the baery to extremely cold or hot temperature will reduce the baery capacity and lifeme. Opmally, try to keep the baery at temperature between 5°C and 35°C. Device with extremely hot or cold baery may not work temporarily, even if the baery is fully charged. Baery performance is parcularly limited in temperatures well below freezing.Do not dispose the baeries into re as they may explode. Baeries may also explode if damaged. Dispose the baeries according to local regulaons – please recycle when possible and do not dispose them as household waste.Do not dismantle or shred cells or baeries. In case of baery leak, do not allow the liquid to come in contact with the skin or eyes. In case of being contacted by such leak, ush aected place with a lot of water and seek the medical help.Hereby, JABLOCOM s.r.o., declares that this EYE-02 GSM Camera is in compliance with the essenal require-ments and other relevant provisions of Direcve 1999/5/EC. The original conformity assessment document can be found at the web site www.jablocom.com.This product is designed not to exceed the limits for exposure to radio waves recommended by internaonal guidelines developed by the independent scienc organizaon ICNIRP and include safety margins designed to assure the protecon of all persons, regardless of age and health. The guidelines use a unit of measurement known as the Specic Absorpon Rate, or SAR. The SAR limit for wireless devices is 2 W/kg and the highest SAR value for this camera when tested complied with this limit.This product is in compliance with the basic restricons as specied in the European Council Recommendaon [1999 519 EC] for the measured GSM 900, GSM 1800 and GSM 1900 standards.

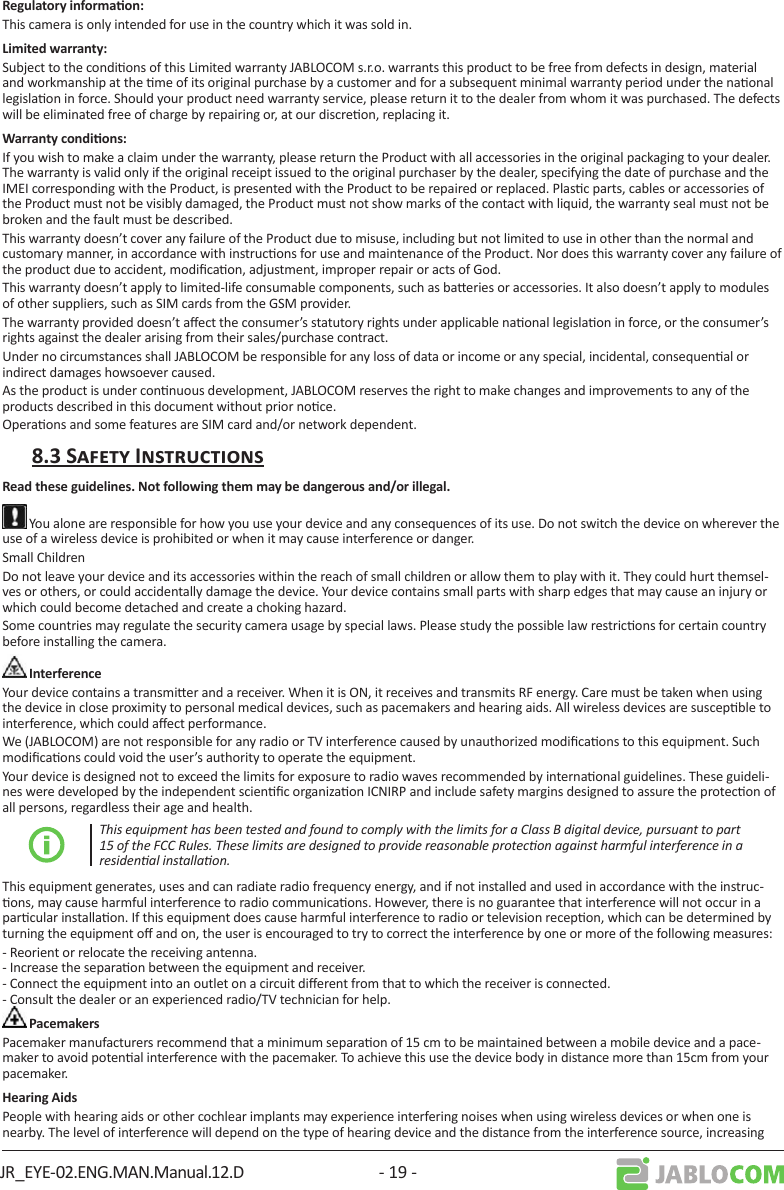

JR_EYE-02.ENG.MAN.Manual.12.D - 19 -This camera is only intended for use in the country which it was sold in.Subject to the condions of this Limited warranty JABLOCOM s.r.o. warrants this product to be free from defects in design, material and workmanship at the me of its original purchase by a customer and for a subsequent minimal warranty period under the naonal legislaon in force. Should your product need warranty service, please return it to the dealer from whom it was purchased. The defects will be eliminated free of charge by repairing or, at our discreon, replacing it. If you wish to make a claim under the warranty, please return the Product with all accessories in the original packaging to your dealer. The warranty is valid only if the original receipt issued to the original purchaser by the dealer, specifying the date of purchase and the IMEI corresponding with the Product, is presented with the Product to be repaired or replaced. Plasc parts, cables or accessories of the Product must not be visibly damaged, the Product must not show marks of the contact with liquid, the warranty seal must not be broken and the fault must be described.This warranty doesn’t cover any failure of the Product due to misuse, including but not limited to use in other than the normal and customary manner, in accordance with instrucons for use and maintenance of the Product. Nor does this warranty cover any failure of the product due to accident, modicaon, adjustment, improper repair or acts of God. This warranty doesn’t apply to limited-life consumable components, such as baeries or accessories. It also doesn’t apply to modules of other suppliers, such as SIM cards from the GSM provider.The warranty provided doesn’t aect the consumer’s statutory rights under applicable naonal legislaon in force, or the consumer’s rights against the dealer arising from their sales/purchase contract.Under no circumstances shall JABLOCOM be responsible for any loss of data or income or any special, incidental, consequenal or indirect damages howsoever caused.As the product is under connuous development, JABLOCOM reserves the right to make changes and improvements to any of the products described in this document without prior noce.Operaons and some features are SIM card and/or network dependent. You alone are responsible for how you use your device and any consequences of its use. Do not switch the device on wherever the use of a wireless device is prohibited or when it may cause interference or danger. Small ChildrenDo not leave your device and its accessories within the reach of small children or allow them to play with it. They could hurt themsel-ves or others, or could accidentally damage the device. Your device contains small parts with sharp edges that may cause an injury or which could become detached and create a choking hazard.Some countries may regulate the security camera usage by special laws. Please study the possible law restricons for certain country before installing the camera.Your device contains a transmier and a receiver. When it is ON, it receives and transmits RF energy. Care must be taken when using the device in close proximity to personal medical devices, such as pacemakers and hearing aids. All wireless devices are suscepble to interference, which could aect performance.We (JABLOCOM) are not responsible for any radio or TV interference caused by unauthorized modicaons to this equipment. Such modicaons could void the user’s authority to operate the equipment. Your device is designed not to exceed the limits for exposure to radio waves recommended by internaonal guidelines. These guideli-nes were developed by the independent scienc organizaon ICNIRP and include safety margins designed to assure the protecon of all persons, regardless their age and health.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against harmful interference in a residenal installaon.This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruc-ons, may cause harmful interference to radio communicaons. However, there is no guarantee that interference will not occur in a parcular installaon. If this equipment does cause harmful interference to radio or television recepon, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separaon between the equipment and receiver. - Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.Pacemaker manufacturers recommend that a minimum separaon of 15 cm to be maintained between a mobile device and a pace-maker to avoid potenal interference with the pacemaker. To achieve this use the device body in distance more than 15cm from your pacemaker.People with hearing aids or other cochlear implants may experience interfering noises when using wireless devices or when one is nearby. The level of interference will depend on the type of hearing device and the distance from the interference source, increasing

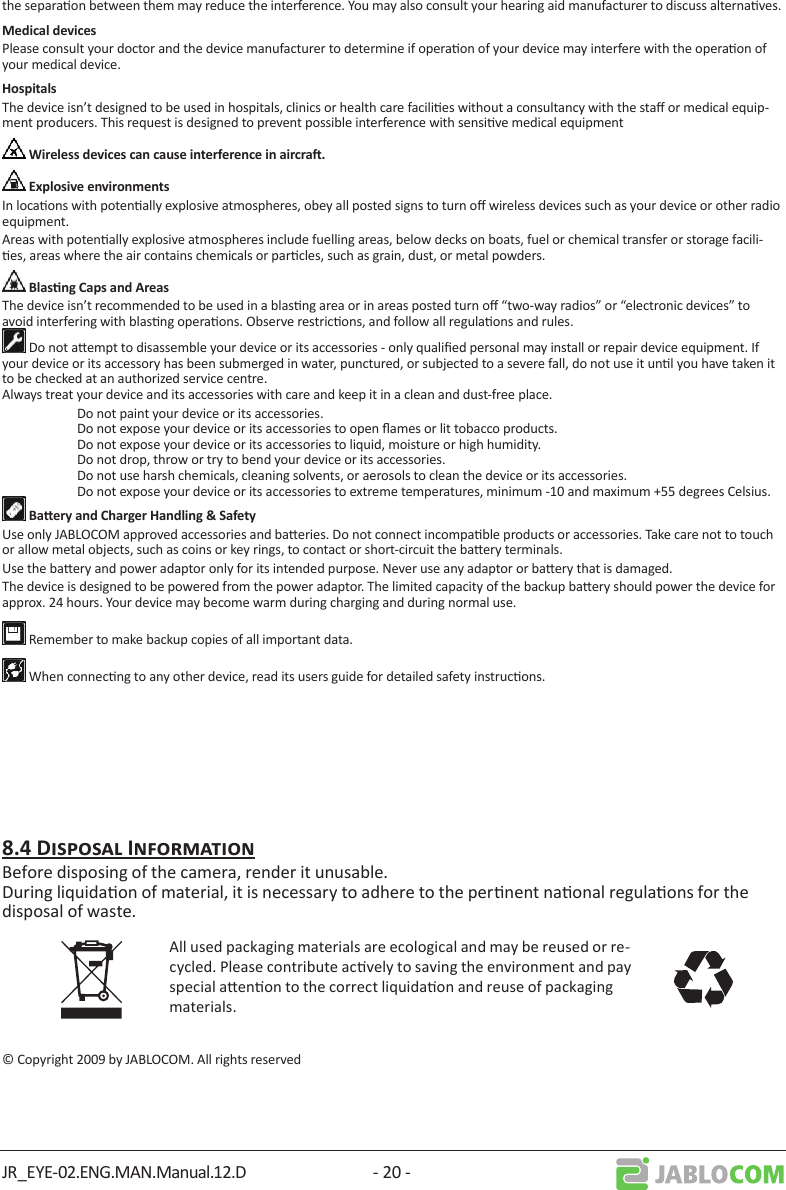

JR_EYE-02.ENG.MAN.Manual.12.D - 20 -the separaon between them may reduce the interference. You may also consult your hearing aid manufacturer to discuss alternaves.Please consult your doctor and the device manufacturer to determine if operaon of your device may interfere with the operaon of your medical device.The device isn’t designed to be used in hospitals, clinics or health care facilies without a consultancy with the sta or medical equip-ment producers. This request is designed to prevent possible interference with sensive medical equipmentIn locaons with potenally explosive atmospheres, obey all posted signs to turn o wireless devices such as your device or other radio equipment.Areas with potenally explosive atmospheres include fuelling areas, below decks on boats, fuel or chemical transfer or storage facili-es, areas where the air contains chemicals or parcles, such as grain, dust, or metal powders.The device isn’t recommended to be used in a blasng area or in areas posted turn o “two-way radios” or “electronic devices” to avoid interfering with blasng operaons. Observe restricons, and follow all regulaons and rules. Do not aempt to disassemble your device or its accessories - only qualied personal may install or repair device equipment. If your device or its accessory has been submerged in water, punctured, or subjected to a severe fall, do not use it unl you have taken it to be checked at an authorized service centre. Always treat your device and its accessories with care and keep it in a clean and dust-free place. Do not paint your device or its accessories. Do not expose your device or its accessories to open ames or lit tobacco products. Do not expose your device or its accessories to liquid, moisture or high humidity. Do not drop, throw or try to bend your device or its accessories. Do not use harsh chemicals, cleaning solvents, or aerosols to clean the device or its accessories. Do not expose your device or its accessories to extreme temperatures, minimum -10 and maximum +55 degrees Celsius.Use only JABLOCOM approved accessories and baeries. Do not connect incompable products or accessories. Take care not to touch or allow metal objects, such as coins or key rings, to contact or short-circuit the baery terminals.Use the baery and power adaptor only for its intended purpose. Never use any adaptor or baery that is damaged.The device is designed to be powered from the power adaptor. The limited capacity of the backup baery should power the device for approx. 24 hours. Your device may become warm during charging and during normal use. Remember to make backup copies of all important data. When connecng to any other device, read its users guide for detailed safety instrucons. Before disposing of the camera, render it unusable. During liquidaon of material, it is necessary to adhere to the pernent naonal regulaons for the disposal of waste.All used packaging materials are ecological and may be reused or re-cycled. Please contribute acvely to saving the environment and pay special aenon to the correct liquidaon and reuse of packaging materials.© Copyright 2009 by JABLOCOM. All rights reserved

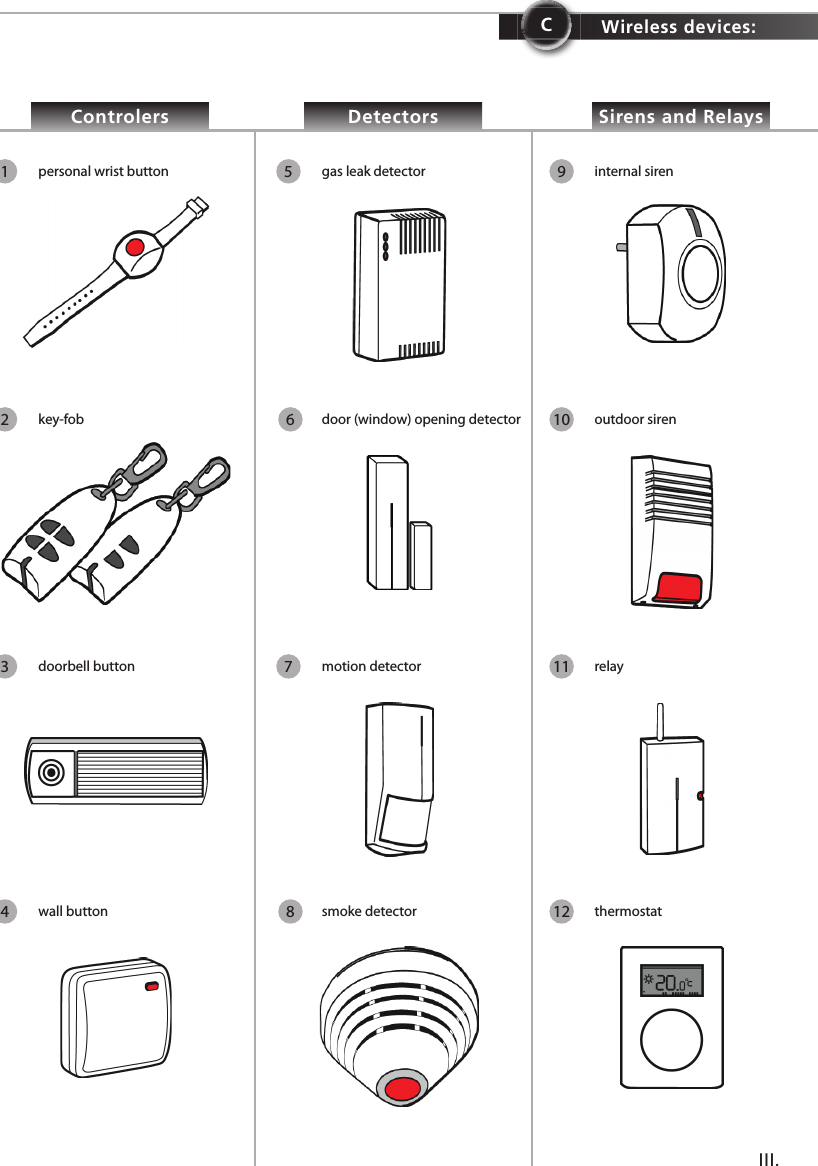

Wireless devices:Controlers Detectors Sirens and RelaysIII.C1personal wrist buttonkey-fobdoorbell buttonwall buttongas leak detectordoor (window) opening detectormotion detectorsmoke detectorinternal sirenoutdoor sirenrelaythermostat 23456789101112

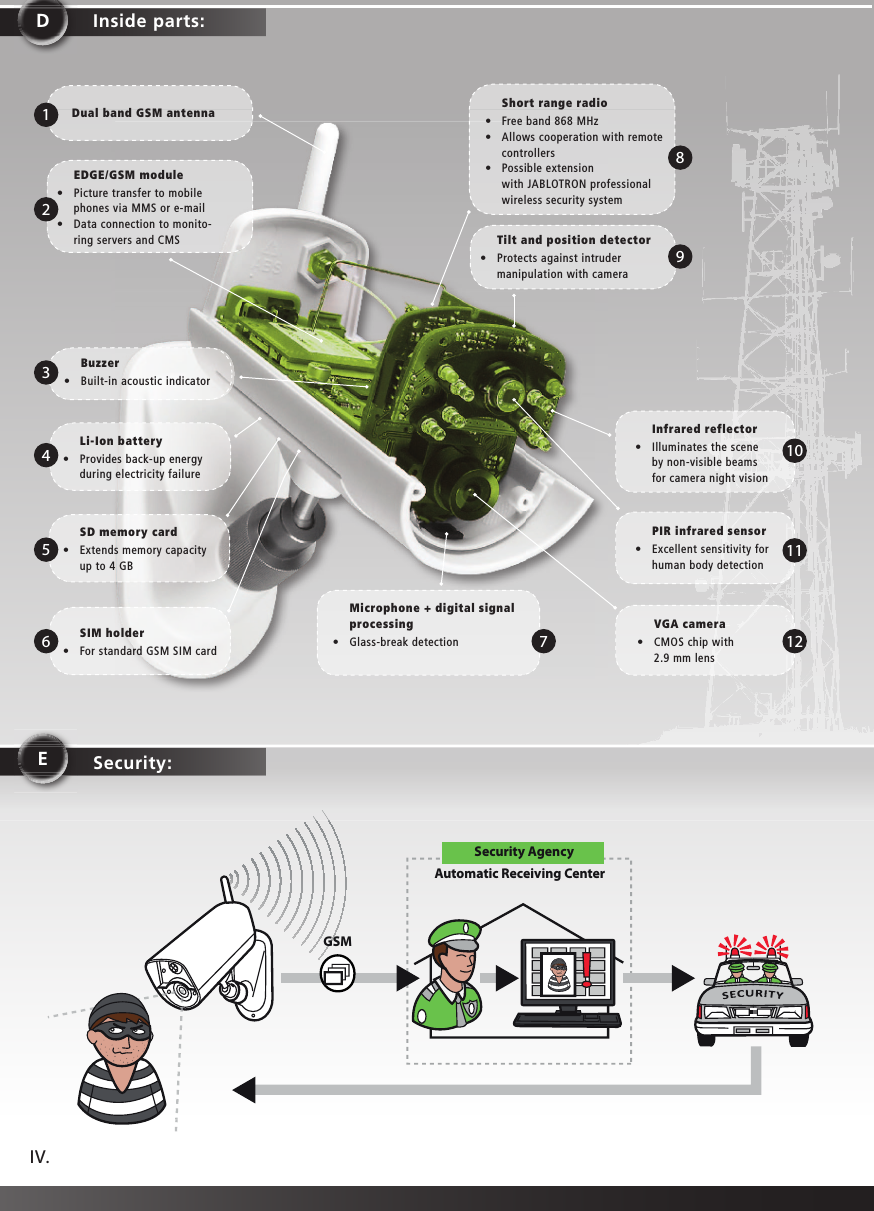

Short range radio• Free band 868 MHz• Allows cooperation with remote controllers• Possible extension with JABLOTRON professional wireless security systemSIM holder• For standard GSM SIM cardSD memory card• Extends memory capacity up to 4 GBLi-Ion battery• Provides back-up energy during electricity failureMicrophone + digital signalprocessing• Glass-break detectionTilt and position detector• Protects against intruder manipulation with cameraEDGE/GSM module • Picture transfer to mobile phones via MMS or e-mail• Data connection to monito- ring servers and CMSBuzzer• Built-in acoustic indicatorVGA camera • CMOS chip with 2.9 mm lensInfrared reflector• Illuminates the scene by non-visible beams for camera night visionPIR infrared sensor• Excellent sensitivity for human body detectionDual band GSM antennaSecurity Agency GSMAutomatic Receiving CenterInside parts:Security:IV.ED123456 7 12111098
