JABLOCOM S R O GDP-04I GSM Desktop Phone User Manual

JABLOCOM S.R.O. GSM Desktop Phone

User Manual

User’s GuideGSM Desktop PhoneGDP-04i

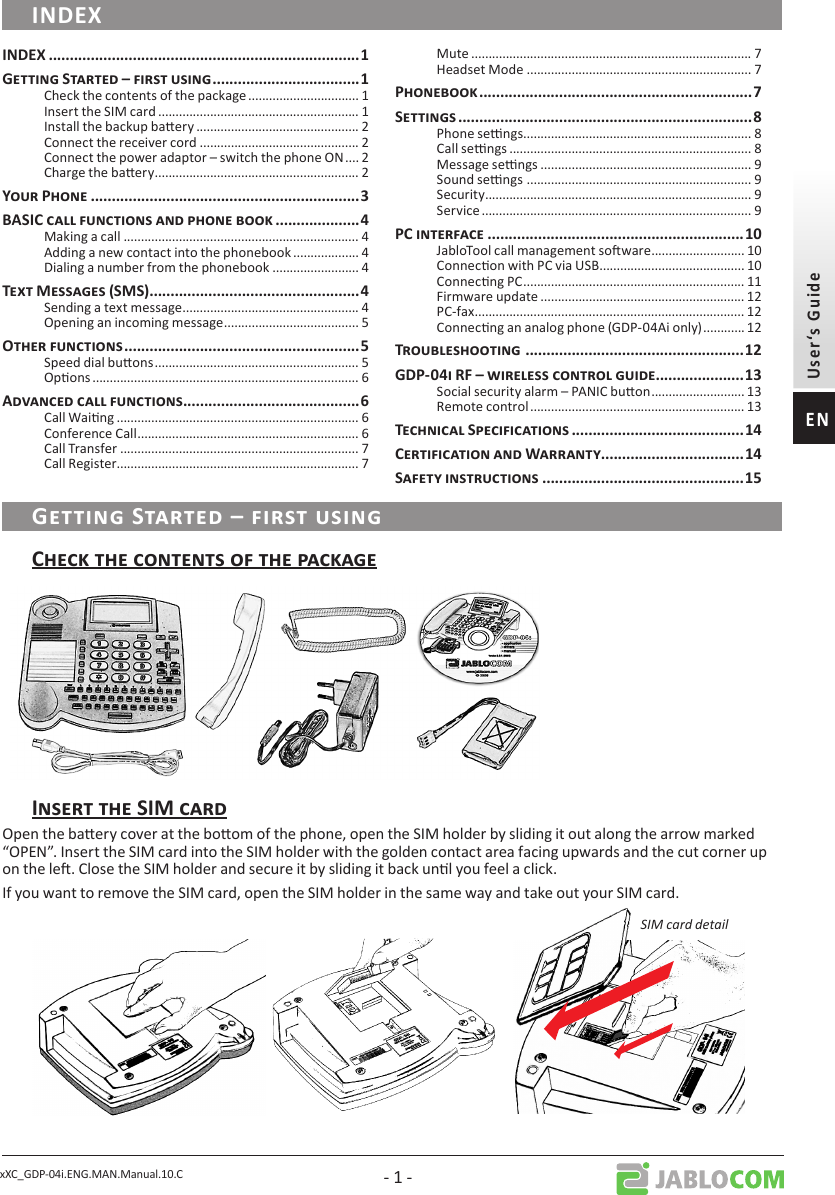

xXC_GDP-04i.ENG.MAN.Manual.10.C - 1 -Open the baery cover at the boom of the phone, open the SIM holder by sliding it out along the arrow marked “OPEN”. Insert the SIM card into the SIM holder with the golden contact area facing upwards and the cut corner up on the le. Close the SIM holder and secure it by sliding it back unl you feel a click.If you want to remove the SIM card, open the SIM holder in the same way and take out your SIM card.SIM card detailCheck the contents of the package ................................ 1Insert the SIM card .......................................................... 1Install the backup baery ............................................... 2Connect the receiver cord .............................................. 2Connect the power adaptor – switch the phone ON .... 2Charge the baery ........................................................... 2Making a call .................................................................... 4Adding a new contact into the phonebook ................... 4Dialing a number from the phonebook ......................... 4Sending a text message ................................................... 4Opening an incoming message ....................................... 5Speed dial buons ........................................................... 5Opons ............................................................................. 6Call Waing ...................................................................... 6Conference Call ................................................................ 6Call Transfer ..................................................................... 7Call Register ...................................................................... 7Mute ................................................................................. 7Headset Mode ................................................................. 7Phone sengs .................................................................. 8Call sengs ...................................................................... 8Message sengs ............................................................. 9Sound sengs ................................................................. 9Security ............................................................................. 9Service .............................................................................. 9JabloTool call management soware ........................... 10Connecon with PC via USB .......................................... 10Connecng PC ................................................................ 11Firmware update ........................................................... 12PC-fax .............................................................................. 12Connecng an analog phone (GDP-04Ai only) ............ 12Social security alarm – PANIC buon ........................... 13Remote control .............................................................. 13

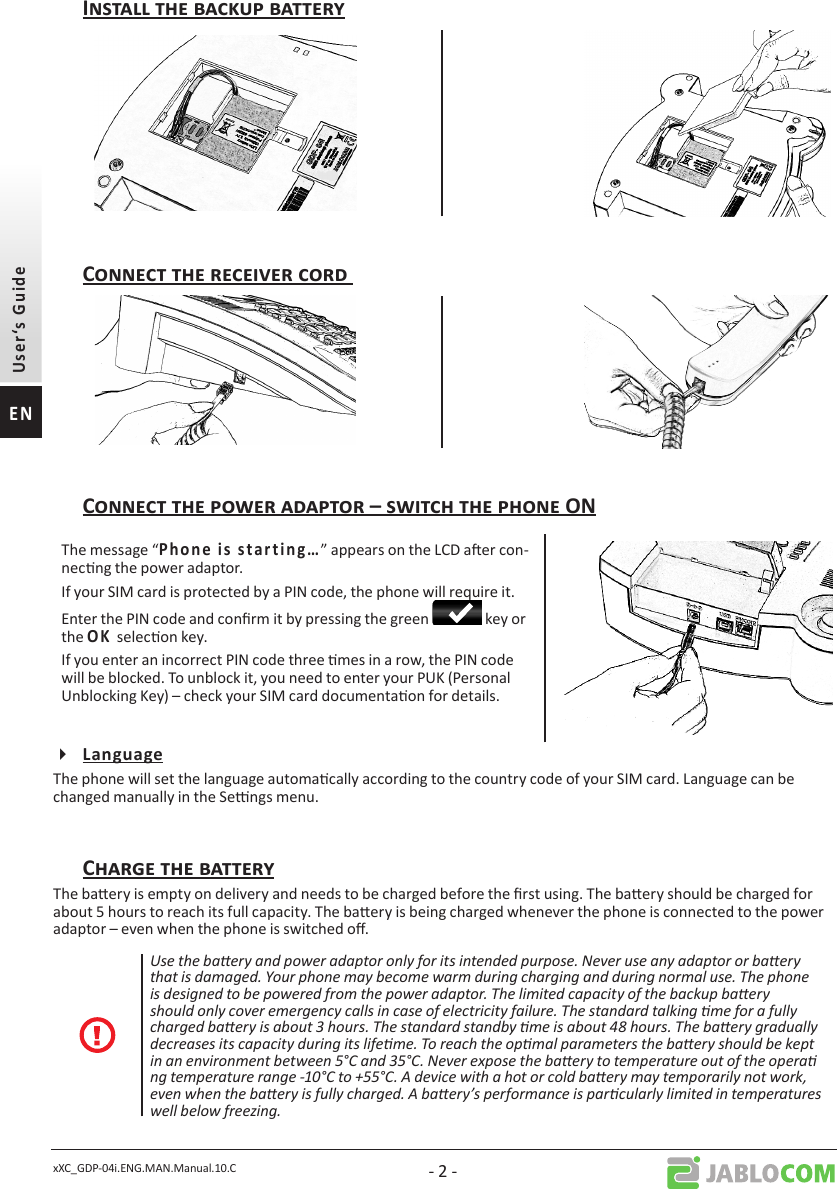

xXC_GDP-04i.ENG.MAN.Manual.10.C - 2 -The message “               ” appears on the LCD aer con-necng the power adaptor.If your SIM card is protected by a PIN code, the phone will require it. Enter the PIN code and conrm it by pressing the green key or the selecon key.If you enter an incorrect PIN code three mes in a row, the PIN code will be blocked. To unblock it, you need to enter your PUK (Personal Unblocking Key) – check your SIM card documentaon for details.The phone will set the language automacally according to the country code of your SIM card. Language can be changed manually in the Sengs menu. The baery is empty on delivery and needs to be charged before the rst using. The baery should be charged for about 5 hours to reach its full capacity. The baery is being charged whenever the phone is connected to the power adaptor – even when the phone is switched o.Use the baery and power adaptor only for its intended purpose. Never use any adaptor or baery that is damaged. Your phone may become warm during charging and during normal use. The phone is designed to be powered from the power adaptor. The limited capacity of the backup baery should only cover emergency calls in case of electricity failure. The standard talking me for a fully charged baery is about 3 hours. The standard standby me is about 48 hours. The baery gradually decreases its capacity during its lifeme. To reach the opmal parameters the baery should be kept in an environment between 5°C and 35°C. Never expose the baery to temperature out of the opera ng temperature range -10°C to +55°C. A device with a hot or cold baery may temporarily not work, even when the baery is fully charged. A baery’s performance is parcularly limited in temperatures well below freezing.

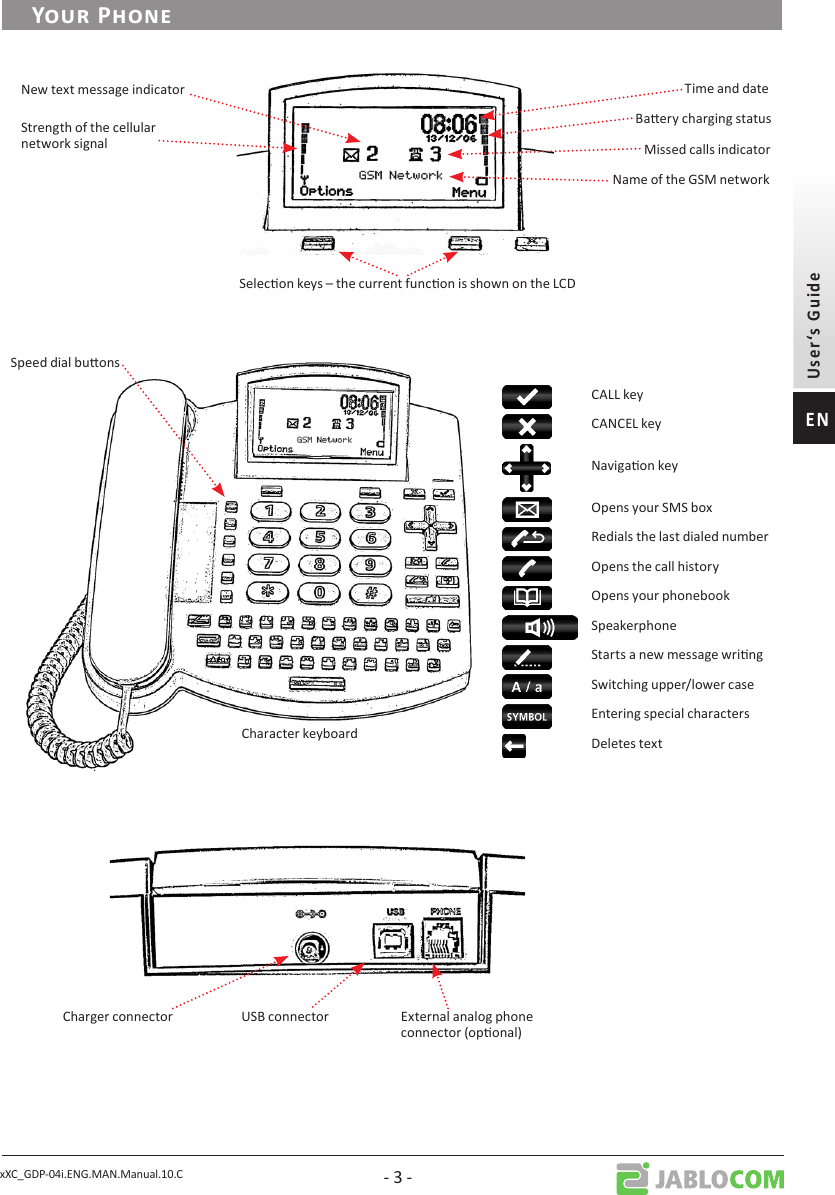

xXC_GDP-04i.ENG.MAN.Manual.10.C - 3 -New text message indicatorStrength of the cellularnetwork signalSelecon keys – the current funcon is shown on the LCDBaery charging statusName of the GSM networkTime and dateMissed calls indicatorSpeed dial buonsCharacter keyboardCALL keyCANCEL keyNavigaon keyOpens your SMS boxRedials the last dialed numberOpens the call historyOpens your phonebookSpeakerphoneStarts a new message wringSwitching upper/lower caseEntering special charactersDeletes textCharger connector USB connector External analog phone connector (oponal)

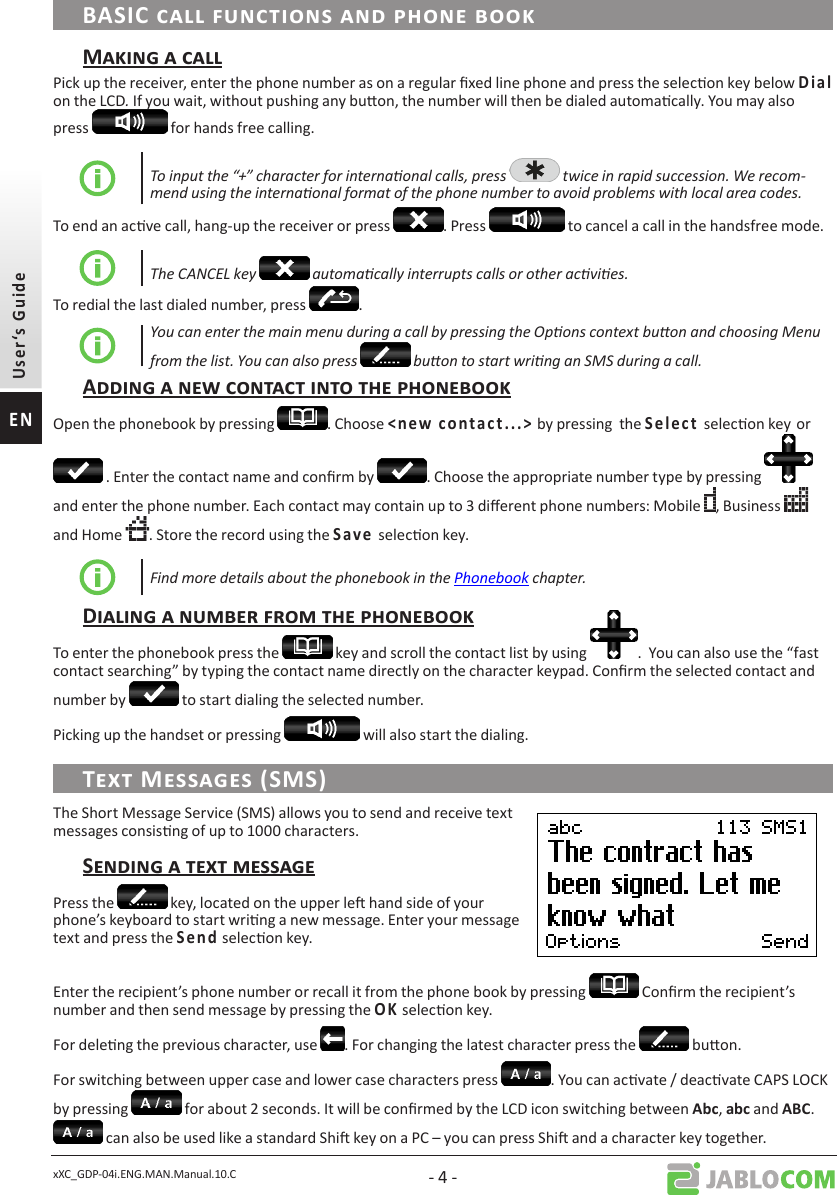

xXC_GDP-04i.ENG.MAN.Manual.10.C - 4 -Pick up the receiver, enter the phone number as on a regular xed line phone and press the selecon key below     on the LCD. If you wait, without pushing any buon, the number will then be dialed automacally. You may also press for hands free calling.To input the “+” character for internaonal calls, press twice in rapid succession. We recom-mend using the internaonal format of the phone number to avoid problems with local area codes.To end an acve call, hang-up the receiver or press . Press to cancel a call in the handsfree mode.The CANCEL key automacally interrupts calls or other acvies.To redial the last dialed number, press . You can enter the main menu during a call by pressing the Opons context buon and choosing Menu from the list. You can also press buon to start wring an SMS during a call.Open the phonebook by pressing . Choose               by pressing the       selecon keyor . Enter the contact name and conrm by . Choose the appropriate number type by pressing and enter the phone number. Each contact may contain up to 3 dierent phone numbers: Mobile , Business and Home . Store the record using the    selecon key.Find more details about the phonebook in the Phonebook chapter.To enter the phonebook press the key and scroll the contact list by using . You can also use the “fast contact searching” by typing the contact name directly on the character keypad. Conrm the selected contact and number by to start dialing the selected number.Picking up the handset or pressing will also start the dialing.The Short Message Service (SMS) allows you to send and receive text messages consisng of up to 1000 characters.Press the key, located on the upper le hand side of your phone’s keyboard to start wring a new message. Enter your message text and press the     selecon key. Enter the recipient’s phone number or recall it from the phone book by pressing Conrm the recipient’s number and then send message by pressing the  selecon key.For deleng the previous character, use . For changing the latest character press the buon.For switching between upper case and lower case characters press . You can acvate / deacvate CAPS LOCK by pressing for about 2 seconds. It will be conrmed by the LCD icon switching between ,  and . can also be used like a standard Shi key on a PC – you can press Shi and a character key together.

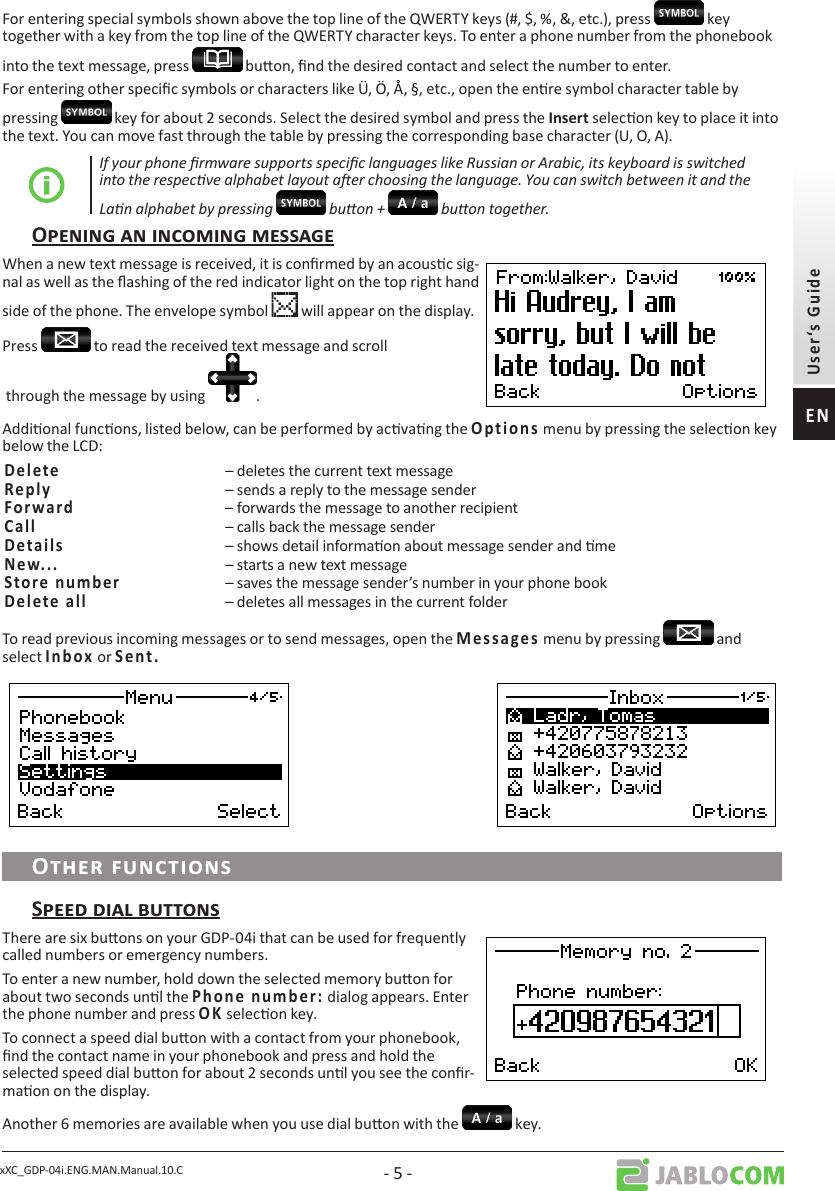

xXC_GDP-04i.ENG.MAN.Manual.10.C - 5 -For entering special symbols shown above the top line of the QWERTY keys (#, $, %, &, etc.), press key together with a key from the top line of the QWERTY character keys. To enter a phone number from the phonebook into the text message, press buon, nd the desired contact and select the number to enter. For entering other specic symbols or characters like Ü, Ö, Å, §, etc., open the enre symbol character table by pressing key for about 2 seconds. Select the desired symbol and press the  selecon key to place it into the text. You can move fast through the table by pressing the corresponding base character (U, O, A).If your phone rmware supports specic languages like Russian or Arabic, its keyboard is switched into the respecve alphabet layout aer choosing the language. You can switch between it and the Lan alphabet by pressing buon + buon together.When a new text message is received, it is conrmed by an acousc sig-nal as well as the ashing of the red indicator light on the top right hand side of the phone. The envelope symbol will appear on the display.Press to read the received text message and scroll through the message by using .Addional funcons, listed below, can be performed by acvang the        menu by pressing the selecon key below the LCD: – deletes the current text message – sends a reply to the message sender – forwards the message to another recipient– calls back the message sender   – shows detail informaon about message sender and me – starts a new text message– saves the message sender’s number in your phone book– deletes all messages in the current folderTo read previous incoming messages or to send messages, open the         menu by pressing and select  or     There are six buons on your GDP-04i that can be used for frequently called numbers or emergency numbers.To enter a new number, hold down the selected memory buon for about two seconds unl the          dialog appears. Enter the phone number and press  selecon key. To connect a speed dial buon with a contact from your phonebook, nd the contact name in your phonebook and press and hold the selected speed dial buon for about 2 seconds unl you see the conr-maon on the display.Another 6 memories are available when you use dial buon with the key.

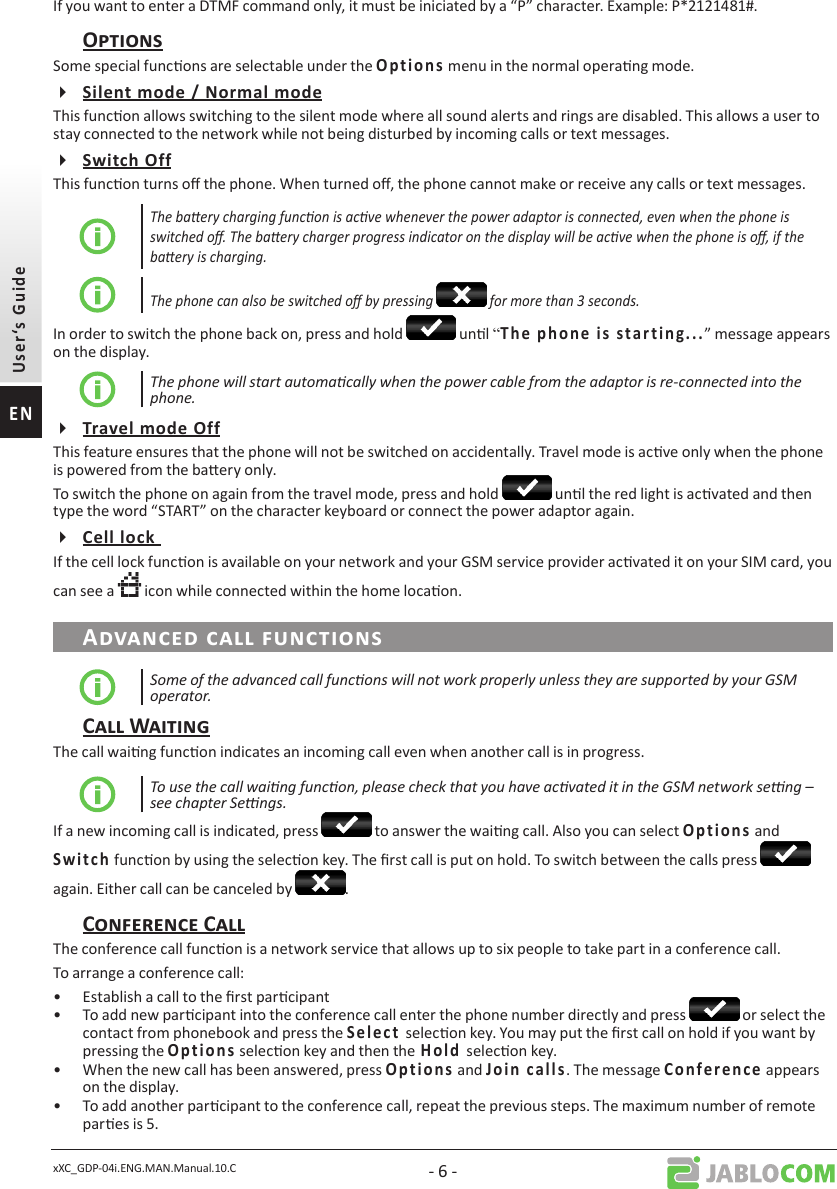

xXC_GDP-04i.ENG.MAN.Manual.10.C - 6 -If you want to enter a DTMF command only, it must be iniciated by a “P” character. Example: P*2121481#.Some special funcons are selectable under the        menu in the normal operang mode.This funcon allows switching to the silent mode where all sound alerts and rings are disabled. This allows a user to stay connected to the network while not being disturbed by incoming calls or text messages. This funcon turns o the phone. When turned o, the phone cannot make or receive any calls or text messages. The baery charging funcon is acve whenever the power adaptor is connected, even when the phone is switched o. The baery charger progress indicator on the display will be acve when the phone is o, if the baery is charging.The phone can also be switched o by pressing for more than 3 seconds.In order to switch the phone back on, press and hold unl “                    ” message appears on the display.The phone will start automacally when the power cable from the adaptor is re-connected into the phone.This feature ensures that the phone will not be switched on accidentally. Travel mode is acve only when the phone is powered from the baery only.To switch the phone on again from the travel mode, press and hold unl the red light is acvated and then type the word “START” on the character keyboard or connect the power adaptor again.If the cell lock funcon is available on your network and your GSM service provider acvated it on your SIM card, you can see a icon while connected within the home locaon.Some of the advanced call funcons will not work properly unless they are supported by your GSM operator.The call waing funcon indicates an incoming call even when another call is in progress.To use the call waing funcon, please check that you have acvated it in the GSM network seng – see chapter Sengs.If a new incoming call is indicated, press to answer the waing call. Also you can select        and     funcon by using the selecon key. The rst call is put on hold. To switch between the calls press again. Either call can be canceled by .The conference call funcon is a network service that allows up to six people to take part in a conference call.To arrange a conference call:• Establish a call to the rst parcipant• To add new parcipant into the conference call enter the phone number directly and press or select the contact from phonebook and press the       selecon key. You may put the rst call on hold if you want by pressing the        selecon key and then the    selecon key.• When the new call has been answered, press        and        . The message          appears on the display. • To add another parcipant to the conference call, repeat the previous steps. The maximum number of remote pares is 5.
xXC_GDP-04i.ENG.MAN.Manual.10.C - 7 -• To have a private conversaon with one of the parcipants, press the        selecon key and select      . Scroll to the desired parcipant and press the       selecon key. Once you have nished the private conversaon, re-establish the conference by pressing the        selecon key and then the         selecon key.• To cancel the connecon with some of the parcipants, press the        selecon key and then select    . Scroll to the desired parcipant and press the       selecon key • To end the conference call, press .The call transfer funcon allows you to forward the acve call to another phone number.During the incoming call, press the        selecon key and then select . This puts the calling party on hold. Enter the phone number directly and press or select the contact from phonebook and then press the       selecon key. As soon as the call is answered, press the        selecon key and then select       . You can hang up as soon as the connecon is established.The phone registers missed calls , incoming calls and outgoing calls . There can be up to 100 calls stored in the memory. If the memory is full, the oldest record of the same type is automacally erased.To view the call history list, press .Addional funcons are available under the        menu for each stored number:   - shows extended informaon about the call number, date, me, number of at-tempts) - the phone dials the selected number - sends a text message to the selected number  - deletes the selected call record from the call history register- saves the selected number in your phonebook - deletes all call records from the call history registerYou can mute your microphone during a call so that the other party does not hear you while you can hear the other party. Select        during the call and select  to disconnect the microphone (both handset and hands-free).Select        and select     to re-acvate the microphone.If a headset is used for calling instead of the handset, we recommend switching into the special headset mode that allows receiving and terminang calls without necessity to pick up the receiver.For acvang the headset mode go to the                             funcon. Enter     and press . For deacvang the headset mode enter      instead.To receive an incoming call, press the green buon or the SPACE bar in the headset mode. To terminate a call, press the red buon or the SPACE bar. Every phonebook contact can include the following items:•         and        •   •           •   •     (a specic ring tone can be selected for this contact)

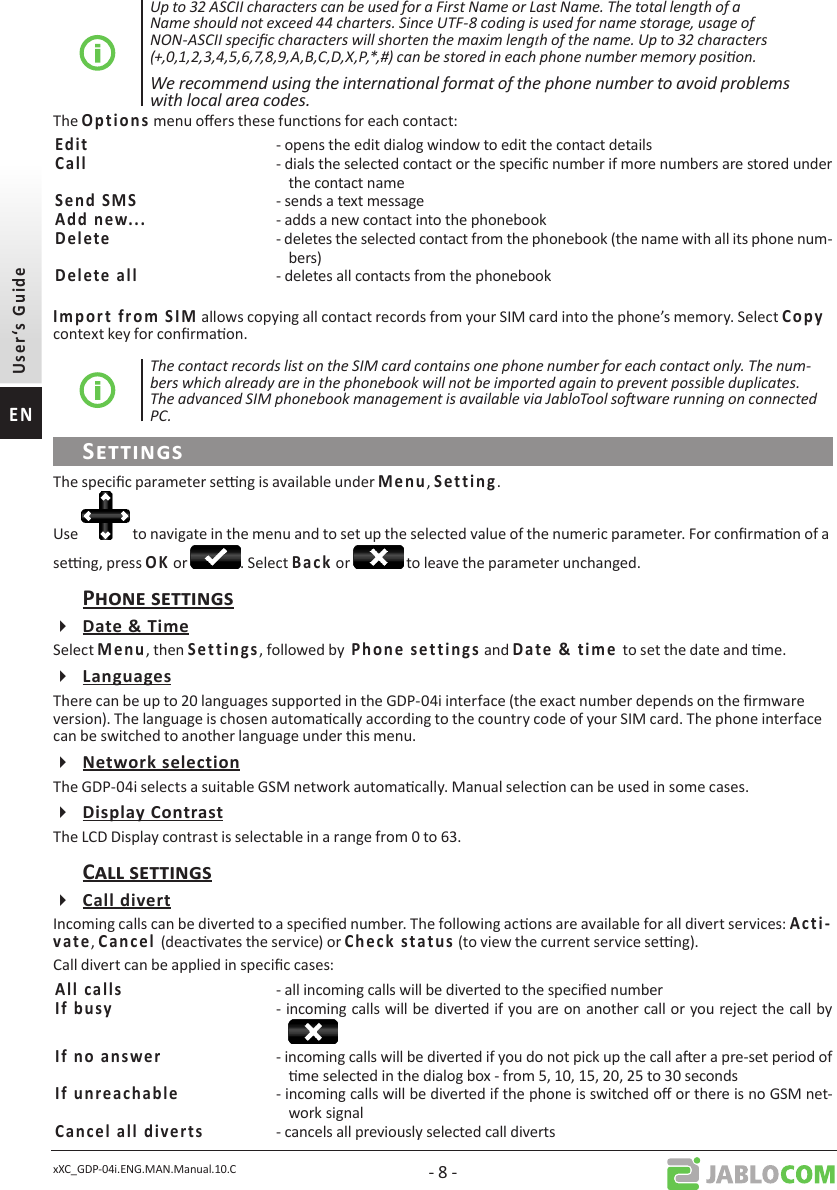

xXC_GDP-04i.ENG.MAN.Manual.10.C - 8 -Up to 32 ASCII characters can be used for a First Name or Last Name. The total length of a Name should not exceed 44 charters. Since UTF-8 coding is used for name storage, usage of NON-ASCII specic characters will shorten the maxim length of the name. Up to 32 characters (+,0,1,2,3,4,5,6,7,8,9,A,B,C,D,X,P,*,#) can be stored in each phone number memory posion.We recommend using the internaonal format of the phone number to avoid problems with local area codes.The        menu oers these funcons for each contact: - opens the edit dialog window to edit the contact details- dials the selected contact or the specic number if more numbers are stored under the contact name - sends a text message - adds a new contact into the phonebook  - deletes the selected contact from the phonebook (the name with all its phone num-bers) - deletes all contacts from the phonebook         allows copying all contact records from your SIM card into the phone’s memory. Select     context key for conrmaon.The contact records list on the SIM card contains one phone number for each contact only. The num-bers which already are in the phonebook will not be imported again to prevent possible duplicates. The advanced SIM phonebook management is available via JabloTool soware running on connected PC.The specic parameter seng is available under ,       .Use to navigate in the menu and to set up the selected value of the numeric parameter. For conrmaon of a seng, press  or . Select     or to leave the parameter unchanged.Select , then        , followed by              and       to set the date and me.There can be up to 20 languages supported in the GDP-04i interface (the exact number depends on the rmware version). The language is chosen automacally according to the country code of your SIM card. The phone interface can be switched to another language under this menu.The GDP-04i selects a suitable GSM network automacally. Manual selecon can be used in some cases.The LCD Display contrast is selectable in a range from 0 to 63. Incoming calls can be diverted to a specied number. The following acons are available for all divert services:     ,      (deacvates the service) or            (to view the current service seng). Call divert can be applied in specic cases: - all incoming calls will be diverted to the specied number - incoming calls will be diverted if you are on another call or you reject the call by  - incoming calls will be diverted if you do not pick up the call aer a pre-set period of me selected in the dialog box - from 5, 10, 15, 20, 25 to 30 seconds - incoming calls will be diverted if the phone is switched o or there is no GSM net-work signal- cancels all previously selected call diverts

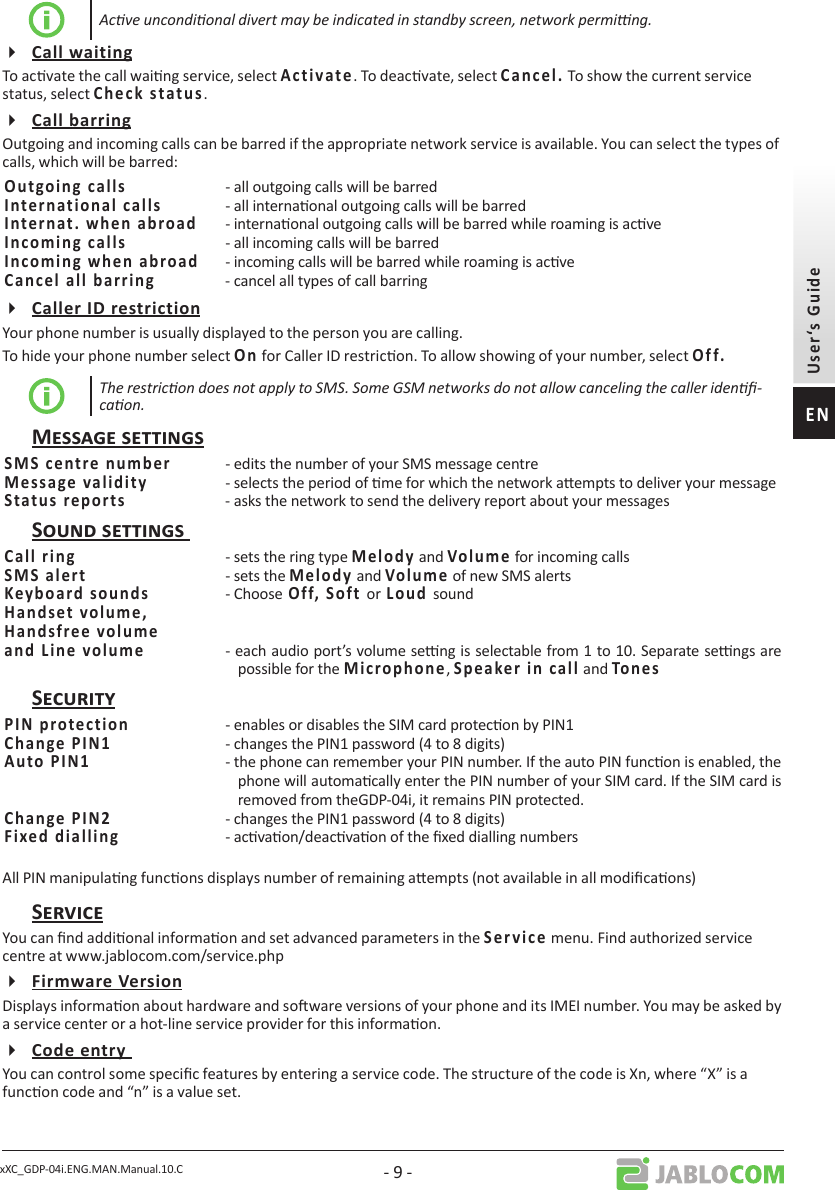

xXC_GDP-04i.ENG.MAN.Manual.10.C - 9 -Acve uncondional divert may be indicated in standby screen, network perming.To acvate the call waing service, select      . To deacvate, select       To show the current service status, select           .Outgoing and incoming calls can be barred if the appropriate network service is available. You can select the types of calls, which will be barred:  - all outgoing calls will be barred - all internaonal outgoing calls will be barred - internaonal outgoing calls will be barred while roaming is acve - all incoming calls will be barred - incoming calls will be barred while roaming is acve - cancel all types of call barringYour phone number is usually displayed to the person you are calling.To hide your phone number select   for Caller ID restricon. To allow showing of your number, select    The restricon does not apply to SMS. Some GSM networks do not allow canceling the caller iden-caon. - edits the number of your SMS message centre - selects the period of me for which the network aempts to deliver your message - asks the network to send the delivery report about your messages - sets the ring type  and  for incoming calls - sets the  and  of new SMS alerts- Chooseorsound  - each audio port’s volume seng is selectable from 1 to 10. Separate sengs are possible for the ,  and  - enables or disables the SIM card protecon by PIN1 - changes the PIN1 password (4 to 8 digits) - the phone can remember your PIN number. If the auto PIN funcon is enabled, the phone will automacally enter the PIN number of your SIM card. If the SIM card is removed from theGDP-04i, it remains PIN protected. - changes the PIN1 password (4 to 8 digits)- acvaon/deacvaon of the xed dialling numbersAll PIN manipulang funcons displays number of remaining aempts (not available in all modicaons)You can nd addional informaon and set advanced parameters in the        menu. Find authorized service centre at www.jablocom.com/service.phpDisplays informaon about hardware and soware versions of your phone and its IMEI number. You may be asked by a service center or a hot-line service provider for this informaon.You can control some specic features by entering a service code. The structure of the code is Xn, where “X” is a funcon code and “n” is a value set.

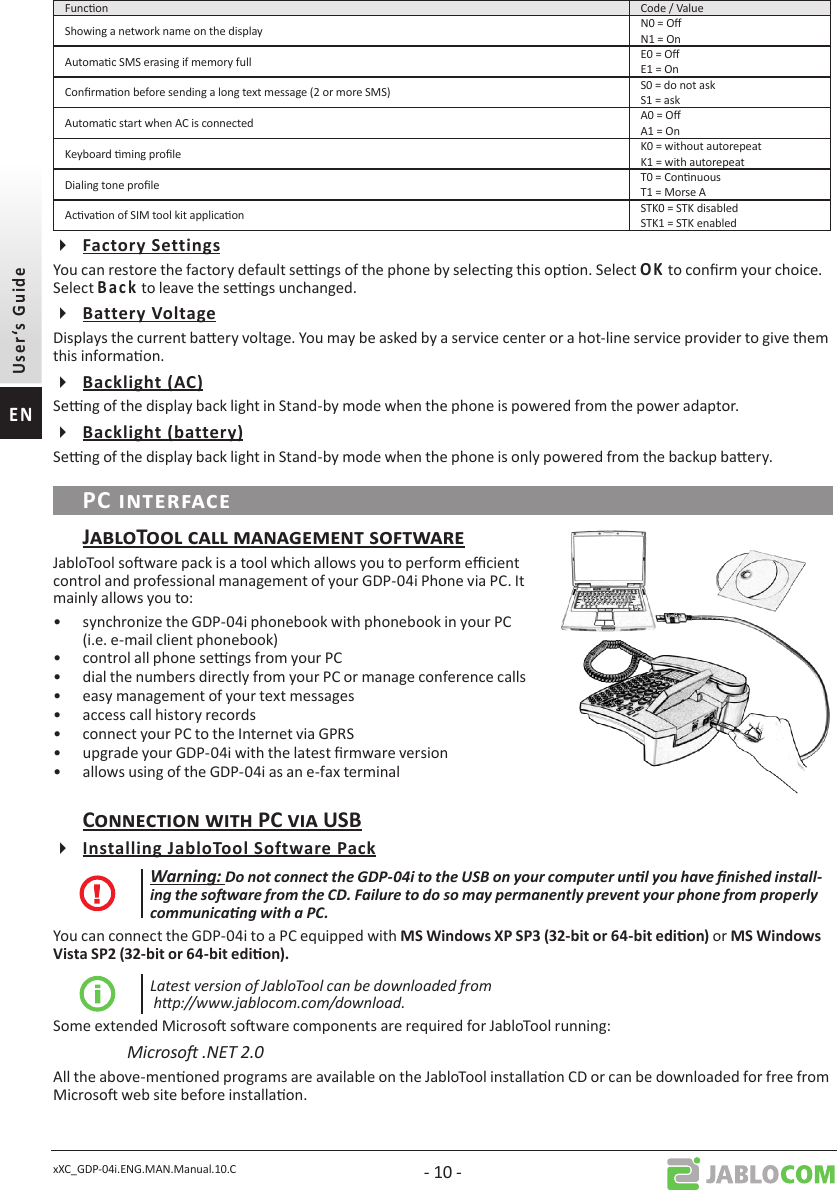

xXC_GDP-04i.ENG.MAN.Manual.10.C - 10 -Funcon Code / ValueShowing a network name on the display N0 = ON1 = OnAutomac SMS erasing if memory full E0 = OE1 = OnConrmaon before sending a long text message (2 or more SMS) S0 = do not askS1 = askAutomac start when AC is connected A0 = OA1 = OnKeyboard ming prole K0 = without autorepeatK1 = with autorepeatDialing tone prole T0 = ConnuousT1 = Morse AAcvaon of SIM tool kit applicaon STK0 = STK disabledSTK1 = STK enabledYou can restore the factory default sengs of the phone by selecng this opon. Select  to conrm your choice. Select     to leave the sengs unchanged.Displays the current baery voltage. You may be asked by a service center or a hot-line service provider to give them this informaon.Seng of the display back light in Stand-by mode when the phone is powered from the power adaptor.Seng of the display back light in Stand-by mode when the phone is only powered from the backup baery.JabloTool soware pack is a tool which allows you to perform ecient control and professional management of your GDP-04i Phone via PC. It mainly allows you to:• synchronize the GDP-04i phonebook with phonebook in your PC (i.e. e-mail client phonebook)• control all phone sengs from your PC• dial the numbers directly from your PC or manage conference calls• easy management of your text messages • access call history records• connect your PC to the Internet via GPRS• upgrade your GDP-04i with the latest rmware version• allows using of the GDP-04i as an e-fax terminal Warning: Do not connect the GDP-04i to the USB on your computer unl you have nished install-ing the soware from the CD. Failure to do so may permanently prevent your phone from properly communicang with a PC.You can connect the GDP-04i to a PC equipped with or Latest version of JabloTool can be downloaded from hp://www.jablocom.com/download.Some extended Microso soware components are required for JabloTool running:Microso .NET 2.0 All the above-menoned programs are available on the JabloTool installaon CD or can be downloaded for free from Microso web site before installaon.

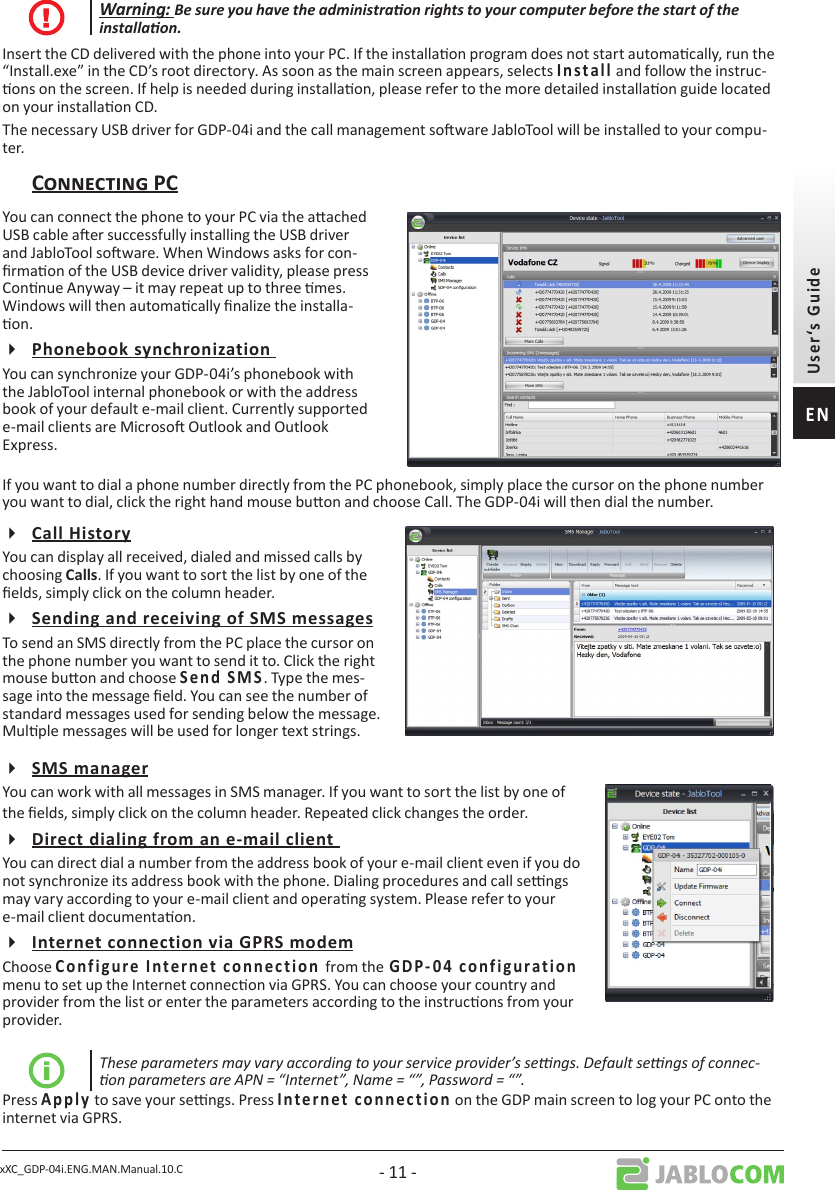

xXC_GDP-04i.ENG.MAN.Manual.10.C - 11 -Warning: Be sure you have the administraon rights to your computer before the start of the installaon.Insert the CD delivered with the phone into your PC. If the installaon program does not start automacally, run the “Install.exe” in the CD’s root directory. As soon as the main screen appears, selects        and follow the instruc-ons on the screen. If help is needed during installaon, please refer to the more detailed installaon guide located on your installaon CD.The necessary USB driver for GDP-04i and the call management soware JabloTool will be installed to your compu-ter.You can connect the phone to your PC via the aached USB cable aer successfully installing the USB driver and JabloTool soware. When Windows asks for con-rmaon of the USB device driver validity, please press Connue Anyway – it may repeat up to three mes. Windows will then automacally nalize the installa-on. You can synchronize your GDP-04i’s phonebook with the JabloTool internal phonebook or with the address book of your default e-mail client. Currently supported e-mail clients are Microso Outlook and Outlook Express. If you want to dial a phone number directly from the PC phonebook, simply place the cursor on the phone number you want to dial, click the right hand mouse buon and choose Call. The GDP-04i will then dial the number.You can display all received, dialed and missed calls by choosing . If you want to sort the list by one of the elds, simply click on the column header.To send an SMS directly from the PC place the cursor on the phone number you want to send it to. Click the right mouse buon and choose       . Type the mes-sage into the message eld. You can see the number of standard messages used for sending below the message. Mulple messages will be used for longer text strings.You can work with all messages in SMS manager. If you want to sort the list by one of the elds, simply click on the column header. Repeated click changes the order.You can direct dial a number from the address book of your e-mail client even if you do not synchronize its address book with the phone. Dialing procedures and call sengs may vary according to your e-mail client and operang system. Please refer to your e-mail client documentaon.Choose                          from the               menu to set up the Internet connecon via GPRS. You can choose your country and provider from the list or enter the parameters according to the instrucons from your provider.These parameters may vary according to your service provider’s sengs. Default sengs of connec-on parameters are APN = “Internet”, Name = “”, Password = “”.Press  to save your sengs. Press              on the GDP main screen to log your PC onto the internet via GPRS.
xXC_GDP-04i.ENG.MAN.Manual.10.C - 12 -GDP-04i oers an opportunity to upgrade the phone rmware through the Internet from JABLOCOM update server. Availability of a new rmware may be checked by JabloTool automacally or user can perform a manual check. If there is a new rmware available, you can update your phone using the Update Tool, an integrated part of JabloTool. Highlight the phone within the device list and click the right mouse buon. Choose             from the menu. We recommend synchronizing your GDP-04i’s phonebook with the PC phonebook (JabloTool or e-mail client) prior performing the update. Warning: Synchronize your GDP-04i’s phonebook data with PC before starng of rmware update to prevent possible data loss!UpdateTool will oer you all rmware versions available for your phone. Choose Bootloader, Soware and the Lan-guages you want to upload into your phone and select . The phone will automacally switch to standby mode as soon as the upload is nished.You can use the GDP-04i as a PC-fax for sending/receiving your faxes from/to your PC. To use the GDP-04i as a PC-fax, you have to install fax service (oponal component of Microso Windows installa-on). This will add FAX as prinng device in the list of your printers. Open properes of FAX and select GDP-04i as a device for sending/receiving faxes during installaon of a fax feature of your operang system. To acvate automac receiving of incoming faxes you have to set-up Fax Console (Start/All Programs/Accessories/Communicaons/Fax/Fax Console). Warning: Digital fax funcon may not work properly unless it is fully supported by your GSM service provider.The GDP-04Ai oers you the possibility to connect a standard analog phone. This feature allows you to operate an analog phone in a similar way as if it is connected to a standard xed line net-work (PSTN), but over a GSM network. You can dial a number from the GDP-04Ai as well as from the analog phone. They can not be used simultaneously. The call is executed through your GSM connecon in both cases.An incoming call rings on the GDP-04Ai as well as on the aached analog phone. The user can answer the call from either phone.To switch an ongoing call from the GDP-04Ai to the aached analog phone, press the “Space” key (on the character keyboard). You will hear the ringing signal of three short beeps. You will be disconnected once the analog phone answers the call. You may hang up now. To switch an ongoing call from the aached analog phone to the GDP-04Ai, press the FLASH on the phone, wait for the call to be answered on GDP-04Ai and then hang up.Only one phone or master PBX line (home exchange unit) can be aached.Warning: Never connect the GDP-04Ai into a wall socket of a xed line network (PSTN).JABLOCOM is improving the GDP-04i phone soware as well as the JabloTool call management soware connu-ously. If you nd an incorrect phone behavior, please check if you use the latest available rmware version within the JabloTool (menu ). Detail update instrucons as well as the latest JabloTool version you can nd on our website - www.jablocom.com/download. Soluon Your SIM card is not placed in the SIM holder correctly or the phone does not support your SIM card type. Check if the SIM card is placed in the holder correctly or contact your GSM service provider. The network refused to register your SIM card into the network. Contact your service provider. The network did not correctly perform the USSD command you sent. Check the command syntax or contact your service provider. The network refused the USSD command during USSD dialog. Repeat sending the command or contact your service provider. There is a conict between your request and the current phone status, for example during phonebook import from SIM. Repeat your request.

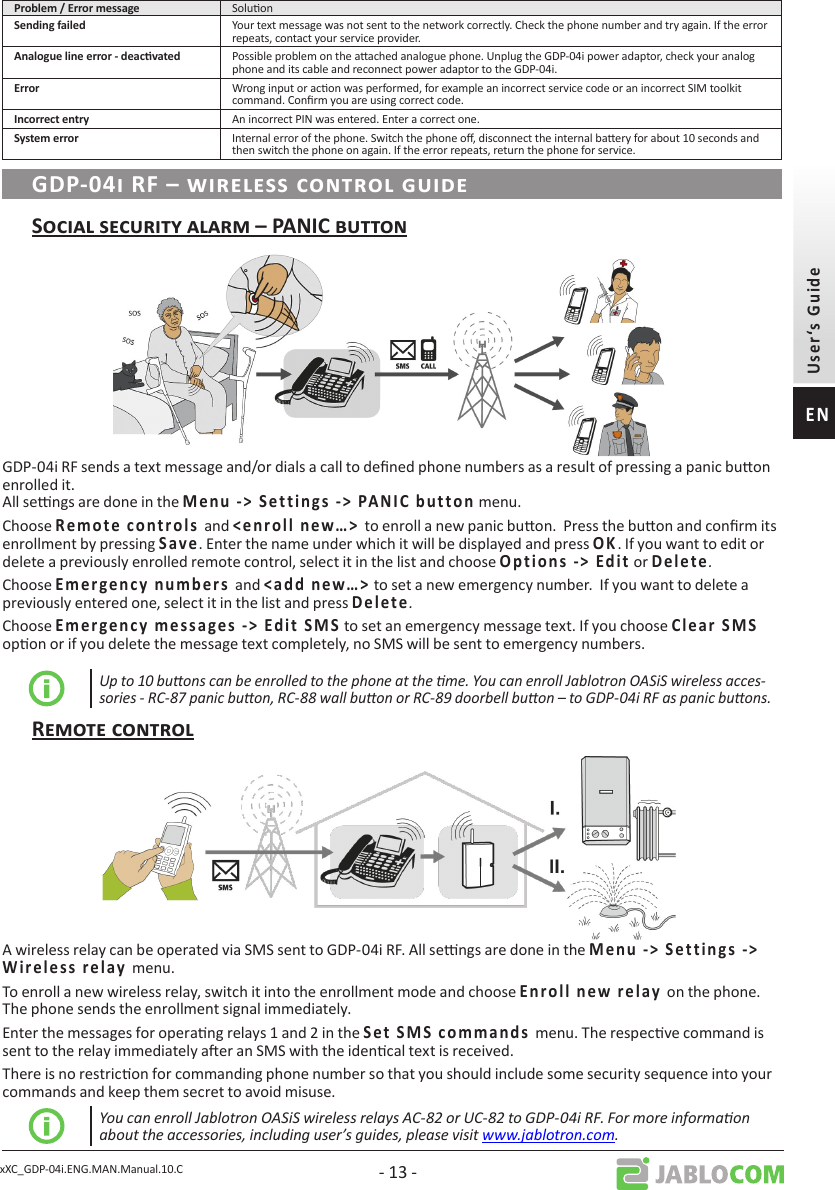

xXC_GDP-04i.ENG.MAN.Manual.10.C - 13 - Soluon Your text message was not sent to the network correctly. Check the phone number and try again. If the error repeats, contact your service provider. Possible problem on the aached analogue phone. Unplug the GDP-04i power adaptor, check your analog phone and its cable and reconnect power adaptor to the GDP-04i. Wrong input or acon was performed, for example an incorrect service code or an incorrect SIM toolkit command. Conrm you are using correct code. An incorrect PIN was entered. Enter a correct one. Internal error of the phone. Switch the phone o, disconnect the internal baery for about 10 seconds and then switch the phone on again. If the error repeats, return the phone for service.GDP-04i RF sends a text message and/or dials a call to dened phone numbers as a result of pressing a panic buon enrolled it. All sengs are done in the                     menu.Choose      and          to enroll a new panic buon. Press the buon and conrm its enrollment by pressing   . Enter the name under which it will be displayed and press . If you want to edit or delete a previously enrolled remote control, select it in the list and choose             or      .Choose               and       to set a new emergency number. If you want to delete a previously entered one, select it in the list and press      .Choose                          to set an emergency message text. If you choose         opon or if you delete the message text completely, no SMS will be sent to emergency numbers.Up to 10 buons can be enrolled to the phone at the me. You can enroll Jablotron OASiS wireless acces-sories - RC-87 panic buon, RC-88 wall buon or RC-89 doorbell buon – to GDP-04i RF as panic buons.A wireless relay can be operated via SMS sent to GDP-04i RF. All sengs are done in the                   menu.To enroll a new wireless relay, switch it into the enrollment mode and choose        on the phone. The phone sends the enrollment signal immediately.Enter the messages for operang relays 1 and 2 in the              menu. The respecve command is sent to the relay immediately aer an SMS with the idencal text is received.There is no restricon for commanding phone number so that you should include some security sequence into your commands and keep them secret to avoid misuse.You can enroll Jablotron OASiS wireless relays AC-82 or UC-82 to GDP-04i RF. For more informaon about the accessories, including user’s guides, please visit www.jablotron.com.
xXC_GDP-04i.ENG.MAN.Manual.10.C - 14 -Dimensions 230x220x100 mm, 920 gDisplay Illuminated graphical LCD, Resoluon 132x65 dots, 82x40 mmPhonebook 500 names and 1000 numbersSMS text memory 32 kB memory for SMS storage (124 received messages + 50 sent messages + 100 on SIM memory capacity)Call history Memory for 100 records: history of missed, outgoing and incoming callsRinging melodies 20 unique melodiesSMS typing Built-in QWERTY keypad Speed dialing 6 memory keys (up to 12 numbers), label for recordsOperang temperature -10 °C to + 55 °C; 25 to 75 % humidityAC power adaptor 100 – 240 V AC-50 to 60 Hz, 6 V/2 A DCBack-up baery Li-Pol baery, 1300mAhGSM system 850/900/1800/1900 MHz quad-band system, compliant to GSM phase 2/2 +Antenna Built-in GSM antenna +2 dBm for GSM850/EGSM900/DCS1800/PSC1900Data connecvity GPRS class 10: max. 85.6 kbps, CS1, CS2, CS3 and CS4Audio parameters Echo cancellaon, Noise reducon, HR, FR, EFR and AMR audio codecHands-free calling Built-in speaker and microphoneLanguage Mullanguage support – downloadable language sets Analogue phone line standard analog phones (for PSTN) or a master line of PBX, Caller ID support, DTMFPhonebook synchronizaon MS Outlook 2000 or later, Outlook ExpressSoware Modem driver, Phone driver, JabloTool call management sowareHereby, JABLOCOM s.r.o., declares that this GDP-04(A)i GSM Desktop Phone is in compliance with the essenal requirements and other relevant provisions of Direcve 1999/5/EC. Noed body mark for GSM module approval is CE0682.The original conformity assessment document can be found at the web site www.jablocom.com.This product is designed not to exceed the limits for exposure to radio waves recommended by internaonal guidelines developed by the independent scienc organizaon ICNIRP and include safety margins designed to assure the protecon of all persons, regardless of age and health. The guidelines use a unit of measurement known as the Specic Absorpon Rate, or SAR. The SAR limit for wireless devices is 1.6 W/kg. This product was tested and cered in accordance with the FCC regulaons to verify that the product did not exceed the FCC SAR requirements. The highest SAR level measured for this product is 0.239 W/kg.The GDP-04i is in compliance with the basic restricons as specied in the European Council Recommendaon [1999 519 EC] for the measured GSM850, GSM 900, GSM 1800 and GSM 1900 standards. The tests were performed according to the standard IEC 62209-2. This phone is only intended for use in the country in which it was sold.Note: Although this product does not contain any harmful materials we suggest that you return the product directly to the dealer or to the producer aer use. Please check local regulaons for disposal of electronic products.Subject to the condions of this Limited warranty JABLOCOM s.r.o. warrants this product to be free from defects in design, material and workmanship at the me of its original purchase by a customer and for a subsequent minimal warranty period under the naonal legislaon in force. Should your product need warranty service, please return it to the dealer from whom it was purchased. The defects will be eliminated free of charge by repairing or, at our discreon, replacing it. If you wish to make a claim under the warranty, please return the Product with all accessories in the original packaging to your dealer. The warranty is valid only if the original receipt issued to the original purchaser by the dealer, specifying the date of purchase and the IMEI corresponding with the Product, is presented with the Product to be repaired or replaced. Plasc parts, cables or accessories of the Product must not be visibly damaged, the Product must not show marks of the contact with liquid, the warranty seal must not be broken and the fault must be described.This warranty does not cover any failure of the Product due to misuse, including but not limited to use in other than the normal and customary manner, in accordance with instrucons for use and maintenance of the Product. Nor does this warranty cover any failure of the product due to accident, modicaon, adjustment, improper repair or acts of God. This warranty does not apply to limited-life consumable components, such as baeries or accessories. It also does not apply to modules of other suppliers, such as SIM cards from the GSM provider.The warranty provided does not aect the consumer’s statutory rights under applicable naonal legislaon in force, or the consumer’s rights against the dealer arising from their sales/purchase contract.Under no circumstances shall JABLOCOM be responsible for any loss of data or income or any special, incidental, consequenal or indirect damages howso-ever caused.As the product is under connuous development, JABLOCOM reserves the right to make changes and improvements to any of the products described in this document without prior noce.Operaons and some features are SIM card and/or network dependent.© Copyright 2009 by JABLOCOM s.r.o. All rights reserved.

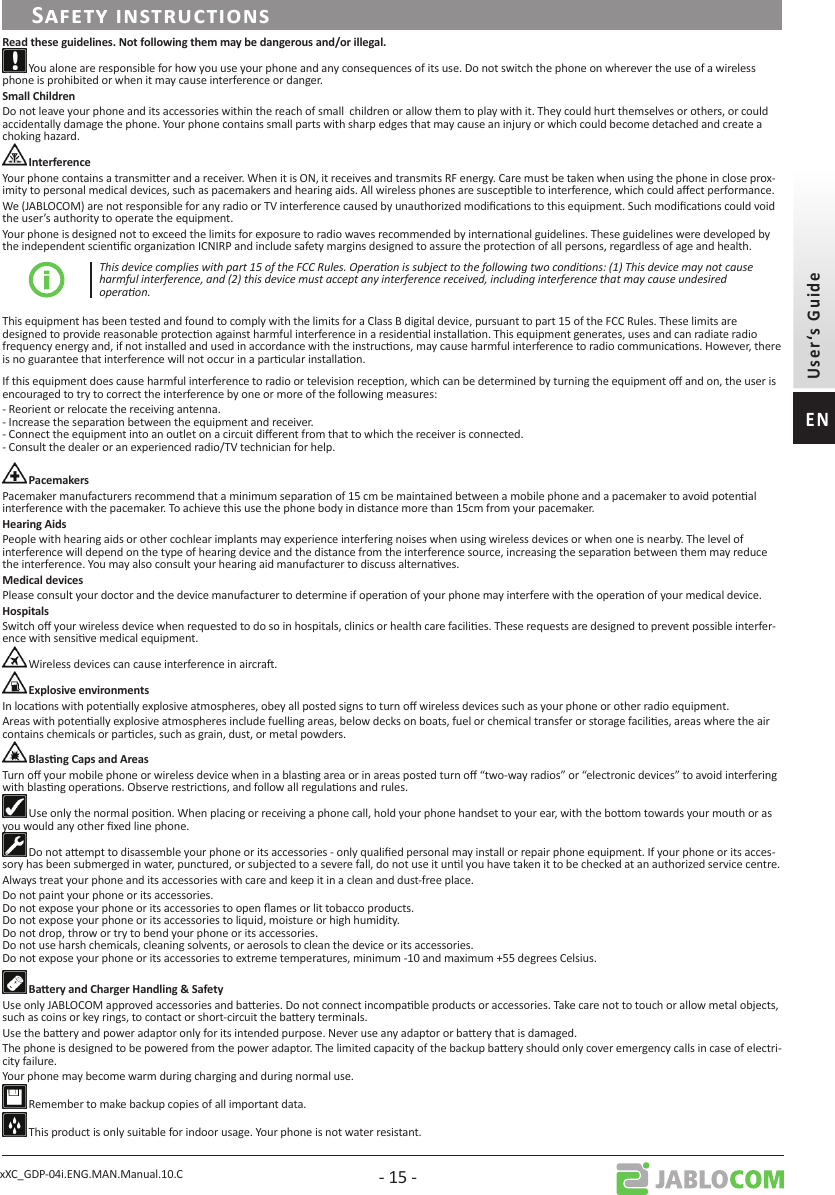

xXC_GDP-04i.ENG.MAN.Manual.10.C - 15 - You alone are responsible for how you use your phone and any consequences of its use. Do not switch the phone on wherever the use of a wireless phone is prohibited or when it may cause interference or danger. Do not leave your phone and its accessories within the reach of small children or allow them to play with it. They could hurt themselves or others, or could accidentally damage the phone. Your phone contains small parts with sharp edges that may cause an injury or which could become detached and create a choking hazard. Your phone contains a transmier and a receiver. When it is ON, it receives and transmits RF energy. Care must be taken when using the phone in close prox-imity to personal medical devices, such as pacemakers and hearing aids. All wireless phones are suscepble to interference, which could aect performance.We (JABLOCOM) are not responsible for any radio or TV interference caused by unauthorized modicaons to this equipment. Such modicaons could void the user’s authority to operate the equipment. Your phone is designed not to exceed the limits for exposure to radio waves recommended by internaonal guidelines. These guidelines were developed by the independent scienc organizaon ICNIRP and include safety margins designed to assure the protecon of all persons, regardless of age and health.This device complies with part 15 of the FCC Rules. Operaon is subject to the following two condions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operaon.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against harmful interference in a residenal installaon. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instrucons, may cause harmful interference to radio communicaons. However, there is no guarantee that interference will not occur in a parcular installaon. If this equipment does cause harmful interference to radio or television recepon, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:- Reorient or relocate the receiving antenna. - Increase the separaon between the equipment and receiver. - Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Pacemaker manufacturers recommend that a minimum separaon of 15 cm be maintained between a mobile phone and a pacemaker to avoid potenal interference with the pacemaker. To achieve this use the phone body in distance more than 15cm from your pacemaker.People with hearing aids or other cochlear implants may experience interfering noises when using wireless devices or when one is nearby. The level of interference will depend on the type of hearing device and the distance from the interference source, increasing the separaon between them may reduce the interference. You may also consult your hearing aid manufacturer to discuss alternaves.Please consult your doctor and the device manufacturer to determine if operaon of your phone may interfere with the operaon of your medical device.Switch o your wireless device when requested to do so in hospitals, clinics or health care facilies. These requests are designed to prevent possible interfer-ence with sensive medical equipment. Wireless devices can cause interference in aircra. In locaons with potenally explosive atmospheres, obey all posted signs to turn o wireless devices such as your phone or other radio equipment.Areas with potenally explosive atmospheres include fuelling areas, below decks on boats, fuel or chemical transfer or storage facilies, areas where the air contains chemicals or parcles, such as grain, dust, or metal powders. Turn o your mobile phone or wireless device when in a blasng area or in areas posted turn o “two-way radios” or “electronic devices” to avoid interfering with blasng operaons. Observe restricons, and follow all regulaons and rules. Use only the normal posion. When placing or receiving a phone call, hold your phone handset to your ear, with the boom towards your mouth or as you would any other xed line phone. Do not aempt to disassemble your phone or its accessories - only qualied personal may install or repair phone equipment. If your phone or its acces-sory has been submerged in water, punctured, or subjected to a severe fall, do not use it unl you have taken it to be checked at an authorized service centre. Always treat your phone and its accessories with care and keep it in a clean and dust-free place.Do not paint your phone or its accessories. Do not expose your phone or its accessories to open ames or lit tobacco products. Do not expose your phone or its accessories to liquid, moisture or high humidity. Do not drop, throw or try to bend your phone or its accessories. Do not use harsh chemicals, cleaning solvents, or aerosols to clean the device or its accessories. Do not expose your phone or its accessories to extreme temperatures, minimum -10 and maximum +55 degrees Celsius.Use only JABLOCOM approved accessories and baeries. Do not connect incompable products or accessories. Take care not to touch or allow metal objects, such as coins or key rings, to contact or short-circuit the baery terminals.Use the baery and power adaptor only for its intended purpose. Never use any adaptor or baery that is damaged.The phone is designed to be powered from the power adaptor. The limited capacity of the backup baery should only cover emergency calls in case of electri-city failure. Your phone may become warm during charging and during normal use. Remember to make backup copies of all important data. This product is only suitable for indoor usage. Your phone is not water resistant.
xXC_GDP-04i.ENG.MAN.Manual.10.C - 16 - When connecng to any other device, read its users guide for detailed safety instrucons. When making an emergency call, ensure the phone is switched on and in service. Enter the emergency number, then press the green key. Give your locaon. Do not end the call unl told to do so. This phone, like any wireless phone, operates using radio signals, which cannot guarantee connecon in all condions. Therefore, you must never rely solely on any wireless phone for emergency communicaons.
JABLOCOM s.r.o. , Czech Republic www.jablocom.comGSM Desktop PhoneGSM Desktop PhoneProducer:© Copyright JABLOCOM s.r.o., 2008
