PRODUCT INTEGRATION GUIDE
For
Flexpoint HS-1R:
JADAK LLC
ISO9001:2000 Issue: 5
Document Number: DOC-0466 REV A Issue Date: 6/30/2009
Authorized By: Page: Page 2 of 21
Page 2
JADAK 7279 William Barry Blvd., North Syracuse, NY 13212
QF15/
1................................................................................................................................GENERAL DESCRIPTION
......................................................................................................................................................................... 5
1.1Product Overview ............................................................................................................................... 5
2...................................................................................................................................Functional Requirements
......................................................................................................................................................................... 5
2.1Modes: ............................................................................................................................................... 5
2.1.1Menuing Mode ..................................................................................................................... 5
2.1.2Download Mode ................................................................................................................... 5
3............................................................................................................................................Scanner Functions
......................................................................................................................................................................... 6
3.1Trigger / Modes: ................................................................................................................................. 6
3.1.1Hardware Trigger ................................................................................................................. 6
3.1.2Serial Trigger ....................................................................................................................... 6
3.2Bar Code Decoding ............................................................................................................................ 6
3.2.1Codes supported ................................................................................................................. 6
3.2.2Read range vs. Element size ............................................................................................... 7
3.3Optical ................................................................................................................................................ 8
3.3.1Area Imager Engines ........................................................................................................... 8
3.3.2Image Downloading ............................................................................................................. 8
4.........................................................................................................................................................Indicators
......................................................................................................................................................................... 8
4.1Beeper, Vibration Motor, Trigger Switch LED’s .................................................................................. 8
4.1.1Beep Tone Indicators. ......................................................................................................... 8
The following indicators are used to denote the different beeper states of the HS-1R upon exercising an
operational function, barcode, RFID, power on. ................................................................... 8
4.1.2Global Beeper Volume Level Settings ................................................................................. 9
4.1.3Vibration Motor Indicators .................................................................................................... 9
5...........................................................................................................................................RFID Specifications
......................................................................................................................................................................... 9
5.1.1Read Range ........................................................................................................................ 9
5.1.2RFID Tag Types .................................................................................................................. 9
6..............................................................................................................................................Device Operation
....................................................................................................................................................................... 10
6.1.1Operating Description ........................................................................................................ 10
7............................................................................................................................ELECTRICAL PARAMETERS
....................................................................................................................................................................... 11
7.1Supported Interfaces ........................................................................................................................ 11
JADAK LLC
ISO9001:2000 Issue: 5
Document Number: DOC-0466 REV A Issue Date: 6/30/2009
Authorized By: Page: Page 3 of 21
Page 3
JADAK 7279 William Barry Blvd., North Syracuse, NY 13212
QF15/
7.1.1Communication Interface ................................................................................................... 11
7.1.2EIA RS232 ......................................................................................................................... 11
7.1.2.1Default RS232 Connector: .................................................................... 11
7.1.3USB 1.1 ............................................................................................................................. 11
7.1.3.1Default USB Connector: ........................................................................ 11
7.1.4RJ-45 Pinout ...................................................................................................................... 11
7.2Power Source .................................................................................................................................. 12
7.2.1Operating Voltage .............................................................................................................. 12
7.2.2Operating Currents ............................................................................................................ 12
8....................................................................................................................ENVIRONMENTAL PARAMETERS
....................................................................................................................................................................... 13
8.1Humidity ........................................................................................................................................... 13
8.1.1Relative humidity ............................................................................................................... 13
8.1.1.1Operating: Up to 95% Non-Condensing at +55°C ................................. 13
8.1.1.2Storage: Up to 95% Non-Condensing at +70°C .................................... 13
8.2Temperature .................................................................................................................................... 13
8.2.1Operational ........................................................................................................................ 13
8.2.2Storage .............................................................................................................................. 13
8.3Ambient Illumination ........................................................................................................................ 13
8.4Drop ................................................................................................................................................. 13
8.5ESD Sensitivity ................................................................................................................................ 13
8.6Mean Time Between Failures (MTBF) ............................................................................................. 13
9.......................................................................................................................MECHANICAL REQUIREMENTS
....................................................................................................................................................................... 14

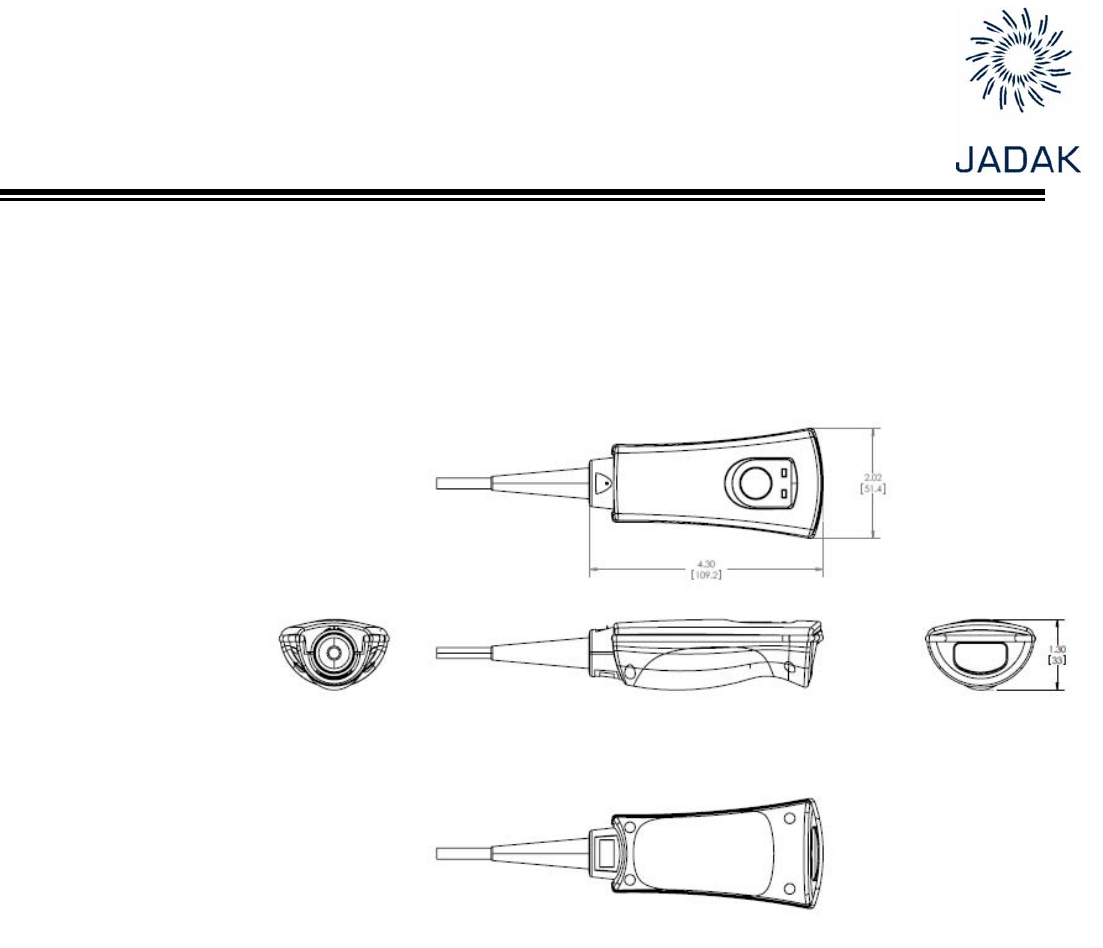

9.1Dimensions ...................................................................................................................................... 14
9.2Material ............................................................................................................................................ 14
9.3Mounting .......................................................................................................................................... 14
9.4Cable Requirements ........................................................................................................................ 14
9.5Weight .............................................................................................................................................. 15
9.6Labeling ........................................................................................................................................... 15
9.7Packaging ........................................................................................................................................ 15
10...............................................................................................................................................REGULATORY
....................................................................................................................................................................... 15
10.1FCC, IC ............................................................................................................................................ 15
FCC Class B Compliance ............................................................................................................................... 15
10.2 CE ................................................................................................................................................... 17
10.3Customer Support ............................................................................................................................ 18
10.4Limited Warranty .............................................................................................................................. 18
10.5Repairs ............................................................................................................................................ 19
10.6Maintenance .................................................................................................................................... 19
JADAK LLC
ISO9001:2000 Issue: 5
Document Number: DOC-0466 REV A Issue Date: 6/30/2009
Authorized By: Page: Page 4 of 21
Page 4
JADAK 7279 William Barry Blvd., North Syracuse, NY 13212
QF15/
Document Revision History
Version Date Author Description
A 4/5/2013 Mark Macko First Draft
JADAK LLC
ISO9001:2000 Issue: 5
Document Number: DOC-0466 REV A Issue Date: 6/30/2009
Authorized By: Page: Page 5 of 21
Page 5
JADAK 7279 William Barry Blvd., North Syracuse, NY 13212
QF15/
1 GENERAL DESCRIPTION
This document contains the HS-1R product general operational, electrical, physical and environmental
specifications. Unless otherwise indicated, the specifications are not cumulative. Unless
otherwise stated, the performance requirements in the specification refer to scanner performance
at 5.0Vdc and room temperature of 20°C.
1.1 Product Overview
The HS-1R is a handheld scanner capable of decoding all major 1d and 2d barcode varieties as well as
reading a broad variety of HF RFID tags. The HS-1R consists of a highly configurable area
imaging camera, decoding engine, and an HF RFID transceiver that will communicate via a USB
interface.
NOTE: At this time the HS-1R will only read the UID of non-encrypted RFID tags and with specific
commands described in section 5.1.2 it will also read and write ISO15693 tag types.
2 Functional Requirements
2.1 Modes:
2.1.1 Menuing Mode
The HS-1R will be programmable via menu commands or menu barcodes.
All menuing commands are formatted and supported via the JADAK abstraction document.
Reference Vault at: $/Engineering/Shared/Docs and White Papers/
DOC-0122 J-Protocol Ascii Spec.doc
DOC-0178 J-Protocol Binary Spec.doc
2.1.2 Download Mode
The HS-1R firmware can be downloaded via the main communications interface connector.
Programming
Programming is achieved by using PC Application software to download firmware to the
HS-1R barcode scanner, Kinetis microcontroller, and boot loader.
After programming is complete, the HS-1R should be power cycled to return to normal
operation.
Image Engine Firmware Download
The Image Engine Firmware can be upgraded via the USB CDC Comm interface of the
unit. To upgrade the image engine, the user must first scan the image engine upgrade
JADAK LLC
ISO9001:2000 Issue: 5
Document Number: DOC-0466 REV A Issue Date: 6/30/2009
Authorized By: Page: Page 6 of 21
Page 6
JADAK 7279 William Barry Blvd., North Syracuse, NY 13212
QF15/
barcode or send the appropriate menu command. At that point the image engine
firmware can be transferred to the device using the appropriate PC software.
After flashing is complete, the unit should be power cycled to return to normal operation.
3 Scanner Functions
3.1 Trigger / Modes:
3.1.1 Hardware Trigger
The top pushbutton hardware trigger provides a means to manually trigger the scanner through a
switch on the top housing which will initiate barcode decoding. A trigger event will initiate
decoding / scanning mode for as long as the trigger switch is closed, until a valid barcode is
decoded, or until the decode session times out.
3.1.2 Serial Trigger
Serial trigger operation is supported via the communications interface in USB COMM mode only.
Commands received via the interface will activate/deactivate the trigger function. The scanner
may also be set to automatically deactivate the trigger after a specified time period has elapsed
following a serial trigger activate command.
3.2 Bar Code Decoding
3.2.1 Codes supported
The HS-1R will automatically discriminate between and decode the following bar codes:
Barcode
Aztec Matrix 2 of 5
China Post (Hong Kong 2 of 5) Maxicode
Chinese Sensible (Han Xin) MicroPDF417
Codabar MSI
Codablock A NEC 2 of 5
Codablock F Postal Codes-2D
Code 11 Postal Codes Linear
Code 128 PDF417
Code 32 Pharmaceutical (PARAF) QR
Code 39 Straight 2 of 5 IATA (two-bar start/stop)
Code 93 Straight 2 of 5 Industrial (three-bar start/stop)
Data Matrix TCIF Linked Code 39 (TLC39)
EAN/JAN-13 Telepen
JADAK LLC
ISO9001:2000 Issue: 5
Document Number: DOC-0466 REV A Issue Date: 6/30/2009
Authorized By: Page: Page 7 of 21
Page 7
JADAK 7279 William Barry Blvd., North Syracuse, NY 13212
QF15/
EAN/JAN-8 Trioptic
GS1 Composite UPC-A
GS1 DataBar Expanded UPC-A/EAN-13 with Extended Coupon Code
GS1 DataBar Limited UPC-E0
GS1 DataBar Omnidirectional UPC-E1
GS1 Emulation
GS1-128
Interleaved 2 of 5
Korea Post
3.2.2 Read range vs. Element size
Below are typical barcode decode distances for the HS-1R.
Symbol
Density/Barcode Type High Density (HD) Standard Range (SR) Extended Range (ER)
Symbology Near
Distance
(in/cm)
Far
Distance
(in/cm)
Near
Distance
(in/cm)
Far
Distance
(in/cm)
Near
Distance
(in/cm)
Far
Distance
(in/cm)
3mil C39/128 2.2 (5.6) 3.1 (7.9) - - - -
5mil C39/128 1.6 (4.1) 4.5 (11.4) 3.0 (7.6) 6.1 (15.5) 5.8 (14.7) 8.8 (22.4)
7.5mil C39/128 1.8 (4.6) 5.0 (12.7) 2.4 (6.1) 8.4 (21.3) 4.4 (11.2) 13.0 (33.2)
10mil C39/128 1.7 (4.3) 5.1 (13.0) 1.9 (4.8) 12.0 (30.5) 3.2 (8.1) 16.1 (40.9)
15mil C39/128 1.4 (3.6) 7.6 (19.3) 2.2 (5.6) 17.9 (45.5) 2.0 (5.1) 19.0 (48.3)
20mil C39/128 2.7 (6.9) 8.6 (21.8) 2.8 (7.1) 17.8 (45.2) 3.1 (7.9) 22.8 (57.9)
100% UPC 2.2 (5.6) 6.7 (17.0) 2.1 (5.3) 15.0 (38.1) 2.8 (7.1) 19.0 (48.3)
5mil PDF417 1.7 (4.3) 4.2 (10.7) 3.0 (7.6) 4.5 (11.4) 6.1 (15.5) 7.4 (18.8)
6.7mil PDF417 1.7 (4.3) 4.7 (11.9) 2.5 (6.4) 6.6 (16.8) 4.7 (11.9) 9.8 (24.9)
10mil PDF417 1.8 (4.6) 5.6 (14.2) 1.7 (4.3) 10.5 (26.7) 2.4 (6.1) 14.9 (37.8)
5mil MicroPDF 2.2 (5.6) 4.4 (11.2) - - - -
5mil DataMatrix 2.0 (5.1) 3.0 (7.6) - - - -
10mil
DataMatrix/Aztec 1.7 (4.3) 4.7 (11.9) 2.9 (7.4) 7.3 (18.5) 5.3 (13.5) 10.0 (25.4)
20mil DataMatrix 1.7 (4.3) 7.0 (17.8) 2.9 (7.4) 14.2 (36.1) 4.0 (10.2) 16.0 (40.6)
10mil QR 3.0 (7.6) 4.5 (11.4) 2.6 (6.6) 6.9 (17.5) 4.3 (10.9) 10.4 (26.4)
20mil QR 2.2 (5.6) 7.2 (18.3) 2.0 (5.1) 15.0 (38.1) 2.1 (5.3) 17.7 (45.0)
32mil Maxicode 2.2 (5.6) 8.3 (21.1) 2.9 (7.4) 15.3 (38.9) 4.2 (10.7) 17.7 (45.0)
JADAK LLC
ISO9001:2000 Issue: 5
Document Number: DOC-0466 REV A Issue Date: 6/30/2009
Authorized By: Page: Page 8 of 21
Page 8
JADAK 7279 William Barry Blvd., North Syracuse, NY 13212
QF15/
3.3 Optical
3.3.1 Area Imager Engines
Standard versions of the HS-1R are available in focal ranges specified as “HD”, “SR”,
“ER”, all in a monochrome image format.
3.3.2 Image Downloading
The HS-1R shall provide for the ability to transfer, via the default communications
interface, the minimum of an entire image in standard bitmap (.bmp compatible) and
compressed (.jpg compatible) format. This feature is not currently supported!
4 Indicators
4.1 Beeper, Vibration Motor, Trigger Switch LED’s
4.1.1 Beep Tone Indicators.
The following indicators are used to denote the different beeper states of the HS-1R upon
exercising an operational function, barcode, RFID, power on.
Function
Active Beeper Tone Beeper Frequency Meaning
Barcode Single short high beep
Approximate duration
250msec.
Approximate frequency
4,000Hz Successful Decode
Barcode No Beep None Un-Successful Decode /
Barcode No Read
RFID Single short high beep
Approximate duration
100msec.
Approximate frequency
3,000Hz Successful RFID read
RFID No Beep None
Un-successful / partial RFID
read
Power up self-
check,
initialization
Repeated Long low beeps.
Limit duration to allow
other function to still
operate.
Beep and flash red LED for
approximately 12sec then
stop indicators.
Approximate frequency
500Hz
Internal Communications error
on the barcode scanner.
Note: Beeper is off when global
beeper volume setting is off.
Power up
beep
sequence
Three beeps of increasing
frequency Varying Power up
Note: Beeper is off when global
beeper volume setting is off.
JADAK LLC
ISO9001:2000 Issue: 5
Document Number: DOC-0466 REV A Issue Date: 6/30/2009
Authorized By: Page: Page 9 of 21
Page 9
JADAK 7279 William Barry Blvd., North Syracuse, NY 13212
QF15/
4.1.2 Global Beeper Volume Level Settings
The table below describes the global beeper volume settings.
Off Off None Command disabled.
High High TBD All beeps at highest volume
level.
Medium Medium TBD All beeps at medium volume
level.
Low Low TBD All beeps at low volume level.
4.1.3 Vibration Motor Indicators
The table below describes the different beep tones of the HS-1 RFID.
Function
Active Vibration motor Approximate Vibration
duration
Seconds
Meaning
Barcode Single short vibration 0.5 Successful Decode
Barcode No Vibration None Un-Successful Decode /
Barcode No Read
RFID Single short vibration 0.5 Successful RFID read
RFID No vibration None Un-successful / partial RFID
read
Off Off None Command disabled.
Power up /
self check
initialization
Off None Even with vibration mode is
enabled there is no vibration on
power up.
5 RFID Specifications
5.1.1 Read Range
Note, the read range will be variable and depending on the target tag size and Tag
Type. The average read range is between contact and 2cm.
5.1.2 RFID Tag Types
The following RFID tag types can read and written by the HS-1 RFID:
The ability to write a RFID tag is currently only implemented for the ISO15693 tag type and
is described in the document titled “QF16-HS1-R RFID Commands.doc”.
JADAK LLC
ISO9001:2000 Issue: 5
Document Number: DOC-0466 REV A Issue Date: 6/30/2009
Authorized By: Page: Page 10 of 21
Page 10
JADAK 7279 William Barry Blvd., North Syracuse, NY 13212
QF15/
RFID SUPPORTED TAG TYPES
NFC Tag
Type
ISO Standard Description
Type 1 ISO 14443A Topaz
Type 2 ISO 14443A Mifare UltraLite (NXP), NTAG 203 (NXP), My-d NFC, Myfair UltraLite C (NXP)
(UID Non-encrypted portion only).
Type 3 ISO 18092 FeliCa Lite (Sony)
Type 4 ISO 14443A Mifare DESFire EV1 (NXP) (UID Non-encrypted portion only).
Type 5 ISO 15693 iClass (UID Non encrypted portion only).
Type 6 ISO 15693 Icode SLI, Tag-it (TI)
Type 7 ISO 14443 Mifare 1K/4K, Mifare Plus 2K/4K, (UID Non-encrypted portion only).
N/A EPC Class-1
HF/ISO 18000-
3 Mode 3
6 Device Operation
6.1.1 Operating Description
The unit can read both RFID and barcode, but not simultaneously. If the unit is not
triggered to read barcodes (top trigger button is not pressed or not serially triggered), the
unit will be in RFID mode actively scanning for RFID tags. When the unit is triggered to
read a barcode (top trigger button is pressed or serially triggered), the RFID transceiver
will be put into low power mode before enabling the barcode scanner. Conversely either
after a barcode scan or trigger release (manual or serial), the barcode reader is put into
low power mode before enabling the RFID transceiver. This is to ensure the 500ma
current limitation of the USB host port is not exceeded. The beeper is also only activated
after the barcode reader is off to ensure 500ma is not exceeded.
JADAK LLC
ISO9001:2000 Issue: 5
Document Number: DOC-0466 REV A Issue Date: 6/30/2009
Authorized By: Page: Page 11 of 21
Page 11
JADAK 7279 William Barry Blvd., North Syracuse, NY 13212
QF15/
7 ELECTRICAL PARAMETERS
7.1 Supported Interfaces
7.1.1 Communication Interface
The HS-1R supports USB CDC COMM (USB CDC ACM) and USB HID Keyboard
communications.
7.1.2 EIA RS232
The RS232 version of the HS-1R is compatible with a standard EIA RS232 levels and
speeds up to 115,200 baud; an external power supply must be used with this interface.
(Note: The RS-232 version development and validation is not complete.)
7.1.2.1 Default RS232 Connector:
The HS-1R RS232 interface is via a RJ-45 10 Pin modular connector.
7.1.3 USB 1.1
The USB version of the HS-1R can be connected to a host USB port on a PC and is
programmed to communicate with the PC in communications emulation (virtual serial port)
mode.
7.1.3.1 Default USB Connector:
The HS-1R USB interface is via a RJ-45 10 Pin modular connector.

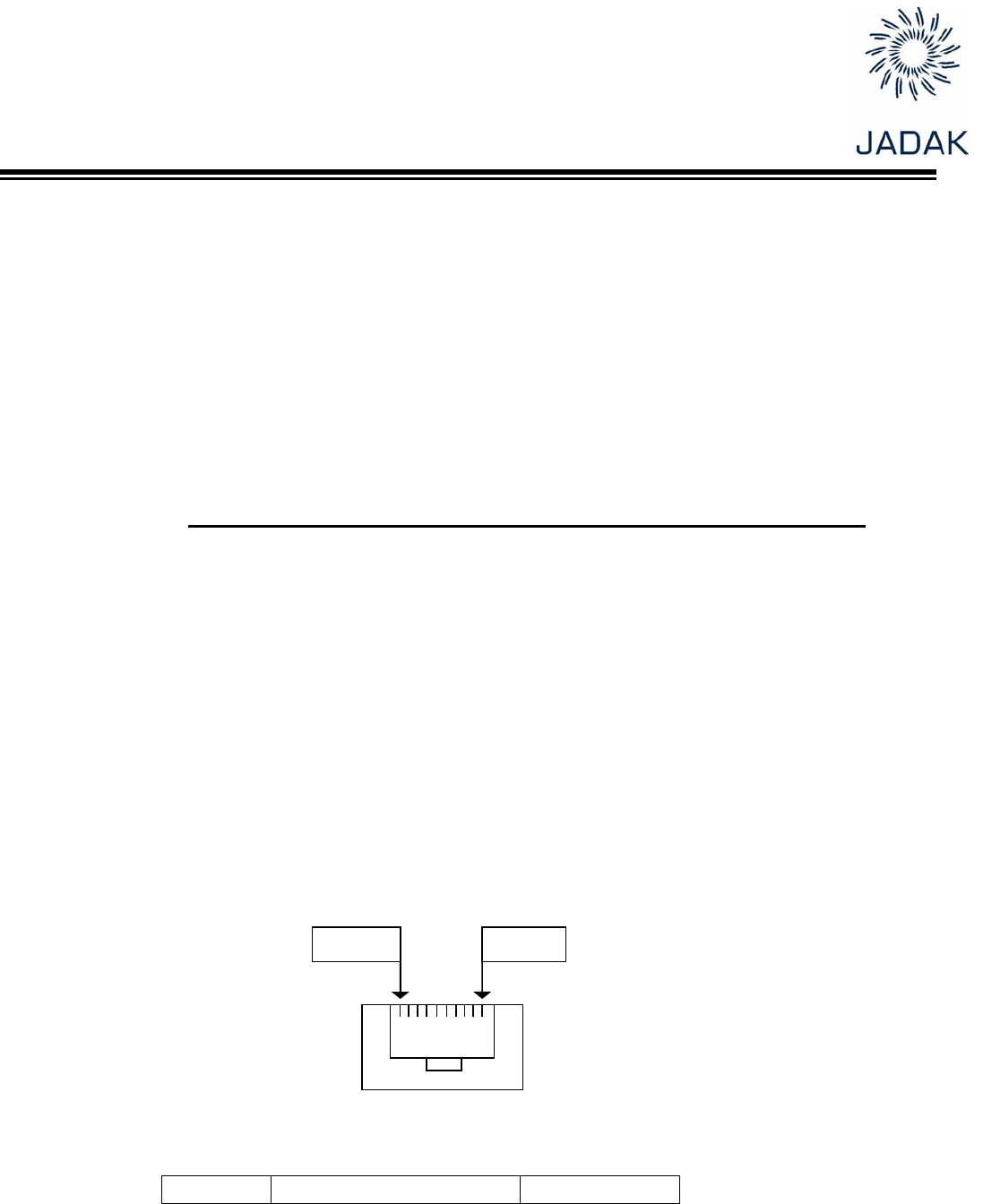

7.1.4 RJ-45 Pinout
Connector Pin Number, Definition, Orientation
Front View
RJ45 Pin Definition and Function
Pin Number Pin Function (USB or RS-232) Input / Output
Pin 1 Pin 10
JADAK LLC
ISO9001:2000 Issue: 5
Document Number: DOC-0466 REV A Issue Date: 6/30/2009
Authorized By: Page: Page 12 of 21
Page 12
JADAK 7279 William Barry Blvd., North Syracuse, NY 13212
QF15/
1 Trigger (Low) Input
2 USB D+ I/O
3 Optional Trigger (Not
populated) Input
4 Ground Power
5 RXD Input
6 TXD Output
7 Vcc Power
8 RTS Output
9 CTS Input
10 D- I/O
7.2 Power Source
7.2.1 Operating Voltage
The HS-1R will operate over the voltage range shown in Table 2.5.1. The specified voltage is to be measured
at the scanner connector input.
Table 2.5.1 - Operating Voltage Specifications
Interface Minimum Operating Voltage Maximum Operating Voltage
RS-232/USB 4.5 VDC 5.25 VDC
7.2.2 Operating Currents
The current draw will be less than the values listed in table 2.5.2.
Table 2.5.2 - Current Draw Limits
Interface In-Rush
Peak 3
A
Operating Peak
mA Operating
1
mA RFID
Idle1,2
mA
USB (nom 5.0 V) 2.0 475 450 200
1 Average Value
2 RFID Idle –the RFID transceiver is powered but not decoding tags.
3 In-rush peak limit for switched power-on condition with on board power supplies starting from 0V. Plug-
in or rapid power cycle (off/on in <1 minute) in-rush current limit is 500mA average at 5.0V for a
duration of 1 Sec. Multiple peaks may be observed.
JADAK LLC
ISO9001:2000 Issue: 5
Document Number: DOC-0466 REV A Issue Date: 6/30/2009
Authorized By: Page: Page 13 of 21
Page 13
JADAK 7279 William Barry Blvd., North Syracuse, NY 13212
QF15/
8 ENVIRONMENTAL PARAMETERS
8.1 Humidity
8.1.1 Relative humidity
8.1.1.1 Operating: Up to 95% Non-Condensing at +55°C
8.1.1.2 Storage: Up to 95% Non-Condensing at +70°C
8.2 Temperature
8.2.1 Operational
-25°C to +50°C( -13°F to +122°F ) - Note that the device may function outside of this temperature range, but
the parameters are not guaranteed.
8.2.2 Storage
-25°C to +70°C (-13°F to +158°F)
8.3 Ambient Illumination (verify)
The HS-1R will read all of the codes specified in the working distance requirements in ambient illumination
varying from 0 Lux to 100,000 Lux (equivalent to direct sunlight incident on the bar code).
8.4 Drop
The HS-1R functions properly after being subjected to 50 drops to any face from a height of 6feet. This drop
specification is without the vibration motor. If the vibration motor is included the specification of the drop height is
reduced to 5 feet.
8.5 ESD Sensitivity
The product operates without corrective intervention to the following specification levels.
Test Points ESD Level(s)
Horizontal Coupling Plane +/- 4kV
Vertical Coupling Plane +/- 4kV
Contact Discharge: Window, case seam and
Interface connector +/- 4kV
Air Discharge: Housing and Imager Window +/- 8kV
8.6 Mean Time Between Failures (MTBF) VERIFY
The HS-1R will have a calculated MTBF greater than 70,000 hours based upon MIL-HDBK-217F release
December 1, 1991. This will be done using the part count method for the Ground Benign (GB) environmental
conditions.
JADAK LLC
ISO9001:2000 Issue: 5
Document Number: DOC-0466 REV A Issue Date: 6/30/2009
Authorized By: Page: Page 14 of 21
Page 14
JADAK 7279 William Barry Blvd., North Syracuse, NY 13212
QF15/
9 MECHANICAL REQUIREMENTS
9.1 Dimensions
The housing dimensions are as shown below:
9.2 Material
Cycoloy CX2142ME, PC/ABS. Flammability rating - UL94-V0.
Versaflex OM3060-1. Flammability rating - UL94-HB.
9.3 Mounting
Mounting is via the HS-1R cradle.
9.4 Cable Requirements
The Cable supplied with the unit has the following features:
- Scanner Connection is a 10 pin Modular Connector or a micro USB type B connector.
JADAK LLC
ISO9001:2000 Issue: 5
Document Number: DOC-0466 REV A Issue Date: 6/30/2009
Authorized By: Page: Page 15 of 21
Page 15
JADAK 7279 William Barry Blvd., North Syracuse, NY 13212
QF15/
- Cables have internal overall shielding connected to the host connector and the device connector.
- Overall cable length:
o 3ft for RS-232 version (not released / tested)
o 9ft, coil extended, for USB 2.0 version
- Connector on host side:
o Shielded Dsub 9 for RS-232 version
o USB Type “A” plug for USB versions
9.5 Weight
The HS-1R weighs approximately 2.75 ounces (77.96 grams), excluding any host interface cabling.
9.6 Labeling
A typical product ID label has the following information:
Product Part Number and Revision
Serial Number
JADAK branding
Labeling on the mounting surfaces in the recessed areas will contain product identification information and other
information mentioned above.
9.7 Packaging
The product shall be placed in individual ESD packaging.
10 REGULATORY, Service, Maintenance
The product is designed to support the following regulatory and safety standards as a standalone unit. The end
user will need to verify general EMC compliance as implemented in their host system. The end user will not
need to verify RFID radio compliance since JADAK LLC tested the HS-1R and received modular certification for
this portion of the product.
10.1 FCC, IC
1. This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device
does not cause harmful interference.
2. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation
FCC Class B Compliance
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
JADAK LLC
ISO9001:2000 Issue: 5
Document Number: DOC-0466 REV A Issue Date: 6/30/2009
Authorized By: Page: Page 16 of 21
Page 16
JADAK 7279 William Barry Blvd., North Syracuse, NY 13212
QF15/
o Reorient or relocate the receiving antenna.
o Increase the separation between the equipment and receiver.
o Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
o Consult the dealer or an experienced radio or television technician for help.
Caution: Any changes or modifications made to this HS-1R, which are not expressly approved by JADAK LLC
may void the user’s authority to operate the equipment.
Note: To maintain compliance with FCC Rules and Regulations, cables connected to this
HS-1R must be shielded cables, in which the cable’s shield wire(s) have been grounded (tied) to the
connector shell.
Industry Canada IC Compliance
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following
two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and
maximum (or lesser) gain approved for the transmitter by Industry Canada.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the
equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une
antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada.
Intentional Radiator Modular Certification of the HS-1R
The HS-1R also contains an intentional radiator, the RFID transceiver. JADAK’s approach to agency testing and
certification for this was to get modular certification to facilitate easier integration of the device into end user
systems. In most circumstances the integrator will not need to re-certify the intentional radiator, rather they can
reference JADAK’s certifications listed under the following:
Model Number: HS1RN4
FCC ID: 2AAVI-HS1RN4
IC: 11355A- HS1RN4
JADAK LLC
ISO9001:2000 Issue: 5
Document Number: DOC-0466 REV A Issue Date: 6/30/2009
Authorized By: Page: Page 17 of 21
Page 17
JADAK 7279 William Barry Blvd., North Syracuse, NY 13212
QF15/
10.2 CE
The product conforms to the following EU directives:
Manufacturer JADAK LLC
Address 7279 William Barry Blvd, North Syracuse NY 13212
Product Description CAT-HS1R-N4xx, Barcode / RFID Scanner, Model Number: HS1RN4
The described product conforms to the requirements of the following EU Directives:
LOW VOLTAGE DIRECTIVE 2006/95/EC as amended
Council Directive of December 12, 2006 on the harmonisation of the laws of Member States relating to
electrical equipment designed for use within certain voltage limits
EMC DIRECTIVE 2004/108/EC as amended
Council Directive of December 15, 2004 on the approximation of the laws of the Member States relating to
electromagnetic compatibility
ROHS DIRECTIVE 2011/65/EU
Directive 2011/65/EU of the European Parliament and of the Council of 8th June 2011 on the restriction of the
use of certain hazardous substances in electrical and electronic equipment
WEEE DIRECTIVE 2012/19/EU
Directive 2012/19/EU of the European Parliament and of the Council of 4th July 2012 on waste electrical and
electronic equipment.
FIRST YEAR OF THE CE MARKING 2015
Conformity of the product with the requirements of EU directives is established through full compliance
with the following standards:
Harmonised European Normes
Standard Year + Amendments Description
EN 60950-1 2006+A11:2009+A1:2010+A12:2011 Product Safety
EN 62471 2008 LED Safety
EN 50581 2012 RoHS
JADAK LLC
ISO9001:2000 Issue: 5
Document Number: DOC-0466 REV A Issue Date: 6/30/2009
Authorized By: Page: Page 18 of 21
Page 18
JADAK 7279 William Barry Blvd., North Syracuse, NY 13212
QF15/
EN 55024 2010 Immunity
EN 55022 2010 EME
EN 61000-3-2 2006+A1:2009+A2:2009 Harmonics (current < 16A)
EN 61000-3-3 2008 Flicker (current < 16A)
ICES-003 Issue 5 2012 Emissions, Conducted and
Radiated
EN 300 330-1 V1.7.1 2010 RFID (Radio)
EN 301 489-1 V1.9.2 2011 RFID (EMC)
EN 301 489-3 V1.6.1 2002 RFID (EMC)
FCC KDB’s and RSS-102 Issue 5 EMF (Safety)
FCC RF Testing & Report per Part
15C for 13.56 MHz RFID RFID
CFR47 Part 15 Subpart B Radiated Emissions
FCC 15.225/IC RSS-210 Radiated Emissions
RSS-GEN Issue 4 November 2014 Radio Standards Specification
RSP-100 Issue 10 November 2014 Radio Standards Specification
10.3 Customer Support
Obtaining Technical Assistance at the Factory
JADAK provides assistance and service for all its products. To obtain warranty or non-warranty service, return the unit to JADAK
(postage paid) with a copy of the dated purchase record attached. Contact the appropriate location below to obtain a Return
Material Authorization number (RMA #) before returning the product.
If you need assistance installing or troubleshooting your scanner, please contact the JADAK office in your area.
North America
JADAK, LLC
Telephone: +1 315-701-0678
Fax: +1 315-701-0679
E-mail: info@jadaktech.com
Europe
JADAK BV
Telephone +31 (0)76-522-5588
Fax: +31 (0)76-522-4747
E-mail: info@jadaktech.com
10.4 Limited Warranty
JADAK LLC (“JADAK”) warrants the HS-1M to be free from defects in materials and workmanship and to conform to JADAK’s
JADAK LLC
ISO9001:2000 Issue: 5
Document Number: DOC-0466 REV A Issue Date: 6/30/2009
Authorized By: Page: Page 19 of 21
Page 19
JADAK 7279 William Barry Blvd., North Syracuse, NY 13212
QF15/
published specifications applicable to the products purchased at the time of shipment. This warranty does not cover the
interface cable and does not include any JADAK product which is (i) improperly installed or used; (ii) damaged by accident or
negligence, including failure to follow the proper maintenance, service, and cleaning schedule; or (iii) damaged as a result of:
(A) Modification or alteration by the purchaser or other party, (B) Excessive voltage or current supplied to or drawn from the
interface connections, (C) Static electricity or electro-static discharge, (D) Operation under conditions beyond the specified
operating parameters, or (E) Repair or service of the product by anyone other than JADAK or its authorized representatives.
This warranty shall extend from the time of shipment for the duration published by JADAK for the product at the time of
purchase (“Warranty Period”). Any defective product must be returned (at purchaser’s expense) during the Warranty Period to
JADAK factory for inspection. No product will be accepted by JADAK without a Return Materials Authorization, which may be
obtained by contacting JADAK. In the event that the product is returned to JADAK within the Warranty Period and JADAK
determines to its satisfaction that the product is defective due to defects in materials or workmanship, JADAK, at its sole
option, will either repair or replace the product without charge, except for return shipping to JADAK.
EXCEPT AS MAY BE OTHERWISE PROVIDED BY APPLICABLE LAW, THE FOREGOING WARRANTY IS IN LIEU OF ALL
OTHER COVENANTS OR WARRANTIES, EITHER EXPRESSED OR IMPLIED, ORAL OR WRITTEN, INCLUDING, WITHOUT
LIMITATION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
JADAK’S RESPONSIBILITY AND PURCHASER’S EXCLUSIVE REMEDY UNDER THIS WARRANTY IS LIMITED TO THE
REPAIR OR REPLACEMENT OF THE DEFECTIVE PRODUCT WITH NEW OR REFURBISHED PARTS. IN NO EVENT
SHALL JADAK BE LIABLE FOR INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, AND, IN NO EVENT, SHALL
ANY LIABILITY OF JADAK ARISING IN CONNECTION WITH ANY PRODUCT SOLD HEREUNDER (WHETHER SUCH
LIABILITY ARISES FROM A CLAIM BASED ON CONTRACT, WARRANTY, TORT, OR OTHERWISE) EXCEED THE ACTUAL
AMOUNT PAID TO JADAK FOR THE PRODUCT. THESE LIMITATIONS ON LIABILITY SHALL REMAIN IN FULL FORCE
AND EFFECT EVEN WHEN JADAK MAY HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH INJURIES, LOSSES, OR
DAMAGES. SOME STATES, PROVINCES, OR COUNTRIES DO NOT ALLOW THE EXCLUSION OR LIMITATIONS OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
All provisions of this Limited Warranty are separate and severable, which means that if any provision is held invalid and
unenforceable, such determination shall not affect the validity of enforceability of the other provisions hereof. Use of any
peripherals not provided by the manufacturer may result in damage not covered by this warranty. This includes but is not limited
to: cables, power supplies, cradles, and docking stations. JADAK extends these warranties only to the first end users of the
products. These warranties are non-transferable. The duration of the limited warranty for the HS-1M is for one (1) year.
10.5 Repairs
Repairs and/or upgrades are not to be performed on this product. These services are to be performed by JADAK only.
Please contact JADAK for your service needs.
10.6 Maintenance
The HS-1M provides reliable and efficient operation with a minimum of care. Although specific maintenance is not required, the
following periodic checks ensure dependable product operation:
Cleaning the HS-1R Scanning Window
Reading performance may degrade if the scanner’s window is not clean. If the window is visibly dirty, or if the scanner
isn’t operating well, clean the window with a soft cloth or lens tissue dampened with water (or a mild detergent- water
solution). If a detergent solution is used, rinse with a clean lens tissue dampened with water only.
Cleaning the HS-1R Housing
JADAK LLC
ISO9001:2000 Issue: 5
Document Number: DOC-0466 REV A Issue Date: 6/30/2009
Authorized By: Page: Page 20 of 21
Page 20
JADAK 7279 William Barry Blvd., North Syracuse, NY 13212
QF15/
The HS-1M is IP54 rated when the cable is attached. This means that when the HS-1R was subject to the IP54 testing,
liquids and dusts did not penetrate into the housing. However, the scanner should not be submerged in water or other
liquids. It is also good practice to dampen the cleansing cloth vs. spraying the scanner surfaces directly.
The HS-1R housing is compatible with the following medical grade cleaners:
Sani-Cloth® HB
Sani-Cloth® Plus
Hydrogen Peroxide
CaviWipes™
409® Glass and Surface Cleaner
Windex® Blue
Clorox® Bleach (100%)
Isopropyl Alcohol
Gentle dish soap and water
Cleaning the HS-1R host interface cable
The HS-1R interface cable is compatible with the following cleaners with the cautions noted:
Not compatible: CaviWipes – The secondary ingredient in this cleaner is harmful to PVC a main component of the cable
jacket.
Use With Caution: Hibiclens
Phenolic 256 DC
Professional Amphyl Hospital Bulk Disinfectant Cleaner
Virkon
Wexcide
Wexcide-Ready-To-Use
Probably OK: Compublend II
Dispatch
LpH Disinfectant Cleaner
Maxima 128
Metrizyme
Staph-Attack
Super Sani-Cloth
Thymocide
Hand Sanitizer with 65% ethyl alcohol (But what are the other ingredients?)
Sani-Cloth HB
Sani-Cloth Plus
Sani-Cloth
OK for Use: 10% Bleach
70% Isopropyl Alcohol
Aseptizyme
Clorox Wipes
Detergezyme
Mild Detergent
Commercial Clorox Germicidal Wipes
Hydrogen peroxide
409 Glass Cleaner
Windex Blue
JADAK LLC
ISO9001:2000 Issue: 5
Document Number: DOC-0466 REV A Issue Date: 6/30/2009
Authorized By: Page: Page 21 of 21
Page 21
JADAK 7279 William Barry Blvd., North Syracuse, NY 13212
QF15/
100% Clorox Bleach
As in all chemical resistance cases, duration and frequency of contact will have a major role on the amount of
stiffening encountered over the lifetime of the product. The chemicals we have classified as Use With Caution have
ingredients known to extract plasticizers from PVC compounds or do other damage, but we have no experience with
them at the concentrations in these cleaners. Probably OK means we believe the chemicals to be relatively benign at
the concentrations listed, but have no test experience. Those OK to Use contain chemicals we are familiar with and
have some previous test data leading us to believe they will impart little harm if used only as an occasional wipe down.
Caution!
Do not submerge the imager in water.
Do not use abrasive wipes or tissues on the imager’s window – abrasive wipes may
scratch the window.
Never use solvents (e.g., acetone, benzene, ether,
or phenol-based agents) on the housing or window – solvents may damage the
finish or the window.

Navigation menu
