CEILING SPEAKERS

Protective High-Pass

Frequency

(Slope 24 dB/oct)

Limiter Voltage

(Ave/RMS -- not "peak")

Control 12C/T (&12C-VA) Low-Z (8Ω)70 Hz 12V RMS

15W Tap 80 Hz

7.5W Tap 60 Hz

Lower Taps 50 Hz

Control 14C/T (&14C-VA) Low-Z (8Ω)75 Hz 15V RMS

25W Tap 75 Hz

12.5W Tap 55 Hz

Lower Taps 45 Hz

Control 16C/T (&16C-VA) Low-Z (8Ω)65 Hz 20V RMS

30W Tap 70 Hz

15W Tap 55 Hz

Lower Taps 40 Hz

Control 18C/T Low-Z (8Ω)45 Hz 30V RMS

60W Tap 60 Hz

30W Tap 50 Hz

Lower Taps 50 Hz

Control 19CS Low-Z (8Ω)70 Hz 23V RMS

Control 19CST 75W Tap 80 Hz

30W Tap 70 Hz

Lower Taps 50 Hz

Control 24C Micro Low-Z (8Ω)85 Hz 9.5V RMS

Control 24CT Micro 9W Tap 85 Hz

4W Tap 70 Hz

Lower Taps 65 Hz

C24CT MicroPlus 25W Tap 85 Hz

12W Tap 70 Hz

6W Tap 65 Hz

Control 24C Low-Z (16Ω)85 Hz 24V RMS

Control 24CT 30W Tap 100 Hz

15W Tap 85 Hz

Lower Taps 80 Hz

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Commercial Loudspeaker, CBT, & AWC Recommended DSP Tunings

Ver. 181030

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

JBL Commercial-Sound Loudspeaker Recommended DSP Tunings (Cont)

CEILING SPEAKERS (Cont.)

Protective High-Pass

Frequency

(Slope 24 dB/oct)

Limiter Voltage

(Ave/RMS -- not "peak")

Control 26C Low-Z (16Ω)75 Hz 32V RMS

Control 26CT& 26CT-LS 60W Tap 95 Hz

30W Tap 75 Hz

Lower Taps 70 Hz

Control 26-DT 30W Tap 100 Hz

15W Tap 85 Hz

Lower Taps 80 Hz

Control 40CS/T Low-Z (8Ω)35 Hz 24V RMS

80W Tap 55 Hz

40W Tap 40 Hz

Lower Taps 30 Hz

Control 42C (16Ω)150 Hz 16V RMS

Control 40CS/T + Control 42C (2 or 4 pcs) Low-Z (8Ω)35 Hz 16V RMS

(Using C40CS/T's built-in crossover) 80W Tap 55 Hz

40W Tap 40 Hz

Lower Taps 30 Hz

Control 45C/T Low-Z (8Ω)50 Hz 20V RMS

60W Tap 85 Hz

30W Tap 60 Hz

Lower Taps 50 Hz

Control 47C/T, 47LP, 47HC Low-Z (8Ω)55 Hz 23V RMS

60W Tap 85 Hz

30W Tap 60 Hz

Lower Taps 50 Hz

Control 226C/T Low-Z (8Ω)50 Hz 23V RMS

68W Tap 50 Hz

Lower Taps 40 Hz

Control 227C Low-Z (8Ω)45 Hz 23V RMS

Control 227CT 68W Tap 50 Hz

34W Tap 45 Hz

Lower Taps 40 Hz

Control 312C Low-Z (8Ω)40 Hz 46V RMS

Control 321C Low-Z (8Ω)40 Hz 30V RMS

Control 321CT 68W Tap 50 Hz

34W Tap 45 Hz

Lower Taps 40 Hz

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

JBL Commercial-Sound Loudspeaker Recommended DSP Tunings (Cont)

CEILING SPEAKERS (Cont.)

Protective High-Pass

Frequency

(Slope 24 dB/oct)

Limiter Voltage

(Ave/RMS -- not "peak")

Control 322C Low-Z (8Ω)35 Hz 38V RMS

Control 322CT 100W Tap 50 Hz

50W Tap 40 Hz

Lower Taps 30 Hz

Control 328C Low-Z (8Ω)50 Hz 29V RMS

Control 328CT 68W Tap 60 Hz

34W Tap 50 Hz

Lower Taps 40 Hz

CSS8004 Any 70V or 100V tap 130 Hz Amp's 70V or 100V clipping

limiter

CSS8008 Any 70V or 100V tap 100 Hz Amp's 70V or 100V clipping

limiter

CSS8018 Any 70V or 100V tap 90 Hz Amp's 70V or 100V clipping

limiter

CSS-15C-VA 6W Tap 220 Hz

Lower Taps 180 Hz

8124 Any 70V or 100V tap 60 Hz Amp's 70V or 100V clipping

limiter

8128 6W Tap 60 Hz

Lower Taps 50 Hz

8138 6W Tap 60 Hz

Lower Taps 50 Hz

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

JBL Commercial-Sound Loudspeaker Recommended DSP Tunings (Cont)

SURFACE-MOUNT SPEAKERS

Protective High-Pass

Frequency

(Slope 24 dB/oct)

Limiter Voltage

(Ave/RMS -- not "peak")

Control 23-1 Low-Z (8Ω)80 Hz 16V RMS

15W Tap 70 Hz

Lower Taps 60 Hz

Control 23-1L (8Ω)80 Hz 16V RMS

Control 25-1 Low-Z (8Ω)60 Hz 24V RMS

30W Tap 60 Hz

Lower Taps 50 Hz

Control 25AV & 25AV-LS Low-Z (8Ω)70 Hz 26V RMS

60W Tap 85 Hz

30W Tap 70 Hz

Lower Taps 65 Hz

Control 25-1L (8Ω)60 Hz 24V RMS

Control 28-1 Low-Z (8Ω)45 Hz 26V RMS

60W Tap 75 Hz

30W Tap 50 Hz

Lower Taps 40 Hz

Control 28-1L (8Ω)45 Hz 26V RMS

Control 29AV-1 Low-Z (8Ω)50 Hz 30V RMS

110W Tap 70 Hz

55W Tap 50 Hz

Lower Taps 50 Hz

Control 30 Low-Z (8Ω)45 Hz 32V RMS

150W Tap 80 Hz

75W Tap 60 Hz

Lower Taps 35 Hz

Control 31 Low-Z (8Ω)45 Hz 42V RMS

150W Tap 45 Hz

75W Tap 40 Hz

Lower Taps 35 Hz

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

JBL Commercial-Sound Loudspeaker Recommended DSP Tunings (Cont)

SURFACE-MOUNT SPEAKERS (Cont.)

Protective High-Pass

Frequency

(Slope 24 dB/oct)

Limiter Voltage

(Ave/RMS -- not "peak")

Control 50S/T Low-Z (8Ω)35 Hz 22V RMS

80W Tap 60 Hz

40W Tap 40 Hz

Lower Taps 30 Hz

Control 52 (16Ω)150 Hz 16V RMS

Control 50S/T + Control 52 (2 or 4 pcs) Low-Z (8Ω)35 Hz 16V RMS

(Using C50S/T's built-in crossover) 80W Tap 60 Hz

40W Tap 40 Hz

Lower Taps 30 Hz

Control CRV Low-Z (8Ω)90 Hz 15V RMS

30W Tap 100 Hz

15W Tap 80 Hz

Lower Taps 60 Hz

Control SB2 Low-Z (8Ω), per input 40 Hz 22V RMS

Control SB2210 Low-Z (8Ω)45 Hz 60V RMS

Top 2 Taps

(with optional

MTC-SBT300)

45 Hz

Smaller Taps

(with optional

MTC-SBT300)

35 Hz

Control HST Low-Z (8Ω)50 Hz 25V RMS

60W Tap 80 Hz

Lower Taps 50 Hz

CSS-1S/T 10W Tap 100 Hz

Lower Taps 80 Hz

CSS-H15 Any 70V or 100V tap 400 Hz Amp's 70V or 100V clipping

limiter

CSS-H30 Any 70V or 100V tap 380 Hz Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

JBL Commercial-Sound Loudspeaker Recommended DSP Tunings (Cont)

OUTDOOR SPEAKERS

Protective High-Pass

Frequency

(Slope 24 dB/oct)

Limiter Voltage

(Ave/RMS -- not "peak")

AWC62 Low-Z (8Ω)60 Hz 28V RMS

120W Tap 60 Hz

60W Tap 50 Hz

Lower Taps 40 Hz

AWC82 Low-Z (8Ω)65 Hz 34V RMS

200W Tap 65 Hz

100W Tap 45 Hz

Lower Taps 40 Hz

AWC129 Low-Z (8Ω)50 Hz 43 VRMS

200W Tap 55 Hz

100W Tap 45 Hz

Lower Taps 40 Hz

AWC159 Low-Z (8Ω)50 Hz 52 VRMS

300W Tap 45 Hz

150W Tap 45 Hz

Lower Taps 40 Hz

AWC15LF Low-Z (8Ω)40 Hz 52 VRMS

300W Tap 40 Hz

150W Tap 40 Hz

Lower Taps 35 Hz

LANDSCAPE SPEAKERS

Protective High-Pass

Frequency

(Slope 24 dB/oct)

Limiter Voltage

(Ave/RMS -- not "peak")

Control 85M Low-Z (8Ω)65 Hz 22V RMS

30W Tap 60 Hz

Lower Taps 50 Hz

Control 88M Low-Z (8Ω)45 Hz 26V RMS

60W Tap 80 Hz

Lower Taps 50 Hz

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

JBL Commercial-Sound Loudspeaker Recommended DSP Tunings (Cont)

PENDANT SPEAKERS

Protective High-Pass

Frequency

(Slope 24 dB/oct)

Limiter Voltage

(Ave/RMS -- not "peak")

Control 64P/T Low-Z (8Ω)80 Hz 18V RMS

30W Tap 80 Hz

15W Tap 70 Hz

Lower Taps 60 Hz

Control 65P/T Low-Z (8Ω)55 Hz 20V RMS

60W Tap 90 Hz

30W Tap 65 Hz

Lower Taps 50 Hz

Control 67P/T, 67HC/T Low-Z (8Ω)65 Hz 20V RMS

60W Tap 85 Hz

30W Tap 65 Hz

Lower Taps 50 Hz

Control 60PS/T Low-Z (8Ω)50 Hz 31V RMS

110W Tap 50 Hz

55W Tap 40 Hz

Lower Taps 40 Hz

Control 62P (16Ω)150 Hz 14V RMS

Control 60PS/T + Control 62P (2 or 4 pcs) Low-Z (8Ω)50 Hz 14V RMS

(Using C60's built-in crossover) 110W Tap 50 Hz

55W Tap 40 Hz

Lower Taps 40 Hz

IN-WALL SPEAKERS

Protective High-Pass

Frequency

(Slope 24 dB/oct)

Limiter Voltage

(Ave/RMS -- not "peak")

Control 126W Low-Z (8Ω)45 Hz 14V RMS

Control 126WT 30W 70 Hz

Lower Taps 60 Hz

Control 128W Low-Z (8Ω)40 Hz 15V RMS

Control 128WT 50W Tap 70 Hz

Lower Taps 60 Hz

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

JBL Commercial-Sound Loudspeaker Recommended DSP Tunings (Cont)

CBT COLUMN SPEAKERS

Protective High-Pass

Frequency

(Slope 24 dB/oct)

Limiter Voltage

(Ave/RMS -- not "peak")

CBT 1000 (4Ω)35 Hz 63V RMS

CBT 1000 +1000E (in parallel with CBT 1000) (4Ω)35 Hz 63V RMS

CBT 1000E (driven separately) (8Ω)35 Hz 96V RMS

CBT 70J-1 (8Ω)55 Hz 48V RMS in Speech

Mode,

53V RMS in Music Mode

CBT 70J-1w MTC-CBT-70T x-former 120W Tap 60 Hz

60W Tap 45 Hz

Lower Taps 35 Hz

CBT 70J-1 + 70JE-1 (4Ω)45 Hz 48V RMS in Speech

Mode,

53V RMS in Music Mode

CBT 70J-1+JE-1 with MTC-CBT-70T x-former 120W Tap 60 Hz

60W Tap 45 Hz

Lower Taps 35 Hz

CBT 200LA-1 Low-Z (4Ω)70 Hz 40V RMS in either

Speech or Music Mode

120W Tap

(per module)

70 Hz

60W Tap

(per module)

50 Hz

Lower Taps 40 Hz

CBT 100LA-1 Low-Z (4Ω)70 Hz 40V RMS in either

Speech or Music Mode

120W Tap 70 Hz

60W Tap 50 Hz

Lower Taps 40 Hz

CBT 100LA-LS Low-Z (4Ω)90 Hz

40V RMS in either

Speech or Music Mode

120W Tap 80 Hz

60W Tap 60 Hz

Lower Taps 50 Hz

CBT Column Speakers Continued →

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

JBL Commercial-Sound Loudspeaker Recommended DSP Tunings (Cont)

CBT COLUMN SPEAKERS (cont.)

Protective High-Pass

Frequency

(Slope 24 dB/oct)

Limiter Voltage

(Ave/RMS -- not "peak")

CBT 50LA-1 Low-Z (4Ω)70 Hz

32V RMS in either

Speech or Music Mode

60W Tap 85 Hz

30W Tap 80 Hz

Lower Taps 75 Hz

CBT 50LA-LS Low-Z (4Ω)90 Hz

32V RMS in either

Speech or Music Mode

60W Tap 90 Hz

30W Tap 80 Hz

Lower Taps 75 Hz

NOTES:

•

High-Pass Frequencies apply to stated tap setting figure, regardless whether driven by 70V or 100V distributed line.

Ver. 181030

Amp's 70V or 100V clipping

limiter

Amp's 70V or 100V clipping

limiter

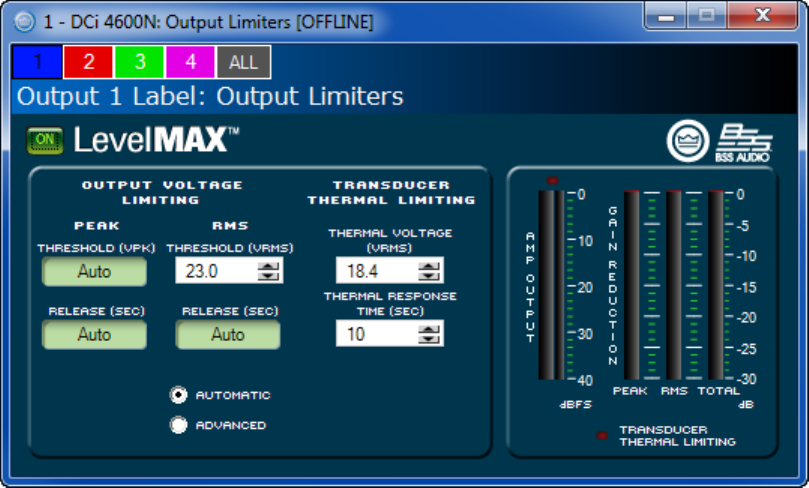

Setting the LevelMAX™ Limiter

on HARMAN Crown DCi and

CDI DriveCore Power Amplifiers

· Set the RMS THRESHOLD (VRMS) to the RMS Voltage figure from the chart

· Set the THERMAL VOLTAGE (VRMS) to 80% of RMS THRESHOLD (VRMS) value.

· Check the bubble for AUTOMATIC, which will set PEAK THRESHOLD (VPK), PEAK RELEASE

(SEC), and RELEASE (SEC) to Auto.

Important Note: At the very end of the process, after inputting the tuning data, it is important to double-check that

the high-pass filter (HPF) is still engaged. For example, even if you set and engaged the HPF earlier in the process, it

may become disabled by changing the output mode (low-impedance, 70V, 100V) setting (or under some

circumstances, when the mode setting is reviewed).

Shown as set for Control 47C/T at Low-Z (8Ω), listed for a Limiter Voltage of 23V RMS

The dynamics of limiters incorporated into various brands of power amplifiers vary. For other

brands of power amplifier, contact the manufacturer to adapt the RMS Output Voltage Limiting

figure listed in this chart to determine the various other settings for which they may allow the

selection.
