User’s Guide
EON 618S
2
3
CONTENTS
Safety Instructions .....................................................................................................................................4
Declaration Of Conformity ......................................................................................................................... 5
Quick Setup Guide ......................................................................................................................................6
Back Panel ..................................................................................................................................................8
Overview - EON Family .............................................................................................................................10

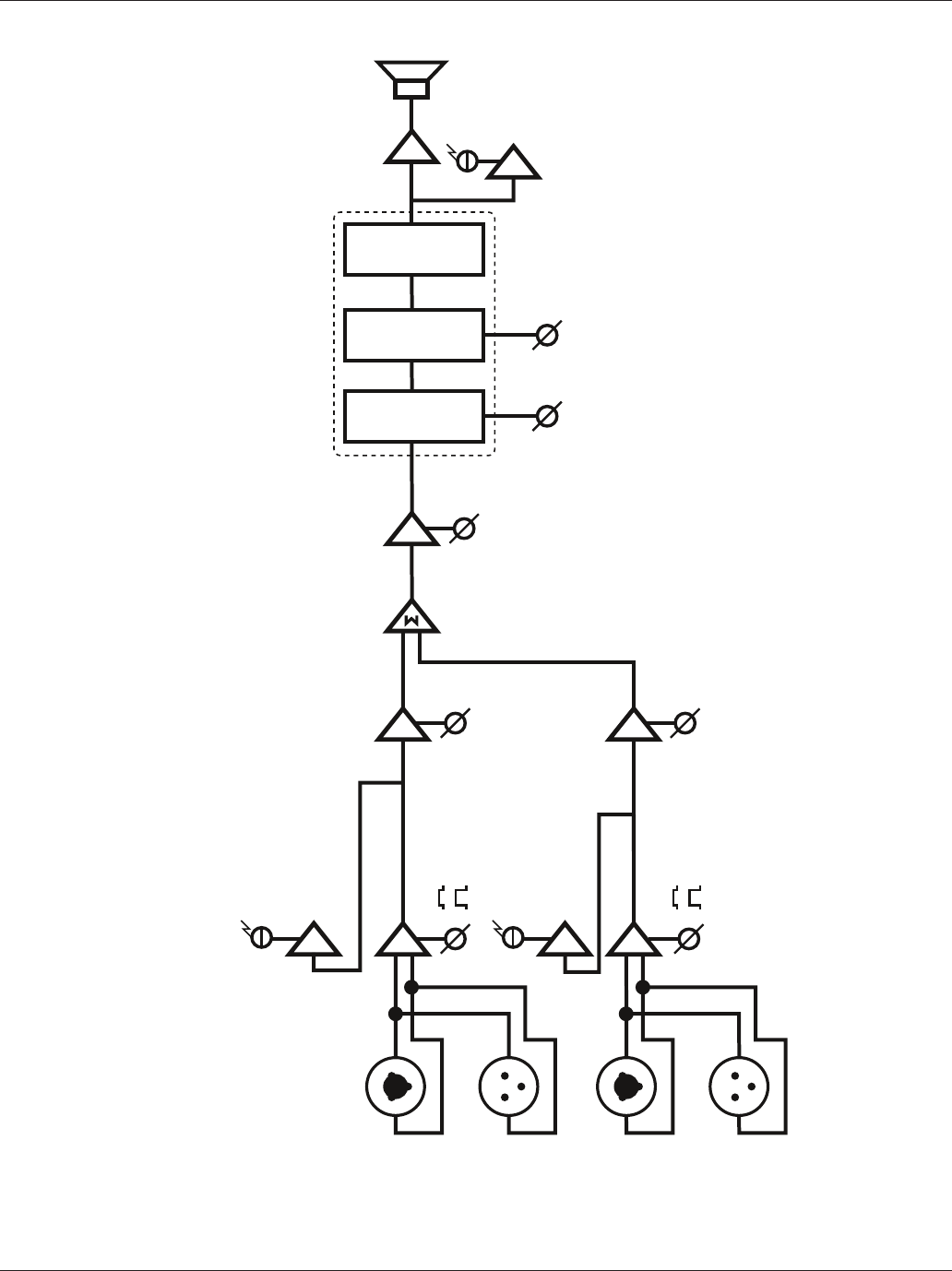

EON Family - Block Diagram ....................................................................................................................11

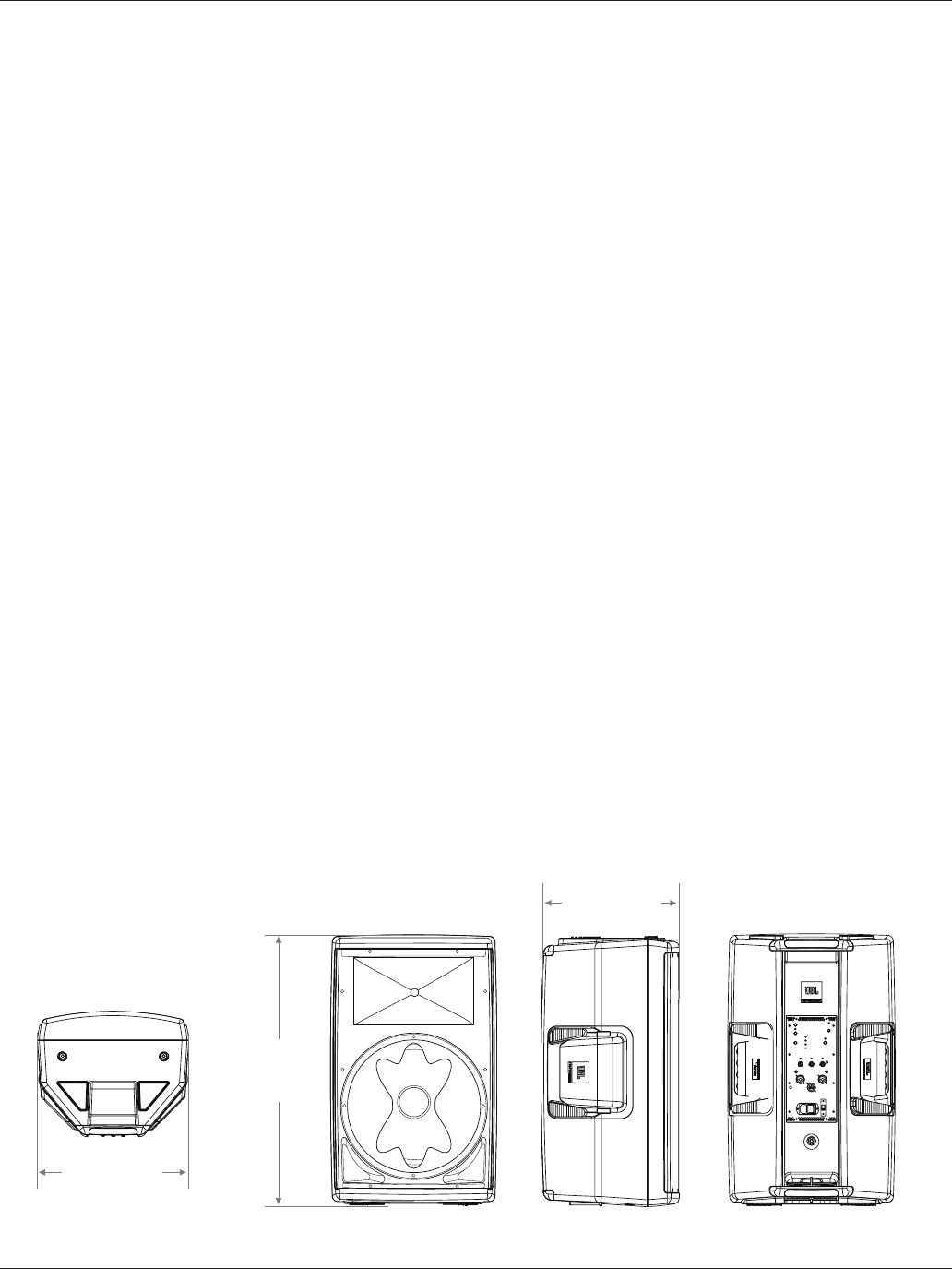

EON615 Specifications ............................................................................................................................13
EON612 Specifications ............................................................................................................................14

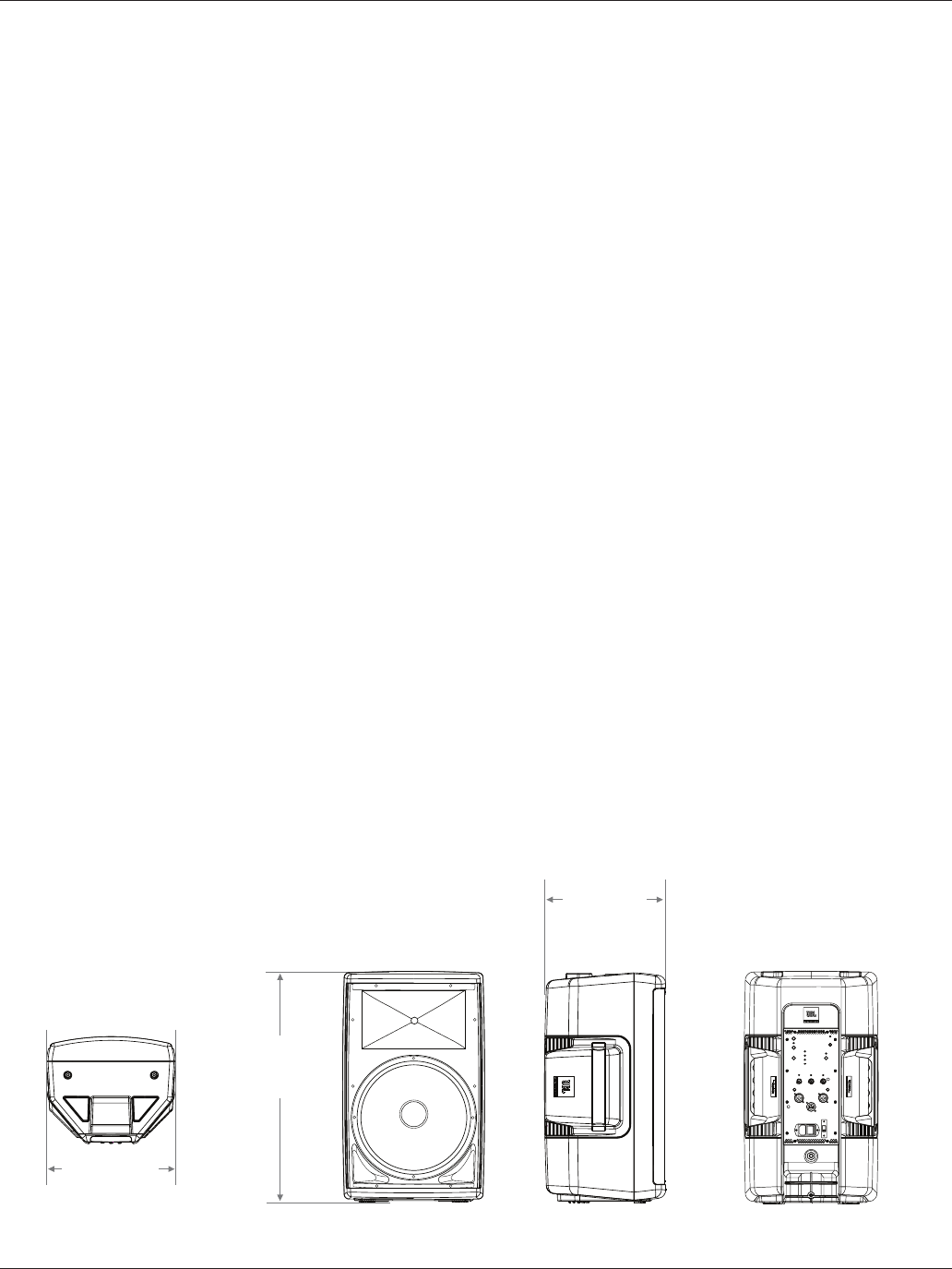

EON610 Specifications ............................................................................................................................15

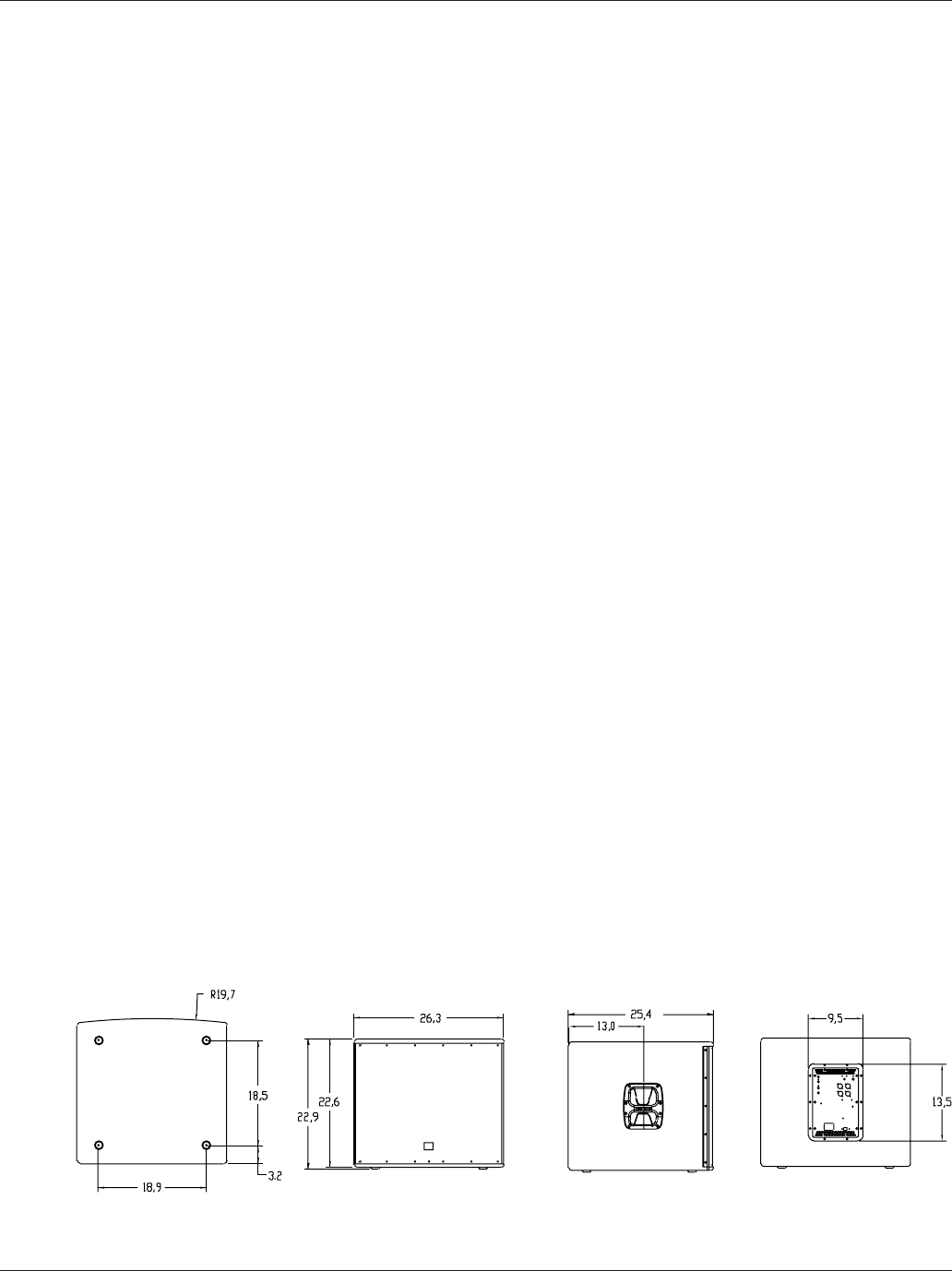

EON618S Specifications ..........................................................................................................................16

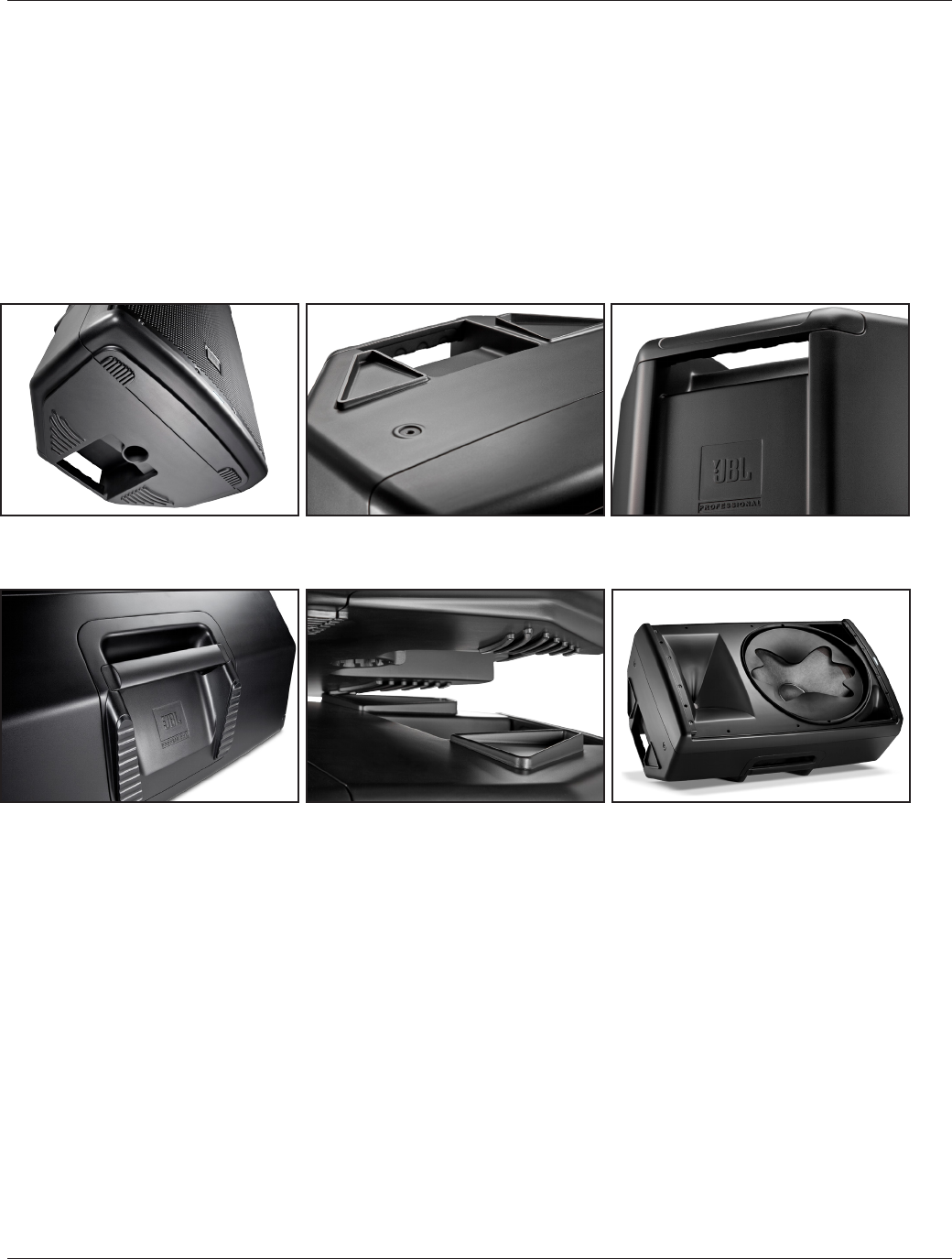

Purposeful Product Design.......................................................................................................................17

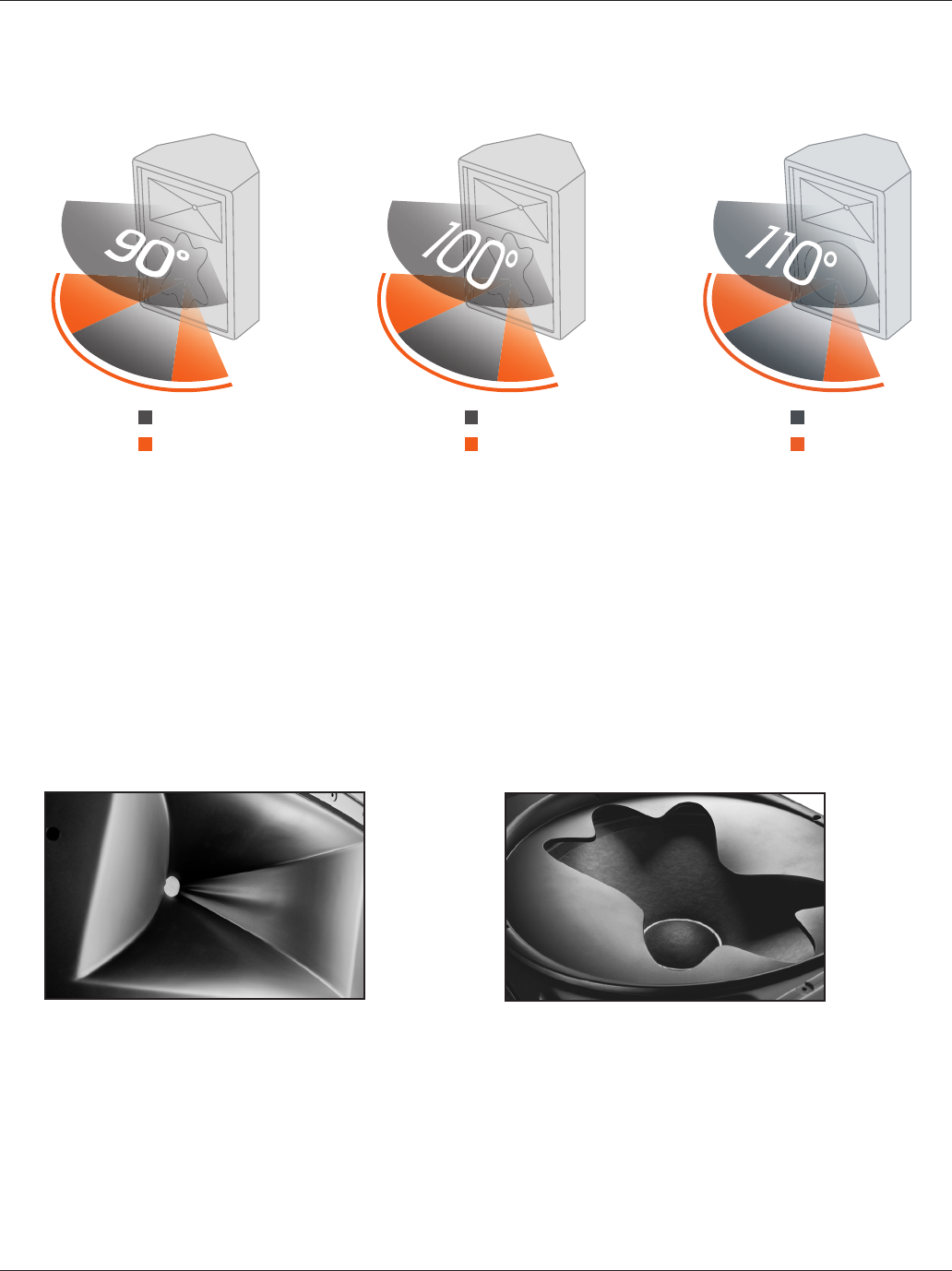

Coverage .................................................................................................................................................. 18

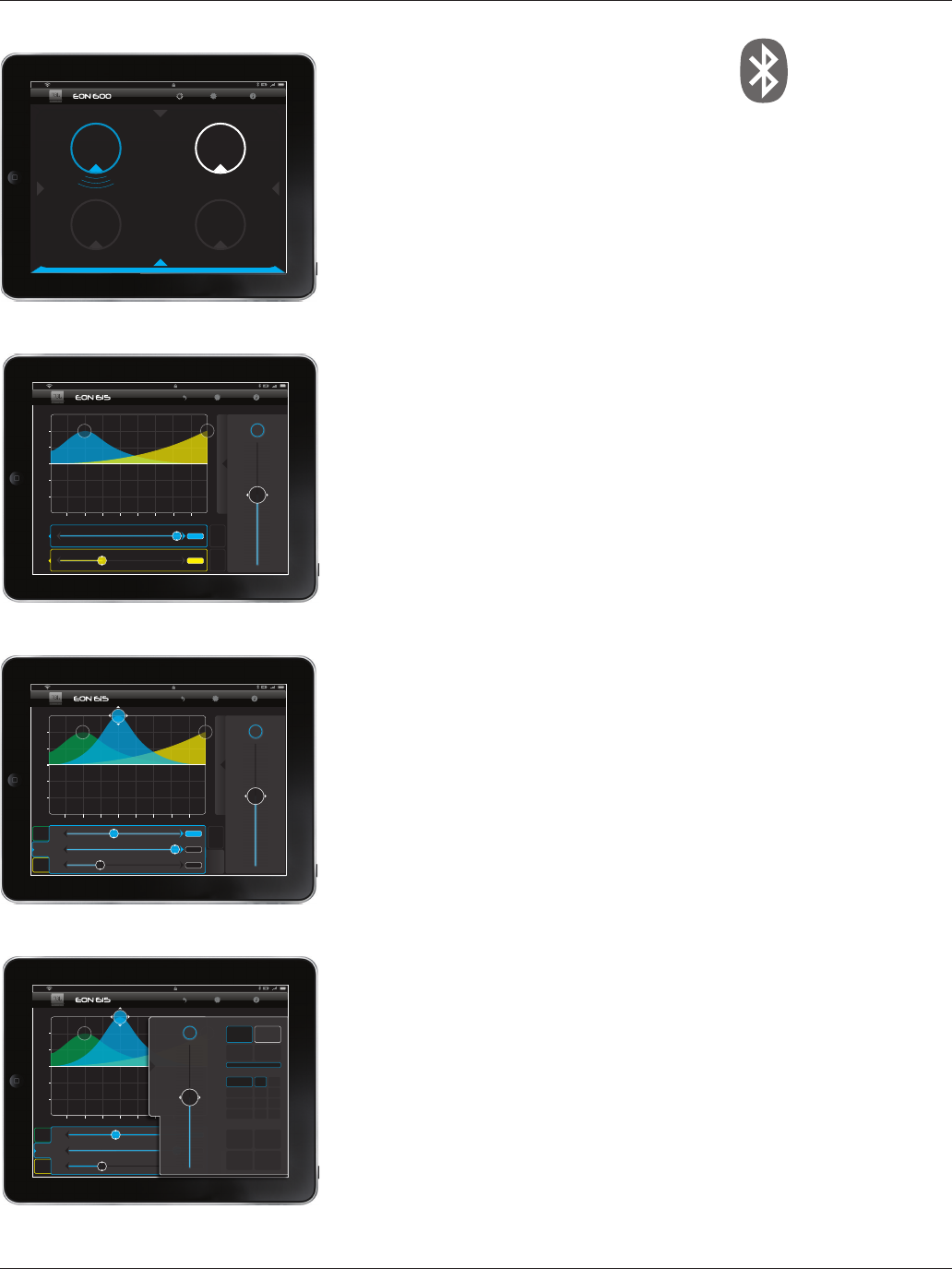

Bluetooth Integration ................................................................................................................................19
Loudspeaker Placement and Suspension ...............................................................................................20
Application Examples .............................................................................................................................. 21
Trouble Shooting .......................................................................................................................................24
Warranty Information .............................................................................................................................. 25
Contact Information ................................................................................................................................. 26
4
Before You Begin - Important Information
Before using your EON® speaker system please review the following for important
information on safety and protection of your investment in quality loudspeakers.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than
the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is provided
for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury
from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally,
or has been dropped.
15. Service Instruction in Owner’s Manual: “CAUTION - THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED SERVICE
PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT PERFORM ANY SERVICING OTHER THAN THAT
CONTAINED IN THE OPERATING INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO DO SO.”
16. To completely disconnect this apparatus from the AC mains, disconnect the power supply cord plug from
the AC receptacle.
17. “WARNING – TO REDUCE THE RISK OF FIRE OR ELECTRIC – SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN
OR MOISTURE.”
18. Do not expose this equipment to dripping or splashing and ensure that no objects filled with liquids, such as vases, are
placed on the equipment.
19. The mains plug of the power supply cord shall remain readily operable.
SAFETY INSTRUCTIONS
5
DECLARATION OF CONFORMITY
Safety And EMC Compliance Specifications
EN 55103-1:1997 Electromagnetic Compatibility - Product Family Standard for Audio, Video, Audio-Visual and Entertainment Lighting Control
Apparatus for Professional Use, Part 1: Emissions
EN 55103-1:1997 Magnetic Field Emissions-Annex A@ 10 cm and 20 cm
EN 55022:2003 Limits and Methods of Measurement of Radio Disturbance Characteristics of ITE: Radiated, Class B Limits; Conducted, Class A
EN 55103-2:1997 Electromagnetic Compatibility - Product Family Standard for Audio, Video, Audio-Visual and Entertainment Lighting Control
Apparatus for Professional Use, Part 2: Immunity
EN 61000-4-2: A2:2001 Electrostatic Discharge Immunity (Environment E2-criteria B, 4 kV Contact, 8 kV Air discharge)
EN 61000-4-3:2003 Radiated, Radio-frequency, Electromagnetic Immunity (Environment E2, criteria A)
EN61000-4-4:2005 Electrical Fast Transient/Burst Immunity (criteria B)
EN 61000-4-5:2001 Surge Immunity (criteria B)
EN 61000-4-6:1996 Immunity to Conducted Disturbances Induced by Radio-Frequency Fields (criteria A)
EN 61000-4-11:2004 Voltage Dips, Short Interruptions and Voltage Variation
UL 6500 2nd Edition 1999 Audio/Video and Musical Instruments Apparatus for Household, Commercial, and Similar General Use
IEC 60065_2001 / EN 60065_2002 + A1:2006 + A11:2008
UL Compliance Specifications
UL 60065 7th Ed. CAN/CSA 22.2 No.60065_2003
FCC Statement IC Warning
1. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received,
including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body
1. This device complies with Industry Canada’s license-exempt RSSs.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference
that may cause undesired operation of the device.
2. Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux
deux conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.”
6
QUICK SETUP GUIDE
Congratulations on your purchase of JBL Professional EON600 Series loudspeakers! We know you are anxious to get up and
running as fast as possible, which is why you are reading this section. The following will help you get set up as soon as possible.
Packaging Contents
Your EON600 system should include the following:
1 x EON600 speaker
1 x 10'(3m) IEC Power Cable
1 x Quick Start Guide
Unbox it
Open the top of the box. Turn box upside down, then lift box up to reveal speaker.Lay box on its side.
Configuration Options
Floor Standing Monitor Position Pole Mounted Suspended Subwoofer Mounted
1
1
2
2
3 4 5
3
7
GAIN
LIMITSIGNAL SIGNAL
GAIN
MAIN
IN 1
MONITOR
SUB
BLUETOOTH
MASTER
VOLUME
MIC
LINE
IN 2
THRU
EQ +
EQ
PRESETS
BOOT
SPEECH
SYNC
FRONT LED
POWER
ON OFF
MIC
LINE
EON 615
CH1 CH2
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
FUSE TYPE: T3.15L250V
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE FUSE ONLY WITH SAME TYPE OF RATING.
430W Max
100-120VAC 50/60Hz
230-240VAC 50/60Hz
MODEL: EON615
SERIAL NO:
JBL PROFESSIONAL
NORTHRIDGE, CA. USA
A HARMAN I NTERNATIONAL COMPAN Y
DESIGNED AND ENGINEERED IN THE USA
Made in
Mexico
A
B
E
F
K
M
N
O
D
G
H
L
I
Power LED
Bluetooth Sync
Bluetooth Boot
EQ Presets
Mic/Line Button
XLR-1/4” Combo Inputs
XLR Male Loop Thru
Power Switch
Front LED On/Off
EQ+ On/Off
CH1 & CH2 Gain
Master Volume
Limit LED
SET OUTPUT LEVEL
1. Using the EQ Preset ( F ) button, select the
appropriate preset to match your application ( Full-
Range Only ).
2. Set the gain level for the input using the Channel
Gain ( H ) controls. A good starting point is to set
the pot at 12 o’clock.
3. Slowly turn Master Volume ( L ) to the right until
the desired volume is reached.
POWER IT ON
1. Confirm the Power Switch ( O ) is in the OFF position.
2. Connect the supplied power cord to the power receptacle
on the rear of the speaker.
3. Connect the power cord to an available power outlet.
4. Flip on the Power Switch ( O ) and the Power LED ( A ) and
the Power LED on the front of the speaker will illuminate.
PLUG IN THE INPUTS
1. Turn Channel Gain Controls ( H ) and Master
Volume Control ( L ) all the way to the left before
connecting any inputs
2. Connect XLR or TRS cable from audio source to
CH1 or CH2 inputs ( M )
3. Select Mic or Line via the Mic/Line Button ( K;
Full-Range Only )
QUICK SETUP GUIDE
8
SUBWOOFER BACK PANEL
LIMITSIGNAL
IN 1
BLUETOOTH
MASTER VOLUME
IN 2
EQ +
BOOT
SYNC
POLARITY
POWER
0º180º
FRONT LED
ON OFF
THRU 1 THRU 2
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
FUSE TYPE: T3.15L250V
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE FUSE ONLY WITH SAME TYPE OF RATING.
430W Max
100-120VAC 50/60Hz
230-240VAC 50/60Hz
MODEL: EON618S
SERIAL NO:
JBL PROFESSIONAL
NORTHRIDGE, CA. USA
A HARMAN INTERNATIONAL COMPANY
DESIGNED AND ENGINEERED IN THE USA
Made in
China
EON 618S
J
B
E
C
G
P
M
N
O
D
L
I
A
Signal Indicator
Bluetooth Sync
Bluetooth Boot
Bluetooth Indicator
EQ+ On/Off
Polarity Switch
XLR-1/4”Combo Inputs
XLR Male Loop Thru
Power Switch
Front LED On/Off
Master Volume
Limit LED
Power LED
9
BACK PANEL
A. Power LED
This LED (White) lights to indicate that the speaker is plugged in and
switched ON.
B. Bluetooth Sync
Depress this button in order to initiate pairing with your
Bluetooth enable device.
C. Bluetooth Indicator
This LED will illuminate blue to indicate that your Bluetooth
connection is established.
D. Front LED On/Off
Toggles the LED (Blue) on front of speaker On or Off.
E. Bluetooth Boot
Depress this button to reset the pairing with your Bluetooth enabled device
without having to turn the speaker off.
F. EQ Presets (Full-Range Only)
Use this button to toggle through the four different settings.
MAIN:
This is the default setting for the EON600 loudspeakers. Use this
setting when your EON600 loudspeaker is being used either on a
tripod or pole and facing towards your audience.
MONITOR:
Use this setting when your EON600 loudspeaker is being used as a
stage monitor facing towards you.
SUB:
Use this setting when your EON600 loudspeaker is being used in
conjunction with a separate subwoofer. This preset enables a High
Pass Filter (HPF) set at 100Hz.
SPEECH:
Use this setting when your EON600 loudspeaker is being used for
Speech only or Spoken Word only applications and is facing towards
the audience.
G. EQ+ Button
Once enabled via the app, the EQ+ toggles the applied EQ settings on/off.
H. CH1 & CH2 Gain (Full-Range Only)
Controls the gain of CH1 & CH2 respectively. By turning the signal counter-
clockwise you will be lowering the gain of your source material. By turning
the control clockwise you will be increasing the gain.
I. Limit Indicator
The LIMIT LED (Red) illuminates to indicate that the system is approaching
limit. If this LED is on for more than the duration of brief dynamic peaks,
the system is being over-driven. Continuously over-driving the system will
result in unpleasant and fatiguing distortion and may lead to premature
failure of your speaker system.
J. Signal Indicators
The SIGNAL LEDs (Green) illuminates to indicate a usable signal is
present at connected INPUTS.
K. Mic/Line Toggle (Full-Range Only)
The MIC/LINE buttons selects between two sensitivity ranges. The buttons
are used to match the input sensitivity with the output level of the devices
connected to CH1 or CH2. Depressing the MIC/LINE switch selects
MIC (High Sensitivity).
CAUTION: Before adjusting this switch, be certain to rotate the control fully counter-clockwise.
After the MIC/LINE switch has been depressed, slowly rotate the control clock-wise until the
desired volume has been reached.
• Use the MIC position (depressed) when a microphone is
connected.
• Use the LINE position (disengaged) when a line level source
such as an audio mixing console, audio playback device or
electronic musical instrument is connected.
L. Master Volume
Controls the master volume of the unit. By turning the knob counter-
clockwise you will be lowering the overall volume of the speaker. By turning
the control clockwise you will be increasing the overall volume of the
speaker.
M. XLR-1/4” Combo Inputs
These balanced inputs accepts a standard XLR (female) connector and
also a 1/4” TRS phone plug. A broad range of signals from microphones,
audio mixing consoles and electronic musical instruments may be
connected here. The sensitivity of these inputs are controlled by the MIC/
LINE SWITCHES.
N. XLR Male Loop Thru
This XLR (male) output connector provides a method of sending audio
out to an external source. If signal is present on both inputs, the inputs will
be summed and sent out as a 50/50 mix
O. Power Switch
Enables the AC power to the unit on and off.
P. Polarity Switch (Subwoofer Only)
Switches the polarity of the subwoofer between 0 and 180 degrees. Useful
for correcting summing issues between the subwoofer and the top boxes.
Users should experiment with the switch at both positions and select the
best sounding option for their specific application.
10
OVERVIEW - EON FAMILY
Thank you for purchasing the new JBL EON!
More than just another great JBL sound system, the new EON600 is a true step forward in technology developed specifically to
deliver the best sound possible regardless of its application. Completely rethinking how truly good an affordable self-contained,
portable PA system can be, JBL engineers purposely designed and built the EON600 from the ground up featuring JBL’s
advanced waveguide technology, JBL designed and manufactured transducers, and convenient, wireless remote control of its
onboard DSP EQ parameters via Bluetooth.
This total redesign of the EON platform leverages the latest technologies in cabinet materials, acoustic science, transducer
design and user friendliness that delivers the extraordinary quality of a high-end studio monitor in a fully professional, highly
flexible, easy to use, portable system for today’s working musicians and sound providers.
With proper care your EON Series speakers should provide you with many years of flawless performance, and are flexible
enough to be a part of your sound reinforcement system even as it grows in scope.
10" Two-way multipurpose
self-powered sound
reinforcement
• 1000 Watt
• 26 lbs. / 11.79 kg
• 110° H / 60° V Coverage
12" Two-way multipurpose
self-powered sound
reinforcement
• 1000 Watt
• 33 lbs. / 14.96 kg
• 100° H / 60° V Coverage
15" Two-way multipurpose
self-powered sound
reinforcement
• 1000 Watt
• 39 lbs. / 17.69 kg
• 90° H / 60° V Coverage
18” multipurpose powered
subwoofer
• 1000 Watt
• 78 lbs. / 35.3 kg
EON 618S
11
CH1
DSP
CH2
THRU
BLOCK DIAGRAM
SIGNAL
LIMIT
LEVEL 1 MASTER
VOLUME
EQ+ EQ LIM
HPF HF
LF
LPF
LEVEL 2
MIC
LINE
ON
OFF
MAIN
MONITOR
SUB
SPEECH
MIC
LINE
EON600
SIGNAL
EON FAMILY - BLOCK DIAGRAM
EON 610, EON 612, and EON 615
12
CH1
DSP
CH2
THRU
SIGNAL
LIMIT
LEVEL 1 MASTER
VOLUME
EQ+EQLIM
LEVEL 2
MIC
LINE
ON
OFF
80 Hz
100 Hz
120 Hz
EON
MIC
LINE
THRU SIGNAL
EON 618S - BLOCK DIAGRAM
13
EON615 SPECIFICATIONS
Bottom View Front View Left View Rear View
439 mm
17.3 in
365 mm
14.4 in
707 mm
27.8 in
380 mm
14.96 in
316 mm
12.44 in
664 mm
26.14 in
615
612
322 mm
12.67 in
295 mm
11.61 in
558 mm
21.97 in
610
System Specification
System Type: Self powered 15”, two-way, bass-reflex
Maximum SPL Output: 127 dB
Frequency Range (-10 dB): 39 Hz - 20 kHz
Frequency Response (±3 dB): 50 Hz - 20 kHz
EQ: 3 Parametric EQ’s, High and Low Shelf (Available via Bluetooth app only)
Amplification
Amplifier Design: High Efficiency Class D
System Power Rating: 1000W Peak (700 LF + 300HF); 500W Continuous (350W LF + 150W HF)
Input Impedance: 20K ohms (Balanced)
Line Input Gain: Infinity to +26.8dB (+14dBu max input level)
Mic Input Gain: Infinity to +29dB (in addition to line input gain)
Connectors: 2 x Balanced XLR-1/4” combination inputs; 1 x male XLR loop thru out
LED Indicators: Power, Bluetooth, EQ Preset, EQ +, Signal CH1, Signal CH2, Limit
Cooling: Passively Cooled (No Fan)
AC Power Input: 100-120VAC 50/60Hz; 230-240VAC 50/60Hz
AC Power Consumption (120VAC): 1/8th Power – 1.14A (Max), 1/4th Power – 1.71A (Max), 1/3rd Power – 2.03A (Max)
Speaker Specification
LF Driver: 1 x JBL 615H 380mm (15”) woofer with 2” voice coil
HF Driver: 1 x JBL 2414H-1 25.4mm (1”) annular polymer diaphragm, neodymium compression driver
Coverage Pattern: 90º H x 60º V
Crossover Frequency: 1.8kHz
Enclosure
Material: Polypropylene, multi-purpose main & monitor
Suspension / Mounting: 36mm pole socket with stabilizing screw, 3 x M10 suspension points
Handles: One left, one right, one top, one bottom (4 total)
Finish: Black Granite
Grille: Powder coated perforated steel with acoustically transparent screen backing
Dimensions (H x W x D): 707mm x 439mm x 365mm (27.8” x 17.3” x 14.4”)
Gross Weight: 17.69 kg (39 lbs)
14
EON612 SPECIFICATIONS
Bottom View Front View Left View Rear View
439 mm
17.3 in
365 mm
14.4 in
707 mm
27.8 in
380 mm
14.96 in
316 mm
12.44 in
664 mm
26.14 in
615
612
322 mm
12.67 in
295 mm
11.61 in
558 mm
21.97 in
610
System Specification
System Type: Self powered 12”, two-way, bass-reflex
Maximum SPL Output: 126 dB
Frequency Range (-10 dB): 48 Hz - 20 kHz
Frequency Response (±3 dB): 57 Hz - 20 kHz
EQ: 3 Parametric EQ’s, High and Low Shelf (Available via Bluetooth app only)
Amplification
Amplifier Design: High Efficiency Class D
System Power Rating: 1000W Peak (700 LF + 300HF); 500W Continuous (350W LF + 150W HF)
Input Impedance: 20K ohms (Balanced)
Line Input Gain: Infinity to +26.8dB (+14dBu max input level)
Mic Input Gain: Infinity to +29dB (in addition to line input gain)
Connectors: 2 x Balanced XLR-1/4” combination inputs; 1 x male XLR loop thru out
LED Indicators: Power, Bluetooth, EQ Preset, EQ +, Signal CH1, Signal CH2, Limit
Cooling: Passively Cooled (No Fan)
AC Power Input: 100-120VAC 50/60Hz; 230-240VAC 50/60Hz
AC Power Consumption (120VAC): 1/8th Power – 1.14A (Max), 1/4th Power – 1.71A (Max), 1/3rd Power – 2.03A (Max)
Speaker Specification
LF Driver: 1 x JBL 612H 380mm (12 in) woofer
HF Driver: 1 x JBL 2414H-1 25.4mm (1 in) polymer diaphragm, neodymium compression driver
Coverage Pattern: 100º H x 60º V nominal
Crossover Frequency: 1.8 kHz
Enclosure
Material: Polypropylene, multi-purpose main & monitor
Suspension / Mounting: 36mm pole socket with stabilizing screw, 3 x M10 suspension points
Handles: One left, one right, one top, one bottom (4 total)
Finish: Black Granite
Grille: Powder coated perforated steel with acoustically transparent screen backing
Dimensions (H x W x D): 664 mm x 380 mm x 316 mm (26.14“ x 14.96“ x 12.44“)
Gross Weight: 14.96 kg (33 lbs)
15
EON610 SPECIFICATIONS
Bottom View Front View Left View Rear View
439 mm
17.3 in
365 mm
14.4 in
707 mm
27.8 in
380 mm
14.96 in
316 mm
12.44 in
664 mm
26.14 in
615
612
322 mm
12.67 in
295 mm
11.61 in
558 mm
21.97 in
610
System Specification
System Type: Self powered 10”, two-way, bass-reflex
Maximum SPL Output: 124 dB
Frequency Range (-10 dB): 52 Hz -20 kHz
Frequency Response (±3 dB): 60 Hz - 20 kHz
EQ: 3 Parametric EQ’s, High and Low Shelf (Available via Bluetooth app only)
Amplification
Amplifier Design: High Efficiency Class D
System Power Rating: 1000W Peak (700 LF + 300HF); 500W Continuous (350W LF + 150W HF)
Input Impedance: 20K ohms (Balanced)
Line Input Gain: Infinity to +26.8dB (+14dBu max input level)
Mic Input Gain: Infinity to +29dB (in addition to line input gain)
Connectors: 2 x Balanced XLR-1/4” combination inputs; 1 x male XLR loop thru out
LED Indicators: Power, Bluetooth, EQ Preset, EQ +, Signal CH1, Signal CH2, Limit
Cooling: Passively Cooled (No Fan)
AC Power Input: 100-120VAC 50/60Hz; 230-240VAC 50/60Hz
AC Power Consumption (120VAC): 1/8th Power – 1.14A (Max), 1/4th Power – 1.71A (Max), 1/3rd Power – 2.03A (Max)
Speaker Specification
LF Driver: 1 x JBL 610H 322mm (10 in) woofer
HF Driver: 1 x JBL 2414H-1 25.4mm (1 in) polymer diaphragm, neodymium compression driver
Coverage Pattern: 110º H x 60º V nominal
Crossover Frequency: 1.8 kHz
Enclosure
Material: Polypropylene, multi-purpose main & monitor
Suspension / Mounting: 36mm pole socket with stabilizing screw, 3 x M10 suspension points
Handles: One left, one right, one top, one bottom (4 total)
Finish: Black Granite
Grille: Powder coated perforated steel with acoustically transparent screen backing
Dimensions (H x W x D): 558 mm x 322 mm x 295 mm (21.968“ x 12.677“ x 11.614“)
Gross Weight: 11.79 kg (26 lbs)
16
EON618S SPECIFICATIONS
Bottom View Front View Left View Rear View
System Specification
System Type: Self powered 18”, subwoofer
Maximum SPL Output: 134 dB
Frequency Range (-10 dB): 31 Hz - 150Hz
Frequency Response (±3 dB): 42 Hz - 150Hz
EQ: 3 Parametric EQ’s, High and Low Shelf (Available via Bluetooth app only)
Amplification
Amplifier Design: High Efficiency Class D
System Power Rating: 1000W Peak, 500W Continuous
Input Impedance: 22K ohms (Balanced)
Line Input Gain: 0 + 36 dBu
Mic Input Gain: -
Connectors: 2 x Balanced XLR-1/4” combination inputs; 2 x male XLR loop thru out
LED Indicators: Front Power, Rear Power , Bluetooth, EQ+, Preset, Signal, Limit
Cooling: Passively Cooled (No Fan)
AC Power Input: 100-120VAC 50/60Hz; 230-240VAC 50/60Hz
AC Power Consumption (120VAC): 1/8th Power – 1.14A (Max), 1/4th Power – 1.71A (Max), 1/3rd Power – 2.03A (Max)
Speaker Specification
LF Driver: JBL 618H 457mm (18”) woofer with 2” voice coil
Crossover Frequency: Selectable; 80 Hz, 100 hz, or 120 Hz
Enclosure
Material: Duraflex coated wooden enclosure
Suspension / Mounting: M20 Threaded Pole Cup
Handles: 2
Finish: Black Duraflex
Grille: Powder coated perforated steel with acoustically transparent screen backing
Dimensions (H x W x D): 582mm x 668mm x 645mm (22.9” x 26.3” x 25.4”)
Gross Weight: 35.5 kg (78.2 lbs)
17
Portability made easy
Enclosure designs have been optimized for ideal acoustic resonance taking advantage of injection molding techniques and
mechanical shaping of the enclosures. This results in tremendous increases in cabinet volumes which enable better acoustic
performance while maintaining the same footprint. Four intelligently positioned handles make the 600 easy to carry and move
around. Integrated hardware mounts, designed into the enclosures, allow each model to be flown when required. And indexed
feet molded into the enclosures allow for convenient storage and transport, secure stacking for stage monitor and traditional
stand up configurations, and unique acoustic configurations.
Pole Mount & Locking Feet Suspension Points Top Handle & Indexed Molding
Side Handle Secure Stacking Monitor Position
PURPOSEFUL PRODUCT DESIGN
18
COVERAGE
Image Control Waveguide
Increased High Frequency detail. The Image Control
Waveguide’s patent-pending design precisely controls the
sound emanating from the EON600 in the vertical and
horizontal planes ensuring the representation of your mix is
neutral and accurate at the listening position.
Low Frequency Waveguide
JBL’s ground breaking new low frequency waveguide
features special fluting that is designed into the structure that
guides the frequencies through the full range of the system.
Coverage through Revolutionary Waveguides
EON600 Family Coverage Patterns Compared to a Typical Speaker
The EON600’s extraordinary performance results from a breakthrough approach to waveguide design. JBL engineers examined
the radiation characteristics of the EON’s high and low frequency drivers at 36 different points employing JBL’s exclusive, state
of the art measurement techniques, then designed individual waveguides for both components that control the sound radiation
at the high frequencies, the crossover point and at the low frequencies. Special fluting is designed into the structure that guides
the frequencies through the full range of the system. The result is consistent response throughout its 90 degree coverage
pattern. The quality and consistency between on axis and off axis response delivers uniform coverage and high intelligibility
throughout the coverage area, which means the EON600’s smooth, transparent sound is the same for the entire audience.
EON615
TYPICAL
EON610
TYPICAL
19
BLUETOOTH INTEGRATION
Speaker Discovery
iPad 8:35 PM
SETTINGS INFO
DEMO
FRONT
LEFT
RIGHT
BACK
GUITAR : 01
SETUP
OFFLINE
LOCATE
EON : 02
ONLINE
OFFLINE
LOCATE
Bass & Treble Controls
iPad 8:35 PM
20
12
6
0
-6
-1 2
-20
20 40 80 200 500 1K 2K 5K 10K 20K
SETTINGS INFO
ON
GUITAR : 01
TONE
BASS
100
50
BASS
HOME
100 50
TONE
20
12
6
0
-6
-1 2
-20
03
VOLUME
PRESETS MENU
PEQ
FLAT
Features
• Bluetooth speaker discovery (up to 4 at one time)
• Bass and Treble control (Low and High Shelf EQ)
• PEQ + (3 parametric EQ filters with control over Frequency, Gain and Q)
• Master Volume control
• Recall back panel Factory Presets (Main, Monitor, Sub and Speech)
• Save and Recall User EQ Presets
Visit jblpro.com/EON600 to register
• Supports iOS & Android
• Bluetooth audio NOT supported
PEQ+ Controls
iPad 8:35 PM
20
12
6
0
-6
-1 2
-20
20 40 80 200 500 1K 2K 5K 10K 20K
SETTINGS INFO
ON
GUITAR : 01
LOW
MID
HIGH
FREQ
GAIN
Q
500Hz
20dB
10ct
20dB
HIGH
MID
HOME
12dB
80Hz
12dB
5K
500Hz
LOW
20
12
6
0
-6
-1 2
-20
03
VOLUME
PRESETS MENU
BASIC
EQ
FLAT
Preset Management
iPad 8:35 PM
20
12
6
0
-6
-1 2
-20
20 40 80 200 500 1K 2K 5K 10K 20K
SETTINGS INFO
LOW
MID
HIGH
FREQ
GAIN
Q
500Hz
20dB
10ct
20dB
HIGH
MID
HOME
12dB
80Hz
12dB
5K
500Hz
LOW
BASIC
EQ
FLAT
ON
GUITAR : 01
20
12
6
0
-6
-1 2
-20
03
VOLUME
CLOSE
SPEAKER SELECTION
USER PRESETS
SPEAKER FUNCTION SELECTION
COPY SETTING
GUITAR : 01
STEVE
02
03
04
SAV E
SAV E
SAV E
SAV E
LOAD
LOAD
LOAD
LOAD
EON : 02
OFFLINE OFFLINE
MONITOR SUB
MAIN LIVE
20
Floor Monitor Floor Standing
Suspended
Tripod Stand Stacking Pole Mount
LOUDSPEAKER PLACEMENT AND SUSPENSION
The following guidelines will help you achieve optimum sound wherever you use your EON ® loudspeakers:
Only experienced professionals should attempt to suspend the speakers.
For permanent installation applications utilizing the M10 suspension points, JBL Professional recommends the use of three
(3) M10 x 1.5 thread pitch forged shoulder steel eyebolts with an 18-20mm threaded shaft, along with fender washers, rated
for overhead suspension. Users unfamiliar with safe rigging practices should not attempt to suspend loudspeakers. Please see
https://www.jblpro.com/pub/technote/tn_v1n14.pdf for more information.
Raise the speakers as high as possible.
For best results try to get the high frequency horn at least 2 to 4 feet above the heads of the audience. If the speakers are too
low, the people in the back of the audience will not receive the best quality sound.
Place the speakers between the microphones and the audience.
Feedback occurs when the microphones pick up sound from the speakers and “feed” the sound back through the sound
system. If space is limited, point the speakers away from the microphones to reduce feedback.
Locate the speakers away from turntables.
Low-frequency feedback occurs when the output of the speaker is picked up by the tone arm of the turntable and is re-
amplified. A heavy, solid turntable base and shock mounting can also reduce this type of feedback in DJ applications.
Use more speakers in large or highly reverberant spaces.
Spreading speakers throughout these spaces will produce much better sound than trying to compensate with loudness level or
equalization. For very long distances, the use of another set of speakers with time delay is recommended.
Stand speakers upright for PA - Tilt the speakers back on the side for stage monitoring. Upright stance provides even coverage
over a wide area. EON speakers are also designed with two slanted positions for stage monitoring applications.
21
GAIN
LIMITSIGNAL SIGNAL
GAIN
MAIN
IN 1
MONITOR
SUB
BLUETOOTH
MASTER
VOLUME
MIC
LINE
IN 2
THRU
EQ +
EQ
PRESETS
BOOT
SPEECH
SYNC
FRONT LED
POWER
ON OFF
MIC
LINE
CH1 CH2
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
FUSE TYPE: T3.15L250V
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE FUSE ONLY WITH SAME TYPE OF RATING.
430W Max
100-120VAC 50/60Hz
230-240VAC 50/60Hz
MODEL: EON615
SERIAL NO:
JBL PROFESSIONAL
NORTHRIDGE, CA. USA
A HARMAN I NTERNATIONAL COM PANY
DESIGNED AND ENGINEERED IN THE USA
Made in
Mexico
GAIN
LIMITSIGNAL SIGNAL
GAIN
MAIN
IN 1
MONITOR
SUB
BLUETOOTH
MASTER
VOLUME
MIC
LINE
IN 2
THRU
EQ +
EQ
PRESETS
BOOT
SPEECH
SYNC
FRONT LED
POWER
ON OFF
MIC
LINE
CH1 CH2
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
FUSE TYPE: T3.15L250V
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE FUSE ONLY WITH SAME TYPE OF RATING.
430W Max
100-120VAC 50/60Hz
230-240VAC 50/60Hz
MODEL: EON615
SERIAL NO:
JBL PROFESSIONAL
NORTHRIDGE, CA. USA
A HARMAN I NTERNATIONAL COM PANY
DESIGNED AND ENGINEERED IN THE USA
Made in
Mexico
APPLICATION EXAMPLES
SMALL PA USING BOTH INPUTS AND THRU FUNCTION
CH1 input set to “Mic” CH2 input set to “Line”
EQ Preset: Main
22
APPLICATION EXAMPLES
SMALL PA USING TWO SYSTEMS AS MONITORS
CH1 input set to “Mic” CH2 input set to “Line”
EQ Preset: Monitor
GAIN
LIMITSIGNAL SIGNAL
GAIN
MAIN
IN 1
MONITOR
SUB
BLUETOOTH
MASTER
VOLUME
MIC
LINE
IN 2
THRU
EQ +
EQ
PRESETS
BOOT
SPEECH
SYNC
FRONT LED
POWER
ON OFF
MIC
LINE
CH1 CH2
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
FUSE TYPE: T3.15L250V
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE FUSE ONLY WITH SAME TYPE OF RATING.
430W Max
100-120VAC 50/60Hz
230-240VAC 50/60Hz
MODEL: EON615
SERIAL NO:
JBL PROFESSIONAL
NORTHRIDGE, CA. USA
A HARMAN INTER NATIONAL COM PANY
DESIGNED AND ENGINEERED IN THE USA
Made in
Mexico
GAIN
LIMITSIGNAL SIGNAL
GAIN
MAIN
IN 1
MONITOR
SUB
BLUETOOTH
MASTER
VOLUME
MIC
LINE
IN 2
THRU
EQ +
EQ
PRESETS
BOOT
SPEECH
SYNC
FRONT LED
POWER
ON OFF
MIC
LINE
CH1 CH2
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
FUSE TYPE: T3.15L250V
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE FUSE ONLY WITH SAME TYPE OF RATING.
430W Max
100-120VAC 50/60Hz
230-240VAC 50/60Hz
MODEL: EON615
SERIAL NO:
JBL PROFESSIONAL
NORTHRIDGE, CA. USA
A HARMAN INTER NATIONAL COM PANY
DESIGNED AND ENGINEERED IN THE USA
Made in
Mexico
23
GAIN
LIMITSIGNAL SIGNAL
GAIN
MAIN
IN 1
MONITOR
SUB
BLUETOOTH
MASTER
VOLUME
MIC
LINE
IN 2
THRU
EQ +
EQ
PRESETS
BOOT
SPEECH
SYNC
FRONT LED
POWER
ON OFF
MIC
LINE
CH1 CH2
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
FUSE TYPE: T3.15L250V
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE FUSE ONLY WITH SAME TYPE OF RATING.
430W Max
100-120VAC 50/60Hz
230-240VAC 50/60Hz
MODEL: EON615
SERIAL NO:
JBL PROFESSIONAL
NORTHRIDGE, CA. USA
A HARMAN INTER NATIONAL COMPAN Y
DESIGNED AND ENGINEERED IN THE USA
Made in
Mexico
GAIN
LIMITSIGNAL SIGNAL
GAIN
MAIN
IN 1
MONITOR
SUB
BLUETOOTH
MASTER
VOLUME
MIC
LINE
IN 2
THRU
EQ +
EQ
PRESETS
BOOT
SPEECH
SYNC
FRONT LED
POWER
ON OFF
MIC
LINE
CH1 CH2
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
FUSE TYPE: T3.15L250V
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE FUSE ONLY WITH SAME TYPE OF RATING.
430W Max
100-120VAC 50/60Hz
230-240VAC 50/60Hz
MODEL: EON615
SERIAL NO:
JBL PROFESSIONAL
NORTHRIDGE, CA. USA
A HARMAN INTER NATIONAL COMPAN Y
DESIGNED AND ENGINEERED IN THE USA
Made in
Mexico
LIMITSIGNAL
IN 1
BLUETOOTH
MASTER VOLUME
IN 2
EQ +
BOOT
SYNC
POLARITY
POWER
0º180º
FRONT LED
ON OFF
THRU 1 THRU 2
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
FUSE TYPE: T3.15L250V
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE FUSE ONLY WITH SAME TYPE OF RATING.
430W Max
100-120VAC 50/60Hz
230-240VAC 50/60Hz
MODEL: EON618S
SERIAL NO:
JBL PROFESSIONAL
NORTHRIDGE, CA. USA
A HARMAN INTERNATION AL COMPANY
DESIGNED AND ENGINEERED IN THE USA
Made in
China
EON 618S
APPLICATION EXAMPLES
SMALL PA USING EXTERNAL MIXER
CH1 & CH2 Mic / Line inputs set to “Line”
EQ Preset: Sub (Full-Range)/EON (Subwoofer)
+
24
Symptom Likely Cause What to do
No sound
Speaker not connected
to active AC power Verify that speaker is connected and that the circuit is on
Power not switched on Switch on power and verify that power LED is on
No sound, speaker is connected
to working AC power but won’t
come on.
Speaker power cable is faulty
or improperly connected.
• Re-seat the power cable at both ends.
• Substitute a known-good power cable
No sound. Speaker comes on.
Signal source
(mixer, instrument, etc.)
is not sending.
• Check VU meters on the source mixer
• Verify that the tape or CD is playing.
• Use headphones to verify that the instrument is actually
sending an audio signal
Faulty cables and
connections
• Disconnect and re-seat signal cables.
• Replace suspected cable with a known-good cable
No sound with microphone
connected directly to the
MIC/ LINE input.
Microphone requires
phantom power
The EON does not supply phantom power. Switch to a dynamic
microphone, use a battery powered microphone (if possible),
use an external phantom power supply for condenser type microphones.
Signal sounds distorted and
very loud, PEAK light is lit
most of the time.
Excessive input signal, trying
to exceed the capabilities of
the speakers
• Reduce the output level of the source.
• Turn down the level controls on the speaker.
• Use additional EON speakers.
Signal sounds distorted even at
moderate volumes, LIMIT light
is not lit.
Mixer or other source
is overdriven
Review the Owner’s Manual for your mixer and adjust controls as needed.
• Input sensitivity (gain)
• Channel faders
• Master faders Once this is done, review the instructions in the Quick
Start section of this guide.
Lots of hiss in the sound,
the mixer controls are at
very low settings.
Improper gain structure
• Make sure that the MIC/LINE switch is in the LINE (disengaged) position.
• Reduce the level settings at speaker. Review the Owner’s Manual for
your mixer and adjust controls as needed.
• Input sensitivity (gain)
• Channel faders
• Master faders
Noise or hiss heard at output. Noisy source device
Disconnect the devices that are connected to your speaker one at a time.
If the noise goes away, the problem is with the source or the
connecting cable.
Hum or Buzz that increases or
decreases when the mixer level
controls are moved.
Improper A/C ground or
faulty equipment connected
to mixer input
Disconnect or mute channels one at a time to isolate the problem. Refer to
the owner’s manual of the faulty equipment for troubleshooting help.
Faulty cable between source
equipment and mixer Substitute a known-good cable for the suspected faulty cable.
Hum or Buzz
Improper A/C grounding,
ground loops
• ‘Lift’ the audio ground by using an XLR/F to XLR/M adapter on one end.
• Re-route audio cables away from AC power and lighting cables.
Excessively long
unbalanced cable run
• Use the balanced outputs (if available) of your mixer or source
equipment to drive your EON speakers.
• Use a “DI” (direct injection) box to convert your unbalanced equipment
output to a balanced output.
Improper system gain
structure
Reduce the INPUT level controls and increase the output level of your
source devices.
TROUBLE SHOOTING
25
The JBL Limited Warranty on professional loudspeaker products (except for enclosures) remains in effect for five years from the
date of the first consumer purchase. JBL amplifiers are warranted for three years from thedate of original purchase. Enclosures
and all other JBL products are warranted for two years from the date of original purchase.
Who Is Protected By This Warranty?
Your JBL Warranty protects the original owner and all subsequent owners so long as: A.) Your JBL product has been purchased
in the Continental United States, Hawaii or Alaska. (This Warranty does not apply to JBL products purchased elsewhere except
for purchases by military outlets. Other purchasers should contact the local JBL distributor for warranty information.); and B.)
The original dated bill of sale is presented whenever warranty service is required.
What Does The JBL Warranty Cover?
Except as specified below, your JBL Warranty covers all defects in material and workmanship. The following are not covered:
Damage caused by accident, misuse, abuse, product modification or neglect; damage occurring during shipment; damage
resulting from failure to follow instructions contained in your Instruction Manual; damage resulting from the performance of
repairs by someone not authorized by JBL; claims based upon any misrepresentations by the seller; any JBL product on which
the serial number has been defaced, modified or removed.
Who Pays For What?
JBL will pay all labor and material expenses for all repairs covered by this warranty. Please be sure to save the original shipping
cartons because a charge will be made if replacement cartons are requested. Payment of shipping charges is discussed in the
next section of this warranty.
How To Obtain Warranty Performance
If your JBL product ever needs service, write or telephone us at JBL Incorporated (Attn: Customer Service Department), 8500
Balboa Boulevard, PO. Box 2200, Northridge, California 91329 (818/893-8411). We may direct you to an authorized JBL
Service Agency or ask you to send your unit to the factory for repair. Either way, you’ll need to present the original bill of sale to
establish the date of purchase. Please do not ship your JBL product to the factory without prior authorization. If transportation
of your JBL product presents any unusual difficulties, please advise us and we may make special arrangements with you.
Otherwise, you are responsible for transporting your product for repair or arranging for its transportation and for payment of any
initial shipping charges. However, we will pay the return shipping charges if repairs are covered by the warranty.
Limitation of Implied Warranties
ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE
LIMITED IN DURATION TO THE LENGTH OF THIS WARRANTY.
EXCLUSION OF CERTAIN DAMAGES
JBL’S LIABILITY IS LIMITED TO THE REPAIR OR REPLACEMENT, AT OUR OPTION, OF ANY DEFECTIVE PRODUCT AND SHALL
NOT INCLUDE INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND. SOME STATES DO NOT ALLOW LIMITATIONS ON
HOW LONG AN IMPLIED WARRANTY LASTS AND/OR DO NOT ALLOW THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY, FROM STATE TO STATE.
JBL Professional
8500 Balboa Blvd. Northridge, CA 91329 USA
WARRANTY INFORMATION
26
Mailing Address:
JBL Professional
8500 Balboa Blvd.
Northridge, CA 91329
Shipping Address:
JBL Professional
8500 Balboa Blvd., Dock 15
Northridge, CA 91329
(Do not return product to this address without first obtaining prior authorization from JBL)
Customer Service:
Monday through Friday
8:00am -5:00pm
Pacific Coast Time in the U.S.A.
(800) 8JBLPRO (800.852.5776)
www.jblproservice.com
On The World Wide Web:
www.jblpro.com
Professional Contacts, Outside the USA:
Contact the JBL Professional Distributor in your area.
A complete list of JBL Professional international distributors is provided at our U.S.A. website: www.jblpro.com
CONTACT INFORMATION
27
Part Number: 5032132 8/15 8500 Balboa Boulevard Northridge, CA 91329 USA www.jblpro.com

Navigation menu
