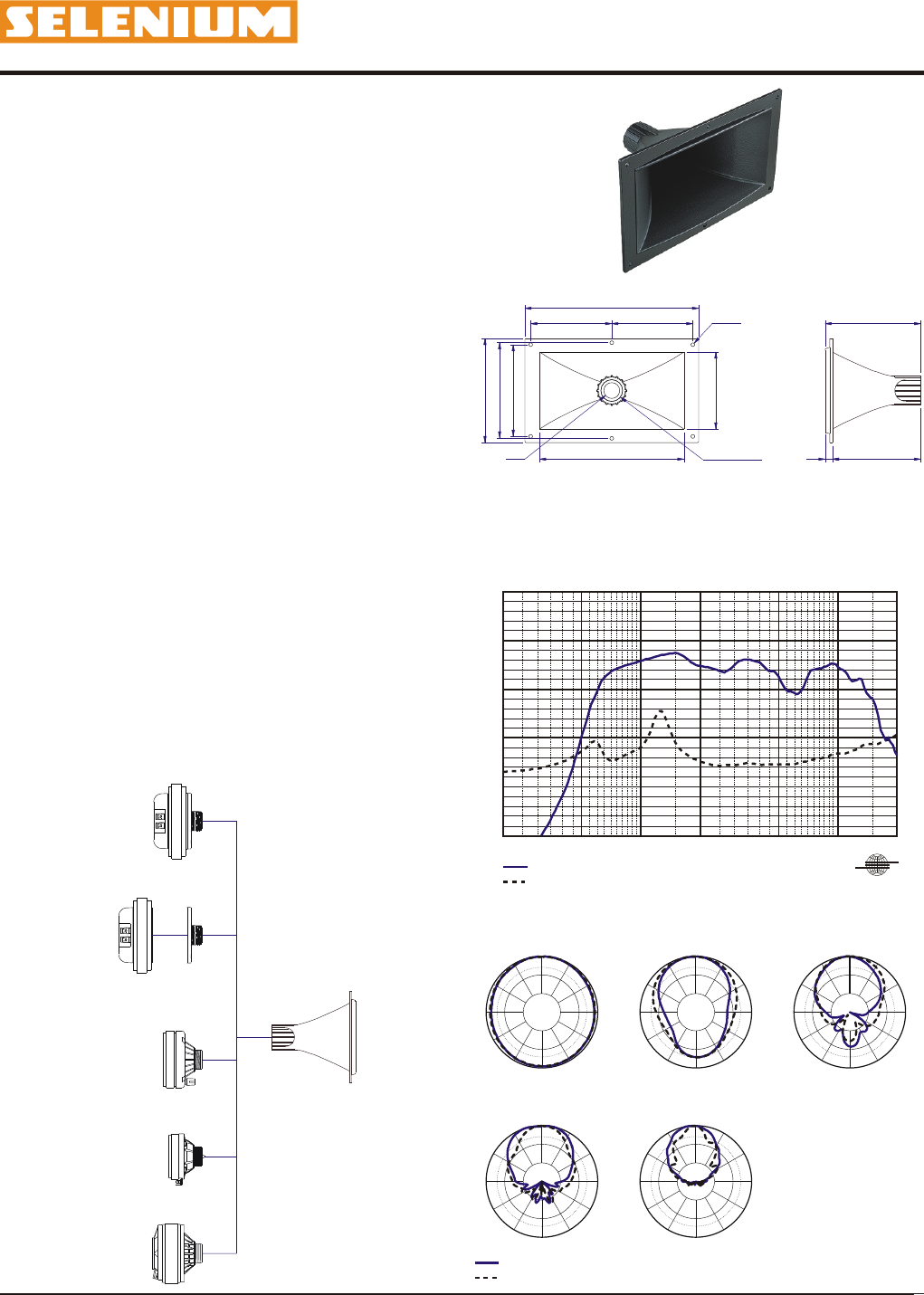

PROFESSIONAL LINE - Horn
HM25-25
Features:
• Stage monitors, side-fill and P.A. applications.
• Compact size, flat front.
• Aluminum exponential horn.
• 25 mm (1") throat.
• 90°(H) x 60°(V) nominal coverage.
SPECIFICATIONS
Nominal coverage
Horizontal ...................................90 degrees
Vertical......................................60 degrees
Directivity
Directivity factor (Q) ............................9
Directivity index (Di) ............................9 dB
Sensitivity
1
On driver, 1W @ 1m, on axis . . . . . . . . . . . . . . . . . . . 106 dB SPL
2
Frequency response @ -10 dB . . . . . . . . . . . . . . 800 to 18,000 Hz
Throat diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 (1) mm (in)
3
Minimum recommended crossover . . . . . . . . . . . . . . . . . 1,200 Hz
1 Measured with D205TI driver, 1,200 - 3,000 Hz average.
2 Measured with D205TI driver.
3 With D205TI driver.
ADDITIONAL INFORMATION
Horn material........................................... Aluminum
Horn finish............................................Black epoxy
Overall dimensions
Mouth height . . . . . . . . . . . . . . . . . . . . . . . . . . . 164 (6.46) mm (in)
Mouth width . . . . . . . . . . . . . . . . . . . . . . . . . . 274 (10.79) mm (in)
Length................................151 (5.95) mm (in)
3
Volume displaced by horn. . . . . . . . . . . . . . . . . . . . . . 1,2 (0.04) l (ft )
Net weight..................................810 (1.79) g (lb)
Gross weight................................980 (2.16) g (lb)
Carton dimensions (W x D x H) . . . . . . . 17 x 17 x 28 (6.7 x 6.7 x 11.0) cm (in)
MOUNTING INFORMATION
3
Mechanical connection of driver . . . . . . . . . . . . . . . . . . Screw-on 1 / " - 18 TPI
8
Baffle cutout dimensions (front mount)
Horizontal.............................235 (9.25) mm (in)
Vertical ...............................125 (4.92) mm (in)
HORN x DRIVER CONNECTION
Dimensions in mm.
POLAR RESPONSE CURVE
HM25-25 horn
coupled to a
D205TI driver
1 kHz 2 kHz
4 kHz 8 kHz
500 Hz
Polar Response Curve, Horizontal.
Polar Response Curve, Vertical.
RESPONSE AND IMPEDANCE CURVES W/ D205TI DRIVER INSIDE AN
ANECHOIC CHAMBER, 1 W / 1 m
BB
KK
500 20k
Hz
Response Curve.
Impedance Curve.
200 1k 2k 5k 10k
70
80
90
100
110
120
dB
0
5
10
20
25
ohms
15
L O U D S P E A K E R S
Adaptor
HM25-25
DH200E
D250
DT150 OEM
D205TI OMF
ADM25-25
D205TI
W1 3/8" - 18TPI
6 x ø 6
128 128
274
145
164
121
228ø 25
151
13912
150
30°
210°
60°
240°
90° 270°
120°
300°
150°
330°
180°
0
-6
-10
-20
dB
30°
210°
60°
240°
90° 270°
120°
300°
150°
330°
180°
0
-6
-10
-20
dB
30°
210°
60°
240°
90° 270°
120°
300°
150°
330°
180°
0
-6
-10
-20
dB
30°
210°
60°
240°
90° 270°
120°
300°
150°
330°
180°
0
-6
-10
-20
dB
30°
210°
60°
240°
90° 270°
120°
300°
150°
330°
180°
0
-6
-10
-20
dB
www.seleniumloudspeakers.com
Specifications subject to change
without prior notice.
Code: Rev.: - /
01 02 03
