www.jblpro.com

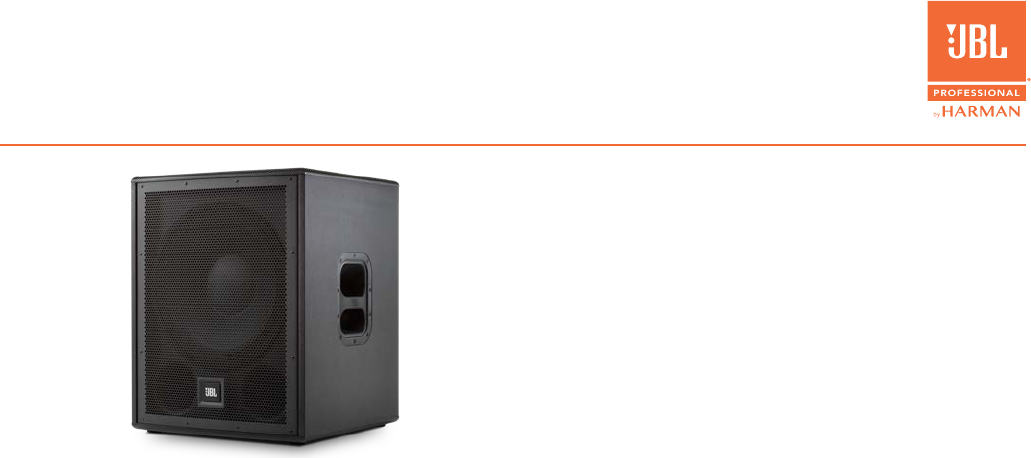

IRX115S
15” Powered Subwoofer
The JBL IRX115S powered subwoofer, the newest model in the IRX Series of versatile, cost-conscious portable
P.A.s, extends the low-frequency response of IRX systems down to a room-shaking 35 Hz.
The 15” IRX115S draws from JBL’s top professional technologies to deliver superior sound without the guesswork,
thanks to custom driver and amplier designs; tuned, ported enclosure; and built-in crossover and polarity
settings. It all adds up to an impressive 128 dB of deep, powerful bass, in a rugged, ultralight cabinet weighing
less than 66 pounds.
The IRX Series offers legendary JBL delity, power and ease of use at a fraction of the price and size of
comparable systems. The 8-inch IRX108BT and the 12-inch IRX112BT are fully loaded with features that make it
easy to dial in incredible sound in an instant—from real-world EQ presets and dbx DriveRack automatic feedback
suppression to Bluetooth streaming and one-touch ducking.
Budget-conscious musicians, DJs, presenters and tness instructors can count on versatile, full-featured JBL IRX
Series portable P.A.s to deliver stunning sound, no matter their experience level.
Big Sound, Small Box
High output and extended low-frequency response in a compact,
ported design
Portable and Lightweight
Perfectly complements the IRX line of powered loudspeakers
with a built-in, lightweight amplier and ergonomic, sturdy
handles
Easy to Set Up and Operate
Easily selectable crossover frequencies and polarity on the back
of the cabinet
HIGHLIGHTS 6
BE HEARD, LOUD AND CLEAR
The IRX115S leverages more than 70 years of JBL speaker
innovation to deliver superior frequency response, sound
pressure levels and sheer power. Inside, a powerful 15” woofer
with 3” voicecoil delivers low-frequency coverage down to 35
Hz; a 1,300W high-efciency amp helps protect the woofer and
driver while ensuring top-level acoustic performance. Selectable
80 Hz, 100 Hz and 120 Hz crossover points smooth out system
response, especially when used with IRX Series loudspeakers; a
tuned port reduces woofer noise.
PORTABLE AND DURABLE
The tough, lightweight IRX115S is engineered to outperform
larger boxes in a compact form factor weighing less than 66
pounds. Its durable MDF enclosure features a tight-gauge,
reinforced honeycomb bevel pattern that offers rugged
protection without compromising acoustic performance.
Transport is easy, thanks to thoughtfully designed ergonomic
handles. And it’s all veried by JBL’s legendary 100-hour stress
test.
GREAT SOUND, MADE SIMPLE
With the IRX Series, perfect sound is just a button push away.
Simple settings adjust crossover and polarity to optimize system
sound in any space. Pair the IRX115S with IRX Series powered
loudspeakers and access Bluetooth audio streaming, dbx
automatic feedback suppression, ducking and EQ presets that’ll
have you instantly sounding your best in any space.
KEY MESSAGES 6
IRX115S
IEC Power Cable
Quick Start Guide
IN THE BOX 6
www.jblpro.com
IRX115S
15” Powered Subwoofer
© 2020 HARMAN International Industries, Incorporated. All rights reserved.
Features, specifications and appearance are subject to change without notice.
HARMAN Professional 8500 Balboa Blvd. Northridge, CA 91329 USA
Issued: 10/2020
SYSTEM TYPE: Powered subwoofer
WOOFER SIZE: 15"
MAX SPL: 128 dB
FREQUENCY RESPONSE (-3 dB): 45 Hz – 103 Hz
FREQUENCY RESPONSE (-10 dB): 35 Hz – 147 Hz
POWER RATING: 1,300 watts peak
600 watts burst
400 watts continuous
INPUT IMPEDANCE: 100k ohm, balanced
CROSSOVER FREQUENCIES: Selectable 80, 100, 120 Hz
POLARITY: Normal, inverted
(switch on back panel)
INPUTS: 2 XLR Combo
OUTPUTS: 2 XLR (pass through)
CABINET: 15 mm MDF, 18 mm front plate
MOUNTING: M20 x 2.5P Pole Cup
NET WEIGHT: 65.3 lb (29.65 kg)
DIMENSIONS (D x W x H): 18.9 x 18.9 x 23.6 in
(480 x 480 x 600 mm)
TECHNICAL SPECIFICATIONS 6
FEATURES 6
• Powerful 15” woofer with 3” voicecoil generates smooth, deep
low-frequency response
• Selectable 80 Hz, 100 Hz and 120 Hz crossover points are
optimized for JBL IRX Series loudspeakers
• Ported enclosure enhances output and reduces woofer noise
• Frequency response: 35 Hz – 147 Hz (-10 dB)
• Power rating: 1,300W
• Max SPL: 128 dB
• I/Os: 2 XLR Combo, 2 XLR out
• Polarity switch optimizes system response
• Lightweight, road-tested MDF cabinet
• Weight: 65.3 lb (29.65 kg)
• Built-in pole mount expands system conguration options
• Reinforced grille offers rugged protection without
compromising acoustic performance
• Ergonomic handles make transport easy
MUSICIANS/PERFORMERS
Musicians and performers looking for
a great-sounding, easy-to-use sound
reinforcement speaker in a portable,
affordable package.
PRESENTERS/INSTRUCTORS
Mobile presenters and tness instructors
looking for an easy-to-use, compact PA
solution with Bluetooth audio and built-in
music ducking.
HOSPITALITY/GOVERNMENT INSTALLATIONS
Hospitality/government installations
requiring professional sound quality with
ease of use and minimal setup time.
APPLICATIONS 6
SHIPPING CARTON (L x W x H): 23 x 23 x 27.75 in
(584.2 x 584.2 x 704.85 mm)
SHIPPING WEIGHT: 76 lb (34.5 kg)
UPC CODE: JBL-IRX115S-CN: 691991034190
JBL-IRX115S-AU: 691991034206
JBL-IRX115S-EK: 691991034213
JBL-IRX115S-NA: 691991034220
ORDER SPECIFICATIONS 6
