PRX612M
Features:
䉴
Maximum SPL 134 dB peak
䉴
Dual purpose enclosure for both front-of
house and floor monitor applications
䉴
Eight M10 fly points for horizontal or
vertical suspension. One M10 pull-back
point.
䉴
Optimized EQ for monitor or front-of-
house applications
䉴
305 mm (12 in) Differential Drive®dual
voice-coil and magnetic gap, neodymium
woofer
䉴
37.5 mm (1.5 in) annular polymer
diaphragm, neodymium, compression
driver
䉴
1000 Watt (Dual 500 watt) Class-D,
Crown®amplifier.
䉴
DSP input section, crossover, dynamic
limiting, component optimization,
selectable system EQ
䉴
Professional XLR line and ¼in
Mic/Instrument inputs, with loop-through.
䉴
Dual socket pole mount with (angle)
down-tilt.
Application:
PRX612M is the most compact and
versatile speaker in the PRX600 Series. It
has been designed to deliver maximum
performance for its weight and size as both
a stage monitor and a front-of-house main
PA. Two user selectable EQ settings are
provided to optimize the system for either
application. With a dual socket pole mount,
the PRX612M is a perfect match with a
PRX618S subwoofer, offering a high
performance self-powered sub/sat system.
The PRX615M is comprised of a 305 mm
(12 in) 262F-1 Differential Drive®woofer, a
2408H-1, 37.5 mm (1.5 in) annular polymer
diaphragm, neodymium compression driver
mounted to a 90° by 50° horn, all driven by
1000 watt (dual 500 watt) Crown®Class-D
digital power amplifier. A proprietary DSP
chip is at the core of a fully featured input
section, providing user selectable system
EQ, protection, input sensitivity selection,
cross-over functionality, dynamic limiting
and discrete component optimization.
The amplifier input panel offers XLR or
¼in jack compatibility and a sensitivity
switch provides extra flexibility, making it
possible to connect literally any sound
source without using a mixer. Signal present
and limiter lights indicate the system status
and assist in setting the optimum level, via
the level control knob.
All PRX600 cabinets are built from a
combination of 25 mm (on the top and
bottom for added rigidity) and 18 mm,
strong, lightweight poplar plywood made
structurally sound with tongue and groove
joints. All PRX600 Series cabinets are
protected by JBL’s tour proven DuraFlex™
finish. Grilles are made from dent-resistant
16 gauge steel and handles are made from
lightweight, glass-filled nylon for added
strength and durability. All M10 suspension
points are constructed from 14 gauge steel
and have been tested with a yield-strength
of 1000 lbs. each.
Specifications:
System
System Type: Self powered 12", two-way, bass-reflex
Maximum SPL Output: 134 dB (Full Range) peak; 133 dB (Monitor) peak
Frequency Range (-10 dB): Full Range 50 Hz-19.5 kHz
Monitor (vertical orientation) 60 Hz-19.5 kHz
Monitor (monitor orientation) 51 Hz-19.5 kHz
Frequency Response (±3 dB): Full Range 60 Hz-17.5 kHz
Monitor (vertical orientation) 90 Hz-18 kHz
Monitor (monitor orientation) 61 Hz-18.5 kHz
Input Connectors: Balanced XLR / 1/4" combo jack with XLR loop through
Input Impedance: 20K ohms (balanced), 10K ohms (unbalanced)
Signal indicators: Limit: Red LED indicates limiter active condition
Signal: Green LED indicates signal present
EQ: Presets for use in Main and Monitor position
Dynamic Control (Input): dbx Type IV™ limiter circuit
Crossover Modes: DSP controlled. LF: 48 dB/Oct filter slope High & Low Pass;
HF: 36 dB/Oct High Pass
Crossover Frequency: 2 kHz
Amplifier
Design: Crown®Class D
Power Rating: 1000 W (2 x 500)
Speaker
LF Driver: 1 x JBL 262F-1 380 mm (12 in) Differential Drive®dual voice-
coil and magnetic gap, neodymium woofer
HF Driver: 1 x JBL 2408H-1 37.5 mm (1.5 in) annular polymer diaphragm,
neodymium compression driver
Coverage Pattern: 90° x 50° nominal
Directivity Index (DI): 9.8 dB
Directivity Factor (Q): 9.6
Enclosure: Asymmetrical, 18 mm, plywood
Suspension/ Mounting: Dual 36 mm pole socket, 8 x M10 Suspension Points and 1 x
M10 Pull-Back Point
Transport: Integrated handle with backing cup
Finish: Obsidian DuraFlex™ finish
Grille: Powder coated, Obsidian, 16 gauge perforated steel with
acoustically transparent black cloth backing.
Input Connectors: Balanced XLR / 1/4" combo jack with XLR loop through
Dimensions (H x W x D): 592 mm x 353 mm x 340 mm
(23.3" x 13.9" x 13.4")
Net Weight: 15.6 kg (34.5 lb)
Gross Weight: 19.2 kg (42.5 lb)
Maximum Peak output measured with IEC pink noise at 1 meter in front of speaker baffle under free space conditions.
Measurement instrument set to peak hold. Speaker muted and released at full power, recording maximum peak level.
JBL continually engages in research related to product improvement. Some materials, production methods and design
refinements are introduced into existing products without notice as a routine expression of that philosophy. For this
reason, any current JBL product may differ in some respect from its published description, but will always equal or
exceed the original design specifications unless otherwise stated.
Self Powered 12",
Two-Way, Bass-Reflex
Professional Series
78058_JBL_PRX612M.qxd 5/27/10 1:06 PM Page 1
23.2
589.1
10.8
273.6
9.5
241.1
30.0°
13.9
352.7
13.4
340.6
19.2
486.7
2.0
50.4
1.6
39.6
6.9
176.4
SS PRX612M
CRP
05/10
䉴PRX612M 12" Self Powered Two-Way, Bass-Reflex
POWER
LINE SELECT
AC LINE INPUT
100V~ -240V~
50/60 Hz 5A 600W
MIC LEVEL
LINE
MONITOR
MAIN
OUT
IN
LIMITER
SIGNAL
l
INPUT EQ
JBL PROFESSIONAL
Northridge, CA. USA
Equipped with Differential Drive®
Transducer Technology U.S. PATENT 5,748,760
Other U.S. and foreign patents pending
+
4
d
B
-
1
0
d
B
PRX612M
CSA Certification applies to
Amplifier Module Only
CSA Certificated to operate at 120V
~
in Canada
T5AL250V
N108
Designed in the USA
Assembled by JBL in Mexico
PRX612M Input Panel
20 100 1000 10000 20000
Frequency (Hz)
70
80
90
100
110
SPL (dB)
Frequency Response
JBL Professional
8500 Balboa Boulevard, P.O. Box 2200
Northridge, California 91329 U.S.A.
© Copyright 2010 JBL Professional
www.jblpro.com

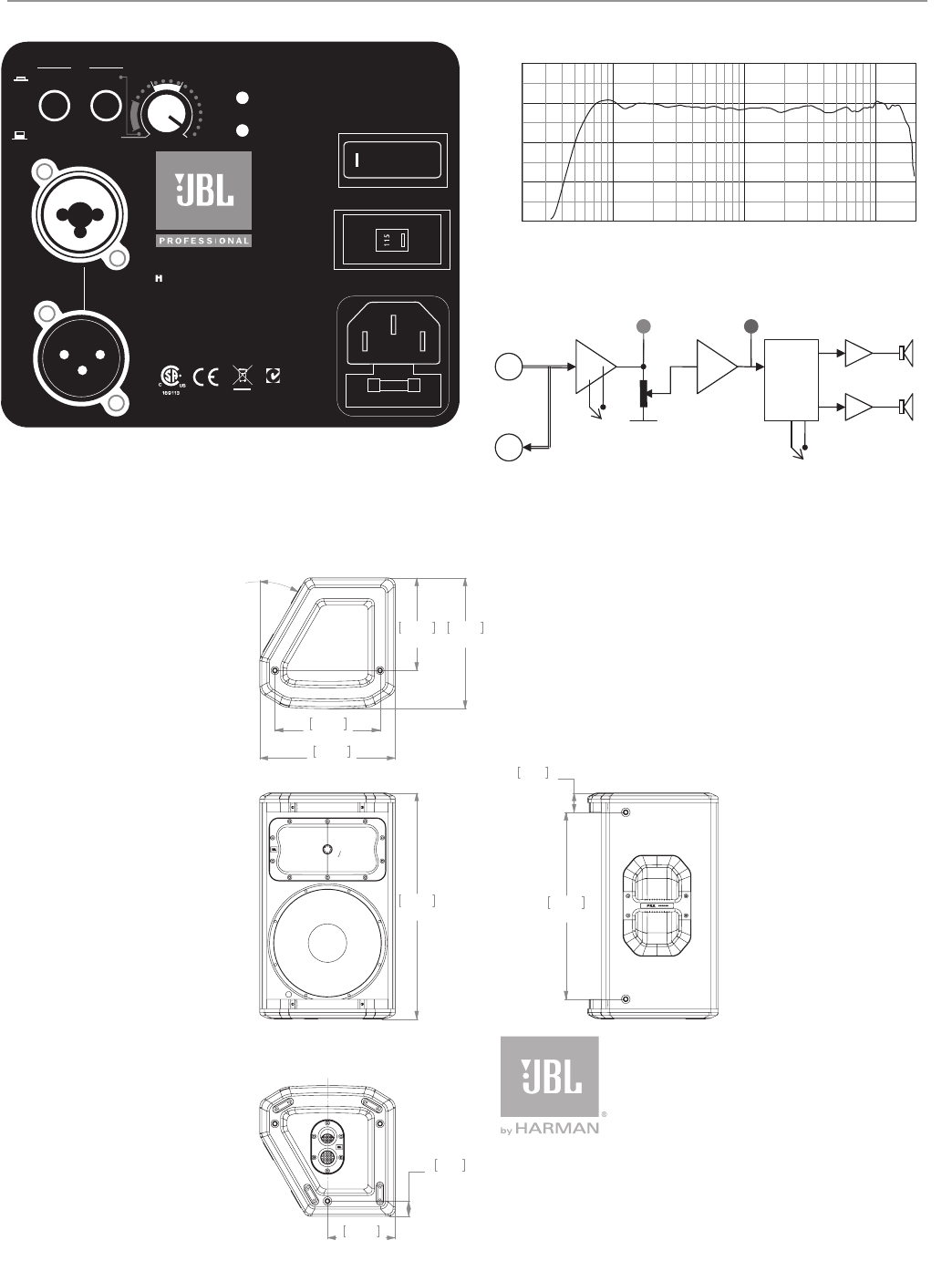

Dimensions in (mm) inches
