PRX815
Features:
< Maximum SPL Output 137 db Peak
< 15” Differential Drive® low-frequency driver for
low-distortion and higher SPL
< 1.5” diameter next generation JBL neodymium
compression driver
< 1500W (dual 750 watt) highly efcient
Class-D amplier
< Optimized EQ for monitor or front-of-house
applications
< DSP input section, crossover, dynamic limiting,
component optimization, selectable system EQ
< Wireless remote control of its onboard DSP EQ
parameters via Wi-Fi. Control and congure your
show from anywhere
< Professional XLR-1/4” combination inputs, RCA
inputs, and XLR loop-through
<
Integrated 36 mm pole mount socket with angle down
tilt
<
Integrated 12 x M10 suspension points
< Lightweight poplar plywood cabinets made structurally
sound with tongue and groove joints and protected by
JBL’s tour proven DuraFlex™ nish
Application:
< The 2-way 15” offers the perfect balance between
size and performance. The PRX815 truly is an
exception; it’s small, light weight, versatile and
powerful with remote Wi-Fi control of onboard DSP
EQ parameters. The performance and asymmetrical
design make this a perfect choice for musicians,
entertainers and DJ’s when portability is key, or when
hung by the suspension points, an exceptional light-
duty installation speaker. All PRX800 Series speakers
were designed to excel in sound reinforcement
where challenging audio environments and loud
volumes are the norm. For applications requiring
full bandwidth sound reproduction, the PRX815
delivers the optimum balance. For live music,
recorded music playback and speech the user has the
option of tailoring the EQ. A microphone can be
directly connected to the speaker input for quick PA
applications. Coupled with a PRX800 sub-woofer the
system becomes an efcient, full-range sound system.
< The PRX815 is comprised of 15” 275G Differential
Drive® woofer, a 2408H-2 37.5 mm (1.5 in) annular
polymer diaphragm, neodymium compression driver
mounted to a 90° by 50° horn, all driven by 1500 watt
Class-D power amplier. Sophisticated DSP is at the
core of a fully featured input section, providing user
selectable system EQ, protection, input sensitivity
selection, cross-over functionality, dynamic limiting
and discrete component optimization.
< All PRX800 cabinets are built from 18 mm, strong,
light-weight poplar plywood made structurally
sound with tongue and groove joints. All PRX800
Series cabinets are protected by JBL’s tour proven
DuraFlex™ nish. Grilles are made from dent-
resistant 16 gauge steel and handles are made from
light-weight glass-lled nylon for added strength and
durability. All M10 suspension points are constructed
from 14 gauge steel and have been tested with a yield-
strength of 1000 lb each.
< The amplier input panel offers XLR or ¼ inch jack
compatibility and a sensitivity switch provides extra
exibility, making it possible to connect literally any
sound source without using a mixer. Signal present
and overload lights indicate the system status and
assist in setting the optimum level via the level control
knob.
15” Two-Way Full-Range
Main System/Floor Monitor
Specifications:
System:
System Type: Self Powered 15”, two-way, bass-reex
Maximum SPL Output: Normal 137dB peak
Frequency Range (-10 dB): Main: 42.9 Hz - 19.5 kHz Monitor: 43.6 Hz - 19.3 kHz
Frequency Response (±3 dB): Main: 58.1 Hz - 17.2 kHz Monitor: 60.7 Hz - 16.7 kHz
Input Connectors: 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
Input Impedance: 20K Ohms (balanced), 10K Ohms (unbalanced)
Signal Indicators:
Limit: Yellow LED indicates peak output has been reached and DSP
limiter is acting
Signal: Green LED indicates signal present
Power: Blue indicates system has power and ready to pass audio
EQ: User selectable presets for Main or Monitor position, Advanced
EQ settings available using PRX Connect application via Wi-Fi
Dynamic Control (Input): dbx Type IV™ limiter circuit
Crossover Frequency: 2 kHz
Amplier:
Design: Highly ecient Class-D amplier
Power Rating: 1500W (750W x 2)
AC Power Input: 100V - 240V ~ 50/60 Hz
Speaker:
LF Driver: 1 x JBL 275G (15 in) woofer
HF Driver: 1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm,
neodymium compression driver
Coverage Pattern: 90° x 50° nominal
Enclosure: Asymmetrical, 18 mm, birch/poplar wooden enclosure
Suspension / Mounting: Dual 36 mm pole socket, 12 x M10 Suspension Points
Transport: 1 x injection molded handle with backing cup
Finish: Obsidian DuraFlex™ nish
Grille: Powder coated, Obsidian, 16 gauge perforated steel with acoustically
transparent black cloth backing.
Dimensions (H x W x D): 701 mm x 446 mm x 359 mm
(27.6 in x 17.5 in x 14.1 in)
Net Weight: 20.86 kg (46 lb)
Gross Weight: 26.3 kg (58.0 lb)
JBL continually engages in research related to product improvement. Some materials, production methods and design renements are
introduced into existing products without notice as a routine expression of that philosophy. For this reason, any current JBL product
may differ in some respect from its published description, but will always equal or exceed the original design specications unless
otherwise stated.
N PRX815 15”
Two-Way Full-Range Main System/Floor Monitor
Dimensions in mm (in)

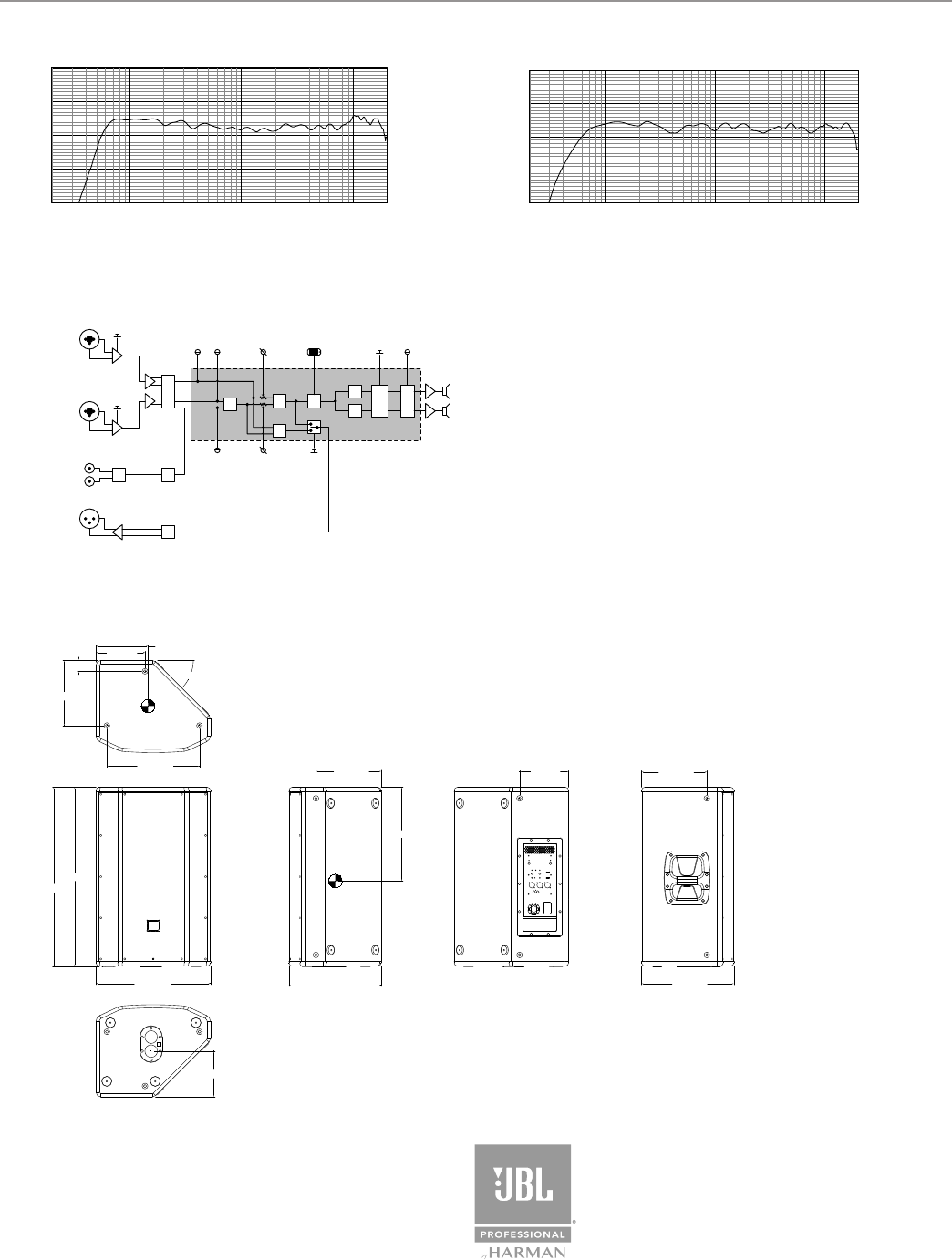

Frequency Response (Monitor)
Measurement performed in monitor position
Frequency Response (Normal)
Dimensions
20 100 1000 10000 20000
Frequency (Hz)
75
85
95
105
115
SPL (dB)
20 100 1000 10000 20000
Frequency (Hz)
75
85
95
105
115
SPL (dB)
PN: 5075805
SS PRX815
CRP
06/16
JBL Professional
8500 Balboa Boulevard, P.O. Box 2200
Northridge, California 91329 U.S.A.
© Copyright 2016 JBL Professional
www.jblpro.com
