JBL SRX812 Spec Sheet 10 26 15

JBL_SRX812_SpecSheet_10 26 15 JBL SRX812 | 12 Two-Way Bass Reflex Passive System

User Manual: JBL JBL SRX812 | 12 Two-Way Bass Reflex Passive System

Open the PDF directly: View PDF .
Page Count: 4

Premium JBL Transducers with extremely high

power handling

Rugged, versatile enclosures

Full Integration into Audio Architect

Maximum SPL Output: 135dB

System Type: Passive 12”, two-way, bass-reex

Frequency Range (-10dB): 41Hz - 20kHz

Frequency Response (- 3dB): 57Hz - 20kHz

Coverage Pattern: 90 x 50

JBL Professional Tunings available for Crown XTI 2,

Crown Itech HD, and dbx DriveRack 360

M10 Suspension Points

Dual Angle 36mm pole cup

Feet for monitor angle

Lightweight poplar plywood cabinets made

structurally sound with tongue and groove joints and

protected by JBL’s tour proven DuraFlex™ nish

12” Two-Way Bass Reflex Passive System

System:

System Type: Passive 12”, two-way, bass-reex

Maximum SPL Output: 135 dB

Frequency Range (-10 dB): 41Hz – 20kHz

Frequency Response (-3 dB): 57Hz – 20kHz

Power:

System Power Rating: 3200W Peak, 1600W Program, 800W Continuous

Nominal Impedance: 8 Ohm

Connectors: NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)

Operational Modes: Passive/Bi-Amp

Speaker:

LF Driver: 2272H

HF Driver: 2432H

Coverage Pattern: 90 x 50

Crossover Frequency: 1.9kHz

Enclosure:

Material: 18mm plywood

Monitor Angle: 50°

Suspension/Mounting: Dual 36mm pole socket,

12 x M10 Suspension points

Handles: 3

Finish: Obsidian Duraex™ nish

Grille: Powder coated, Onsidian, 14-gauge perforated steel with acoustically

transparent black cloth backing

Dimensions (L x W x H): 16.87” x 16.31” x 25.11”

(429mm x 415mm x 638mm)

Weight: 55.0 lbs (29.3 kg)

Specications:

Applications:

e SRX812 is a passive portable PA speaker in the SRX800

series from JBL Professional. It has been designed to deliver

class leading performance in a variety of applications

including use as a main PA, a stage monitor, and rear and side

lls. When used in conjunction with the other SRX800 full

range systems and the SRX800 subs, SRX812 in an integral

part of a high performance, fully congurable loudspeaker

system.

e SRX812 features premium JBL Transducers. High

frequencies are handled by an annular polymer diaphragm

compression driver that features a best in class 3” voice

coil coupled to a 1.5” throat opening. Using a neodymium

magnet, the compression driver is lightweight, ecient, and

extremely powerful. is delivers very high power levels

with reduced distortion and increased phase coherence

resulting in smooth, crystal clear high frequencies. For Low

Frequencies, the SRX812 uses a 12-inch woofer with JBL’s

patented Dierential Drive Technology for reduced weight

while maximizing power amp eciency. 3” voice coils and

dual ferrite drivers deliver exceptionally low distortion and

extended low frequency response.

e SRX812 is supported with tunings for Crown XTI 2

ampliers, Crown Itech HD ampliers, and dbx DriveRack

360 signal processors, all of which can be controlled as part

of a comprehensive system with Harman Audio Architect.

With best in class 18mm wooden enclosures , 14 gauge steel

grilles, and JBL’s Patented DuraFlex nish, SRX800 speakers

are built to last and withstand a lifetime of hard tour use.

Key Features:

S R X 8 12

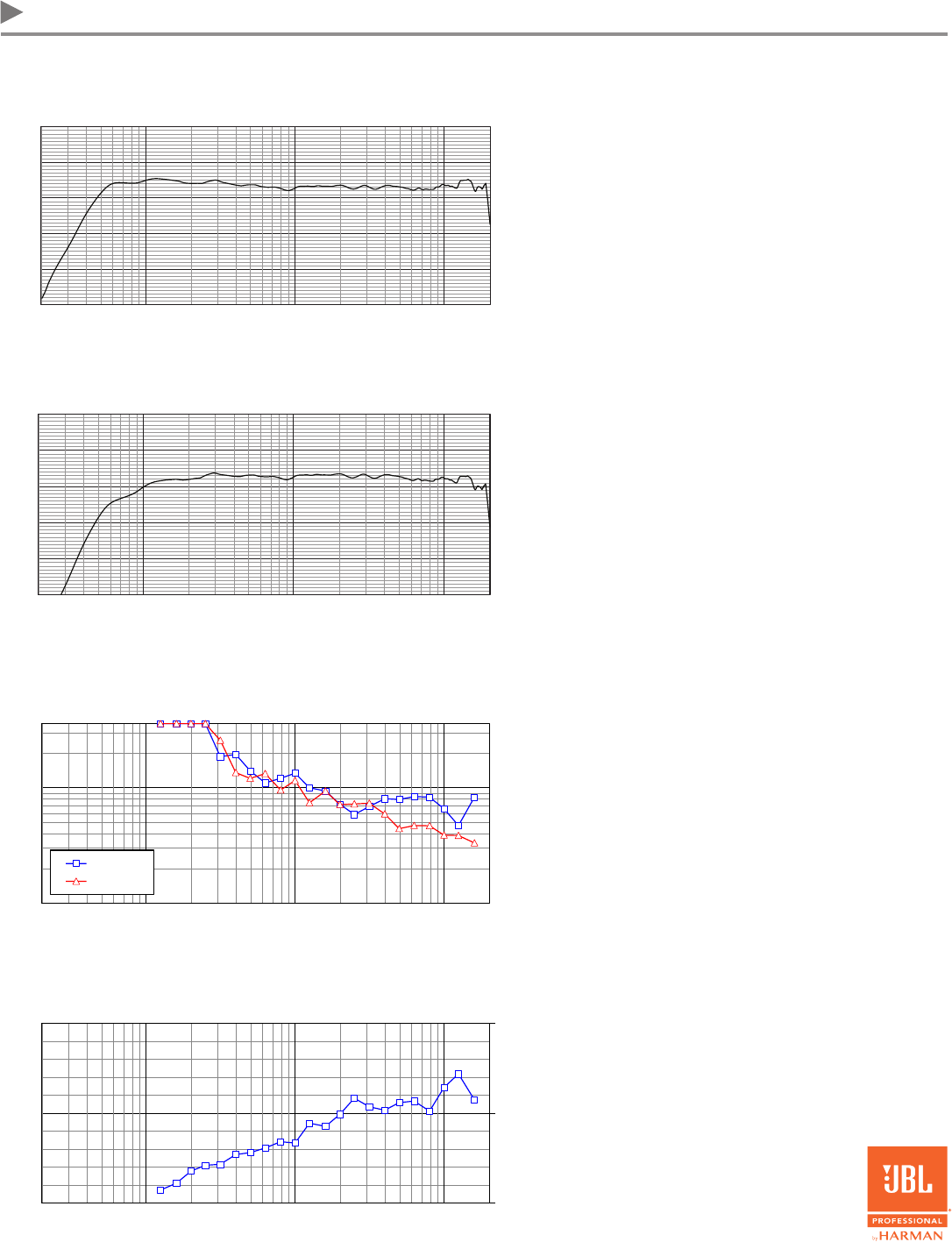

Frequency Response (Main Tuning)

Frequency Response (Speech)

Frequency Response (Beamwidth)

Frequency Response (Directivity)

20 100 1000 10000 20000

Frequency (Hz)

60

70

80

90

100

110

SPL (dB)

20 100 1000 10000 20000

Frequency (Hz)

60

70

80

90

100

110

SPL (dB)

SRX812 12” Two-Way Bass Reflex Passive System

20 100 1000 10000 20000

Frequency (Hz)

10

100

360

-6 dB Beamwidth (degrees)

Horizontal

Vertical

20 100 1000 10000 20000

Frequency (Hz)

0

10

20

1

10

100

Directivity Index (DI), dB

Directivity Factor (Q)

SRX812 12” Two-Way Bass Reflex Passive System

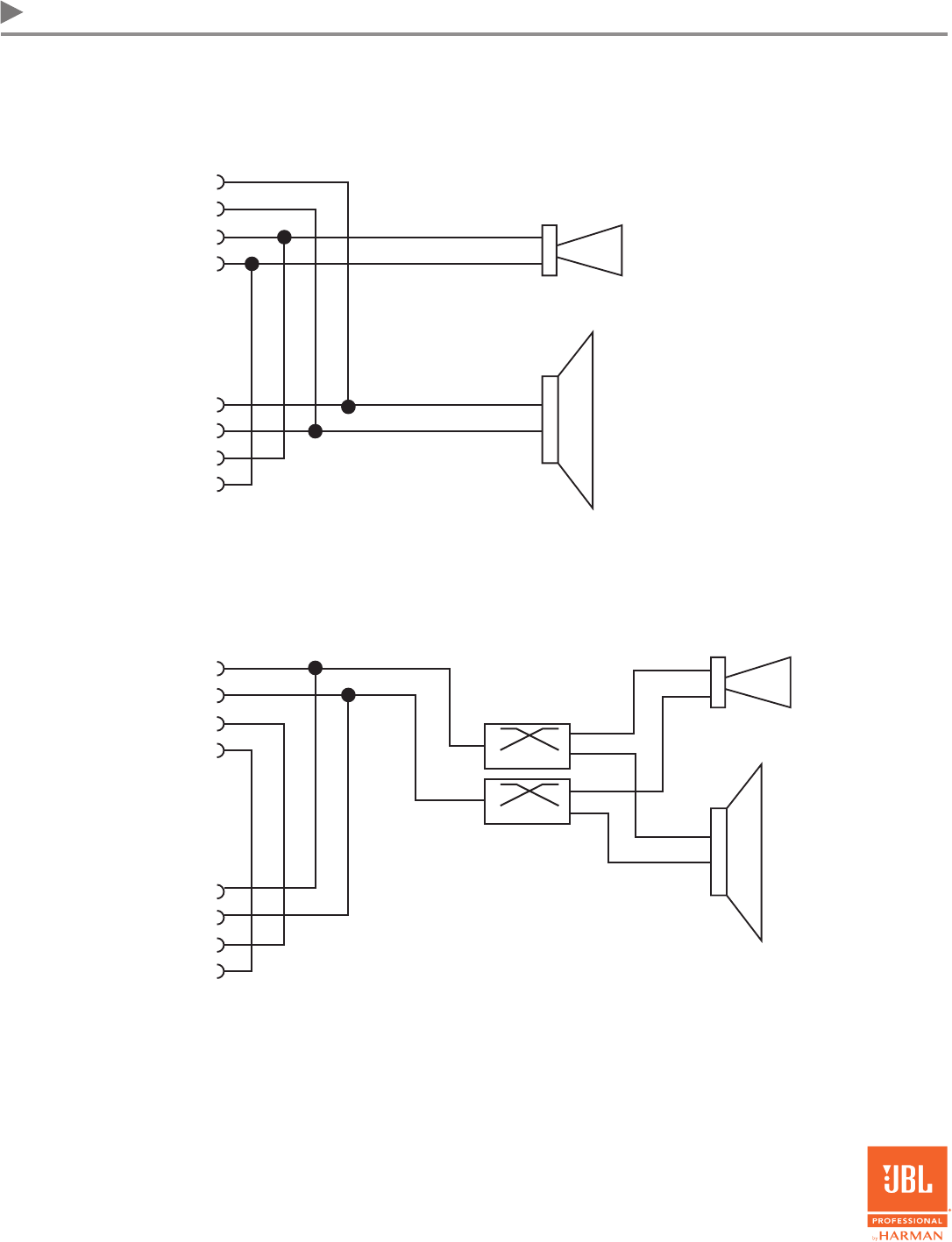

Block Diagrams

1+

BI-AMP

MODE

LOW

FREQ

HIGH

FREQ

NL4

IN / THRU

NL4

IN / THRU

+

-

+

-

1-

2+

2-

1+

1-

2+

2-

1+

FULL

MODE LOW

FREQ

HIGH

FREQ

NL4

IN / THRU

NL4

IN / THRU

+

-

+

-

1-

2+

2-

1+

1-

2+

2-

to XVER +

to XVER -

16.31

24.84 25.11

R90.02

R1.02

R.82

50.00°

75.00°

1.73

12.89

16.86

14.64

10.37

1.05

8.81

3.71

14.80

.92

13.21

9.72

10.33

3.49

6.69

8.15

5.65

6.63

13.24

21.42

1.71 3.71 7.70

20.92

8.00

4.98

13.64

21.42

1.71

2.57

17.45 17.70

JBL Professional

8500 Balboa Boulevard, P.O. Box 2200

Northridge, California 91329 U.S.A.

© Copyright 2015 JBL Professional

www.jblpro.com

SRX812

07/15

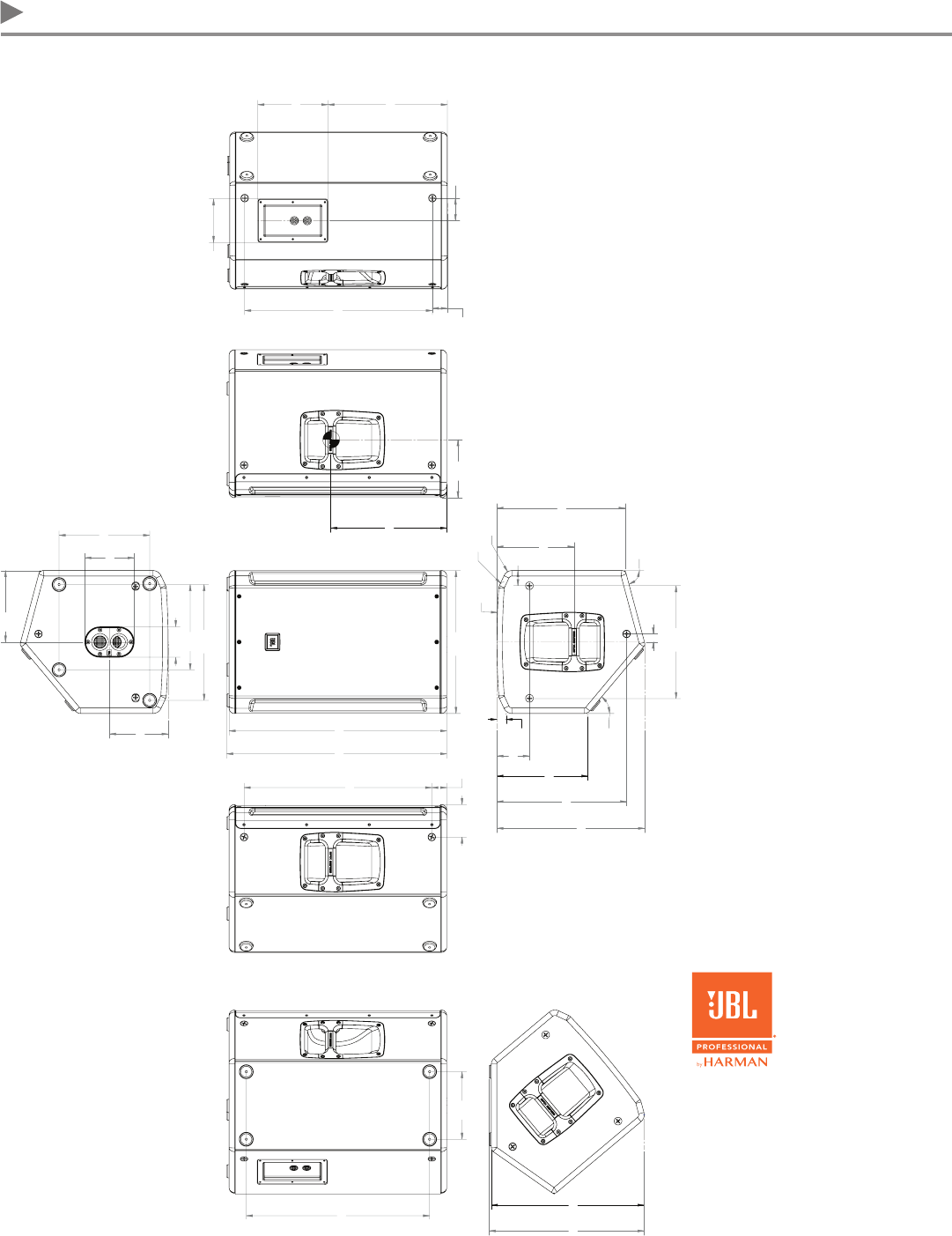

Dimensions:

SRX812 12” Two-Way Bass Reflex Passive System
