Features:

▶ Premium JBL Transducers with extremely high power

handling

▶ Rugged, versatile enclosures

▶ Full Integration into Audio Architect

▶ Maximum SPL Output: 137dB

▶ System Type: Passive 15”, three-way, bass-reex

▶ Frequency Range (-10dB): 32Hz - 20kHz

▶ Frequency Response (- 3dB): 43Hz - 17kHz

▶ Coverage Pattern: 60 x 40

▶ JBL Professional Tunings available for Crown XTI 2,

Crown Itech HD, and dbx DriveRack 360

▶ M10 Suspension Points

▶ Standard 36mm pole cup

▶ Feet for monitor angle

▶ Lightweight poplar plywood cabinets made structurally

sound with tongue and groove joints and protected by JBL’s

tour proven DuraFlex™ nish

Applications:

▶ e SRX835 is a passive portable PA speaker in the SRX800

series from JBL Professional. It has been designed to deliver

class leading performance in a variety of applications

including use as a main PA, and rear and side lls. When

used in conjunction with the other SRX800 full range

systems and the SRX800 subs, the SRX835 is an integral

part of a high performance, fully congurable loudspeaker

system.

▶ e SRX835 features premium JBL Transducers. High

frequencies are handled by an annular polymer diaphragm

compression driver that features a best in class 3” voice

coil coupled to a 1.5” throat opening. Using a neodymium

magnet, the compression driver is lightweight, ecient, and

extremely powerful. is delivers very high power levels

with reduced distortion and increased phase coherence

resulting in smooth, crystal clear high frequencies. For Low

Frequencies, the SRX835 uses a 15-inch woofer with JBL’s

patented Dierential Drive Technology for reduced weight

while maximizing power amp eciency. 3” voice coils and

dual ferrite drivers deliver exceptionally low distortion and

extended low frequency response.

▶ Finally, the SRX835’s midrange driver is derived from the

midrange transducer on the VTX 20 touring line array

system. e outside cast aluminum frame acts as the

structural support, acoustic cavity, and heat sink for the

driver, optimizing both space in the speaker cabinet and the

performance of the system at the same time.

▶ e SRX835 is supported with tunings for Crown XTI

2 and Itech HD ampliers (both controllable as part of a

comprehensive system with HiQnet Audio Architect), and

the dbx DriveRack VENU360 signal processors.

▶ With best in class 18mm wooden enclosures , 14 gauge steel

grilles, and JBL’s Patented DuraFlex nish, SRX800 speakers

are built to last and withstand a lifetime of hard tour use.

Specications:

System:

System Type: Passive 15”, three-way, bass-reex

Maximum SPL Output: 137dB

Frequency Range (-10dB): 32hz - 20khz

Frequency Response (- 3dB): 43hz - 20khz

Power:

System Power Rating: 3200W Peak, 1600W Program, 800W Continuous

Nominal Impedance: 8 Ohm

Connectors: NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)

Operational Modes: Passive/Bi-Amp

Speaker:

LF Driver: 2275H

MF Driver: 2107H

HF Driver: 2432H

Coverage Pattern: 60 x 40

Crossover Frequency: 330hz & 2.4khz

Enclosure:

Material: 18mm plywood

Suspension/Mounting: Single 36mm pole socket, 12 x M10 Suspension points

Handles: 2

Finish: Obsidian Duraex™ nish

Grille: Powder coated, Obsidian, 14-gauge perforated steel with acoustically

transparent black cloth backing

Dimensions (L x W x H): 18.74” x 21.4” x 38.74” (476mm x 544mm x 984mm)

Weight: 95.0 lbs (43.09kg)

Shipping Weight: 105.0 lbs (47.6kg)

SRX835

15” Three-Way Bass Reflex Passive System

▶SRX835 15” Three-Way Bass Reflex Passive System

Frequency Response (Main Tuning)

20 100 1000 10000

20000

Frequency (Hz)

70

80

90

100

110

SPL (dB)

Frequency Response (Beamwidth)

20 100 1000 10000

20000

Frequency (Hz)

10

100

360

-6 dB Beamwidth (degrees)

Horizontal

Vertical

Frequency Response (Directivity)

20 100 1000 10000 20000

Frequency (Hz)

0

10

20

1

10

100

Directivity Index (DI), dB

Directivity Factor (Q)

▶SRX835 15” Three-Way Bass Reflex Passive System

Block Diagrams

1+

BI-AMP

MODE

LOW

FREQ

HIGH

FREQ

NL4

IN / THRU

NL4

IN / THRU

+

-

+

-

+

-

1-

2+

2-

1+

1-

2+

2-

1+

FULL

MODE LOW

FREQ

HIGH

FREQ

MID

FREQ

NL4

IN / THRU

NL4

IN / THRU

+

-

+

-

+

-

1-

2+

2-

1+

1-

2+

2-

to XVER +

to XVER -

to MF/HF XVER +

to MF/HF XVER -

MID

FREQ

▶SRX835 15” Three-Way Bass Reflex Passive System

JBL Professional

8500 Balboa Boulevard, P.O. Box 2200

Northridge, California 91329 U.S.A

© Copyright 2016 JBL Professional

www.jblpro.com

SRX835

03/16

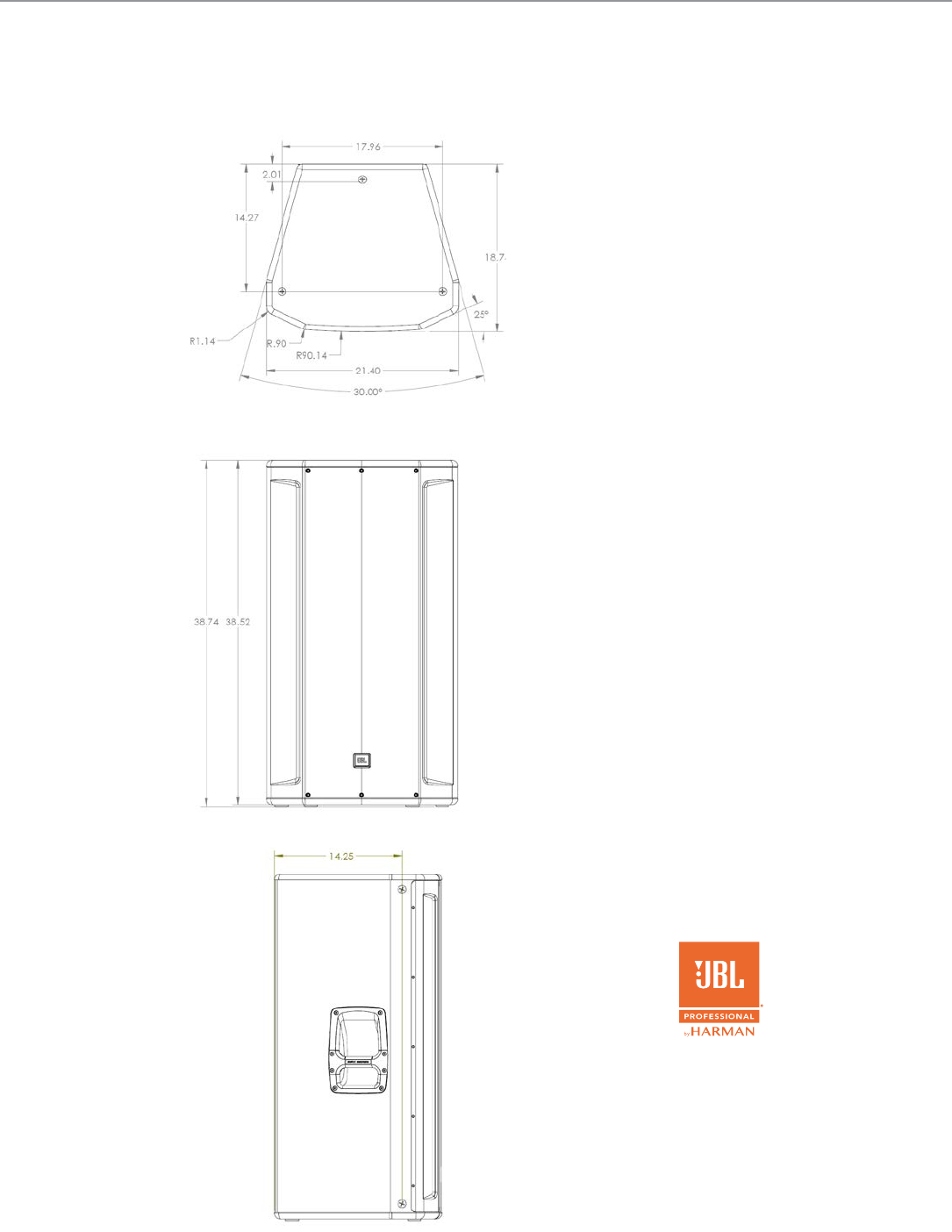

Dimensions
