JBL Stage 3 Owner's Manual US EN

JBL_Stage 3_Owner's Manual_US_EN Stage3 607C | 6-1/2 (165mm) 2-Way component system car speaker

User Manual: JBL Stage3 9637 | 6 x9(152mmx230mm) 3-Way car speaker

Open the PDF directly: View PDF PDF.
Page Count: 46

Installation manual
STAGE3 607C
STAGE3 607CF
STAGE3 427
STAGE3 427F
STAGE3 527
STAGE3 527F
STAGE3 627
STAGE3 627F
STAGE3 637F
STAGE3 6427
STAGE3 8627
STAGE3 9637
STAGE3 9637F
STAGE3 527

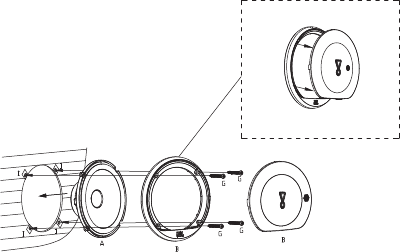

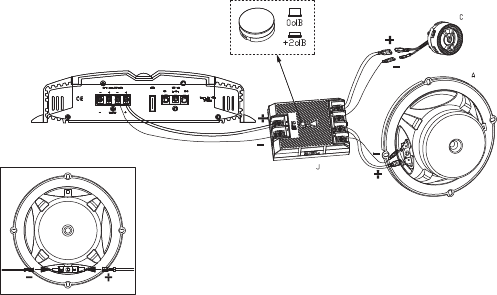

STAGE3 607C
STAGE3 527
STAGE3 527
Specication

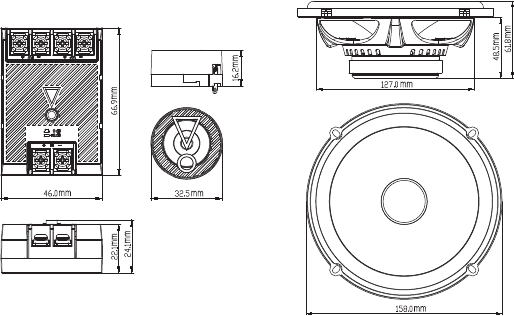

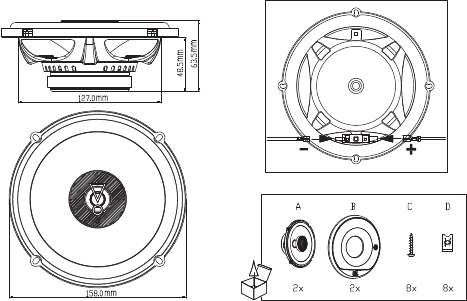

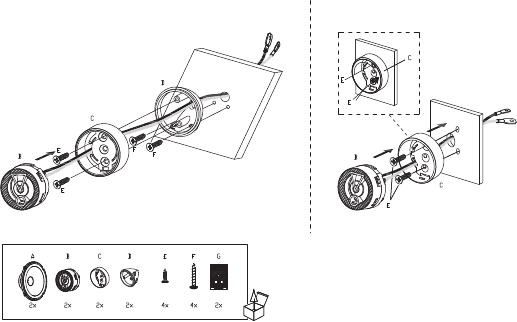

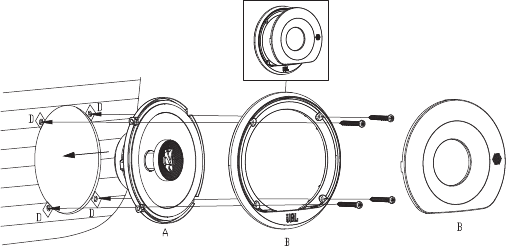

• Type: 6-1/2” (165mm) 2-way
component system car speaker
• Power Handling: 50W RMS, 150W (Peak)
• Sensitivity (@2.83V/1m): 92dB
• Frequency Response: 55Hz - 20kHz
• Impedance: 3ohms
Thiele-Small Parameters
• BL (Tm): 3.316
• DCR (ohms): 2.45
• Mms (g): 14.017
• Sd (cm2): 138.93
• Cms (μm/N): 0.316
• Vas (l): 8.6375
• Fs (Hz): 75.6
• Qes: 1.482
• Qms: 11.842
• Qts: 1.317
• Crossover Point: 5kHz
STAGE3 527F

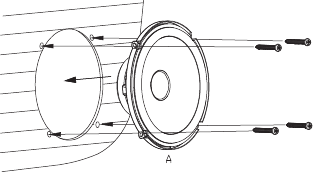

STAGE3 607CF
STAGE3 527F
Specication

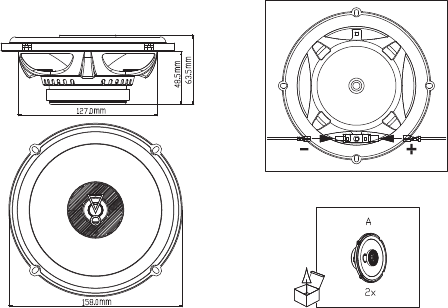

• Type: 6-1/2” (165mm) 2-way
component system car speaker for
factory upgrade without grille
• Power Handling: 50W RMS, 150W (Peak)
• Sensitivity (@2.83V/1m): 92dB
• Frequency Response: 55Hz - 20kHz
• Impedance: 3ohms
Thiele-Small Parameters
• BL (Tm): 3.316
• DCR (ohms): 2.45
• Mms (g): 14.017
• Sd (cm2): 138.93
• Cms (μm/N): 0.316
• Vas (l): 8.6375
• Fs (Hz): 75.6
• Qes: 1.482
• Qms: 11.842
• Qts: 1.317
• Crossover Point: 5kHz

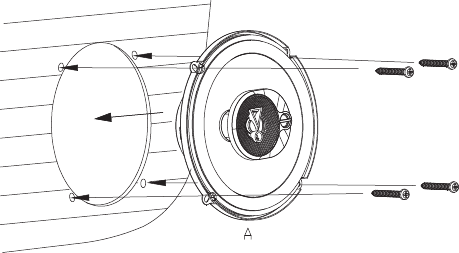

STAGE3 427

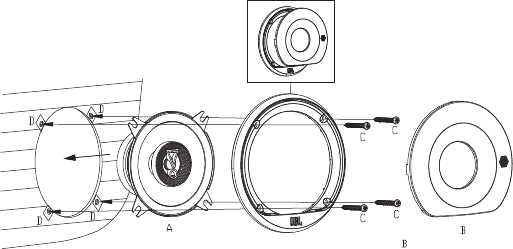

STAGE3 427
STAGE3 427
Specication

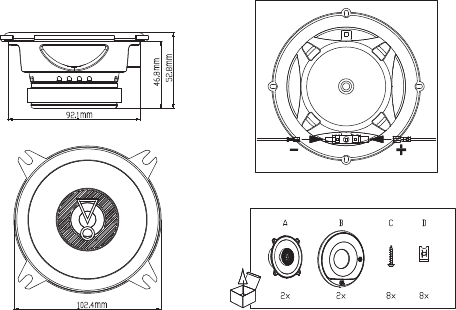

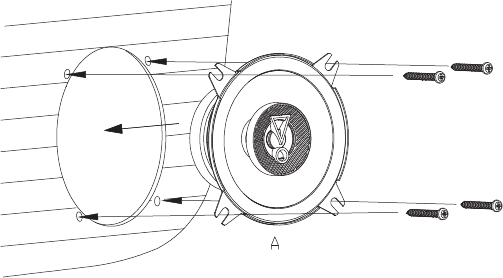

• Type: 4” (100mm) 2-way coaxial car
speaker
• Power Handling: 30W RMS, 90W (Peak)
• Sensitivity (@2.83V/1m): 90dB
• Frequency Response: 75Hz - 20kHz
• Impedance: 3ohms
Thiele-Small Parameters
• BL (Tm): 2.467
• DCR (ohms): 2.74
• Mms (g): 5.501
• Sd (cm2): 63.62
• Cms (μm/N): 0.387
• Vas (l): 2.2146
• Fs (Hz): 109.1
• Qes: 1.698
• Qms: 12.973
• Qts: 1.501
• Crossover Point: 7kHz

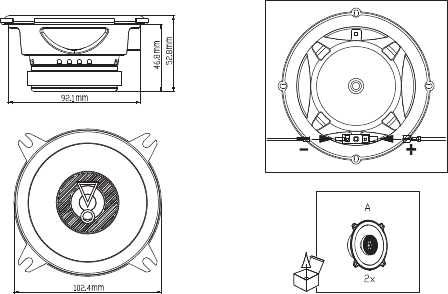

STAGE3 427F
STAGE3 627F
STAGE3 427F
STAGE3 427F
STAGE3 627F
Specication
• Type: 4” (100mm) 2-way coaxial car
speaker for factory upgrade without
grille
• Power Handling: 30W RMS, 90W (Peak)
• Sensitivity (@2.83V/1m): 90dB
• Frequency Response: 75Hz - 20kHz
• Impedance: 3ohms
Thiele-Small Parameters
• BL (Tm): 2.467
• DCR (ohms): 2.74
• Mms (g): 5.501
• Sd (cm2): 63.62
• Cms (μm/N): 0.387
• Vas (l): 2.2146
• Fs (Hz): 109.1
• Qes: 1.698
• Qms: 12.973
• Qts: 1.501
• Crossover Point: 7kHz

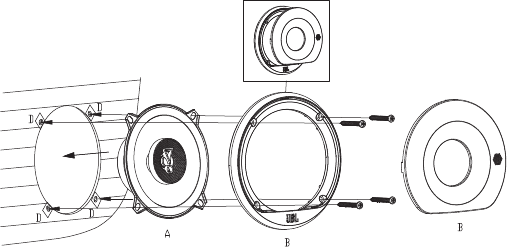

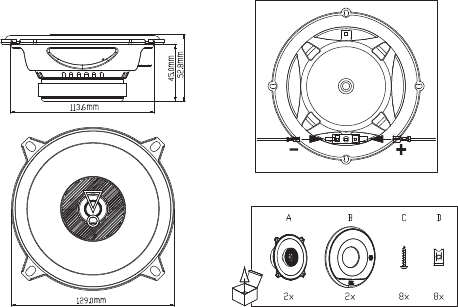

STAGE3 527
STAGE3 637F
STAGE3 527
STAGE3 527
STAGE3 637F
Specication
• Type: 5-1/4” (130mm) 2-way coaxial car
speaker
• Power Handling: 40W RMS, 120W (Peak)
• Sensitivity (@2.83V/1m): 91dB
• Frequency Response: 75Hz - 20kHz
• Impedance: 3ohms
Thiele-Small Parameters
• BL (Tm): 3.148
• DCR (ohms): 2.61
• Mms (g): 9.81
• Sd (cm2): 102.07
• Cms (μm/N): 0.281
• Vas (l): 4.1374
• Fs (Hz): 95.9
• Qes: 1.555
• Qms: 13.546
• Qts: 1.395
• Crossover Point: 6kHz

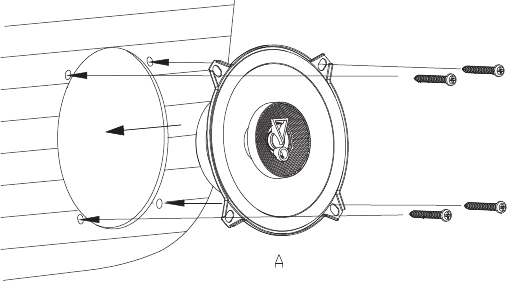

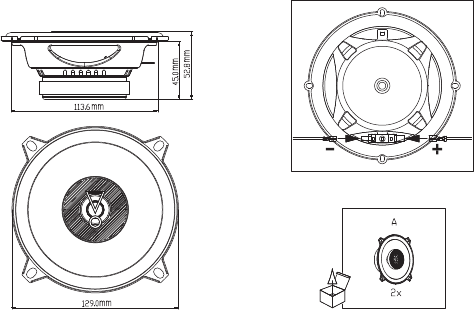

STAGE3 527F
STAGE3 6427
STAGE3 527F
STAGE3 527F
STAGE3 6427
Specication
• Type: 5-1/4” (130mm) 2-way coaxial car
speaker for factory upgrade without
grille
• Power Handling: 40W RMS, 120W (Peak)
• Sensitivity (@2.83V/1m): 91dB
• Frequency Response: 75Hz - 20kHz
• Impedance: 3ohms
Thiele-Small Parameters
• BL (Tm): 3.148
• DCR (ohms): 2.61
• Mms (g): 9.81
• Sd (cm2): 102.07
• Cms (μm/N): 0.281
• Vas (l): 4.1374
• Fs (Hz): 95.9
• Qes: 1.555
• Qms: 13.546
• Qts: 1.395
• Crossover Point: 6kHz
STAGE3 8627
STAGE3 627
STAGE3 627
STAGE3 8627
STAGE3 627
Specication
• Type: 6-1/2” (160mm) 2-way coaxial car
speaker
• Power Handling: 45W RMS, 135W (Peak)
• Sensitivity (@2.83V/1m): 92dB
• Frequency Response: 55Hz - 20kHz
• Impedance: 3ohms
Thiele-Small Parameters
• BL (Tm): 3.347
• DCR (ohms): 2.43
• Mms (g): 13.661
• Sd (cm2): 138.93
• Cms (μm/N): 0.339
• Vas (l): 9.2635
• Fs (Hz): 73.9
• Qes: 1.377
• Qms: 13.148
• Qts: 1.246
• Crossover Point: 5kHz
STAGE3 9637
STAGE3 627F
STAGE3 627F
STAGE3 9637
STAGE3 627F
Specication
• Type: 6-1/2” (160mm) 2-way coaxial car
speaker for factory upgrade without
grille
• Power Handling: 45W RMS, 135W (Peak)
• Sensitivity (@2.83V/1m): 92dB
• Frequency Response: 55Hz - 20kHz
• Impedance: 3ohms
Thiele-Small Parameters
• BL (Tm): 3.347
• DCR (ohms): 2.43
• Mms (g): 13.661
• Sd (cm2): 138.93
• Cms (μm/N): 0.339
• Vas (l): 9.2635
• Fs (Hz): 73.9
• Qes: 1.377
• Qms: 13.148
• Qts: 1.246
• Crossover Point: 5kHz
STAGE3 9637F

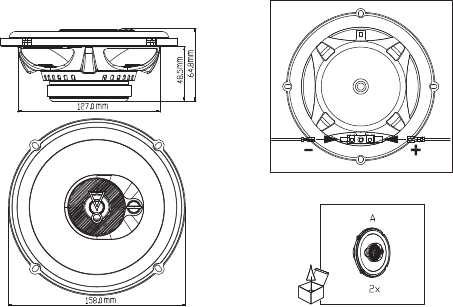

STAGE3 637F

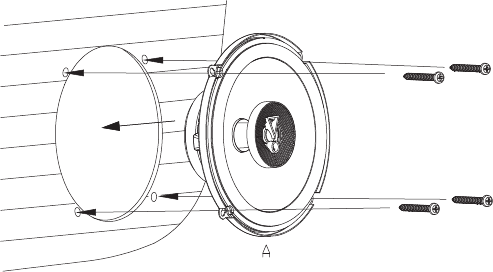

STAGE3 637F
STAGE3 9637F
STAGE3 637F
Specication
• Type: 6-1/2” (165mm) 3-way coaxial
car speaker for factory upgrade without
grille
• Power Handling: 45W RMS, 135W (Peak)
• Sensitivity (@2.83V/1m): 92dB
• Frequency Response: 55Hz - 20kHz
• Impedance: 3ohms
Thiele-Small Parameters
• BL (Tm): 3.347
• DCR (ohms): 2.43
• Mms (g): 13.661
• Sd (cm2): 138.93
• Cms (μm/N): 0.339
• Vas (l): 9.2635
• Fs (Hz): 73.9
• Qes: 1.377
• Qms: 13.148
• Qts: 1.246
• Crossover Point: 5kHz
STAGE3 6427
STAGE3 6427
STAGE3 6427
STAGE3 6427
Specication

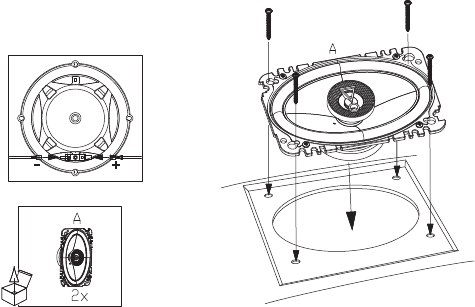

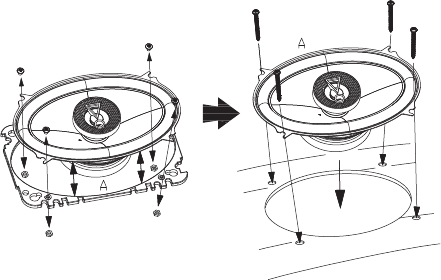

• Type: 4” x6” (100mm x 152mm) 2-way
coaxial car speaker
• Power Handling: 35W RMS, 105W (Peak)
• Sensitivity (@2.83V/1m): 91dB
• Frequency Response: 75Hz - 20kHz
• Impedance: 3ohms
Thiele-Small Parameters
• BL (Tm): 3.146
• DCR (ohms): 2.36
• Mms (g): 8.151
• Sd (cm2): 86.59
• Cms (μm/N): 0.272
• Vas (l): 2.884
• Fs (Hz): 106.9
• Qes: 1.307
• Qms: 13.178
• Qts: 1.189
• Crossover Point: 6kHz

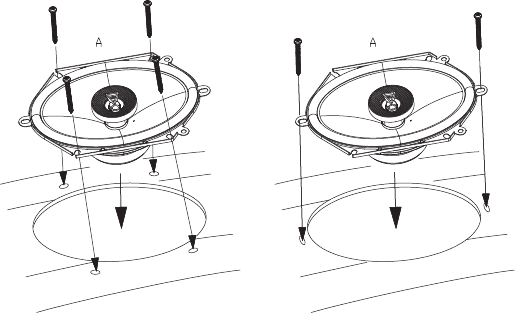

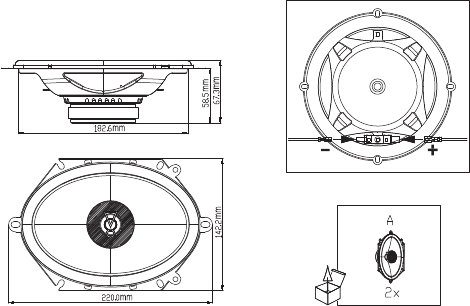

STAGE3 8627
STAGE3 8627
STAGE3 8627
Specication
• Type: 6” x8” (152mm x 203mm) 2-way
coaxial car speaker
• Power Handling: 50W RMS, 150W (Peak)
• Sensitivity (@2.83V/1m): 93dB
• Frequency Response: 65Hz - 20kHz
• Impedance: 3ohms
Thiele-Small Parameters
• BL (Tm): 3.736
• DCR (ohms): 2.63
• Mms (g): 17.369
• Sd (cm2): 176.71
• Cms (μm/N): 0.396
• Vas (l): 7.7316
• Fs (Hz): 60.7
• Qes: 1.25
• Qms: 11.955
• Qts: 1.132
• Crossover Point: 6kHz

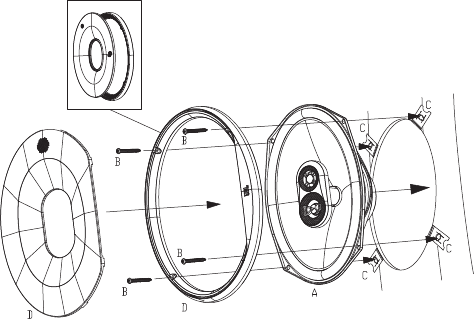

STAGE3 9637
STAGE3 9637
STAGE3 9637

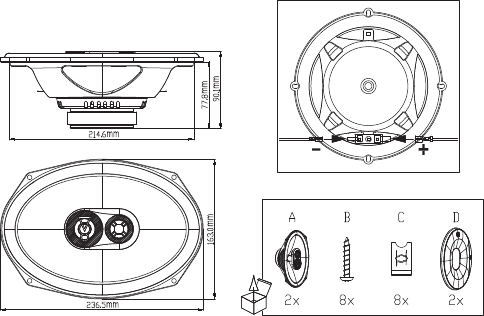

Specication

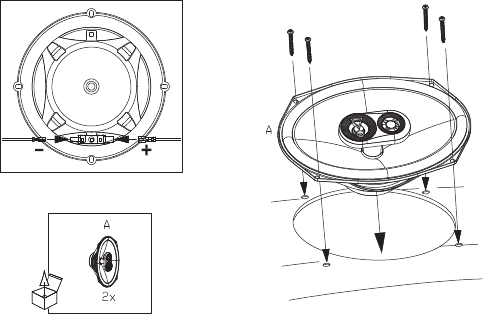

• Type: 6” x9” (152mm x 230mm) 3-way
car speaker
• Power Handling: 75W RMS, 225W (Peak)
• Sensitivity (@2.83V/1m): 93dB
• Frequency Response: 50Hz - 20kHz
• Impedance: 3ohms
Thiele-Small Parameters
• BL (Tm): 3.533
• DCR (ohms): 2.34
• Mms (g): 22.973
• Sd (cm2): 237.79
• Cms (μm/N): 0.404
• Vas (l): 32.3563
• Fs (Hz): 52.2
• Qes: 1.413
• Qms: 13.661
• Qts: 1.281
• Crossover Point: 5kHz
STAGE3 9637F
STAGE3 9637F
STAGE3 9637F
Specication
• Type: 6”x9” (152mm x 230mm) 3-way
car speaker for factory upgrade
without grille
• Power Handling: 75W RMS, 225W (Peak)
• Sensitivity (@2.83V/1m): 93dB
• Frequency Response: 50Hz - 20kHz
• Impedance: 3ohms
Thiele-Small Parameters
• BL (Tm): 3.533
• DCR (ohms): 2.34
• Mms (g): 22.973
• Sd (cm2): 237.79
• Cms (μm/N): 0.404
• Vas (l): 32.3563
• Fs (Hz): 52.2
• Qes: 1.413
• Qms: 13.661
• Qts: 1.281
• Crossover Point: 5kHz
HARMAN International Industries,
Incorporated, 8500 Balboa
Boulevard, Northridge, CA 91329
USA
© 2018 HARMAN International
Industries, Incorporated. All
rights reserved. JBL is a trademark of HARMAN International
Industries, Incorporated, registered in the United States and/or
other countries.
Features, specifications and appearance are subject to change
without notice.
