High-definition audio with professional credentials. The JBL® ES Series offers a variety of bookshelf, wall-mounted
and floorstanding loudspeakers, and bring-down-the-house powered subwoofers. With innovative technologies
derived directly from JBL Professional equipment, the JBL ES Series delivers powerful, accurate audio performance
and brings the legendary JBL sound from concert stages, recording studios and movie theatres to living rooms,
dens, bedrooms and patios. And with two finishes to choose from – black or cherry – they’re designed to look good
anywhere, with a style that equals their substance.
JBL® ES Series speaker systems

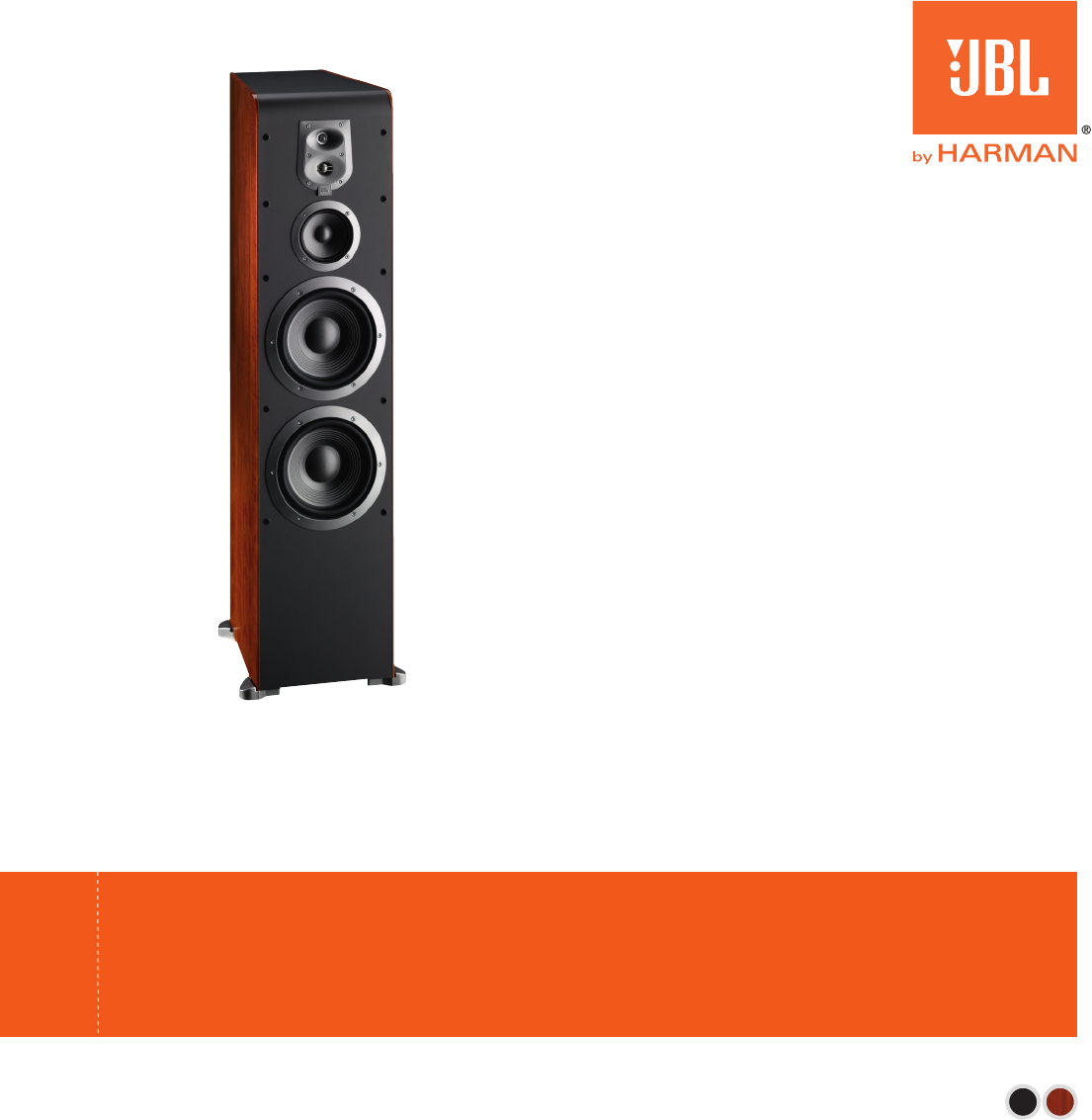

ES 90
TECHNICAL SPECIFICATIONS
Frequency response (–3dB): 36Hz – 40kHz
Max. recommended amplifier power*: 225W
Power handling (continuous/peak): 110W/440W
Sensitivity (2.83V/1m): 91dB
Nominal impedance: 8 ohms
Crossover frequencies: 500Hz, 3kHz – 24dB/octave; 12kHz – 18dB/octave
Low-frequency transducer: Dual 200mm (8") PolyPlas™, shielded
Midrange transducer: 100mm (4") PolyPlas, shielded
High-frequency transducer: 19mm (3/4") titanium-laminated dome, shielded; EOS waveguide
Ultrahigh-frequency transducer: 19mm (3/4") polyester film, ring radiator, shielded; EOS waveguide
Dimensions with grille (H x W x D): 1,084mm x 260mm x 384mm
Weight per speaker: 24.2kg
* The maximum recommended amplifier-power rating will ensure proper system headroom to allow for occasional peaks.
We do not recommend sustained operation at these maximum power levels.
Finishes:
HARMAN Consumer, Inc.
8500 Balboa Boulevard, Northridge, CA 91329 USA
© 2011 HARMAN International Industries, Incorporated. All rights reserved. JBL is a trademark of HARMAN International
Industries, Incorporated, registered in the United States and/or other countries. Elliptical Oblate Spheroidal (EOS),
FreeFlow, IsoPower, PolyPlas and Straight-Line Signal Path are trademarks of HARMAN International Industries,
Incorporated.
Features, specifications and appearance are subject to change without notice.
www.jbl.com

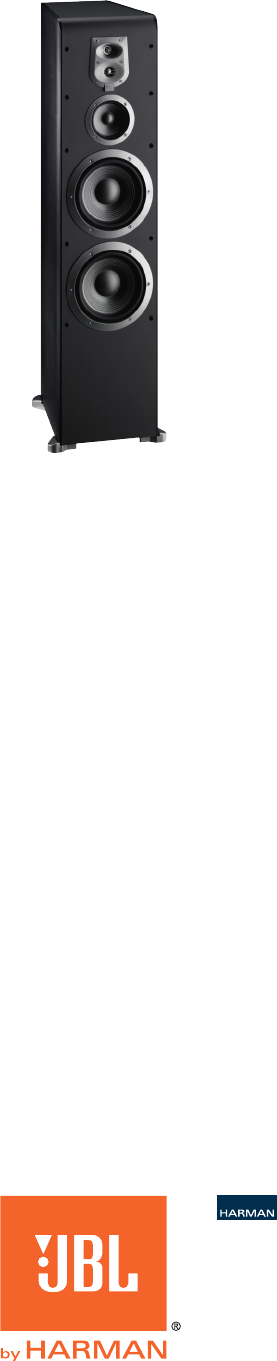

ES 90
JBL® ES Series speaker systems
HIGHLIGHTS
4-way dual 200mm (8") floorstanding loudspeaker
Ultrahigh frequency (UHF) tweeter expands frequency response up to 40kHz – capable of
accurately reproducing high-definition audio
Elegant cabinet design with a slender profile and combination of woodlike vinyl with textured
high-quality charcoal vinyl
KEY SPECIFICATIONS
• Finishes: cherry or black
• 19mm (3/4") polyester-lm ring-radiator ultrahigh-frequency driver with waveguide
• 19mm (3/4") titanium-laminated dome, high-frequency transducer mounted in Elliptical Oblate
Spheroidal™ (EOS) waveguide
• Dual 200mm (8") PolyPlas™-cone low-frequency transducer
• Straight-Line Signal Path™ (SSP) crossover network preserves clarity, detail and dynamics
of the original content
• MDF enclosure with low-diffraction IsoPower™ baffle and internal bracing
• Dual gold-plated 5-way speaker terminals, bi-wirable
• Rear-ring Freeow™-flared, tuned port
• Magnetically shielded
• Removable feet (standard rubber feet supplied)
