Product User’s Guide

Fullsize Powered Line Array Systems

VT4889ADP

VT4889ADP-DA

VT4889ADP-AN

VT4889ADP-CN

VT4880ADP

VT4880ADP-DA

VT4880ADP-AN

VT4880ADP-CN

2VERTEC User’s Guide

JBL Professional

Section 1. Safety Instructions .....................................................................................Page 4

Section 2. Before You Begin .......................................................................................Page 7

Section 3. Introduction to VERTEC® DP Series

Fullsize Powered Line Array Systems ......................................................Page 8

Specications by model

Section 4. VERTEC® DP Series Transducers .............................................................Page 10

Section 5. Enclosure Care and Maintenance ............................................................Page 11

Section 6. Suspension .................................................................................................Page 12

Safety Precautions

Industry Resources

Section 7. JBL DrivePack® Technology ....................................................................Page 15

AC Power Module, Electrical Information

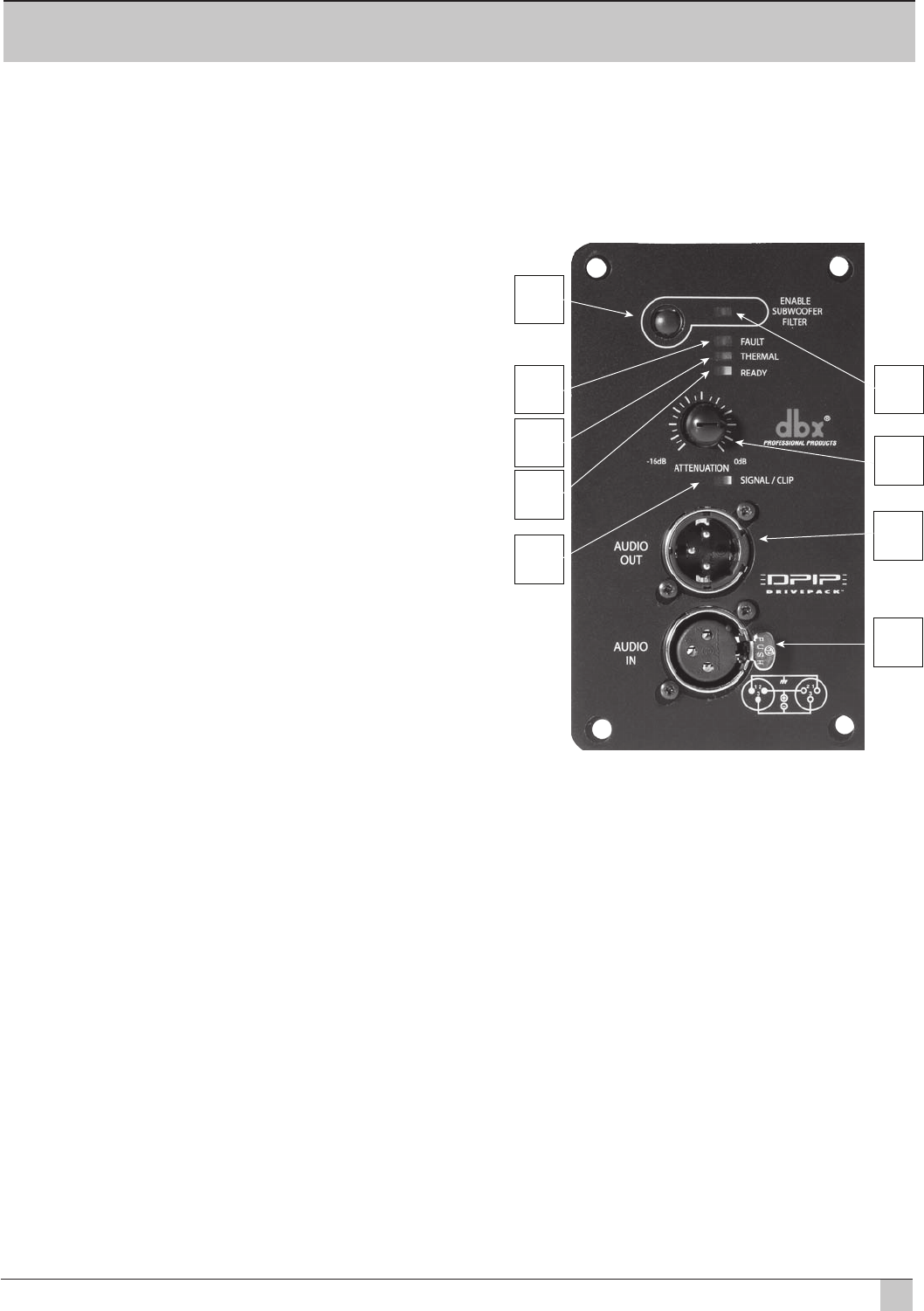

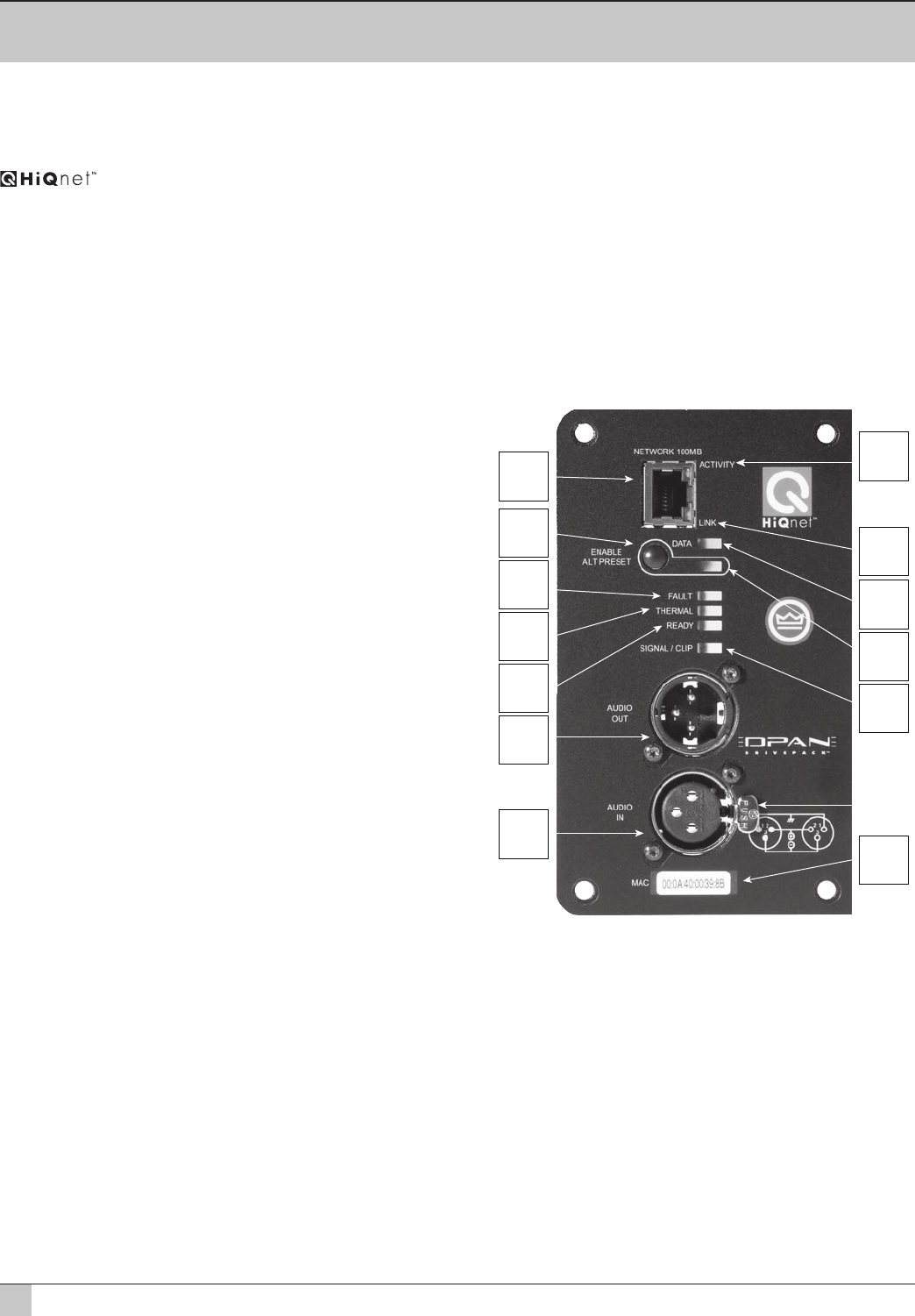

Input Modules (DPIP, DPDA, DPAN, DPCN)

Protective Jackets & installation

Section 8. HiQnet System Architect™ Software Conﬁguration Guide ...................Page 28

Conguring your PC

Ethernet Network connections

Appendix A: Conguring CobraNet devices

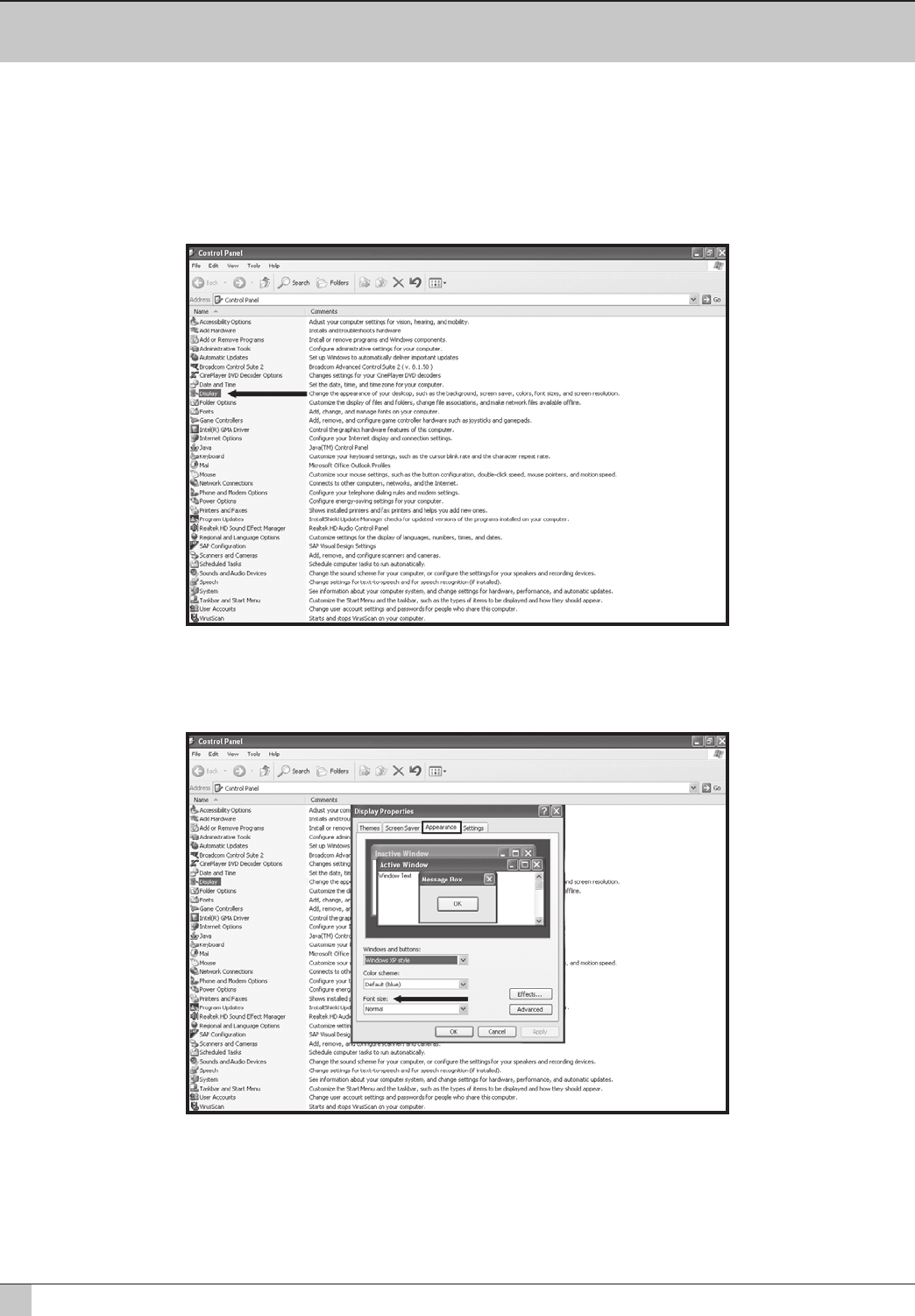

Appendix B: Setting Microsoft Windows to standard font size

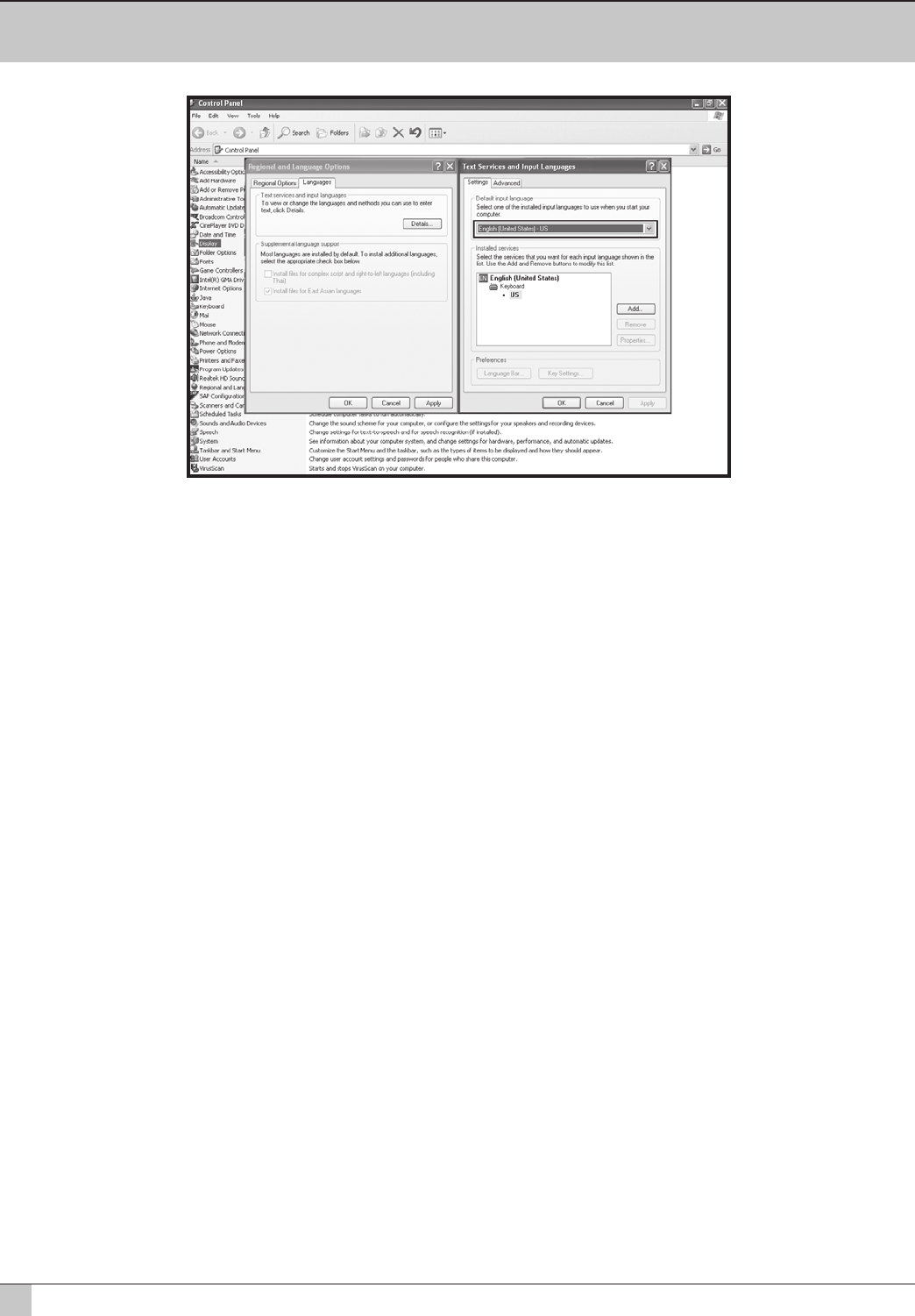

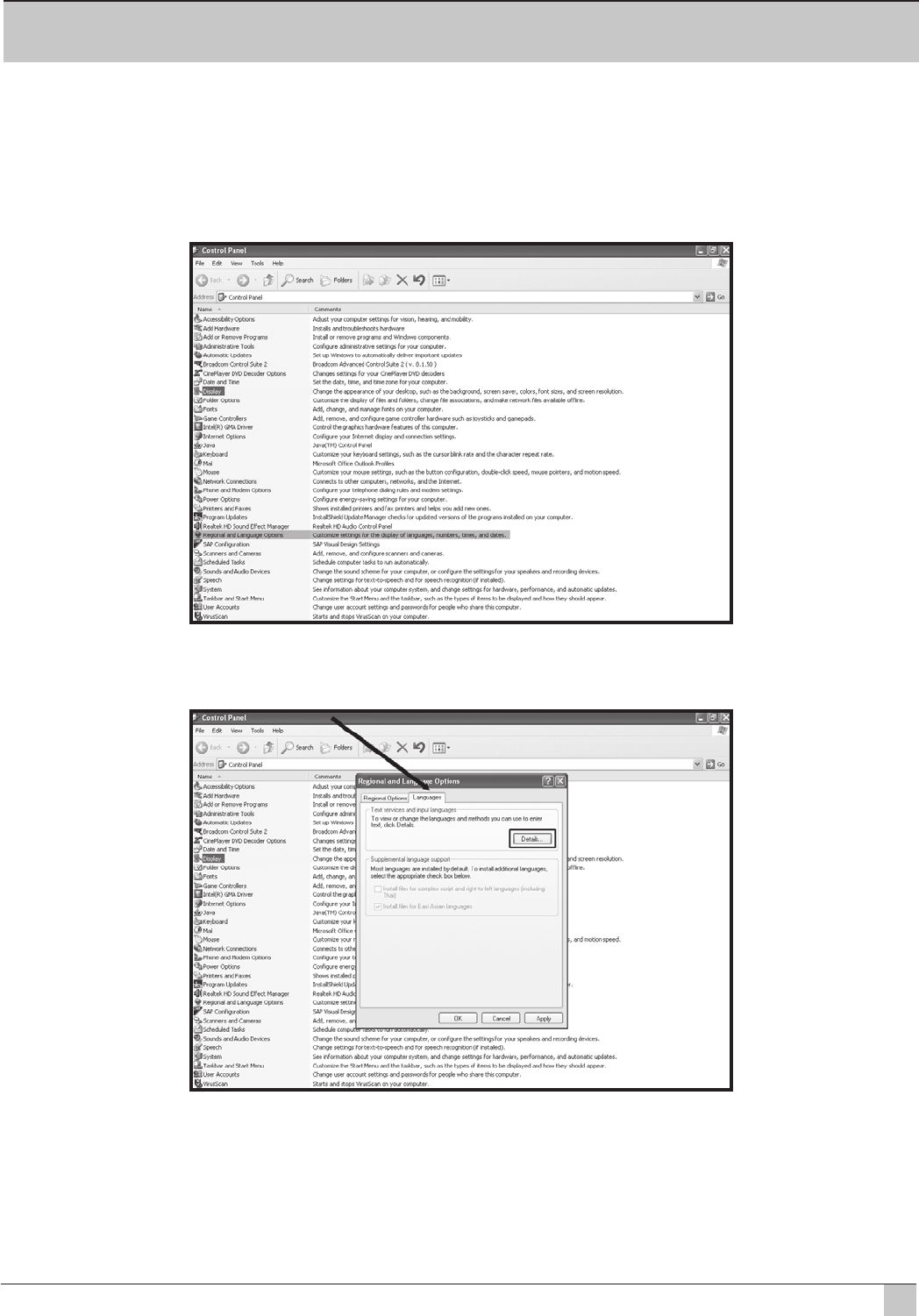

Appendix C: Setting Regional Language Options to US English

Section 9. JBL Professional Warranty .......................................................................Page 39

Section 10. Factory Contact Information ....................................................................Page 40

TABLE OF CONTENTS

4VERTEC User’s Guide

SECTION 1 : SAFETY INSTRUCTIONS

Important

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has

two blades with one wider than the other. A grounding-type plug has two blades and a third

grounding prong. The wide blade or the third prong are provided for your safety. If the provided

plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience

receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specied by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or

sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus

combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has

been damaged in any way, such as power supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or

moisture, does not operate normally, or has been dropped.

15. WARNING: To reduce the risk of re or electric shock, do not expose this apparatus

to rain or moisture.

16. Do not expose this equipment to dripping or splashing and ensure that no objects lled with

liquids, such as vases, are placed on the equipment.

17. To completely disconnect this apparatus from the AC Mains, disconnect the power supply

cord plug from the AC receptacle.

18. The mains plug of the power supply cord shall remain readily operable.

JBL Professional

THIS APPARATUS CONTAINS POTENTIALLY LETHAL VOLTAGES. TO PREVENT ELECTRIC SHOCK OR

HAZARD, DO NOT REMOVE DRIVEPACK CHASSIS, INPUT MODULE OR AC INPUT COVERS. NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WATCH FOR THESE SYMBOLS

The lightning bolt triangle is used to alert the user to the risk of electric shock.

The exclamation point triangle is used to alert the user to important operating or

maintenance instructions.

FCC COMPLIANCE NOTICE

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)

This device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

CAUTION: Changes or modications not expressly approved by the party responsible for compliance could

void the user’s authority to operate the equipment.

CSA COMPLIANCE NOTICE

CSA Certication Applies to Amplier Module Only

#!54)/.

2)3+/&%,%#42)#3(/#+

$/./4/0%.

6VERTEC User’s Guide

JBL DRIVEPACK® DECLARATION OF CONFORMITY

Safety and EMC Compliance Speciﬁcations

EN 55103-1:1997 Electromagnetic Compatibility - Product Family Standard for Audio, Video, Audio-

Visual and Entertainment Lighting Control Apparatus for Professional Use, Part 1: Emissions

EN 55103-1:1997 Magnetic Field Emissions-Annex A @ 10 cm and 1 M

EN 55022:2003 Limits and Methods of Measurement of Radio Disturbance Characteristics of ITE:

Radiated, Class B Limits; Conducted, Class A

EN 55103-2:1997 Electromagnetic Compatibility - Product Family Standard for Audio, Video, Audio-

Visual and Entertainment Lighting Control Apparatus for Professional Use, Part 2: Immunity

EN 61000-4-2:1995 + A1:1999 & A2:2001 Electrostatic Discharge Immunity (Environment E2-criteria B, 4

kV Contact, 8 kV Air discharge)

EN 61000-4-3:2003 Radiated, Radio-frequency, Electromagnetic Immunity (Environment E2, criteria A)

EN61000-4-4:2005 Electrical Fast Transient/Burst Immunity (criteria B)

EN 61000-4-5:2001 Surge Immunity (criteria B)

EN 61000-4-6:1996 Immunity to Conducted Disturbances Induced by Radio-Frequency Fields (criteria A)

EN 61000-4-11:2004 Voltage Dips, Short Interruptions and Voltage Variation

UL 60065:2003, 7th edition: Audio/Video and Musical Instrument Apparatus for Household, Commercial

and Similar General Use

IEC 60065, 2001: Audio, Video and Similar Electronic Apparatus - Safety Requirements

CAN/CSA E60065-03: Audio, Video and Similar Electronic Apparatus – Safety Requirements

JBL Professional

SECTION 2 : BEFORE YOU BEGIN

The VERTEC® DP Series systems covered by this manual are not intended for xed installation

in outdoor or high moisture environments. Moisture can damage the speaker cone and surround

and cause corrosion of electrical contacts and metal parts. Avoid exposing the speakers to direct

moisture. Keep loudspeakers out of extended or intense direct sunlight. The driver suspension will

prematurely dry out and nished surfaces may be degraded by long-term exposure to intense ultra-

violet (UV) light.

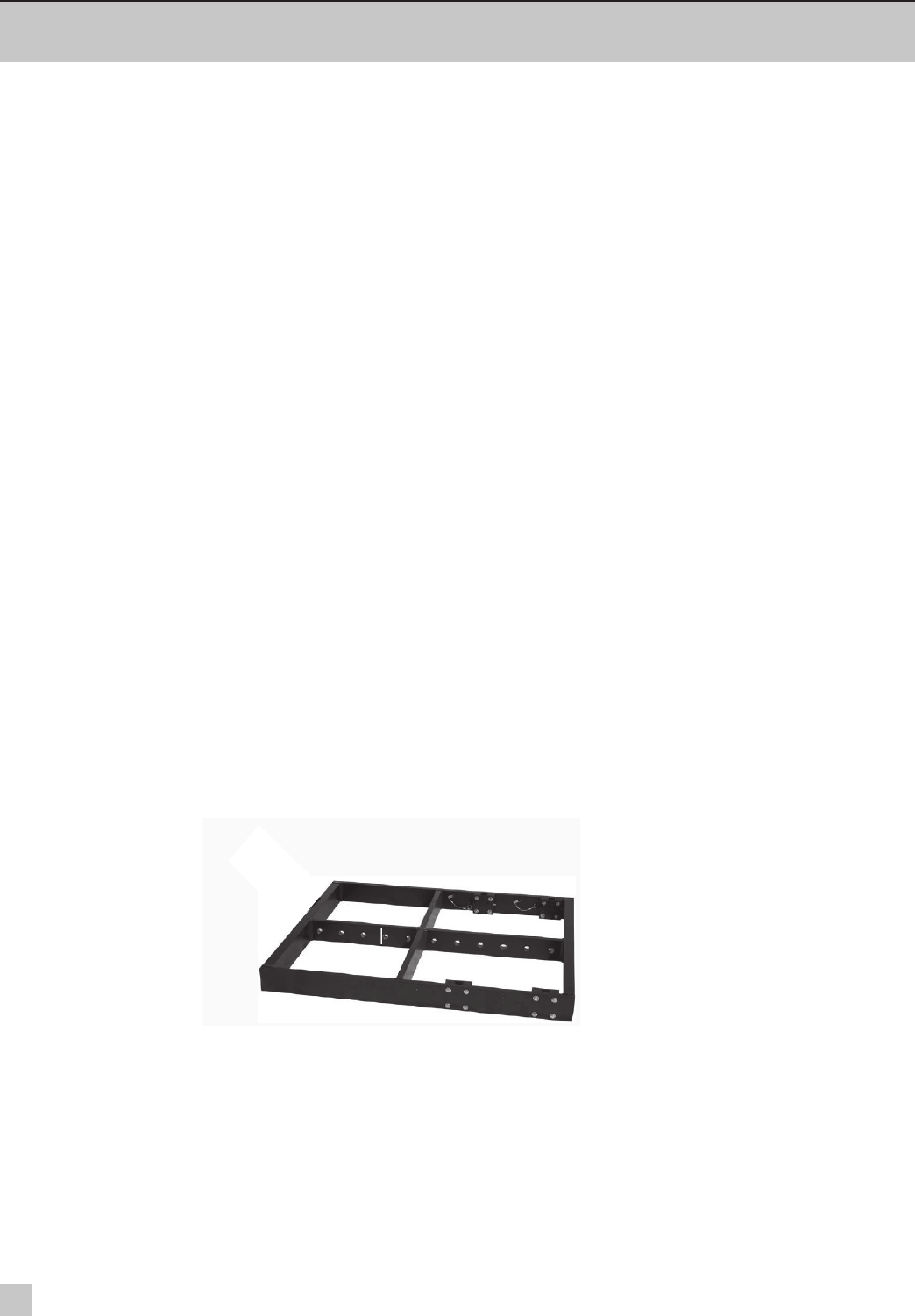

VERTEC® DP Series Fullsize Powered Line Array loudspeakers can be suspended with available

array frames (P/N VT4889-AF, VT4889-SF) or they can be ground-stacked. These systems can

generate considerable energy. When placed on a slippery surface such as polished wood or

linoleum, a single speaker may move due to its acoustical energy output. Precautions should be

taken to assure that the speaker does not fall off a stage or scaffold platform on which it is placed.

While it is unlikely that a ground-stacked array will move when properly attached to its array frame,

precautions should be taken to assure that the array assembly cannot fall from any surface on

which it is placed. Hearing damage, prolonged exposure to excessive SPL VERTEC® DP Series

loudspeakers are easily capable of generating sound pressure levels (SPL) sufcient to cause

permanent hearing damage to performers, production crew and audience members. Caution should

be taken to avoid prolonged exposure to SPL in excess of 90 dB.

Package Contents

• Product User’s Guide (this document)

• JBL DrivePack® compatible loudspeaker

• CD containing System Architect™ software

• AC Power North America/Europe Cord-Set

• Protective Jacket Set

• Warranty Card

8VERTEC User’s Guide

SECTION 3 : INTRODUCTION TO VERTEC® DP SERIES

FULLSIZE POWERED LINE ARRAY SYSTEMS

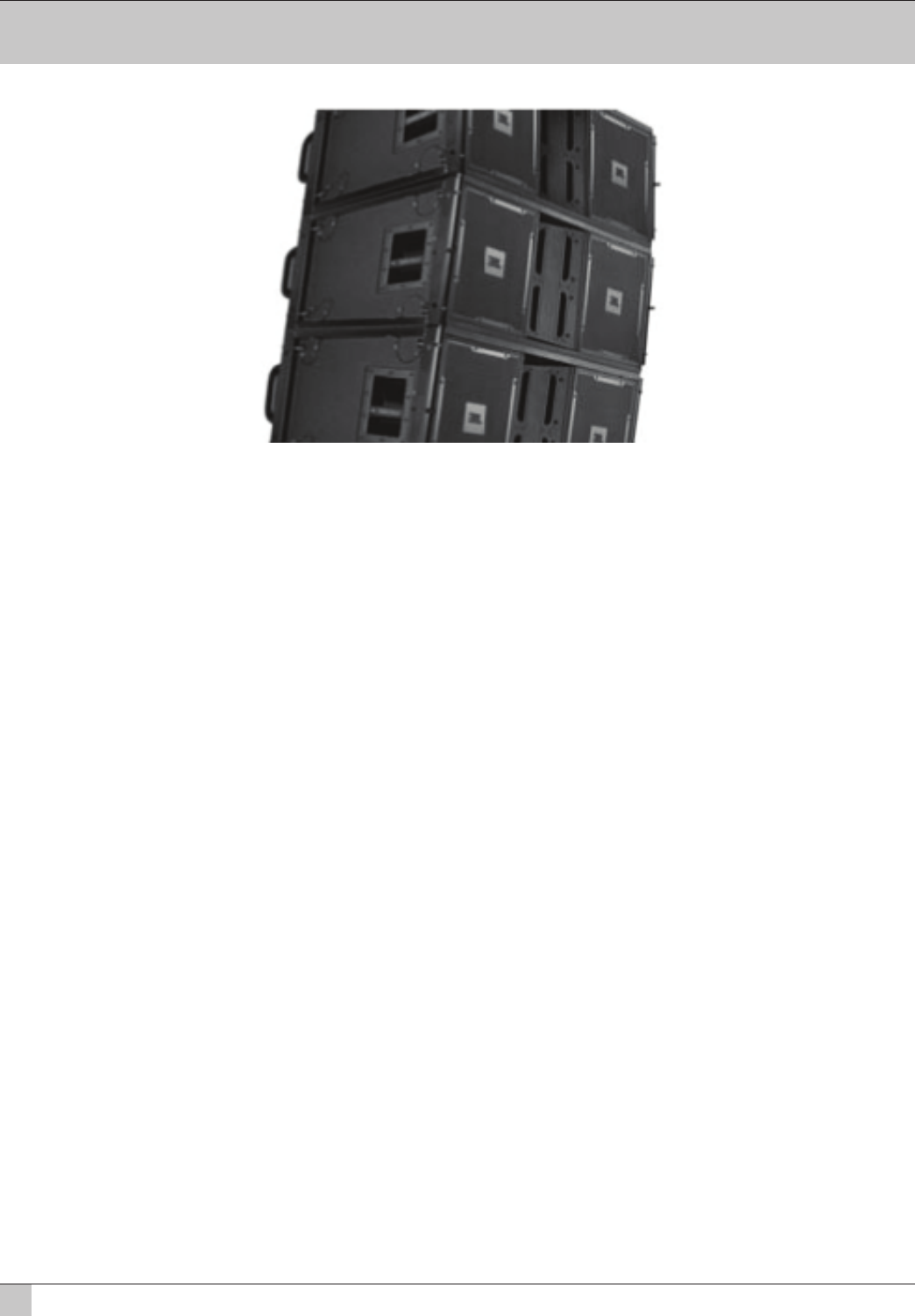

Shown: VT4889ADP in own array

VERTEC® DP Series Fullsize Powered Systems

The VERTEC DP Series fullsize models are part of a family of powered integrated audio loudspeaker systems

featuring the JBL DrivePack® amplier modules, designed in cooperation with Crown International. The

JBL DrivePack features cutting-edge technology such as patented high efciency Class-I power amplier

circuitry. Loudspeaker components include patented JBL Differential Drive® woofers.

This guide covers the following models:

VT4880ADP ..........................2x18” powered dual-channel subwoofer system

VT4880ADP-DA ...................DPDA network input module, AES digital audio

VT4880ADP-AN ...................with optional DPAN network input module, analog audio

VT4880ADP-CN ...................with optional DPCN network input module, Cobranet™ digital audio

VT4889ADP..........................2x15” tri-amplied three-way full range system

VT4889ADP-DA ...................DPDA network input module, AES digital audio

VT4889ADP-AN ...................with optional DPAN network input module, analog audio

VT4889ADP-CN ..................with optional DPCN network input module, Cobranet™ digital audio

JBL Professional

VERTEC DP SERIES, FULLSIZE POWERED SYSTEMS SPECIFICATIONS



*",0ROFESSIONAL

6%24%#$03%2)%3&5,,3):%0/7%2%$3934%-330%#)&)#!4)/.3

0RODUCT!COUSTICS 64!$0 64!$0

&REQUENCY2ANGED" (ZnK(Z (Z(Z

&REQUENCY2ESPONSE¢D" (ZnK(Z (Z(Z

(ORIZONTAL#OVERAGE!NGLED" DEGNOMINAL(ZnK(Z .!

6ERTICAL#OVERAGE!NGLED" 6ARIESWITHARRAYSIZEANDCONlGURATION .!

-AXIMUM0EAK/UTPUT D"30,M D"30,MπHALFSPACEGROUND

BASEDAPPLICATION

4RANSDUCER3ECTIONS

,OW&REQUENCY 4WO(MMINDIAMM

INDUALCOILNEODYMIUM$IFFERENTIAL

$RIVE$IRECT#OOLED©

4WO'MMINDIAMM

IN$UAL#OIL$IFFERENTIAL$RIVE$IRECT

#OOLED©

"ANDPASS.OMINAL)MPEDANCE /HMS,&WOOFERSWIREDINPARALLEL /HMSEACHDRIVER

-ID&REQUENCY &OUR(MMINDIAMM

INDUALCOILNEODYMIUM$IFFERENTIAL

$RIVE$IRECT#OOLED©

.!

"ANDPASS.OMINAL)MPEDANCE OHMSDRIVERSWIREDINSERIESPARALLEL .!

(IGH&REQUENCY 4HREE(MMINDIAMETERBERYL

LIUMDIAPHRAGMMMINTHROATDIAM

ETERNEODYMIUMCOMPRESSIONDRIVERS

.!

"ANDPASS.OMINAL)MPEDANCE OHMS(&DRIVERSWIREDINSERIES .!

3YSTEM%LECTRONICS

$0)NTERNAL!MPLIlCATION

/UTPUTATLOAD $070EAK7#ONTINUOUS $03UB70EAK7#ONTINUOUS

$0/UTPUT4OPOLOGY $0#HANNEL#LASS) $0#HANNEL#LASS)

3IGNAL0ROCESSING DBX4YPE)6#ONVERSION3YSTEM0RECISIONBANDPASSlLTERSLIMITINGPREEQUALIZATION

lLTERSANDAUTOMATICSELFTESTFUNCTIONS

3YSTEM-ANAGEMENT $30BASEDLIMITERSFORMECHANICALANDTHERMALPROTECTION

3IGNAL)NPUT &8,2!CTIVE+/HMS"ALANCED+/HMS5NBALANCED

3IGNAL,OOP4HROUGH -8,2PASSIVEPASSTHROUGH

#ONTROLS 0RECISIOND"INCREMENT$ETENTEDD"INPUTATTENUATOR$0)0ONLY

!#0OWER/PERATING2ANGE !UTO3ELECT6!#(Z

!#,INE6OLTAGE (Z!UTO$ETECT66¢

!#)NPUT#ONNECTOR

!#0OWER,OOPTHRU

.EUTRIK0OWER#ON"LUE.!#-0!

.EUTRIK0OWER#ON'RAY.!#-0"

!##URRENT2EQUIREMENT !PERSYSTEMAT6!PERSYSTEMAT

6

!PERSYSTEMAT6!PERSYSTEM

AT6

%NCLOSURE

"OX#ONSTRUCTION 7EDGEFRUSTUMDEGREESIDEANGLEEN

CLOSURE0LY-AX©ENGINEEREDCOMPOSITE

STRUCTURE$URA&LEXlNISHHANDLES

7EDGEFRUSTRUMDEGREESIDEANGLEENCLO

SURE0LY-AX©ENGINEEREDWOODCOMPOS

ITESTRUCTURE$URA&LEX©lNISHHANDLES

3USPENSION3YSTEM 0ATENTED3!&%©HARDWAREINTEGRALHINGE

BARSNESTINSUSPENSIONFRAMESONENCLO

SURESIDES1UICKRELEASEPINSWITHRESTRAIN

INGLANYARDS3ETOFHINGEBARSINCLUDED

0ATENTED3!&%©HARDWAREINTEGRALHINGE

BARSNESTINSUSPENSIONFRAMESONENCLO

SUREENDS1UICKRELEASEPINSWITHRESTRAIN

INGLANYARDS3ETOFHINGEBARSINCLUDED

'RILLE 3EPARATE,&AND(&BLACKPERFORATEDSTEEL

,&GRILLESFOAMBACKED

"LACKPERFORATEDSTEELFOAMBACKED

$IMENSIONS7X(X$ MM8MM8MM

IN8IN8IN

MM8MM8MM

IN8IN8IN

.ET7EIGHT KGLB KGLB

10 VERTEC User’s Guide

SECTION 4 : VERTEC® DP SERIES TRANSDUCERS

 6%24%#5SERS'UIDE

((IGH&REQUENCY#OMPRESSION$RIVER

*",S(ISTHE)NDUSTRYSMOSTPOWERFULCOMPACTHIGHFREQUENCY

COMPRESSIONDRIVER&EATURINGLIGHTWEIGHTNEODYMIUMMAGNETSTRUCTURES

vDIAPHRAGMSANDvEXITSCOUPLEDTOAPROPRIETARYWAVEGUIDE

ENGINEEREDTOBEPARTOFTHESYSTEMSTHERMALTRANSFERMECHANISMIT

ISDESIGNEDTODELIVERCRYSTALCLEARSOUNDWITHSUPERBDYNAMICRANGE

4HE(ISA/HMDEVICE4HREEAREINCLUDEDINEACH64!$0

SYSTEM

(,OW&REQUENCY,OUDSPEAKER

4HE(ISANvTRANSDUCERENGINEEREDWITH*",SPATENTED

$IFFERENTIAL$RIVETECHNOLOGY4HESELOWFREQUENCYDRIVERSDRAMATICALLY

REDUCEDRIVERWEIGHTWHILEGREATLYENHANCINGALLCRITICALPERFORMANCE

PARAMETERSFREQUENCYRESPONSEPOWEROUTPUTANDDISTORTION

$IFFERENTIAL$RIVETECHNOLOGYFEATURESAUNIQUEDESIGNWITHHEAT

SINKSINTEGRATEDINTOTHECASTALUMINUMFRAMEFORAHIGHLYIMPROVED

PERFORMANCETOWEIGHTRATIO4HEDUALVOICECOILDESIGNPLACESTHE

NEODYMIUMMAGNETSINSIDETHEVOICECOILASSEMBLYCOMPLETINGTHE

MAGNETICCIRCUITWITHOUTTHEHEAVYSURROUNDINGSTEELSTRUCTUREOF

CONVENTIONALDRIVERS/HMDEVICE

&ORMOREINFORMATIONSEE*",4ECH.OTE6OL.UMBERh$IFFERENTIAL

$RIVE4RANSDUCERSv

'5LTRA,ONG%XCURSION$IFFERENTIAL$RIVE

,OW&REQUENCY$RIVERS

5LTRA,ONG%XCURSIONMMvTRANSDUCERFEATURESWATTS

CONTINUOUS!%3WATTSPEAKPOWERHANDLINGCAPACITY)TSTHELATEST

EXAMPLEOF*",SPATENTED$IFFERENTIAL$RIVEDUALVOICECOILLOUDSPEAKER

TECHNOLOGYlTTEDWITHDUALNEODYMIUMMAGNETS*",SEXCLUSIVE6ENTED

'AP#OOLING©ANDANULTRAROBUSTCOMPOSITECONEWITHAPEAKTOPEAK

MAXIMUMEXCURSIONOFMMv

3%#4)/.6%24%#$03%2)%342!.3$5#%23

JBL Professional

SECTION 5 : ENCLOSURE CARE AND MAINTENANCE

PAINTING JBL VERTEC DP SERIES SYSTEM PRODUCTS

VERTEC DP Series enclosures are constructed of JBL PlyMax™, an exclusive hybrid engineered-wood

technology designed to reduce enclosure weight while offering exceptional panel rigidity with the appropriate

acoustical properties. The exterior of each enclosure is covered with JBL’s exclusive DuraFlex™ nish.

Each JBL Professional VERTEC DP Series system model is readily paintable. The DuraFlex nish provides

a lightly textured surface that any household or industrial paint readily adheres to. The result is a speaker

enclosure that is able to blend unobtrusively into the decor of any stage set or environment.

Instructions for painting wood enclosures (do not paint the JBL DrivePack®):

1. Prepare the enclosure surface by cleaning and wiping off dust and lm with a damp cloth. It may be

necessary to use a mild household cleaner to remove grease. Avoid using a cloth that will deteriorate over

the textured surface.

2. Apply as many coats of paint as is required. Application can be by rolling, brushing or spraying. Care must

be taken when painting the grille. Avoid any paint or type of application that will clog the open cells in the

foam of the front grille. Depending on the type of paint, it may not be wise to spray the grille.

3. For painting systems that are installed in environmentally-hostile locations, it is recommended that an

automotive paint should be used for maximum protection.

Note: for systems that will be transported on a regular basis, oil-based paints or Krylon-type spray paints will

give better long-term results than water-based Latex type paints.

12 VERTEC User’s Guide

SECTION 6 : SUSPENSION

Before attempting to suspend your speakers, read and understand the following safety information.

IMPORTANT SAFETY WARNING!

The information in this section has been assembled from recognized engineering data and is intended for

informational purposes only. None of the information in this section should be used without rst obtaining

competent advice with respect to applicability to a given circumstance. None of the information presented

herein is intended as a representation or warranty on the part of JBL. Anyone making use of this information

assumes all liability arising from such use.

All information presented herein is based upon materials and practices common to North America and may

not directly apply to other countries because of differing material dimensions, specications, and/or local

regulations. Users in other countries should consult with appropriate engineering and regulatory authorities

for specic guidelines.

Correct use of all hardware is required for secure system suspension. Careful calculations should always be

performed to ensure that all components are used within their rated workload before the array is suspended.

Never exceed maximum recommended load ratings.

Before suspending any speaker system always inspect all components (enclosure, suspension tubes, pins,

etc.) for cracks, deformations, corrosion, missing, loose or damaged parts that could reduce strength and

safety of the array. Do not suspend the speaker until the proper corrective action has been taken. Use only

load-rated hardware when suspending VERTEC® DP Series loudspeakers.

Safety Precautions

JBL Professional

Are You New to Rigging?

If your work with suspended loudspeakers also involves rigging, you should do the following:

• Read and study JBL Technical Note Volume 1, Number 14: Basic Principles for Suspending Loudspeaker

Systems (available at http://www.jblpro.com/pub/technote/tn_v1n14.pdf).

• Know the Rules for Safe Rigging.

• Attend a safe rigging seminar, such as that presented by professionals like Rigging Seminars™ or by

Chain Motor Hoist manufacturers like Columbus McKinnon Corp. (manufacturers of the C/M Lodestar).

• Meet and establish a relationship with a licensed mechanical or structural engineer. Get in the habit of

asking them questions instead of guessing about their answers. Learn from what they tell you.

• Meet and discuss this aspect of your business with your Insurance Agent.

• Research and understand the codes, practices, and requirements in the venues where you intend to

operate your sound system.

General Hardware Information

Any hardware used in an overhead suspension application must be load rated for the intended use.

Generally, this type of hardware is available from rigging supply houses; industrial supply catalogs and

specialized rigging distributors. Local hardware stores do not usually stock these products.

Attachment to Structures

A licensed Professional Engineer must approve placement and method of attachment to structures prior

to installation of any overhead object. The following performance standards should be provided to the

Professional Engineer for design purposes: Uniform Building Code as applicable, Municipal Building Code as

applicable, Seismic Code as applicable. Installation of hardware and method of attachment must be carried

out in the manner specied by the Professional Engineer. Improper installation may result in damage, injury

or death.

Suspension Hardware Inspection & Maintenance

Suspension systems are comprised of mechanical devices and, as such, they require regular inspection

and routine maintenance to insure proper function ability. JBL VERTEC® DP Series loudspeakers must

be inspected for fatigue at least annually. The inspection shall include a visual survey of all corners and

load bearing surfaces for signs of cracking, water damage, de-lamination, or any other condition that may

decrease the strength of the loudspeaker enclosure. Accessory rigging hardware provided with or for JBL

VERTEC DP Series loudspeakers must be inspected for fatigue at least annually. The inspection shall include

a visual material survey for signs of corrosion, bending or any other condition that may decrease strength of

the fastener. For other ttings used, refer to the manufacturer’s inspection and maintenance guidelines for

process.

JBL is not responsible for the application of its products for any purpose or the misuse of this information

for any purpose. Furthermore, JBL is not responsible for the abuse of its products caused by avoiding

compliance with inspection and maintenance procedures or any other abuse. Prior to suspending the

system, an expert, trained and experienced in ﬂying loudspeaker systems should inspect all rigging parts and

components.

14 VERTEC User’s Guide

Allen Products

(562) 424-1100

1635 E. Burnett Street

Signal Hill, CA 90806

www.allenproducts.com

M.A.N. Flying Systems

20 Sidar Road Brook Road

Industrial Estate

Rayleight, Essex SS6 7XF U.K.

www.many.co.uk

JBL Professional - Tech Note V1 No. 14

“Basic Principles for Suspending Loud-

speakers”

www.jblpro.com/technote/tn_v1n14.pdf

ATM Fly-Ware

(562) 424-1100

1635 E. Burnett Street

Signal Hill, CA 90806

www.atmyware.com

McMaster Carr

Various locations through the U.S.A.

For a location near you, visit them online:

www.mcmastercarr.com

Safe Rigging

The JBL VERTEC® DP Series arrayable loudspeakers are equipped with integral suspension hardware and

should only be suspended using the supplied equipment. The system is designed to facilitate the suspension

of the loudspeakers by a qualied person familiar with rigging hardware and industry practices. Improper

installation may result in damage, injury or death.

Working Load Limit

The working load limit (WLL) for any group (“array”) of JBL VERTEC DP Series system products is noted on

the appropriate VERTEC Array Frame.

Industry Resources

VT4889-AF Array Frame

JBL Professional

Introduction to the

JBL DrivePack Integrated Audio System

JBL DrivePack equipped loudspeakers are a family of fully integrated audio systems, coupling industry-

leading loudspeaker technology to a combination of comprehensive digital signal processing and advanced

amplier technology, perfectly matched to the enclosures to deliver superb audio quality and powerful

performance.

The DrivePack is attached to the back of each DP-compatible loudspeaker enclosure, creating a seamless

electro-mechanical system that offers both convenience and portability along with the unmatched reliability,

accuracy and superb sound of JBL loudspeakers. The DrivePack includes onboard DSP functionality to

communicate readiness and operational status, including a self-test cycle and lighted indicators for fault

detection upon power-up.

DrivePack Signal-Processing & Ampliﬁcation Unit

The DrivePack electronics unit is intended to be used when mounted to a speaker enclosure of

5/8” minimum thickness of wood or composite material and with load impedances of 4 Ohms, 8

Ohms for low and mid frequency channels, and 8 or 16 Ohms for the high frequency channel.

OPERATING INSTRUCTIONS

All that is required to get your DP compatible loudspeaker system up and running is to connect an AC power

source to the AC Power module via the Neutrik PowerCon™ inlet connector, and a full range line level audio

signal to the Input module via the AUDIO IN XLR connector.

Upon initial power-up of the DrivePack, the Blue Power LED will illuminate and the Green DP Ready indicator

(located to the left of the input module input level control) will ash during the boot-up and AC line auto-

select soft-start process. The JBL DrivePack is equipped with Auto-Sensing Universal AC Voltage Selection

and can operate anywhere in the world that has an available 100-120VAC or 200-240VAC power source. On

the power-up sequence the JBL DrivePack® input module senses line voltage and sets the high voltage line

select relay within about 2 seconds. The system is ready for operation when the Green Ready LED on both

the AC Input module and DPIP module is steadily illuminated.

SECTION 7 : JBL DRIVEPACK® TECHNOLOGY

16 VERTEC User’s Guide

AC POWER REQUIREMENTS

Standard JBL DrivePack systems are equipped with a DP multi-channel Crown Class-I power amplier and

loudspeaker specic DSP electronics and require appropriate AC power.

CAUTION: In compliance with safety agency criteria and proper system operation, it is critical

that the system installer observe all electrical safety practices at all times and provide proper earth

grounding for all AC Power connections.

AC POWER CORD KIT

Convenience 120VAC North America NEMA 5-15 Edison type AC plug to PowerCon® connector and

240V Europe CEE 7/7 Schuko type AC plug to PowerCon connector cord sets are provided with this JBL

DrivePack product for light-duty shop testing or system conguration type use.

One spare gray Neutrik (P/N NAC3FCB) PowerCon connector is included in the AC Power Cord Set for your

convenience to create a pass-through AC power cable. To create a pass-through cable the system installer

may choose to simply cut off the AC plug from one of the provided AC cord sets and replace it with the

provided Gray PowerCon AC Outlet connector. Follow the wiring convention indicated in Table 1.

NOTE: Tighten set screws to 2.5Nm (1.8lb-ft) torque to prevent opening by hand.

USER-FABRICATED AC POWER DISTRIBUTION

System owners may choose to fabricate or purchase a custom AC Power cable infrastructure optimized for

their specic JBL DrivePack system conguration. See Table 1 for custom application wiring and connector

information.

NOTE: Parts not provided.

CAUTION: Do not exceed 80% current rating of any AC connector at any time! See Table 2 for

current draw information.

Table 1. User-Fabricated AC Cable and Connector Information

AC Inlet Cable Connector Neutrik PowerCon® NAC3FCA quick lock 3-pole A-type

cable connector for power inlet. Rated current per contact:

20 A (rms), Rated Voltage: 250VAC.

AC Outlet Cable Connector Neutrik PowerCon® NAC3FCB quick lock 3-pole B-type

cable connector for power outlet. Rated current per contact:

20 A (rms), Rated Voltage: 250VAC.

Wiring Cable: screw-type terminals or soldering nom. wire size/

contact: 2.5 mm² / 14 AWG

Wiring convention Ground – Ground, Neutral – Neutral, AC Hot – AC Hot

With the two non-interchangeable types of connectors (A-type, B-type) it is impossible to produce a short

circuit. Mating connectors (combination) are identied by mechanical keyways and by color.

Table 2. Power Connector Coding

A-type (POWER INLET); Cable connector: Blue

B-type (POWER OUTLET) Cable connector: Gray, with

Blue bushing

JBL Professional



*",0ROFESSIONAL

$0!#0OWER2ATINGS64!$0

$ESCRIPTION 6!# 6!#

)DLE3LEEP-ODE 7

1UIESCENT0OWER$RAW 7

TH0OWER0INK.OISE5,#3! 7!RMS 7!RMS

RD0OWER0INK.OISE ! !

-AXIMUM0OWER$RAW 7

)NRUSH#URRENT )NRUSHCURRENTLIMITINGVIA04#SOFTSTART

!#0OWER-ODULE#ONNECTORS!-AX6!#6!#(Z#LASS

7IRING

!7'

MM

)NLET#ONNECTOR2ATING ! !

/UTLET#ONNECTOR2ATING ! !

$0!#0OWER2ATINGS64!$0

$ESCRIPTION 6!# 6!#

)DLE3LEEP-ODE 7

1UIESCENT0OWER$RAW 7

TH0OWER0INK.OISE5,#3! 7!RMS 7!RMS

RD0OWER0INK.OISE ! !

-AXIMUM0OWER$RAW 7

)NRUSH#URRENT )NRUSHCURRENTLIMITINGVIA04#SOFTSTART

!#0OWER-ODULE#ONNECTORS!-AX6!#6!#(Z#LASS

7IRING

!7'

MM

)NLET#ONNECTOR2ATING ! !

/UTLET#ONNECTOR2ATING ! !



#!54)/.3USTAINEDHIGHOUTPUTOPERATIONORLOW!#LINEVOLTAGEWILLCAUSETHE!#POWERDRAW

OFTHE$0TOINCREASEABOVETHEAVERAGECURRENTDRAWINFORMATIONPUBLISHEDINTHISDOCUMENT!

DIRECT!#POWERCONNECTIONTOEACH*",$RIVE0ACK$0ISREQUIREDWHENUSEDUNDERDESCRIBED

OPERATINGCONDITIONS

,INE6OLTAGE3ELECTION4HE$RIVE0ACKFEATURESANINTERNATIONAL!UTO3ENSINGPOWERSUPPLYANDWILL

AUTOMATICALLYSELECTTHECORRECTOPERATINGVOLTAGERANGEWINDOW!UTOMATICVOLTAGESELECTIONISBETWEEN

6!#AND6!#OPERATION(Z

,INE6OLTAGE4OLERANCE4HEAMPWILLOPERATENORMALLYWITHEXPECTEDDERATINGINPOWEROUTPUTDURINGLOW

LINECONDITIONSOVERARANGEOF6!#OR6!#!#INPUTVOLTAGE4HEAMPWILL

SHUTDOWNFORVOLTAGESBELOWNOMINALLINEANDSELFPROTECTFOROVERVOLTAGEBEYONDNOMINALLINE

#!54)/.#ONTINUOUSVOLTAGESBEYONDHIGHLINEATEITHER6!#OR6!#OPERATION

RANGESCANDISRUPTPERFORMANCEOFTHE*",$2)6%0!#+4OAVOIDACTIVATIONOFAMPLIlERLOWLINE

HIGHLINEPROTECTIONWHICHWILLINTERRUPTAUDIOPERFORMANCETHESYSTEMOPERATORSHOULDMAINTAIN

!#SUPPLYVOLTAGESWITHINTHERATEDVOLTAGEWINDOWS

18 VERTEC User’s Guide

AC Power Module

POWER Indicator:

Blue LED – located near power inlet lights when AC power is

applied.

Amp READY Indicator:

Green LED near power inlet, ON during normal operation, long

pulse during sleep mode.

Sleep Mode:

If audio input signals are not detected for 2 hours, the amplier

will go into sleep/standby mode; the amplier output section is

turned off while the supply powering the DP Input Module and

DSP logic remains active. This mode reduces current draw and

heat loss. While in sleep mode the READY indicator pulses

slowly. Recovery from sleep mode is instantaneous when an

audio signal is detected.

Thermal Management:

JBL DrivePack® systems are cooled by Passive Convection.

No fans are used in any part of the thermal management system. To maintain efcient cooling it is a good

practice to assure open space around the DrivePack units.

Operating Temperature:

The system will remain touchable during quiescent operation and will not provide a burn hazard during

any operating condition.

Input Module Controls, Indicators and Connectors

JBL DrivePack® systems are equipped with a modular input bay and input modules are available in three

versions in the VERTEC DP Series: the DPIP, DPDA, DPAN and the DPCN.

Audio Signal Distribution

Connecting source audio signals to the input modules on JBL

DrivePack systems is similar to daisy-chaining multiple external

amplier channels together.

Assuming an output device source impedance of 100 Ohms

and a 10:1 load to source ratio, up to 20 JBL DrivePack units

typical can be linked together on one output source without

using a distribution amp.

NOTE: Please refer to VERTEC DP Series spec sheets for

additional features and specications of the DPIP, DPAN and

DPCN input modules.

JBL Professional

DPIP – Basic Input Module

See Figure 1a

The Basic DPIP input module features analog audio inputs and sophisticated onboard digital signal

processing technology. Precision Bandpass limiting, pre-equalization lters and automatic self-test functions

ensure optimized performance. JBL engineers have calibrated DSP speaker management and limiter

parameters to insure smooth phase response and

transfer function curves right out of the box.

CONTROLS

1) Subwoofer Filter Enable Select Switch

a) Momentary, Enables or disables the selected

function. On subwoofer applications the low-

pass frequency is set to 80 Hz and for full

range systems the high-pass is raised to 80 Hz.

(Knee shape and slopes are model dependent).

7) Input Sensitivity/Attenuation Control:

a) 16 dB Precision Detented rotary control, 0.5

dB steps. Sensitivity +4 dBu nominal (+23 dBu

clip) with the control fully counter clockwise,

and -10 dBv nominal (+4 dBu clip) with the

control fully clockwise.

INDICATORS

2) Subwoofer Filter Enable

a) Orange LED, illuminates when the

function is enabled.

3) FAULT

a) Red LED, illuminates during any

fault condition.

4) THERMAL PROTECTION

a) Orange LED, illuminates during

thermal limiting:

ai) PULSING indicates rst stage of thermal

limiting, amplier output level is reduced to prevent overheating.

aii) FLASHING indicates transducer thermal limits have been exceeded. Further reduction in

output level is applied.

aiii) SOLID illumination indicates thermal protection is in the third stage of

protection and amplier shut down may occur if immediate

action is not taken to correct the external reason for excessive heating of the amplier.

5) Ready

a) Green LED, illuminates when the system is

ready for operation.

6) SIGNAL/CLIP

a) (Signal) Green LED, detects input signal above the threshold set at –70 dBu. b) Yellow indicates

that the audio drive signal has exceeded limits preset in DSP on any channel and compression/

limiting is active.

c) (Clip) Red LED, Clip detection monitors input, DSP, and each amplier output channel. The LED

changes from Green to Red when clipping THD at any point is detected.

CONNECTORS

8) Audio In

a) F-XLR Active 20K Ohm Balanced, 10K Ohm Unbalanced.

b) Pin 2 Hot (Positive voltage produces outward cone motion of L.F. Transducers).

9) Audio Out

a) M-XLR Passive Audio Pass-through.

b) Pin 2 Hot (Positive voltage produces outward cone motion of L.F. Transducers).



















Figure 1a

20 VERTEC User’s Guide

10) ARRAY ID MECHANICAL ENCODER

a) If “00”, the software will automatically determine the array IDs as they are wired.

b) User can manually set all speakers to be in the same array or cluster via the rotary dial.

11) LOUDSPEAKER POSITION ID MECHANICAL ENCODER

a) If “00”, the software will automatically determine the position of the speakers within the array via their

network interconnections (speakers must be daisy-chained for software to determine their location).

b) User can manually determine the position of the speakers within the array via the rotary dial.

Note: Array ID/Loudspeaker ID Examples

Example A: “00 00” would be complete auto ID mode.

Example B: “01 01” would be Array ID #1, speaker on position #1 (top) etc.

CONNECTORS

12) NETWORK 100MB ACTIVITY OUTBOUND

The Orange Activity LED indicates activity on the outbound Ethercon connection.

13) NETWORK 100MB ACTIVITY INBOUND

The Orange Activity LED indicates activity on the inbound Ethercon connection.

14) AUDIO OUT

a) Analog mode: passive pass through

b) AES mode: 110 ohms, buffered

15) AUDIO IN

a) Analog mode: Balanced , 20Kohms input impedance

b) AES mode: Differentially balanced, 110 ohms input impedance

DPDA – HiQnet Networked Input Module with AES Digital Audio

and BSS Omnidrive HD Signal Processing

See Figure 1b

The DPDA Input Module can be used as a retro-ttable sub-assembly with any JBL DrivePack-equipped

speaker system. Upgrading to the DPDA module provides powered loudspeaker system users with AES/

EBU digital audio capabilities, the sonic benets of advanced signal processing features, and a variety of

input and connectivity options.

Its onboard 100 Mb Ethernet networking switch with daisy-chain capability allows for Remote Control and

Monitoring via HiQnet System Architect™ software. Additionally, a rotary mechanical encoder switch allows

for array identication and box positioning, up to 99 different speaker positions within each of 99 different

speaker arrays or groups.

Twenty, type-selectable input lters (10 System and 10 Guest lters) are available for system equalization

along with user-adjustable input delay of up to 2 seconds and sub lter access (user-adjustable low pass

lter for subwoofer systems; high pass lter for full-range systems). Signal generator functions (sine wave,

swept tone, pink or white noise) are available to facilitate system testing and up to fty presets can be stored

internally.

In addition, Master Control Panels and Master Monitor Panels within System Architect software allow for

convenient grouping of control and monitoring functions for multiple JBL DrivePack enclosures with DPDA

input modules. This functionality provides a powerful remote control/monitoring interface that is especially

useful when working with larger multi-box line array or subwoofer systems.

The HiQnet System Architect™ software user interface provides remote access to the controls, displays and

digital speaker preset les available in the JBL DrivePack® Software Control Panel

INDICATORS

1) CROSSPATCH

If active, AES audio and HiQnet/network is

daisy-chained via Ethercon/RJ45 out connector.

2) AES LOCK

If active, indicates AES sync has been detected and

input card has locked to it.

3) FAULT

Red LED illuminates during any fault condition.

4) CLIP

Red LED indicates clipping at any point is detected.

5) SIGNAL

Green LED indicates a detected input

signal above the threshold set at –70dBu.

6) OVER TEMP

Orange LED illuminates during thermal limiting:

7) READY

Green LED illuminates when the system is ready for

operation.

8) DATA

Yellow LED indicates network activity

CONTROLS

9) ENABLE ALT PRESET

a) Press and hold for 3 seconds.

b) When LED is active, the alternate preset with 80Hz high pass has been recalled or loaded.

On subwoofers, the preset with 80Hz low pass is recalled.

Figure 1b

JBL Professional

10) ARRAY ID MECHANICAL ENCODER

a) If “00”, the software will automatically determine the array IDs as they are wired.

b) User can manually set all speakers to be in the same array or cluster via the rotary dial.

11) LOUDSPEAKER POSITION ID MECHANICAL ENCODER

a) If “00”, the software will automatically determine the position of the speakers within the array via their

network interconnections (speakers must be daisy-chained for software to determine their location).

b) User can manually determine the position of the speakers within the array via the rotary dial.

Note: Array ID/Loudspeaker ID Examples

Example A: “00 00” would be complete auto ID mode.

Example B: “01 01” would be Array ID #1, speaker on position #1 (top) etc.

CONNECTORS

12) NETWORK 100MB ACTIVITY OUTBOUND

The Orange Activity LED indicates activity on the outbound Ethercon connection.

13) NETWORK 100MB ACTIVITY INBOUND

The Orange Activity LED indicates activity on the inbound Ethercon connection.

14) AUDIO OUT

a) Analog mode: passive pass through

b) AES mode: 110 ohms, buffered

15) AUDIO IN

a) Analog mode: Balanced , 20Kohms input impedance

b) AES mode: Differentially balanced, 110 ohms input impedance

DPDA – HiQnet Networked Input Module with AES Digital Audio

and BSS Omnidrive HD Signal Processing

See Figure 1b

The DPDA Input Module can be used as a retro-ttable sub-assembly with any JBL DrivePack-equipped

speaker system. Upgrading to the DPDA module provides powered loudspeaker system users with AES/

EBU digital audio capabilities, the sonic benets of advanced signal processing features, and a variety of

input and connectivity options.

Its onboard 100 Mb Ethernet networking switch with daisy-chain capability allows for Remote Control and

Monitoring via HiQnet System Architect™ software. Additionally, a rotary mechanical encoder switch allows

for array identication and box positioning, up to 99 different speaker positions within each of 99 different

speaker arrays or groups.

Twenty, type-selectable input lters (10 System and 10 Guest lters) are available for system equalization

along with user-adjustable input delay of up to 2 seconds and sub lter access (user-adjustable low pass

lter for subwoofer systems; high pass lter for full-range systems). Signal generator functions (sine wave,

swept tone, pink or white noise) are available to facilitate system testing and up to fty presets can be stored

internally.

In addition, Master Control Panels and Master Monitor Panels within System Architect software allow for

convenient grouping of control and monitoring functions for multiple JBL DrivePack enclosures with DPDA

input modules. This functionality provides a powerful remote control/monitoring interface that is especially

useful when working with larger multi-box line array or subwoofer systems.

The HiQnet System Architect™ software user interface provides remote access to the controls, displays and

digital speaker preset les available in the JBL DrivePack® Software Control Panel

INDICATORS

1) CROSSPATCH

If active, AES audio and HiQnet/network is

daisy-chained via Ethercon/RJ45 out connector.

2) AES LOCK

If active, indicates AES sync has been detected and

input card has locked to it.

3) FAULT

Red LED illuminates during any fault condition.

4) CLIP

Red LED indicates clipping at any point is detected.

5) SIGNAL

Green LED indicates a detected input

signal above the threshold set at –70dBu.

6) OVER TEMP

Orange LED illuminates during thermal limiting:

7) READY

Green LED illuminates when the system is ready for

operation.

8) DATA

Yellow LED indicates network activity

CONTROLS

9) ENABLE ALT PRESET

a) Press and hold for 3 seconds.

b) When LED is active, the alternate preset with 80Hz high pass has been recalled or loaded.

On subwoofers, the preset with 80Hz low pass is recalled.

Figure 1b

22 VERTEC User’s Guide

DPAN – Optional HiQnet Network Input Module

with Analog Audio

See Figure 1c

The DPAN input module features analog audio inputs and sophisticated onboard digital signal processing

technology. Precision band pass limiting, pre-equalization lters and automatic self-test functions ensure

optimized performance. In addition, the DPAN input module adds 100 Mb Ethernet networking functionality

and HiQnet compatibility. It enables remote control and monitoring via HiQnet System Architect™ software.

Network Control and Monitoring is enabled by the JBL DP-DCP (DrivePack Device Control Panel) supplied

within HiQnet System Architect. Network capabilities include monitoring of status, input and output levels,

clipping, temperature, load faults and gain reduction. Additional control features available in software include

load supervision, dynamic processing, ten internal user dened presets, delays, onboard noise and sine-

wave generators, network device event logging, and user alert messaging.

CONTROLS

1) ENABLE ALT PRESET button

a) Momentary, Enables or Disables the selected

function. Factory ALT Preset:

On subwoofer applications, the subwoofer low-

pass lter frequency is set to 80 Hz and for full

range systems the high-pass is raised to 80 Hz.

(Knee shape and slopes are model dependent).

Internal Controls - Input Sensitivity 2-Position

Switch: Located on the back side of the front panel,

full output is achieved by selecting either +4 dBu

in one position or +20 dBu in the other position.

Switch positions are marked with silkscreen on the

PWB.

NOTE: Product is shipped factory set to the +20 dBu

switch position to provide optimal input gain structure

and headroom for most professional audio equipment.

Changing the sensitivity switch to the +4 dBu setting is not

recommended unless connection to -10 dBV equipment is

required.

INDICATORS

2) ENABLE ALT PRESET

a) Orange LED illuminates when the function is

enabled.

3) FAULT

a) Red LED illuminates during any fault condition.

4) THERMAL Protection

a) Orange LED illuminates during thermal limiting:

ai) FLASHING indicates rst stage of thermal limiting, amplier output level is reduced to prevent

overheating.

aii) SOLID illumination indicates thermal protection is in the second stage of protection and

amplier shut down may occur if immediate action is not taken to correct the external reason for

excessive heating of the amplier.

5) READY

a) Green LED, illuminates when the system is ready for operation

6) SIGNAL/CLIP

a) (Signal) Green LED, detects input signal above the threshold set at –70 dBu

b) (Clip) Red LED, Clip detection monitors input, DSP, and each amplier output channel. The LED

changes from Green to Red when clipping THD at any point is detected.

11) NETWORK 100MB ACTIVITY

a) The Activity LED indicates data activity on the network line.

12) NETWORK 100MB LINK

a) The LINK LED indicates that the data is at 100 Megabits.

13) DATA

a) Yellow LED Flashes for received data packet addressed to this DPAN device.

CONNECTORS

XLR connectors allow connectivity to an analog audio source. This input can be used as a back-up to

CobraNet® or as a primary audio source in the absence of CobraNet®.

8) AUDIO IN

a) F-XLR Active 20K Ohm Balanced, 10K Ohm Unbalanced.

b) Pin 2 Hot (Positive voltage produces outward cone motion of L.F. Transducers).

9) AUDIO OUT

a) M-XLR Passive Audio Pass-through.

b) Pin 2 Hot (Positive voltage produces

outward cone motion of L.F. Transducers).

10) HiQnet 100MB NETWORK Connector

a) The network connector is a standard RJ-45 connector that allows the DPAN to connect to an

Ethernet network. Connection is made using a standard Category 5 cable to a network switch port.

MAC ADDRESS WINDOW

14) The MAC address is a unique 12 digit hexadecimal hardware address assigned to every network

device by the manufacturer and is not changeable by the user. This unique physical address enables

each device on the network to identify and communicate directly with other devices connected to the

network.



























Figure 1c
