JBT Smart Lighting RC1006 Bleutooth Remote Control User Manual

Shenzhen JBT Smart Lighting Co.,LTD Bleutooth Remote Control

User Manual

Shenzhen JBT Smart lighting Co.,LTD
Page： 1 / 3
Specification
PRODUCT DESIGNATION: Bluetooth remote conerol
MODEL NAME：JBT_BLE_RC1006
ISSUE DATE：2016/05/17
Valid VERSIONS：A1
Add：No.7 Building,No.1 Furong Road,Furong Industrial Park,Shajing
Town,Baoan District,Shenzhen City China.
URL：www.jbtled.com
TEL：+86-755-66632166
FAX：+86-755-61821351
Shenzhen JBT Smart lighting Co.,LTD
Page： 2 / 3

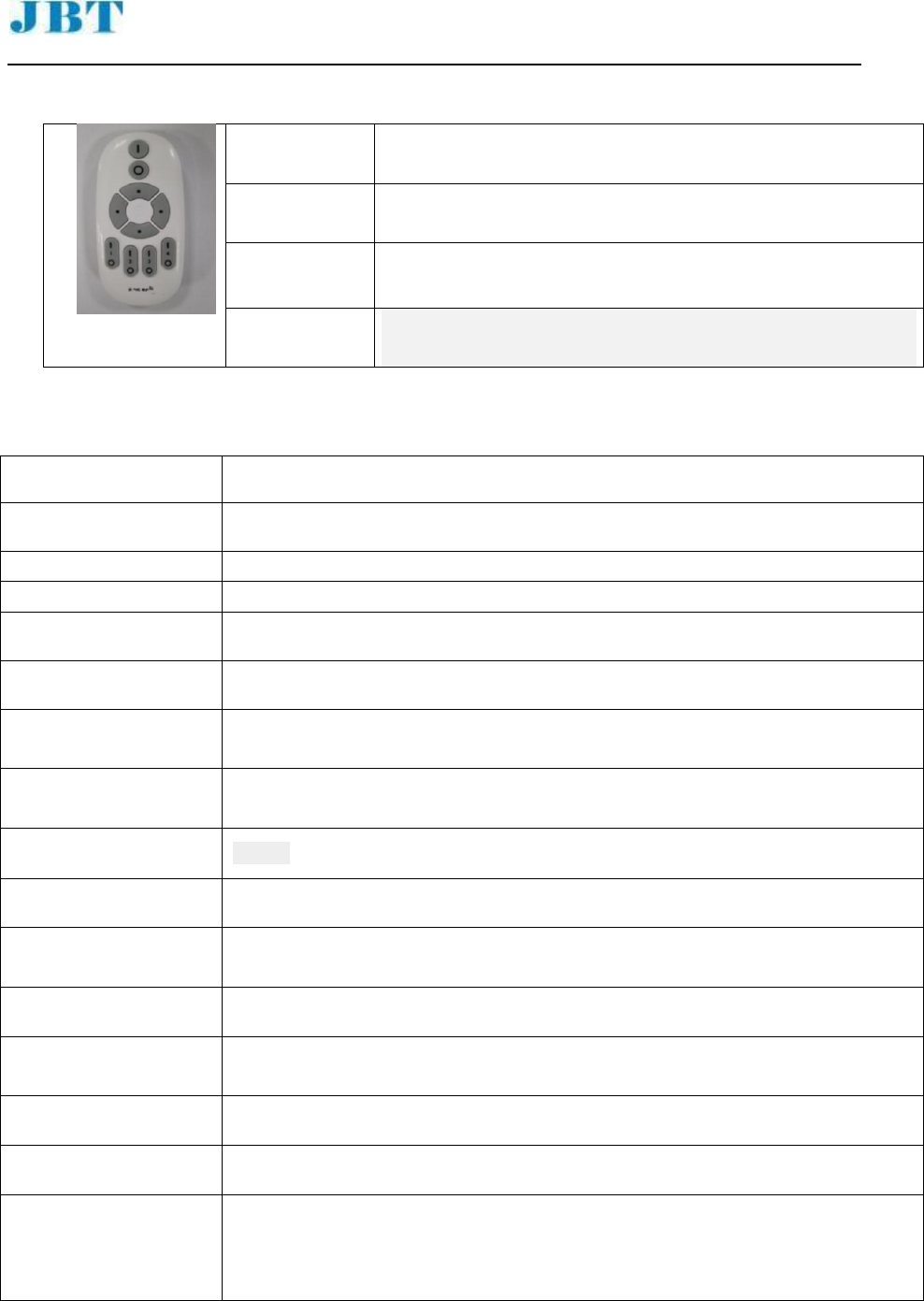

一、 Product appearance size and description：
Designation：
Bluetooth remote conerol
Model：
JBT_BLE_RC1006
product use:
Bluetooth control source \Luminaire
Function：
Bluetooth ,dimmer，CCT , Color , Music
Size： 110×52×22 mm(L×W×T)
二、 Products technical specification：
Operating voltage
3 v (two AAA batteries)
Operating voltage Min
Not less than 2.3 V
Quiescent current
<20uA
Operating current
<32mA
Bluetooth version
MESH
Encryption
Support for encrypted and unencrypted (determined by burning software)
Bluetooth control
distance
≥20M
Number of connections
1－1000 pcs
Number of connections
14 key
dimming level
11 levels (brightness)
Color temperature
level
Level 5 (warm white, cold white, mixed color) is determined by the lamp bead
parameters
Color level
R, G, B, etc. 12 kinds of color
Effective operating
hints
The red indicator on the panel prompt effective operation
Product size
110×52×22 mm(L×W×T)
The product weight
25 grams (including battery)
Function of form a
complete set of
product
The remote control can be to control the bluetooth products in conjunction with
smartphones
Shenzhen JBT Smart lighting Co.,LTD
Page： 3 / 3
三，The remote control key surface function of each key definition:：
三、 Each key-press functional description and instructions：
1,turn on the light/off button: press this button, turn on the light/is implemented to turn off the
lights.
2, increased brightness/brightness lower key: brightness changes from 5% to 5% and 100% to
5%.
3, high colour temperature/color temperature lower key: from the warm white, cold white,
warm white.
4, R/R dosage less button: press the add key, red light enhancement;Whereas weaken.
5 G weight increase/G weight reduced button: press the add key, the green light to
enhance;Whereas weaken.
6, B/B dosage less button: press the add key, blu-ray enhancement;Whereas weaken.
7, R - G - B positive cycle/reverse circulation changes button: when changes continue to press
forward key, the current will display colors by R - G - B gradient, when the color of the gradient
to the required, loosen the button to display the current color;Press reverse cycle changes, the
cyclic display color is the opposite of the above.
A total of 12 kinds of color display.Shown in the reference color in the order: red, orange,
yellow, green, light green, green, indigo, blue, shallow blue, blue, violet, pink, rosy, etc. 12
kinds of gradual change color.Each key press the positive cycle, jump down a kind of color,
and so on.
8, press the next button, each panel in the middle of the indicator light flashing, prompt issued
instructions.When press the button, indicator light not reaction, should replace the battery in
time.

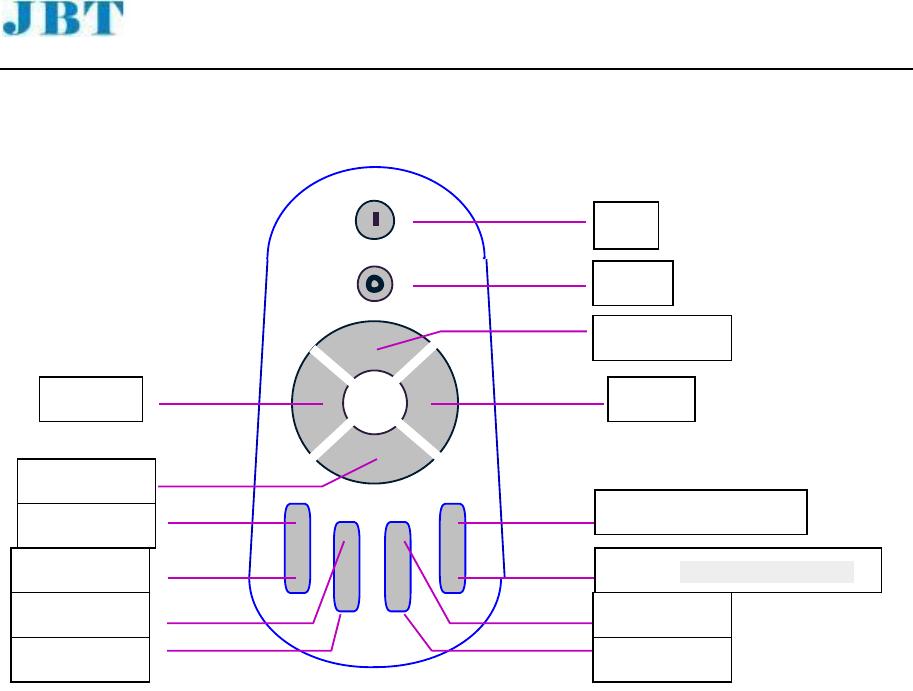

ON
OFF
DIMMER+
DIMMER-
CCT+
CCT-
R+
R-
G+
G-
B+
B-
R-G-B Positive cycle
R-G-B Reverse circulation
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment. This device complies with Part
15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
