JET OPTOELECTRONICS 30101ABOX00 FM Transmitter User Manual
JET OPTOELECTRONICS CO.,LTD. FM Transmitter
user manual
一、 Wiring
：Power Supply 12~16 DCV
MODULE Connection instructional diagram
1 This product is car audio and video control box
2 Recommendations Please installation by professional technicians
3 Will pick a good line monitor A and monitor B、
each placed within the head restraint is being co-pilot。
4 Will take a good line Ccontrol Box，
Placed in the bottom of the co-pilot seat chairs。
1
3010-1A User’s manual
二、Explanation & Specification：

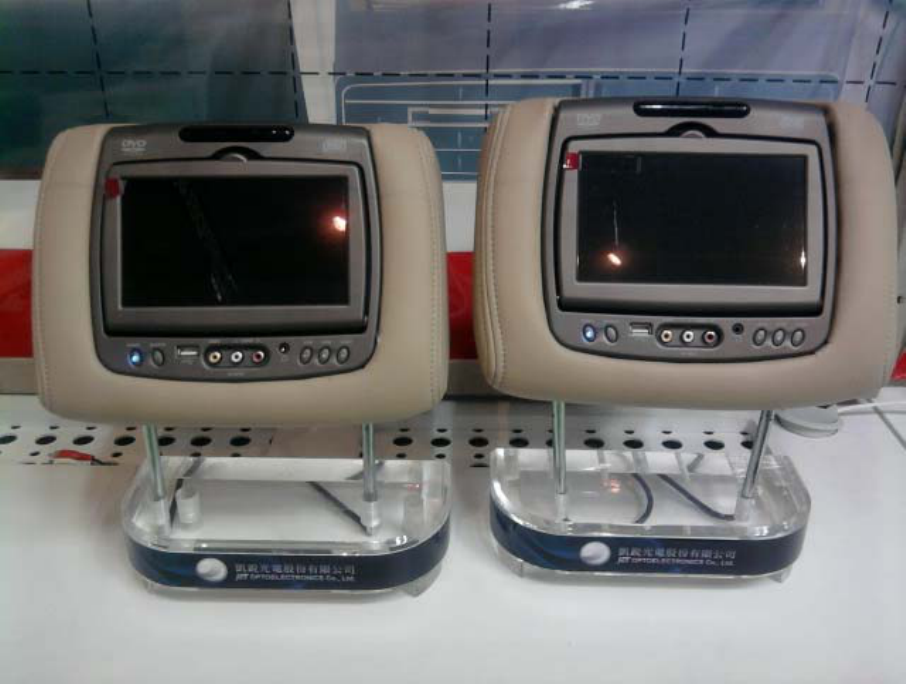

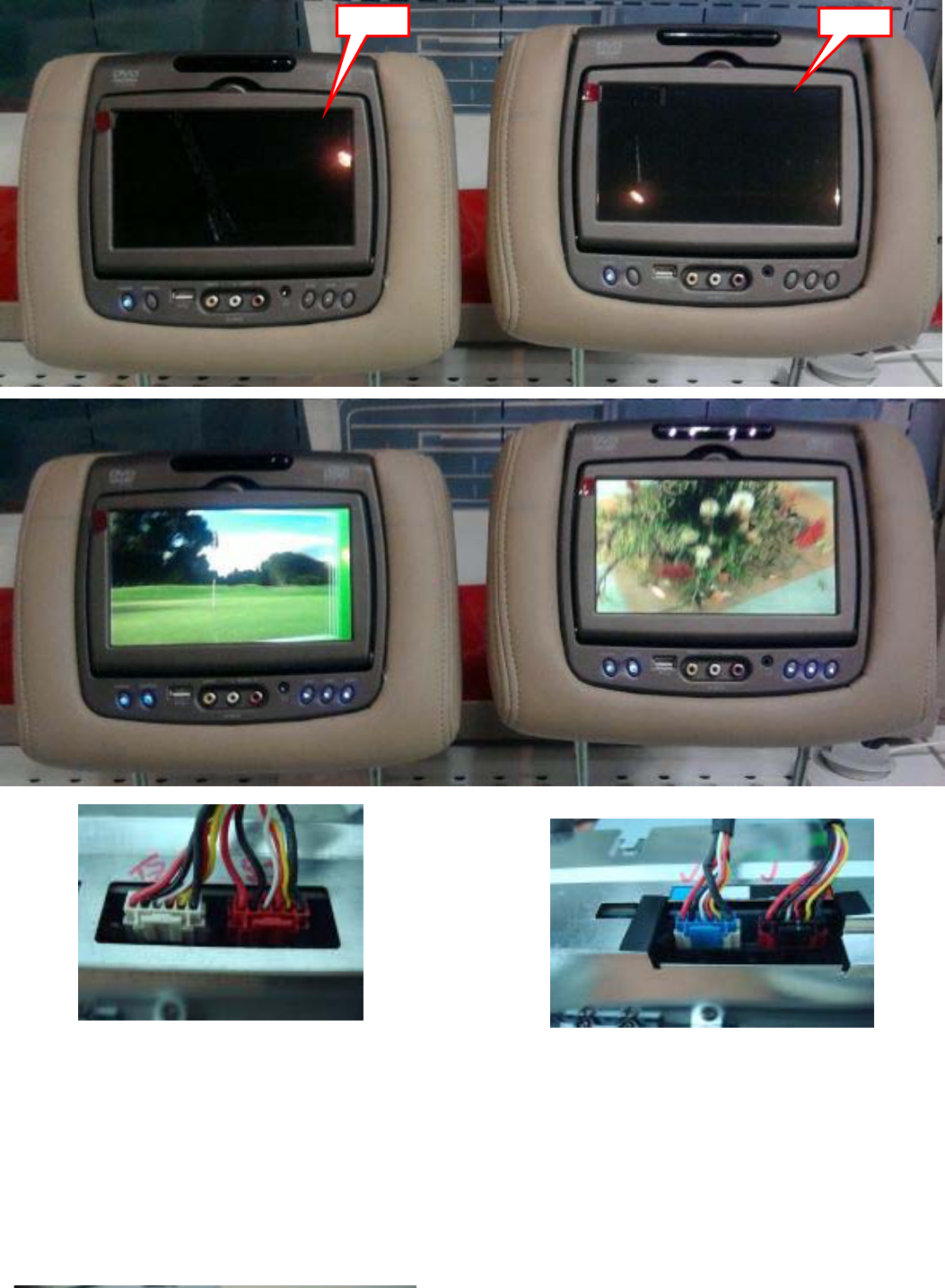

Monitor A Monitor B
2
Monitor A Monitor B
To Power supply DCV：12V~16V
To Monitor A Red Connector Power & AV Output
To Monitor A White Connector AV Input & I2C
To Ear phome Audio Aux Output
FM Transmitter frequency ： 88.3MHz ~107.7 MHz
FM Modulator IC (Quintic) ： SMD QN8007B QFN24
3
WIRE CABLE FUNCTION NAME
GRAY
1
2BLACK
To Monitor B Blue Connector AV Input & I2C
To Monitor B Black Connector Power & AV Output
To FM Antenna Output 88.3 MHz ~107.7 MHz
Gray Connector
Power Supply
Black Connector
Black Antenna
三、 Operating Instructions
A. POWER ON/OFF
1. Press the Power key, opened the Monitor A and Monitor B. The look at the screen is normal

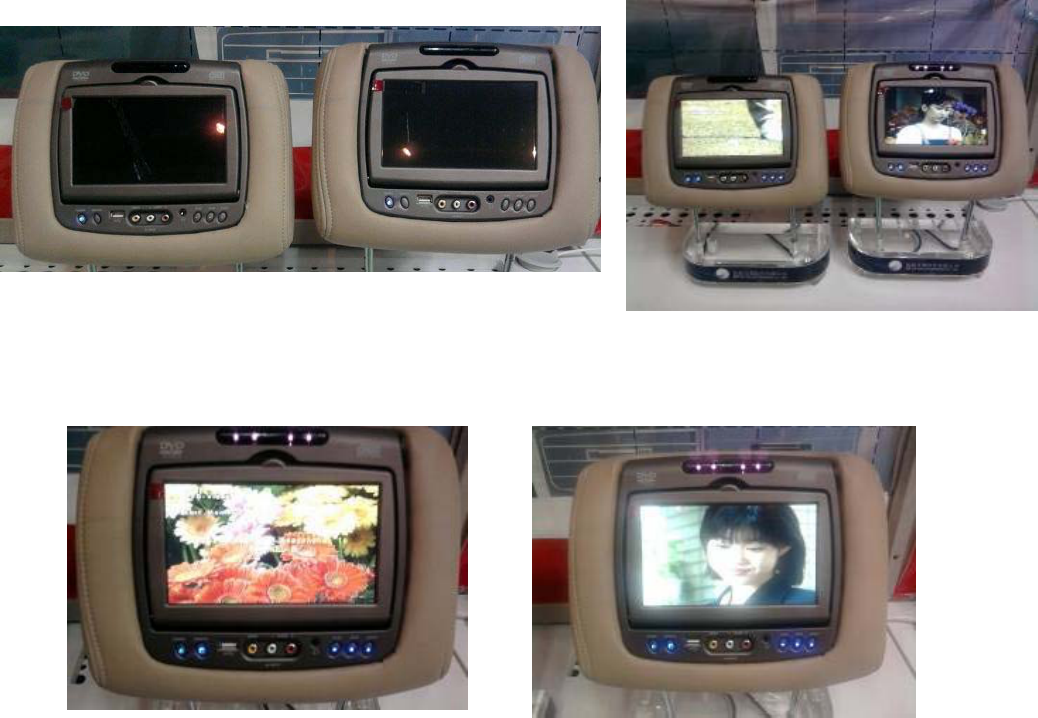

B. Monitor A SOURCE button to switch the screen (Monitor A.Monitor B. AUX. TV).
Or press the Monitor B SOURCE button to switch the screen (Monitor B. AUX. TV.Monitor A).
To each other to see the picture and sound are normal.
C. FM Modulator Playback
1
2
The radio automatically search the radio to find the same with the Monitor A channel.
Listen to the radio, the sound is clear with or without noise or interference
(AUDIO sound source only from the Monitor A)
4
To listen to the audio portion of the viewed source though the vehicle’s
stereo system aim the remote at the driver’s side monitor and simply press the
can be changed by pressing the Sound Around (Select) button on the remote. Tune the vehicle’s
radio to the corresponding station to listen to the source that is displayed
frequency as follows:
the Driver's side headrest will now be audible through the vehicle's stereo. If a
different audible source is desired, press the Sound Around (ON / OFF) button again to select
Fm output ON and OFF. Once the desired audible source
has been selected, the transmitting frequency the FM modulator transmits on
Sound Around (ON / OFF) button to turn the FM modulator on. The screen will now display
FM SOURCE: Monitor A . The Audio portion of the source originating from
on the driver’s side monitor.

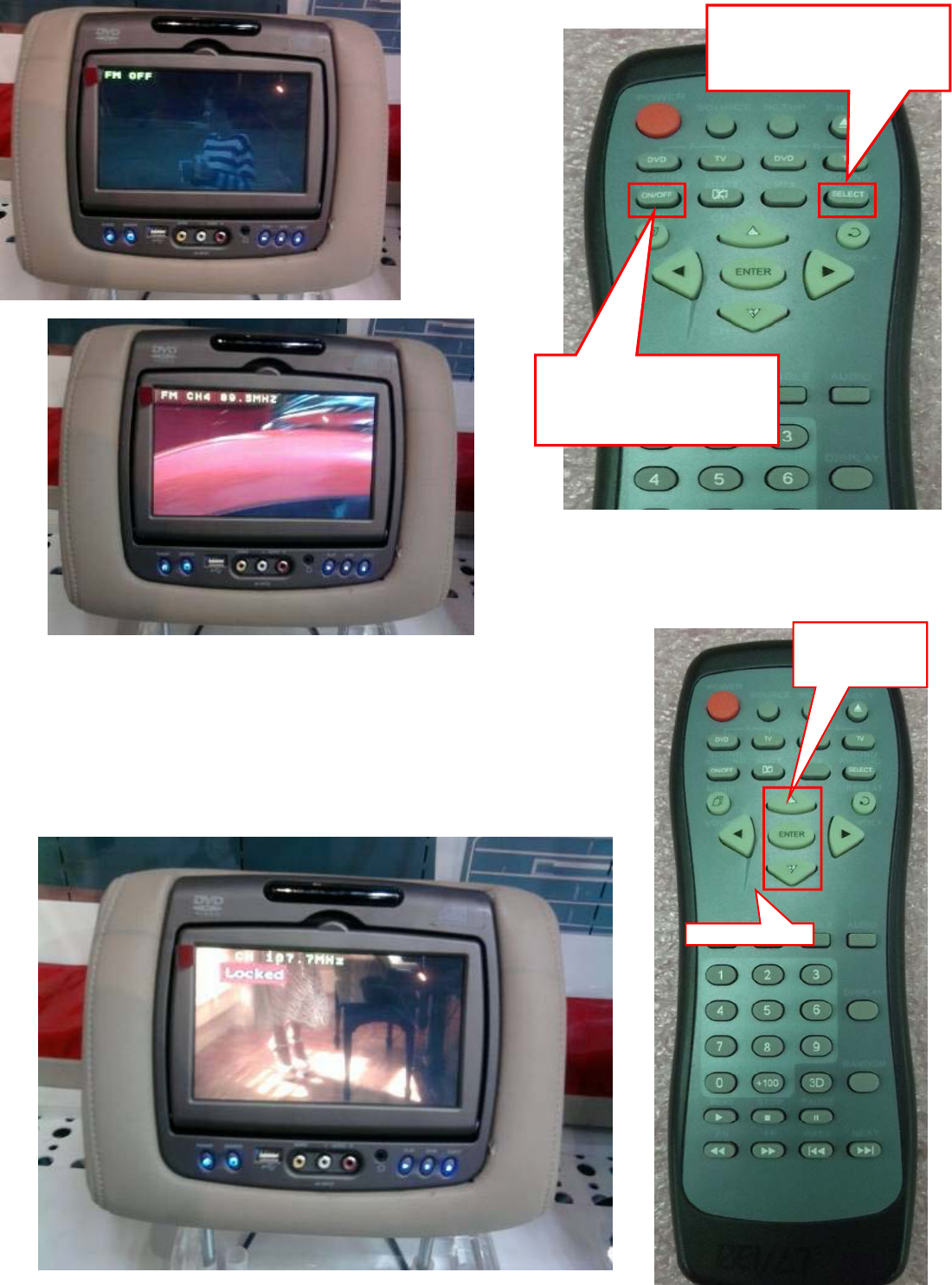

To change the transmitting frequency, aim the remote at the driver’s side
monitor and press the Sound Around (Select) button. Each press of the button advances the
(1. 88.3， 2. 88.7 , 3. 89.1 , 4. 89.5 , 5.89.9 , 6.90.3MHZ Circulating).
3And then CH + / CH-(UP / DOWN) key, press the remote control
the Sound Around (SELECT) button to start the FM the OSD Office.
Each time you press a frequency increment or decrement 200KHZ.
The whole frequency range of FM of CH 88.3 to FMCH 107.7MHZ.
Using full-frequency (before 88.3 , 99.5 , 107.7 three)
radio must also channel the correct position.
5
Sound Around (ON/OFF)
Sound Around (SELECT)
CH+/CH-
(UP/DOWN)
按壓一次跳200KHZ
4When you want to leave when not in use,
Press the power the key to turn off the Monitor A and Monitor B Power.
5This video product is designed and intended for positioning in back seating
areas of a vehicle where it cannot be viewed directly or indirectly by the driver
and possibly cause him/her to be distracted from the task of operating the
vehicle. Driver distraction is a major cause of accidents and for this reason
many states specifically prohibit the viewing of motion video within view of the
driver while the vehicle is in motion.
The REV-LT system features auxiliary component RCA input jacks on the
A/V Control Module. Devices connected to this input can be viewed on
either screen (independently or simultaneously), as well as output through
the vehicle stereo via the 3010-1A Control Box FM Transmitter. To view this input press
the SOURCE button until EXT. AUX is displayed.
NOTE: Consult your installer to determine how to access this input.
6
