JET OPTOELECTRONICS 3010DABOX00 3010-DA Control Box User Manual
JET OPTOELECTRONICS CO.,LTD. 3010-DA Control Box Users Manual
Users Manual
3010-DA

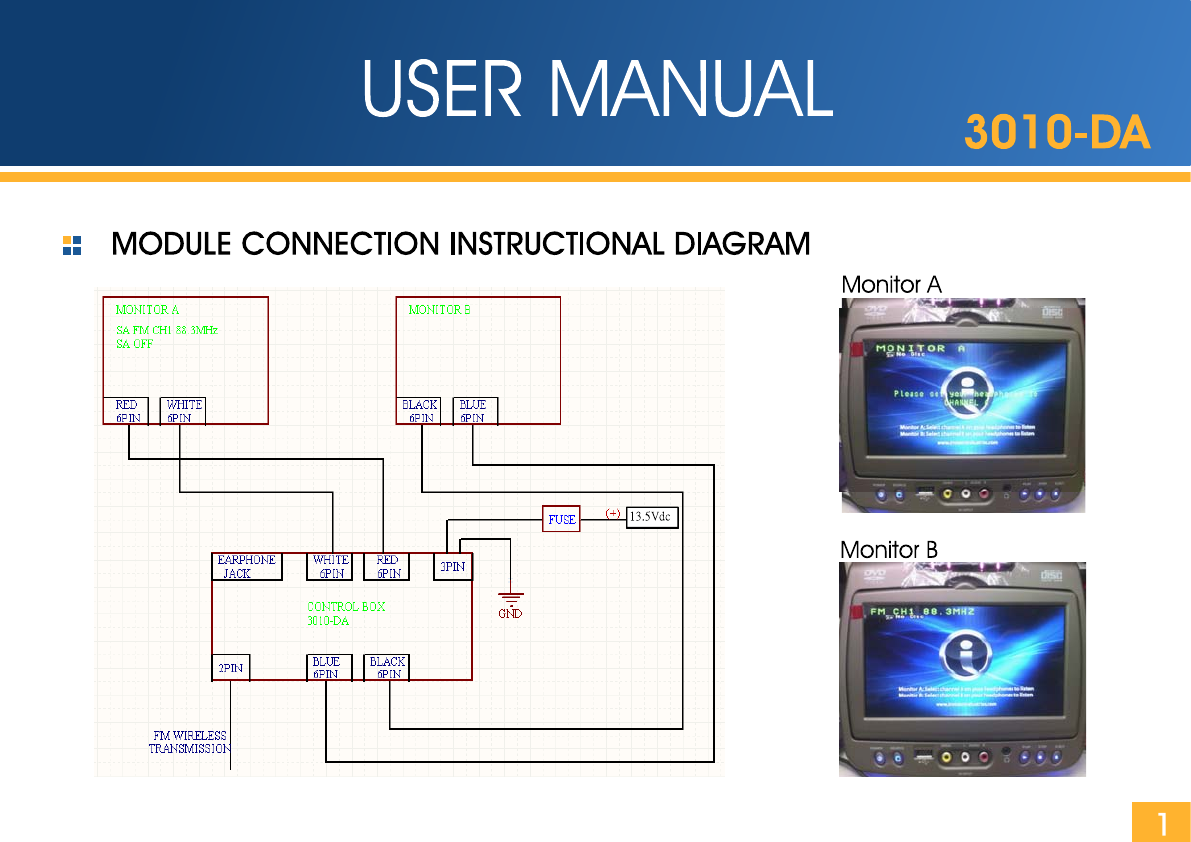

EXPLANATION & SPECIFICATION

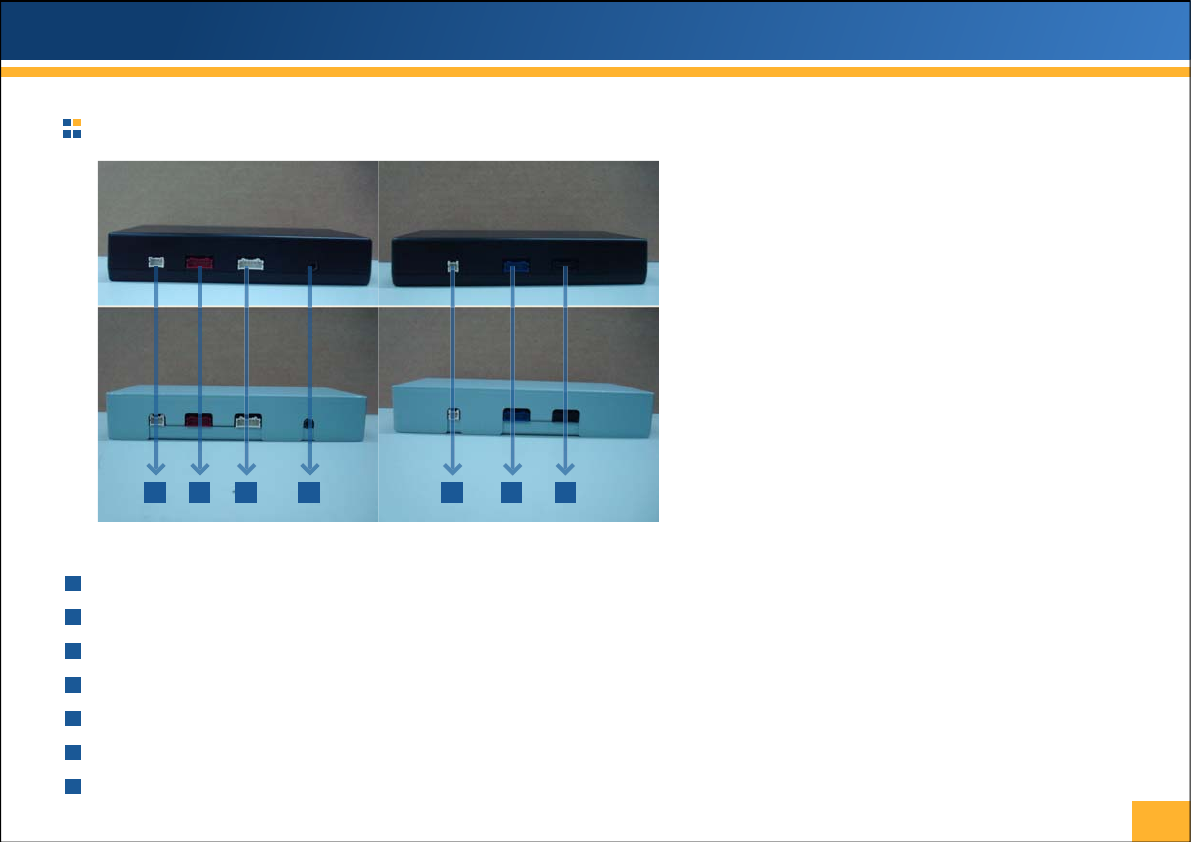

1 2 3 4 5 6 7
To Power supply DCV：10V~16V
To Monitor A Red Connector Power & AV Output
To Monitor A White Connector AV Input & I2C
To Ear phome Audio Aux Output
To FM Antenna Output 88.3 MHz ~107.7 MHz
To Monitor B Blue Connector AV Input & I2C
To Monitor B Black Connector Power & AV Output
1
2
3
4
5
6
7
2
3010-DA
3
