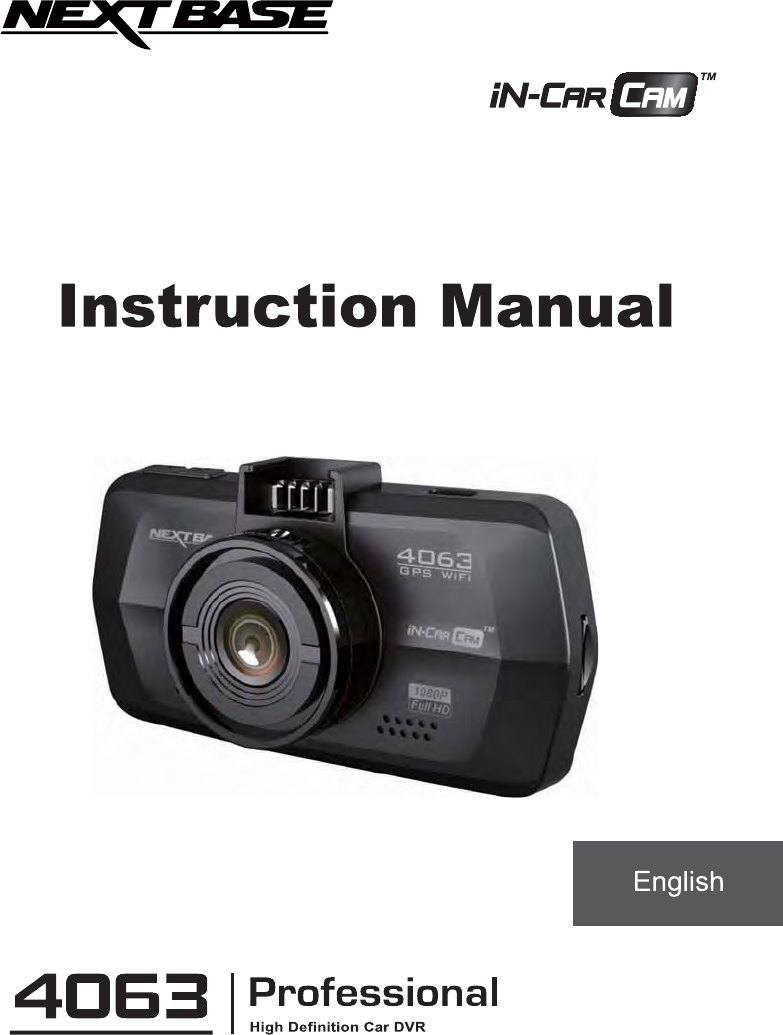

JET OPTOELECTRONICS NBDVR4063 In-Car Cam User Manual NBDVR402G IM EN DE A1 DRAFT R4

JET OPTOELECTRONICS CO.,LTD. In-Car Cam NBDVR402G IM EN DE A1 DRAFT R4

User manual

TABLE OF CONTENTS
PRECAUTIONS ........................................................................................................................ 01
PRODUCT SPECIFICATION
PACKAGE CONTENTS
PRODUCT FEATURES
CONTROLS
INSTALLATION
VIDEO MODE
PHOTO MODE

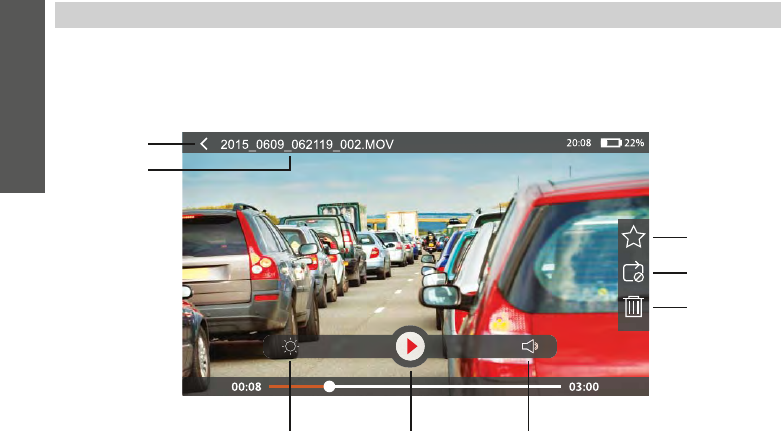

PLAYBACK MODE
VIDEO PLAYBACK
PHOTO PLAYBACK
DRIVING RECORDER PLAYER INSTALLATION
INSTALLATION FOR WINDOWS
INSTALLATION FOR MAC

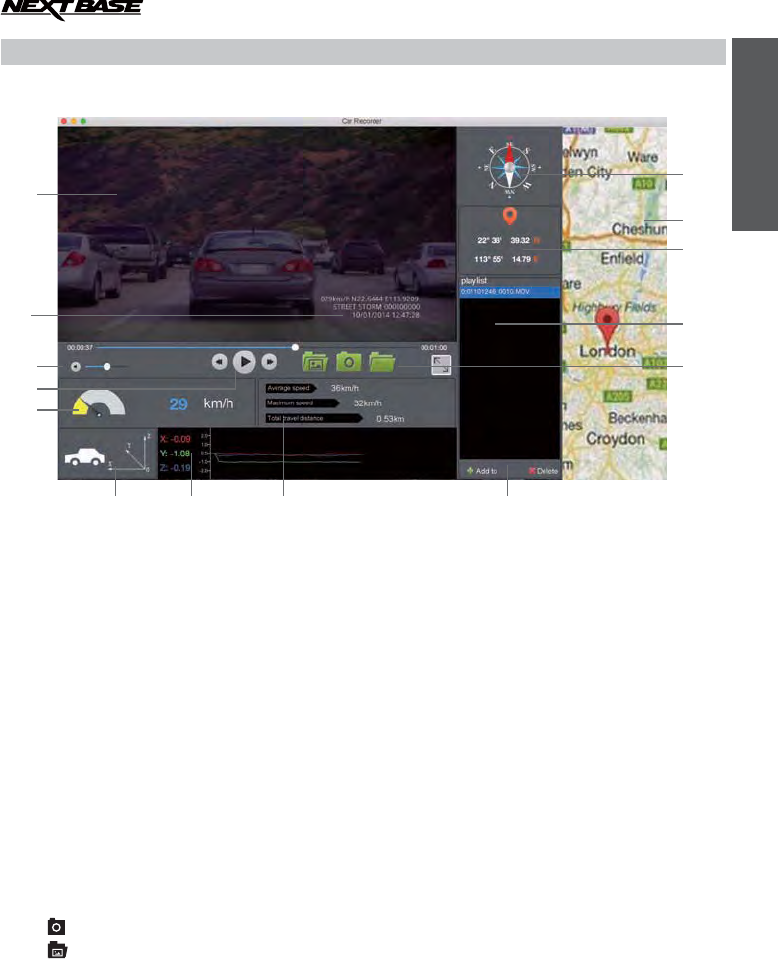

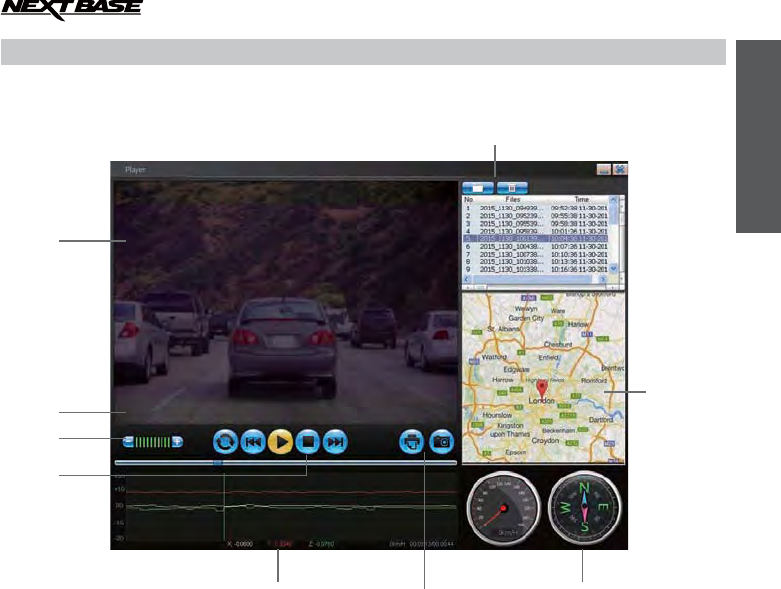

DRIVING RECORDER PLAYER FOR WINDOWS
DRIVING RECORDER PLAYER FOR MAC
MENUS AND SETTINGS
VIDEO MODE
PHOTO MODE
PLAYBACK MODE
SETUP MENU
PC CONNECTION
MAC CONNECTION
VIDEO & AUDIO OUTPUT
....................................................................................................
............................................................................................................
............................................................................................................
..............................................................................................................................
.........................................................................................................................
...........................................................................................................................
.........................................................................................................................
...............................................................................................................
.............................................................................................................
.........................................................................................
...................................................................................................
...................................................................
.............................................................................
.......................................................................................................................
.....................................................................................................................
...............................................................................................................
.......................................................................................................................
....................................................................................................................
.................................................................................................................
.
.
02
03
03
04
05
06
07
08
08
09
09
10
12
13
14
14
15
16
16
HIGH DEFINITION OUTPUT............................ .................................................................... 16
STANDARD DEFINITION OUTPUT ................. .................................................................... 16
TROUBLING SHOOTING .................................... .................................................................... 30

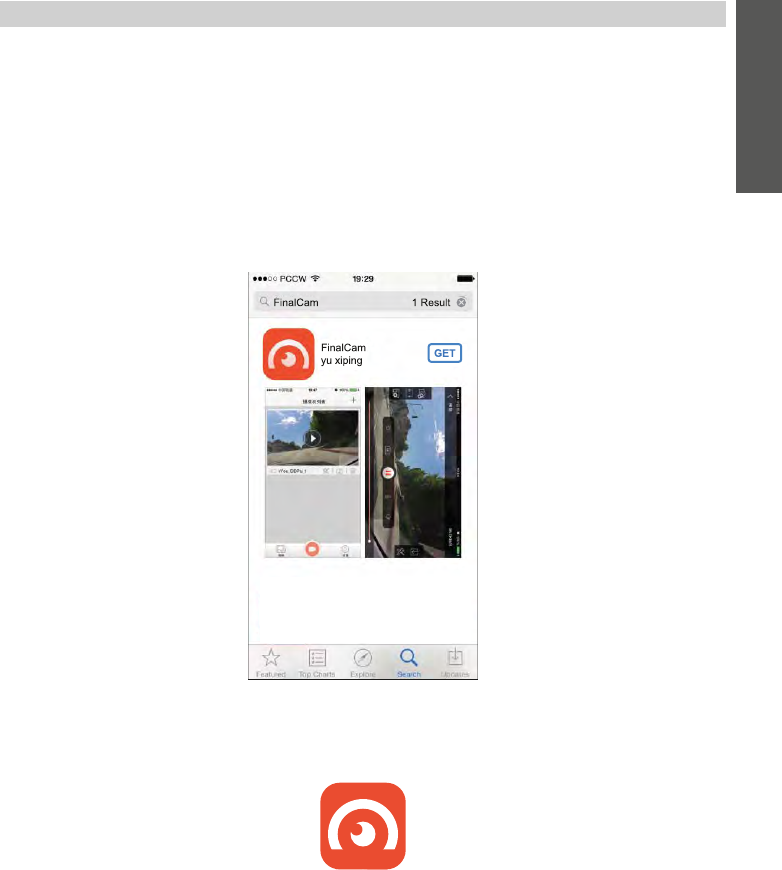

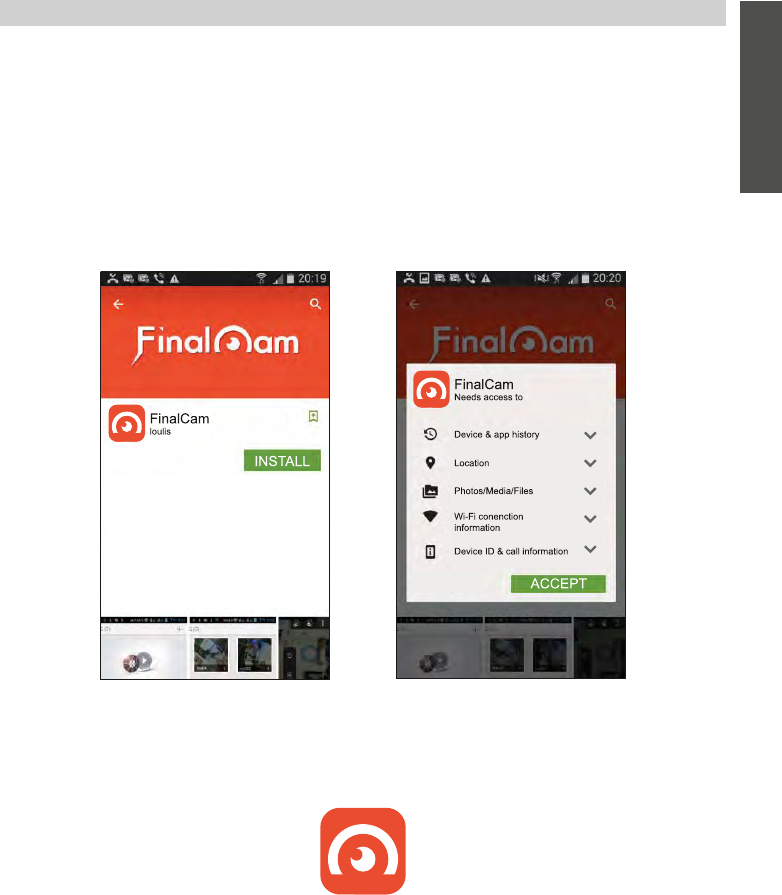

FINALCAM(Wi-Fi)APP FOR ANDROID & IOS
......................................................................................
17
PRECAUTIONS
CAUTION:
LCD:
DO NOT ATTEMPT TO SERVICE THE UNIT BY YOURSELF!
WEEE: Disposal of Waste Electrical and Electronic Equipment and/or Battery by users in
private households in the European Union.
This symbol on the product or on the packaging indicates that this can not be dispose of as household
waste. You must dispose of your waste equipment and/or battery by handing it over to the applicable
take-back scheme for the recycling of electronic equipment and/or battery. For more information please
contact your local household waste disposal office.
A Liquid Crystal Display (LCD) screen is a multilayer complex component, containing 691,200 pixels.
Pixels can however fail during normal product life. 1 pixel = 0.00014% failure rate, and one pixel
failures per year of operation is considered normal and not a cause for concern.
To reduce the risk of electric shock, do not perform and servicing other than that contained in the
instruction manual unless you are qualified to do so.
Have the unit serviced by a qualified service technician if;
The Unit has been exposed to rain or water.
The unit does not seem to operate normally.
The unit exhibits a marked changes in performance.
WARNING: Do not expose this product to rain, moisture or water under any circumstances, doing so may result in
the risk of electric shock of fire.
Please read this manual carefully before operation and keep it for future reference. It will be helpful should you
encounter any operational problem.
English
01
..................
MASS STORAGE & PC CAMERA 29
......................................................................................
0RGHO1XPEHU1DPH
3RZHU5HTXLUHPHQWV
3RZHU6XSSO\
6HQVRU5HVROXWLRQ
/HQV7\SH$QJOH$SHUWXUH
5HFRUGLQJ5HVROXWLRQ0D[
6FUHHQ6L]H
6FUHHQ5HVROXWLRQ
6FUHHQ5DWLR
&DUG5HDGHU
6'&DUG
5HFRPPHQGHG7\SH
6'&DUG5HFRUGHG)LOH
&DSDFLW\
EDVHGRQGHIDXOWVHWWLQJV
5HFRUGLQJ)RUPDW
9LGHR2XW
,QWHUQDO%DWWHU\
8QLW'LPHQVLRQV
8QLW:HLJKW
1%'9540631(;7%$6(L1&$5&$0
92$86%VRFNHW
9GF&DU3RZHU&DEOHVXSSOLHG
)XVH7\SHPP*ODVV)DVW%ORZ$
2XWSXW9GF
03L[HO3L[HO
*5)
[#ISV

:;+SL[HOV[5*%

0LFUR6'&ODVV 64*%
64*%&ODVVPEVEUDQGHGQRWVXSSOLHG

*%0LFUR6' PLQVRIUHFRUGLQJ
*%0LFUR6' PLQVRIUHFRUGLQJ
*%0LFUR6' PLQVRIUHFRUGLQJ
64GB Micro SD = 480mins of recording
029
+LJK'HILQLWLRQ7\SH&6RFNHW9LGHR$XGLR
6WDQGDUG'HILQLWLRQPP-DFN9LGHR$XGLR
/LWKLXPLRQ926P$KDSSUR[30PLQVUHFRUGLQJWLPH
%DWWHU\GHVLJQDOORZVWKH$XWR3RZHU2IIIHDWXUHWRIXQFWLRQLQ
HYHQWRISRZHUORVVZLWKLQWKHYHKLFOH,WLVQRWLQWHQGHGDVDQ
DOWHUQDWLYHSRZHUVRXUFHWRUHSODFHWKHVXSSOLHGFDUDGDSWRU
95.0[49.81[30.23PP
89J
352'8&763(&,),&$7,21
2

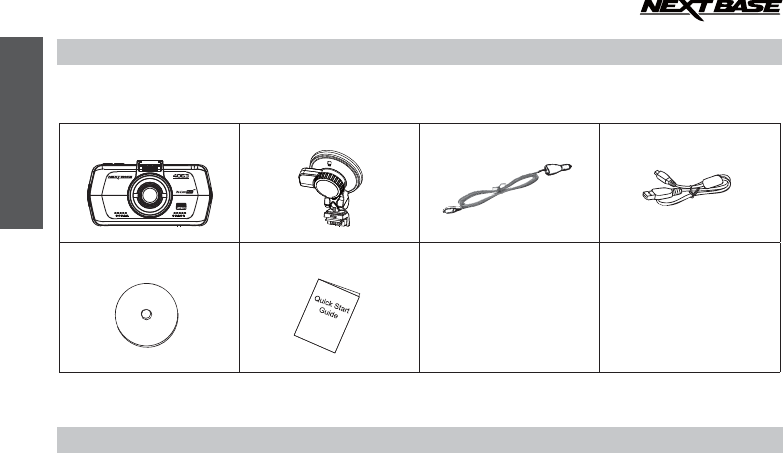

PACKAGE CONTENTS
Please check the contents of your iN-CAR CAM product package. The actual products might appear slightly different
from the pictures shown below.
PRODUCT FEATURES
Thank you for purchasing this NEXTBASE iN-CAR CAM product, in this section we will outline some of the features
available with this device.
2.7" 16:9 LCD Colour Screen
Large screen for ease of use and viewing the playback of both videos and photos.
2.0M PIXEL CMOS Sensor
Provides high quality recording up to 1920 x 1080P Full HD.
150° Wide Angle Lens
Wide angle lens to allow best possible recording of the vista ahead.
Wi-Fi
Support for smartphone connectivity, wireless download record file to smartphone.
GPS Logger
GPS co-ordinates, date and time are recorded, the journey can then be viewed on map using the supplied PC / MAC
playback software.
G Sensor / File Protection
In the event of an impact the device will automatically 'protect' the recording stopping the file from being over-written.
Individual files can also be 'protected' when viewed within playback mode.
Still Camera
Take still images with a variety of options / settings available.
Auto Shutdown Timer
Select how long you would like the device to continue recording once power has been removed.
Built-in Microphone & Speaker
Record audio to compliment the video recordings.
Motion Detection
The device will detect motion and start recording automatically, useful for car park surveillance.
Note: iN-CAR CAM needs a permanently live power source for this feature to function
High Definition Output
View files directly from your device using the supplied High Definition cable to an external screen.
Windows is a registered trademark of Microsoft Corporation in the United States and other countries.
Mac is a trademark of Apple Inc
2012 Google Inc. All rights reserved. Google Maps™ is a trademark of Google Inc..
03
iN-CAR CAM Mount Car Power Cable USB Cable
Quick Start GuideInstallation Disk
English

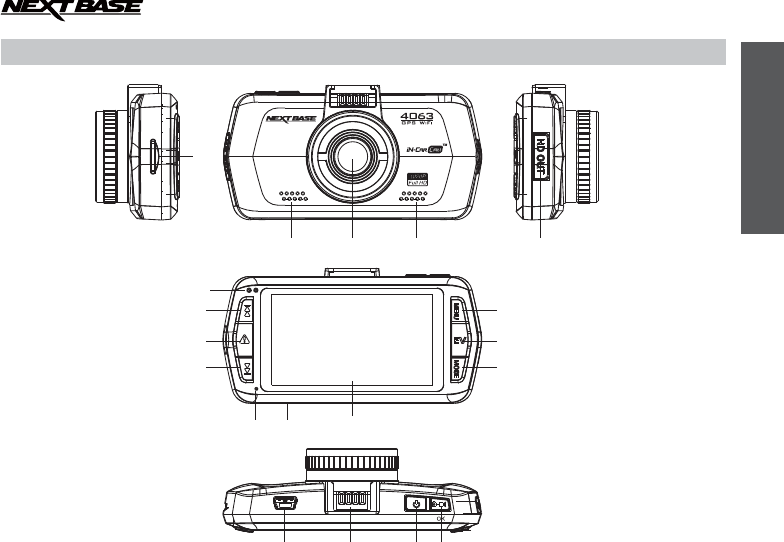

CONTROLS
1.
Insert MicroSD memory card here.
2. LENS
. SPEAKER
. HD OUT SOCKET located under dust co er
For use with High Definition Cable.
5. RESET
Press to reset the iN-CAR CAM.
6. LED INDICATOR
7. UP
Press to navigate up within menus and to move
to the next file when in playback mode
MEMOR CARD SLOT located under dust co er 9. MICROPHONE
10. DOWN
Press to navigate down within menus and to move
to the previous file when in playback mode.
11. LCD SCREEN
12. MENU
Press to open the Menu within current mode.
Press twice to open the Setup menu.
1 . EXPOSURE E
Press to toggle through exposure settings.
1 . MODE
Press to select: Video / Photo / Playback modes.
15. MINI USB 2.0 SOCKET
Connect car power cable / USB cable here.
16. MOUNTING POINT
Attached supplied windscreen mount here.
17. POWER
Press and to turn on/off the iN-CAR CAM.
1 . START/STOP & OK
Press start,stop a recording or to confirm selection.
ne touch button to protect current file in event
an emergency situation.
. SOS FILE PROTECTION
04
1
323
11
12
13
1
11118
8
10
9
1. Discharging without car charger: When recording the
red light flash, when no video has red light bright, blue
light has is off.
2. With car recharging: red light flashing when recording,
blue is bright. when there is no recording: red and blue
lights bright together mixing When the battery is fully
charged, blue light
3. Low voltage warning red light has been light
. ff Charging: Blue light has been light, the red light is off
. Shutdown full: No lights bright
English

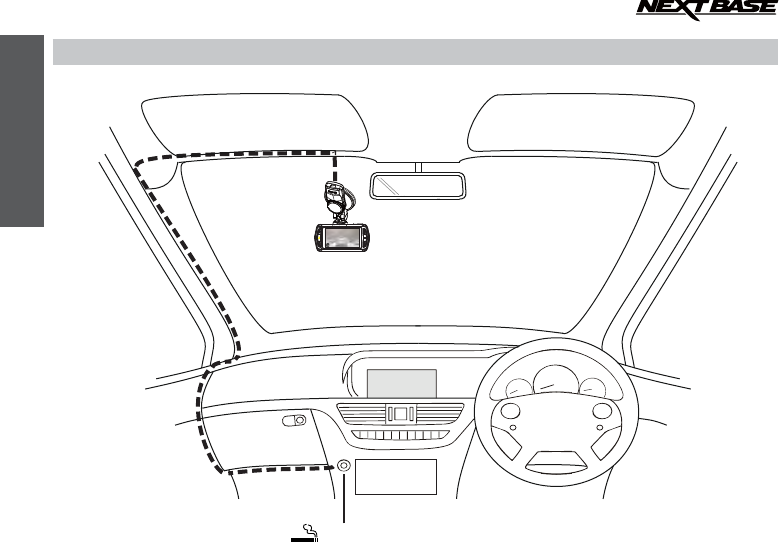

INSTALLATION
1. pen dust cover and i
gold contacts facing the back of the device . Push the memory card until it clicks into place and close dust cover.
Do not remove or insert the memory card when the iN-CAR CAM is turned on. This may damage the memory card.
2. Attach the device to the supplied windscreen mount, taking care the locking tab has clicked firmly into place.
3. Remove the protective plastic film from the suction pad. Select required position for the windscreen mount and
clean windscreen with a dry / clean cloth to achieve good contact between the glass and mount. While holding the
suction cup onto the glass push the locking lever upwards to secure the mount to the windscreen.
Please ensure that once mounted the iN-CAR CAM is located within the area of the vehicles windscreen wipers to
maintain a clear view during rainfall.
. The angle and position of the iN-CAR CAM can be adjusted by loosening the locking clamp and moving as required,
remembering to re-tighten the clamp.
. Connect the car adaptor to mini-USB socket of the iN-CAR CAM and then plug the supplied car adaptor into the
12-2 Vdc outlet of your vehicle. The device will automatically power on and start recording once power is available.
In some vehicles this will be when connections are made, for others the device will power on once the ignition has
been turned on.
N TE:
our iNCAR-CAM is shipped with the Screen Saver function set to Default FF. This is for ease of initial setup.
nce setup is complete, the screen saver should be set to 1 seconds, in order to blank the screen completely
whilst driving. This avoids any potential distraction and may be a legal requirement in some countries.
It is recommended to position your iNCAR-CAM on the passenger side of the car, behind the rear view mirror, as
shown above. Whilst the camera needs to be located in a position within the wiper swept area, do not allow the
camera to obstruct your vision of the road ahead. Recommended position is no more than 0mm within the wiper
swept area. Do N T mount the camera directly in front of the driver.
Do not place the iN-CAR CAM in such a way that it may interfere with the deployment of air bags or other safety
equipment.
Do not operate the unit while driving.
To reduce the risk of theft, remove the unit and the mount from your vehicle, or position out of sight, before
leaving your vehicle unattended.
In vehicles where the 12V / 2 V output remains on when ignition is turned off please disconnect the device when
not in use.
The supplied car adaptor has a m long cable to allow cable to placed neatly within the vehicle.
First time use of the device will require the Time and Date to be set. See Page 10 for details.
nsert a suitable memory card in to the device, taking care to follow correct orientation markings
The above diagram is f .or illustration purposes only
12-2 DC
English
05
IDEO MODE
The Video menu is accessed by using the MENU button located on the rear of the use the UP and
D WN buttons to navigate through the Menu and press the button to enter the options screen. Select the
required setting press to confirm, press MENU once more to exit the Video Menu.
The default settings within the iN-CAR CAM have been set to allow you to use the iN-CAR CAM without the need to
change any settings, however it is recommended that you explore these settings to familiarise yourself with the
product and it s capabilities.
Note:
Within the SETUP menu which is accessed from within any mode by pressing the MENU button twice, there is
a Default Setting option to allow you to reset the iN-CAR CAM to the factory defaults if required.
iN-CAR CAM,

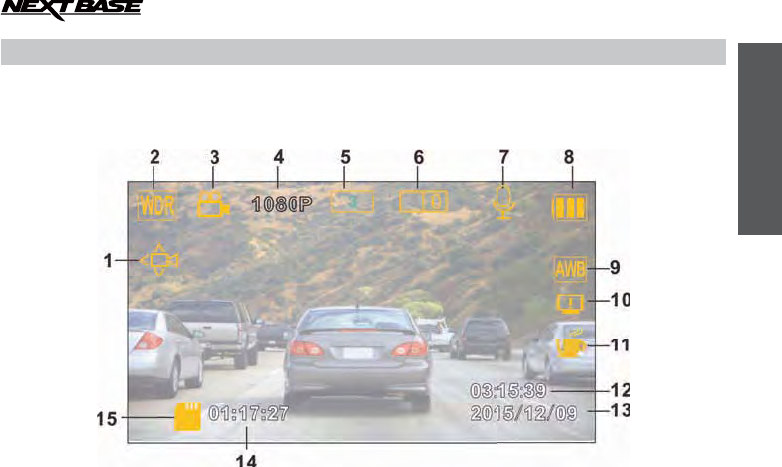

The key below explains the various information displayed on the screen when your iN-CAR CAM is in Video mode,
some icons will only be displayed once the relevant function has been selected within the Video menu, as described
further down this page.
WDR Icon: Remains on screen as iN-CAR CAM utilises WDR technology.
Resolution: Displays the current resolution as selected from within the Video menu.
Loop Recording Icon: Displays current recording chunk time setting as selected from within the Video menu.
Exposure Icon: Displays current exposure setting as selected from within the Video menu.
Microphone Icon: Displayed on screen when Audio Recording is selected from within the Video menu.
Battery Indicator: Displays battery level, it is recommended to keep the car adaptor plugged in during use.
Motion Detection Icon: This icon appears if motion detection is switched on from within the Video menu.
1.
2. Video Mode Icon: Indicates the iN-CAR CAM is in Video mode.
3.
.
.
.
.
8.
White Balance Icon: Displays White Balance setting as selected from within the Video menu.
Compass / Speed Display Icon: Shown on screen when function has been turned on within the Video menu.
Driver Fatigue Icon: Shown on screen when function has been turned on within the Video menu.
Time: Displays current time as set within the Setup menu.
Date: Displays current date as set within the Setup menu.
Recording Time: Displays the length of current recording.
Memory Card Icon: Icon will be marked with a red cross when there is no memory card inserted.
9.
10.
11.
12.
13.
1.
1.
English
06

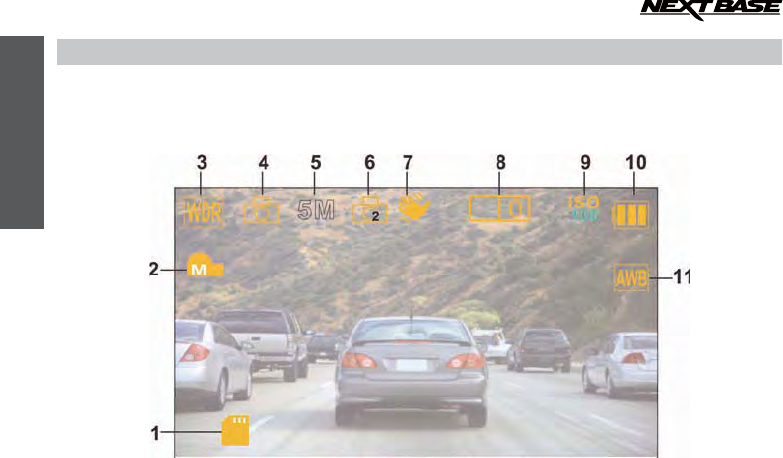

PHOTO MODE
The key below explains the various information displayed on the screen when your iN-CAR CAM is in Photo mode,
some icons will only be displayed once the relevant function has been selected within the Video menu, as described
further down this page.
The Photo menu is accessed by using the MENU button located on the rear of the iN-CAR CAM, use the UP and
D WN buttons to navigate through the Menu and press the button to enter the options screen. Select the
required setting press to confirm, press MENU once more to exit the Photo Menu.
The default settings within the iN-CAR CAM have been set to allow you to use the iN-CAR CAM without the need
to change any settings, however it is recommended that you explore these settings to familiarise yourself with the
product and it s capabilities.
Note:
Within the SETUP menu which is accessed from within any mode by pressing the MENU button twice, there is
a Default Setting option to allow you to reset the iN-CAR CAM to the factory defaults if required.
Memory Card Icon: Icon will be marked with a red cross when there is no memory card inserted.
WDR Icon: Remains on screen as iN-CAR CAM utilises WDR technology.
Photo Mode Icon: Indicates the iN-CAR CAM is in Photo mode.
Resolution: Displays the current resolution as set within the Photo menu.
Capture Mode Icon:
Anti-Shaking Icon: Displayed on screen when Anti-Shaking is active, when function is ff the icon will be
marked with red stop sign.
Exposure Icon: Displays current exposure setting as selected from within the Photo menu.
IS Icon: Displays the current IS setting as selected within the Photo menu.
Battery Indicator: Displays battery level, it is recommended to keep the car adaptor plugged in during use.
White Balance Icon: Displays the current White Balance setting as selected within the Photo menu.
uality: Displays the current image quality as set within the Photo menu.
Displayed on screen when Capture Mode timer is selected from within the Photo menu.
1.
2.
3.
.
.
.
.
8.
9.
10.
11.
English
07
PLA BACK MODE
PHOTO PLA BACK
Photo Playback Icon: Indicates the iN-CAR CAM is displaying a photo in the Playback mode.
Protected File Icon: Displayed when a photo file has been protected by selecting Protect from within the
playback menu.
File Number: Displays current file number.
Resolution: Displays the si e of current photo.
File Date: Displays date current file was recorded.
File Time: Displays start time current file was recorded.
1.
2.
3.
.
.
.
Recommended PC playback software, required for Windows when no internet connection is available:
uickTime free download from www.apple.com/uk/quicktime/download
VLC Media Player free download from www.videolan.org/vlc

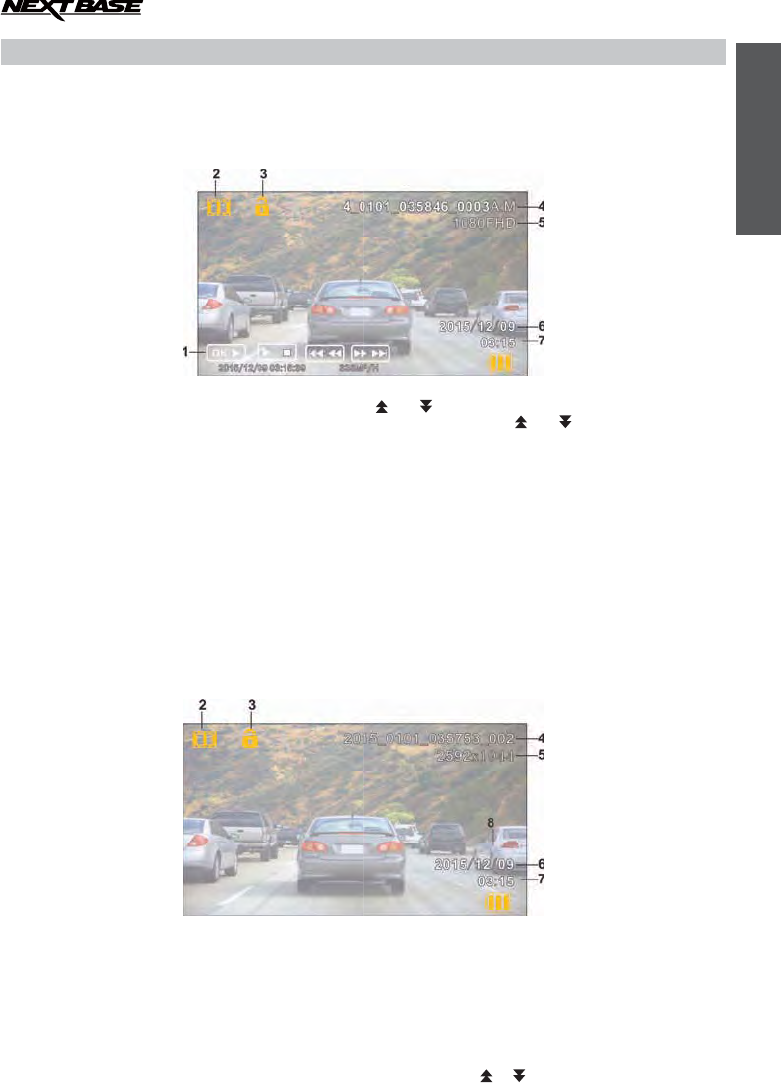

When a photo is detected upon the SD Card, then the screen below is shown.
The key below explains the various information displayed on the screen, during photo playback.
Note:
To view the NEXT or PREVI US item stored upon the SD Card press the or button respectively.
The iN-CAR CAM can display both Videos and Photos stored upon the SD card when in Playback Mode. As the
displays are slightly different please refer to the two sections below.
IDEO PLA BACK
When a video is detected upon the SD Card, the screen below is shown.
The key below explains the various information displayed on the screen, during video playback and how to use
the control buttons.
Control Buttons: To scroll through the saved files use the and buttons, to view a chosen video press the
button which then acts as a play / pause button. During video playback, the and buttons will serve as
rewind and fast forward respectively, once the video is paused press the M DE button to continue scrolling
through the saved files.
Video Playback Icon: Indicates the iN-CAR CAM is displaying a video in the Playback mode.
Protected File Icon: Displayed when a video file has been protected by activation of the internal G Sensor
during recording or by selecting Protect from within the playback menu.
File Number:
Resolution: Displays the resolution that current video was recorded in.
File Date: Displays date current file was recorded.
File Time: Displays start time current file was recorded.
Displays current file number.
1.
2.
3.
.
.
.
.
I
I
I
I
I
I
English
08
DRI ING RECORDER PLA ER INSTALLATION
S stem Minimum Re uirements:
Pentium III 00 MH or Celeron at 800 MH .
1 Gb RAM.
100 Mb hard drive space.
CD-R M Drive tray loader only
1280 x 102 monitor display
How to install:
Insert the supplied Driving Recorder Player disk inserted in to the CD drive, navigate to the CD and display the
contents upon the disk:
Driving Recorder Player for Windows
Driving Recorder Player for Mac
NBDVR 0 3 Driving Recorder Player Installation Guide
NBDVR 0 3 Instruction Manual
Should our PC not ha e a CD Dri e or be of the slot loader t pe then please download the re uired Dri ing
Recorder Pla er software from our website:
NOTE: DO NOT insert the small cm disk in to a slot loading pla er or damage ma result.
pen the Driving Recorder Player for Windows folder , run the 'setup.exe' file and follow the on-screen instructions.
Please refer to the NBDVR 0 1 Driving Recorder Player Installation Guide for further information.
Windows XP, Vista, Windows , Windows 8
http://www.ne t-base.com
http://www.ne t-base.com
Note:
Do N T insert disk into you PC if it uses a slot loader , this will cause damage to your PC not covered
under the iN-CAR CAM manufacturers warranty.
For some operating systems the installation process may vary.
Player will only open with Windows operating systems when an internet connection is present.
INSTALLATION FOR MAC
S stem Minimum Re uirements:
Mac S X 10.
How to install:
Insert the supplied Driving Recorder Player disk inserted in to the CD drive, navigate to the CD and display the
contents upon the disk:
Driving Recorder Player for Windows
Driving Recorder Player for Mac
NBDVR 0 3 Driving Recorder Player Installation Guide
NBDVR 0 3 Instruction Manual
Should our MAC not ha e a CD Dri e or be of the slot loader t pe then please download the re uired Dri ing
Recorder Pla er software from our website:
NOTE: DO NOT insert the small cm disk in to a slot loading pla er or damage ma result.
pen the selected folder and run the 'Driving Recorder Player for MAC' .dmg file, this will place the 'Driving Recorder
Player' volume on your desktop.
Alternatively, once the required Driving Recorder Player software has been downloaded from given website open the
'Downloads' folder on your Mac. The software is saved in a compressed . ip folder, free de-compression applications
are readily available, for example 'The Unarchiver' available from the Mac App Store.
Please refer to the NBDVR 0 3 Driving Recorder Player Installation Guide supplied with the software for further
information.
INSTALLATION FOR WINDOWS
This section will guide you through the installation of the Driving Recorder Player software, designed to enable the
viewing of recorded files as well as checking journey route / GPS data location and speed and G Sensor information.
Please see following pages for guide on using the Driving Recorder Player.
English
09
DRI ING RECORDER PLA ER FOR WINDOWS
1. Pla back window of selected ideo file
View current video, to make full screen double-click on the blue bar at the top of the window.
2. Date / Time / Model / ehicle Registration / Speed / GPS Co-ordinates Stamp
Data saved to the recorded file, this content will vary depending iN-CAR CAM settings and GPS signal.
. olume
Adjust playback volume.
. ideo pla back control buttons
Play / Pause, fast forward and rewind current file, this function is not available on Windows XP.
5. G Sensor data
Displays data recorded by the G Sensor across the three axis.
X left/right, up/down and acceleration deceleration.
The key below explains the various information displayed within the Driving Recorder Player when using a Windows
platform01
English
10
01/ 0/2016 1 :0 : NEXTBASE 06
8
9
2
3
1
DRI ING RECORDER PLA ER WINDOWS CONTD.
6. Dri ing Recorder Pla er controls
Screen Capture, this will create a still image for each frame of image seen within the playback window.
pen screen capture folder.
7. Add / Remo e files
Used to add and remove selected videos to the file list.
. Map
Displays route travelled on map, only available when the video files was recorded when satellite
connection was present.
9. Compass
Displays current direction, only available when the video files was recorded when satellite
connection was present.
Using the Dri ing Recorder Pla er
Insert the SD card directly to the card reader on your PC, or connect the iN-CAR CAM as described
on Page 1 Mass Storage .
Using the player controls 10 or 11 browse to the SD card and then to the folder which contains the video files you
have recorded. Press .
The recorded video files upon the SD card will then appear in the File List window 12 .
Choose a video file to play, by double clicking upon it.
nce the file is playing, you can use the player controls 8 for pause, forward, reverse as required.
Note:
The driving recorder player will only open when an internet connection is available, due to the Google Map fucntion.
Should you want to view recorded files at any other time, please open with another video playback program,
e.g. uickTime or VLC.
The driving recorder players features / functions may vary between different operating systems.
11
English
DRI ING RECORDER PLA ER FOR MAC
The key below explains the various information displayed within the Driving Recorder Player when using a MAC
platform.
1. View current video.
2. Date / Time / Model / ehicle Registration / Speed / GPS Co-ordinates Stamp
Data saved to the recorded file, this content will vary depending iN-CAR CAM settings and GPS signal.
. olume
Adjust playback volume.
. ideo pla back control buttons
Play / Pause, fast forward and rewind current file.
5. Speed displa
Displays current speed.
6. G Force displa
Displays direction of G Force on the vehicle.
7. G Sensor data
Displays data recorded by the G Sensor across the three axis.
X left/right, up/down and acceleration deceleration.
. File Info
Displays current file information.
9. Add / Remo e files
Browse for files stored on your computer, add / remove selected videos to and from the file list
10. File List
Displays videos currently within the file list.
11. Screen Capture
Screen Capture, this will create a still image for each frame of image within the playback window.
pen screen capture folder to view images.
12. GPS co-ordinates
Displays current GPS co-ordinates, only available when the video files was recorded when satellite
connection was present.
1 . Map
Displays route travelled on map, only available when the video files was recorded when satellite
connection was present.
1 . Compass
Displays current direction, only available when the video files was recorded when satellite
connection was present.
Pla back window of selected ideo file
English
12
2
3
1
8 9
1
12
13
1
10
1
MENUS AND SETTINGS
Each mode (Video, Photo and Playback) has a menu used to access the various options and settings, press the
MENU button on the rear of the device to access the menu, specific to the current mode selected.
Use the UP, DOWN buttons to select chosen option and press the OK button to confirm.
1.
1.1 Resolution
Select recording resolution, this will increase or decrease the quality of the recorded video.
Default Setting:
1.2 Exposure
Select exposure, used to adjust exposure level for different light conditions.
Default Setting:
1.3 White Balance
Adjust the white balance for different light conditions.
Default Setting: Auto
1.4 Record Audio
Turn On / Off audio recording.
Default Setting: On
1.5 Date Stamp
Turn On / Off the date stamp shown on recorded files.
Default Setting: On
1.6 Loop Recording
Select duration of recording length for the individual video files, the iN-CAR CAM will fill the SD Card then loop
back to the beginning, overwriting the saved files (unless protected).
Default Setting:
1.7 G Sensor
Turn Off or adjust the sensitivity of the G Sensor, it is the G Sensor that detects forces which will automatically
protect the current recording in event of a collision.
Default Setting: Middle
1.8 Motion Detection
Turn On / Off the motion detection function, the device will need to remain on and will start a 10 second
recording when a change to the viewed scene is detected.
Default Setting: Off
1.9 Number Plate
Enter the registration number for your vehicle, this will then be shown on the video file.
Default Setting: ********
1.10 Driver Fatigue Warning
Set the timer which will display an image of a hot beverage to serve as a reminder to take sufficient rest
when on a long journey.
Default Setting: Off
1.11 GPS Track
Turn On / Off the GPS co-ordinate stamp shown on recorded files, co-ordinates and map will function as
normal when viewed with the Driving Recorder Player no matter whether this function is set to On or Off.
Default Setting: On
1.12 Compass
When turned on, the screen will display current speed and a compass after the selected period of time,
press any button to return to normal viewing, this function is only available when a GPS connection is present.
Default Setting: Off
1.13 Password Settings
Set a password that will need to be entered to access menus and settings, only basic functions of power
on / off and start / stop remain available.
1.13 Speed Units
Select whether to record and display speed in KMH or MPH.
Default Setting: MPH
1.14 Rotate Display
Rotate the display 180
VIDEO MODE
1080P (1920x1080 @ 30Fps)
0
3 Minutes
°, particularly useful should iN-CAR CAM be mounted on the dashboard, the control
button functions do not rotate.
13
MENUS AND SETTINGS (CONTD.)
2.1 Image Size
Select image size, this will increase or decrease the size of the recorded image
Default Setting: 5M
2.2 Colour
Adjust the colour effect of the recorded image.
Default Setting: Normal
2.3 Anti-Shaking
Turn On / Off the anti-shaking feature, may help reduce image being blurred under some circumstances.
Default setting:
2.4 Capture Mode:
Turn On / Off the timer function, when this feature has been turned on, the iN-CAR CAM will take a photo
the selected period of time after the OK button has been pressed.
Default Setting:
2.5 White Balance
Adjust the white balance for different light conditions.
Default Setting:
2.6 ISO
Adjust the ISO setting, the brighter the conditions the lower the ISO required.
Default setting: Auto
2.7 Exposure
Select exposure, used to adjust the amount of light received by the sensor.
Default setting:
2.8 Date Stamp
Turn Off the date stamp shown on recorded photographs, can also change to date only.
Default setting: Date / Time
2.9 Quality
Increase or decrease the quality of the recorded image.
Default Setting:
2.10 Sharpness
Adjust the sharpness of the recorded image.
Default Setting:
3. PLAYBACK MODE
The playback menu is the same when viewing either videos or photos.
3.1 Delete
Used to delete the current file, also available is the option of deleting all files.
3.2 Protect
Used to lock or unlock the current file, also available is the option of locking and unlocking all files.
3.3 Slide Show
Used to start a slide show of images stored on the SD card, press the Menu button to exit the slide show.
2. PHOTO MODE
On
Single
Auto
0
Normal
Normal
English
14
English
MENUS AND SETTINGS CONTD.
There is also a Setup menu for the general settings, press the MENU button twice on the rear of the device to
access the menu. The options and settings available are described below.
.2 Format
Format the inserted memory card, this will delete all content.
.1 Wi-Fi
The Wi-Fi function allows you to view videos whilst recording,adjust the setting,control the basic
functions record,play,pause etc. and playback videos directly to your smartphone or tablet Default
Setting: ff.
. Language
Set the language as required.
Default Setting: English
. Date / Time
Adjust the date / time as required using the button to toggle through fields, and to set variables.
Note: In event of battery becoming fully dis-charged, the date will reset to 01/01/2013.
.5 Fre uenc
Set the Frequency as required.
Default Setting: 0H
.6 LED Light
Turn on the IR LEDs for enhanced nighttime recording.
Default Setting: ff
.7 Beep Sound
Turn ff / n the beep sound, note if Beep is turned off the audible low-battery warning will also be disabled.
Default Setting: n
. Screen Sa er
Turn on the Screen Saver function, shut down the screen after a period of inactivity, with options of 10 Seconds,
30 Seconds and 2 Minutes. Press any button to re-activate the display.
Default Setting: ff
.9 T Mode
Set the TV Mode as required.
Default Setting: PAL
.10 Speed Stamp
Turn n / ff the Speed stamp shown on recorded files.
Default Setting: n
.11 ersion
Display the version number of your device s software.
.12 Default Setting
Reset the device to the default settings.
.1 Auto Power Off
Adjust the timing of the Auto Power ff function, this can be used to continue recording in event of loss of
power within in the vehicle, with options of 10 Seconds. 2 Minutes and Minutes.
Default Setting: 10 Seconds
. SETUP MENU
I
I
15
English
PC CONNECTION
Connecting the iN-CAR CAM to a Windows based PC using the supplied USB Cable will automatically trigger the
iN-CAR CAM to display the two options of:
Mass Storage
PC Camera
Use the UP and DOWN buttons to select preferred option and OK to confirm.
Mass Storage
If Mass Storage is selected, the iN-CAR CAM screen will show the words ‘Mass Storage’ and then take the
function of an SD Card reader for your PC. Upon your PC an extra drive will appear (e.g. Drive E:) and you will be
able to navigate through the SD Card and view / manage stored files.
This feature is useful if you do not have an SD Card reader built in to your PC.
PC Camera
If PC Camera is selected, the iN-CAR CAM screen will show the words ‘PC Camera’ and then take the function
of a Webcam (no audio) for your PC. Start the normal application upon your PC that uses a webcam (e.g. Skype)
and select the webcam which is entitled ‘USB Video Device’.
This feature is useful if you do not have a Webcam built in to your PC.
Note:
The iN-CAR CAM is only compatible with the following Windows based operating systems: XP
, VISTA and
Windows 7.
VIDEO & AUDIO OUTPUT
Output
As you connect a High Definition Cable between the iN-CAR CAM and your television, the iN-CAR CAM screen will
blank, as all output is now visible upon your television. The external monitor can now be used for playback and as a
larger viewfinder in Photo mode. Recordings can NOT be made in Video mode with HD connected. The controls upon
the iN-CAR CAM operate for the Play / Pause, STOP, Next / Previous and Fwd / Rev functions as shown on screen.
Standard Definition
As you connect an AV Cable (sold separately) between the iN-CAR CAM and your television, the iN-CAR CAM screen
will blank, as all output is now visible upon your television. All elements of the Video, Photo and Playback are available
via the AV output so you can monitor your recordings upon a larger screen instantly (useful for when using your
iN-CAR CAM as a rear facing camera while connected to another device for viewing).
The controls upon the iN-CAR CAM operate normally.
Please contact your local NEXTBASE dealer for accessory purchases.
High Definition
Ouput
·
·
·
·
·
MAC CONNECTION
Connecting the iN-CAR CAM to a MAC using the supplied USB Cable will automatically trigger the iN-CAR CAM to
display the following options:
Mass Storage
Press OK to confirm Mass Storage function is required.
PC Camera
Due to compatibility issues ONLY the Mass Storage function is available when used with MAC operating systems.
Mass Storage
If Mass Storage is selected, the iN-CAR CAM screen will show the words ‘Mass Storage’ and then take the function
of an SD Card reader for your MAC. Upon your MAC the memory card within your iN-CAR CAM will appear on your
desktop labelled ‘NO NAME’ and you will be able to navigate through the SD Card and view / manage stored files.
This feature is useful if you do not have an SD Card reader built in to your MAC.
·
·
·
16
English
),1$/&$0:L)L$33)25 I26
7KH:L)LIXQFWLRQDOORZV\RXWRXVH\RXUVPDUWSKRQHWRYLHZYLGHRVGXULQJUHFRUGLQJDGMXVWWKH
DVR4063VHWWLQJVFRQWUROWKHEDVLFIXQFWLRQVUHFRUGSOD\SDXVHHWFDQGSOD\EDFNYLGHRVGLUHFWO\
WR\RXUVPDUWSKRQH
7KH)LQDO&DP$SSLVDYDLODEOHIRUIUHHGRZQORDGIURPWKH$SS6WRUHIRU$SSOHVPDUWSKRQHV
,QVWDOOLQJWKH$SSRQDQL26VPDUWSKRQH
2SHQWKH$SS6WRUHRQ\RXUL26VPDUWSKRQHDQGVHDUFKIRUWKH)LQDO&DP$SSWDSRQ*HWWR
LQVWDOO
2QFHLQVWDOOHGWKH)LQDO&DP$SSZLOOQRZEHDYDLODEOHRQ\RXUKRPHVFUHHQRI\RXUSKRQH
17
English
),1$/&$0:L)L$33)25$1'5,2'
7KH:L)LIXQFWLRQDOORZV\RXWRXVH\RXUVPDUWSKRQHWRYLHZYLGHRVGXULQJUHFRUGLQJDGMXVWWKH
DVR4063VHWWLQJVFRQWUROWKHEDVLFIXQFWLRQVUHFRUGSOD\SDXVHHWFDQGSOD\EDFNYLGHRVGLUHFWO\
WR\RXUVPDUWSKRQHRUWDEOHW
7KH)LQDO&DP$SSLVDYDLODEOHIRUIUHHGRZQORDGIURP*RRJOH3OD\IRU$QGURLGVPDUWSKRQHV
,QVWDOOLQJWKH$SSRQDQ$QGURLGVPDUWSKRQH
2SHQ*RRJOH3OD\RQ\RXU$QGURLGVPDUWSKRQHDQGVHDUFKIRUWKH)LQDO&DP$SSWDSRQ,QVWDOODQG
WKHQ$FFHSW
2QFHLQVWDOOHGWKH)LQDO&DP$SSZLOOQRZEHDYDLODEOHRQ\RXUKRPHVFUHHQRI\RXUSKRQH
18
English
),1$/&$0:L)L$33)25$1'5,2' & IOS&217'

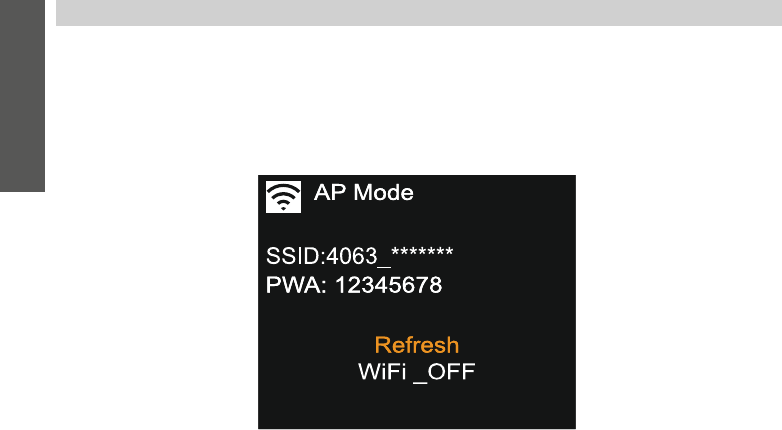

7XUQRQWKH DVR4063:L)L
7RWXUQRQWKH:L)LIXQFWLRQRQWKHDVR4063JRWRWKH*HQHUDO6HWWLQJVPHQXSUHVVPHQXWZLFH
VHOHFW:L)LDQGSUHVV2.7KH2QRSWLRQZLOOEHKLJKOLJKWHGSUHVVWKH2.EXWWRQWRFRQILUP
7KHPHQXZLQGRZZLOOFORVHDQGWKH$30RGH$FFHVV3RLQW0RGHZLQGRZZLOORSHQDVVKRZQ
EHORZ
7KLVVFUHHQJLYHVWKHQDPHRIWKHDVR406366,'QHWZRUNQDPH4063 _DQGDOVRWKH
SDVVZRUG
19
English
),1$/&$0:L)L$33)25$1'5,2' & IOS&217'

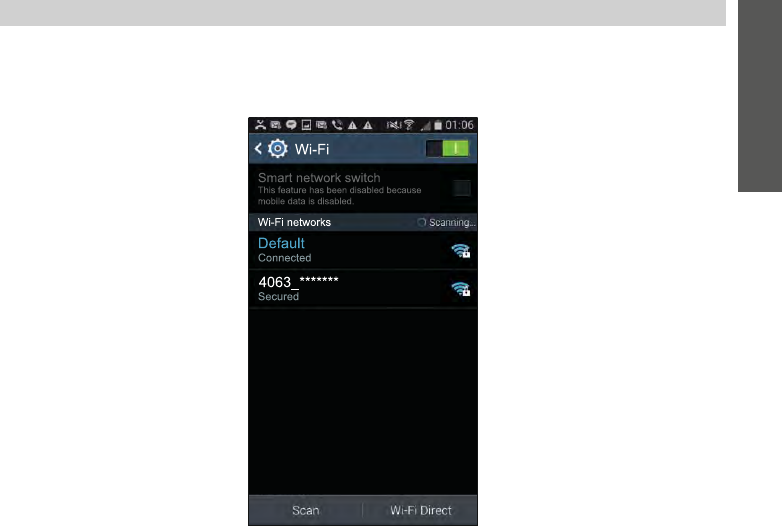

&RQQHFW\RXUSKRQHWRWKHDVR4063
7RFRQQHFW\RXUSKRQHWRWKHDVR4063RSHQWKH:L)LFRQQHFWLRQVPHQXRQ\RXUSKRQHWKH
DVR4063ZLOOEHVKRZQLQ:L)LQHWZRUNVOLVWDV4063 _
7DSRQWKH4063 _DQGZKHQSURPSWHGHQWHUWKHSDVVZRUG2QFHVXFFHVVIXOO\
FRQQHFWHGWKH:L)L&RQQHFWHGZLQGRZZLOODSSHDURQWKHDVR4063VFUHHQ
20
English
),1$/&$0:L)L$33)25$1'5,2' & IOS&217'

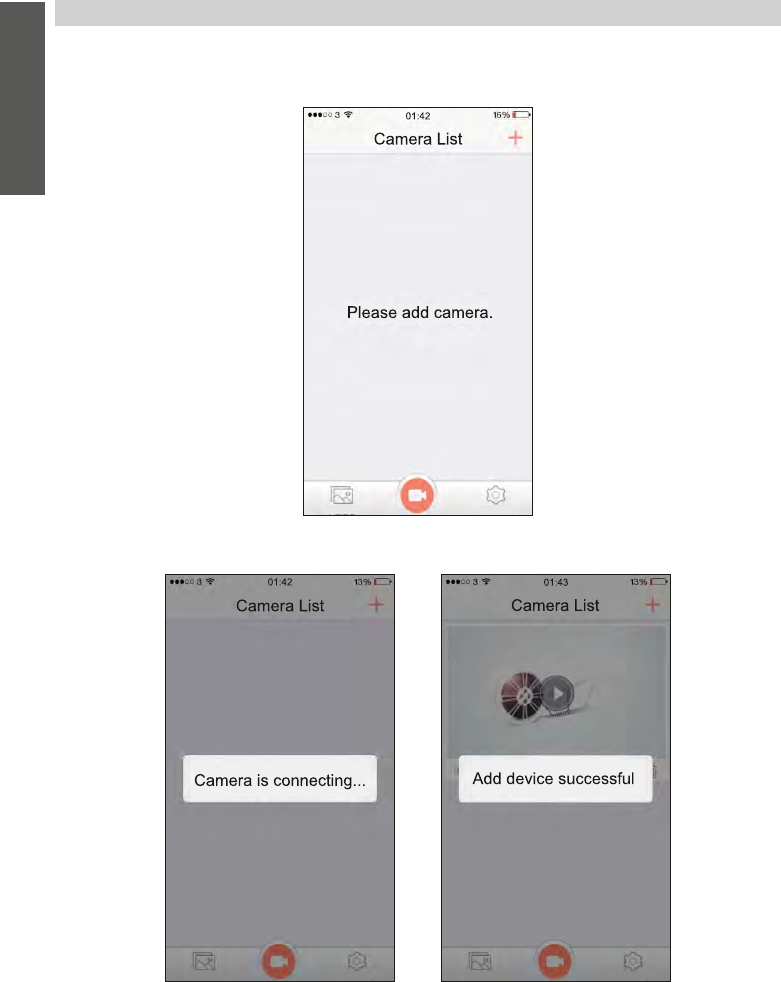

8VLQJWKH)LQDO&DP$SS
2SHQWKH$SSE\WDSSLQJRQWKH)LQDO&DPEXWWRQRQ\RXUSKRQHWKHILUVWWLPHWKH$SSLVRSHQHG

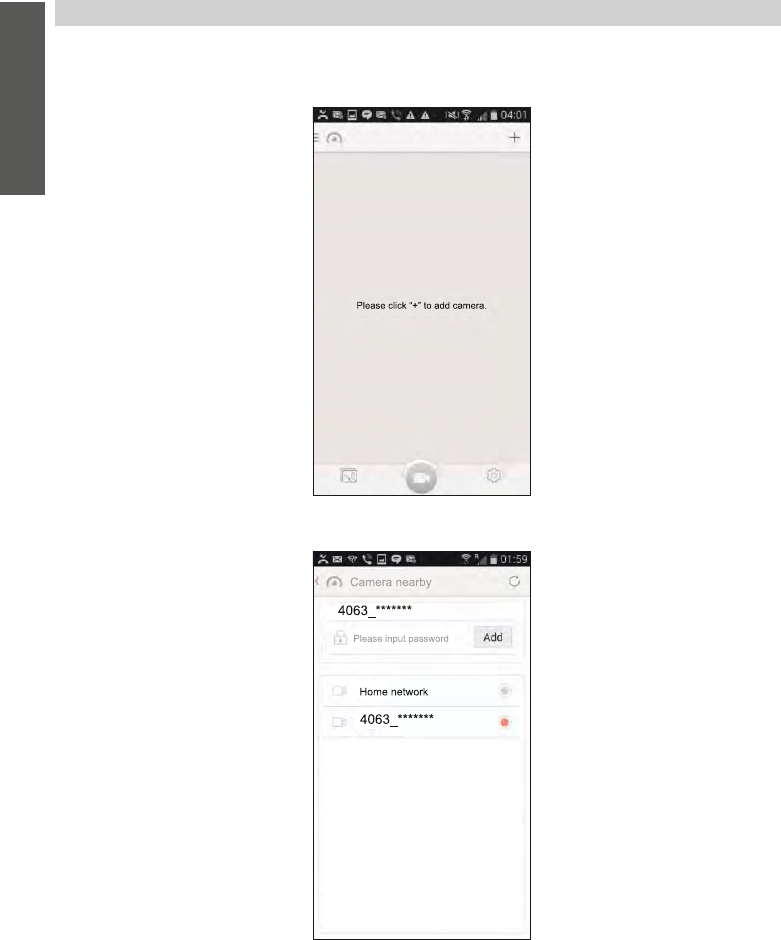

WKH3OHDVHFOLFN³´WRDGGFDPHUDVFUHHQZLOODSSHDUVHHLPDJHEHORZ
7DSRQWKHEXWWRQVHOHFW4063 _IURPWKHDYDLODEOHQHWZRUNVDVVKRZQEHORZ
(QWHUWKHSDVVZRUGDQGWDSµ$GG¶WKHOLYHYLGHRVFUHHQZLOODSSHDU3UHVVEDFNRQ\RXU
VPDUWSKRQHWRJRWRWKH)LQDO&DPKRPHVFUHHQDVVKRZQRQQH[WSDJH
21
6HWWLQJV3LFWXUHV
English
),1$/&$0:L)L$33)25$1'5,2'&217'

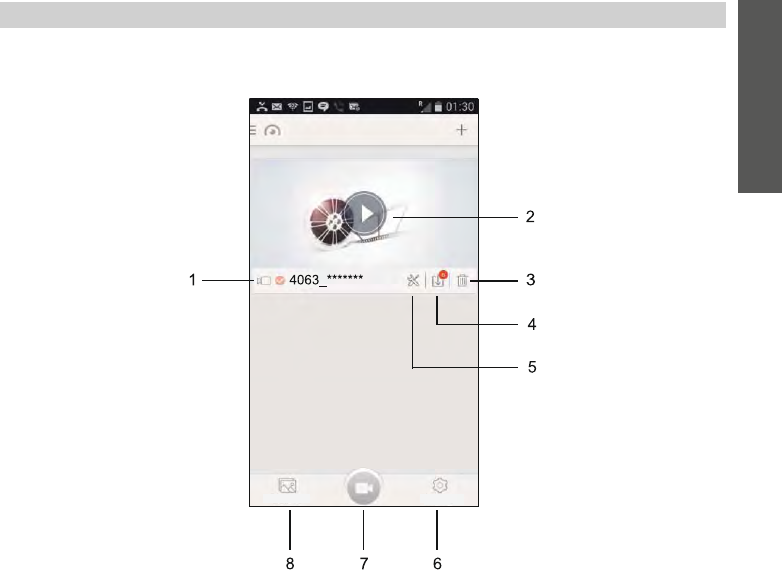

7KHNH\EHORZGHVFULEHVWKHYDULRXVLQIRUPDWLRQIXQFWLRQVDQGIHDWXUHVDYDLODEOHZLWKLQWKH)LQDO&DP
KRPHVFUHHQ
&DPHUDQDPH
2SHQFDPHUD
7DSKHUHWRFRQWUROWKHDVR4063
5HPRYHFDPHUD
7DSKHUHWRUHPRYHWKHDVR4063IURPWKH)LQDO&DP$SS
5HFRUGLQJV
7DSKHUHWRYLHZWKHYLGHRILOHVFXUUHQWO\VWRUHGRQWKHDVR4063PHPRU\FDUG7RSOD\EDFN
DUHFRUGLQJRQ\RXUSKRQH\RXZLOOQHHGWRGRZQORDGWKHYLGHRILOHIURPWKHDVR4063WRGRWKLV
VLPSO\WDSRQWKHSUHYLHZZLQGRZ7KHGRZQORDGZLOOVWDUWLPPHGLDWHO\WR\RXUVPDUWSKRQH
0XOWLSOHILOHVFDQDOVREHGRZQORDGHGWLFNWKHILOHVIRUGRZQORDGDQGWKHQWDSWKHGRZQORDGLFRQ
LQWKHERWWRPOHIWRIWKHVFUHHQ+RZHYHUWKLVLVQRWUHFRPPHQGHGDVWUDQVIHUWLPHZRXOGEHORQJ
1RWH
'RZQORDGLQJILOHVWRWKH)LQDO&DP$SSZLOOUHPRYHWKHILOHVIURPWKH%LNH&DPVRWKH\FDQEH
YLHZHGRQ\RXUVPDUWSKRQHGLUHFWO\WKHUHDIWHU
22
English
SettingsPictures
),1$/&$0:L)L$33)25$1'5,2' & IOS&217'
&RQWLQXHGIURPSUHYLRXVSDJH
&DPHUD6HWWLQJV
&DPHUD1DPH66,'±
&KDQJHWKH66,'IURPWKHGHIDXOWVHWWLQJRI4063 _DQGSUHVVWKHVDYHLFRQ
3DVVZRUG±
&KDQJHWKH3DVVZRUGIURPWKHGHIDXOWVHWWLQJRIDQGSUHVVWKHVDYHLFRQ
1RWH
&KDQJLQJWKH66,'RU3DVVZRUGZLOOGLVFRQQHFWWKHDVR4063IURP\RXUSKRQHVLPSO\
UHFRQQHFWXVLQJWKHQHZGHWDLOV
8VLQJWKH'HIDXOW6HWWLQJVRSWLRQWRUHWXUQWKHDVR4063WRWKHGHIDXOWVHWWLQJVZLOO127
UHVHWWKH66,'RU3DVVZRUG
$XWR5HFRUGLQJ±
7KLVIXQFWLRQLVXQDYDLODEOHDVWKHDVR4063PDQDJHVWKHUHFRUGLQJPRGH
9LGHR4XDOLW\±
$GMXVWWKHYLGHRTXDOLW\VHWWLQJVXVHGE\WKHDVR4063
)RUPDW±
)RUPDWWKHLQVHUWHGPHPRU\FDUGZLWKLQWKHDVR4063WKLVZLOOGHOHWHDOOFRQWHQW
$GYDQFHG6HWWLQJV±
*6HQVRUVHQVLWLYLW\
7XUQ2IIRUDGMXVWWKHVHQVLWLYLW\RIWKH*6HQVRUXVHGE\WKHDVR4063WRSURWHFWILOHV
790RGH
$GMXVWWKHYLGHRRXWSXWZKHQXVLQJDWHOHYLVLRQWRYLHZFRQWHQWIURP\RXUSKRQH
5HFRUGLQJILOHLQWHUYDO
6HOHFWGXUDWLRQRIUHFRUGLQJOHQJWKIRUWKHLQGLYLGXDOYLGHRILOHVWKHDVR4063ZLOOILOOWKH
6'&DUGWKHQORRSEDFNWRWKHEHJLQQLQJRYHUZULWLQJWKHROGHVWILOHVXQOHVVSURWHFWHG

1RWH
7KH2IIDQG0LQXWHIXQFWLRQVOLVWHGZLWKLQWKH)LQDO&DPVHWWLQJVDUHXQDYDLODEOHDQGDUH
QRWWREHVHOHFWHG
)DFWRU\5HVHW
5HVHWWKHGHYLFHWRWKHGHIDXOWVHWWLQJV
&DPHUD,QIR±
'LVSOD\VWKH6:YHUVLRQRIWKHDVR4063
23
English
),1$/&$0:L)L$33)25$1'5,2' & IOS&217'
&RQWLQXHGIURPSUHYLRXVSDJH
)LQDO&DPVHWWLQJV
6WRUDJH0DQDJHPHQW
0DQDJHWKHVWRUDJHFDSDFLW\RIILOHVGRZQORDGHGIURPWKHDVR4063WRWKH)LQDO&DP$SS
/DQJXDJH±
6HOHFWODQJXDJHXVHGZLWKLQWKH)LQDO&DP$SS
$ERXW±
)LQDO&DPYHUVLRQZLWKRSWLRQWRFKHFNZKHWKHUWKHUHLVDQXSGDWHDYDLODEOH
)LQDO&DPKRPHVFUHHQ
7DSKHUHWRUHWXUQWRWKHKRPHVFUHHQIURPWKH)LQDO&DPVHWWLQJVRU'RZQORDGVVFUHHQV
'RZQORDGV
)LOHVWKDWKDYHEHHQGRZQORDGHGIURPWKHDVR4063FDQEHYLHZHGKHUH
24
English
),1$/&$0:L)L$33)25$1'5,2' & IOS&217'

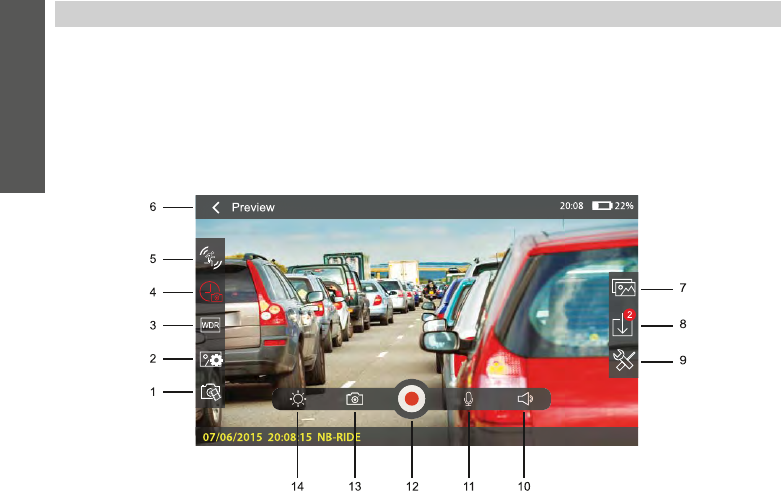

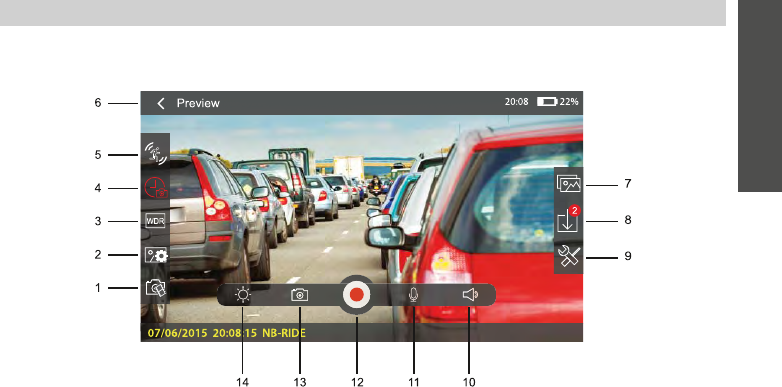

%DVLFRSHUDWLRQ
7DSWKH2SHQFDPHUDEXWWRQRQWKHKRPHVFUHHQWRVWDUWXVLQJWKHDVR4063
3OHDVHVHHEHORZIRUDJXLGHWRWKHIXQFWLRQVDQGIHDWXUHVDYDLODEOHZKHQXVLQJWKH)LQDO&DP$SS
1RWH
7DSRQWKHOLYHLPDJHVFUHHQWREULQJXSWKHPHQXVHOHFWLRQDVVKRZQEHORZ
)LQDO&DPUHVROXWLRQ
$GMXVWWKHYLHZLQJUHVROXWLRQRIWKHDVR4063$SS
1RWH
2SWLRQVDYDLODEOHGHSHQGRQWKHUHFRUGLQJUHVROXWLRQVHWWLQJRIWKHDVR4063LWVHOI
,PDJHUHVROXWLRQ
7KLVIXQFWLRQLVXQDYDLODEOHDVWKHDVR4063PDQDJHVWKHUHVROXWLRQXVHGIRUVWLOOLPDJHV
:'5
7KLVIXQFWLRQLVXQDYDLODEOHDVWKHDVR4063XWLOL]HV:'5WHFKQRORJ\SHUPDQHQWO\WRRSWLPLVH
WKHLPDJHTXDOLW\RIWKHUHFRUGHGILOHV
5HFRUGLQJOHQJWK
7KLVIXQFWLRQLVXQDYDLODEOHDVWKHDVR4063PDQDJHVWKHUHFRUGLQJOHQJWKVRIWKHYLGHRILOHV
$QWLVKDNH
7KLVIXQFWLRQLVXQDYDLODEOHDVWKHDVR4063XWLOL]HV$QWL6KDNHWHFKQRORJ\SHUPDQHQWO\WR
RSWLPLVHWKHLPDJHTXDOLW\RIWKHUHFRUGHGILOHV
%DFN3UHYLHZEXWWRQ
7DSKHUHWRUHWXUQWRWKHSUHYLRXVVFUHHQPHQX
'RZQORDGVGLUHFWRU\
7DSKHUHWRRSHQWKHGRZQORDGVGLUHFWRU\WRYLHZGRZQORDGHGUHFRUGLQJVRULPDJHV
25
English
),1$/&$0:L)L$33)25$1'5,2' & IOS&217'
&RQWLQXHGIURPSUHYLRXVSDJH
)LOH/LVW
7DSWRRSHQWKHILOHOLVWWKLVZLOOOLVWUHFRUGLQJVRULPDJHWKDWDUHVWRUHGRQWKHPHPRU\FDUG
DQGKDYH\HWWREHGRZQORDGHGWR\RXUSKRQH
&DPHUD6HWWLQJV
7DSKHUHWRRSHQ7KH&DPHUD6HWWLQJVPHQXGHVFULEHGHDUOLHU
9ROXPH
$GMXVWWKHYROXPHOHYHORI\RXUSKRQH
0LFURSKRQH
7KLVIXQFWLRQLVXQDYDLODEOHDVWKHDVR4063PDQDJHVWKHPLFURSKRQHRQRURIIVHWWLQJV
5HFRUG
7DSWRVWDUWVWRSUHFRUGLQJ
7DNHDSKRWR
7DSWRWDNHDVWLOOLPDJHWKHLPDJHILOHZLOOEHVDYHGWRERWKWKHDVR4063DQGGRZQORDGHG
WR\RXUVPDUWSKRQHLPPHGLDWHO\
%ULJKWQHVV
$GMXVWWKHEULJKWQHVVRI\RXUSKRQHVVFUHHQ
26
English
),1$/&$0:L)L$33)25$1'5,2'&217'
3OD\EDFNRIYLGHRILOHV
2QFHDUHFRUGLQJKDVEHHQGRZQORDGHGIURPWKH%LNH&DPWR\RXSKRQH\RXFDQXVHWKH)LQDO&DP
$SSWRSOD\EDFNWKHUHFRUGLQJ
)LOHQDPH
7KHILOHQDPHRIWKHUHFRUGLQJEHLQJYLHZHG
%DFNEXWWRQ
7DSKHUHWRUHWXUQWRWKHSUHYLRXVVFUHHQPHQX
)DYRXULWHV
7DSWRGRZQORDGWKHFXUUHQWILOHWRWKH)DYRXULWHVIROGHUZLWKLQWKH)LOH/LVWGLUHFWRU\
5HSHDW
7DSWRWRJJOHWKURXJKWKHUHSHDWRSWLRQV
'HOHWH
7DSKHUHWRGHOHWHFXUUHQWILOH
9ROXPH
$GMXVWWKHYROXPHOHYHORI\RXUSKRQH
3OD\3DXVH
7DSKHUHSOD\SDXVH
%ULJKWQHVV
$GMXVWWKHEULJKWQHVVRI\RXUSKRQHVVFUHHQ
1RWHV
:KHQFRQQHFWHGWRWKH%LNH&DP\RXUPRELOHGHYLFHZLOOQRWKDYHDFFHVVWRWKHLQWHUQHW
6KRXOG\RXU%LNH&DPEHFRPHXQUHVSRQVLYHHJQRIXQFWLRQRUQREXWWRQUHVSRQVHZKLOVWXVLQJ
WKH)LQDO&DP$SSSOHDVHXVHWKH5(6(7EXWWRQRQWKHUHDURIWKH%LNH&DPWRUHVWDUWWKH%LNH&DP
2QO\DVLQJOH%LNH&DPFDQEHFRQQHFWHGWRWKH$SSDWDQ\RQHWLPH
27
English
8VLQJWKH)LQDO&DP$SS
2SHQWKH$SSE\WDSSLQJRQWKH)LQDO&DPEXWWRQRQ\RXUSKRQHWKHILUVWWLPHWKH$SSLVRSHQHGWKH
3OHDVHDGGDFDPHUDVFUHHQZLOODSSHDUVHHLPDJHEHORZ
7DSRQWKHEXWWRQWKH&DPHUDLVFRQQHFWLQJ«DQGWKHQWKH$GGGHYLFHVXFFHVVIXOVFUHHQV
ZLOODSSHDUDVVKRZQEHORZ
(QWHUWKHSDVVZRUGDQGWDSµ$GG¶WKHOLYHYLGHRVFUHHQZLOODSSHDU3UHVVEDFNRQ\RXU
VPDUWSKRQHWRJRWRWKH)LQDO&DPKRPHVFUHHQDVVKRZQRQQH[WSDJH
28
3LFWXUHV 6HWWLQJV
3LFWXUHV 6HWWLQJV 3LFWXUHV 6HWWLQJV
),1$/&$0:L)L$33)25L26&217'
English
8VHWKHVXSSOLHG86%FDEOHWRFRQQHFWWKHDVR4063WR\RXU3&GRLQJVRZLOOSRZHURQWKHFDPHUD
ZLWKWZRIXQFWLRQVDYDLODEOHDVGHVFULEHGEHORZ
8VHWKH83DQG'2:1EXWWRQVWRVHOHFWUHTXLUHGIXQFWLRQDQGSUHVV2.WRFRQILUPVHOHFWLRQ
0DVV6WRUDJH
3&&DPHUD
8VLQJWKHDVR4063ZLWKD:LQGRZV3&
0DVV6WRUDJH
:KHQ0DVV6WRUDJHLVVHOHFWHGWKHDVR-4063VFUHHQZLOOVKRZWKHZRUGVµ0DVV6WRUDJH¶DQGWKHQ
WDNHWKHIXQFWLRQRIDQ6'&DUGUHDGHUIRU\RXU3&
$QH[WUDGULYHZLOODSSHDUIRUH[DPSOHµ5HPRYDEOH'LVN'¶DQG\RXZLOOEHDEOHWRYLHZPDQDJH
WKHVWRUHGILOHVXSRQWKH0LFUR6'FDUGZLWKLQWKHDVR4063IURP\RXUFRPSXWHU
3&&DPHUD
:KHQ3&&DPHUDLVVHOHFWHGWKHDVR4063VFUHHQZLOOVKRZWKHZRUGVµ3&&DPHUD¶DQGWKHQ
WDNHWKHIXQFWLRQRIDZHEFDPQRDXGLRIRU\RXU3&
6WDUWWKHQRUPDODSSOLFDWLRQXSRQ\RXU3&WKDWXVHVDZHEFDPHJ6N\SHDQGVHOHFWWKHDVR4063
ZKLFKLVHQWLWOHGµ&$5'9¶
1RWH
7XUQ2IIWKHDVR4063EHIRUHGLVFRQQHFWLQJIURP3&
8VLQJWKHDVR4063ZLWKD0$&
0DVV6WRUDJH
:KHQWKLVRSWLRQLVVHOHFWHGWKHDVR4063ZLOOIXQFWLRQDVDFDUGUHDGHUIRU\RXU0$&7KH
µ1(;7%$6(¶H[WHUQDO86%GLVNLFRQZLOODSSHDURQ\RXU0$&DQG\RXZLOOEHDEOHWRYLHZPDQDJH
VWRUHGILOHVXSRQWKH0LFUR6'FDUGZLWKLQWKHDVR4063IURP\RXU0DF
(MHFWWKHGLVNDV\RXZRXOGGRQRUPDOO\EHIRUHUHPRYLQJWKHFDEOHRUWXUQLQJRIIWKHDVR4063
3&&DPHUD
:KHQWKLVRSWLRQLVVHOHFWHGWKHDVR4063ZLOOIXQFWLRQDVDZHEFDPQRDXGLRIRU\RXU0DF6WDUWWKH
QRUPDODSSOLFDWLRQXSRQ\RXU3&WKDWXVHVDZHEFDPHJ6N\SHDQGVHOHFWWKHDVR4063ZKLFKLV
HQWLWOHGµ&$5'9¶
1RWH
:KHQ0DVV6WRUDJHRU3&&DPHUDPRGHVDUHVHOHFWHGWKHDVR4063VFUHHQZLOOEODQN
:KHQXVLQJ3&&DPHUDRU0DVV6WRUDJHIXQFWLRQVWXUQ2IIWKH%LNH&DPEHIRUHGLVFRQQHFWLQJ
WKH86%FDEOHIURP\RXU0$&
0$666725$*(3&&$0(5$
29
English
TROUBLE SHOOTING
Video Image is blurred.
I can not insert the Micro SD card.
I can not remove the Micro SD
card.
Video files can not be played.
Video file playback is jumpy.
Playback upon the Driver
Recorder Player is jumpy.
The sound is not synchronised
with video during playback.
Video has no sound.
Photograph is blurred.
I can only record a few minutes
of video on my SD card.
Mass Storage or PC Camera
function does not work.
The sucker will not stay in place
upon my windscreen.
The AV ut from my iN-CAR CAM
just bu es on my TV.
I get the message Card Error
on screen.
I get the message Memory error
on screen.
I get the message Card Full
on screen.
Remove the protective lens cover, clean the lens, clean the windscreen
Micro SD card are very small and require delicate use. Align the card with
the diagram shown upon the device and insert the card until you feel a
slight spring resistance. ou now need to push the card, using your finger
nail, until you hear and feel a small latch. Release pressure and the card
will stay retained within the device.
With the card previously installed, you now need to push the card further
inwards slightly, using your finger nail, until you hear and feel a small latch.
Release pressure and the card will spring out sufficiently for you to take
hold of it.
The video files from the iN CAR CAM are in M V format and may not be
compatible with your PC if suitable playback software is not installed.
Install the supplied Driver Recorder Player software and the additional
Codecs if necessary.
Remove the SD card and reformat to remove non-contiguous files.
For best recording use a branded class 10 type 30MB/s SD card of
8 to GB recommended si e. Recommended video playback software
Is the supplied Driver Recorder Player Playback.
PC may not be sufficient for the playback task, try an alternative PC.
Ensure that Record Audio setting is turned N within the Video Menu.
Hold the camera still whilst taking the photo. Please be aware the photo
is taken around 1 second after the shutter noise is heard.
Change the recording si e Loop recording function to a smaller si e.
Increase the si e of the SD card. Max GB.
The Mass storage function will work on both Windows and Mac, however
the PC camera is only Windows compatible. . Restart the PC, as this may
be required for the necessary driver to be loaded correctly. Disconnect
and reconnect the In-CAR CAM. Contact NEXTBASE for the required driver.
Ensure that the protective cover plastic film has been removed from the
suction pad.
Moisten the sucker slightly before affixing upon the windscreen. Ensure that
the lever is fully pushed towards the windscreen. Make sure that the glass is
smooth and clean. Do not stick to glass that has any non-smooth effect or
paint whatsoever. Affix to the glass firmly and then push the lever to the full
extent.
Ensure that the AV cable is correct. Use a stereo 3. mm jack plug where
the tip is the video and the ring is the audio signal.
The SD card has become unuseable by the iN-CAR CAM. Remove useful
files using your PC and then perform a F RMAT upon the SD card from
within the SETUP menu.
The SD card has become unuseable by the iN-CAR CAM. Remove useful
files using your PC and then perform a F RMAT upon the SD card from
within the SETUP menu.
The SD card has become full as the Loop recording function is set to
FF. Set the Loop Recording function to 3 mins default to enable the
cycle recording function and automatic deletion of older files.
English
30
The Codecs upon your PC may not be compatible or the latest standard.
Download the latest Codecs from http://www.next-base.com and install
them accordingly
The Codecs upon your PC may not be compatible or the latest standard.
Download the latest Codecs from http://www.next-base.com and install
them accordingly
TROUBLE SHOOTING CONTD.
My iN-CAR CAM shuts down by
itself after a while.
The SD card in my iN-CAR CAM
can not be read.
I can't delete files on my SD card
within the iN-CAR CAM.
The screen blanks after a few
minutes upon my iN-CAR CAM.
I get the message Cluster Wrong
on screen.
The Driving Recorder Player will
not open.
The iN-CAR CAM can not lock
onto satellite
I have turned on motion detection
and now can t stop the recording.
The battery will not charge.
The battery only last 30 seconds
The battery only lasts minutes.
Either the battery has gone flat, or there is no power to the iN-CAR CAM
and the AutoPower ff period which is in the SETUP menu has been
triggered.
Use a good quality branded SD card between GB and GB suggested
and format the card from with in the SETUP menu of the iN-CAR CAM.
Check to see if these files are 'protected', if so please follow instructions
to 'un-protect'
The screen saver is set to N. Change settings to FF if required.
Default setting is off.
The SD card has been formatted in another device and the Cluster Si e is
not compatible. Simply use the MENU, SETUP option to re-format the SD
card from within the iN-CAR CAM.
For Windows operating systems the player requires an internet connection
to open, if this is not available please view files using alternative playback
software, i.e. uickTime or VLC.
After power on and with the device mounted with clear view of the sky it can
take up to 10 minutes to find the three satellites required to achieve a stable
signal. Reception can also be affected by atmospheric conditions and the
proximity of buildings / trees obscuring the sky.
The iN-CAR CAM will start a recording whenever motion is detected, when
function is to be turned off firstly shutdown the iN-CAR CAM and remove the
SD card, this will avoid recording being activated accidentally. Switch back
on the and within the setting menu and turn off the Motion Detection .
To protect from over-charging the battery will only charge when the
iN-CAR CAM is turned on.
The battery will only receive charge when the iN-CAR CAM is turned on,
please reconnect car adaptor and leave the iN-CAR CAM turned on.
Charging takes approximately 90 minutes and a full charge is indicated by
a red LED.
This is normal, the battery design allows the 'Auto Power ff' feature to
function in event of power loss within the vehicle. It is not intended as an
alternative power source to replace the supplied car adaptor.
31
English
English
This device complies with part 1 of the FCC Rules. peration is subject to the condition that
this device does not cause harmful interference 1 this device may not cause harmful interference,
and 2 this device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
N TE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 1 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC ID: 3 -NBDVR 0 3
To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be
installed and operated with minimum distance between 20cm the radiator your body: Use
only the supplied antenna.

Navigation menu
