JET OPTOELECTRONICS RYK65000X RYK-Assembly User Manual
JET OPTOELECTRONICS CO.,LTD. RYK-Assembly
User manual
Seat Top User Manual 700001 rev 00-11.docx

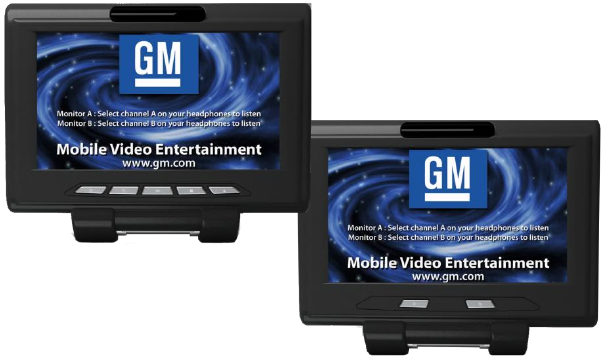

SEAT TOP SERIES
Rear Seat Entertainment System
Owners Manual
Seat Top User Manual 700001 rev 00-11.docx Page | 2
Contents
Welcome ................................................................................................................. 3
Control Description – Monitor A with DVD Player ........................................................ 5
Control Description – Monitor B without DVD Player ................................................... 6
Functional Verification .............................................................................................. 8
Remote Control Operation ........................................................................................ 9
General Operating Instructions ............................................................................... 13

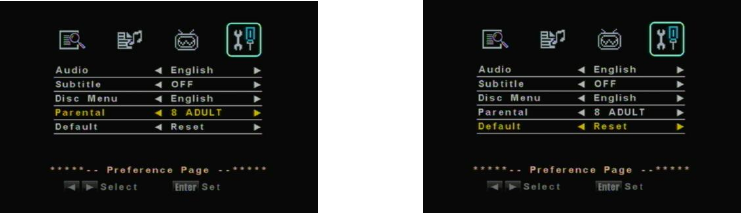

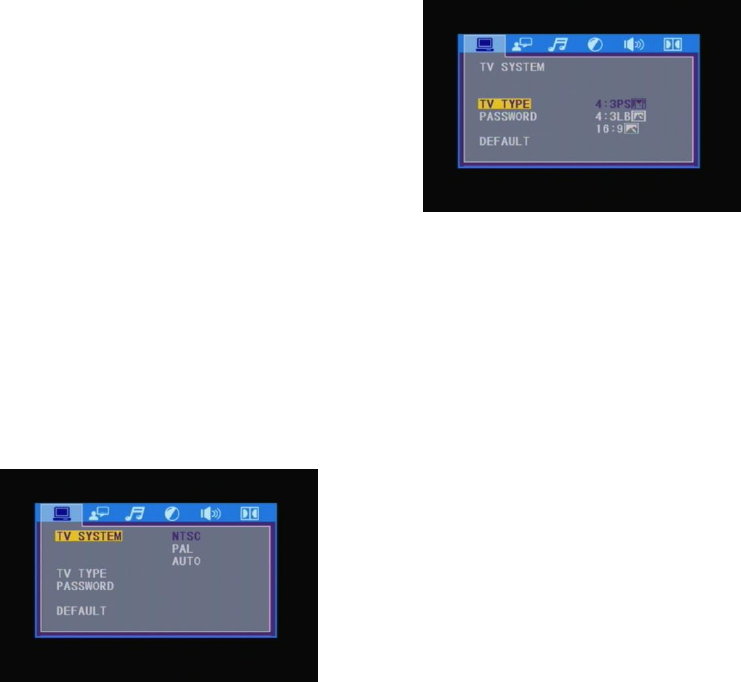

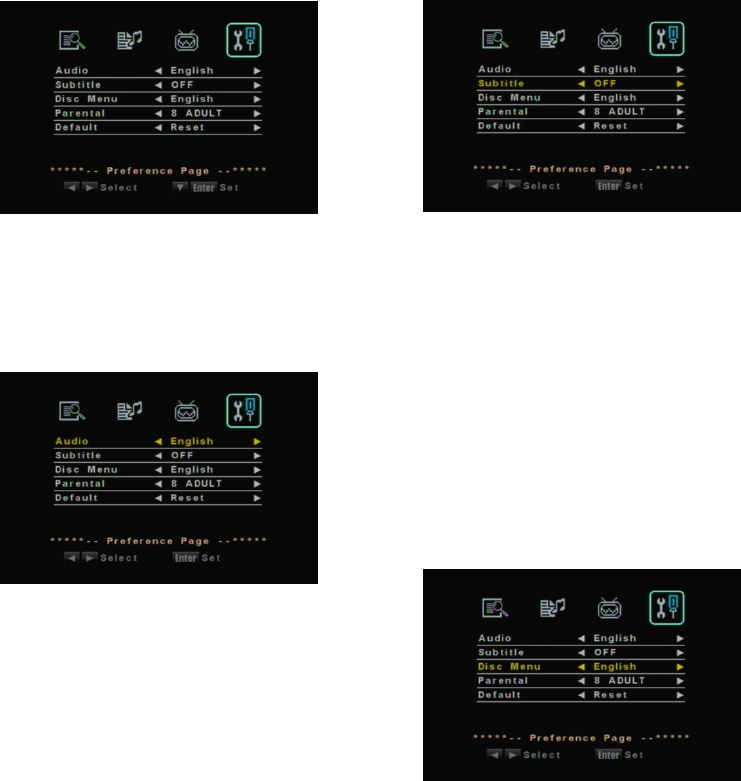

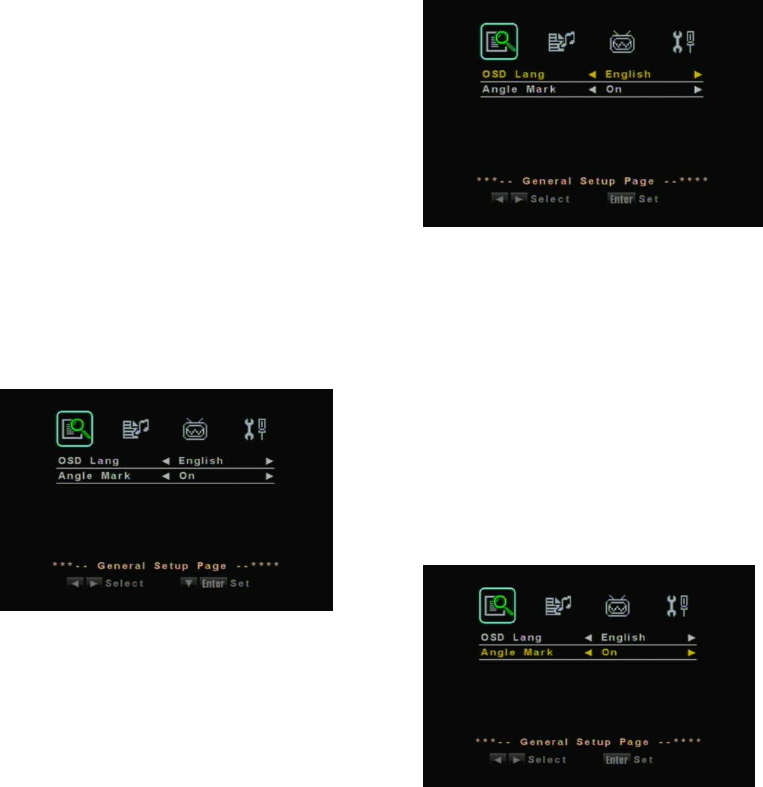

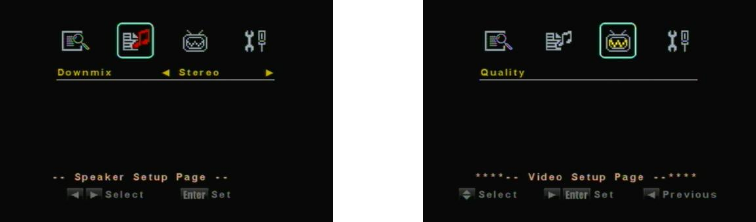

Monitor A How to use the OSD Menu ...................................................................... 15
Monitor A Playing a CD ........................................................................................... 20

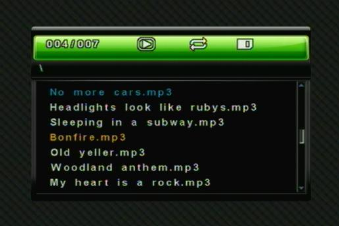

Monitor A Playing Audio Files .................................................................................. 21

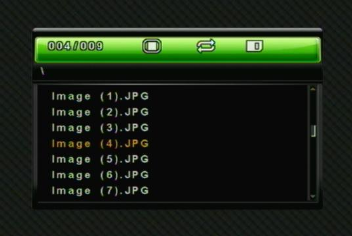

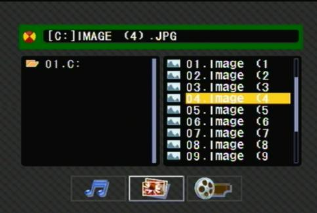

Monitor A Playing Image Files ................................................................................. 22

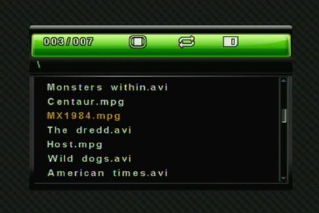

Monitor A Playing Video Files .................................................................................. 23
Monitor A Charging a USB Device ............................................................................ 24
Monitor A Connecting an External A/V Source – 3.5mm ............................................ 24
Monitor A Connecting an External A/V Source – HDMI .............................................. 24
Monitor B How to use the OSD Menu ...................................................................... 25
Monitor B Playing Audio Files .................................................................................. 27
Monitor B Playing Image Files ................................................................................. 28
Monitor B Playing Video Files .................................................................................. 29
Monitor B Charging a USB Device ............................................................................ 30
Monitor B Connecting an External A/V Source – 3.5mm ............................................ 30
Monitor B Connecting an External A/V Source – HDMI .............................................. 30
Troubleshooting ..................................................................................................... 31
Specifications ......................................................................................................... 32
Compliance Information ......................................................................................... 33
Warranty ............................................................................................................... 35
© 2014 INVISION Automotive Systems, Inc. All rights reserved.
This manual, or any portion thereof, may not be reproduced without the express written
permission of INVISION Automotive Systems, Inc.
Seat Top User Manual 700001 rev 00-11.docx Page | 3
Welcome
Thank you for purchasing this Rear Seat
Entertainment System with built-in DVD
player. Before operating this system, read this
manual thoroughly and retain it for future
reference.
Important Notice
It is unlawful in most jurisdictions for a person
to drive a motor vehicle which is equipped with
a television viewer or screen that is located in
the motor vehicle at any point forward of the
back of the driver’s seat, or that is visible,
directly or indirectly, to the driver while
operating the vehicle. In the interest of safety,
the monitors should never be installed where
they will be visible, directly or indirectly, by the
operator of the motor vehicle. If your vehicle is
equipped with a wireless rear seat audio
system or any other wireless infrared device,
make sure it is powered off when operating
the Rear Seat Entertainment System. If both
systems are powered on at the same time, the
two systems may obstruct each other,
possibly creating undesirable audio
interference through the wireless headphones.
Safety Precaution
For safety reasons, when changing video
discs it is recommended that the vehicle is not
in motion, and that you do not allow children to
unfasten safety belts to change discs or make
any adjustments to the system. System
adjustments can be accomplished using the
remote control unit, while safety belts remain
fastened. Enjoy your entertainment system but
remember that safety of all passengers
remains the number one priority.
Caution:
Be sure to run the vehicle engine while using
the system. Using this system without running
the engine can result in battery drain. To avoid
the risk of battery drain, please remember to
turn off the system when the vehicle is not in
use.
Product Features
Monitor A
• 8-inch Color TFT-LCD Panel (800x480)
with 16:9 aspect ratio
• Built-in Top-Loading DVD Player
• Infrared Transmitter for IR Wireless
Headphones
• 3.5mm Audio/Video Input
• USB 2.0 Input with Charging Capability*
• SD Card Input
• Mini HDMI Input
• 3.5mm Stereo Headphone Output
• Remote Sensor on the Front Panel
• Full Function Remote Control
• 5 Control Buttons on the Front Panel:
Power, Source, Play/Pause, Stop,
and Eject
• OSD (On Screen Display)
• Built-in FM Transmitter
Monitor B
• 8-inch Color TFT-LCD Panel (800x480)
with 16:9 aspect ratio
• Infrared Transmitter for IR Wireless
Headphones
• 3.5mm Audio/Video Input
• USB 2.0 Input with Charging Capability*
• SD Card Input
• Mini HDMI Input
• 3.5mm Stereo Headphone Output
• Remote Sensor on the Front Panel
• Full Function Remote Control
• 2 Control Buttons on the Front Panel:
Power and Source
• OSD (On Screen Display)
* Note: Depending on the USB device, it may
or may not charge when connected to the
USB port. Not all devices are able to charge
when connected to the USB port.
Refer the documentation that came with your
USB device for more information.
Seat Top User Manual 700001 rev 00-11.docx Page | 4
Wireless Headphones
Each monitor includes a built-in dual channel
infrared transmitter for use with wireless
headphones. The wireless headphones must
be used within a line of sight from the
transmitter as infrared transmission, like
visible light, travels only in a straight line.
How to use the Wireless Headphones
When placing the headphones on your head,
make sure to observe the Left and Right
orientation. The headphones must be oriented
correctly (facing forward) in order to receive
the audio signal. Press the power button on
the headphones, then select channel “A” to
listen to monitor A, or channel “B” listen to
monitor B. Adjust the audio level using the
volume control on each headphone.
Wired Headphones
There is a 3.5mm stereo headphone output
jack on each monitor which can be used with
any standard stereo headphone with an in-line
volume control.
Auxiliary Audio/Video Connection
An external A/V source such as a media
player, video game, or other audio/video
device may be connected to the 3.5mm
auxiliary input labeled AUX IN. An optional
adapter (sold separately) may be used to
convert the 3.5mm input to standard RCA
jacks.
Yellow: Video input
Red: Audio - right channel input
White: Audio - left channel input
To display and listen to the audio/video signal
of an external source, connect the external
source to the 3.5mm auxiliary input and select
AUX mode.
Wireless FM Transmitter
Monitor A includes a built-in FM transmitter,
which allows you to listen to the audio signal
through your vehicle’s FM radio. Activate the
FM transmitter by pressing the FM TX button
on the remote control and select the desired
frequency. Whenever the FM transmitter is
active, normal broadcast radio reception may
be poor. Performance may vary based on
geographic location. To resume normal
broadcast reception, turn off the FM
transmitter located on monitor A.
How to use the FM Transmitter
Power up your system and insert a disc in
monitor A. While pointing your remote at the
monitor press the FM TX button on your
remote control. Next, press the FM TX button
again to turn the FM transmitter on or off.
Press the arrow Up/Down buttons on the
remote control to cycle through 98 possible
frequencies for broadcasting the audio to your
FM radio. Once you’ve selected a frequency,
tune your FM radio to the corresponding
frequency. Try several frequencies until you
achieve a clear audio signal.
To deactivate the FM transmitter feature,
press the FM TX button on the remote until
the “FM CHANNEL OFF” is displayed on the
monitor.
Seat Top User Manual 700001 rev 00-11.docx Page | 5
Control Description – Monitor A with DVD Player
1
2
3
5
10
11
12
6
7
9
8
4
13
14
Seat Top User Manual 700001 rev 00-11.docx Page | 6
Control Description – Monitor B without DVD Player
5
6
10
11
12
13
14
2
3
4
Seat Top User Manual 700001 rev 00-11.docx Page | 7
1. Disc Compartment Slot (Monitor A)
2. Infrared Transmitters These transmit
audio to the wireless headphones.
3. IR Sensor Allows the remote control to
operate the monitor.
4. TFT LCD Panel 8-inch TFT LCD Panel
5. POWER Button Press this button to turn
the monitor on or off.
6. SOURCE Button – Monitor A Press this
button to select between Disc, SD, USB,
AUX, HDMI, or Monitor B inputs.
SOURCE Button – Monitor B Press this
button to select between SD, USB, AUX,
HDMI, or Monitor A inputs.
7. PLAY/PAUSE Button (Monitor A) Press
this button to play/pause the media.
8. STOP Button (Monitor A) Press this
button to stop playing the media.
9. EJECT Button (Monitor A) Press this
button to eject the disc.
10. SD Card Input You can play music,
images and videos stored on most SD
cards.
11. Mini HDMI Input Connect an external
audio/video source using a mini HDMI
connector (sold separately).
12. USB Port You can play music, images,
and videos stored on most USB devices.
13. AUX Input Jack Connect an external
audio/ video source using a 3.5mm A/V
connector (sold separately).
14. Headphone Output Jack Connect wired
headphones using a 3.5mm stereo
connector. Headphones must include
in-line volume control in order to adjust
the volume level.
Warnings
• Do not use any harsh solvents or
chemicals when cleaning the unit.
• Do not use any abrasive cleaners that
may scratch the screen. Use only a
lightly dampened lint free cloth to wipe
the screen if it is dirty.
• Do not put pressure on the screen.
• Caution children to avoid touching or
scratching the screen, as it may become
dirty or damaged.
Seat Top User Manual 700001 rev 00-11.docx Page | 8
Functional Verification
Function Checks:
Look for:
Turn vehicle ignition to ON, press power
button on each monitor.
Monitor should power on and start up
screen should appear.
Insert disc into monitor A, press PLAY
button on the remote control or front
panel.
Disc should begin playing.
Listen with wireless headphones (set to
channel “A” to listen to monitor A and
channel “B” to listen to monitor B.
Audio should be heard through wireless
headphones.
Press SOURCE button on monitor B until
it displays monitor A.
Content playing on Monitor A (except for
HDMI) should be displayed on Monitor B.
Press SOURCE button on monitor A until
it displays monitor B.
Media playing on Monitor B (except for
HDMI) should be displayed on Monitor A.
Press eject button on the remote control
or front panel of monitor A.
Disc should eject.
Activate the FM transmitter located on
monitor A and tune the vehicle’s radio to
the frequency set on FM transmitter.
Audio should be heard through vehicle’s
speakers.
Seat Top User Manual 700001 rev 00-11.docx Page | 9
Remote Control Operation

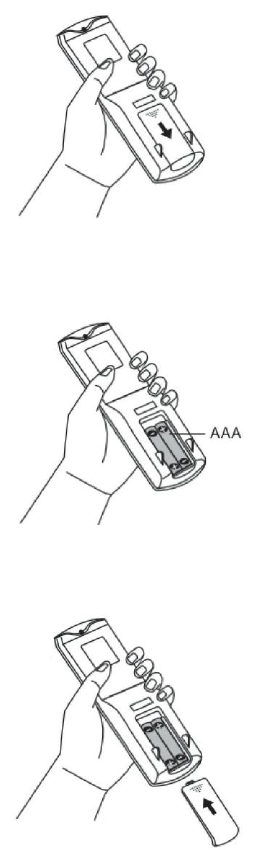

Installing the Batteries
Before attempting to operate your remote
control, install the batteries as described
below.
1. Turn the remote control face down. Press
down on the ridged area of the battery
cover and slide it off.
2. Install two “AAA” batteries as shown. Make
sure that proper polarity (+ or -) is observed.
3. Slide the cover back until it clicks.
The remote control will only operate this
device. It is not a universal remote control and
will not control other equipment.
Warning/Caution on using batteries
• Always ensure that the batteries are
inserted with the positive and negative
terminals in the correct direction as
shown in the battery compartment.
• Different types of batteries have different
characteristics. Do not mix different
types.
• Do not mix old and new batteries. Mixing
old and new batteries will shorten battery
life and/or cause chemical leaks from the
old batteries.
• When batteries fail to function, replace
them immediately.
• Keep the batteries out of the reach of
children. Should the batteries be
swallowed, immediately consult a doctor.
Also, when disposing of used batteries,
please comply with governmental
regulations or environmental public
institution rules that apply in your
country/area.
• Remove the batteries if the remote
control is not used for a month or longer.
Seat Top User Manual 700001 rev 00-11.docx Page | 10
Button Function Descriptions
1
2
4
6
8
3
11
12
13
14
15
17
18
19
9
7
5
10
16
20
21
22
23
24
25
26
27
28
29
30
31
32
37
34
33
36
38
35
Seat Top User Manual 700001 rev 00-11.docx Page | 11
1. POWER Press this button to turn the
monitor on. Press this button again to
turn the monitor off.
2. Number Keys Decimal number: 0 to 9.
3. CLEAR Press this button to clear any
numeric input from the number keypad.
4. FM TX Press this button to turn the FM
transmitter ON/OFF.
5. ANGLE Press this button to select
different viewing angles (this function only
applies to DVD titles that support multiple
angles).
6. DISC Press this button select DISC mode
(Monitor A only).
7. SD Press this button to select SD card
mode.
8. AUX Press this button to select auxiliary
input mode.
9. HDMI Press this button to select HDMI
mode.
10. TITLE Press this button to navigate the
title menu included on the disc.
11. MENU Press the button to go to the root
menu included on the disc.
12. UP Press this button to navigate up when
displaying a menu or file list.
13. LEFT Press this button to navigate left
when displaying a menu or file list.
14. ENTER Press this button to make a
selection or begin playback of the media.
15. A Press this button to transmit the remote
control codes and functions for monitor A.
16. DOWN Press this button to navigate
down when displaying a menu or file list.
17. RND Press this button to play content in
random order.

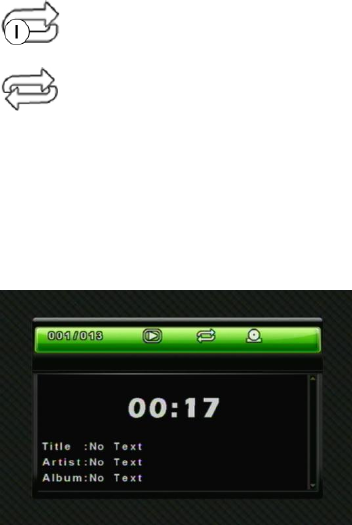

18. RPT Press this button to select between
different repeat modes.
19. PLAY Press this button to begin media
playback.
20. PAUSE Press this button to pause media
playback.
21. FR (Fast Rewind) Press this button to
search media backward.
22. FF (Fast Forward) Press this button to
search media forward.
23. MUTE Press this button to mute the
audio. Press this button again to resume
audio.
24. SETUP Press this button to navigate the
setup menu. Please refer to pages 15
and 25 for detailed information on each
setup menu.
25. EJECT Press this button to eject the disc
from Monitor A.
26. PIX Press this button to access the
picture adjustment menu and select
between BRIGHTNESS, CONTRAST,
SATURATION, HUE, SHARPNESS, and
RESET. Press the UP/DOWN arrow
buttons to adjust the setting.
27. USB Press this button to select USB
mode.
28. MON Press this button to select Monitor
mode (A or B) as the input.
29. SUB-T (Subtitle) Press this button to
select and display subtitles (this function
only applies to DVD titles that support
subtitles).
30. AUDIO Press this button to select and
listen to different audio streams (this
function only applies to DVD titles that
support multiple audio streams).
31. RIGHT Press this button to navigate right
when displaying a menu or file list.
32. B Press this button to transmit the remote
control codes and functions for monitor B.
33. DISP (Display) Press this button to
display various information including title,
Seat Top User Manual 700001 rev 00-11.docx Page | 12
chapter/track, elapsed time, time
remaining, or to turn off the display.
34. INT (Intro) Press this button to play each
audio file for 10 seconds. Press this
button again to cancel the Intro function.
35. ZOOM Press this button to zoom in or out
when displaying images or video files.
36. STOP Press this button once to stop
playback. (Press play to resume
playback.) Press this button twice to
perform a full stop. (Press play to start
playback from the beginning.)
37. NEXT Press this button to select the next
chapter, track, or file.
38. PREV Press this button to select the
previous chapter, track, or file.
Seat Top User Manual 700001 rev 00-11.docx Page | 13
General Operating
Instructions
Turning the monitor ON or OFF
1. If necessary, pivot the screen downward
until a comfortable viewing angle is
reached.
2. Press the POWER button on the front
panel or the remote control to turn the
monitor on or off. When powered on, the
front panel controls will illuminate.
3. After the monitor has been turned on and
is displaying a picture, adjust the viewing
angle by pivoting the screen to optimize
the picture quality.
4. Remember to turn the monitor off when
not in use.
DVD - Basic Overview
To get the most use out of each DVD, make
sure you read this section completely.
Regional Coding
Both the DVD player and discs are coded by
region. These regional codes must match in
order for the disc to play. The system is preset
to the region code designated for your area by
the DVD Copy Control Association. Other
regions may not be played in this system.
Type of Discs your monitor will play:
DVD-Video: DVD contains video.
DVD +/- R: DVD contains video.
CD-DA: CD contains audio.
Loading and Playing Discs
Before you load a disc, make sure that it is
compatible with the player. Note that the
following discs CANNOT be used with this
system: Optical disc- CD-1, CD-ROM, and
DVD-ROM Mini disc- CDG (audio only, not
graphics) (List is not all inclusive).
To Load and Play a Disc
Press the POWER button on monitor A to turn
the system on. The system turns on in Disc
mode by default. Place the disc about halfway
into the disc compartment slot, with the disc’s
label facing the rear of the vehicle. Do NOT
insert the disc at an angle. The disc must be
inserted straight into the player.
The disc will load automatically and begin to
play. (Some discs may start at the root menu,
where playback must be selected to start a
movie.) Depending on the disc and playback
location on the disc, the icon may be
displayed in the upper-left corner of the screen
indicating that playback is not possible during
certain times.
SD Cards and USB Flash Drives
Due to ongoing technological advancements,
some USB flash drives and/or SD cards may
be incompatible with this system.
Seat Top User Manual 700001 rev 00-11.docx Page | 14
Notes on Discs
• To keep a disc clean, do not touch its
surface. Handle the disc by its edge.
• Keep your discs in their cases or sleeves
when not in use. Also, do not subject disc
to heat/high temperature. Avoid leaving
them in a parked vehicle or on a
dashboard/rear tray.
• Do not attach labels, or use discs with
sticky ink/residue. Such discs may stop
spinning when used, causing a
malfunction, or may ruin the disc.
• Do not use any discs with labels or
stickers attached. The following
malfunctions may result from using such
discs:
• Inability to eject a disc (due to a label
or sticker peeling off and jamming
the disc mechanism).
• Inability to read audio data correctly
(i.e., playback skipping, or no
playback) due to heat shrinking of a
sticker or label causing a disc to
warp.

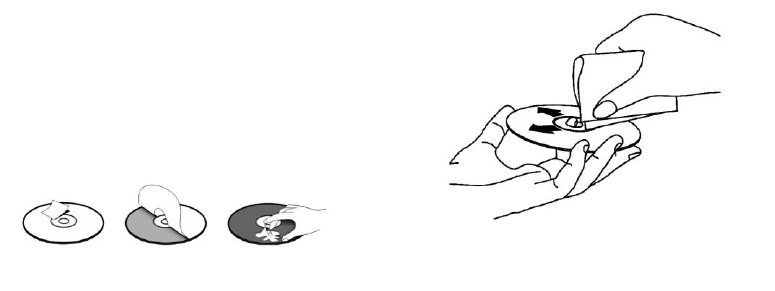

• Before playing, clean the discs with a
commercially available cleaning cloth.
Wipe each disc from the center out. Do
not use solvents such as benzene,
thinner, commercially available cleaners,
or antistatic spray intended for analog
discs.
• Use only normal, circular discs. If you
insert irregular, non-round, shaped discs
they may jam in the DVD player or not
play properly.
.
Seat Top User Manual 700001 rev 00-11.docx Page | 15
Monitor A
How to use the OSD Menu
This section describes how to set and adjust
settings using the on-screen setup pages
included in the On-screen Display (OSD)
Menu. You can use the OSD menu screen to
adjust all the settings on your screen. Follow
the steps outlined below to select the desired
function.
General Setup Page
Press the SETUP button on the remote
control. Use the ▲▼and the ► or ◄ buttons
to navigate the Setup Page. Press ENTER to
select and then the ◄ to return to the
sub-menu. To cancel the Setup Display, press
the SETUP button on the remote.
OSD Language
The OSD Lang sub-menu allows the user to
select the language for the on-screen display.
When the OSD Lang option is highlighted,
press the ► button once and then use the ◄
► buttons on the remote control to select the
desired language. The user can select
English, Simplified / Traditional Chinese,
French, German, Italian, Spanish, Portuguese,
or Korean for the OSD language. Press
ENTER to select and then the ◄ button to
return to the sub-menu.
Angle Mark
The angle mark is an option for different
viewing angles on the DVD. When the Angle
Mark option is highlighted, press the ► button
once and then use the ◄ ► buttons on the
remote control to turn the angle mark setting
on or off. Press ENTER to select and then the
◄ button to return to the sub-menu.
Seat Top User Manual 700001 rev 00-11.docx Page | 16
Speaker Setup Page
Downmix
When the Downmix option is highlighted,
press the ► button once and then use the ◄
► buttons on the remote control to select
between Stereo or LT/RT. Press ENTER to
select and then the ◄ button to return to the
sub-menu.
Video Setup Page
Video Quality
When the Quality option is highlighted, press
ENTER and then use the ▲▼and the ► or ◄
buttons on the remote control to select
between the various video quality settings.
Press ENTER to select and then the ◄ button
to return to the sub-menu.
Seat Top User Manual 700001 rev 00-11.docx Page | 17
Video Quality Setup
Option
Description
Range
Default
Sharpness
Adjust to soften or
sharpen the
picture.
Low/Med/High
Low
Brightness
Adjust to brighten
or darken the
picture.
-20 ~ +20
00
Contrast
Adjust to increase
or decrease picture
contrast.
-16 ~ +16
00
Gamma
Adjust to increase
or decrease the
picture gamma.
Low/Med/High/None
None
Hue
Adjust to increase
or decrease the
color hue.
-09 ~ +09
00
Saturation
Adjust to increase
or decrease color
intensity.
-09 ~ +09
00
Luma Delay
Adjust to change
the Luma delay.
0T or 1T
1T
Seat Top User Manual 700001 rev 00-11.docx Page | 18
Preference Page
Press the SETUP button on the remote
control, use the ▲▼and the ► or ◄ buttons
to navigate the Setup Page. Press ENTER to
select and then the ◄ button to return to the
sub-menu.
Audio
The Audio sub-menu allows the user to select
the audio stream in the desired language for
playback. When the Audio option is
highlighted, press the ► button once and then
use the ◄ ► buttons on the remote control to
select the desired language. The user can
select English, French, Spanish, Chinese,
Japanese, German, Portuguese, Italian,
Korean, Russian, or Tai for the audio stream
language. Press ENTER to select and then
the ◄ button to return to the sub-menu. The
DVD title must include the desired audio
stream in order for it to be heard during
playback.
Subtitle
The Subtitle sub-menu allows the user to
select the subtitle in the desired language for
playback. When the Subtitle option is
highlighted, press the ► button once and then
use the ◄ ► buttons on the remote control to
select the desired language. The user can
select English, French, Spanish, Chinese,
Japanese, German, Portuguese, Italian,
Korean, Russian, Tai, or Off for the subtitle
language. Press ENTER to select and then
the ◄ button to return to the sub-menu. The
DVD title must include the desired subtitle
language in order for it to be displayed during
playback.
Disc Menu
The Disc Menu sub-menu allows the user to
select the desired language of the DVD disc
menu. When the Disc Menu option is
highlighted, press the ► button once and then
use the ◄ ► buttons on the remote control to
select the desired language. The user can
select English, French, Spanish, Chinese,
Japanese, German, Portuguese, Italian,
Korean, Russian, or Tai for the Disc Menu
language. Press ENTER to select and then
the ◄ button to return to the sub-menu. The
DVD title must include the desired menu
language in order for it to be displayed during
playback.
Seat Top User Manual 700001 rev 00-11.docx Page | 19
Parental
This section of the Setup Menu allows the
user to select the level of movie content
playback from KID SAFE to ADULT. The
parental control function allows you to limit
viewing to your preference. The rating levels
range from 1 to 8 and are country dependent.
The lower the rating number, the stricter the
playback limitation is.
When the Parental option is highlighted, press
the ► button once and then use the ◄ ►
buttons on the remote control to select the
desired parental control setting and press
ENTER. (A password is required to change
the Parental settings.) Using the remote
control, enter the password (0000) and press
ENTER to confirm the setting and return to the
sub-menu.
Default
This section of the Setup Menu allows the
user to restore all controls and values to the
default levels. When the Default option is
highlighted, press the ► button once and then
press ENTER to perform the reset. (This will
not affect the parental control setting).
Seat Top User Manual 700001 rev 00-11.docx Page | 20
Monitor A
Playing a CD
Insert a disc into the unit with label facing the
rear of vehicle and select DISC mode from the
source menu using the front panel controls or
the remote control.
When playing an audio CD, the information
screen appears automatically. It can display
the current track number along with the
amount of time the track has been playing, the
amount of time remaining for the track playing,
the total amount of time elapsed so far, or the
total amount of time remaining.
Display
Press the DISP button on the remote control
to select the desired type of display setting.
The single elapsed time of the current track is
displayed by default.
Press DISP (1x)
“Single Remain” is displayed along with the
current track playing and the amount of time
remaining for the current track.
Press DISP (2x)
“Total Elapsed” is displayed along with the
current track playing and the total amount of
elapsed time.
Press DISP (3x)
“Total Remain” is displayed along with the
current track playing and the total amount of
time remaining.
Press the DISP button again to display the
elapsed time of the current track.
Skipping Tracks
Press the NEXT button on the remote control
to select to the next track. Press the PREV
button one time to select the beginning of the
current track. Press the PREV button two
times to select the previous track.
Intro Mode
You can choose to preview the first 10
seconds of each track. To access the intro
mode, press the INT button on the remote
control. The first 10 seconds of each track will
play. Press INT again to cancel intro mode.
Repeat Modes
The default mode for the repeat function is
repeat entire disc. Press the RPT button on
the remote control to select between the
following options:
Repeat the current track.
Repeat the entire disc.
Repeat off (no icon is displayed).
As you press RPT button, the repeat option
changes. The selected repeat option remains
in effect until you turn it off.
Random Mode
You can choose what order the tracks will be
played. To access the random play mode,
press the RND button on the remote control.
All tracks on the disc will playback in random
order. Press RND again to cancel random
mode.
Seat Top User Manual 700001 rev 00-11.docx Page | 21
Monitor A
Playing Audio Files
MP3 and WMA are formats for storing digital
audio. A CD quality song can be compressed
into the MP3 or WMA format with very little
loss of quality, while taking up much less
storage space. Encoded discs, SD cards, and
USB devices that include MP3 or WMA files
can be played.
Insert a disc, SD card, or USB device into the
unit and select the desired mode from the
source menu using the front panel controls or
the remote control.
Using a USB Device – Insert USB device into
the USB port on the left side of the unit. When
inserting a USB device, the top side of the
device should face towards the front of the
vehicle.
Using an SD card - Insert SD card into the
SD card slot on the left side of the unit. When
inserting an SD card, the label should face
towards the front of the vehicle.
When an MP3/WMA encoded disc, SD card,
or USB device is inserted, the information
screen appears automatically and playback
will begin.

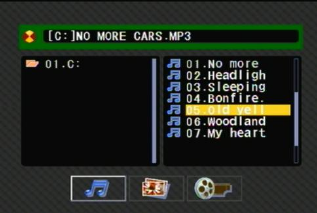

Selecting Files
1. To change files when a file is playing,
press the ▲▼ buttons on the remote
control to display the file list, and then
press the ▲▼ buttons to select the
desired file.
2. Once the desired file is highlighted,
press the ENTER button on the remote control
to select it.
Selecting Folders
1. To select folders when a file is playing,
press the ◄ button on the remote control
to display the file list. Press the ▲▼
buttons to select the desired folder.
2. Press the ◄ button to access the
previous level (go up one level) or, press
the ► button to access the next level (go
down one level).
3. Once the desired folder is highlighted,
press the ENTER button on the remote
control to select it.
Skipping Files
Press the NEXT button on the remote control
to select to the next file. Press the PREV
button one time to select the beginning of the
current file. Press the PREV button two times
to select the previous file.
Intro Mode
You can choose to preview the first 10
seconds of each file. To access the intro
mode, press the INT button on the remote
control. The first 10 seconds of each file will
play. Press INT again to cancel intro mode.
Repeat Modes
To access the repeat mode options, press the
RPT button on the remote control. The repeat
mode options are as follows:
Repeat All: Repeat the entire disc, SD card,
or USB device (default).
Repeat Folder: Repeat the current folder.
Repeat One: Repeat the current file.
Repeat Off: Playback stops after the disc, SD
card, or USB device is played in its entirety.
Random Mode
You can choose what order the files will be
played. To access the random play mode,
press the RND button on the remote control.
The files in the current folder will playback in
random order. Press RND again to cancel
random mode.
Seat Top User Manual 700001 rev 00-11.docx Page | 22
Monitor A
Playing Image Files
Insert a disc, SD card, or USB device into the
unit and select the desired mode from the
source menu using the front panel controls or
the remote control.
Using a USB Device – Insert USB device into
the USB port on the left side of the unit. When
inserting a USB device, the top side of the
device should face towards the front of the
vehicle.
Using an SD card - Insert SD card into the
SD card slot on the left side of the unit. When
inserting an SD card, the label should face
towards the front of the vehicle.

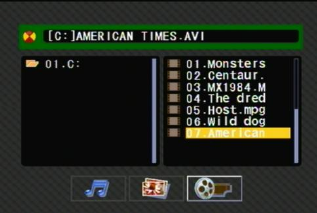

When a disc, SD card, or USB device with
JPG files is inserted, playback will begin
automatically. When a disc, SD card, or USB
device with mixed audio/video/image files is
inserted, the file list screen appears
automatically.
Skipping Files
Press the NEXT button on the remote control
to select to the next file. Press the PREV
button to select the previous file.
Selecting Files
1. To select files during the slideshow, press
the MENU button on the remote control to
access the file list. Press the ▲▼ buttons
on the remote control to select the
desired file.
2. Once the desired file is highlighted, press
the ENTER button on the remote control
to select it.
Selecting Folders
1. To select folders during the slideshow,
press the MENU button on the remote
control to access the file list. Press the
▲▼ buttons to select the desired folder.
2. Press the ◄ button to access the
previous level (go up one level) or, press
the ► button to access the next level (go
down one level).
3. Once the desired folder is highlighted,
press the ENTER button on the remote
control to select it.
Repeat Modes
To access the repeat mode options, press the
RPT button on the remote control. The repeat
mode options are as follows:
Repeat All: Repeat the entire disc, SD card,
or USB device (default).
Repeat Folder: Repeat the current folder.
Repeat One: Repeat the current file.
Repeat Off: Playback stops after the disc, SD
card, or USB device is played in its entirety.
Thumbnail View
1. Press the STOP button on the remote
control during the slideshow to display
images in thumbnail mode. Press the
▲▼and the ► or ◄ buttons to select the
desired image.
2. Once the desired image is highlighted,
press the ENTER button on the remote
control to select it.
Rotating Images
During the slideshow, press the ► button on the
remote control to rotate the image 90° clockwise.
Press the ◄ button to rotate the image 90°
counter-clockwise.
Inverting Images
During the slideshow, press the ▲ button on the
remote control to invert the image (Up-Down).
Mirroring Images
During the slideshow, press the ▼ button on the
remote control to mirror the image (Left-Right).
Seat Top User Manual 700001 rev 00-11.docx Page | 23
Monitor A
Playing Video Files
Insert a disc, SD card, or USB device into the
unit and select the desired mode from the
source menu using the front panel controls or
the remote control.
Using a USB Device – Insert USB device into
the USB port on the left side of the unit. When
inserting a USB device, the top side of the
device should face towards the front of the
vehicle.
Using an SD card - Insert SD card into the
SD card slot on the left side of the unit. When
inserting an SD card, the label should face
towards the front of the vehicle.
When a disc, SD card, or USB device with
video files is inserted, playback will begin
automatically. When a disc, SD card, or USB
device with mixed audio/video/image files is
inserted, the file list screen appears
automatically.
Skipping Files
Press the NEXT button on the remote control
to select to the next file. Press the PREV
button one time to select the beginning of the
current file. Press the PREV button two times
to select the previous file.
Selecting Files
1. Press the MENU button on the remote
control to access the file list. Press the
▲▼ buttons on the remote control to
select the desired file.
2. Once the desired file is highlighted, press
the ENTER button on the remote control
to select it.
Selecting Folders
1. To select folders during video playback,
press the MENU button on the remote
control to access the file list. Press the
▲▼ buttons to select the desired folder.
2. Press the ◄ button to access the
previous level (go up one level) or, press
the ► button to access the next level (go
down one level).
3. Once the desired folder is highlighted,
press the ENTER button on the remote
control to select it.
Repeat Modes
To access the repeat mode options, press the
RPT button on the remote control. The repeat
mode options are as follows:
Repeat All: Repeat the entire disc, SD card,
or USB device (default).
Repeat Folder: Repeat the current folder.
Repeat One: Repeat the current file.
Repeat Off: Playback stops after the disc, SD
card, or USB device is played in its entirety.
Seat Top User Manual 700001 rev 00-11.docx Page | 24
Monitor A
Charging a USB Device
Plug the USB cable (not supplied) into the
USB port on the left side of the monitor and
then connect the other end to the USB device.
Note: Depending on the device, it may or may
not charge when connected to the USB port.
Not all devices are able to charge when
connected to the USB port.
Refer to the documentation that came with
your USB device for more information.
Monitor A
Connecting an External A/V
Source – 3.5mm
Connect the external source to the 3.5mm
input port on the right side of the monitor
labeled “AUX IN”.
Note: Use the 3.5mm A/V cable made
specifically for the device. An optional adapter
(sold separately) may be used to convert the
3.5mm A/V input to standard RCA jacks.
Yellow: Video input
Red: Audio - right channel input
White: Audio - left channel input
Select the AUX mode from the source menu
using the front panel controls or the remote
control.
Monitor A
Connecting an External A/V
Source – HDMI
Connect the external source to the mini HDMI
input port on the left side of the monitor
labeled “HDMI”.
Select the HDMI mode from the source menu
using the front panel controls or the remote
control.
Selecting Monitor B as the
Source
It is possible to select Monitor B as the source
for Monitor A. This will allow all content that is
playing on monitor B (except for an externally
connected HDMI device) to be displayed on
monitor A.
Select the MONITOR B mode from the source
menu using the front panel controls or the
remote control.
Seat Top User Manual 700001 rev 00-11.docx Page | 25
Monitor B
How to use the OSD Menu
(Accessible only when an SD card or USB
device is inserted)
This section describes how to set and adjust
settings using the on-screen setup pages
included in the On-screen Display (OSD)
Menu. You can use the OSD menu screen to
adjust all the settings on your screen. Follow
the steps outlined below to select the desired
function.
General Setup
With an SD card or USB device inserted,
press the SETUP button on the remote
control. Use the ▲▼and the ► or ◄ buttons
to navigate the Setup Menu. Highlight the
desired item and press ENTER to select. To
cancel the Setup Display, press the SETUP
button again.
TV System
When the TV SYSTEM option is highlighted,
press the ► button once and then use the
▲▼ buttons on the remote control to select
between NTSC, PAL, or AUTO. Press ENTER
to select and return to the sub-menu.
TV Type
When the TV TYPE option is highlighted,
press the ► button once and then use the
▲▼ buttons on the remote control to select
between 4:3PS, 4:3LB, or 16:9. Press ENTER
to select and return to the sub-menu.
Seat Top User Manual 700001 rev 00-11.docx Page | 26
Password
A password is required to change the Rating
settings. When the PASSWORD option is
highlighted, press ► button once to highlight
the password entry box, enter the password
(0000), and then press ENTER. The lock icon
will change to an unlocked icon.
Default
This section of the Setup Menu allows the
user to restore all controls and values to the
default levels. When the DEFAULT option is
highlighted, press the ► button once and then
press ENTER to perform the restore (this will
not affect the rating control setting).
OSD Language
The OSD Language sub-menu allows the user
to select the language for the on-screen
display. When the OSD LANGUAGE option is
highlighted, press the ► button once and then
use the ▲▼ buttons on the remote control to
select the desired language. The user can
select English, German, Spanish, French, or
Portuguese for the OSD language. Press
ENTER to select and return to the sub-menu.
Seat Top User Manual 700001 rev 00-11.docx Page | 27
Monitor B
Playing Audio Files
Insert an SD card or USB device into the unit
and select the desired mode from the source
menu using the front panel controls or the
remote control.
Using a USB Device – Insert USB device into
the USB port on the left side of the unit. When
inserting a USB device, the top side of the
device should face towards the front of the
vehicle.
Using an SD card - Insert SD card into the
SD card slot on the left side of the unit. When
inserting an SD card, the label should face
towards the front of the vehicle.
When an SD card or USB device containing
audio files is inserted, audio playback will
begin automatically.
Skipping Files
Press the NEXT button on the remote control
to select to the next file. Press the PREV
button to select the previous file.
Display
Press the DISP button on the remote control
to display the track information and elapsed
time.
Press the DISP button again to turn off the
track/time information display.
Selecting Files
1. To select files when a file is playing,
press the ▲▼ buttons on the remote
control to select the desired file.
2. Once the desired file is highlighted, press
the ENTER button on the remote control
to select it.
Selecting Folders
1. To select folders when a file is playing,
press the ◄ button on the remote control
(cursor shifts to the left side of the
screen) and then press the ▲▼ buttons
to select the desired folder.
2. Once the desired folder is highlighted,
press the ENTER button on the remote
control to select it.
Intro Mode
You can choose to preview the first 10
seconds of each file. To access the intro
mode, press the INT button on the remote
control. The first 10 seconds of each file will
play. Press INT again to cancel intro mode.
Repeat Modes
To access the repeat mode options, press the
RPT button on the remote control. The repeat
mode options are as follows:
Repeat All: Repeat the entire SD card or USB
device contents (default).
Repeat Off: Playback stops after the SD card
or USB device is played in its entirety.
Repeat One: Repeat the current file.
Repeat Directory: Repeat the current folder.
Random Mode
You can choose what order the files will be
played. To access the random play mode,
press the RND button on the remote control.
The files will playback in random order. Press
RND again to cancel random mode.
Seat Top User Manual 700001 rev 00-11.docx Page | 28
Monitor B
Playing Image Files
Insert an SD card or USB device into the unit
and select the desired mode from the source
menu using the front panel controls or the
remote control.
Using a USB Device – Insert USB device into
the USB port on the left side of the unit. When
inserting a USB device, the top side of the
device should face towards the front of the
vehicle.
Using an SD card - Insert SD card into the
SD card slot on the left side of the unit. When
inserting an SD card, the label should face
towards the front of the vehicle.
When an SD card or USB device containing
image files is inserted, the file list screen
appears automatically. Press the PLAY button
on the remote control to start the slideshow.
Skipping Files
Press the NEXT button on the remote control
to select to the next file. Press the PREV
button to select the previous file.
Selecting Files
1. To select files during the slideshow, press
the STOP button on the remote control to
access the file list. Press the ▲▼ buttons
on the remote control to select the
desired file.
2. Once the desired file is highlighted, press
the ENTER button on the remote control
to select it.
Selecting Folders
1. To select folders during the slideshow,
press the STOP button on the remote
control to access the file list. Press the
◄ button on the remote control (cursor
shifts to the left side of the screen) and
then press the ▲▼ buttons to select the
desired folder.
2. Once the desired folder is highlighted,
press the ENTER button on the remote
control to select it.
Repeat Modes
To access the repeat mode options, press the
RPT button on the remote control. The repeat
mode options are as follows:
Repeat All: Repeat the entire SD card or USB
device contents (default).
Repeat Off: Playback stops after the SD card
or USB device is played in its entirety.
Repeat One: Repeat the current file.
Repeat Directory: Repeat the current folder.
Random Mode
You can choose what order the files will be
played. To access the random play mode,
press the RND button on the remote control.
The files will playback in random order. Press
RND again to cancel random mode.
Rotating Images
During the slideshow, press the ► button on
the remote control to rotate the image 90°
clockwise. Press the ◄ button to rotate the
image 90° counter-clockwise.
Inverting Images
During the slideshow, press the ▲ button on
the remote control to invert the image (Up-
Down).
Mirroring Images
During the slideshow, press the ▼button on
the remote control to mirror the image (Left-
Right).
Seat Top User Manual 700001 rev 00-11.docx Page | 29
Monitor B
Playing Video Files
Insert an SD card or USB device into the unit
and select the desired mode from the source
menu using the front panel controls or the
remote control.
Using a USB Device – Insert USB device into
the USB port on the left side of the unit. When
inserting a USB device, the top side of the
device should face towards the front of the
vehicle.
Using an SD card - Insert SD card into the
SD card slot on the left side of the unit. When
inserting an SD card, the label should face
towards the front of the vehicle.
When an SD card or USB device containing
video files is inserted, the file list screen
appears automatically. Press the PLAY button
on the remote control to begin playback.
Skipping Files
Press the NEXT button on the remote control
to select to the next file. Press the PREV
button to select the previous file.
Selecting Files
1. To select files during video playback,
press the STOP button on the remote
control to access the file list. Press the
▲▼ buttons on the remote control to
select the desired file.
2. Once the desired file is highlighted, press
the ENTER button on the remote control
to select it.
Selecting Folders
1. To select folders during video playback,
press the STOP button on the remote
control to access the file list. Press the
◄ button on the remote control (cursor
shifts to the left side of the screen) and
then press the ▲▼ buttons to select the
desired folder.
2. Once the desired folder is highlighted,
press the ENTER button on the remote
control to select it.
Repeat Modes
To access the repeat mode options, press the
RPT button on the remote control. The repeat
mode options are as follows:
Repeat All: Repeat the entire SD card or USB
device contents (default).
Repeat Off: Playback stops after the SD card
or USB device is played in its entirety.
Repeat One: Repeat the current file.
Repeat Directory: Repeat the current folder.
Seat Top User Manual 700001 rev 00-11.docx Page | 30
Monitor B
Charging a USB Device
Plug the USB cable (not supplied) into the
USB port on the left side of the monitor and
then connect the other end to the USB device.
Note: Depending on the device, it may or may
not charge when connected to the USB port.
Not all devices are able to charge when
connected to the USB port.
Refer to the documentation that came with
your USB device for more information.
Monitor B
Connecting an External A/V
Source – 3.5mm
Connect the external source to the 3.5mm
input port on the right side of the monitor
labeled “AUX IN”.
Note: Use the 3.5mm A/V cable made
specifically for the device. An optional adapter
(sold separately) may be used to convert the
3.5mm A/V input to standard RCA jacks.
Yellow: Video input
Red: Audio - right channel input
White: Audio - left channel input
Select the AUX mode from the source menu
using the front panel controls or the remote
control.
Monitor B
Connecting an External A/V
Source – HDMI
Connect the external source to the mini HDMI
input port on the left side of the monitor
labeled “HDMI”.
Select the HDMI mode from the source menu
using the front panel controls or the remote
control.
Selecting Monitor A as the
Source
It is possible to select Monitor A as the source
for Monitor B. This will allow all content that is
playing on monitor A (except for an externally
connected HDMI device) to be displayed on
monitor B.
Select the MONITOR A mode from the source
menu using the front panel controls or the
remote control.
Seat Top User Manual 700001 rev 00-11.docx Page | 31
Troubleshooting
Symptom
Remedy
Monitor does not power on
Is ignition switch turned to the on or ACC position?
Are batteries installed in the remote control?
Check the 5 amp fuse located in the Input Power Filter Assembly.
Remote control does not function
Verify that the batteries in the remote control are good.
Verify that the remote sensor lens is not obstructed.
Disc will not play
Insert the disc with label side facing the rear of the vehicle.
Check if the disc is defective by trying another disc.
Check the type of disc being played. This unit only plays DVD (Single,
Dual Layer), DVD-R/+R, DVD+R Dual layer,
DVD-RW/+RW, CD, CD-R, and CD-RW.
Both the unit and DVD discs are coded by region. If the region codes
don’t match, the DVD can’t be played.
Disc plays, but stops intermittently
The disc is dirty and needs cleaning.
Condensation has formed inside the unit. Remove the disc and allow
unit to dry out.
No picture
Check that the signal source is connected.
Check the menu source setting. Match your monitor mode with the
source correctly.
Distorted picture
Check the disc for fingerprints and clean with a soft cloth, wiping from
center to edge.
Cannot advance through a DVD movie
You cannot advance through the opening credits and warning
information that appears at the beginning of DVDs because the disc is
programmed to prohibit these actions.
No sound or distorted sound
Make sure that the external media device is connected properly, and
all cables are securely inserted into the appropriate jacks.
Verify that the batteries in the headphones are good.
If you are using the wireless headphones, make sure you turn on the
power and select the correct monitor (A or B).
Is volume turned up on headphones?
Is anything blocking the path between the monitor IR sensor and
headphones?
When placing the headphones on your head, make sure to observe
the Left and Right orientation. The headphones must be oriented
correctly (facing forward) in order to receive the audio signal.
Monitor feels warm
When the monitor is in use for a long period of time, the surface will be
warm. This is normal.
Player does not respond to all commands during
playback
Operations are not permitted by the DVD.
Refer to the specific instructions included with the DVD for more
information.
Seat Top User Manual 700001 rev 00-11.docx Page | 32
Specifications
Dimensions
304(W) x 330(H) x 156(D) mm
Weight
4.53 Kg (Monitor A)
3.63 Kg (Monitor B)
Power Consumption (nominal)
Operation <19W @ 13.5VDC
LCD Backlight
LED
Resolution
800x3(RGB) x480 TFT LCD Panel
Luminance
550cd/m2 (typ.)
DVD (Monitor A)
Slot-In Loader
Supported Disc (Monitor A)
DVD (Single, Dual Layer), DVD-R/+R, DVD+R Dual layer,
DVD-RW/+RW, CD, CD-R, CD-RW
Operation Temperature/Humidity
-20°C~70°C
Expected Backlight Life
30,000 hours
Video Display System
NTSC/PAL
Supply Input Voltage
10V~16V DC
Maximum Input Current
1.36A (Vin = 13.5V DC)
Frequency Response
20Hz ~20KHz
I/O Ports
3.5mm Headphone Jack, 3.5mm A/V IN, SD card, USB
port, mini HDMI
Headphone (Audio Out)
Output Level: 2Vpp (input 0dB 1KHz)
HDMI Compliant
Version 1.4
Wireless Audio
Dual channel infrared audio transmitter,
supports stereo headphone operation
(reception: 0.9 m; 80°, 1.8 m; 50°)
IR Channels
Channels
A: 2.3/2.8 MHz
B: 3.2/3.8 MHz
Seat Top User Manual 700001 rev 00-11.docx Page | 33
Compliance Information
FCC Notice
This device has been tested and found to
comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
device generates, uses, and can radiate radio
frequency energy, and if not installed and
used in accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this device does cause
unacceptable interference to radio or
television reception, which can be determined
by turning the device off and on, the user is
encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the device
and receiver.
• Connect the device into an outlet on a circuit
different from that to which the receiver is
connected.
• Consult your dealer or an experienced
radio/TV technician for help.
FCC Warning:
To assure continued FCC compliance, the
user must use the provided grounded power
supply cord and the shielded video interface
cable with bonded ferrite cores. Also, any
unauthorized change or modifications to this
device would void the user’s authority to
operate this device.
ITE Notice
This Class B digital apparatus complies with
Canadian ICES-003.
Cet Appareil numérique de la classe B est
conforme à la narme NMB-003 du Canada.
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this
device may not cause interference, and (2)
this device must accept any interference,
including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR
d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de rouillage, et
(2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre
le fonctionnement.
This device and its antenna(s) must not be
co-located or operation in conjunction with any
other antenna or transmitter.
Under Industry Canada regulations, this radio
transmitter may only operate using an antenna
of a type and maximum (or lesser) gain
approved for the transmitter by Industry
Canada. To reduce potential radio
interference to other users, the antenna type
and its gain should be so chosen that the
equivalent isotropically radiated power
(e.i.r.p.) is not more than that necessary for
successful communication.
Seat Top User Manual 700001 rev 00-11.docx Page | 34
WEEE Notice
Disposal of Old Electrical & Electronic
Equipment (Applicable in the European Union
and other European countries with separate
collection systems)
This symbol on the product or on its
packaging indicates that device shall not be
treated as household waste. Instead it shall be
handed over to the applicable collection point
for the recycling of electrical and electronic
equipment. By ensuring this device is
disposed of correctly, you will help prevent
potential negative consequences for the
environment and human health, which could
otherwise be caused by inappropriate waste
handling of this device. The recycling of
materials will help to conserve natural
resources. For more detailed information
about recycling of this device, please contact
your local city office, your household waste
disposal service or the shop where you
purchased the device. Applicable accessory:
remote control.
Macrovision Notice
This product incorporates copyright protection
technology that is protected by method claims
of certain U.S. patents and other intellectual
property rights owned by Macrovision
Corporation and other rights owners. Use of
this copyright protection technology must be
authorized by Macrovision Corporation, and is
intended for home and other limited viewing
uses only unless otherwise authorized by
Macrovision Corporation. Reverse engineering
or disassembly is prohibited.
Dolby Digital
Manufactured under license from Dolby
Laboratories.
Dolby and the double-D symbol are registered
trademarks of Dolby Laboratories.
Seat Top User Manual 700001 rev 00-11.docx Page | 35
Warranty
INVISION Automotive Systems Inc., (the
“Company”) warrants to the original retail
purchaser of this product, when purchased
from a participating new car dealership, that
should this product under normal use and
conditions, be proven defective in material or
workmanship, such defect(s) will be repaired
or replaced with reconditioned product (at the
Company’s option) without charge for parts
and repair labor when the work is performed
by the original dealership of purchase, or an
authorized representative of that dealership.
This Warranty will match the warranty of the
Original Equipment Manufacturer (“OEM”) or
remainder of original factory warranty
whichever is greater when installed on a new
vehicle with a minimum of 36 months or
36,000 miles. If the product is installed on a
used vehicle, then only a 12 month or 12,000
mile Warranty from the date of installation will
apply. This Warranty is not applicable to any
extended warranty purchased.
To obtain repair or replacement within the
terms of this Warranty, the product must be
returned to a participating new car dealership
for warranty service or replacement. The
dealership will perform troubleshooting to
determine if repair or replacement is
warranted. If a participating dealership cannot
be contacted, then the Purchaser should
contact the Company to obtain the name and
location of a dealership where service under
this Warranty can be obtained.
This Warranty does not extend to the
elimination of externally generated static or
noise, correction of antenna problems, costs
incurred for installation, removal or
reinstallation of the product, or to damage to
digital memory devices, media devices,
gaming devices, discs, speakers, accessories,
or vehicle electrical systems.
This Warranty does not apply to any product
or part thereof which, in the opinion of the
Company, has suffered or been damaged
through alteration, improper installation,
mishandling, misuse, neglect, accident, or by
removal or defacement of the factory serial
number/bar code label(s). THE EXTENT OF
THE COMPANY’S LIABILITY UNDER THIS
WARRANTY IS LIMITED TO THE REPAIR
OR REPLACEMENT PROVIDED ABOVE
AND, IN NO EVENT, SHALL THE
COMPANY’S LIABILITY EXCEED THE
PURCHASE PRICE PAID BY PURCHASER
FOR THE PRODUCT.
This Warranty is in lieu of all other express
warranties or liabilities. ANY IMPLIED
WARRANTIES, INCLUDING ANY IMPLIED
WARRANTY OF MERCHANTABILITY,
SHALL BE LIMITED TO THE DURATION OF
THIS WRITTEN WARRANTY. ANY ACTION
FOR BREACH OF ANY WARRANTY HERE-
UNDER, INCLUDING ANY IMPLIED
WARRANTY OF MERCHANTABILITY, MUST
BE BROUGHT WITHIN A PERIOD OF 48
MONTHS FROM THE DATE OF ORIGINAL
PURCHASE. IN NO CASE SHALL THE
COMPANY BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL
DAMAGES FOR BREACH OF THIS OR ANY
OTHER WARRANTY, EXPRESS OR
IMPLIED, WHATSOEVER. No person or
representative is authorized to assume for the
Company any liability other than expressed
herein in connection with the sale of this
product.
Some states do not allow limitations on how
long an implied warranty lasts or the exclusion
or limitation of incidental or consequential
damage so the above limitations or exclusions
may not apply to you. This Warranty gives you
specific legal rights and you may also have
other rights which vary from state to state.
Seat Top User Manual 700001 rev 00-11.docx
UPC Code 39 or 128 goes here
for part # 700001
REV.01
