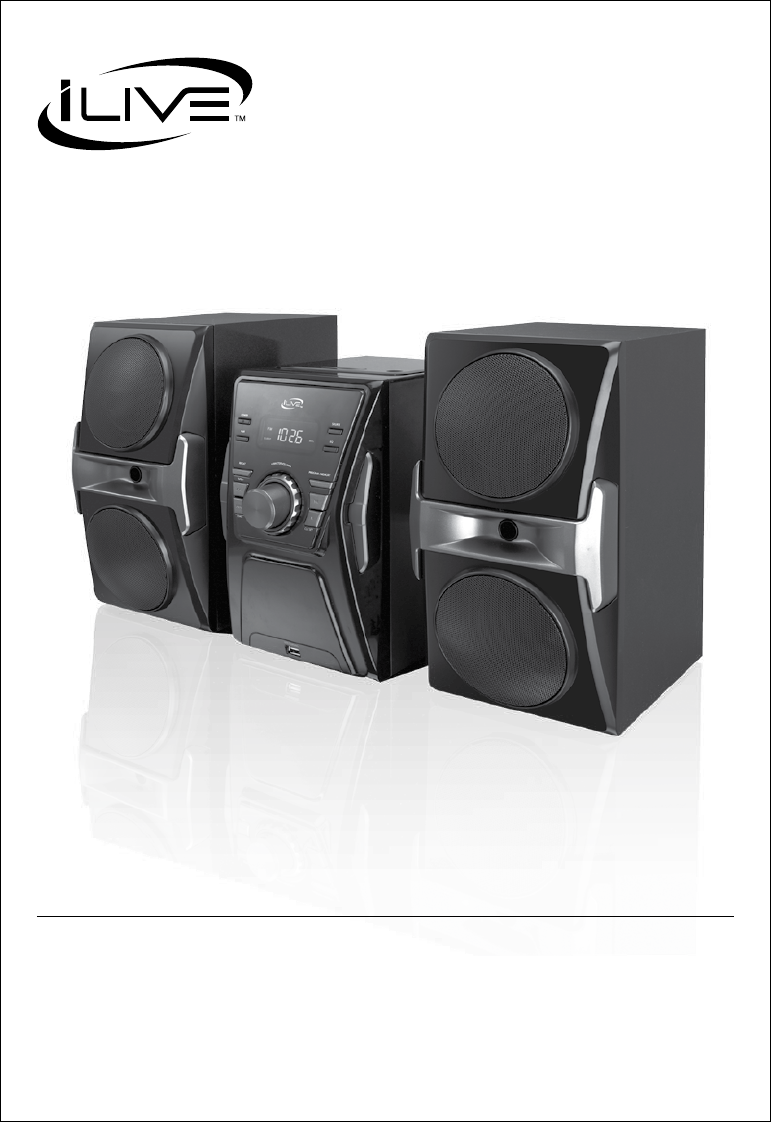

JETOP IHB613B CD Bluetooth micro system with PLL FM radio User Manual

JETOP INDUSTRIAL LIMITED CD Bluetooth micro system with PLL FM radio

User manual

USER’S GUIDE
V: 781-01
For the most up-to-date version of this User’s Guide, go to
www.iLiveElectronics.com
IHB613B
Bluetooth Wireless, CD, Radio, Home
Music System
2
• WARNING:Lithium batteries, like all rechargeable
batteries are recyclable and should be recycled or
disposed of in normal household waste. Contact your
local government for disposal or recycling practices in
your area. They should never be incinerated since they
might explode.
• WARNING: Shock hazard - Do Not Open.
• AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS
OUVRIR
Mains Plug or Direct plug-in adapter is used as disconnect
device and it should remain readily operable during intended
use. In order to disconnect the apparatus from the mains
completely, the Mains Plug or Direct plug-in adapter should
be disconnected from the mains socket outlet completely.
La che d’alimentation ou adaptateur de courant est utilisé
comme dispositif de déconnexion et doit rester accessible
pendant l’utilisation. Pour mettre l’appareil hors tension, la
che ou adaptateur de courant doit être débranché de la prise
de courant.
Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc), or rechargeable
(ni-cad, ni-mh, etc) batteries.
No mezcle baterías viejas y nuevas.
No mezcle baterías alcalinas, estándar (carbono-zinc) o
recargables (ni-cad, ni-mh, etc.).
• CAUTION: TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE OF PLUG TO WIDE SLOT,
FULLY INSERT.
• WARNING:To reduce the risk of re or electric shock,
do not expose this apparatus to rain or moisture.
• AveRTIssemeNT: Pour réduire le risque d’incendie
ou de choc électrique, ne pas exposer cet appareil sous la
pluie et l’humidité.
• CAUTION: Use of any controls or adjustments or
performance of procedures other than those herein
specied may result in hazardous radiation exposure.
• WARNING: Do not place this unit directly onto
furniture surfaces with any type of soft, porous, or
sensitive nish. As with any rubber compound made with
oils, the feet could cause marks or staining where the feet
reside. We recommend using a protective barrier such
as a cloth or a piece of glass between the unit and the
surface to reduce the risk of damage and/or staining.
• WARNING: Use of this unit near uorescent lighting
may cause interference regarding use of the remote. If
the unit is displaying erratic behavior move away from
any uorescent lighting, as it may be the cause.
• CAUTION:Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type.
• PRÉCAUTION: Danger d’explosion si les piles sont
remplacées de façon incorrect. Remplacer les piles
seulement par le même type de pile ou l’équivalent.
• WARNING:The battery, batteries, and battery pack
shall not be exposed to excessive heat such as sunshine,
re, or the like.
Warnings and Precautions
The lightning ash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufcient magnitude to
constitute a risk of electric shock to persons.
WARNING: TO REDUCE THE RISK
OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
ATTENTION
RISQUE D' ÉLECTROCUTION
NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
This product utilizes a Class 1 laser to read
Compact Discs. This laser Compact Disc Player is
equipped with safety switches to avoid exposure
when the CD door is open and the safety interlocks
are defeated. Invisible laser radiation is present
when the CD Player’s lid is open and the system’s
interlock has failed or been defeated. It is very
important that you avoid direct exposure to the
laser beam at all times. Please do not attempt
to defeat or bypass the safety switches.
WARNING: The remote control supplied with this
product contains a button-cell battery that could be
accidentally ingested by children. Do not leave button-
cell batteries accessible to children. If swallowed,
promptly see doctor and call (202) 625-3333.
WARNING: This equipment should be installed and
operated with minimum distance between 20cm the
radiator your body: Use only the supplied antenna.
Customer Support: 1-888-999-4215 3
13. Unplug this apparatus during lightning storms
or when unused for long periods of time.
14. Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
WARNING: Changes or modications not expressly approved by the
party responsible for compliance could void the user’s authority to
operate the equipment.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• The apparatus shall not be exposed to dripping or
splashing and that no objects lled with liquids,
such as vases, shall be placed on apparatus.
L’appareil ne doit pas être exposé aux écoulements
ou aux éclaboussures et aucun objet ne contenant de
liquide, tel qu’un vase, ne doit être placé sur l’objet.
• Battery shall not be exposed to excessive heat
such as sunshine, re or the like.
Les piles ne doivent pas être exposées à de forte chaleur, tel qu’à
la lumière du soleil, au feu ou autres choses de semblable.
• Caution marking is located at the rear or bottom of the apparatus.
Attention marquage est situé sur le paneau
arrière ou inférieur de l’unité.
• The marking information is located at the
rear or bottom of apparatus.
Le marquage est situé sur le paneau arrière ou inférieur de l’unité.
FCC Warnings
Additional Warnings
1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized
or grounding - type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. When the provided plug
does not t into your outlet, consult an electrician
for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories
specied by the manufacturer.
12.
Important Safety Instructions
This symbol indicates that this
product incorporates double insulation
between hazardous mains voltage
and user accessible parts.
Use only with a cart, stand, tripod,
bracket, or table specied by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
Special note: When placing your unit on a
lacquered or natural nish, protect your furniture
with a cloth or other protective material.
To maintain compliance with FCC’s RF Exposure guidelines, This
equipment should be installed and operated with minimum distance
between 20cm the radiator your body: Use only the supplied antenna.
RF Exposure Statement
4
• Supports Bluetooth v2.0
• CD player: CD, CD-R/RW
• Digital FM Radio (PLL)
• Station memory presets (10 FM)
• 3.5mm audio input
• Digital volume control
• Top-load disc player
• USB port for mobile phone charging
• Last user’s setting memory
• Digital clock
• LCD display
• Sleep timer
• Alarm
• LED pairing indicator
• Full-function remote
• Wireless range: 33 feet
• Preset EQ
• Pairing button
• 2 channel stereo sound
• Metal speaker grill
• Wooden speaker enclosure
• AC power: built-in AC power cable
• Remote control: requires a
CR2025 battery (pre-installed)
IHB613B
Features Included
Customer Support: 1-888-999-4215 5
Table of Contents
IHB613B .......................................................................... 4
Features
Included
Table of Contents .................................................................. 5
Introduction ...................................................................... 6
Setup ............................................................................. 8
Power
Remote
Connecting the Speakers and RCA Audio Inputs .................................... 8
Connecting the Speakers
Clock, Alarm, & Sleep Timer ........................................................ 9
Setting the Clock
Setting the Sleep timer
Setting the Alarm
Bluetooth & Charging ............................................................10
Pairing a Bluetooth Device
Playing Audio Wirelessly
Charging a Device
CD, FM Radio & Line In ............................................................11
Loading a CD
Playing a CD
Programming a CD
Playing the Radio
Radio Reception
Saving a Radio Station as a Preset
Tuning to a Saved Preset Station
Using the Line input
Company Information ............................................................12
International Support
Contact Information
Warranty
Green Initiative
6
Introduction
POWER
PAIR
SOURCE
EQ
PROGRAM / MEMORY
CLK SET
TUNE –
TUNE +
USB CHARGING
M
A
S
T
E
R
V
O
L
U
M
E
LINE IN
SPEAKER
RL
AC IN ~
Open/Close
Press to open or
close the CD door.
Power
Press to power
the music system
o or on.
Pair
Press to begin
connecting a
Bluetooth device.
Repeat/Mem+
Press to repeat
the current track
or an entire CD.
Press to cycle
through saved
radio stations.
Skip/Search
Tune (+/-)
Press to skip
between tracks .
Press and hold to
search through an
individual track. Press
to tune the FM radio.
Press and hold to
search for the next
available station.
USB Charger
Connect a USB
device to charge.
Line In
Source
Press to switch
between sources.
EQ
Press to adjust
the preset EQ to
Rock, Classic, Jazz,
Pop, or Bass.
Program/Memory
Press to program
tracks to play in a
specic order.
In FM Radio mode,
press to begin saving
a station as a preset.
Play/Pause
Press to play or
pause a connected
Bluetooth device
or a loaded CD.
Stop/Clk Set
Press to stop a
CD during play.
In o mode, press
to begin setting
the clock.
Volume
Turn to adjust
the volume.
Speaker Outputs
Customer Support: 1-888-999-4215 7
POWER
MUTE
SOURCE
SLEEP EQ
ALARM
CLK SET
PROG/
MEM
TUNE +
TUNE –
REPEAT/
MEM+
VOLUME
Source
Press to switch between
Line in, iPod and
Bluetooth modes.
Mute
Press to mute
the volume.
Play/Pause
Press to play or
pause a track.
Volume
Press to adjust
the volume.
EQ
Press to adjust
the preset EQ to
Rock, Classic, Jazz,
Pop, or Bass.
Clk Set
In o mode, press
to begin setting
the clock.
Program/Memory
Press to program
tracks to play in a
specic order.
In FM Radio mode,
press to begin saving
a station as a preset.
Power
Press to turn the
unit on or o.
Repeat/Mem +
Press to repeat
the current track
or an entire CD.
Press to cycle
through saved
radio stations.
Stop
Press to stop a
CD during play.
Alarm
In o mode, press
to begin setting
the alarm.
Sleep
In on mode, press
to begin setting
the sleep timer.
Skip/Search/
Tune +/-
Press to skip between
tracks, or press
and hold to search
through tracks.
Press to tune the
radio. Press and hold
to search for the next
available station.
8
Power
Remote
LINE IN
SPEAKER
RL
AC IN ~
Setup
AC power input: requires an AC
power cable (included)
Requires 1, CR2025, battery (pre-installed).
LITHIUM BATTERY
CR 2025
3V
CR2025
PUSH
OPEN
LITHIUM BATTERY
CR 2025
3V
CR2025
PUSH
OPEN
WARNING: The remote control’s button
cell battery contains mercury. Do not
put in the trash, instead recycle or
dispose of as hazardous waste.
Connecting the Speakers and RCA Audio Inputs
Connecting the Speakers
Connect the included speakers to the
corresponding speaker connections
on the back of the speaker system.
POWER
PAIR
SOURCE
EQ
REPEAT PROGRAM / MEMORY
CLK SET
TUNE –
TUNE +
USB CHARGING
M
A
S
T
E
R
V
O
L
U
M
E
Right
Speaker
(R)
Left
Speaker
(L)
Customer Support: 1-888-999-4215 9
Clock, Alarm, & Sleep Timer
1. Press the Power button to
turn the music system o.
2. Press the CLK Set button
on the music system.
The hour will begin to
blink on the display.
3. Press the Skip/Search buttons
to adjust the hour.
An “AM” indicator will appear on the
display when the time is set to the AM.
A “PM” indicator will appear on the
display when the time is set to the PM.
4. Press the CLK Set button to
set the adjusted hour.
The minute will begin to
blink on the display.
5. Press the Skip/Search buttons
to adjust the minute.
6. Press the CLK Set button to
nish setting the clock.
Setting the Clock Setting the Alarm
1. With the unit powered o, press
the Alarm button on the remote.
The display will ash.
2. Press the Skip/Search buttons
to adjust the alarm source.
OFF, Buzzer or FM
3. Press the Alarm button to
set the alarm source.
The hour will begin to
blink on the display.
An “AM” indicator will appear on the
display when the time is set to the AM.
A “PM” indicator will appear on the
display when the time is set to the PM.
4. Press the Skip/Search buttons
to adjust the hour.
5. Press the Alarm button to
set the adjusted hour.
The minute will begin to
blink on the display.
6. Press the Skip/Search buttons
to adjust the minute.
7. Press the Alarm button to
set the adjusted minute.
The alarm source will begin
to blink on the display.
8. Press the Alarm button to
nish setting the alarm.
9. The unit will power on when
the set time is reached.
Setting the Sleep timer
1. Press the Power button to
power the unit on.
2. Press the Sleep button repeatedly to
set the sleep timer to the desired time.
3. Once the set sleep time has expired the
clock radio will automatically power off.
10
Pairing a Bluetooth Device
Bluetooth & Charging
1. Power on the unit by pressing
the Power button.
2. Press the Source button to
switch to Bluetooth Mode.
The display will show the “BT”.
3. Press the Pair button.
4. “BT”will ash quickly on the display.
When pairing, remain within
3 feet of the unit.
5. Using the native controls on your
Bluetooth device, select the “IHB613”
in your Bluetooth settings to pair.
If your device requests a password,
enter the default password “ 0 0 0 0 ”.
Refer to the user’s manual for your
specic device for instructions on pairing
and connecting Bluetooth devices.
When successfully paired and connected,
“BT” wills top ashing and audio will
be heard through the speakers.
After initial pairing, the unit
will stay paired unless unpaired
manually by the user or erased
due to a reset of the device.
If your device should become unpaired,
follow the above steps again.
If any pairing issues should occur, un-
pair the unit on your Bluetooth device
and follow the above steps again.
Playing Audio Wirelessly
1. Follow the instructions for
Pairing a Bluetooth Device.
2. Use the native controls on
the connected Bluetooth
Device to select a track.
3. To play, pause or skip the selected
track, use the native controls
on the connected Bluetooth
Device or press the Play/Pause
or Skip/Search buttons.
4. Audio played through the connected
Bluetooth device will now be
heard through the speakers.
Charging a Device
1. Make sure the unit is
plugged into the wall.
2. Using the appropriate USB charging
cable (not included), connect one
end to the device and the other to
the USB Charger on the unit.
Refer to the user’s manual for your
specic device for manufacturers
required charging amperage as well
as determining the appropriate cable
for your device before charging.
Note: This device uses a USB
charging port with a 1A
maximum charging capacity.
3. The device will now charge.
Customer Support: 1-888-999-4215 11
CD, FM Radio & Line In
Using the Line input
Requires a 3.5mm audio
cable (not included)
1. Connect a 3.5mm audio cable
to the 3.5mm Audio Input and
the audio output on an MP3
player or other audio device.
2. Press the Source button to
switch to Line In mode.
3. Use the native controls on
the connected MP3 player or
other audio source to play your
audio through the unit.
Loading a CD
1. Open the Disc Door.
2. Place a CD into the unit,
label side facing up.
3. Close the Disc Door.
Playing a CD
1. Follow the instructions
for Loading a CD.
2. Press the Source button to
switch to CD mode.
3. Press the Play/Pause button to
begin playing the loaded CD.
Programming a CD
1. Follow the instructions for
Loading a CD and Playing a CD.
2. Press the Stop button to
stop the CD during play.
3. Press the Program button
on the remote.
4. Use the Skip/Search buttons to
enter the desired track number.
5. Repeat step 3 until the desired number
of CD tracks are programmed.
6. Press the Play/Pause button
on the remote to begin playing
the programmed tracks.
Playing the Radio
1. Press the Source button to
switch to FM Radio mode.
2. Press the Tune+/- buttons to tune
the radio. Press and hold to search
for the next available station.
Radio Reception
Adjust the position of the antenna
to improve FM radio reception.
1. Follow the instructions for
Playing the Radio.
2. Press and hold the Memory button
on the remote or the unit.
3. Press the Tune+/- buttons on the
remote to select a preset number.
Up to 20 stations may be preset.
4. Press the Memory button to save the
current station to the selected preset.
Saving a Radio Station as a Preset
1. In FM Radio mode, press the
Repeat/Mem+ button to cycle
through saved presets.
Tuning to a Saved Preset Station
Copyright © 2013 Digital Products International (DPI, Inc.) | All other trademarks appearing herein are
the property of their respective owners. Specications are subject to change without notice
Green Initiative
Company Information
Environmental Commitment to ‘Protect
for Today and Sustain for Tomorrow’
On a continual basis DPI, Inc. is making
eorts to sustain the environment
and improve the recyclability of
its products and packaging.
Focusing on “protecting for today and
sustaining for tomorrow” DPI, Inc. has
committed to reducing packaging size,
increasing the usage of recyclable plastics,
and ensuring that packaging and manuals
are made with up to 85% recycled material.
In addition to material consideration, DPI,
Inc. has also focused on the ner details that
positively impact the environment such as
employing the usage of soy-based inks.
DPI, Inc. also ensures that the factories
that produce the company’s wide
variety of consumer electronics adhere
to environmentally friendly air and
water restrictions. This is yet another
example that every step of the way
DPI, Inc. is making eorts to lessen
any impact on the environment.
In 2011 DPI, Inc. also began conversations
with Energy Star in order to ensure
that the consumer electronics being
produced meet high standards of energy
eciency. The ultimate goal is keeping
energy costs for consumers low while
providing quality, feature-rich products.
To download this User’s Guide in
English, Spanish, or French, or to
get answers to frequently asked
questions, visit the support section
at www.iLiveElectronics.com.
Para descargar este Manual del
Usuario en inglés, español y francés, o
para obtener respuestas a preguntas
frecuentes, visite la sección de apoyo
en www.iLiveElectronics.com.
Pour télécharger ce guide de l’utilisateur
en anglais, espagnol ou français, ou pour
obtenir des réponses à des questions
fréquemment posées, consultez la rubrique
d’assistance sur www.iLiveElectronics.com.
Email Support: prodinfo@dpiinc.com
Email Parts: partsinfo@dpiinc.com
Phone Support: 1-888-999-4215
Website: www.iLiveElectronics.com
International Support
Contact Information
Warranty
For Warranty Information and the most
up-to-date version of this User’s Guide,
go to: www.iLiveElectronics.com

Navigation menu
