JETOP ITTB476BU Turntable with Bluetooth Wireless User Manual

JETOP INDUSTRIAL LIMITED Turntable with Bluetooth Wireless

User Manual

Turntable with Bluetooth Wireless
User’s Guide for Model ITTB476BU v1565-01
For the User’s Guide, go to www.iLiveElectronics.com
3
FCC Warnings
Warning: Changes or modications to this unit not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweentheequipmentandreceiver.
• Connecttheequipmentintoanoutletonacircuitdierent
fromthattowhichthereceiverisconnected.
• Consultthedealeroranexperiencedradio/TVtechnician
forhelp.
Additional Warnings and Precautions
• CAUTION:TOPREVENTELECTRICSHOCK,MATCH
WIDEBLADEOFPLUGTOWIDESLOT,FULLYINSERT.
• Cautionandmarkinginformationislocatedattherearor
bottomoftheapparatus.
• Objectslledwithliquids,suchasvases,shallnotbeplacedon
theapparatus.
• Mainsplugisusedasdisconnectdeviceanditshould
remainreadilyoperableduringintendeduse.Inorderto
disconnecttheapparatusfromthemainscompletely,themains
plugshouldbedisconnectedformthemainssocketoutlet
completely.
• WARNING:Toreducetheriskofreorelectricshock,donot
exposethisapparatustorain,moisture,dripping,orsplashing.
CAUTION:Useofcontrolsoradjustmentsorperformanceof
proceduresotherthanthosespeciedmayresultinhazardous
radiationexposure.
• WARNING:Changesormodicationstothisunitnot
expresslyapprovedbythepartyresponsibleforcompliance
couldvoidtheuser’sauthoritytooperatetheequipment.
• WARNING:Donotplacethisunitdirectlyontofurniture
surfaceswithanytypeofso,porous,orsensitivenish.As
withanyrubbercompoundmadewithoils,thefeetcould
causemarksorstainingwherethefeetreside.Werecommend
usingaprotectivebarriersuchasaclothorapieceofglass
betweentheunitandthesurfacetoreducetheriskofdamage
and/orstaining.
• WARNING: This product may contain chemicals known
to the State of California to cause birth defects, or other
reproductive harm (California Prop 65). Wash hands after
handling.
• This product meets and complies with all Federal Regulations.
Important Safety Instructions
• ReadtheseInstructions.
• KeeptheseInstructions.
• HeedallWarnings.
• Followallinstructions.
• Donotusethisapparatusnearwater.
• Cleanonlywithadrycloth.
• Donotblockanyventilationopenings.Installinaccordance
withthemanufacturer’sinstructions.
• Donotinstallnearanyheatsourcessuchasradiators,heat
registers,stoves,orotherapparatus(includingampliers)that
produceheat.
• Donotdefeatthesafetypurposeofthepolarizedorgrounding
-typeplug.Apolarizedplughastwobladeswithonewider
thantheother.Agroundingtypeplughastwobladesanda
thirdgroundingprong.ewidebladeorthethirdprongare
providedforyoursafety.Whentheprovidedplugdoesnott
intoyouroutlet,consultanelectricianforreplacementofthe
obsoleteoutlet.
• Protectthepowercordfrombeingwalkedonorpinched
particularlyatplugs,conveniencereceptacles,andthepoint
wheretheyexitfromtheapparatus.
• Onlyuseattachments/accessoriesspeciedbythe
manufacturer.
• Unplugthisapparatusduringlightningstormsorwhenunused
forlongperiodsoftime.
• Referallservicingtoqualiedservicepersonnel.Servicingis
requiredwhentheapparatushasbeendamagedinanyway,
suchaspower-supplycordorplugisdamaged,liquidhasbeen
spilledorobjectshavefallenintotheapparatus,theapparatus
hasbeenexposedtorainormoisture,doesnotoperate
normally,orhasbeendropped.
• Useonlywithacart,stand,tripod,bracket,
ortablespeciedbythemanufacturer,or
soldwiththeapparatus.Whenacartisused,
usecautionwhenmovingthecart/apparatus
combinationtoavoidinjuryfromtip-over.
Warnings & Precautions
4
Table of Contents
Introduction & Setup � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �5
Features
Includes
Power
Orientation � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �6
Main Features
Rear Inputs
Operation � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �8
Playing a Record
Bluetooth � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �9
Pairing a Bluetooth Device
Playing Audio Wirelessly
Connecting to External Systems � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10
RCA Audio Output
Connecting Devices to the Turntable � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 11
Using the Aux In (3.5mm Audio Input)
Using the Headphone Jack
Company Information � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12
Contact Information
Warranty
International Support
5
Includes
• 45 rpm adapter
• Stylus
• AC/DC power adapter
• Warranty
• User’s guide
Features
• 8 inch, 3 speed turntable plays 33 1/3, 78, and
45 rpm records
• Supports Bluetooth
• Wireless range: 60 feet
• Aux In 3.5mm audio input
• Built-in stereo speakers
• RCA stereo audio outputs
• Analog volume control
• DC power input:
requires an AC/DC power adapter (included)
Introduction & Setup

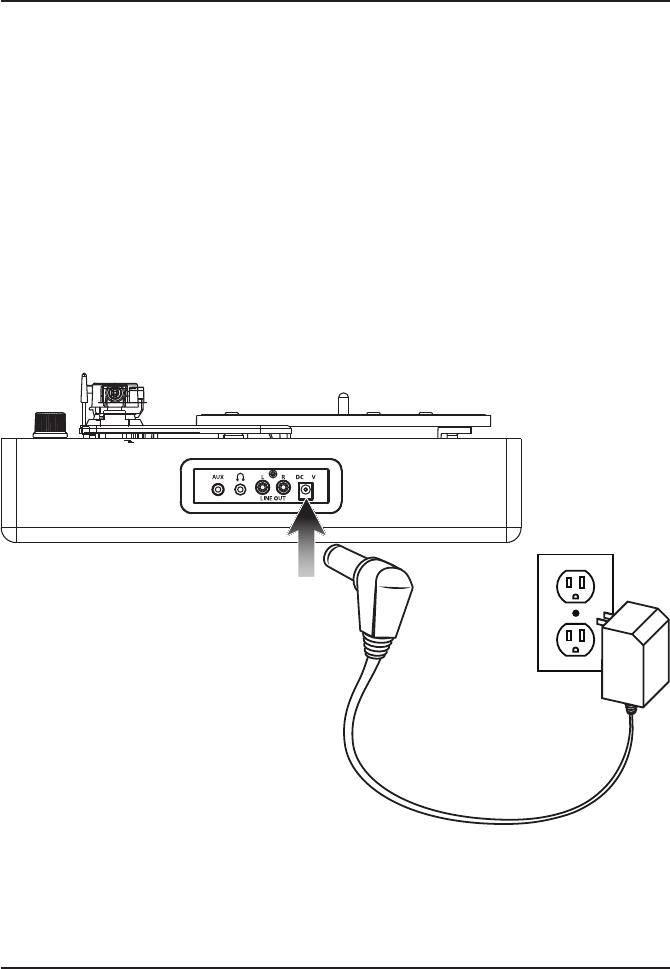

Power
Plug the power cord into the DC Input on the back of the unit and a standard wall power outlet.
9
6
Orientation
Master Volume
Pair Bluetooth
Power/Pair Indicator Lights
Source/O
Turn dial to switch
between dierent
function modes or
power OFF.
Tone Arm &
Stylus
Record
Speed
Choose 33, 45, or
78, depending on
the type of record
to be played.
Auto Stop
Select ON or OFF.
Tone Arm
Lock
Turntable
Tone Arm
Lift Switch
45 rpm Record Adapter
Main Features
7
Aux In
Headphone Jack
Rear Inputs
DC Power Input
Audio Output
Connect to send audio signal
to an external source.
9
8
Operation

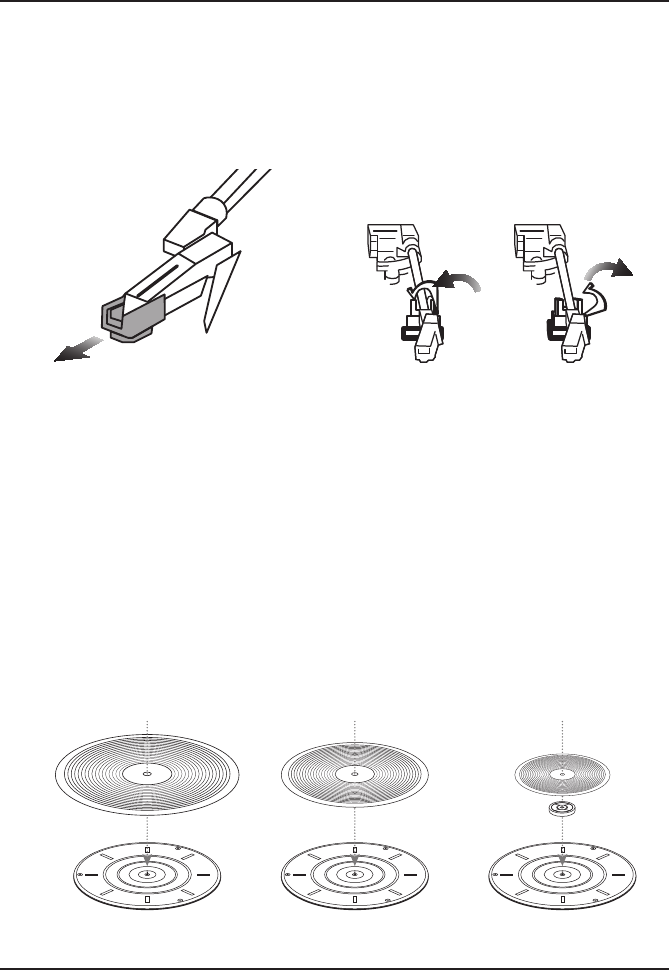

Playing a Record
It is recommended that you use extreme care when manipulating the tone arm, stylus, and other components
of this turntable. These parts are very sensitive and can easily break or become damaged if they are carelessly
handled.
1. Set the Source Dial to Phono.
2. Open the turntable, remove the shroud that protects the stylus, and release the lock that holds the Tone Arm in
it’s resting position.
3. Select the correct turntable speed based on the type of record you wish to play, and place the record on the
turntable. If you are playing a 45 rpm record, use the included adapter and place it between the turntable and
the record.
4. Use the Tone Arm Lift Switch to raise the Tone Arm from its catch.
5. Using your hand, gently swing the Tone Arm into the desired location over the record. The turntable will start
spinning as the Tone Arm is moved into position.
6. Use the Tone Arm Lift Switch to safely lower the stylus onto the record.
Using the Lift Switch instead of your hand will reduce the chance of accidentally damaging the record or the stylus.
7. Slide the Auto Stop Switch to ON to enable the Auto Stop feature. When the record is finished playing, it will
automatically stop the turntable. Use the Lift Switch to raise the stylus off of the record, and gently return the
Tone Arm to the catch by hand.
Note: Some records place their Auto Stop area outside of the range of this unit. In these cases, the record will stop
playing before the last track is reached. Set the Auto Stop Switch to OFF and use the Tone Arm Lift Switch to safely
raise the stylus off the record when the end of the record has been reached.
8. When not in use, secure and lock the Tone Arm in its resting position and replace the protective shroud over the
stylus. This will minimize the risk of accidental damage to these sensitive parts.
33 1/3 rpm
12in diameter
78 rpm
10in diameter
45 rpm & adapter
7in diameter
Lock Unlock
9
Bluetooth
Pairing a Bluetooth Device
1. Set the Source to and press and hold the Play/Pause/Pair button.
The pairing indicator will flash blue quickly. When pairing, remain within 3 feet of the unit.
2. Using the controls on your Bluetooth device, search for and select ITTB476 in your Bluetooth settings to pair. If
your device requests a password, enter the default password 0 0 0 0 .
Refer to the user’s manual for your specific device for instructions on pairing and connecting Bluetooth devices.
3. When successfully paired and connected, an audible chime will sound and the Pairing Indicator on the display
will stop flashing.
After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due to a reset of the
device. If your device should become unpaired or you find it is unable to connect, repeat the above steps or press &
hold the Play/Pause/Pair button again.
Playing Audio Wirelessly
1. After pairing to a Bluetooth device, use the controls on your connected Bluetooth Device to
select a track.
2. Play, pause or skip a selected track using the controls on the connected Bluetooth Device or the controls on the
turntable.
3. Audio played through the connected Bluetooth device will now be heard through the speakers.
10

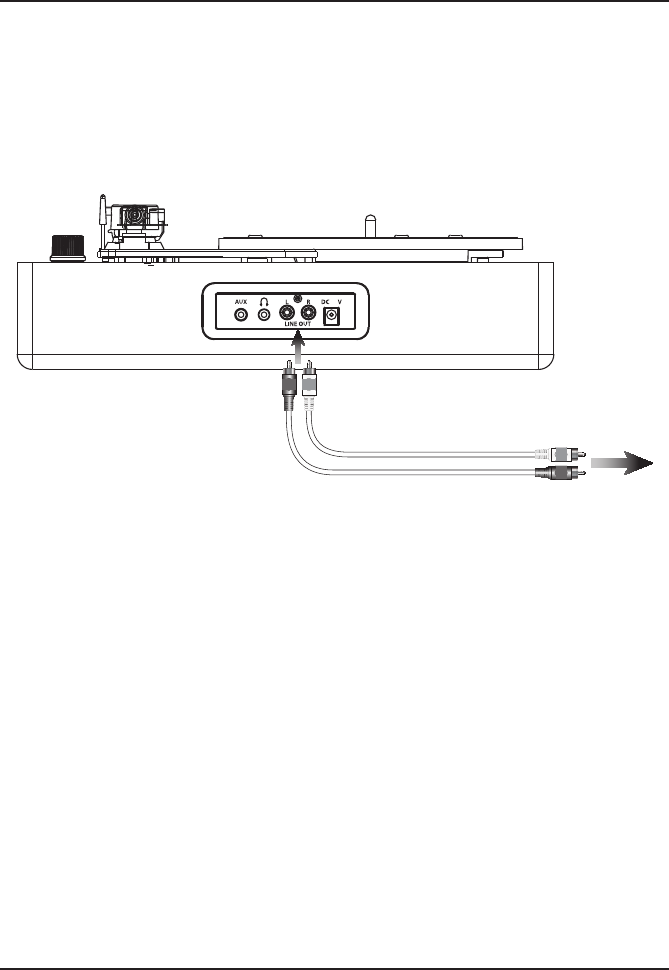

RCA Audio Output
Requires RCA audio cables (red/white, not included). Use to connect the turntable to an external stereo, television,
or other source.
1. Connect RCA audio cables to the RCA Audio Output on the back of the turntable, and to the
audio input of an external stereo system.
2. Adjust the external stereo system to accept input from the turntable.
3. Audio played through the turntable will now be heard through the connected stereo system.
Connecting to External Systems
To Audio Inputs
on external system
9
11

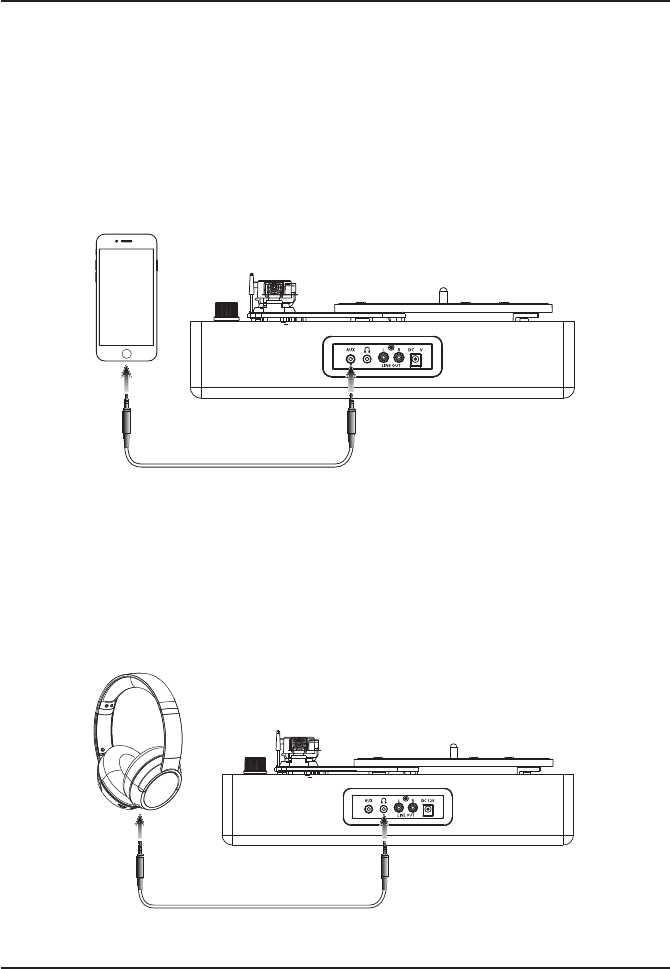

Using the Aux In (3.5mm Audio Input)
Requires 3.5 mm audio input cable (not included).
Note: When the Source selector is set to Aux In, this also powers the unit OFF. When a 3.5mm audio cable
is plugged into the unit, it will automatically detect the input and power ON in Aux In mode. A light will
indicate that the unit is ON and working.
1. Plug a 3.5 mm audio input cable into the Aux In on the unit and the audio output/headphone output on an MP3
Player or other audio source.
2. Set the Source Dial to Aux and use the controls on your connected music player to select and play audio.
3. Audio played through the connected device will now be heard through the speakers.
Using the Headphone Jack
Requires 3.5 mm audio input cable (not included).
1. Plug a 3.5 mm audio input cable into the Headphone Jack on the unit and the audio input/headphone jack on
a pair of headphones.
2. Audio played from the turntable will now be heard through the headphones.
Connecting Devices to the Turntable
9
12
International Support
To download this User’s Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit
the support section at: www.iLiveElectronics.com
Para descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas
frecuentes, visite la sección de apoyo en: www.iLiveElectronics.com
Pour télécharger ce guide de l’utilisateur en anglais, espagnol ou français, ou pour obtenir des réponses à des
questions fréquemment posées, consultez la rubrique d’assistance sur: www.iLiveElectronics.com
Contact Information
Website: www.iLiveElectronics.com
Email Support: prodinfo@dpiinc.com
Email Parts: partsinfo@dpiinc.com
Phone Support: 1-888-999-4215
Warranty
For Warranty Information and the User’s Guide, go to:
www.iLiveElectronics.com
Company Information
Copyright © 2016 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the property
of their respective owners. Specifications are subject to change without notice.

Navigation menu
