Weatherproof Bluetooth® Controller / Receiver
Product Description
The MBT-CRX is a water-resistant (IPX6 rated)
Bluetooth® receiver designed for marine and
powersports applications. It can be used as a
stand-alone Bluetooth® source unit/receiver,
connecting directly to an amplifier. It can also
be used as an add-on Bluetooth® controller/
receiver, connected to an existing head units
line-level/auxiliary inputs. The MBT-CRX is not
designed to drive loudspeakers directly.
What’s Included
(1) MBT-CRX Bluetooth controller/receiver
(1) Threaded fastening collar
(1) Thin round gasket
(1) Thick round gasket
(1) Square adaptor plate
(1) Square adaptor gasket
(4) Stainless steel mounting screws
(1) User Manual
Installation Applications
This product is designed for operation in
12 volt, negative-ground electrical systems.
Using this product in systems with positive
ground and/or voltages other than 12 volts
may result in damage to the product and
will void the warranty. This product is not
certified or approved for use in aircraft.
Safety Considerations
Whenever possible, mount this product
in a dry, well-ventilated location that does
not interfere with other factory installed
electronic devices. If a dry environment is
not available, a location that is not exposed
to heavy splashing may be used.
While this product is designed to be water-
resistant, it should never be submerged
under water or subjected to high-pressure
water spray.
Do not mount in an engine compartment
or in any areas of extreme heat.
Ensure this product is securely installed so
that it does not come loose in the event of a
collision/sudden jolt or as a result of repeated
vibrations during normal operation.
Check before drilling to make sure that you
will not be drilling into an exterior panel/
hull, fuel tank, gas/brake line, wiring harness,
or other vital system.
Do not run system wiring outside or
underneath the vehicle/vessel. This is an
extremely dangerous practice, which can
result in severe damage/injury.
Protect all system wires from sharp
edges (metal, fiberglass, etc.) by carefully
routing them, tying them down and using
grommets and loom where appropriate.
Secure all wiring as needed, using cable
ties or wire clamps to protect them from
moving parts and sharp edges.
Do not replace the power wire fuse with one
of a different value. Never bypass the fuse.
Mounting & Installation
The design of the MBT-CRX requires just
a single hole for installation. Its easy-to-
use threaded-collar mounting system can
accommodate installations in flat surfaces up
to 1.75 inches (4.5 cm) thick. A front-mounted
adaptor plate is included for installations in
panels exceeding 1.75 inches (4.5 cm) thick,
or where rear access is limited or not possible.
Refer to the diagrams below for your specific
mounting application.

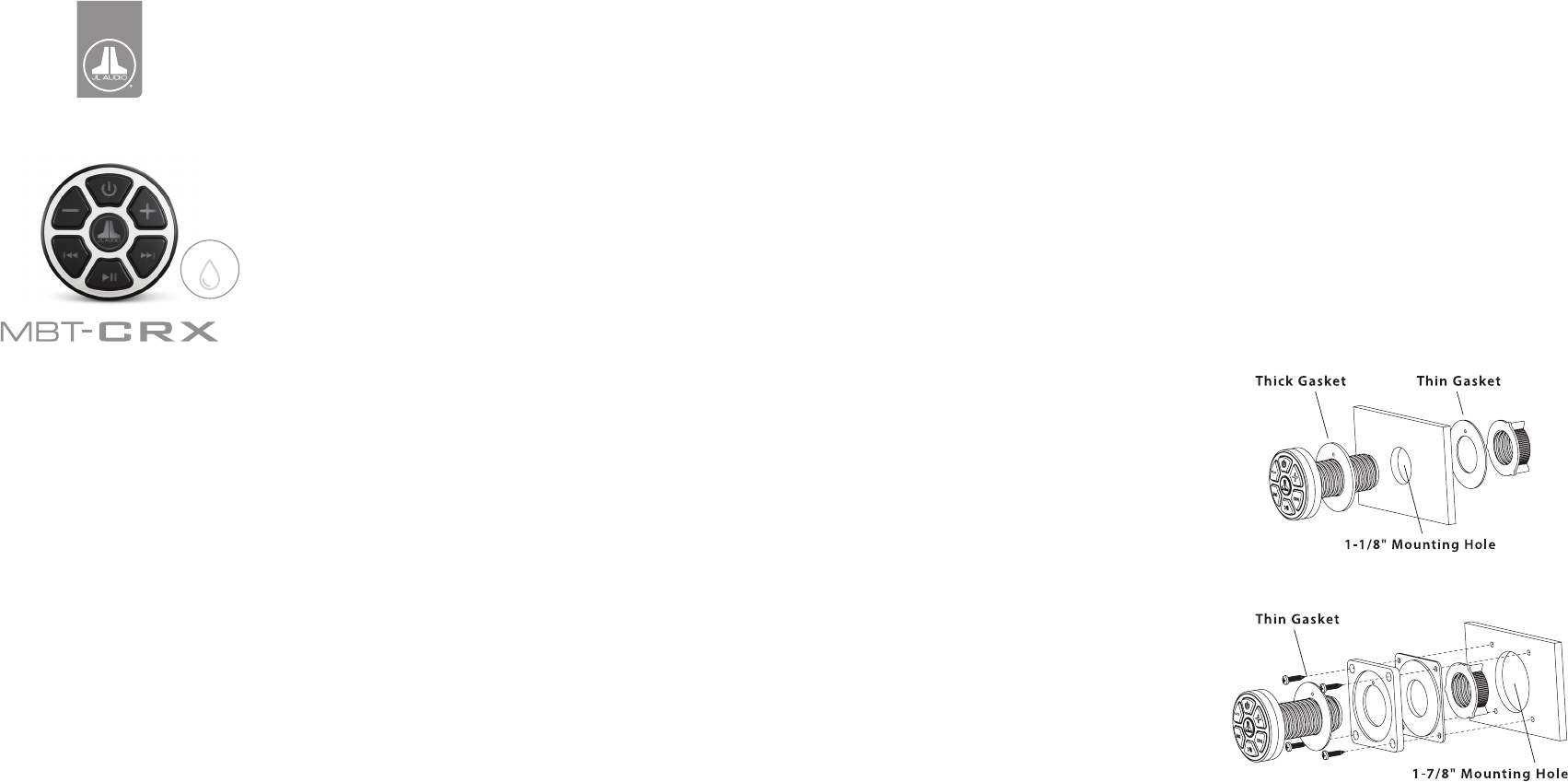

Standard Collar-Mount Installation
Front-Mount Adaptor Installation
IPX6
WATER
RESISTANT
FCC ID:2AD9EMBT-CRX
Wiring Diagram
Pairing Your Device
(required for operation)
1. Ensure your streaming device has Bluetoot
enabled and that the MBT-CRX is on (backlit
in blue). The JL Audio logo on the MBT-CRX
will blink to indicate it is in pairing mode.
2. Within your streaming device’s Bluetoot
setup menu, select “MBT-CRX” from the list
of pairable devices.
3. When successfully connected, the
JL Audio logo on the MBT-CRX will stop
blinking and remain lit. A single beep will be
heard through the connected audio system.
Note: If optional connection is made to a head
unit’s remote turn-on output, the head unit
will turn the MBT-CRX on/off and the MBT-CRX
power button will no longer operate.
Pairing Considerations contd
When a connected streaming device is out of
range for more than one minute, the MBT-CRX
will automatically disconnect this streaming
device and return to pairing mode (JL Audio
logo will blink). When that same device comes
back into range, it should be reconnected to
the MBT-CRX manually.
Controlling Audio Playback
Once connected, use the controls on the
MBT-CRX to adjust volume up/down, track
selection and play/pause.
2-Year Limited Warranty (U.S.A.)
Visit www.jlaudio.com for warranty details.
For Service Information in the U.S.A. please call JL Audio
customer service: (954) 443-1100 during normal business hours
(Eastern Time) • JL Audio, Inc • 10369 N Commerce Parkway,
Miramar, FL 33025
International Warranties:
Products purchased outside the United States of America are
covered only by that country’s distributor and not by JL Audio, Inc.
10-08-2015 • Printed in China
Pairing Considerations
Multiple devices can be paired to the MBT-CRX,
but only one streaming device can connect at
one time.
The MBT-CRX will remember the last device
that was connected to it and reconnect with
it automatically. If that streaming device is not
active, then other paired streaming devices can
connect manually, or new streaming devices
can be paired.
Specifications
Bluetooth® Prole A2DP (High-Quality, Stereo Audio)
Bluetooth® Core
Specication Version 4.0 with aptX®
Frequency Response 20 Hz – 18 kHz (±1dB)
Outputs One Stereo Pair, Low-Level RCA Plugs
Output Voltage 2V RMS
Signal to Noise Ratio 93 dB (20 Hz – 20 kHz)
Input Operating Voltage 8 – 28 VDC
Current Draw 48 mA (at idle)
64 mA (at full output)
Remote Turn-on
Output Capacity 350 mA (max)
Fuse Rating 2A Mini ATC
Connection Range* Up to 35 ft / 11 m
*Maximum range is achieved in line-of-sight installations, actual range
will vary based on installation specics.
Control Legend
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefollowingtwo
conditions:
(1)thisdevicemaynotcauseharmfulinterference,and
(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause
undesiredoperation.
Changesormodificationstothisunitnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser'sauthoritytooperatetheequipment.
