JSW Pacific Corporation WIFI Network Camera
User manual
![](/img.php?id=2445778&img=bg1.png)

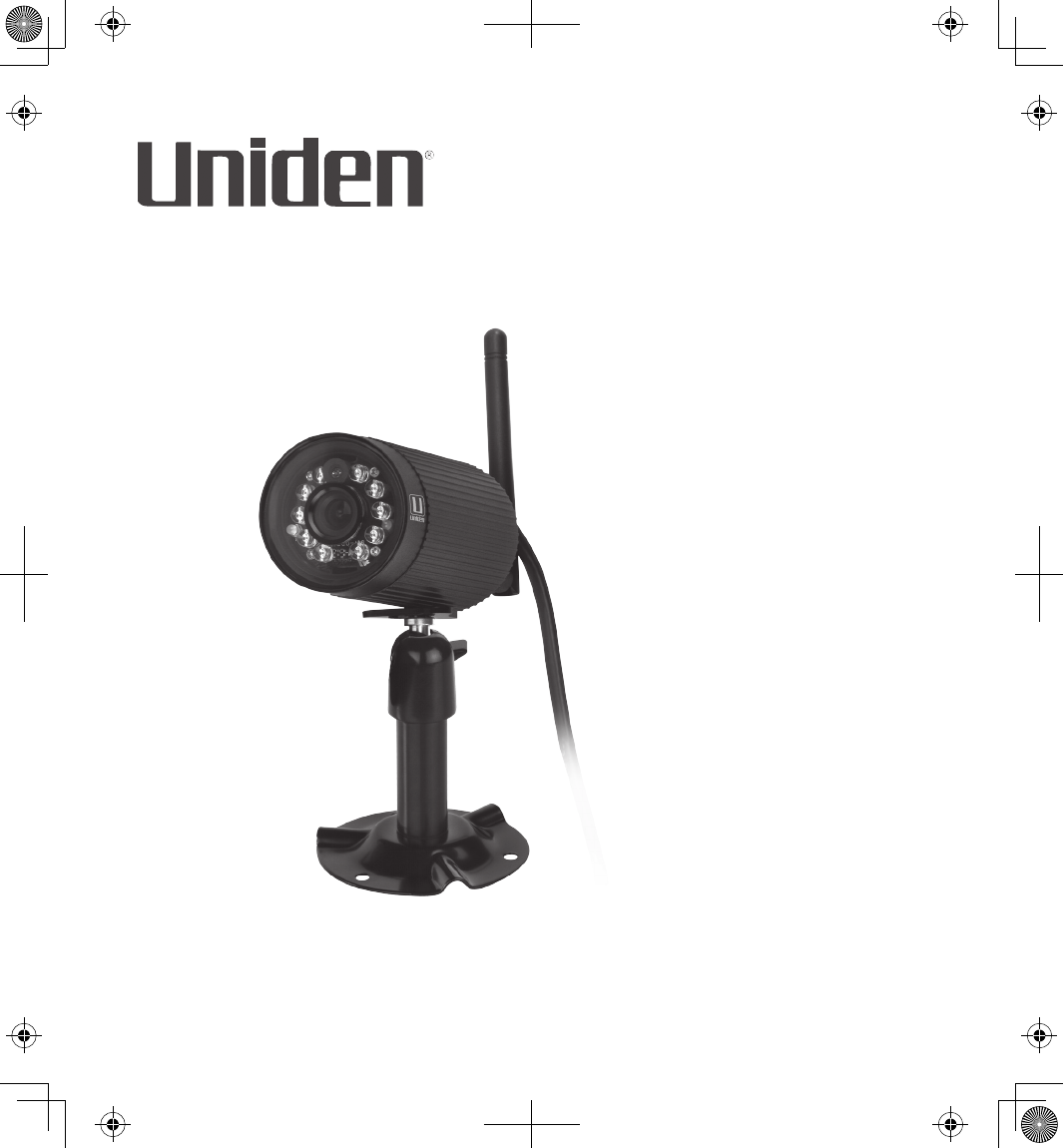

APPCAM23A
User’s Manual
Rev. 1, October 2013
![](/img.php?id=2445778&img=bg2.png)
CUSTOMER CARE
At Uniden®, we care about you!
If you need assistance, please do NOT return this product to your place of
purchase. Our customer care specialists are available to serve you.
Quickly find answers to your questions by:
1. Reading your owner’s manual, included with this product.
2. Visiting our customer support website at www.uniden.com.
3. Calling our customer care specialists at 1-800-658-8068.
Images in this manual may differ slightly from your actual product.
![](/img.php?id=2445778&img=bg3.png)
CONTENTS
CUSTOMER CARE ................................................2
PLEASE READ BEFORE YOU START ............ 4
WIRELESS DEVICES OPERATING RANGE....4
IMPORTANT SAFETY PRECAUTIONS ........... 4
OVERVIEW ................................................... 5
FEATURES ...............................................................5
System ................................................................. 5
AppCam 23 Indoor/Outdoor Camera ..... 6
Uniden’s AppCam App ..................................6
WHAT’S INCLUDED ............................................7
PARTS OF THE CAMERA ...................................8
QUICK START............................................... 9
PREREQUISITES .................................................... 9
STEP 1 CONNECT APPCAM TO THE
NETWORK ............................................................9
STEP 2 SET UP CAMERA ................................9
STEP 3 INSTALL CAMERA .......................... 10
OPERATION OVERVIEW ................................. 10
SETUP AND INSTALLATION...................... 12
DETAILED SETUP PROCEDURES................. 12
Step 1 – Connect AppCam to the
Network................................................... 12
Step 2 – Set Up Camera ............................. 13
Step 3 - Install Cameras .............................. 18
DETAILED APPCAM 23 INSTALLATION
PROCEDURES .................................................. 19
Mount the AppCam 23 Base .................... 19
Attach the Camera - AppCam 23 ............ 20
USING THE APP ......................................... 21
ACCESSING YOUR CAMERAS ...................... 21
SNAPSHOT VS LIVE VIDEO SCREEN .......... 21
SNAPSHOT SCREEN OVERVIEW ................. 22
Add Another Camera .................................. 22
System Settings ............................................ 22
Update ............................................................. 23
Information..................................................... 23
System Information - Advanced
Screen Details ........................................ 24
Delete Camera Connection ..................... 26
Event List Details .......................................... 26
LIVE VIDEO SCREEN OVERVIEW ................. 27
View Recorded Files .................................... 28
TURN OFF THE APP ......................................... 29
MAINTAINING YOUR SYSTEM .................. 30
TAKING CARE OF YOUR CAMERA .............. 30
TROUBLESHOOTING ................................. 31
HOW TO IMPROVE THE WIRELESS
SIGNAL QUALITY ........................................... 31
SPECIFICATIONS ....................................... 34
MICROSD CARD APPROXIMATE
RECORDING TIME ......................................... 35
FCC COMPLIANCE .................................... 35
IC COMPLIANCE INFORMATION .............. 36
CE COMPLIANCE INFORMATION ............. 37
ONE-YEAR LIMITED WARRANTY .............. 37
Uniden surveillance products are not manufactured and/or sold with the intent to be used for illegal purposes.
Uniden expects consumer’s use of these products to be in compliance with all local, state and federal law. For further
information on video surveillance and audio recording legal requirements, please consult your local, state and federal
law.
© 2013. All rights allowed by law are hereby reserved.
![](/img.php?id=2445778&img=bg4.png)
4
5
PLEASE READ BEFORE YOU START
WIRELESS DEVICES OPERATING RANGE
Ensure the signal reception viewed between the camera(s) and the WiFi router.
If necessary, reduce the distance between the camera(s) and the WiFi router to
improve overall system performance.
IMPORTANT SAFETY PRECAUTIONS
Damages caused by non-compliance with this operating manual will void the
warranty! We will not assume any liability for damages to items or persons
caused by improper handling or non-compliance with the safety notices! Any
warranty claim will be null and void in such cases.
•Do not drop, puncture or disassemble the camera; otherwise the warranty
will be voided.
• Never tug on the power cords. Use the plug to unplug it from the outlet.
• Do not expose the camera to high temperature or leave it in direct sunlight.
Doing so may damage the camera or cause temporary camera malfunction.
• Use the devices with care. Avoid pressing hard on the camera body.
• For your own safety, avoid using the camera or power off the camera when
there is a storm or lightning.
• Disconnect the power adapter during long periods between usage.
• Use only the accessories and power adapters supplied by the manufacturer.
![](/img.php?id=2445778&img=bg5.png)
4
5
OVERVIEW

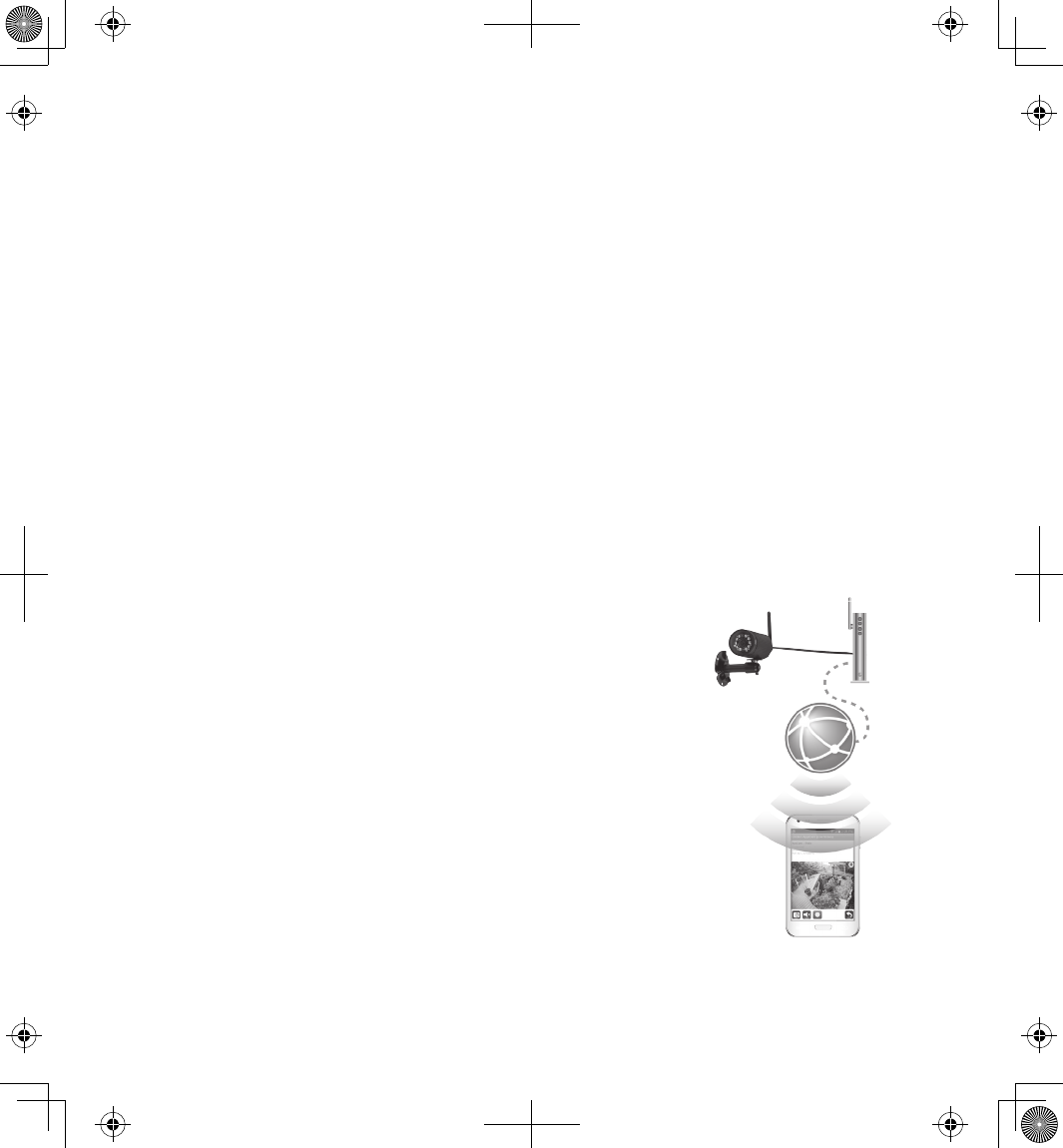

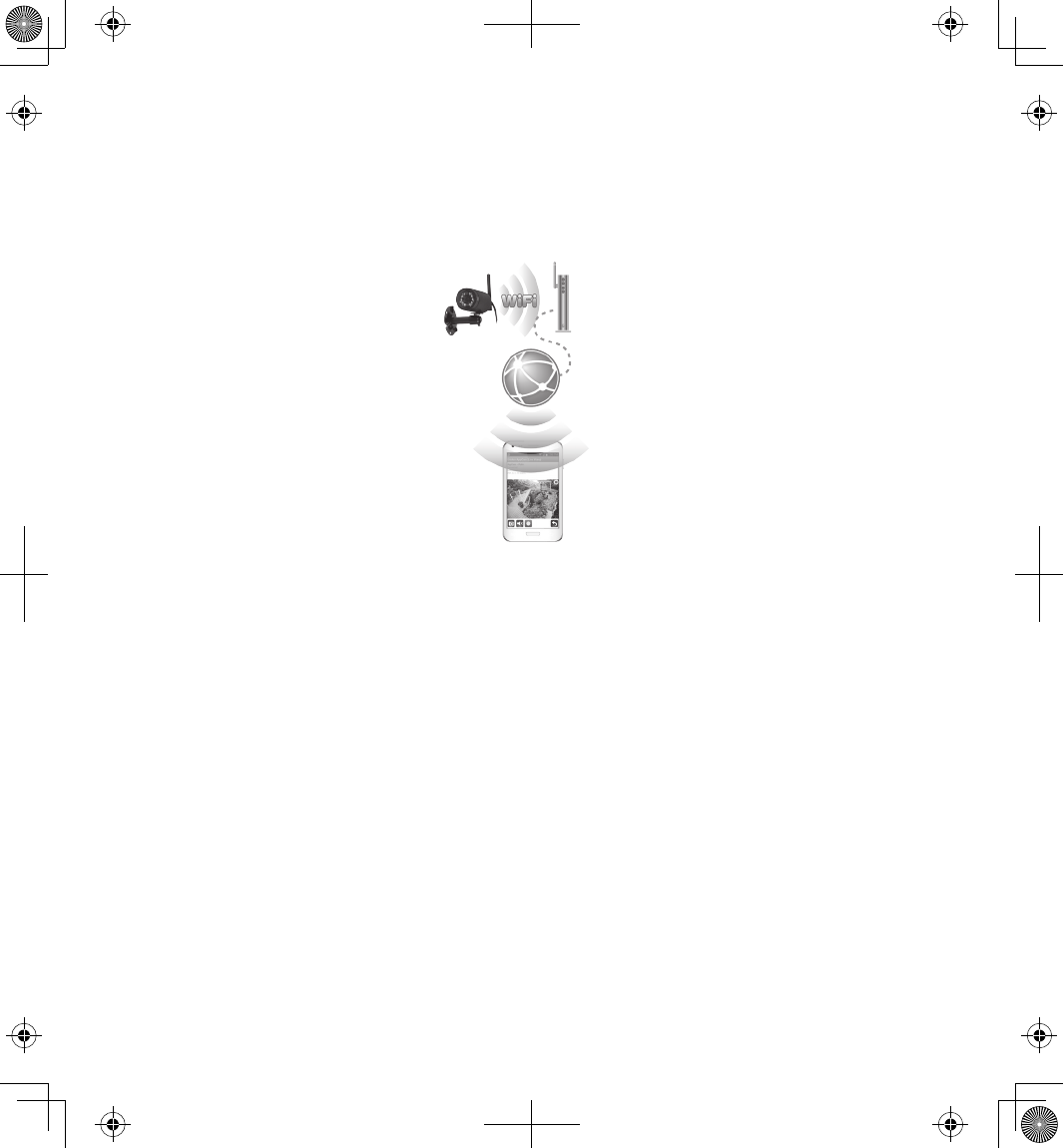

Uniden’s AppCam system works with your smartphone or wireless device to
create a powerful home security network. No PC interface is needed to view
video on your smartphone or wireless devices. Connect the camera through
your WiFi router, setup the network on your mobile device, and install the
cameras; your network is up and running. The wireless AppCam offers superior
quality video with true color. It is suitable for day or nighttime use.
The AppCam 23 camera is an indoor/outdoor camera that is weatherproof and
has an IP66 weather rating. Water can be sprayed on it and it will still work;
however, the camera cannot be submerged underwater.
Although this camera can be exposed directly to the rain, it is recommended
that, if it is used outdoors, it be mounted under some type of cover like a patio
overhang or eave. As rainwater drops start to dry on the camera glass, it can
create spots that will reflect the light from the infrared LEDs used for night
vision, thus causing lower quality video.
Also, as dust, grime, and cobwebs accumulate on the camera glass, they can
reflect light from the infrared LED and might lower video quality. Periodically
clean the lens glass with a soft cloth.
FEATURES
System
•No PC required
•Direct connection to router
•WiFi connection to router
•P2P connection
![](/img.php?id=2445778&img=bg6.png)
6
7
•Records VGA up to 30fps
•Manual/motion recording to microSD (not included)
•Supports up to 32GB microSD (not included)
•High quality H.264 video
•Audio reception
AppCam 23 Indoor/Outdoor Camera
•IP66 weather-rated
•IR cut filter switch
•Compact design
•Night vision range – 25 feet
•Built-in microphone
•microSD card slot (microSD card not included)
Uniden’s AppCam App
•Multiple camera viewing and management from single app
•Remote access to recorded video
•Remote snapshot & recording control
•Event notification/email alert
![](/img.php?id=2445778&img=bg7.png)
6
7

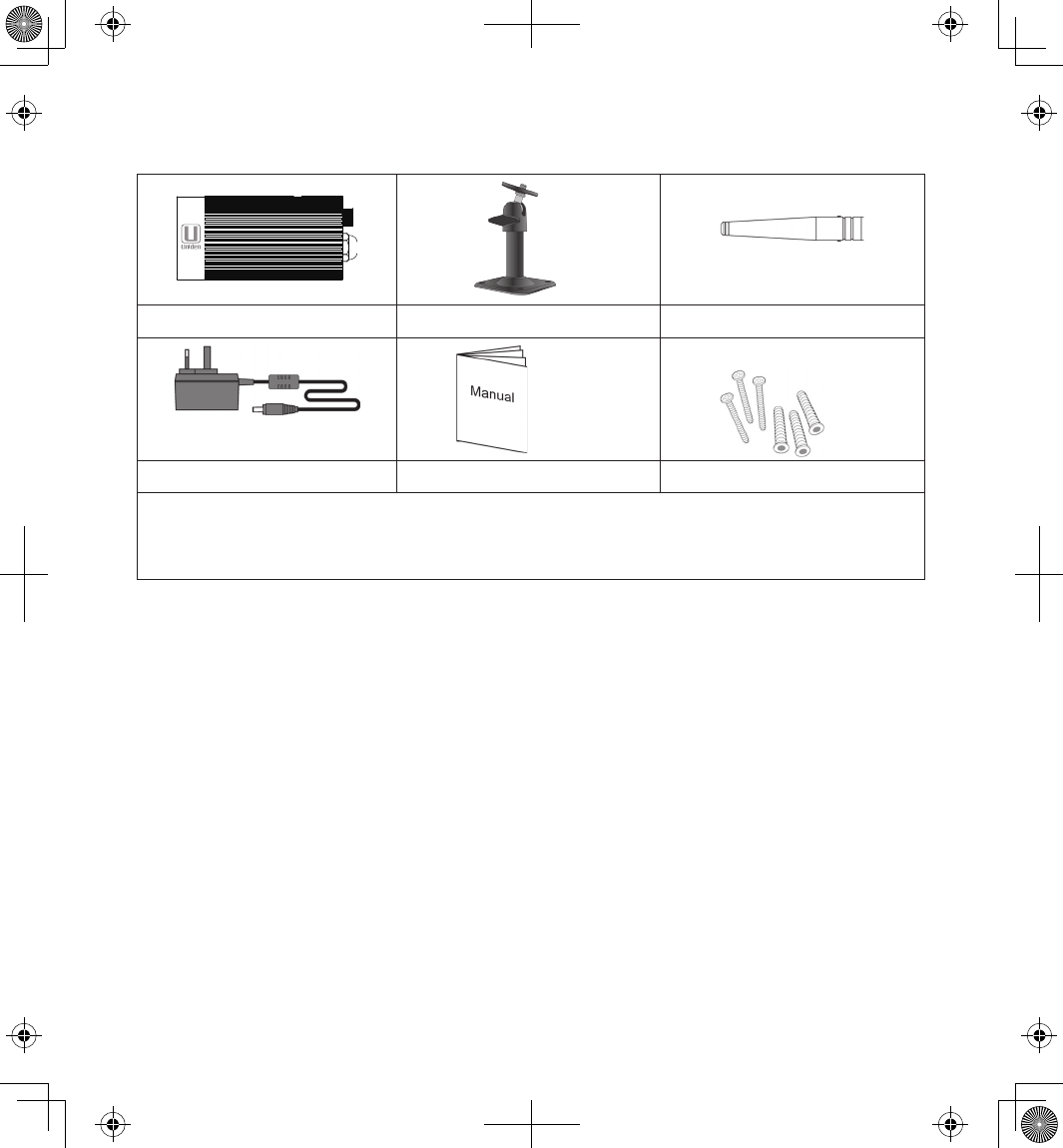

WHAT’S INCLUDED
Camera Camera Stand Antenna
5V/1A Power Adapter Owner’s Manual Screws and Anchors
Not Shown - Ethernet jack cap
If any items are missing or damaged, contact our Customer Care Line
immediately at 1-800-658-8068.
Never use damaged products!
![](/img.php?id=2445778&img=bg8.png)
8
PARTS OF THE CAMERA
Front Back
Antenna
Signal LED
(green)
Camera reset
Power LED
(red)
Infrared
LEDs
Antenna
microSD card
slot
Power/Ethernet
cable
Power pigtail
Pair button
Power jack
![](/img.php?id=2445778&img=bg9.png)
8
9
QUICK START
This section provides a basic overview on setting up your system. If you need
more specific details, refer to Setup and Installation on page 13.
PREREQUISITES
•Your router security level must support DHCP protocol and the DHCP option
must be turned on.
•The AppCam and your mobile device must connect to the same WiFi router
for setup.
•Available WiFi-enabled mobile device such as Android or iPhone
smartphone or tablet.
STEP 1 CONNECT APPCAM TO THE NETWORK
Power up your camera and connect it to the router. Attach the antenna to the
AppCam 23.
STEP 2 SET UP CAMERA
Download Uniden’s AppCam app (“Uniden AppCam”) onto your mobile device.
Follow the instructions to set up a new system on your mobile device. When
the camera and mobile devices are connected and you can see video on the
mobile device, set up WiFi network management.
1. Tap
to return to the
Snapshot
screen then tap the icon.
2. Three icons display on the screen. Tap the icon. The
System Information
screen displays with the e-mail option as well as the
Advanced
tab.
![](/img.php?id=2445778&img=bga.png)
10
11
Android iOS

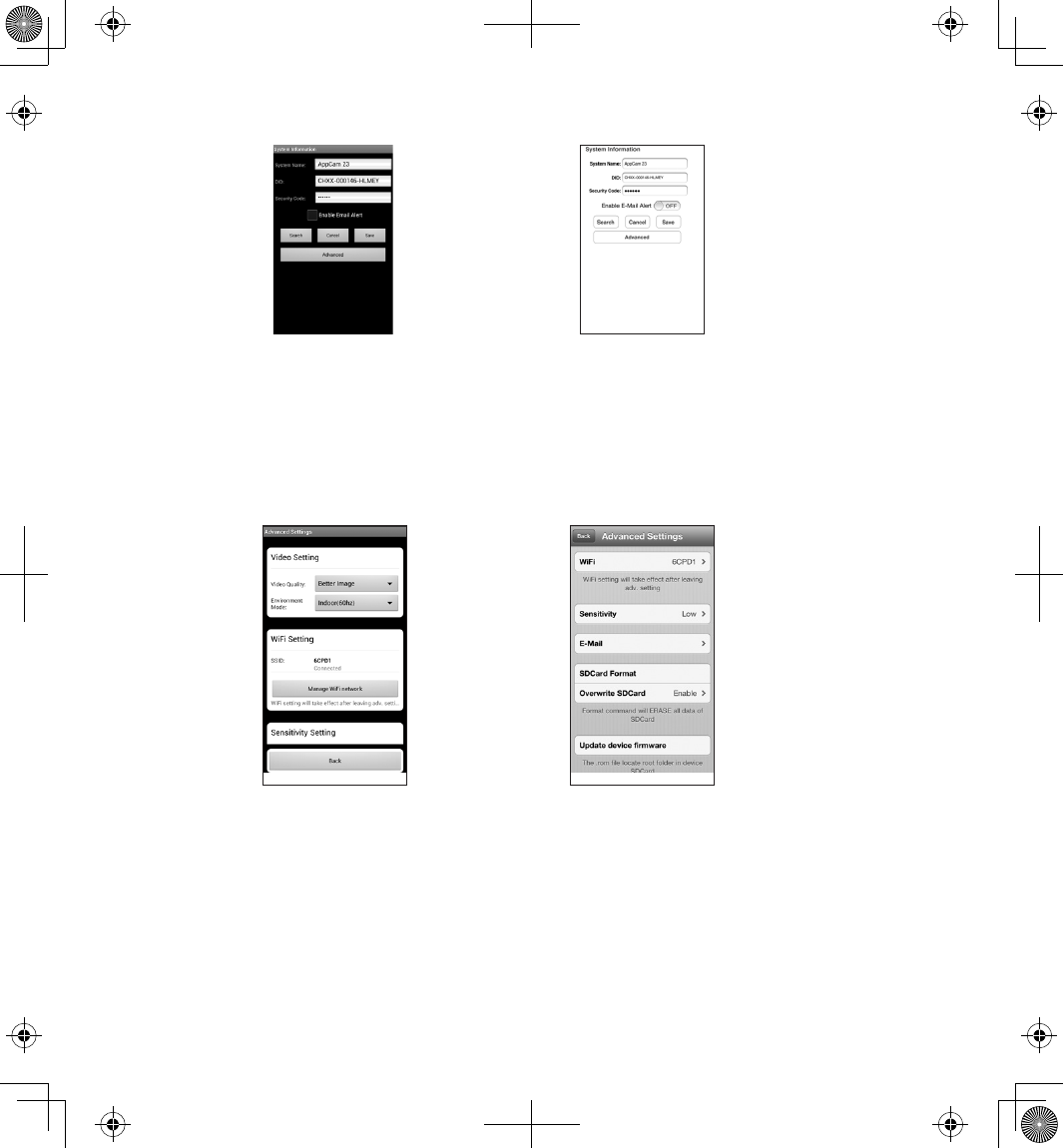

3. Tap
Advanced.
The screen prompts you to enter the system password.
4. Enter
123456
(default) or the password you have selected and tap
OK
. The
Advanced Settings
screen displays with a series of fields in individual blocks.

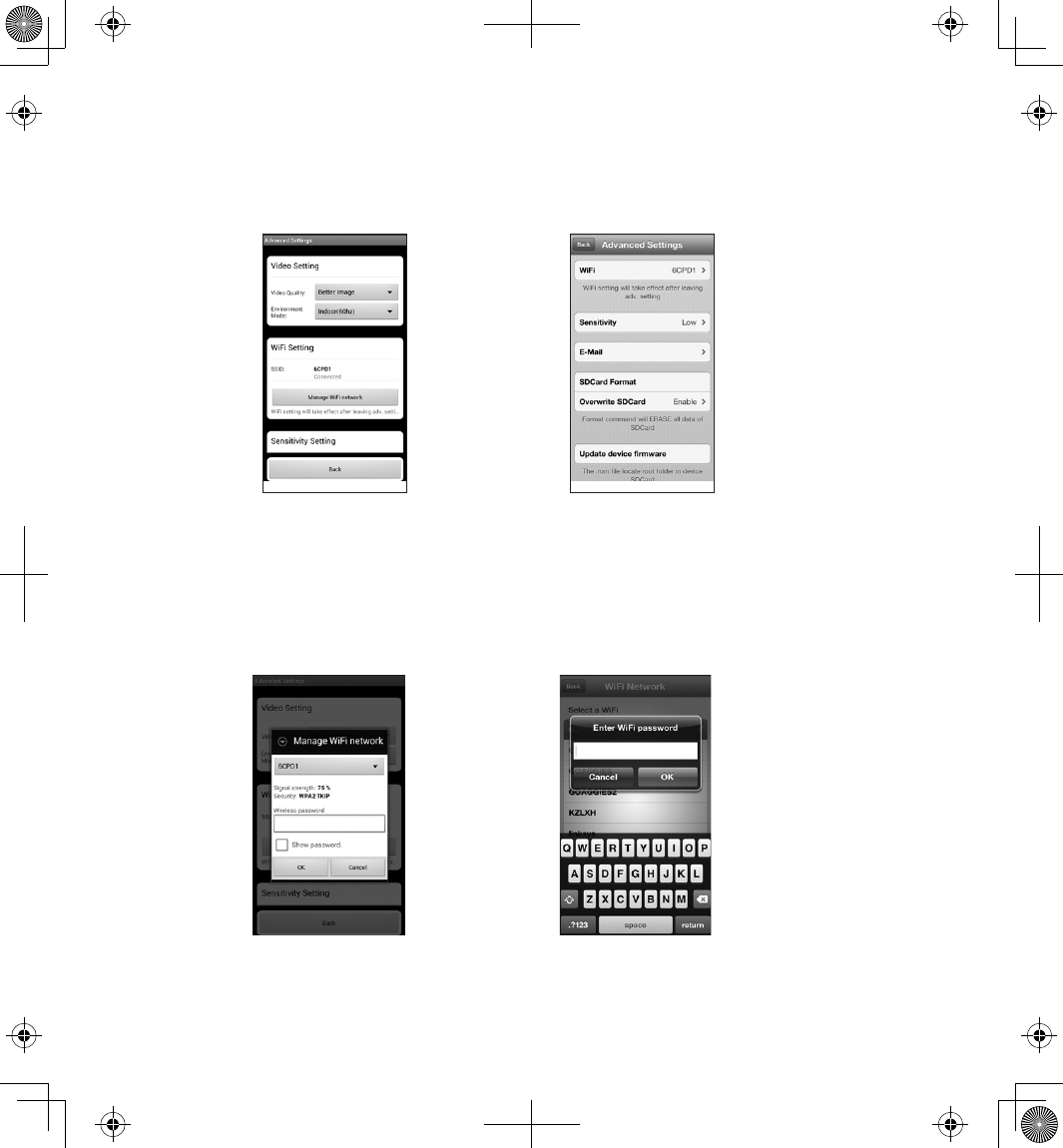

5. Scroll to
WiFi Setting
.
Android iOS

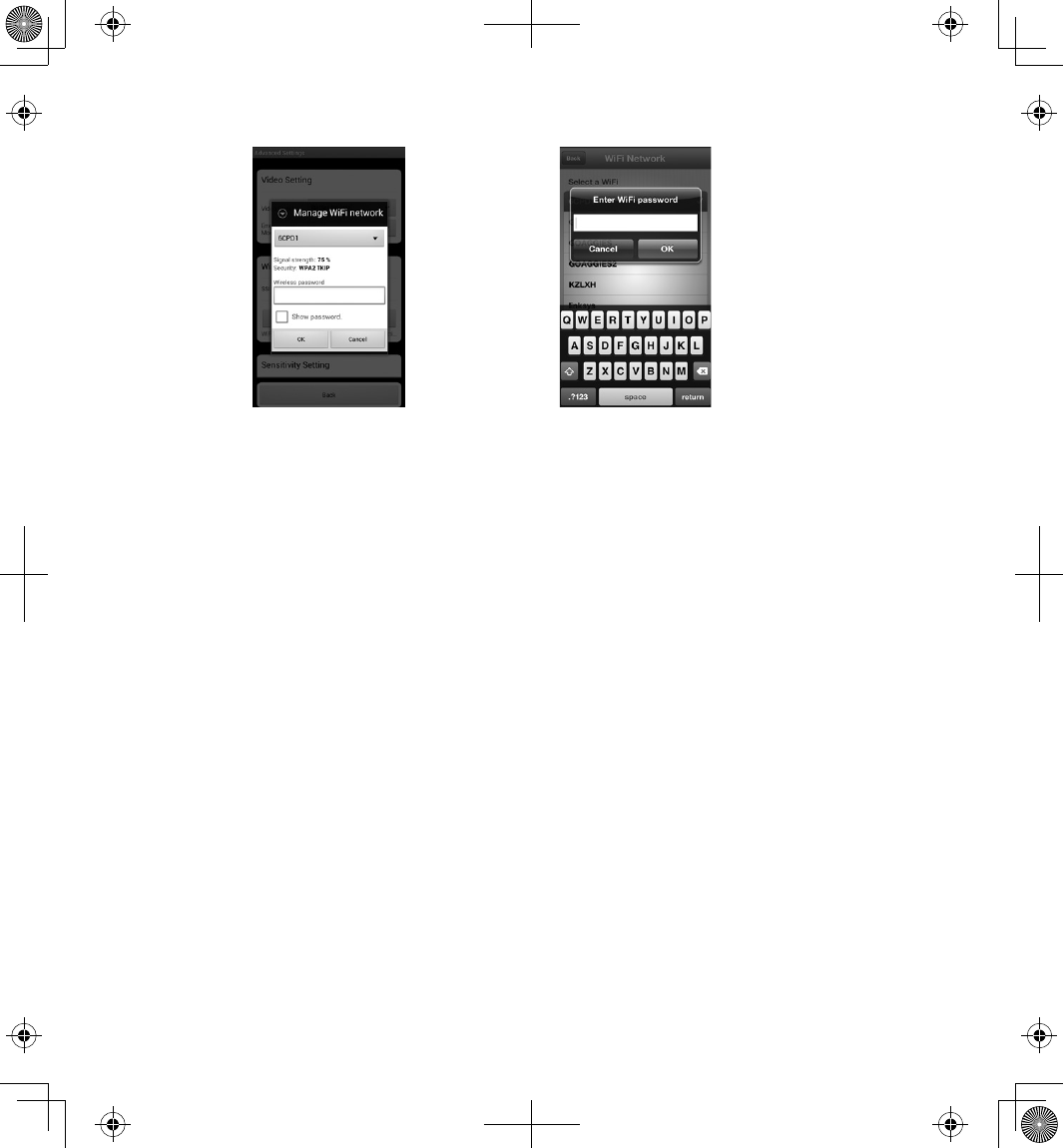

6. Tap
MANAGE WIFI NETWORK
(Android) or
WIFI
(iOS). A dropdown list displays
available networks. Select the network you want to connect to and enter
the password for your router. Tap
OK
, then tap
BACK
(at the bottom of the
screen for Android or the top of the screen for iOS).
![](/img.php?id=2445778&img=bgb.png)
10
11
Android iOS
7. The camera resets and turns on WiFi.
8. Verify that your wireless device can still view live video from the wireless
camera.
9. You can now unplug the Ethernet cable connecting the camera to the
router.
STEP 3 INSTALL CAMERA
Take your camera to the location where you are considering installing it.
Verify that reception from that spot is acceptable. Attach the camera stand (if
needed) and install the camera. Attach the Ethernet jack cap.
Refer to page 19 for detailed camera installation procedures if needed.
![](/img.php?id=2445778&img=bgc.png)
12
13

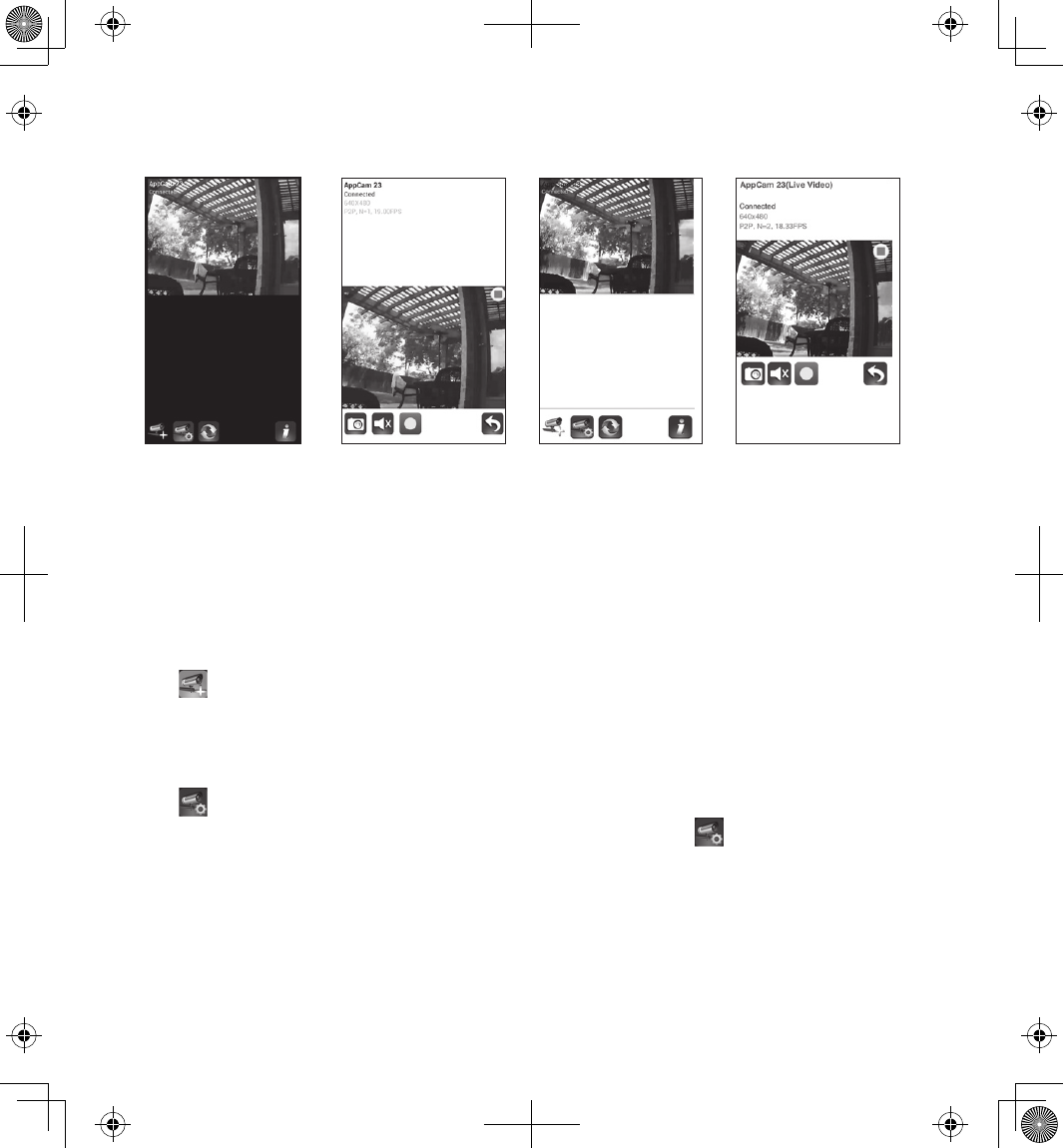

OPERATION OVERVIEW
To Do This ... Do This:
View Recorded Files 1. From the
Snapshot
screen, tap .
2. Tap from the three icons displayed on
the snapshot image.
3. Tap your selection from the list of recorded
files that now displays. The recorded video
begins playing.
View Live Video Tap the image on the
Snapshot
screen.
View Snapshots Your snapshots are named with a time stamp
and saved into the Photo gallery/Snapshot
folder on your mobile device.
Start Recording From the
Live Video
screen, tap . The
camera will record for 2 minutes.
Delete Recorded Files 1. From the
Snapshot
screen, tap .
2. Tap from the three icons displayed
on the snapshot image. A list of recorded
videos displays.
3. Android - Tap the pencil icon at the bottom
of your list of recorded files. You can now
tap the X to select a file to delete.
iOS - Tap
DELETE ALL
or
DELETE ONE
from
the icons along the bottom of the event list.
Take a Snapshot 1. From the
Live Video
screen, tap .
2. The snapshot is saved on your mobile
device.
![](/img.php?id=2445778&img=bgd.png)
12
13
SETUP AND INSTALLATION
Perform these procedures for each camera.
DETAILED SETUP PROCEDURES
Step 1 – Connect AppCam to the Network
You can attach the camera stand to the camera before beginning but it is
not necessary.
1. Attach the antenna to the AppCam 23.
2. Connect the camera to power (120V AC). After a few seconds, the red LED
comes on steady.
When you attached the AppCam to a network and initially power it on,
the app attempts to acquire the IP address from the DHCP server. Please
make sure your network supports the DHCP protocol and that the DHCP
option is turned on.
3. Connect the camera to the router/modem. After a
few seconds, the green LED comes on steady. Your
physical connection should look like this:
![](/img.php?id=2445778&img=bge.png)
14
15
Step 2 – Set Up Camera
Prerequisites
•Make sure your smartphone/device is connected to the same wireless
network as your camera.
•You must have your router password.
1. Download the Uniden AppCam app (“Uniden AppCam”) from Google Play
(for Android) or the App Store (for iOS) onto your mobile device.
2. Open the app.
If this is the first camera to be added to the system, the
Add New System
screen displays.
Android iOS
If you have one camera on the system, the
Snapshot
screen displays.
If you have more than one camera on the system, a list of cameras
displays.
![](/img.php?id=2445778&img=bgf.png)
14
15
3. Tap
ADD NEW SYSTEM
. The

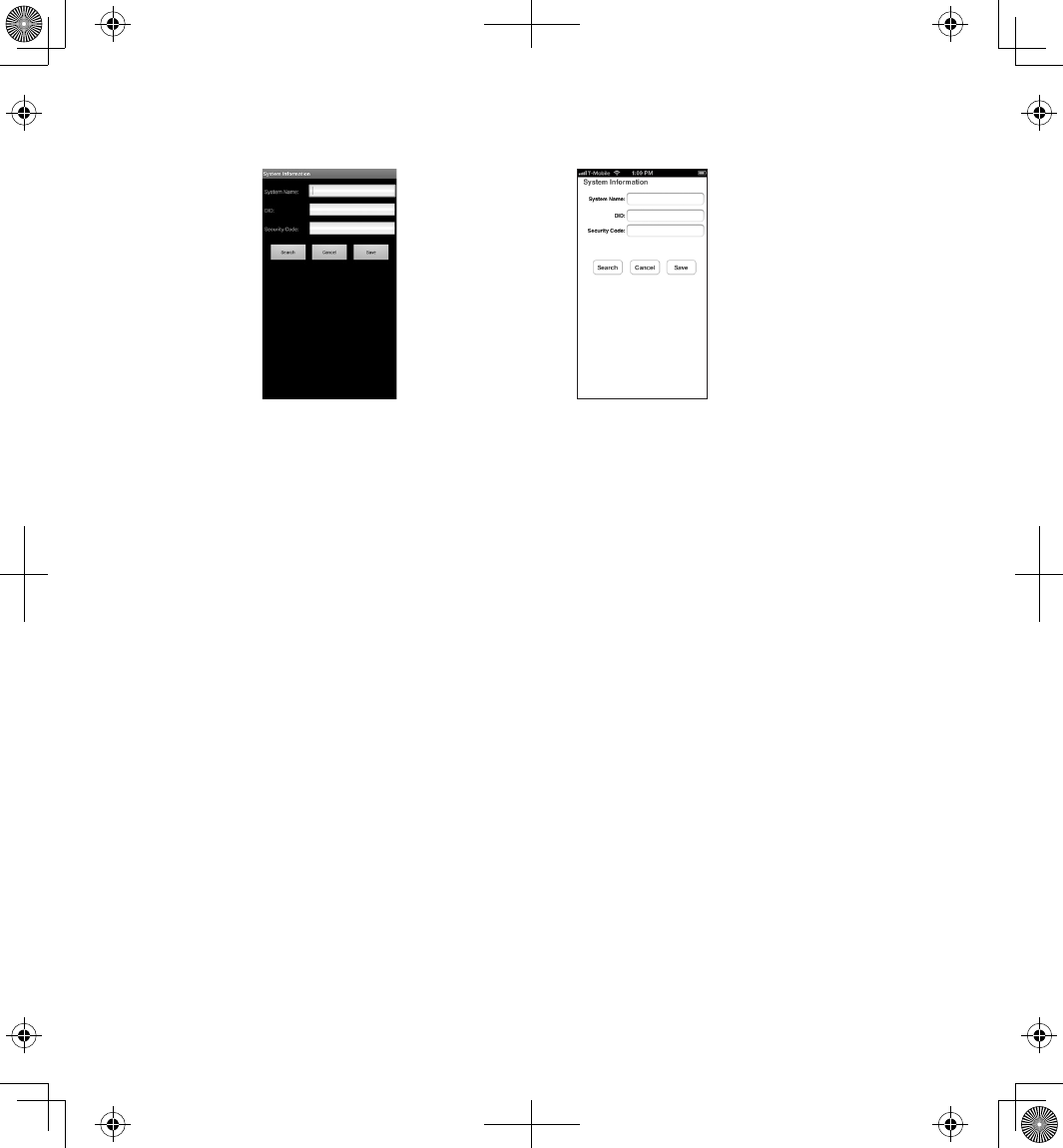

System Information
screen displays.
Android iOS
4. Enter a name for your camera (for example: Driveway).
5. Tap
SEARCH
. The app should search that network and fill in the DID code
from the camera. If it doesn’t see the camera, fill it in manually. The DID
code is on a sticker on the camera.
6. Enter the camera’s security code (Default = 123456). It is highly
recommended that you change the security code.
7. Tap
SAVE
. The device and the camera are now connected. You should see a
snapshot from the camera.
![](/img.php?id=2445778&img=bg10.png)
16
17

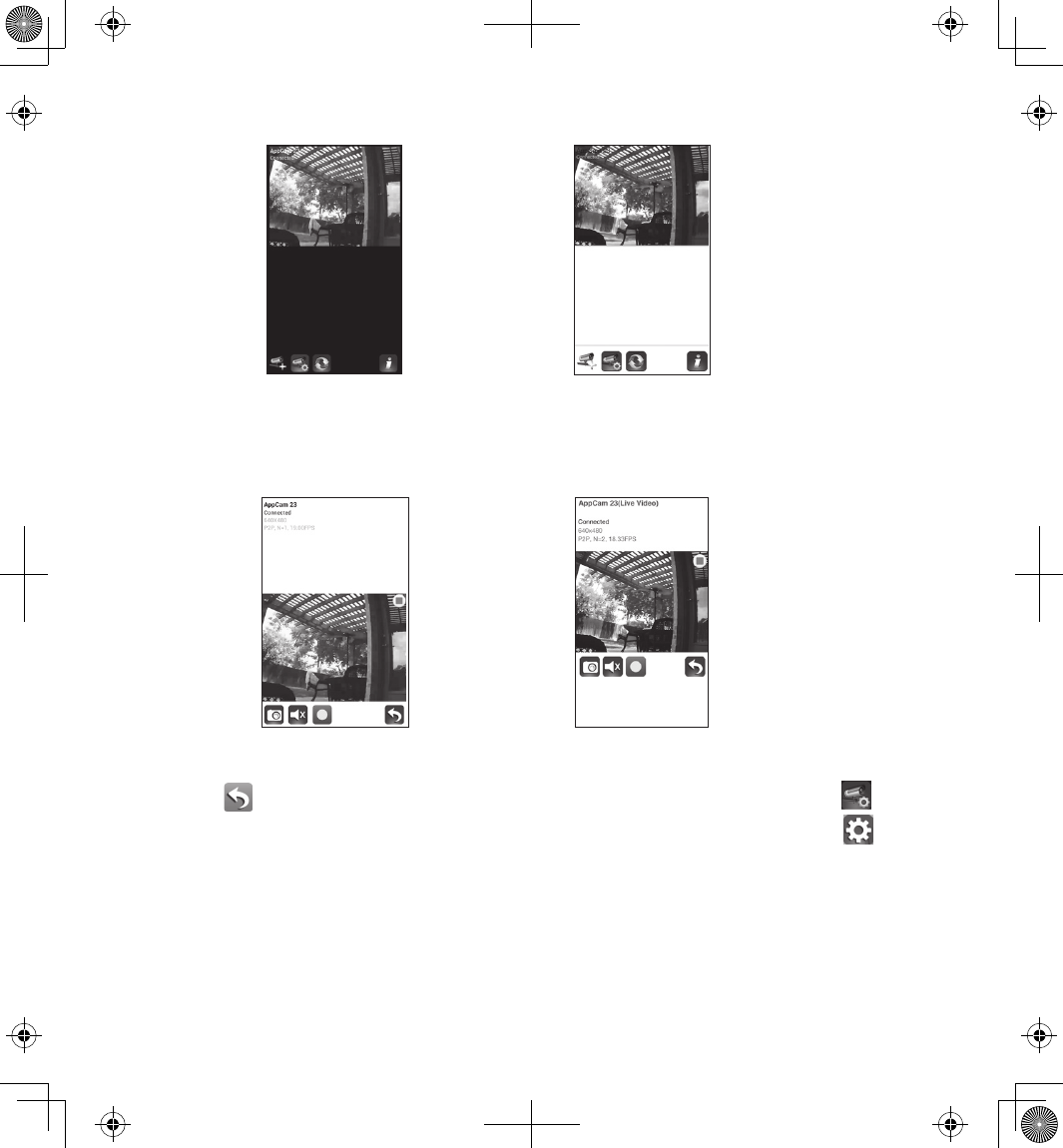

Android iOS
8. Tap the snapshot. Live video now displays on the screen with different
icons.
Android iOS
9. Tap
to return to the
Snapshot
screen (see page 23) then tap the icon
10. Three icons display on the screen (see page 24 for details). Tap the icon.
The
System Information
screen displays with the e-mail option as well as the
Advanced
tab (see page 26).
![](/img.php?id=2445778&img=bg11.png)
16
17
Android iOS
11. Tap the
ENABLE EMAIL ALERT
box (Android) or slide the
ENABLE EMAIL ALERT
button to
ON
(iOS) to turn on email notification when the camera begins
recording from motion detection. Tap
Advanced.
The screen prompts you
to enter the system password.
12. Enter
123456
(default) or the password you have selected and tap
OK
. The
Advanced Settings
screen displays with a series of fields in individual blocks.
13. Tap
MODIFY
(Android) or
ADMIN PASSWORD
(iOS) on the
Admin Password
screen
.
The
Modify admin password
screen displays.
Android iOS
![](/img.php?id=2445778&img=bg12.png)
18
19
14. Change the default Admin password for advanced settings access (Default
= 123456). Tap
OK
. The
Advanced Settings
screen displays again.
15. Scroll to
WiFi Setting
.
Android iOS
16. Tap
MANAGE WIFI NETWORK
(Android) or
WIFI
(iOS). A dropdown list displays
available networks. Select the network you want to connect to and enter
the password for your router. Tap
OK
, then tap
BACK
(at the bottom of the
screen for Android or the top of the screen for iOS).
Android iOS
17. The camera resets and turns on WiFi.
![](/img.php?id=2445778&img=bg13.png)
18
19
18. Verify that your wireless device can still view live video from the wireless
camera.
19. You can now unplug the Ethernet cable connecting the camera to the
router. Your connection should look like this:
Step 3 - Install Cameras
Consider the following when installing cameras:
•Clear line of sight video transmission distance is up to 500 ft.
— Walls, especially brick and concrete, shorten the transmission distance.
— Placement next to windows allows better transmission.
•Avoid having a direct light source in the view of the camera, including street
lights, ceiling or floor lamps, spotlights in the driveway, etc.
•The camera is equipped with built-in infrared LEDs so you can use night
vision for 24-hour surveillance. The LEDs will automatically activate at night
and the picture viewed will turn to black and white. The night viewing range
is up to 25 ft. Avoid pointing the camera lens directly at clear glass; the night
vision LEDs will cause a blurred image.
![](/img.php?id=2445778&img=bg14.png)
20
21
•Optimized motion detection range is 6 - 18 feet for the camera. The farther
away an object is, the less accurate the motion detection.
•Avoid pointing the camera directly at any bushes, tree branches, or moving
objects that might naturally move due to winds. Otherwise, the motion
detection feature may record unnecessarily.
You can mount the AppCam 23 with the stand on the bottom (on a flat surface
such as a table-top), on the side (on a wall), or on the top (on the ceiling or
under an eave or overhang).
1. Use your mobile device to test the places where you are considering
mounting the camera. Hold the device in that location; if it still receives
live video in that spot, the location is good.
Attach the camera stand if you have not already done so.
2. Unplug the camera from the power source and install it.
3. After the camera is installed, reconnect power.
4. Attach the Ethernet jack cap.
DETAILED APPCAM 23 INSTALLATION PROCEDURES

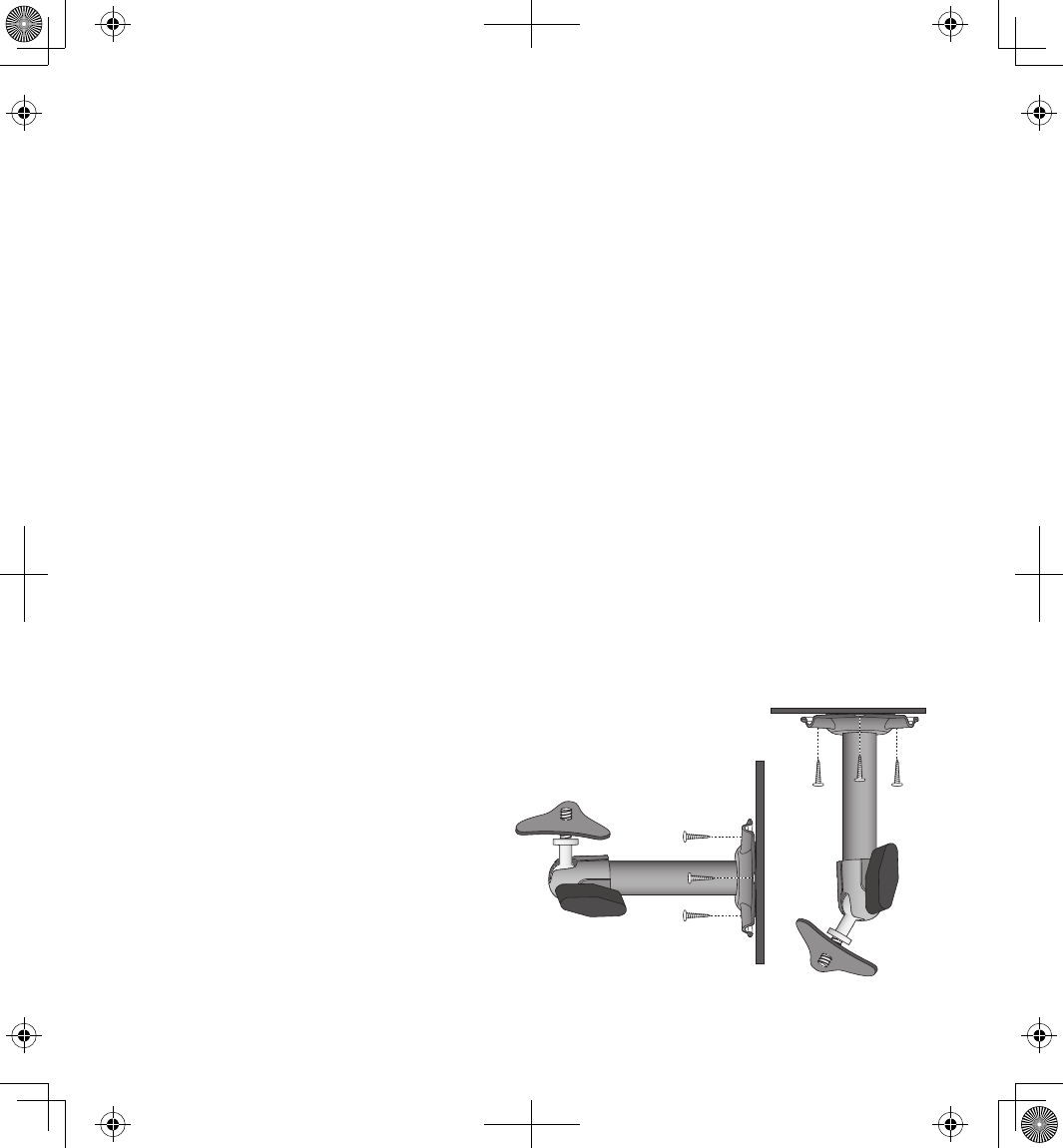

Mount the AppCam 23 Base
1. Hold the base of the camera stand where you
want to mount it and mark the
location of the screw holes.
2. Use the included screws and
anchors to attach the base to
the wall or ceiling. You can
also screw the base into a flat
surface such as a tabletop if
needed.
![](/img.php?id=2445778&img=bg15.png)
20
21
3. Before attaching the camera, tug gently on the stand to make sure it is
securely in place.

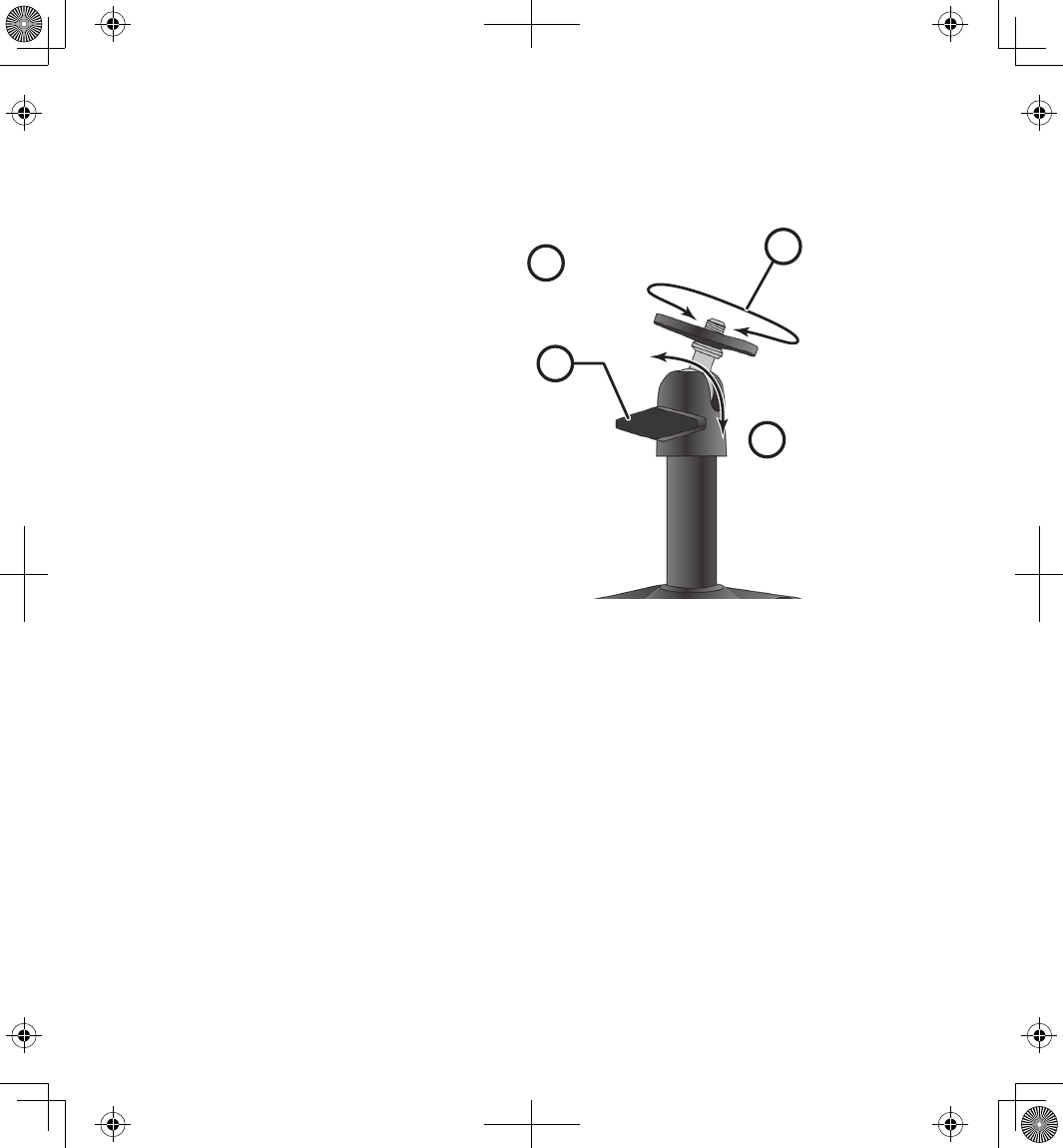

Attach the Camera - AppCam 23
1. For each AppCam 23, attach the
camera bracket to the mounting
screw. You can attach the stand
to the top or the bottom of the
AppCam 23 as needed. Tighten
it a few turns, then turn the
AppCam 23 to face the direction
you want.
2. Tighten the camera brace up
against the AppCam 23 to
secure it into place.
3. Unlock the mounting post by
turning the wingnut to the left a
few turns.
4. Set the mounting post to the correct angle, then tighten the wingnut until
the post is locked into place.
5. After the AppCam 23 is installed, reconnect power.
1
2
4
3
Loosen the
wingnut to
unlock the
mounting
post.
Attach the camera
to the mounting
screw and turn it
to the desired
direction.
Adjust the post to
the correct angle,
then tighten the
wingnut to lock the
post into place.
Tighten the brace against
the camera to
secure it
in place.
![](/img.php?id=2445778&img=bg16.png)
22
23
USING THE APP
After you’ve set up your system, use the Uniden AppCam app (“Uniden
AppCam”) to manage your AppCam operations and to take snapshots and
remotely view live or recorded video on your smart phone or tablet device.
You can have multiple independant AppCam cameras on the network. Please
follow these steps to use the app.
ACCESSING YOUR CAMERAS
1. Run the Uniden AppCam app (“Uniden AppCam”).
2. The
Globe
screen displays for each camera set up on the app. Review the
names for each camera and tap the globe for the camera you want to view.
3. The
Snapshot
screen displays for that camera. See page 23 for actions
available from the
Snapshot
screen. Tap the screen image.

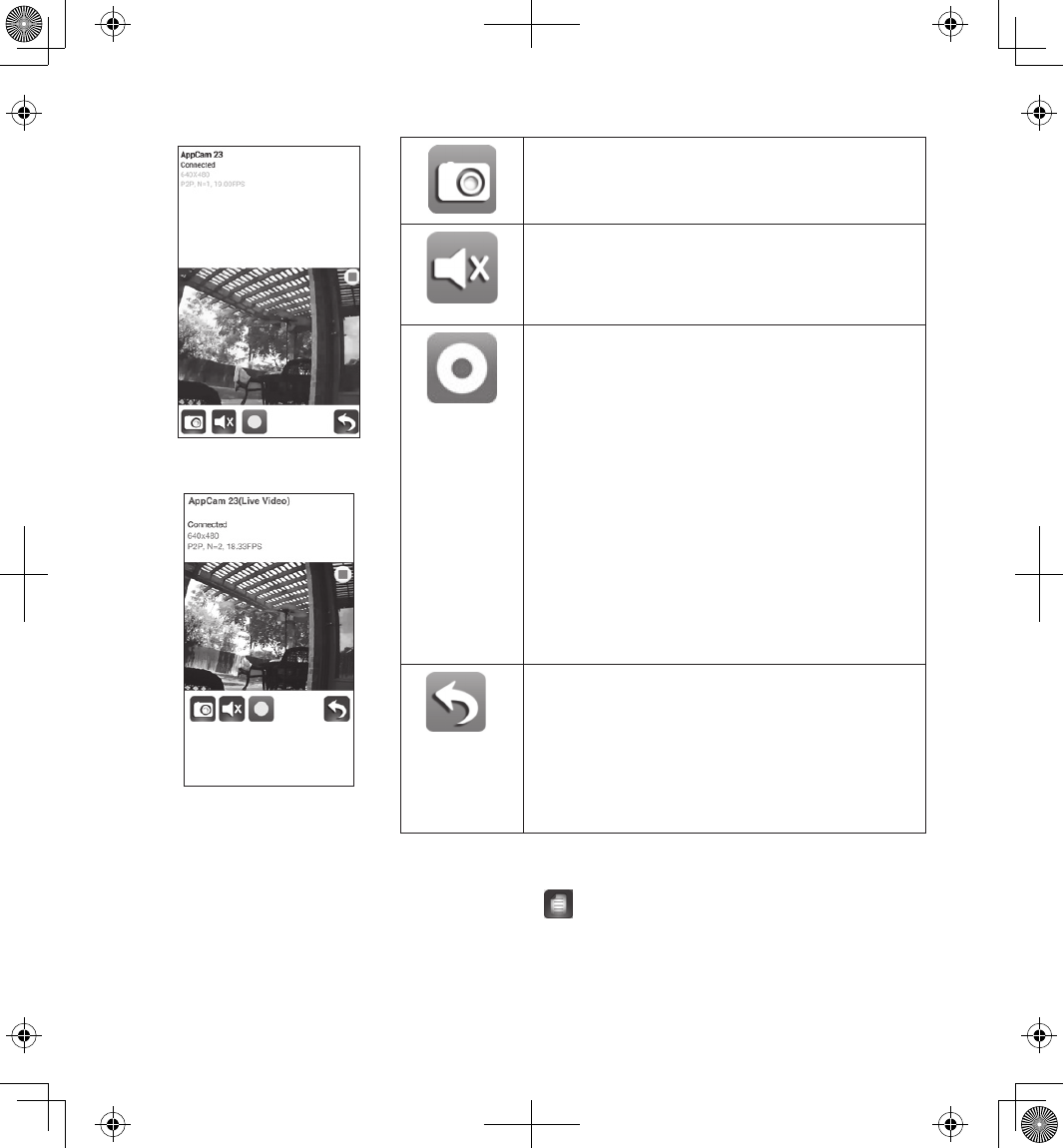

4. Live video displays. See page 29 for actions available from the
Live Video
screen. Tap
to return to the
Snapshot
screen.
If only one camera is set up on your system, the app displays the Globe
screen momentarily and then displays the Snapshot screen for your
camera.
SNAPSHOT VS LIVE VIDEO SCREEN
The
Snapshot
and
Live Video
screens control operations. The
Snapshot
screen
lets you add more cameras, configure advanced settings, access and manage
recorded files, update the camera connection status and check app version.
The
Live Video
screen lets you take snapshots and begin recording live video.
You can also control the sound.
![](/img.php?id=2445778&img=bg17.png)
22
23
Android iOS
Snapshot Live Snapshot Live
SNAPSHOT SCREEN OVERVIEW
The
Snapshot
screen displays a snapshot image from the camera and four
function icons.
Add Another Camera
The icon allows you to add another camera to your network. See page 14 for
details.
System Settings
The icon allows you to configure the advanced settings, remove the camera
connection, and play back the recorded video clips. Tap and the following
three icons display in the center of the snapshot image:
![](/img.php?id=2445778&img=bg18.png)
24
25
Android
iOS
Accesses
System Information -
Advanced
Screen. This screen lets
you configure the camera and set
notification alerts. See page 26 for
details.
Deletes the camera from the app.
Event List lets you check and play
back recorded events and files. (See
page 27 for details.)
Update
Tap to update the camera’s connection status.
Information

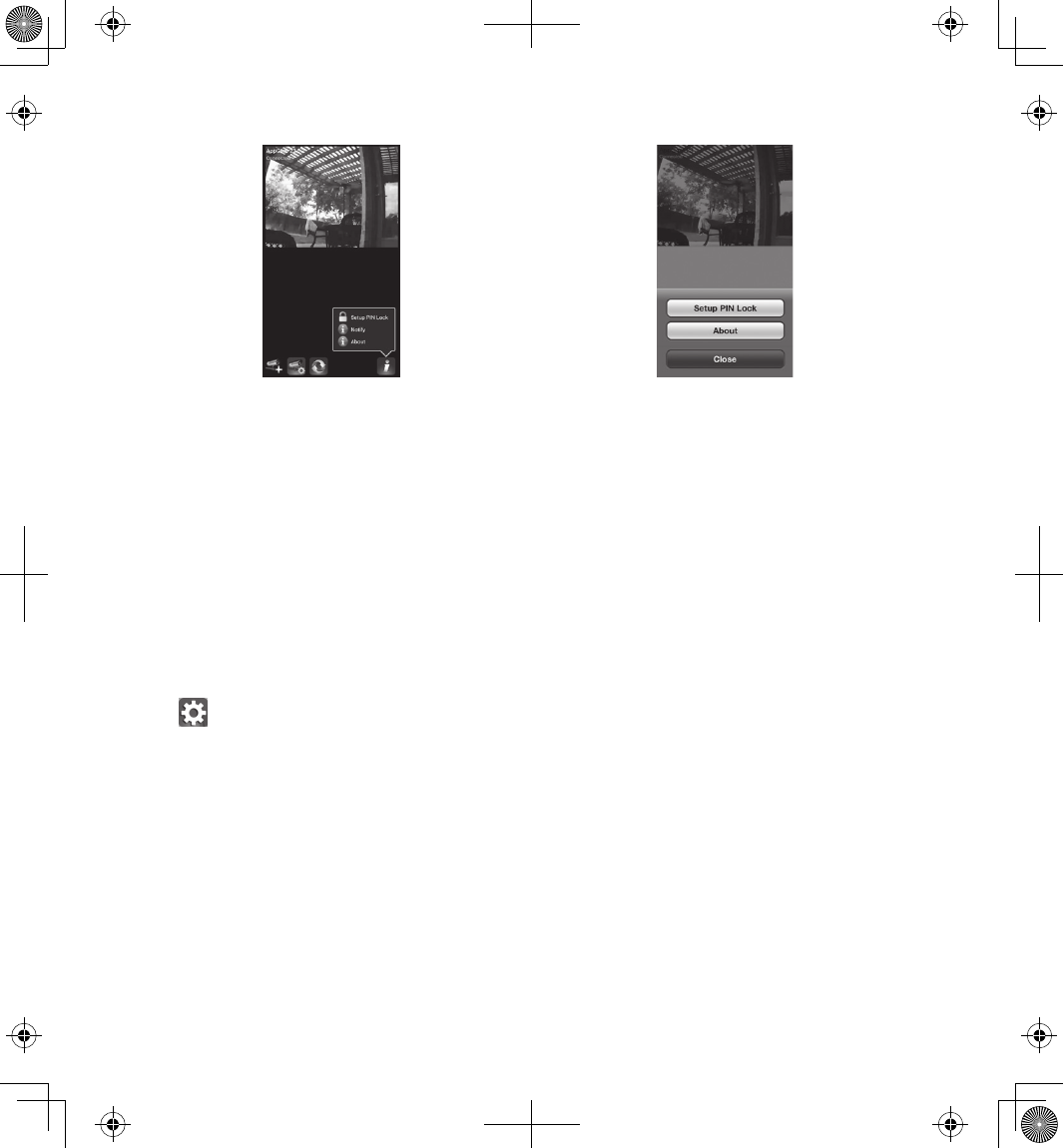

Tap to set up and enable PIN lock or to check the app information.
![](/img.php?id=2445778&img=bg19.png)
24
25
Android iOS
•The PIN lock is a unique security code you must enter when you turn your
mobile device back on.
•APP information displayed includes APP and API version information.
•Android systems can also enable event notification through this button.
iOS systems enable event notification through the iPhone settings
(Settings/Notification/UnidenAppCam/Notification Center).
System Information - Advanced Screen Details
Tap to display the
System Information
screen again with a tab for Advanced
settings. From this screen (see page 17 for an image of this screen), you can
set email alerts and event notifications as well as configure specific camera
settings.
Enable Email Alert
Email alerts notify you when something triggers the motion sensors on your
cameras. Tap the box (Android) or move the slider (iOS) to turn this feature on.
![](/img.php?id=2445778&img=bg1a.png)
26
27
Enable Event notify
The system generates event notifications when something triggers the motion
sensors on your cameras. Tap the box to turn this feature on.
Advanced
Tap the
Advanced
tab to configure various settings in your device, such as the
time zone, device password, and video setting. These settings are displayed
in a list of fields, each field contained in its own block. Scroll down to find the
field you want to set. You can also format the microSD card or check the device
information here.
The Advanced field blocks are:
•
Admin Password
: The security code for your advanced settings. The default
Admin Password is 123456. Change the default password to one you set
yourself.
•
Email alert
: Setup your email for email alert.
•
Time Zone
: Setup the time zone for your system. The most commonly used
time zones for this system are:
— GMT-05:00 - Eastern Standard
— GMT-06:00 - Central Standard
— GMT-07:00 - Mountain Standard
— GMT-08:00 - Pacific Standard
— GMT-09:00 - Yukon Standard
— GMT-10:00 - Alaska-Hawaii Standard
•
Daylight saving
: Enable or disable daylight saving time
.
•
Device Security Code
: Change the default password (123456) to a security
code for your camera.
![](/img.php?id=2445778&img=bg1b.png)
26
27
•
Video Settings
: Configure the Video Quality (
Better Streaming
or
Better Image)
and Environment Mode.
•
WiFi
: Set up your WiFi connection.
•
Sensitivity
: Set the motion detection sensitivity level.
•
E-Mail
: Allows you to configure the email environment, email account, and
password. You can also set up encryption for data transmission.
•
SDCard Format/ Overwrite SDCard
: Enable or disable the ability to overwrite
the microSD card as space is needed.
•
Update device firmware
: Update the device’s firmware. Tap
OK
at the
confirmation screen to automatically reboot the device after update.
•
Device Information
: Check the model, camera’s firmware version, and storage
status.
Unless stated otherwise, the screen displays the main list of Advanced
setting fields after you enter the requested information in a specific field.
Delete Camera Connection
Tap the Delete icon ( ) to remove a camera from your system. Tap
NO
to
keep the camera connection or
YES
to delete it. A confirmation screen displays.
Event List Details
Tap the Event List icon ( ) to view a list of recorded video files. Tap the file
you want to view and it begins to play.
Android
•Tap the pencil icon to select recorded files to delete. Tap the box on the
right side of the entry to select it for deletion.
![](/img.php?id=2445778&img=bg1c.png)
28
29
•You can set a filter to display all files recorded within the past hour, past
6 hours, etc. Tap on
SEARCH
(magnifying glass icon) to display the filter
selections. Select a filter and then tap
YES
. The list of files displays again,
filtered accordingly.
When you set a filter, be sure the Time Zone feature is set accurately in
the Advanced fields to reflect the current time zone for the camera, not
the time zone where you are. See page 26 for details.
iOS
Tap the Event List icon ( ) to view a list of recorded video
files. Tap the file you want to view and it begins to play.
Tap
DELETE ALL
to delete all of the recorded files or tap
DELETE
ONE
to delete a single file. You can also set a filter to display
all files recorded within the past hour, past 6 hours, etc. Tap
SEARCH
to display the filter selections.
LIVE VIDEO SCREEN OVERVIEW
The
Live Video
screen lets you take snapshots, record video, and
turn the sound from the live video on and off.
![](/img.php?id=2445778&img=bg1d.png)
28
29
Android
iOS
Tap this icon to take a snapshot of the
current image. Snapshots are saved in
your mobile device.
Turn the audio on and off when you’re
viewing live video.
Tap this icon to begin recording live
video. Tap it again to stop recording.
Once recording begins, the
app continues recording for
2 minutes. You cannot stop
recording during this period.
When the system starts recording,
the video clips will be saved into your
camera’s memory card. Please make
sure the microSD card has been
correctly inserted.
Return to the
Snapshot
screen.
View Recorded Files
Return to the Snapshot view and tap the icon. See page 27 for Event List
details.
![](/img.php?id=2445778&img=bg1e.png)
30
31
TURN OFF THE APP
1. Tap your device’s
MENU
button. The
EXIT
button displays.
2. Tap
EXIT
. The app closes and returns to the device’s main screen.
For the iPhone, press the
HOME
button.
![](/img.php?id=2445778&img=bg1f.png)
30
31
MAINTAINING YOUR SYSTEM
TAKING CARE OF YOUR CAMERA
When dust and grime builds up on the camera lens and glass, it affects night
vision capability. The infrared light reflects off of the dust and grime, limiting
the camera’s “vision.” Use a microfiber cloth to regularly clean the cameras or
when night vision video is cloudy or unclear.
![](/img.php?id=2445778&img=bg20.png)
32
33
TROUBLESHOOTING
HOW TO IMPROVE THE WIRELESS SIGNAL QUALITY
If possible, remove obstacles in between camera and receiver that might reflect
the signal. These could include furniture, cabinets, and walls. If the wireless
signal is not improved, relocate the camera closer to the receiver.
If... Try this...
The app cannot find
the camera
• Make sure your network supports DHCP protocol.
• Make sure that the DHCP option is turned on.
• Make sure the camera and your mobile device connect
to the same WiFi router.
• Make sure the WiFi router is activated.
• Make sure the camera is properly powered on.
• Use the “ADD CAMERA” function to manually add the
camera.
No image appears • Make sure the power adaptor is not damaged or
defective and is plugged into an electrical outlet with
power.
• Relocate the camera to obtain the best reception of
wireless signals.
• Make sure the camera is properly configured in the app.
Poor image quality • Clean the camera lens using a lens cleaning cloth.
Spots or dust on the lens can also cause image quality
problems.
![](/img.php?id=2445778&img=bg21.png)
32
33
If... Try this...
Motion detection is
not working
• Make sure the sensitivity setting is not turned OFF. (Set
sensitivity through the Advanced tab.)
• Adjust the sensitivity of the motion sensor. (Set
sensitivity through the Advanced tab.)
• In motion detection mode, a moving object within the
camera viewing angle is necessary to trigger the motion
sensor for recording.
• Make sure the system date and time have been
correctly set.
Bright white spots
appear at nighttime
The camera’s infrared LEDs produce invisible light that
reflects off surfaces such as glass. Install the camera on
the other side of windows or place the lens flush against
the surface to improve the night vision.
Please check the environment rating (Ingress) of
the camera(s) before installing outdoors.
Memory card error Make sure the memory card is correctly inserted and
formatted.
Please backup the data before formatting. This
Format function will erase all data on the memory
card.
Wrong date and
time are shown
• Make sure you’ve selected the correct time zone.
Unexpected date and time can result in an incorrect
recording schedule. (See page 26)
• Confirm the system date/time of the mobile device to
ensure correct operation.
![](/img.php?id=2445778&img=bg22.png)
34
35
If... Try this...
My smartphone
or wireless device
cannot find the
camera during
setup.
• Make sure the router is turned on.
• Refresh the connection.
• Make sure your smartphone is connected to the same
network as the camera.
![](/img.php?id=2445778&img=bg23.png)
34
35
SPECIFICATIONS
General
Power 100~240V switching power supply DC 5V 1A
Power Consumption 650mA max
Camera Body Dimension 96mm x 48mm diam.
Weight (Main Body) 7.3 oz (210g)
Operating Temperature 14° ~ 122°F (-10° ~ 50°C)
Network
Wireless Technology IEEE 802.11 b/g
Network Connection Ethernet (10/100 Base-T/Base -TX); WiFi
Network Protocols TCP/IP, UDP, SMTP, NTP, DHCP, ARP
Simultaneous Views 3 Concurrent sessions
Security WPA /WPA2 (TKIP, 128 bit AES)
Cameras
Image Sensor 1/4” CMOS
Antenna 3dBi Waterproof Dipole
Housing Weather resistant metal
Environmental Rating
(Ingress)
IP66
Camera Environment Indoor (50Hz), Indoor (60Hz), Outdoor
Storage memory microSD
Viewing Angle H: 46° V: 35°
Min. Illumination 1~8 lux
Low-light resolution 10 IR LEDs with IR switcher
Low-light visibility 25 feet
IEEE 802.11 b/g /n
![](/img.php?id=2445778&img=bg24.png)
36
37
Min. Upload Bandwidth
Requirements
768 kbps per VGA resolution (per camera)
Audio/Video
Image Compression H.264
Image Resolution VGA 640x480
QVGA 320x240
Recording Frame Rate max 30 FPS
Supported Mobile Internet Device
Android Requirement Android 2.2 or above
iOS Requirement iOS5.0 and above
Hardware Requirement • Cortex A6 800MHz or above
• 1GB internal memory or above
MICROSD CARD APPROXIMATE RECORDING TIME
•1GB = 8.75 hours
•4GB = 35 hours
Recycling and Disposal Information
•Do not dispose of electronic devices or any of their components (especially
batteries and LCD displays) in your municipal trash collection.
•Consult your local waste management authority or a recycling organization like
Earth911.com to nd an electronics recycling facility in your area.
FCC COMPLIANCE
Part 15 Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subjected to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
![](/img.php?id=2445778&img=bg25.png)
36
37
This equipment has been tested and found to comply with limits for a Class B digital
device, pursuant to Part 15 of the FCC rules and ETSI (EN) 300328. These limits are
designed to provide reasonable protection against harmful interference in residential
installations. This equipment generates, uses, and can radiate radio frequency energy,
and if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause interference to radio or television equipment
reception, which can be determined by turning the equipment o and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Move the equipment away from the monitor.
•Plug the equipment into an outlet on a circuit dierent from that to which the
monitor is connected.
•Consult the dealer or an experienced radio/television technician for additional
suggestions.
CAUTION! Any changes or modifications to this equipment not expressly
approved by the party responsible for compliance could void your authority to
operate the equipment.
RF Exposure Information
The antenna used for this transmitter must be installed to provide a separation
distance of at least 20 cm (7.9”) from all persons and must not be collocated or
operating in conjunction with any other antenna or transmitter.
IC COMPLIANCE INFORMATION
Radio Equipment Notice
The term “IC:” before the radio certication number only signies that Industry
Canada technical specications were met. Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept
![](/img.php?id=2445778&img=bg26.png)
38
39
any interference, including interference that may cause undesired operation of the
device. “Privacy of communications may not be ensured when using this device”.
CE COMPLIANCE INFORMATION
Products with CE Marking comply with EMC Directive (2004/108/EC); Low Voltage
Directive (73/23/EEC); R&TTE(1999/5/EC) issued by the Commission of the European
Community. Compliance with these directives implies conformity to the following
European Norms:
•EMC: EN 301 489
•LVD: EN 60950
•Radio: EN 300 328
ONE-YEAR LIMITED WARRANTY
Important: Evidence of original purchase is required for warranty service.
WARRANTOR: Uniden America Corporation (“Uniden”) ELEMENTS OF WARRANTY:
Uniden warrants, for one year, to the original retail owner, this Uniden Product to be
free from defects in materials & craftsmanship with only the limitations or exclusions
set out below.
WARRANTY DURATION: This warranty to the original user shall terminate & be of
no further eect 12 months after the date of original retail sale. The warranty is
invalid if the Product is (A) damaged or not maintained as reasonable or necessary,
(B) modied, altered, or used as part of any conversion kits, subassemblies, or any
congurations not sold by Uniden, (C) improperly installed, (D) serviced or repaired by
someone other than an authorized Uniden service center for a defect or malfunction
covered by this warranty, (E) used in any conjunction with equipment or parts or as
part of any system not manufactured by Uniden, or (F) installed or programmed by
anyone other than as detailed by the owner’s manual for this product.
STATEMENT OF REMEDY: In the event that the product does not conform to this
warranty at any time while this warranty is in eect, warrantor will either, at its
option, repair or replace the defective unit & return it to you without charge for parts,
![](/img.php?id=2445778&img=bg27.png)
38
39
service, or any other cost (except shipping & handling) incurred by warrantor or its
representatives in connection with the performance of this warranty. Warrantor, at its
option, may replace the unit with a new or refurbished unit.
THE LIMITED WARRANTY SET FORTH ABOVE IS THE SOLE & ENTIRE WARRANTY
PERTAINING TO THE PRODUCT & IS IN LIEU OF & EXCLUDES ALL OTHER WARRANTIES
OF ANY NATURE WHATSOEVER, WHETHER EXPRESS, IMPLIED OR ARISING BY
OPERATION OF LAW, INCLUDING, BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THIS WARRANTY DOES
NOT COVER OR PROVIDE FOR THE REIMBURSEMENT OR PAYMENT OF INCIDENTAL
OR CONSEQUENTIAL DAMAGES. Some states do not allow this exclusion or limitation
of incidental or consequential damages so the above limitation or exclusion may not
apply to you.
LEGAL REMEDIES: This warranty gives you specic legal rights, & you may also have
other rights which vary from state to state. This warranty is void outside the United
States of America & Canada.
PROCEDURE FOR OBTAINING PERFORMANCE OF WARRANTY: If, after following the
instructions in the owner’s manual you are certain that the Product is defective, pack
the Product carefully (preferably in its original packaging). The Product should include
all parts & accessories originally packaged with the Product. Include evidence of
original purchase & a note describing the defect that has caused you to return it. The
Product should be shipped freight prepaid, by traceable means, to warrantor at:
Uniden America Service
743 Henrietta Creek Rd.
Roanoke, TX 76262
(800) 658-8068, 8 a.m. to 5 p.m., Central, Monday through Friday
![](/img.php?id=2445778&img=bg28.png)
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept
any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts
de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire
de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d'en compromettre le fonctionnement.
The distance between user and products should be no less than 20cm
La distance entre l'utilisateur et de produits ne devrait pas être inférieure à 20cm
