JSW Pacific MP-7012 Auto Pan Scan Platform User Manual

JSW Pacific Corporation Auto Pan Scan Platform Users Manual

Users Manual

Auto Pan Scan Platform
with Remote Control
This manual contains important information about this product's operation.
If you are installing this product for others, you must leave this manual -or a
copy- with the end user.
User Manual
Model No.: MP-7012
PLEASE READ CAREFULLY AND SAVE
Includes:

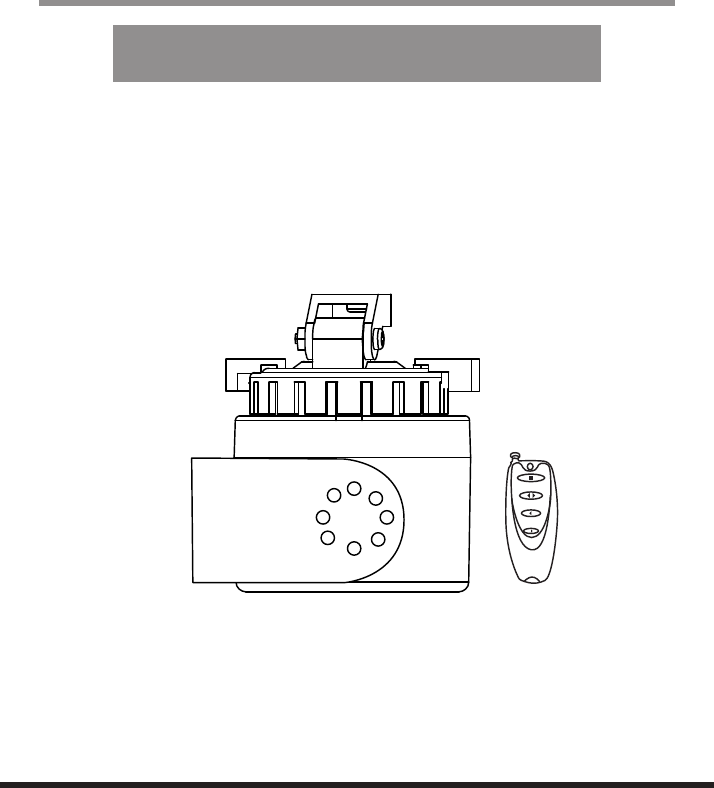

- (1) Rotating Camera Platform
- (1) Remote Control
- (1) 9V AC/DC Adaptor
- (1) Platform mounting bracket and hardware
- (1) Extra Camera Mounting Plate
Contents
Safety and Hazard Notices
Cable Connection
Operating Procedures
Panning Range Adjustment
Technical Data
Trouble Shooting
Maintenance
Major Operation Components
Installation
Camera Mounting
Wall Mounting
No.: MP-7012
- (1) Rotating Camera Platform
- (1) Remote Control
- (1) 9V AC/DC Adaptor
- (1) Platform mounting bracket and hardware
- (1) Extra Camera Mounting Plate
Parts Included in This System
3.
4.
4.
5.
5.
6.
6.
8.
9.
10.
10.
Important!
Please read this Manual carefully
before installing or using these units.
WARNING- These units should ONLY be disassembled by an authorized
technician if service is required.
Safety Precautions
For correct and safe operation of this system, it is essential that installers,
end-users and service technicians should follow all safety procedures
outlined in this manual. Specific Warning and Caution statements (and/or
symbols) are marked on the units where needed.
Warning and Caution Statements
"WARNING" indicates a situation where failure to follow proper procedures
can cause personal injury.
"CAUTION" indicates a situation where failure to follow proper procedures
can cause damage to the equipment.
Important Safety Precautions
Please read before installing & using this product
Damages caused by non-compliance with this operating manual void the
warranty! We will not assume any liability for damages to items or persons caused
by improper handling or non-compliance with the safety notices! Any warranty
claim will be null and void in such cases.
- Make sure that all electric connections and connection cables between the devices of
the camera system as well as the devices to be connected meet the pertaining regulations and
are in conformity with the operating instructions.
- In schools, training facilities, hobby and self-help workshops, qualified personnel needs to
supervise the operation of electronic devices.
- Also observe the safety notices and operating instructions of the other appliances connected
to the system.
- Please contact an expert in case you have any doubts about the mode of operation, the safety
or connecting the appliances.
- Never plug-in or unplug the power supply with wet hands.
- Never tug on the power cords, use the plug to unplug it from the socket.
- Make sure that the power cables do not get crushed or damaged by sharp edges when
installing the devices.
- Never replace damaged power cables yourself! Take the device to a qualified repair
technician.
10. 3.
Troubleshooting
Other repairs as described above may only be performed by an
authorized technician.
Error Possible cause
Observe the safety notices under all circumstances!
Maintenance
The devices are maintenance-free. Only clean the outside of the devices
using a soft, dry cloth or a brush. Unplug prior to cleaning. Do not paint the
camera or the receiver. Do not disassemble. Disassembly voids the warranty.
Do not use any carboxylic cleaning agents or petrol, alcohol
or similar which will destroy the surfaces of the devices. Do
not use any sharp edged tools, screw drivers, metal brushes
or similar for cleaning.
Platform does not
rotate at all
Platform rotates, but
not smooth
• Check if power cable plug-in correctly
• Check if controller battery low. Change battery (screw open
the back cover then change a new 12V battery, Energizer
A27 or Duracell MN27 is recommended)
• The distance between platform and controller is too far.
Stand closer to control the platform.
• Weight overload. The platform is designed for smaller
camera under 7.0lb.
• Cable jammed. Stretch cable(s) attached to camera,
allowing platform to rotate.
• The distance between platform and controller is too far.
Stand closer to control the platform.
• Weight overload. The platform is designed for smaller
camera under 7.0lb.
• Cable jammed. Stretch cable(s) attached to camera,
allowing platform to rotate.
1
2
3
5
6
7
8
2
4

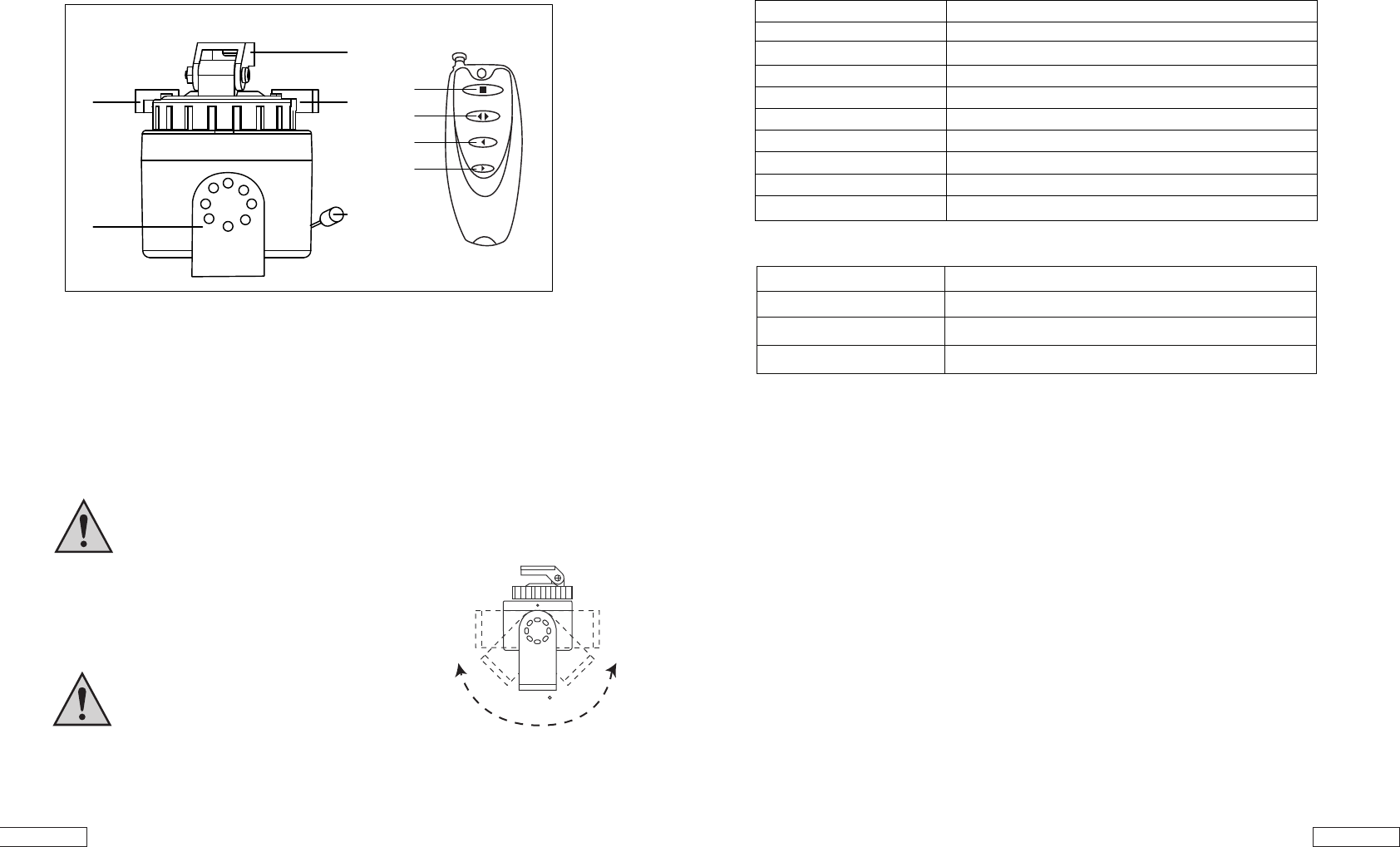

1. Camera Mounting plate
2. Pan Limit Stops
3. DC In for Platform Adaptor
4. Mounting Bracket
5. Stop Button
6. Auto Pan Button
7. Pan Left Button
8. Pan Right Button
Major Operating Components
Installation
Follow the instructions provided with mounting bracket.
Mount and mounting surface must be able to support the
weight of the pan/ tilt, camera and enclosure (if used). The
camera/ enclosure must be properly mounted and balanced
on the mounting bracket.
CAUTION!
STRONGLY NOT RECOMMEND TO MOUNT THE
PLATFORM INVERTED!!!
THE MAXIMUM LOAD FOR THE PLATFORM IS 6.6lb.
THIS UNIT IS DESIGNED FOR EITHER UPRIGHT OR HORIZONTAL
INSTALLATIONS.THE UNIT MUST BE INSTALLED IN A
WEATHERPROOFENCLOSURE OR A PROTECTED AREA.
180
4. 9.
Rotating Camera Platform
Technical Data
Batt. Type  12V Alkaline Battery
Transmitting Frequency  315 MHz
Modulation
Transmitting Range
approx. 300ft at free visibility or 150ft indoor
Remote Control
Operating voltage
Transmitting frequency
Modulation
Transmitting Range
Operating temperature
Maximum Load
Pan Angle
Pan Speed
Weight (w/o bracket)
Dimensions (w/o bracket)
9V/500mA
315MHz
FM / ASK
approx. 300ft at free visibility or 150ft indoor
14o F to 122o F
6.6lb
0o to Panorama View
7o per second
0.216lb
3.74 x 2.91 x 2.91 in
FM / ASK
Note: You can buy replacement battery from following brands and battery codes:
CNB 27A, Duracell MN27, Energizer A27, Gold Peak GP27A, Golden Power A27,
Motorola SNN4176A, RadioShack ALK27A, Varta V27GA, Vinnic L828

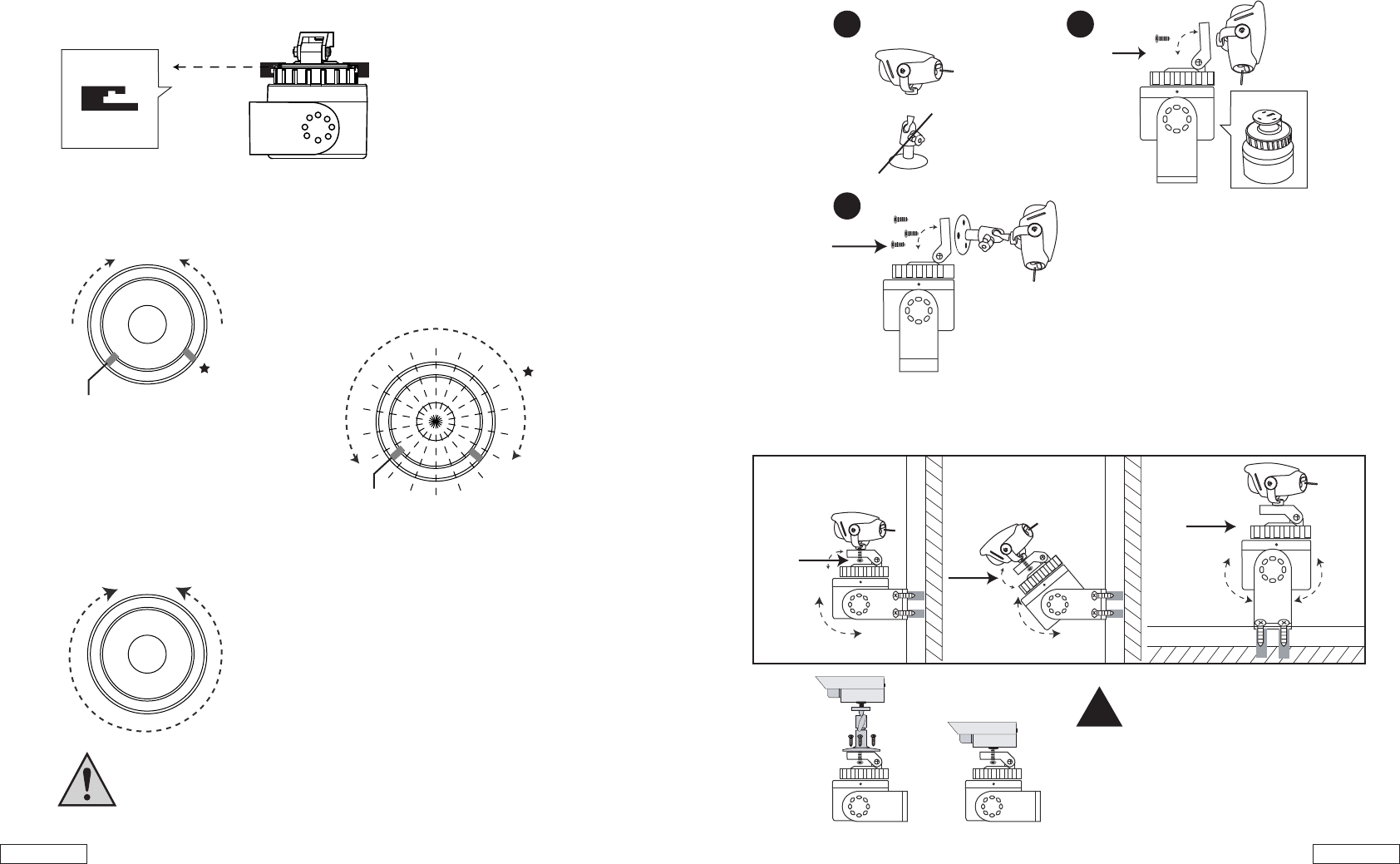

Mount the camera/ enclosure to the platform bracket as follows:
screw
1. Camera Mounting
screw
Top View
8. 5.
Balance the camera/ enclosure and adjust the unit to align with mounting holes. Fasten with the screws
RECOMMENDED!
OR
screw
1. Wall Mounting
1
OR
2
Panning Range Adjustment
Pan Stops
Auto-Pan Operation
Locate the 2 limit stops on the camera base.
The Pan stops are positioned on each side of pan switch
lever. The pan stops may be repositioned or removed
depending on the desired operation.
The auto-pan function is controlled by the remote control
sensing changes in current flow through the pan motor.
When a pan stop is removed, the unit panned continuously
left or right for Panorama View.
(Top View of the platform)
(Pan Stops Removed)
Pan Stops
Front
Rear
Pan Stops
Rear
Front
Rear
Top
Bottom
Pan Limit Stops
screw
screw
The closer the stops,
the wilder the angle.
Loss camera bracket
!
X O
If you are using your own camera,
please loss camera stand then mount
camera only onto the platform
CAUTION: THE PAN LIMIT STOPS SHOULD NOT BE
ADJUSTED WHILE UNIT IS OPERATING
Front
Available rorating angle

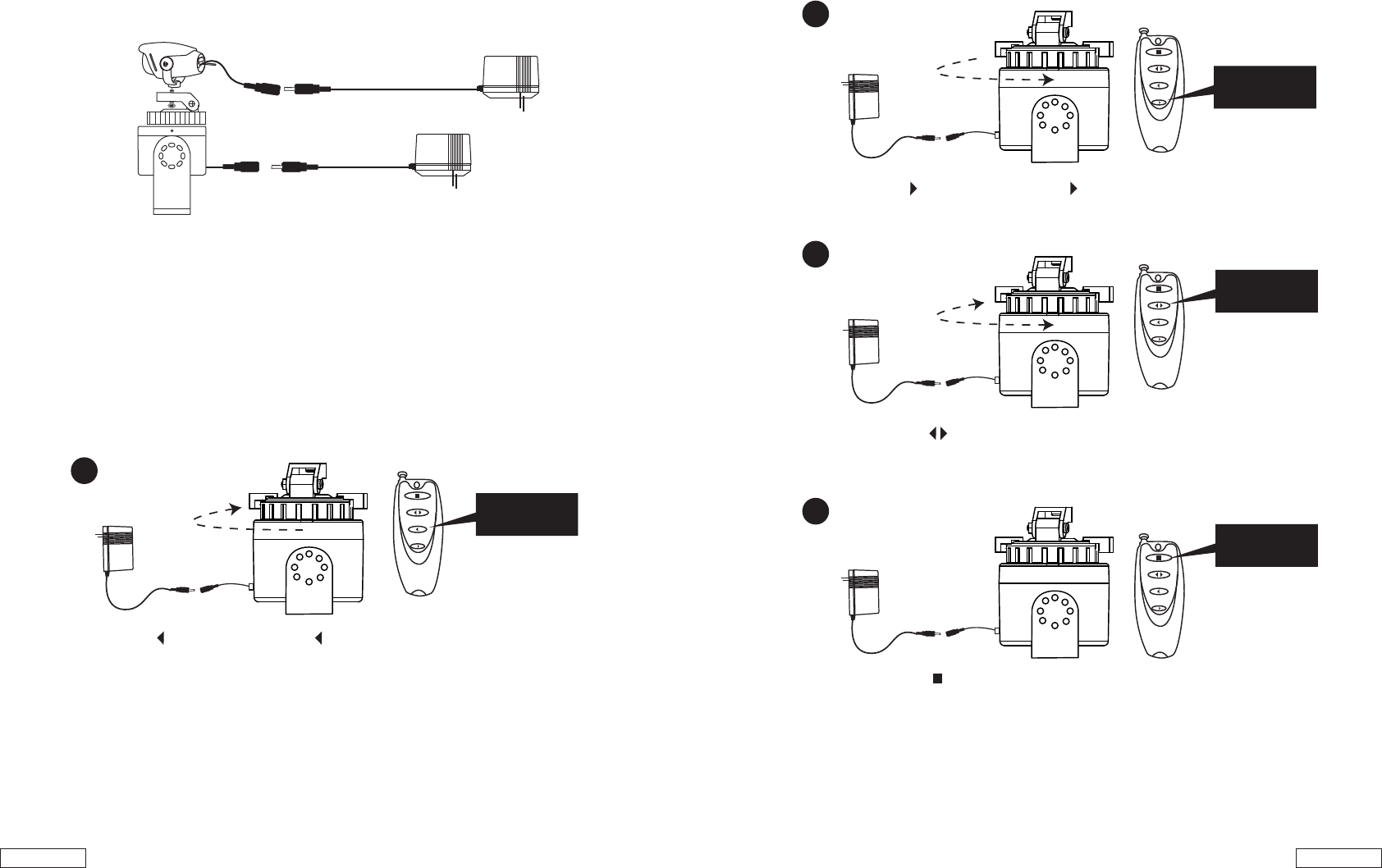

Make all electrical connections. Leave sufficient loops of cable betweeen
camera/ enclosure and platform to allow for panning.
1. Cable Connection
6. 7.
Operating Procedures
1. Hold the button to pan left. Release button to stop.
After the unit is installed and all wire connection are made. Operate the control unit to the desired
position by using the Remote Control.
2. Hold the button to pan right. Release button to stop.
1
2
3. By press the button to pan left and right automatically
3
4. By press the button to stop auto pan.
4
Hold to pan,
Release to stop
Hold to pan,
Release to stop
Press to Auto
pan
Press to stop
Auto pan
