JVC

COLORTELEVISION

USER'SGUIDE

For models:

AV-27D303

AV-27D203

AV-20D303

AV-27330

AV-27320

AV-27S33

Illustration of AV-27D303 and RM-C252

iiii_i!_ii_i!i_i_i_!_!_!_]_!_!i_!_!!i!_i_!_!_!i!_i_i!_!_i_!_i_!i!_i__i!_ii_!_i_i_i_i_ii!_!_!_!!!_!_!_i_i!_i_i_ii_i_i!_i_i_!_!_iii!_ii!_ii!_ii

Serial Number Model Number

LCT1145-001A-A

0302-TN-FAA-J IM

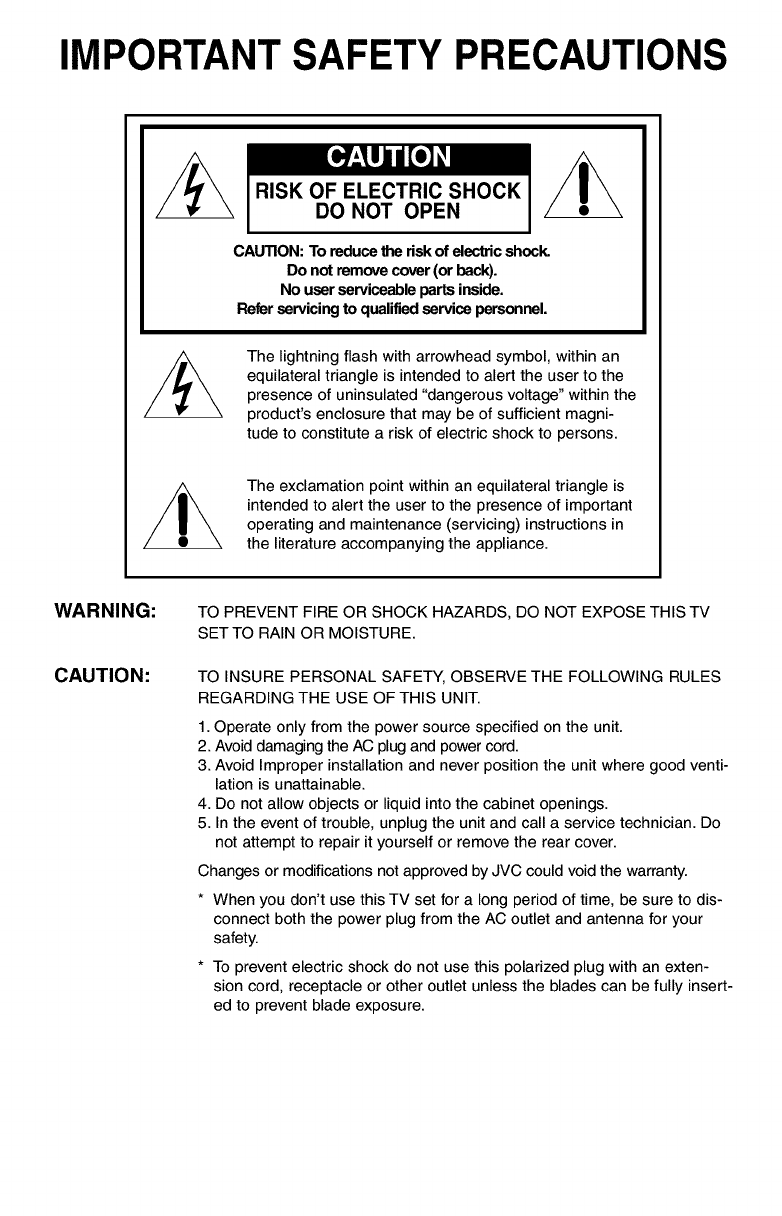

IMPORTANT SAFETY PRECAUTIONS

[o llj o) I

/_ RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: To reduce the risk of elec_c shock.

Do not remove cover (or back).

No user serviceable parts inside.

Refer servicing to qualified service personnel.

The lightning flash with arrowhead symbol, within an

equilateral triangle is intended to alert the user to the

presence of uninsulated "dangerous voltage" within the

product's enclosure that may be of sufficient magni-

tude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in

the literature accompanying the appliance.

WARNING:

CAUTION:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS TV

SET TO RAIN OR MOISTURE.

TO INSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING RULES

REGARDING THE USE OF THIS UNIT.

1. Operate only from the power source specified on the unit.

2. Avoid damaging the AC plug and power cord.

3. Avoid Improper installation and never position the unit where good venti-

lation is unattainable.

4. Do not allow objects or liquid into the cabinet openings.

5. In the event of trouble, unplug the unit and call a service technician. Do

not attempt to repair it yourself or remove the rear cover.

Changes or modifications not approved by JVC could void the warranty.

* When you don't use this TV set for a long period of time, be sure to dis-

connect both the power plug from the AC outlet and antenna for your

safety.

* To prevent electric shock do not use this polarized plug with an exten-

sion cord, receptacle or other outlet unless the blades can be fully insert-

ed to prevent blade exposure.

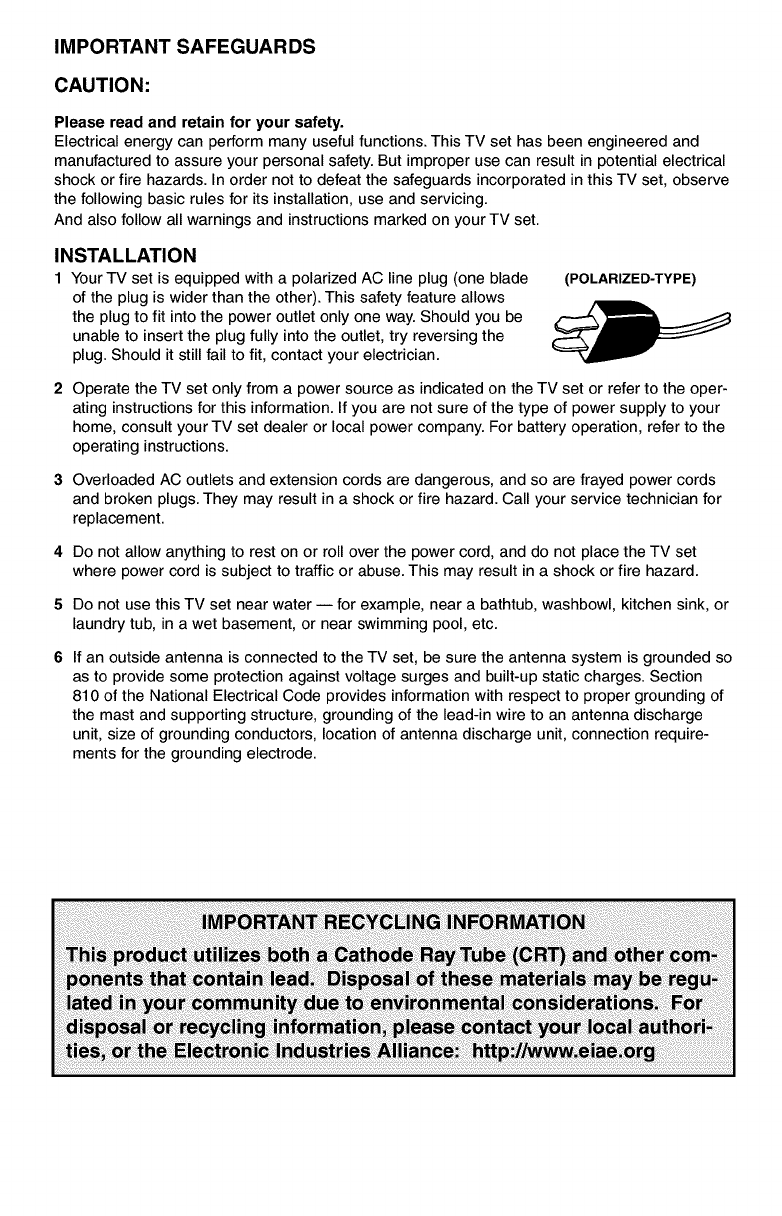

IMPORTANT SAFEGUARDS

CAUTION:

Please read and retain for your safety.

Electrical energy can perform many useful functions. This TV set has been engineered and

manufactured to assure your personal safety. But improper use can result in potential electrical

shock or fire hazards. In order not to defeat the safeguards incorporated in this TV set, observe

the following basic rules for its installation, use and servicing.

And also follow all warnings and instructions marked on your TV set.

INSTALLATION

1 Your TV set is equipped with a polarized AC line plug (one blade

of the plug is wider than the other). This safety feature allows

the plug to fit into the power outlet only one way. Should you be

unable to insert the plug fully into the outlet, try reversing the

plug. Should it still fail to fit, contact your electrician.

(POLARIZED-TYPE)

3 Overloaded AC outlets and extension cords are dangerous, and so are frayed power cords

and broken plugs. They may result in a shock or fire hazard. Call your service technician for

replacement.

4Do not allow anything to rest on or roll over the power cord, and do not place the TV set

where power cord is subject to traffic or abuse. This may result in a shock or fire hazard.

5Do not use this TV set near water -- for example, near a bathtub, washbowl, kitchen sink, or

laundry tub, in a wet basement, or near swimming pool, etc.

6 If an outside antenna is connected to the TV set, be sure the antenna system is grounded so

as to provide some protection against voltage surges and built-up static charges. Section

810 of the National Electrical Code provides information with respect to proper grounding of

the mast and supporting structure, grounding of the lead-in wire to an antenna discharge

unit, size of grounding conductors, location of antenna discharge unit, connection require-

ments for the grounding electrode.

2 Operate the TV set only from a power source as indicated on the TV set or refer to the oper-

ating instructions for this information. If you are not sure of the type of power supply to your

home, consult your TV set dealer or local power company. For battery operation, refer to the

operating instructions.

7 An outside antenna system should not be located in the vicinity of overhead power lines or

other electric light or power circuits, or where it can fall into such power lines or circuits.

When installing an outside antenna system, extreme care should be taken to keep from

touching such power lines or circuits as contact with them might be fatal.

EXAMPLE OF ANTENNA GROUNDING

AS PER NATIONAL ELECTRICAL CODE

I_TENNA

]1 ]- LEADIN

DISCHARGE U_IT

L _L_._._J €_1 _ G_,OI,Gco,_cr_

,_ PO_ER SERVICE GROUNDING

ELECIROOE SYSIEM

NEC NAIIONAL ELECTRIC CODE CNEC ARTICLE 2Se, PART FO

8 TV sets are provided with ventilation openings in the cabinet to allow heat generated during

operation to be released.

Therefore:

-- Never block the bottom ventilation slots of a portable TV set by placing it on a bed, sofa,

rug, etc.

-- Never place a TV set in a "built-in" enclosure unless proper ventilation is provided.

-- Never cover the openings with a cloth or other material.

-- Never place the TV set near or over a radiator or heat register.

9 To avoid personal injury:

-- Do not place a TV set on a sloping shelf unless properly secured.

-- Use only a cart or stand recommended by the TV set manufacturer.

-- Do not try to roll a cart with small casters across thresholds or deep pile carpets.

-- Wall or shelf mounting should follow the manufacturer's instructions, and should use a

mounting kit approved by the manufacturer.

USE

10 Caution children about dropping or pushing objects into the TV set through cabinet open-

ings. Some internal parts carry hazardous voltages and contact can result in a fire or elec-

trical shock.

11 Unplug the TV set from the wall outlet before cleaning. Do not use liquid or an aerosol

cleaner.

12 Never add accessories to a TV set that has not been designed for this purpose. Such addi-

tions may result in a hazard.

13ForaddedprotectionoftheTVsetduringalightningstormorwhentheTVsetistobeleft

unattendedforanextendedperiodoftime,unplugitfromthewalloutletanddisconnectthe

antenna.Thiswillpreventdamagetoproductduetolightningstormsorpowerlinesurges.

14ATVsetandcartcombinationshouldbemovedwithcare.Quickstops,excessiveforce,

andunevensurfacesmaycausetheTVsetandcartcombinationtooverturn.

SERVICE

15 Unplug this TV set from the wall outlet and refer servicing to qualified service personnel

under the following conditions:

A. When the power cord or plug is damaged or frayed.

B. If liquid has been spilled into the TV set.

C. If the TV set has been exposed to rain or water.

D. If the TV set does not operate normally by following the operating instructions. Adjust

only those controls that are covered in the operating instructions as improper adjustment

of other controls may result in damage and will often require extensive work by a quali-

fied technician to restore the TV set to normal operation.

E. If the TV set has been dropped or damaged in any way.

E When the TV set exhibits a distinct change in performance -- this indicates a need for

service.

16 Do not attempt to service this TV set yourself as opening or removing covers may expose

you to dangerous voltage or other hazards. Refer all servicing to qualified service person-

nel.

17 When replacement parts are required, have the service technician verify in writing that the

replacement parts he uses have the same safety characteristics as the original parts. Use

of manufacturer's specified replacement parts can prevent fire, shock, or other hazards.

18 Upon completion of any service or repairs to this TV set, please ask the service technician

to perform the safety check described in the manufacturer's service literature.

19 When a TV set reaches the end of its useful life, improper disposal could result in a picture

tube implosion. Ask a qualified service technician to dispose of the TV set.

20 Note to CATV system installer.

This reminder is provided to call the CATV system installer's attention to Article 820-40 of

the NEC that provides guidelines for proper grounding and, in particular, specifies that the

cable ground shall be connected to the grounding system of the building, as close to the

point of cable entry as practical.

Table of Contents

UNPACKING YOUR TV ..... 7

TV Models and

Remote Controls ........ 8

Quick Setup Guide ....... 11

Connections .......... 14

Cable and VCR Connections ....... 14

Connecting to a DVD Player ........ 17

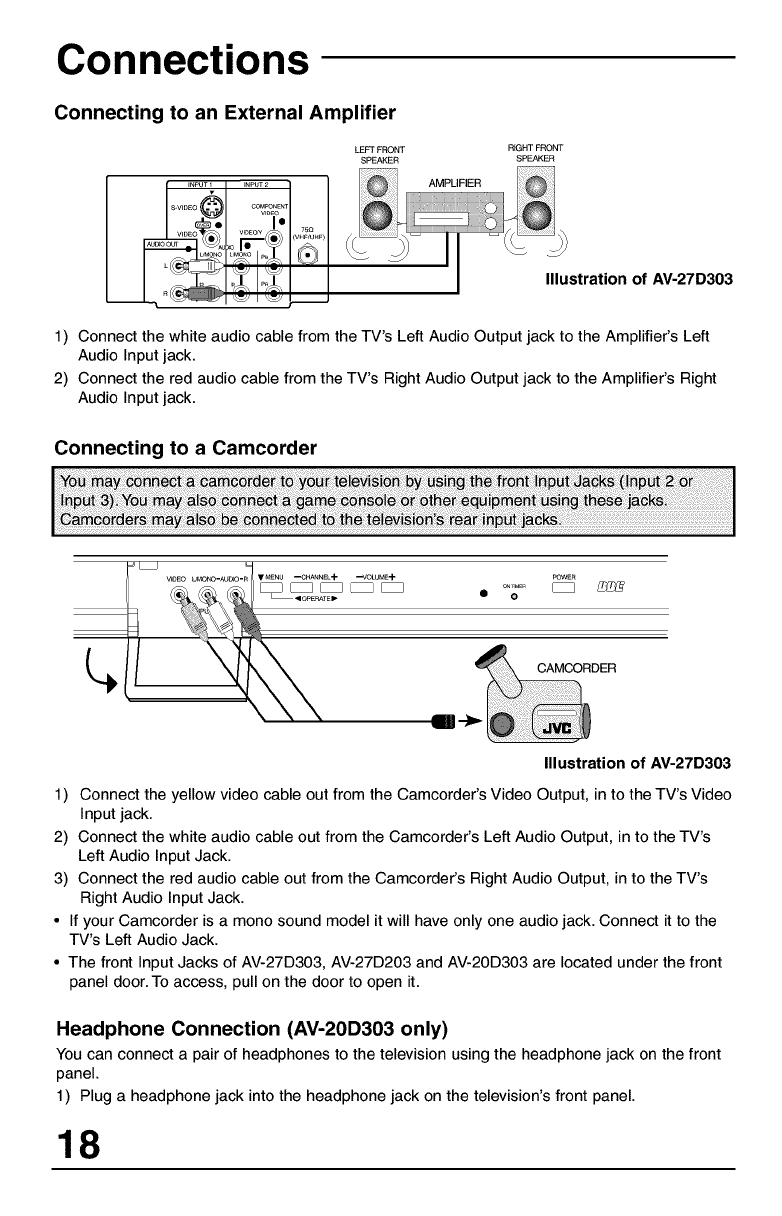

Connecting to an External Amplifier .... 18

Connecting to a Camcorder ........ 18

Headphone Connection .......... 18

Remote Control ......... 19

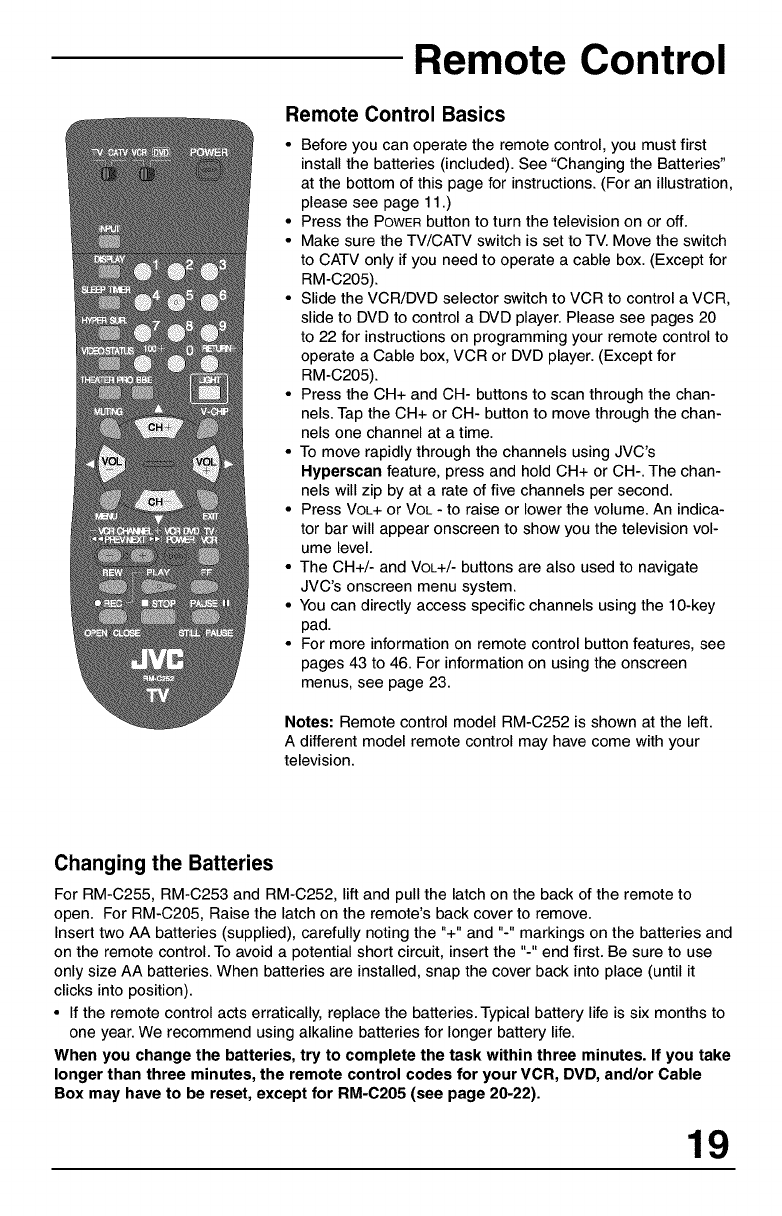

Remote Control Basics ..... 19

Changing the Batteries ..... 19

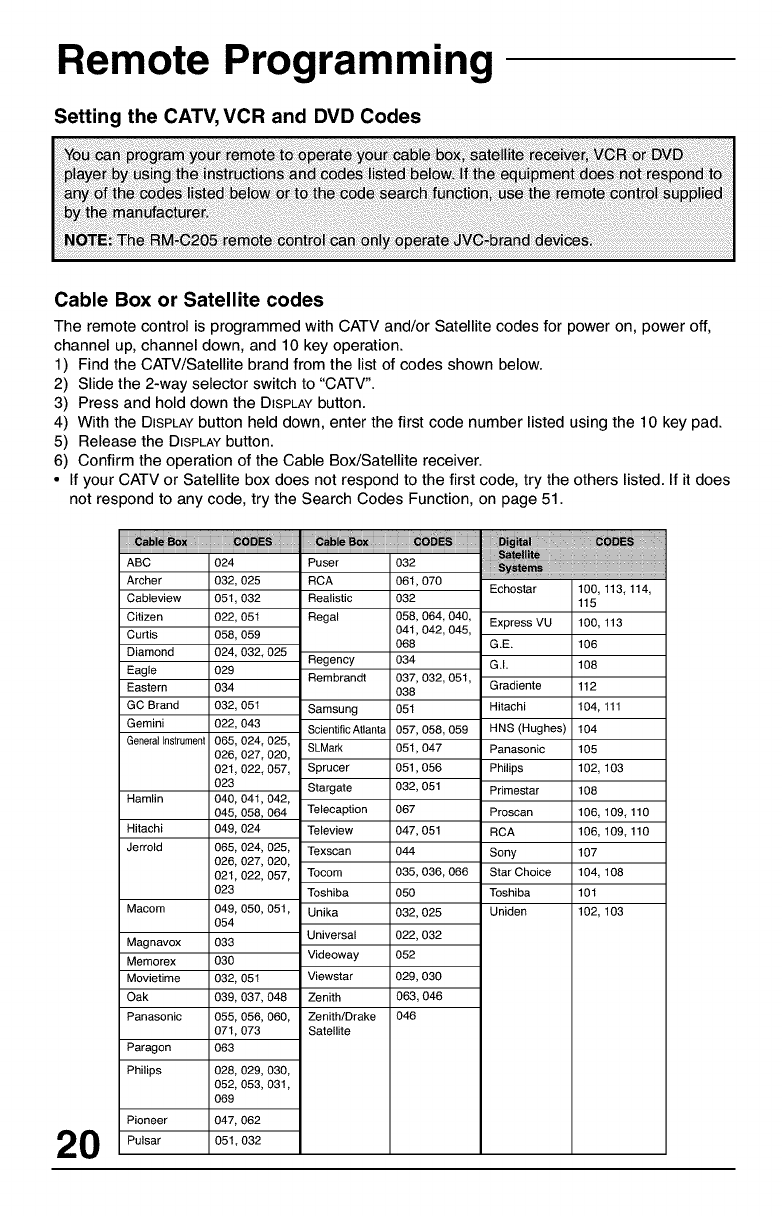

Remote Programming ..... 20

CATV and Satellite Codes ......... 20

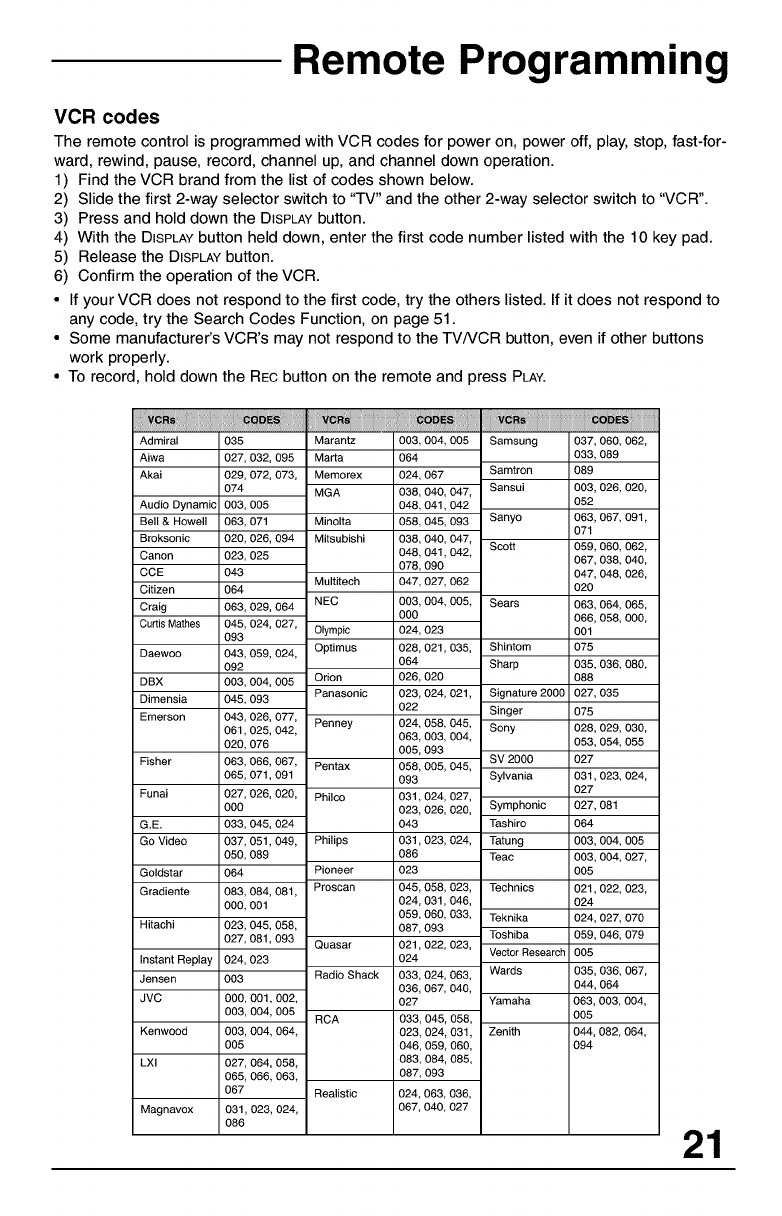

VCR Codes ................ 21

DVD Codes ................ 22

Onscreen Menus ........ 23

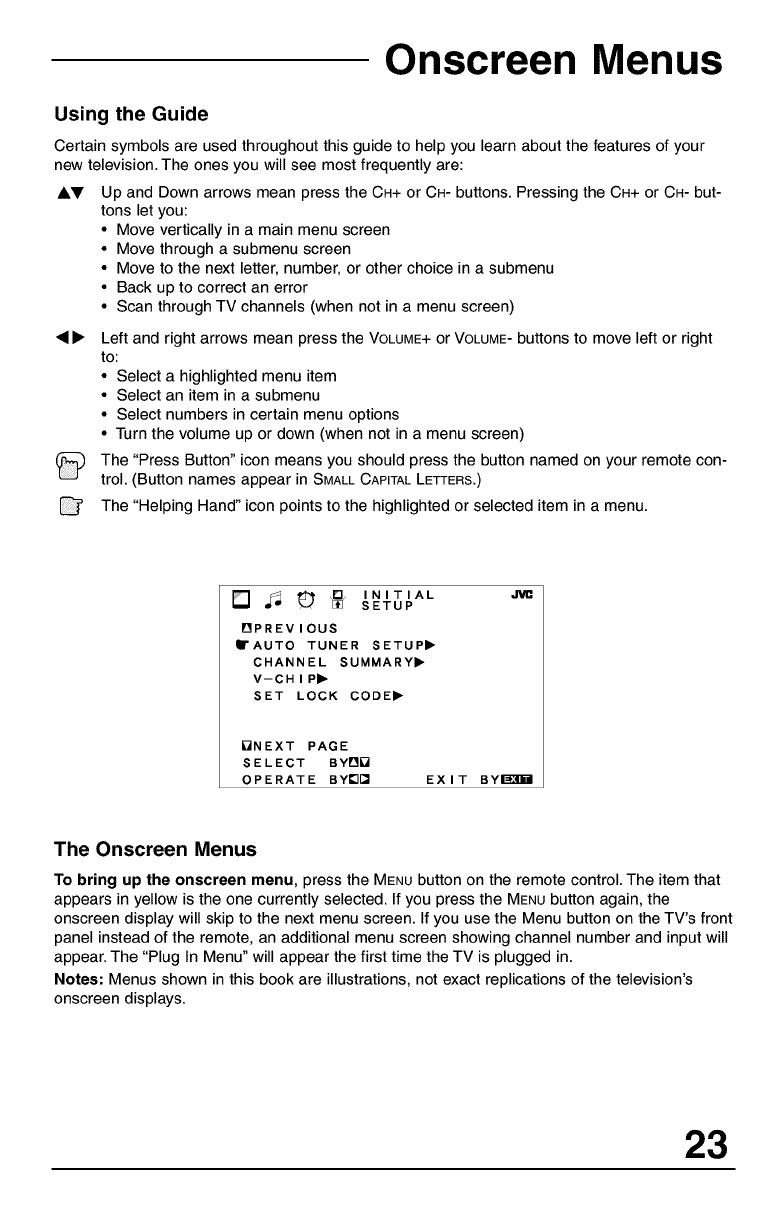

Using the Guide .............. 23

Onscreen Menu System .......... 24

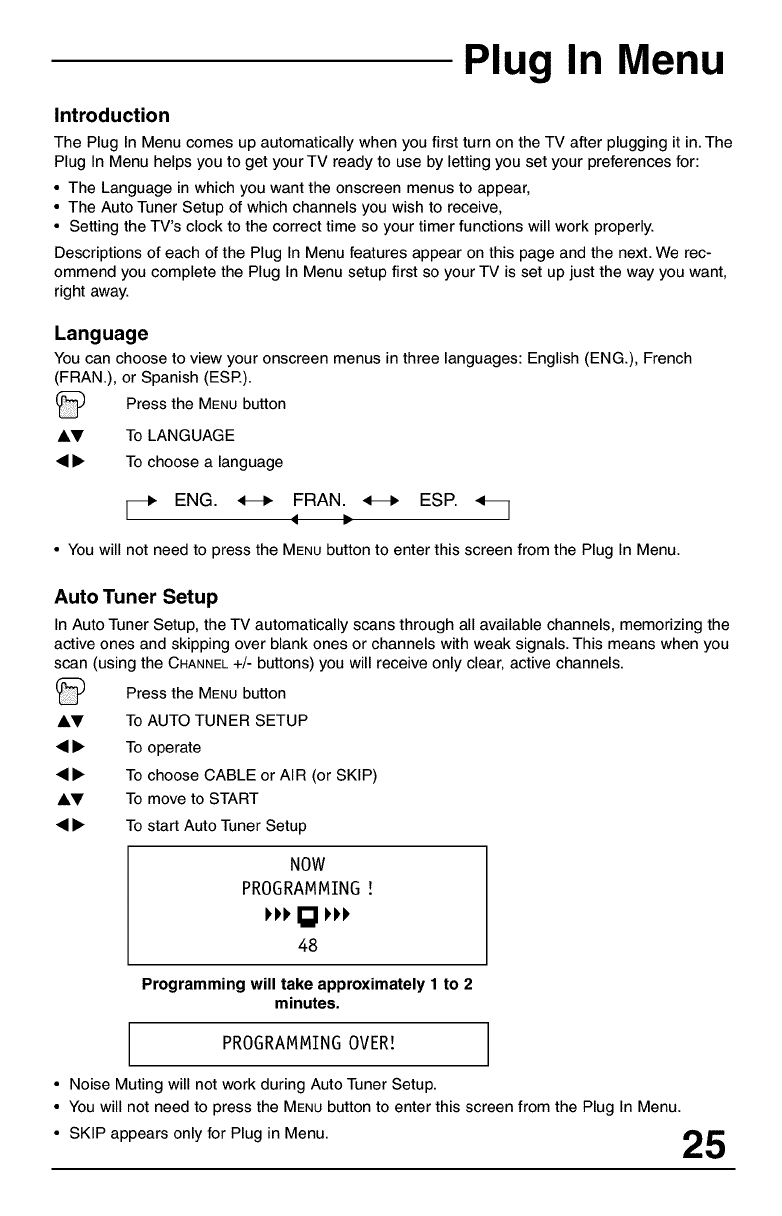

Plug In Menu ............... 25

Introduction ........... 25

Language ............ 25

AutoTuner Setup ........ 25

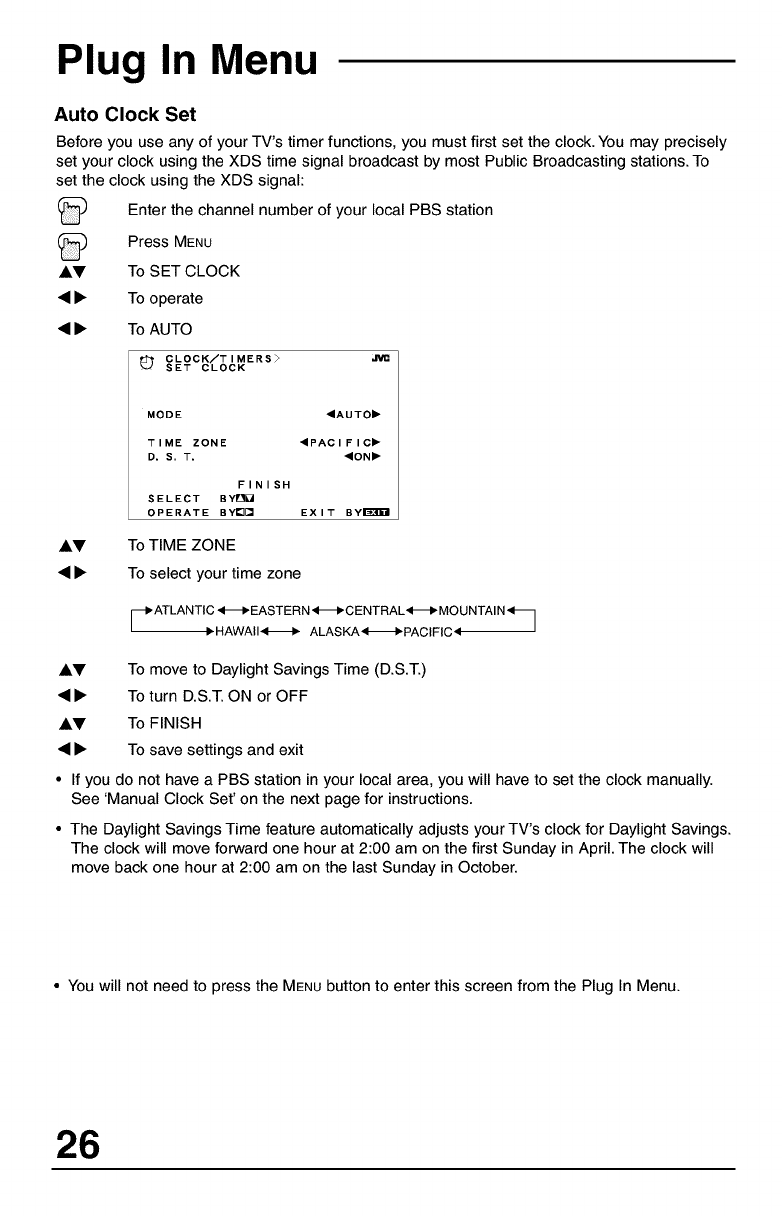

Auto Clock Set ......... 26

Manual Clock Set ........ 27

Channel Summary ............. 28

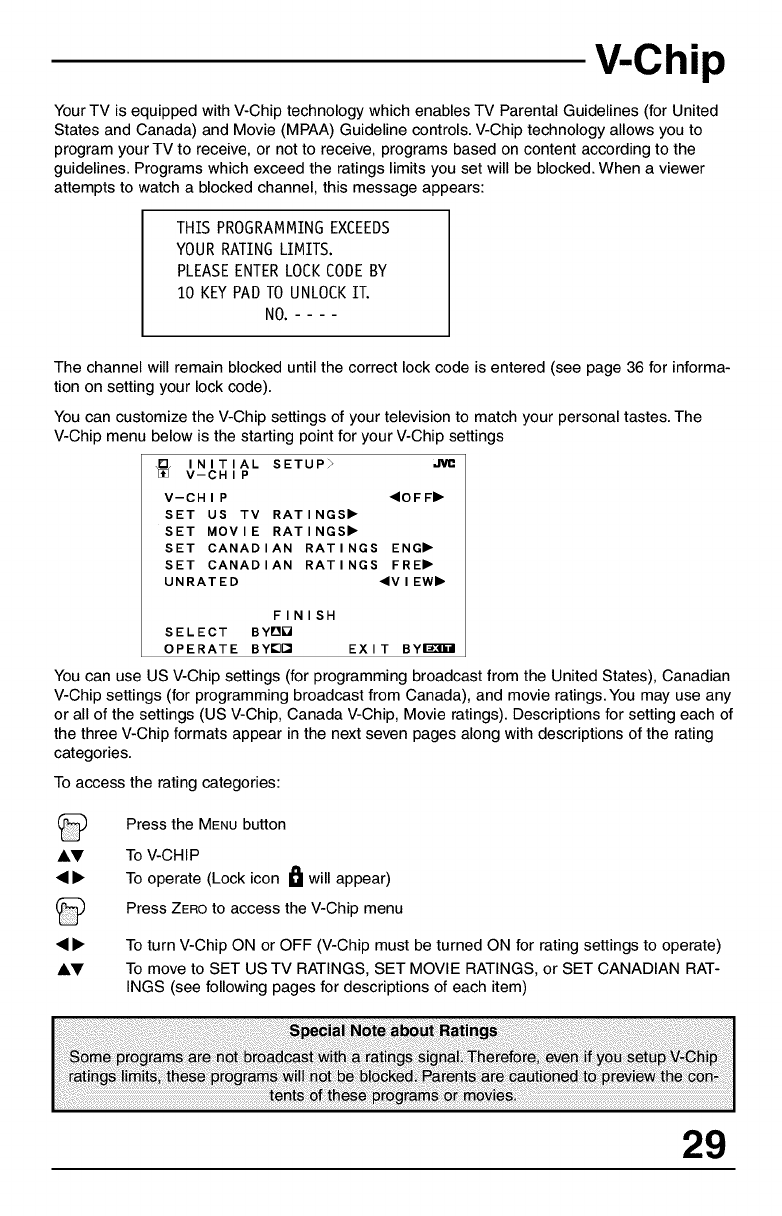

V-Chip ................... 29

US V-Chip Ratings ....... 30

Viewing Guidelines ....... 30

Setting US V-Chip Ratings . . . 31

Movie Ratings .......... 33

Set Movie Ratings ....... 33

Canadian V-Chip Ratings .... 34

Set Canadian V-Chip Ratings . 34

Unrated Programs ....... 35

Set Lock Code ......... 36

Picture Settings .............. 37

Tint ............... 37

Color .............. 37

Picture ............. 37

Bright .............. 37

Detail .............. 37

Color Temperature ....... 38

Noise Muting .......... 38

Onscreen Menus (Cont.)

Sound Settings .............. 39

Bass .............. 39

Treble ............... 39

Balance .............. 39

MTS (Multi-channel Sound . . . 39

General Items ............... 40

On/Off Timer .......... 40

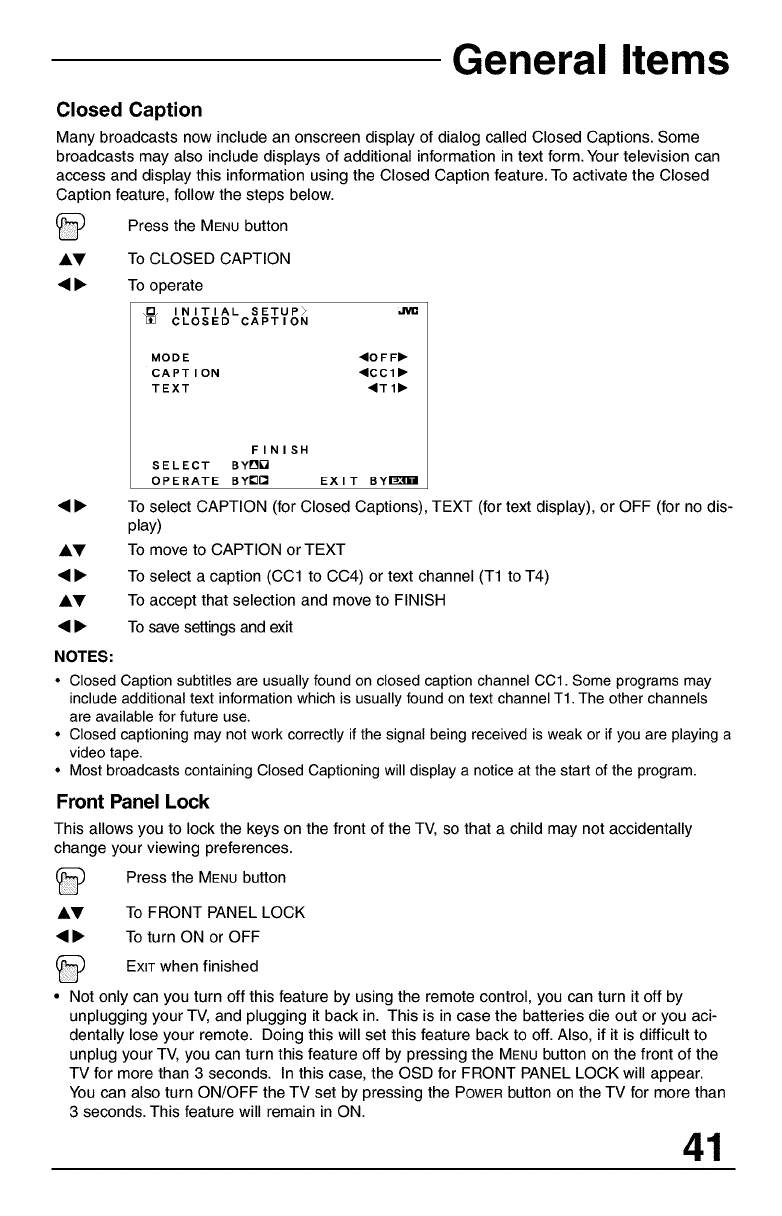

Closed Caption ......... 41

Front Panel Lock ........ 41

Auto Shut Off ........ 42

XDS ID ............. 42

V2 Component-In/

Vl Component-In ........ 42

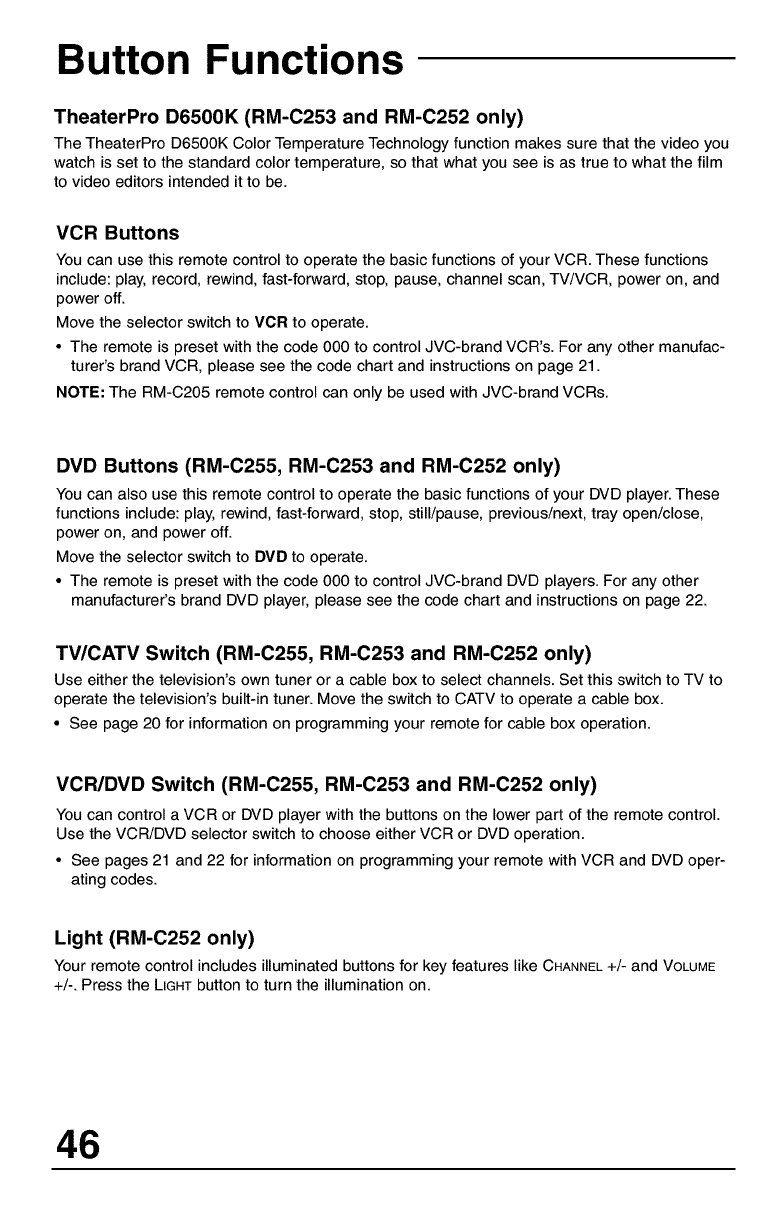

BUTTON FUNCTIONS ..... 43

Menu .................... 43

Exit ..................... 43

Display ................... 43

Muting ................... 43

Video Status ................ 44

Sleep Timer ................ 44

Hyper Surround .............. 44

BBE ................... 45

100+ .................... 45

Return+ .................. 45

Input .................... 45

Theater Pro D6500K ........... 46

VCR Buttons ................ 46

DVD Buttons ................ 46

TV/CATV Switch .............. 46

VCR/DVD Switch ............. 46

Light .................... 46

APPENDICES

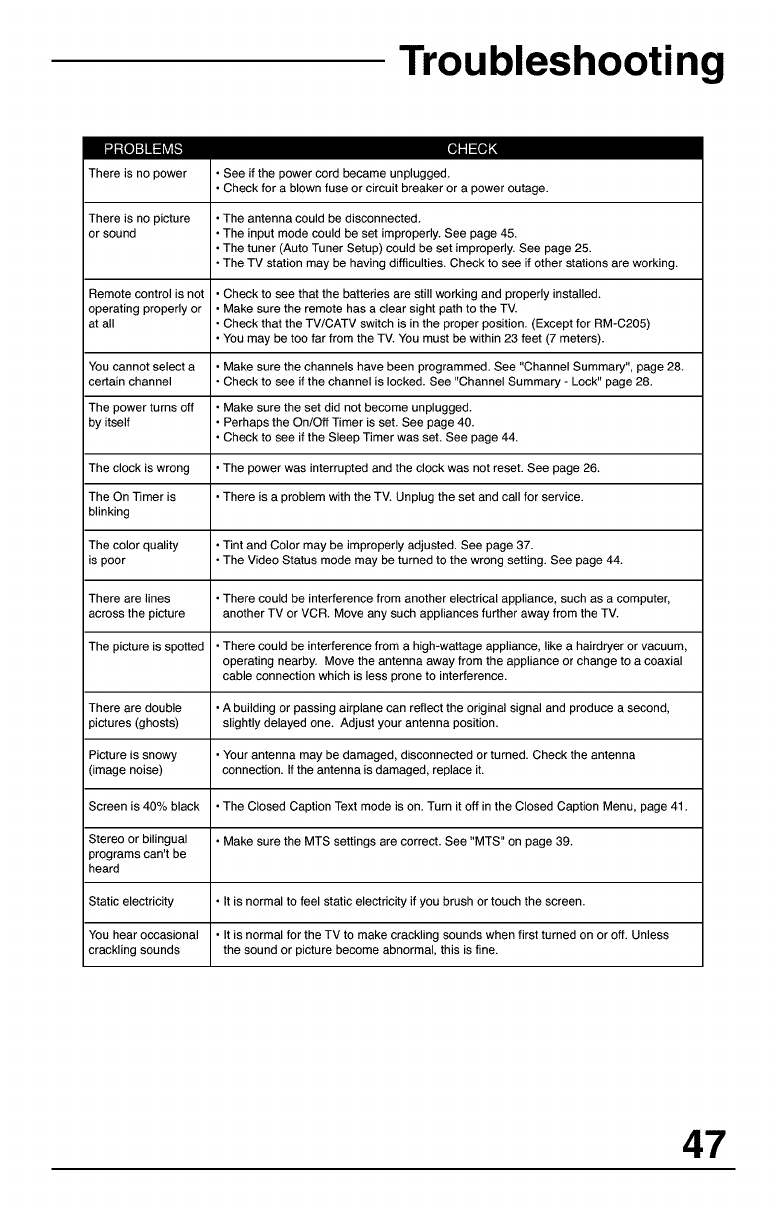

Troubleshooting .............. 47

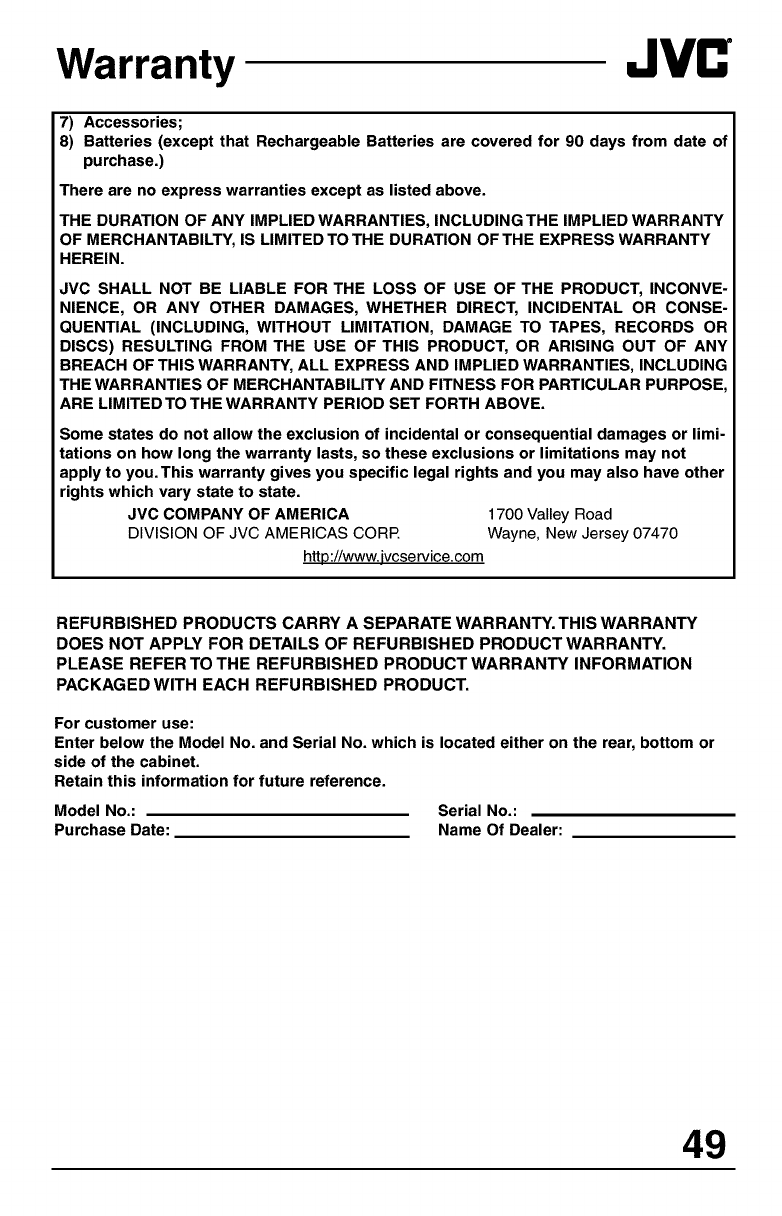

Warranty .................. 48

Authorized Service Centers ........ 50

Search Codes ............... 51

Specifications ............... 52

Unpacking Your Television

Thank you for your purchase of a JVC Color Television. Before you begin setting up your new

television, please check to make sure you have all of the following items. In addition to this

guide, your television box should include:

1 Remote Two AA

1 Television Control Batteries

A matching TV stand

is also available

(optional).

Note: Your television

and/or remote control

may differ from the

examples illustrated

here.

RF Connectors

Used to connect a

coaxial cable from an

external antenna or

Cable TV system.

S-Video Plug

A/V Input Plug

Used to connect

audio/video devices like

VCRs, DVD players,

stereo amplifiers, game

consoles, etc.

Used to make video con-

nections with VCRs,

DVDs, Camcorders, etc

(optional).

We recommend that before you start using your new television, you read your entire User's

Guide so you can learn about your new television's many great features. But if you're anxious

to start using your television right away, a quick setup guide follows on pages 11 - 13.

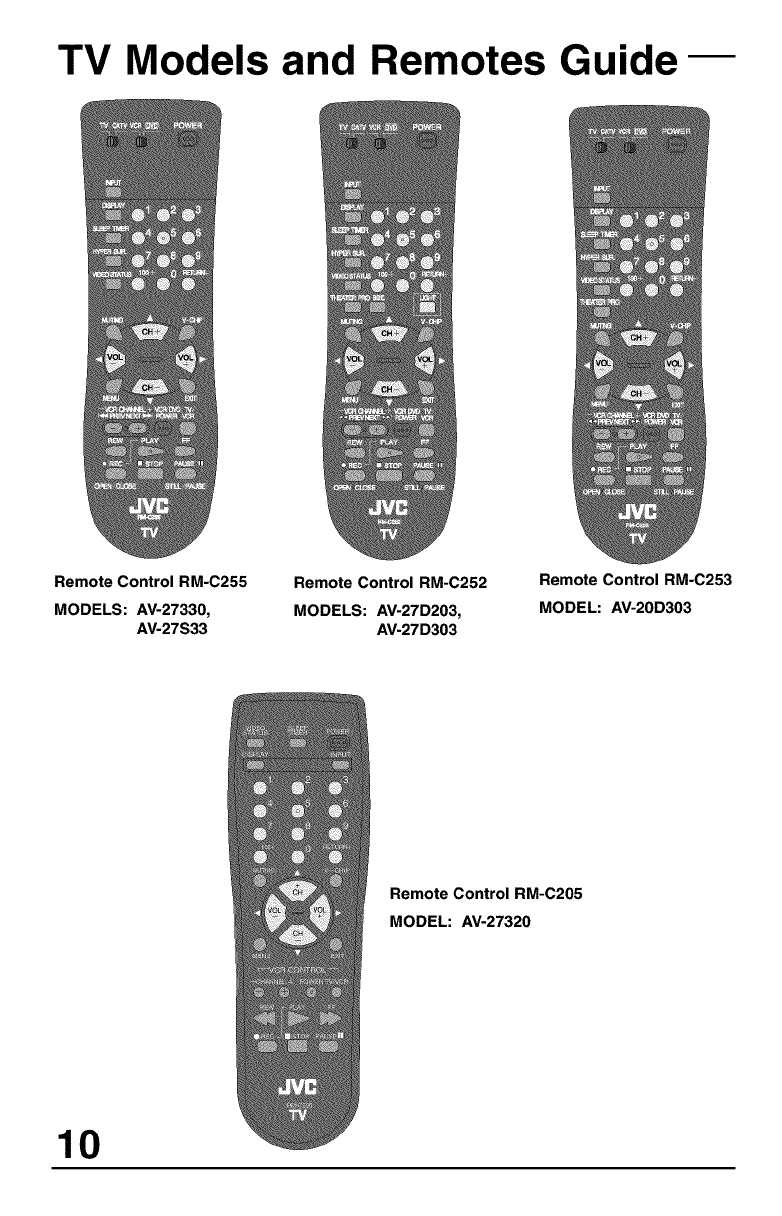

TV Models and Remotes Guide

NOTE: Before you connect your televison to another device, please refer to the proper dia-

grams for your TV and remote, depending on the model that you have purchased.

These will help assist you in understanding how to connect your television to another

device, as well as use the remote to set up your televison.

Rear Panel Diagrams

i AUD_

INPUT 1 INPUT 2

0%.

VIDEO_ VIDI OM

MODELS: AV-27D303 and AV-27D203

L/MIONO

O0_ONEN"

VIDEO/Y pp_

MODEL: AV-27320

750

(VHF/UHF)

II( • ))l

INPUT 1 • INPUT 2 |

I ___l I*l

MODELS: AV-20D303, AV-27330 and AV-27S33

TV Models and Remotes Guide

Front Panel Diagrams

VIDEO LfiV_gNO-AUDIO- R

BNPtrr-3 /

• MENU --CHANNEL+ --VOLUME+ POWER

MODELS: AV-27D303 and AV-27D203

VBE-O UMONO-AUDIO-R

1 .....I

l /

• MENU ,_CHANNEL,,_ _VOLUME,,I- POWER

MODEL: AV-20D303

INPUT2

VIDEO L/MONO-AUDIO4_ • MENU - CHANNEL + - VOLUME +

_ • OPERATE _

ON TIMER

•©

POWER

MODEL: AV-27320

INPUT3

VlDEOL/MONO-AUDIO4_ • MENU - CHANNEL + - VOLUME + ONTIMER

• OPERATE I1,"

POWER

MODELS: AV-27330 and AV-27S33

TV Models and Remotes Guide

Remote Control RM-C255

MODELS: AV-27330,

AV-27S33

Remote Control RM-C252

MODELS: AV-27D203,

AV-27D303

Remote Control RM-C253

MODEL: AV-20D303

Remote Control RM-C205

MODEL: AV-27320

Getting Started

These quick setup pages will provide you, in three easy steps, with the basic information you

need to begin using your new television right away. This information includes basic instructions

on operating your remote control, making a simple cable/antenna and optional VCR connection

and, finally, information on programming your television's Auto Tuner.

If you have questions, or for more detailed information on any of these steps, please consult

other sections of this manual.

Step One -The Remote Control

The remote control is the key to operating your television's many great features. Before you can

operate your remote control, you first need to install the batteries (included).

For RM-C255, RM-C253 and RM-C252, lift and pull the latch on the back of the remote to

open. For RM-C205, raise the latch on the remote's back cover to remove. Insert two batteries

(included) carefully noting the "+" and "-' markings, placing the "-" end in the unit first. Snap the

cover back into place.

RM-255, RM-0253 and RM-252 RM-C205 ONLY

Basic Operation

Turn the television on and off by pressing the POWERbutton at the top right corner of

the remote.

The four key feature buttons at the center of the remote can be

used for basic operation of the television. The top and bottom

buttons will scan forward an back through the available chan-

nels. The right and left buttons will turn the volume up or down.

These buttons are also marked with four arrows and are also

used with JVC's onscreen menu system. You will need to use

these buttons later in the Quick Setup.

The next step is to connect your television to an antenna or

cable.

Note: Illustration of remote control RM-0252

Proceed to Step Two _11

Step Two - Making Basic Connections

Next you will need to connect your television to an antenna or cable system. The most basic

antenna/cable connection is shown below. For more detailed connections, such as ones where

a cable box is required, see pages 15 to 16.

WALL

CABLE or ANTENNA

OUT

INPUT 1 INPUT 2

.......@ oO%[o.

V_DE,O°_ VIDEO/Y 75O

Cable/RF connector

Illustration of AV-27D303

1) Connect an RF cable out from the wall outlet in to the RF Input on the back of the TV.

You may also wish to connect a VCR at this point. A basic VCR connection is shown below. For

detailed instructions on connecting a other components or a home theater system, see pages

15to 17.

Note: A VCR is not required to operate your television.

..... _ ........ I I

I _%1 I 17_ I

VCR

AV Cables/Plugs

o-,/ij

Illustration of AV-27D303

1) Connect the yellow video cable out from the VCR's Video Output, in to the TV's Video Input

jack, OR connect an S-Video cable from the VCR's S-Video output, to the TV's S-Video

input.

2) Connect the white audio cable out from the VCR's Left Audio Output, in to the TV's Left

Audio Input Jack.

3) Connect the red audio cable out from the VCR's Right Audio Output, in to the TV's Right

Audio Input jack.

Finally, once you have finished your connections, plug the power cord into the nearest power

outlet and turn on the television.

12 Proceed to Step Three _iP

Step Three -The Plug In Menu

When you turn your television on for the first time the Plug In Menu will appear. This menu sets

some of the basic settings for your television. A complete description of the Plug In Menu can

be found starting on page 25. We recommend you complete the Plug In Menu items before you

start using your television. But to begin watching your television right away you only need to run

the Auto Tuner Setup. This lets your television learn the channels it is able to receive. To run the

Auto Tuner Setup follow the steps below.

INTERACTIVE PLUG IN MENU>

AUTO TUNER SETUP

TUNER MODE <CABLE,

QSTART

SELECT BY_Q

OPERATE BY[][] EXIT BY I=J_ITa

Press the • button to move to AUTO TUNER

SETUP

<11_ To choose CABLE (if you are connected

to a cable system) or AIR (if you use

an antenna) or SKIP (if you need to)

• To move to START

The Auto Tuner will now memorize all of the clear, active channels your television can

receive. This will take one or two minutes.

The Auto Tuner is finished when the message PROGRAMMING OVER! appears onscreen.

Your Quick Setup is now complete. You can now begin watching your television, or you can

continue on in this guide for more information on connecting audio/video devices, programming

your remote control, or using the JVC onscreen menu system to customize your television

viewing experience.

The Quick Setup is complete 13

Connections

Cable and VCR Connections

Diagram #1

WALL

CABLE OoATNTEN NA

,_o ):: v ::i

Illustration of AV-27D303

1) Connect the antenna or cable TV wire from the wall outlet, in to the RF Input of the two-way

splitter.

2) Connect an RF cable from the one of the RF Outputs on the splitter, in to the RF Input on

the back of the VCR.

3) Connect an RF cable from the other the RF Output on the splitter, in to the RF Input on the

back of the TV.

4) Connect the yellow video cable out from the VCR's Video Output, in to the TV's Video Input

jack, OR connect an S-Video cable from the VCR's S-Video output, to the TV's S-Video

input.

5) Connect the white audio cable out from the VCR's Left Audio Output, in to the TV's Left

Audio Input Jack.

6) Connect the red audio cable out from the VCR's Right Audio Output, in to the TV's Right

Audio Input jack.

•If your VCR is a mono sound unit, it will have only one Audio Out jack. Connect it to the TV's

Left Audio Input.

• Please consult your VCR's owner's manual for more information on its operation.

Connections

Cable and VCR Connections - Continued

Diagram #2

WALL

CABLE or ANTENNA

OUT

ustration of AV-27D303

1) Connect the antenna or cable TV wire from the wall outlet, in to the RF Input of the cable

box.

2) Connect an RF cable from the RF Output of the cable box, in to the RF Input on the back of

the VCR.

3) Connect an RF cable from the RF Output of the VCR, in to the RF Input on the back of the

TV.

4) Connect the yellow video cable out from the VCR's Video Output, in to the TV's Video Input

jack, OR connect an S-Video cable from the VCR's S-Video output, to the TV's S-Video

input.

5) Connect the white audio cable out from the VCR's Left Audio Output, in to the TV's Left

Audio Input Jack.

6) Connect the red audio cable out from the VCR's Right Audio Output, in to the TV's Right

Audio Input jack.

•If your VCR is a mono sound unit, it will have only one Audio Out jack. Connect it to the TV's

Left Audio Input.

• Please consult your VCR's owner's manual for more information on its operation.

Connections

Cable and VCR Connections - Continued

Diagram #3 B

WALL

CABLE or ANTENNA

OUT

m m

VCR

_ustration of AV-27D303

1) Connect the antenna or cable TV wire from the wall outlet, in to the RF Input of the two-way

splitter.

2) Connect an RF cable from the one of the RF Outputs on the splitter, in to the cable box RF

Input.

3) Connect an RF cable from the Cable Box Output, in to the VCR RF Input.

4) Connect an RF cable from the other the RF Output on the splitter, in to the RF Input on the

back of the TV.

5) Connect the yellow video cable out from the VCR's Video Output, in to the TV's Video Input

jack, OR connect an S-Video cable from the VCR's S-Video output, to the TV's S-Video input.

6) Connect the white audio cable out from the VCR's Left Audio Output, in to the TV's Left Audio

Input jack.

7) Connect the red audio cable out from the VCR's Right Audio Output, in to the TV's Right Audio

Input jack.

•If your VCR is a mono sound unit, it will have only one Audio Out jack. Connect it to the TV's

Left Audio Input.

• Please consult your VCR's owner's manual for more information on its operation.

Connecting to a DVD player

Connections

DVD PLAYER

Illustration of AV-27D303

1) Connect Green cable out from DVD player "Y" Component Output, in to TV "VIDEO/Y"

Component Input.

2) Connect Blue cable out from DVD player "PB"Component Output, in to TV "PB"Component

Input.

3) Connect Red cable out from DVD Player "PR" Component Output, in to TV "PR"Component

Input.

4) Connect White Audio cable out from DVD Left Audio Output, in to TV Left Audio Input 2.

5) Connect Red Audio cable out from DVD Right Audio Output, in to TV Right Audio Input 2.

•Green, blue and red are the most common colors for DVD cables. Some models may vary

colors, please consult the user's manual for your DVD Player for more information.

• Be careful not to confuse the red DVD cable with the red audio cable. It is best to complete

one set of connections (DVD or Audio Output) before starting the other to avoid accidentally

switching the cables.

• See page 22 for instructions on programming your remote control to operate the basic func-

tions of your DVD player.

•AV-20D303, AV-27S33, AV-27D203, AV-27D303 and AV-27330: If you use Input 2

(Component-In) for the DVD connection, you must set the V2 COMPONENT-IN on the initial

Setup Menu to "YES" for proper display of the DVD signal.

•AV-27320: If you use Input 1 for the DVD connection, you must set the V1 COMPONENT-IN

on the initial Setup Menu to "YES" for proper display of the DVD signal.

NOTE: Progressive DVD Players (players with an output scan of 31.5 KHz) will not work prop-

erly with this television.

Connections

Connecting to an External Amplifier

LEFT FRONT

SPEAKER

ENPUT1 _NPUr2

__ _ I _ IriJ

RIGHT FRONT

SPEAKER

Illustration of AV-27D303

1) Connect the white audio cable from the TV's Left Audio Output jack to the Amplifier's Left

Audio Input jack.

2) Connect the red audio cable from the TV's Right Audio Output jack to the Amplifier's Right

Audio Input jack.

Connecting to a Camcorder

VM_NU "--CHANNEL+ --VOLUME+ POWER

_ ,OpERATEB" O

DER

Illustration of AV-27D303

1) Connect the yellow video cable out from the Camcorder's Video Output, in to the TV's Video

Input jack.

2) Connect the white audio cable out from the Camcorder's Left Audio Output, in to the TV's

Left Audio Input Jack.

3) Connect the red audio cable out from the Camcorder's Right Audio Output, in to the TV's

Right Audio Input Jack.

•If your Camcorder is a mono sound model it will have only one audio jack. Connect it to the

TV's Left Audio Jack.

• The front Input Jacks of AV-27D303, AV-27D203 and AV-20D303 are located under the front

panel door. To access, pull on the door to open it.

Headphone Connection (AV-20D303 only)

You can connect a pair of headphones to the television using the headphone jack on the front

panel.

1) Plug a headphone jack into the headphone jack on the television's front panel.

Remote Control

Remote Control Basics

•Before you can operate the remote control, you must first

install the batteries (included). See "Changing the Batteries"

at the bottom of this page for instructions. (For an illustration,

please see page 11 .)

• Press the POWERbutton to turn the television on or off.

• Make sure the TV/CATV switch is set to TV. Move the switch

to CATV only if you need to operate a cable box. (Except for

RM-C205).

• Slide the VCR/DVD selector switch to VCR to control a VCR,

slide to DVD to control a DVD player. Please see pages 20

to 22 for instructions on programming your remote control to

operate a Cable box, VCR or DVD player. (Except for

RM-C205).

• Press the CH+ and CH- buttons to scan through the chan-

nels. Tap the CH+ or CH- button to move through the chan-

nels one channel at a time.

• To move rapidly through the channels using JVC's

Hyperscan feature, press and hold CH+ or CH-. The chan-

nels will zip by at a rate of five channels per second.

• Press VOL+ or VOL- to raise or lower the volume. An indica-

tor bar will appear onscreen to show you the television vol-

ume level.

• The CH+/- and VOL+/- buttons are also used to navigate

JVC's onscreen menu system.

• You can directly access specific channels using the 10-key

pad.

• For more information on remote control button features, see

pages 43 to 46. For information on using the onscreen

menus, see page 23.

Notes: Remote control model RM-C252 is shown at the left.

A different model remote control may have come with your

television.

Changing the Batteries

For RM-C255, RM-C253 and RM-C252, lift and pull the latch on the back of the remote to

open. For RM-C205, Raise the latch on the remote's back cover to remove.

insert two AA batteries (supplied), carefully noting the "+" and "-" markings on the batteries and

on the remote control. To avoid a potential short circuit, insert the "-" end first. Be sure to use

only size AA batteries. When batteries are installed, snap the cover back into place (until it

clicks into position).

•If the remote control acts erratically, replace the batteries. Typical battery life is six months to

one year. We recommend using alkaline batteries for longer battery life.

When you change the batteries, try to complete the task within three minutes. If you take

longer than three minutes, the remote control codes for your VCR, DVD, and/or Cable

Box may have to be reset, except for RM-C205 (see page 20-22).

Remote Programming

Setting the CATV, VCR and DVD Codes

Cable Box or Satellite codes

The remote control is programmed with CATV and/or Satellite codes for power on, power off,

channel up, channel down, and 10 key operation.

1) Find the CATV/Satellite brand from the list of codes shown below.

2) Slide the 2-way selector switch to "CATV".

3) Press and hold down the DISPLAYbutton.

4) With the DISPLAYbutton held down, enter the first code number listed using the 10 key pad.

5) Release the DISPLAYbutton.

6) Confirm the operation of the Cable Box/Satellite receiver.

• If your CATV or Satellite box does not respond to the first code, try the others listed. If it does

not respond to any code, try the Search Codes Function, on page 51.

ABC

Archer

Cableview

Citizen

Curtis

Diamond

Eagle

Eastern

GO Brand

Gemini

GeneralInstrument

Hamlin

Hitachi

Jerrold

Macom

Magnavox

Memorex

Movietime

Oak

Panasonic

Paragon

Philips

Pioneer

Pulsar

024

032,025

051,032

022,051

058,059

024,032,025

029

034

032,051

022,043

065,024,025,

026,027,020,

021,022,057,

023

040,041,042,

045,058,064

049,024

065,024,025,

026,027,020,

021,022,057,

023

049,050,051,

054

033

030

032,051

039,037,048

055,056,060,

071,073

063

028,029,030,

052,053,031,

069

047,062

051,032

Puser

RCA

Realistic

Regal

Regency

Rembrandt

Samsung

Scientific Atlanta

SLMark

Sprucer

Stargate

Telecaption

Teleview

Texscan

Tocom

Toshiba

Unika

Universal

Videoway

Viewstar

Zenith

Zenith/Drake

Satellite

032

061,070

032

058, 064, 040,

041,042, 045,

O68

034

037, 032, 051,

O38

051

057, 058,059

051,047

051,056

032, 051

067

047, 051

O44

035, 036, 066

050

032, 025

022, 032

052

029, 030

063,046

046

Echostar 100, 113, 114,

115

Express VU 100, 113

G.E. 106

G.L 108

Gradiente 112

Hitachi 104, 111

HNS (Hughes) 104

Panasonic 105

Philips 102, 103

Primestar 108

Proscan 106, 109, 110

RCA 106, 109, 110

Sony 107

Star Choice 104, 108

Toshiba 101

Uniden 102, 103

Remote Programming

VCR codes

The remote control is programmed with VCR codes for power on, power off, play, stop, fast-for-

ward, rewind, pause, record, channel up, and channel down operation.

1) Find the VCR brand from the list of codes shown below.

2) Slide the first 2-way selector switch to "TV" and the other 2-way selector switch to "VCR".

3) Press and hold down the DISPLAYbutton.

4) With the DISPLAYbutton held down, enter the first code number listed with the 10 key pad.

5) Release the DISPLAYbutton.

6) Confirm the operation of the VCR.

• If your VCR does not respond to the first code, try the others listed. If it does not respond to

any code, try the Search Codes Function, on page 51.

• Some manufacturer's VCR's may not respond to the TVNCR button, even if other buttons

work properly.

• To record, hold down the REC button on the remote and press PLAY.

Admiral

Aiwa

Akai

Audio Dynamic

Bell & Howell

Broksonic

Canon

CCE

Citizen

Craig

Curtis Mathes

Daewoo

DBX

Dimensia

Emerson

Fisher

Funai

G.E.

Go Video

Goldstar

Gradiente

Hitachi

instant Replay

Jensen

JVC

Kenwood

LXl

Magnavox

035

027,032,095

029,072,073,

074

003,005

063,071

020,026,094

023,025

043

064

063,029,064

045, 024, 027,

093

043,059,024,

092

003,004,005

045,093

043,026,077,

061,025,042,

020,076

063,066,067,

065,071,091

027,026,020,

000

033,045,024

037,051,049,

050,089

064

083,084,081,

000,001

023,045,058,

027,081,093

024,023

003

000,001,002,

003, 004, 005

003, 004, 064,

005

027,064,05&

065,066,06&

067

031,023, 024,

O86

Marantz

Maria

Memorex

MGA

Minolta

Mitsubishi

Multitech

NEC

Olympic

Optimus

Orion

Panasonic

Penney

Pentax

Philco

Philips

Pioneer

Proscan

Quasar

Radio Shack

RCA

Realistic

003,004,005

064

024,067

03&040,047,

048,041,042

05&045, 093

03&040,047,

04&041,042,

07&090

047, 027, 062

003,004,005,

000

024,023

028,021,035,

064

026,020

023, 024, 021,

022

024, 058, 045,

063, 003, 004,

005,093

058,005,045,

093

031,024,027,

023,026,020,

043

031,023, 024,

086

023

045,058,023,

024,031,046,

059,060,033,

087,093

021,022,023,

024

033, 024, 063,

036,067,040,

027

033,045, 05&

023,024,031,

046, 059, 060,

083,084,085,

087,093

024,063,036,

067,040, 027

Samsung

Samtron

Sansui

Sanyo

Scoff

Sears

Shintom

Sharp

Signature 2000

Singer

Sony

SV 2000

Sylvania

Symphonic

Tashiro

Tatung

Teac

Technics

Teknika

Toshiba

Vector Research

Wards

Yamaha

Zenith

037,060,062,

033,089

089

003,026,020,

052

063,067,091,

071

059,060,062,

067,038,040,

047,048,026,

020

063,064,065,

066,058,000,

001

O75

035,036,080,

088

027,035

075

028,029,030,

053,054,055

027

031,023,024,

027

027,081

064

003,004,005

003,004,027,

005

021,022,023,

024

024,027,070

059,046,079

005

035,036,067,

044,064

063,003,004,

005

044, 082, 064,

094

Remote Programming

DVD codes

Available with remote control models RM-C255, RM-253 and RM-C252 only.

The remote control is programmed with DVD codes for power on, power off, play, stop,

fast-forward, rewind, previous chapter, next chapter, tray open/close, and still/pause operation.

1) Find the DVD player brand from the list of codes shown below.

2) Slide the first 2-way selector switch to "TV" and the other 2-way selector switch to "DVD".

3) Press and hold down the DISPLAYbutton.

4) With the DISPLAYbutton held down, enter the first code number listed with the 10 key pad.

5) Release the DISPLAYbutton.

6) Confirm the operation of the DVD player.

• If your DVD player does not respond to the first code, try the others listed. If it does not

respond to any code, try the Search Codes Function, on page 51.

• After you program your remote, some DVD buttons may not work properly. If some buttons do

not work properly, use the remote control which came with your DVD player.

RCA 021,026

037

031

Aiwa

Apex

Denon

Hitachi

JVC

Kenwood

Konka

Mitsubishi

Onkyo

Oritron

Panasonic

Philips

Pioneer

Raite

043

040

020,

030,

000

035

039

025

041

044

020

023,

022

033

036

Sampo

Samsung

Sharp

Silvania

Sony

Technics

Toshiba

Vialta

Wave

Yamaha

Zenith

034

030

028

038

024,

047

020

023

O5O

042

020

027,

045,046,

032

Onscreen Menus

Using the Guide

Certain symbols are used throughout this guide to help you learn about the features of your

new television. The ones you will see most frequently are:

A_!' Up and Down arrows mean press the CH+ or CH- buttons. Pressing the CH+ or CH- but-

tons let you:

• Move vertically in a main menu screen

• Move through a submenu screen

• Move to the next letter, number, or other choice in a submenu

• Back up to correct an error

• Scan through TV channels (when not in a menu screen)

• I_ Left and right arrows mean press the VOLUME+or VOLUME-buttons to move left or right

to:

• Select a highlighted menu item

• Select an item in a submenu

• Select numbers in certain menu options

• Turn the volume up or down (when not in a menu screen)

The "Press Button" icon means you should press the button named on your remote con-

trol. (Button names appear in SMALL CAPITALLETTERS.)

The "Helping Hand" icon points to the highlighted or selected item in a menu.

[] _ _ _ INITIAL

SETUP

OPREVIOUS

AUTO TUNER SETUP,

CHANNEL SUMMARY,

V--CHIP,

SET LOCK CODE,

UNEXT PAGE

SELECT BY[][]

OPERATE BY[][] EXIT BY IF4"_1

The Onscreen Menus

To bring up the onscreen menu, press the MENU button on the remote control. The item that

appears in yellow is the one currently selected. If you press the MENUbutton again, the

onscreen display will skip to the next menu screen. If you use the Menu button on the TV's front

panel instead of the remote, an additional menu screen showing channel number and input will

appear. The "Plug In Menu" will appear the first time the TV is plugged in.

Notes: Menus shown in this book are illustrations, not exact replications of the television's

onscreen displays.

Onscreen Menus

The Onscreen Menu System

Your television comes with JVC's Onscreen Menu System. The Onscreen Menus let you make

adjustments to your television's operation simply and quickly. Examples of the Onscreen Menus

are shown below and on the next page. Detailed explanations on using each menu follow later

in this guide.

Press the MENU button

[] ._ _ _ ,N,T,AL

SETUP

[]PREVIOUS

•AUTO TUNER SETUP,

CHANNEL SUMMARY,

V--CHIP•

SET LOCK CODE,

ONEXT PAGE

SELECT BYDO

OPERATE BY[][] EXIT BY I'_'_'a

INITIAL SETUP 02

olTo

[] PICTURE _ _ _]_

ADJUST

[]PREVIOUS STANDARD

•TINT .......... II ..........

COLOR .......... II ..........

PICTURE .......... II ..........

BRIGHT .......... II ..........

DETAIL .......... II ..........

COLOR TEMPERATURE <LOW"

[]NEXT PAGE

SELECT BY[[] RESET BYIDI

OPERATE BY_ EXIT BY I=J_'a

PICTURE ADJUST 01

I_1 PICTURE

ADJUST

[]PREVIOUS

•NOISE MUTING

[]NEXT PAGE

SELECT BY[][

OPERATE BY[[]

[] ._ _ _ ,N,T,AL

SETUP

[]PREVIOUS

•LANGUAGE _i_ FRAN.ESP.

CLOSED CAPTION,

FRONT PANEL LOCK _OFF"

AUTO SHUT OFF _OFF,

XDS ID _OFF,

V2 COMPONENT--IN _YES,

[]NEXT PAGE

SELECT BYDQ

OPERATE BY[_ EXIT BY r=_'_l_a

INITIAL SETUP 01

,,ID

[] e_ _CLOCK/

TIMERS

[]PREVIOUS

•SET CLOCK"

ON/OFF TIMER,

[]NEXT PAGE

SELECT BY[][

OPERATE BY[_ EXIT BY FJ_I

CLOCK/TIMERS

[] olTo

___ [] _ ADjSOUNDusT _ _

nPREV I OUS

<ION • L_ • BASS .......... II ..........

TREBLE .......... II ..........

BALANCE .......... II ..........

MTS S T E RE O :S_P _ M O N O

[]NEXT PAGE

SELECT BY[I_

OPERATE ByL"]_ EXIT BY I=_F_I

EXIT BY r_ltl

PICTURE ADJUST 02 SOUND ADJUST

•AV-27320 have "V1 COMPONENT-IN" instead of V2 COMPONENT-IN.

•AV-27320 does not have "XDS ID".

•AV-27330, AV-27S33 and AV-27320 do not have "COLOR TEMPERATURE".

Plug In Menu

Introduction

The Plug In Menu comes up automatically when you first turn on the TV after plugging it in. The

Plug In Menu helps you to get your TV ready to use by letting you set your preferences for:

• The Language in which you want the onscreen menus to appear,

• The Auto Tuner Setup of which channels you wish to receive,

• Setting the TV's clock to the correct time so your timer functions will work properly.

Descriptions of each of the Plug In Menu features appear on this page and the next. We rec-

ommend you complete the Plug In Menu setup first so your TV is set up just the way you want,

right away.

Language

You can choose to view your onscreen menus in three languages: English (ENG.), French

(FRAN.), or Spanish (ESP.).

Press the MENU button

AV To LANGUAGE

• I_ To choose a language

ENG. _--_ FRAN. _ ESP.

• You will not need to press the MENU button to enter this screen from the Plug In Menu.

Auto Tuner Setup

In Auto Tuner Setup, the TV automatically scans through all available channels, memorizing the

active ones and skipping over blank ones or channels with weak signals. This means when you

scan (using the CHANNEL4-/- buttons) you will receive only clear, active channels.

Press the MENU button

AV To AUTO TUNER SETUP

• I_ To operate

• I_ To choose CABLE or AIR (or SKIP)

AV To move to START

• I_ To start Auto Tuner Setup

NOW

PROGRAMMING!

))) _)))

Programming will take approximately 1 to 2

minutes.

PROGRAMMING OVER!

• Noise Muting will not work during Auto Tuner Setup.

• You will not need to press the MENU button to enter this screen from the Plug In Menu.

• SKIP appears only for Plug in Menu. rillS'

Plug In Menu

Auto Clock Set

Before you use any of your TV's timer functions, you must first set the clock. You may precisely

set your clock using the XDS time signal broadcast by most Public Broadcasting stations. To

set the clock using the XDS signal:

Enter the channel number of local PBS station

your

Press MENU

AV TO SET CLOCK

• I_ TO operate

• I_ To AUTO

CLOCK/TIMERS>

SET CLOCK

MODE ,AUTO,

TIME ZONE "PACIFIC"

D.S.T. "ONb

FINISH

SELECT BYO_

OPERATE BY[][] EXIT BYI_

AV TO TIME ZONE

• I_ To select your time zone

.ATLANTIC ,_EASTERN _CENTRAL41_ MOUNTAIN _ I

),HAWAIIH ALASKAHPACIFIC4

AV To move to Daylight Savings Time (D.S.T.)

• I_ To turn D.S.T. ON or OFF

AV To FINISH

• I_ To save settings and exit

• If you do not have a PBS station in your local area, you will have to set the clock manually.

See 'Manual Clock Set' on the next page for instructions.

• The Daylight Savings Time feature automatically adjusts your TV's clock for Daylight Savings.

The clock will move forward one hour at 2:00 am on the first Sunday in April. The clock will

move back one hour at 2:00 am on the last Sunday in October.

• You will not need to press the MENU button to enter this screen from the Plug In Menu.

Plug In Menu

Manual Clock Set

To set your clock manually (without using the XDS signal), choose MANUAL from the Set Clock

menu and follow the steps below.

AV To SET CLOCK

• I_ To operate

• I_ To MANUAL

CLOCK/TIMERS_

SET CLOCK

MODE ,MANUAL,

TIME ----: ....

START CLOCK

SELECT BY[]I_

OPERATE BYE} r3

AV To move to the hour

• I_ To set the hour

AV To move to minutes

• I_ To set the minutes

AV To move to START CLOCK

• I_ To start clock and exit

EXIT BY 1"_11_4

THANKYOU!

• You will not need to press the MENU button to enter this screen from the Plug In Menu.

NOTE:

You will have to reset the clock after a power interruption. You must set the clock before operat-

ing any timer functions.

Channel Summary

Channel Summary allows you to customize the line-up of channels received by your TV. You

can add or delete channels from the line-up or prevent any unauthorized viewers from watching

any or all 181 channels.

Press the MENU button

AV To CHANNEL SUMMARY

• I_ To operate

_3_ INITIAL SETUP_

CHANNEL SUMMARY

CHNO,SCAN

10 V

SELECT B Y_]i_

OPERATE BY L''II_ EXIT BY_[3]il

The Channel Summary screen (above) will now be displayed with the channels set to scan

marked with an ",-'". You can delete channels from the scan by removing the ",-'". If any chan-

nels were missed during Auto Tuner Setup and you wish to add them, you may by placing an

",-'" next to the channel number.

AV To the SCAN column

• I_ To include or delete from scan

EXIT when finished

You can block access to a channel by activating the Channel Lock.

AV To CHANNEL SUMMARY

• I_ To operate

AV To the Lock Column

ZERO to lock or unlock that channel

EXIT when finished

Channel Guard Message

When a viewer attempts to watch a guarded channel, the following message appears:

THISCHANNEL IS LOCKED BY

CHANNEL GUARD.

PLEASEENTER LOCKCODE BY

10 KEYPAD TO UNLOCK IT.

NO.----

To watch a channel that you have locked, enter the Lock Code using the 10 key pad.

If the wrong code is entered, the message

"INVALID LOCK CODE!" will flash on the screen:

The channel cannot be accessed until the

correct code is entered.

•Once a channel has been unlocked, it will

remain unlocked until the television is turned

off.

• See also "Set Lock Code", page 36.

V-Chip

Your TV is equipped with V-Chip technology which enables TV Parental Guidelines (for United

States and Canada) and Movie (MPAA) Guideline controls. V-Chip technology allows you to

program your TV to receive, or not to receive, programs based on content according to the

guidelines. Programs which exceed the ratings limits you set will be blocked. When a viewer

attempts to watch a blocked channel, this message appears:

THIS PROGRAMMING EXCEEDS

YOUR RATING LIMITS.

PLEASEENTER LOCKCODE BY

i0 KEY PAD TO UNLOCK IT.

NO.----

The channel will remain blocked until the correct lock code is entered (see page 36 for informa-

tion on setting your lock code).

You can customize the V-Chip settings of your television to match your personal tastes. The

V-Chip menu below is the starting point for your V-Chip settings

,Dj INITIAL SETUP>

V--CH I P

M--CH I P _IOF FI_

SET US TV RATINGSI_

SET MOVIE RATINGSI_

SET CANADIAN RATINGS ENGI_

SET CANADIAN RATINGS FREI_

UNRATED _Iv I EWI_

FINISH

SELECT BYDQ

OPERATE BY[][] EXIT BY li_'_1

You can use US V-Chip settings (for programming broadcast from the United States), Canadian

V-Chip settings (for programming broadcast from Canada), and movie ratings. You may use any

or all of the settings (US V-Chip, Canada V-Chip, Movie ratings). Descriptions for setting each of

the three V-Chip formats appear in the next seven pages along with descriptions of the rating

categories.

To access the rating categories:

Press the MENU button

To V-CHIP

To operate (Lock icon I_1will appear)

Press ZERO to access the V-Chip menu

To turn V-Chip ON or OFF (V-Chip must be turned ON for rating settings to operate)

To move to SET US TV RATINGS, SET MOVIE RATINGS, or SET CANADIAN RAT-

INGS (see following pages for descriptions of each item)

V-Chip

US V-Chip Ratings

U.S. PARENTAL RATING SYSTEMS

Programs with the following ratings are appropriate for children.

TV Y is Appropriate for All Children.

Programs are created for very young viewers and should be suitable for all ages, including

children ages 2 - 6.

TV Y7 is for Older Children.

Most parents would find such programs suitable for children 7 and above. These programs

may contain some mild fantasy violence or comedic violence, which children should be able

to discern from reality.

Programs with the following ratings are designed for the entire audience.

_3 TV G stands for General Audience.

Most parents would find these programs suitable for all age groups. They contain little or no

violence, no strong language, and little or no sexual dialog or situations.

_3 TV PG Parental Guidance Suggested.

May contain some, but not much, strong language, limited violence, and some suggestive

sexual dialog or situations. It is recommended that parents watch these programs first, or

with their children.

TV 14 Parents Strongly Cautioned.

Programs contain some material that may be unsuitable for children under the age of 14

including possible intense violence, sexual situations, strong coarse language, or intensely

suggestive dialog. Parents are cautioned against unattended viewing by children under 14.

TV MA Mature Audiences Only.

These programs are specifically for adults and may be unsuitable for anyone under 17 years

of age. TV MA programs may have extensive V, S, L, or D.

iii_illi!!_!i!i_ii_!_ii_!_!_!_ii_!!_!!!i!_i!_ii!i_!!_!_i_!i_!_¸i_i!i_i_i!_!!i!ii!i!!!!iii!ii!ii!iiiii_!iii_i!il_!iil¸i!_!i!!_ii_i_i!i_ii_!_!i!i!i!i!!_i_!_!_i_!!_!i_!i_!ii_!_!_i!!_!!!i!i!i_i_i!_!!i!_!_!i!!_!i_i_!_i!i_i_!_i_!!_!!i_!_i!!i_!!!!i¸ii!i!iiiiiiii_!!_il¸I!!!!I¸ii_!!i_!¸I¸i_!!j_ili_i_i_!_!i_i_iiiii_!_i_!_i!_i!_ii!!!_!_!!_i!ii_!!!!_i_!i!i!_ii_!_!_i_!_i!_iii!_!!!!!!_i!i!i_!i_iii!i_i_i_!_i_!i!!!i_!i_¸_i!!_i!i_!!_!_!i_!_!!_!i_ii_i_!i!i_!_!i_!_ii!_!!_!_i_!_!_!_¸i!_i!!_i_ii!!!!!!iiii!i!!ii!iii_ili!iiii!i!i!i_!_!iiiiiii_!i_iii!!iii_ii¸i_i_ii_!i_!ii!_!ili!!i!i!!i!i!ii!iiii_iii!ii!i!iii_i!i!!_!

iiiiii!i_¸!iii_iiiii_iiii_!!i!!ii_!ii!ii_i_i_!_i!iiiii_i_¸!_ii_¸_!!i!_!i_i_!_i_i_i_ii!i!_i_ii_i_i_!_i!_!_!_!_iii_i!ii_ii_i_!!_!_i_i_i!!!_i_!_¸

iiiiiiii_i_iliiii_ii!_iiiii!i_i_i!i_iiiii_ii!i_iii!_i!ii_ii_i_ii_i¸_ii!_!_i_i_!_ii_i!_i!_!i_!!_!_!i_i_i_!_!_!!_i_i_!_!i_i_¸iiii_iii_iliiii!i!_!_ii!!i_ij_i_!_i!_iii_!i_!_!ii!_i!ii!iii!iii!!i!ii

iiii!ii!iiii_iii!i_ii!iii!i!!!i!!i!i_iii!iiii_!iiii!ill_ii_!i_i_ii!_!_i_!ii_i_!i!_!_i_!ii_i_!_i_i_i_!_i_!i_i!_i_i!!i!_i_ii!i_!_!iii_i!_!_i!_!i_i!i_!iii_!_!_i!_!_i_!!!i_ii_ii_!ii!i!_!_!_i!_!;!!i_!!_i!_i_!ii!i_!_i!_!ii!_!i_!!i_!_6_i_!_!_i_!_ii_J!_i_ii!!_!!!_!i!!_!ii_i!!_i!_!_i_!_ii!_!__!_i!_i_!!iii_ii_!_!_!_i_!i_ii_ii_!!_!_i!_i_!ii_i_ii!!_ii!_i!_i_!_!ii!!_!i!i_i!_i_!i!i_i!i!_i!_!iJ!i!_i!_i_!i!_!_i_!i!_!_i_!i!_!_i_!i!_!_i_!i!_

_i_!_!_i_!i_!!_iii_!_!ii_i!_!i_!!_!!i!_!_!_i_!_!!!!!i_!!_!!_i_i_i!i!i_iii!!!i_ii_iill_iii!ii_iiii!ii!_ii!i!iiii!i_i_!i!_!_!_iiiiii!ii_i_ii_!_I!I_i!il_i!!!i!ii_!i_i!_!iii!_i!ii_is_ii!i!_i_i_i_i_!i_iiii_!!iiiii_iiiiisli_i_i_iii!i_i_ii_i_i_iiii_i_i!i_ili_i!il,!_I_ii!i!ii!ii!iiii!i!ii!ii!i!_iiii!iiii_iii!ili!ii_i!_i_i_!!_i_i_i_i_i_!!_!_!!_!!_i!_!_!_!!!i_i_!i!!_!!i_i_!ii!ii!ii!iii!iiiiii_ii!i!_ili!!il,i_!iiii_il_ii_ii!_i!iiii_ii_ii!i_iii!_i_ilili_i_ii!_i_ilili_i_ii!_i_ilili_i_ii!_i_ilili_i_ii!_i_ilili_i_ii!_i_ilili_i_ii!_i_ilili_i_ii!_i_ilili_i_ii!_i_ilili_i_ii!_i_ilili_i_ii!_i_ilili_i_ii!_i_ilili_i_ii!_i_ilili_i_

iii_iii_!iii!!iiiiiiii!i!!ii!ii!_!i!iii!!i!!iiii_!i_iiii!iiiiiii!!iiiiiii!!_iii!_iiii_ii_!iiiiiiii!i!iiiii!!i!_iii!ili!i_ii_ii!_!ill_!i!ii!!_!!!i!iii!iii_iii!_i!i_i!_ii!!_!_!_i!!i_i!i_i!_i!!i_i!i_i!_i!!i_i!i_i!!_!_;iii!`iii_!!_!_!_!_i_!_i_!!_!_i_i_!_i!i_!!_i_ii_!__ii_ii_ii_!_!_i!ii!!!i!ii_iiiiiii!iii_iiil_iiiiiiii!ii!iiiiiiiiii!_i!iiiiiiii_iiii!i_i!_i!i_!ii!i!iiiiiii!iiii_iii!ii!_!!i_i_!ii!i!i!i!!!iiiii!i_ii_iii!_i!i_i!_ii!!_!_!_i!!i_i!i_i!_i!!i_i!i_i!_i!!i_i!i_i!_i!!i_i!i_i!_i!!i_i!i_i!_i!!i_i!i_i!_i!!i_i!i_i!_i!!i_i!i_i!_i!!i_i!i_i!_i!!i_i!i_i!_i!!i_i!i_i!_i!!i_i!i_i!_i!!i_i!i_i!_i!!i_i!i_i!_i!!i_i!i_i!_i!!i_i!i_i!_i!!i_i!i_i!_i!!i_i!i_i!_i!!i_i!i_i!_i!!i_i!i_i!_i!!i_i!ii_

_ii_i_i_!_ili!_!_iiii_!i_i_i_ili_i_i_i!_i_i_!iii_i_ii_i_!_!i_i_iil_iiii_ill_ii__I,_I_III_I_IIII_III_I_IIII_III_I_IIII_III_I_IIII_III_I_IIII_III_I_IIII_III_I_IIII_III_I_IIII_III_I_IIII_III_I_IIII_III_I_IIII_IIII_iiiil_III_D_II'ii_t_i_il;_ilf_i_ii_ii!_i_igg_ie_i_i_!i!!ili_ibiii_L_ii_ii_!_!ii!iii_ii!_ill_iiii'_ii_i_iiii_i_ii!_iiiiii_i_ii_,_ilil_iii_i_I,III_iii_i_IIIII_iiii_i_IIIII_iiii_i_IIIII_iiii_i_IIIII_iiii_i_IIIII_iiii_i_IIIII_iiii_i_IIIII_iiii_i_IIIII_iiii_i_IIIII_iiii_i_IIIII_iiii_i_IIIII_iiii_i_IIIII_iiii_i_IIIII_iiii_i_IIIII_iiii_i_IIIII_iiii_i_IIIII_iiii_i_IIIII_iiii_i_IIIII_iiii_i_IIIII_iiii_i_IIIII_iiii_i_IIIII_iiii_i_IIIII_iiii_i_IIIII_iiii_i_IIIII_iiii_i_IIIII_iiii_i_IIIII_iiii_i_IIIII_iiii_i_IIIII_iiii_i_IIIII_iiii_i_

Setting US V-Chip Ratings

Press the MENU button

AV To V-CHIP

To operate (Lock icon I_1 appears)

Press ZERO to access the V-Chip menu

INITIAL SETUP>

V--CHIP

V--CHIP <OFF"

SET US TV RATINGS,

SET MOVIE RATINGS,

SET CANADIAN RATINGS ENG,

SET CANADIAN RATINGS FRE,

UNRATED ,VIEW,

FINISH

SELECT BY[][]

OPERATE BY[][] EXIT ByI_F_I

V-Chip

•I_ To turn V-Chip ON or OFF

AV To move to SET US TV RATINGS

• I_ To operate

Directions to set US V-Chip Ratings:

Line up the cursor in the column (TV PG, TV G, etc.) with the content row (V/FV, S, etc.) and

press the • or •to move the cursor to the correct location. Press • or I_ to turn the locking

feature on or off. An item is locked if the I_1 icon appears instead of a .... .

For example. To block viewing of all TV 14 shows, move the cursor to the top row of that

column and add a lock icon. Once you've put a lock on the top row, everything in that column is

automatically locked.

• • To the TV 14 Column

• I_ To turn on the lock

INITIAL SETUP >V-CHIP >

SET US TV RATINGS

ltWmWWE

-0

V/FV -- _ -- --

S -- A --

D a --

FINISH

• • To FINISH

• I_ To save settings and exit

•If you want to change the setup, move the cursor to the top column and change the lock icon

to .... by pressing • or I_ again. You may then select individual categories to block.

V-Chip

Setting ratings with the V-Chip button

To access Rating information about a certain program, press the V-CHIP button while viewing

that program. A display like this will appear:

PROGRAMIS RATED :

TV-PG - V

If you decide you want to block this category of viewing, press "0" while the above screen is

visible, and all programs from that category will be blocked.

Example 1 :

If you want to set your V-Chip settings to block all programming above TV-PG:

Press ZERO when TV-PG is displayed

INITIAL SETUP >V-CHIP >

SET US TV RATINGS

Ewwmwm

aaa---

v/Ev a a a --

aaa

D aB

All Programming above TV-PG will be blocked.

Example 2:

If you want to set your V-Chip settings to block all programming above a current setting such as

TV PG-V (with violence):

Press ZERO when TV-PG V is displayed

INITIAL SETUP >V-CHIP >

SET US TV RATINGS

Ewwmwm

v/Evfl I_ fl --

All Programming above TV-PG - V (with Violence) will be blocked.

•For Children's programming you can block TV-Y and Y7 programs by Pressing "0" when Y is

displayed during a program. Programming for audiences other than children's audiences will

not be affected.

V-Chip

Movie Ratings

NR -Not Rated.

This is a film which has no rating. In many cases these films were imported from countries

which do not use the MPAA ratings system. Other NR films may be from amateur producers

who didn't intend to have their film widely released.

NR (Not Rated) Programming may contain all types of programming including chil-

dren's programming, foreign programs, or adult material.

G - General Audience.

In the opinion of the review board, these films contain nothing in the way of sexual content,

violence, or language that would be unsuitable for audiences of any age.

_3 PG - Parental Guidance.

Parental Guidance means the movie may contain some contents such as mild violence,

some brief nudity, and strong language. The contents are not deemed intense.

_3 PG-13 - Parents Strongly Cautioned.

Parents with children under 13 are cautioned that the content of movies with this rating may

include more explicit sexual, language, and violence content than movies rated PG.

R - Restricted.

These films contain material that is explicit in nature and is not recommended for

unsupervised children under the age of 17.

_3 N0-17 - No One Under 17.

These movies contain content which most parents would feel is too adult for their children to

view. Content can consist of strong language, nudity, violence, and suggestive or explicit

subject matter.

X - No One under 18.

Inappropriate material for anyone under 18.

Directions to set Movie (MPAA) Ratings

Press the MENU button

To V-CHIP

To operate (Lock iconl_l appears)

Press ZERO to access V-Chip setup options

To SET MOVIE RATINGS

To enter movies menu

For example, to block viewing of X and NC-17 rated from shows:

AV To the X Column

• I_ To turn on the lock

AV To the NC-17 Column

• I_ To turn on the lock

AV TO FINISH

• I_ To save settings and exit

/NITIAL SETUP > V-CHIP >

SET MOVIE RATINGS

FINISH

SELECT BY[][]

OPERATE BY_]_ EXIT BY I'_'t'_l

V-Chip

Canadian V-Chip Ratings

_3 E-Exempt.

Exempt programming includes: news, sports, documentaries and other information

programming, talk shows, music videos, and variety programming.

_3 C - Programming Intended for Children.

Violence Guidelines: There will be no realistic scenes of violence. Depictions of aggressive

behavior will be infrequent and limited to portrayals that are clearly imaginary, comedic or

unrealistic in nature.

_3 08+ - Programming Intended for Children 8 and Over.

Violence Guidelines: Any realistic depictions of violence will be infrequent, discreet, of low

intensity and will show the consequences of the acts. There will be no offensive language,

nudity or sexual content.

_3 G - General Audience.

Programming will contain little violence and will be sensitive to themes which could affect

younger children.

_3 PG - Parental Guidance.

Programming intended for a general audience, but which may not be suitable for younger

children. Parents may consider some content not appropriate for children aged 8-13.

_3 14+ - 14Years and Older.

Parents are strongly cautioned to exercise discretion in permitting viewing by pre-teens and

early teens. Programming may contain mature themes and scenes of intense violence.

_3 18+ - Adult.

Material intended for mature audiences only.

Directions to set Canadian V-Chip Ratings

Press the MENU button

AV To V-CHIP

• I_ To operate (Lock icon I_1appears)

Press ZERO to access V-Chip setup options

AV To SET CANADIAN RATINGS ENG (for English)

• I_ To enter ratings menu

For example, to block viewing of programming rated 14+ and 18+ :

AV To the 18+ Column

• I_ To turn on the lock

AV To the 14+ Column

• I_ To turn on the lock

AI,V To FINISH

• I_ To save settings and exit

INITIAL SETUP • V-CHIP •

SET CANADIAN RATINGS ENG

FINIS H

SELECT BYDQ

OPERATE BY[][] EXIT BY FJ_I

• For instructions on "Set Canadian Ratings FRE (in French)", please see page 34 in the

French side of this user's guide.

V-Chip

Unrated Programs

Notes About Unrated Programs

Unrated programming refers to any programming which does not contain a rating signal.

Programming on television stations which do not broadcast rating signals will be placed in the

"Unrated Programming" category.

Examples of Unrated programs:

Emergency Bulletins

Locally Originated Programming

News

Political Programs

Public Service Announcements

Religious Programs

Sports

Weather

Some Commercials

•TV programs or movies that do not have rating signals will be blocked if the Unrated

Category is set to BLOCK.

Directions to Block Unrated Programs

You can block programs that are not rated.

Press the MENU button

To V-CHIP

To operate (The lock icon I_1 appears)

Press ZERO to access V-Chip setup options

To UNRATED

To VIEW or BLOCK

Press EXtT when done

V-Chip

Set Lock Code

Channel Guard and V-Chip settings are protected by a four-digit Lock Code. Your TV comes

pre-set with a Lock Code of "0000". You may change the code to any four-digit number you

wish. To change the Lock Code, follow the steps below.

Press the MENU button

,&V To SET LOCK CODE

• I_ To operate (The Lock icon I_1 appears)

Press ZERO to access the Lock Code

INITIAL SETUP_

SET LOCK CODE

LOCK CODE 0000

FINISH

SELECT BY[][]

OPERATE BY[][] EXIT BY I_TI_I

The first digit will be highlighted

• I_ To select the number

AS' To move to the next digit

Continue to follow these directions for all four numbers

,&V TO FINISH

• I_ To save settings and exit

Your Lock Code is now set.

NOTES:

•After apower interruption you must reset the Lock Code.

•Write your Lock Code number down and keep it hidden from potential viewers.

•If you forget the Lock Code, a new code may be set using the steps listed above.

Picture Settings

Tint

Tint allows you to adjust the levels of red and green in your TV picture.

Press the MENU button

AV To TINT

I_ To increase the levels of green

• To increase the levels of red

AV To move to the next setting

Color

The color function lets you make all the colors in the TV picture appear either more vivid or

subtle.

Press the MENU button

AV To COLOR

I_ To make the colors more vivid

• To make the colors more subdued

AV To move to the next setting


Picture allows you to adjust the levels of black and white on the TV screen, giving you a darker

or brighter picture overall.

Press the MENU button

AV To PICTURE

I_ To increase the level of contrast

• To decrease the level of contrast

AV To move to the next setting

Bright

You can adjust the overall brightness of the TV picture with the Bright control.

Press the MENU button

AV To BRIGHT

I_ To lighten the picture

• To darken the picture

AV To move to the next setting

Detail

The Detail feature adjusts the level of fine detail displayed in the picture.

Press the MENU button

AV To DETAIL

I_ To make the picture sharper (more detail)

• To make the picture smoother (less detail)

AV To move to the next setting

Picture Settings

Color Temperature

With COLOR TEMPERATURE, you can decide how strong or dull the colors appear on the TV

screen.

Press the MENU button

To COLOR TEMPERATURE

To COLOR TEMPERATURE LOW or HIGH

• For models AV-27D303, AV-27D203 and AV-20D303

only.

[] P,CTURE ._ _ _

ADJUST

OPREVIOUS STANDARD

TINT .......... II ..........

COLOR .......... II ..........

PICTURE .......... II ..........

BRIGHT .......... II ..........

DETAIL .......... II ..........

•COLOR TEMPERATURE <LOW"

ONEXT PAGE

SELECT BYOO RESET BY Ir;ll

OPERATE BY_ EXIT BY I=jml_-a

Noise Muting

This feature inserts a blank blue screen over channels which are not broadcasting or are too

weak to be received clearly.

Press the MENU button

To NOISE MUTING

To turn Noise Muting ON or OFF

• Noise Muting will not work during Auto Tuner Setup

or when you operate Channel Summary.

[] P,CTURE ._ _ _ -'"

ADJUST

OPREVIOUS

•NOISE MUTING ,ON,

ONEXT PAGE

SELECT BYO[]

OPERATE BY[][] EXIT BY leJ_l

Treble

Sound Settings

Bass

You can increase or decrease the level of low-frequency sound in the TV's audio with the Bass

adjustment.

Press the MENU button

To BASS

To increase the bass

To decrease the bass

To move to the next setting

Use Treble to adjust the level of high-frequency sound in your TV's audio.

Press the MENU button

,kV TO TREBLE

I_ To increase the treble

• To decrease the treble

AV To move to the next setting

Balance

Adjust the level of sound between the TV's two speakers with the Balance setting.

Press the MENU button

To BALANCE

To shift the balance towards the right speaker

To shift the balance towards the left speaker

To move to the next setting

MTS (Multi-Channel Television Sound)

MTS technology allows several audio signals to be broadcast at once, giving you a choice in

what you wish to hear with a TV program. In addition to mono or stereo sound, an MTS broad-

cast may also include a Second Audio Program (SAP).

Press the MENU button

AV To MTS

• I_ Select the mode

(The ON AIR arrow tells you if a broadcast is in Stereo and/or contains an SAP).

• Keep the TV in STEREO mode to get the best sound quality. The sound will work in STEREO

mode even if a certain broadcast is in MONO sound only.

• Choose the MONO setting to reduce excessive noise on a certain channel or broadcast.

• Selecting SAP will allow you to hear an alternative soundtrack, if one is available.

NOTE:

You can leave the Sound Settings menu at any time by pressing the EXIT button on the remote

control.

General Items

On/Off Timer

The On/Off timer lets you program your television to turn itself on or off. You can use it as an

alarm to wake up, to help you remember important programs, or as a decoy when you're not

home.

Press the MENU button

To ON/OFF TIMER

To operate (begins with ON TIME)

CLOCKTTIMERS>

ONTOFF TIMER

ON TIME 7:00 PM

OFF TIME 10:00 PM

CHANNEL 02

ON VOLUME CURRENT

MODE ,EVERYDAY,

ONJOFF TIMER ,OFF,

FINISH

SELECT BY[]Q

OPERATE BY[][] EXIT BY I_ml_l

To set the hour (AM/PM) you want the TV to turn on

To move to minutes

To accept ON TIME and move to OFF TIME (the time the TV will turn off). Set the

OFF TIME the same way as ON TIME

To accept OFF TIME and move to CHANNEL

To select channel

To ON VOLUME

To set the volume level

To move to MODE

Choose ONCE or EVERYDAY

To ON/OFF TIMER

Choose ON to accept the timer setting, choose OFF if you don't wish to accept

To FINISH

To save settings

NOTES:

• The On/Off time cannot be set to locked or guarded channels.

•In order for the On/Off timer to work, the clock must be set.

•After a power interruption, the Timer settings must be reset.

General Items

Closed Caption

Many broadcasts now include an onscreen display of dialog called Closed Captions. Some

broadcasts may also include displays of additional information in text form. Your television can

access and display this information using the Closed Caption feature. To activate the Closed

Caption feature, follow the steps below.

Press the MENU button

AV To CLOSED CAPTION

• I_ To operate

INITIAL SETUP>

CLOSED CAPTION

MODE "OFF"

CAPTION "CCl"

TEXT "TI_

NOTES:

FINISH

SELECT BY[]Q

OPERATE BY[][] EXIT BY F_'_I

To select CAPTION (for Closed Captions), TEXT (for text display), or OFF (for no dis-

play)

To move to CAPTION or TEXT

To select a caption (CC1 to CC4) or text channel (T1 to T4)

To accept that selection and move to FINISH

To save settings and exit

•Closed Caption subtitles are usually found on closed caption channel CC1. Some programs may

include additional text information which is usually found on text channel T1. The other channels

are available for future use.

• Closed captioning may not work correctly if the signal being received is weak or if you are playing a

video tape.

• Most broadcasts containing Closed Captioning will display a notice at the start of the program.

Front Panel Lock

This allows you to lock the keys on the front of the TV, so that a child may not accidentally

change your viewing preferences.

• Not only can you turn off this feature by using the remote control, you can turn it off by

unplugging your TV, and plugging it back in. This is in case the batteries die out or you aci-

dentally lose your remote. Doing this will set this feature back to off. Also, if it is difficult to

unplug your TV, you can turn this feature off by pressing the MENUbutton on the front of the

TV for more than a seconds. In this case, the OSD for FRONT PANEL LOCK will appear.

You can also turn ON/OFF the TV set by pressing the POWER button on the TV for more than

a seconds. This feature will remain in ON.

Press the MENU button

To FRONT PANEL LOCK

To turn ON or OFF

EXIT when finished

General Items

Auto Shut Off

This function automatically shuts off your TV when there is no signal from the channel the TV

is on.

Press the MENU button

AV TO AUTO SHUT OFF

• I_ To turn ON or OFF

EXIT when finished

• If the channel that you have on does not recieve a signal for more than one minute, the blink-

ing text "NOT RECIEVlNG A SIGNAL' appears on the screen. If no signal is being recieved

within 10 minutes, the TV shuts itself off.

XDS ID

XDS ID Display provides a channels call letters, the network's name, and even a program

name.

Press the MENU button

AI,V To XDS ID

• I_ To turn ON or OFF

EXIT when finished

•XDS ID is available on all models except for AV-27320.

V2 Component-In /Vl Component-In

Get the best quality video from your DVD player by using this setting and the DVD inputs at the

rear of the television. Set either to YES for component input (for DVD) or to NO for composite

video input (for a regular VCR).

Press the MENU button

To V2 COMPONENT-IN (or Vl COMPONENT-IN for model AV-27320)

To turn the input ON (YES) or OFF (NO)

EXIT when finished

• This option should be used with DVD players only. For information on connecting VCR's see

page 14. For more information on connecting a DVD player, see page 17.

•V2 COMPONENT-IN: 20D303, AV-27330, AV-27S33, AV-27D203 and AV-27D303 only.

•V1 COMPONENT-IN: AV-27320 only.

Button Functions

The MENU button allows you to access JVC's onscreen menu system. Press MENUto activate

the onscreen menu system.

• See individual topics (like "Sound Settings) for specific information on using menus.

Exit

Press the EXIT button to leave a menu screen.

Display

The Display screen shows the current status of timers, inputs and XDS ID.

Press the DISPLAYbutton

05 KLVX PBS

SESAMESTREET

NOW 12:20 PH

SLEEP TIMER OFF

0N/0FF TIMER EVERYDAY

ON TIME 7:00 PH

OFF TIME 10:00 PH

The screen above shows the following information:

• The current channel or AV input (Channel 05)

• The current time (12:20 pm)

• Sleep Timer status/minutes remaining (The Sleep Timer is off)

• On/Off Timer status (Set to turn on everyday at 7:00 PM, off at 10:00 PM)

• Each Press of the DISPLAYbutton changes the display mode:

Display _Time _ Channel _ Off

Display - Full screen shown above

Time - Shows the current time only

Channel - Shows the current channel

Off - Turns Display off

• You may also turn off the Display at any step by pressing EXIT.

• Please note that if the Clock, Sleep Timer or On/Off Timer are not set, the Display screen will

show: "CLOCK NOT SET", "SLEEP TIMER OFF", and "ON/OFF TIMER OFF" respectively.

Muting

The MUTINGbutton instantly turns the volume down completely when you press it. Press

MUTINGand the volume level will instantly go to zero. To restore the volume to its previous level,

press MUTINGagain.

Button Functions

Video Status

The VIDEOSTATUSbutton gives you a choice of three TV picture display settings, including a

display of your own preferences.

Standard - Resets the picture display to the factory settings.

Dynamic - Heightens contrast.

Theater - Gives a rich, film-like look to video. (AV-27D303, AV-27D203 and AV-20D303 only)

Sports - When you watch a sports program. (AV-27330, AV-27320 and AV-27S33 only)

Press the VIDEO STATUSbutton

STANDARD-_ DYNAMIC -_ THEATER or SPORTS _l

Sleep Timer

The Sleep Timer can turn the TV off for you after you fall asleep. Program it to work in intervals

of 15 minutes, for a total time of up to 180 minutes.

Press the SLEEPTIMERbutton

[_,0153045607590105120135150165180

Sleep Timer Message

20 seconds before the automatic shutoff, this message will appear:

GOOD NIGHT!!

PUSH SLEEP TIMER BUTTON

TO EXTEND.

You then have 20 seconds to press the Sleep Timer button to delay the shutoff for another

15 minutes.

Hyper Surround (RM-0255, RM-0253 and RM-0252 only)

Creates a deep, three-dimensional sound effect by channeling the audio through the TV's front-

firing speakers. Press the HYPERSUR. (Hyper Surround) button to turn the effect on or off.

HYPER SURROUND ON OFF

Button Functions

BBE (RM-C252 only)

BBE high definition audio adds natural, clear and extraordinary sound quality to any program.

Turn BBE On or Off using the BBE button.

BBE ON OFF

100+ Button

Use the 100+ button to directly access channels above Channel 99. For example to move to

channel 124, presslO0+, 2 (two), 4 (four).

Return+

The RETURN+button has two functions:

Return - Returns to the channel viewed just before the channel currently onscreen.

Return+ - Lets you program a specific channel to return to while scanning through the chan-

nels using the CH+ and CH- buttons.

RETURN+and hold for three seconds

RETURN CHANNEL

PROGRAMMED !

The channel currently active has been programmed as your Return+ channel. Now scan

through the channels using the CHANNEL+/- buttons

RETURN+

You will return to your programmed channel.

• To cancel your Return+ channel, press and hold the RETURN+button for three seconds. The

message "RETURN CHANNEL CANCELLEDr will appear.

• Return+ works only with the CHANNEL+/- buttons. Pressing any number key will cancel

Return+.

Input

Selects the signal input source for the television: TV (for Antenna or Cable) or Video-l, 2 or 3

for video devices like VCR's, DVD players, or camcorders.

INPUT

_I_TV _VIDEO-1 _ VIDEO-2 _VIDEO-3 _]

[_ TV-_VIDEO-1-_ VIDEO-2 _]

AV-27320 only

NOTE:

• BBE is a registered trademark of BBE Sound, Inc. For U.S., licensed from BBE Sound, Inc.

under USP 4638258, 4482866 and 5510572. For Canada, licensed from BBE Sound, Inc.

BBE is a registered trademark of BBE Sound, Inc. ___

4,5

Button Functions

TheaterPro D6500K (RM-C253 and RM-C252 only)

The TheaterPro D6500K Color Temperature Technology function makes sure that the video you

watch is set to the standard color temperature, so that what you see is as true to what the film

to video editors intended it to be.

VCR Buttons

You can use this remote control to operate the basic functions of your VCR. These functions

include: play, record, rewind, fast-forward, stop, pause, channel scan, TV/VCR, power on, and

power off.

Move the selector switch to VCR to operate.

• The remote is preset with the code 000 to control JVC-brand VCR's. For any other manufac-

turer's brand VCR, please see the code chart and instructions on page 21.

NOTE: The RM-C205 remote control can only be used with JVC-brand VCRs.

DVD Buttons (RM-0255, RM-0253 and RM-0252 only)

You can also use this remote control to operate the basic functions of your DVD player. These

functions include: play, rewind, fast-forward, stop, still/pause, previous/next, tray open/close,

power on, and power off.

Move the selector switch to DVD to operate.

• The remote is preset with the code 000 to control JVC-brand DVD players. For any other

manufacturer's brand DVD player, please see the code chart and instructions on page 22.

TV/CATV Switch (RM-0255, RM-0253 and RM-0252 only)

Use either the television's own tuner or a cable box to select channels. Set this switch to TV to

operate the television's built-in tuner. Move the switch to CATV to operate a cable box.

• See page 20 for information on programming your remote for cable box operation.

VCR/DVD Switch (RM-0255, RM-0253 and RM-0252 only)

You can control a VCR or DVD player with the buttons on the lower part of the remote control.

Use the VCR/DVD selector switch to choose either VCR or DVD operation.

• See pages 21 and 22 for information on programming your remote with VCR and DVD oper-

ating codes.

Light (RM-0252 only)

Your remote control includes illuminated buttons for key features like CHANNEL+/- and VOLUME

+/-. Press the LIGHTbutton to turn the illumination on.

Troubleshooting

There is no power • See if the power cord became unplugged.

• Check for a blown fuse or circuit breaker or a power outage.

There is no picture • The antenna could be disconnected.

or sound • The input mode could be set improperly. See page 45.

• The tuner (Auto Tuner Setup) could be set improperly. See page 25.

• The TV station may be having difficulties. Check to see if other stations are working.

Remote control is not • Check to see that the batteries are still working and properly installed.

operating properly or • Make sure the remote has a clear sight path to the TV.

at all • Check that the TV/CATV switch is in the proper position. (Except for RM-C205)

• You may be too far from the TV. You must be within 23 feet (7 meters).

You cannot select a • Make sure the channels have been programmed. See "Channel Summary", page 28.

certain channel • Check to see if the channel is locked. See "Channel Summary - Lock" page 28.

The power turns off • Make sure the set did not become unplugged.

by itself • Perhaps the On/Off Timer is set. See page 40.

• Check to see if the Sleep Timer was set. See page 44.

The clock is wrong • The power was interrupted and the clock was not reset. See page 26.

The On Timer is • There is a problem with the TV. Unplug the set and call for service.

blinking

The color quality • Tint and Color may be improperly adjusted. See page 37.

is poor • The Video Status mode may be turned to the wrong setting. See page 44.

There are lines • There could be interference from another electrical appliance, such as a computer,

across the picture another TV or VCR. Move any such appliances further away from the TV.

The picture is spotted • There could be interference from a high-wattage appliance, like a hairdryer or vacuum,

operating nearby. Move the antenna away from the appliance or change to a coaxial

cable connection which is less prone to interference.

There are double • A building or passing airplane can reflect the original signal and produce a second,

pictures (ghosts) slightly delayed one. Adjust your antenna position.

Picture is snowy • Your antenna may be damaged, disconnected or turned. Check the antenna

(image noise) connection. If the antenna is damaged, replace it.

Screen is 40% black • The Closed Caption Text mode is on. Turn it off in the Closed Caption Menu, page 41.

Stereo or bilingual • Make sure the MTS settings are correct. See "MTS" on page 39.

programs can't be

heard

Static electricity • It is normal to feel static electricity if you brush or touch the screen.

You hear occasional • It is normal for the TV to make crackling sounds when first turned on or off. Unless

crackling sounds the sound or picture become abnormal, this is fine.

JVC Warranty

JVC COMPANY OF AMERICA warrants this product and all parts thereof, except as set forth

below ONLY TO THE ORIGINAL PURCHASER AT RETAIL to be FREE FROM DEFECTIVE

MATERIALS AND WORKMANSHIP from the date of original retail purchase for the period

shown below (the "Warranty Period") (PICTURE TUBE is covered for Two (2) years.)

Parts

1YEAR ILab°r 1YEAR I

THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE

DISTRICT OF COLUMBIA AND COMMONWEALTH OF PUERTO RICO.

WHAT WE WILL DO:

If this product is found to be defective within the warranty period, JVC will repair or

replace defective parts at no charge to the original owner. Such repair and replacement

services shall be rendered by JVC during regular business hours at JVC authorized

service centers. Parts used for replacement are warranted only for the remainder of

this Warranty Period. All products and parts thereof may be brought to a JVC author-

ized service center on a carry-in basis. Televisions with a screen size of 25 inches and

larger may be covered on an in-home basis where such service is available.

WHAT YOU MUST DO FOR WARRANTY SERVICE:

To determine if in-home service is available in your area, either contact the selling dealer

(retailer) or call 1-800-537-5722 to locate the nearest JVC authorized service center. Service

locations can also be obtained from our website http://www.jvcservice.com. In-home service, if

available, will require clear access to the Television by the service representatives. If in-home

service is not available, carry in service will be provided.

If service is not locally available, box the product carefully, preferably in its original car-

ton, and ship, insured, with a copy of your bill of sale plus aletter of explanation of the

problem to the nearest JVC Factory Service Center, the name and location which will be

given to you by the toll free number.

If you have any questions concerning your JVC Product, please contact our Customer

Relations Department.

WHAT IS NOT COVERED:

This limited warranty provided by JVC does not cover:

1) Products which have been subject to abuse, accident, alteration, modification, tam-

pering, negligence, misuse, faulty installation, lack of reasonable care, or if repaired

or serviced by anyone other than aservice facility authorized by JVC to render such

service, or if affixed to any attachment not provided with the products, or if the

model or serial number has been altered, tampered with, defaced or removed;

2) Initial installation, installation and removal from "built-in" entertainment centers and

other mounting systems;

3) Operational adjustments covered in the Owner's Manual, normal maintenance, video

and audio head cleaning;

4) Damage that occurs in shipment, due to an act of God, and cosmetic damage;

5) Signal reception problems and failures due to line power surge;

6) Video Pick-upTubes/OOD Image Sensor, Cartridge, Stylus (Needle) are covered for 90

days from the date of purchase;

Warranty JVC

7) Accessories;

8) Batteries (except that Rechargeable Batteries are covered for 90 days from date of

purchase.)

There are no express warranties except as listed above.

THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY

OF MERCHANTABILTY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY

HEREIN.

JVC SHALL NOT BE LIABLE FOR THE LOSS OF USE OF THE PRODUCT, INCONVE-

NIENCE, OR ANY OTHER DAMAGES, WHETHER DIRECT, INCIDENTAL OR CONSE-

QUENTIAL (INCLUDING, WITHOUT LIMITATION, DAMAGE TO TAPES, RECORDS OR

DISCS) RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY

BREACH OF THIS WARRANTY, ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING

THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE,

ARE LIMITED TO THE WARRANTY PERIOD SET FORTH ABOVE.

Some states do not allow the exclusion of incidental or consequential damages or limi-

tations on how long the warranty lasts, so these exclusions or limitations may not

apply to you.This warranty gives you specific legal rights and you may also have other

rights which vary state to state.

JVC COMPANY OF AMERICA 1700 Valley Road

DIVISION OF JVC AMERICAS CORP. Wayne, New Jersey 07470

http://www.jvcservice.com

REFURBISHED PRODUCTS CARRY A SEPARATE WARRANTY.THIS WARRANTY

DOES NOT APPLY FOR DETAILS OF REFURBISHED PRODUCT WARRANTY.

PLEASE REFER TO THE REFURBISHED PRODUCT WARRANTY INFORMATION

PACKAGED WITH EACH REFURBISHED PRODUCT.

For customer use:

Enter below the Model No. and Serial No. which is located either on the rear, bottom or

side of the cabinet.

Retain this information for future reference.

Model No.: Serial No.:

Purchase Date: Name Of Dealer:

Authorized Service Centers

JVl

HOWTO LOCATE YOUR JVC SERVICE CENTER

TOLL FREE: 1 (800) 537-5722

http://www.jvc.com

Dear Customer,

In order to receive the most satisfaction from your purchase, please read the

instruction booklet before operating the unit. In the event that repairs are neces-

sary, please call 1 (800) 537-5722 for your nearest authorized servicer or visit

our website at www.JVO.com

Remember to retain your Bill of Sale for Warranty Service.

Do not service the television yourself

Caution

To prevent electrical shock, do not open the cabinet. There are no user serviceable

parts inside. Please refer to qualified service personnel for repairs.

Accessories

To purchase accessories for your JVC product, please call toll free: 1 (800) 882-2345

or on the web at www.JVC.com

For service in Canada

To locate your local JVC service center or dealer in Canada please call:

In Eastern Canada: In Western Canada: En Fran_ais (Montreal):

1 (416) 293-1311 1 (604) 270-1311 1 (514) 871-1311

Or visit us on the web at www.JVC.ca

Search Codes

NOTE: Except for AV-27320.

Cable/Satellite Search Codes Function:

1) Slide the first 2-Way Mode Selector switch to CATV.

2) Press the TV POWERand RETURN+buttons. Hold for at least three seconds and release.

3) Press TV POWER,see if the CATV or Satellite box responds.

4) If there was a response, press RETURN+.The operating codes are now set. If there was no

response, repeat Step 3. If you repeat Step 3 a total of 52 times without a response, use the

remote control which came with the equipment.

5) Press RETURN+to exit.

VCR Search Codes Function:

1) Slide the first 2-way selector switch to "TV" and the other 2-way selector switch to "VCR".

2) Press the VCR POWERand RETURN+buttons. Hold for at least three seconds and release.

3) Press VCR POWER, see if the VCR responds.

4) If there was a response, press RETURN+.The operating codes are now set. If there was no

response, repeat Step 3. If you repeat Step 3 a total of 80 times without a response, use the

manufacturers remote control which came with the VCR.

5) Press RETURN+to exit.

DVD Player Search Codes Function:

1) Slide the first 2-way selector switch to "TV" and the other 2-way selector switch to "DVD".

2) Press the DVD POWERand RETURN+buttons. Hold for at least three seconds and release.

3) Press DVD POWER, see if the DVD player responds.

4) If there was a response, press RETURN+.The operating codes are now set. If there was no

response, repeat Step 3. If you repeat Step 3 a total of 30 times without a response, use

the manufacturers remote control which came with the DVD player.

5) Press RETURN+to exit.

Specifications

Reception NTSC, BTSC System (Multi-Channel Sound)

Format

Reception VHF 2 to 13, UHF 14 to 69

Range Sub Mid, Mid, Super, Hyper and Ultra bands

(181 channel frequency synthesizer system)

Power Source AC 120V, 60Hz

Power 75W 105W

Consumption

Screen Size 20 inch /51 cm 27 inch /68 cm

measured diagonally measured diagonally

full square full square

Audio Output 1.2W + 1.2W

Speakers 2 x 3 1/2 /5x9 cm

oval x 2

75 ohms (VHF/UHF) (F-type connector)

Video: 1 Vp-p, 75 ohms

Audio: 500mVrms (-4dBs) high impediance

Y: 1Vp-p positive, 75 ohms (negative sync provided)

C: 0.286 Vp-p (burst signal), 75 ohms

Y: 1Vp-p positive, 75 ohms (negative sync provided)

PB/PR: 0.7 Vp-p, 75 ohms

500mVrms (-4dBs) Low impedance (400 Hz when modulated 100%)

Antenna Terminal

External Input

Jacks

S-Video Input

Jack

Component Input

Jacks

Audio

Output (FIX)

Headphone Jack

Dimensions (In)

WxHxD (cm)

Weight (lbs /kg)

Accessories

(_3.5 mm x 1

23 3/8x 18 x 19 1/4 25 3/4 x 23 3/8 x 19 1/2 29 5/8 x 23 1/4 x 23

59.2 x 45.6 x 48.7 65.4 x 59.3 x 49.4 75.2 x 59.0 x 53.1

45.0 /20.4 68.5 /31.1 70.8 /32.2

Remote control unit x 1 /AA batteries x 2

Specifications subject to change without notice.

JVC COMPANY OF AMERICA

Division of JVC Americas Corp.

1700 Valley Road

Wayne, New Jersey, 07470 jVC oJVC CANADA, INC.

21 Finchdene Square

Scarborough, Ontario

Canada, MIX 1A7

JVC AV 20D303 User Manual COLOR TV Manuals And Guides L0209110

JVC Direct View Digital 27 to 40 TV Manual L0209110 JVC Direct View Digital 27 to 40 TV Owner's Manual, JVC Direct View Digital 27 to 40 TV installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
