COMPACT COMPONENT SYSTEM

EX-A1

Consists of CA-EXA1 and SP-EXA1

e

I0100 0

LODO00

0000

G00

0

000

II II

AUDIO/VIDEO

INSTRUCTIONS For Customer Use:

Enter below the Model No. and Serial No.

which are located either on the rear,

bottom or side of the cabinet. Retain this

information for future reference.

Model No.

Serial No.

LVT1095-002A

[d]

Warnings, cautionsand others

G-1

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

CAUTION - 0/I buttonI

Disconnect the mains plug to shut the power off

completely (the STANDBY lamp goes off).

The O/I button in any position does not disconnect

the mains line.

• When the system is on standby, the STANDBY

lamp lights red.

• When the system is turned on, the STANDBY

lamp goes off.

The power can be remote controlled.

CAUTION

• Do not block the ventilation openings or holes.

(If the ventilation openings or holes are blocked by

a newspaper or cloth, etc., the heat may not be

able to get out.)

• Do not place any naked flame sources, such as

lighted candles, on the apparatus.

• When discarding batteries, environmental problems

must be considered and local rules or laws governing

the disposal of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping

or splashing and that no objects filled with liquids, such

as vases, shall be placed on the apparatus.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are

no user serviceable parts inside the unit; leave all

servicing to qualified service personnel.

3. CAUTION: Visible and invisible laser radiation

when open and interlock failed or defeated. Avoid

direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL,

PLACED INSIDE THE UNIT.

CAUTUQN: TO REDUCE THE RUSK OF ELECTRUC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVUCEABLE PARTS UNSUDE.

REFER SERVUCUNG TO QUALUFED SERVUCE PERSONNEL.

The lightning flash with arrowhead symbol,

within an equilateral triangle is intended to

alert the user to the presence of uninsulated

"dangerous voltage" within the product's

enclosure that may be of sufficient

magnitude to constitute a risk of emectric

shock to persons.

The exclamation point within an equilateral

triangJe is intended to alert the user to the

presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE

OR ELECTR|C SHOCK, DO NOT EXPOSE

THiS APPLIANCE TO RAiN OR MOISTURE.

iNFORMAT|ON

This equipmenthas beentested and found to compUywith the

Uimitsfor a CUossB digitaUdevice,pursuantto port 15 of the FCC

RuUes.These Uimitsare designed to provide reasonabUe

protection ogoinst harmfuUinterferencein o residentioU

instaHation.

This equipmentgenerotes,uses and can radiate rodiofrequency

energy and, if not instafledand used inaccordoncewith the

instructions, maycouse harmfuUinterferenceto radio

communicotions.However,there isno guaronteethat

interferencewill not occurin a particuUor installation.Ufthis

equipment does couse harmfuUinterferenceto radio or teUevision

reception, which conbe determined by turning the equipment off

and on, the user isencouragedto try to correctthe interference

byone or moreof the followingmeasures:

Reorientor reUocatethe receiving antenna.

hcreose the separationbetweenthe equipmentand receiver.

Connectthe equipment intoan outUeton o circuit differentfrom

that to which the receiver is connected.

ConsuUtthe deoUeroran experienced rsdio/TV technicianfor

heUp,

For Canada/pour le Canada

CAUTION: TO PREVENT ELECTRIC SHOCK,

MATCH WIDE BLADE OF PLUG TO WIDE SLOT,

FULLY INSERT.

ATTENTION: POUR EVITER LES CHOCS

ELECTRIQUES, INTRODUIRE LA LAME LA PLUS

LARGE DE LA FICHE DANS LA BORNE

CORRESPONDANTE DE LA PRISE ET POUSSER

JUSQUAU FOND.

For Canada/pour le Canada

THIS DIGITAL APPARATUS DOES NOT EXCEED

THE CLASS B LIMITS FOR RADIO NOISE

EMISSIONS FROM DIGITAL APPARATUS AS SET

OUT IN THE INTERFERENCE-CAUSING

EQUIPMENT STANDARD ENTITLED "DIGITAL

APPARATUS", ICES-003 OF THE DEPARTMENT OF

COMMUNICATIONS.

CET APPAREIL NUMERIQUE RESPECTE LES

LIMITES DE BRUITS RADIOELECTRIQUES

APPLICABLES AUX APPAREILS NUMIRIQUES DE

CLASSE B PRESCRITES DANS LA NORME SUR LE

MATERIEL BROUILLEUR: "APPAREILS

NUMERIQUES', NMB-003 EDICTEE PAR LE

MINISTRE DES COMMUNICATIONS.

Note to CATV system installer:

This reminder is provided to call the CATV system

installer's attention to Section 820-40 of the NEC

which provides guidelines for proper grounding and, in

particular, specifies that the cable ground shall be

connected to the grounding system of the building, as

close to the point of cable entry as practical.

Table of contents

Introduction

Warnings, cautions and others .................... G-1

Special cautions .............................................. 2

About discs ...................................................... 3

Description of parts ......................................... 5

Getting started

Using the remote control ................................. 6

Putting the batteries in the remote control .......... 6

Operating the TV using the remote control ......... 7

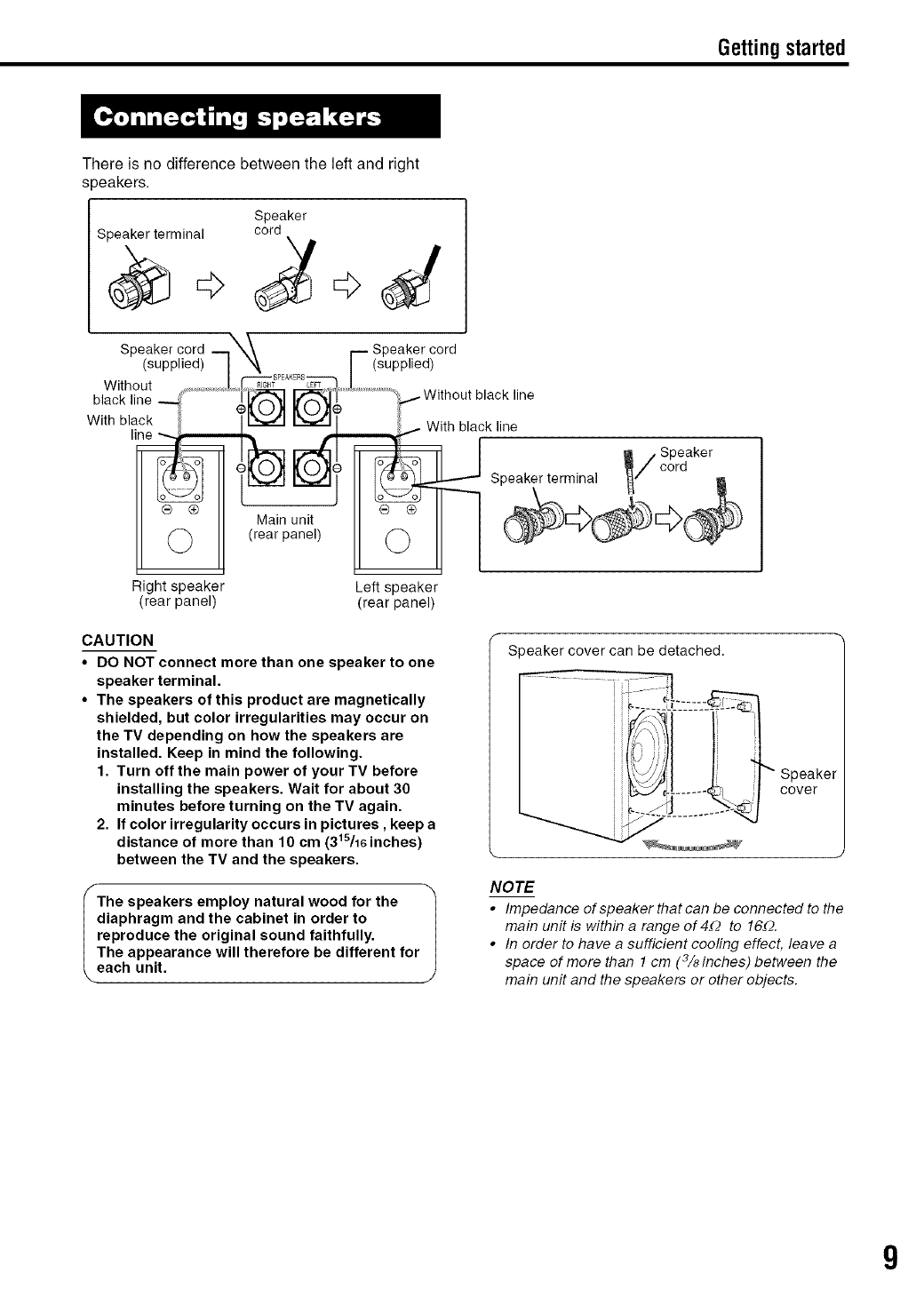

Connecting up ................................................. 8

Basic operations

Playing discs ................................................. 12

Playback ........................................................... 12

To switch the display ........................................ 13

Select what you want to play by using

the number buttons ....................................... 14

To stop playback ............................................... 14

To pause playback ............................................ 14

To advance picture frame-by-frame .................. 14

Fast reverse/Fast forward search ..................... 14

Playing back from a position 10 seconds

before (One Touch Replay) .......................... 15

Slow Motion Playback ....................................... 15

Skip to the beginning of the selection ............... 15

To change the brightness of the

display window (DIMMER) ............................ 16

Adjusting the volume ........................................ 16

Adjusting sound quality ..................................... 16

Turning off the sound temporarily (MUTING) ... 16

Advanced operations

Playing MP3 and JPEG discs ........................ 16

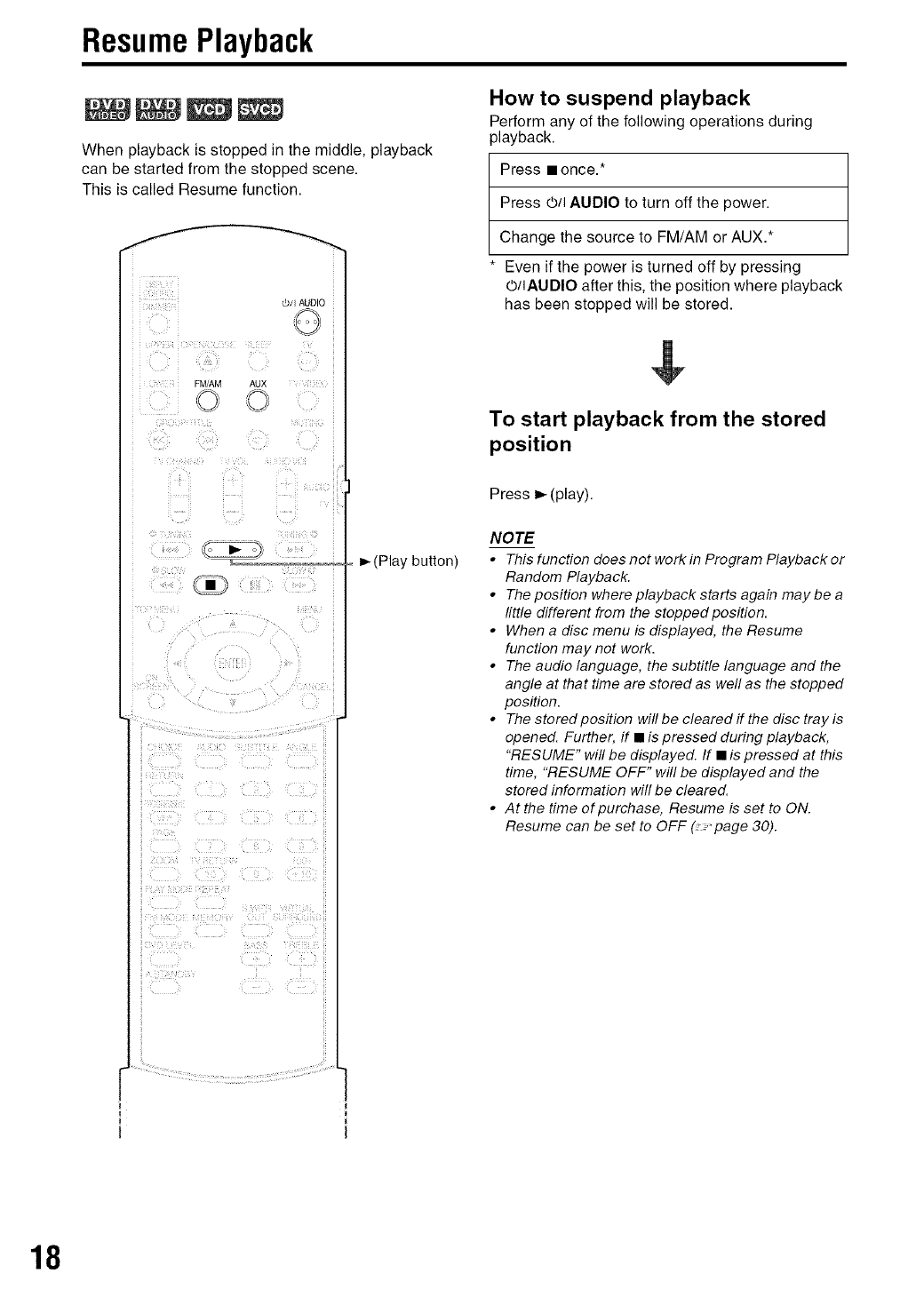

Resume Playback ......................................... 18

Select the scene to be played ....................... 19

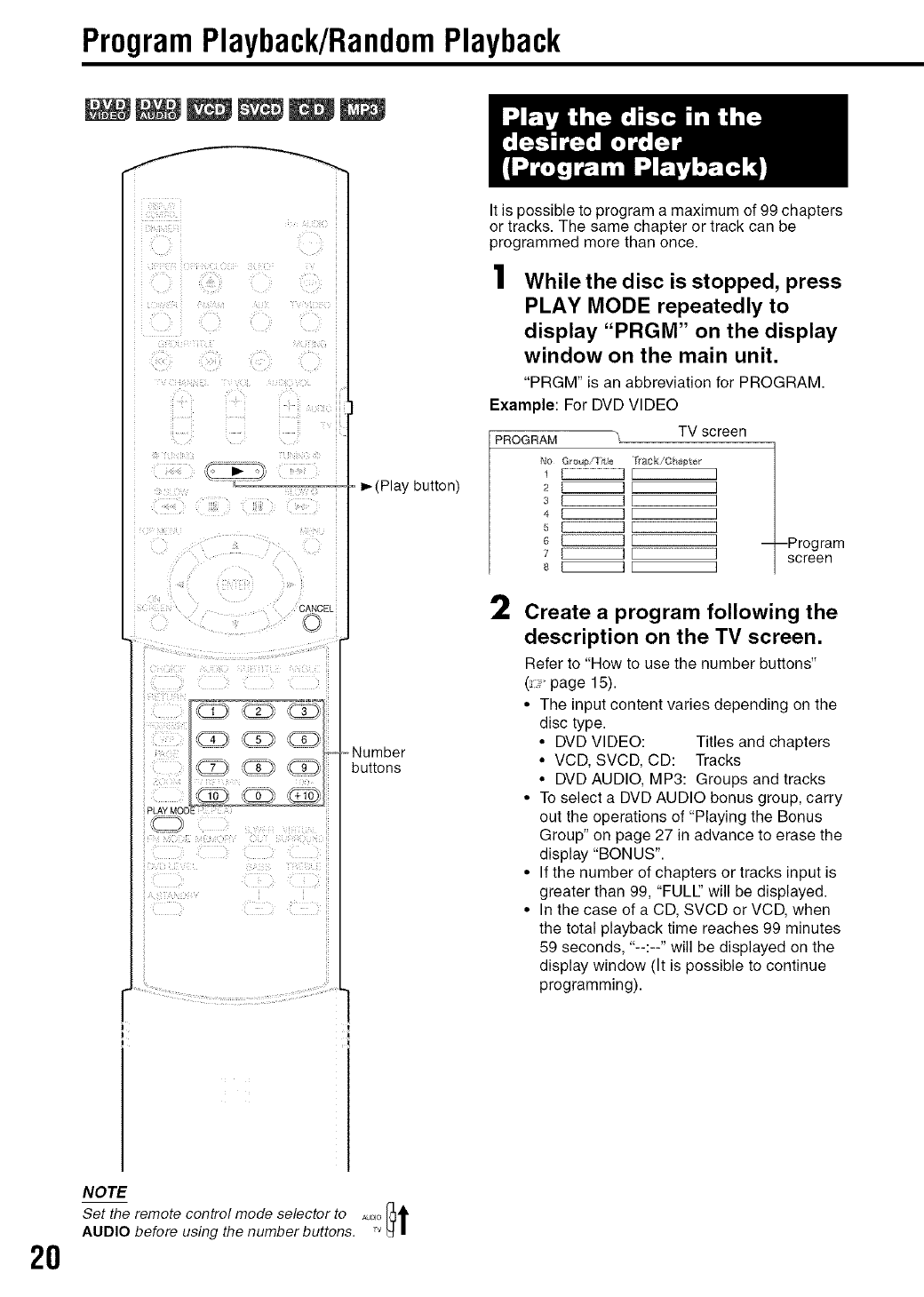

Program Playback/Random Playback ........... 20

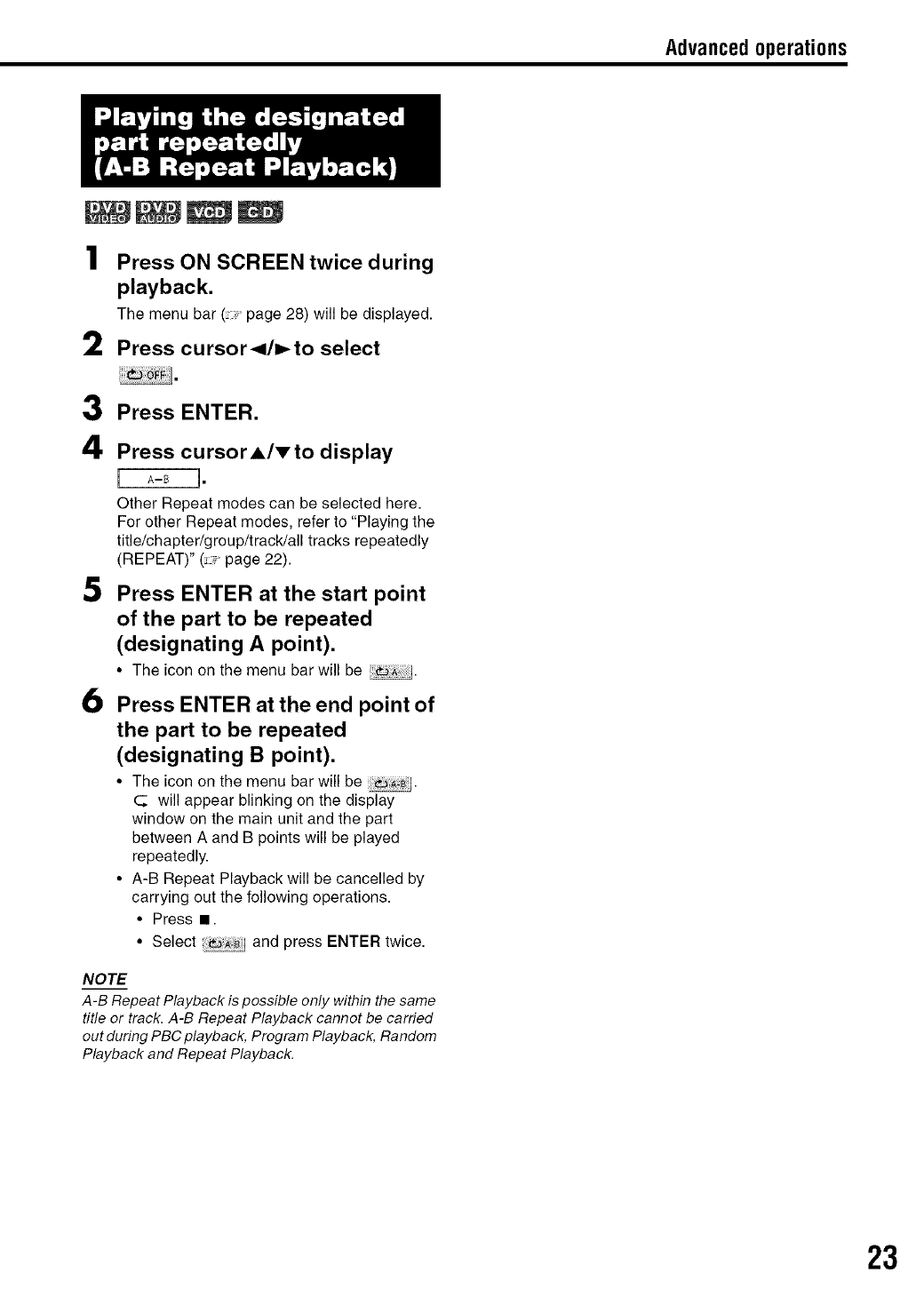

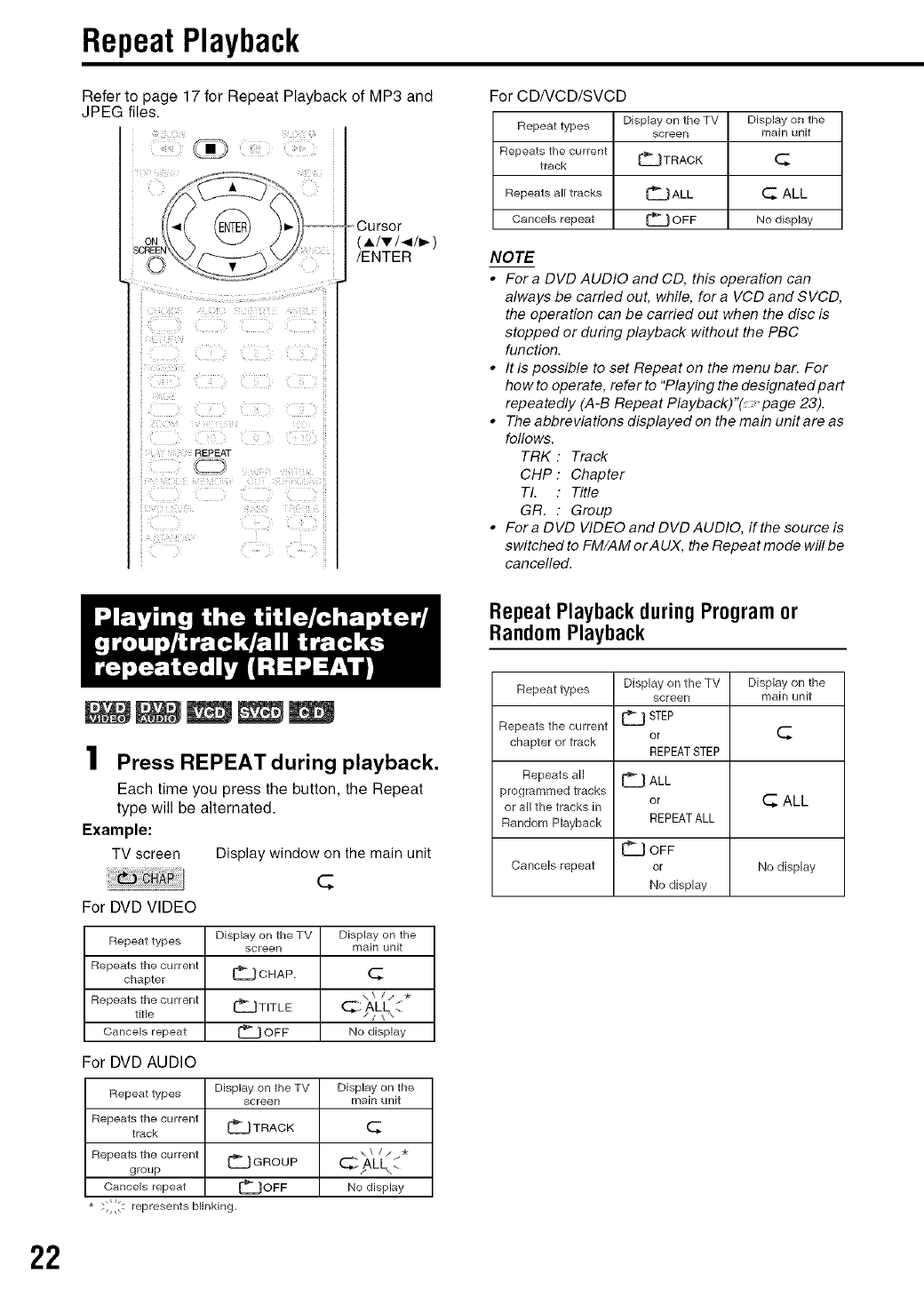

Repeat Playback ........................................... 22

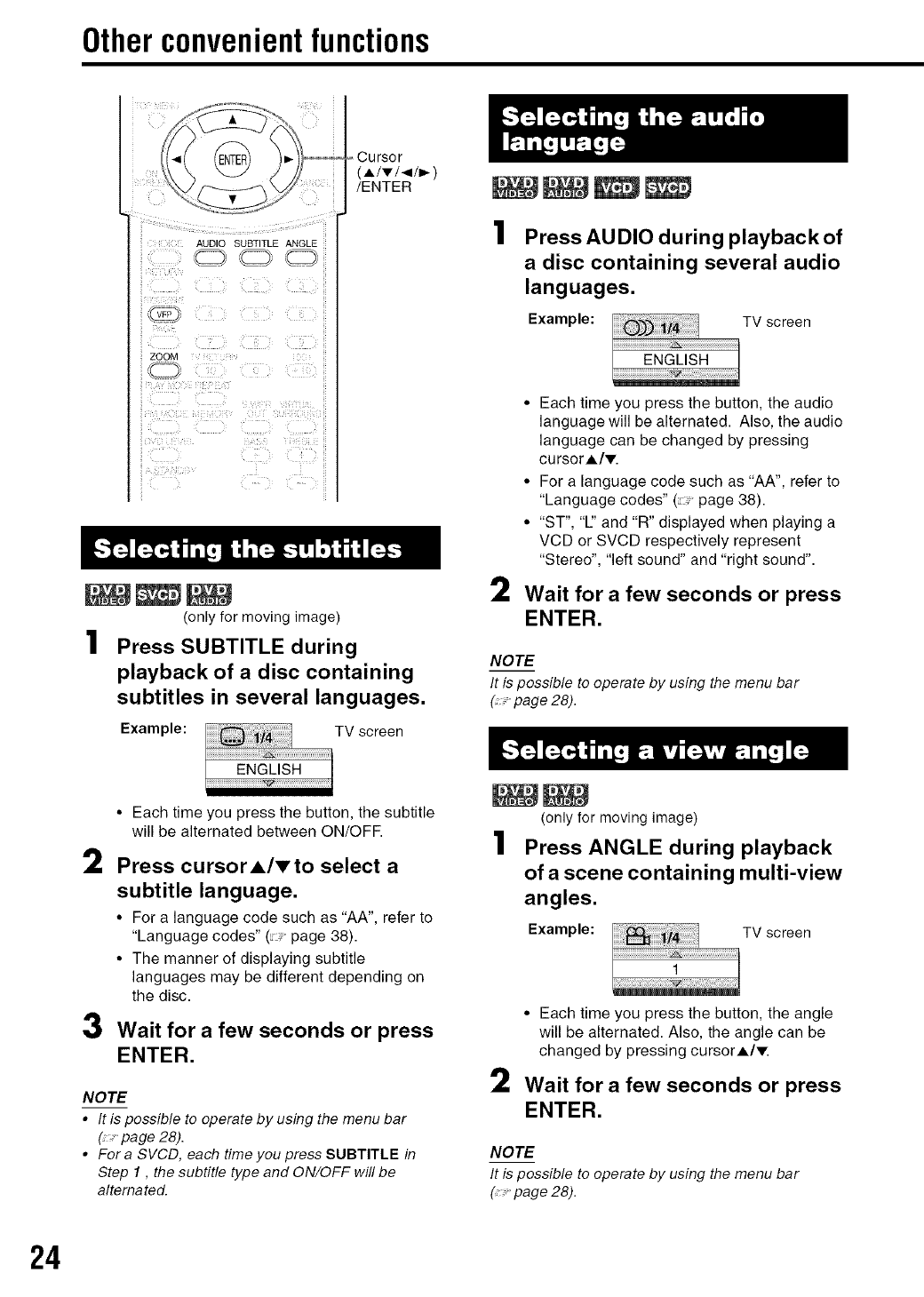

Other convenient functions ............................ 24

Selecting the subtitles ....................................... 24

Selecting the audio language ........................... 24

Selecting a view angle ...................................... 24

Enlarging the picture (ZOOM) ........................... 25

Adjusting the picture quality (VFP) ................... 2,5

Creating realistic sound

(VIRTUAL SURROUND) .............................. 26

Adjusting playback level (DVD LEVEL) ............ 26

Enjoying better pictures (PROGRESSIVE) ....... 26

Functions specific to DVD AUDIO ................. 27

Playing the Bonus Group ................................... 27

Browsable Still Pictures (B.S.P.) ....................... 27

Using the menu bar ....................................... 28

Preferences ................................................... 29

Country/Area codes ....................................... 31

Listening to radio

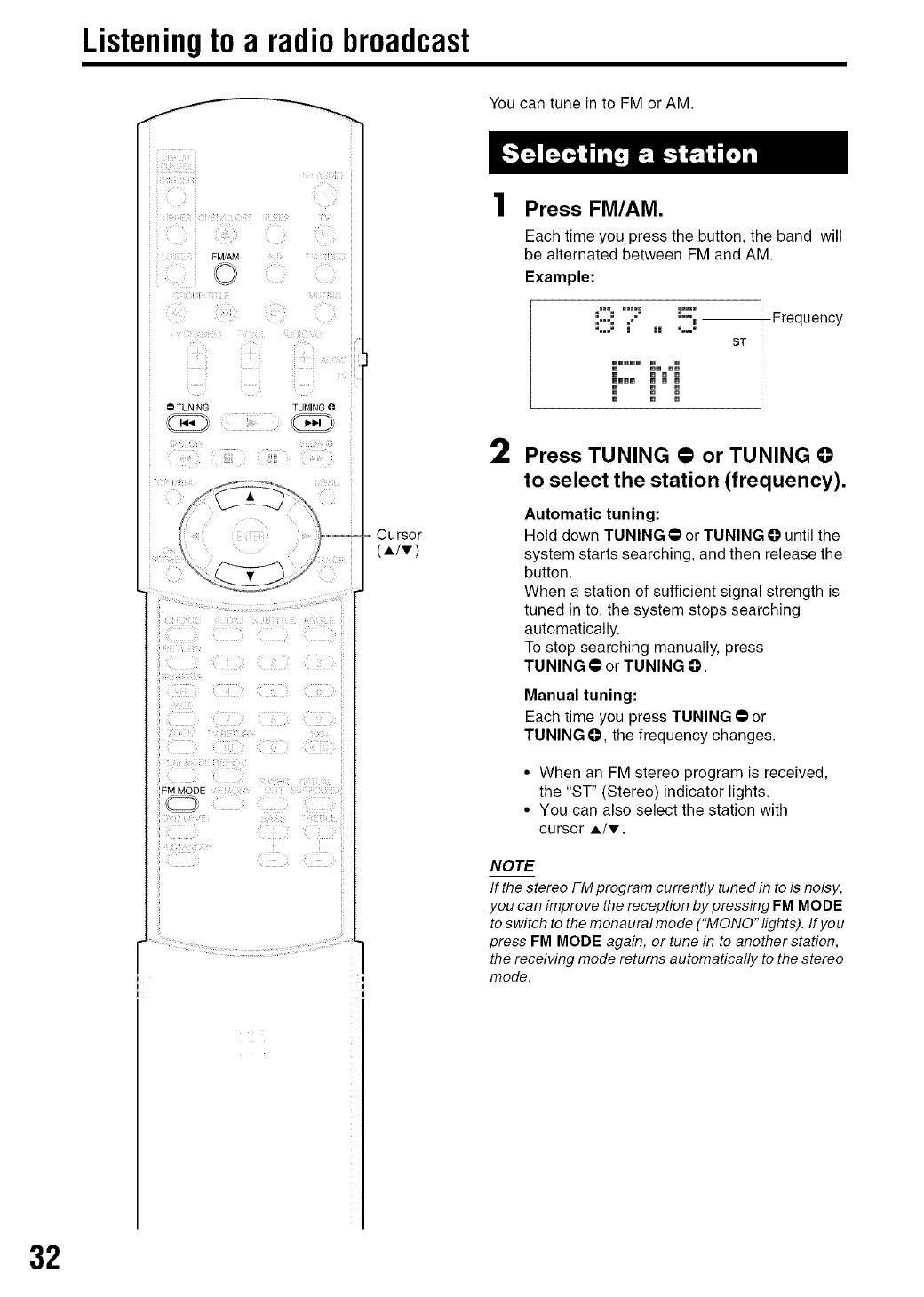

Listening to a radio broadcast ....................... 32

Tuning in to a preset station .......................... 33

Convenient functions

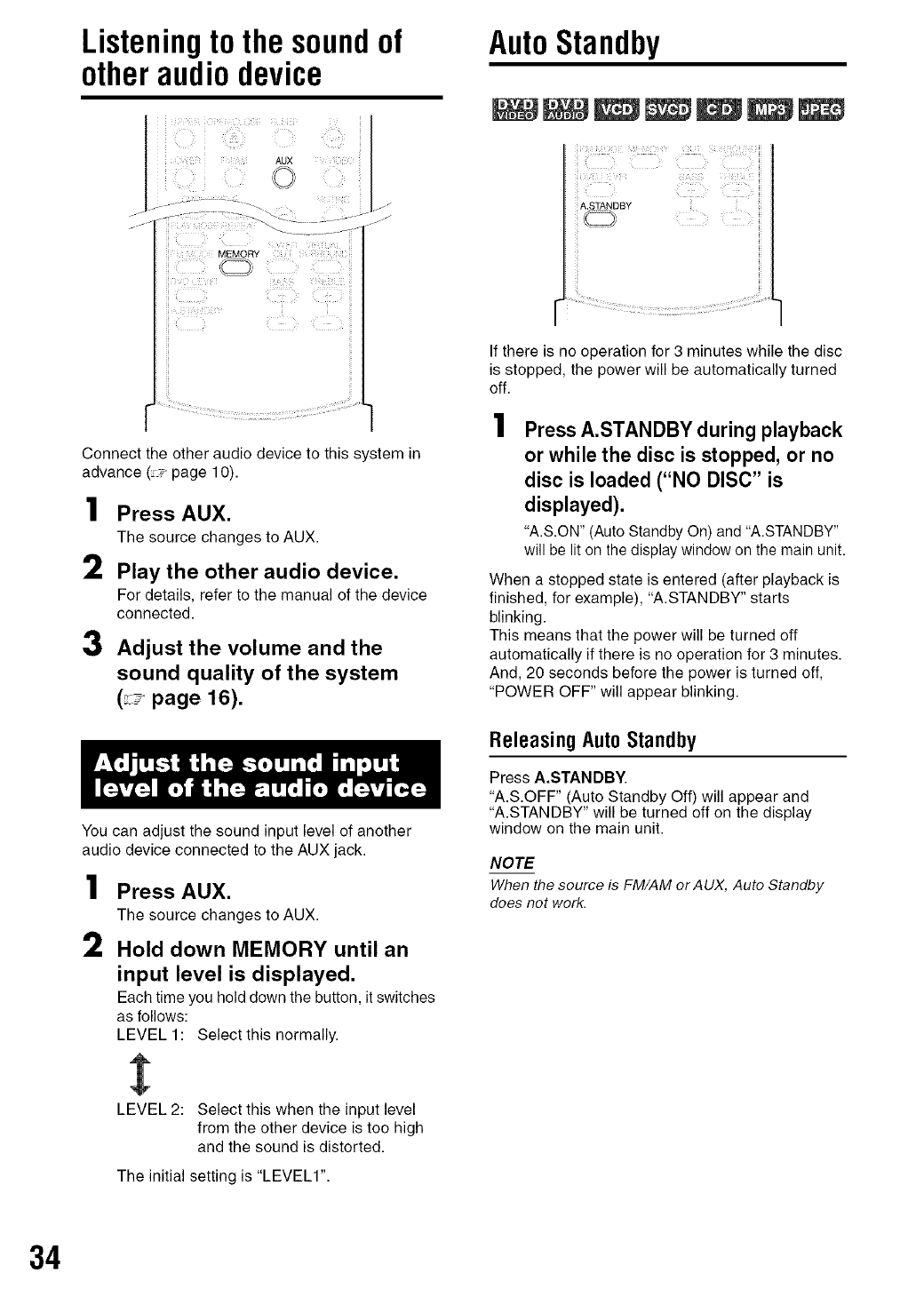

Listening to the sound of

other audio device ..................................... 34

Auto Standby ................................................. 34

Sleep Timer ................................................... 35

Tray Lock ....................................................... 35

Using AV COMPU LINK ................................ 36

Reference

Troubleshooting ............................................. 37

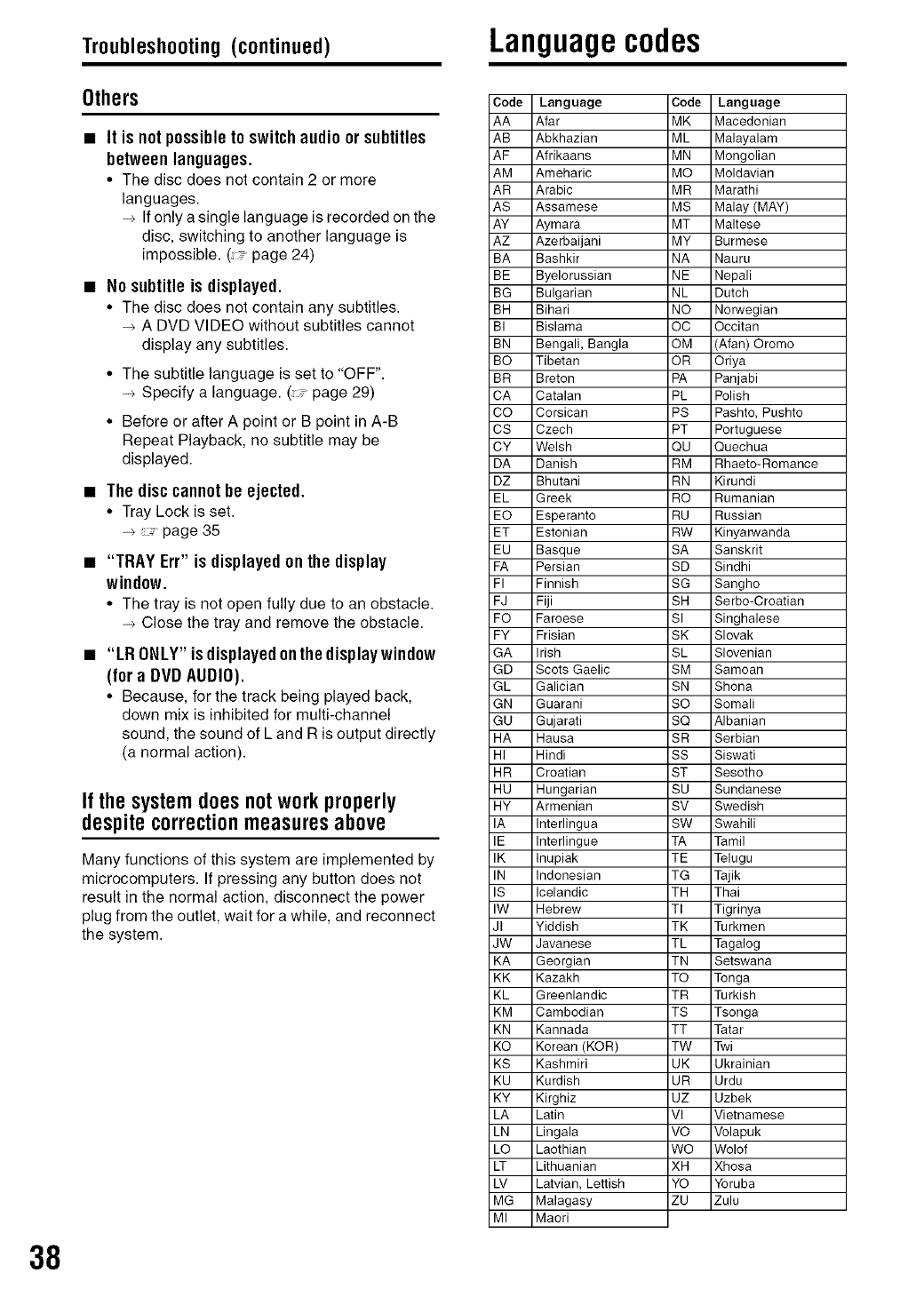

Language codes ............................................ 38

Specifications ................................................ 39

fHow to read this manual

• Operations are described by mainly using the

remote control buttons. If there are the same

marks on the main unit, the buttons on the main

unit can also be used.

• The following marks tell you for which type of the

discs the operation can be made.

NN

• The illustrations and TV screens may be different

between the actual case and the description.

• "VCD" is an abbreviation of "Video CD".

• "SVCD" is an abbreviation of "Super Video CD".

\

Special cautions

• Importantcautions

Installation of the system

• Select a place which is level, dry and neither too hot

nor too cold; between 5°C and 35°C (between 41°F

and 95°F).

• Leave sufficient distance between the system and the

TV.

• Do not use the system in a place subject to vibration.

Power cord

• Do not handle the power cord with wet hands!

• A small amount of power is always consumed while

the power cord is connected to the wall outlet.

• When unplugging the power cord from the wall outlet,

always pull on the plug, not the power cord.

To prevent malfunctions of the system

• There are no user-serviceable parts inside. If anything

goes wrong, unplug the power cord and consult your

dealer.

• Do not insert any metallic object into the system.

• Do not use any non-standard shape disc (like a heart,

flower or credit card, etc.) available on the market,

because it may damage the system.

• Do not use a disc with tape, stickers, or paste on it,

because it may damage the system.

Label sticker

Sticker_

Note about copyright laws

Check the copyright laws in your country before

recording from DVDs, Super Video CDs (SVCDs), VCDs

and CDs. Recording of copyrighted material may infringe

copyright laws.

Note about copy guard system

DVDs are protected by copy guard system. When you

connect the system to your VCR directly, the copy guard

system activates and the picture may not be played back

correctly.

•Safetyprecautions

Avoid moisture, water and dust

Do not place the system in moist or dusty places.

Avoid high temperatures

Do not expose the system to direct sunlight and do not

place it near a heating device.

When you are away

When away on travel or for other reasons for an extended

period of time, disconnect the power cord plug from the

wall outlet.

Do not block the vents

Blocking the vents may damage the system.

Care of the cabinet

When cleaning the system, use a soft cloth and follow the

relevant instructions on the use of chemically-coated

cloths. Do not use benzene, thinner or other organic

solvents including disinfectants. These may cause

deformation or discoloring.

If water gets inside the system

Turn the system off and disconnect the power cord plug

from the wall outlet, then call the store where you made

your purchase. Using the system in this condition may

cause fire or electrical shock.

• When condensationor water dropsadhere to the lens

In any of the following cases, condensation or water

drops may adhere to the lens to prevent the system from

working properly:

• Immediately after roomheating starts

• When the system is installed in a steamy or damp

space

• When the system is suddenly moved from a cold place

to a warm space

In any of these cases, leave the system turned on for 1 or

2 hours before use.

Check to be sure you have all of the supplied

accessories.

The number in parentheses is the quantity of the pieces

supplied. If anything is missing, contact your dealer

immediately.

• Remote control (1)

• Batteries (2)

• FM antenna (1)

• AM loop antenna (1)

• Power cord (1)

• Composite video cord (1)

• Speaker cords (2)

• Manufactured under license from Dolby Laboratories. "Dolby", "MLP Lossless", and the double-D symbol are

trademarks of Dolby Laboratories.

•"DTS" and "DTS 2.0+DIGITAL OUT" are registered trademarks of Digital Theater Systems, Inc.

• Thispr_ductinc_rp_ratesc_pyrightpr_tecti_ntechn___gythatispr_tectedbymeth_dc_aims_fcertainU_S_patents

and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this

copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other

limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or

disassembly is prohibited.

2

Aboutdiscs Introduction

This system has been designed to play back the following

discs:

DVD VIDEO, DVD AUDIO, VCD, SVCD, CD

This system can also play back the following discs:

• Finalized DVD-R/RW discs recorded in the DVD

VIDEO format.

• CD-R/RW discs recorded in the following formats

- Music CDs (finalized discs)

- VCDs

- SVCDs

- MP3/JPEG discs recorded in ISO 9660 (for details, refer

to "About MP3/JPEG discs ")

However, some discs may not be played back because of

their disc characteristics, recording conditions, or

damage or stain on them.

Only sounds can be played back from the following discs:

MIX-MODE CD CD-G

CD-EXTRA CD TEXT

Discs you can play:

Mark (Logo) Video RegionCode

Format Number*

Disc

Type

DVD

VIDEO

DVD

AUDIO

VCD

SVCD

CD

CD-R

CD-RW

_ NTSC l/ALL

AUDIO,VIDeO _ AUDIO

_ VtdeoCD NTSC

DIGITAL AUDIO

DIGITAL AUDIO

DIGITAL AUDIO

": Note on Region Code

DVD players and DVD VIDEOs have their own Region

Code numbers. This system can only play back a DVD

VIDEO recorded with the Region Code number and

video format mentioned above.

Examples: @@

If a DVD VIDEO with an improper Region Code

number is loaded, "REGION CODE ERROR!" appears

on the TV screen and playback cannot start.

•On some DVD VIDEOs, DVD AUDIOs, VODs or SVCDs,

their actual operation may be different from what is

explained in this manual. This is due to the disc

programming and disc structure, not a malfunction of

this system.

Discs that cannot be played back

• The following discs cannot be played back:

DVD-ROM, DVD-RAM, DVD-RW (recorded in VR

format), CD-ROM, CD-I (CD-I Ready), Photo CD,

SACD, etc.

Playing back these discs will generate noise and

damage the speakers.

Damaged discs and discs in an extraordinary shape

(other than a disc of 12 cm or 8 cm (43/4 inches or 31/8

inches) in diameter) cannot be played back.

About MP3/JPEG discs

Playable MP3/JPEG discs and files

• Discs recorded in the ISO 9660 format are playable

(except discs recorded in the "packet write" format

(UDF format)).

• Discs recorded in the multi-session format are also

playable.

• Files with an extension of ".mp3," ".jpg" or ".jpeg"

(extensions with uppercase and lowercase letters

mixed are also acceptable) are playable.

Notes on MP3/JPEG discs and files

• A disc may not be played, or reading it may take a long

time depending on its recording conditions or

properties.

• The time needed for reading varies with the number of

groups or tracks (files) recorded on the disc.

• If a character other than single byte English characters

is used in the file name of an MP3/JPEG file, the track/

file name will not be displayed correctly.

• The order of tracks/groups displayed on the MP3

Control screen, and the order of files/groups displayed

on the JPEG Control screen may be different from that

of files/folders displayed on PC's monitor screen.

• In the case of MP3 discs, since groups/tracks are

played in alphabetical order, an off-the-shelf MP3 disc

may be played in an order different from that indicated

on the label attached to the disc.

• Playing an MP3 file including a still image may take a

long time. The elapsed time is not displayed until

playing starts. If playing starts, the elapsed time may

not be displayed correctly.

• This system does not handle the ID3 tag of the MP3

file.

• For an MP3 file, a disc with a sampling frequency of

44.1 kHz and transmission rate of 128 kbps is

recommended.

• This system can play a baseline JPEG file, excluding

monochromatic JPEG files.

• This system can play JPEG data taken with a digital

camera conforming to the DCF (Design Rule for

Camera File System) standard (when a function is

applied such as the automatic rotation function of a

digital camera, data goes beyond the DCF standard,

so the image may not be displayed).

• If data has been processed, edited and restored with

PC image editing software, the data may not be

displayed.

• This system cannot play animations such as MOTION

JPEG, or still images (TIFF etc.) other than JPEG, and

image data with sound.

• The resolution of 640 x 480 is recommended for JPEG

files. If a file has been recorded at a resolution of more

than 640 x 480, display may take a long time. An

image with a horizontal resolution of more than 2,400

pixels cannot be displayed.

3

About discs (continued)

DVD VIDEO

A DVD VIDEO consists of "titles" and each title

may be divided into "chapters".

4 Title 1 _,-_ Title 2 ._-

Chapter 1 Chapter 2 Chapter 3 Chapter 1 Chapter 2

DVD AUDIO

A DVD AUDIO consists of "groups" and each group

may be divided into "tracks".

Some discs include a "bonus group" that requires a

password for playing (. - page 27).

< Group 1 _ _ Group 2 ._

Track 1 Track 2 Track 3 Track 1 Track 2

VCD/SVCD/CD

VCD, SVCD and CD consist of "tracks".

In general, each track has its own track number.

(On some discs, each track may also be further

divided by indexes.)

Track 1 Track 2 Track 3 Track 4 Track 5

MP3 [JPEG] discs

On an MP3 [JPEG] disc, each still picture

(material) is recorded as a track [file]. Tracks [Files[

are usually grouped into a folder. Folders can also

include other folders, creating hierarchical folder

layers.

This unit simplifies the hierarchical construction of

a disc and manages folders by "groups"

I_ Up to 99 groups

(1_ Group _-< Group _/

1 2

[T_ileCkI [T_ilck_ Group3 Group 4 Group5

L Up to 150files

This unit can recognize up to 150 tracks [files[ per

group and up to 99 groups per disc (up to 14,850

files in total). Since the unit ignores the tracks

[files] whose numbers are exceeding 150 and the

groups whose numbers are exceeding 99, they

cannot be played back.

•If there is any type of files other than MP3 [JPEG]

files in a folder, those files are also counted in the

total file number.

4

Descriptionof parts Introduction

The numbers represent the page numbers.

Play/Pause: 12, 14

34

Look at "Display window" below.

11,12 II

STANDBY/ON:12 [

Open/Close:12 [

Headl jack* I

14 14 14 Disc tray: 12

Remote control

sensor: 6

-- VOLUME

control: 16

* Connect a pair of headphones (commercially available) with a stereo mini plug. If the headphones are

connected, the speakers and subwoofer will not produce any sound.

,,,,,,,,,,,,32

,,,,,,,,,,,32

,_,,,,,,,,,,,34

,,,,,,,,,,,,,27

27

10 10 10

IDIGI

1111 I_1 ''"'"" d(

'T] ........................ ""_

UT_

VGC

Region Code Number:

36 11

,_IDEOOU-

8 8

_M75_ AM EXT

COAXIAL

(oo

Cooling fan (inside)

The fan rotates and stops automatically.

This discharges heat generated inside the unit.

Do not cover up these holes.

5

Usingthe remote control

The numbers represent the page numbers.

Batteries (2)

33,34 II 16

10

If the range or effectiveness of the remote control

decreases, replace the batteries. Use two R6P

(SUM-3)/AA(15F) type dry-cell batteries.

CAUTION

• Do not use a used battery and a new battery

together.

• Do not use different types of batteries at the

same time.

• Take out the batteries if the remote control is not

to be used for a long time. Otherwise it may

cause a leakage.

Remote control operation

When operating the remote control, point it

towards the front panel of the main unit. If the

remote control is operated from a direction that is

extremely oblique or when there is an obstacle in

the way, signals may not be transmitted.

If the remote control sensor is exposed to a strong

light such as direct sunlight, correct operation may

not be carried out.

6

This page is for when operating your TV using the

remote control of this product.

TV/VIDEO

TVCHANNEL TVVOL

@

@

TV RETURN 100+

Number

buttons

Setting the manufacturer's code

Slide the remote control mode

selector to the TV side.

AUDIOTv [_] !

2Keep pressing down O/ITV.

NOTE

Keep pressing down 0/I TV until Step 4 is complete.

3Press ENTER and release.

Getting started

4Press number buttons (1-9, 0).

Examples:

For a Hitachi TV: Press 1, then O.

For a Toshiba TV: Press O, then 8.

If there are more than one manufacturer's codes,

try them in turn and select the one that causes the

_roduct to work properly.

Manufacturer Code Manufacturer Code

JVC 01 Samsung 12

Hitachi 10 Sanyo 13

Magnavox 02 Sharp 06

Mitsubishi 03 Sony 07

Panasonic 04, 11 Toshiba 08

RCA 05 Zenith 09

5Release ©/ITV.

ForTV operation

Operate the remote control by pointing it towards

the TV.

7v Turn ON/OFF the power.

TVCHANNEL Change channels.

+

=i

TVVOL Adjust volume.

AUDIO_ #Select channels.

100+ TV

TVRETURN Alternates between the

previously selected channel

and the current channel.

W/VIDEO Switch TV and video input.

"1 Make sure to slide the remote control mode

selector to the TV side in advance.

NOTE

When the batteries are replaced, perform the

manufacturer's code setting again.

7

Connecting up_oonotturnonthepoweruntiltheconnectioniscomplete-

Connecting AlVlloop antenna (supplied)

| Set up the AM loop antenna.

'2 Connect antenna cords.

Main unit

(rear panel)

If the antenna cord is

covered with vinyl on the

tip, twist and pull the vinyl

off and remove.

3 Turn the AM loop antenna to the direction of the

best radio reception.

Locate the AM loop antenna as far away from

the main unit as possible.

• Do not locate the AM loop antenna on a metallic

table or close to a TV, personal computer, etc.

Otherwise it may result in bad radio reception.

• When good radio reception cannot be

obtained with the supplied AM loop antenna

Electric wire: 3 - 5 m (9 feet 10 inches - 16 feet

5 inches) (commercially available)

Electric wire

horizontally,

| f AM loop preferablyatahigh

/ _ antenna place such as

above a window or

outdoors.

LOOPIConnect the AM loop

Main unit antenna cords together.

(rear panel)

Connecting FlVlantenna (supplied)

Main unit

(rear panel)

Put the antenna up straight in the direction where

the best radio reception can be obtained, and fix

by using tape.

i ¸_

0ooo

•Whengoodradio receptioncannotbe

obtained with the suppliedantenna or when

usinga communalantenna

Antennacord(soId Communal

separately) antenna terminal

or OutdoorFMantenna

Y

C0A×IA_ available)

Coaxial cable

Main unit Converter (commercially

(rear panel) (sold separately: available)

compatible with 300_/

75'_)

Depending on the radio reception

conditions, an FM feeder antenna (sold

separately: compatible with 300_) can

be used. In the case, a converter (sold

separately) is required.

For details of connecting a separately sold

antenna, refer to the user guide for the antenna

or converter.

8When positioning the antenna, listen to an actual radio program (refer to "Listening to a radio broadcast" on page 32).

Getting started

There is no difference between the left and right

speakers.

Speaker

Speaker terminal cord

+j+d

Speaker cord

(supplied)

Without

black line

With black d

® @ Main unit

(rear panel)

Right speaker

(rear panel)

-- Speaker cord

(supplied)

........',/_ Without black line

With black line

II R /Speaker

_ Speaker terminal _/cord

Left speaker

(rear panel)

CAUTION

•DO NOT connect more than one speaker to one

speaker terminal.

•The speakers of this product are magnetically

shielded, but color irregularities may occur on

the TV depending on how the speakers are

installed. Keep in mind the following.

1. Turn off the main power of your TV before

installing the speakers. Wait for about 30

minutes before turning on the TV again.

2. If color irregularity occurs in pictures, keep a

distance of more than 10 cm (315/16 inches)

between the TV and the speakers,

TThespeakers employ natural wood for the

iaphragm and the cabinet in order to

reproduce the original sound faithfully.

he appearance will therefore be different for

each unit.

Speakercovercan be detached.

I/ F'speake,

JcZl. ...... _. =._[ cover

J

NOTE

•Impedanceofspeakerthatcanbeconnectedtothe

main unit is within a range of 4.Q to 16.(2.

• In order to have a sufficient cooling effect, leave a

space of more than 1 cm (3/Mnches) between the

main unit and the speakers or ether objects.

9

Connecting up(continued) - Do notturn on the power untilthe connectionis complete-

This page is for when connecting the main unit with

other devices.

Connecting subwoofer

With an amplifier-built in subwoofer (sold separately), you can enjoy a more dynamic bass sound.

Refer to the manual of the subwoofer for details.

Amplifier-built-in subwoofer

(sold separately) Audio cord (sold separately)

(If an audio cord comes with the amplifier-built-in subwoofer,

you can use the cord.)

10

S.WFR

OUT

Connecting with other audio device

/ AUDIO OUT

R L

®® Other audio I

device

L_J

Audio cord (sold

_ separately)

Main unit

When you want to hear sound from the subwoofer,

press S.WFR OUT on the remote control to display

"SUB WFR ON" (Sub Woofer ON) on the display

window on the main unit. Each time you press the

button, the display toggles between "ON" and "OFF".

NOTE

When "SUB WFR ON" is selected, bass sound from

the left and right speakers will be automatically

lowered and the bass sound will be emitted mainly

from the subwoofer.

Connecting with a digital device

[_""_ I Digital device

(MD recorder etc.)l

f _ To digital input terminal

Optical digital cord

/(sold separately)

U

DIGITALOUT

[ PCM/

ISTREAM

Main unit [ h_'/_

CAUTION

•For details of signals to be output, refer to page

30.

•Ifconnecting the main unit with equipment with the

function of a Dolby Digital decoder, the setting in

"D. RANGE COMPRESSION" of "AUDIO"

( page 30) will be invalid regarding sound from

the digital audio output of the main unit.

Getting started

TV Supplied composite video cord Main unit

CAUTION

Connect the main unit directly with a TV (or a

monitor) without routing through a VCR.

Otherwise it may cause picture distortion while

playing.

Connecting directly

Also, when connecting the main unit to a TV with

a VCR built in, there may be picture distortion

while playing.

You can enjoy pictures of better quality using the

following cord instead of the supplied video cord.

Connecting by using the S-Video cord

TV S-Video cord

(sold separately)

S-VIDEO IN JMain unit

s _

Connectingbyusingthecomponentvideo

cord

You can enjoy better quality pictures than when

using the S-Video cord.

TV

/Component video cord

(sold separately)

Main unit

CAUTION

Use one of either the S-Video cord or the

component video cord. If both cords are used,

pictures may not be played properly.

NOTE

•In order to enjoy pictures with Progressive mode

(. page 26), the TV is required to ha ve Progressive

video input•

• If the component video input jacks of your TV are

BNC type, use a plug adapter (not supplied) to

convert the plugs•

AC outlet

tSupplied power cord Main unit

_AC IN

• Connect the power cord after all other

connections are complete.

• The STANDBY lamp (on the front panel) will be

lit.

11

Playingdiscs

_ _ _ _ (Refer to page 16 for playing MP3 and JPEG.)

- page 5 Place a disc with the label side

J .............................................facing up.

J•Place an 8 cm (31/8 inches)

disc in to the hollow part in

the center.

Press O/I AUDIO.

• The power will be turned on and the STANDBY

lamp will go off.

• Press O/IAUDIO again to turn off the power.

2Press _OPEN/CLOSE to open the disc

tray to load a disc.

3Press I_(play).

The disc tray will close and playback will start.

_-/11

• The power will be turned on when any of O,

_O_, 6 or Q on the main unit and _,

_ (_ or °PE_°s_, on the remote control is

pressed while the power is off.

If any button other than --Q or oP_osEis

pressed, the source will also be changed (if

there is a disc loaded, playback will start).

NOTE

•A menu screen may be displayed after starting

playback of a DVD. In this case, select a desired

item to playback by using the following buttons on

the remote control.

• Selecta desireditem using C3C_ _ (_ and

"xJ _/

press ENTER

• Select a desired item using the number buttons.

• Depending on the disc, actual operation may be

different from the description.

JVC

NOW READING

REGION CODE

ERROR!

NO DISC

OPEN

CLOSE

The following messages appear depending on the status of the system.

(When FM/AM or AUX is selected as a source, the messages do not appear.)

Appears when the system is reading the disc information. Wait for a while.

Appears when the Region Code of the DVD does not match the code the

system supports. (- page 3)

Appears when no disc is loaded.

Appears when opening the disc tray.

Appears when closing the disc tray.

12

UPPER

LOWER

©

Display window during disc playback

Example: When a DVDVIDEO or DVDAUDIO is played

j_:'j :._ j_:'j j_::j :.:. j_:'j ":;._-Elal_sed.

•....., ........,... ....,"...'Jplay=ngt_me

/

izlnzlzlZ m--m

;..'; ; | Chapter/Track

•..." .-'. J number

If "BONUS" or "B.S.R" is displayed during a DVD

AUDIO playback, refer to page 27.

Example: When a SVCD or VCD isplayed

F' JiiiI (ii: i_-Tracknumber

/

0 :[

• PBC (Play Back Control): A signal recorded in a

VCD (version 2.0) for controlling playback. It is

possible to enjoy interactive software or software

with a search function using a menu screen

recorded in a PBC compatible VCD. To play a

disc with the PBC function OFF, carry out the

following operations.

• Designate the track number using the number

buttons while the disc is stopped.

• Designate the track number using _-_ or _1

while the disc is stopped, and then press

D,-(play).

• Press RETURN to go back to the upper layer

during the PBC playback of a VCD or SVCD.

Example: When a CD is played

! ;;;; ?!i_::'_Jl-elap see

•.. [; ...... / playing time

i""i i JTraeknumber

mmm mmm j

Basic operations

Example: When an MP3 disc is played

...............•"". .-" playing hme

;.."; ; JTrack number

•.... .-% J

Example: When a JPEG disc is played

Group number _ File number

[i"j:::''"'"

•. ".::i

Press UPPER or LOWER. Each time you press

the button, the display will be alternated.

Display examples

DVD VIDEO

UPPER:r_o:oo:o3(Elapsedplayingtime) _ T1 C3 (Title and Chapter number)

/No display4 J

J

DVD AUDIO

UPPER: r_O:OO:O3(Elapsedplayingtime)_ G1T3(GroupandTracknumber)

!No display,_ J

LOWER:r_03(Track number) _ G1 (Group number)-,,,,,,,,,,_DVD

1 J

VCD/SVCD

UPPER: r_O:O3 (Elapsed playing time) _ Nodisplay

L-pBC 2 PBC and Track number appear only

when PBC funct on s payed)

CD

UPPER: r,_0:0S(Elapsed playing time)

1

MP3 disc

VCDJ

Nodisplay

J

_*CD

J

UPPER: F4_0:00:03(Elapsedplayingtime)_ G1 T3 (Track number)

!No display4 J

LOWER:--[¢'G1(Group number) =4_ MP3 _ 03(Track number)j

JPEG disc

UPPER: r4_G1 F3 (Group number and File number) --¢, No display

/ J

LOWER:JPG

NOTE

Abbreviations

G: Group

T: Title (DVD VIDEO)

Track (DVD AUDIO and MP3)

C: Chapter

F: File

13

14

Playing discs (continued)

DIMMER

i/f%©

GROUP/TITLE MUTING

/ / AUDIO VOL

_ iI

AUD,O

@ SLOW SLOW @

t

_ii_i_ :_ _ ' >_!_i

BASS TREBLE

iil

(Play button)

Cursor

(A/.)

Number

buttons

NOTE

•Set the remote control mode selector to

AUDIO before using the number buttons.

• For a VCD or SVCD, this operation can be carried

out when the disc is stopped, or during playback

without the PBC function.

• Fora DVDAUDIO, CD, MP3orJPEG, this operation

can also be carried out when the disc is stopped.

• This operation may not be carried out for some

discs.

Designate the chapter number or

track number to play during

playback.

Refer to "How to use the number buttons" on page

15.

Press • during playback.

Press I! during playback.

To resume normal playback, press m,-(play).

•Press II to pause during JPEG disc slide-show.

Press _(play) to start playback from the next file.

• It is not possible to pause by pressing I_/11 on

the main unit during JPEG disc slide-show.

Press II during pause.

Each time you press the button, picture will be

advanced frame-by-frame.

There are two methods.

•Press -,=_or _=,- during playback.

Each time you press the button, the speed

increases (X2, X5, X10, X20, X60). To restore

the normal speed, press _(play).

• Hold down I_-,= or =,-_1.

Fast reverse/Fast forward search can be carried

out only while the button is pressed (X2-_X5).

NOTE

• Fast reverse/Fast forward search cannot be carried

out for MP3 and JPEG.

• For a D VD VIDEO, SVCD or VCD, no sound comes

out during fast reverse/fast forward search.

• For a CD or DVD AUDIO, sound is intermittent

during fast reverse/fast forward search.

Basic operations

Press c" during playback.

NOTE

•This operation may not be carried out for some

discs.

• It is not possible to go back to the immediately

previous title.

Press SLOW • or SLOW 0during

pause.

• Each time you press the button, the speed

increases.

• Press n to pause playback, and press _(play) to

resume normal playback.

NOTE

• No sound will be produced.

• The picture motion in the reverse direction may not

be smooth.

• For a VCD or SVCD, Slow Motion Playback can be

carried out in the forward direction only.

Press I_ or _1 during playback*.

• Each time you press the button, the previous or

next beginning of chapter/track/file to the current

position will be skipped to.

• Press _41 once to skip back to the beginning of

the chapter or track currently being played

(except for JPEG).

• Press GROUP/TITLE >>tor t<<to select the title

or group.

• During playback of a JPEG disc, press _,.D,.Ior

cursor • to play the next file, or press _-_ or

cursorA to play the previous file.

NOTE

* Fore VCD orSVCD, this operation can be carried out

during playback without the PBC function.

• Exceptfora DVD WDEO, thisoperationcanalsobe

carried out while the disc is stopped.

• This operation may not be carried out for some

discs.

How to use the number buttons

Examples: 5: _ 15: _

20: @_@ 25: @_@_(_(_(_(_(_(_(_(_(_

D : Play

: Pause

: Fast reverse/Fast forward search

_'10 : Slow Motion Playback (reverse/

forward directions)

: Containing multi-angle views(:- page 24)

0)) : Containing(-page 24)multi-audio languages

: Containing multi-subtitle languages

(:- page 24)

Q : The disc cannot accept the operation you

have attempted. 15

Playing discs(continued) PlayingIVIP3andJPEGdiscs

Press DIMMER repeatedly.

• The modified brightness will be stored even after

the power is turned off.

The items below can be carried out for all sources.

Press AUDIO VOL +/-.

NOTE

The volume can be adjusted by turning the VOLUME

control on the main uniL

Bass: Press BASS +/-.

Treble: Press TREBLE +/-.

Press MUTING.

• No sound will come out from the speakers,

headphones and the subwoofer.

• Press MUTING again to restore the sound.

When the power is tuned off once and turned on

again, the sound will be restored.

GROUP/TITLE

/2%

AUDIO

_,_

i;_i_!iii_i__i;,+___ !i!

+

I

I

i

_,,-(Play button)

]

t

l

Cursor

(A/'v/.,t/_)

/ENTER

oNumber

buttons

NOTE

Set the remote control mode selector to +°,oI_{

UI

AUDIO before using the number buttons. _

16

Advanced operations

Display of an MP3 disc is described here as an

example.

For a JPEG disc, read "track" as "file".

NOTE

When playing a disc containing both MP3 and JPEG

files, set one of them to be played (.page 29).

1Load adisc.

Elapsed time of the track currently being

TV screen played (MP3 only).

MP3CONTROL

Gr0up : 1/lfJ

_ ..;i....................iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_

T

Group list

Selected group

Track:1/6 (T0ta128)

begonia

_i ¸_

Track list (Tracks

included in the

selected group)

Selected track

Press cursor A/T to select a

group.

3 Press cursor =.- to move to the

track list.

• Press cursor -,9 to go back to the group list.

4Press cursor &IT to select a

track.

Press I_(play) or ENTER.

NOTE

•GROUP/TITLE I<<, >>1can also be usedin Step 2.

•The number buttons can also be used in Step 4. In

this case, Steps 3 and 5 are not needed. (For how

to use the number buttons, refer to page 15).

• I_ or m,.B,.ican also be used in Step 4. In this case,

Step 3 is not needed.

1Press REPEAT while the disc is

stopped.

Each time you press the button, the Repeat

type will be alternated.

Display on the display

Repeat types Display on the TV screen window on the main unit

Repeats the current REPEAT TRACK

track (only for MP3), (_

Repeats the current REPEAT GROUP

group,

Repeats the entire REPEAT ALL

disc (_ ALL

Cancels repeat No display No display

Repeats the current trac_ REPEAT STEP (_

during a Program or

Random Playback (only

for MP3).

Repeats afl programmed REPEAT ALL _ ALL

tracks or the all tracks for

Random play (only for

MP3).

:_: : represents blinking

2 Press I_(play).

NOTE

•The Repeat types can be changed during playback.

•The Repeat mode will be automatically cancelled if

there is a file that cannot be played (.. page 3).

lide-Show Playback

In Step 5, for a JPEG disc, when _,,-(play) is pressed, files will be continuously played from the selected

• file (Slide-Show Playback), and when ENTER is pressed, only a selected file will be played.

Display time for a file in Slide-Show Playback is about 3 seconds.

• When all files are played through, the playback will be automatically stopped.

17

ResumePlayback

When playback is stopped in the middle, playback

can be started from the stopped scene.

This is called Resume function.

0/_ AUDIO

FM/AM AUX

_(Play button)

How to suspend playback

Perform any of the following operations during

playback.

Press •once.*

Press O/I AUDIO to turn off the power.

Change the source to FM/AM or AUX.*

Even if the power is turned off by pressing

O/IAUDIO after this, the position where playback

has been stopped will be stored.

To start playback from the stored

position

Press I_ (play).

NOTE

•This function does not work in Program Playback or

Random Playback.

• The position where playback starts again may be a

little different from the stopped position.

• When a disc menu is displayed, the Resume

function may not work.

• The audio language, the subtitle language and the

angle at that time are stored as weft as the stopped

position.

• The stored position will be cleared if the disc tray is

opened. Further, if •is pressed during playback,

"RESUME" will be displayed. If •is pressed at this

time, "RESUME OFF" will be displayed and the

stored information will be cleared.

• At the time of purchase, Resume is set to ON.

Resume can be set to OFF (.. _page 30).

18

Selectthesceneto be played Advanced operations

AUDIO

Cursor

(A/v/-_/_)

/ENTER

Number

buttons

NOTE

Set the remote control mode selector to _Jo,oI_

AUDIO before using the number buttons, v

2

Press MENU or ToP MENU

while the disc is stopped or

during playback *_.

The disc menu screen will be displayed.

Press cursor A/T/4/_-(only for

aDVD VIDEO or DVD AUDIO) or

the number buttons to select

the scene to be played.

•Refer to "How to use the number buttons"

(: -" page 15).

• When the menu screen has a couple of

pages, press _4 or _,-I to change the

page (only for a VCD and SVCD).

3 Press ENTER.

without a menu screen.

•Playback may start for some discs without pressing

ENTER.

1Press ON SCREEN twice during

playback .2.

The menu bar will be displayed (_ page 28).

2Press cursor_/P- to select ._J.

3 Press ENTER.

4Input the time .3 using the

number buttons (1-9, 0).

• Input "hours", "minutes" and "seconds" for a

DVD VIDEO and DVD AUDIO, and input

"minutes" and "seconds" for a CD and VCD.

"minutes" and "seconds" can be omitted.

Example: When you want to play a DVD

VIDEO from the position of (0

hour) 23 minutes 45 seconds,

press the buttons in the order:

• If you input wrong numbers, press cursor4

to delete the numbers and re-input.

Press ENTER.

To delete the menu bar, press ON SCREEN.

NOTE

•This function does not work fora DVD VIDEO with

no time information recorded.

• This function does not work during Program or

Random Playback.

.2 For a CD, this operation can always be carried out,

while, for a VCD, the operation can be carried out

when the disc is stopped or during playback without

the PBC function.

.3 Time search for a DVD VIDEO is from the beginning

of the title, for a DVD AUDIO from the beginning of

the track being played. Time search for a VCD and

a CD is as follows:

• When the disc is stopped, time search is from the

beginning of the disc.

• When the disc is being played, time search is

within the track currently being played.

NOTE

*_ For a VCD and SVCD, this operation can be carried

out only when the PBC function is off.

• This operation cannot be carried out for a disc

19

ProgramPlayback/RandomPlayback

(Play button)

CANCEL

/f % _ ",', m.4

PLAY MODE

IC q i¸ C J ii; U¸¸¸i il

__i _ iiiiii_iill_ '!IZ_Iii,!_ii

,-Number

buttons

It is possible to program a maximum of 99 chapters

or tracks. The same chapter or track can be

programmed more than once.

1While the disc is stopped, press

PLAY MODE repeatedly to

display "PRGM" on the display

window on the main unit.

"PRGM" is an abbreviation for PROGRAM.

Example: For DVD VIDEO

PROGRAM _\ TV screen

NO Gr o_J_i'r;_e r _okio_pte

1 I II

2 i II

3 I II

4FJl

s r 1[

6 I.....................I[

7 I.................I[

8 I II

-- -Program

screen

2Create a program following the

description on the TV screen.

Refer to "How to use the number buttons"

(:- page 15).

• The input content varies depending on the

disc type.

• DVD VIDEO: Titles and chapters

• VCD, SVCD, CD: Tracks

• DVD AUDIO, MP3: Groups and tracks

• To select a DVD AUDIO bonus group, carry

out the operations of "Playing the Bonus

Group" on page 27 in advance to erase the

display "BONUS".

• If the number of chapters or tracks input is

greater than 99, "FULl" will be displayed.

• In the case of a CD, SVCD or VCD, when

the total playback time reaches 99 minutes

59 seconds, "--:--" will be displayed on the

display window (It is possible to continue

programming).

2O

NOTE

Set the remote control mode selector to , D,o[_

y!

AUDIO before using the number buttons.

Toprogramon the displaywindow onthe main

unit, operate as follows.

(1) Select a title/group using the number

Advanced operations

buttons.

Display example of the upper display

window: T2 C--

(2) Designate a chapter/track number using the

number buttons.

Display example of the upper display

window: T2 C3

•Refer to "How to use the number buttons"

(:-" page 15).

• The program number will be displayed on

the lower display window (Example: "P2").

(3) Repeat the above operations (1) and (2) to

1Press PLAY MODE repeatedly

to display "RANDOM" on the

display window on the main unit

while the disc is stopped.

• "RANDOM" will also be displayed on the TV

screen.

2Press I_(play).

complete the program. Then, advance to

Step 3.

3 Press I_(play).

• To resume normal playback, press PLAY

MODE repeatedly to display "NORMAl" on

the display window on the main unit while

the disc is stopped. The program content

will not be erased.

• The following operations erase the program

content.

• Hold down CANCEL until "CLEAR!"

appears on the display window with the

program preference screen displayed (if

CANCEL is pressed and released

quickly, programs will be erased one by

one).

• Open the disc tray

• Turn off the power

• The same chapter or track will not be

played twice.

• To resume normal playback, press PLAY

MODE repeatedly to display "NORMAl" on

the display window on the main unit while

the disc is stopped.

• Random Playback will also be cancelled by

carrying out the following operations.

• Open the disc tray

• Turn off the power

• The previous track will not be returned to

even if I,<-.11is pressed repeatedly during

Random Playback (the beginning of the

current chapter or track will be returned to).

21

22

Repeat Playback

Refer to page 17 for Repeat Playback of MP3 and

JPEG files.

REPEAT

U ¸C, n

!'i)i,i:ii_i

_Cursor

/ENTER

Press REPEAT during playback.

Each time you press the button, the Repeat

type will be alternated.

Example:

TV screen

For DVD VIDEO

Display window on the main unit

C

Repeat types Display on the TV Display on the

screen main unit

Repeats the current r_-._ CHAP. C

chapter L==J

Repeats the current _r'_ ,_TITLE

title

Cancels repeat _J OFF No display

For DVD AUDIO

Repeat types Display on the TV Display on the

screen main unit

Repeats the current _ TRACK C

track

Repeats the current __.JGROUP C;ALL i"

group

Cancels repeat _..JOFF No display

........ represents blinking_

For CDNCD/SVCD

Repeat types Display on the TV Display on the

screen main unit

Repeats the current _ TRACK C

track

Repeats aJl tracks _J ALL C ALL

CanceJs repeat _i) OFF No display

NOTE

•For a DVD AUDIO and CD, this operation can

always be carried out, while, for a VCD and SVCD,

the operation can be carried out when the disc is

stopped or during playback without the PBC

function.

• It is possible to set Repeat on the menu bar. For

how to operate, refer to "Playing the designated part

rep ea te dly (A -B Repeat Playback) "(. page 23).

• The abbreviations displayed on the main unitare as

follows.

TRK : Track

CliP : Chapter

TI. : Title

GR. : Group

• For a DVD VIDEO and DVD AUDIO, if the source is

switched to FM/AM or A UX, the Repeat mode will be

cancelled.

Repeat Playback during Program or

Random Playback

Repeat types Display on the TV Display on the

screen main unit

Repeats the current _i} STEP

chapter or track or C

REPEATSTEP

Repeats all _ ALL

programmed tracks

or all the tracks in or C ALL

Random Playback REPEAT ALL

[__=J OFF

Cancels repeat or No display

No display

1Press ON SCREEN twice during

playback.

The menu bar (- page 28) will be displayed.

2Press cursor_/_to select

3Press ENTER.

4Press cursorA/Tto display

A-B i"

Other Repeat modes can be selected here.

For other Repeat modes, refer to "Playing the

title/chapter/group/track/all tracks repeatedly

(REPEAT)" (. _ page 22).

5Press ENTER at the start point

of the part to be repeated

(designating A point).

• The icon on the menu bar will be

6Press ENTER at the end point of

the part to be repeated

(designating B point).

• The icon on the menu bar will be

C will appear blinking on the display

window on the main unit and the part

between A and B points will be played

repeatedly.

• A-B Repeat Playback will be cancelled by

carrying out the following operations.

• Press m.

• Select Bj and press ENTER twice.

NOTE

A-B Repeat Playback is possible only within the same

title or track. A-B Repeat Playback cannot be carried

out during PBC playback, Program Playback, Random

Playback and Repeat Playback.

Advancedoperations

23

Otherconvenientfunctions

i i AUDIO SUBTITLE ANGLE

o Cursor

(A/v/.,t/_)

/ENTER

ZOOM

(only for moving image)

Press SUBTITLE during

playback of a disc containing

subtitles in several languages.

Example: TV screen

1Press AU DIO during playback of

a disc containing several audio

languages.

Example: TV screen

2

•Each time you press the button, the audio

language will be alternated. Also, the audio

language can be changed by pressing

cursorA/v.

• For a language code such as "AA', refer to

"Language codes" (_." page 38).

• "ST", "1" and "R" displayed when playing a

VCD or SVCD respectively represent

"Stereo", "left sound" and "right sound".

Wait for a few seconds or press

ENTER.

NOTE

It is possible to operate by using the menu bar

page 28).

2

3

• Each time you press the button, the subtitle

will be alternated between ON/OFF.

Press cursorA/_'to select a

subtitle language.

• For a language code such as "AA", refer to

"Language codes" (: _ page 38).

• The manner of displaying subtitle

languages may be different depending on

the disc.

Wait for a few seconds or press

ENTER.

NOTE

•It is possible to operate by using the menu bar

(.page 28).

• For a SVCD, each time you press SUBTITLE in

Step 1, the subtitle type and ON/OFF will be

alternated.

1(only for moving image)

Press ANGLE during playback

of a scene containing multi-view

angles.

Example: TV screen

2

• Each time you press the button, the angle

will be alternated. Also, the angle can be

changed by pressing cursorA/v.

Wait for a few seconds or press

ENTER.

NOTE

It is possible to operate by using the menu bar

page 28).

24

BW BW

2

Advanced operations

(only for moving image)

Press ZOOM during playback or

while paused.

• Each time you press the button, the picture

magnification will be changed (X1.5 only

for a VCD and SVCD).

Select the portion you want to

see by using cursor A/v/_/_-.

• This operation cannot be carried out when

the magnification is Xl.

• To resume normal playback, select Xl in

Step 1.

3Press cursorA/Tto select an

item to be adjusted.

4Press ENTER.

Example: TV screen

5Press cursorA/_'to change the

value.

6Press ENTER.

To adjust other items, go back to Step 3.

1Press VFP.

NOTE

•If no operation is made for several seconds during

the procedure, the settings made so far will be

automatically stored.

• "VFP" is an abbreviation of "Video Fine Processor".

Press VFP during playback or

while paused.

"VFP SET" will appear on the display window

on the main unit and the current setting will be

displayed on the TV screen.

+o ]

Gamma: Controls brightness of neutral tints

while maintaining brightness of dark and

bright portions.

• Sharpness: Controls screen sharpness.

2Press cursor_/=-to select VFP

mode.

• It is recommended to select "NORMAl"

usually, or "CINEMA" in a dark room. When

either "NORMAl" or "CINEMA" is selected,

go to Step 7.

• When either "USER 1" or "USER 2" is

selected, the adjustment can be carried out

in detail in the operations after Step 3.

25

Other convenient functions (continued)

PROGRESSVE

VIRTUAL

SURROUNC

DVD LEVEL

types of disc. If the difference is not to your liking,

adjust the DVD Level.

1Press DVD LEVEL during

playback.

• Each time you press the button, the level

will be alternated among "NOR" (Normal),

"MID" (Middle) and "HIG" (High).

• Select the level while listening to the sound

played.

NOTE

• DVD Level is effective only forplayback ofa DVD.

• Even if the DVD Level is changed, the output level

from the digital audio output terminal will not be

changed.

• This operation can be carried out while the disc is

stopped or paused.

26

NOTE

Virtual Surround can be set only for multi-channel

sound (AC3, LPCM, PPCM and DTS). Virtual

Surround cannot be set for2 channel audio such as

PCM stereo or Dolby Surround.

1 Press VIRTUAL SURROUND

during playback.

Example: TV screen

OFF

• Each time you press the button, the Surround

mode will be alternated between ON/OFE

• When ON, "SURROUND" appears on the

display window.

• When switching the Surround mode, the

sound will be intermittent.

NOTE

• Virtual Surround is effective for the speakers and

headphones.

• "V.SUR." displayed on the display window is an

abbreviation of "Virtual Surround".

The audio of a DVD VIDEO and DVD AUDIO may

be recorded at a lower level (volume) than for other

In the Progressive mode, better pictures can be

enjoyed.

CAUTION

•In order to enjoy pictures in the Progressive

mode, the following requirements should be met.

• There must be a component video input terminal

on the TV set connected to the main unit.

•The main unit and the TV set must be

connected using a component video cord

(: page11).

When the above requirements are not satisfied,

leave the main unit in the Interlace mode. If the

Progressive mode is set, pictures may be distorted.

NOTE

Progressive mode:

All scanned lines will be displayed at once. Pictures

of higher resolution than those in the Interlace mode

can be realized.

Interlace mode:

This is a conventional image method. Half of the

scanned lines displayed in the Progressive mode

will appear, alternating with the other half.

Display "PROGRESS" by holding

down PROGRESSIVE during

playback or while the disc is stopped,

or when there is no disc loaded.

• Each time you hold down the button, the mode

will be alternated between the Progressive mode

and the Interlace mode.

• The display window displays "PROGRESS"

when in the Progressive mode, and "INTER."

when in the Interlace mode.

Functionsspecificto DVDAUDIO Advanced operations

NOTE

Set the remote control mode selector to ..... I_

AUDIO before using the number buttons, v _4I

GROUF TITLE

AUDIO

@

_i.........._1 >_/¸!I

,@

iii

iii

ill i

!!

!i

ii!

.Cursor

(A/T)

/ENTER

Number

bu_ons

There are some DVD AUDIO discs with a special

group, called "Bonus Group", recorded.

NOTE

This operation can be carried out when "BONUS'is lit

on the display window on the main unit.

1 Press GROUP/TITLE >>l

repeatedly during playback to

select a bonus group.

"KEY " appears on the TV screen, and

on the display window on the main unit.

LPress the number buttons to

enter a pin code (4 digits).

The method of getting a pin code may be

different depending on the disc.

3 Press ENTER.

• When a correct pin code is entered,

"BONUS" disappears and the playback of

the bonus group starts.

• If an incorrect pin code is entered, try

entering a correct pin code again.

There are some DVD AUDIO discs with still

pictures recorded. Among the still pictures, there

are pictures called B.S.R (Browsable Still

Pictures). With these pictures, it is possible to

switch a picture as if turning over pages.

NOTE

This operation can be carried out when "B.S.P. "is lit

on the display window on the main unit.

1Press PAGE during playback.

Each time you press the button, the still picture

will be switched over. It is also possible to

switch the picture using cursor A/v.

Example: TV screen

2Wait for a few seconds or press

ENTER.

27

28

Usingthemenubar

°Cursor

(A/T/4/_)

/ENTER

ii

Number

buttons

NOTE

•Set the remote control mode selector to ..... I_

AUDIO before using the number buttons. _U!

• This operation can be carried out when there is a

disc loaded. There are some functions that may not

work while the disc is stopped.

Press ON SCREEN twice.

"ON SCREEN" will appear on the display

window on the main unit. The status bar and

the menu bar will appear on the TV screen.

The above is an example for a DVD VIDEO.

Press cursor4/=.-to select an

item to be operated.

3Press ENTER.

• The selected function can be set. For the

setting content, refer to the following

"Functions list".

• The currently active function shows blue.

• To delete the menu bar, press ON

SCREEN.

Functions list

For the functions with no special description for the

operations, press cursorA/'vto select, and press

ENTER to determine.

Time display

selection

Select this to change time information

displayed on the display window on the

main unit and the status bar. Each time

ENTER is pressed the display will be

alternated,

DVD VIDEO/DVD AUDIO (operating

during playback)

TOTAL: Elapsed playing time of current title/

group.

T.REM : Remainingtimeofcurrenttitle/group

TIME : Elapsed playing time of current

chapter/track.

REM : Remainingtimeofcurrsntchaptsr/track

CD (operating during playback)/VCD/

SVCD

TIME : Elapsed playing time of current

track.

REM : Remaining time of current track.

TOTAL: Elapsed playing time of disc.

T.REM : Remaining time of disc.

page 22

Repeat mode

page 19

Time search

Select a chapter/track, Press the................................ number buttons to input the chapter/

track number and press ENTER.

Examples:

Chapter search

(DVDVIDEO)/Track 5: @ 24: @_@

search (DVD

AUDIO)

page 24

Audio language/

Audio (DVD VIDEO/

DVD AUDIO/VCD/

SVCD)

page 24

Subtitle language

(DVD VIDEO/SVCD)

• page 24

View angle (DVD

VIDEO/DVD AUDIO)

Page switch (DVD

AUDIO)

Switch the still pictures (B.S.R) recorded

on a DVD AUDIO disc. ( "page 27)

Information displayed on the status bar

DVD VIDEO/DVD AUDIO (the example below is for

a DVD VIDEO)

(DVD VIDEO)-

Current title number (DVD AUDIO)

(DVD AUDIO) Current track number

Current group number

VCD/SVCD/CD (the example below is for a CD)

Playback mode Time Playback status

Current track number

NOTE

The playback status mark has the same meaning of

the mark on the On-screen guide (._ page 15).

Preferences Advanced operations

CHOICE Y/

Cursor

/ENTER

Number

buttons

The initial settings of the system can be changed

according to the environment the system is used

in.

NOTE

•Set the remote control mode selector to AU}IO I_

yI

AUDIO before using the number buttons, v

• The top and bottom of the preference screen may

not be displayed on a wide TV. Adjust the picture

size on the TV.

Press CHOICE while the disc is

stopped or no disc is loaded

("NO DISC" is displayed).

• "SETTING" will appear on the display

window on the main unit and the following

screen will be displayed on the TV.

LANGUAGE

[ MENU LANGUAGE

[AUDIO LANGUAGE [ ENGLISH -j

[ SIJBTiTLE [ ENGLISH -I

ION SOREEN LANGUAGE ] ENGUSH }

• Proceed with operations by following the

description on the TV screen.

4;

NOTE

• If the selected language is not recorded on the disc,

the optimum language set for the disc will be

displayed.

• For a language code such as "AA", refer to the

"Language codes" _ page 38).

Items Contents

MENU LANGUAGE Select the language for the DVD VIDEO menu.

AUDIO LANGUAGE Select the audio language for the BVD VIDEO.

Select the subtitle language for the DVD

SUBTITLE VIDEO.

ON SCREEN Select the language displayed on the

LANGUAGE 3reference screens.

Items

MONITOR

TYPE

SCREEN

SAVER

MP3_PEG

Contents ( : initial setting)

Select a display method suitable for your TV.

16 : 9 NORMAL:

Select this when the aspect ratio of your wide

TV is fixed to 16:9 (when playing a DVD

VIDEO recorded at 4:3, the system

automatically adjusts the screen width of the

output signal).

16 : 9 AUTO:

Select this when your TV is an ordinary wide

TV.

Select this when the aspect ratio of your TV is

conventional 4:3. While viewing a wide screen

3icture the black bars appear on the top and

bottom of the screen.

4 : 3 PS (Pan Scan):

Select this when the aspect ratio of your TV is

conventional 4:3. While viewing a wide screen

3icture the left and right edges of the picture

will not be shown on the screen. (If the disc is

not compatible with Pan Scan, the picture will

be displayed at the Letter Box ratio.)

Select the Screen Saver mode between ON /

OFF (Screen Saver activates when there is no

operation made for about 5 minutes since a

still picture was last displayed).

If there are both and JPEG files on a

disc, you can select which files to play. When

the preference has been changed, open/close

the tray and turn on the power again. (A disc

with only one of MP3 file or JPEG file recorded

can be played regardless of this preference.)

29

Preferences (continued)

Items

DIGITAL

AUDIO

OUTPUT

DOWN MIX

D(Dynamic).

RANGE

COMPRESSION

Contents ( : initial setting)

Select an output signal type from the

following in accordance with the device

connected to the digital audio output

terminal (AV amplifier, etc,), (See the list

below for the preference items and output

signal.)

PCM ONLY:

Device corresponding only to linear PCM

DOLBY DIGITAL/PCM:

Dolby digital decoder or a device having the

same function.

DTS/Dolby digital decoder or a device having

the same function,

Switch signal from the digital output

terminal of the DVD VIDEO according to the

connected device. Select this when Digital

Audio Output is set to "PCM ONLY".

A Dolby Pro Logic decoder-built-in device.

STEREO:

An ordinary device,

When Virtual Surround is ON, Down Mix

does not work,

To make adjustments for the difference

between a high volume and a low volume

when playing back with low volume (only

for a DVD recorded with Dolby digital).

AUTO :

D. Range Compression automatically works,

ON:

D. Range Compression always works.

Items

RESUME

ON SCREEN

GUIDE

AV

COMPULINK

MODE

PARENTAL

LOCK

Contents ( : initial setting)

Select /OFF. (" page 18)

Select /OFF. ("page 15)

(page 36)

DV_:_ :

Connect to the video-3 input on the TV set or

the DVD input on the AV amplifier,

DVD2:

Connect to the video-1 input of the TV set.

DVD3:

Connect to the video-2 input of the TV set.

Set the Parental Lock function to cut off

violent scenes or replace the scenes with

others, (This is effective only for discs

equipped with the Parental Lock function,)

COUNTRY CODE ( page 31)

Select your country,

SET LEVEL:

The restriction is stricter as the number

becomes smaller, "NONE" is no restriction,

PASSWORD (essential):

Enter four-digit number as your password

using the number buttons (1-9, 0) every time.

(Enter "8888" if you forget your password,)

The password is required at the time of

playback,

•If you enter a wrong password three times,

"EXIT" will be automatically selected,

List of relationships of DIGITAL AUDIO OUTPUT preference items and output signal

Playback disc DIGITAL AUDIO OUTPUT preference

DOLBY DIGITAL/PCM

Stream/PCM PCM only

48 kHz, 16/20/24 bits

Linear PCM DVD VIDEO 48 kHz, 16 bits stereo linear PCM

96 kHz linear PCM DVD VIDEO

48/96/192 kHz, 48 kHz, 16 bits stereo linear PCM

16/20/24 bits linear PCM DVD AUDIO

44.1/88.2/176.4k Hz,

16/20/24 bits linear PCM DVD AUDIO 44.1 kHz, 16 bits stereo linear PCM

DTS DVD VIDEO DTS bit stream 48 kHz, 16 bits stereo linear PCM

DOLBY DIGITAL DVD VIDEO/ 48 kHz, 16 bits stereo linear

DVD AUDIO DOLBY DIGITAL bit stream PCM

CD/VCD/SVCD 44.1 kHz, 16 bits stereo linear PCM/48kHz, 16 bits linear PCM

DTS CD DTS bit stream 44.1 kHz, 16 bits linear PCM

MP3 disc No output

NOTE

•For a DVD VIDEO without content protection set, there is a 20 bit or 24 bit output at the digital audio output

terminal.

3O

Country/Areacodes Advanced operations

AD Andorra

AE United Arab Emirates

AF Afghanistan

AG Antigua and Barbuda

AI Anguilla

AL Albania

AM Armenia

AN Netherlands Antilles

AO Angola

AQ Antarctica

AR Argentina

AS American Samoa

A[ Austria

AU Australia

AW Aruba

AZ Azerbaijan

BA Bosnia and

Herzegovina

BB Barbados

BD Bangladesh

BE Belgium

BF Burkina Faso

BG Bulgaria

BH Bahrain

BI Burundi

BJ Benin

BM Bermuda

BN Brunei Darussalam

BO Bolivia

BR Brazil

BS Bahamas

BT Bhutan

BV Bouvet Island

BW Botswana

BY Belarus

BZ Belize

CA Canada

CC Cocos (KeeB-_g)

Islands

OF Central African

Republic

CG Congo

OH Switzerland

CI C6te dlvoire

OK Cook Islands

CL Chile

CM Cameroon

ON China

CO Colombia

OR Costa Rica

CU Cuba

CV Cape Verde

CX Christmas Island

CY Cyprus

CZ Czech Republic

DE Gen-nany

DJ Djibouti

DK Denmark

DM Dorninica

DO Dominican Republic

DZ Algeria

EC Ecuador

EE Estonia

EG Egypt

EH Western Sahara

ER Eritrea

ES Spain

ET Ethiopia

FI Finland

FJ Fiji

FK Falkland Islands

(Malvir/as)

FM Micronesia

(Federated States of)

FO Farce Islands

FR France

FX France, Metropolitan

GA Gab()n

GB United Kingdom

GD Grenada

GE Georgia

GF French Guiana

GH Ghana

GI Gibraltar

GL Greenland

GM Gambia

GN Guinea

GP Guadeloupe

GQ Equatorial Guinea

GR Greece

GS South Georgia and

the South Sandwich

Islands

GT Guatemala

GU Guam

GW Guinea-Bissau

GY Guyana

HK Hong Kong

HM Heard Island and

McDonald Islands

HN Honduras

HR Croatia

HT Haiti

HU Hungary

ID Indonesia

IE Ireland

IL Israel

IN India

IO British Indian Ocean

]_rritory

IQ Iraq

IR Iran (blamic Republic of}

IS Iceland

IT Italy

JM Jamaica

JO Jordan

J P Japan

KE Kenya

KG Kyrgyzstan

KH Cambodia

KI Kiribati

KM Comoros

KN Saint Kitts and Nevis

KP Korea, Democratic

People's Republic of

KR Korea, Republic of

KW Kuwait

KY Cayman Islands

KZ Kazakhstan

LA Lao People's

Democratic Republic

LB Lebanon

LC Saint Lucia

LI Liechtenstein

LK Sri Lanka

LR Liberia

LS Lesotho

LT Lithuania

LU Luxembourg

LV Latvia

LY Libyan Arab

Jamahiriya

MA Morocco

MC Monaco

MD Moldova, Republic of

MG Madagascar

MH Marshall Islands

ML Mall

MM Myanmar

MN Mongolia

MO Macau

MP Northern Mariana

Islands

MQ Martinique

MR Mauritania

MS Montserrat

MT Malta

MU Mauritius

MV Maldives

MW Malawi

MX Mexico

MY Malaysia

MZ Mozambique

NA Narnibia

NC New Caledonia

NE Niger

NF Norfolk Island

NG Nigeria

NI Nicaragua

NL Netherlands

NO Norway

NP Nepal

NR Nauru

NU Niue

NZ New Zealand

OM Oman

PA Panama

PE Peru

PF French Polynesia

PG Papua New Guinea

PH Philippines

PK Pakistan

PL Poland

PM Saint Pierre and

Miquelon

PN Pitcaim

PR Puerto Rico

PT Portugal

PW Palau

PY Paraguay

QA Qatar

RE Reunion

RO Romania

RU Russian Federation

RW Rwanda

SA Saudi Arabia

SB Solomon Islands

SC Seychelles

SD Sudan

SE Sweden

SG Singapore

SH Saint Helena

SI Slovenia

SJ Svalbard and Jan

Mayen

SK Slovakia

SL Sierra Leone

SM San Marino

SN Senegal

SO Somalia

SR Suriname

ST Sac Tome and Principe

SV El Salvador

SY Syrian Arab Republic

SZ Swaziland

TO Turks and Caicos

Islands

TD Chad

TF French Southern

l_rritories

TG Togo

TH Thailand

TJ 12ajikistan

TK Tokelau

TM Turkmenistan

TN Tunisia

TO 1-onga

TP East Timor

TR Turkey

TT Trinidad and Tobago

TV Tuvalu

TW l_aiwan

TZ i Tanzania, United

Republic of

UA Ukraine

UG Uganda

UM United Srates Minor

Outlying Islands

US United States

UY Uruguay

UZ Uzbekistan

VA Vatican City S_ate

(Holy See)

VC Saint Vincent and the

Grenadines

VE Venezuela

VG Virgin Islands (British)

VI Virgin Islands (US)

VN Viet Nam

VU Vanuatu

WF Wallis and Futuna

Islands

WS Samoa

YE Yemen

YT Mayotte

YU Yugoslavia

ZA South Africa

ZM Zambia

ZR Zaire

ZW Zimbabwe

31

Listening to a radio broadcast

You can tune in to FM or AM.

FM/AM

TUNING TUNING @

FM MODE

Cursor

(A/.)

1Press FM/AM.

Each time you press the button, the band will

be alternated between FM and AM.

Example:

I .... Im ml

m mm

m

_Frequency

ST

2Press TUNING • or TUNING @

to select the station (frequency).

Automatic tuning:

Hold down TUNING @ or TUNING @ until the

system starts searching, and then release the

button.

When a station of sufficient signal strength is

tuned in to, the system stops searching

automatically.

To stop searching manually, press

TUNING @ or TUNING @.

Manual tuning:

Each time you press TUNING @or

TUNING @, the frequency changes.

• When an FM stereo program is received,

the "ST" (Stereo) indicator lights.

• You can also select the station with

cursor A/T.

NOTE

If the stereo FM program currently tuned in to is noisy,

you can improve the reception by pressing FM MODE

to switch to the monaural mode ("MONO" lights). If you

press FM MODE again, or tune in to another station,

the receiving mode returns automatically to the stereo

mode.

32

Tuningin to a presetstation Listening to radio

FM/AM

AUDIO

iiCil 4 i¸¸ Jii: !i ¸ ii ii ii

Cursor

(_/_)

/ENTER

o Number

buttons

Presetting stations in the system allows you to

easily tune in to a station.

NOTE

Set the remote control mode selector to .... _'_

AUDIO before using the number buttons. _UI

3

4

Select the number you want to

store by pressing cursor _/_

while the memory number is

blinking.

• You can also select the number by using the

number buttons.

• Refer to "How to use the number buttons"

(; -" page 15).

Press MEMORY or ENTER while

the selected number is blinking.

"SET" will be displayed and the selected

station will be stored.

NOTE

Storing a new station to a used number erases the

previously stored station.

'I Press FM/AM repeatedly to

select either FM or AM.

2 Press the number buttons to

select the memory number of a

station you want to tune in to.

Refer to "How to use the number buttons"

(:- page 15).

You can also select by pressing cursor .t/_.

The system stores up to 30 FM stations and up to

15 AM stations.

ISelect a station you want to

store (_ page 32 for how to

select).

2 Press MEMORY.

Figures (memory number) blink on the display

window for about 5 seconds.

33

Listening to the sound of

other audio device

MEMORY

Aux I

J

Connect the other audio device to this system in

advance (:- page 10).

1Press AUX.

The source changes to AUX.

2 Play the other audio device.

For details, refer to the manual of the device

connected.

3Adjust the volume and the

sound quality of the system

(_ page 16).

You can adjust the sound input level of another

audio device connected to the AUX jack.

1

2

Press AUX.

The source changes to AUX.

Hold down MEMORY until an

input level is displayed.

Each time you hold down the button, it switches

as follows:

LEVEL 1: Select this normally.

AutoStandby

hq£ h_;_ ¸ ii

A STANDBY

iil_ _iii_:_ii_ _iii_ii_iii:_ii_

ii ...........

If there is no operation for 3 minutes while the disc

is stopped, the power will be automatically turned

off.

1 PressA.STANDBYduring playback

or while the disc is stopped, or no

disc is loaded ("NO DISC" is

displayed).

"A.S.ON" (Auto Standby On) and "A.STANDBY"

will be lit on the display window on the main unit.

When a stopped state is entered (after playback is

finished, for example), "A.STANDBY" starts

blinking.

This means that the power will be turned off

automatically if there is no operation for 3 minutes.

And, 20 seconds before the power is turned off,

"POWER OFF" will appear blinking.

Releasing Auto Standby

Press A.STANDBY.

"A.S.OFF" (Auto Standby Off) will appear and

"A.STANDBY" will be turned off on the display

window on the main unit.

NOTE

When the source is FM/AM or AUX, Auto Standby

does net work.

LEVEL 2: Select this when the input level

from the other device is too high

and the sound is distorted.

The initial setting is "LEVEL1".

34

SleepTimer TrayLock

SLEEP

i i

i

i

When the time you specify elapses, the system will

be turned off by itself.

Press SLEEP.

Each time you press the button, the time indicated

on the display window on the main unit changes (in

minutes).

Example: When Sleep Timer is set to 60

minutes

.... \ I.....,>

SLNr=p

Nmm Nmmmm

--m m ram-

;''% ;" ; (Blinking)

mmmmm mmmmm

i

Sleep Timer will be automatically set in a few

seconds, and the indication will disappear.

NOTE

When Sleep Timer is set, the display window darkens

automatically.

Changing the time

Reselect the time by pressing SLEEP repeatedly.

Confirming the time

Press SLEEP once while Sleep Timer is set.

Releasing

Press SLEEP repeatedly until "OFF" appears.

NOTE

Sleep Timer will also be released when the power is

turned off.

You can lock the disc tray to prevent the disc from

being ejected.

Setting

Turn off the power. And while holding down • (Stop)

on the main unit, press ,*, (Open/Close).

"LOCKED" appears on the display window on the

main unit.

Releasing

Carry out the same operations as those for setting.

"UNLOCKED" appears on the display window on

the main unit.

35

UsingAVCOMPULINK

When the TV set or device to be connected is a

JVC product equipped with the AV COMPU LINK-

[[ or -[]! jack, connecting them to the AV COMPU

LINK jack on the system will allow you to control

the other devices by operating one device.

Connection with a TV set and an AV

amplifier

•Also read manuals of the

AV amplifier.

NOTE

•Refer to "Others" (,_page 30) to set the AV

COMPU LINK mode.

• Also carefully readmanuals of devices to be

connected.

Connection with a TV set

• Connect to the Video 3 (DVD) input jack on your

TV set. If Video 3 is for DV/Movie input, read the

following descriptions:

Connection with aTV set and a VCR

4,

@j Connection cord

(sold separately)

"AV COMPU

LINKql

v

JVC-made VCR

TV input jack AV COMPU LINK mode F/emote-control code of VCR

Video 1 DVD 2 B

DVD 3 A

• When using with initial settings, connect to Video

3 (if not set to DV/Movie input). Set the remote-

control code to "A".

Main unit

(soldseparately) ,_.c0_F.u_._ j

IInput jack of AV amplifier AM COMPU LINK mode ]

DVD _ DVD 1 ]

NOTE

• Connecting DVD sound output to a sound input jack

for any device other than a DVD disables proper

operation.

• When connecting component video output to a TV

set, change setting of the A V COMPU LINK mode in

this system to "DVD 1". Do not connect to the S-

video jack on the A V amplifier.

1

2

3

Turn on the main power of the

TV set.

Insert a disc or videotape into

the source device (the system

or a VCR).

Press the play button on the

source device.

• The TV set will be turned on.

• TV input will be switched to external input

(Video 1,2 or 3) of the source device.

• The AV amplifier will be turned on.

• The source of the AV amplifier will be

switched to the device on which the play

button has been pressed.

36

Troubleshooting Reference

When you encounter a problem that seems to be a

fault, check the following points before contacting

your JVC service center:

Power source

• Power does not come on.

• The power cord is not connected to the main

unit or an AC outlet.

-_ Connect the power cord correctly.

(_, page 11 )

•TheTV screendarkens.

• "SCREEN SAVER" is set.

-_ If set, press any button. (- page 29)

•Thescreencannotbe switched.

• The Progressive mode is applied only to

component video output.

About sound

•Thereis nosound.

• Speakers are not connected correctly.

Operation

•Youcannotoperateany button.

• Some specific operations may be inhibited

for some discs.

•The remote control does not work.

• The dry-cell batteries have run out.

Replace the batteries. (: -" page 6)

:-. page 9

The sound is muted.

-_:_ page16

"NO AUDIO" is displayed on the display

window.

The disc may have been produced through

illegal copying.

Confirm at the store where you bought the

disc.

•A disc cannot be played back.

• In the case of DVD VIDEO discs

-_ Check the Region Code number of the

discs. (. _ page 3)

• "PLAYABLE Err" is displayed on the display

window.

It is not a disc that can be played on this

system.

Check the disc type. (- page 3)

• Parental Lock is set. ( "page 30)

About images

• No pictureappears.

• The video cord is not connected correctly.

-_ • _ page 11

• Both of the component video jack and S-

video jack are connected.

Connect either. (: _ page 11)

•The pictureis distorted.

• A VCR is connected between the main unit

and the TV set.

-_ Connect the main unit directly to the TV

set. (: -" page 11)

• Although this system is connected to a non-

Progressive TV set, DVD's scan mode is set

to "PROGRESS".

Set the scan mode to "INTER.".

(__ page 26)

•Thescreensize is abnormal.

• The screen size is set improperly.

Set "MONITOR TYPE"accordingto the TV

set you are using. (: -" page 29)

•The sound is weak compared with TV or Video.

• "DVD LEVEl" is set to "NOR".

-_ Set to other than "NOR". (. -" page 26)

•Thesoundis distorted.

• The volume is turned up too high.

Turn down the volume. (:_ page 16)

No sound comes out of the subwoofer.

• "SUB WFR" is turned off.

Press S.WFR OUT to turn on.

(_:" page 10)

About radio

•The sound is noisywhile receiving./Receiving

is disabled.

• The antenna is not connected correctly.

-_ Connect the antenna correctly.

(__"page 8)

37

38

Troubleshooting (continued)

Others

• It is not possible to switch audio or subtitles

between languages.

•The disc does not contain 2 or more

languages.

-_ If only a single language is recorded on the

disc, switching to another language is

impossible. (- page 24)

No subtitle is displayed.

• The disc does not contain any subtitles.

-_ A DVD VIDEO without subtitles cannot

display any subtitles.

• The subtitle language is set to "OFF".

-_ Specify a language. (. -" page 29)

• Before or after A point or B point in A-B

Repeat Playback, no subtitle may be

displayed.

•The disc cannot be ejected.

• Tray Lock is set.

-_ • _ page 35

• "TRAY Err" is displayed on the display

window.

• The tray is not open fully due to an obstacle.

-_ Close the tray and remove the obstacle.

"LR ONLY"is displayedonthedisplaywindow

(for a DVD AUDIO).

• Because, for the track being played back,

down mix is inhibited for multi-channel

sound, the sound of L and R is output directly

(a normal action).

If the systemdoesnotworkproperly

despitecorrectionmeasuresabove

Many functions of this system are implemented by

microcomputers. If pressing any button does not

result in the normal action, disconnect the power

plug from the outlet, wait for a while, and reconnect

the system.

Languagecodes

Code Language

AA Afar

AB Abkhazian

AF Afrikaans

AM Ameharic

AR Arabic

AS Assamese

AY Aymara

AZ Azerbaijani

BA Bashkir

BE Byelerussian

BG Bulgarian

BH Bihari

BI Bislama

BN Bengali, Bangla

BO Tibetan

BR Breton

CA Catalan

CO Corsican

CS Czech

CY Welsh

DA Danish

DZ Bhutani

EL Greek

EO Esperanto

ET Estonian

EU Basque

FA Persian

FI Finnish

FJ Fiji

FO Faroese

FY Frisian

GA Irish

GD Scots Gaelic

GL Galician

GN Guarani

GU Gujarati

HA Hausa

HI Hindi

HR Croatian

HU Hungarian

HY Armenian

IA Interlingua

IE Interlingue

IK Inupiak

IN Indonesian

IS Icelandic

IW Hebrew

JI Yiddish

JW Javanese

KA Georgian

KK Kazakh

KL Greenlandic

KM Cambodian

KN Kannada

KO Korean (KOR)

KS Kashmiri

KU Kurdish

KY Kirghiz

LA Latin

LN Lingala

LO Laothian

LT Lithuanian

LV Latvian, Lettish

MG Malagasy

MI Maori

Code Language

MK Macedonian

ML Malayalam

MN Mongolian

MO Moldavian

MR Marathi

MS Malay (MAY)

MT Maltese

MY Burmese

NA Nauru

NE Nepali

NL Dutch

NO Norwegian

OC Occitan

OM (Afan) Oromo

OR Oriya

PA Panjabi

PL Polish

PS Pashto, Pushto

PT Portuguese

QU Quechua

RM Rhaeto-Romance

RN Kirundi

RO Rumanian

RU Russian

RW Kinyarwanda

SA Sanskrit

SD Sindhi

SG Sangho

SH Serbo-Croatian

Sl Singhalese

SK Slovak

SL Slovenian

SM Samoan

SN Shona

SO Somali

SQ Albanian

SR Serbian

SS Siswati

ST Sesotho

SU Sundanese

SV Swedish

SW Swahili

TA Tamil

TE Telugu

TG Tajik

TH Thai

TI Tigrinya

TK Turkmen

TL Tagalog

TN Setswana

TO Tonga

TR Turkish

TS Tsonga

TT Tatar

TW Twi

UK Ukrainian

UR Urdu

UZ Uzbek

Vl Vietnamese

VO Volapuk

WO Wolof

XH Xhosa

YO Yoruba

ZU Zulu

Specifications Reference

General

Power source: AC 120 V %, 60 Hz

Power consumption: 24 W (in operation)

0.8 W (on standby)

Weight: 3.0 kg (6.7 Ibs)

External dimensions 232 mm X 100 mm X 269 mm

(W X H X D): (93/16inches X 315/16inches X

106/8 inches)

DVD player

Playable discs: DVD VIDEO, DVD AUDIO, VCD,

Super VCD, CD, CD-R/RW (CD,

VCD, MP3, JPEG format), DVD-R/

RW (video format)

Video output

Color system:

Horizontal resolution:

Composite X 1 :

S-video X 1:

Component X 1:

NTSC

500 lines

1.0 V (p-p)/75 O,

synchronization negative

Y output: 1.0 V (p-p)/75 _,

synchronization negative

C output: 0.286 V (p-p)/75 _

Y output: 1.0 V (p-p)/75

PdPR output: 0.7 V (p-p)/75 -Q

Audio output

Analog sound output:

Speakers X2

Output power:

Fitting impedance:

Headphones Xl:

Fitting impedance:

Subwoofer Xl :

Digital sound output:

Optical Xl:

30 W per channel,

min. RMS, at 4 .Q at

1 kHz with no more

than 10% total

harmonic distortion

4_to 16_

11 mW/32 _Q

16 _-_to 1 kO

500 mVrms/10 k_

-21 dBm to -15 dBm

Audio input

Sound input:

Level 1:

Level 2:

Tuner

FM tuner:

Receiving frequency:

Antenna:

AM tuner:

Receiving frequency:

Antenna:

Speaker

Type:

Speaker:

Power handling capacity:

Impedance:

Sound pressure level:

Dimension (W X H X D):

Weight (1 unit):

AUX X 1

250 mV/50 k£_

500 mV/50 k£_

87.5 MHz to 108.0 MHz

75 £_-unbalanced type

530 kHz to 1710 kHz

External antenna jack (loop

antenna)

1-way bass-reflex type

Magnetically shielded type

8 cm (33/16 inches) cone X1

30 W

4£_

81 dB/Wom

120ram X 161 mm X239 mm

(43/4 inches X 63/8 inches X

97/16 inches)

1.6 kg (3.6 Ibs)

Other output

AV COMPU LINK X2 (o3.5) Designs and Specifications are subject to change

without notice.

39

Authorized Service Centers

JVC

QUALITY SERVICE

HOW TO LOCATE YOUR JVC SERVICE CENTER

TOLL FREE: 1 (800) 537-5722

http://www.jvc.com

Dear Customer,

In order to receive the most satisfaction from your purchase, please read the instruction booklet before operating

the unit. In the event that repairs are necessary, please call 1 (800) 537-5722 for your nearest authorized servicer

or visit our website at www.JVC.com

Remember to retain your Bill of Sale for Warranty Service.

Do not service the television yourself

Caution

To prevent electrical shock, do not open the cabinet. There are no user serviceable parts inside. Please

refer to qualified service personnel for repairs.

Accessories

To purchase accessories for your JVC product, please call toll free: 1 (800)882-2345 or on the web at

www.JVC.com

4O

*****W***_****** _r******'_r************************_**W**_'k**_'_*****_************

**JVC *

** MNiTED WARRANTY CONSUMERVmDEO1-90 **

*JVC COMPANY OF AMERmCA warrants this product and aH parts thereof, except as set forth below ONLY TO THE *

ORIGINAL PURCHASER AT RE-FAtaLto be FREE FROM DEFECTIVE MATERIALS AND WORKMANSHIP from the date

* of original retail purchase for the period as shown below. ("The Warranty Period") *

* PARTS LABOR

*1YR 90 DAYS _"

* THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNmTED SLATES, THE DmSTRICT OF COLUMBIA AND *

** iN COMMONWEALTH OF PUERTO RICO.. *

* WHAT WE WmLL DO: *

_- if this product is found to be defective, JVC will repair or repUace defective paris at no charge} to the original owner. .

* Such repair and replacement services shall be rendered by JVC during normal business hours at JVC authorized service *

* centers Parts used for replacement are warranted only for the remainder of the Warranty Period. All products and parts

* thereof may be brought to a JVC authorized service center on a carryqn basis except for Television sets having a screen *

* size 25 inches and above which are covered on an in-hot'he basis. *

*WHAT YOU MUST DO FOR WARRANTY SEF_V|CE: *

Return your product to a JVC authorized service center with a copy of your bi[Uof sale. For your nearest JVC authorized

* service center, phase call toll free: (800) 537-5722. *

* ff service is not avaimabb bcaHy, box the product carefully, preferabUy in the originaU carton, and ship, insured, with _

.acopy of your bill of sah; pUus a h;tter of expUanation of the probUem to the nearest JVC Factory Service Center, the .

* name and location of which will be given to you by the toll-free number. *

if you have any questions concerning your JVC Product, please contact our Customer Relations Department. .

WHAT iS NOT COVERED: .*

. This limited warranty provided by JVC does not cover: .

* 1. Products which have been subject to abuse, accident, aheration, modification, tampering, negmigence, misuse, fauhy _

. instalUation, Uack of reasonaHe care, or if repaired or serviced by anyone other than a service faciUity authorized by .

* JVC to render such service, or if affixed to any attachment not provided with the products, or if the model number *

* or serial number has been altered, tampered with, defaced or removed; *

. 2. initial installation and installation and removal for repair; .

* 3. Operational adjustments covered in the Owner's Manual normal maintenance, video and audio head cleaning;

4. Damage that occurs in shipment, due to act of God, and cosmetic damage; .

* 5. Signal reception problems arid faibres due to line power surge}; *

_ 6, Video Pickoup JiJbes/CCD Image Sensor, Cartridge, Stylus (Needle) are covered for 90 days from the date of purchase; _

*7. Accessories; *

8. Batteries (except that Rechargeable Batteries are covered for 90 days from the date of purchase); .

* There are no express warranties except as listed above. *

* THE DURATION OF ANY iMPLiED WARRANTIES, INCLUDING THE iMPLiED WARRANTY OF MERCHANTABiLiTY, iS *

** LiMiTED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN. **

* JVC SHALL NOT BE LIABLE FOR THE LOSS OF USE OF THE PRODUCT, iNCONVENiENCE, LOSS OR ANY OTHER *

** DAMAGES, WHETHER DIRECT, INCIDENTAL OR CONSEQUENTIAL (iNCLUDiNG, WITHOUT LIMITATION, DAMAGE _.

* TO TAPES, RECORDS OR DISCS) RESUL-HNG FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH *

OF THiS WARRANTY. ALL EXPRESS AND mMPLIED WARRANTIES, iNCLUDiNG THE WARRANTIES OF MERCHANT_ **

. ABiLiTY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE WARRANTY PERIOD SET FORTH ABOVE. *

._ Some states do not allow the excbsion of incidental or consequential damages or limitations on how long an ._

_implied warranty lasts, so these limitations or exclusions may not apply to you. This warranty gives you specific *

legal rights and you may also have other rights which vary from state to state. *

. JVC COMPANY OF AM ERICA 1700 Valley Road .

* DUVBUON OF JVC AMERUCAS CORR Wayne, NJ 07470 *

*_****************************_**********************************************

REFURBmSHED PRODUCTS CARRY A SEPARATE WARRANTY, THIS WARRANTY DOES NOT APPLY, FOR DETAILS OF

REFURBISHED PRODUCT WARRANTY, PLEASE REFER TO THE REFURBISHED PRODUCT WARRANTY iNFORMATiON

PACKAGED WITH EACH REFURBmSHED PRODUCT,

For customer use:

Enter below the Model No. which is located either on the rear, bottom or side of the cabinet. Retain this information

for future reference.

Model No. : Serial No. :

Purchase data : Name of dealer :

BT-51005-5

(oso_)

41

/

m

x

5.

.,,,,,&

0

0

_0

0

0

0

0

Z

m

Z

m

VICTOR COMPANY OF JAPAN, LIMITED

EN

© 2004 VICTOR COMPANY OF JAPAN, LiMiTED 0104SKMMODJSC
