F-1
POWER
VCR EJECT
DVD
S-VIDEO VIDEO (MONO) L - AUDIO - R
VCR/DVD TIMER VCR REC OPEN/CLOSE STOP PLAY
REMAIN
REC MODE SLOW
<< >>
REC PAUSE REW FF CH DV IN
REC LINK
DVD
TIMER DVD DVDREC VCR DUBBING
PULL-OPEN PULL-OPEN
PROG/CHECK
DISPLAY ON SCREEN
DVD
TIMER VCR
/DVD
VCR
TIMER
SLOW
PREVIOUS NEXT
CLEAR
SLOW
PAUSESTOP/
PLAY/SELECT
REMAIN REC
CH
AUDIO
SUBTITLE
ANGLE
TV/VCR
REC MODE
LIVE CHECK
DVDTV
CABLE/DBS
ABC DEF
JKL MNO
TUV
GHI
PQRS WXYZ
NUMBER / TV CH /DVD CHNUMBER / TV CH /DVD CH
MEMO/MARK
PROGRESSIVE
SCAN
VCR PLUS+
AUX
SET UP
RETURN
CANCEL
NAVIGA
TION
TOP MENU
MENU
TV
VOL.
TV/CBL /DVD
TV/DVD TV
TV
/
CBL/DBS
/DVD
1
4
7
2
5
8
0
3
6
9
ENTER
Filename [DR-MV1SEK_01Cov1.fm]
DVD VIDEO RECORDER &
VIDEO CASSETTE RECORDER
INSTRUCTIONS
DR-MV1S/
DR-MV1B
EN
LPT0938-001A
DR-MV1SEK_01Cov1.fm Page 1 Friday, April 23, 2004 10:14 AM
Filename [DR-MV1SEK_02Safety.fm]
Masterpage:Left0
2 EN
Page 2 April 15, 2004 11:27 am
SAFETY FIRST
The rating plate and the safety caution are on the rear of the unit.
WARNING: DANGEROUS VOLTAGE INSIDE
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE THIS UNIT TO RAIN OR MOISTURE.
CLASS 1 LASER PRODUCT
REPRODUCTION OF LABELS
WARNING LABEL INSIDE OF THE UNIT
●Manufactured under licence from Dolby Laboratories. “Dolby” and
double-D symbol are trademarks of Dolby Laboratories.
●“DTS” and “DTS Digital Out” are trademarks of Digital Theater
Systems, Inc.
●Cassettes marked “VHS” (or “S-VHS”) can be used with this unit.
However, S-VHS recording is not possible with this model.
●This model is equipped with SQPB (S-VHS QUASI PLAYBACK) that
makes it possible to play back S-VHS recordings in the SP mode with
regular VHS resolution.
●HQ VHS is compatible with existing VHS equipment.
●VIDEO Plus+ and PlusCode are registered trademarks of Gemstar
Development Corporation. The VIDEO Plus+ system is manufactured
under license from Gemstar Development Corporation.
●This product incorporates copyright protection technology that is
protected by method claims of certain U.S. patents and other
intellectual property rights owned by Macrovision Corporation and
other rights owners. Use of this copyright protection technology must
be authorised by Macrovision Corporation, and is intended for home
and other limited viewing users only unless otherwise authorised by
Macrovision Corporation. Reverse engineering or disassembly is
prohibited.
Safety Precautions
CAUTION:
A UNIT IS A CLASS 1 LASER PRODUCT. HOWEVER THIS
UNIT USES A VISIBLE LASER BEAM WHICH COULD CAUSE
HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE
SURE TO OPERATE THE UNIT CORRECTLY AS
INSTRUCTED.
WHEN THIS UNIT IS PLUGGED INTO THE WALL OUTLET, DO
NOT PLACE YOUR EYES CLOSE TO THE OPENING OF THE
DISC TRAY AND OTHER OPENINGS TO LOOK INTO THE
INSIDE OF THIS UNIT.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
IMPORTANT:
8Please read the various precautions on pages 2 − 4 before
installing or operating the unit.
8It should be noted that it may be unlawful to re-record pre-
recorded tapes, DVDs, or discs without the consent of the
owner of copyright in the sound or video recording, broadcast
or cable programme and in any literary, dramatic, musical, or
artistic work embodied therein.
CAUTION:
8When you are not using the unit for a long period of time, it is
recommended that you disconnect the power cord from the
mains outlet.
8Dangerous voltage inside. Refer internal servicing to qualified
service personnel. To prevent electric shock or fire hazard,
remove the power cord from the mains outlet prior to
connecting or disconnecting any signal lead or aerial.
DR-MV1SEK_00.book Page 2 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 3
Filename [DR-MV1SEK_02Safety.fm]
Page 3 April 15, 2004 11:27 am
SAFETY FIRST
When the equipment is installed in a cabinet or a shelf, make sure
that it has sufficient space on all sides to allow for ventilation
(10 cm or more on both sides, on top and at the rear).
When discarding batteries, environmental problems must be
considered and the local rules or laws governing the disposal of
these batteries must be followed strictly.
Failure to heed the following precautions may result in
damage to the unit, remote control or disc.
1. DO NOT place the unit —
— in an environment prone to extreme temperatures or
humidity.
— in direct sunlight.
— in a dusty environment.
— in an environment where strong magnetic fields are
generated.
— on a surface that is unstable or subject to vibration.
2. DO NOT block the unit’s ventilation openings or holes.
(If the ventilation openings or holes are blocked by a newspaper
or cloth, etc., the heat may not be able to get out.)
3. DO NOT place heavy objects on the unit or remote control.
4. DO NOT place anything which might spill on top of the unit
or remote control.
(If water or liquid is allowed to enter this equipment, fire or
electric shock may be caused.)
5. DO NOT expose the apparatus to dripping or splashing.
6. DO NOT use this equipment in a bathroom or places with
water. Also DO NOT place any containers filled with water or
liquids (such as cosmetics or medicines, flower vases, potted
plants, cups, etc.) on top of this unit.
7. DO NOT place any naked flame sources, such as lighted
candles, on the apparatus.
8. AVOID violent shocks to the unit during transport.
MOISTURE CONDENSATION
Moisture in the air will condense on the unit when you move it from
a cold place to a warm place, or under extremely humid
conditions—just as water droplets form on the surface of a glass
filled with cold liquid. In conditions where condensation may occur,
disconnect the unit’s power plug from the wall and keep it
disconnected for a few hours to let the moisture dry, then turn on
the unit.
The STANDBY/ON 1 button does not completely shut off
mains power from the unit, but switches operating current on and
off. “`” shows electrical power standby and “!” shows ON.
A
TTENTION:
To mobile phone users:
Using a mobile phone in the vicinity of the unit may cause picture
vibration on the TV screen or change the screen to a blue back
display.
On placing the unit:
Some TVs or other appliances generate strong magnetic fields.
Do not place such appliances on top of the unit as it may cause
picture disturbance.
IMPORTANT
Connection to the mains supply in the United Kingdom.
DO NOT cut off the mains plug from this equipment.
If the plug fitted is not suitable for the power points in your home
or the cable is too short to reach a power point, then obtain a
proper safety approved extension lead/adapter or consult your
dealer.
In the unlikely event of the plug fuse failing be sure to
replace the fuse only with an identical approved type, as
originally fitted, and to replace the fuse cover. If the fuse
fails again consult your nearest JVC dealer.
If nonetheless the mains plug is cut off remove the fuse and
dispose of the plug immediately, to avoid a possible shock
hazard by inadvertent connection to the mains supply.
If this product is not supplied fitted with a mains plug then follow
the instructions given below:
DO NOT make any connection to the Larger Terminal coded E
or Green.
The wires in the mains lead are coloured in accordance with
the following code:
If these colours do not correspond with the terminal
identifications of your plug, connect as follows:
Blue wire to terminal coded N (Neutral) or coloured Black.
Brown wire to terminal coded L (Live) or coloured Red.
If in doubt — consult a competent electrician.
Blue to N (Neutral) or Black
Brown to L (Live) or Red
DR-MV1SEK_00.book Page 3 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_02Safety.fm]
Masterpage:Left+
4 EN
Page 4 April 15, 2004 11:27 am
SAFETY FIRST
This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment,
care must be taken if you are to obtain the best results and safety is to be assured.
DO read the operating instructions before you attempt to use the equipment.
DO ensure that all electrical connections (including the mains plug, extension leads and interconnections between pieces of equipment)
are properly made and in accordance with the manufacturer’s instructions. Switch off and withdraw the mains plug when making or
changing connections.
DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.
DO be careful with glass panels or doors on equipment.
DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in any way — switch off,
withdraw the mains plug and consult your dealer.
DON’T remove any fixed cover as this may expose dangerous voltages.
DON’T leave equipment switched on when it is unattended unless it is specifically stated that it is designed for unattended operation or
has a standby mode. Switch off using the switch on the equipment and make sure that your family knows how to do this. Special
arrangements may need to be made for infirm or handicapped people.
DON’T use equipment such as personal stereos or radios so that you are distracted from the requirements of road safety. It is illegal to
watch television whilst driving.
DON’T listen to headphones at high volume, as such use can permanently damage your hearing.
DON’T obstruct the ventilation of the equipment, for example with curtains or soft furnishings. Overheating will cause damage and
shorten the life of the equipment.
DON’T use makeshift stands and NEVER fix legs with wood screws — to ensure complete safety always fit the manufacturer’s approved
stand or legs with the fixings provided according to the instructions.
DON’T allow electrical equipment to be exposed to rain or moisture.
ABOVE ALL...
Some Do’s And Don’ts On The Safe Use Of Equipment
—NEVER let anyone especially children push anything into holes, slots or any other opening in the case — this could result
in a fatal electrical shock;
—NEVER guess or take chances with electrical equipment of any kind — it is better to be safe than sorry!
DR-MV1SEK_00.book Page 4 Thursday, April 15, 2004 3:30 PM
Masterpage:Right0
EN 5
Filename [DR-MV1SEK_02Safety.fm]
Page 5 April 15, 2004 11:27 am
This unit allows you various types of playback and recording because this unit has two tuners.
Record programmes on both DVD deck and VCR deck
simultaneously
1Start recording on the DVD deck. (墌pg. 42)
2Start recording on the VCR deck. (墌pg. 54)
NOTE:
DV IN connector is available for DVD deck only.
Watch another programme while recording on the unit
Pressing VCR/DVD switches to the other tuner.
1Start recording on the DVD deck or VCR deck. (墌pg. 42, 54)
2Press VCR/DVD.
3Press PR +/– to select the desired channel.
Operate the VCR deck while recording on the DVD deck
Pressing VCR/DVD switch to the other tuner.
1Start recording on the DVD deck. (墌pg. 42)
2Press VCR/DVD.
3Operate the VCR deck.
Operate the DVD deck while recording on the VCR deck
1Start recording on the VCR deck. (墌pg. 54)
2Press VCR/DVD.
3Operate the DVD deck.
Operate the VCR deck while the DVD deck is in timer standby
mode
1Engage the DVD deck’s timer mode. (墌pg. 45)
●The VCR deck is automatically selected and the VCR lamp lights up
on the unit.
2Operate the VCR deck.
Operate the DVD deck while the VCR deck is in timer standby
mode
1Engage the VCR deck’s timer mode. (墌pg. 56)
●The DVD deck is automatically selected and the DVD lamp lights up
on the unit.
2Operate the DVD deck.
Features of this unit
Recording Recording
Recording
Another programme
Playback, recording, etc. Recording
Recording Playback, recording, etc.
Playback, recording, etc. Timer standby mode
Timer standby mode Playback, recording, etc.
DR-MV1SEK_00.book Page 5 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_02Safety.fm]
Masterpage:Left0
6 EN
Page 6 April 15, 2004 11:27 am
CONTENTS
DISC INFORMATION 7
About Discs ...................................................................................7
INDEX 12
INSTALLING YOUR NEW UNIT 18
Basic Connection ........................................................................18
INITIAL SETTINGS 19
Auto Set Up .................................................................................19
Preset Download .........................................................................20
Language ....................................................................................22
Satellite Receiver Control Setting (DVD Deck Only) ...................23
Monitor Set (DVD Deck Only) .....................................................25
OPERATIONS ON DVD DECK 26
Basic Playback ............................................................................26
Playback Features ......................................................................27
Live Memory Playback ................................................................31
Using The On-screen Bar ...........................................................35
Parental Lock ..............................................................................41
Basic Recording ..........................................................................42
Recording Features .....................................................................43
VIDEO Plus+® Timer Programming .............................................45
Manual Timer Programming ........................................................46
On-Disc Timer Programming ......................................................47
Automatic Satellite Programme Recording (DVD Deck Only) .....50
OPERATIONS ON VCR DECK 51
Basic Playback ............................................................................51
Playback Features ......................................................................52
Basic Recording ..........................................................................54
Recording Features .....................................................................54
VIDEO Plus+® Timer Programming .............................................56
Manual Timer Programming ........................................................57
NAVIGATION (DVD DECK ONLY) 59
Library Database DVD Navi ........................................................59
Modify Original Information .........................................................60
Modify Play List Information ........................................................62
Modify Library Information ...........................................................65
Playback With MP3/JPEG Navigation .........................................66
EDITING 67
Tape Dubbing (From VCR To DVD) ...........................................67
Manual Dubbing (From VCR To DVD) ........................................68
Disc Dubbing (From DVD To VCR) .............................................69
Manual Dubbing (From DVD To VCR) ........................................70
DV Dubbing (DVD Deck Only) ....................................................71
Edit From A Camcorder ..............................................................72
Edit To Or From Another Recorder .............................................73
Output/Input Set ..........................................................................74
Digital Audio Dubbing ..................................................................75
REMOTE CONTROL 76
Remote Control Functions ..........................................................76
SYSTEM CONNECTIONS 78
Connecting To A Satellite Receiver ..........................................78
Connecting To A Dolby Digital Decoder Or An Amplifier With
Built-in DTS ...........................................................................79
SUBSIDIARY SETTINGS 80
Mode Set (DVD Deck) ................................................................ 80
Mode Set (VCR Deck) ................................................................ 82
VIDEO Plus+® System Setup ...................................................... 83
Tuner Set .................................................................................... 83
Clock Set .................................................................................... 86
Format A Disc (DVD Deck Only) ................................................ 87
Finalise A Disc (DVD Deck Only) ............................................... 88
Scan Mode Set ........................................................................... 89
Tray Lock (DVD Deck Only) ....................................................... 89
TROUBLESHOOTING 90
GLOSSARY 95
SPECIFICATIONS 96
APPENDIX 97
LIST OF TERMS 102
DR-MV1SEK_00.book Page 6 Thursday, April 15, 2004 3:30 PM
Masterpage:Right0
EN 7
Filename [DR-MV1SEK_03DiscInfo.fm]
Page 7 April 15, 2004 11:28 am
DISC INFORMATION
Recordable/playable Discs
You can use discs with the following logos for recording and
playback.
●The above table is based on the information as of February 2004.
●Recording and playback may not be performed depending on the
characteristics and condition of the disc used, leading to
unsatisfactory results. Using discs manufactured by JVC is
recommended since they have been tested to be compatible with this
unit.
DVD-RAM Discs
It is only possible to use discs which conform with DVD-RAM
standard Version 2.0 or 2.1.
●It is impossible to record on DVD-RAM discs which do not conform to
this standard. If you use a disc formatted under a different standard
version, format it on this unit before use.
●It may not be possible to record, play back, edit or dub a DVD-RAM
disc even if it conforms to the standard if it was recorded or edited on
the devices from other manufacturers or on a PC, or if it has far too
many titles, or if there is very little available capacity remaining on the
disc.
●Some DVD-RAM discs are contained in a cartridge. This unit cannot
handle this type of disc. Remove the disc from the cartridge (only
discs with a removable cartridge); or the use of DVD-RAM discs not
contained in a cartridge is recommended.
●DVD-RAM discs recorded on this unit cannot be played back on an
incompatible DVD player.
●It is possible to record copy-once programmes of digital broadcasts
only onto 4.7/9.4 GB DVD-RAM discs (2.8 GB DVD-RAM discs are
not compatible).
DVD-R/RW Discs
It is only possible to use DVD-R discs which conform with DVD-R
standard Version 2.0.
When a DVD-R/RW disc (Video mode) is finalised (墌pg. 88), it
can be played back on a standard DVD player as a DVD VIDEO
disc.
When a DVD-RW disc (VR mode) is finalised (墌pg. 88), it can be
played back on a standard DVD player compatible with the VR
mode of DVD-RW discs.
Before finalising —
— it is possible to record on unrecorded areas of the disc, edit the
disc title and programme titles, and delete programmes.
●It is impossible to record or edit DVD-R/RW discs recorded on other
devices even if they have not been finalised.
●It is impossible to overwrite recorded areas of DVD-R discs.
●Available recording capacity does not increase even if a recorded
programme is deleted from a DVD-R disc.
After finalising —
After a DVD-R/RW disc (Video mode) has been finalised, it is
possible to play back the recorded programmes (video and/or
audio) on a standard DVD video player as a DVD VIDEO disc.
●Edited titles are displayed as the
“DVD menu” in video mode.
●It is impossible to record, edit or
delete the data either in video
mode or in VR mode.
●Either in video mode or in VR
mode, although the disc can be
played back on DVD players from
other manufacturers, sometimes it
may not be possible to play back
depending on the disc and recording conditions.
●It is impossible to record on CD-R/RW or DVD-R discs used for
authoring.
●It is impossible to record onto DVD-R/RW (Video mode) discs
broadcasts that allow you to copy once. The copy once programmes
can only be recorded onto DVD-RW discs formatted in VR mode.
NOTE:
The following may result if you play back a DVD-R disc recorded on
another unit.
●The disc does not play.
●A mosaic pattern (block noise) appears on the screen.
●Video or audio may be dropped out.
●The unit stops during playback.
About Discs
DVD-RAM
12 cm: 4.7 GB/9.4 GB
8 cm: 1.4 GB/2.8 GB
Ver. 2.0
Ver. 2.1
DVD-RW
12 cm: 4.7 GB/9.4 GB
Ver. 1.0 (VR mode)
Ver. 1.1 (Video mode/VR mode)
DVD-R
12 cm: 4.7 GB
8 cm: 1.4 GB
General Ver. 2.0 (Video mode)
DR-MV1SEK_00.book Page 7 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_03DiscInfo.fm]
Masterpage:Left+
8 EN
Page 8 April 15, 2004 11:28 am
DISC INFORMATION
Discs For Playback Only
You can use discs with the following logos for playback only.
●Playback may not be performed depending on the characteristics and
condition of the disc used.
●DTS Audio CDs can also be played back (An optional DTS decoder is
required).
●MP3 and JPEG discs can be played back on this unit only when they
have been recorded in the ISO9660 or Joliet format and finalised.
●JPEG files that can be played back on this unit must conform to JFIF/
Baseline process, and the maximum resolution of a JPEG file is
3,840 x 2,160 pixels.
●CD-R/RW discs recorded in music CD format need to be finalised to
play back on this unit.
●Operation and audio quality of this unit are not guaranteed for discs
that do not conform to the Compact Disc specification (CD-DA).
Before you play back a CD, check for the CD logo and read the notes
on the package to confirm that it conforms to the Compact Disc
specification.
●Depending on the intentions of the author of the software, recording
conditions of DVD discs and Video CD/SVCD discs may be
restricted. Since this unit plays back discs according to the intentions
of the author of the software as indicated on the disc, some functions
may not operate as commanded.
●When switching from the first layer to the second layer of double-
layered DVD VIDEO discs, the image and sound may be momentarily
distorted. This is not a malfunction.
●DVD-AUDIO discs compatible with DVD video players can be played.
●Super Audio CDs (SACD) compatible with conventional CD players
can be played.
Unplayable Discs
The following types of discs cannot be played using this unit.
Do not attempt to play back any kind of disc that is damaged
(cracked, warped, or repaired with adhesive tape) or discs in
unusual shapes (heart-shaped, octagonal, or other forms). If such
discs are accidentally played back, it may cause noise that can
lead to speaker damage.
●CD-ROM discs (including PHOTO-CD and CD-G)
●Discs recorded in Packet Write (UDF) format.
●1.3-GB double density CDs (DDCD)
●High density CDs (HDCD)
The following discs also cannot be played back.
●Discs of a region number other than “2”
●DVD-RAM (2.6 GB/5.2 GB)
●DVD-RAM (TYPE1)
Region Number
The world is divided into 6 regions for DVD VIDEO discs.
DVD VIDEO discs are assigned a region number to indicate which
region they may be played back in. A disc cannot be played back
on this unit unless the region number of the disc matches that of
the unit. The region number for this unit is “2”. Only discs whose
region number includes “2” or “ALL” can be played back such as
shown below.
Examples of DVD VIDEO labels which can be played back
using this unit.
Marks of discs in this instruction manual
DVD VIDEO Video CD/Super Video CD
Audio CD
CD-DA files
CD-R
CD-DA/JPEG/
MP3 files
CD-RW
CD-DA/JPEG/
MP3 files
CD-ROM
JPEG/MP3 files
(example of region code
indications)
Allows operation with a
DVD-RAM disc.
Allows operation with a
Video CD/Super Video
CD (SVCD) disc.
Allows operation with a
DVD-R disc.
Allows operation with
an Audio CD disc.
Allows operation with a
DVD-RW disc.
Allows operation with a
disc including MP3
files.
Allows operation with a
DVD VIDEO disc.
Allows operation with a
disc including JPEG
files.
DR-MV1SEK_00.book Page 8 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 9
Filename [DR-MV1SEK_03DiscInfo.fm]
Page 9 April 15, 2004 11:28 am
DISC INFORMATION
Recording Medium And Format
DVD-RAM
●Recording and erasing can be performed as many times as possible
on a disc.
●Editing can be performed after recording, such as deleting unwanted
parts.
●While recording, it is possible not only to start playback of a
programme currently being recorded, but also to watch another
programme previously recorded.
DVD-RW (VR mode)
●Recording and erasing can be performed as many times as possible
on a disc.
●Editing can be performed after recording, such as deleting unwanted
parts.
DVD-RW (Video mode)
●Can be played back on other DVD players.
●New recording can be performed by erasing all the data on a disc
once played back.
DVD-R
●Can be played back on other DVD players.
●Suitable when keeping a recorded disc for a long time.
File Structure Of Discs
DVD VIDEO
Typically, DVD VIDEO discs are made up of larger units called
“titles”. Each title has a number (title number) that can be used to
select desired titles. Titles are further divided into units called
“chapters”. Each chapter has a number (chapter number) that can
also be used to select desired chapters. Note that some discs are
not divided into titles and chapters.
When you record a programme on a DVD-RAM/RW (VR mode)
disc
A single recording session results in a single title (a single
chapter). However, chapter marks are automatically inserted when
recording is paused, or audio changes from monaural or bilingual
to stereo due to commercial breaks, etc. It is also possible to insert
chapter marks at desired locations during playback. (墌pg. 29)
When you record a programme on a DVD-R/RW (Video mode)
disc
A single recording session results in a single title (a single
chapter). However, chapter marks are automatically inserted when
recording is paused, or audio changes due to commercial breaks,
etc. It is also possible to insert chapter marks at desired locations
during either recording or playback. Once the disc has been
finalised, these chapter marks are deleted and new chapter marks
are assigned automatically approximately every 5 minutes.
●In Video mode, even before finalising, it is impossible to perform
editing operations other than changing the disc name and/or title
names and deleting programmes and/or titles.
●After finalising, it is impossible to perform editing operations.
Audio CD/Video CD/SVCD
Typically, Audio CD discs are divided into separate tracks each
containing one song. Each track is assigned a number. For
example, the third track is Track 3. The same is true for Video CD/
SVCD discs.
However, some discs are not divided into tracks.
JPEG/MP3 Disc (CD-R/RW/ROM)
MP3/JPEG files put in directories nested in several levels on a disc
will be organized as if they were put in single level directories
(groups) by the MP3/JPEG Navigation of this unit. (墌pg. 66)
File structure of a disc before starting the MP3/JPEG
Navigation
File structure of the disc after starting the MP3/JPEG
Navigation
Files are automatically grouped as follows and displayed on the
MP3/JPEG Navigation screen. Data is displayed in the
alphabetical order of file name. Files are grouped based on roots.
●This unit can recognise up to 9 hierarchies including directories and
files.
Also, it can recognise up to 250 files in each group, and up to 99
groups on a disc.
NOTES:
●Video CD/SVCD discs that support Playback Control (PBC)
The contents of a disc are recorded into several hierarchies, and played
back according to the instructions on the screen while navigating through
the hierarchies. It is also possible to playback recorded tracks
consecutively without activating the PBC function even when playing a
PBC-compatible disc. (墌pg. 30)
●Regarding the contents recorded on discs
Some files may not be played back depending on the file types and other
factors.
DVD-RAM, DVD-RW, DVD-R or DVD VIDEO disc
Title 1 Title 2
Chapter 1 Chapter 2 Chapter 3 Chapter 1 Chapter 2 Chapter 3
Audio CD or Video CD/SVCD
Track 1 Track 2 Track 3 Track 4
Directory
MP3 file
JPEG file
DR-MV1SEK_00.book Page 9 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_03DiscInfo.fm]
Masterpage:Left+
10 EN
Page 10 April 15, 2004 11:28 am
DISC INFORMATION
DVD VIDEO Marks
Sometimes marks are printed on a DVD disc and/or on its
packaging to indicate information regarding the contents and
functions of the disc. Check the marks indicating the contents and
functions of the disc. Note, however, that in some cases a disc may
not include a mark even for a function it supports.
Marks related to video
Marks related to audio
Placing A Disc
Opening the disc tray
Press x to open the disc tray.
●Pressing the button again closes the disc tray.
●Use the buttons to open and close the disc tray.
●Do not block the disc tray with your hand while it is opening or closing
as this may result in hardware failure.
●Do not place unplayable discs or any object other than a disc on the
disc tray.
●Do not press down strongly on the disc tray or place any heavy
objects on it.
Discs without cartridges
Place the disc on the disc tray with the
label side facing up. Since disc size
changes depending on the disc to be
played back, be sure to correctly align
the disc with the grooves for its size. If
the disc is not in its groove, it may be
scratched or otherwise damaged. To
insert an 8 cm disc, place it according
to the inner groove.
DVD-RAM discs contained in
cartridges
Double-sided discs:
Remove the disc from the cartridge. Align the disc with the grooves
on the disc tray as shown in the illustration and insert with the side
you wish to play back or record facing down. If you insert the disc
with “Side A” facing down, programmes are recorded on the side A.
Single-sided discs:
Remove the disc from the cartridge. Align the disc with the grooves
on the disc tray as shown in the illustration and insert with the label
side facing up.
Number of subtitles Number of angles
Recorded under the
standard 4:3 aspect
ratio
Screen includes black
bands at the top and
the bottom of image
which has a standard
4:3 aspect ratio (letter
box)
Video playback is in Wide video mode (16:9) on
wide televisions, but in letter box on televisions
with standard 4:3 aspect ratio.
Video playback is in Wide video mode (16:9) on
wide televisions, but pan and scan is used on
televisions with standard 4:3 aspect ratio (either
the left or right side of the image is cut-out).
Number of audio tracks
Dolby Digital mark
It has been developed by Dolby Laboratories as a
digital surround system.
DTS (Digital Theater Systems)
You can enjoy DTS audio if you connect an
amplifier with a built-in DTS decoder to the
DIGITAL AUDIO OUT connector of the unit.
x
REMAIN
REC MODESLOW
<<>
>
RECP
AUSEREWFFCH
DV IN
REC LINK
DVD
DVDDVD
VCRDUB
PULL-OPEN
DR-MV1SEK_00.book Page 10 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 11
Filename [DR-MV1SEK_03DiscInfo.fm]
Page 11 April 15, 2004 11:28 am
DISC INFORMATION
Care And Handling Of Discs
How to handle discs
When handling a disc, do not
touch the surface of the disc.
Since discs are made of
plastic, they are easily
damaged. If a disc gets dirty,
dusty, scratched or warped, the
images and sound will not be
picked up correctly, and such a
disc may cause the unit to malfunction.
Label side
Do not damage the label side, stick paper to or use any adhesives
on its surface.
Recording side
Make sure that discs are not scratched and dirty on the recording
side before use. Scratches and dirt on the recording side of a disc
may hinder proper playback and recording. Also be careful that a
DVD-RAM disc may get scratched or dirt when removed from
cartridge then put back in after use.
Storage
Make sure that discs are kept in their cases. If discs are piled on
top of one another without their protective cases, they can be
damaged. Do not put discs in a location where they may be
exposed to direct sunlight, or in a place where the humidity or
temperature is high. Avoid leaving discs in your car!
Maintenance of discs
If there are fingerprints or other dirt adhering
to a disc, wipe with a soft dry cloth, moving
from the centre outwards.
If a disc is difficult to clean, wipe with a cloth
moistened with water. Never use record
cleaners, petrol, alcohol or any anti-static
agents.
CAUTION:
Sometimes during playback, noise may appear or images may
be garbled. This is sometimes due to the disc. (It may not be up
to industry standards.)
These symptoms are caused by the discs, not by the malfunction
of the unit.
DR-MV1SEK_00.book Page 11 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_04Name.fm]
Masterpage:Left0
12 EN
Page 12 April 15, 2004 3:19 pm
INDEX
Front View
AStandby/On Button (1)
BVCR/DVD Button 墌pg. 22
CVCR Timer Lamp (#) 墌pg. 56
VCR Lamp 墌pg. 51
VCR Recording Lamp (7) 墌pg. 54
DCassette Loading Slot
EOpen/Close Button (x) 墌pg. 10
FStop Button (8) 墌pg. 26, 51
GPlay Button (4) 墌pg. 26, 51
HDVD Timer Lamp (#) 墌pg. 45
DVD Lamp 墌pg. 22, 26
DVD Recording Lamp (7) 墌pg. 42
IDisc Tray
JDubbing Button (DUB) 墌pg. 67
Dubbing Direction Button (VCR]/}DVD) 墌pg. 67, 69
KEject Button (x) 墌pg. 51
LS-Video Input Connectors (S-VIDEO) (DVD deck only)
墌pg. 72
MVideo/Audio Input Connectors (VIDEO/AUDIO (L/R))
墌pg. 72
When using a monaural audio cable, use AUDIO L (MONO) input
connector. In this case, the sound on the left channel is also
recorded on the right channel.
NFront Display Panel 墌pg. 14
OInfrared Beam Receiving Window
PRemain Button (REMAIN) 墌pg. 29, 43
Recording Mode Button (REC MODE) 墌pg. 42, 54
QRecord Button (7) 墌pg. 42, 54
RPause Button (9) 墌pg. 26, 51
SReverse Search Button (3) (DVD deck) 墌pg. 27, 34
Rewind Button (3) (VCR deck) 墌pg. 51, 52
Reverse Slow Button (SLOW –) 墌pg. 28
TForward Search Button (5) (DVD deck) 墌pg. 27, 34
Fast Forward Button (5) (VCR deck) 墌pg. 51, 52
Forward Slow Button (SLOW +) 墌pg. 28
UChannel Button (PR +/–) 墌pg. 42, 54
VAutomatic Satellite Programme Recording Button
(SAT #) (DVD deck only) 墌pg. 50
WDV Input connector (DV IN (i*)) (DVD deck only)
墌pg. 71
*i (i.Link) refers to the IEEE1394-1995 industry specification and
extensions thereof. The i logo is used for products compliant with the
i.Link standard.
STANDBY/ON
DVD
S-VIDEO VIDEO (MONO) L - AUDIO - R
VCR/DVD VCR
REMAIN
REC MODE SLOW
(–) (+)
PR DV IN
SAT
DVD
DVD DV DVCR DUB
F-1
PONLMK Q S TRUWV
A B C D GFE IH J
To access covered connectors, pull
and open the connector cover.
SLOW
<< >>
PR DV IN
SAT
DVD
DVD DVDVCR DUB
PULL-OPEN
DR-MV1SEK_00.book Page 12 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 13
Filename [DR-MV1SEK_04Name.fm]
Page 13 April 15, 2004 3:19 pm
INDEX
Rear View
ARegion Number Label 墌pg. 8
BAC Power Cord 墌pg. 18
CCooling Fan
●This prevents the temperature from rising inside the unit.
Do not remove it.
●Install the unit so as not to block the area around the fan.
●The cooling fan on the rear of the unit may be activated even if
the unit is turned off in the following cases;
— In the Automatic Satellite Programme Recording standby
mode (墌pg. 50), slightly before the starting time of PDC
recording (墌pg. 46)
— If you connect the decoder or the satellite receiver to the L-2
IN/DECODER connector and if “L-2 SELECT” is set to
“DECODER” or “SAT VIDEO” or “SAT S-VIDEO”. (墌pg. 74)
— “JUST CLOCK” is set to “ON” (墌pg. 86)
(Set “JUST CLOCK” to “OFF” if you mind the noise of the fan.)
DAudio Output Connectors (AUDIO OUTPUT (LEFT/
RIGHT)) 墌pg. 18, 73
EComponent Video Output Connectors (COMPONENT
VIDEO OUT) (DVD deck only) 墌pg. 18
FL-1 Input/Output Connector (L-1 IN/OUT) 墌pg. 18, 73,
78
GAntenna Input Connector (ANTENNA IN) 墌pg. 18
HDigital Audio Output Connectors
(DIGITAL AUDIO OUT (COAXIAL/OPTICAL)) (DVD
deck only) 墌pg. 75, 79
ISatellite Control Connector (SAT CONTROL) 墌pg. 23
JL-2 Input/Decoder Connector (L-2 IN/DECODER)
墌pg. 23, 73, 78
KAntenna Output Connector (ANTENNA OUT) 墌pg. 18
L-1
L-2
IN/OUT
IN/DECODER
ANTENNA
IN
OUT
DVD/VCR
AUDIO OUT
LEFT
RIGHT
DIGITAL
AUDIO OUT
PCM/
STREAM
COAXIAL OPTICAL
DVD
DVD
SAT CONTROL
COMPONENT
VIDEO OUT
PB
PR
Y
2
A B C DFE
H
G
KI J
DR-MV1SEK_00.book Page 13 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_04Name.fm]
Masterpage:Left+
14 EN
Page 14 April 15, 2004 3:19 pm
INDEX
Front Display Panel
AVPS/PDC Indicator* 墌pg. 46 – 47
Appears when checking if the station being received transmits a
VPS/PDC signal.
* VPS (Video Programme System) recording is not currently
available in the U.K. and not possible with this unit.
Disc Type Indicator
When a disc is loaded, the type of the disc is indicated.
Disc Status Indicator
When a disc is running, the disc marks rotate.
During High-Speed Search: Rotate faster than normal playback.
During Slow Motion: Rotate slower than normal playback.
While recording: Inner red ring lights in the same way
as normal playback. During Instant
Timer Recording (ITR), inner red ring
slowly blinks.
While paused: Disc marks blink when either
recording or playing back.
While stopped: Disc marks all light.
While resume stopped: Disc marks all blink.
While the disc tray opened: Disc marks all light out.
No disc on the disc tray: Disc marks all light out.
BVR Mode Indicator 墌pg. 87
Lights when a DVD-RW disc is formatted in VR mode.
C Indicator 墌pg. 47
Lights when a disc set up for On-Disc Timer Programming is loaded.
DRecording Mode Indicator (XP/SP/LP/EP/FR) 墌pg. 42
Blinks when recording mode is being set.
While “FR” is blinking, the left 3 digits of the Multi Display (N O)
indicate setting values ranging from “60” to “480”. After the value
has been set, only “FR” lights.
EGroup/Title Indicator (GRP/TITLE)
“GRP” or “TITLE” lights depending on a disc loaded while the left 2
digits of the Multi Display (N) indicate the numbers explained below.
“GRP”: Total number of groups or group number being played
back are displayed on the Multi Display.
“TITLE”: Total number of titles or title number being played back
are displayed on the Multi Display.
FTrack/Chapter Indicator (TRK/CHAP)
“TRK” or “CHAP” lights depending on a disc loaded while the 3rd
and 4th digits from the left of the Multi Display (O) indicate the
numbers explained below.
“TRK”: Total number of tracks or track number being played
back are displayed on the Multi Display.
“CHAP”: Chapter number being played back are displayed on the
Multi Display.
GSimulated Surround Effect Indicator (3D) 墌pg. 38
Lights when a simulated surround effect is set to “3D-ON” on the on-
screen bar.
HLinear PCM Indicator (LPCM)
Lights when “XP MODE REC AUDIO” is set to “LINEAR PCM”
(墌pg. 81) for recording with DVD-RAM, DVD-R and DVD-RW
discs, and when Linear PCM audio is played.
IRandom/Programme Playback Mode Indicator (RND/
PRGM) 墌pg. 40
“RND”: Lights when Random Playback mode is set.
“PRGM”: Lights when Programme Playback mode is set.
JRepeat Mode Indicator ( /1/A–B) 墌pg. 36, 53
Select Repeat Playback mode on the on-screen bar.
“ ”: Whole disc is played back repeatedly.
It also lights up during the Repeat Playback on the
VCR deck.
“ 1”: A single title/chapter/track is played back repeatedly.
“ A–B”: The selected part (A–B) is played back repeatedly.
No display: Repeat Playback mode is off.
KAutomatic Satellite Programme Recording Indicator
(SAT#) 墌pg. 50
Lights up when the DVD deck is in the Automatic Satellite
Programme Recording standby mode while the VCR deck is used.
LVCR Indicator 墌pg. 43, 54
Lights up when the mode is switched to the VCR mode using the
TV/VCR button. When switching the mode, “VCR” or “TV” appears
for about 2 seconds on the Multi Display (R).
MVideo Output Indicator ( ) 墌pg. 89
No display:Indicates that interlace mode is engaged.
: Indicates that progressive mode is engaged.
(Example) lights when video output mode is in progressive
mode.
NGroup/Title Number Display
OTrack/Chapter Number Display
PRemaining Time/Elapsed Time Indicator 墌pg. 29, 43
Lights when remaining time of DVD-RAM, DVD-R and DVD-RW
discs is displayed, and lights out when elapsed time is displayed.
The right 6 digits of the Multi Display (R) indicate elapsed or
remaining time of each track.
No display:Indicates elapsed time of the disc.
Displayed: Indicates remaining time of the disc.
QRemaining Time/Elapsed Time Display 墌pg. 29, 43
RMulti Display
Displays clock, received channel, elapsed time, and remaining time.
Also displays status of the unit (NO DISC/OPEN/CLOSE/
READING).
ABCD GFEIHJ
PONLMKQR
DR-MV1SEK_00.book Page 14 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 15
Filename [DR-MV1SEK_04Name.fm]
Page 15 April 15, 2004 3:19 pm
INDEX
On-Screen Display (DVD deck)
When “SUPERIMPOSE” is set to “AUTO” and ON SCREEN on the remote control is pressed, various operational indicators appear on the
TV screen. To clear the operational indicators, press ON SCREEN twice.
ADisc Display
Displays the type of the disc loaded on the disc tray.
BTitle Number*
Displays number of the title currently being played back.
CPlayback Operation Status Indicator*
Indicates playback operation status by pictographs.
DPlayback Time*
Displays playback time of the title currently being played back.
ERecording Mode
Displays recording mode as XP, SP, LP, EP, FR, FR60–FR360,
FR420 and FR480. Current recording mode is displayed during
recording, and recording mode in which the programme was
recorded is displayed during playback. The recording mode is not
displayed during play list playback.
FTitle Number
Displays playback title number during playback, and recording title
number during recording.
GChapter Number
Displays playback chapter number during playback, and recording
chapter number during recording.
HClock Display
IBar Meter Display 墌pg. 33
Displays playback point and other information in bar meter.
JTitle Name Display
Displays title name newly registered to the title recorded on DVD-
RAM/RW/R discs, or file name of JPEG and MP3 files.
KOperation Status Indicator
Indicates operation status by pictographs. (Also indicates its speed
for forward high-speed search, reverse high-speed search and slow
motion.)
LTime Display
Displays single title playback elapsed time, single track playback
elapsed time, single track remaining time, total elapsed time, total
remaining time, and other information in turn.
MStation Name Display
Displays currently selected station name.
NAudio Mode Display
Displays audio that is being input.
OChannel Position Number/Auxiliary Input Indicator (L-1,
L-2, F-1or SAT**)
Displays currently selected input.
* During Live Memory playback, playback operation status is displayed.
During normal playback, the multichannel encoding method is displayed.
** When “L-2 SELECT” is set to “SAT VIDEO” or “SAT S-VIDEO” (墌pg. 74),
“SAT” appears instead of “L-2”.
On-Screen Display (VCR deck)
When “O.S.D.” is set to “AUTO” and ON SCREEN on the remote control is pressed, various operational indicators appear on the TV screen.
To clear the operational indicators, press ON SCREEN again.
AOperation Mode Indicators
BTape Speed (SP/LP)
CTape Direction
DIndex Mark Indicator (MARK) 墌pg. 54
ECounter Display
FTape Remaining Time Indicator 墌pg. 55
GAudio Mode Display 墌pg. 53
HTape Position Indicator
The tape position indicator
appears on the TV screen
when you press 3 or 5
from the Stop mode or perform
an Index Search. (墌pg. 52)
The position of “q” in relation to
“0” (beginning) or “+” (end)
shows you where you are on
the tape.
NOTE:
Depending on the type of tape
being used, the tape position
indicator may not appear correctly.
IVPS/PDC Indicator*
* VPS (Video Programme System) recording is not currently
available in the U.K. and not possible with this unit.
JType of Broadcast 墌pg. 55
KCurrent Day/Month/Year
LClock Display
MChannel Position Number and Station Name/Auxiliary
Input Indicator (L-1, L-2, F-1 or SAT*)
* When “L-2 SELECT” is set to “SAT” (墌pg. 74), “SAT” appears instead of
“L-2”.
N“Cassette Loaded” Mark
Beginning End
DR-MV1SEK_00.book Page 15 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_04Name.fm]
Masterpage:Left+
16 EN
Page 16 April 15, 2004 3:19 pm
INDEX

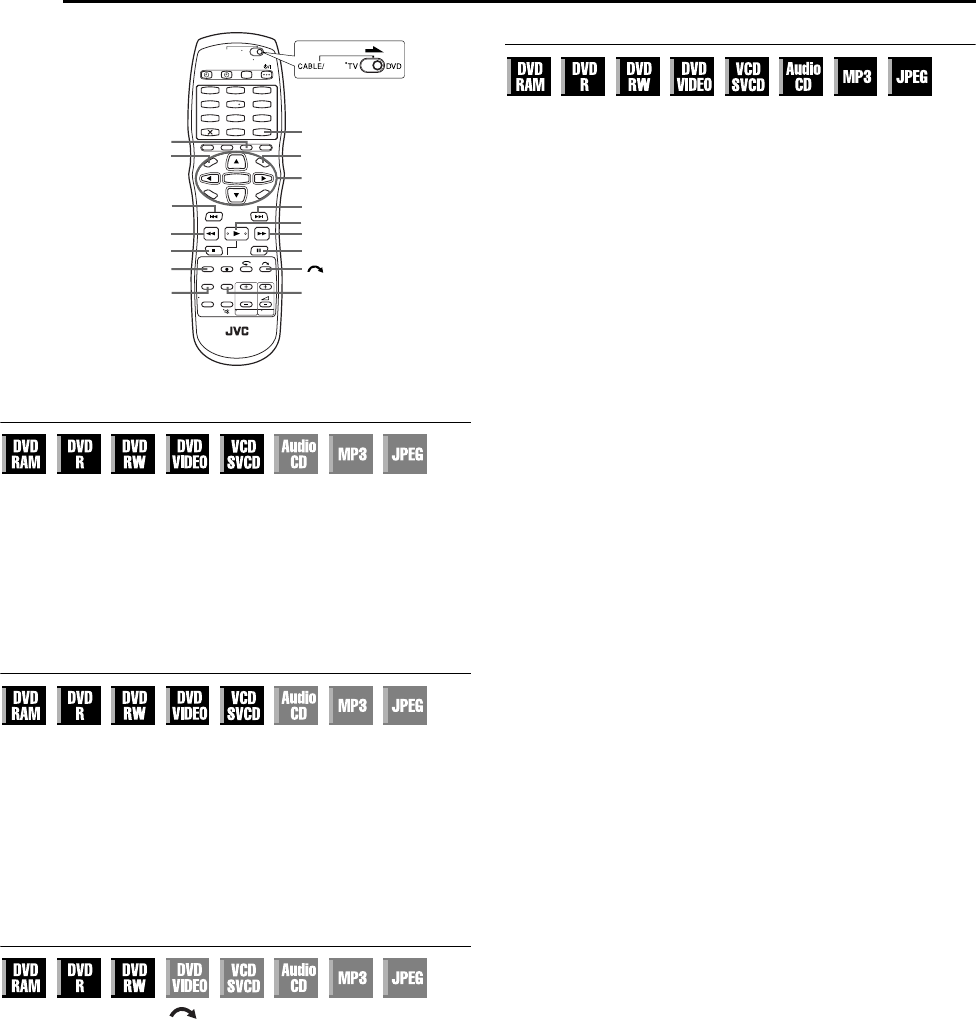

Remote Control
ADVD Timer Button (DVD TIMER (#)) (DVD deck only)
墌pg. 45
BVCR Timer Button (VCR TIMER (#)) (VCR deck only)
墌pg. 56
CNumber Keys 墌pg. 23, 42, 54
Character keys (DVD deck only) 墌pg. 61
DAuxiliary Button (AUX)
ECancel Button (CANCEL (&)) 墌pg. 45
FProgramme Check Button (PROG/CHECK) 墌pg. 46,
49, 57, 58
GVIDEO Plus+ Button 墌pg. 45, 56
HTop Menu Button (TOP MENU) (DVD deck only)
墌pg. 27
Navigation Button (NAVIGATION) (DVD deck only)
墌pg. 59
Irt Button 墌pg. 22
JSet Up Button (SET UP) 墌pg. 22
KReverse Skip Button (2) (DVD deck) 墌pg. 27, 34
Index Button (2) (VCR deck) 墌pg. 52
Previous Button (PREVIOUS) (DVD deck only) 墌pg. 30
LPlay Button (4) 墌pg. 26, 51
Select Button (SELECT) (DVD deck only) 墌pg. 26, 60
MReverse Search Button (3) (DVD deck) 墌pg. 27, 34
Rewind Button (3) (VCR deck) 墌pg. 51, 52
Reverse Slow Button (SLOW –) 墌pg. 28
NStop Button (8) 墌pg. 26, 51
Clear Button (CLEAR) (DVD deck only) 墌pg. 37, 45
ORecord Button (7) 墌pg. 42, 54
PRemain Button (REMAIN) 墌pg. 29, 43
Recording Mode Button (REC MODE) 墌pg. 42, 54
QSubtitle Button (SUBTITLE) (DVD deck only) 墌pg. 29
RAngle Button (ANGLE) (DVD deck only) 墌pg. 29
Live Check Button (LIVE CHECK) (DVD deck only)
墌pg. 32, 34
STV/VCR Button 墌pg. 43, 54
TAudio Button (AUDIO) 墌pg. 30, 53
TV Muting Button ( ) 墌pg. 76
UTV/CABLE/SAT/DVD switch 墌pg. 22
VVCR/DVD Button 墌pg. 22
WTV/CBL/SAT/DVD Standby/On Button (1)
XMemo Button (MEMO) (DVD deck only) 墌pg. 60, 64, 66
Mark Button (MARK) (DVD deck only) 墌pg. 29
YOn-Screen Button (ON SCREEN) (DVD deck only)
墌pg. 15, 35
Progressive Scan Button (PROGRESSIVE SCAN)
墌pg. 89
ZDisplay Button (DISPLAY) 墌pg. 29, 43
aMenu Button (MENU) (DVD deck only) 墌pg. 27
bwe Button 墌pg. 22
cEnter Button (ENTER) 墌pg. 22
dReturn Button (RETURN) 墌pg. 30, 45
eForward Skip Button (6) (DVD deck) 墌pg. 27, 34
Index Button (6) (VCR deck) 墌pg. 52
Next Button (NEXT) (DVD deck only) 墌pg. 30
fForward Search Button (5) (DVD deck) 墌pg. 27, 34
Fast Forward Button (5) (VCR deck) 墌pg. 51, 52
Forward Slow Button (SLOW +) 墌pg. 28
gPause Button (9) 墌pg. 26, 51
hSkip Search Button ( ) 墌pg. 28, 34
iOne Touch Replay Button ( ) 墌pg. 34, 52
jTV Volume Button (TV %+/–) 墌pg. 76
kTV/CBL/DVD Channel Button (PR +/–) 墌pg. 42, 76
The glow-in-the-dark buttons shown in grey on the illustration
above are helpful when using the remote control in darkened
rooms.
Buttons with a small dot on the left side of the name can also be
used to operate your TV. (墌pg. 76)
PROG/CHECKSHOWVIEW
DISPLAY ON SCREEN
DVD
TIMER VCR
/DVD
VCR
TIMER
SLOW
PREVIOUS NEXT
CLEAR
SLOW
PAUSESTOP/
PLAY/SELECT
REMAIN REC
PR
AUDIO
SUBTITLE
ANGLE
TV/VCR
REC MODE
LIVE CHECK
DVDTV
CABLE/SAT
ABC DEF
JKL MNO
TUV
GHI
PQRS WXYZ
NUMBER / TV PR/CABLE PR/ DVD PR
MEMO/MARK
PROGRESSIVE
SCAN
VIDEO Plus+
AUX
SET UP
RETURN
CANCEL
NAVIGATION
TOP MENU
MENU
TV
TV/CBL /DVD
TV/DVD TV
TV
/
CBL/SAT
/DVD
ENTER
1
4
7
2
5
8
0
3
6
9
How To Use
The remote control can operate most of your unit’s functions, as
well as basic functions of TV sets and satellite receivers of JVC
and other brands. (墌pg. 76, 77)
●Point the remote control toward the receiving window.
●The maximum operating distance of the remote control is about
8m.
NOTES:
●When inserting the batteries, be sure to insert in the correct
directions as indicated under the battery cover.
●If the remote control doesn’t work properly, remove its batteries,
wait for approximately 5 minutes, replace the batteries and then try
operating the unit again.
DR-MV1SEK_00.book Page 16 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 17
Filename [DR-MV1SEK_04Name.fm]
Page 17 April 15, 2004 3:19 pm
INDEX
Check Contents
CHECK ALL THE CONTENTS SHOWN BELOW
4
You are now ready to install your unit. (墌pg. 18)
PROG/CHECKSHOWVIEW
DISPLAY ON SCREEN
DVD
TIMER VCR
/DVD
VCR
TIMER
SLOW
PREVIOUS NEXT
CLEAR
SLOW
PAUSESTOP/
PLAY/SELECT
REMAIN REC
PR
AUDIO
SUBTITLE
ANGLE
TV/VCR
REC MODE
LIVE CHECK
DVDTV
CABLE/SAT
ABC DEF
JKL MNO
TUV
GHI
PQRS WXYZ
NUMBER / TV PR/CABLE PR/ DVD PR
MEMO/MARK
PROGRESSIVE
SCAN
VIDEO Plus+
AUX
SET UP
RETURN
CANCEL
NAVIGATION
TOP MENU
MENU
TV
TV/CBL /DVD
TV/DVD TV
TV
/
CBL/SAT
/DVD
ENTER
1
4
7
2
5
8
0
3
6
9
F-1
POWER
VCR EJECT
DVD
S-VIDEO VIDEO (MONO) L - AUDIO - R
VCR/DVD TIMER VCR REC OPEN/CLOSE STOP PLAY
REMAIN
REC MODE SLOW
<< >>
REC PAUSE REW FF CH DV IN
REC LINK
DVD
TIMER DVD DVDREC VCR DUBBING
PULL-OPEN PULL-OPEN
RF Cable “AA” Batteries (x 2)
21-pin SCART Cable Satellite Controller
DVD Video Recorder
Infrared Remote Control Unit
DR-MV1SEK_00.book Page 17 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_04Name.fm]
Masterpage:Left0
18 EN
Page 18 April 15, 2004 3:19 pm
INSTALLING YOUR NEW UNIT
It’s essential that your unit be properly connected.
1Place the unit on a stable, horizontal surface.
2Connect the unit to a TV depending on the TV and cables you
use.
Basic Connection
8To connect to a TV with AV input connectors —
ADisconnect the TV aerial cable from the TV.
BConnect the TV aerial cable to the ANTENNA IN connector on
the rear panel of the unit.
CConnect the ANTENNA OUT connector on the rear panel of the
unit and the TV’s aerial connector with the provided RF cable.
DConnect the L-1 IN/OUT connector on the rear panel of the unit
and the TV’s 21-pin SCART connector with a provided 21-pin
SCART cable.
●The L-1 IN/OUT connector accepts and delivers either a composite
signal (regular video signal), Y/C signal or RGB signal.
●Set your TV to the VIDEO (or AV), Y/C, or RGB mode according to
the type of your TV’s SCART connector.
●Select an appropriate option of “L-1 OUTPUT” as follows (墌pg. 74):
8Component Video Connection (DVD deck only)
To connect to TV’s component video input connectors
APerform A–C in “Basic Connection”.
BConnect the unit’s COMPONENT VIDEO OUT connectors to
the TV’s component video input connectors.
CConnect the unit’s AUDIO OUT connectors to the TV’s AUDIO
input connectors.
●You can obtain high-quality component video pictures.
●If your TV is not stereo-capable, use the unit’s AUDIO OUT
connectors to connect to an audio amplifier for Hi-Fi stereo sound
reproduction.
●By using the component video connection, you can view the images
in the progressive mode. For switching to the progressive mode, refer
to “Scan Mode Set” (墌pg. 89).
3Plug the end of the AC power cord into an AC outlet.
●“LOADING” blinks on the front display panel when the AC plug of the
power cord is connected into a mains outlet and no operation will be
done for approximately 50 seconds. This is not a malfunction.
Basic Connection
A
TTENTION:
Your TV must have a 21-pin AV input connector (SCART) for the
connection to the unit.
THESE STEPS MUST BE COMPLETED BEFORE ANY VIDEO
OPERATION CAN BE PERFORMED.
2
RF cable
(provided)
Back of unit
Back of TV
TV aerial cable
21-pin SCART connector
21-pin SCART cable
(provided)
Mains power cord ANTENNA IN
L-1 IN/OUT
ANTENNA OUT
Mains outlet
Aerial connector
When your TV’s SCART
connector accepts: Set “L-1 OUTPUT” to:
Composite video signals “SCART VIDEO”
Y/C signal (separated
luminance (brightness) and
chrominance (colour) signals)
“SCART S-VIDEO”
RGB signal “SCART RGB”
After connection is completed, perform “Auto Set Up” on
page 19.
DR-MV1SEK_00.book Page 18 Thursday, April 15, 2004 3:30 PM
Masterpage:Right0
EN 19
Filename [DR-MV1SEK_04Name.fm]
Page 19 April 22, 2004 6:31 pm
INITIAL SETTINGS
Auto Channel Set/Auto Clock Set/Auto Guide Program
Number Set
1Press 1 to turn on the unit. The Country Set display appears
on the TV screen. The AUTO SET/T-V LINK display appears on
the TV screen.
2Press rt to select “AUTO
SET”, then press ENTER. The
AUTO SET screen will appear,
and the unit automatically
performs Auto Channel Set.
●When Auto Channel Set is
completed, “PLEASE WAIT” will
be displayed for about 90 seconds,
since channel data is exchanged
between the DVD deck and the VHS deck. No operation will be done
during this time.
A
TTENTION:
●When you have connected the unit
to a TV offering T-V Link via a
fully-wired 21-pin SCART cable
(墌pg. 18) and the TV is turned
on, the unit automatically performs
the Preset Download (墌pg. 20)
even if you select “AUTO SET” for
Auto Set Up function.
NOTES:
●In areas where no TV station transmits a PDC (Programme Delivery
Control) signal, the unit can perform neither Auto Clock Set nor Auto
Guide Program Number Set.
●If there is a power cut, or if you press 1 or SET UP while Auto Set
Up is in progress, Auto Set Up will be interrupted; be sure to turn off
the unit power once and try again from step 1.
●Auto Clock Set may not function properly depending on the reception
condition.
Auto Set Up
After the 1 button on the unit or remote control is pressed for
the first time to turn on the unit, the Auto Set Up function sets the
tuner channels, clock and Guide Program numbers
automatically.
Before starting, make sure of the following:
●The TV aerial cable should be connected to the unit.
●The unit’s mains power cord should be connected to a mains
outlet.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
A
TTENTION:
Once you have performed Auto Set Up, even if the unit’s memory
backup has expired, all the stored stations and their Guide
Program numbers remain in the unit’s memory and the unit will
not perform Auto Set Up again. The unit only performs Auto
Clock Set when the unit is turned on.
If you have moved to a different area, perform each setting as
required.
●Tuner setting (墌pg. 83)
●Clock setting (墌pg. 86)
If a new station starts broadcasting in your area, perform tuner
setting. (墌pg. 83)
1
4
7
2
5
8
0
3
6
9
VCR/DVD
rtw e
ENTER
SET UP
SAT
After “Auto Set Up” is completed, perform “Monitor Set (DVD
Deck Only)” on page 25.
DR-MV1SEK_04Name.fm Page 19 Thursday, April 22, 2004 6:32 PM
Filename [DR-MV1SEK_04Name.fm]
Masterpage:Left+
20 EN
Page 20 April 23, 2004 9:40 am
INITIAL SETTINGS
Auto Channel Set by Downloading from TV/Auto Clock
Set/Auto Guide Program Number Set
If you have connected the unit to your TV via a 21-pin SCART
cable (墌pg. 18), the unit will automatically perform Preset
Download instead of the Auto Set Up in step 2 on page 19. After
downloading, the unit sets the clock and Guide Program numbers
automatically.
1Press 1 to turn on the unit. The Country Set display appears
on the TV screen. The AUTO SET/T-V LINK display appears on
the TV screen.
2Press rt to select “T-V LINK” and press ENTER. The T-V
LINK screen will appear, and the unit automatically performs Auto
Channel Set.
●When Auto Channel Set is
completed, “PLEASE WAIT” will
be displayed for about 90 seconds,
since channel data is exchanged
between the DVD deck and the
VHS deck. No operation will be
done during this time.
A
TTENTION:
Preset positions on the front display
panel increase from “PR 1”; do NOT
press any button on the unit or
remote control until the front display
panel shows clock time, “PR 1” or
“– –:– –” as illustrated on page 21.
NOTES:
●For details, refer to the instruction
manual of your TV.
●In the area where no TV station transmits a PDC (Programme
Delivery Control) signal, the unit can perform neither Auto Clock Set
nor Auto Guide Program Number Set.
●If there is a power cut, or if you press 1 or SET UP while
downloading or set up is in progress, it will be interrupted; be sure to
turn off the unit power once and try again from the beginning.
●Auto Clock Set may not function properly depending on the reception
condition.
●On this unit, the characters available for station names (ID) are A–Z,
0–9, –, f, + and I (space). Some names of downloaded stations
may differ from those of your TV. (墌pg. 85)
Preset Download
A
TTENTION:
You can use this function only with a TV offering T-V Link, etc.* Be
sure to use a fully-wired 21-pin SCART cable.
* Compatible with TVs offering T-V Link, EasyLink, Megalogic,
SMARTLINK, Q-Link or DATA LOGIC via a fully-wired 21-pin SCART
cable. The degree of compatibility and available functions may differ by
system.
1
4
7
2
5
8
0
3
6
9
VCR/DVD
rtw e
ENTER
SET UP
SAT
●Slide the TV/CABLE/SAT/DVD switch to DVD.
After “Preset Download” is completed, perform “Monitor Set
(DVD Deck Only)” on page 25.
DR-MV1SEK_04Name.fm Page 20 Friday, April 23, 2004 9:41 AM
Masterpage:Right+
EN 21
Filename [DR-MV1SEK_04Name.fm]
Page 21 April 15, 2004 3:19 pm
INITIAL SETTINGS
Results Of Auto Set Up/Preset Download Appearing
On The Front Display Panel
If both Auto Channel Set and
Auto Clock Set have been
performed successfully, the
correct current time is displayed.
Turn on the TV and select its AV mode, then make sure that all
necessary stations have been stored in the unit’s memory by using
the PR +/– button(s).
●If station names (ID – 墌pg. 100) have also been stored in the unit’s
memory, the station name will be displayed at the top right corner of
the TV screen for about 5 seconds when the unit is tuned to a
different station.
●If you want to set the tuner manually such as to add or skip channels,
to change channel positions, or to set or change station names, see
pages 84 – 85.
If Auto Channel Set has
succeeded but Auto Clock Set
has not, “PR 1” (channel
position) is displayed.
OR
If both Auto Channel Set and Auto Clock Set have failed,
“– –:– –” is displayed.
ATurn on the TV and select its AV mode, then make sure that all
necessary stations have been stored in the unit’s memory by using
the PR +/– button(s).
●If station names (ID – 墌pg. 100) have also been stored in the unit’s
memory, the station name will be displayed at the top right corner of
the TV screen for about 5 seconds when the unit is tuned to a
different station.
●If you want to set the tuner manually such as to add or skip channels,
to change channel positions, or to set or change station names, see
pages 84 – 85.
BPerform “Clock Set” on page 86.
A
TTENTION:
After making sure the cables are connected properly, turn off the unit’s
power once, then turn the unit’s power back on again.
Perform “Auto Set Up” on page 19 or “Preset Download” on page 20
again.
IMPORTANT:
●To check if the Guide Program numbers have been set correctly,
perform the VIDEO Plus+ Timer Programming. (墌pg. 45, 56)
●In certain reception conditions, station names may not be stored
correctly, and auto Guide Program Number Set may not work
properly. If the Guide Program numbers are not set properly when
you timer-record a TV programme using the VIDEO Plus+ system,
the unit will record a TV programme of a different station. When
programming the timer using the VIDEO Plus+ system, be sure to
check the desired channel is selected correctly. (墌pg. 45, 56)
●Your unit memorises all detected stations even if reception of some of
them is poor. You can delete those stations with an unacceptable
picture. (墌pg. 85, “Delete A Channel”)
INFORMATION
Just Clock
Your unit is equipped with the Just Clock function which provides
accurate time keeping through automatic adjustments at regular
intervals, by reading data from a PDC signal. If you want to take
advantage of this function, simply set it to “ON”. (墌pg. 86)
T-V Link Functions (DVD Deck Only)
When you connect the unit to your TV via a fully-wired 21-pin
SCART cable (墌pg. 18), the following functions are available. You
can use these functions only with a TV offering T-V Link, etc.*
For details, refer to the instruction manual of your TV.
* Compatible with TVs offering T-V Link, EasyLink, Megalogic,
SMARTLINK, Q-Link or DATA LOGIC via a fully-wired 21-pin SCART
cable. The degree of compatibility and available functions may differ by
system.
TV Auto Power On
The TV will turn on and be set to its AV mode automatically
whenever you start playback.
For details, refer to the instruction manual of your TV.
Unit Auto Standby
You can use your TV’s remote control to turn off the unit.
For details, refer to the instruction manual of your TV.
Direct Rec
You can easily start recording the programme that you are
watching on your TV. When you use this function, set “DIRECT
REC” to “ON”. (墌pg. 81)
If you have any difficulty with the above procedures call the JVC
Customer Service Hot Line on 0870 330 5000
DR-MV1SEK_00.book Page 21 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_04Name.fm]
Masterpage:Left+
22 EN
Page 22 April 15, 2004 3:19 pm
INITIAL SETTINGS
On-screen Language Set
This unit offers you the choice to view on-screen messages in 10
different languages. Though Auto Set Up selects the language
automatically (墌pg. 21), you can change the language setting
manually as required.
1Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
2Press SET UP to access the Main Menu screen.
3Press we to select “FUNCTION SET UP”, then press ENTER.
4Press we to select “DISPLAY
SET”, then press ENTER.
5Press rt to select “ON
SCREEN LANGUAGE”, then
press ENTER.
6Press rt to select your
desired language, then press
ENTER.
7Press SET UP to complete the setting.
Menu/Audio/Subtitle Language Set (DVD deck only)
Some DVD discs contain the DVD menu display, audio and
subtitles in multiple languages. With these discs, you can set the
default language as you like.
●The procedure shows how to set “MENU LANGUAGE” as an
example.
1Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
2Press SET UP to access the Main Menu screen.
3Press we to select “DVD SET UP”, then press ENTER.
4Press we to select
“LANGUAGE SET”, then press
ENTER.
5Press rt to select “MENU
LANGUAGE”, then press ENTER.
6Press rt to select your
desired language, then press
ENTER.
●See “Language Code List”
(墌pg. 97).
7Press SET UP to complete the setting.
NOTE:
When the selected language is not available on the disc, the disc’s
default menu language is played back.
Language
●Turn on the unit.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
rtw e
ENTER
VCR/DVD
SET UP
SAT
DR-MV1SEK_00.book Page 22 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 23
Filename [DR-MV1SEK_04Name.fm]
Page 23 April 15, 2004 3:19 pm
INITIAL SETTINGS
The following procedure is required if you receive satellite channels
through a satellite receiver. Approximately 20 seconds before the
VIDEO Plus+ Timer Programming (墌pg. 45) or Manual Timer
programming (墌pg. 46) starts, the unit sets its input mode to “L-2”
and automatically switches the satellite receiver’s channels using a
provided Satellite Controller.
Installing Satellite Controller
1Place a Satellite Controller so that the path between its
transmitter and the satellite receiver’s remote sensor is
unobstructed.
2Fix securely using the adhesive strip attached on the back of the
Satellite Controller.
3Be sure to connect the unit’s L-2 IN/DECODER connector to the
satellite receiver’s 21-pin SCART connector.
NOTE:
When connecting your satellite receiver, refer to its instruction manual.
4Connect the Satellite Controller to the SAT CONTROL
connector on the rear panel.
Setting Satellite Receiver’s Brand And Channel
After installation, set the satellite receiver’s brand and channel
correctly; otherwise, the Satellite Controller cannot work correctly.
1Turn on the satellite receiver’s power.
2Press SET UP to access the Main Menu screen.
3Press we to select “INITIAL SET UP”, then press ENTER.
4Press we to select “SAT/
GUIDE PR”, then press ENTER.
5Press rt to select “SAT
BRAND”, then press ENTER.
6Press rt to select the brand
code from the list on page 24,
then press ENTER.
●If the brand code you entered is
invalid, the code field will be reset.
Enter the correct brand code again.
●If the unit is in playback or recording mode, you cannot set the brand
code.
7Press the appropriate number
keys to enter one of the channel
positions on the satellite receiver,
then press ENTER twice. The unit
enters the Test mode.
●You can select the channel
position between 1 to 999.
Satellite Receiver Control Setting (DVD
Deck Only)
2
Satellite receiver
Satellite Controller
(provided)
(suggested locations)
Tr a n s m i t t e r
21-pin SCART cable
(provided)
SAT CONTROL L-2 IN/DECODER
Your unit
Satellite Controller
(provided)
Satellite receiver
Back of unit
1
4
7
2
5
8
0
3
6
9
VCR/DVD
rtw e
SAT
ENTER
SET UP
●Turn on the unit.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
CONTINUED ON NEXT PAGE
DR-MV1SEK_00.book Page 23 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_04Name.fm]
Masterpage:Left+
24 EN
Page 24 April 15, 2004 3:19 pm
INITIAL SETTINGS
8Check the result of the test.
If the satellite receiver’s
channel number has been
changed to the same one as
you set in step 7
Press we to select “YES”, then
press ENTER to finish the Sat
Control Set mode.
If the satellite receiver’s
channel number has not been
changed correctly
Press we to select “NO”, then press ENTER. Then perform the
procedure again from step 5.
NOTES:
●The Satellite Controller may not work with all types of satellite
receiver.
●For some satellite receivers, you need to set its channel input mode
to 2-digit.
●If your satellite receiver has more than two channel modes, be sure to
set to “All Channel Mode”. For details, refer to the instruction manual
of the satellite receiver.
●When selecting the satellite receiver’s channel (墌 step 7), signals
from the remote control may interfere with signals transmitted from
the Satellite Controller. In this case, move the remote control as close
to the unit’s infrared beam receiving window as possible.
BRAND NAME CODE
JVC
AMSTRAD
ASTON
CANAL SATELLITE
CANAL +
D-BOX
ECHOSTAR (VIA DIGITAL)
FINLUX
FORCE
GALAXIS
GRUNDIG
HIRSCHMANN
HUMAX
ITT NOKIA
JERROLD
KATHREIN
LUXOR
MASCOM
MASPRO
NOKIA
PAC E
PANASONIC
PHILIPS
RADIX
RFT
SABA
SAGEM
SALORA
SAMSUNG
SIEMENS
SKY DIGI BOX
SKYMASTER
TECHNISAT
THOMSON
TPS
TRIAX
WISI
73
60, 61, 62, 63, 92
97
81
81
85
82
68
89
88
64, 65, 102
64, 78, 99
88
68
75
70, 71, 96
68
93
70
87, 94
65, 67, 74, 86, 92, 97
74, 92
66, 84, 101
78
69
97
83, 90
68
83
64
92
69, 98
66, 100
97
83
91
64
DR-MV1SEK_00.book Page 24 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 25
Filename [DR-MV1SEK_04Name.fm]
Page 25 April 15, 2004 3:19 pm
INITIAL SETTINGS
You can select the monitor type depending on the TV used when
you play back DVD VIDEO discs recorded for wide-screen TVs.
1Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
2Press SET UP to access the Main Menu screen.
3Press we to select “FUNCTION SET UP”, then press ENTER.
4Press we to select “VIDEO IN/
OUT”, then press ENTER.
5Press rt to select “MONITOR
TYPE”, then press ENTER.
6Press rt to select the desired
option, then press ENTER.
7Press SET UP to complete the
setting.
*The boldface settings below indicate the settings at your
purchase.
8MONITOR TYPE — 4:3LB / 4:3PS / 16:9 AUTO / 16:9 FIX
4:3LB (Letter Box conversion): Select this when the aspect ratio of
your TV is 4:3 (conventional TV). While viewing a wide screen
picture, the black bars appear on the top and the bottom of the
screen.
4:3PS (Pan&Scan): Select this when the aspect ratio of your TV is
4:3 (conventional TV). While viewing a wide screen picture, the
black bars do not appear; however, the left and right edges of the
pictures will not be shown on the screen.
16:9 AUTO (Wide television conversion): Select this when the
aspect ratio of your TV is 16:9 (wide TV).
16:9 FIX (Wide television conversion): Select this when the aspect
ratio of your TV is fixed to 16:9 (wide TV). The unit automatically
adjusts the screen width of the output signal correctly when
playing back a picture whose aspect ratio is 4:3.
Pan&Scan/Letter Box
In general, DVD VIDEO disc are produced for a wide-screen TV
with 16:9 aspect ratio.
Material with this ratio will not fit to a TV with 4:3 aspect ratio.
There are two styles to display the image, “Pan&Scan” (PS) and
“Letter Box” (LB).
Pan&Scan
The right and left side of the image are cut off.
The image fills the screen.
●The picture will be shown in the “4:3LB” mode
depending on the disc even if the “4:3PS” mode
is selected.
Letter Box
Black bands appear at the top and bottom of
the image. The image itself appears in 16:9
aspect ratio.
Monitor Set (DVD Deck Only)
●Turn on the unit.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
ENTER
SET UP
rtw e
VCR/DVD SAT
DR-MV1SEK_00.book Page 25 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_05DVD Operation1.fm]
Masterpage:Left0
26 EN
Page 26 April 15, 2004 11:41 am
OPERATIONS ON DVD DECK
To play back an MP3/JPEG disc, see “Playback With MP3/JPEG
Navigation” (墌pg. 66).
1Load a disc.
●For details, refer to “Placing A Disc” (墌pg. 10).
2Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
3Press 4 to start playback.
●If you load a DVD disc whose region code does not match the unit,
“REGION CODE ERROR” appears on the TV screen. For details,
refer to “Region Number” (墌pg. 8).
●If “CAN NOT PLAY BACK DISC UNDER CURRENT SETTING”
appears on the TV screen, refer to “Parental Lock” (墌pg. 41).
●With Video CD/SVCD discs with PBC control or some DVD discs, the
menu display may appear on the TV screen after starting playback. In
this case, select an item which you want to play back from the menu.
Otherwise, the playback cannot go forward. Refer to “Playback
Control (PBC) Function” (墌pg. 30) or “Locating A Desired Scene
Using The DVD Menu” (墌pg. 27).
●The Library Database DVD Navi also enables you to search and
select the desired programmes. (墌pg. 60)
4Press 9 to pause playback.
●To resume normal playback, press 4.
5Press 8 to stop playback.
●Playback stops and the unit enters Resume Stop mode and
memorises the position where you have stopped playback as a
resume point. (墌pg. 28)
●If x is pressed during playback, playback stops, then the disc tray
opens.
NOTE:
When the Library Database DVD Navi screen appears, choose a
thumbnail image of the desired programme on the TV screen, then
press SELECT(4) or ENTER. (墌pg. 60)
Basic Playback
●Turn on the unit.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
A
TTENTION:
●It takes approximately 30 seconds to read a disc depending on the
type and condition of the disc since this unit is multi-disc
compatible (DVD-RAM, DVD-RW, DVD-R). It may even take
several minutes when a disc is dirty, scratched or warped.
●It may take a few seconds to start playback. This is not a
malfunction.
●Forward/reverse high-speed search and other operations cannot
be performed while playback is stopped.
1
4
7
2
5
8
0
3
6
9
4
SELECT
98
ENTER
VCR/DVD SAT
8
x4
9
VCR/DVD
DR-MV1SEK_00.book Page 26 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 27
Filename [DR-MV1SEK_05DVD Operation1.fm]
Page 27 April 15, 2004 11:41 am
OPERATIONS ON DVD DECK
Locating A Desired Scene Using The DVD Menu
DVD VIDEO discs may have top menu and disc menu.
Top menu
DVD discs generally have their own menus which show the disc
contents. These menus contain various items such as titles of a
movie, names of songs, or artist information. You can locate a
desired scene by using the top menu displayed on the TV screen.
Press TOP MENU to access the top menu.
Disc menu
Disc menus include playback data (angle menu, subtitle menu,
etc.) specific to each title.
Press MENU to access the disc menu.
1Press TOP MENU or MENU to
access the DVD menu.
2Press rt w e to select a
desired title, then press ENTER.
Playback starts.
●It may be possible to select the
desired item using the number
keys depending on the menu
display.
NOTE:
When “X” appears on the TV screen
in step 1, the disc does not have a top menu or disc menu.
Locating The Start Point Of The Item Or Skip The Item
Press 2 or 6 during playback.
●Pressing 6 locates the start point of the item or skips the item for
forward direction, then resumes playback.
●Pressing 2 locates the start point of the item or skips the item for
reverse direction, then resumes playback.
When a DVD-RAM/RW/R disc is played
Example:
To locate the beginning of the next item, press 6 once.
To locate the beginning of the current item, press 2 once.
To locate the beginning of the previous item, press 2 three
times.
When a DVD VIDEO, Audio CD or Video CD/SVCD disc is
played
Example:
To locate the beginning of the next item, press 6 once.
To locate the beginning of the current item, press 2 once.
High-Speed Search
During playback, press 5 for forward high-speed search, or 3
for reverse high-speed search.
●Each press of the button increases the search speed for each
direction.
●To resume normal playback, press 4.
OR
During playback, press and hold 6 for 2 or more seconds for
forward high-speed search, or press and hold 2 for 2 or more
seconds for reverse high-speed search.
●Releasing the button resumes normal playback.
Playback Features
●Turn on the unit.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
●Press VCR/DVD repeatedly so that the DVD lamp lights up on the
unit.
1
4
7
2
5
8
0
3
6
9
MENU
5
TOP MENU
ENTER
3
2
4
6
rtw e
0 – 9
SAT
Example:
●: marked points (墌pg. 29)
Current programme
Drama
Previous
programme
News Next
programme Movie
Reverse Forward
Playback point
Reverse Forward
Scene 2
(Chapter 2)
or
Track 2
Scene 3
(Chapter 3)
or
Track 3
Scene 4
(Chapter 4)
or
Track 4
DR-MV1SEK_00.book Page 27 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_05DVD Operation1.fm]
Masterpage:Left+
28 EN
Page 28 April 15, 2004 11:41 am
OPERATIONS ON DVD DECK
Still Picture/Frame-By-Frame Playback
1Press 9 to pause playback.
2Press 9 or we to activate frame-by-frame playback.
●Each press of 9 advances the still picture frame by frame.
●Each press of we advances/reverses the still picture frame by
frame.
●Frame-by-frame playback for reverse direction cannot be performed
with Video CD/SVCD discs.
●To resume normal playback, press 4.
Slow Motion
1Press 9 to pause playback.
2Press SLOW – (3) or SLOW + (5).
●Each press of SLOW – (3) or SLOW + (5) increases the slow
motion speed for each direction (from 1/16 to 1/2 times the normal
speed).
●Slow motion for reverse direction cannot be performed with Video
CD/SVCD discs.
OR
Press SLOW – (3) or SLOW + (5) for 2 or more seconds.
Skip Search
During playback, press .
●Each press initiates an approximately 30-second period of fast-
motion playback. Normal playback resumes automatically.
Resume Function
It is possible to memorise the position where you stop playback
and resume playback from that position.
●Be sure to set “RESUME” to “ON” or “DISC RESUME”. (墌pg. 81)
1Press 8 during playback to memorise a resume point.
●The unit enters Resume Stop mode and memorises the position
where you have stopped playback as a resume point. (The inside of
the disc status indicator on the front display panel blinks while
memorising.)
●The unit retains a memory of the resume points of the last 30 discs
played back, even though they have been ejected if “RESUME” is set
to “DISC RESUME”. (墌pg. 81)
●To clear the resume points:
(The inside of the disc status indicator stops blinking and lights.)
When “RESUME” is set to “ON”:
• Press 1 to turn off the unit.
• Press x to take out the disc.
• Press 8 in stop mode.
• Press TOP MENU to display the top menu, then start playback by
selecting an item, etc.
• Press MENU to display the disc menu, then start playback by selecting
an item, etc.
When “RESUME” is set to “DISC RESUME”:
• Set “RESUME” to “OFF”. (墌pg. 81)
• Press 8 in stop mode.
• Press TOP MENU to display the top menu, then start playback by
selecting an item, etc.
• Press MENU to display the disc menu, then start playback by selecting
an item, etc.
2Press 4 in stop mode to resume playback. The unit starts
playback from the resume point.
NOTES:
●“DISC RESUME” setting works on DVD VIDEO, VCD, SVCD and
already finalised DVD-R/DVD-RW (video mode) discs. For other
types of discs, the function under “ON” setting will be applied even if
“RESUME” is set to “DISC RESUME”. (墌pg. 81)
●If you stop the playback of a disc for which an resume point has
already been memorised, the memory will be updated with the new
resume point.
●After the unit has memorised the resume point for 30 discs,
remembering a new resume point will cause the unit to delete the
oldest memorised point. Stopping playback of a disc for which a
resume point is already stored may change the order in which the
points are stored. This may potentially change the order in which
points are deleted.
●When the unit memorises a resume point for a disc, it also
remembers audio language, subtitle and angle settings.
●This function may not work for some Video CD/SVCD.
●When “RESUME” is changed to “ON” or “OFF” (墌pg. 81), resume
points of the discs memorised with “RESUME” set to “DISC
RESUME” will be cleared.
●Resume points are memorised for each side of a double-sided disc.
1
4
7
2
5
8
0
3
6
9
MENU
SLOW+ (5)
SLOW– (3)4
98
MARK
26
ANGLE
REMAIN
DISPLAY
TOP MENU
SUBTITLE
rtw e
ENTER
SAT
DR-MV1SEK_00.book Page 28 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 29
Filename [DR-MV1SEK_05DVD Operation1.fm]
Page 29 April 15, 2004 11:41 am
OPERATIONS ON DVD DECK
Marking Positions To Play Back Again Later
It is possible to mark positions (up to 999 points) where you want to
play back once again later, and start playback from a marked
position. Marking onto DVD-RAM/RW/R discs when recording is
helpful to locate a start point when you play back the discs later.
To mark positions:
During playback, press MARK at
positions you want to mark.
●“MARK” appears on the TV screen.
You can easily locate the marked
positions using 2 or 6 when you
play back the disc.
To delete the marked positions:
While paused, press 2 or 6 to
locate a marked position you want to
delete, then press MARK.
●Crossed “MARK” appears on the TV
screen, and the marked position is
deleted.
NOTE:
When a DVD-R/RW (Video mode) disc
is finalised, marked points marked before finalising will be deleted, and
programmes will be divided automatically into “chapters” approximately
every 5 minutes. (墌pg. 88)
Checking The Time Information
You can check time information of a disc on the front display panel
and the TV screen.
Press DISPLAY once to display the lastly displayed information. To
changes the display, press DISPLAY repeatedly.
8DVD-RAM/DVD-R/DVD-RW
During playback or recording
Clock time (front display panel only) ] Current title elapsed time
] Disc remaining time* ] (back to the beginning)
* only discs before finalising
●Clock time is displayed only when a recordable disc is played back.
In stop mode
●It is possible to check disc remaining time according to recording
modes also by pressing REMAIN.
●In FR mode, it is possible to set recording time in detail. While the
recording mode and the disc remaining time are displayed by
pressing REMAIN, press rt to select “FR”, then press we to
select the desired recording time. (墌pg. 44)
●It is not possible to switch the recording mode during playback or
while recording.
8Video CD/SVCD/Audio CD
During playback or in stop mdde
Total remaining time ] Current track elapsed time ] Current track
remaining time ] Total elapsed time ] (back to the beginning)
NOTE:
When a PBC-compatible Video CD/SVCD disc is loaded, deactivate the
PBC function. (墌pg. 30)
Angle Selection
You can enjoy a variety of scene angles if a DVD VIDEO disc
contains “multi-angle” parts, where the same scene was shot from
different angles.
“ ” appears automatically on the TV screen at the scene where
angle is selectable, while it doesn’t appear when “SUPERIMPOSE”
is set to “OFF”.
If the disc contains “multi-angle” parts, “ ” appears on the TV
screen at the beginning of the “multi-angle” part.
1Press ANGLE during playback.
The angle selection display
appears on the TV screen.
2Press ANGLE or we to select
your desired angle.
●Each time you press ANGLE or
we, the angle changes.
●When “X” appears on the TV screen, the current scene is not
recorded from multiple angles. In addition, some discs prohibit angle
selection.
●To clear the angle selection display, press ENTER. In addition, the
angle selection display disappears automatically if no operation is
done for 5 seconds.
Subtitle Selection
Some DVD VIDEO discs contain more than one subtitle language,
from among which you can choose the desired subtitle language.
“ ” appears automatically on the TV screen at the scene where
subtitle language is selectable, while it doesn’t appear when
“SUPERIMPOSE” is set to “OFF”.
“ ” appears on the TV screen at the beginning of the part where
more than one subtitle language are recorded.
1Press SUBTITLE during
playback. The subtitle selection
display appears on the TV screen.
●Each time you press SUBTITLE,
the subtitle display is switched on
and off.
2Press we to select your desired language.
●To clear the subtitle selection display, press ENTER.
NOTES:
●When “X” appears on the TV screen, no subtitle language is
recorded.
●When the subtitle language won’t be changed with the procedure
above, change the subtitle on a disc menu displayed by pressing
MENU.
When 3 scene angles are
contained.
ENGLISH
When 3 subtitle languages are
contained.
DR-MV1SEK_00.book Page 29 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_05DVD Operation1.fm]
Masterpage:Left+
30 EN
Page 30 April 15, 2004 11:41 am
OPERATIONS ON DVD DECK
Audio Language/Sound Selection
Some DVD VIDEO discs contain the multiple audio language or
sound. You can select the desired audio language or sound. For
some Video CD/SVCD discs, you can switch the audio channel to
choose Karaoke either with or without the vocal.
1Press AUDIO during playback.
The Audio Language/Sound
selection display appears.
2Press AUDIO or we to select
your desired audio language/
sound.
●Each time you press AUDIO or we, the audio language/sound
changes.
●To clear the Audio Language/Sound selection display, press ENTER.
NOTES:
●When “X” appears on the TV screen, no audio language is recorded.
●When the audio language won’t be changed with the procedure
above, change the audio on a disc menu displayed by pressing
MENU.
●It is only possible to select the audio language in stop mode. The
audio language cannot be selected during playback.
Audio Channel Selection
When watching bilingual programmes or playing discs on which
you recorded bilingual or stereo programmes, you can choose the
desired audio channel.
●When “SUPERIMPOSE” is set to “AUTO”, you can confirm on the TV
screen the audio channel you have chosen. (墌pg. 81)
●Each time you press AUDIO, the audio channel
changes.
NOTE:
It is not possible for DVD-R/DVD-RW (Video mode) disc playback to
switch the audio channel. The audio channel is played back as set in
“AUDIO REC” setting. (墌pg. 81)
When you can’t switch the audio channel of a bilingual
programme
When the unit is connected with a digital audio device using an
optional optical cable and “DIGITAL AUDIO OUT” is set to “DOLBY
DIGITAL/PCM”, it is not possible to switch the audio channel of a
bilingual programme recorded on a DVD-RAM or DVD-RW (VR
mode) disc. (墌pg. 79) In this case, perform the following steps
using the remote control to switch “DIGITAL AUDIO OUT” from
“DOLBY DIGITAL/PCM” to “PCM ONLY”.
APress SET UP to access the Main Menu screen.
BPress we to select “DVD SET UP”, then press ENTER.
CPress we to select “AUDIO OUTPUT”, then press ENTER.
DPress rt to select “DIGITAL AUDIO OUT”, then press
ENTER.
EPress rt to select “PCM ONLY”, then press ENTER.
(墌pg. 80)
FPress SET UP to complete the setting.
GPress AUDIO to select the desired audio channel.
Playback Control (PBC) Function
Some Video CD/SVCD discs support the PBC function. PBC is an
abbreviation of “Play Back Control”. A Video CD/SVCD disc
recorded with PBC has its own menus, such as a list of the songs
on the disc. You can locate a specific scene by using the menu.
1Press 4 in stop mode. The PBC menu appears.
2Press the number keys to enter the number of the desired
scene. The unit starts playback of the selected item.
●“PBC” appears on the front display panel.
●When “NEXT” or “PREVIOUS” appears on the TV screen:
Pressing NEXT (6) advances to the next page.
Pressing PREVIOUS (2) returns to the previous page.
●You can return to the menu by pressing RETURN.
●The method of the operation is different depending on the disc.
NOTES:
●If you want to playback a PBC-compatible Video CD/SVCD disc
without activating the PBC function, start playback in stop mode by
using the number keys, instead of the 4 button, to choose the track,
then press ENTER.
●To activate the PBC function when a PBC-compatible Video CD/
SVCD disc is being played back without the PBC function, press TOP
MENU, or press 8 then press 4.
TRACK USE
On-Screen Display
For main and sub audio of bilingual
programme
For main audio of bilingual programme
For sub audio of bilingual programme
For stereo discs
For audio of left channel
For audio of right channel
1
4
7
2
5
8
0
3
6
9
MENU
0 – 9
RETURN
TOP MENU
ENTER
SET UP
AUDIO
PREVIOUS (2)4
NEXT (6)
8
rtw e
SAT
When 3 audio languages are
contained.
DR-MV1SEK_00.book Page 30 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 31
Filename [DR-MV1SEK_05DVD Operation1.fm]
Page 31 April 15, 2004 11:41 am
OPERATIONS ON DVD DECK
This unit records pictures onto DVD-RAM discs, instead of video
tapes, then plays back the pictures recorded on the discs. This
makes it possible to achieve high-speed writing and read-out that
has not been possible with conventional VCRs, enabling recording
and playback simultaneously.
It is called “Live Memory Playback” to start playback of the
programme being recorded, with a time-lag between a recording
point and a playback point, as shown in the figure below.
Not only can this unit play back a programme previously recorded
while recording or timer recording another programme, but the unit
also allows you to play back from the beginning of a programme
while continuing to record the same programme.
Recording/playback Status Display
Press ON SCREEN. The current status is superimposed on the TV
screen.
To Play Back From The Beginning Of The Programme
While Recording
You can play back a programme you are recording from the
beginning while continuing to record or timer record onto a DVD-
RAM disc.
Press 4. Live Memory Playback starts from the beginning of the
programme being recorded.
●Pressing 2 or 6 allows you to locate the desired scenes.
To Move Back The Playback Position Slightly While
Recording (One Touch Replay function)
You can move back the playback position while continuing to
record or timer record onto a DVD-RAM disc.
Press .
●Each press skips back for approximately 7 seconds and resumes
playback.
●Pressing while paused skips back for approximately 7 seconds and
resumes pause.
To Watch A Programme Previously Recorded While
Recording
You can play back a programme you recorded previously while
recording.
1Press 4 during recording. Live Memory Playback starts.
2Press 2 or 6 to locate the beginning of the desired
programme.
NOTE:
To stop playback, press 8. The programme being recorded is
displayed.
Live Memory Playback
Playback
(High-speed read-out)
Recording
(High-speed writing)
High-speed spin
Image figure of DVD-RAM disc
Current recording position
(Recording point)
Recording start point
Current playback point
(Live Memory Playback)
0 30 min. 1 hour
Playback
continues
Recording
continues
Currently elapsed recording time
1
4
7
2
5
8
0
3
6
9
ON SCREEN
SAT
4
8
26
Live Memory Playback status can be checked by
pressing ON SCREEN to display the bar meter on
the superimpose display.
Bar meter display (墌pg. 33)
Superimpose display
DR-MV1SEK_00.book Page 31 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_05DVD Operation1.fm]
Masterpage:Left+
32 EN
Page 32 April 15, 2004 11:41 am
OPERATIONS ON DVD DECK
Overview Of Live Memory Playback
You can play back a programme you are recording from the beginning while continuing to record or timer record onto a DVD-RAM disc. This
is called “Live Memory Playback”.
NOTES:
●Live Memory Playback cannot be performed for approximately 30
seconds after recording has started.
●Although high-speed search up to approximately 30 seconds before
the current recording point is possible during Live Memory Playback,
once the current recording point is reached, the unit resumes normal
playback and maintains a delay of approximately 30 seconds so that
recording and playback can continue.
●When using Live Memory Playback during timer recording, playback
continues even after the end of the recording.
●When using Live Memory Playback during timer recording, playback
is automatically stopped just before recording starts, and then
recording starts when the time arrives for the next timer-programme.
●It is impossible to perform ITR even if you press 7 during Live
Memory Playback. (墌pg. 43)
Press 8 to display the programme being recorded, then perform ITR
settings.
●Playback may be paused for a moment during Live Memory
Playback, which does not interfere with recording.
●Live Memory Playback cannot be performed while recording the
source from DV input.
●When LIVE CHECK is pressed to display the picture currently being
recorded, the picture size may not be correct.
(Recording screen) (Live Memory Playback screen)
To start Live Memory Playback,
press 4 to play back from the
beginning OR press to
reverse-skip a little
To stop Live Memory Playback,
press 8
Checking the
picture currently
being recorded
To display, press LIVE
CHECK
To clear, press LIVE
CHECK
Recording stops
To stop recording,
press 8
(Playback and Live Check screen)
Live Memory Playback
Recording
To stop Live Memory Playback,
press 8
1
4
7
2
5
8
0
3
6
9
NAVIGATION
LIVE CHECK
8
7
4
ON SCREEN
SAT
Press NAVIGATION to display
Library Database DVD Navi menu,
then choose a programme to play
back. (墌pg. 59)
Pressing LIVE CHECK during Live
Memory Playback allows you to
check the picture currently being
recorded.
DR-MV1SEK_00.book Page 32 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 33
Filename [DR-MV1SEK_05DVD Operation1.fm]
Page 33 April 15, 2004 11:41 am
OPERATIONS ON DVD DECK
Display During Live Memory Playback
During recording, you can watch at your will what was previously recorded or is currently being recorded. It is possible to perform freely
normal playback operations (forward/reverse high-speed search and variable-speed search) within the range of the orange or blue bar on
the TV screen.
When Live Memory Playback reaches the point of 30 seconds before the current recording point by forward high-speed search or other
operations, the unit returns to normal playback.
The superimpose display appears by pressing ON SCREEN. (墌pg. 15)
The Live Check picture is displayed on the bottom right corner by pressing LIVE CHECK.
This unit displays the current recording/playback status by the bar meter.
(Example of bar meter display)
Live Memory Playback mark
Playback title number
Disc used
Bar meter (see below)
Title name
Playback counter
Recording title number
Recording counter display
(remaining/elapsed time)
Present time
Recording channel
Playback mark
Recording mode
Recording mark
Live Check picture
Recording mark
Station Name
While stopped
During playback
While recording
Live Memory Playback
Live Memory Playback of
another programme
Recorded
Capacity of a disc
Not recorded
Total length of the programme being played back
Current playback position
Capacity of a disc
Remaining capacity when recording started
Recording start position
Current recording position
Current playback position
Current playback position
Recording start position
Blue (recorded part)
Orange (recording part)
Green (playing part)
Black (unrecorded or unplayed part)
Total length of the programme being played back
Current recording position
Capacity of a disc
Capacity of a disc
Current recording position
DR-MV1SEK_00.book Page 33 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_05DVD Operation1.fm]
Masterpage:Left+
34 EN
Page 34 April 15, 2004 11:41 am
OPERATIONS ON DVD DECK
Buttons To Be Used During Live Memory Playback
ANAVIGATION
Displays Library Database DVD Navi menu. You can choose a
programme to play back.
Bwe
Available only when paused
Advances/reverses the still picture frame by frame.
C2
●Pressing once skips back to the beginning of the chapter being
played back.
●Pressing down for 2 or more seconds during playback reverses
playback at 5 times the normal speed while pressed. Releasing the
button resumes normal playback.
Available only when paused
●Pressing down for 2 or more seconds reverses playback at 1/16 times
the normal speed.
D6
●Pressing once skips forward to the beginning of the next chapter
being played back.
●Pressing down for 2 or more seconds during playback advances
playback at 5 times the normal speed while pressed. Releasing the
button resumes normal playback.
Available only when paused
●Pressing down for 2 or more seconds advances playback at 1/16
times the normal speed.
E3
●Each press of the button during playback advances the playback
speed in 5 steps for reverse direction.
Available only when paused
●Pressing once reverses playback by 1/16 times the normal speed.
●Each press of the button during reverse 1/16 times slow-motion
reverses slow-motion by 1/16 times, 1/4 times and 1/2 times the
normal speed.
F5
●Each press of the button during playback advances the playback
speed in 4 steps for forward direction.
Available only when paused
●Pressing once advances playback by 1/16 times the normal speed.
●Each press of the button during forward 1/16 times slow-motion
advances slow-motion by 1/16 times, 1/4 times and 1/2 times the
normal speed.
G8
Stops Live Memory Playback to return to the screen being
recorded.
Then a resume point is stored.
Pressing 8 again stops recording.
H9
Pressing once pauses playback (still picture playback). Pressing
repeatedly advances the still picture frame by frame.
I
Pressing once skips back for approximately 7 seconds and
resumes playback.
Pressing repeatedly skips back continuously as many times as
pressed.
It is useful when watching sports programmes, etc.
J
Pressing once skips forward for approximately 30 seconds and
resumes playback.
Pressing repeatedly skips forward continuously as many times as
pressed.
It is useful when skipping over unwanted sections.
KLIVE CHECK
Pressing once displays the picture currently being recorded and
the one being played back simultaneously.
Pressing successively clears the Live Check window and displays
only the picture currently being played back.
You can check, for example, if the programme you are recording
has already finished.
●Turn on the unit.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
SAT
DR-MV1SEK_00.book Page 34 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 35
Filename [DR-MV1SEK_05DVD Operation1.fm]
Page 35 April 15, 2004 11:41 am
OPERATIONS ON DVD DECK
The on-screen bar allows you to control various playback
functions. Some of the functions operated on Navigation Menu can
be controlled on the On-screen bar.
How To Access The On-screen Bar
1Press ON SCREEN whenever a disc is loaded.
Contents of the on-screen bar during playback
DVD VIDEO
Video CD/SVCD
JPEG disc
ADisc type.
BSelect this for Repeat Playback. (墌pg. 36)
CSelect this for A-B Repeat Playback. (墌pg. 36)
DSelect this for search function. (墌pg. 37)
ESelect this for time search function. (墌pg. 37)
FSelect this to switch Simulated Surround Effect function.
(墌pg. 38)
GSelect this for Picture Control function. (墌pg. 38)
HSelect this to switch picture source type. (墌pg. 39)
ICurrent status area for the selected item.
JSelect this for Programme Playback. (墌pg. 39)
KSelect this for Random Playback. (墌pg. 40)
LSelect this to control the switching interval of the slide show.
(墌pg. 40)
NOTE:
Although examples of the on-screen bar are provided here only for 3
types of discs, the on-screen bar will be displayed for whichever disc
indicated in the left column.
Basic Operation On The On-screen Bar
Example: When selecting Picture Control function of DVD
During playback or while stopped
1Press ON SCREEN twice to access the on-screen bar. The item
currently selected is highlighted and pointed by H.
2Press we to select “ ”, then press ENTER. The pop-up
window appears under the selected item.
3Press rt to select the desired option, then press ENTER.
To clear the on-screen bar
Press ON SCREEN.
NOTE:
See the corresponding pages for details on each menu item.
Using The On-screen Bar
Be sure to clear Library Database DVD Navi screen by pressing
NAVIGATION.
1
4
7
2
5
8
0
3
6
9
NAVIGATION ON SCREEN
ENTER
SAT
DR-MV1SEK_00.book Page 35 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_05DVD Operation1.fm]
Masterpage:Left+
36 EN
Page 36 April 15, 2004 11:41 am
OPERATIONS ON DVD DECK
Repeat Playback
You can repeat playback as you like according to the type of disc.
1Press ON SCREEN twice to access the on-screen bar.
2Press we to select “ ”, then press ENTER. The pop-up
window appears under the selected item.
3Press rt repeatedly to select the desired Repeat mode, then
press ENTER.
DVD-RAM/RW/R
OFF: Repeat playback is not performed.
ALL REPEAT: The whole disc is played back repeatedly.
TITLE REPEAT: The current title is played back repeatedly.
DVD VIDEO
OFF: Repeat playback is not performed.
TITLE REPEAT: The current title is played back repeatedly.
CHAPTER REPEAT: The current chapter is played back repeatedly.
Audio CD/Video CD/SVCD/JPEG/MP3
OFF: Repeat playback is not performed.
ALL REPEAT: The whole disc is played back repeatedly.
TRACK REPEAT*: The current track is played back repeatedly.
* “TRACK REPEAT” cannot be selected for JPEG discs.
To clear the on-screen bar
Press ON SCREEN.
To cancel Repeat Playback
Repeat the above procedure from step 1, select “OFF” in step 3,
then press ENTER.
NOTES:
●Repeat Playback is not possible for a Video CD/SVCD with PBC
function.
●Repeat Playback may not work properly depending on the type of the
disc being used.
A-B Repeat Playback
You can repeat the desired part.
During playback
1Press ON SCREEN twice to access the on-screen bar.
2Press we to select “ ”.
3Press ENTER at the beginning of the desired part you want to
repeat (point A). The elapsed playing time of the point A appears.
4Press ENTER at the end of the desired part you want to repeat
(point B). The elapsed playing time of the point B appears.
●The selected part of the disc (between point A and B) is played
repeatedly.
To clear the on-screen bar
Press ON SCREEN.
To cancel A-B Repeat Playback
Press we to select “ ”, then press ENTER.
NOTES:
●A-B Repeat Playback may not work properly depending on the type
of disc being used.
●The subtitles recorded around the A-B point may not appear.
●When the end of the item is reached before the end point is set, the
on-screen bar disappears from the TV screen. In such a case, repeat
the procedure from step 1.
●The point B must be set at least 3 seconds after the point A.
●When playing back a DVD, A-B Repeat Playback is possible only
within the same title.
●“ ” cannot be selected during Programme and Random
Playback.
●“ ” cannot be selected while stopped.
1
4
7
2
5
8
0
3
6
9
ON SCREEN
0 – 9
ENTER rtw e
CLEAR (8)
CANCEL (&)
SAT
DR-MV1SEK_00.book Page 36 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 37
Filename [DR-MV1SEK_05DVD Operation1.fm]
Page 37 April 15, 2004 11:41 am
OPERATIONS ON DVD DECK
Locating The Beginning Of A Desired Selection
You can locate the beginning of a title, chapter, group or track.
During playback or while stopped
1Press ON SCREEN twice to access the on-screen bar.
2Press we to select “ ”, then press ENTER.
3Press rt to select the desired item, then press ENTER.
●Skip this step for Video CD/SVCD and Audio CD.
For DVD-RAM/RW/R, DVD VIDEO
“TITLE SEARCH” or “CHAPTER SEARCH” is selectable. (“TITLE
SEARCH” only is selectable while stopped.)
For JPEG, MP3
“GROUP SEARCH” or “TRACK SEARCH” is selectable.
For Video CD/SVCD, Audio CD
“TRACK” is selectable.
4Press the number keys to enter the desired item number, then
press ENTER.
●Playback starts from the selected section.
Examples:
ATo select track 5, press the number key “5”.
BTo select track 15, press the number key “1” and “5”.
CTo select track 25, press the number key “2”, then “5”.
If you have specified a wrong selection
Press CANCEL (&) or CLEAR (8) to clear the wrong number,
then enter the correct one before you press ENTER in this step.
To clear the on-screen bar
Press ON SCREEN.
NOTES:
●When “X” is displayed on the TV screen in step 4, the chapter you
have selected is not contained in the disc, or chapter search does not
work on the disc.
●Before you press ENTER, playback may start automatically when you
enter the section’s number depending on the disc.
●This function is not possible for a Video CD/SVCD with PBC function.
Time Search
You can play back a disc from the desired point by specifying the
elapsed playing time from the beginning of a title (DVD-RAM, DVD-
R, DVD-RW and DVD VIDEO) or a disc (Video CD/SVCD and
Audio CD).
1Press ON SCREEN twice to access the on-screen bar.
2Press we to select “ ”, then press ENTER. The pop-up
window appears under the selected item.
3Press the number keys to enter the time, then press ENTER.
Playback starts from the specified time.
Example:
To play back from a point 12 (minutes): 50 (seconds) elapsed.
If you have specified a wrong selection,
Press CANCEL (&) (for the last entered number) or CLEAR (8)
(for whole numbers) to clear the wrong number, then enter the
correct one(s) before you press ENTER in this step.
To clear the on-screen bar
Press ON SCREEN.
NOTES:
●When “X” is displayed on the TV screen in step 3, you have selected
a point that excesses the recording time of the disc.
●Some DVD VIDEO discs do not contain time information, and it is not
possible to use the Time Search function. In such cases, “X” is
displayed on the TV screen as well.
●This function is not possible for a Video CD/SVCD with PBC function.
Press 1 Press 2
Press 0Press 5
DR-MV1SEK_00.book Page 37 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_05DVD Operation1.fm]
Masterpage:Left+
38 EN
Page 38 April 15, 2004 11:41 am
OPERATIONS ON DVD DECK
a
Simulated Surround Effect
It is possible to get a simulated surround effect from your stereo
system. You can enjoy the virtual surround sound with your
2-channel stereo system.
1Press ON SCREEN twice to access the on-screen bar.
2Press we to select “ ”, then press ENTER.
●Above the selected item, “3D-ON” appears and Simulated Surround
Effect is activated.
●Each time you press ENTER, “3D-ON” appears and disappears
alternately.
To clear the on-screen bar
Press ON SCREEN.
To cancel the simulated surround effect
Press ENTER to clear “3D-ON” from the screen.
NOTES:
●The simulated surround effect works correctly only when playing back
a title recorded in multichannels.
●Simulated Surround Effect does not affect the DVD VIDEO bitstream
signal from the DIGITAL AUDIO OUTPUT connector.
●When Simulated Surround Effect is activated, the settings of
“ANALOG AUDIO OUT” and “D. RANGE CONTROL” are disabled.
(墌pg. 80)
Adjusting The Picture Quality
You can obtain optimal picture quality by selecting an appropriate
picture mode.
1Press ON SCREEN twice to access the on-screen bar.
2Press we to select “ ”, then press ENTER. The pop-up
window appears under the selected item.
3Press rt to select the desired option, then press ENTER.
NORMAL: Normally select this option.
CINEMA: Suitable for a movie disc, etc.
SHARP: Clearer, sharper-edged picture when viewing images with
lots of flat, same-coloured surfaces such as cartoons.
SOFT: Select this option when too much noise appears.
To clear the on-screen bar
Press ON SCREEN.
1
4
7
2
5
8
0
3
6
9
ON SCREEN
0 – 9
ENTER
2
4
6
rtw e
CANCEL (&)
CLEAR (8)
SAT
DR-MV1SEK_00.book Page 38 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 39
Filename [DR-MV1SEK_05DVD Operation1.fm]
Page 39 April 15, 2004 11:41 am
OPERATIONS ON DVD DECK
Setting The Progressive Mode
You can obtain optimal picture quality by selecting whether the
content on the disc is processed by field (video source) or by frame
(film source).
1Press ON SCREEN twice to access the on-screen bar.
2Press we to select “ ”, then press ENTER. The pop-up
window appears under the selected item.
3Press rt to select the desired option, then press ENTER.
AUTO 1: Used to play a disc containing both video and film source
materials. This system recognises the source type (video or film)
of the current disc according to the disc information. Normally
select this option.
AUTO 2: Almost the same as the “AUTO 1”, but the processing of
the scenes with movement is different. Select “AUTO 1” or
“AUTO 2” to your preference.
FILM: Suitable for playing back a progressive scanned film source
disc.
VIDEO: Suitable for playing back a video source disc. The outlines
on the played back pictures will be soft.
To clear the on-screen bar
Press ON SCREEN.
NOTE:
When the progressive mode is set, be sure to set “L-1 OUTPUT” to
“COMPONENT”. (墌pg. 74) Progressive scan is output only from
COMPONENT VIDEO OUT connector.
Programme Playback
You can play back up to 30 tracks in the desired order.
While stopped
1Press ON SCREEN twice to access the on-screen bar.
2Press we to select “PRGM”, then press ENTER. The
programme table appears under on-screen bar.
3Press the number keys to
enter the track numbers in the
desired order.
Examples:
ATo select track 5, press the
number key “5” and ENTER.
BTo select track 15, press the
number key “1” and “5”.
CTo select track 25, press the number key “2” and “5”.
If you have specified a wrong selection
Press CANCEL (&). The last selection is erased.
Or press CLEAR (8). The whole selection is erased.
4Press 4. Playback starts in the programmed order.
●When all of the programmed tracks have been played back,
Programme Playback stops, but the programmed information
remains.
●To add tracks to the end of the programme, perform steps 1 through
3.
●During Programme Playback, pressing 6 skips to the next
selection of the programme. Pressing 2 returns to the beginning of
the current selection.
To clear the on-screen bar and the contents of the programme
Press ON SCREEN.
To cancel Programme Playback
Press we to select “PRGM”, then press ENTER.
NOTE:
Programme Playback is not possible depending on the type of disc.
DR-MV1SEK_00.book Page 39 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_05DVD Operation1.fm]
Masterpage:Left+
40 EN
Page 40 April 15, 2004 11:41 am
OPERATIONS ON DVD DECK
a
Random Playback
You can play back all the tracks on the disc in random order.
While stopped
1Press ON SCREEN twice to access the on-screen bar.
2Press we to select “RND”, then press ENTER. Playback starts
in random order.
To clear the on-screen bar
Press ON SCREEN.
To cancel Random Playback
Perform steps 1 and 2.
NOTE:
The same track will not be played back more than once during Random
Playback.
Select The Switching Interval Of The Slide Show
You can control the switching interval of the slide show.
1Press ON SCREEN twice to access the on-screen bar.
2Press we to select “ ”, then press ENTER. The pop-up
window appears under the selected item.
3Press rt to select the desired option, then press ENTER.
●Each time you press rt, the interval changes as follows:
5 SEC. { 10 SEC. { 15 SEC. { 20 SEC. { 25 SEC. {
30 SEC. { (Back to the beginning)
To clear the on-screen bar
Press ON SCREEN.
1
4
7
2
5
8
0
3
6
9
ON SCREEN
ENTER rtw e
SAT
DR-MV1SEK_00.book Page 40 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 41
Filename [DR-MV1SEK_05DVD Operation1.fm]
Page 41 April 15, 2004 11:41 am
OPERATIONS ON DVD DECK
This function restricts playback of DVD VIDEO discs which contain
violent (and other) scenes according to the level set by the user.
For example, if a movie which includes violent scenes supports the
parental lock feature, such scenes which you do not want to let
children view can be cut or replaced by other scenes.
To Set Parental Lock For The First Time
While stopped
1Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
2Press SET UP to access the Main Menu screen.
3Press we to select “DVD SET UP”, then press ENTER.
4Press we to select “UTILITY”,
then press ENTER.
5Press rt to select
“PARENTAL LOCK”, then press
ENTER.
6Press rt to select
“PARENTAL LEVEL”, then press
ENTER.
7Press rt to select the desired
level, then press ENTER.
●The smaller the value of level is,
the more restrictive the Parental
Lock level becomes.
●Select “NONE” to cancel the
restriction.
8Press the number keys to
enter your desired four-digit
number, then press ENTER.
●If you made a mistake, enter a
correct number again.
9Press rt to select
“COUNTRY CODE”, then press
ENTER.
10 Press rt to select your
country code, then press ENTER.
●If you do not need to change your country code, jump to 12.
●See “Country/Area Code List for Parental Lock” (墌pg. 98).
11 Press the number keys to enter the same password as in
step 8 above, then press ENTER.
12 Press SET UP twice to complete the setting.
NOTE:
Remember your password, or make a note of it.
To Change The Settings
You can change the Parental lock settings later.
1Perform steps 1 to 5 of “To Set Parental Lock For The First
Time” to access the “PARENTAL LOCK” screen before continuing.
To change the level
2Press rt to select “PARENTAL LEVEL”, then press ENTER.
3Press rt to select the desired level, then press ENTER.
To change the country code
4Press rt to select “COUNTRY CODE”, then press ENTER.
5Press rt to select your country code, then press ENTER.
●See “Country/Area Code List for Parental Lock” (墌pg. 98).
6Press the number keys to enter the same password as in
step 8 of “To Set Parental Lock For The First Time”, then press
ENTER.
7Press SET UP twice to complete the setting.
NOTE:
If you forget your password, enter “8888” in step 6.
To Temporarily Release Parental Lock
When you set the parental lock level strictly, some discs may not be
played back at all. When you insert such a disc and try to play it
back, the confirmation screen appears on the TV screen, asking
you whether you want Parental Lock to be temporarily released or
not.
1Load a disc.
●If the disc is rated higher than the selected level, the confirmation
screen appears.
2Press we to select “YES”, then press ENTER.
●If you select “NO”, you cannot play back that disc.
3Press the number keys to enter the same password as in
step 8 of “To Set Parental Lock For The First Time”, then press
ENTER.
●When you enter the correct password, the Parental Lock is released
and the unit starts playback.
●If you enter a wrong password, “ENTRY ERROR RETRY” appears on
the TV screen. Enter the correct password.
●If you have successively entered wrong password three times,
“ENTRY ERROR CAN NOT CHANGE PASSWORD” appears on the
TV screen. In such a case, press ENTER. The disc will stop. Then
play back the disc again, and try the procedure again from step 1.
NOTE:
If you forget your password, enter “8888” in step 3.
Parental Lock
●Turn on the unit.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
VCR/DVD
0 – 9
SET UP
ENTER rtw e
SAT
DR-MV1SEK_00.book Page 41 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_06DVD Operation2.fm]
Masterpage:Left0
42 EN
Page 42 April 15, 2004 3:30 pm
OPERATIONS ON DVD DECK
1Load a recordable disc.
●For details, refer to “Placing A Disc” (墌pg. 10).
2Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
3Press PR +/– or the number keys to select the channel you
wish to record.
4Press REC MODE repeatedly to set the recording mode.
●Each time you press REC MODE, the recording mode changes as
follows:
XP ] SP ] LP ] EP ] FR] (Back to the beginning)
* The value is selectable from 1 to 6 hours in 5-min. increment, from 7 to
8 hours in 1-hour increment by pressing
we
repeatedly after selecting
“FR60–FR360”, “FR420” and “FR480”. To change the value in 30-min.
increments, press and hold
we
.
●For details on the recording mode, see the right column.
5Press 7 on the unit to start recording. Or press and hold 7 and
press 4 on the remote control.
●The DVD recording lamp lights up on the unit.
6Press 9 to pause recording.
●To resume recording, press 4.
7Press 8 to stop recording.
●The DVD recording lamp lights off on the unit.
●It takes about 5 seconds to end the writing session when you stop
recording.
NOTES:
●It is recommended to format a DVD-RAM disc before use if you use
the disc on this unit for the first time.
●When using a brand-new DVD-RW disc, format the disc either in VR
mode or in Video mode. (墌pg. 87)
●Recordings made on DVD-R/RW disc must be finalised to play back
on other DVD players. Perform “Finalise A Disc (DVD Deck Only)”
(墌pg. 88).
●You can record up to 99 programmes and 999 play lists on each disc.
●Some programmes can only be recorded one time.
●When recording is started, an index of the first part of recording is
automatically recorded. (墌pg. 59) To record satellite programmes,
refer to page 50. To delete the index, refer to page 61.
●Recording sometimes may stop or cannot be performed even if there
is enough available capacity remaining on the disc.
Recording Resume Function
If there is a power outage during recording, Instant Timer
Recording (ITR) (墌pg. 43) or timer recording (墌pg. 45, 46, 47),
the recording will resume automatically when power is restored to
the unit unless the unit’s memory backup has expired.
Recording Mode
MPEG2 format is used as recording format. As a guide for picture
quality, the “bps” unit is used to represent how much data can be
recorded per second. The larger this value is, the better the picture
quality becomes but more capacity is required for the recording.
Select XP or SP for programmes where quick movement occurs,
such as sports programmes, and LP or EP for talk shows, etc. with
relatively less movement.
The recording modes for a 4.7 GB disc are set as follows:
Basic Recording
●Turn on the unit.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
A
TTENTION:
It is not possible to record programmes on a DVD-R disc which
has already been finalised.
1
4
7
2
5
8
0
3
6
9
7
REC MODE
98
PR +/–
0 – 9
4
VCR/DVD SAT
7
8
49
VCR/DVD PR +/–REC MODE
Recording
mode
Recording amount
(approx.)
Maximum recording
time (approx.)
XP 10 Mbps 1 hour
SP 5 Mbps 2 hours
LP 2 Mbps 4 hours
EP 1.6 Mbps 6 hours
FR60–FR360
(墌pg. 44) The amount varies
depending on the
selected time.
1 – 6 hours
FR420 7 hours
FR480 8 hours
DR-MV1SEK_00.book Page 42 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 43
Filename [DR-MV1SEK_06DVD Operation2.fm]
Page 43 April 15, 2004 3:30 pm
OPERATIONS ON DVD DECK
Instant Timer Recording (ITR)
This easy method lets you record for from 30 minutes to 6 hours
(selectable in 30-min. increments), and shuts the unit off after
recording is finished.
1Press 7 on the unit to start recording.
2Press 7 again to engage the ITR mode.
●On the front display panel, “0:30” appears.
3If you want to record for more than 30 minutes, press 7 to
extend the time. Each press extends recording time by 30 minutes.
NOTES:
●You can only perform ITR using the 7 button on the unit.
●If “DIRECT REC” is set to “ON” (墌pg. 81), Instant Timer Recording
(ITR) does not work.
●When the recording capacity becomes full during timer recording or
Instant Timer Recording, the unit is automatically shut off.
Watch Another Programme While Recording On The
Unit
While recording is going on, you can watch another programme on
the TV by using the TV’s tuner.
NOTE:
It is required that the remote control is set to be able to operate the TV
in advance. (墌pg. 76)
1During recording, press TV/VCR to select TV mode if your unit
is connected to the TV via the RF connection.
●VCR mode is disengaged, then the VCR indicator lights off and “TV”
appears on the front display panel.
●The programme received on the TV’s tuner is displayed on the TV
screen.
2Slide the TV/CABLE/SAT/DVD switch to TV.
3Press PR +/– repeatedly to select the desired channel.
Elapsed Recording Time And Disc Remaining Time
Indication
During recording, press DISPLAY repeatedly until the desired
indication appears on the front display panel.
●Each time you press DISPLAY, the time indication changes as
follows:
Elapsed recording time ] Disc remaining time ] Clock ] (Back to
the beginning)
●There is another way to check the disc remaining time. While the unit
is stopped or recording is in progress, press REMAIN. The list of disc
remaining times for all recording modes appears on the TV screen.
Recording Features
●Turn on the unit.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
●Press VCR/DVD repeatedly so that the DVD lamp lights up on the
unit.
1
4
7
2
5
8
0
3
6
9
PR +/–
DISPLAY
REMAIN
TV/VCR
SAT
7
VCR indicator lights off.
DR-MV1SEK_00.book Page 43 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_06DVD Operation2.fm]
Masterpage:Left+
44 EN
Page 44 April 15, 2004 3:30 pm
OPERATIONS ON DVD DECK
Free Rate Function
To record the entire programme, the unit automatically set the
appropriate recording mode depending on the combination of the
total time of the programme to be recorded and either the
remaining disc space or the specified recording time (from 60
minutes to 480 minutes).
8To record the entire programme within the actual remaining
disc space
Select “FR (JUST)” in a recording mode selection procedure.
(墌pg. 45, 47)
●Note that this function is available only for timer programming
recording.
8To record the entire programme by specifying the desired
recording time
Select “FR60–FR360”, “FR420” or “FR480” in a recording mode
selection procedure. (墌pg. 42, 45, 47)
8To record a 25-min. long daily programme five times just on
a same disc for example
Perform “VIDEO Plus+® Timer Programming” (墌pg. 45)
procedure. Be sure to set the recording mode to “FR125” and set
Weekly/Daily Rec Function to “MON–FRI” in step 6 to fit the total
recording time to the whole disc space.
When the same programme is recorded in SP mode instead of in
“FR125”, the 5th programme cannot be recorded.
NOTES:
●You can programme this unit to timer-record, regardless of the disc
remaining time. When the disc remaining time is not enough,
recording may stop in the middle of a programme. To avoid this, make
sure of the disc remaining time before setting timer-programming.
(Example) If you programmed to timer-record for 60 minutes in SP
mode on a 120-minute disc, the disc remaining time would be 30
minutes in XP mode, 60 minutes in SP mode, 120 minutes in LP
mode, 180 minutes in EP mode, and 240 minutes in FR480 mode.
Timer-recording will not complete beyond these remaining times.
●The maximum recording time of FR (JUST) mode is the same as the
recording time of FR480 mode. When timer-programming a long
programme in FR (JUST) mode on a disc whose remaining time is
short, it is recommended checking the disc remaining time in FR480
mode to see if the remaining time is enough for the programme.
●Even if more than one programme are timer-programmed in FR
(JUST) mode, only the first one is recorded.
●In order to ensure that the recording fits on the disc, this feature may
leave a slight non-recorded section at the end of the disc.
●There may be some noise and sound disturbance at the point on the
disc where the unit switches the mode.
Receiving Stereo And Bilingual Programmes
Your unit is equipped with a Digital stereo sound decoder (NICAM)
making reception of stereo and bilingual broadcasts possible.
When the channel is changed, the type of broadcast being
received will be displayed on the TV screen for a few seconds.
NOTES:
●“SUPERIMPOSE” must be set to “AUTO”. Otherwise the on-screen
displays will not appear. (墌pg. 81)
●If the quality of stereo sound being received is poor, the broadcast
might be received in monaural with better quality.
Selection Of The Audio Channel To Be Recorded On A
Disc
When a programme is recorded on a DVD-RAM or DVD-RW disc in
VR mode, all audio channels of the receiving programme are
recorded on the disc. When you record a programme on a DVD-R
or DVD-RW disc in video mode, select the desired audio channel
(from among “NICAM 1/MAIN”, “NICAM 2/SUB”, “MONO”) to be
recorded on the disc. (墌pg. 81)
NOTE:
Before playing back a programme recorded in stereo, or a bilingual
programme, refer to “Audio Channel Selection” on page 30.
Blank
A
:
1
st
B: 2nd
C: 3rd
D: 4th
E: 5th
A: 1st
B: 2nd
C: 3rd
D: 4th
E: Blank (20 min.)
Blank
Type of Broadcast Being
Received On-screen Display
Regular Monaural
NICAM Stereo
NICAM Bilingual
NICAM Monaural
DR-MV1SEK_00.book Page 44 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 45
Filename [DR-MV1SEK_06DVD Operation2.fm]
Page 45 April 15, 2004 3:30 pm
OPERATIONS ON DVD DECK
You can programme this unit to timer-record as many as
8 programmes.
With the VIDEO Plus+ system, timer programming is greatly
simplified because each TV programme has a corresponding code
number which your unit is able to recognise.
You can use the remote control to enter the PlusCode number.
1Load a recordable disc.
2Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
3Press VIDEO Plus+ to access the VIDEO Plus+ screen.
4Press the number keys to
enter the PlusCode number of a
programme you wish to record,
then press ENTER.
●If you have made a mistake, press
CANCEL (&) and input the correct
number before you press ENTER.
●To clear all entered numbers at a
time, press CLEAR(8).
●If the number you entered is invalid, “PlusCode NO. ERROR
CONFIRM PlusCode NO. THEN RETRY” appears on the TV screen.
Input a valid PlusCode number.
●If “GUIDE PROGRAMME IS NOT SET SELECT CHANNEL YOU
WANT TO RECORD” appears on the TV screen, set Guide Program
numbers manually. (墌pg. 83)
●When “PROGRAMME FULL DELETE UNWANTED TIMER
PROGRAMME” appears on the TV screen, you need to cancel some
of the reserved programmes. (墌pg. 49)
5The PlusCode number you entered and the matching timer-
recording information are displayed on the TV screen. Check the
programme data.
●To cancel this setting, press VIDEO Plus+ or RETURN.
6Press we to select the desired recording option as required.
Press rt to select the desired setting, then press ENTER.
●“STOP” (To advance/go back the stop time by 30 minutes, press and
hold rt).
●“DAILY/WEEKLY” (墌pg. 45, “Daily/Weekly Recording”)
●“REC MODE” (墌pg. 42, “Recording Mode”)
●“NAME” (墌pg. 61, “Modify Programme Name”)
●“VPS/PDC” (墌pg. 57, “PDC Recording”)*
* VPS (Video Programme System) recording is not currently available
in the U.K. and not possible with this unit.
7Press ENTER to access the Programme Confirmation screen.
8Press ENTER to complete timer programming.
●To programme another timer, repeat steps 3–8.
●If “PROGRAM OVERLAPPED” appears on the TV screen, see
page 49.
9Press DVD TIMER (#) to engage the unit’s timer mode. The
DVD timer lamp lights up on the unit and the VCR deck is
automatically selected. Press 1 to turn off the unit. When the
VCR deck is in timer standby mode, the unit is automatically turned
off.
●To disengage the timer mode, press DVD TIMER (#) again.
NOTES:
●There may be cases that VIDEO Plus+ Timer Programming function
prolongs the stop time of the programming.
●When two successive programmes are recorded on a DVD-RW disc
with VIDEO Plus+ Timer Programming function, the beginning of the
second one may be left off the recording.
●VIDEO Plus+ Timer Programming is not possible on the discs used
exclusively for On-Disc Timer Programming.
●If the copy limited programme is received during timer-recording, the
unit enters Record Pause mode. Recording starts again if it is
switched to a recordable broadcast during the time you programmed.
Daily/Weekly Recording
You can record programmes with one of the following weekly/daily
timer settings.
WEEKLY: Select to record a weekly programme.
MON–FRI: Select to record a daily programme from Monday
through Friday.
MON–SAT: Select to record a daily programme from Monday
through Saturday.
SUN–SAT: Select to record a daily programme from Sunday
through Saturday.
VIDEO Plus+® Timer Programming
●Make sure that the unit’s built-in clock is set properly.
●Turn on the unit.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
IMPORTANT:
Make sure the channel position number you wish to record is
displayed; if not, see “VIDEO Plus+® System Setup” (墌pg. 83) and
set the Guide Program number correctly.
1
4
7
2
5
8
0
3
6
9
0 – 9
RETURN
ENTER
VIDEO Plus+
CLEAR (8)
CANCEL (X)
DVD TIMER (#)
VCR/DVD
SAT
IMPORTANT:
If you have moved to a different area or if a broadcasting station’s
programme number has been changed, the wrong programme
number will be displayed on the VIDEO Plus+ programme screen in
step 5. When this happens, set the correct Guide Program number
for that station. (墌pg. 83, “VIDEO Plus+® System Setup”)
Satellite Receiver Users
To timer-record a satellite broadcast using the VIDEO Plus+
system:
APerform “Satellite Receiver Control Setting (DVD Deck Only)”
(墌pg. 23).
BPerform “VIDEO Plus+® Timer Programming” (墌pg. 45).
CLeave the satellite receiver’s power on.
DR-MV1SEK_00.book Page 45 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_06DVD Operation2.fm]
Masterpage:Left+
46 EN
Page 46 April 15, 2004 3:30 pm
OPERATIONS ON DVD DECK
You can programme this unit to timer-record as many as
8 programmes.
If you do not know the PlusCode number for the programme you
wish to record, use the following procedure to set your unit to
timer-record the programme.
1Load a recordable disc.
2Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
3Press PROG/CHECK to
access the Programme Check
screen.
●When “PROGRAMME FULL
DELETE UNWANTED TIMER
PROGRAMME” appears on the
TV screen, you need to cancel
some of the reserved
programmes. (墌pg. 49)
4Press rt to select “NEW
TIMER PROGRAMME”, then
press ENTER. The programme
screen appears.
5Press rt to set the desired
date.
●The current date appears on the
TV screen. The date you enter
appears in its place.
6Press we to select “START”, then press rt to set the desired
start time.
●Each press of rt advances/goes back the start time in 1-min.
increments.
●To advance/go back the start time in 30-min. increments, press and
hold rt.
7Press we to select “STOP”, then press rt to set the desired
stop time.
●Each press of rt advances/goes back the stop time in 1-min.
increments.
●To advance/go back the stop time in 30-min. increments, press and
hold rt.
8Press we to select “TV PROG”, then press rt to select the
desired channel.
9Set the other recording options as required.
●Refer to step 6 in “VIDEO Plus+® Timer Programming” (墌pg. 45).
10 Press ENTER to access the Programme Confirmation screen.
11 Press ENTER to complete timer programming.
●To programme another timer, repeat steps 3–11.
12 Press DVD TIMER (#) to engage the unit’s timer mode. The
DVD timer lamp lights up on the unit and the VCR deck is
automatically selected. Press 1 to turn off the unit. When the
VCR deck is in timer standby mode, the unit is automatically turned
off.
●To disengage the timer mode, press DVD TIMER (#) again.
NOTES:
●When two successive programmes are recorded on a DVD-RW disc
with Manual Timer Programming function, the beginning of the
second one may be left off the recording.
●If the copy limited programme is received during timer-recording, the
unit enters Record Pause mode. Recording starts again if it is
switched to a recordable broadcast during the time you programmed.
PDC Recording
Now available from some TV stations, PDC (Programme Delivery
Control) is a service designed to assure safe, accurate timer
recording. With this system, special code signals are transmitted
together with the audio/video signals. These code signals control
your unit and have precedence over the advertised times which
you may have preset into the timer. This means that your unit will
start and stop recording when the preset TV programmes actually
start and end — even if the broadcast time of a preset TV
programme is changed from what has been advertised. PDC is
currently available nationally on BBC1, BBC2, Ch.4 and Ch.5,
except from a few small relay transmitters. Ch.3 operates a PDC
service in some areas. All channels intend to offer this service in
due course. Check your TV programme listing guide for latest
information. If the channel you intend to record does not offer a
PDC service your unit will not start recording if PDC has been
selected. Be sure to set PDC to “OFF” if PDC is not available on
your selected channel. (See step 6 on page 45.)
NOTES:
●When you use Manual Timer Programming, set the start time (PDC
time) exactly as advertised in the TV listing. A different time than
advertised will result in no recording.
●PDC recording is also possible when a satellite receiver or a cable
system is connected to L-2 IN/DECODER connector on your unit.
●PDC recording is also possible via the L-1 IN/OUT connector.
Manual Timer Programming
●Make sure that the unit’s built-in clock is set properly.
●Turn on the unit.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
PROG/CHECK
ENTER
DVD TIMER (#)
rtw e
AUX
DISPLAY
VCR/DVD
SAT
Satellite Receiver Users
To timer-record a satellite broadcast using Manual Timer
Programming:
APerform “Satellite Receiver Control Setting (DVD Deck Only)”
(墌pg. 23).
BPerform “Manual Timer Programming” (墌pg. 46). In step 8,
press AUX to change “TV PROG” to “SAT”. Then press rt to
enter the channel position for the satellite broadcast. In step 9,
you cannot set “VPS/PDC” to “ON”.
CLeave the satellite receiver’s power on.
DR-MV1SEK_00.book Page 46 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 47
Filename [DR-MV1SEK_06DVD Operation2.fm]
Page 47 April 15, 2004 3:30 pm
OPERATIONS ON DVD DECK
On-Disc Timer Programming is a function used with discs that are
especially intended for a specific programme. The disc is then
programmed for a programme you always watch every day or
every week. Since older programmes are automatically
overwritten, a single DVD-RAM/RW (VR mode) disc can be used
without worrying about how much recording capacity remains.
(墌pg. 48)
You can programme each disc to timer-record as many as
8 programmes.
To Make The Disc For On-Disc Timer Programming
1Load a recordable disc.
2Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
3Press PROG/CHECK to access the Programme Check screen.
4When On-Disc Timer Programming is made for the first
time on the disc
Press rt to select “DISC TIMER PRGM”, then press ENTER.
●When some programmes are recorded on the disc, a caution
message appears. In such a case, backup the programmes as
required, then format the disc before making On-Disc Timer
Programming. (墌pg. 87)
When On-Disc Timer Programming has already been made on
the disc
Press rt to select “NEW TIMER PROGRAMME”, then press
ENTER.
5Press rt to set the desired date.
●The current date appears on the TV screen. The date you enter
appears in its place.
6Press we to select “START”, then press rt to set the desired
start time.
●Each press of rt advances/goes back the start time in 1-min.
increments.
●To advance/go back the start time in 30-min. increments, press and
hold rt.
7Press we to select “STOP”, then press rt to set the desired
stop time.
●Each press of rt advances/goes back the stop time in 1-min.
increments.
●To advance/go back the stop time in 30-min. increments, press and
hold rt.
8Press we to select “TV PROG”, then press rt to select the
desired channel.
9Set “DAILY/WEEKLY” option.
●Refer to step 6 in “VIDEO Plus+® Timer Programming” (墌pg. 45).
●It is necessary to set “DAILY/WEEKLY” option for On-Disc Timer
Programming. (墌pg. 45, “Daily/Weekly Recording”)
10 Set the other recording options as required.
●You can select XP, SP, LP, EP or FR480 mode for “REC MODE”.
However, you cannot select FR (JUST), FR60–FR360 and FR420.
●Refer to step 6 in “VIDEO Plus+® Timer Programming” (墌pg. 45).
●It is not possible to use the Free Rate function. (墌pg. 44)
11 Press ENTER to access the Programme Confirmation screen.
12 Press ENTER to complete timer programming.
●To programme another timer, repeat steps 3–12.
To Timer-record The Programme With The Programmed
Disc
1Load a programmed disc.
2Press DVD TIMER (#). The unit turns off and “ ” appears
on the front display panel. The DVD timer lamp also lights up on
the unit and the VCR deck is automatically selected. Press 1 to
turn off the unit. When the VCR deck is in timer standby mode, the
unit is automatically turned off.
●To disengage the timer mode, press 1 again.
NOTES:
●Even if On-Disc Timer Programming is overlapping with other timer
programming, any caution message does not appear. In such a case,
recording will be executed in the descending order of the recording
start time of the programme.
●On-Disc Timer Programming is not possible on a DVD-RW disc
formatted in video mode. (墌pg. 87)
●The information of a programme recorded with On-Disc Timer
Programming is not stored in the library. (墌pg. 65)
●The play list is not created for the programmes recorded with On-Disc
Timer Programming. (墌pg. 62)
●VIDEO Plus+ Timer Programming is not possible on the discs used
exclusively for On-Disc Timer Programming.
●Manual Timer Programming is not possible on the On-Disc Timer
Programmed disc. (墌pg. 46)
●Basic Recording is not possible on the On-Disc Timer Programmed
disc. (墌pg. 42)
●The On-Disc Timer Programming function does not work on the unit
form other manufactures even if the On-Disc Timer Programmed disc
is loaded.
●The beginning of a programme may not be recorded. Also, if the 1st
programme’s recording stop time and the 2nd programme’s recording
start time is the same, the ending of the 1st programme may not be
recorded.
●If there is a power cut while recording, the recordings before the
power cut are not guaranteed.
On-Disc Timer Programming
●Make sure that the unit’s built-in clock is set properly.
●Turn on the unit.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
A
TTENTION:
●On-Disc Timer Programming is possible only with the disc for On-
Disc Timer Programming.
●If data is recorded on a disc for On-Disc Timer Programming using
a unit from another manufacturer, On-Disc Timer Programming
may no longer function properly.
1
4
7
2
5
8
0
3
6
9
PROG/CHECK
ENTER
DVD TIMER (#)
rtw e
VCR/DVD 1
SAT
Satellite Receiver Users
To timer-record a satellite broadcast using the On-Disc Timer
Programming function:
APerform “Satellite Receiver Control Setting (DVD Deck Only)”
(墌pg. 23).
BPerform “On-Disc Timer Programming” (墌pg. 47). In
step 10, you cannot set “VPS/PDC” to “ON”.
CLeave the satellite receiver’s power on.
DR-MV1SEK_00.book Page 47 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_06DVD Operation2.fm]
Masterpage:Left+
48 EN
Page 48 April 15, 2004 3:30 pm
OPERATIONS ON DVD DECK
How Discs Are Overwritten
NOTES:
●On-Disc Timer Programming may not always work as these examples.
●On-Disc Timer Programming may not complete successfully if the recording stop time is extended due to PDC.
(Example 1)
To record a 1-hour serial drama every Friday in SP mode
(Example 2)
To record a 15-minute serial drama every morning in XP mode
(Example 3)
To record a 90-minute serial drama every Sunday in SP mode
The first programme is
overwritten by the third.
The second programme is
overwritten by the forth.
Overwritten
Blank
Overwritten
1st 2nd 1st 2nd 3rd 4th 3rd
1st
2nd3rd
4th 5th
6th7th
8th
Areas treated as blank cannot be played back even if they contain
recorded material.
Blank
Blank Blank
1st
2nd 3rd
DR-MV1SEK_00.book Page 48 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 49
Filename [DR-MV1SEK_06DVD Operation2.fm]
Page 49 April 15, 2004 3:30 pm
OPERATIONS ON DVD DECK
Check, Cancel And Change Programmes
1When the DVD timer lamp lights on the unit
Press DVD TIMER (#), then press 1.
When “ ” lights on the front display panel and the DVD
timer lamp also lights up on the unit.
Press 1.
When “SAT#” lights on the front display panel
Press SAT# on the unit, then press 1.
When the DVD lamp does not light up on the unit
Press VCR/DVD repeatedly so that the DVD lamp lights up on the
unit.
2Press PROG/CHECK to
access the Programme Check
screen.
●To return to the previous screen
after you check the programme,
press PROG/CHECK again.
To cancel the programme
Press rt to select a programme
to be cancelled, then press
CANCEL (&).
3Press rt to select the programme, then press ENTER. The
programme screen appears.
4Change the settings of the desired recording options as
required.
●Refer to steps 5–10 in “Manual Timer Programming” (墌pg. 46).
5Press PROG/CHECK to complete timer correction. The
previous screen resumes.
6For VIDEO Plus+, Manual or On-Disc Timer Programming
Press DVD TIMER (#).
For Automatic Satellite Programme Recording
Press SAT# on the unit for 2 seconds or more.
●The DVD timer lamp also lights up on the unit and the VCR deck is
automatically selected. When the VCR deck is in timer standby
mode, the unit is automatically turned off.
When Programmes Overlap Each Other
If “PROGRAM OVERLAPPED” appears, you have another
programme overlapping the programme you have just made.
Confirm with the arrow on “OK”, then press PROG/CHECK.
Programme Check screen appears and conflicting programmes
will be highlighted in pink.
Example: Programme 3 (you
have just made) and
Programme 4 overlap each
other.
1Confirm the overlapping
programmes. Overlapping
programmes appear on the TV
screen.
NOTE:
If you do not mind this overlap, press PROG/CHECK to finish the timer
programme setting. The programme with the lower programme number
will be recorded and the other one will not be recorded correctly. If no
changes are made for approximately 1 minute, the unit will return to the
normal screen.
2Press rt to select the desired programme to be cancelled or
changed.
To cancel the programme
Press CANCEL (&).
●“THE TIMER PROGRAMING SETTING WAS CANCELLED” appears
on the TV screen for about 5 seconds, then the normal screen
resumes.
To change the programme setting
Press ENTER, then go to step 3.
3Change the programme setting.
●Refer to steps 5–10 in “Manual Timer Programming” (墌pg. 46).
4Press PROG/CHECK to check if the conflict has been settled.
Programme check screen appears.
5Engage the unit’s timer mode.
●Refer to step 6 in “Check, Cancel And Change Programmes”
(墌pg. 49).
NOTE:
When any overlaps remain after deletion and modification of
programmes, Programme Check screen remains showing the
conflicting programmes. In such a case, repeat the procedure above
until the conflict is solved.
1
4
7
2
5
8
0
3
6
9
PROG/CHECK
ENTER
CANCEL (&)
1
DVD TIMER (#)
rtw e
VCR/DVD
SAT
DR-MV1SEK_00.book Page 49 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_06DVD Operation2.fm]
Masterpage:Left+
50 EN
Page 50 April 22, 2004 5:08 pm
OPERATIONS ON DVD DECK
This function allows you to automatically record a satellite
programme which is timer-programmed on your external satellite
receiver. Connect a satellite receiver to the unit’s L-2 IN/
DECODER connector and programme the timer on the satellite
receiver. When the signals come into the unit from the satellite
receiver, the unit automatically turns on and starts recording.
1Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
2Set “L-2 SELECT” to “SAT VIDEO” or “SAT S-VIDEO”.
(墌pg. 74)
●Also refer to “IMPORTANT” on page 78.
3Press REC MODE repeatedly to set the recording mode.
4Press and hold SAT# on the unit for about 2 seconds to engage
the Automatic Satellite Programme Recording mode. “SAT#” lights
up on the front display panel and the VCR deck is automatically
selected.
5Press 1 to turn off the unit.
●“SAT#” is displayed on the front display panel.
NOTES:
●To disengage the Automatic Satellite Programme Recording mode,
press SAT#.
●If the unit’s power is off, it is not possible to engage the Automatic
Satellite Programme Recording mode.
●In step 4, if “SAT#” blinks quickly on the front display panel even
though your satellite receiver’s power is off, Automatic Satellite
Programme Recording will not work properly with that satellite
receiver*. If this is the case, perform “Manual Timer Programming”
(墌pg. 46) to timer-record a satellite programme.
* Some satellite receivers output signals even if the power is off.
Automatic Satellite Programme Recording is not possible with those
satellite receivers.
●“SAT#” blinks on the front display panel while Automatic Satellite
Programme Recording is in progress.
●For timer programming of the satellite receiver, refer to the instruction
manual of the satellite receiver.
●Automatic Satellite Programme Recording is not possible if your
satellite receiver does not have a timer.
●Pressing the unit’s 1 button while Automatic Satellite Programme
Recording is in progress turns off the unit’s power and disengages
the Automatic Satellite Programme Recording mode.
●If there are more than one satellite programmes you wish to record
with Automatic Satellite Programme Recording, it is not possible to
set different recording modes for each programme.
●Depending on the type of satellite receiver, the unit may not record a
slight portion of the beginning of the programme or may record
slightly longer than the actual length of the programme.
●If you engage the Automatic Satellite Programme Recording mode
when the satellite receiver’s power is on, the unit will not start
Automatic Satellite Programme Recording even though “SAT#”
blinks on the front display panel. When the satellite receiver shuts off
once and is turned back on again, the unit starts recording.
●Just Clock (墌pg. 86) does not work when the Automatic Satellite
Programme Recording mode is engaged.
●You can also record a programme from your cable system in the
same way if the system has a timer.
About the Automatic Satellite Programme Recording
indicator on the front display panel
When the DVD deck is in the Automatic Satellite Programme
Recording standby mode while the VCR deck is used, the following
indicator lights up instead of “SAT#” as illustrated.
Automatic Satellite Programme
Recording (DVD Deck Only)
A
TTENTION:
●When you record programmes by connecting to a digital terrestrial
receiver (Freeview receiver or similar), perform the same steps as
“Automatic Satellite Programme Recording (DVD Deck Only)”
(墌pg. 50). It is not possible to operate the digital terrestrial
receiver (Freeview receiver or similar) by using the provided
satellite controller.
●Be sure not to turn on the satellite receiver before the programme
is executed; otherwise, the unit will start recording when the
satellite receiver’s power is turned on.
●If you have connected another appliance other than a satellite
receiver to the L-2 IN/DECODER connector, be sure not to engage
the Automatic Satellite Programme Recording mode; otherwise,
the unit will start recording when the connected appliance’s power
is turned on.
●Automatic Satellite Programme Recording and timer-recording
cannot be done at the same time.
SAT
VCR/DVD REC MODE
1
1
4
7
2
5
8
0
3
6
9
REC MODE
VCR/DVD SAT
●Make sure the satellite receiver is connected to the unit’s L-2 IN/
DECODER connector.
●Programme the timer on the satellite receiver.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
Automatic Satellite
Programme indicator
DR-MV1SEK_06DVD Operation2.fm Page 50 Thursday, April 22, 2004 5:09 PM
Masterpage:Right0
EN 51
Filename [DR-MV1SEK_07VCR Operation.fm]
Page 51 April 15, 2004 1:27 pm
OPERATIONS ON VCR DECK
1Load a cassette. Make sure the window side is up, the rear label
side is facing you and the arrow on the front of the cassette is
pointed toward the unit.
●Do not apply too much pressure when inserting.
●If the record safety tab has been removed, playback begins
automatically.
●The unit’s power comes on automatically and the counter is reset to
0:00:00.
2Press VCR/DVD repeatedly so that the VCR lamp lights up on
the unit.
3Find the programme start point. If the tape is advanced past the
start point, press 3. To go forward, press 5.
4Press 4 to start playback.
●“BEST” appears blinking on the front display panel during automatic
tracking. (墌pg. 55)
5Press 8 to stop playback.
●To eject the cassette, press x.
Basic Playback
●Turn on the unit.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
x8
45
3
VCR/DVD
1
4
7
2
5
8
0
3
6
9
5
34
8
VCR/DVD SAT
Clean the video heads using a dry cleaning cassette
— ECL-3F — when:
●Rough, poor picture appears while a tape is played back.
●The picture is unclear or no picture appears.
●“USE CLEANING CASSETTE” appears on the screen (only with
“O.S.D.” set to “AUTO”). (墌pg. 82)
NOTE:
The heads get dirty in the following cases:
●in an environment prone to extreme temperature or humidity
●in a dusty environment
●flaw, dirt or mold on video tapes
●continuous usage for a long time
Usable cassettes
Full-Size VHS
T-30 (ST-30**)
T-60 (ST-60**)
T90
T-120 (ST-120**)
T-160 (ST-160**)
ST-210**
Compact VHS*
TC-20 (ST-C20**)
TC-30 (ST-C30**)
TC-40 (ST-C40**)
* Compact VHS camcorder recordings can be played on this unit. Simply
place the recorded cassette into a VHS Cassette Adapter and it can be
used just like any full-sized VHS cassette.
** This unit can record on regular VHS and Super VHS cassettes.
However, it will record regular VHS signals only.
• S-VHS recording is not possible with this unit.
●This unit is equipped with SQPB (S-VHS QUASI PLAYBACK) that
lets you watch tapes recorded in the S-VHS format and the SP
mode with regular VHS resolution.
• SQPB does not deliver Super VHS resolution.
DR-MV1SEK_00.book Page 51 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_07VCR Operation.fm]
Masterpage:Left+
52 EN
Page 52 April 15, 2004 1:27 pm
OPERATIONS ON VCR DECK
Still Picture/Frame-By-Frame Playback
1Press 9 to pause playback.
●If there is vertical jitter, press PR +/– to correct the picture.
2Press 9 to activate frame-by-frame playback.
●To resume normal playback, press 4.
Slow Motion
1Press 9 to pause playback.
2Press and hold 9 for 2 seconds, then release. Press 9 and
release again to return to still picture.
●The speed changes for each direction by pressing 3 and 5
repeatedly.
●To resume normal playback, press 4.
NOTE:
During slow motion playback, some noise may appear on the TV
screen. Press PR + or – to eliminate the noises.
High-Speed Search
During playback, press 5 for forward high-speed search, or 3
for reverse high-speed search.
●Each press of the button increases the search speed for each
direction.
When pressing 5:
(SP): +5x{+7x
(EP): +11x{+21x
When pressing 3:
Once 3 is pressed, reverse search starts in –1x normal playback
speed. After this process, each press of 3 changes the search
speed between –5x and –7x in SP mode, –11x and –21x in EP mode.
(SP): –1x]–5x{–7x
(EP): –1x]–11x{–21x
●To resume normal playback, press 4.
Quick Rewind A Little
During playback (or Live Memory Playback), press . The unit
rewinds the picture a little (about 7 seconds) and resumes
playback.
●If the button is pressed repeatedly, the unit rewinds the pictures
continuously and resumes playback.
Skip Search
During playback, press 1 to 6 times to skip over unwanted
sections.
●Each press initiates an approximately 30-second period of fast-
motion playback. Normal playback resumes automatically.
●To resume normal playback, press 4.
Index Search
Your unit automatically marks index codes at the beginning of each
recording. This function gives you quick access to any one of 9
index codes in either direction.
NOTE:
Before starting, make sure the unit is in the Stop mode.
Press 2 or 6 to activate Index Search. “21” or “61” is
displayed on the TV screen and search begins in the
corresponding direction.
●To access index codes 2 through 9, press 2 or 6 repeatedly
until the correct index number is displayed.
Example:
To locate the beginning of B from the current position, press 2
twice.
To locate the beginning of D from the current position, press 6
once.
●When the specified index code is located, playback begins
automatically.
Playback Features
●Turn on the unit.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
●Press VCR/DVD repeatedly so that the VCR lamp lights up on the
unit.
A
TTENTION:
In the search, still, slow-motion or frame-by-frame playback mode,
●the picture will be distorted.
●the noise bars will appear.
●there may be a loss of colour.
●you cannot hear the sound.
1
4
7
2
5
8
0
3
6
9
5
3
2
4
6
98
REC MODE
AUDIO
PR +/–
VCR/DVD
1
SAT
Current position
Index number
DR-MV1SEK_00.book Page 52 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 53
Filename [DR-MV1SEK_07VCR Operation.fm]
Page 53 April 15, 2004 1:27 pm
OPERATIONS ON VCR DECK
Next Function Memory
The Next Function Memory “tells” the unit what to do after
rewinding. Before continuing, make sure the unit is in the Stop
mode.
For Automatic Start Of Playback
Press 3, then press 4 within 2 seconds.
For Automatic Cassette Ejection After Tape Rewind
Press 3, then press x on the unit within 2 seconds.
Repeat Playback
Your unit can automatically play back the whole tape 100 times
repeatedly.
1Press 4 to start playback.
2Press and hold 4 for over 5 seconds, then release.
● lights up on the front display panel.
●After playing back a tape 100 times, the unit stops automatically.
3Press 8 at any time to stop Repeat Playback.
●Pressing 4, 3, 5 or 9 also stops Repeat Playback.
Manual Tracking
Your unit is equipped with automatic tracking control. During
playback, you can override this and adjust the tracking manually by
pressing the PR buttons.
1During playback, press PR + or – on the unit simultaneously to
activate manual tracking.
2Press PR + or – to adjust the tracking manually.
●Press REC MODE again to return to automatic tracking.
NOTE:
When a new tape is inserted, the unit enters the automatic tracking
mode automatically.
Soundtrack Selection
Your unit is capable of recording three soundtracks (HI-FI L, HI-FI
R and NORM) and will play back the one you select.
During Playback
Pressing AUDIO changes the soundtrack as follows:
NOTES:
●“HIFI L jhR” should normally be selected. In this mode, Hi-Fi
stereo tapes are played back in stereo, and the normal audio track is
played back automatically for tapes with only normal audio.
●For instructions on recording stereo and bilingual programmes, refer
to page 55.
●“O.S.D.” must be set to “AUTO” or the on-screen displays will not
appear. (墌pg. 82)
VHS Progressive Scan
You can watch the image on VCR deck in the Progressive scan
mode via component video.
A
TTENTION:
Your TV needs to be compatible with Progressive and to have
Component video input connectors.
ASet the Progressive-compatible TV to the component input
mode.
BPress VCR/DVD repeatedly so that the DVD lamp lights up on
the unit, then press PROGRESSIVE SCAN for 3 or more seconds
so that the Video output indicator ( ) lights on the front display
panel.
CPress VCR/DVD repeatedly so that the VCR lamp lights up on
the unit.
DPress VCR].
●“VCR]” lights up on the unit.
EInsert a cassette and press 4.
NOTES:
●Be sure to engage the DVD deck in stop mode.
●It is not possible to perform the above steps when the DVD deck is in
timer standby mode.
●If the image and sound is distorted, press VCR/DVD repeatedly.
TRACK USE
On-Screen Display
HI FI
L j h R For Hi-Fi stereo tapes
HI FI
L jFor main audio of Bilingual tapes
HI FI
h R For sub audio of Bilingual tapes
NORM For audio-dubbed tapes
HI FI
NORM For audio-dubbed tapes
DR-MV1SEK_00.book Page 53 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_07VCR Operation.fm]
Masterpage:Left+
54 EN
Page 54 April 15, 2004 1:27 pm
OPERATIONS ON VCR DECK
1Load a cassette with the record safety tab intact.
●The unit’s power comes on automatically and the counter is reset to
0:00:00.
2Press VCR/DVD repeatedly so that the VCR lamp lights up on
the unit.
3Press PR +/– or the number keys to select the channel you
wish to record.
4Press REC MODE repeatedly to set the recording mode.
5Press 7 on the unit to start recording. Or press and hold 7 and
press 4 on the remote control.
●The VCR recording lamp lights up on the unit.
●If “O.S.D.” is set to “ON” (墌pg. 82), “MARK” blinks on the screen
while an index code is being marked.
6Press 9 to pause recording.
●You can select channel during the Record Pause mode.
●To resume recording, press 4.
7Press 8 to stop recording.
●The VCR recording lamp lights off on the unit.
Recording Resume Function
If there is a power outage during recording, Instant Timer
Recording or timer recording (墌pg. 54, 56, 57), the recording will
resume automatically when power is restored to the unit unless the
unit’s memory backup has expired.
Watch Another Programme While Recording On The
Unit
While recording is going on, you can watch another programme on
the TV by using the TV’s tuner.
NOTE:
It is required that the remote control is set to be able to operate the TV
in advance. (墌pg. 76)
1During recording, press TV/VCR to select TV mode if your unit
is connected to the TV via the RF connection.
●VCR mode is disengaged, then the VCR indicator lights off and “TV”
appears on the front display panel.
●The programme received on the TV’s tuner is displayed on the TV
screen.
2Slide the TV/CABLE/SAT/DVD switch to TV.
3Press PR +/– repeatedly to select the desired channel.
Accidental erasure
prevention
To prevent accidental recording on
a recorded cassette, remove its
safety tab. To record on it later,
cover the hole with adhesive tape.
Elapsed Recording Time
Indication
1Press DISPLAY until a counter reading appears on the front
display panel.
2Press CANCEL (&) to reset the counter before starting
recording or playback.
●The counter is reset to “0:00:00” and shows the exact elapsed time
as the tape runs. You can check the exact time of a recording or
playback.
Basic Recording
●Turn on the unit.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
B.E.S.T. takes place at the beginning of both the first SP and the
first LP recording after inserting the cassette. (墌pg. 55)
If “DIRECT REC” is set to “ON”, the programme that appears on
the TV screen will be recorded. (墌pg. 81)
7
8
49
VCR/DVD PR +/–REC MODE
1
4
7
2
5
8
0
3
6
9
7
REC MODE
98
PR +/–
0 – 9
4
VCR/DVD
DISPLAY
CANCEL (&)
TV/VCR
AUDIO
SAT
Recording Features
●Turn on the unit.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
●Press VCR/DVD repeatedly so that the VCR lamp lights up on the
unit.
VCR indicator lights off.
Record safety tab
DR-MV1SEK_00.book Page 54 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 55
Filename [DR-MV1SEK_07VCR Operation.fm]
Page 55 April 15, 2004 1:27 pm
OPERATIONS ON VCR DECK
Instant Timer Recording (ITR)
This easy method lets you record for from 30 minutes to 6 hours
(selectable in 30-min. increments), and shuts the unit off after
recording is finished.
1Press 7 on the unit to start recording.
2Press 7 again to engage the ITR mode.
●On the front display panel, “0:30” appears.
3If you want to record for more than 30 minutes, press 7 to
extend the time. Each press extends recording time by 30 minutes.
NOTES:
●You can only perform ITR using the 7 button on the unit.
●When the end of the tape is reached during timer recording or Instant
Timer Recording, the cassette is automatically ejected and the unit is
shut off.
●If “DIRECT REC” is set to “ON” (墌pg. 81), Instant Timer Recording
(ITR) does not work.
●During Instant Timer Recording, any other timer programmed
recording won’t start even if their start time has come. In such a case,
the timer programmed recording starts (if the end time of the timer
programmed recording is set after the end of Instant Timer
Recording) after the Instant Timer Recording finishes.
Tape Remaining Time
1Press DISPLAY until the time remaining on the tape appears.
●By pressing the DISPLAY button, you can change the display to
show the clock time, counter reading or tape remaining time.
NOTES:
●When you press DISPLAY, the on-screen display appears on the TV
screen for 5 seconds, then the displays other than the counter
disappears. To clear the counter display, press DISPLAY.
●Depending on the type of tape being used, the tape remaining time
reading may not appear right away, or is not correct.
“– –:– –” may sometimes appear, or the display may blink on
occasion.
Receiving Stereo And Bilingual Programmes
Your unit is equipped with a Digital stereo sound decoder (NICAM)
making reception of stereo and bilingual broadcasts possible.
When the channel is changed, the type of broadcast being
received will be displayed on the TV screen for a few seconds.
●To listen to a stereo programme, press AUDIO until “HIFI L jhR”
appears on the TV screen.
●To listen to a bilingual programme, press AUDIO until “HIFI L j” or
“HIFI hR” appears on the TV screen.
●To listen to the standard (Regular Monaural) audio while receiving a
NICAM broadcast, press AUDIO until “NORM” appears on the TV
screen.
NOTE:
“O.S.D.” must be set to “ON”, or the on-screen displays will not appear.
(墌pg. 82)
To Record NICAM Stereo and Bilingual Programmes
The NICAM audio programme will be recorded on the Hi-Fi audio
track, and the standard audio programme will be recorded on the
normal audio track.
NOTES:
●If the quality of stereo sound being received is poor, the broadcast
will be received in monaural with better quality.
●Before playing back a programme recorded in stereo, or a bilingual
programme, refer to “Soundtrack Selection” on page 53.
B.E.S.T. Picture System
The B.E.S.T. (Biconditional Equalised Signal Tracking) system
checks the condition of the tape in use during playback and
recording, and compensates to provide the highest-possible
playback and recording pictures. You can set “B.E.S.T.” to “ON” or
“OFF” to your preference. (墌pg. 55)
Playback
The unit assesses the quality of the tape once you initiate
playback.
●The unit adjusts the playback picture quality based on the quality of
the tape in use.
●B.E.S.T. is active during automatic tracking. “BEST” appears blinking
on the front display panel.
●“BEST” only appears at the beginning of automatic tracking. Even
though it doesn’t appear after that, the B.E.S.T. function is operative.
Recording
The unit assesses the quality of the tape once you initiate
recording.
●The unit spends approximately 7 seconds assessing the condition of
the tape, then begins recording.
Type of Broadcast Being
Received On-screen Display
Regular Monaural
NICAM Stereo
NICAM Bilingual
NICAM Monaural
(none)
ST NICAM
BIL. NICAM
NICAM
A
TTENTION:
Since the B.E.S.T. system works before recording actually starts,
there is a delay of approximately 7 seconds after 7 and 4 on the
remote control are pressed, or 7 on the unit is pressed. To make
sure you record the desired scene or programme in its entirety, first
perform the following steps:
APress and hold 9 and press 7 to engage the Record Pause
mode.
●The unit then automatically checks the condition of the tape and,
after approximately 7 seconds, re-enters Record Pause mode.
BPress 4 to start recording.
If you want to bypass the B.E.S.T. system and begin recording
immediately, set “B.E.S.T.” to “OFF”. (墌pg. 55)
DR-MV1SEK_00.book Page 55 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_07VCR Operation.fm]
Masterpage:Left+
56 EN
Page 56 April 15, 2004 1:27 pm
OPERATIONS ON VCR DECK
You can programme this unit to timer-record as many as
8 programmes.
With the VIDEO Plus+ system, timer programming is greatly
simplified because each TV programme has a corresponding code
number which your unit is able to recognise.
You can use the remote control to enter the PlusCode number.
1Load a cassette with the record safety tab intact.
2Press VCR/DVD repeatedly so that the VCR lamp lights up on
the unit.
3Press VIDEO Plus+ to access the VIDEO Plus+ screen.
4Press the number keys to enter
the PlusCode number of a programme
you wish to record, then press
ENTER.
●If you have made a mistake, press
CANCEL (&) and input the correct
number before you press ENTER.
●If the number you entered is invalid,
“ERROR” appears on the TV screen
and “Err” appears on the front display
panel. Press CANCEL (&) and input a valid PlusCode number.
5The PlusCode number you entered
and the matching timer-recording
information are displayed on the TV
screen. Check the programme data.
●To cancel this setting, press VIDEO
Plus+ or PROG/CHECK.
6Press REC MODE to select the desired recording mode. Or
press we to select “SP/LP”, then press rt to select the desired
recording mode.
7Press the number keys to set “VPS/PDC” to “ON” or “OFF”.
* VPS (Video Programme System) recording is not currently available
in the U.K. and not possible with this unit.
8Press ENTER to complete timer programming.
●To programme another timer, repeat steps 3–8.
●If “PROGRAM OVERLAPPED” appears on the TV screen, see
page 58.
9Press VCR TIMER (#) to engage the unit’s timer mode. The
VCR timer lamp lights up on the unit and the DVD deck is
automatically selected. Press 1 to turn off the unit. When the
DVD deck is in timer standby mode, the unit is automatically turned
off.
●To disengage the timer mode, press VCR TIMER (#) again.
NOTES:
●To Timer-Record Weekly Or Daily Serials:
— in step 5, press number key “9” for weekly serials or number key
“8” for daily serials (Monday — Friday). Either “WEEKLY” or “DAILY”
appears on the TV screen. Pressing the button again makes the
corresponding indication disappear.
●You can programme this unit to timer-record as many as 8
programmes. If you try to programme the unit to record a ninth,
“PROGRAMME FULL” appears on the TV screen and “FULL”
appears on the front display panel. To record the extra programme,
you must first cancel any unnecessary programmes. (墌pg. 58)
●To record the programmes received by satellite receiver, record on
the DVD discs. For details, refer to “VIDEO Plus+® Timer
Programming” (墌pg. 45).
VIDEO Plus+® Timer Programming
●Make sure that the unit’s built-in clock is set properly.
●Turn on the unit.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
IMPORTANT:
Make sure the channel position number you wish to record is
displayed; if not, see “VIDEO Plus+® System Setup” (墌pg. 83) and
set the Guide Program number correctly.
1
4
7
2
5
8
0
3
6
9
0 – 9
RETURN
PROG/CHECK
rtw e
ENTER
VIDEO Plus+
CANCEL (&)
VCR TIMER (#)
VCR/DVD
REC MODE
SAT
[0 – 9] [ENTER]
[&] : DELETE
[VIDEO PLUS+] : EXIT
VIDEO PLUS+ SYSTEM
IMPORTANT:
If you have moved to a different area or if a broadcasting station’s
programme number has been changed, the wrong programme
number will be displayed on the VIDEO Plus+ programme screen in
step 5. When this happens, set the correct Guide Program number
for that station. (墌pg. 83, “VIDEO Plus+® System Setup”)
DR-MV1SEK_00.book Page 56 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 57
Filename [DR-MV1SEK_07VCR Operation.fm]
Page 57 April 22, 2004 5:09 pm
OPERATIONS ON VCR DECK
You can programme this unit to timer-record as many as
8 programmes.
If you do not know the PlusCode number for the programme you
wish to record, use the following procedure to set your unit to
timer-record the programme.
1Load a cassette with the record safety tab intact.
2Press VCR/DVD repeatedly so that the VCR lamp lights up on
the unit.
3Press PROG/CHECK to access the
Programme Check screen.
4Press rt to select the blank
number, then press ENTER. The
programme screen appears.
5Press we to select “START”, then
press rt to set the desired start time.
●Each press of rt advances/goes
back the start time in 1-min.
increments.
●To advance/go back the start time in
30-min. increments, press and hold
rt.
6Press we to select “STOP”, then press rt to set the desired
stop time.
●Each press of rt advances/goes back the stop time in 1-min.
increments.
●To advance/go back the stop time in 30-min. increments, press and
hold rt.
7Press we to select “DATE”, then press rt to set the desired
date.
●The current date appears on the TV screen. The date you enter
appears in its place.
8Press we to select “TV PROG”, then press rt to select the
desired channel.
9Press REC MODE to select the desired recording mode. Or
press we to select “SP/LP”, then press rt to select the desired
recording mode.
10Press the number keys to set “VPS/PDC” to “ON” or “OFF”.
* VPS (Video Programme System) recording is not currently available
in the U.K. and not possible with this unit.
11 Press ENTER to access the Programme Check screen.
12 Press PROG/CHECK to complete timer programming.
“PROGRAM COMPLETED” appears on the TV screen for about 5
seconds, then the normal screen appears. If “PROGRAM
OVERLAPPED” appears on the TV screen, see page 58.
●To programme another timer, repeat steps 3–12.
13 Press VCR TIMER (#) to engage the unit’s timer mode. The
VCR timer lamp lights up on the unit and the DVD deck is
automatically selected. Press 1 to turn off the unit. When the
DVD deck is in timer standby mode, the unit is automatically turned
off.
●To disengage the timer mode, press VCR TIMER (#) again.
NOTES:
●To Timer-Record Weekly Or Daily Serials:
— anytime during steps 7 through 9, press number key “9” for
weekly serials or number key “8” for daily serials (Monday – Friday).
Either “WEEKLY” or “DAILY” appears on the TV screen. Pressing the
button again makes the corresponding indication disappear.
●You can programme this unit to timer-record as many as 8
programmes. If you try to programme the unit to record a ninth,
“PROGRAMME FULL” appears on the TV screen. To record the extra
programme, you must first cancel any unnecessary programmes.
(墌pg. 58)
●In case of a power failure after programming, the unit’s memory
backup keeps your selections for approximately 5 seconds.
●Programmes that start after midnight must have the next day’s date.
●To record the programmes received by satellite receiver, record on
the DVD discs. For details, refer to “Manual Timer Programming”
(墌pg. 46).
PDC Recording
Now available from some TV stations, PDC (Programme Delivery
Control) is a service designed to assure safe, accurate timer
recording. With this system, special code signals are transmitted
together with the audio/video signals. These code signals control
your unit and have precedence over the advertised times which
you may have preset into the timer. This means that your unit will
start and stop recording when the preset TV programmes actually
start and end — even if the broadcast time of a preset TV
programme is changed from what has been advertised. PDC is
currently available nationally on BBC1, BBC2, Ch.4 and Ch.5,
except from a few small relay transmitters. Ch.3 operates a PDC
service in some areas. All channels intend to offer this service in
due course. Check your TV programme listing guide for latest
information. If the channel you intend to record does not offer a
PDC service your unit will not start recording if PDC has been
selected. Be sure to set PDC to “OFF” if PDC is not available on
your selected channel. (See step 7 on page 56.)
NOTES:
●When you use Manual Timer Programming, set the start time (PDC
time) exactly as advertised in the TV listing. A different time than
advertised will result in no recording.
●PDC recording is not possible when a satellite receiver or a cable
system is connected to L-2 IN/DECODER connector on your unit.
●PDC recording is also possible via the L-1 IN/OUT connector.
Manual Timer Programming
●Make sure that the unit’s built-in clock is set properly.
●Turn on the unit.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
PROG/CHECK
ENTER
VCR TIMER (#)
rtw e
VCR/DVD
0 – 9
REC MODE
SAT
DISPLAY
DR-MV1SEK_07VCR Operation.fm Page 57 Thursday, April 22, 2004 5:10 PM
Filename [DR-MV1SEK_07VCR Operation.fm]
Masterpage:Left+
58 EN
Page 58 April 15, 2004 1:27 pm
OPERATIONS ON VCR DECK
Check, cancel and change programmes
1When the VCR timer lamp lights on the unit
Press VCR TIMER (#), then press 1.
When the VCR lamp does not light up on the unit
Press VCR/DVD repeatedly so that the VCR lamp lights up on the
unit.
2Press PROG/CHECK to access the
Programme Check screen.
To cancel a programme
Press CANCEL (&) to cancel a
programme.
3Press rt to select the
programme, then press ENTER. The
programme screen appears.
4Change the settings of the desired
recording options as required.
●Refer to steps 7–11 in “Manual Timer
Programming” (墌pg. 57).
5Press PROG/CHECK to complete
timer correction. The previous screen
resumes.
6Press VCR TIMER (#).
●The VCR timer lamp lights up on the unit and the DVD deck is
automatically selected. When the DVD deck is in timer standby mode,
the unit is automatically turned off.
When Programmes Overlap Each Other
If “PROGRAM OVERLAPPED” appears, you have another
programme overlapping the programme you have just made.
The Programme Check screen appears and conflicting
programmes will start blinking.
Example: Programme 1 (you have just made) and Programme
4 overlap each other.
1Confirm the overlapping programmes. Overlapping programmes
blink on the TV screen.
2Press rt to select the programme to modify, then press
ENTER or e.
●You can only select one of the overlapping programmes.
NOTE:
If you do not mind this overlap, press PROG/CHECK to finish the timer
programme setting. The programme with the lower programme number
will be recorded and the other one will not be recorded correctly. If no
changes are made for approximately 1 minute, the unit will return to the
normal screen.
3Press rt to select the desired programme to be cancelled or
changed.
To cancel the programme
Press CANCEL (&).
●“PROGRAM COMPLETED” appears on the TV screen for about 5
seconds, then the normal screen resumes.
To change the programme setting
Press ENTER, then go to step 4.
4Change the programme setting.
●Refer to steps 7–11 in “Manual Timer Programming” (墌pg. 57).
5Press PROG/CHECK to check if the conflict has been settled.
Programme check screen appears.
●“PROGRAM COMPLETED” appears on the TV screen for about 5
seconds, then the normal screen resumes.
6Press VCR TIMER (#).
NOTE:
When any overlaps remain after deletion and modification of
programmes, Programme Check screen remains showing the
conflicting programmes. In such a case, repeat the procedure above
until the conflict is solved.
1
4
7
2
5
8
0
3
6
9
PROG/CHECK
ENTER
CANCEL (&)
VCR TIMER (#)
rtw e
VCR/DVD 1
SAT
DR-MV1SEK_00.book Page 58 Thursday, April 15, 2004 3:30 PM
Masterpage:Right0
EN 59
Filename [DR-MV1SEK_08Navigation.fm]
Page 59 April 15, 2004 1:26 pm
NAVIGATION (DVD DECK ONLY)
The Library Database DVD Navi enables you to search and select
the desired programmes recorded on a DVD-RAM/R/RW disc very
easily.
You can record up to 99 programmes on a disc.
Each time a programme is recorded on the disc, the information of
the programme is registered for the Library Database DVD Navi
automatically.
So, you can confirm the information of the programmes recorded
on the disc with the Library Database DVD Navi screen. And, you
can also select one of the programmes recorded on the disc using
the Library Database DVD Navi.
The following screen appears as the Library Database DVD Navi
screen when you press NAVIGATION. You can move the arrow to
select the desired position on the screen by pressing rt w e on
the remote control.
AIndex
(Small still picture of each programme)
BNames of functions
ORIGINAL (墌pg. 60)
PLAY LIST (墌pg. 62)
LIBRARY (墌pg. 65)
CRemaining time
(Based on the recording mode currently selected)
DCurrent/Total number of programme(s)
(For example, there are 6 recorded programmes and the
programme indicated by the arrow is the 3rd one.)
EIcons
(Indicate the recording situation for each programme.)
FRecording information for the programme indicated by the
arrow
GGuidance for operations
HOperational commands
The Icons and their meanings
Using Library Database DVD Navi system, you can easily modify
registered information, edit the programme or play list, as well as
search for the beginning of each programme.
About registration of information
The following information is automatically registered for each
programme when ordinary recording or timer recording is
performed, then stored in an area specified on the unit.
●index* (reduced still pictures to show programme titles)
●programme title*
●category*
●date and time
●channel
●recording mode
●length of recording time
The items marked with an asterisk (*) can be easily modified and
registered again after recording by using Library Database DVD
Navi system.
About editing of programmes
Library Database DVD Navi system has the following functions for
editing of programmes.
●“Modify Play List Information” (墌pg. 62)
●“Delete Programme” (墌pg. 61)
The limitations of registration
You can register information up to 99 programmes.
When the amount of information is at the limits of registration, you
cannot record new programme any more. In this case, you need to
delete old programmes to register new one. (墌pg. 61)
NOTE:
Once a DVD-R/RW (Video mode) disc has been finalised, the displays
for original and play list do not appear. Only display for library appears.
Library Database DVD Navi
This programme is write-protected.
This programme has stereo sounds.
This programme has bilingual sounds.
This programme was recorded with timer
recording.
The display for original
recording
The display for play list
DR-MV1SEK_00.book Page 59 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_08Navigation.fm]
Masterpage:Left+
60 EN
Page 60 April 15, 2004 1:26 pm
NAVIGATION (DVD DECK ONLY)
Scan For Beginning(s) Of Programme(s)
You can scan the beginning of the programme easily with the
Library Database DVD Navi.
1Load a recorded disc.
2Press NAVIGATION. The Library Database DVD Navi screen
appears.
3Press rt w e to select
“ORIGINAL”, then press ENTER.
4Press we to select the index
(small still pictures) of the desired
programme.
●When you want the plural
programmes to be played back
continuously, press MEMO after
selecting the desired programme.
The numbers of the playback
order appear on the index. You
can select up to 30 programmes.
●When you want to correct the order, move the arrow to the desired
index and press MEMO. The number disappears and the unit re-
numbers the other programmes automatically.
●When you want to cancel the order, press CLEAR (8).
5Press ENTER or SELECT (4) to start playback. The playback
starts.
6Press 9 to pause playback.
●To resume normal playback, press 4.
7Press 8 to stop playback.
Modify Index
1Press NAVIGATION. The Library Database DVD Navi screen
appears.
2Press rt w e to select “ORIGINAL”, then press ENTER.
3Press rt w e to select one programme you want to modify,
then press t.
4Press rt w e to select “MODIFY”, then press ENTER.
5Press we to select “MODIFY INDEX”.
6Search for the picture from the
programme by pressing the
appropriate buttons (3, 4,
5, or 9). The pictures of the
programme appear on the left
window.
7Confirm the arrow is on
“REPLACE”, then press ENTER to
register new index. New index
appears on the right window.
●When you press ENTER with the arrow on “RETURN” you can return
to the previous screen.
8Press NAVIGATION to return to the normal screen.
●Press 8 to cancel pause mode after pressing NAVIGATION.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
ENTER
4
SELECT
rtw e
9
8
CLEAR
MEMO
NAVIGATION
SAT
Modify Original Information
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
0 – 9
ENTER
2
34
SELECT
rtw e
9
6
5
8
CLEAR
NAVIGATION
SAT
DR-MV1SEK_00.book Page 60 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 61
Filename [DR-MV1SEK_08Navigation.fm]
Page 61 April 15, 2004 1:26 pm
NAVIGATION (DVD DECK ONLY)
Modify Programme Name
1Perform steps 1 to 3 of “Modify Index” (墌pg. 60) before
continuing.
2Press rt w e to select “MODIFY”, then press ENTER.
3Press we to select “MODIFY NAME”.
4Press rt w e to select the
desired letter or command, then
press ENTER. Repeat this
process to complete the name.
●To correct a letter, press rt w e
to select “DELETE” or “DELETE
ALL”, then press ENTER.
●You can enter the letters up to 64.
●You can also enter the new name
with the number keys. For example, when you press 2 repeatedly,
“A”, “B”, “C”, “a”, “b”, “c”, “2”, and then “A” appear by turns. You can
use the following buttons.
5Press rt w e to select “SAVE”, then press ENTER.
6Press rt w e to select “RETURN”, then press ENTER. The
Library Database DVD Navi screen appears again.
7Press NAVIGATION to return to the normal screen.
Modify Category
1Perform steps 1 to 3 of “Modify Index” (墌pg. 60) before
continuing.
2Press rt w e to select “MODIFY”, then press ENTER.
3Press we to select “MODIFY CATEGORY”.
4Press rt w e to select the
desired category, then press
ENTER.
5Press ENTER. The Library
Database DVD Navi screen
appears again.
6Press NAVIGATION to return
to the normal screen.
Protect Title
You can protect the programme to prevent accidental erasure of
the important programme.
1Perform steps 1 to 2 of “Modify Index” (墌pg. 60) before
continuing.
2Press rt w e to select a programme you want to protect, then
press t.
3Press we to select “PROTECT”, then press ENTER. “ ”
appears.
●To cancel the protection, repeat 2–3 again.
4Press NAVIGATION to return to the normal screen.
NOTE:
All the programmes on a disc will be deleted once the disc is formatted
even if they are protected titles. (墌pg. 61)
Delete Programme
You cannot record any more with Library Database DVD Navi once
the registered programmes on the disc reach 99 programmes.
Deleting unnecessary programmes after dubbing or other
operations can increase remaining time and available recording
capacity. (For DVD-R discs, although it is possible to delete
recorded programmes, available recording capacity does not
increase.) The deleted programme is never resumed. Play lists and
programme information in the unit’s library are also deleted.
1Perform steps 1 to 2 of “Modify Index” (墌pg. 60) before
continuing.
2Press rt w e to select one programme you want to delete,
then press t.
3Press rt w e to select “DELETE”, then press ENTER. The
message appears for your confirmation.
4Press we to select “YES”, then press ENTER.
●When you cancel the deletion, select “NO”, then press ENTER.
5Press NAVIGATION to return to the normal screen.
Number keys: for entering letters, numbers and blank space
we buttons: for moving the entering or inserting point
CLEAR (8) button: for correcting a letter
2/6 buttons: for changing character tables
DR-MV1SEK_00.book Page 61 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_08Navigation.fm]
Masterpage:Left+
62 EN
Page 62 April 15, 2004 1:26 pm
NAVIGATION (DVD DECK ONLY)
Delete Unwanted Part Of The Programme
You can delete unwanted part of the programme.
1Perform steps 1 to 2 of “Modify Index” (墌pg. 60) before
continuing.
2Press we to select one programme whose unwanted part you
want to delete, then press t.
3Press we to select “EDITING”, then press ENTER.
4Press 4 to start playback. The playback pictures appear in the
window on the screen. The elapsed playing time starts counting
with the arrow on “IN”.
5Find the point where you want
the deletion to begin, then press
ENTER with the arrow on “IN”.
The edit-in time is fixed and the
elapsed playing time starts
counting again.
6Find the point where you want
the deletion to end, then press
ENTER with the arrow on “OUT”.
The edit-out time is fixed.
●Press 3, 4, 5, 2, 6 or 9 to find the edit-in and edit-out
points.
7Press rt w e to select “PREVIEW”, then press ENTER to
preview the edited programme.
8Press rt w e to select “EXECUTE”, then press ENTER.
●If you do not want to delete the scene, select “CLEAR” and press
ENTER.
9Press we to select “YES”, then press ENTER. The selected
scene is deleted.
●To cancel the deletion, press we to select “NO”, then press ENTER.
To modify the points
APress we to select “CLEAR”, then press ENTER.
BRepeat steps 4–9 as necessary.
10 Press NAVIGATION to return to the normal screen.
NOTES:
●There may be a discrepancy of several seconds between the scene
you intend to edit, and the scene which is actually edited.
●Available recording capacity may not match the deleted part after
deletion.
Play List
It is a collection of the scenes. A play list can be freely edited and
played back without ever changing any original recording data.
Using the random access of a DVD disc (which allows video data
to be instantly read no matter where it is on the disc), a play list
includes information such as the timer counter for the playback
start point and end point, indexes for checking the contents of
recorded data, category information, and more. Playback
according to a play list you have created allows you to enjoy
various combinations of video images from a single programme.
Create Play List
1Load a DVD-RAM or DVD-RW (VR mode) disc that was
recorded with this unit.
2Press NAVIGATION. The Library Database DVD Navi screen
appears.
3Press rt w e to select “PLAY LIST”, then press t or ENTER.
4Press rt w e to select “CREATE”, then press ENTER.
5Press 4 to start playback. The playback pictures appear in the
window on the screen. The elapsed playing time starts counting
with the arrow on “IN”.
●To locate the beginning of other titles, press 2/6.
6Find the point where you want
the created play list to begin, then
press ENTER with the arrow on
“IN”. The edit-in time is fixed and
the elapsed playing time starts
counting again.
7Find the point where you want
the created play list to end, then
press ENTER with the arrow on
“OUT”. The edit-out time is fixed.
●Press 3, 4, 5, 2, 6 or 9 to find the edit-in and edit-out
points.
●The edit-out point must come after the edit-in point.
Modify Play List Information
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
ENTER rtw e
9
NAVIGATION
26
4
5
3
MEMO
SAT
DR-MV1SEK_00.book Page 62 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 63
Filename [DR-MV1SEK_08Navigation.fm]
Page 63 April 15, 2004 1:26 pm
NAVIGATION (DVD DECK ONLY)
8Press we to select “PREVIEW”, then press ENTER to preview
the play list.
9Press we to select “EXECUTE”, then press ENTER. The play
list is created.
To modify the points
APress we to select “CLEAR”, then press ENTER.
BRepeat steps 5–9 as necessary.
10 Press NAVIGATION to return to the normal screen.
NOTES:
●There may be a discrepancy of several seconds between the scene
you intend to edit, and the scene which is actually edited.
●The title, index and category of the play list can be modified in the
same way as “ORIGINAL”. (墌pg. 60)
●You can modify the play list that has just been created here by
adding, moving, or deleting unwanted parts to create a digest edition,
etc.
Add Scenes To A Play List
1Perform steps 1 to 3 of “Create Play List” (墌pg. 62) before
continuing.
2Press we to select the play list to which you wish to add a
scene, then press t.
3Press we to select “EDITING”, then press ENTER.
4Press we to select “ADD
SCENE”.
5Press 4 to start playback. The
playback pictures appear in the
window on the screen. The
elapsed playing time starts
counting with the arrow on “IN”.
●To locate the beginning of other
titles, press 2/6.
6Find the point where you want the added scene to begin, then
press ENTER with the arrow on “IN”. The edit-in time is fixed and
the elapsed playing time starts counting again.
7Find the point where you want the added scene to end, then
press ENTER with the arrow on “OUT”. The edit-out time is fixed.
●Press 3, 4, 5, 2, 6 or 9 to find the edit-in and edit-out
points.
8Press we to select “PREVIEW”, then press ENTER to preview
approximately 5 seconds before and after the edited scene.
9Press we to select “EXECUTE”, then press ENTER. The
selected scene is added.
To modify the points
APress we to select “CLEAR”, then press ENTER.
BRepeat steps 5–8 as necessary.
10 Press NAVIGATION to return to the normal screen.
NOTE:
There may be a discrepancy of several seconds between the scene you
intend to edit, and the scene which is actually edited.
Move Scenes
1Perform steps 1 to 3 of “Create Play List” (墌pg. 62) before
continuing.
2Press we to select a play list into which you wish to move a
scene, then press t.
3Press we to select “EDITING”, then press ENTER.
4Press we to select “MOVE
SCENE”.
5Press 4 to start playback. The
playback pictures appear in the
window on the screen. The
elapsed playing time starts
counting with the arrow on “IN”.
●To locate the beginning of other
titles, press 2/6.
6Find the point where you want the moved scene to begin, then
press ENTER with the arrow on “IN”. The edit-in time is fixed and
the elapsed playing time starts counting again.
7Find the point where you want the moved scene to end, then
press ENTER with the arrow on “OUT”. The edit-out time is fixed.
8Press 4 to start playback.
9Find the point where you want the moved scene to be moved,
then press ENTER with the arrow on “MOVE TO”.
●Press 3, 4, 5, 2, 6 or 9 to find the edit-in, edit-out and
move-to points.
10 Press we to select “PREVIEW”, then press ENTER to
preview the part approximately 5 seconds before and after the
point to which the scene has been moved.
11 Press we to select “EXECUTE”, then press ENTER. The
selected scene is moved.
To modify the points
APress we to select “CLEAR”, then press ENTER.
BRepeat steps 5–11 as necessary.
12 Press NAVIGATION to return to the normal screen.
NOTE:
There may be a discrepancy of several seconds between the scene you
intend to edit, and the scene which is actually edited.
DR-MV1SEK_00.book Page 63 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_08Navigation.fm]
Masterpage:Left+
64 EN
Page 64 April 15, 2004 1:26 pm
NAVIGATION (DVD DECK ONLY)
Delete Unwanted Part From Play List
1Perform steps 1 to 3 of “Create Play List” (墌pg. 62) before
continuing.
2Press we to select a play list from which you wish to delete
unwanted parts, then press t.
3Press we to select “EDITING”, then press ENTER.
4Press we to select “DELETE
SCENE”, then press ENTER.
5Press 4 to start playback. The
playback pictures appear in the
window on the screen. The
elapsed playing time starts
counting with the arrow on “IN”.
●To locate the beginning of other
titles, press 2/6.
6Find the point where you want the deletion to begin, then press
ENTER with the arrow on “IN”. The edit-in time is fixed and the
elapsed playing time starts counting again.
7Find the point where you want the deletion to end, then press
ENTER with the arrow on “OUT”. The edit-out time is fixed.
●Press 3, 4, 5, 2, 6 or 9 to find the edit-in and edit-out
points.
8Press we to select “PREVIEW”, then press ENTER to preview
the scene approximately 5 seconds before and after the deleted
part.
9Press we to select “EXECUTE”, then press ENTER. The
selected scene is deleted.
To modify the points
APress we to select “CLEAR”, then press ENTER.
BRepeat steps 5–9.
10 Press NAVIGATION to return to the normal screen.
NOTE:
There may be a discrepancy of several seconds between the scene you
intend to edit, and the scene which is actually edited.
Play Back Play List
1Perform steps 1 to 3 of “Create Play List” (墌pg. 62) before
continuing.
2Press we to select the index
(small still pictures) of the desired
play list.
●When you want the plural play lists
to be played back continuously,
press MEMO after selecting the
desired play lists. The numbers of
the playback order appear on the
index. You can select up to 30 play
lists.
●When you want to correct the order, move the arrow on the desired
index and press MEMO. The number disappears and the unit re-
numbers the other play lists automatically.
●When you want to cancel the order, press CLEAR (8).
3Press ENTER or SELECT (4) to start playback. The playback
starts.
4Press 9 to pause playback.
●To resume normal playback, press 4.
5Press 8 to stop playback.
Delete Play List
1Perform steps 1 to 3 of “Create Play List” (墌pg. 62) before
continuing.
2Press we to select one play list you want to delete, then press
t.
3Press we to select “DELETE”, then press ENTER.
4Press we to select “YES”, then press ENTER.
●When you cancel the deletion, select “NO”, then press ENTER.
5Press NAVIGATION to return to the normal screen.
NOTE:
Even if a play list is deleted, the programmes recorded on a DVD disc
and the library information are not affected at all.
Modify Index
APerform steps 1 to 3 of “Create Play List” (墌pg. 62) before
continuing.
BPerform steps 3 to 8 of “Modify Index” (墌pg. 60).
Modify Programme Name
APerform steps 1 to 3 of “Create Play List” (墌pg. 62) before
continuing.
BPress rt w e to select one programme you want to modify,
then press t.
CPerform steps 2 to 7 of “Modify Programme Name” (墌pg. 61).
Modify Category
APerform steps 1 to 3 of “Create Play List” (墌pg. 62) before
continuing.
BPress rt w e to select one programme you want to modify,
then press t.
CPerform steps 2 to 6 of “Modify Category” (墌pg. 61).
DR-MV1SEK_00.book Page 64 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 65
Filename [DR-MV1SEK_08Navigation.fm]
Page 65 April 15, 2004 1:26 pm
NAVIGATION (DVD DECK ONLY)
Programme information can be registered in the unit’s memory for
up to 1,300 programmes. It is helpful when finding out on which
disc the desired programme is recorded.
Scan For Programme From Library
1Press NAVIGATION. The Library Database DVD Navi screen
appears.
2Press rt w e to select “LIBRARY”, then press ENTER.
3Press we to select the
appropriate sort button to sort the
information, then press ENTER.
“DISC No.” : Sort by disc number
“CATEGORY” : Sort by category
“DATE” : Sort by date
“NAME” : Sort by name
●The sorting order can be switched
between ascending order and
descending order by pressing the sort buttons.
4Press we to select the desired programme, then press
ENTER.
●Playback begins automatically after the selected programme is
located.
When the disc that contains the selected programme is not
loaded
A screen prompting you to load the designated disc appears. Place
the disc whose number is displayed on the screen after pressing
ENTER to close the prompt screen. Then perform steps 1 to 4.
NOTE:
If a disc registered in the library is recorded or modified on DVD units
from other manufacturers, it may become impossible to operate
properly.
Register Disc
1Load a disc you want to register.
2Press NAVIGATION. The Library Database DVD Navi screen
appears.
3Press rt w e to select “LIBRARY”, then press ENTER.
4Press we to select “REGISTER”, then press ENTER.
5Press we to select “REGISTER”, then press ENTER to confirm
the registration.
6Press NAVIGATION to return to the normal screen.
NOTES:
●It is not possible to register discs used for On-Disc Timer
Programming. (墌pg. 47)
●It is not possible to register discs formatted on devices other than
JVC’s DVD recorders.
●It is not possible to register discs recorded on devices other than
JVC’s DVD recorders.
●It is not possible to register discs when “SAVE AS LIBRARY” is set to
“OFF”. (墌pg. 81)
Delete Information
1Press NAVIGATION. The Library Database DVD Navi screen
appears.
2Press rt w e to select “LIBRARY”, then press ENTER.
3Press rt w e to select the appropriate sort button to sort the
information, then press ENTER.
4Press we to select a programme you want to delete, then
press t.
5Press rt w e to select “DELETE”, then press ENTER.
6Press we to select “DELETE”, then press ENTER to confirm
the deletion.
7Press NAVIGATION to return to the normal screen.
Modify Library Information
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
ENTER rtw e
NAVIGATION
SAT
DR-MV1SEK_00.book Page 65 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_08Navigation.fm]
Masterpage:Left+
66 EN
Page 66 April 15, 2004 1:26 pm
NAVIGATION (DVD DECK ONLY)
This unit can play back discs that MP3 sound files and JPEG
image files taken with digital still cameras or other devices are
recorded.
The MP3/JPEG Navigation enables you to search and select the
desired files recorded on CD-R/RW or CD-ROM discs very easily.
The following screen appears as the MP3/JPEG Navigation screen
when you press NAVIGATION. You can move the arrow to select
the desired position on the screen by pressing rt w e on the
remote control.
AName of the inserted disc.
BSort buttons (“MP3”⁄“JPEG”)
CSelected group number/total number of groups on the disc
DGroup name
EReturn button (“RETURN”)
FGroup name/Created date
GFile type indicator
:MP3
:JPEG
HSelected file
ISelected file number/total number of files in the group that
contains the selected file
JProgramme number/file name
Locating The Desired Group And Tracks
1Load a disc.
2Press NAVIGATION. The MP3/JPEG Navigation screen
appears.
3For MP3 Playback
Press we to select “MP3”. Only groups which contain MP3 files
appear.
For JPEG Playback
Press we to select “JPEG”. Only groups which contain JPEG files
appear.
4Press we to select the desired
group, then press ENTER.
For MP3 Playback
●The tracks in the selected group
appear.
For JPEG Playback
●The images in the selected group
appear.
5Press rt w e to select the
desired item, then press ENTER.
The unit starts playback from the
selected item.
●The unit stops when all items in
the selected group are played
back.
NOTES:
●If you press SELECT (4) instead
of ENTER in step 4, the unit starts playback from the first file of the
group.
●JPEG files are played back as a slide show at the set intervals.
(墌pg. 40)
●If a file name includes any 2-byte character, the unit may not show
the file name correctly.
●Press rt to select “RETURN”, then press ENTER to return to the
screen that shows the group(s).
●The order of the groups and items shown in steps 4 and 5 may differ
from the order shown on your PC.
Programme Playback
1Perform steps 1 to 4 of “Locating The Desired Group And
Tracks” in the left column before continuing.
2Press rt w e to select the desired item, then press MEMO in
the desired order.
●The order number appears on the left of the track name.
●Repeat this step as necessary.
●To cancel the track, press rt w e to select the track, then press
CANCEL (&).
●Pressing CLEAR (8) clears all the order numbers.
3Press 4 to start playback.
●To quit the Programme Playback, press 8.
●Repeat playback can be performed if it is set as such on the on-
screen bar. (墌pg. 36)
NOTES:
●It is not possible to select tracks and images simultaneously.
●It is not possible to select tracks or images in other groups.
On completion of the playback of all the items
APerform steps 1 to 4 of “Locating The Desired Group And
Tracks” in the left column.
BPress CLEAR (8).
●The order numbers are reset and cleared.
CPress NAVIGATION to complete the procedure.
Playback With MP3/JPEG Navigation
DR-MV1SEK_00.book Page 66 Thursday, April 15, 2004 3:30 PM
Masterpage:Right0
EN 67
Filename [DR-MV1SEK_09Editing.fm]
Page 67 April 15, 2004 3:18 pm
EDITING
Dubbing An Entire Cassette
Because this unit includes both DVD deck and VCR deck, you can
easily use this unit for dubbing without connecting any other
equipment.
1For DVD deck
Load a recordable disc.
For VCR deck
Load a cassette you want to dub.
2Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
3Press REC MODE repeatedly to set the recording mode.
4Press VCR] to select the dubbing direction.
●“VCR]” lights up on the unit.
5Press and hold DUB for more than 2 seconds to start dubbing.
●If the tape has not been rewound, the VCR deck rewinds the tape
automatically. When the VCR deck has finished rewinding, dubbing
begins automatically.
●After dubbing is completed, the VCR deck rewinds the tape
automatically and the unit shuts off.
●To stop dubbing, press 8.
NOTES:
●If you set the dubbing direction incorrectly, you could erase an
important recording that you wanted to dub. It is recommended to
conduct a test with unimportant cassettes first.
●The superimposed indication during the operation or dubbing is not
recorded.
●It is not possible to dub a tape with a copy protection signal.
●If the recording capacity of disc become full, the tape stops
automatically.
●It is not possible to perform other operations like Live Memory
Playback. Check the recorded programme on the disc after dubbing.
●Dubbing is not possible on the discs used exclusively for On-Disc
Timer Programming.
●If the index code is found on a tape, a single title is created. While
creating a title, the dubbing stops and then starts again.
Tape Dubbing (From VCR To DVD)
●Turn on the unit.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
REC MODE
8
SAT
8
VCR ]
DUB
VCR/DVD
DR-MV1SEK_00.book Page 67 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_09Editing.fm]
Masterpage:Left+
68 EN
Page 68 April 15, 2004 3:18 pm
EDITING
Dubbing A Part Of A Cassette
You can dub the selected scenes on a tape to the DVD disc,
starting and stopping wherever you wish.
1For DVD deck
Load a recordable disc.
For VCR deck
Load a cassette you want to dub.
2Press VCR] to select the dubbing direction.
●“VCR]” lights up on the front display panel.
3Prepare the VCR deck for dubbing.
APress VCR/DVD repeatedly so that the VCR lamp lights up on
the unit.
BLocate the point from where you want to start dubbing, then
pause playback by pressing the following buttons: 4, 5, 3,
8, 9
4Prepare the DVD deck for dubbing.
APress VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
BPress REC MODE repeatedly to set the recording mode.
CPress and hold 9, then press 7 so that the DVD deck enters
the Record Pause mode.
5Press and hold DUB for more than 2 seconds to start dubbing.
6Press 8 to stop recording on the DVD deck. Then press VCR/
DVD, and press 8 to stop playback on the VCR deck.
NOTES:
●If you set the dubbing direction incorrectly, you could erase an
important recording that you wanted to dub. It is recommended to
conduct a test with unimportant cassettes first.
●There may be a discrepancy of several seconds between where you
intend dubbing to start, and where it actually stars.
●The superimposed indication during the operation or dubbing is not
recorded.
●It is not possible to dub a tape with a copy protection signal.
●If the recording capacity of disc become full, the tape stops
automatically.
●It is not possible to perform other operations like Live Memory
Playback. Check the recorded programme on the disc after dubbing.
●Dubbing is not possible on the discs used exclusively for On-Disc
Timer Programming.
Manual Dubbing (From VCR To DVD)
●Turn on the unit.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
REC MODE 7
5
34
98
VCR/DVD SAT
8
VCR ]
DUB
4
73
95
VCR/DVD
DR-MV1SEK_00.book Page 68 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 69
Filename [DR-MV1SEK_09Editing.fm]
Page 69 April 15, 2004 3:18 pm
EDITING
Dubbing An Entire Disc
Because this unit includes both DVD deck and VCR deck, you can
easily use this unit for dubbing without connecting any other
equipment.
1For DVD deck
Load a disc you want to dub.
For VCR deck
Load a cassette with the record safety tab intact.
2Press VCR/DVD repeatedly so that the VCR lamp lights up on
the unit.
3Press REC MODE repeatedly to set the recording mode.
4Press }DVD to select the dubbing direction.
●“}DVD” lights up on the unit.
5Press and hold DUB for more than 2 seconds to start the
dubbing.
●If the tape has not been rewound, the VCR deck rewinds the tape
automatically. When the VCR deck has finished rewinding, dubbing
begins automatically.
●After dubbing is completed, the VCR deck rewinds the tape
automatically and the unit shuts off.
●To stop dubbing, press 8.
NOTES:
●It is not possible to start dubbing if the unit retains a memory of the
resume points. Press 8 twice to clear the resume points.
●There may be a discrepancy of several seconds between where you
intend dubbing to start, and where it actually stars.
●The superimposed indication during the operation or dubbing is not
recorded.
●When the end of the tape is reached during dubbing, the tape is
ejected and both deck stops.
●When the progressive mode is set, “}DVD” does not light up on the
front display panel. Press PROGRESSIVE SCAN so that video
output indicator ( ) lights off on the front display panel.
●It may be impossible to dub a DVD-R or DVD-RW (Video mode) disc
recorded on the devices from other manufacturers or on a PC. In
such case, perform “Manual Dubbing (From DVD To VCR)”
(墌pg. 70).
●It is not possible to perform other operations like Live Memory
Playback. Check the recorded programme on the disc after dubbing.
●If “VCR]” lights up on the unit and you play back a DVD VIDEO disc,
the images dubbed to the VCR deck may not be output to the TV
properly.
Disc Dubbing (From DVD To VCR)
●Turn on the unit.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
REC MODE
PROGRESSIVE SCAN
8
VCR/DVD SAT
8
} DVD
DUB
VCR/DVD
DR-MV1SEK_00.book Page 69 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_09Editing.fm]
Masterpage:Left+
70 EN
Page 70 April 15, 2004 3:18 pm
EDITING
Dubbing A Part Of A Disc
You can dub the selected scenes on a tape to the DVD disc,
starting and stopping wherever you wish.
1For DVD deck
Load a disc you want to dub.
For VCR deck
Load a cassette with the record safety tab intact.
2Press }DVD to select the dubbing direction.
●“}DVD” lights up on the front display panel.
3Prepare the DVD deck for dubbing.
APress VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
BLocate the point from where you want to start dubbing, then
pause playback by pressing the following buttons: 4, 5, 3,
8, 9
4Prepare the VCR deck for dubbing.
APress VCR/DVD repeatedly so that the VCR lamp lights up on
the unit.
BPress REC MODE repeatedly to set the recording mode.
CPress and hold 9, then press 7 so that the VCR deck enters
the Record Pause mode.
5Press and hold DUB for more than 2 seconds to start the
dubbing.
6Press 8 to stop recording on the VCR deck. Then press VCR/
DVD, and press 8 to stop playback on the DVD deck.
NOTES:
●It is not possible to start dubbing if the unit retains a memory of the
resume points. Press 8 twice to clear the resume points.
●There may be a discrepancy of several seconds between where you
intend dubbing to start, and where it actually stars.
●The superimposed indication during the operation or dubbing is not
recorded.
●When the end of the tape is reached during dubbing, the tape is
ejected and both deck stops.
●When the progressive mode is set, “}DVD” does not light up on the
front display panel. Press PROGRESSIVE SCAN so that video
output indicator ( ) lights off on the front display panel.
●It is not possible to perform other operations like Live Memory
Playback. Check the recorded programme on the disc after dubbing.
Manual Dubbing (From DVD To VCR)
●Turn on the unit.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
8
5
34
7
9
REC MODE
PROGRESSIVE SCAN
VCR/DVD SAT
8
} DVD
DUB
4
73
95
VCR/DVD
DR-MV1SEK_00.book Page 70 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 71
Filename [DR-MV1SEK_09Editing.fm]
Page 71 April 15, 2004 3:18 pm
EDITING
You can dub programmes from a camcorder or DV equipment
connected to the unit with a DV cable. The unit’s remote control
allows you the limited control of the connected camcorder or DV
equipment functions during dubbing.
1Connect a camcorder or DV equipment to the DV IN connector
on the unit’s front panel.
2Load a DVD-RAM/RW/R disc on the unit.
3Press PR +/– to set the channel to “DV DUBBING”.
●The “DV DUBBING” controller appears on the TV screen.
●If “ ” does not appear on the “DV DUBBING” controller, make
sure the DV equipment is connected correctly.
4Press we to select , then press ENTER.
5Press rt to select the desired
sound track, then press ENTER.
AUDIO 1: Select this to record the
original stereo sound played
back on the connected DV
equipment.
AUDIO 2: Select this to record the
dubbed stereo sound played
back on the connected DV
equipment.
MIX: Select this to record the sound of both “AUDIO 1” and
“AUDIO 2”.
●Note that this selection is not available when the source programme
is recorded in 16BIT (48 kHz) mode.
6Press REC MODE repeatedly to set the recording mode.
7Locate the point from where you want to start dubbing, then
stop or pause playback by pressing the following buttons on the
remote control: 4, 5, 3, 8, 9
●To play back in slow speed (1/10 of the normal speed), press 9 to
pause playback, then press 3 or 5.
●To play back frame-by-frame, press 9 to pause playback, then press
9 repeatedly. Each press of 9 advances a frame.
●To change the playback direction, press 3 or 5.
8Press we to select , then press ENTER. The
dubbing starts.
●Playback on the external DV equipment and recording on the unit
should start simultaneously.
●When the playback from the beginning is not possible, the “DV
DUBBING” controller cannot be used. Perform dubbing without using
the “DV DUBBING” controller. (墌below)
●To pause dubbing, press we to select , then press
ENTER. Both the unit and the external DV equipment pause dubbing.
Pressing 9 on the unit also works the same way.
●To clear the “DV DUBBING” controller from the TV screen, press ON
SCREEN.
9Press 8 on the remote control to stop dubbing.
●Both the unit and the external DV equipment stop dubbing.
NOTES:
●Dubbing copyright guarded programmes is not possible.
●Original DV informations such as the recording date and time are not
recorded.
●The superimposed indication during the operation or dubbing is not
recorded.
●It is not possible to perform dubbing when “VCR]” lights up on the
unit. Press VCR] so that “VCR]” lights off.
Performing dubbing without using the “DV DUBBING”
controller
APress PR +/– to set the channel to “DV DUBBING”.
BPress REC MODE repeatedly to set the recording mode.
CStart playback on the external DV equipment slightly before the
actual point from where you wish to start dubbing.
DPress 7 on the unit to start recording. Or press and hold 7 and
press 4 on the remote control. The dubbing starts.
EWhen the dubbing ends, press 8 on the unit, then stop
playback on the external DV equipment.
DV Dubbing (DVD Deck Only)
NOTE:
When you connect a PC to the DV IN connector, we do not assure
the normal operation of this unit.
VPS/PDC VCD
HDD DVD
DVHS
BS
+
STANDBY/ON
DVD
S-VIDEO VIDEO (MONO) L - AUDIO - R
VCR/DVD VCR
REMAIN
REC MODE SLOW
<< >>
PR DV IN
SAT
DVD
DVD DVDVCR DUB
F-1
DV IN connector
DV cable
(VC-VDV 204U)
(not provided)
Camcorder
DV connector
Your unit
DV equipment
DR-MV1SEK_00.book Page 71 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_09Editing.fm]
Masterpage:Left+
72 EN
Page 72 April 15, 2004 3:18 pm
EDITING
You can use a camcorder as the source player and your unit as the
recording deck.
1Make connections.
AIf the camcorder has no S-VIDEO output connector:
— connect the camcorder’s AUDIO/VIDEO OUT connectors to the
unit’s AUDIO/VIDEO input connectors on the front panel.
●When using a monaural camcorder, connect its AUDIO OUT
connector to the AUDIO L input connector on your unit.
BIf the camcorder has an S-VIDEO output connector: (DVD deck
only)
— connect the camcorder’s AUDIO OUT and S-VIDEO OUT
connectors to the unit’s AUDIO and S-VIDEO input connectors on
the front panel.
2Press VCR/DVD repeatedly to select the recording deck.
3Press PR +/– to select “F-1”.
For DVD deck
●Set “F-1 INPUT” to “VIDEO” for the VIDEO input connector, or
“S-VIDEO” for the S-VIDEO input connector, depending on the
connector being used. (墌pg. 75)
4Press REC MODE repeatedly to set the recording mode.
5Start playback on the camcorder slightly before the actual point
from where you wish to start dubbing.
6Press 7 on the unit to start recording. Or press and hold 7 and
press 4 on the remote control. The dubbing starts.
7Press 8 on the unit, then stop playback on the camcorder.
NOTES:
●All necessary cables can be obtained from your dealer.
●Refer to the camcorder’s instruction manual for operating procedure.
●The quality of dubbed picture becomes poorer than that of the
original.
Edit From A Camcorder
VPS/PDC VCD
HDD DVD
DVHS
BS
+
STANDBY/ON
DVD
S-VIDEO VIDEO (MONO) L - AUDIO - R
VCR/DVD VCR
REMAIN
REC MODE SLOW
<< >>
PR DV IN
SAT
DVD
DVD DVDVCR DUB
F-1
AIf the camcorder has no S-VIDEO output connector:
Recorder
AUDIO/VIDEO OUT
Player
Audio/video cable
(not provided)
AUDIO/VIDEO input
VPS/PDC VCD
HDD DVD
DVHS
BS
+
STANDBY/ON
DVD
S-VIDEO VIDEO (MONO) L - AUDIO - R
VCR/DVD VCR
REMAIN
REC MODE SLOW
<< >>
PR DV IN
SAT
DVD
DVD DVDVCR DUB
F-1
BIf the camcorder has an S-VIDEO output connector (DVD
deck only):
Recorder
Audio cable (not provided)
S-VIDEO OUT
AUDIO OUT
Player
AUDIO input
S-Video cable
(not provided)
S-VIDEO input
Slide the TV/CABLE/SAT/DVD switch to DVD.
DR-MV1SEK_00.book Page 72 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 73
Filename [DR-MV1SEK_09Editing.fm]
Page 73 April 15, 2004 3:18 pm
EDITING
You can use your unit as the source player or as the recording
deck.
NOTE:
When using another recorder as the recording deck, refer to its
instruction manual.
1Connect the player’s 21-pin SCART connector to the unit’s 21-
pin SCART connector as illustrated.
AWhen using your unit as the source player:
— connect its L-1 IN/OUT connector to the recording deck.
BWhen using your unit as the recording deck:
— connect its L-1 IN/OUT or L-2 IN/DECODER connector to
the source player.
●If another recorder is compatible with the Y/C signal (DVD deck only):
— when using your unit as the source player, set “L-1 OUTPUT” to
“SCART S-VIDEO”. (墌pg. 74)
— when using your unit as the recording deck, set “L-2 SELECT” to
“S-VIDEO”. (墌pg. 74)
2Press VCR/DVD repeatedly to select the recording deck.
3Press PR +/– to select “L-1” for the L-1 IN/OUT connector, or
“L-2” for the L-2 IN/DECODER connector, depending on the
connector being used when using this unit as the recording deck.
For DVD deck
●When using the L-1 IN/OUT connector, set “L-1 OUTPUT” to
“VIDEO” or “S-VIDEO”. (墌pg. 74)
●When using the L-2 IN/DECODER connector, set “L-2 SELECT” to
“VIDEO” or “S-VIDEO”. (墌pg. 74)
4Press REC MODE repeatedly to set the recording mode.
5Engage the Play mode of the source player.
6Engage the Record mode of the recording deck.
7Stop recording on the recording deck, then stop playback on the
source player.
NOTES:
●All necessary cables can be obtained from your dealer.
●For Y/C signal input/output, be sure to use a 21-pin SCART cable
that is compatible with the Y/C signal.
●When you use this unit as the source player for editing, be sure to set
“SUPERIMPOSE” or “O.S.D.” to “OFF” before starting. (墌pg. 81, 82)
●If you are using another recorder with S-Video and Audio output
connectors, connect its S-Video and Audio output connectors to this
unit’s S-VIDEO and AUDIO input connectors on the front panel.
Then, set the unit’s input mode to “F-1” in step 3, and set “F-1 INPUT”
to “S-VIDEO”. (墌pg. 75) (DVD deck only)
Edit To Or From Another Recorder
2
Player Your unit
Another recorder
Recorder
TV receiver
AWhen using your unit as the source player:
21-pin SCART cable
(not provided)
21-pin SCART cable
(provided)
Recorder Your unit
Another recorder
Player
TV receiver
BWhen using your unit as the recording deck:
21-pin SCART cable
(not provided)
21-pin SCART cable
(provided)
Slide the TV/CABLE/SAT/DVD switch to DVD.
DR-MV1SEK_00.book Page 73 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_09Editing.fm]
Masterpage:Left+
74 EN
Page 74 April 15, 2004 3:18 pm
EDITING
L-1 Output And L-1 Input Setting
The L-1 IN/OUT connector accepts and delivers either a composite
signal (regular video signal) or a Y/C signal (a signal in which the
luminance and chrominance signals are separated). Set “L-1
OUTPUT” and “L-1 INPUT” to the appropriate mode depending on
the type of appliance connected to the unit’s L-1 IN/OUT
connector.
1Press SET UP to access the Main Menu screen.
2Press we to select “FUNCTION SET UP”, then press ENTER.
3Press we to select “VIDEO IN/
OUT”, then press ENTER.
4Press rt to select “L-1
OUTPUT” or “L-1 INPUT”, then
press ENTER.
5Press rt to select the
appropriate setting, then press
ENTER.
6Press SET UP to complete the
setting.
NOTES:
●If “L-1 INPUT” or “L-1 OUTPUT”
is set to “S-VIDEO”, it is not
possible to output colour signals correctly from the VCR deck.
●When the progressive mode is set, be sure to set “L-1 OUTPUT”
to “COMPONENT”. (墌pg. 74)
●If “L-1 OUTPUT” is not set to “COMPONENT”, it is not possible
to output images from the COMPONENT VIDEO OUT
connector.
*The boldface settings below indicate the settings at your purchase.
8L-1 OUTPUT — SCART VIDEO / SCART S-VIDEO / SCART
RGB / COMPONENT
SCART VIDEO: If a connected appliance’s input is compatible only
with regular video signals, set to “SCART VIDEO”.
SCART S-VIDEO: If a connected appliance’s input is compatible
with Y/C signals, set to “SCART S-VIDEO”. You can obtain high-
quality picture. (For connection, be sure to use a 21-pin SCART
cable that is compatible with the Y/C signal.)
SCART RGB: If a connected appliance’s input is compatible with
RGB signals, set to “SCART RGB”. You can obtain a high-quality
RGB picture.
COMPONENT: If a connected appliance’s input is compatible with
Y/PB/PR signals, set to “COMPONENT”. You can obtain a high-
quality Y/PB/PR picture. Switch the TV to the input that you can
watch component video pictures.
8L-1 INPUT — VIDEO / S-VIDEO
VIDEO: If a connected appliance’s output is compatible only with
regular video signals, set to “VIDEO”.
S-VIDEO: If a connected appliance’s output is compatible with Y/C
signals, set to “S-VIDEO”. You can obtain a high-quality picture.
(For connection, be sure to use a 21-pin SCART cable that is
compatible with the Y/C signal.)
NOTES:
●If “L-1 OUTPUT” is set to “SCART S-VIDEO”, “SCART RGB” or
“COMPONENT”, it is not possible to set “L-1 INPUT” to “S-VIDEO”.
●If “L-2 SELECT” is set to “DECODER”, it is not possible to set “L-1
INPUT” to “S-VIDEO”.
●If “L-2 SELECT” is set to “DECODER”, it is only possible to set “L-1
OUTPUT” to “SCART VIDEO”.
●Component video signals are not output from the L-1 IN/OUT
connector.
●When Progressive scan mode is engaged, it is not possible to select
the setting of “L-1 OUTPUT”. (墌pg. 74)
L-2 Select Setting
Set “L-2 SELECT” to the appropriate mode depending on the type
of appliance connected to the unit’s L-2 IN/DECODER connector.
1Perform steps 1 and 2 of “L-1 Output And L-1 Input Setting” on
the left column.
2Press rt to select “L-2 SELECT”, then press ENTER.
3Press rt to select the
appropriate setting, then press
ENTER.
4Press SET UP to complete the
setting.
NOTES:
●If “L-2 SELECT” is set to
“S-VIDEO”, it is not possible to
output colour signals correctly from the VCR deck.
●If “L-2 SELECT” is set to “DECODER”, only the DVD deck
operates properly.
*The boldface settings below indicate the settings at your purchase.
8L-2 SELECT — VIDEO / S-VIDEO / SAT VIDEO / SAT
S-VIDEO / DECODER
Select “VIDEO” or “S-VIDEO” to use this unit as the recording deck
with the player connected to the L-2 IN/DECODER connector, or to
use the satellite receiver connected to the L-2 IN/DECODER
connector.
VIDEO: If a connected appliance’s output is compatible only with
regular video signals, set to “VIDEO”.
S-VIDEO: If a connected appliance’s output is compatible with Y/C
signals, set to “S-VIDEO”. You can obtain high-quality picture.
(For connection, be sure to use a 21-pin SCART cable that is
compatible with the Y/C signal.)
Select “SAT VIDEO” or “SAT S-VIDEO” to view a satellite
programme with the TV set while the unit is turned off. (墌pg. 78)
SAT VIDEO: If a connected satellite receiver’s output is compatible
only with regular video signals, set to “SAT VIDEO”.
SAT S-VIDEO: If a connected satellite receiver’s output is
compatible with Y/C signals, set to “SAT S-VIDEO”. You can
obtain a high-quality S-VHS picture. (For connection, be sure to
use a 21-pin SCART cable that is compatible with the Y/C signal.)
DECODER: To use a decoder connected to the L-2 IN/DECODER
connector.
Output/Input Set
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
VCR/DVD
rtw e
ENTER
SET UP
SAT
DR-MV1SEK_00.book Page 74 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 75
Filename [DR-MV1SEK_09Editing.fm]
Page 75 April 15, 2004 3:18 pm
EDITING
NOTES:
●If you have a satellite receiver or a decoder connected to the L-2 IN/
DECODER connector, be sure to set “L-2 SELECT” back to
appropriate mode after editing.
●If you are not connecting a satellite receiver or a decoder to the L-2
IN/DECODER connector, leave “L-2 SELECT” set to “VIDEO”.
●When “L-2 SELECT” is set to “SAT VIDEO” and “SAT S-VIDEO”,
“SAT” appears on the TV screen or front display panel instead of
“L-2”.
●If “L-1 OUTPUT” is set to “SCART S-VIDEO”, it is not possible to set
“L-2 SELECT” to “DECODER” or “SAT VIDEO”.
●If “L-1 OUTPUT” is set to “SCART RGB”, it is not possible to set “L-2
SELECT” to “DECODER” or “SAT S-VIDEO”.
●If “L-1 OUTPUT” is set to “COMPONENT” and “L-2 SELECT” to “SAT
VIDEO”, “SAT S-VIDEO” or “DECODER”, be sure to connect the L-1
IN/OUT connector with a TV.
F-1 Input Setting
Set “F-1 INPUT” to the appropriate mode depending on the
connector (VIDEO or S-VIDEO) being used on the front panel.
1Perform steps 1 and 2 of “L-1 Output And L-1 Input Setting”
(墌pg. 74).
2Press rt to select “F-1 INPUT”, then press ENTER.
3Press rt to select the
appropriate setting, then press
ENTER.
4Press SET UP to complete the
setting.
*The boldface settings below
indicate the settings at your
purchase.
8F-1 INPUT — VIDEO / S-VIDEO
VIDEO: When connecting an appliance to the VIDEO input
connector, set to “VIDEO”.
S-VIDEO: When connecting an appliance to the S-VIDEO input
connector, set to “S-VIDEO”.
You can dub selected audio from a DVD or Audio CD disc to a
digital audio device.
However, it is not possible to dub copy-protected discs.
Example: Dubbing to an MD
1Connect the unit and a digital audio device using either an
optional optical cable or an optional coaxial cable.
2Place a disc on the unit and load an MD on the connected digital
audio device.
3Select the audio to be dubbed.
4Start playback slightly before the actual point from where you
wish to start dubbing.
5Press 9 to pause playback.
6Select the input mode on the connected digital audio device.
7Press 4 to start playback on the unit.
8Start recording on the digital audio device.
9Stop recording on the digital audio device. Then press 8 to stop
playback on the unit.
NOTE:
There may be a discrepancy of several seconds between where you
intend editing to start, and where it actually starts.
Digital Audio Dubbing
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
2
Rear of unit
Note for connection:
Remove the protection cap from the cable.
Digital audio device
(MD deck, etc.)
Optical cable
(not provided)
DIGITAL AUDIO OUT
(OPTICAL)
Player
Recorder
Coaxial cable
(not provided)
DIGITAL AUDIO OUT
(COAXIAL)
DR-MV1SEK_00.book Page 75 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_09Editing.fm]
Masterpage:Left0
76 EN
Page 76 April 15, 2004 3:18 pm
REMOTE CONTROL
Remote control 1/2/3/4 Code Switching
The remote control is capable of controlling four JVC video units
independently. Each of the units can respond to one of four codes
(1, 2, 3 or 4). The remote control is preset to send 3 code signals
because your unit is initially set to respond to 3 code signals. You
can easily modify your unit to respond to 1, 2 or 4 code signals.
●Keep pressing SET UP down during step 1.
1Press the number key “1” for 1, “2” for 2, “3” for 3 or “4” for 4
to change the remote control code, then press ENTER.
2Press 1 on the unit to turn off the unit.
3Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
4Press 4 on the unit for over 5 seconds while the unit is turned
off. The code currently set appears on the front display panel.
5Press 8 on the remote control to change the unit’s code. The
code currently set on the remote control blinks on the front display
panel for approximately 5 seconds, and is applied to the unit.
NOTE:
When “POWER SAVE” is set to “ON” (墌pg. 81), it is not possible to
change the remote code.
TV Multi-Brand Remote Control
Your remote control can operate the basic functions of your TV set.
In addition to JVC TVs, other manufacturer’s TVs can also be
controlled.
IMPORTANT:
Although the provided remote control unit is compatible with JVC
televisions, as well as many other models, it may not work with your TV,
or in some instances, may have limited function capability.
●Keep pressing SET UP down during step 1.
1Enter your TV’s brand code using the number keys, then press
ENTER.
2Press 1 on the unit’s remote control to turn on the TV and try
operations (墌 step 3).
●Once you have set the remote control to operate the TV, you do not
have to repeat this step until you replace your remote control’s
batteries.
●Some brands of TVs have more than one code. If the TV does not
function with one code, try entering another.
3Press the corresponding button to operate the TV: 1, TV/VCR,
PR +/–, TV %+/–, (TV Muting), number keys.
●For some brands of TVs, you must press ENTER after having
pressed the number keys.
Remote Control Functions
Slide the TV/CABLE/SAT/DVD switch to DVD.
4
1
1
4
7
2
5
8
0
3
6
9
TV/VCR
SET UP
ENTER
8
PR +/–
TV % +/–
0 – 9
1
SAT
●Turn off the TV using its remote control.
●Slide the TV/CABLE/SAT/DVD switch to TV.
BRAND NAME CODE
JVC
HITACHI
MAGNAVOX
MITSUBISHI
PA N A S O N I C
RCA
SHARP
SONY
SAMSUNG
SANYO
SEARS
TOSHIBA
ZENITH
01, 03
10
02
03
04, 11
05
06
07
12
13
13
08
09
DR-MV1SEK_00.book Page 76 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 77
Filename [DR-MV1SEK_09Editing.fm]
Page 77 April 15, 2004 3:18 pm
REMOTE CONTROL
Satellite Receiver Multi-Brand Remote Control
Your remote control can operate the basic functions of your
satellite receiver set. In addition to JVC satellite receivers, other
manufacturer’s satellite receivers can also be controlled.
IMPORTANT:
Although the provided remote control unit is compatible with JVC
satellite receivers, as well as many other models, it may not work with
your satellite receiver, or in some instances, may have limited function
capability.
●Keep pressing SET UP down during step 1.
1Enter your satellite receiver’s brand code using the number
keys, then press ENTER.
2Press 1 on the unit’s remote control to turn on the satellite
receiver and try operations (墌step 3).
●Once you have set the remote control to operate the satellite receiver,
you do not have to repeat this step until you replace your remote
control’s batteries.
●Some brands of satellite receiver have more than one code. If the
satellite receiver does not function with one code, try entering
another.
3Press the corresponding button to operate the satellite receiver:
1, PR +/–, number keys.
●For some brands of satellite receiver, you must press ENTER after
having pressed the number keys.
●The number keys may not function with some satellite receivers.
Slide the TV/CABLE/SAT/DVD switch to CABLE/SAT.
BRAND NAME CODE
JVC
AMSTRAD
CANAL SATELLITE
CANAL +
D-BOX
ECHOSTAR (VIA DIGITAL)
FINLUX
FORCE
GALAXIS
GRUNDIG
HIRSCHMANN
HUMAX
ITT NOKIA
KATHREIN
LUXOR
MASCOM
MASPRO
NOKIA
PAC E
PA N A S O N I C
PHILIPS
RADIX
RFT
SABA
SAGEM
SALORA
SAMSUNG
SIEMENS
SKY DIGI BOX
SKYMASTER
TECHNISAT
THOMSON
TPS
TRIAX
WISI
73
60, 61, 62, 63, 92
81
81
85
82
68
89
88
64, 65, 102
64, 78, 99
88
68
70, 71, 96
68
93
70
87, 94
65, 67, 74, 86, 92
74, 92
66, 84, 101
78
69
97
83, 90
68
83
64
92
69, 98
66, 100
97
83
91
64
DR-MV1SEK_00.book Page 77 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_09Editing.fm]
Masterpage:Left0
78 EN
Page 78 April 15, 2004 3:18 pm
SYSTEM CONNECTIONS
Simple Connections
Connect the satellite receiver to the L-2 IN/DECODER connector,
then connect the L-1 IN/OUT connector to the TV’s connector.
NOTES:
●Set “L-2 SELECT” to “VIDEO” or “S-VIDEO”. (墌pg. 74)
●You can use the Automatic Satellite Programme Recording function
(墌pg. 50) with this connection. (DVD deck only)
●To record a programme via the satellite receiver, select L-2 mode by
pressing PR +/– so that “L-2” appears on the front display panel.
●For details, refer to the instruction manual of the satellite receiver.
Connecting To A Satellite Receiver
IMPORTANT
When you set “L-2 SELECT” to “SAT VIDEO” or “SAT S-VIDEO”
(墌pg. 74), it is possible to view a satellite broadcast with the TV
set to its AV mode even if the unit is turned off. When the unit is
in Stop mode or recording, press TV/VCR on the remote control
to turn off the VCR indicator on the unit.
●If you turn on the unit when the satellite receiver’s power is off,
nothing appears on the TV screen. In this case, turn on the satellite
receiver, or set the TV to its TV mode, or press TV/VCR on the
remote control to set the unit to the AV mode.
Outdoor unit
Satellite cable
Satellite receiver
Aerial
TV aerial cable
TV
ANTENNA OUT
ANTENNA IN
DR-MV1SEK_00.book Page 78 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 79
Filename [DR-MV1SEK_09Editing.fm]
Page 79 April 15, 2004 3:18 pm
SYSTEM CONNECTIONS
These instructions enable you to connect your unit to a Dolby
Digital decoder or an amplifier with built-in DTS.
1Connect the unit and a Dolby Digital decoder or an amplifier
with built-in DTS using either an optional optical cable or an
optional coaxial cable.
NOTES:
●For Dolby Digital sound, set “DIGITAL AUDIO OUT” to “DOLBY
DIGITAL/PCM”. (墌pg. 80)
●For DTS sound, set “DIGITAL AUDIO OUT” to “STREAM/PCM”.
(墌pg. 80)
CAUTIONS:
●This unit has a dynamic range of more than 110 dB with regards to its
Hi-Fi audio capability. It is recommended that you check the
maximum level if you are going to listen to the Hi-Fi audio signals
through a stereo amplifier. A sudden surge in the input level to the
speakers may damage them.
●Some speakers and televisions are specially shielded to prevent
television interference. If both are of the non-shielded type, do not
place the speakers adjacent to the TV set as this can adversely affect
the playback picture.
When you can’t switch the audio channel of a bilingual
programme
When the unit is connected with a digital audio device using an
optional optical cable and “DIGITAL AUDIO OUT” is set to “DOLBY
DIGITAL/PCM”, it is not possible to switch the audio channel of a
bilingual programme recorded on a DVD-RAM or DVD-RW (VR
mode) disc. In this case, perform the following steps using the
remote control to switch “DIGITAL AUDIO OUT” from “DOLBY
DIGITAL/PCM” to “PCM ONLY”.
APress SET UP to access the Main Menu screen.
BPress we to select “DVD SET UP”, then press ENTER.
CPress we to select “AUDIO OUTPUT”, then press ENTER.
DPress rt to select “DIGITAL AUDIO OUT”, then press
ENTER.
EPress rt to select “PCM ONLY”, then press ENTER.
(墌pg. 80)
FPress SET UP to complete the setting.
GPress AUDIO to select the desired audio channel. (墌pg. 30)
Connecting To A Dolby Digital Decoder
Or An Amplifier With Built-in DTS
2
Note for connection:
Remove the protection cap from the cable.
Coaxial cable
(not provided)
Dolby Digital Decoder or
amplifier with built-in DTS
To DIGITAL AUDIO input
Optical cable
(not provided)
DIGITAL AUDIO OUT (OPTICAL)
DIGITAL AUDIO OUT (COAXIAL)
DR-MV1SEK_00.book Page 79 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_10Subsidiary.fm]
Masterpage:Left0
80 EN
Page 80 April 15, 2004 3:21 pm
SUBSIDIARY SETTINGS
Various modes of this unit are categorized into menus nested in 2
levels shown in the following table. To change the settings of these
modes, find the desired mode in the menu (for details on each
menu, see pages 80 through 81), then follow the procedure below.
●The procedure below shows how to set the desired option of the
“AUDIO REC” mode as an example.
1Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
2Press SET UP to access the Main Menu screen.
3Press we to select “FUNCTION SET UP”, then press ENTER.
4Press we to select
“RECORDING SET”, then press
ENTER.
5Press rt to select “AUDIO
REC”, then press ENTER.
6Press rt to select the desired
option, then press ENTER.
7Press SET UP to complete the
setting.
*The boldface settings below indicate the settings at your purchase.
AUDIO OUTPUT
8DIGITAL AUDIO OUT — DOLBY DIGITAL/PCM / STREAM/
PCM / PCM ONLY
Set to the appropriate mode according to the type of the device
connected to DIGITAL AUDIO OUT connector.
DOLBY DIGITAL/PCM: Select this when you connect the digital
input connector of a Dolby Digital decoder or an amplifier with a
built-in Dolby Digital decoder.
STREAM/PCM: Select this when you connect the digital input
connector of an amplifier with a built-in DTS, Dolby Digital, or
MPEG multichannel decoder.
PCM ONLY: Select this when you connect the linear PCM digital
input of other audio equipment (amplifier, MD or DAT deck, etc.).
8ANALOG AUDIO OUT — STEREO / DOLBY SURROUND
Select the appropriate setting to accommodate the unit to the
connected A/V equipment. This function takes effect when a
DVD VIDEO disc is played back.
STEREO: Select this when listening to conventional two-channel
stereo audio with the unit’s AUDIO OUTPUT connectors
connected to a stereo amplifier/receiver or TV set, or in case you
want to record the audio from a DVD VIDEO disc to a Mini Disc,
etc.
DOLBY SURROUND: Select this when listening to multichannel
surround audio with the unit’s AUDIO OUTPUT connectors
connected to an amplifier/receiver with a built-in surround
decoder or a surround decoder.
8D. RANGE CONTROL — NORMAL / WIDE RANGE / TV
MODE
The dynamic range (the difference between the loudest sound and
the quietest one) can be compressed during playback of a
programme encoded in Dolby Digital format.
This function takes effect when a DVD VIDEO disc recorded in
Dolby Digital format is played back at low or middle volume.
NORMAL: Normally select this setting to activate this function.
WIDE RANGE: Select this to deactivate this function when you
enjoy wide dynamic range programme.
TV MODE: Select this when you hear the sound through the TV’s
speaker(s).
NOTES:
●This function takes no effect on programmes other than that recorded
in Dolby Digital format.
●This function dose not work when Simulated Surround Effect is
activated. (墌pg. 38)
●The effect of “NORMAL” and “WIDE RANGE” may not be different
depending on discs.
8OUTPUT LEVEL — STANDARD / LOW
You can lower the output level of analog audio to accommodate the
unit to the connected A/V equipment.
STANDARD: Normally select this setting.
LOW: The output level of analog audio is lowered.
Mode Set (DVD Deck)
●Turn on the unit.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
DVD SET UP LANGUAGE SET (墌pg. 22)
AUDIO OUTPUT (墌pg. 80)
UTILITY (墌pg. 41, 87)
FUNCTION SET UP VIDEO IN/OUT (墌pg. 25, 74)
RECORDING SET (墌pg. 81)
DISPLAY SET (墌pg. 81)
OTHERS (墌pg. 81)
INITIAL SET UP AUTO CH SET (墌pg. 83)
MANUAL CH SET (墌pg. 84)
SAT/GUIDE PR (墌pg. 23, 83)
CLOCK SET (墌pg. 86)
1
4
7
2
5
8
0
3
6
9
ENTER
SET UP
rtw e
VCR/DVD SAT
DR-MV1SEK_00.book Page 80 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 81
Filename [DR-MV1SEK_10Subsidiary.fm]
Page 81 April 15, 2004 3:21 pm
SUBSIDIARY SETTINGS
RECORDING SET
8SAVE AS LIBRARY — OFF / ON
When this function is set to “ON”, the recording information is
automatically stored in the library. For details, refer to “Modify
Library Information” (墌pg. 65).
8XP MODE REC AUDIO — DOLBY DIGITAL / LINEAR PCM
You can select the audio format when you record a programme in
XP mode. When this function is set to “LINEAR PCM”, you can
obtain a high-quality audio sound.
DOLBY DIGITAL: To record in Dolby Digital format.
LINEAR PCM: To record in Linear PCM format.
8AUDIO REC — NICAM 1/MAIN / NICAM 2/SUB / MONO
You can select the desired NICAM audio channel to be recorded
on a DVD-R/RW (Video mode) disc.
NICAM 1/MAIN: To record the main language of NICAM audio.
NICAM 2/SUB: To record the sub language of NICAM audio.
MONO: To record the standard (monaural) sound of NICAM audio.
NOTE:
This function works only for the NICAM bilingual programme.
8DIRECT REC — OFF / ON
When this function is set to “ON”, you can easily start recording the
programme that you are watching on your TV. Press and hold 7
and press 4 on the remote control, or press 7 on the unit.
NOTES:
●Recording is not possible on the VCR deck.
●When you use the Direct Rec function, be sure to use a TV offering
T-V LINK, etc. and connect a fully-wired 21-pin SCART cable
between the unit and the TV. (墌pg. 18)
●If “DIRECT REC” is set to “OFF”, the 7 button functions as described
in “Basic Recording”(墌pg. 42, 54).
●During Direct Rec, “– –” appears on the front display panel.
●If a programme is recorded with the Direct Rec, the station name will
not be registered in the library. “––––” will be displayed for the
station name.
●Even if there is no power supply for more than 60 minutes, the unit
keeps the setting.
DISPLAY SET
8SUPERIMPOSE — OFF / AUTO
When this function is set to “AUTO”, various operational indicators
appear on the TV screen. Messages appear in the selected
language. (墌pg. 22)
OFF: To turn off superimposed indications.
AUTO: To superimpose operational indications for approximately
five seconds just after the corresponding operation.
NOTES:
●Even when “SUPERIMPOSE” is set to “OFF”, you can display the
various operational indicators by pressing ON SCREEN. To clear the
operational indicators, press ON SCREEN again.
●When you use this unit as the source player for editing, be sure to set
“SUPERIMPOSE” to “OFF” before starting. (墌pg. 81)
●When you select “AUTO”, during playback, the operation mode
indicators may be disturbed depending on the type of disc being
used.
8GREY BACK — OFF / ON
When this function is set to “ON”, the TV screen becomes all grey
when receiving a channel not in use.
NOTE:
When you want to receive an unstable channel with poor signals, set
this function to “OFF”.
8DIMMER — BRIGHT / DIM
You can change the brightness of the front display panel.
BRIGHT: Normally select this.
DIM: To dim the front display panel. (Blue lamp on the front display
panel is turned off.)
8POWER SAVE — OFF / ON
When this function is set to “ON”, you can reduce the power
consumption while the unit is turned off.
NOTES:
●During Power Save mode —
— the front display panel will be turned off.
— the Just Clock function (墌pg. 86) does not work.
●Power Save does not work when —
— the unit is in the Timer mode.
— the unit’s power is turned off after timer-recording or Instant Timer
Recording.
— the Automatic Satellite Programme Recording mode is engaged.
(墌pg. 50)
— “L-2 SELECT” is set to “DECODER”, “SAT VIDEO” or “SAT S-VIDEO”.
(墌pg. 74)
●It takes some time for the unit to complete initialisation after you turn
on unit power, with “WAKE UP” blinking on the front display panel.
OTHERS
8RESUME — ON / OFF / DISC RESUME
When this function is set to “ON” or “DISC RESUME”, you can use
the resume function. (墌pg. 28)
ON: You can start playback from the resume point of the placed
disc.
OFF: You cannot use the resume function.
DISC RESUME: The unit retains a memory of the resume points of
the last 30 discs played back, even though they have been
ejected.
NOTE:
“DISC RESUME” setting works on DVD VIDEO, VCD, SVCD and
already finalised DVD-R/DVD-RW (video mode) discs. For other types
of discs, the function under “ON” setting will be applied even if
“RESUME” is set to “DISC RESUME”.
DR-MV1SEK_00.book Page 81 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_10Subsidiary.fm]
Masterpage:Left+
82 EN
Page 82 April 15, 2004 3:21 pm
SUBSIDIARY SETTINGS
You can change various mode settings on the Function Set screen.
To change the settings of these modes, find the desired mode in
the menu (for details on each menu, see page 82), then follow the
procedure below.
1Press VCR/DVD repeatedly so that the VCR lamp lights up on
the unit.
2Press SET UP to access the
Function Set screen.
3Press rt to select the item you
want to change, then press ENTER or
e to select the desired mode.
4Press SET UP to complete the
setting.
*The boldface settings below indicate
the settings at your purchase.
8B.E.S.T. — ON / OFF
You can set the B.E.S.T. (Biconditional Equalised Signal Tracking)
system to “ON” or “OFF”. (墌pg. 55)
NOTES:
●When watching a tape recorded with “B.E.S.T.” set to “ON”, it is
recommended that you leave B.E.S.T. on during playback as well.
●When watching a rental tape or one recorded on another video
recorder, or when using this unit as the player for editing, set B.E.S.T.
to your preference.
●The B.E.S.T. system works for both SP and LP modes only after a
tape has been inserted and the Record mode is first initiated. It does
not work during recording.
●The B.E.S.T. system does not work while Automatic Satellite
Programme Recording is in progress. (墌pg. 50)
●In the case of timer recordings, the B.E.S.T. system works before
recording is initiated.
●Once the cassette is ejected, the B.E.S.T. data is cancelled. The next
time the cassette is used for recording, B.E.S.T. is re-performed.
●Pressing the unit’s 7 button while “BEST” is displayed does not start
Instant Timer Recording. (墌pg. 55)
8PICTURE CONTROL — AUTO / EDIT / SOFT / SHARP
This feature helps you to adjust the playback picture quality
according to your preference. Normally select “AUTO”.
AUTO: Picture quality is adjusted automatically.
EDIT: Minimizes picture degradation during editing (recording and
playback).
SOFT: Reduces image coarseness when viewing overplayed tapes
containing a lot of noise.
SHARP: Clearer, sharper-edged picture when viewing images with
lots of flat, same-coloured surfaces such as cartoons.
NOTES:
●When you select “EDIT”, “SOFT” or “SHARP”, the selected mode will
not change until you select another mode.
●When you select “EDIT” to dub tapes, be sure to select “NORM” after
you finish dubbing the tapes.
●When “B.E.S.T.” is “OFF”, “PICTURE CONTROL” switches
automatically from “AUTO” to “NORM”.
8O.S.D. — AUTO / OFF
When this function is set to “AUTO”, various operational indicators
appear on the TV screen. Messages appear in the selected
language. (墌pg. 22)
NOTES:
●Even when “O.S.D.” is set to “OFF”, you can display the various
operational indicators by pressing ON SCREEN. To clear the
operational indicators, press ON SCREEN again.
●When you use this unit as the source player for editing, be sure to set
“O.S.D.” to “OFF” before starting.
●During playback, the operation mode indicators may be disturbed
depending on the type of tape being used.
8AUTO SP]LP TIMER — ON / OFF
When this function is set to “ON”, the unit automatically switches to
LP mode to allow complete recording if there is not enough tape to
record the entire programme while timer-recording in SP mode.
For Example:
Recording a programme of 140 minutes in length onto a 120-
minute tape
Make sure you set this function to “ON”, before the timer-recording
starts.
NOTES:
●If you have programmed the unit to timer-record 2 or more
programmes, the second programme and those thereafter may not fit
on the tape if you set “AUTO SP]LP TIMER” to “ON”. In this case,
make sure the mode is not engaged, then set the tape speed
manually during timer programming.
●In order to ensure that the recording fits on the tape, this feature may
leave a slight non-recorded section at the end of the tape.
●There may be some noise and sound disturbance at the point on the
tape where the unit switches from SP to LP mode.
●The Auto SP]LP Timer feature is not available during ITR (Instant
Timer Recording), and the feature will not work properly on the
following tapes: T(ST)-30, T(ST)-60, T(ST)-90, and T(ST)-120
Mode Set (VCR Deck)
●Turn on the unit.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
ENTER
SET UP
rtw e
VCR/DVD SAT
Total 140 minutes
Approximately 110 minutes Approximately 30 minutes
SP mode LP mode
DR-MV1SEK_00.book Page 82 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 83
Filename [DR-MV1SEK_10Subsidiary.fm]
Page 83 April 15, 2004 3:21 pm
SUBSIDIARY SETTINGS
Guide Program Number Set
1Press SET UP to access the Main Menu screen.
2Press we to select “INITIAL SET UP”, then press ENTER.
3Press we to select “SAT/
GUIDE PR”, then press ENTER.
4Press rt to select “GUIDE
PROGRAMME”, then press
ENTER.
5Press rt to select the Guide
Program number for the desired
station as shown in the TV listings.
Then press ENTER.
●To change the Guide Program number in 10 increments, press and
hold rt.
6Press rt to select “TV PROGRAMME”, then press ENTER.
7Press rt to select the number of the unit’s channel position on
which the Guide Program number’s broadcast is received by the
unit or the satellite receiver. Then press ENTER.
●Pressing AUX changes “TV PROGRAMME” to “SAT”.
●To timer-record a satellite programme with the VIDEO Plus+ system,
you need to install a provided Satellite Controller and perform the
procedure described in “Satellite Receiver Control Setting (DVD Deck
Only)” (墌pg. 23).
●Repeat steps 4 and 7 as necessary.
8Press SET UP to complete the setting.
Guide Program Number
“Guide Program (GUIDE PROGRAMME) number” refers to the
assigned TV station numbers, according to broadcast area, for the
VIDEO Plus+ timer recording. The Guide Program numbers can be
found in most TV listings.
Your unit needs to memorise all necessary stations in channel
positions in order to record TV programmes. Auto Channel Set
automatically assigns all receivable stations in your area to call
them up by using the PR +/– buttons without going through any
vacant channels.
Auto Channel Set
1Press SET UP to access the Main Menu screen.
2Press we to select “INITIAL SET UP”, then press ENTER.
3Press we to select “AUTO CH SET”, then press ENTER.
●When you have connected the unit
to a TV offering T-V Link via a
fully-wired 21-pin SCART cable
(墌pg. 20), the unit automatically
performs the Preset Download
and the T-V LINK screen will
appear. (墌pg. 20)
●The Auto Set screen appears, and
remains on screen while the unit
searches for receivable stations.
Wait until the TV screen as shown in step 4 appears.
VIDEO Plus+® System Setup
IMPORTANT:
Normally, Auto Set Up (墌pg. 19), Preset Download (墌pg. 20) or
Auto Channel Set (墌pg. 83) sets the Guide Program numbers
automatically. You need to set the Guide Program numbers manually
only in the following cases.
●When timer-programming with the VIDEO Plus+ system, the
channel position, where the station you wish to record is received
on your unit, is not selected,
OR
when you add a channel after Auto Set Up, Preset Download or Auto
Channel Set has taken place,
—Set the Guide Program number for that station manually.
●When you wish to timer-record a satellite programme with the
VIDEO Plus+ system,
—Set the Guide Program numbers for all satellite broadcasts received
on your satellite receiver.
●Turn on the unit.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
Tuner Set
●Turn on the unit.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
IMPORTANT:
Perform the following steps only if —
— Auto Channel Set has not been set correctly by Auto Set Up
or by Preset Download. (墌pg. 19, 20)
— you have moved to a different area or if a new station starts
broadcasting in your area.
1
4
7
2
5
8
0
3
6
9
ENTER
SET UP
rtw e
VCR/DVD SAT
DR-MV1SEK_00.book Page 83 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_10Subsidiary.fm]
Masterpage:Left+
84 EN
Page 84 April 22, 2004 5:12 pm
SUBSIDIARY SETTINGS
4View the Confirmation screen. “SCAN COMPLETED” is
displayed on the TV screen. Press “OK”.
5Press SET UP to complete the setting.
●When Auto Channel Set is completed, “PLEASE WAIT” will be
displayed for about 90 seconds, since channel data is exchanged
between the DVD deck and the VHS deck. No operations will be done
during this time.
●Using the Confirmation screen, you can skip or add channel
positions, enter station names and perform other operations. Refer to
pages 84 – 85 for the procedures.
●Depending on reception conditions, the stations may not be stored in
order, and the station names may not be stored correctly.
NOTES:
●Fine tuning is performed automatically during Auto Channel Set. If
you want to perform tuning manually, refer to “Fine-Tuning Channels
Already Stored” (墌pg. 85).
●If you perform Auto Channel Set when the aerial cable is not
connected properly, “SCAN COMPLETED –NO SIGNAL–” appears
on the TV screen in step 4. In such a case, make sure of the aerial
connection and press ENTER; Auto Channel Set will start again.
Manual Channel Set
Store channels that were not stored during Auto Set Up
(墌pg. 19), Preset Download (墌pg. 20) or Auto Channel Set
(墌pg. 83).
1Press SET UP to access the Main Menu screen.
2Press we to select “INITIAL SET UP”, then press ENTER.
3Press we to select “MANUAL CH SET”, then press ENTER.
The Confirmation screen appears.
4Press rt w e to select a
blank position in which you want to
store a channel, then press
ENTER twice. The Manual
Channel Set screen appears.
5Press rt to select “BAND”,
then press ENTER.
6Press rt to change the band
between CH (regular) and CC
(cable), then press ENTER.
7Press rt to select “CH”, then
press ENTER.
8Press rt to input the channel
number you want to store.
●To enter the registered station
name (墌pg. 100), press rt to
select “ID”, then press ENTER. Press rt.
●For fine tuning adjustment, press rt to select “FINE”, then press
ENTER. Press rt to perform fine-tuning.
●When “L-2 SELECT” is set to “VIDEO”, “S-VIDEO”, “SAT VIDEO” or
“SAT S-VIDEO”, the “DECODER” setting cannot be changed.
(墌pg. 74)
9Press ENTER to enter new channel information. The
Confirmation screen appears.
●Repeat steps 4–9 as necessary.
10 Press SET UP to close the Confirmation screen.
●When Auto Channel Set is completed, “PLEASE WAIT” will be
displayed for about 90 seconds, since channel data is exchanged
between the DVD deck and the VHS deck. No operations will be done
during this time.
●To change positions, see “Change Station Channel Position”
(墌pg. 85).
●If you wish to set station names other than the ones registered in your
unit, see “Set Stations (B)” (墌pg. 85).
IMPORTANT:
●In certain reception conditions, station names may not be stored
correctly, and Auto Guide Program Number Set may not work
properly. When the Guide Programme numbers are not set
properly, the programme that you do not intended to record will be
timer-recorded by the VIDEO Plus+ system of the unit. When
programming the timer using the VIDEO Plus+ system, be sure to
check the desired channel is selected correctly. (墌pg. 45, 56)
●Your unit memorises all receivable stations even if reception of
some of them is poor. You can delete those stations with an
unacceptable picture from the list. (墌pg. 85, “Delete A Channel”)
A
TTENTION:
Guide Program numbers are not set when channels are stored
manually. (墌pg. 83, “VIDEO Plus+® System Setup”)
1
4
7
2
5
8
0
3
6
9
VCR/DVD
rtw e
ENTER
SET UP
SAT
(Example) To store in position 6.
The programme currently
received on the selected channel
position appears behind the
confirmation screen.
DR-MV1SEK_10Subsidiary.fm Page 84 Thursday, April 22, 2004 5:13 PM
Masterpage:Right+
EN 85
Filename [DR-MV1SEK_10Subsidiary.fm]
Page 85 April 15, 2004 3:21 pm
SUBSIDIARY SETTINGS
Delete A Channel
1Perform steps 1 and 3 of “Manual Channel Set” (墌pg. 84) to
access the Confirmation screen before continuing.
2Press rt w e to select the item you want to delete.
3Press & to delete a channel. The item next to the cancelled one
moves up one line.
●Repeat steps 2 and 3 as necessary.
4Press SET UP to close the Confirmation screen.
Change Station Channel Position
1Perform steps 1 and 3 of “Manual Channel Set” (墌pg. 84) to
access the Confirmation screen before continuing.
2Press rt w e to select the item you want to move, then press
ENTER.
3Press rt w e to select the new channel position, then press
ENTER.
Example: If you moved the station in position 4 to position 2, the
stations originally in positions 2 and 3 each move down
one space.
●Repeat steps 2 and 3 as necessary.
4Press SET UP twice to close the Confirmation screen.
Set Stations (A)
Set station names that are registered in your unit.
1Perform steps 1 and 3 of “Manual Channel Set” (墌pg. 84) to
access the Confirmation screen before continuing.
2Press rt w e to select the item you want.
3Press ENTER twice to access the Manual Channel Set screen.
4Press rt to select “ID”, then press ENTER.
5Press rt until the new station’s name (ID) you want to store
appears, then press ENTER. Registered station names
(墌pg. 100) appear as you press rt.
6Press we to select “OK”, then press ENTER.
●Repeat steps 2–6 as necessary.
7Press SET UP twice to close the Confirmation screen.
Set Stations (B)
Set station names other than the ones registered in your unit.
1Perform steps 1 and 3 of “Manual Channel Set” (墌pg. 84) to
access the Confirmation screen and then perform steps 2 and 3 of
“Set Stations (A)” above before continuing.
2Press rt to select “ID”, then press ENTER.
3Press ENTER twice.
4Press we to locate the character insertion point.
5Press rt to cycle through the characters (A–Z, 0–9, –, f, +, I
(space)) and stop when the desired character is indicated, then
press e to enter.
●Enter the remaining characters the same way (maximum of 4).
6After entering all characters, press we to select “OK”, then
press ENTER.
7Press SET UP twice to close the Confirmation screen.
NOTE:
The characters available for the station name (ID) are A–Z, 0–9, –,
f, +, I (space) (maximum of 4).
Fine-Tuning Channels Already Stored
1Perform steps 1 and 3 of “Manual Channel Set” (墌pg. 84) to
access the Confirmation screen before continuing.
2Press rt w e to select the channel you want to fine-tune, then
press ENTER.
3Press ENTER twice.
4Press ENTER to access the Manual Channel Set screen. The
Manual Channel Set screen appears.
5Press rt to select “FINE”.
6Press we until the picture appears in its best quality.
●Repeat steps 2–6 as necessary.
7Press SET UP three times to close the Confirmation scree.
DR-MV1SEK_00.book Page 85 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_10Subsidiary.fm]
Masterpage:Left+
86 EN
Page 86 April 15, 2004 3:21 pm
SUBSIDIARY SETTINGS
1Press SET UP to access the Main Menu screen.
2Press we to select “INITIAL SET UP”, then press ENTER.
3Press we to select “CLOCK
SET”, then press ENTER.
4Press rt to select “YEAR”,
then press ENTER. Press rt to set the year, then press ENTER.
●Repeat the same procedure to set the date and time. When you set
the time, press and hold rt to change the time by 30 minutes.
●When you set the date, press and hold rt to change the date by 15
days.
5Press rt to select “JUST CLOCK”, then press ENTER. Press
rt to set to the desired mode, then press ENTER.
●The default setting is “OFF”.
●For the Just clock function, refer to “Just Clock” on the right column.
●If you set to “OFF”, you can disregard the next step as you won’t be
able to receive regular clock adjustments.
6Press rt to select “TV PROGRAMME”, then press ENTER.
Press rt to set the channel position to the number representing
the station transmitting clock setting data, then press ENTER.
●The unit is preset to receive clock setting and adjustment data from
channel position 1.
7Press SET UP to start the clock operation.
NOTES:
●Just Clock (when set to “ON”) adjusts the unit’s built-in clock every
hour, except for 23:00, 0:00, 1:00 and 2:00.
●Just Clock is not effective when:
— the unit’s power is on.
— the unit is in the Timer mode.
— a difference of more than 3 minutes exists between the built-in
clock’s time and the actual time.
— the unit is in the Automatic Satellite Programme Recording
mode. (墌pg. 50) (DVD deck only)
— the unit is in the Power Save mode. (墌pg. 81)
— “L-2 SELECT” is set to “SAT VIDEO” or “SAT S-VIDEO”.
(墌pg. 74)
●If Just Clock is set to “ON”, the unit’s clock is automatically adjusted
at the start/end of Summer Time.
●Just Clock may not function properly depending on the reception
condition.
Just Clock
The Just Clock function provides accurate time keeping through
automatic adjustments at regular intervals, by reading data from a
PDC signal.
The Just Clock option can be set to “ON” or “OFF” at the Clock Set
screen (the default setting is “OFF”).
IMPORTANT:
If you turn off Just Clock, the accuracy of your unit’s built-in clock may
be reduced, which could adversely effect timer recording. We
recommend you to keep Just Clock on. In cases where the clock setting
data from a PDC signal is incorrect, however, you are advised to keep
Just Clock set to “OFF”.
Clock Set
IMPORTANT:
If you performed Auto Set Up (墌pg. 19) or Preset Download
(墌pg. 20), without ever having set the clock previously, the
unit’s built-in clock is also set automatically.
Perform the following steps only if —
— Auto Clock Set has not been performed correctly by Auto Set
Up or Preset Download.
OR
— you want to change Just Clock setting. (墌“Just Clock” in the
right column)
●Turn on the unit.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
1
4
7
2
5
8
0
3
6
9
ENTER
SET UP
rtw e
VCR/DVD SAT
DR-MV1SEK_00.book Page 86 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 87
Filename [DR-MV1SEK_10Subsidiary.fm]
Page 87 April 15, 2004 3:21 pm
SUBSIDIARY SETTINGS
Some DVD-RAM/RW discs are unformatted.
Format the disc when you use an unformatted disc or you want to
delete all recordings and data on the disc.
Format A DVD-RAM Disc
1Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
2Press SET UP to access the Main Menu screen.
3Press rt w e to select “DVD SET UP”, then press ENTER.
4Press we to select “UTILITY”,
then press ENTER.
5Press rt to select “FORMAT”,
then press ENTER. Press we to
select “YES”, then press ENTER
when “DISC WILL BE
FORMATTED” appears on the TV
screen.
6Press we to select “OK”, then
press ENTER when “DISC FORMATTING WAS SELECTED”
appears on the TV screen.
Format A DVD-RW Disc
1Perform steps 2 to 4 of “Format A DVD-RAM Disc” on the above
before continuing.
2Press rt to select “FORMAT”, then press ENTER. Press we
to choose “VR MODE” or “VIDEO MODE”, then press ENTER
when “DISC WILL BE FORMATTED” appears on the TV screen.
“VR MODE”: To be chosen when you want to record, erase, or
edit data on the disc repeatedly.
“VIDEO MODE”: To be chosen when you want to erase all the data
on the disc once played back to record new data,
or play back the disc on other DVD players.
3Press we to select “YES”, then press ENTER when “DISC
WILL BE FORMATTED IN VR MODE/VIDEO MODE” appears on
the TV screen.
NOTES:
●It is impossible to format Version 1.0 DVD-RW discs in Video mode.
●It is impossible to format DVD-R discs.
●All the programmes on a disc will be deleted once the disc is
formatted even if they are protected titles. (墌pg. 61)
Format A Disc (DVD Deck Only)
A
TTENTION:
●When a disc is formatted, all recordings and data are erased. It is
impossible to restore them.
●Never turn off the unit or disconnect the mains power cord while
“NOW FORMATTING...” is displayed on the TV screen.
●Turn on the unit.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
●Load a DVD-RAM/RW disc to format.
1
4
7
2
5
8
0
3
6
9
ENTER
SET UP
rtw e
VCR/DVD SAT
DR-MV1SEK_00.book Page 87 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_10Subsidiary.fm]
Masterpage:Left+
88 EN
Page 88 April 15, 2004 3:21 pm
SUBSIDIARY SETTINGS
Finalising DVD-R/RW discs recorded on this unit makes it possible
for the discs to be played back on other DVD players. DVD-RW
discs are finalised in the mode that the discs were formatted,
enabling playback on compatible DVD players.
Titles input in the Library Database DVD Navi are registered as
titles in the DVD menu. (墌pg. 61)
Before finalising
●It is possible to record on a blank space.
●It is possible to enter a programme title. (墌pg. 61)
●It is possible to delete programmes. (墌pg. 61)
●It is impossible to overwrite recorded areas of DVD-R discs.
●Available recording capacity does not increase even if a recorded
programme is deleted from a DVD-R disc.
●It is impossible to record or edit DVD-R/RW discs recorded on other
devices even if they have not been finalised.
After finalising (For DVD-R/RW (Video mode) discs)
●Video and audio that have been recorded by then are recorded in
conformity to the DVD Video standard, enabling you to play back the
discs as DVD VIDEO discs.
●Although DVD-R/RW discs finalised on this unit become playable on
DVD players compatible with DVD-R/RW discs, some discs still may
not play, for which JVC cannot take responsibility.
●Marked points marked before finalising will be deleted, and
programmes will be divided automatically into “chapters”
approximately every 5 minutes. (墌pg. 29)
●Depending on the DVD players and DVD-R/RW discs used, and on
the conditions of recording, it may not be possible to play back the
discs. In this case, play back the discs on this unit.
●Additional recordings become impossible.
Finalise A DVD-R/RW Disc
1Perform steps 2 to 4 of “Format A DVD-RAM Disc” (墌pg. 87)
before continuing.
2Press rt to select “FINALISE”, then press ENTER. Press we
to select “YES”, then press ENTER when “DISC WILL BE
FINALISED” appears on the TV screen.
3Press we to select “OK”, then press ENTER when
“FINALISING WILL MAKE DISC READ-ONLY” appears on the TV
screen.
4Press SET UP to return to the normal screen.
●Menu screen is cleared.
●Once a DVD-R/RW (Video mode) disc has been finalised, the
displays for original and play list do not appear. Only display for
library appears.
●Once a DVD-RW (VR mode) disc has been finalised, it can be played
on DVD players compatible with VR mode.
Cancel The Finalisation Of A DVD-RW Disc
1Load a DVD-RW disc to cancel the disc finalisation, and perform
steps 2 to 4 of “Format A DVD-RAM Disc” (墌pg. 87) before
continuing.
2Press rt to select “CANCEL DISC FINALISATION”, then
press ENTER.
3Press we to select “OK”, then press ENTER when “CANCEL
DISC FINALISATION” appears on the TV screen.
4Press SET UP to return to the normal screen.
●When the disc finalisation is cancelled, the mode in which the disc
was formatted is restored, making the disc recordable. (墌pg. 9, 87)
Finalise A Disc (DVD Deck Only)
●Turn on the unit.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
●Load a DVD-R/RW disc to finalise.
1
4
7
2
5
8
0
3
6
9
ENTER
SET UP
rtw e
VCR/DVD SAT
DR-MV1SEK_00.book Page 88 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 89
Filename [DR-MV1SEK_10Subsidiary.fm]
Page 89 April 22, 2004 6:32 pm
SUBSIDIARY SETTINGS
If you connect the unit and TV with Component Video Connection
(墌pg. 18), you can select the scan mode from two modes:
Interlaced scan mode which is used in the conventional TV
system, and Progressive scan mode which enables reproduction of
higher-quality images. For details, refer to “GLOSSARY”
(墌pg. 95).
1Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
2Press PROGRESSIVE SCAN for 3 or more seconds.
●Video output indicator ( ) lights on the front display panel if
Progressive scan mode has been established. (墌pg. 14)
●Each press of PROGRESSIVE SCAN for 3 or more seconds
switches the scan mode.
NOTES:
●When the progressive mode is set, be sure to set “L-1 OUTPUT” to
“COMPONENT”. (墌pg. 74) Progressive scan is output only from
COMPONENT VIDEO OUT connector.
●Interlaced scan mode is the setting at your purchase.
●Interlaced scan mode might be suitable depending on video material.
●Scan mode cannot be set while menu screen is displayed.
●When the Progressive scan mode is engaged, no video signal is
output from S-VIDEO OUT connector and L-1 IN/OUT connector.
You can lock the disc tray to prohibit the unwanted disc ejection by
children.
To lock tray
While the unit is turned off, press and hold 8, then press x on the
unit. “LOCKED” appears on the front display panel and the disc
tray is locked.
To unlock tray
While the unit is turned off, press and hold 8, then press x on the
unit. “UNLOCK” appears on the front display panel.
Scan Mode Set
A
TTENTION:
Your TV needs to be compatible with PAL Progressive.
●Turn on the unit.
●Turn on the TV and select the AV mode.
●Slide the TV/CABLE/SAT/DVD switch to DVD.
Watch the image on VCR deck in the Progressive scan
mode via component video
ASet the Progressive-compatible TV to the component input
mode.
BPress VCR/DVD repeatedly so that the DVD lamp lights up
on the unit, then press PROGRESSIVE SCAN for 3 or more
seconds so that the Video output indicator ( ) lights on the front
display panel.
CPress VCR/DVD repeatedly so that the VCR lamp lights up
on the unit.
DPress VCR].
●“VCR]” lights up on the unit.
EInsert a cassette and press 4.
NOTES:
●Be sure to engage the DVD deck in stop mode.
●It is not possible to perform the above steps when the DVD deck is
in timer standby mode.
●If the image and sound is distorted, press VCR/DVD repeatedly.
1
4
7
2
5
8
0
3
6
9
PROGRESSIVE SCAN
VCR/DVD SAT
Tray Lock (DVD Deck Only)
●Turn off the unit when the DVD deck is selected.
8
x
DR-MV1SEK_10Subsidiary.fm Page 89 Thursday, April 22, 2004 6:38 PM
Filename [DR-MV1SEK_10Subsidiary.fm]
Masterpage:Left0
90 EN
Page 90 April 15, 2004 3:21 pm
TROUBLESHOOTING
Before requesting service for a problem, use this chart and see if
you can solve the trouble yourself. Small problems are often easily
solved, and this can save you the trouble of sending your unit off
for repair.
General
●The AC power plug is disconnected from the AC outlet.
]Connect the AC power plug to the AC outlet securely. (墌pg. 18)
]Remove the batteries, wait for 5 minutes or more, then load the
butteries again.
●The setting of the remote control code is inappropriate.
]Set the same remote control code (1, 2, 3, or 4) on both the unit
and the remote control. (墌pg. 76)
●The batteries are discharged.
]Replace the dead batteries with new ones.
●The source (another video recorder, camcorder) has not been
properly connected.
]Confirm that the source is properly connected.
●All necessary power switches have not been turned on.
]Confirm that all units’ power switches are turned on.
●The setting of the input channel position is inappropriate.
]Select the input channel position (“F-1”, “L-1”, or “L-2”) that
corresponds to the input terminal connected to the external
equipment. (墌pg. 73)
●The record safety tab has been removed when dubbing to the
cassette.
]Using adhesive tape, cover the hole where the tab was removed.
]Set “SUPERIMPOSE” or “O.S.D.” to “OFF”. (墌pg. 81, 82)
●There are cases when the operation is prohibited on the disc.
●Lightning or static electricity may cause malfunction of the unit.
]Press 1 to turn the power off, then press the button again to
turn the power on.
Playback (DVD Deck)
●The DVD deck is not selected.
]Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
●The TV is not set to the AV mode.
]Set the TV to the AV mode.
●When interlace scanned programme is played back, progressive
scan mode is selected.
]Press and hold PROGRESSIVE SCAN until disappears from
the front display panel.
●The disc is loaded upside down.
]Place the disc on the disc tray with the playback surface facing
downward. (墌pg. 10)
●A disc not being compatible with the unit is loaded.
]Load a playable disc on the unit. (墌pg. 7)
●A dirty disc is loaded.
]Clean the disc. (墌pg. 11)
●Defective disc is loaded.
]Replace the warped or scratched disc with a normal one.
]Images are blurred or distorted at the point where the playback
speed changes and this is not a malfunction of the unit.
]Playback does not start for approximately 30 seconds after
recording is stopped and this is not a malfunction of the unit.
●The Parental Lock is engaged and the disc is rated higher than
the set level.
]Release the Parental Lock temporarily or change the set level.
(墌pg. 41)
No power is supplied to the unit.
The remote control does not work properly.
Dubbing from the external equipment is not possible.
The on-screen display superimposed on the programme played
back/received on this unit is recorded when you dub the
programme to an external recording equipment.
The unit does not operate.
The DVD deck can not be operated.
Images do not appear on the TV screen.
Playback dose not start or stop immediately after playback is
started by pressing .
On the front display panel, “NO DISC” appears.
Images are blurred or distorted when you start High-Speed
Search.
Playback does not start.
Playback does not start when you select a title or a chapter.
DR-MV1SEK_00.book Page 90 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 91
Filename [DR-MV1SEK_10Subsidiary.fm]
Page 91 April 15, 2004 3:21 pm
TROUBLESHOOTING
Playback (VCR Deck)
●The VCR deck is not selected.
]Press VCR/DVD repeatedly so that the VCR lamp lights up on
the unit.
●The tape is already fully rewound or fast-forwarded.
]Check the cassette.
●The TV is not set to the AV mode.
]Set the TV to the AV mode.
●This is normal.
●The automatic tracking mode is engaged.
]Try manual tracking. (墌pg. 53)
●The video heads may be dirty.
]Use a dry cleaning cassette ECL-3F, or consult your JVC dealer.
●The automatic tracking mode is engaged.
]Try manual tracking. (墌pg. 53)
Recording (DVD Deck)
●The channel position does not correspond to that in the
receiving area.
]Set the correct channel position for the receiving broadcast.
(墌pg. 84)
●No disc or a disc not being compatible with the unit is loaded.
]Load a recordable disc on the unit. (墌pg. 7)
●The disc loaded is not formatted.
]Format the disc. (墌pg. 87)
●A finalised DVD-R disc is loaded.
]Recording cannot be made on finalised discs. Load a recordable
disc on the unit.
●The disc is full or does not have enough space for the
programme to be recorded.
]Clear unnecessary programmes on the disc or load a blank disc.
(墌pg. 61)
Recording (VCR Deck)
●The unit is in the Record Pause mode.
Press 4 to resume recording.
●There is no cassette loaded, or the cassette loaded has had its
record safety tab removed.
]Insert a cassette, or using adhesive tape, cover the hole where
the tab was removed.
●“L-1”, “L-2” or “F-1” has been selected as the input mode.
]Select the desired channel.
●The camcorder has not been properly connected.
]Confirm that the camcorder is properly connected.
●The input mode is not correct.
]Set the input mode to “F-1”.
●The end of the tape was reached during recording.
]The programme may not have been recorded in its entirety. Next
time make sure you have enough time on the tape to record the
entire programme.
The VCR deck can not be operated.
The tape will not rewind or fast-forward.
The playback picture does not appear while the tape is running.
Noise appears during visual search.
Noise appears during normal playback.
The playback picture is blurred or interrupted while TV
broadcasts are clear or “USE CLEANING CASSETTE” message
appears on the screen.
Breaks are noticeable in Hi-Fi soundtrack.
The desired programme cannot be recorded.
Recording cannot be made.
During recording, the tape does not run. The VCR recording lamp
lights up on the front display panel.
Recording cannot be made.
TV broadcasts cannot be recorded.
Camcorder recording is not possible.
The tape is automatically rewound, then the unit is shut off.
DR-MV1SEK_00.book Page 91 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_10Subsidiary.fm]
Masterpage:Left+
92 EN
Page 92 April 15, 2004 3:21 pm
TROUBLESHOOTING
Timer Recording (DVD Deck)
●Date and time is not correct.
]Set date and time correctly. (墌pg. 86)
●The timer is not engaged.
]Press DVD TIMER (#) and confirm that the DVD timer lamp
lights up on the unit.
●Timer recording is in progress.
]Timer programming can’t be performed while a timer recording
is in progress. Wait until it finishes.
●Date and time is not correct.
]Set date and time correctly. (墌pg. 86)
●The timer is not engaged.
]Press DVD TIMER (#) and confirm that the DVD timer lamp
lights up on the unit.
●There is a power outage while the DVD deck is in the timer
standby mode.
]The unit does not enter timer standby mode automatically when
the power is restored to the unit. Engage the timer standby
mode again.
●Date and time set on the unit is not correct.
]Set date and time correctly. (墌pg. 86)
●The channel position does not correspond to that in the
receiving area.
]Set the correct channel position for the receiving broadcast.
(墌pg. 83)
●The satellite receiver is not connected properly to this unit.
]Connect the satellite receiver to the L-2 IN/DECODER
connector properly. (墌pg. 50)
●Power failure occurred.
]Set date and time correctly. (墌pg. 86)
●Eight programmes have already been timer programmed.
]Clear unnecessary programmes on the unit, then try timer
programming again. (墌pg. 49)
●The PC’s data recorded on a DVD-RAM drive cannot be cleared
on this unit.
]Format the disc. (When the disc is soiled, wipe the disc with a
soft dry cloth before formatting.) (墌pg. 11, 87)
Timer Recording (VCR Deck)
●Date and time is not correct.
]Set date and time correctly. (墌pg. 86)
●The timer is not engaged.
]Press VCR TIMER (#) and confirm that the VCR timer lamp
lights up on the unit.
●Timer recording is in progress.
]Timer programming can’t be performed while a timer recording
is in progress. Wait until it finishes.
●Date and time is not correct.
]Set date and time correctly. (墌pg. 86)
●The timer is not engaged.
]Press VCR TIMER (#) and confirm that the VCR timer lamp
lights up on the unit.
●The timer is engaged but there’s no cassette loaded.
]Load a cassette with the record safety tab intact.
●The loaded cassette has had its record safety tab removed.
]Remove the cassette and cover the hole with adhesive tape, or
insert a cassette with the record safety tab intact.
●The end of the tape was reached during timer recording.
]The programme may not have been recorded in its entirety. Next
time make sure you have enough time on the tape to record the
entire programme.
●The end of the tape was reached during Instant Timer
Recording.
]The programme may not have been recorded in its entirety. Next
time make sure you have enough time on the tape to record the
entire programme.
●Date and time set on the unit is not correct.
]Set date and time correctly. (墌pg. 86)
●The channel position does not correspond to that in the
receiving area.
]Set the correct channel position for the receiving broadcast.
(墌pg. 84)
●The unit’s channel positions have been set incorrectly.
]Refer to “VIDEO Plus+® System Setup” (墌pg. 83) and re-
perform the procedure.
Timer programming cannot be made.
Timer programming recording does not start.
VIDEO Plus+ Timer Programming cannot be made.
Automatic Satellite Programme Recording does not start.
On the front display panel, “– –:– –” appears.
“PROGRAM FULL” appears on the TV screen during timer
programming.
The disc space does not increase when recorded programmes
are cleared.
Timer programming cannot be made.
Timer programming recording does not start.
The VCR Timer lamp on the unit won’t stop blinking.
The tape is automatically ejected, then the unit is shut off.
VIDEO Plus+ Timer Programming cannot be made.
The VIDEO Plus+ system does not timer-record properly.
DR-MV1SEK_00.book Page 92 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 93
Filename [DR-MV1SEK_10Subsidiary.fm]
Page 93 April 15, 2004 3:21 pm
TROUBLESHOOTING
Initialising (DVD Deck Only)
]Press 1 to turn off the unit, press and hold 1, then press 8
for two seconds or more.
Other Problems
For RF/AV/S-VIDEO connection
]Press PROGRESSIVE SCAN for 3 or more seconds so that the
Video output indicator ( ) lights off on the front display panel.
For component video connection
]Press PROGRESSIVE SCAN for 3 or more seconds so that the
Video output indicator ( ) lights up on the front display panel.
●The camcorder’s microphone is too close to the TV.
]Position the camcorder so its microphone is away from the TV.
●The TV’s volume is too high.
]Turn the TV’s volume down.
●Those channels have been designated to be skipped.
]If you need the skipped channels, restore them. (墌pg. 84)
●Recording or Live Memory recording* is in progress.
]Press 9 to pause recording, change the channel, then press 4
to resume recording.
* DVD deck only
●After the manual settings were made, Auto Channel Set was
performed.
]Perform “Clock Set” (墌pg. 86).
On-screen Message (DVD Deck Only)
●The memory is full for registration for the Navigation system. The
recording cannot be started even though the capacity for the
recording is enough. (墌pg. 65)
●The remaining capacity of the memory is not enough for
registration for the Navigation system. The recording cannot be
started even though the capacity for the recording is enough.
(墌pg. 65)
●A disc that is not registered in the library has been inserted.
Register the disc as necessary. (墌pg. 65)
●Appears when a title that has been selected in the library is not
contained in the loaded disc.
●Recording and/or editing cannot be performed with a loaded
DVD-RAM disc.
●The number of titles exceeds 99.
●The number of play lists exceeds 999.
●To set the timer programme, the clock must be set in advance.
(墌pg. 86)
●You can programme this unit to timer-record as many as 8
programmes. To programme more, you need to cancel a timer
programme already set. (墌pg. 49)
●On-Disc Timer Programming has been attempted when a disc
that is not compatible with the function is loaded. (墌pg. 47)
●On-Disc Timer Programming has been attempted when a disc is
not loaded, or loaded upside down. (墌pg. 10, 47)
●When a playback-only disc or a finalised disc is loaded, 7 has
been pressed. (墌pg. 7)
Malfunction occurs on the unit.
The image of the TV broadcast appears distorted on the TV
screen.
Whistling or howling is heard from the TV during camcorder
recording.
When scanning channels, some of them are skipped over.
The channel cannot be changed.
Channel settings that were made manually seem to have
changed or disappeared.
MEMORY IS FULL
NOTHING MORE CAN BE REGISTERED IN THE LIBRARY
IF YOU DELETE UNNECESSARY TITLE INFORMATION, YOU CAN
THEN REGISTER ADDITIONAL INFORMATION
AVAILABLE MEMORY IS LOW
SOON YOU WILL NO LONGER BE ABLE
TO REGISTER INFORMATION IN THE LIBRARY
IF YOU DELETE UNNECESSARY TITLE INFORMATION,
YOU CAN THEN REGISTER ADDITIONAL INFORMATION
DISC NOT REGISTERED IN THE LIBRARY
REGISTER DISC?
INSERT DISC #XXXX
CAN NOT RECORD OR MAKE PLAY LIST
DELETE UNWANTED TITLES
SET CLOCK BEFORE TIMER PROGRAMMING
PROGRAMME FULL
DELETE UNWANTED TIMER PROGRAMME
CAN NOT SET DISC TIMER PROGRAMMING WITH THIS DISC
PREPARE A FORMATTED DISC AS DESCRIBED BELOW
DVD-RAM
DVD-RW (VR MODE)
NO DISC INSERTED
DISC NOT RECORDABLE
INSERT RECORDABLE DISC
DR-MV1SEK_00.book Page 93 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_10Subsidiary.fm]
Masterpage:Left+
94 EN
Page 94 April 15, 2004 3:21 pm
TROUBLESHOOTING
●An invalid PlusCode number has been input. (墌pg. 45)
●To set the timer programme using the VIDEO Plus+ system, the
Guide Program number must be set in advance. (墌pg. 83)
●Appears when you tried to input a PlusCode number during
timer recording or instant timer recording.
●A disc loaded cannot be played back on this unit since the region
number of the disc does not match that of the unit. (墌pg. 8)
●When an incompatible disc is loaded, 4 has been pressed.
(墌pg. 8)
●Formatting is not complete since the disc may be dirty or
damaged. Take out the disc, clean it and retry. (墌pg. 11, 87)
●Finalising is not complete since the disc may be dirty or
damaged. Take out the disc, clean it and retry. (墌pg. 11, 88)
●Cancelling disc finalisation is not complete since the disc may be
dirty or damaged. Take out the disc, clean it and retry. (墌pg. 11,
88)
●During Live Memory playback, 8 has been pressed. (墌pg. 34)
●Timer recording has finished during Live Memory playback.
●Timer recording finished during Live Memory playback, then the
next timer recording is about to begin while playback continues.
●An attempt has been made to record copy-protected contents.
●An attempt has been made to record copy-once contents on a
disc that is not CPRM compatible, such as DVD-R.
●The unit has detected invalid contents at the start or in the
middle of playback.
●An attempt has been made to start DV dubbing when a digital
video camera is not properly connected to the unit.
●Check the connection. (墌pg. 71)
PlusCode NO. ERROR
CONFIRM PlusCode NO. THEN RETRY
GUIDE PROGRAMME IS NOT SET
SELECT CHANNEL YOU WANT TO RECORD
CAN NOT SET VIDEO Plus+ TIMER PROGRAMMING DURING
TIMER RECORDING OR INSTANT TIMER RECORDING
CANCEL TIMER RECORDING OR INSTANT TIMER RECORDING,
THEN ENTER THE PlusCode NO. AGAIN
REGION CODE ERROR
CHECK DISC
UNREADABLE DISC
CHECK DISC
COULD NOT FORMAT THE DISC
CHECK THE DISC
COULD NOT FINALISE THE DISC
CHECK THE DISC
COULD NOT CANCEL DISC FINALISATION
CHECK THE DISC
PRESS [STOP] AGAIN TO STOP RECORDING
TIMER RECORDING COMPLETED
PLAYBACK WILL STOP
THEN TIMER RECORDING WILL START
COPY PROHIBITED
CAN NOT RECORD
COPY PROHIBITED
CAN NOT PLAY
THE i.LINK DEVICE THAT YOU HAVE CONNECTED IS NOT
RECOGNIZED
MAKE SURE THAT THE DEVICE IS CONNECTED PROPERLY AND
POWERED ON
DR-MV1SEK_00.book Page 94 Thursday, April 15, 2004 3:30 PM
Masterpage:Right0
EN 95
Filename [DR-MV1SEK_10Subsidiary.fm]
Page 95 April 15, 2004 3:21 pm
GLOSSARY
8Aspect ratio
The ratio of vertical and horizontal sizes of a displayed image. The
horizontal vs. vertical ratio of conventional TVs is 4:3, and that of
wide-screens is 16:9.
8Chapter
Refers to individual chapters included in a title.
8Composite video signal
Refers to video signal comprised of three kinds of signals
combined: an image signal made up of luminance and
chrominance signals using the frequency multiplication technique;
burst signal providing the basis for colour reproduction; and
synchronization signal.
8Component video signal
A video signal system where parts of information necessary for
reproducing image signal comprised of the three primary colors of
light are transmitted via separate signal lines. Types of signal, such
as R/G/B, Y/PB/PR, etc., are available.
8Disc menu
A screen display prepared for allowing selection of images,
sounds, subtitles, multiangles, etc. recorded on a DVD disc.
8Dolby Digital (AC-3)
A six-channel system consisting of left, centre, right, left rear, right
rear and LFE (Low-Frequency Effect channel, for use with a sub-
woofer) channels. All processing is done in the digital domain.
Not all Dolby Digital discs contain six (5.1) channels of information.
8Down-mix
Internal stereo mix of multichannel surround audio by a DVD
player. The down-mix signals are output from stereo output
connectors.
8DTS
A Digital Surround audio encoding format configured with six (5.1)
channels, similar to Dolby Digital. It requires a decoder, either in
the player or in an external receiver. DTS stands for Digital Theater
Systems.
Not all DTS discs contain six (5.1) channels of information.
8Interlaced scan
In the conventional video system, a picture is shown on the display
monitor in two halves. The Interlaced scan system places lines of
the second half of the picture in-between lines of the first half of the
picture.
8JPEG
A still-picture data compression system proposed by the Joint
Photographic Expert Group, which features small decrease in
image quality in spite of its high compression ratio.
8Letter box
A method of displaying wide images like movies in the centre of a
4:3 TV screen with no part of the image deleted, by placing black
bands on the top and bottom of the screen. This name has resulted
from the screen form looking literally like a letter box.
8Linear PCM (PCM: Pulse Code Modulation)
A system for converting analog sound signal to digital signal for
later processing, with no data compression used in conversion.
8MP3
A file format with a sound data compression system. “MP3” is the
abbreviation of Motion Picture Experts Group 1 (or MPEG-1) Audio
Layer 3. By using MP3 format, one CD-R/RW can contain about 10
times as much data volume as a regular CD can.
8MPEG
A family of Standards for compressing audio-visual information.
“MPEG” standards include MPEG-1, MPEG-2 and MPEG-4. Video
CD and MP3 are based on MPEG-1, while DVD is based on
MPEG-2. MPEG stands for Moving Picture coding Experts Group.
8Multiangle
By recording multiple scenes progressing at the same time in a
single title, the user can select view angles. This feature is called
the multiangle function.
8Multichannel
DVD is specified to have each sound track constitute one sound
field. Multichannel refers to a structure of sound tracks having
three or more channels.
8Multilanguage
When a title is created to cope with multiple languages, it is
generally called a multilanguage title.
8NTSC (National television system committee)
A black and white and colour television system format used in the
U.S.A., Canada, Mexico and Japan.
8PAL (Phase Alternation by Line)
A colour television system format used extensively in Western
Europe.
8Parental Lock
A feature of this system to automatically determine whether or not
to reproduce particular DVD software by comparing its parental
lock level (a measure of undesirability of scenes, etc. from
educational viewpoint) set for the software beforehand with that set
on this system by the user; if the software’s level is less restrictive
than the user-set level, it will be reproduced.
8Playback control (PBC)
Refers to the signal recorded on Video CD/SVCD for controlling
reproduction. By using menu screens recorded on a Video CD/
SVCD that supports PBC, you can enjoy interactive-type software
as well as software having a search function.
8Progressive scan
Progressive scan displays all the horizontal lines of a picture at one
time, as a single frame. This system can convert the interlaced
video from DVD into progressive format for connection to a
progressive display. It dramatically increases the vertical
resolution.
8Region Code
A system for allowing discs to be played back only in the regions
designated beforehand. All the countries in the world are grouped
into six regions, each region being identified by a specified Region
Code (or region number). If the Region Code given to a disc
includes a numeral which matches one in the Region Code of a
player, the player can play back the disc.
8Sampling frequency
Frequency of sampling data when analog data is converted to
digital data. Sampling frequency numerically represents how many
times the original analog signal is sampled per second.
8Surround
A system for creating three-dimensional sound fields full of realism
by arranging multiple speakers around the listener.
8Transfer rate
The rate of transferring digital data. Usually the measure is in baud
per second. The DVD system applies a variable transfer rate
system for high efficiency.
DR-MV1SEK_00.book Page 95 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_10Subsidiary.fm]
Masterpage:Left0
96 EN
Page 96 April 15, 2004 3:21 pm
SPECIFICATIONS
Power requirement
AC 220 V – 240 Vd, 50/60 Hz
Power consumption
Power on: 42 W
Power off: 23.5 W
Temperature
Operating: 5°C to 35°C
Storage: –20°C to 60°C
Operating position
Horizontal only
Dimensions (WxHxD)
435 mm x 96 mm x 347 mm
Weight
6.3 kg
Recording format
DVD-RAM: DVD Video Recording format
DVD-R: DVD-Video format
DVD-RW: DVD-Video format, DVD Video Recording format
Recording time
Maximum 8 hours (with 4.7 GB disc)
(XP): Approx. 1 hour
(SP): Approx. 2 hours
(LP): Approx. 4 hours
(EP): Approx. 6 hours
(FR): Approx. 1 hour – 8 hours
Audio recording system
Dolby Digital (2 ch)
Linear PCM (XP mode only)
Video recording compression system
MPEG2 (CBR/VBR)
Input/Output
S-video input:
Y: 0.8 – 1.2 Vp-p, 75 ohms
C: 0.2 – 0.4 Vp-p, 75 ohms
S-video output:
Y: 1.0 Vp-p, 75 ohms
C: 0.3 Vp-p, 75 ohms
Video input: 0.5 – 2.0 Vp-p, 75 ohms (pin jack)
Video output: 1.0 Vp-p, 75 ohms (pin jack)
Audio input:
–8 dB, 50 kilohms (pin jack)
Corresponding to mono (left)
Audio output: –8 dB, 1 kilohms (pin jack)
i.Link: 4-pin for DV input
Component video output:
Y: 1.0 Vp-p, 75 ohms
CB/CR, PB/PR: 0.7 Vp-p, 75 ohms
Corresponding to copy protection
Digital audio output:
Optical: –18 dBm, 660 nm
Coaxial: 0.7 Vp-p, 75 ohms
Corresponding to Dolby Digital and DTS Digital Surround
Bit stream
Selectable in digital audio output setting menu
Signal system
PAL color signal and CCIR monochrome signal, 625 lines/50 fields
Recording system
DA4 (Double Azimuth) head helical scan system
Format
VHS PAL standard
Maximum recording time
(SP): 240 min. with E-240 video cassette
(LP): 480 min. with E-240 video cassette
Signal-to-noise ratio
45 dB
Horizontal resolution
230 lines
Frequency range
(Normal audio): 70 Hz to 10,000 Hz
(Hi-Fi audio): 20 Hz to 20,000 Hz
Input/Output
RCA connectors: IN x 1, OUT x 1
Specifications shown are for SP mode unless otherwise specified.
TV channel storage capacity
99 positions (+AUX position)
Tuning system
Frequency synthesized tuner
Channel coverage
VHF 44.5 MHz – 143 MHz/
143 MHz – 470 MHz
UHF 470 MHz – 862 MHz
Memory backup time
Approx. 60 minutes
Provided accessories
RF cable,
21-pin SCART cable,
Satellite Controller,
Infrared remote control unit,
“AA” battery x 2
E.& O.E. Design and specifications subject to change without
notice.
GENERAL
VIDEO/AUDIO (DVD Deck)
VIDEO/AUDIO (VCR Deck)
TUNER/TIMER
ACCESSORIES
A
TTENTION:
This unit contains microcomputers. External electronic noise or
interference could cause malfunctioning. In such cases, switch the
unit off and unplug the mains power cord. Then plug it in again and
turn the unit on. Take out the disc. After checking the disc, operate
the unit as usual.
DR-MV1SEK_00.book Page 96 Thursday, April 15, 2004 3:30 PM
Masterpage:Right0
EN 97
Filename [DR-MV1SEK_10Subsidiary.fm]
Page 97 April 15, 2004 3:21 pm
APPENDIX
Language Code List
AA Afar IK Inupiak RN Kirundi
AB Abkhazian IN Indonesian RO Rumanian
AF Afrikaans IS Icelandic RU Russian
AM Ameharic IW Hebrew RW Kinyarwanda
AR Arabic JI Yiddish SA Sanskrit
AS Assamese JW Javanese SD Sindhi
AY Aymara KA Georgian SG Sangho
AZ Azerbaijani KK Kazakh SH Serbo-Croatian
BA Bashkir KL Greenlandic SI Singhalese
BE Byelorussian KM Cambodian SK Slovak
BG Bulgarian KN Kannada SL Slovenian
BH Bihari KO Korean (KOR) SM Samoan
BI Bislama KS Kashmiri SN Shona
BN Bengali, Bangla KU Kurdish SO Somali
BO Tibetan KY Kirghiz SQ Albanian
BR Breton LA Latin SR Serbian
CA Catalan LN Lingala SS Siswati
CO Corsican LO Laothian ST Sesotho
CS Czech LT Lithuanian SU Sundanese
CY Welsh LV Latvian, Lettish SW Swahili
DZ Bhutani MG Malagasy TA Tamil
EL Greek MI Maori TE Telugu
EO Esperanto MK Macedonian TG Tajik
ET Estonian ML Malayalam TH Thai
EU Basque MN Mongolian TI Tigrinya
FA Persian MO Moldavian TK Turkmen
FJ Fiji MR Marathi TL Tagalog
FO Faroese MS Malay (MAY) TN Setswana
FY Frisian MT Maltese TO Tonga
GA Irish MY Burmese TR Turkish
GD Scots Gaelic NA Nauru TS Tsonga
GL Galician NE Nepali TT Tatar
GN Guarani OC Occitan TW Twi
GU Gujarati OM (Afan) Oromo UK Ukrainian
HA Hausa OR Oriya UR Urdu
HI Hindi PA Panjabi UZ Uzbek
HR Croatian PL Polish VI Vietnamese
HU Hungarian PS Pashto, Pushto VO Volapuk
HY Armenian PT Portuguese WO Wolof
IA Interlingua QU Quechua XH Xhosa
IE Interlingue RM Rhaeto-Romance YO Yoruba
ZU Zulu
DR-MV1SEK_00.book Page 97 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_10Subsidiary.fm]
Masterpage:Left+
98 EN
Page 98 April 15, 2004 3:21 pm
APPENDIX
Country/Area Code List for Parental Lock
AD Andorra CK Cook Islands GN Guinea
AE United Arab Emirates CL Chile GP Guadeloupe
AF Afghanistan CM Cameroon GQ Equatorial Guinea
AG Antigua and Barbuda CN China GR Greece
AI Anguilla CO Colombia GS South Georgia and the South
Sandwich Islands
AL Albania CR Costa Rica GT Guatemala
AM Armenia CU Cuba GU Guam
AN Netherlands Antilles CV Cape Verde GW Guinea-Bissau
AO Angola CX Christmas Island GY Guyana
AQ Antarctica CY Cyprus HK Hong Kong
AR Argentina CZ Czech Republic HM Heard Island and McDonald
Islands
AS American Samoa DE Germany HN Honduras
AT Austria DJ Djibouti HR Croatia
AU Australia DK Denmark HT Haiti
AW Aruba DM Dominica HU Hungary
AZ Azerbaijan DO Dominican Republic ID Indonesia
BA Bosnia and Herzegovina DZ Algeria IE Ireland
BB Barbados EC Ecuador IL Israel
BD Bangladesh EE Estonia IN India
BE Belgium EG Egypt IO British Indian Ocean Territory
BF Burkina Faso EH Western Sahara IQ Iraq
BG Bulgaria ER Eritrea IR Iran (Islamic Republic of)
BH Bahrain ES Spain IS Iceland
BI Burundi ET Ethiopia IT Italy
BJ Benin FI Finland JM Jamaica
BM Bermuda FJ Fiji JO Jordan
BN Brunei Darussalam FK Falkland Islands (Malvinas) JP Japan
BO Bolivia FM Micronesia
(Federated States of)
KE Kenya
BR Brazil FO Faroe Islands KG Kyrgyzstan
BS Bahamas FR France KH Cambodia
BT Bhutan FX France, Metropolitan KI Kiribati
BV Bouvet Island GA Gabon KM Comoros
BW Botswana GB United Kingdom KN Saint Kitts and Nevis
BY Belarus GD Grenada KP Korea, Democratic People’s
Republic of
BZ Belize GE Georgia KR Korea, Republic of
CA Canada GF French Guiana KW Kuwait
CC Cocos (Keeling) Islands GH Ghana KY Cayman Islands
CF Central African Republic GI Gibraltar KZ Kazakhstan
CG Congo GL Greenland LA Lao People’s Democratic
Republic
CH Switzerland GM Gambia LB Lebanon
CI Côte d’Ivoire
DR-MV1SEK_00.book Page 98 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN 99
Filename [DR-MV1SEK_10Subsidiary.fm]
Page 99 April 15, 2004 3:21 pm
APPENDIX
LC Saint Lucia NU Niue SZ Swaziland
LI Liechtenstein NZ New Zealand TC Turks and Caicos Islands
LK Sri Lanka OM Oman TD Chad
LR Liberia PA Panama TF French Southern Territories
LS Lesotho PE Peru TG Togo
LT Lithuania PF French Polynesia TH Thailand
LU Luxembourg PG Papua New Guinea TJ Tajikistan
LV Latvia PH Philippines TK Tokelau
LY Libyan Arab Jamahiriya PK Pakistan TM Turkmenistan
MA Morocco PL Poland TN Tunisia
MC Monaco PM Saint Pierre and Miquelon TO Tonga
MD Moldova, Republic of PN Pitcairn TP East Timor
MG Madagascar PR Puerto Rico TR Turkey
MH Marshall Islands PT Portugal TT Trinidad and Tobago
ML Mali PW Palau TV Tuvalu
MM Myanmar PY Paraguay TW Taiwan, Province of China
MN Mongolia QA Qatar TZ Tanzania, United Republic of
MO Macau RE Réunion UA Ukraine
MP Northern Mariana Islands RO Romania UG Uganda
MQ Martinique RU Russian Federation UM United States Minor Outlying
Islands
MR Mauritania RW Rwanda US United States
MS Montserrat SA Saudi Arabia UY Uruguay
MT Malta SB Solomon Islands UZ Uzbekistan
MU Mauritius SC Seychelles VA Vatican City State (Holy See)
MV Maldives SD Sudan VC Saint Vincent and the
Grenadines
MW Malawi SE Sweden VE Venezuela
MX Mexico SG Singapore VG Virgin Islands (British)
MY Malaysia SH Saint Helena VI Virgin Islands (U.S.)
MZ Mozambique SI Slovenia VN Viet Nam
NA Namibia SJ Svalbard and Jan Mayen VU Vanuatu
NC New Caledonia SK Slovakia WF Wallis and Futuna Islands
NE Niger SL Sierra Leone WS Samoa
NF Norfolk Island SM San Marino YE Yemen
NG Nigeria SN Senegal YT Mayotte
NI Nicaragua SO Somalia YU Yugoslavia
NL Netherlands SR Suriname ZA South Africa
NO Norway ST Sao Tome and Principe ZM Zambia
NP Nepal SV El Salvador ZR Zaire
NR Nauru SY Syrian Arab Republic ZW Zimbabwe
DR-MV1SEK_00.book Page 99 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_10Subsidiary.fm]
Masterpage:Left+
100
EN
Page 100 April 15, 2004 3:21 pm
APPENDIX
TV Station And ID List
The “ID” abbreviation is what is shown on-screen in lieu of the station name. The “ID” abbreviation is listed in the Confirmation screen and
is displayed on the TV screen when the unit is tuned to a different station.
STATION NAME ID*
Anglia TV
ARD
ARTE
BBC Group
BBC1
BBC2
BBCW
Berlin 1
Berlin 2
Border TV
Bayern1
Bayern3
BRT1
BRT2
Children Ch
Canal +
CNN
Channel TV
Central TV
Channel 4
Channel 5
DISC
DRS
DR TV
DSF
Euronews
Euronews
Eurosports
France1
France2
France3
Granada TV
Grampian TV
Hessen1
Hessen3
HRT
HTV
ITV Network
Kabelkanal
London
MDR
MTV
Nord3
NDR1
NDR3
NED1
NED2
NED3
Network 2
NRK
N-TV
Offener Kanal
ORF1
ORF2
ORF3
OWL 3
Premiere
PR07
RAI1
RAI2
RAI3
RB1
RB3
Rikisutvarpid-S
RTBF 1
RTBF 2
RTE 1
RTL
RTL 2
RTP
ANGL
ARD
ARTE
BBC
BBC1
BBC2
BBCW
BLN1
BLN2
BORD
BR1
BR3
BRT1
BRT2
CHLD
CH+
CNN
CHNL
CNTR
CH 4
CH 5
DISC
DRS
DRTV
DSF
EURN
EURO
EURS
FR1
FR2
FR3
GRNA
GRMP
HR1
HR3
HRT
HTV
ITV1
KABL
LNDN
MDR
MTV
N3
NDR1
NDR3
NED1
NED2
NED3
NET2
NRK
N-TV
OKAN
ORF1
ORF2
ORF3
OWL3
PRMI
PR07
RAI1
RAI2
RAI3
RB1
RB3
RKPS
RTB1
RTB2
RTE1
RTL
RTL2
RTP
STATION NAME ID*
SAT
SAT 1
Scottish TV
SC4
SDR
SDR1
SFB1
SFB3
SKY
Sky One
Sky Net
Sport
SR 1
Super RTL
STV Test
STV 1
STV 2
Suedwest3
SWF 1
Schweiz4
TYNE TEES
Text
TF1
TNT int
TRT int
TSI
TSR
TSW
TVE
TV Polonia
TVP 1
TVP 2
TVS
TV2
TV5
Te l e Z u r ic h
Ulster TV
Veronica
VIVA
VIVA2
VOX
VTM
VT4
West1
West3
YLE 1
YLE 2
Yorkshire TV
ZDF
Zurich 1
3SAT
SAT
SAT1
SCOT
SC4
SDR
SDR1
SFB1
SFB3
SKY
SKY1
SKYN
SPRT
SR1
SRTL
STVT
STV1
STV2
SWR
SWF1
SWZ4
TEES
TEXT
TF1
TNT
TRT
TSI
TSR
TSW
TVE
TVPA
TVP1
TVP2
TVS
TV2
TV5
TZUR
ULST
VERN
VIVA
VIV2
VOX
VTM
VT4
WDR1
WDR3
YLE1
YLE2
YORK
ZDF
ZUR1
3SAT
DR-MV1SEK_00.book Page 100 Thursday, April 15, 2004 3:30 PM
Masterpage:Right+
EN
101
Filename [DR-MV1SEK_10Subsidiary.fm]
Page 101 April 15, 2004 3:21 pm
APPENDIX
TV Station Channel Number Guide
Only the main stations are listed. There are in addition many relay stations, and full lists are available from the BBC and ITV.
BBC1 BBC2 ITV CH4 CH5
London & South-East
Bluebell Hill ......................... 40 46 43 65 —
Crystal Palace..................... 26 33 23 30 37
Dover .................................. 50 56 66 53 —
Heathfield............................ 49 52 64 67 —
Oxford ................................. 57 63 60 53 49
South-West
Beacon Hill.......................... 57 63 60 53 —
Caradon Hill ........................ 22 28 25 32 —
Huntshaw Cross ................. 55 62 59 65 67
Redruth ............................... 51 44 41 47 37
Stockland Hill ...................... 33 26 23 29 —
Channel Islands
Fremont Point ..................... 51 44 41 47 —
South
Hannington ......................... 39 45 42 66 35
Midhurst .............................. 61 55 58 68 —
Rowridge............................. 31 24 27 21 —
West
Mendip ................................ 58 64 61 54 37
East
Sandy Heath ....................... 31 27 24 21 39
Sudbury .............................. 51 44 41 47 35
Tacolneston......................... 62 55 59 65 52
Midlands
Ridge Hill ............................ 22 28 25 32 35
Sutton Coldfield .................. 46 40 43 50 37
The Wrekin ......................... 26 33 23 29 35
Waltham.............................. 58 64 61 54 35
North
Belmont............................... 22 28 25 32 56
Emley Moor......................... 44 51 47 41 37
BBC1 BBC2 ITV CH4 CH5
North-West
Caldbeck .............................30 34 28 32 56
Winter Hill............................55 62 59 65 48
North-East
Bilsdale West Moor .............33 26 29 23 35
Chatton................................39 45 49 42 —
Pontop Pike ......................... 58 64 61 54 68
Scotland
Angus ..................................57 63 60 53 —
Black Hill.............................. 40 46 43 50 37
Sandale ............................... 22 ————
Caldbeck ............................. — 34 28 32 56
Creigkelly............................. 31 27 24 21 48
Darvel.................................. 33 26 23 29 35
Durris...................................22 28 25 32 67
Eitshal .................................33 26 23 29 —
Keelylang Hill....................... 40 46 43 50 —
Knock More .........................33 26 23 29 —
Rosemarkie .........................39 45 49 42 67
Rumster Forest.................... 31 27 24 21 —
Selkirk ................................. 55 62 59 65 52
Wales
Blaenplwyf...........................31 27 24 21 56
Carmel................................. 57 63 60 53 —
Llanddona ........................... 57 63 60 53 —
Moel-y-Parc ......................... 52 45 49 42 —
Presely ................................46 40 43 50 37
Wenvoe ............................... 44 51 41 47 —
Northern Ireland
Brougher Mountain.............. 22 28 25 32 —
Divis ....................................31 27 24 21 37
Limavady ............................. 55 62 59 65 —
DR-MV1SEK_00.book Page 101 Thursday, April 15, 2004 3:30 PM
Filename [DR-MV1SEK_11IX.fm]
Masterpage:Left0
102
EN
Page 102 April 15, 2004 3:05 pm
LIST OF TERMS
A
A-B Repeat Playback ...................................................... 36
Accidental erasure prevention ........................................ 54
Adjusting The Picture Quality ......................................... 38
Angle Selection ............................................................... 29
Audio Channel Selection ................................................ 30
Audio Language/Sound Selection .................................. 30
Auto Channel Set ............................................................ 83
C
Check, Cancel And Change Programmes ................ 49, 58
D
Delete Programme .......................................................... 61
Disc menu ....................................................................... 27
Disc Remaining Time ...................................................... 43
Discs For Playback Only ................................................... 8
DVD menu ...................................................................... 27
E
Elapsed Recording Time Indication .......................... 43, 54
F
File Structure Of Discs ...................................................... 9
Free Rate Function ......................................................... 44
G
Guide Program Number Set ............................................ 83
H
High-Speed Search .................................................. 27, 52
I
Index Search ................................................................... 52
Instant Timer Recording (ITR) .................................. 43, 55
J
Just Clock ....................................................................... 86
L
Letter Box ....................................................................... 25
Live Memory Playback..................................................... 31
M
Manual Channel Set ....................................................... 84
Manual Tracking ............................................................. 53
Marking Positions To Play Back Again Later .................. 29
Menu/Audio/Subtitle Language Set ................................ 22
N
Next Function Memory .................................................... 53
O
On-Disc Timer Programming .......................................... 47
One Touch Replay function ............................................. 31
On-screen bar ................................................................. 35
On-screen Language Set ................................................ 22
P
Pan&Scan ....................................................................... 25
PDC Recording ......................................................... 46, 57
Play List .......................................................................... 62
Playback ................................................... 26 – 41, 51 – 53
Playback Control (PBC) function ..................................... 30
Programme Playback ..................................................... 39
Q
Quick Rewind A Little ...................................................... 52
R
Random Playback ........................................................... 40
Recordable/playable discs ................................................ 7
Recording ................................................. 42 – 44, 54 – 55
Recording Medium And Format ........................................ 9
Recording Mode ............................................................. 42
Recording Resume Function .................................... 42, 54
Region Number ................................................................. 8
Register Disc .................................................................. 65
Repeat Playback ....................................................... 36, 53
Resume Function ............................................................ 28
S
Select The Switching Interval Of The Slide Show .......... 40
Setting The Progressive Mode ....................................... 39
Skip Search .............................................................. 28, 52
Slow Motion .............................................................. 28, 52
Soundtrack Selection ...................................................... 53
Still Picture/Frame-By-Frame Playback .................... 28, 52
Subtitle Selection ............................................................ 29
T
Tape Remaining Time .................................................... 55
Time Search ................................................................... 37
Timer Recording ....................................... 45 – 50, 56 – 58
Top menu ........................................................................ 27
TV Station Channel Number Guide .............................. 101
U
Unplayable Discs .............................................................. 8
Usable cassettes ............................................................ 51
W
When Programmes Overlap Each Other .................. 49, 58
DR-MV1SEK_00.book Page 102 Thursday, April 15, 2004 3:30 PM
Masterpage:Right0
EN
103
Filename [DR-MV1SEK_11IX.fm]
Page 103 April 15, 2004 3:05 pm
Memo
DR-MV1SEK_00.book Page 103 Thursday, April 15, 2004 3:30 PM
VCR
TIMER
SLOW
PREVIO
CLE
STOP/
REMAIN
S
ANGLE
TV/VCR
REC MODE
LIVE CHECK
CA
GHI
PQRS
NUMNUM
VCR PLUS+
SET UP
CANCEL
NAVIGA
TION
TOP MENU
TV/DVD
1
4
7
Filename [DR-MV1SEK_12Cov4.fm]
Page 104April 23, 2004 10:15 am
DR-MV1S/DR-MV1B
COPYRIGHT© 2004 VICTOR COMPANY OF JAPAN, LTD. EK
EN
Printed in Germany
0404MNH-ID-VE
DR-MV1SEK_12Cov4.fm Page 104 Friday, April 23, 2004 10:17 AM

Navigation menu
