AUDIO/VIDEO CONTROL RECEIVER

RX-6000VBK /RX-6008VBK

3D-pJ.IONIC

DDF_-_

DIGITAL

SURROUND

AI_I'I'tlIIIDI I I IAliLr

i'IIW _vlrlkg B=llBVJfl

INSTRUCTIONS

For Customer Use:

Enter below the Model No. and Serial

No. which are located either on the rear,

bottom or side of the cabinet. Retain this

information for future reference.

Model No.

Serial No.

LVT0380-001A

[J]

RX-6000VBK/RX-6008VBK[J]/

RX-6500VBK[J]

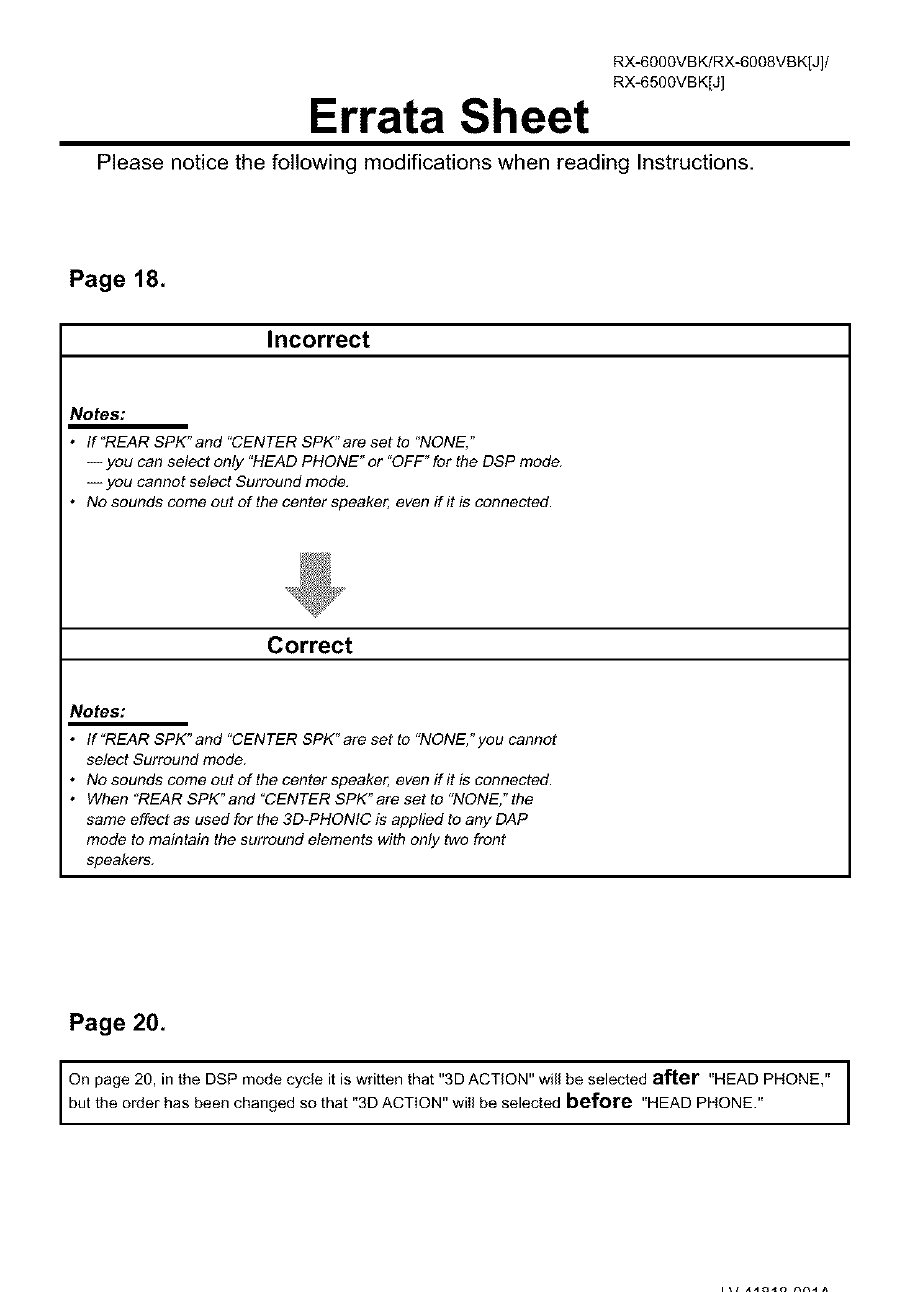

Errata Sheet

Please notice the following modifications when reading Instructions.

Page 18.

Incorrect

Notes:

If "REAR SPK" and "CENTER SPK" are set to "NONE,"

-- you can select only "HEAD PHONE" or "OFF" for the DSP mode.

-- you cannot select Surround mode.

No sounds come out of the center speaker, even flit is connected.

Correct

Notes:

If"REAR SPK" and "CENTER SPK" aFe set to "NONE," VOUcannot

select Surround mode.

No sounds come out of the center speaker, even flit is connected.

When "REAR SPK" and "CENTER SPK" are set to "NONE," the

same effect as used for the 3D-PHONIC is applied to any DAP

mode to maintain the surround elements with only two front

speakers.

Page 20.

On page 20, in the DSP mode cycle it is written that "3D ACTION" will be selected after "HEAD PHONE,"

but the order has been changed so that "3D ACTION" wilI be selected before "HEAD PHONE."

Warnings, Cautions and Others

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

The lightning flash with arrowhead symbol,

within an equilateral triangle is intended to

alert the user to the presence of uninsulated

"dangerous voltage" within the product's

enclosure that may be of sufficient

magnitude to constitute a risk of electric

shock to persons.

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE

OR ELECTRIC SHOCK, DO NOT EXPOSE

THIS APPLIANCE TO RAIN OR MOISTURE. I

liaU'oin°:ec_-tPOWmEaiRsSpiltulghloshut the power off completely. The I

POWER switch in any position does not disconnect the mains line. I

The power can be remote controlled. |

For U.S.A.

This equipment has been tested and found to comply with the limits

for aClass B digital device, pursuant to part 15 of the FCC Rules,

These limits are designed to provide reasonable protection against

harmful interference in a residential installation,

This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the

following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

Caution: Proper Ventilation

To avoide risk of electric shock and fire and to protect from damage.

Locate the apparatus as follows:

Front: No obstructions open spacing.

Sides: No obstructions in 10 cm from the sides.

Top: No obstructions in 10 cm from the top.

Back: No obstructions in 15 cm from the back

Bottom: Place on the level surface.

In addition, maintain the best possible air circulation as illustrated.

,'///////////_

Wall orobstructions

Spacing 15 cm or more

i I

Floor

Front

Stand height 15 cm or more

G-1

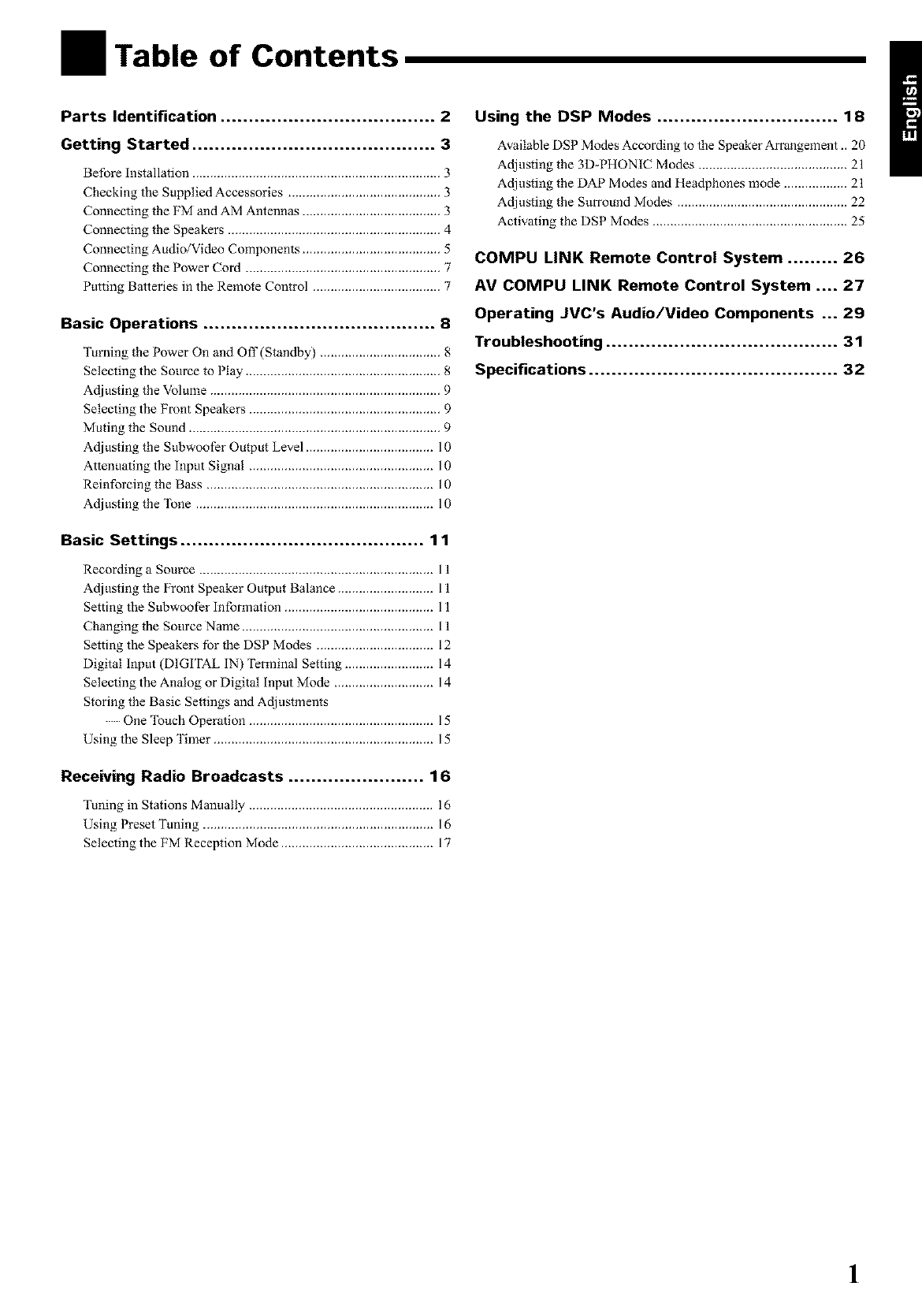

Table of Contents

Parts Identification ...................................... 2

Getting Started ........................................... :3

Before installation ...................................................................... 3

Checking the Supplied Accessories ........................................... 3

Connecting the FM and AM Antennas ....................................... 3

Connecting the Speakers ............................................................ 4

Connecting Audio/Video Components ....................................... 5

Connecting the Power Cord ....................................................... 7

Putting Batteries in the Remote Control .................................... 7

Basic Operations ......................................... 8

_l_rning the Power On and OFF (Standby) .................................. 8

Selecting the Source to Play ....................................................... 8

Adjusting the Volume ................................................................. 9

Selecting the Front Speakers ...................................................... 9

Muting the Sound ....................................................................... 9

Adjusting the Subwoofer Output Level .................................... 10

Attenuating the input Signal .................................................... 10

Reinforcing the Bass ................................................................ l0

Adjusting the 'lone ................................................................... 10

Basic Settings ........................................... 1 1

Recording a Source ....................................................................

Adjusting the Front Speaker Output Balance ........................... 11

Setting the Subwoofer information .......................................... 1l

Changing the Sot_rce Name ...................................................... I 1

Setting the Speakers for _he DSP Modes ................................. 12

Digital Input (DIGITAL IN) Terminal Setting ......................... 14

Selecting the Analog or Digital input Mode ............................ 14

Storing the Basic Settings and Adjustments

.............One 'l_t_ch Operation .................................................... 15

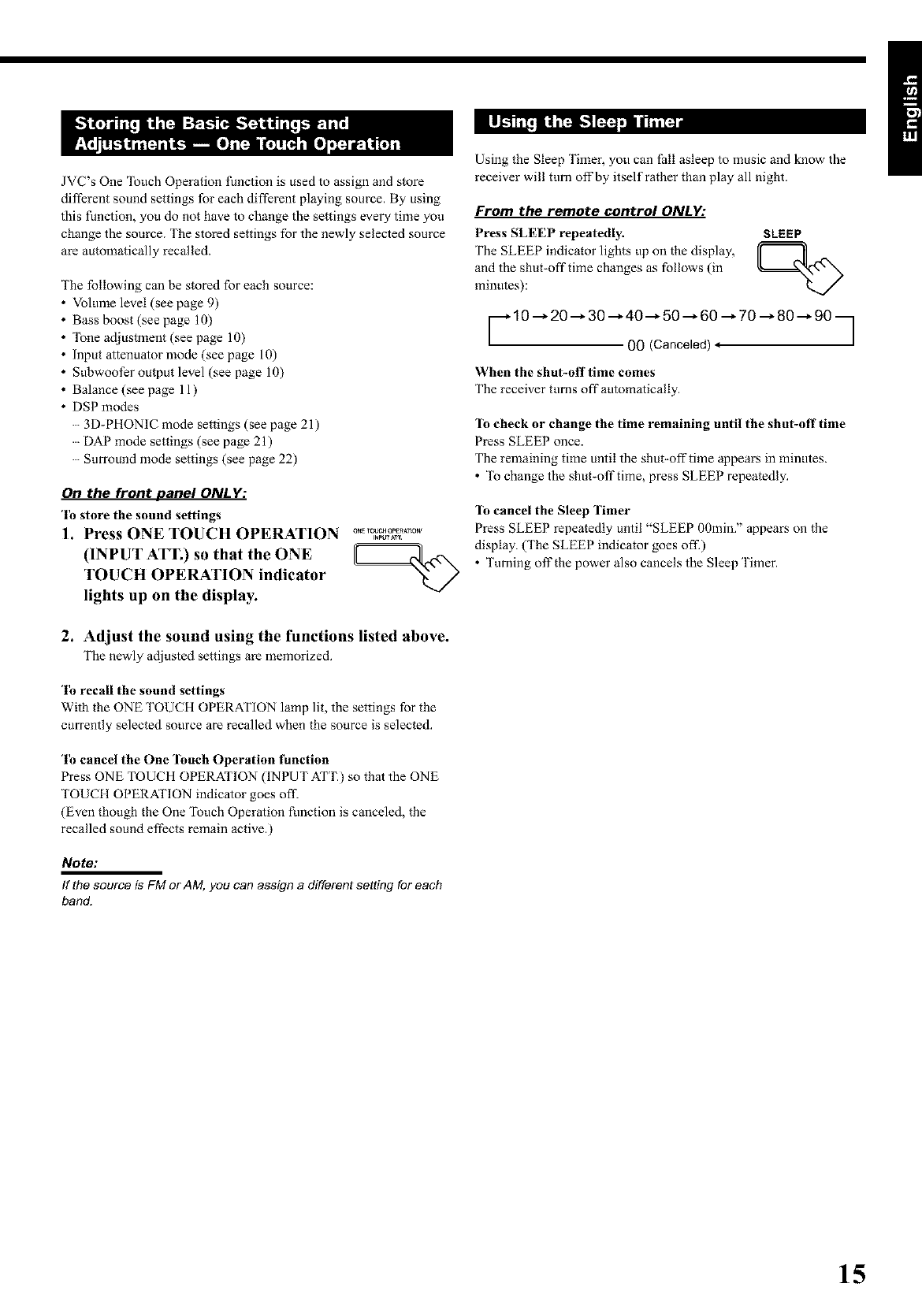

Using the Sleep Timer .............................................................. 15

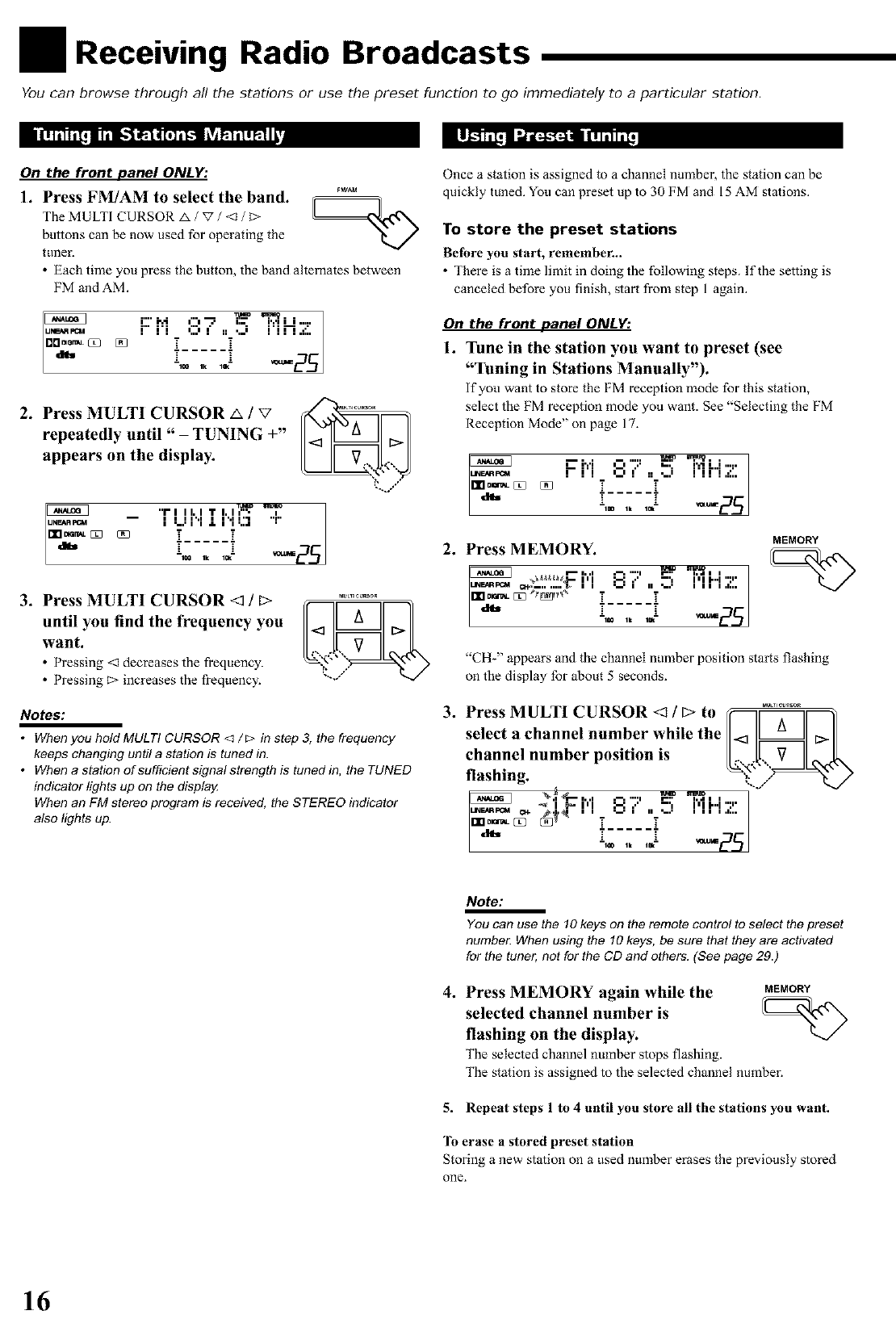

Receiving Radio Broadcasts ........................ 1 6

_l_ning in Stations Manually .................................................... 16

Using Preset Tuning ................................................................. 16

Selecting the FM Reception Mode ........................................... 17

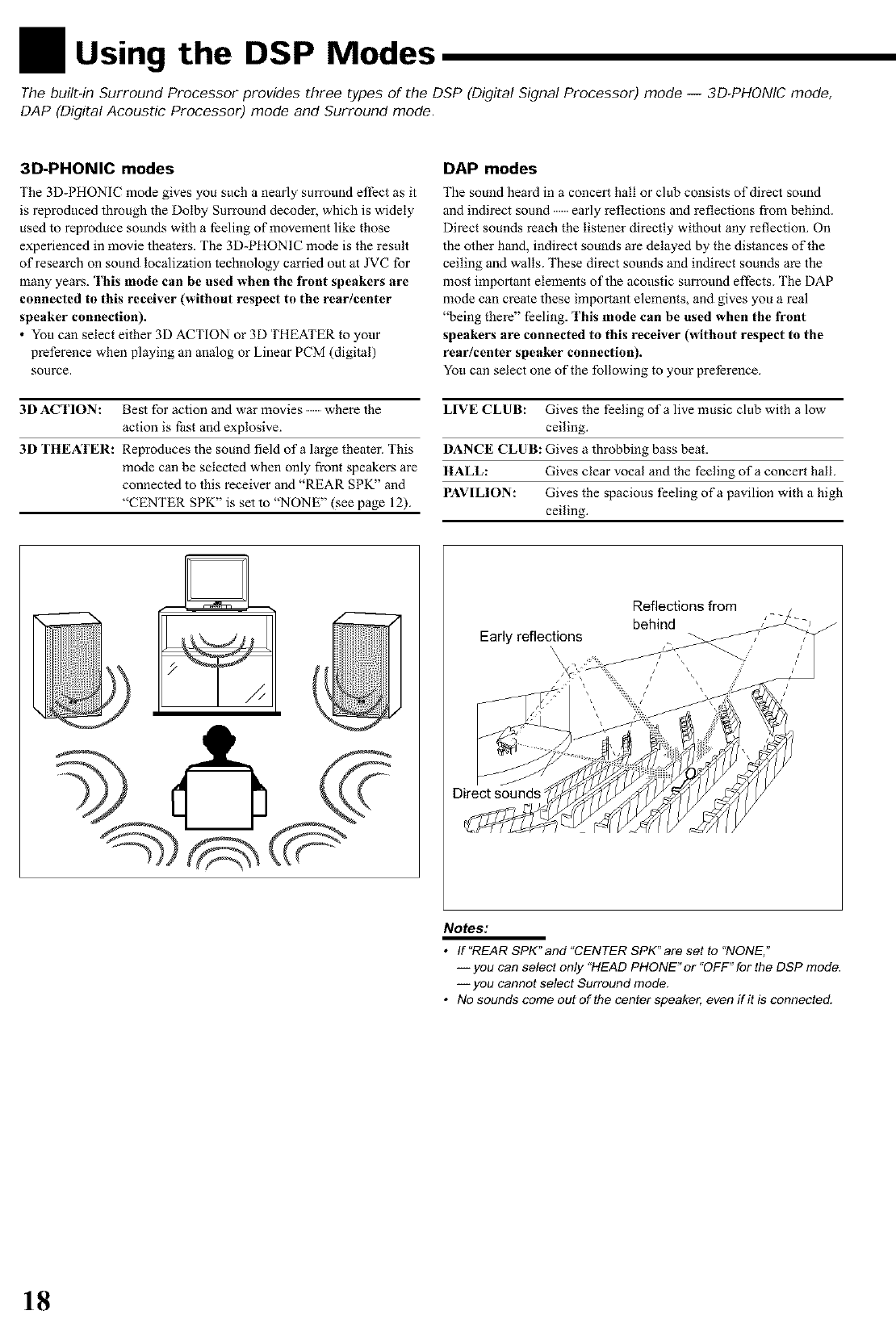

Using the DSP Modes ................................ 18

Available DSP Modes According to the Speaker Arrangement.. 20

Adjusting the 3D-PHONIC Modes .......................................... 21

Adjusting the DAP Modes and Headphones mode .................. 21

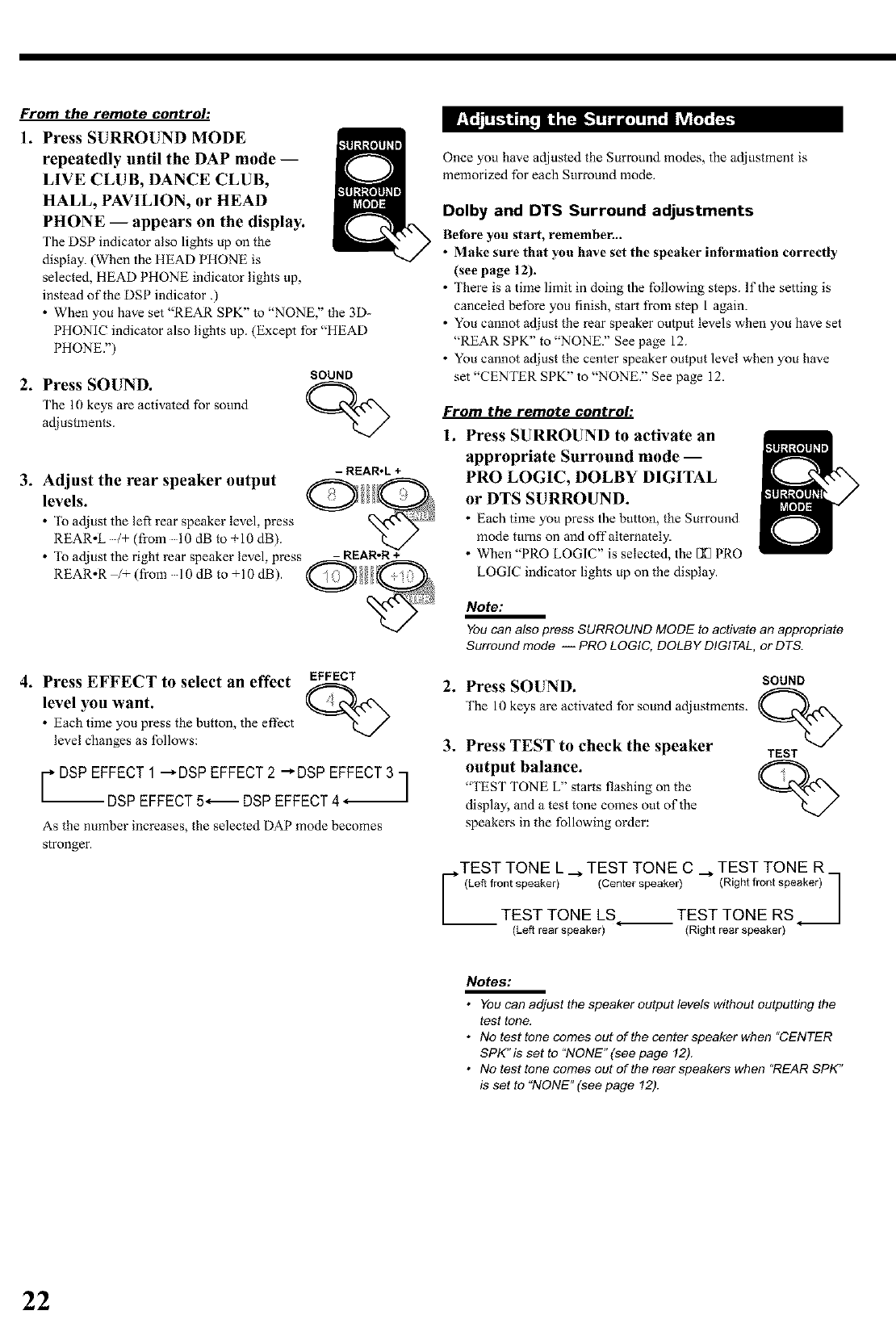

Adjusting the Stlrround Modes ................................................ 22

Activating the DSP Modes ....................................................... 25

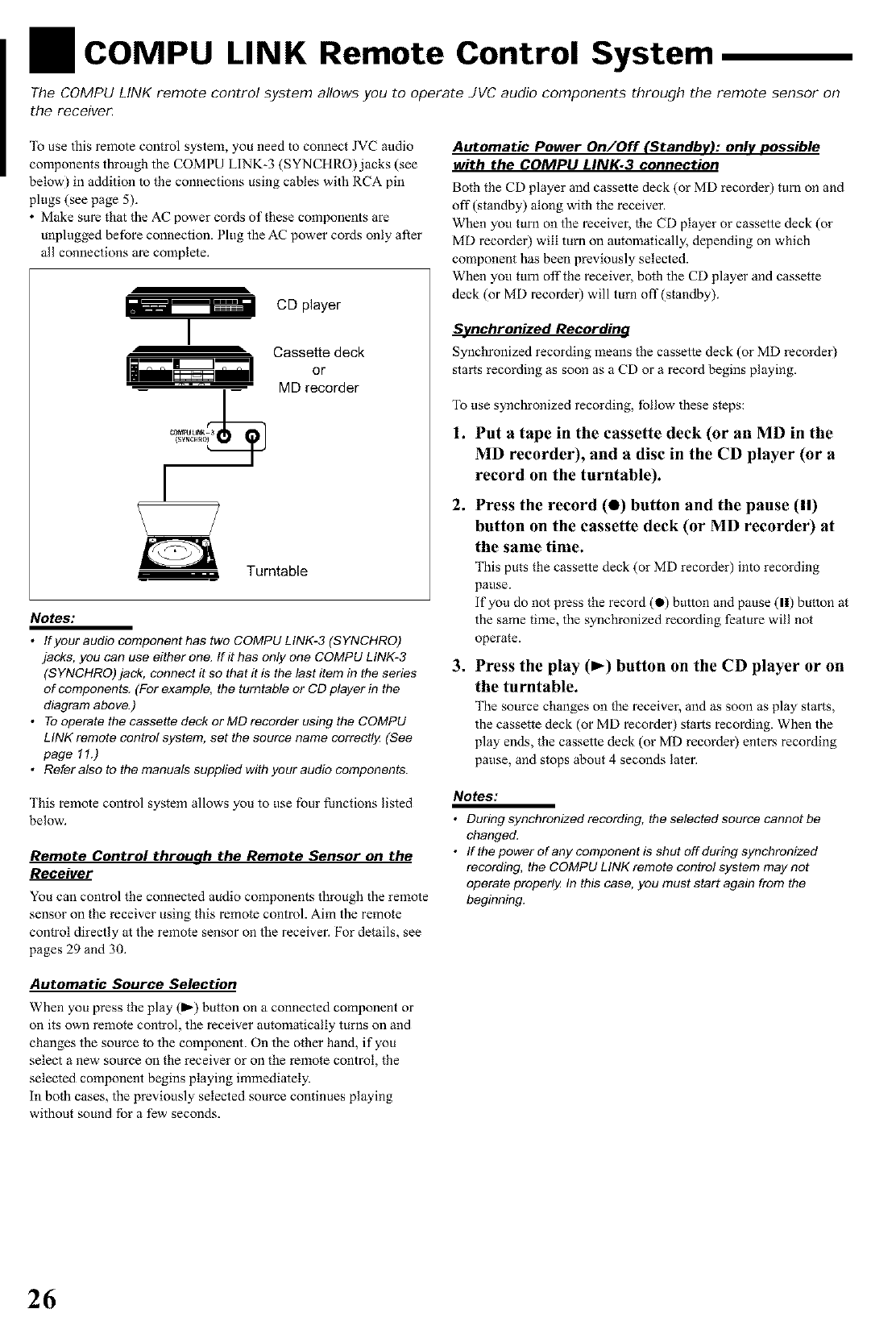

COMPU LINK Remote Control System ......... 26

AV COMPU LINK Remote Control System .... 27

Operating JVC's Audio/Video Components ... 29

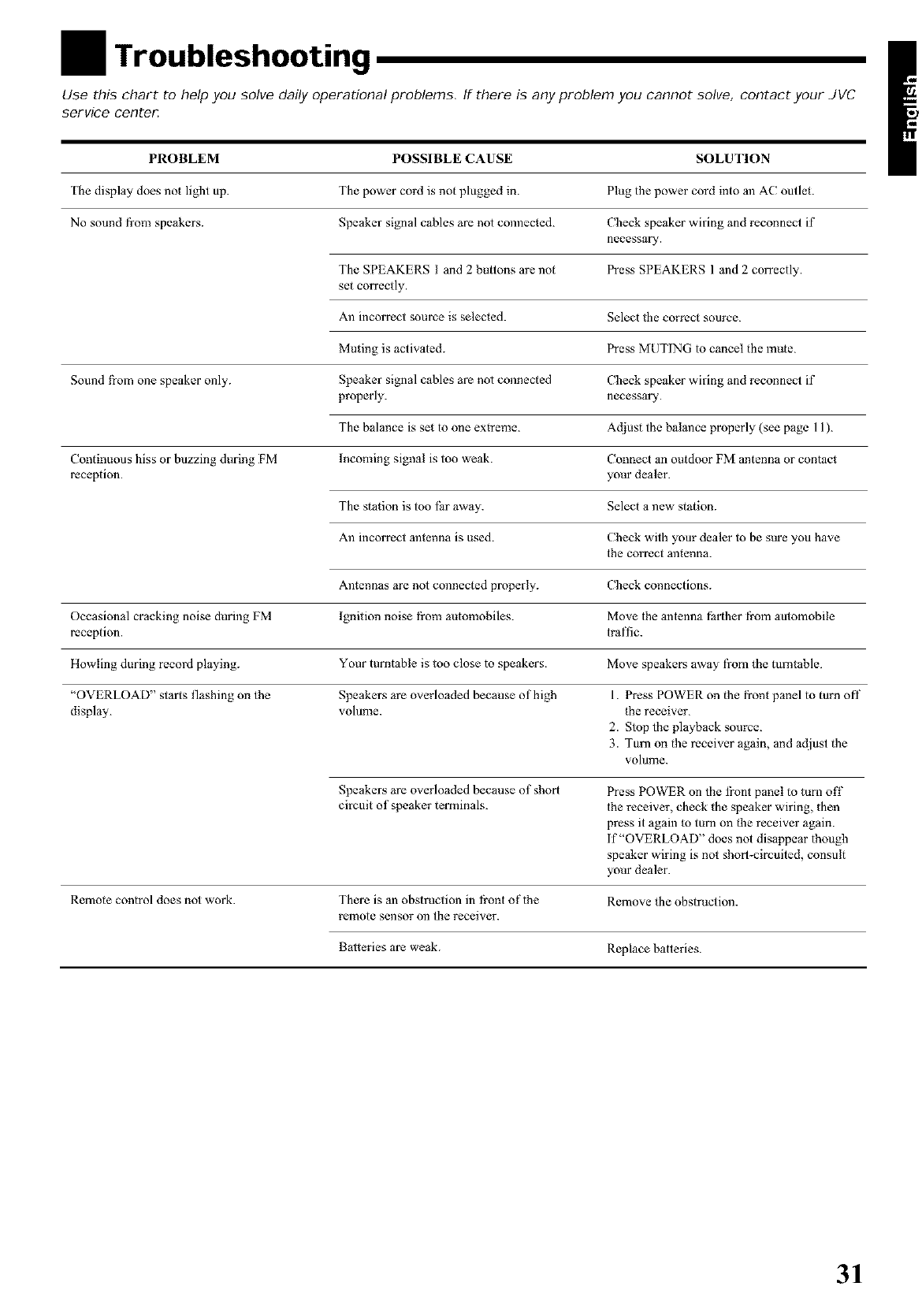

Troubleshooting ......................................... 31

Specifications ............................................ 32

lParts Identification

Become familiar with the buttons and controls on the receiver before use.

Refer to the pages in parentheses for details.

½____J

t)I) t

.IVn

Front Panel Remote Control

POWER bullor_and STANDBY lamp (8) _ POWER buttons (8, 30)

SOURCE NAME (TV SOUNDiDBS) button TV, VCR, AUDIO

(1I) _ SLEEP button (I5)

O Display(8) O SURROUNDbuttor_(25)

O ONETOUCHOPER/krION/INPUTA'ET. O SURROUND MODE button (21)

buttor_(15) O SOUND button (21)

O DSP MODE button (21) O TViVIDEO button (30)

O SURROUNDbuttonandlamp(25) _ CD-DISCbuttor_(29)

Remote sensor (7) O Soulce selecfir_g bul{or_s(8)

O ADJUST button (10) * DVD, TV SOUN D!DBS, VCR, CD, 3APE/MD,

O SETIINGbullon(12 14)* PHONO, FM/AM

MASTER VOLUME controt (9) O TV VOL +¢ buttons (30)

MEMORY button (I6) _ TV CH +_ buttor_s (30)

MUEFICURSORbu_*or_s _ • 10keys for selectir_g preset charmel (17)

ANAEOG/D[GflAL buttor_ and DIGI'IS,kE • 10keys for adjusting sound (22 24, 29)

AUTO lamp (14) • 10keys foroperatingaudio/videocomponents

Soul_e selecting bullolts (8) (29, 30)

DVD, TV SOUND!DBS, VCR, CD,'IAPE!MD, _ ANALOG/DIGI'IAL bullolt (14)

PHONO, EMiAM * _ MUTING buttor_ (9)

SOURCE NAME (TAPE/MD) bullon _ VOLUME -_/ bullolts (9)

(8, 11, 14) _ Operating buttons for audio/video colr_ponents

SPEAKERS 1/2bullons (9) (29,30)

PHONES jack (9)

IMPORTANT:

'lb use the MULTI CURSOR buttons ('12) on the front panel:

What these buttons actually do depends on which function you are trying to adjust. Before using these buttons, select the function by

pressing one of the buttons marked with *.

lGetting Started

This section explains how to connect audio/video components and speakers to the receiver, and how to connect the

power supply.

I :]_I t'rJ'_ II'i'g_i_ IffI!'t'_

General

•Be sure your hands are dry.

• Turn the power offto all components.

• Read the manuals supplied with the components you are going to

connect.

Locations

• Install the receiver in a location that is level and protected from

moisture.

• The temperature around the receiver must be between 5°C and

35°C (23°F and 95°F).

• Make sure there is good ventilation around the receiver. Poor

ventilation could cause overheating and damage the receiver.

Handling the receiver

•Do not insert any metal obiect into the receiver.

• Do not disassemble the receiver or remove screws, covers, or

cabinet.

• Do not expose the receiver to rain or moisture.

Check to be sure you have all of the following items, which are

supplied with the receiver.

The number in the parentheses indicates the quantity of the pieces

supplied.

•Remote Control (1)

•Batteries (2)

•AM Loop Antenna (1)

• FM Antenna (1)

If anything is missing, contact your dealer immediately.

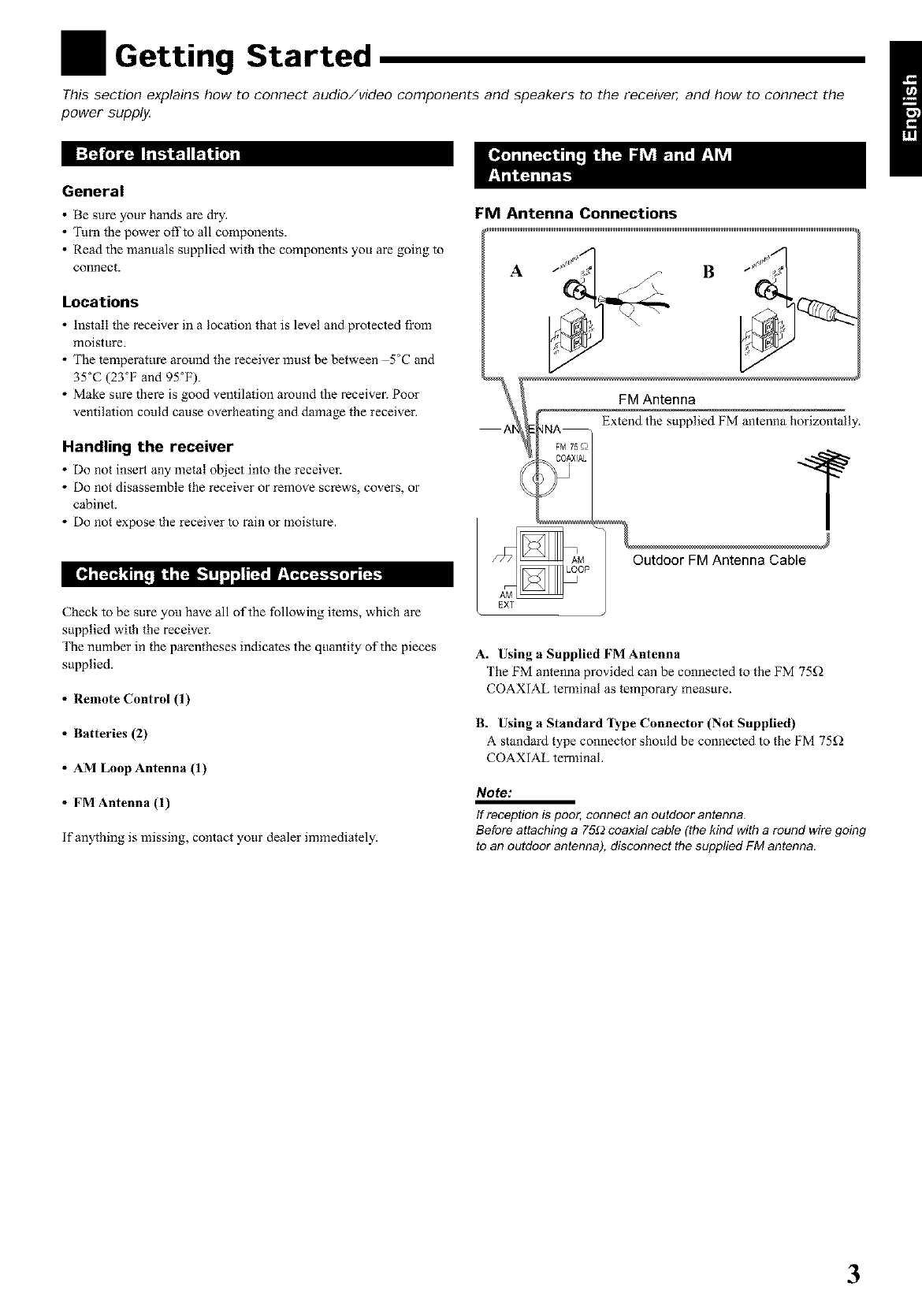

FM Antenna Connections

A B

FM Antenna

Extend the supplied FM antenna horizontally.

Outdoor FM Antenna Cable

EXT

A. Using a Supplied FM Antenna

The FM antenna provided can be connected to the FM 75_

COAXIAL telTainal as tempora Wmeasure.

B. Using a Standard Type Connector (Not Supplied)

Astandard type connector should be connected to the FM 75f2

COAXIAL tenTainal.

Note:

If reception is poor, connect an outdoor antenna.

Before attaching a 75£2coaxial cable (the kind with a round wire going

to an outdoor antenna), disconnect the supplied FM antenna.

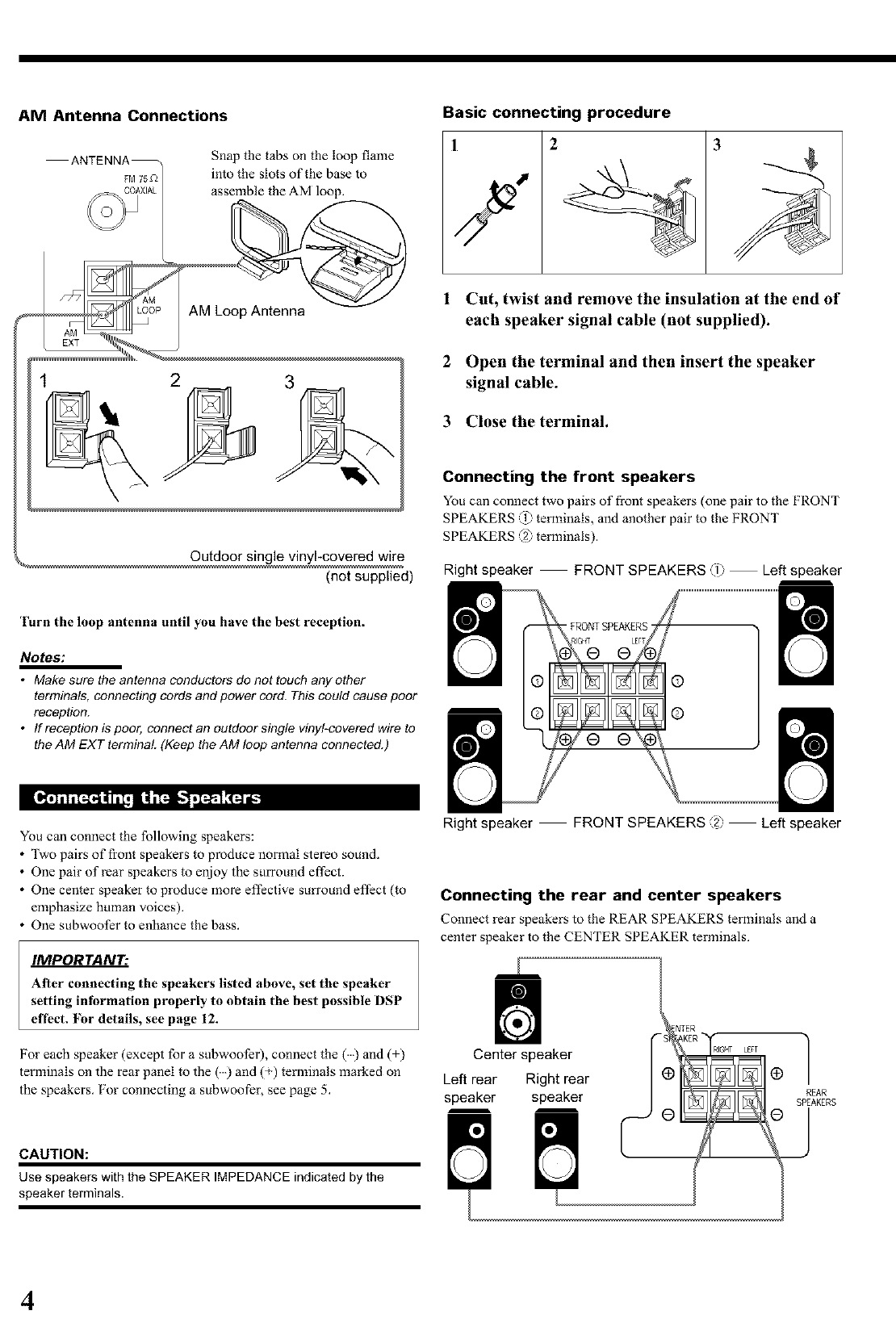

AM Antenna Connections

ANTENNA--

FM75Z2

Snap the tabs on the loop flame

into the slots of the base to

assemble the AM loop.

Basic connecting procedure

123

(not supplied)

Cut, twist and remove the insulation at the end of

each speaker signal cable (not supplied).

Open the terminal and then insert the speaker

signal cable.

Close the terminal.

Connecting the front speakers

You can connect two pairs of front speakers (one pair to the FRONT

SPEAKERS ,1) terminals, and another pair to the FRONT

SPEAKERS, :term nals).

Right speaker FRONT SPEAKERS (1) Left speaker

Turn the loop antenna until you have the best reception.

Notes:

•Make sure the antenna conductors do not touch any other

terminals, connecting cords and power cord. This could cause poor

reception.

• If reception is poor, connect an outdoor single vinyl-covered wire to

the AM EXT terminal. (Keep the AM loop antenna connected.)

You can connect the following speakers:

•Two pairs of fiont speakers to produce normal stereo sound.

• One pair of rear speakers to enjoy the surround effect.

• One center speaker to produce more effective surround effect (to

emphasize human voices).

• One subwoofer to enhance the bass.

IMPORTANT:

After connecting the speakers listed above, set the speaker

setting intbrmation properly to obtain the best possible DSP

effect. Vor details, see page 12.

For each speaker (except for a subwoofer), connect the () and (+)

terminals on the rear panel to the () and (+) terminals marked on

the speakers. For connecting a subwoofer, see page 5.

-FRONTSPEAKERS

Right speaker FRONT SPEAKERS, , Left speaker

Connecting the rear and center speakers

Connect real- speakers to the P,EAP, SPEAKERS terminals and a

center speaker to the CENTER SPEAKER terminals.

Center speaker

Left rear Right rear

speaker speaker

CAUTION:

Use speakers with the SPEAKER IMPEDANCE indicated by the

speaker terminals.

Connecting the subwoofer speaker

You can enhance the bass by connecting a subwoofer.

Connect the input jack of a powered suhwoofer to the

SUBWOOFER OUT jack on the rear panel, using a cable with RCA

pin plugs (not supplied).

A •

Powered subwoofer

You can connect the following audio/video components to this

receiver. Refer also to the manuals supplied with your components.

Audio Components

•CD player*

•Turntable

• Cassette deck

or MD recorder*

Video Components

• DVD player*

• TV

• DBS tuner*

• VCR

*You can connect these components using the methods described

in "Analog connections" (below) or in "Digital connections" (see

page 7).

Analog connections

Audio component connections

Use the cables with RCA pin plugs (not supplied).

Connect the white plug to the audio left jack, and the red plug to the

audio right jack.

CAUTION:

If you connect a sound-enhancing device such as a graphic equalizer

between the source components and this receiver, the sound output

through this receiver may be distorted.

I Turntable ]

Turntable

If an earth cable is provided for

your turntable, connect the cable

to the terminal marked (r_) of the

ANTENNA terminals on the rear

panel.

Note:

Any turntables incorporating a small-output cartridge such as an MC

(moving-coil type) must be connected to this receiver through a

commercial head amplifier or step-up transformer. Direct connection

may result in insufficient volume.

Cassette deck or MD recorder

Cassette deck

To audio input To audio output

CD player

To audio output

® ®,N

!pLAY)

I RIGHT LEFT

MD recorder

Note:

YOU can connect either acassette deck or an MD recorder to the

TAPE/MD jac_s. When connecting an MD recorder to the TAPE/MD

jacks, change the source name, which wil! be shown on the display

when selected as the source, to "M D." See page 1 ! for details.

If your audio components have a COMPU LINK-3 terminal

See also page 26 for detailed information about the connection and

the COMI U LINK_3 remote control system.

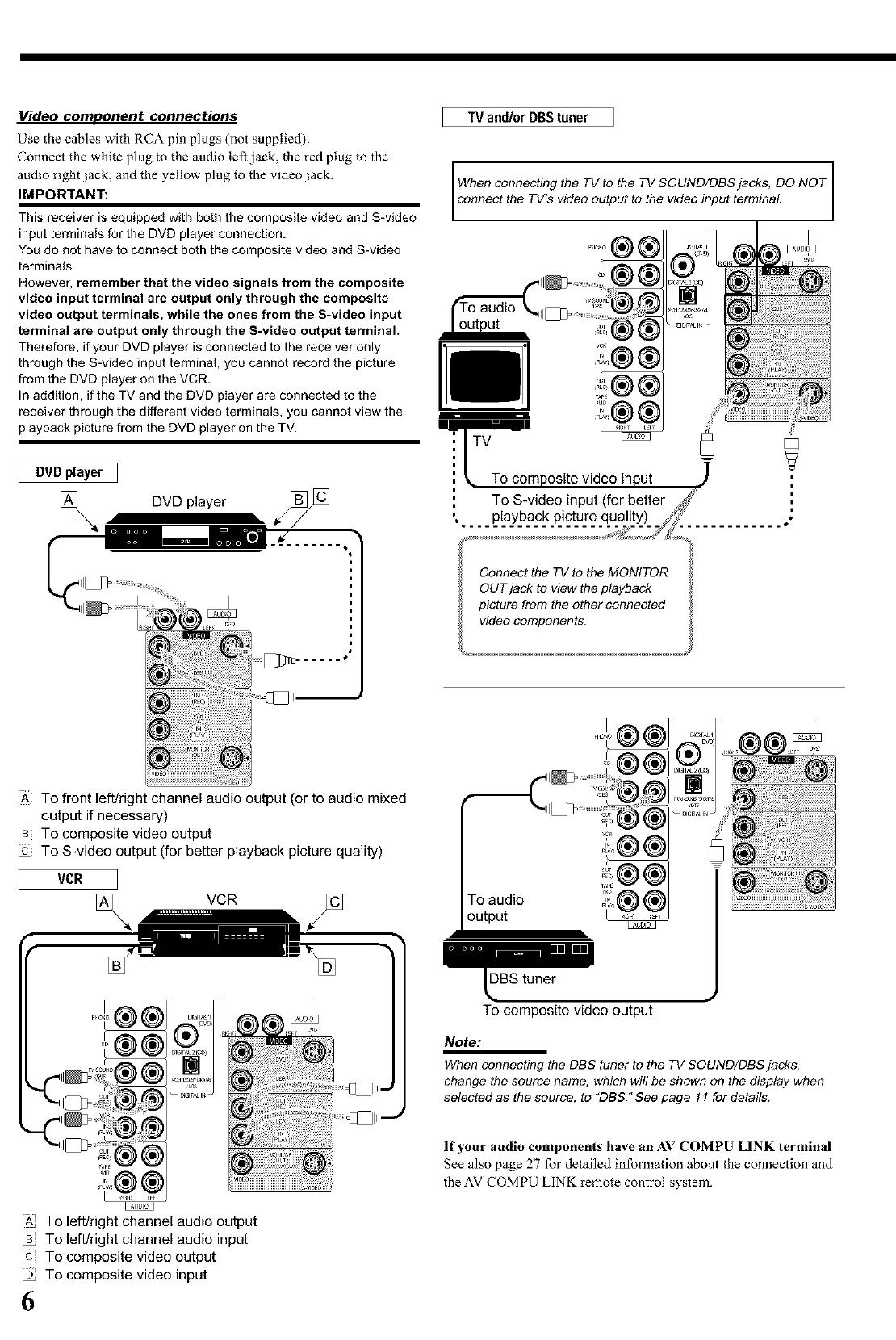

Video component connections

Use the cables with RCA pin plugs (not supplied).

Connect the white plug to the audio left jack, the red plug to the

audio right jack, and the yellow plug to the video jack.

IMPORTANT:

This receiver is equipped with both the composite video and S-video

input terminals for the DVD player connection.

You do not have to connect both the composite video and S-video

terminals.

However', remember that the video signals from the composite

video input terminal are output only through the composite

video output terminals, while the ones from the S-video input

terminal are output only through the S-video output terminal.

Therefore, if your" DVD player is connected to the receiver only

through the S-video input terminaI, you cannot record the picture

from the DVD player on the VCR.

In addition, if the TV and the DVD pIayer are connected to the

receiver through the different video terminals, you cannot view the

playback picture from the DVD player on the TV.

I DVDplayer

"IVand/or DBStuner

When connecting the TV to the TV SOUND/DBS jacks, DO NOT

connect the TV's v dee output to the v dee nput term na .

To S-video input (for better

Connect the TV to the MONITOR

OUT jack to view the playback

picture from the other connected

video components.

IA} To front left/right channel audio output (or to audio mixed

output if necessary)

To composite video output

To S-video output (for better playback picture quality)

VCR

[] Inl IIIIII

IAI To left/right channel audio output

To left/right channel audio input

To composite video output

To composite video input

To audio

output

[]

DBS tuner

To composite video output

Note:

When connecting the DBS tuner to the TVSOUND/DBS jacks,

change the source name, which will be shown on the display when

selected as the source, to "DBS."See page ! 1 for details.

If your audio components have an AV COMPU LINK terminal

See also page 27 for detailed information about the connection and

the AV COMPU LINK remote control system.

Digital connections

This receiver is equipped with two DIGITAL IN terminals one

digital coaxial tetTninal and one digital optical terminal.

You can connect any component to one of the digital terminals using

adigital coaxial cable (not supplied) or digital optical cable (not

supplied).

Before plugging the receiver into an AC outlet, make sure that all

connections have been made.

Plug the power cord into an AC outlet.

IMPORTANT:

•When connecting the DVD player or+the DBS tuner" using the digital

terminal, you also need to connect it to the video jack on the rear.

Without connecting it to the video jack, you can view no playback

picture.

• After connecting the components using the DIGITAL IN terminals,

set the following correctly if necessary.

- Set the digital input (DIGITAL IN) terminal setting correctly. For

details, see "Digital Input (DIGITAL IN) Terminal Setting" on page

14.

- Select the digital input mode correctly. For details, see "Selecting

the Analog or Digital Input Mode" on page 14.

DBS tuner DVD player

Keep the power cord away from the

connecting cables and the antenna. The

power cord may cause noise or screen interference. We recommend

that you use a coaxial cable to connect the antenna, since it is well+

shielded against interference.

Note:

The preset settings such as preset channels and sound adjustment

may be erased in a few days in the following cases:

-When you unplug the power cord.

-When a power failure occurs.

CAUTIONS:

• Do not touch the power cord with wet hands.

• Do not pull on the power cord to unplug the cord. When unplugging

the cord, always grasp the plug so as not to damage the cord.

Before using the remote control, put two supplied batteries first.

When using the remote control, aim the remote control directly at

the remote sensor on the receiver.

CD player MD recorder

DIGITAL 1 (DVD) terminal, using a

digital coaxial cable (not supplied).

When the component has a digital

optical output terminal, connect it to the

DIGITAL 2 (CD), using a digital optical

cable (not supplied).

Before connecting a digital _.

optical cable, unplug the L_'I

protective plug. [_ 4dP_

D_GffN

DIGITAL2{CD'

_DIGFTALN

Notes:

•When shipped from the factory, the DIGITAL IN terminals has been

set for use with the following components.

-DIGITAL ! (coaxial): For DVD player

-DIGITAL 2 (optical): For CD player

•When you want to operate the CD player or MD recorder using the

COMPU LINK remote control system, connect the target

component also as described in "Analog connections" (see page 5).

•When you want to operate the DVD player using the AV COMPU

LINK remote control system, connect the DVD player also as

described in "Analog connections" (see page 5).

1. On the back of the remote control, remove the

battery cover.

2, Insert batteries. Make sure to match the polarity:

(+) to (+) and (-) to (-).

3. Replace the cover.

ffthe range or effectiveness of the remote control decreases, replace

the batteries. Use two R6P(SUM-3)/AA(I 5F) type dry-cell batteries.

CAUTION:

Follow these precautions to avoid leaking or cracking cells:

• Place batteries in the remote control so they match the polarity: (+)

to (+) and (-) to (-).

• Use the correct type of batteries. Batteries that look similar may

differ in voltage.

• Always replace both batteries at the same time.

• Do not expose batteries to heat or flame.

Basic Operations

The following operations are commonly used when you play any sound source.

i I !litll i [.im i_ _.IIdl_ilJ t l_-I i [. [O]J |_ _. hI. I ._I |

On the front oaneh

'lb turn on the power, press POWER.

The STANDBY lamp goes ofl_ The name of the

current source (or station fi-equency) appears on

the display.

Current source name appears

Current volume level is shown here

'lb turn off the power (into standby mode), _*_=='_.......

press POWER again. _

The STANDBY lamp lights up. A small amount ]POWER]

of power is consumed in standby mode. 'lb turn

the power off completely, unplug the AC power

cord.

From the remote control:

To turn on the power, press AUDIO POWER. AUDIO

The STANDBY lamp goes ofl_ The name of the

current source (or station fi-equency) appears on

the display.

'lb turn off the power (into standby mode),

press AUDIO POWER again.

The STANDBY lamp lights up.

[,,."]'_F'_'_'!11_,j[q,'?:'J[,-"_ 1_ I']_

Press one of the source selecting buttons.

On the front panel:

Selected source name appears

,,iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii iiTiiiiiiiii iiiTi

CH- IIIII IIIII IIIII IIIII IIIII IIIII IIIII IIIII IIIII IIIII IIIII IIIII IIIII I

nnpROLOG_TF._. F.F. _. TCNETOUCH_ I

I[_ _E a_lc _55555_ t_t_l

IE]_.....sE]_,-.E,=,:.,-_.E%_o=1_=&._SUEE,:'",,OW.sL_L_I

_,4E_ tJ','ECLgS _¢t_ln FL_LL P_LION

DVD Select the DVD player for viewing the stereo

digital video disc.

TV SOUND/DBS Select the TV sound (or the DBS tuner).

VCR Select the video component connected to the

VCR jacks.

CD * Select the CD player.

TAPE/MD * Select the cassette deck (or the MD recorder).

PHONO *Select the turntable.

FMIAM * Select an FM or AM broadcast.

•Each time you press the button, the band

alternates between FM and AM.

Notes:

•WhenconnectinganMDrecorder(totheTAPE/MDjac_s)oraDBS

tuner (to the TV SOUND/DBS jac_s), change the source name that

appears on the displa_ See page 11 for details.

• Whenyoupressoneofthesourceselectingbuttonsontheremote

control marked above with an asterisk (_), the receiver

automatically turns on.

Sianal and soeaker indicators on the disolay

•The signal indicators light up to indicate the incoming channel

signals.

......Only the indicators for the incoming signals light up. (When

analog input is selected, "L" and "R" always light up.)

• The fi-ame of the signal indicator (except for "LFE": See notes

below) lights up if the corresponding speaker is set to "LARGE"

or "SMALL" (for subwoofer, "YES").

TVSOO_S

CZ551

T_Et_ _ _H_NO FM_

CZ551gZSZl CZ551

From the remote control:

DVD TV SOUND/DBS VCR

Czl Cz1 CzI

CO TAPE/MD PHONO FMJAM

LFE

L: Light up when the left front channel signal comes in.

The frame of this signal indicator always lights up.

R: Light up when the right front channel signal comes in.

The frame of this signal indicator always lights up.

C: Light up when the center channel signal comes in.

LS: Light up when the left rear channel signal comes in.

RS: Light up when the right rear channel signal comes in.

S: Light up when the monaural rear channel signal comes in.

LFE: Light up when the LFE channel signal comes in.

Notes:

• WhentheLFE channelsignalcomesin, "LFE"lightsup.

• When "SUBWOOFER"issetto "YES,"(Seepage 15)

lights up.

Selectino different sources for Bicture and sound

You can watch picture from a video component while listening to

sound from another component. Press one of the audio source

selecting buttons (CD, TAPE/MD, PHONe, FM/AM, TV

SOUND*), while viewing the picture from a video component such

as the VCR or DVD player, etc.

On the front panel:

wso_Bs

From the remote control:

TV SOUND/DBS

CD TAPE/MD PHONO FM/AM

Notes:

•Onceyouhaveselectedavideosource, picturesofthese!ected

source are sent to the TV until you select another video source.

*Except when your TVis connected through the AV COMPU LINK

remote control system (see page 27).

On the front Daneh

'lb increase the volume, turn MASTER

VOLUME clockwise.

'lb decrease the volume, turn it

counterclockwise.

• When you turn MASTER VOLUME rapidly,

the volume level also changes rapidly.

• When you turn MASTER VOLUME slowly,

the volume level also changes slowly.

From the remote control:

'lh increase the volume, press VOLUME +.

'lb decrease the volume, press VOLUME

CAUTION:

Always set the volume to the minimum before starting any source. If

the volume is set at its high level, the sudden blast of sound energy

can permanently damage your hearing and/or ruin your speakers.

Note:

The volume level can be adjusted within the range of "O"(minimum) to

"80" (maximum).

On the front panel ONLY:

When you have connected two pairs of the front

speakers, you can select which to use. Pressing

SPEAKERS 1 or SPEAKERS 2 activates the

respective set of speakers.

•To use the speakers connected to the FRONT SPEAKERS @

terminals, press SPEAKERS 1 to set it in the -- ON position, and

press SPEAKERS 2 to set it in the •OFF position.

• To use the speakers connected to the FRONT SPEAKERS @

terminals, press SPEAKERS 2 to set it in the -- ON position, and

press SPEAKERS 1 to set it in the •OFF position.

•To use both sets of the speakers, press SPEAKERS 1 and

SPEAKERS 2 to set them in the !ON position.

• To use neither set of the speakers, press SPEAKERS 1 and

SPEAKERS 2 to set them in the • OFF position.

Note:

When only one set of the speakers is connected to either the FRONT

SPEAKERS _1 or2 terminals, do not activate both pairs of the

speakers. If you do, no sound comes out of the front speakers.

Listenina only with headBhones

1. Connect a pail- of headphones to the PHONES jack on the fi-ont

panel.

2. Press SPEAKERS 1 and SPEAKERS 2 to set them in the •

OFF position.

CAUTION:

Be sure to turn down the volume before connecting or putting on the

headphones, as high volume can damage both the headphones and

your hearing.

Note:

You cannot shut off the sound through the other speakers using the

SPEAKERS ! and 2 buttons.

From the remote control ONLY:

Press MUTING to mute the sound through all MUTING

speakers and headphones connected. I[ _l ..-x

"MUTING" appears on the display and the

volume turns off(the volume level indicator goes

off).

To restore the sound, press MUTING again so that "OFF" appears

on the display.

• Taming MASTER VOLUME or pressing VOLUME also

restores the sound.

You can adjust the subwoofer output level if you have selected

"YES" for the "SUBWOOFER" (see page 11).

Once it has been adjusted, the receiver memorizes the adjustment.

Befbre you start, remember...

•There is atime limit in doing the following steps. If the setting is

canceled before you finish, start fi-om step 1 again.

With this Bass Boost function, you can boost the bass level.

Befbre you start, remember...

• There is a time limit in doing the following steps. If the setting is

canceled before you finish, start from step 1 again.

On the front panel ONLY:

On the front panel:

l, Press ADJUST repeatedly until ADJUST

"SUBWFR LEVEL" appears on _===_¢_

the display.

• Once you have pressed ADJUST, MULTI CURSOR A/V

can be also used for selecting "SUBWFR LEVEL."

• The display changes to show the current setting.

2. Press MULTI CURSOR <_/_to ...........

adjust the subwoofer output level [ IL I

From the remote control: SOUND

1. Press SOUND. ('_--_.

The 10 keys are activated for sound adjustments.

I. Press ADJUST repeatedly until ADJUST

"BASSBOOST" (with the current

setting) appears on the display.

• Once you have pressed ADJUST, MULTI CURSOR A/V

can be also used for selecting "BASSBOOSTY

.Press MULTI CURSOR <_ /E> to

switch this function "ON" or

"OFF."

• When this function is switched "ON," the

BASS BOOST indicator on the display

lights up.

Note:

TheBass Boost function affects the front speaker sounds only

2. Press SUBWOOFER-/+ to adjust -SUBWOOFER+

thesubwooferoutputlevel(-lOdB 0 0 '' ' "'"

to +10 dg). _> Youcan adjust the treble and bass sounds as you like,

When the input level of the playing source is too high, the sounds

will be distorted, if this happens, you need to attenuate the input

signal level to prevent the sound distortion.

On the front panel ONLY:

P d h ld INPUTAT'I: (ONE TOUCH

tess an 0 osE_oucHO_ER,_T_ONt

OPERRATION) so that the ATT indicator

lights up on the display.

• Each time you press and hold the button, the

Input Attenuator mode turns on ("INPUT AFT

ON") or off ("INPUT NORMAL").

Notes:

•This function is available only for the sources connected using the

analog terminals.

• Thisfunctiondoesnottakeeffectwhendigitalinputisselected.

Betbre you start, remember...

There is a time limit in doing the following steps. If the setting is

canceled before you finish, start from step 1 again.

On the front panel ONLY:

1. Press ADJUST repeatedly until ADJUST

"BASS" or "TREBLE" appears on

the display.

• Once you have pressed ADJUST, MULTI CURSOR A /V

can be also used for selecting "BASS" or "TREBLE."

• Select "BASS" to adjust the bass sound level.

• Select "TREBLE" to adiust the treble sound level.

.Press MULTI CURSOL <3 /_to

adjust the bass or treble sound

level within the range of-10 to

+10.

• Each time you press the button, the sound

_uL_lCU_OR

level changes by ± 2 steps.

l Basic Settings

Some of the following settings are required after connecting and positioning your speakers in your listening room, while

others will make operations easie_

You can record any source playing through the receiver to a cassette

deck (or an MD recorder) connected to the TAPE/MD jacks and the

VCR connected to the VCR jacks at the same time.

While recording, you can listen to the selected sound source at

whatever sound level you like, without affecting the sound levels of

the recording.

Note:

The output volume level, tone adjustment (see page 10), bass boost

(see page 10) and DSP modes (see page !8) cannot affect the

recording.

When you have connected the MD recorder to the TAPE/MD jacks

or the DBS tuner to the TV SOUND/DBS jacks on the rear panel,

change the source name shown on the display when you select the

MD recorder or the DBS tuner as the source.

On the front panel ONLY:

When changing the source name from "TAPE" to "MD':

1. Press TAPE/MD. '......

•Make sure "TAPE" appears on the display. %/"

2, Press and hold SOURCE NAME

(TAPE/MD) until "ASSGN. MD"

appears on the display-.

If the sounds you hear from the front right and left speakers are

unequal, you can adiust the speaker output balance.

Betbre you start, remember...

• There is a time limit in doing the following steps. If the setting is

canceled before you finish, start fi-om step 1 again.

On the front Banel ONLY:

1. Press ADJUST repeatedly until ADJUST

"L/R BALANCE" appears on the _====x-x'_W'x)

display. %_/

• Once you have pressed ADJUS'I; MULTI CURSOR A/Vcan

be also used for selecting "L/R BALANCE."

'lb change the source name from "MD" to "TAPE," repeat

the same procedure above (in step 1, make sure "MD" appears

on the display).

When changing the source name from "TV SOUND" to "DBS':

1. Press TV SOUND/DBS.

• Make sure "TV SOUND" appears on the

display.

2. Press and hold SOURCE NAME

(TV SOUND/DBS) until "ASSGN.

DBS" appears on the display.

2. Press MULTI CURSOR <s /E> to ..........

adjust the balance. [I-_ I_ I_-]]

• Pressing <1decreases the right channel I "+1

output (from "L-2I to "1{-21 ) _:'-,ff._.N_-._

•Pressing t> decreases the left channel .';....-" _,...//

output (from "R-2 l" to "L-2 l').

k'_RN_I R,'_ b-am,'Ig/r/rll_11II;'I_

Betore you start, remember...

• There is a time limit in doing the following steps. If the setting is

canceled before you finish, start fi-om step 1 again.

'lb change the source name from "DBS" to "TV SOUND,"

repeat the same procedure above (in step 1, make sure "DBS"

appears on the display),

Note:

Without changing the source name, you can still use the connected

components. However, there may be some inconvenience.

- "TAPE" or "TV SOUND" will appear on the display when you select

the MD recorder or DBS tuner.

-You cannot select the digital input (see page 14) for the MD

recorder and the DBS tune_

-You cannot use the COMPU LINK remote control system (see page

26) to operate the MD recorder.

On the front Banel ONLY:

1. Press SETTING repeatedly until SETTING

"SUBWOOFER" appears on the _=====_'N>

display. %/"

•Once you have pressed SETTING, MULTI CURSOR A/V

can be also used for selecting "SUBWOOFER."

• The display changes to show the current setting.

multi cu_om

PressMULTICURSORto IIjI

YES: Select this when a subwoofer is used.

NO: Select this when no subwoofer is used.

_1_ obtain the best possible sun-ound sound of the DSP (Digital

Signal Processor) modes (see page 18), you have to register the

information about the speakers arrangement after all connections are

completed.

Befbre you start, remember...

• There is a time limit in doing the following steps. If the setting is

canceled before you finish, start fi-om step 1 again.

Front, Center, and Rear Speaker Setting

On the front panel ONLY:

1, Press SETTING repeatedly until

"FRONT SPK" (Front Speaker),

"CENTER SPK" (Center

Speaker), or "REAR SPK" (Rear

Speaker) appears on the display.

•Once you have pressed SETTING, MULTI

CURSOR A /V can be also used for

selecting the speakers.

SETTING

MULtiCW_

2. Press MULTI CURSOR <1/ E> to /[_I "" il

select the appropriate item about I<_ I_l c>

the speaker selected in the above _.'}."_";_x_

step. _,./ _,/

r LARGE'.._,. SMALL'.._. NONE q

LARGE: Select this when the speaker size is relatively large.

SMALL: Select this when the speaker size is relatively small

NONE: Select this when you have not connected a speakeE

(Not selectable for the fi-ont speakers)

3. Repeat steps 1 and 2 to select the appropriate

items lbr the other speakers.

Notes:

•Keep the following comment in mind as reference when adjusting.

-If the size of the cone speaker unit built in your speaker is greater

than 12 cm, select "LARGE," and if it is smaller than 12 cm,

select "SMALL."

• If you have selected "NO" for the subwoofer setting, you can only

select "LARGE" for the front speaker setting.

•Ifyouhaveselected"SMALL"forthefrontspeakersetting, you

cannnot select "LARGE" for the center and rear speaker settings.

• When you change your speakers, you need to register the

information about the speaker again.

Center Delay Time Setting

comparing that of the sound fi-om the front speakers.

If the distance fi-om your listening point to the center speaker is

equal to that to the front speakers, select 0 msec. As the distance to

the center speaker becomes shorter, increase the delay time.

• 1 msec increase (or decrease) in delay time corresponds to 30 cm

decrease (or increase) in distance.

• When shipped fi-om the tZactory, delay time is set to 0 msec.

On the front panel ONLY: SETTING

1. Press SETTING repeatedly until _/.x

"CENTER DELAY" appears on

the display.

•Once you have pressed SETTING, MULTI CURSOR A/V

can be also used for selecting "CENTER DELAY."

• The display changes to show the current setting.

.Press MULTI CURSOR <_ /E> to _...........

select the delay time of the center/L IIAII

speaker output. II L;YqLk

• Pressing t> increases the delay time from _-,_ ..'._x_" 2

0 msec ("C. DELAY: 0ms ) to 5 msec ("C. ": "_"

DELAY: 5ms').

• Pressing <1 decreases the delay time from

5 msec ("C. DELAY: 5ms') to 0 msec ("C.

DELAY: 0ms').

Rear Delay Time Setting

comparing that of the sound fi-om the front speakers.

If the distance fi-om your listening point to the rear speakers is equal

to that to the front speakers, select 0 msec. As the distance to the rear

speakers becomes shorter, increase the delay time.

• 1 msec increase (or decrease) in delay time corresponds to 30 cm

decrease (or increase) in distance.

• Rear delay time for Dolby Digital and DTS Digital Surround is to

be set to 5 msec.

• When shipped fi-om the tZJctory, delay time is set to 5 msec.

On the front oanel ONLY:

1. Press SETTING repeatedly until SETTING

"REAR DELAY" appears on the

display.

•Once you have pressed SETTING, MULTI CURSOR A/V

can be also used for selecting "REAR DELAY."

• The display changes to show the current setting.

.Press MULTI CURSOR <_ /E> to r-_ ..........

selectt edelaytimeaft erear11<1 14

speaker output. [_...-.',_",_ [x%_

• Pressing t> increases the delay time from _'_.../._ _..

0 msec ("R. DELAY: 0ms') to 15 msec

("R. DELAY: 15ms').

• Pressing <1 decreases the delay time from

15 msec ("R. DELAY: 15ms") to 0 msec

("R. DELAY: 0ms').

Crossover Frequency Setting Low Frequency Effect Attenuator Setting

Small speaker cannot reproduce the bass sound very well. So, if you

have used a small speaker any for the front, center, or rear channels,

this receiver automatically reallocates the bass elements, originally

assigned to the channel for which you have connected the small

speaker, to another channel (for which you have connected the large

speaker).

If you have selected "LARGE" for all speakers (see page 12), this

function will not take effect. '1_ use this function properly, you need

to set this crossover frequency level according to the size of the

small speaker connected.

This function takes effect in the following cases:

- When playing a source using Dolby Pro Logic, Dolby Digital,

or DTS Digital Surround.

- When using the DAP modes.

On the front panel ONLY:

1. Press SETTING repeatedly until SETTING

"CROSSOVER FRQ" (Crossover _'x_" "_

Frequency) appears on the display. <.M

•Once you have pressed SETTING, MULTI CURSOR A/V

can be also used for selecting "CROSSOVER FRQ."

• The display changes to show the current setting.

ffthe bass sound is distorted while playing back a source using

Dolby Digital or DTS Digital Sun-ound, follow the procedure below.

• This function takes effect only when the subwoofer (LF'E) signals

come in. (with "SUBWOOF'ER" set to "Yes.")

On the front panel ONLY:

1. Press SETTING repeatedly until SETTING

"LFE ATT" (Low Frequency _===_" "_

Effect Attenuator) appears on the

display.

• Once you have pressed SETTING, MULTI CURSOR A /V

can be also used for selecting "LFE ATTY

• The display changes to show the current setting.

Press MULTI CURSOR <_ /E> to _ "..........

select thelow frequency effect [[ IIA II

attenuatorlevel. I<l 1 'IL

• AS you press it, the display changes to _._<"")_

show the following: ':'.-/'_/

0dB _ 10dB

0riB: Normally select this.

2, Press MULTI CURSOR <a /E> to

select the crossover frequency level

according to the size of the small

speaker connected.

• As you press it, the display changes to show the following:

V-80.z.-.100.z--120.z

10dB: Select this when the bass sound is distorted.

__ DY_:2:cCm_22 tgh: dC)::miPf:::::2fi_'eentct_:_ween maximum

sound and minimum sound) of the reproduced sound. This is useful

when enjoying surround sound at night.

• This function takes effect only when playing back a source using

Dolby Digital.

• Use the following comments as reference when adjusting.

80Hz: Select this when the cone speaker unit built in the

speaker is about 12 cm.

100Hz: Select this when the cone speaker unit built in the

speaker is about 10 cm.

120Hz: Select this when the cone speaker unit built in the

speaker is about 8 cm.

On the front oanel ONLY:

1. Press SETTING repeatedly" until SETTING

"D. RANGE CAMP," (Dynamic _'_"_

Range Compression) appears on L./

the display.

• Once you have pressed SETTING, MULTI CURSOR A/V

can be also used for selecting "D. RANGE COME"

• The display changes to show the current setting.

,Press MULTI CURSOR <1 /E> to

select the appropriate item about

the compression level.

•As you press it, the display changes to

show the following:

_L_URSOR

I_OFF _ MID _ MAX*--- I

OFF: Select this when you want to enjoy surround with its

full dynamic range. (No effect applied)

MID: Select this when you want to reduce the dynamic

range a little. (Factory setting)

MAX: Select this when you want to apply the compression

effect fully. (Useful at night)

When you use the digital input temainals, you have to register what

components are connected to which terminals (DIGITAL IN 1/2).

Belbre you start, remember...

• There is a time limit in doing the following steps. If the setting is

canceled before you finish, start fi-om step 1 again.

On the front panel ONLY:

1. Press SETTING repeatedly until

"DIGITAL IN" appears on the

display.

• Once you have pressed SETTING, MULTI

CURSOR A/V can be also used for

selecting "DIGYIAL IN?'

• The display changes to show the current setting.

SETTING

DIGITAL 2 terminal setting

DIGITAL 1 terminal setting

i. Press MULTI CURSOR <a /_> to /_--,, .......... ,, ,_

select an appropriate setting. >

As you press it, the display changes to show IL

the following: _._f:"')_,_? "_

1 DVD2CD ._- 1 DVD2DBS _ IDVD2MD

ICD2DVD ._- ICD2DBS _._- ICD2MD

1 DBS2DVD._- 1 DBS2CD _ IDBS2MD

1 MD2DVD _ 1 MD2CD _ IMD2DBS

(back to the beginning)

Note:

When shipped from the factory, the DIGITAL IN terminals can be used

as the digital input for the following components.

•DIGITAL 1 (coaxial): For DVD player

• DIGITAL 2 (optical): For CD player

When you have connected some digital source components using the

digital terminals (see page 7), you need to change the input mode for

these components to the appropriate digital input mode correctly .............

AUTO/PCM, DOLBY DIGYIAL, or DTS.

Once the colrect mode is selected for each digital source

component, the mode is memorized until you change it.

1. Follow the steps in "Digital Input (DIGITAL IN)

Terminal Setting" to the left.

2. Press the source selecting button (CD, TAPE/MD,

TV SOUND/DBS, or DVD) lbr which you want to

change the input mode IYom analog input to

digital input.

Tv so_s

On the front panel

DVD TV SOUND/DBS

C51C51

CD TAPEIMD

C51C51

On the remote control

3. Press ANALOG/DIGITAL repeatedly until the

digital input mode you want appears on the

display.

A_LO_TAL

On the front panel

ANALOGtDIGffAL

On the remote control

Each time you press the button, the input mode changes as

follows:

--*ANALOG _ AUTO/PCM

(Digital) A

DTS _ DOLBY DIGITAL

(Digital) (Digital)

Normally select "AUTO/PCM," so the receiver automatically

detects the incoming digital signal. The DIGITAL AUTO

indicator lights up on the display. (The DIGITAL AUTO lamp

next to the ANALOG/DIGITAL button lights up.)

- When the receiver can recognize the digital signal coming

into the receiver, the frame of the digital signal indicator for

the detected signal lights up automatically.

- When the receiver cannot recognize the incoming signal

correctly, the frame of the digital signal indicator flashes.

If this happens, select the same digital input mode with the

incoming digital signal either "DOLBY DIGITAL" or

"DTS?'

Notes:

•Noise may come out of the speakers while searching or skipping a

multi-sound source encoded with Dolby Digital or DTS Digital

Surround. If this happens, select "DOLBY DIGITAL" or "DTS" for

digital input mode. (See above)

• When you change the source, the digital input mode will be

automatically reset to "AUTO/PCM."

JVC's One 'lBuch Operation function is used to assign and store

different sound settings for each different playing source. By using

this function, you do not have to change the settings every time you

change the source. The stored settings for the newly selected source

are automatically recalled,

The following can be stored for each source:

Volume level (see page 9)

Bass boost (see page 10)

]bne adiustment (see page 10)

Input attenuator mode (see page 10)

Subwoofer output level (see page 10)

Balance (see page 1l)

DSP modes

......3D-PHONIC mode settings (see page 21)

......DAP mode settings (see page 21)

......Surround mode settings (see page 22)

On the front oanel ONLY:

'lb store the sound settings

1. Press ONE TOUCH OPERATION ..................,_,_T,_

(INPUT ATT.) so that the ONE _,.<,.,

TOUCH OPERATION indicator

lights up on the display.

Using the Sleep Timer, you can t_all asleep to music and know the

receiver will turn off by itself rather than play all night.

From the remote control ONLY:

Press SLEEP repeatedly. SLEEP

The SLEEP indicator lights up on the display, [_ _

and the shut-off time changes as follows (in

minutes):

r 10 ..-_20 ..-,-30 ..-,-40 .._ 50 ..-_60 ..-,-70 ..-_80 ..-_90 q

O0 (Canceled) t n

When the shut-off time comes

The receiver turns off automatically.

"lb check or change the time remaining until the shut-off time

Press SLEEP once.

The remaining time until the shut-off'time appears in minutes,

• _1_change the shut-off time, press SLEEP repeatedly.

]b cancel the Sleep Timer

Press SLEEP repeatedly until "SLEEP 00min," appears on the

display. (The SLEEP indicator goes otiS)

• Turning off the power also cancels the Sleep Timer.

2. Adjust the sound using the functions listed above.

The newly adjusted settings are memorized,

'lb recall the sound settings

With the ONE TOUCH OPERATION lamp lit, the settings for the

currently selected source are recalled when the source is selected.

'lb cancel the One Touch Operation function

Press ONE TOUCH OPERATION (INPUT AT'E) so that the ONE

TOUCH OPERATION indicator goes off'.

(Even though the One Touch Operation function is canceled, the

recalled sound effects remain active.)

Note:

If the source is FM or AM, you can assign a different setting for each

band.

Receiving Radio Broadcasts

You can browse through all the stations or use the preset function to go immediately to a particular station.

i}j_j'j r_t._ Ls_Rrt_l l_j

On the front panel ONLY:

I. Press FM/AM to select the band. _....

The MULTI CURSOR A/V/<1 /t> _=======%_.<_

buttons can be now used for operating the

tuner.

• Each time you press the button, the band alternates between

FM and AM.

!... _i..., .." h=. !'¢1 '_' .,,P

, i i ii i ,,

I I I ',,.' I :: ...........

lOP lk 1Qk VDI&ItE

2. Press MULTI CURSOR/x /v

repeatedly until "- TUNING +"

appears on the display.

- ru"" "''" ..i..

i,,i i i,,i i,.i

i i _1 i...i .

3. Press MULTI CURSOR <a /_>

until you find the frequency you

want.

• Pressing <1decreases the frequency.

• Pressing t> increases the fi-equency.

Notes:

•When you hold MULT! CURSOR <_/_> in step 3, the frequency

keeps changing until a station is tuned in.

• Whenastationofsufficientsignalstrengthistunedin, theTUNED

indicator lights up on the display

When an FM stereo program is received, the STEREO indicator

also lights up.

Once a station is assigned to a channel number, the station can be

quickly tuned. You can preset up to 30 FM and 15 AM stations.

To store the preset stations

Betbre you start, remember...

• There is a time limit in doing the following steps. If the setting is

canceled before you finish, start from step 1 again.

On the front panel ONLY:

1. Tune in the station you want to preset (see

"Tuning in Stations Manually").

If you want to store the FM reception mode for this station,

select the FM reception mode you want. See "Selecting the FM

Reception Mode" on page 17.

i i,,,i i i ,, k,, i,,,i i i

F['[ 1--1 I :: ", ii i i "[ :Z:

lEO Ik lat_ "_LUUEL_ _

MEMORY

2. Press MEMORY.

IE3_ .._-,._ r,.= _":' _ "_"' '7

LINE_RFO_4 _+_=,,,,,,,_ i i "--" 11 I'IPI ....

,w Ik 1_- _JaE

"CH*' appears and the channel nt mber position stairs flashing

on the display for about 5 seconds.

.Press MULTI CURSOR < /D to /_[_//

select a channel number while the I_ I_1 _I

channel number position is IL2 qlCL

flashing. "_/_

I[_;N_ _,.., _...., _" _-_.,, ,

_I P" Ill :'-: ." --'i Ill ["1 ": i"

_ _* _ " ®_i.' -

..............

I_ "_LUME

Note:

You can use the 10 keys on the remote control to select the preset

numbe_ When using the 10 keys, be sure that they are activated

for the tuner, not for the CD and others. (See page 29.)

Press MEMORY again while the MEMORY

selected channel number is _===_"5

flashing on the display.

The selected channel number stops flashing.

The station is assigned to the selected channel number.

5. Repeat steps 1 to 4until you store all the stations you want.

To erase a stored preset station

Storing a new station on a used number erases the previously stored

one.

To tune in a preset station

On the front panel:

I. Press FM/AM to select the band.

• The MULTI CURSOR A/V/<1 /t>

buttons can be now used for operating the

tuner.

• Each time you press the button, the band

alternates between FM and AM.

....... III _ ,,,i,

I" I'I .:: .. __ ..:..

lOO lk 1uk" YOURS

2. Press MULTI CURSOR/x /V _ ,

repeatedly until "- PRESET +"

appears on the display.

I I".l...=.Jl.... I

CX] [_ ___

"1oo lk IO,_" You,re

3. Pr M LTI R R<O E>t ...........ess U CU SO /o_--

select a preset channel station. [ I[_]l II

. D-

•) •

I ressmg<1decreasesthepresetchannel I<:a _l [:>L

number. _:¢:" _" N_

I ressmg t> increases the preset channel '-.....' _/"

number.

From the remote control:

I. Press FM/AM. FM/AM

• Each time you press the button, the band 11 _L_-<'-,

alternates between FM and AM.

....... _-l-I ....

,::.. .:_-

i'' i=i 1,,_?

I I I II I I I 1,1_,,

2. Press 10 keys to select a preset _¢_%_¢_ _7%

channel number.

• For channel number 5, press 5. @ @@_

• For channel number 15, press + 10 then 5. ...... ;';

•For channel number 20, press 10 then 10. @

• For channel number 30, press +10, +10, _70)/!ii_)- 1

then 10. _

Note:

When you use the 10 keys on the remote control be sure that they are

activated for the tuner, not for the CD and others. (See page 29.)

When an FM stereo broadcast is hard to

receive or noisy

You can change the FM reception mode while receiving an FM

broadcast.

On the front oanel ONLY:

1. If necessary, press FM/AM so that the /_

MULTI CURSOR A /V/<1 /_> buttons

can be now used tbr operating the tuner.

•Each time you press the button, the band

alternates between FM and AM.

,Press MULTI CURSOR/x /V

repeatedly until "FM MODE"

appears on the display.

I"" M I,,'I i"i I"_'. I_°

r" !'! !'! I_1L..' !-

Mut_ cu_so_

". ..-

u,35

,Press MULTI CURSOR < /_> to ( -II II I/

switch the FM reception to l< F '- q m-H

"AUTO MUTING" or "MONO." L_.d[_

"t, .,,

AUT 0 HEii ...../v./

irm_m

l,,,h'=i I, I i"i

i'!! !i'.ii !

AUTO MUTING: When a program is broadcasted in stereo,

you will hear stereo sound; when in

monaural, you will hear monaural sounds.

This mode is also useful to suppress static

noise between stations. The AUTO

MUTING indicator lights up on the display.

MONO: Reception will be improved although you

will lose the stereo effect, in this mode, you

will hear noise while tuning into the

stations. The AUTO MUTING indicator

goes off on the display.

Using the DSP Modes

The built-in Surround Processor provides three types of the DSP (Digital Signal Processor) mode -- 3D-PHONIC mode,

DAP (Digital Acoustic Processor) mode and Surround mode,

3D-PHONIC modes

The 3D-PHONIC mode gives you such a nearly surround effect as it

is reproduced through the Dolby Surround decoder, which is widely

used to reproduce sounds with a feeling of movement like those

experienced in movie theaters. The 3D_PHONIC mode is the result

of research on sound localization technology carried out at JVC for

many years. This mode can be used when the front speakers are

connected to this receiver (without respect to the rear/center

speaker connection).

• You can select either 3D ACTION or 3D THEATER to your

preference when playing an analog or Linear PCM (digital)

source.

3D ACTION: Best for action and war movies where the

action is t:ast and explosive.

3D "l HEATER: Reproduces the sound field of a large theater. This

mode can be selected when only front speakers are

connected to this receiver and "REAR SPK" and

"CENTER SPK" is set to "NONE" (see page 12).

DAP modes

The sound heard in a concert hall or club consists of direct sound

and indirect sound early reflections and reflections from behind.

Direct sounds reach the listener directly without any reflection. On

the other hand, indirect sounds are delayed by the distances of the

ceiling and walls. These direct sounds and indirect sounds are the

most important elements of the acoustic sin-round effects. The DAP

mode can create these important elements, and gives you a real

"being there" feeling. This mode can be used when the front

speakers are connected to this receiver (without respect to the

rear]center speaker connection).

You can select one of the following to your preference.

LIVE CLUB: Gives the feeling of a live music club with a low

ceiling.

DANCE CLUB: Gives a throbbing bass beat.

HALL: Gives clear vocal and the feeling of a concert hall.

PAVILION: Gives the spacious feeling of a pavilion with a high

ceiling.

Early reflections

Direct sounds

Reflections from

behind

Notes:

•If "REAR SPK"and "CENTER SPK"are set to "NONE,"

-- you can select only "HEAD PHONE"or "OFF" for the DSP mode.

-- you cannot select Surround mode.

• Nosoundscomeoutofthecenterspeaker, evenifitisconnected.

Headphones mode

This mode can reproduce the LFE channel signals, mixing them to

the front channel signals. So you will not miss the subwoofer sounds

even if you listen to a source using the headphones.

Surround modes

With this receiver, you can use three types of the Surround mode.

Following modes cannot be used when only the front speakers

are connected to this receiver (without the rear speakers or

center speaker).

Dolby Surround (Dolb VDiqital and Dolby Pro Loqic) *

Used to watch the soundtracks of software encoded with Dolby

Digital (bearing the mark DD[_. _ ) or with Dolby Surround

(bearing the mark E]rI[DOL_SURROU_]).

Dolby Digital and Dolby Pro Logic can be selected automatically

according to software played back and the speaker arrangement you

have done.

•]b enjoy the software encoded with Dolby Digital, you must

connect the source component using the digital telrninal on the

rear of this receiver. (See page 7.)

DTS Diqital Surround **

DTS Digital Surround is a discrete 5.1 channel digital audio format

available on CD, LD, and DVD software.

_lb watch the soundtracks of video software bearing the mark _,

the receiver can provide you with DTS Digital Surround decoder.

DTS Digital Surround is automatically selected according to

software played back and the speaker arrangement you have done.

• ]b enjoy the software encoded with DTS Digital Surround, you

must connect the source component using the digital telrninal on

the rear of this receiver. (See page 7.)

JVC Theater Surround

In order to reproduce a more realistic sound field in your listening

room while playing soundtracks of software encoded with Dolby

Surround (bearing the mark EIE]_ ), you can use JVC

Theater Surround.

Notes:

•The DSP modes have no effect on monaural source&

•The DSP modes will not be applied when recording a source.

• ThePROLOGICindicatorllghtsupwhentheDolbyProLogic

decoder built in this receiver is activated.

Note:

When playing a CD encoded with DTS Digital Surround, select "DTS"

as the incoming digital signal type. (See page 14)

*Manufactured under license from Do/by Laboratories. "Dolby," "Pro

Logic," and the double=D symbol are trademarks of Dolby

Laboratories. Confidential Unpublished Works. 01992-1998 Dolby

**Manufactured under license from Digital Theater Systems, Inc. US

Pat. No. 5,451,942 and other world-wide patents issues and

pending. "DTS" and "DTS Digital Surround" are trademarks of

Digital Theater Systems, Inc. 01996 Digital Theater Systems, In&

Al! rights reserved.

Available DSP modes will vary depending on how many speakers are used with this receiver.

Make sure that you have set the speaker infbrmation correctly (see page 12).

Front

speaker

Speaker arrangements Available DSP modes

Front

speaker

Front _ Front

speaker 1 speaker

Front

speaker

,@/

Rear )_

speaker

Front

speaker

,@/

_ Rear

speaker

Front TV Front

speaker Centerspeakerl speaker

Rear )/_ _ _ Rear

speaker speaker

Each time you press DSP MODE on the front panel or SURROUND MODE on

the remote control, the DSP modes change as follows:

• 3D THEATER

• LIVE CLUB

• DANCE CLUB

• HALL

• PAVILION

• HEAD PHONE

• 3D ACTION

• DSP OFF (DSP mode is canceled)

Notes:

•You can only select "HEAD PHONE" while playing a multi-sound source

encoded with Dolby Digital or DTS Digital Surround.

• You cannot select the Surround mode with this speaker setting.

Each time you press DSP MODE on the front panel or SURROUND MODE on

the remote control, the DSP modes change as follows:

By pressing DSP MODE:

• THEATER

• LIVE CLUB

• DANCE CLUB

• HALL

• PAVILION

• HEAD PHONE

• 3D ACTION

• DSP OFF (DSP mode is canceled)

To activate the Surround

mode, press SURROUND

button so that the lamp next to

the button lights up.

By pressing SURROUND MODE:

• DOLBY/DTS SURROUND

(DOLBY PRO LOGIC, DOLBY

DIGITAL, or DTS SURROUND)

• THEATER

• LIVE CLUB

• DANCE CLUB

• HALL

• PAVILION

• HEAD PHONE

•3D ACTION

• DSP OFF (DSP mode is canceled)

To activate the Surround

mode, you can also use the

SURROUND button.

Once you have adjusted the 3D-PHONIC modes, the adjustment is

memorized for each 3D-PHONIC mode.

Betbre you start, remember...

• Make sure that you have set the speaker intbrmation correctly

(see page 12).

• There is a time limit in doing the following steps. If the setting is

canceled before you finish, start fi-om step 1 again.

On the front Baneh

1. Press DSP MODE repeatedly until

"3D ACTION" or "3D

THEATER" appears on the

display.

The 3D-PHONIC, DSR and 131!PRO LOGIC indicators also

light up on the display.

2. Adjust the effect level.

1) Press ADJ UST repeatedly until "DSP

EFI_ECT" appears on the display.

•Once you have pressed ADJUST,

MUUFI CURSOR A/V can be also

used for selecting "DSP EFFECT."

• The display changes to show the

current setting.

2) Press MULTI CURSOR <11 l_ to

select the effect level.

• As you press it, the effect level

changes as follows:

Once you have adjusted the DAP modes, the adjustment is

memorized for each DAP mode.

Belbre you start, remember...

• Make sure that you have set the speaker inibrmation correctly

(see page 12).

• There is a time limit in doing the following steps. If the setting is

canceled before you finish, start from step 1 again.

• You cannot adiust the rear speaker output level when you have set

"REAR SPK" to "NONE." See page 12.

• You cannot make any adjustment for the headphones mode..

On the front panel:

ADJUST

I. Press DSP MODE repeatedly until

the DAP mode -- LIVE CLUB,

DANCE CLUB, HALL,

PAVILION, or HEAD PHONE --

appears on the display.

MULtiCW_

_!.._ 2, Adjust the speaker output levels.

1) Press ADJ UST repeatedly until one of

The DSP indicator also lights up on the display. (When the

HEAD PHONE is selected, HEAD PHONE indicator lights up,

instead of the DSP indicator .)

•When you have set "REAR SPK" to "NONE," the 3D-

PHONIC indicator also lights up. (Except for "HEAD

PHONE.")

ADJUST

E DSP EFFECT1*-,'DSP EFFECT2 *-"DSP EFFECT3',-]/

*DSP EFFECT5_.._DSP EFFECT4

As the number increases, the selected 3D-PHONIC mode

becomes stronger.

From the remote control:

1. Press SURROUND MODE

repeatedly until "3D ACTION" or

"3D THEATER" appears on the

display.

The 3D-PHONIC, DSP, and D[JPRO LOGIC

indicators also light up on the display.

2. Press SOUND.

The 10keys are activated for sound adjustments.

3. Press EFFECT to select an effect

level you want.

•Eachtime you press thebutton, the effect

level changes as follows:

SOUND

EFFECT

E DSPEFFECT1 "-*DSP EFFECT2 "_ DSP EFFECT3 '7

DSP EFFECT5_ DSPEFFECT4 *

As the number increases, the selected 3D-PHONIC mode

becomes stronger.

the thllowing indications appears on

the display.

"REAR L LEVEL":

_1_adjust the left rear speaker level

"REAR R LEVEL":

_1_adiust the right rear speaker level

• Once you have pressed ADJUS'I\ MULTI CURSOR A/V

can be also used for selecting the speaker,

Press MUUI'I CURSOR <1 /C> to _uLw _URSOR

u,theeedpouput

level (t¥om -10 dB to +10 riB).

Repeat 1) and 2) to adjust the other

speaker output level.

3. Adjust the effect level.

1) Press ADJ UST repeatedly until "DSP

EFI_ECT appears on the display.

•Once you have pressed ADJUST,

MUUfl CURSOR A/Vcan be also

used for selecting "DSP EFFECT."

The display changes to show the

current setting.

2) Press MULTI CURSOR <1 /E> to

select the effect level.

• As you press it, the effect level

changes as follows:

MULtiCW_

EFFECT2 DSPEFFECT3q

F DSP EFFECT1_DSP _ *

L_,DSP EFFECT5"_,-DSP EFFECT4 --

)

As the number increases, the selected DAI mode becomes

strongeE

From the remote control:

1. Press SURROUND MODE

repeatedly until the DAP mode --

LIVE CLUB, DANCE CLUB,

HALL, PAVILION, or HEAD

PHONE -- appears on the display.

The DSP indicator also lights up on the

display. (When the HEAD PHONE is

selected, HEAD PHONE indicator lights up,

instead of the DSP indicator .)

• When you have set "REAR SPK" to "NONE," the 3D-

PHONIC indicator also lights up. (Except for "HEAD

PHONE?)

SOUND

2. Press SOUND.

The 10 keys are activated for sound

adjustments.

-REARoL +

3. Adjust the rear speaker output

levels.

• _1%adjust the left rear speaker level, press

REAR,L/+ (from I0 dB to*10 dB).

REAR,R +

• _1%adjust the right rear speaker level, press

REAR,R /+(from 10 dB to +10 dB). O _ _

4. Press EFFECT to select an effect EFFECT

level you want.

• Each time you press the button, the effect --£/

level changes as follows:

As the number increases, the selected DAP mode becomes

stronger.

Once you have adjusted the Surround modes, the adjustment is

memorized for each Surround mode.

Dolby and DTS Surround adjustments

Betbre you start, remember...

•Make sure that you have set the speaker intbrmatlon correctly

(see page 12).

• There is a time limit in doing the following steps. If the setting is

canceled before you finish, start from step 1 again.

• You cannot adjust the rear speaker output levels when you have set

"REAR SPK" to "NONE." See page 12.

• You cannot adjust the center speaker output level when you have

set "CENTER SPK" to "NONE." See page 12.

From the remote controh

1. Press SURROUND to activate an

appropriate Surround mode --

PRO LOGIC, DOLBY DIGITAL

or DTS SURROUND.

• Each time you press the button, the Surround

mode tams on and off alternately.

• When "PRO LOGIC" is selected, the @[BPRO

LOGIC indicator lights up on the display.

Note:

You can also press SURROUND MODE to activate an appropriate

Surround mode -- PRO LOGIC, DOLBY DIGITAL, or DTS.

Press SOUND. SOUND

The lO keys are activated for sound adjustments. %/

Press TEST to check the speaker TEST

output balance.

"TEST TONE L" starts flashing on the

display, and a test tone comes out of the

speakers in the following order:

[_TEST TONE L .__TEST TONE C .__TEST TONE R

(Leftfront speaker) (Center speaker) (Right front speaker) |

TEST TONE LS TEST TONE RS.__ I

(Left rear speaker) (Right rear speaker)

Notes:

•You can adjust the speaker output levels without outputting the

test tone.

• No test tone comes out of the center speaker when "CENTER

SPK" is set to "NONE" (see page 12).

• No test tone comes out of the rear speakers when "REAR SPK"

is set to "NONE" (see page 12).

4. Adjust the speaker output levels. -CENTER+

• _1_adjust the center speaker level, press O_O

CENTER/+ (from 10 dB to +10 dB).

• _1_adjust the left rear speaker level, press

REAR,L/+ (from 10 dB to +10 dB). -REARoL_

• _1_adjust the right rear speaker level, press

P.EAR.R /+(from 10dB to +10 dB). O _

_ REA_ _

5. Press TEST again to stop the test TEST

tone. %

On the front panel:

You can also use the buttons on the fiont panel to adjust the

Surround modes. However, no test tone is available when using the

buttons on the front panel. So, make adjustments while listening to

the sound of the source played back,

1. Press SURROUND to active an _ ........

appropriate Surround mode -- _,_- x_

PRO LOGIC, DOLBY DIGITAL

or DTS SURROUND.

• Each time you press the button, the Surround mode turns on

and off alternately.

• When "PRO LOGIC" is selected, the t]D PRO LOGIC

indicator lights up on the display.

2. Adjust the speaker output levels.

1) Press ADJ UST repeatedly until one of

the tbllowing indications appears on

the display.

"CENTER LEVEL":

_1_adjust the center speaker level,

"REAR L LEVEL":

_1_adjust the left rear speaker level.

"REAR R LEVEL":

_1_adjust the right rear speaker level.

• Once yon have pressed ADJUST,

MULTI CURSOR A /V can be also

used for selecting the speaker.

2) Press MULTI CURSOR <_ /_to

adjust the selected speaker output level

(from -10 dB to +10 dB).

3) Repeat 1) and 2) to adjust the other

speaker output levels.

ADJUST

JVC Theater Surround adjustments

Beibre you start, remember...

• Make sure that you have set the speaker intbrmation correctly

(see page 12).

• There is a time limit in doing the following steps. If the setting is

canceled before you finish, start from step 1 again.

• You cannot adjust the rear speaker output levels when you have set

"REAR SPK" to "NONE," See page 12.

• You cannot adjust the center speaker output level and center tone

when you have set "CENTER SPK" to "NONE." See page 12.

From the remote control:

1, Press SURROUND MODE

repeatedly until "THEATER"

appears on the display-.

• The DDPRO LOGICand DSP indicators

also light up on the display.

Press SOUND. SOUND

The 10 keys are activated for sound adjustments.

Press TEST to check the speaker TEST

output balance. %

"TEST TONE L" starts flashing on the

display, and a test tone comes out of the

speakers in the following order:

rTEST TONE L .__TEST TONE C .__TEST TONE R

(Left front speaker) (Center speaker) (Right front speaker) |

TEST TONE LS. TEST TONE RS I

(Left rear speaker) (Right rear speaker)

Notes:

•You can adjust the speaker output levels without outputting the

test tone.

• No test tone comes out of the center speaker when "CENTER

SPK" is set to "NONE" (see page 12).

• No test tone comes out of the rear speakers when "REAR SPK"

is set to "NONE" (see page 12).

4. Adjust the speaker output levels. -CENTER÷

• _1_ adjust the center speaker level, press

CENTER/+ (from 10 dB to +10 dB).

• _1_ adjust the left rear speaker level, press

REAR,L/+ (from 10 dB to +10 dB). - REAR*L +

•_l_ adjust the right rear speaker level, press _, _-,- ,-,,'_

REAR,R /+ (from 10 dB to +10dB). _ _

- REAR*R +

TEST

5. Press TEST again to stop the test tone.

6. Press EFFECT to select an effect EFFECT

level you want.

• Each time you press the button, the effect --w../

level changes as follows:

As the number increases, JVC Theater Surround becomes

stronger.

On the front Daneh

You can also use the buttons on the fi-ont panel to adiust the

Surround modes. However, no test tone is available when using the

buttons on the front panel. So, make adjustments while listening to

the sound of the source played back,

1. Press DSP MODE repeatedly until

"THEATER" appears on the

display.

•The [1111PRO LOGICand DSP indicators

also light up on the display.

2. Adjust the speaker output levels.

1) Press ADJ UST repeatedly until one of

the thllowing indications appears on

the display.

"CENTER LEVEL":

_1_ adjust the center speaker level.

"REAR L LEVEL":

_1_ adjust the left rear speaker level,

"REAR R LEVEL":

_1_ adjust the right rear speaker level,

• Once you have pressed ADJUST,

MUUfl CURSOR A /V can be also

used for selecting the speaker.

2) Press MULTI CURSOR <1 /b> to

adjust the selected speaker output

level (from -10 dB to +10 dB).

3) Repeat 1) and 2) to adjust the other

speaker output levels.

ADJUST

4. Adjust the effect level.

1) Press ADJ UST repeatedly until "DSP

EFI_ECT" appears on the display.

•Once you have pressed ADJUST,

MUUfI CURSOR A/V also can be

used for selecting "DSP EFFECT."

• The display changes to show the

current setting.

2) Press MULTI CURSOR <1 /E> to

select the effect level.

• As you press it, the effect level changes

as follows:

ADJUST

_uL_lcu_oR

DSP EFFECT1*'-_DSP EFFECT2 *'-_DSP EFFECT37

,.DSPEFFECT5*._,.DSP EFFECT4,

As the number increases, JVC Theater Surround becomes

stronger.

v._l'4!t,rm'l_,j l! ,'l_mt_-:lllW_ rr/_r_

You can use only one DSP mode at a time. When a DSP mode is

activated, another DSP mode is canceled if in use.

For Dolby Pro Logic, Dolby Digital, and DTS

Digital Surround

On the front panel:

I. Press SURROUND so that the

lamp next to the button lights up.

• Each time you press the button, the Dolby/

DTS Sun-ound mode turns on and off

alternately.

2. Select and play a sound source.

• "1_ enjoy Dolby Pro Logic, play back a software encoded with

Dolby Surround and labeled with DDIOOLBYSUR_OUND]mark.

• _1_enjoy Dolby Digital, play back a software encoded with

Dolby Digital and labeled with _,_ _mark.

• _1_enjoy DTS Digital surround, play back a software encoded

with DTS Digital Surround and labeled with _ mark.

To cancel the Dolby/DTS Surround mode

Press SURROUND again so that the lamp goes s_o0No

ofi_ ("SURROUND OFF" appears on the _Q_

display.) "v!

From the remote control:

1. Press SURROUND so that the

lamp on the front panel lights up.

• Each time you press the button, the Dolby/

DTS Surround mode turns on and off

alternately.

• You can also turn on Dolby/DTS Sin-round

mode by pressing SURROUND MODE.

(See page 22 for more details.)

2. Select and play a sound source.

• _1_enjoy Dolby Pro Logic, play back a software encoded with

Dolby Surround and labeled with DD[OOLBYSUR_OUND]mark.

• _lb enjoy Dolby Digital, play back a software encoded with

Dolby Digital and labeled with II:]_,_ _mark.

• _lb enjoy DTS Digital surround, play back a software encoded

with DTS Digital Surround and labeled with 1_ mark.

To cancel the Dolby/DTS Surround mode

Press SURROUND again. ("SURROUND OFF"

appears on the display.)

For the other DSP modes

On the front Daneh

1. Press DSP MODE repeatedly until

the mode you want appears on the

display.

• Each time you press the button, the DSP

modes change. (See page 20 for more

details.)

2. Select and play asound source.

• To enjoy 3D-PHONIC and JVC Theater Surround, play back a

software encoded with Dolby Surround and labeled with

DD_ mark.

To cancel the DSP mode

Press DSP MODE repeatedly until "DSP OFF"

appears on the display.

From the remote controh

1. Press SURROUND MODE

repeatedly until the DSP mode you

want appears on the display.

• Each time you press the button, the DSP

modes change. (See page 20 for more

details.)

2. Select and play a sound source.

• Toenjoy 3D-PHONIC and JVC Theater Surround, play back a

software encoded with Dolby Surround and labeled with

Drl_ mark.

To cancel the DSP mode

Press SURROUND MODE repeatedly until

"DSP OFF" appears on the display.

lCOMPU LINK Remote Control System

The COMPU LINK remote control system allows you to operate JVC audio components through the remote sensor on

the receiven

_1_use this remote control system, you need to connect JVC audio

components through the COMPU LINK_3 (SYNCHRO) jacks (see

below) in addition to the connections using cables with RCA pin

plugs (see page 5).

• Make sure that the AC power cords of these components are

unplugged before connection. Plug the AC power cords only after

all connections are complete.

CD player

ICassette deck

-- ...... -- MD recorder

(SYNCH_O

Turntable

Notes:

•Ifyouraudio componenthas two COMPULINK-3 (SYNCHRO)

jacks, you can use either one. If it has only one COMPU LINK-3

(SYNCHRO) jack, connect it so that it is the last item in the series

of components. (For example, the turntable or CD player in the

diagram above.)

• To operate the cassette deck or MD recorder using the COMPU

LINK remote control system, set the source name correctly (See

page ! 1.)

• Refer also to the manuals supplied with your audio components.

This remote control system allows you to use four functions listed

below.

Remote Control throuah the Remote Sensor on the

Receiver

You can control the connected audio components through the remote

sensor on the receiver using this remote control. Aim the remote

control directly at the remote sensor on the receiver. For details, see

pages 29 and 30.

Automatic Power On/OFF (StandbyS: only possible

with the COMPU LINK-3 connection

Both the CD player and cassette deck (or MD recorder) turn on and

off(standby) along with the receiver.

When you turn on the receiver, the CD player or cassette deck (or

MD recorder) will turn on automatically, depending on which

component has been previously selected.

When you turn off the receiver, both the CD player and cassette

deck (or MD recorder) will turn off (standby).

Synchronized Recordina

Synchronized recording means the cassette deck (or MD recorder)

stairs recording as soon as a CD or a record begins playing.

To use synchronized recording, follow these steps:

1. Put a tape in the cassette deck (or an MD in the

MD recorder), and a disc in the CD player (or a

record on the turntable).

,Press the record (0) button and the pause (11)

button on the cassette deck (or MD recorder) at

the same time.

This puts the cassette deck (or MD recorder) into recording

pause.

If you do not press the record (e) button and pause (U) button at

the same time, the synchronized recording feature will not

operate.

oPress the play (_) button on the CD player or on

the turntable.

The source changes on the receiver, and as soon as play starts,

the cassette deck (or MD recorder) starts recording. When the

play ends, the cassette deck (or MD recorder) enters recording

pause, and stops about 4 seconds later.

Notes:

• During synchronized recording, the selected source cannot be

changed.

• ffthepowerofanycomponentisshutoffduringsynchronized

recording, the COMPU LINK remote control system may not

operate properly In this case, you must start again from the

beginning.

Automatic Source Selection

When you press the play (1_) button on a connected component or

on its own remote control, the receiver automatically turns on and

changes the source to the component. On the other hand, if you

select a new source on the receiver or on the remote control, the

selected component begins playing immediately.

in both cases, the previously selected source continues playing

without sound for a few seconds.

COMPU LINK Remote Control System

The AV COMPU LINK remote control system allows you to operate JVC video components (TV, VCR, and DVD player)

through the receivea

To use this remote control systenl, you need to connect the video components you want to operate, follow the diagrams below and the

procedure on the next page.

CONNECTIONS 1:

VCR DVD player

IMPORTANT:

Connect to the terminal indicated in the

illustration.

DO NOT connect to the TV terminal

TV CAUTION

The AV COMPU LINK remote

control system cannot control the

DBS tuner connected to the TV

SOUND/DBS jacks.

If the AV COMPU LINK terminal

on the TV is "RECEIVER/AMP"

•When connecting only the

If the AV COMPU LINK terminal

on the TV is "AV COMPU LINK

EX" __A__

[

VCR or DVD player to this

receiver, connect it directly to

the receiver using cable with

the monaural mini-plugs.

•Refer also to the manuals

supplied with your video

components.

CONNECTIONS 2:

_lf the DUD is with the S-video terminals

player equipped

t DO NOT use this video terminal. I

DVD player

m_jm

_lf the DVD player is not equipped with the S-video terminals

I Do NOT usethisvideo terminal,t

DVDNaver

TO Video input 2

1. If you have already plugged your VCR, DVD

player, TV, and this receiver into the AC outlets,

unplug their AC power cords first.

2. Connect your VCR, DVD player, TV, and this

receiver, using the cables with the monaural mini-

plugs (not supplied).

•See "CONNECTIONS 1" on the previous page.

3. Connect the audio input/output jacks on VCR,

DVD player, TV, and this receiver using the

cables with RCA pin plug

•See pages 5 and 6.

4. Connect the video input/output jacks on VCR,

DVD player, TV, and this receiver, using the

cables with RCA pin plug or with

S-video plug.

•See "CONNECTIONS 2" on the previous page.

5. Plug the AC power cords of the components into

the AC outlets,

6. When turning on the TV for the first time after

the AV COMPU LINK connection, turn the TV

volume to the minimum using the TV volume

control on the TV,

7. Turn on the other connected components first,

then turn on this receiver.

• When turning on the VCR, use the remote control supplied

with this receiver (press VCR POWER).

The AV COMPU LINK remote control system allows you to use the

five basic functions listed below.

•Remote Control of the TV. DVD olayer, and VCR

Usina This Remote Control

See page 30 for details.

For the DVD player and the VCR:

•Aim the remote control directly at the remote sensor on each

component.

For the TV having AV COMPU LINK terminal "RECEIVER/

AMP":

• Aim the remote control directly at the remote sensor on the

receiver.

For the TV having AV COMPU LINK terminal "AV COMPU

LINK EX':

• Aim the remote control directly at the remote sensor on the TV.

•One.Touch DVD Play

Simply by starting playback on the DVD player, you can enjoy the

DVD playback without setting other switches manually.

•When the DVD player is connected through the anal_ input jacks

on this receiver (and analog input is selected), the receiver

automatically rams on and changes the source to "DVDY

•WhentheDVDplayerisconnectedthroughthedigitalinput

terminal on this receiver (and digital input is selected), the

receiver automatically turns on and changes the source to "DVD

DIGITAL."

The TV automatically turns on and changes the input mode to the

position so that you can view the playback picture.

•Automatic Selection of TV's Input Mode

• When you select "TV SOUND" as the source to play on the

receiver, the TV automatically changes the input mode to the TV

tuner so that you can watch TVI

• When you select "DVD" (or "DVD DIGITAL"), "VCR," or

"DBS" (or "DBS DIGITAL") as the source to play on the receiver,

the TV automatically changes the input mode to the appropriate

position (either Video input 1 or Video Input 2) so that you can

view the playback picture.

•Automatic Power On/Off

The TV, VCR, and DVD player turn on and off along with the

receiver.

When you tam on the receiver;

• If the previously selected source is "VCR," the TV and VCR will

turn on automatically.

• If the previously selected source is "TV SOUND" or "DBS" (or

"DBS DIGITAL"), only the TV will turn on automatically.

• If the previously selected source is "DVD" (or "DVD DIGITAL"),

the TV and DVD player will turn on automatically

When you tam off the receiver, the TV, VCR and the DVD player

will turn ofl_

Note:

If you turn off the receiver while recording on the VCR, the VCR will

not turn off, but continue recording.

•One.Touch Video Play

Simply by inserting a video cassette without its safety tab into the

VCR, you can enjoy the video playback without setting other

switches manually. The receiver automatically turns on and changes

the source to "VCR."

The TV automatically turns on and changes the input mode to the

position so that you can view the playback picture.

When you insert a video cassette with its safety tab, press the play

(_) button on the VCR or on the remote control So, you can get the

same result.

Operating JVC's Audio/Video Components

You can operate JVC's audio and video components with this receiver's remote control, since control signals for JVC

components are preset in the remote control.

IMPORTANT: Sound control section (AmDlifierl

To operate JVC's audio components using this remote control: You can always perform the following operations:

• You need to connect JVC audio components through the COMPU

LINK-3 (SYNCHRO) jacks (see page 26) in addition to the

connections using cables with RCA pin plugs (see page 5).

• Aim the remote control directly at the remote sensor on the receiver.

• If you use the buttons on the front panel to choose a source, the

remote control will not operate that source. To operate a source with

the remote control, the source must be selected using source

selecting buttons on the remote control.

• To operate the cassette deck or MD recorder using the COMPU

LINK remote control system, set the source name correctly. (See

page 11 .)

• Refer also to the manuals supplied with your components.

.IVn

SURROUND:

SURROUND MODE:

Turns on or oil" the Surrotmd modes ............

Dolby Pro Logic, Dolby Digital, and DTS

Digital Surround.

Selects the DSP modes.

After pressing SOUND, you can perform the following operations:

SUBWOOFER - /+: Adjusts the subwoofer output level.

CENTER - l+: Adjusts the center speaker output level.

REAR°L - l+: Adjusts the left rear speaker output level.

REAR'R -/+: Adjusts the right rear speaker output level.

EFFECT: Selects the effect level.

TEST: ]_rns on or off the test tone output.

Note:

After adjusting sounds, press the corresponding source selecting

button or CD-DISC to operate your target source by using the 10

keys; otherwise, the 10 keys cannot be used for operating your target

sout'ce.

Turntable

After pressing PHONO, you can perform the following operations

on a turntable:

D,-: Starts playing.

I1: Stops operations.

After pressing CD, you can perform the following operations on the

CD player:

[l_lP[:

I1:

1 - 10, +10:

Starts playing.

Returns to the beginning of the current (or

previous) track.

Skips to the beginning of the next track.

Stops playing.

Pauses playing. '1_ release it, press I_.

Selects a track number directly.

For track number 5, press 5.

For track number 15, press +10, then 5.

For track number 20, press +10, then 10.

For track number 30, press +10, -710, then 10.

Tuner

After pressing FM/AM, you can perform the following operations:

FMIAM: Alternates between FM and AM.

1 - 1 O, +1 O: Selects a preset channel number directly.

For channel number 5, press 5.

For channel number 15, press + 10, then 5.

For channel number 20, press -710, then 10.

CD player.changer

After pressing CD-DISC, you can perfolTn the following operations

on a CD player-changer:

t4<1:

II_b,'l:

I1:

1 - 6, 71P:

Starts playing.

Returns to the beginning of the current (or previous)

track.

Skips to the beginning of the next track.

Stops playing.

Pauses playing. To release it, press I_.

Selects the number of a disc installed in a CD

player-changer.

If your CD changer is of 200-disc loading capability (except for XL_

MCI00 and XL-MC301),

you can do the following operations using the number buttons after

pressing CD.

• 10 button can function as 0.

1. Select a disc number.

2. Then select a track number (always enter two digits).

3, Start playback.

gx.

Selecting disc number 3, track number 2, and start playback.

Press 3, then, 10, 2, then _.

Selecting disc number 10, track number 5, and start playback.

Press 1, 10, then, 10, 5, then D,-.

Selecting disc number 105, track number 12, and start playback.

Press 1, 10, 5, then 1,2 then D,-.

Cassette deck

After pressing TAPE/MD, you can perfolTn the following operations

on a cassette deck:

-,11<1:

b,.l_:

I1:

II:

Starts playing.

Fast winds the tape from fight to left.

Fast winds the tape from left to right.

Stops operations.

Pauses playing. To release it, press D,-.

MD recorder

After pressing TAPE/MD, you can perfolTn the following operations

on the MD recorder:

D,-: Starts playing.

1_14: Returns to the beginning of the current (or previous)

track.

I_m,_l: Skips to the beginning of the next track.

I1: Stops playing.

I1: Pauses playing. To release it, press D,-.

Note:

Before starting the above operations, make sure that you have

changed the source name correctly See page 11.

IMPORTANT:

To operate JVC's video components using this remote control:

• You need to connect JVC video components through the AV

COMPU LINK terminals (see page 27) in addition to the

connections using cables with RCA pin plugs (see page 6).

• Some JVC VCRs can accept two types of the control signals --

remote code "A" and "B." Before using tNs remote control, make

sure that the remote control code of the VCR connected to the VCR

jacks is set to code "A."

• When using the remote control:

- For the DVD player and VCR operations, aim the remote control

directly at the remote sensor on each component, not on the

receiver.

- For the TV operations:

• If the TV has the AV COMPU LINK terminal "RECEIVER/AMP,"

aim the remote control directly at the remote sensor on the

receiver.

• If the TV has the AV COMPU LINK terminal "AV COMPU LINK

EX," aim the remote control directly at the remote sensor on the

TV.

VCR

You can always perform the following operations:

VCR POWER: Turns on or offthe VCR.

After pressing VCR, you can perfolrn the following operations on

the VCR:

1 -9, 0:

I1:

VCR CH +/-:

Selects the TV channels on VCR.

Starts playing.

Rewinds a tape.

Fast winds a tape.

Stops operations.

Pauses playing. '1_ release it, press I_.

Changes the TV channels on the VCR.

DVD plaver

After pressing DVD, you can perform the following operations on a

DVD player:

D,-: Starts playing.

1_14: Returns to the beginning of the current (or previous) track.

I_,-I: Skips to the beginning of the next track.

I: Stops playing.

I1: Stops playing tempormily. To release it, press D,-.

After pressing DVD, these buttons

can be used for the DVD menu

operations.

Note:

For detailed menu operations, refer to the

instructions supplied with the discs or the

DVD player.

T__V

You can always perform the following operations:

TV POWER:

TVTVIDEO:

TV VOL +/-:

TV CH +/-:

1-9, 0, +10:

]_rns on or off the TV.

Sets the input mode (either TV or VIDEO).

Adjusts the volume.

Changes the channels.

Selects the channels.

Troubleshooting

Use this chart to help you salve daily operational problems, ff there is any problem you cannot solve, contact your JVC

service center.

PROBLEM POSSIBLE CAUSE

The display does not light up. The power cord is not plugged in.

No sound from speakers. Speaker signal cables are not connected.

The SPEAKERS 1 and 2 bu|tons are not

set correctly.

An incorrect source is selected.

Muting is activated.

Speaker signal cables are not connected

properly.

The balance is set to one extreme.

Incoming signal is too weak.

Sound fi'om one speaker only.

Continuous hiss or buzzing during FM

reception.

Occasional cracking noise during FM

reception.

ttowling during record playing.

"OVERLOAD" starls llashing on the

display.

Remote con|rol does not work.

The station is too 13r away.

An incorrect antenna is used.

SOLUTION

Plug the power cord into an AC outlet.

Check speaker wiring and reconnect if

necessary.

Press SPEAKERS 1 and 2 correctly.

Select the correct source.

Press MUTING to cancel the mute.

Check speaker wiring and reconnect if

necessary.

Artiust the balance properly (see page 11).

Connect an outdoor FM antenna or contact

your dealer.

Select a new station.

Check with your dealer to be sure you have

the correct antenna.

Antennas are not connected properly. Check connections.

Ignition noise from automobiles. Move the antenna li_rther from automobile

traffic.

Your turntable is too close to speakers. Move speakers away from the turntable.

Speakers are overloaded because of high

volume.

Speakers are overloaded because of short

circuit of speaker terminals.

There is an obstruction in front of the

remote sensor on the receiver.

1. Press POWER on the front panel to turn off

the receiver.

2. Stop the playback source.

3. Turn on the receiver again, and adjust the

volume.

Press POWER on the l?ont panel to turn off

the receiver, check the speaker wiring, then

press it again to turn on llle receiver again.

If "OVERLOAD" does not disappear though

speaker wiring is not shod-circuited, consult

your dealer.

Remove the obstruction.

Batteries are weak. Replace batteries.

Specifications

A__m_plifier

Output Power

At Stereo operation:

Frontchannels: 100 W per channel, min. RMS, driven into 8

40 Hz to 20 kHz with no more than 0.8% total

harmonic distortion.

At Surround operation:

Front channels: 100 W per channel, min. RMS, driven into 8 _2 at 1 kHz with no

more than 0.8% total harmonic distortion.

Center channel: 100 W, rain. RMS, driven into 8 _ at 1 kHz, with no more than

0.8% total harmonic distortion.

Rear channels: 100 W per channel, min. RMS, driven into 8 _2 at 1 kHz, with no

more than 0.8% total harmonic distortion.

Audio

Audio Input Sensitivity/Impedance (1 kHz):

Audio Input (DIGITAL IN)* :

Audio Output Level:

Signal-to-Noise Ratio ('66 IHF/'78 IHF):

Frequency Response (8 ohms):

dB at 100 Hz

RIAA Phono Equalization:

Bass Boost:

Tone Control:

PHONO (MM): 2.7 mV/47 k

CD, TAPE/MD, TV SOUND/DBS, VCR, DVD:

220 mV/47 k

Coaxial: DIGITAL 1 (DVD): 0.5 V (p-p)/75 _2

Optical: DIGITAL 2(CD): -21 dBmto 15dBm(660nm±30nm)

* Corresponding to Linear PCM, Dolby Digital, and DTS Digital Surround (with

sampling frequency 32 kHz, 44.1 kHz, 48 kHz).

TAPE/MD, VCR: 220 mV

PHONO: 70 dB/78 dB (at REC OUT)

CD, TAPE/MD, TV SOUND/DBS, VCR, DVD:

87 dB/80 dB

PHONO: 20 Hz to 20 kHz (±1 dB)

CD, TAPE/MD, TV SOUND/DBS, VCR, DVD:

20 Hz to 20 kHz (±1 dB)

=1 dB (20 Hz to 20 kHz)

-73 dB =1

Bass (100 Hz): =10 dB =2 dB

q]-eble (10 kHz): =10 dB ±2 dB

Video

Video Input Sensitivity/impedance:

Composite video: DBS, VCR, DVD:

S-video: DVD:

Video Output Level:

Composite video:

S-video:

(Y: luminance):

(C: chrominance, burst):

VCR, MONITOR OUT:

MONITOR OUT: (Y: luminance):

(C: chrominance, burst):

1 V (p-p)/75

0.286 V (p-p)/75 f2

1 V (p-p)/75

0.286 V (p-p)/75 f2

Synchronization: Negative

Signal-to-Noise Ratio: 45 dB

FM tuner (IHF)

Tnning Range:

Usable Sensitivity:

50 dB Quieting Sensitivity:

Signal-to-Noise Ratio (IHF-A weighted):

_l_tal Hamlonic Distortion:

AM tuner

Stereo Separation at REC OUT:

Alternate Channel Selectivity:

Frequency Response:

Timing Range:

Usable Sensitivity:

Signal-to-Noise Ratio:

General

Power Requirements:

Power Consumption:

Dimensions (W x H x D):

Mass:

87.5 MHzto 108.0 MHz

Monaural:

Stereo:

Monaural:

Stereo:

Monaural:

Stereo:

35dBat 1 kHz

45 dB: (=400 kHz)

12.8 dBf(L2 gV775 _)

21.3 dBf(3.2 gV775 _)

41.3 dBf(31.5 _V/75 f_)

78 dB at 85 dBf

73 dB at 85 dBf

0A% at 1 kHz

0.6% at 1 kHz

30 Hz to 15 kHz: (+0.5 dB, 3 dB)

530 kHzto 1,710 kHz

Loop antenna 400 gV/m

50 dB (100mV/m)

AC 120Vr_, 60 Hz

290 W/390 VA (at operation)

2 W (in standby mode)

435 mm x 146 mm x 403.5 mm

(17 30(,in. x 5 3/4 in. x 15 15/Er,in.)

10.2 kg (22.5 lbs)

Designs & specifications are subject to change without notice.

JVC SE V'OE

HOW TO LOCATE YOUR JVC SERVICE CENTER

TOLL FREE : 1-800-537-5722

http://wwwjvcservice.com

Dear customer:

In order to receive the most satisfaction from your purchase, read the instruction booklet before operating the unit. In the event that repair

is necessary, or for the address nearest your location, please refer to the factory service center list below or within the Continental

United States, Carl 1-800-537-5722 for your authorized servicer. Remember to retain your Bil! of Sale for Warranty Service.

--JVC

JVC SERVICE & ENGINEERING

COMPANY OF AMERICA

DIVISION OF JVC AMERICAS CORP.

FACTORY SERVICE CENTER LOCATIONS

10 New Maple Avenue

Pine Brook, NJ 07058-9641

(973) 396-1000

5665 Corporate Avenue

Cypress, CA 90630-0024

(714) 229-8011

13 Cummings Park

Woburn, MA 01801

(781) 376-9100

1500 Lakes Parkway

Lawrenceville, GA 30243-5857

(770) 339-2582

2969 Mapunapuna Place

Honolulu, HI 96819-2040

(808) 833-5828

8192 State Road 84

Davie, FL 33324

(954) 472-1960

705 Enterprise Street

Aurora, IL 60504-8149

(630) 851-7855

10700 Hammerly, Suite 110

Houston, TX 77043

(713) 935-9331

890 Dubuque Avenue

South San Francisco, CA 94080-1804

(650) 871-2666

Sophisticated electronic products may require occasional service. Just as quality is a keyword in the engineering and production of

the wide array of JVC products, service is the key to maintaining the high level of performance for which JVC is world famous. The

JVC service and engineering organization stands behind our products.

NATIONAL HEADQUARTERS

JVC SERVICE & ENGINEERING COMPANY OF AMERICA

DIVISION OF JVC AMERICAS CORP.

1700 Valley Road

Wayne, NJ 07470

If you ship the product • • •

Pack your JVC unit in the original carton or one of equivalent

size and strength. Enclose, with the unit, a letter stating the

problem or symptom that exists and also a copy of the

receipt or bitl of sale you received when you purchased your

JVC unit. Print your home return address on the outside

and the inside of the carton. Send to the appropriate JVC

Factory Service Center as listed above.

Don't service it yourself.

CAUTION

To prevent electrical shock, do not open the cabinet. No user

serviceable parts inside.

Refer servicing to qualified service personnel

ACCESSORIES

To purchase accessories for your JVC product, you may contact your loca! JVC Dealer.

Or from the 48 Continental United States carl tel! free : 800-882-2345

(1099)

JVC COMPANY OF AMERICA warrants this product and all parts thereof, except as set forth below ONLY TO THE ORIGINAL

PURCHASER AT RETAIL to be FREE FROM DEFECTIVE MATERIAL AND WORKMANSHIP from the date of originai retail

purchase for the period as shown below. ("The Warranty Period.")

* PARTS LABOR

* 2YR 2YR

* THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY(50) UNITED STATES, THE DISTRICT OF COLUMBIAAND IN

. COMMONWEALTH OF PUERTO RICO.

WHAT WE WILL DO:

If this product is found to be defective, JVC will repair or replace defective parts at no charge to the original owner. Such

*repair and replacement services shall be rendered by JVC during normal business hours at JVC authorized service centers.

Parts used for replacement are warranted only for the remainder of the Warranty Pedod. All products and parts thereof may be

*brought to a JVC authorized service center on a carry-in basis except for Television sets having a screen size 25 inches and

*above which are covered on an in-home basis.

. WHAT YOU MUST DO FOR WARRANTY SERVICE:

.Return your product to a JVC authorized service center with a copy of your bill of sale. For your nearest JVC authorized

service center, please call toll free: (800)537-5722.

If service is not available locally, box the product carefully, preferably in the original carton, and ship, insured, with a copy of

*your bill of sale plus and letter of explanation of the problem to the nearest JVC Factory Service Center, the name and location

* of which will be given to you by the toll-free number.

If you have any questions concerning your JVC Product, please contact our Customer Relations Department.

.WHAT IS NOT COVERED:

This limited warranty provided by JVC does not cover:

1. Products which have been subject to abuse, accident, alteration, modification, tampering, negligence, misuse, faulty

installation, lack of reasonable care, or if repaired or serviced by anyone other than a service facility authorized by JVC to

render such service, or if affixed to any attachment not provided with the products, or if the model number or serial number

has been altered, tampered with, defaced or removed;

2. Initial instailation and installation and removal for repair;

3. Operational adjustments covered in the Owner's Manual, normal maintenance, video and audio head cleaning;

4. Damage that occurs in shipment, due to act of God, and cosmetic damage;

* 5. Signal reception problems and failures due to line power surge;

6. Video Pick-up Tubes/COD Image Sensor, Cartridge, Stylus(Needle) are covered for 90 days from the date of purchase;

.7. Accessories;

8. Batteries (except the Rechargeable Batteries are covered for 90 days from the date of purchase);

There are no express warranties except as Iisted above.

* THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS

*LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN.

JVC SHALL NOT BE LIABLE FOR THE LOSS OF USE OF THE PRODUCT, INCONVENIENCE, LOSS ORANY OTHER

DAMAGES, WHETHER DIRECT, iNCIDENTAL OR CONSEQUENTIAL (iNCLUDING, WITHOUT LIMITATION, DAMAGE TO

TAPES, RECORDS OR DISCS) RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF

THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY

AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE WARRANTY PERIOD SET FORTH ABOVE.

Some states do not allow the exclusion of incidental or consequential damages or limitations on how long an implied

warranty last, so these limitations or exclusions may not apply to you. This warranty gives you specific IegaI rights and you may

also have other rights which vary from state to state.

JVC COMPANY OF AMERICA

DIVISION OF JVC AMERICAS CORR 1700 Valley Road

Wayne, NJ 07470

REFURBISHED PRODUCTS CARRY A SEPARATE WARRANTY, THIS WARRANTY DOES NOT APPLY. FOR DETAILS OF

REFURBISHED PRO DUCT WARRANTY, PLEASE REFER TO THE REFURBISHED PRODUCT WARRANTY INFORMATION

PACKAGED WITH EACH REFURBISHED PRODUCT.

For customer use:

Enter below the Model No. and Serial No. which is Iocated either on the rear, bottom or side of the cabinet. Retain this

information for future reference.

Model No.: Serial No.:

Purchase date: Name of dealer:

JVC

VICTOR COMPANY OF JAPAN, LIMITED

(_1299HIMMDWJEIN

JVC DS TP330 User Manual HOME THEATER Manuals And Guides L0212211

JVC Receivers Manual L0212211 JVC Receivers Owner's Manual, JVC Receivers installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
