JVC

COMPACT COMPONENT SYSTEM

Consist of CA.FSSD550 and SP.FSSD550

Consist of CA.FSSD770 and SP.FSSD770

Consist of CA.FSSD990 and SP.FSSD990

FS-SD550

DIGITAL AUDIO

FS-SD770, FS-SD990

INSTRUCTIONS For Customer Use:

Enter below the Model No. and Serial No.

which are located either on the rear, bot-

tom or side of the cabinet. Retain this

information for future reference.

Model No.

Serial No.

GNT0008-001A

[J]

I

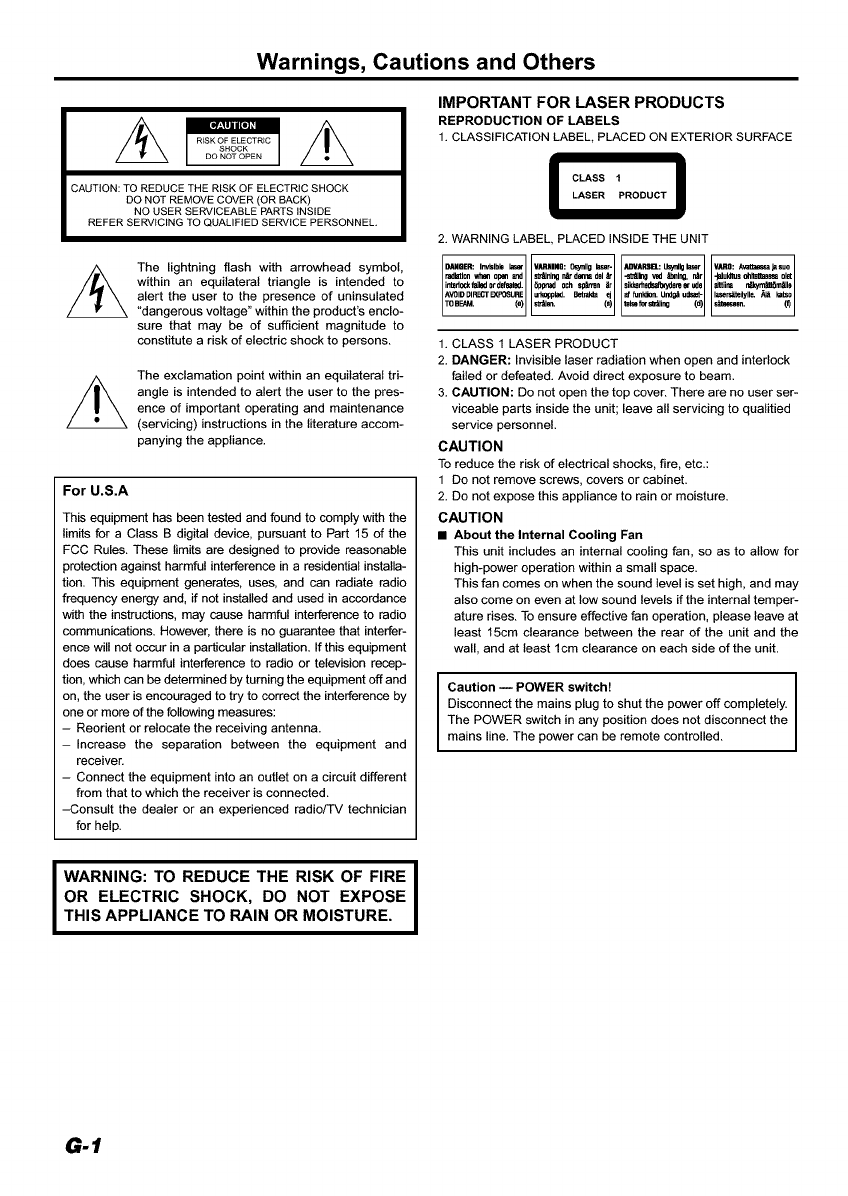

Warnings, Cautions and Others

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol,

within an equilateral triangle is intended to

alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclo-

sure that may be of sufficient magnitude to

constitute a risk of electric shock to persons.

The exclamation point within an equilateral tri-

angle is intended to alert the user to the pres-

ence of important operating and maintenance

(servicing) instructions in the literature accom-

panying the appliance.

For U.S.A

This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installa-

tion. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interfer-

ence will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television recep-

tion, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by

one or more of the following measures:

- Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and

receiver.

- Connect the equipment into an outlet on acircuit different

from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician

for help.

IMPORTANT FOR LASER PRODUCTS

REPRODUCTION OF LABELS

1. CLASSIFICATION LABEL, PLACED ON EXTERIOR SURFACE

LASER PRODUCT

2. WARNING LABEL, PLACED INSIDE THE UNIT

DANGER: Invisible laser VARNINO: Osynllg laser- ADVARIII_: Us_l_ laser VARO: A_tmeeea _suo

radbtlon Whml opal and seining _d_Im del Ir -,J_db0 red t#alr_, i1Ar J_luMtus eh_ olet

in_dockfaJledordef_ted. _ppnad och sp_ren _r si_J_rlle_ereerude a]ttiina rdlkynltlJ0rnfdle

AVOIODIRECTEXFOGURE urkoppiad. BetraJ_ ej _fun_lon. und_uds_t- laSersdteilylle. ,_t katso

]_]BE_M. (e) sl_]en. (s) telseforsf_]ing (d) s_teeseen. (t)

1. CLASS 1 LASER PRODUCT

2. DANGER: Invisible laser radiation when open and interlock

failed or defeated. Avoid direct exposure to beam.

3. CAUTION: Do not open the top cover. There are no user ser-

viceable parts inside the unit; leave all servicing to qualitied

service personnel.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1 Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

CAUTION

•About the Internal Cooling Fan

This unit includes an internal cooling fan, so as to allow for

high-power operation within a small space.

This fan comes on when the sound level is Bet high, and may

also come on even at low sound levels if the internal temper-

ature rises. To ensure effective fan operation, please leave at

least 15cm clearance between the rear of the unit and the

wall, and at least lcm clearance on each side of the unit.

ICaution -- POWER switch!

Disconnect the mains plug to shut the power off completely.

The POWER switch in any position does not disconnect the

mains line. The power can be remote controlled.

WARNING: TO REDUCE THE RISK OF FIRE

OR ELECTRIC SHOCK, DO NOT EXPOSE

THIS APPLIANCE TO RAIN OR MOISTURE. I

G-t

Thank you for purchasing the JVC Compact Component System.

We hope it will be a valued addition to your home, giving you years of enjoyment.

Be sure to read this instruction manual carefully before operating your new stereo system.

In it you will find all the information you need to set up and use the system.

If you have a query that is not answered by the manual, please contact your dealer.

Features

Here are some of the things that make your System both powerful and simple to use.

• The controls and operations have been redesigned to make them very easy to use, freeing you to

just enjoy the music, i

•With JVC's COMPU PLAY you can turn on the System and automatically start the Radio or COMrvm_-r£..AY

CD Player with a single touch.

• The System incorporates Active Hyper Bass PRO circuitry to faithfully reproduce low frequency

sounds.

• A 45-station preset capability (30 FM and 15 AM) in addition to anto-seek and manual tuning.

• CD options that include repeat, random and program play.

• Timer functions; Daily Timer and Sleep Timer.

• You can connect various external units, such as an MD recorder.

• The system can play CD-R and CD-RW after they have been finalized.

• You can play back your original CD-R or CD-RW recorded in Music CD format. (However they may not be played back

depending on their characteristics or recording conditions.)

How This Manual Is Organized

• Basic information that is the same for many different functions - e.g. setting the volume - is given in the section

'Basic Operations', and not repeated under each function.

• The names of buttons/controls and display messages are written in all capital letters: e.g. FM/AM, "NO DISC".

• System functions are written with an initial capital letter only: e.g. Normal Play.

Use the table of contents to look up specific information you require.

We have enjoyed making this manual for you, and hope it serves you in enjoying the many features built into your System.

WARNINGS

• DO NOT PUT ANYTHING ON THE TOP COVER. IF THE SYSTEM IS OPERATED WITH SOMETHING

PUT ON THE TOP COVER, IT WILL BE DAMAGED WHEN YOU TRY TO OPEN THE TOP COVER.

•NEVER REMOVE THE TOP COVER FROM THE UNIT. SERIOUS INJURY MAY OCCUR IF THE SYS-

TEM IS OPERATED WITHOUT THE TOP COVER.

IMPORTANT CAUTIONS

1Installation of the System

• Select a place which is level, dry and neither too hot nor too cold. (Between 5°C and 35°C or 4I°F and 95°F.)

• Leave sufficient distance between the System and a TV.

• Do not use the System in a place subject to vibrations.

2Power cord

• Do not handle the power cord with wet hands!

• Some power is always consumed as long as the power cord is connected to the wall outlet.

• When unplugging the System from the wall outlet, always pull the plug, not the power cord.

3Malfunctions, etc.

• There are no user serviceable parts inside. In case of system failure, unplug the power cord and consult your dealer.

• Do not insert any metallic object into the System.

• Do not insert your hand between the Top Cover and the main body when the Top Cover is being closed.

1

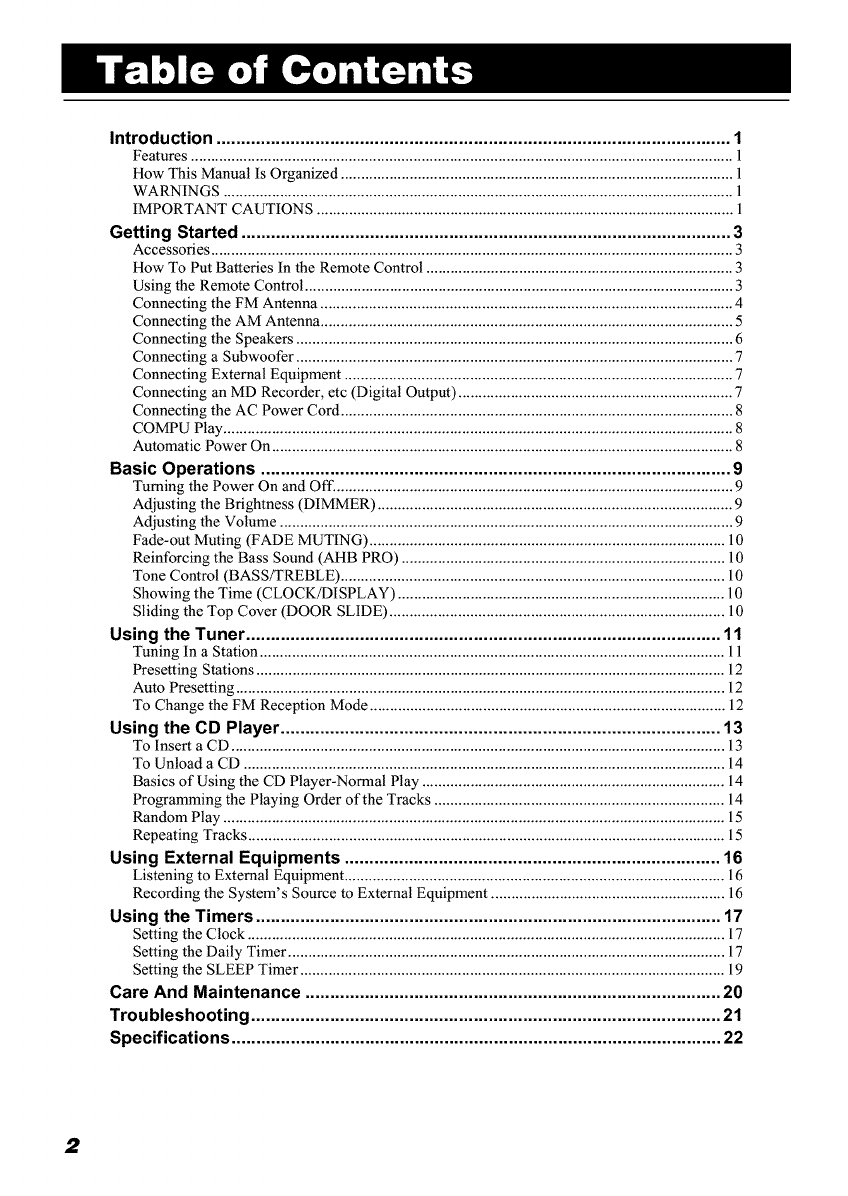

Introduction ........................................................................................................ 1

Features ...................................................................................................................................... l

How This Manual Is Organized ................................................................................................. 1

WARNINGS .............................................................................................................................. 1

IMPORTANT CAUTIONS ....................................................................................................... 1

Getting Started ................................................................................................... 3

Accessories ................................................................................................................................. 3

How To Put Batteries In the Remote Control ............................................................................ 3

Using the Remote Control .......................................................................................................... 3

Connecting the FM Antenna ...................................................................................................... 4

Connecting the AM Antenna ...................................................................................................... 5

Connecting the Speakers ............................................................................................................ 6

Connecting a Subwoofer ............................................................................................................ 7

Connecting External Equipment ................................................................................................ 7

Connecting an MD Recorder, etc (Digital Output) .................................................................... 7

Connecting the AC Power Cord ................................................................................................. 8

COMPU Play .............................................................................................................................. 8

Automatic Power On .................................................................................................................. 8

Basic Operations ............................................................................................... 9

Turning the Power On and Off. .................................................................................................. 9

Adjusting the Brightness (DIMMER) ........................................................................................ 9

Adjusting the Volume ................................................................................................................ 9

Fade-out Muting (FADE MUTING) ........................................................................................ 10

Reinforcing the Bass Sound (AHB PRO) ................................................................................ 10

Tone Control (BASS/TREBLE) ............................................................................................... 10

Showing the Time (CLOCK/DISPLAY) ................................................................................. 10

Sliding the Top Cover (DOOR SLIDE) ................................................................................... 10

Using the Tuner ................................................................................................ 11

Tuning In a Station ................................................................................................................... 11

Presetting Stations .................................................................................................................... 12

Auto Presetting ......................................................................................................................... 12

To Change the FM Reception Mode ........................................................................................ 12

Using the CD Player ......................................................................................... 13

To Insert a CD .......................................................................................................................... 13

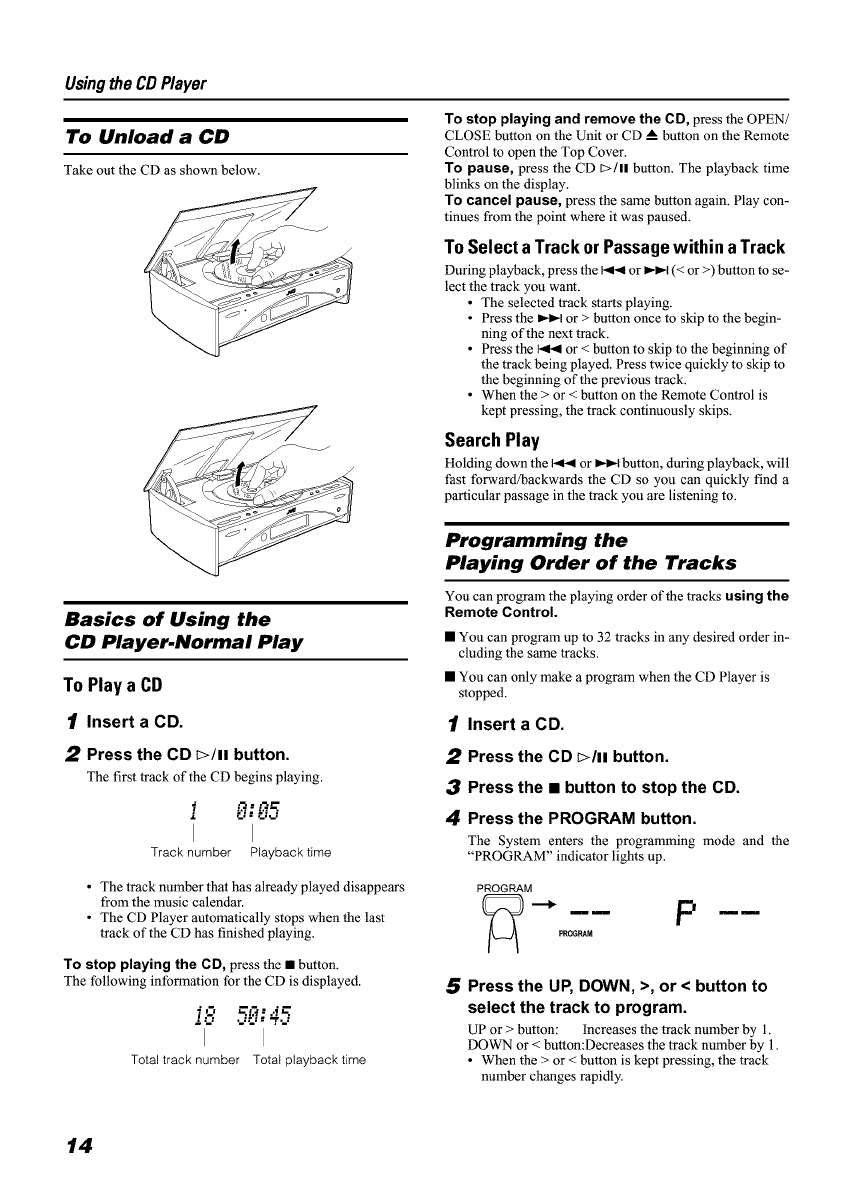

To Unload a CD ....................................................................................................................... 14

Basics of Using the CD Player-Normal Play ........................................................................... 14

Programming the Playing Order of the Tracks ........................................................................ 14

Random Play ............................................................................................................................ 15

Repeating Tracks ...................................................................................................................... 15

Using External Equipments ............................................................................ 16

Listening to External Equipment .............................................................................................. 16

Recording the System's Source to External Equipment .......................................................... 16

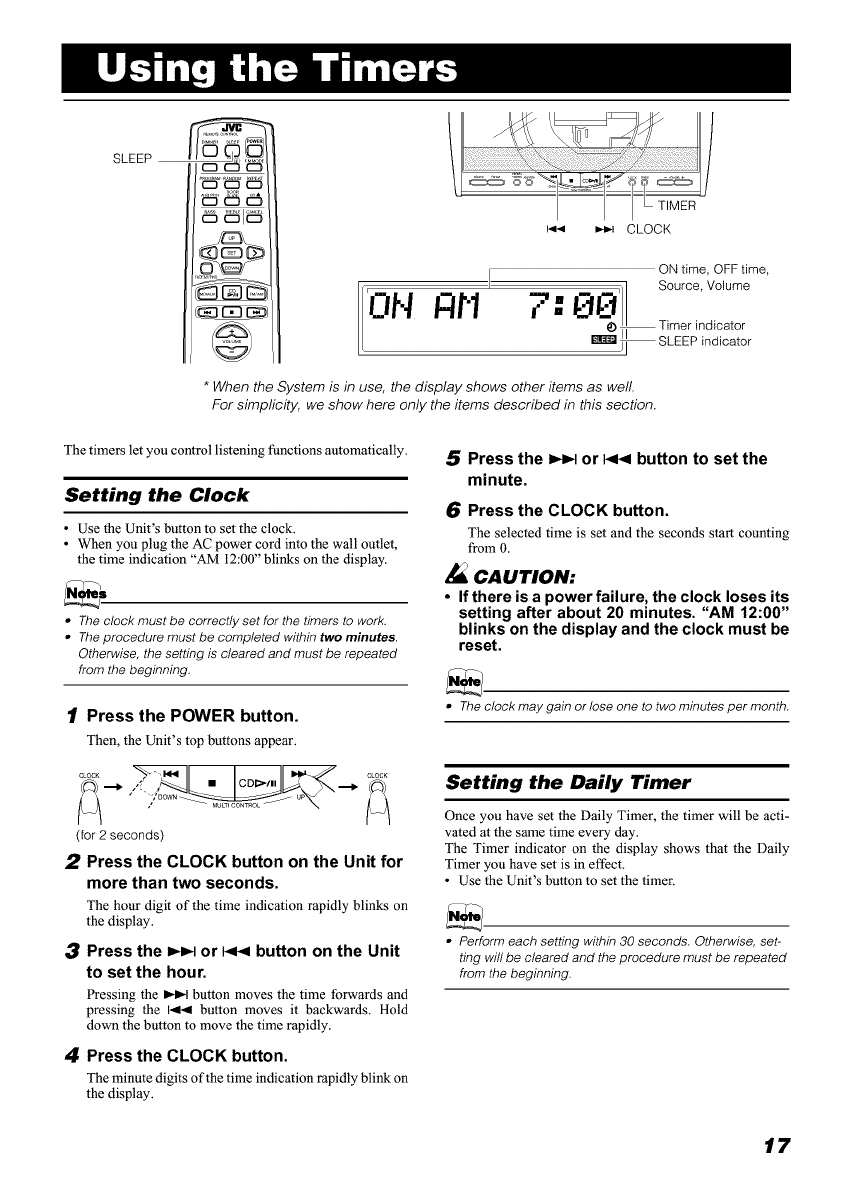

Using the Timers .............................................................................................. 17

Setting the Clock ...................................................................................................................... 17

Setting the Daily Timer ............................................................................................................ 17

Setting the SLEEP Timer ......................................................................................................... 19

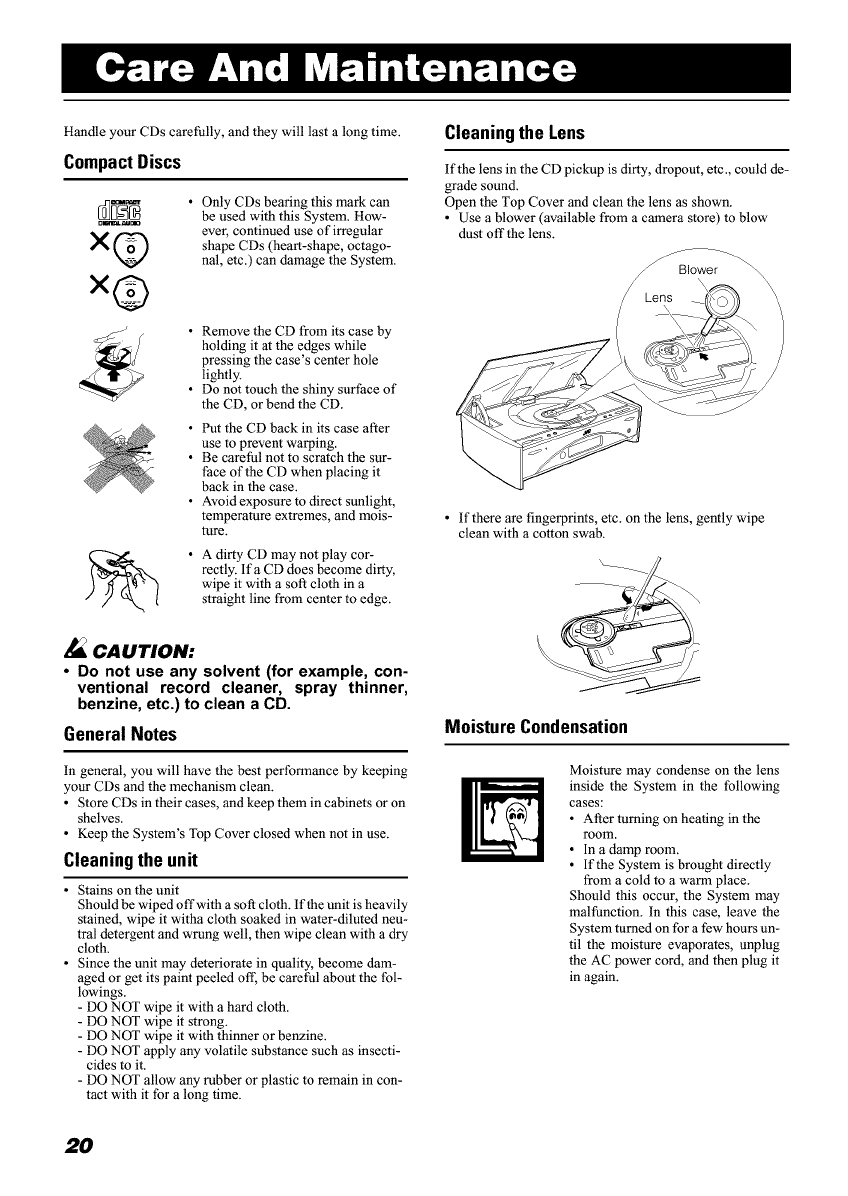

Care And Maintenance .................................................................................... 20

Troubleshooting ............................................................................................... 21

Specifications ................................................................................................... 22

2

Accessories

Make sure that you have all of the following items, which are supplied with the System.

Power Cord (1)

AM Loop Antenna (1)

Remote Control (1)

Batteries (2)

FM Wire Antenna (1)

Speaker Cords (2)

If any of these items are missing, contact your dealer immediately.

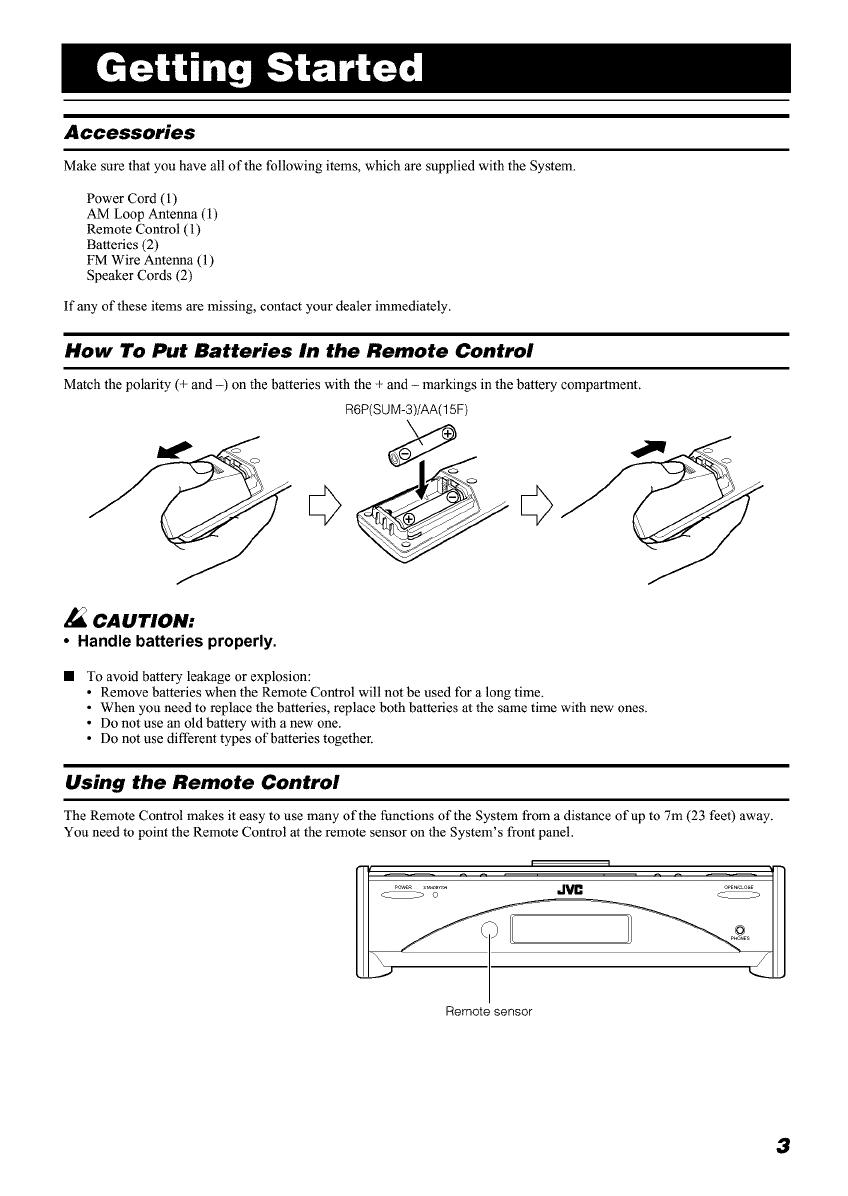

How To Put Batteries In the Remote Control

Match the polarity (+ and -) on the batteries with the + and - markings in the battery compartment.

R6P(SUM-3)/AA(15F)

-&

CAUTION:

• Handle batteries properly.

•To avoid battery leakage or explosion:

•Remove batteries when the Remote Control will not be used for a long time.

• When you need to replace the batteries, replace both batteries at the same time with new ones.

• Do not use an old battery with a new one.

• Do not use different types of batteries together.

Using the Remote Control

The Remote Control makes it easy to use many of the functions of the System from a distance of up to 7m (23 feet) away.

You need to point the Remote Control at the remote sensor on the System's front panel.

Remote sensor

3

GettingStarted

CAUTION:

• Make all connections before plugging the System into an AC power outlet

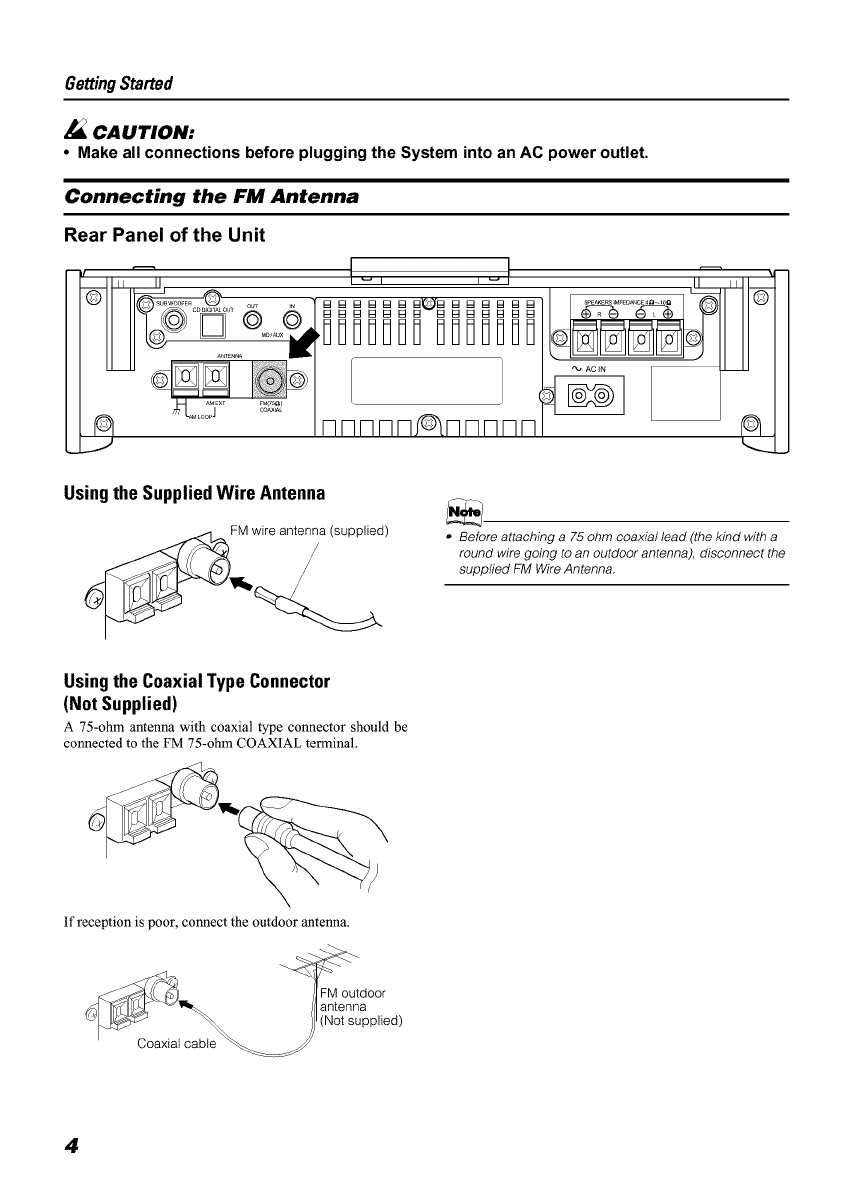

Connecting the FM Antenna

Rear Panel of the Unit

/

Using the Supplied Wire Antenna

FM wire antenna (supplied) •Before attaching a 75 ohm coaxial lead (the kind with a

round wire going to an outdoor antenna), disconnect the

supplied FM Wire Antenna.

Using the Coaxial Type Connector

(Not Supplied)

A 75-ohm antenna with coaxial type connector should be

connected to the FM 75-ohm COAXIAL terminal.

If reception is poor, connect the outdoor antenna.

Coaxial cable

=M outdoor

antenna

(Not supplied)

4

GettingStarted

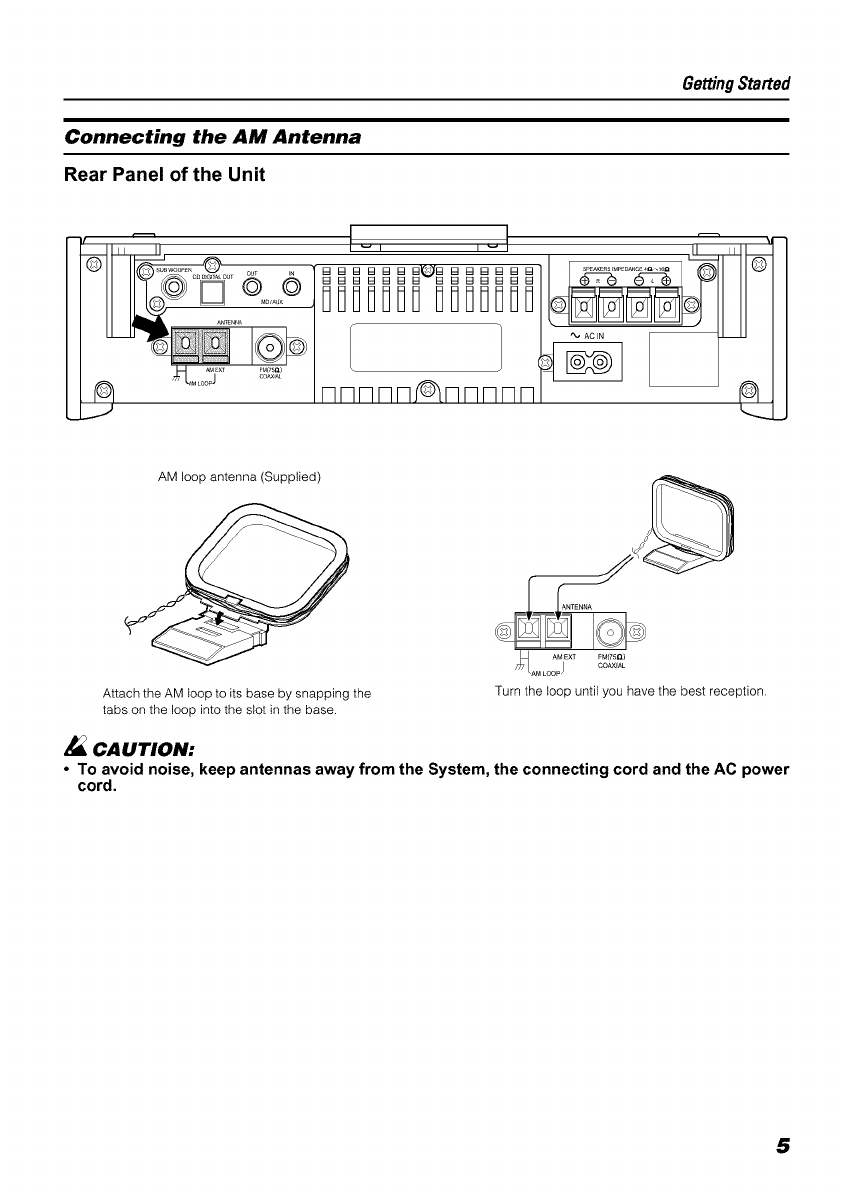

Connecting the AM Antenna

Rear Panel of the Unit

/ill]

nnnnn nnnnn

II ii

"k, AC IN -- -

AM loop antenna (Supplied)

Attach the AM loop to its base by snapping the

tabs on the loop into the slot in the base.

CAUTION:

AM LOOp J

Turn the loop until you have the best reception.

• To avoid noise, keep antennas away from the System, the connecting cord and the AC power

cord

5

GettingStarted

J_ CAUTION:

• Make all connections before plugging the System into an AC power outlet.

Connecting the Speakers

1. ()pen each of the terminals to connect the speaker wire leads.

2. Connect the speaker cords between the Speaker terminals of the Unit and the terminals of the Speakers.

Connect the cords with a black line to the (-) terminals and cords without a black line to the (+) terminals.

3. Close each of the terminals to securely connect the cords.

Right side (rear view) Marked with a black line Left side (rear view)

•Since both speakers are the same, you can put either one to the right or left side.

,_ CAUTION:

•A TV may display irregular colors if located near the speakers. If this happens, set the speak-

ers away from the TV.

Removing the speaker grilles (FS-SD550) (FS-SD770andFS-SD990)

The speaker grilles can be moved.

When removing:

1. Pull the top forwards you with your fingers.

2. Also pull the bottom towords you.

•When removing the speaker grille from the FS-

SD990's speaker, be careful not to damage the cab-

inet.

When attaching the speaker grille:

6

(FS-SD550) (FS-SD770 and FS-SD990)

\Speaker

grille

grille

GettingStarted

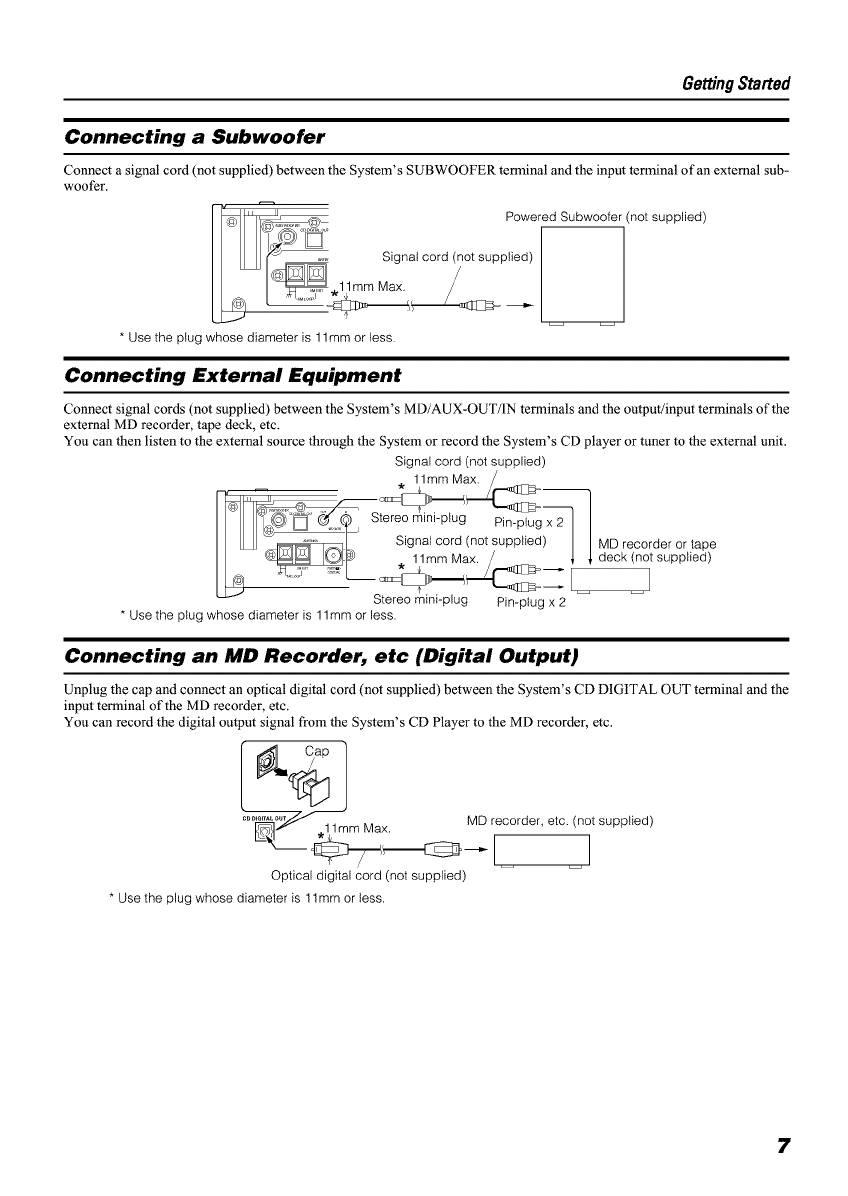

Connecting a Subwoofer

Connect a signal cord (not supplied) between the System's SUBWOOFER terminal and the input terminal of an external sub-

woofer.

__ PoweredSubwoofer (not supplied)

_=_]_*11mm M_ia_iat c°rd (n°t supplied)r_ //

* Use the plug whose diameter is 1lmm or less.

Connecting External Equipment

Connect signal cords (not supplied) between the System's MD/AUX-OUT/IN terminals and the output/input terminals of the

external MI) recorder, tape deck, etc.

You can then listen to the external source through the System or record the System's CD player or tuner to the external unit.

Signal cord (not supplied)

*11mm M_:E_

_)@ "_' @JQ__._) S ereo mini-p ug pin_plugx2 I

I L_J _P_l _ Signal cord (not supplied) IMD recorder or tape

I _ (S))H_ 11mmMax /_ deck (not supplied)

I _ _1 _ /,-_>--,

Stereo mini-plug Pin-plug x 2

* Use the plug whose diameter is 1lmm or less.

Connecting an MD Recorder, etc (Digital Output)

Unplug the cap and connect an optical digital cord (not supplied) between the System's CI) DIGITAL OUT terminal and the

input terminal of the MI) recorder, etc.

You can record the digital output signal from the System's CI) Player to the MD recorder, etc.

COD,_,T._/ MD recorder, etc. (not supplied)

17_1/'" .11 mm Max.

Optical digital cord (not supplied)

* Use the plug whose diameter is 11ram or less.

7

GettingStarted

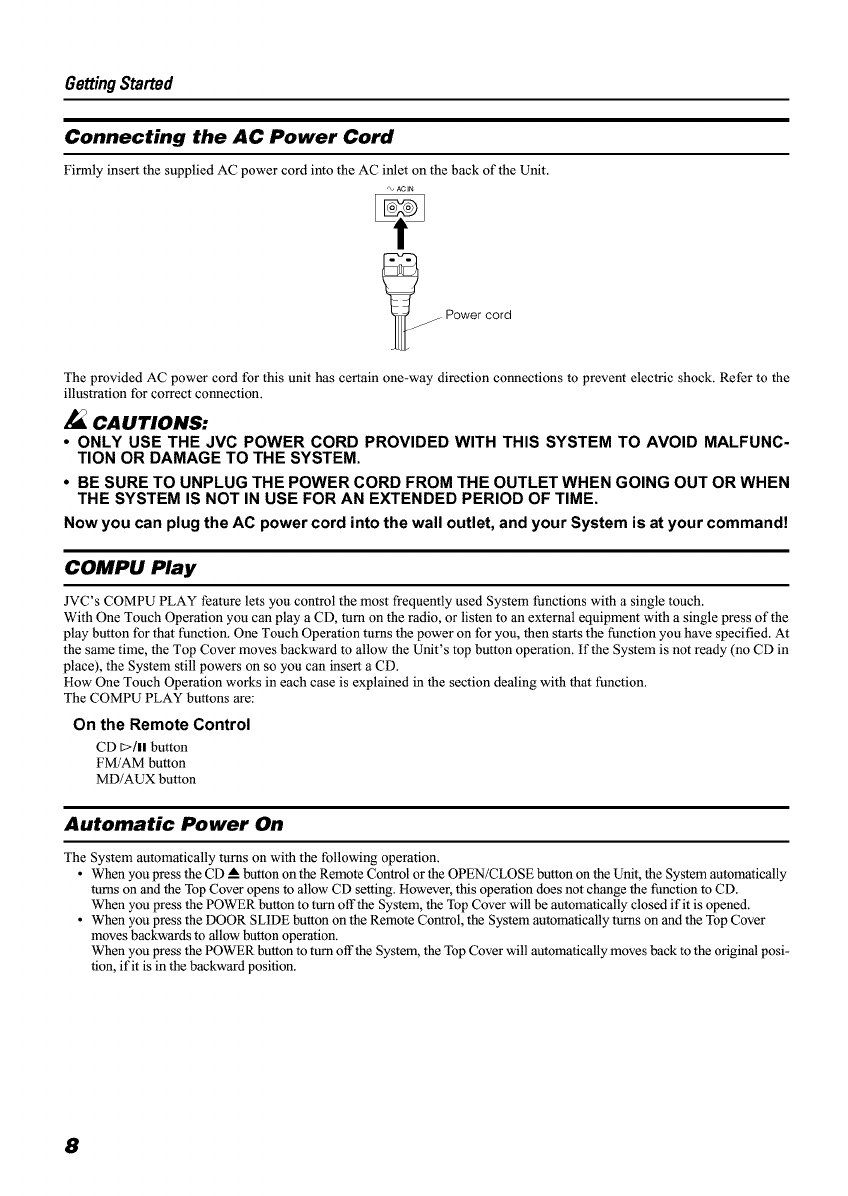

Connecting the AC Power Cord

Firmly insert the supplied AC power cord into the AC inlet on the back of the Unit.

,_ ACIN

_ Power cord

The provided AC power cord for this unit has certain one-way direction connections to prevent electric shock. Refer to the

illustration for correct connection.

CAUTIONS:

• ONLY USE THE JVC POWER CORD PROVIDED WITH THIS SYSTEM TO AVOID MALFUNC-

TION OR DAMAGE TO THE SYSTEM

•BE SURE TO UNPLUG THE POWER CORD FROM THE OUTLET WHEN GOING OUT OR WHEN

THE SYSTEM IS NOT IN USE FOR AN EXTENDED PERIOD OF TIME

Now you can plug the AC power cord into the wall outlet, and your System is at your command!

COMPU Play

JVC's COMPU PLAY feature lets you control the most frequently used System functions with a single touch.

With One Touch Operation you can play a CD, turn on the radio, or listen to an external equipment with a single press of the

play button for that function. One Touch Operation turns the power on for you, then starts the function you have specified. At

the same time, the Top Cover moves backward to allow the Unit's top button operation. If the System is not ready (no CD in

place), the System still powers on so you can insert a CD.

How One Touch Operation works in each case is explained in the section dealing with that function.

The COMPU PLAY buttons are:

On the Remote Control

CD D/II button

FM/AM button

MD/AUX button

Automatic Power On

The System automatically turns on with the following operation.

•When you press the CD ! button on the Remote Control or the 0PEN/CLOSE button on the Unit, the System automatically

turns on and the Top Cover opens to allow CD setting. However, this opelation does not change the function to CD.

When you press the POWER button to turn off the System, the Top Cover will be automatically closed if it is opened.

• When you press the DOOR SLIDE button on the Remote Control, the System automatically turns on and the Top Cover

moves backwards to allow button operation.

When you press the POWER button to turn offthe System, the Top Cover will automatically moves back to the original posi-

tion, if it is in the backward position.

8

POWER

Turning the Power On and Off

Turning the System On

Press the POWER button.

The Top Cover moves backward and the Unit's top buttons

appear. The display comes on and "HELLO" is displayed

once. The STANDBY/ON indicator lights in green.

The System comes on ready to continue in the mode it was

in when the power was last turned off.

• For example, if the last thing you were doing was listen-

ing to a CD, you are now ready to listen to a CD again. If

you wish, you can change to another source.

• If you were listening to the Tuner last, the Tuner comes

on playing the station it was last set to.

Turning the System Off

Press the POWER button again.

The Top Cover moves back to the original position.

"GOOD BYE" is displayed and the display goes out, except

for the clock display. The STANDBY/ON indictor lights in

red.

• Some power is always consumed even though power is

turned off (called Standby Mode).

• To switch off the System completely, unplug the AC

power cord from the wall outlet. When you unplug the

AC power cord, the clock will be reset to AM 12:00 after

about 20 minutes.

Adjusting the Brightness

(DIMMER)

You can adjust the brightness of the backlighting for the dis-

play.

When the System is Turned On

Each time you press the DIMMER button on the Remote

Control, the brightness of the backlighting changes as fol-

lows:

Bright --_ Dark --_ (back to the beginning)

Top Cover

AHB PRO CLOCK VOLUME+,-

_TANDBY/ON indicator |

POWER PHONES

When the System is Turned Off

(STANDBYMODE)

Each time you press the DIMMER button on the Remote

Control, the brightness of the backlighting changes as fol-

lows:

No backlighting -_ Dark backlighting

--_ (back to the beginning)

•When the System is turned off again after power on, the

brightness in Standby mode will be restored to the previ-

ous one since the brightness setting in Standby mode is

stored in memory.

Adjusting the Volume

Press the VOLUME + button to increase the volume or

press the VOLUME - button to decrease it.

; ;.'" ; ;'..'; .... %; ; ....

• • • • • • .••. Ill• •will

• II II • Illll II

".-'"...:'.... "..:" ;L .... :. -.."

You can adjust the volume level between 0 and 50.

CAUTION:

•DO NOT turn on the System and/or start

playing any source without first setting the

VOLUME control to minimum, as a sudden

blast of sound could damage your hearing,

speakers and/or headphones.

For private listening

Connect a pair of headphones to the PHONES .jack. No

sound comes out of the speakers.

Be sure to turn down the volume before connecting or put-

ting on headphones.

9

BasicOperations

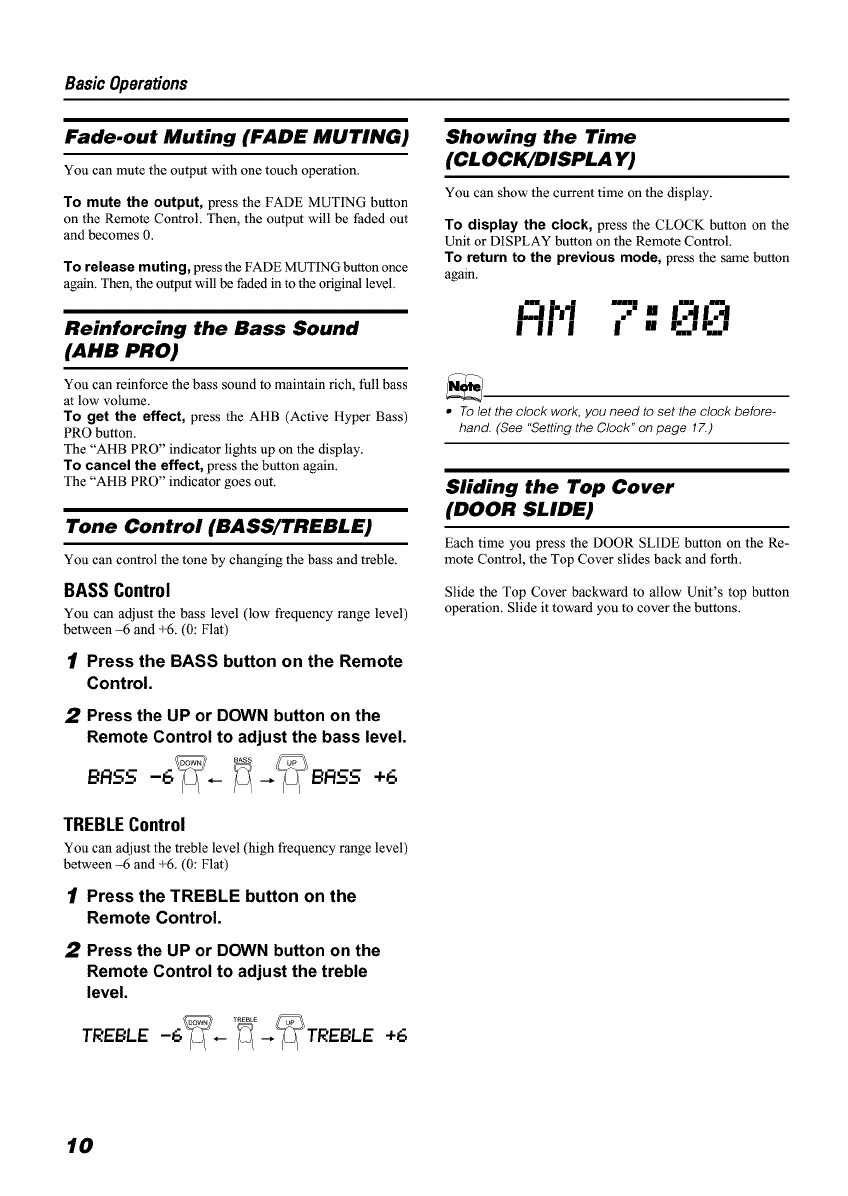

Fade.out Muting (FADE MUTING)

You can mute the output with one touch operation.

To mute the output, press the FADE MUTING button

on the Remote Control. Then, the output will be faded out

and becomes 0.

To release muting, press the FADE MUTING button once

again. Then, the output will be faded in to the original level.

Reinforcing the Bass Sound

(ANB PRO)

You can reinforce the bass sound to maintain rich, full bass

at low volume.

To get the effect, press the AHB (Active Hyper Bass)

PRO button.

The "AHB PRO" indicator lights up on the display.

To cancel the effect, press the button again.

The "AHB PRO" indicator goes out.

Tone Control (BASS/TREBLE)

You can control the tone by changing the bass and treble.

BASS Control

You can adjust the bass level (low frequency range level)

between -6 and _-6. (0: Flat)

1Press the BASS button on the Remote

Control.

2Press the UP or DOWN button on the

Remote Control to adjust the bass level.

TREBLEControl

You can adjust the treble level (high frequency range level)

between -6 and _-6. (0: Flat)

1Press the TREBLE button on the

Remote Control.

2Press the UP or DOWN button on the

Remote Control to adjust the treble

level.

TREBLE -6_-_E--,_TREBLE +6

Showing the Time

(CLOCK/DISPLA Y)

You can show the current time on the display.

To display the clock, press the CLOCK button on the

Unit or DISPLAY button on the Remote Control.

To return to the previous mode, press the same button

again.

hi 7-1313

I II I I [] r...Jr...m

• Tolet the clock work, you need to set the clock before-

hand. (See "Setting the Clock" on page 17.)

Sliding the Top Cover

(DOOR SLIDE)

Each time you press the DOOR SLIDE button on the Re-

mote Control, the Top Cover slides back and forth.

Slide the Top Cover backward to allow Unit's top button

operation. Slide it toward you to cover the buttons.

10

AUTO

PRESET

<

SET

_/ FM MODE

uP

II °OWN

_1 m FM/AM

PRESET _< _,_l

TUNING Band display, Frequency display, Preset channel

I

I.

IFH 15IIHz

FM mode _R_o

indicators I[

*When the System is in use, the display shows other items as well.

For simpficity, we show here only the items described in this section.

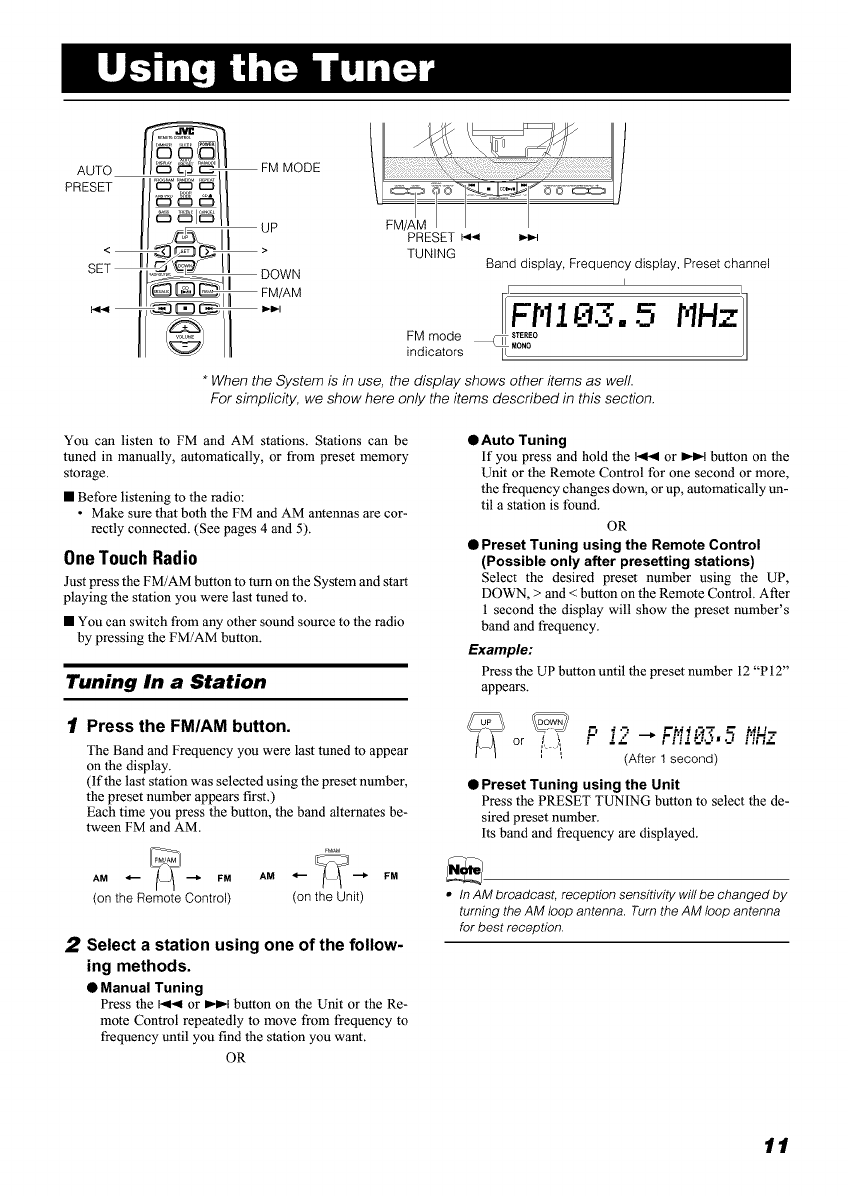

You can listen to FM and AM stations. Stations can be

tuned in manually, automatically, or from preset memory

storage.

• Before listening to the radio:

• Make sure that both the FM and AM antennas are cor-

rectly connected. (See pages 4 and 5).

One Touch Radio

Just press the FM/AM button to turn on the System and start

playing the station you were last tuned to.

• You can switch from any other sound source to the radio

by pressing the FM/AM button.

Tuning In a Station

1Press the FM/AM button.

The Band and Frequency you were last tuned to appear

on the display.

(If the last station was selected using the preset number,

the preset number appears first.)

Each time you press the button, the band alternates be-

tween FM and AM.

AM 4-- _ FM AM 4-- _ FM

(on the Remote Control) (on the Unit)

2Select a station using one of the follow-

ing methods.

•Manual Tuning

Press the I..14 or _-_t button on the Unit or the Re-

mote Control repeatedly to move from frequency to

frequency until you find the station you want.

OR

•Auto Tuning

If you press and hold the I<1-,11or _-_t button on the

Unit or the Remote Control for one second or more,

the frequency changes down, or up, automatically un-

til a station is found.

OR

•Preset Tuning using the Remote Control

(Possible only after presetting stations)

Select the desired preset number using the UP,

DOWN, > and < button on the Remote Control. After

1 second the display will show the preset number's

band and frequency.

Example:

Press the UP button until the preset number 12 "P 12"

appears.

.... iii03 :: m,_,.-.

(After 1 second)

•Preset Tuning using the Unit

Press the PRESET TUNING button to select the de-

sired preset number.

Its band and frequency are displayed.

•InAMbroadcast, receptionsensitivitywillbechangedby

turning the AM loop antenna. Turn the AM loop antenna

for best reception.

11

Usingthe Tuner

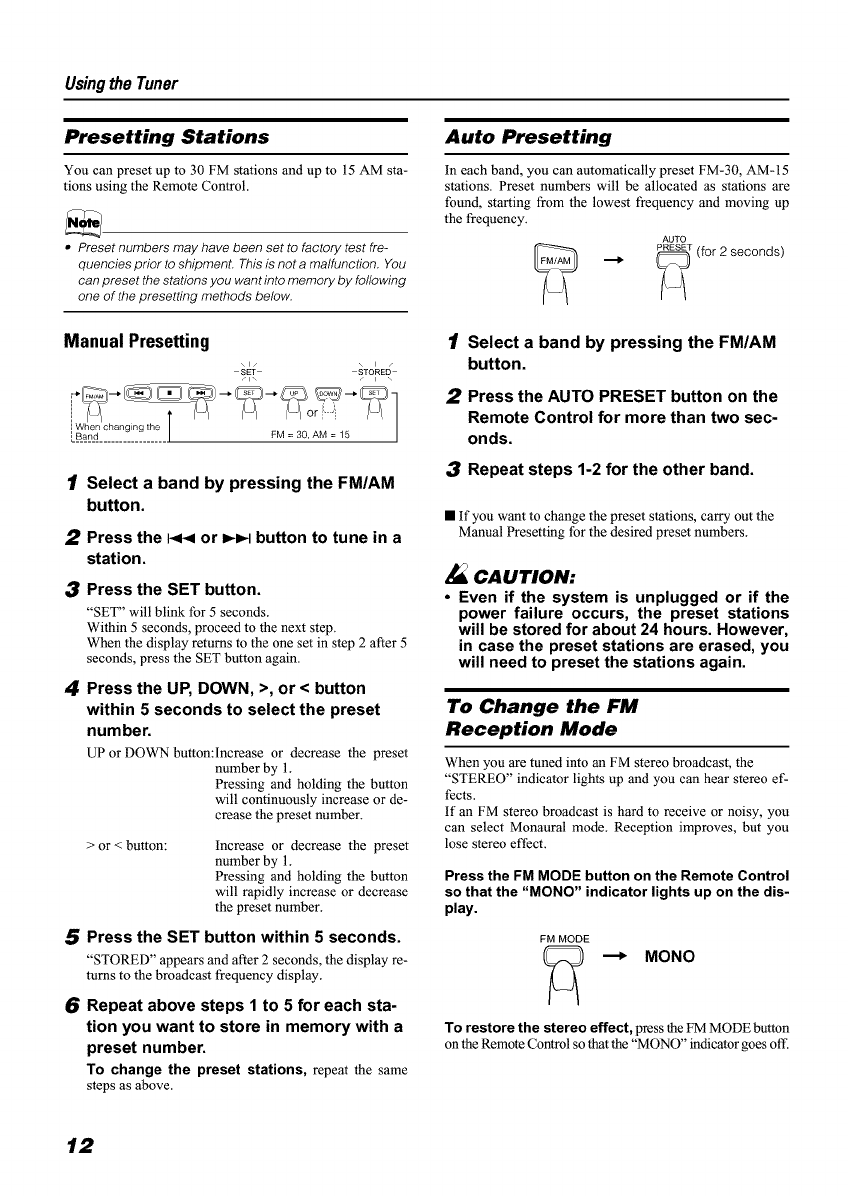

Presetting Stations

You can preset up to 30 FM stations and up to 15 AM sta-

tions using the Remote Control.

•Preset numbers may have been set to factory test fre-

quencies prior to shipmenL This is not a malfunction. You

can preset the stations you want into memory by following

one of the presetting methods below.

Manual Presetting

S T STORED

/i \

.l_Vahrec__changing the [

1Select a band by pressing the FM/AM

button.

2Press the I<t< or I_1_1button to tune in a

station.

3Press the SET button.

"SET" will blink for 5 seconds.

Within 5 seconds, proceed to the next step.

When the display returns to the one set in step 2 after 5

seconds, press the SET button again.

4Press the UP, DOWN, >, or < button

within 5 seconds to select the preset

number.

UP or DOWN button:Increase or decrease the preset

number by 1.

Pressing and holding the button

will continuously increase or de-

crease the preset number.

> or < button: Increase or decrease the preset

number by 1.

Pressing and holding the button

will rapidly increase or decrease

the preset number.

5Press the SET button within 5 seconds.

"STORED" appears and after 2 seconds, the display re-

turns to the broadcast frequency display.

6Repeat above steps I to 5 for each sta-

tion you want to store in memory with a

preset number.

To change the preset stations, repeat the same

steps as above.

Auto Presetting

In each band, you can automatically preset FM-30, AM-15

stations. Preset numbers will be allocated as stations are

found, starting from the lowest frequency and moving up

the frequency.

AUTO

_ _T (for 2 seconds)

/Select a band by pressing the FM/AM

button.

2Press the AUTO PRESET button on the

Remote Control for more than two sec-

onds.

3Repeat steps 1-2 for the other band.

• If you want to change the preset stations, carry out the

Manual Presetting for the desired preset numbers.

Z_ CAUTION:

•Even if the system is unplugged or if the

power failure occurs, the preset stations

will be stored for about 24 hours. However,

in case the preset stations are erased, you

will need to preset the stations again.

To Change the FM

Reception Mode

When you are tuned into an FM stereo broadcast, the

"STEREO" indicator lights up and you can hear stereo ef-

fects.

If an FM stereo broadcast is hard to receive or noisy, you

can select Monaural mode. Reception improves, but you

lose stereo effect.

Press the FM MODE button on the Remote Control

so that the "MONO" indicator lights up on the dis-

play.

FM MODE

---_ MONO

To restore the stereo effect, press the FM MODE button

on the Remote Control so that the "MONO" indicator goes off.

12

PROGRAM !!'_"_ -_' _ !! REPEAT

RANDOM _( _, _ r_. I! CD ,i

SET '_I \ 9, _l ,,

CDb/,, I

Top Cover

141_l• CD bill

OPEN/CLOSE

Track number, Playing time, Preset number

I

20 50:45 :'1

PRO_R_NDOM_AU_3 Play mode indicators

,nnnnn.nnn,mm.mc_umn_,,, jj

Music calendar Track number exceeding 20 is

not displayed.

*When the System is in use, the display shows other items as well.

For simplicity, we show here only the items described in this section.

You can use Normal, Random, Program or Repeat Play. Re-

peat Play can repeat all the tracks or just one of the tracks

on the CD.

Here are the basic things you need to know to play a CD and

locate the different tracks on it.

This unit has been designed only to playback the CDs bear-

ing the marks.

DIGITAL AUDIO DIGITAL AUDIO

DIGITAL AUDIO IIIIIIIII_,G_

When playing a CD-R or CD-RW

You can play back finalized CD-R or CD-RW recorded mu-

sic CD format.

• You can play back CD-R or CD-RW like CD.

• Some CD-R or CD-RW may not be played back on this

unit because of their disc characteristics, damage or stain

on them, or if the player lens is dirty.

• The reflection factor of CD-RW is lower than that of oth-

er CD, possibly causing CD-RW to take longer to read.

The Quickest Way To Start a CD Is With the One

Touch Operation

• Press the CD !>/1! button on the Remote Control.

•The power is automatically turned on and the Top Cover

moves backward to allow the Unit's top button opera-

tion. Ifa CD is already inserted, it will start playing from

the first track.

• If no CD is inserted, "NO DISC" appears on the display

and the CD Player remains in Stop mode.

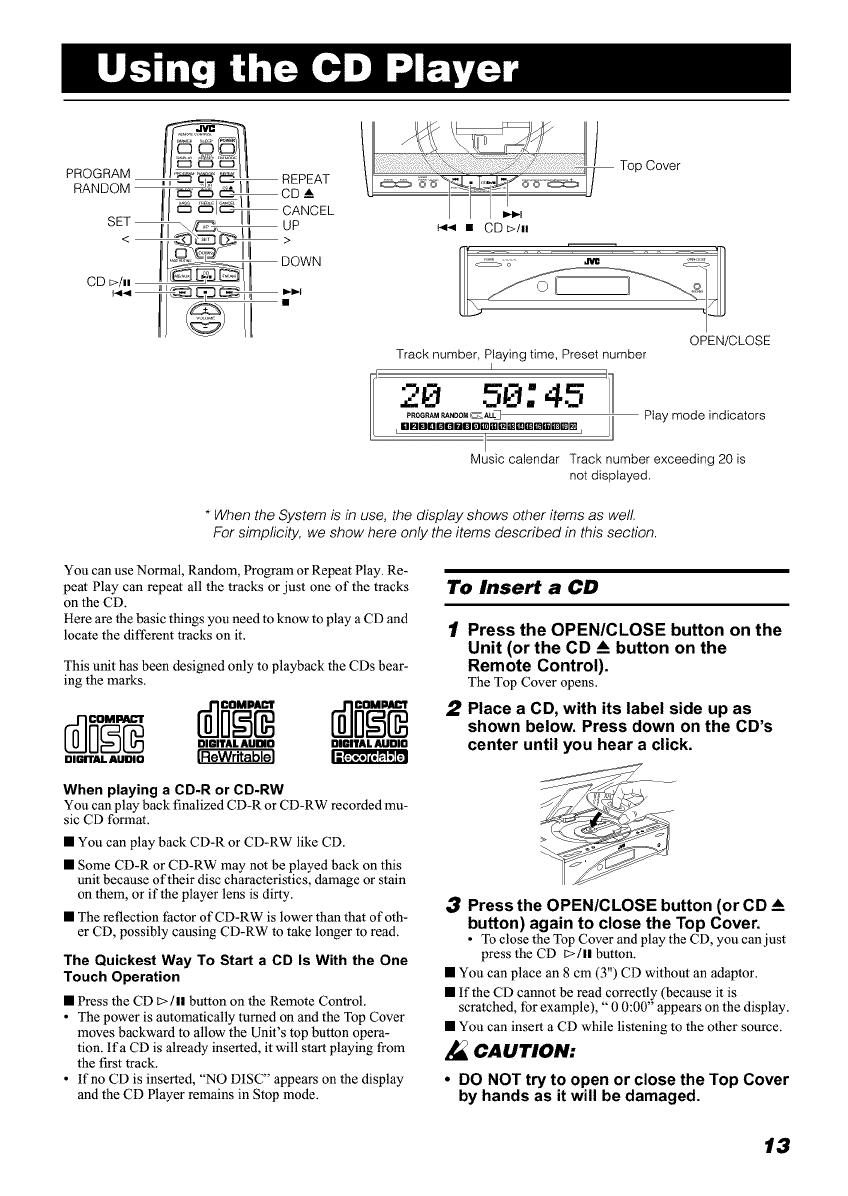

To Insert a CD

1Press the OPEN/CLOSE button on the

Unit (or the CD _Abutton on the

Remote Control).

The Top Cover opens.

2Place a CO, with its label side up as

shown below. Press down on the CD's

center until you hear a click.

3Press the OPEN/CLOSE button (or CD _A

button) again to close the Top Cover.

• To close the Top Cover and play the CD, you can just

press the CD Dill button.

• You can place an 8 cm (3") CD without an adaptor.

• If the CD cannot be read correctly (because it is

scratched, for example), "0 0:00" appears on the display.

• You can insert a CD while listening to the other source.

CAUTION:

• DO NOT try to open or close the Top Cover

by hands as it will be damaged.

13

Usingthe CDPlayer

To Unload a CD

Take out the CD as shown below.

Basics of Using the

CD Player.Normal Play

To Play a CD

1Insert a CD.

2Press the CD t>/ll button.

The first track of the CD begins playing.

• ,-_. ,-_r-

7 i.'. -;.'.",

J. _= ,_j..j

Track number Playback time

•The track number that has already played disappears

from the music calendar.

• The CD Player automatically stops when the last

track of the CD has finished playing.

To stop playing the CD, press the •button.

The following information for the CD is displayed.

!:- , i"" ; ='P, "

Total track number Total playback time

To stop playing and remove the CD, press the OPEN/

CLOSE button on the Unit or CD A button on the Remote

Control to open the Top Cover.

To pause, press the CD [:>/11 button. The playback time

blinks on the display.

To cancel pause, press the same button again. Play con-

tinues from the point where it was paused.

To Select a Track or Passage within a Track

During playback, press the I<1< or _-I_t (< or >) button to se-

lect the track you want.

• The selected track starts playing.

• Press the IH_I or > button once to skip to the begin-

ning of the next track.

• Press the I<P< or < button to skip to the beginning of

the track being played. Press twice quickly to skip to

the beginning of the previous track.

• When the > or < button on the Remote Control is

kept pressing, the track continuously skips.

Search Play

Holding down the I<P< or _-I_1 button, during playback, will

fast forward/backwards the CD so you can quickly find a

particular passage in the track you are listening to.

Programming the

Playing Order of the Tracks

You can program the playing order of the tracks using the

Remote Control•

• You can program up to 32 tracks in any desired order in-

cluding the same tracks.

• You can only make a program when the CD Player is

stopped.

1Insert a CD.

2Press the CD E>/. button.

3Press the •button to stop the CD.

4Press the PROGRAM button.

The System enters the programming mode and the

"PROGRAM" indicator lights up.

PROGRAM

PRCGP_M

SPress the UP, DOWN, >, or < button to

select the track to program.

UP or > button: Increases the track number by 1.

DOWN or < button:Decreases the track number by 1.

• When the > or < button is kept pressing, the track

number changes rapidly.

14

Usingthe CDPlayer

6Press the SET button.

Program order number

•-i (

... P.L

(After 2 seconds)

Total playback time of the programmed tracks

7Repeat steps 5 and 6 to select the other

tracks for the program.

You can see the total playback time of programmed

tracks on the display. Also, you can see the programmed

tracks on the music calendar.

BPress the CD _/a, button.

The System plays the tracks in the order you have pro-

grammed them.

• You can skip to a particular program track by pressing the

I<1< or _1 button during Program Play.

• To stop playing, press the • button once.

To confirm the programmed tracks while the CD

player is stopped, each time press the I<1<1or _1 but-

ton; the tracks making up the program will successively be

displayed in the programmed order.

To delete all the tracks in the program, in stop mode,

press the • button. Pressing the CD A button to open the

Top Cover will also clear the programmed tracks.

To exit the program mode once, while the CD Player

is stopped, press the PROGRAM button to light off the

"PROGRAM" indicator.

•If the total playback time of the programmed tracks ex-

ceeds 99 minutes 59 seconds, the total playback time will

go out on the display.

• If you try to program the 33rd track, "MEMORY FULL '_ap-

pears on the display for about 2 seconds.

To Modify the Program

Modify the contents of the program while the CD Player is

stopped.

Each time you press the CANCEL button, the last track in

the program is deleted. To add new tracks to the end of the

program, repeat above steps 5 to 7.

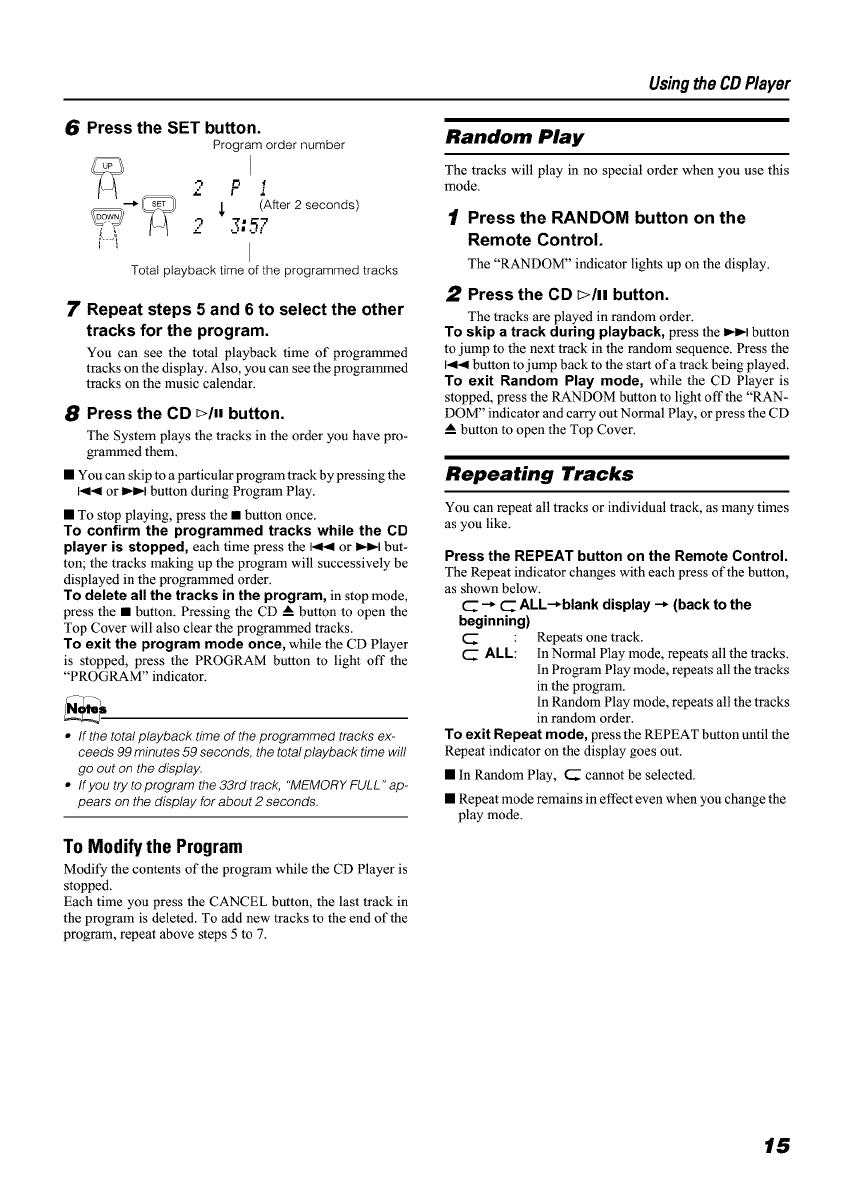

Random Play

The tracks will play in no special order when you use this

mode.

1Press the RANDOM button on the

Remote Control.

The "RANDOM" indicator lights up on the display.

2Press the CD _/aa button.

The tracks are played in random order.

To skip a track during playback, press the _1 button

to jump to the next track in the random sequence. Press the

I.<< button to jump back to the start of a track being played.

To exit Random Play mode, while the CD Player is

stopped, press the RANDOM button to light off the "RAN-

DOM" indicator and carry out Normal Play, or press the CD

! button to open the Top Cover.

Repeating Tracks

You can repeat all tracks or individual track, as many times

as you like.

Press the REPEAT button on the Remote Control.

The Repeat indicator changes with each press of the button,

as shown below.

(2_--_ (2ZALL--_blank display --_ (back to the

beginning)

C " Repeats one track.

CALL I In Normal Play mode, repeats all the tracks.

In Program Play mode, repeats all the tracks

in the program.

In Random Play mode, repeats all the tracks

in random order.

To exit Repeat mode, press the REPEAT button until the

Repeat indicator on the display goes out.

• In Random Play, C cannot be selected.

• Repeat mode remains in effect even when you change the

play mode.

15

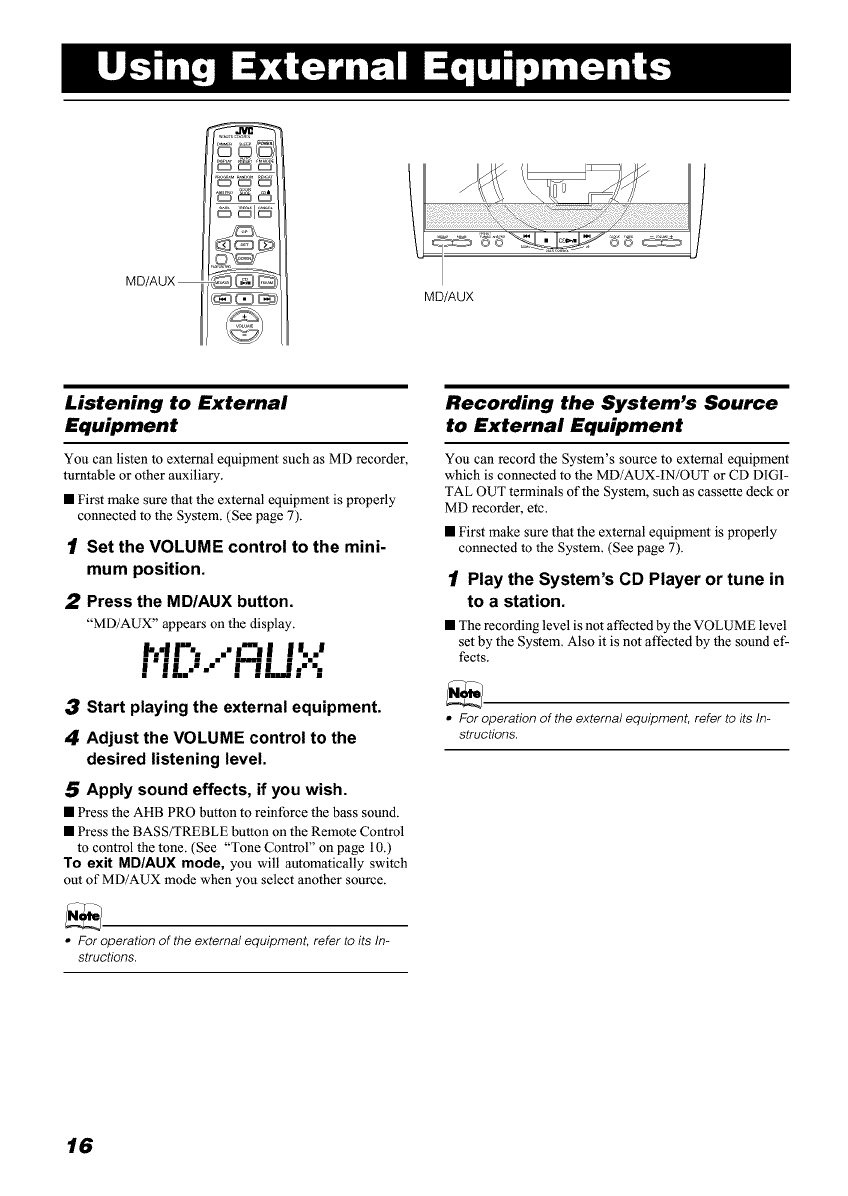

MD/AUX

_1_

MD/AUX

Listening to External

Equipment

You can listen to external equipment such as MD recorder,

turntable or other auxiliary.

• First make sure that the external equipment is properly

connected to the System. (See page 7).

1Set the VOLUME control to the mini-

mum position.

2Press the MD/AUX button.

"MD/AUX" appears on the display.

!'..-'

! !L-'-" ! !!..J-"."

3Start playing the external equipment.

4Adjust the VOLUME control to the

desired listening level.

5Apply sound effects, if you wish.

• Press the AHB PRO button to reinforce the bass sound.

• Press the BASS/TREBLE button on the Remote Control

to control the tone. (See "Tone Control" on page 10.)

To exit MD/AUX mode, you will automatically switch

out of MD/AUX mode when you select another source.

Recording the System's Source

to External Equipment

You can record the System's source to external equipment

which is connected to the MD/AUX-IN/OUT or CD DIGI-

TAL OUT terminals of the System, such as cassette deck or

MD recorder, etc.

• First make sure that the external equipment is properly

connected to the System. (See page 7).

1Play the System's CD Player or tune in

to a station.

• The recording level is not affected by the VOLUME level

set by the System. Also it is not affected by the sound ef-

fects.

•For operation of the external equipment, refer to its In-

structions.

• For operation of the external equipment, refer to its In-

structions.

16

SLEEP

_1_

ON Rt1

i.,I-,I _m,-i CLOCK

ON time, OFF time,

-- ,4 Source, Volume

l

*When the System is in use, the display shows other items as well.

For simplicity, we show here only the items described in this section.

The timers let you control listening functions automatically.

Setting the Clock

• Use the Unit's button to set the clock.

• When you plug the AC power cord into the wall outlet,

the time indication "AM 12:00" blinks on the display.

•The clock must be correctly set for the timers to work.

•The procedure must be completed within two minutes.

Otherwise, the setting is cleared and must be repeated

from the beginning.

1Press the POWER button.

Then, the Unit's top buttons appear.

,I MULTI CONTROL _ _

(for 2 seconds)

2Press the CLOCK button on the Unit for

more than two seconds.

The hour digit of the time indication rapidly blinks on

the display.

3Press the I_1_1 or I<t< button on the Unit

to set the hour.

Pressing the _-I_t button moves the time forwards and

pressing the I,I1< button moves it backwards. Hold

down the button to move the time rapidly.

4Press the CLOCK button.

The minute digits of the time indication rapidly blink on

the display.

5Press the I,_1_1or I<t< button to set the

minute.

6Press the CLOCK button.

The selected time is set and the seconds start counting

from O.

CAUTION:

•If there is a power failure, the clock loses its

setting after about 20 minutes. "AM 12:00"

blinks on the display and the clock must be

reset.

• The clock may gain or lose one to two minutes per month.

Setting the Daily Timer

Once you have set the Daily Timer, the timer will be acti-

vated at the same time every day.

The Timer indicator on the display shows that the Daily

Timer you have set is in effect.

• Use the Unit's button to set the timer.

• Perform each setting within 30 seconds. Otherwise, set-

ting will be cleared and the procedure must be repeated

from the beginning.

17

Usingthe Timers

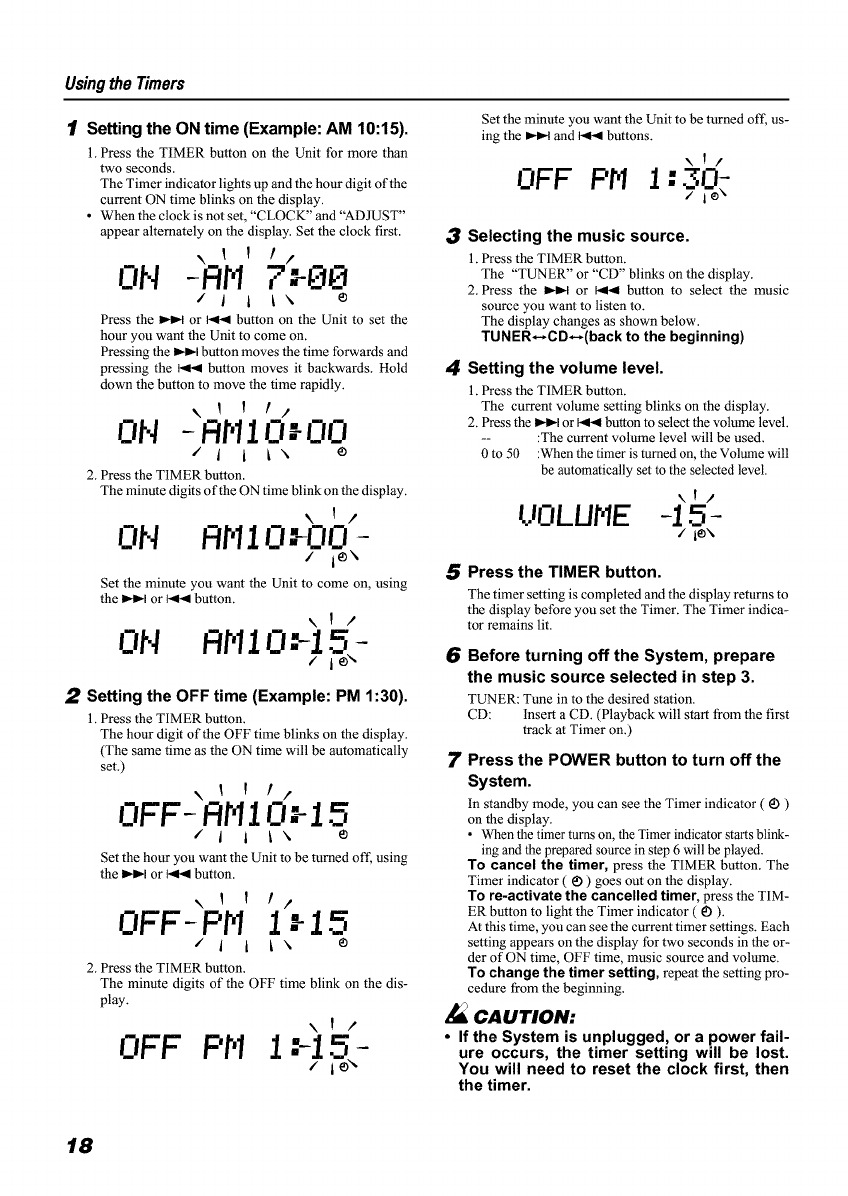

1Setting the ON time (Example: AM 10:15).

1. Press the TIMER button on the Unit for more than

two seconds.

The Timer indicator lights up and the hour digit of the

current ON time blinks on the display.

• When the clock is not set, "CLOCK" and "ADJUST"

appear alternately on the display. Set the clock first.

\ 1 f !,,

ON -RH 7F00

/I I I\ •

Press the I=.t_l or I<< button on the Unit to set the

hour you want the Unit to come on.

Pressing the I=.t_lbutton moves the time forwards and

pressing the I<< button moves it backwards. Hold

down the button to move the time rapidly.

\ 1 I f/

ON -RH10 I-O0

i i I ix e

2. Press the TIMER button.

The minute digits of the ON time blink on the display.

\ ! /

ON RHIO'-O0 -

i le\

Set the minute you want the Unit to come on, using

the I=.t_l or I<< button.

\ ! /

ON Rtq10.'-15

2Setting the OFF time (Example: PM 1:30).

1. Press the TIMER button.

The hour digit of the OFF time blinks on the display.

(The same time as the ON time will be automatically

set.)

\1 I!l

OFF-RtqlO:-15

/1 I _ \ •

Set the hour you want the Unit to be turned off, using

the I=.t_l or I<< button.

\!1f/

OFF-PH 1 z-15

/lI ix e

2. Press the TIMER button.

The minute digits of the OFF time blink on the dis-

play.

\f/

oFF I

Set the minute you want the Unit to be turned off, us-

ing the _-1,.t and I<< buttons.

\f/

OFFPM 1-,N:

3Selecting the music source.

1. Press the TIMER button.

The "TUNER" or "CD" blinks on the display.

2. Press the I_,_1 or I.<4 button to select the music

source you want to listen to.

The display changes as shown below.

TUNER_CD_(back to the beginning)

4Setting the volume level.

1. Press the TIMER button.

The current volume setting blinks on the display.

2. Press the I_1 or I.<4 button to select the volume level.

-- :The current volume level will be used.

0 to 50 :When the timer is turned on, the Volume will

be automatically set to the selected level.

\I/

UOLUtqE -15-

/le\

5Press the TIMER button.

The timer setting is completed and the display returns to

the display before you set the Timer. The Timer indica-

tor remains lit.

6Before turning off the System, prepare

the music source selected in step 3.

TUNER: Tune in to the desired station.

CD: Insert a CD. (Playback will start from the first

track at Timer on.)

7Press the POWER button to turn off the

System.

In standby mode, you can see the Timer indicator (_) )

on the display.

• When the timer turns on, the Timer indicator starts blink-

ing and the prepared source in step 6 will be played.

To cancel the timer, press the TIMER button. The

Timer indicator (_) ) goes out on the display.

To re-activate the cancelled timer, press the TIM-

ER button to light the Timer indicator (_) ).

At this time, you can see the current timer settings. Each

setting appears on the display for two seconds in the or-

der of ON time, OFF time, music source and volume.

To change the timer setting, repeat the setting pro-

cedure from the beginning.

CAUTION:

•If the System is unplugged, or a power fail-

ure occurs, the timer setting will be lost.

You will need to reset the clock first, then

the timer.

18

Usingthe Timers

Setting the SLEEP Timer

(Using the Remote Control)

Use the Sleep Timer to turn the System off after a certain

number of minutes when it is playing. By setting the Sleep

Timer, you can fall asleep to music and know that your Sys-

tem will turn off by itself rather than play all night.

• You can only set the Sleep Timer when the System is on

and a source is playing.

1Play a CD or tune in to the desired sta-

tion.

2Press the SLEEP button on the Remote

Control.

The "SLEEP" indicator lights up.

• When the clock is not set, "CLOCK" and "ADJUST"

appear alternately on the display. Set the clock at first.

3Set the length of time you want the

source to play before shutting off.

• Each time you press the SLEEP button, it changes

the number of minutes shown on the display in this

sequence:

10 _20 _30 _60 _90 _120 _Cancelled

(back to the beginning)

The selected number of minutes for the Sleep Timer will

stop blinking five seconds later and the display returns to

the original one before setting the Sleep Timer. (The display

is dimmed.)

The System is now set to turn off after the number of min-

utes you set.

To Confirm the Sleep Time:

When the SLEEP button is pressed, the remaining sleep

time is displayed. Wait until the display returns to the orig-

inal display.

To Cancel the SLEEP Timer Setting:

Press the SLEEP button until the "SLEEP" indicator goes

out on the display.

Turning offthe System also cancels the SLEEP Timer.

• If you are setting the Daily Timer, the System will be

turned on at the set time to wake you up.

19

Handle your CDs carefully, and they will last a long time. Cleaning the Lens

CompactDiscs

x@

x®

• Only CDs bearing this mark can

be used with this System. How-

ever, continued use of irregular

shape CDs (heart-shape, octago-

nal, etc.) can damage the System.

If the lens in the CD pickup is dirty, dropout, etc., could de-

grade sound.

Open the Top Cover and clean the lens as shown.

• Use a blower (available from a camera store) to blow

dust offthe lens.

Remove the CD from its case by

holding it at the edges while

pressing the case's center hole

lightly.

Do not touch the shiny surface of

the CD, or bend the CD.

Put the CD back in its case after

use to prevent warping.

Be careful not to scratch the sur-

face of the CD when placing it

back in the case.

Avoid exposure to direct sunlight,

temperature extremes, and mois-

ture.

=°

• If there are fingerprints, etc. on the lens, gently wipe

clean with a cotton swab.

•A dirty CD may not play cor- , /_

rectly. Ifa CD does become dirty,

wipe it with a soft cloth in a

straight line from center to edge.

._ CAUTION:

• Do not use any solvent (for example, con-

ventional record cleaner, spray thinner,

benzine, etc.) to clean a CD.

GeneralNotes MoistureCondensation

In general, you will have the best performance by keeping

your CDs and the mechanism clean.

• Store CDs in their cases, and keep them in cabinets or on

shelves.

• Keep the System's Top Cover closed when not in use.

Cleaning the unit

•Stains on the unit

Should be wiped off with a soft cloth. If the unit is heavily

stained, wipe it witha cloth soaked in water-diluted neu-

tral detergent and wrung well, then wipe clean with a dry

cloth.

• Since the unit may deteriorate in quality, become dam-

aged or get its paint peeled off, be careful about the fol-

lowings.

- DO NOT wipe it with a hard cloth.

- DO NOT wipe it strong.

- DO NOT wipe it with thinner or benzine.

- DO NOT apply any volatile substance such as insecti-

cides to it.

- DO NOT allow any rubber or plastic to remain in con-

tact with it for a long time.

Moisture may condense on the lens

inside the System in the following

cases:

• After turning on heating in the

room.

• In a damp room.

• If the System is brought directly

from a cold to a warm place.

Should this occur, the System may

malfunction. In this case, leave the

System turned on for a few hours un-

til the moisture evaporates, unplug

the AC power cord, and then plug it

in again.

2O

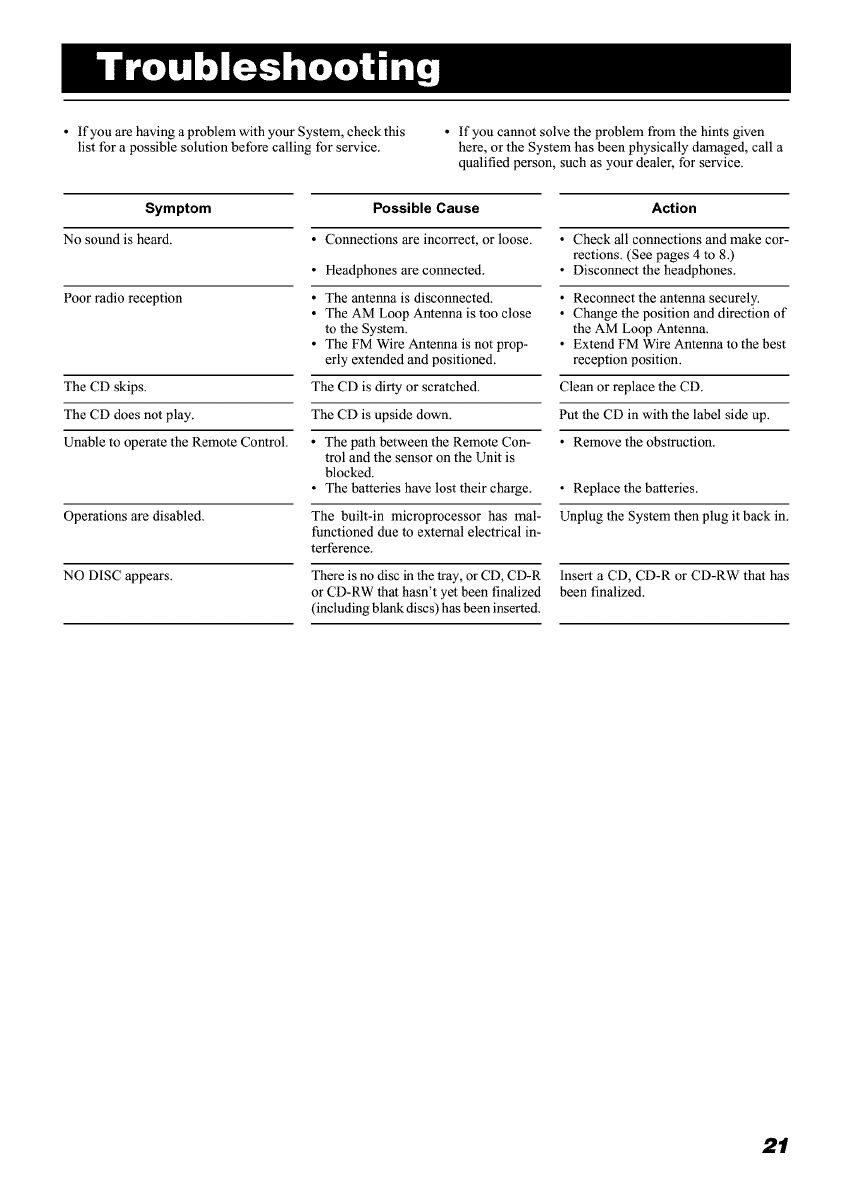

•If you are having a problem with your System, check this

list for a possible solution before calling for service.

•If you cannot solve the problem from the hints given

here, or the System has been physically damaged, call a

qualified person, such as your dealer, for service.

Symptom

No sound is heard.

Poor radio reception

The CD skips.

The CD does not play.

Unable to operate the Remote Control.

Operations are disabled.

NO DISC appears.

Possible Cause

•Connections are incorrect, or loose.

•Headphones are connected.

• The antenna is disconnected.

• The AM Loop Antenna is too close

to the System.

• The FM Wire Antenna is not prop-

erly extended and positioned.

The CD is dirty or scratched.

The CD is upside down.

• The path between the Remote Con-

trol and the sensor on the Unit is

blocked.

• The batteries have lost their charge.

The built-in microprocessor has mal-

functioned due to external electrical in-

terference.

There is no disc in the tray, or CD, CD-R

or CD-RW that hasn't yet been finalized

(including blank discs) has been inserted.

Action

• Check all connections and make cor-

rections. (See pages 4 to 8.)

• Disconnect the headphones.

• Reconnect the antenna securely.

• Change the position and direction of

the AM Loop Antenna.

• Extend FM Wire Antenna to the best

reception position.

Clean or replace the CD.

Put the CD in with the label side up.

• Remove the obstruction.

• Replace the batteries.

Unplug the System then plug it back in.

Insert a CD, CD-R or CD-RW that has

been finalized.

2t

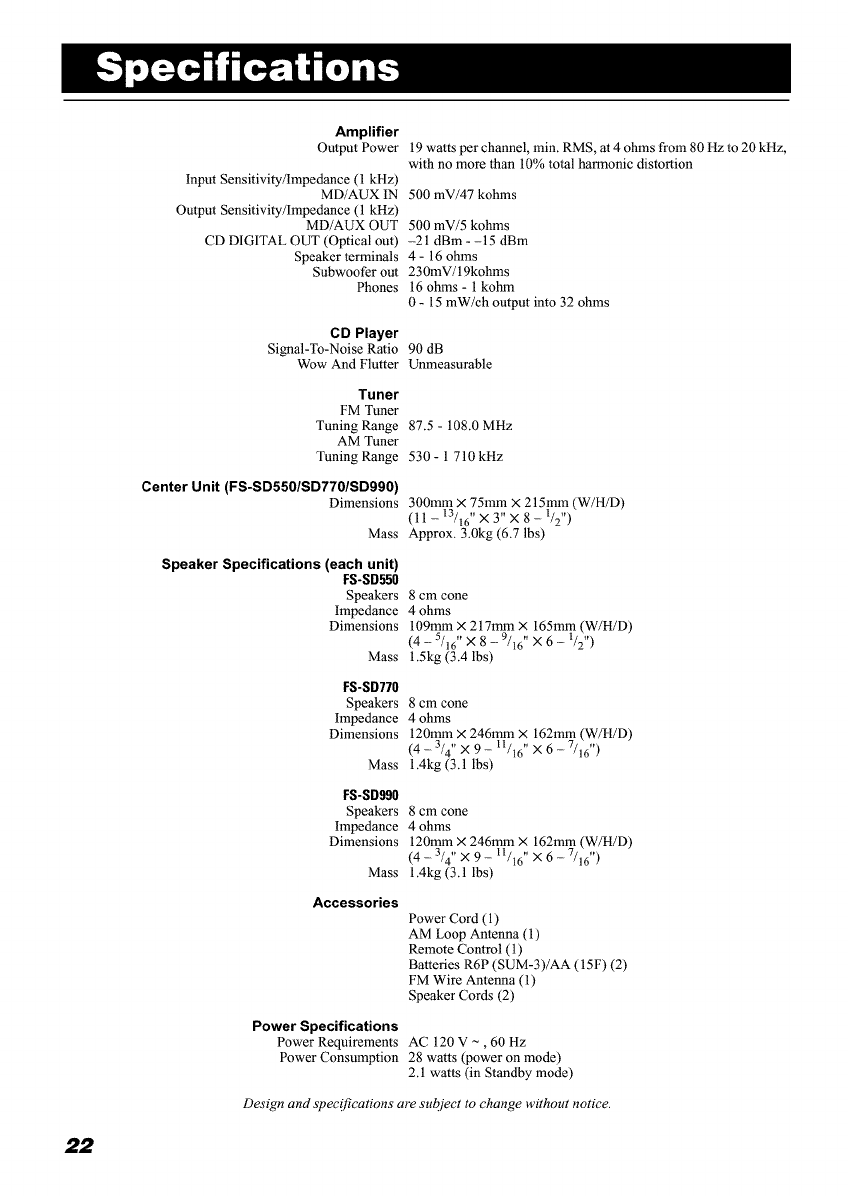

Amplifier

Output Power

Input Sensitivity/Impedance (1 kHz)

MD/AUX IN

Output Sensitivity/Impedance (1 kHz)

MD/AUX OUT

CD DIGITAL OUT (Optical out)

Speaker terminals

Subwoofer out

Phones

CD Player

Signal-To-Noise Ratio

Wow And Flutter

19 watts per channel, min. RMS, at 4 ohms from 80 Hz to 20 kHz,

with no more than 10% total harmonic distortion

500 mV/47 kohms

500 mV/5 kohms

-21 dBm - -15 dBm

4 - 16 ohms

230mV/19kohms

16 ohms - 1 kohm

0 - 15 mW/ch output into 32 ohms

90 dB

Unmeasurable

Tuner

FM Tuner

Tuning Range

AM Tuner

Tuning Range

Center Unit (FS-SD550/SD770/SD990)

Dimensions

Mass

Speaker Specifications (each unit)

FS-SD550

Speakers

Impedance

Dimensions

Mass

FS-SD770

Speakers

Impedance

Dimensions

Mass

FS-SD990

Speakers

Impedance

Dimensions

Mass

Accessories

Power Specifications

Power Requirements

Power Consumption

87.5 - 108.0 MHz

530- 1 710kHz

300mm × 75mm × 215mm (W/H/D)

(11 -13/16" × 3" X 8 -I/2" )

Approx. 3.0kg (6.7 lbs)

8 cm cone

4 ohms

109mm × 217mm × 165mm (W/H/D)

(4 - 5/16" × 8 -9/16" × 6 -I/2")

1.5kg (3.4 lbs)

8 cm cone

4 ohms

120mm × 246mm × 162mm (W/H/D)

(4 -_ 3/4" × 9- 11/16" × 6- 7/16" )

1.4kg (3.1 lbs)

8 cm cone

4 ohms

120mm × 246mm × 162mm (W/H/D)

(4 -_ 3/4" × 9- 11/16" × 6- 7/16" )

1.4kg (3.1 lbs)

Power Cord (1)

AM Loop Antenna (1)

Remote Control (1)

Batteries R6P (SUM-3)/AA (15F) (2)

FM Wire Antenna (1)

Speaker Cords (2)

AC 120V~,60Hz

28 watts (power on mode)

2.1 watts (in Standby mode)

Design and specifications ate subject to change without notice.

22

JVC s v,cE

HOW TO LOCATE YOUR JVC SERVICE CENTER

TOLL FREE : 1-800-537-5722

http://www.jveserviee.eom

Dear customer:

In order to receive the most satisfaction from your purchase, read the instruction booklet before operating the unit. In the event that repair

is necessary, or for the address nearest your location, please refer to the factory service center list below or within the Continental United

States, Call 1-800-537-5722 for your authorized servicen Remember to retain your Bill of Sale for Warranty Service.

-JVC

JVC SERVICE & ENGINEERING

COMPANY OF AMERICA

DIVISION OF JVC AMERICAS CORIR

FACTORY SERVICE CENTER LOCATIONS

10 New Maple Avenue 1500 Lakes Parkway 705 Enterprise Street

Pine Brook, NJ 07058-9641 Lawrenceville, GA 30243-5857 Aurora, IL 60504-8149

(973) 396-1000 (770) 339-2582 (630) 851-7855

5665 Corporate Avenue 2969 Mapunapuna Place 10700 Hammerly, Suite 110

Cypress, CA 90630-0024 Honolulu, HI 96819-2040 Houston, TX 77043

(714) 229-8011 (808) 833-5828 (713) 935-9331

13 Cummings Park 8192 State Road 84 890 Dubuque Avenue

Woburn, MA 01801 Davie, FL 33324 South San Francisco, CA 94080-1804

(781) 376-9100 (954) 472-1960 (650) 871-2666

Sophisticated electronic products may require occasional service. Just as quality is a keyword in the engineering and production of

the wide array of JVC products, service is the key to maintaining the high level of performance for which JVC is world famous. The

JVC service and engineering organization stands behind our products.

NATIONAL HEADQUARTERS

JVC SERVICE & ENGINEERING COMPANY OF AMERICA

DIVISION OF JVC AMERICAS CORR

1700 Valley Road

Wayne, NJ 07470

If you ship the product • • •

Pack your JVC unit in the original carton or one of equivalent

size and strength. Enclose, with the unit, a letter stating the

problem or symptom that exists and also a copy of the receipt

or bill of sale you received when you purchased your JVC unit.

Print your home return address on the outside and the inside

of the carton. Send to the appropriate JVC Factory Service

Center as listed above.

Don't service it yourself.

CAUTION

To prevent electrical shock, do not open the cabinet. No user

serviceable parts inside.

Refer servicing to qualified service personnel.

ACCESSORIES

To purchase accessories for your JVC product, you may contact your local JVC Deafan

Or from the 48 Continental United States call toll free : 800-882-2345

BT-510014

(1099)

*JVC

* LIMITED WARRANTY AUDIO-1

*JVC COMPANY OF AMERICA warrants this product and all parts thereof, except as set forth below ONLY TO THE

.ORIGINAL

. PURCHASER AT RETAIL to be FREE FROM DEFECTIVE MATERIAL AND WORKMANSHIP from the date of original retail

. purchase for the period as shown below. ("The Warranty Period.")

* PARTS LABOR

* 1YR 1YR

* THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY(50) UNITED STATES, THE DISTRICT OF COLUMBIA AND IN

*COMMONWEALTH OF PUERTO RICO.

. WHAT WE WILL DO:

If this product is found to be defective, JVC will repair or replace defective parts at no charge to the original owner. Such

*repair and replacement services shall be rendered by JVC during normal business hours at JVC authorized service

* centers. Parts used for replacement are warranted only for the remainder of the Warranty Period. All products and parts

* thereof may be brought to aJVC authorized service center on a carw-in basis except for Television sets having a screen

* size 25 inches and above which are covered on an imhome basis.

. WHATYOU MUST DO FOR WARRANTY SERVICE:

. Return your product to a JVC authorized service center with a copy of your bill of sale. For your nearest JVC authorized

. service center, please call toll free: (800)537-5722.

If service is not available locally, box the product carefully, preferably in the original carton, and ship, insured, with a copy of

* your bill of sale plus and letter of explanation of the problem to the nearest JVC Factory Service Center, the name and

*location of which will be given to you by the toll-free number.

* If you have any questions concerning your JVC Product, please contact our Customer Relations Department.

.WHAT IS NOT COVERED:

. This limited warranty provided by JVC _ not cAy_r:

1. Products which have been subject to abuse, accident, alteration, modification, tampering, negligence, misuse, faulty

installation, lack of reasonable care, or if repaired or serviced by anyone other than a service facility authorized by JVC

to render such service, or if affixed to any attachment not provided with the products, or if the model number or serial

number has been altered, tampered with, defaced or removed;

2. initial installation and installation and removal for repair;

3. Operational adjustments covered in the Owner's Manual, normal maintenance, video and audio head cleaning;

4. Damage that Occurs in shipment, due to act of God, and cosmetic damage;

5. Signal reception problems and failures due to line power surge;

6. Video Pick-up Tubes/CCD Image Sensor, Cartridge, Stylus(Needle) are covered for 90 days from the date of purchase;

7. Accessories;

8. Batteries (except the Rechargeable Batteries are covered for 90 clays from the date of purchase);

There are no express warranties except as listed above.

THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MARCHANTABILITY, IS

LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN.

JVC SHALL NOT BE LIABLE FOR THE LOSS OF USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER .

DAMAGES, WHETHER DIRECT, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, WITHOUT LIMITATION, DAMAGE .

TO TAPES, RECORDS OR DISCS) RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY .

BREACH OF THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE WARRANTY PERIOD SET *

FORTH ABOVE. *

Some states do not allow the exclusion of incidental or consequential damages or limitations on how long an implied *

warranty last, so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you .

may also have other rights which vary from state to state. .

JVC COMPANY OF AMERICA 1700 Valley Road *

DIVISION OF JVC AMERICAS CORE Wayne, NJ 07470

*..************ ******** ***** * ********* . *

REFURBISHED PRODUCTS CARRY A SEPARATE WARRANTY, THIS WARRANTY _ APPLY. FOR DETAILS OF

REFURBISHED PRODUCT WARRANTY, PLEASE REFER TO THE REFURBISHED PRODUCT WARRANTY INFORMATION

PACKAGED WITH EACH REFURBISHED PRODUCT.

For customer use:

Enter below the Model No. and Serial No. which is located either on the rear, bottom or side of the cabinet. Retain this

information for future reference.

Model No.: Serial No.:

Purchase date: Name of dealer:

'///

JVC

VICTOR COMPANY OF JAPAN, LiMiTED

O EN _ 0201MZMCREHIT
