ENGLISH

GR-D247

LYT1410-001A EN

Dear Customer,

Thank you for purchasing this digital

video camera. Before use, please

read the safety information and

precautions contained in the pages

3 – 4 and 9 to ensure safe use of this

product.

Please visit our Homepage on the World Wide Web for

Digital Video Camera:

For Accessories:

http://www.jvc.co.jp/english/cyber/

http://www.jvc.co.jp/english/accessory/

INSTRUCTIONS

DIGITAL VIDEO CAMERA

GETTING STARTED 6

VIDEO RECORDING &

PLAYBACK 17

ADVANCED FEATURES 22

REFERENCES 38

TERMS

To deactivate the demonstration,

set “DEMO MODE” to “OFF”.

(墌pg. 22, 25)

47

GR-D247PAL.book Page 1 Thursday, November 18, 2004 12:24 PM

2 EN

MasterPage: Left

Wipe/Fader Effects

You can use the Wipe/Fader Effects to make

pro-style scene transitions. (墌pg. 33)

Program AE with Special Effects

For example, “SPORTS” mode allows fast-

moving images to be captured one frame at a

time, for vivid, stable slow-motion. (墌pg. 34)

Backlight Compensation

Simply pressing the BACK LIGHT button

brightens the image darkened by backlight.

(墌pg. 31)

●You can also select a spot metering area so

that more precise exposure compensation

is available. (墌pg. 31, Spot Exposure

Control)

Data Battery

You can check the battery status by simply

pressing the DATA button. (墌pg. 12)

Major Features of this Camcorder

Fade in

Fade out

MAX TIMELEVEL

LCD

60

min

FINDER

80

min

100

%

50

0

BATTERY CONDITION

GR-D247PAL.book Page 2 Thursday, November 18, 2004 12:24 PM

EN 3

MasterPage: Start_Right

SAFETY PRECAUTIONS

IMPORTANT (for owners in the U.K.)

Connection to the mains supply in the United

Kingdom.

DO NOT cut off the mains plug from this

equipment.

If the plug fitted is not suitable for the power

points in your home or the cable is too short to

reach a power point, then obtain an appropriate

safety approved extension lead or consult your

dealer.

BE SURE to replace the fuse only with an

identical approved type, as originally fitted,

and to replace the fuse cover.

If nonetheless the mains plug is cut off be sure to

remove the fuse and dispose of the plug

immediately, to avoid possible shock hazard by

inadvertent connection to the mains supply.

If this product is not supplied fitted with a mains

plug then follow the instructions given below:

DO NOT make any connection to the Larger

Terminal coded E or Green.

The wires in the mains lead are coloured in

accordance with the following code:

If these colours do not correspond with the

terminal identifications of your plug, connect as

follows:

Blue wire to terminal coded N (Neutral) or

coloured black.

Brown wire to terminal coded L (Live) or coloured

Red.

If in doubt — consult a competent electrician.

WARNING: TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS UNIT TO

RAIN OR MOISTURE.

CAUTIONS:

●To prevent shock, do not open the cabinet. No

user serviceable parts inside. Refer servicing to

qualified personnel.

●When you are not using the AC Adapter for a

long period of time, it is recommended that you

disconnect the power cord from AC outlet.

Blue to N (Neutral)

or Black

Brown to L (Live)

or Red

CAUTION:

To avoid electric

shock or damage to

the unit, first firmly

insert the small end

of the power cord into

the AC Adapter until it

is no longer wobbly,

and then plug the

larger end of the

power cord into an

AC outlet.

CAUTIONS:

●This camcorder is designed to be used with

PAL-type colour television signals. It cannot be

used for playback with a television of a different

standard. However, live recording and LCD

monitor/viewfinder playback are possible

anywhere.

●This product includes patented and other

proprietary technology and will operate only

with JVC Data Battery. Use the JVC

BN-VF707U/VF714U/VF733U battery packs

and, to recharge them or to supply power to the

camcorder from an AC outlet, use the provided

multi-voltage AC Adapter. (An appropriate

conversion adapter may be necessary to

accommodate different designs of AC outlets in

different countries.)

Caution on Replaceable lithium battery

The battery used in this device may present a fire

or chemical burn hazard if mistreated.

Do not recharge, disassemble, heat above 100°C

or incinerate.

Replace battery with Panasonic (Matsushita

Electric), Sanyo, Sony or Maxell CR2025.

Danger of explosion or Risk of fire if the battery is

incorrectly replaced.

●Dispose of used battery promptly.

●Keep away from children.

●Do not disassemble and do not dispose of in

fire.

NOTES:

●The rating plate (serial number plate) and

safety caution are on the bottom and/or the

back of the main unit.

●The rating information and safety caution of the

AC Adapter are on its upper and lower sides.

GR-D247PAL.book Page 3 Thursday, November 18, 2004 12:24 PM

4 EN

MasterPage: Left

SOME DO’S AND DON’TS ON THE SAFE USE

OF EQUIPMENT

This equipment has been designed and

manufactured to meet international safety

standards but, like any electrical equipment,

care must be taken if you are to obtain the

best results and safety is to be assured.

DO read the operating instructions before you

attempt to use the equipment.

DO ensure that all electrical connections (including

the mains plug, extension leads and

interconnections between pieces of equipment) are

properly made and in accordance with the

manufacturer’s instructions. Switch off and withdraw

the mains plug when making or changing

connections.

DO consult your dealer if you are ever in doubt

about the installation, operation or safety of your

equipment.

DO be careful with glass panels or doors on

equipment.

DON’T continue to operate the equipment if you are

in any doubt about it working normally, or if it is

damaged in any way — switch off, withdraw the

mains plug and consult your dealer.

DON’T remove any fixed cover as this may expose

dangerous voltages.

DON’T leave equipment switched on when it is

unattended unless it is specifically stated that it is

designed for unattended operation or has a standby

mode. Switch off using the switch on the equipment

and make sure that your family knows how to do

this. Special arrangements may need to be made

for infirm or handicapped people.

DON’T use equipment such as personal stereos or

radios so that you are distracted from the

requirements of road safety. It is illegal to watch

television whilst driving.

DON’T listen to headphones at high volume, as

such use can permanently damage your hearing.

DON’T obstruct the ventilation of the equipment, for

example with curtains or soft furnishings.

Overheating will cause damage and shorten the life

of the equipment.

DON’T use makeshift stands and NEVER fix legs

with wood screws — to ensure complete safety

always fit the manufacturer’s approved stand or legs

with the fixings provided according to the

instructions.

DON’T allow electrical equipment to be exposed to

rain or moisture.

ABOVE ALL

●NEVER let anyone especially children push

anything into holes, slots or any other opening in

the case — this could result in a fatal electrical

shock;

●NEVER guess or take chances with electrical

equipment of any kind — it is better to be safe

than sorry!

When the equipment is installed in a cabinet or on

a shelf, make sure that it has sufficient space on

all sides to allow for ventilation (10 cm or more on

both sides, on top and at the rear).

Do not block the ventilation holes.

(If the ventilation holes are blocked by a

newspaper, or cloth etc. the heat may not be able

to get out.)

No naked flame sources, such as lighted candles,

should be placed on the apparatus.

When discarding batteries, environmental

problems must be considered and the local rules

or laws governing the disposal of these batteries

must be followed strictly.

The apparatus shall not be exposed to dripping or

splashing.

Do not use this equipment in a bathroom or

places with water.

Also do not place any containers filled with water

or liquids (such as cosmetics or medicines, flower

vases, potted plants, cups etc.) on top of this unit.

(If water or liquid is allowed to enter this

equipment, fire or electric shock may be caused.)

Do not point the lens or the viewfinder directly into

the sun. This can cause eye injuries, as well as

lead to the malfunctioning of internal circuitry.

There is also a risk of fire or electric shock.

CAUTION!

The following notes concern possible physical

damage to the camcorder and to the user.

When carrying, be sure to always securely attach

and use the provided strap. Carrying or holding

the camcorder by the viewfinder and/or the LCD

monitor can result in dropping the unit, or in a

malfunction.

Take care not to get your finger caught in the

cassette holder cover. Do not let children operate

the camcorder, as they are particularly

susceptible to this type of injury.

Do not use a tripod on unsteady or unlevel

surfaces. It could tip over, causing serious

damage to the camcorder.

CAUTION!

Connecting cables (Audio/Video, S-Video, etc.) to

the camcorder and leaving it on top of the TV is

not recommended, as tripping on the cables will

cause the camcorder to fall, resulting in damage.

GR-D247PAL.book Page 4 Thursday, November 18, 2004 12:24 PM

MasterPage: TOC_Heading0_Right

EN 5

CONTENTS

GETTING STARTED 6

Index................................................................. 6

Provided Accessories ..................................... 10

Power.............................................................. 11

Operation Mode.............................................. 13

Language Settings.......................................... 14

Date/Time Settings ......................................... 14

Grip Adjustment.............................................. 14

Viewfinder Adjustment.................................... 15

Brightness Adjustment Of The Display........... 15

Tripod Mounting.............................................. 15

Loading/Unloading A Cassette ....................... 16

VIDEO RECORDING & PLAYBACK 17

VIDEO RECORDING ........................................... 17

Basic Recording.............................................. 17

Tape Remaining Time ................................ 17

LCD Monitor And Viewfinder ...................... 18

Zooming...................................................... 18

Journalistic Shooting .................................. 19

Time Code .................................................. 19

Quick Review.............................................. 19

Recording From The Middle Of A Tape...... 19

VIDEO PLAYBACK ............................................. 20

Normal Playback............................................. 20

Still Playback .............................................. 20

Shuttle Search............................................ 20

Blank Search .............................................. 20

Connections To A TV Or VCR........................ 21

ADVANCED FEATURES 22

MENUS FOR DETAILED ADJUSTMENT.................. 22

Changing The Menu Settings ......................... 22

Recording Menus............................................ 23

Playback Menus ............................................. 26

FEATURES FOR RECORDING............................... 28

5-Second Recording....................................... 28

Night-Scope.................................................... 28

Snapshot (For Video Recording) .................... 29

Manual Focus ................................................. 29

Exposure Control............................................ 30

Iris Lock .......................................................... 30

Backlight Compensation................................. 31

Spot Exposure Control.................................... 31

White Balance Adjustment.............................. 32

Manual White Balance Adjustment................. 32

Wipe Or Fader Effects .................................... 33

Program AE With Special Effects ................... 34

EDITING............................................................ 35

Dubbing To A VCR ......................................... 35

Dubbing To A Video Unit Equipped With A DV

Connector (Digital Dubbing) ....................... 36

Connection To A Personal Computer ............. 37

REFERENCES 38

TROUBLESHOOTING .......................................... 38

USER MAINTENANCE......................................... 42

CAUTIONS ........................................................ 43

SPECIFICATIONS................................................ 46

TERMS 47

GR-D247PAL_03Toc.fm Page 5 Friday, November 19, 2004 3:44 PM

6 EN

MasterPage: Left

GETTING STARTED

Index

1

S T

B C D E

78

J

IK L

R

U

6

N

O

P

WVXY

Z

b

a

cd M

e

Q

GR-D247PAL.book Page 6 Thursday, November 18, 2004 12:24 PM

EN 7

GETTING STARTED

MasterPage: Start_Right

GETTING STARTED

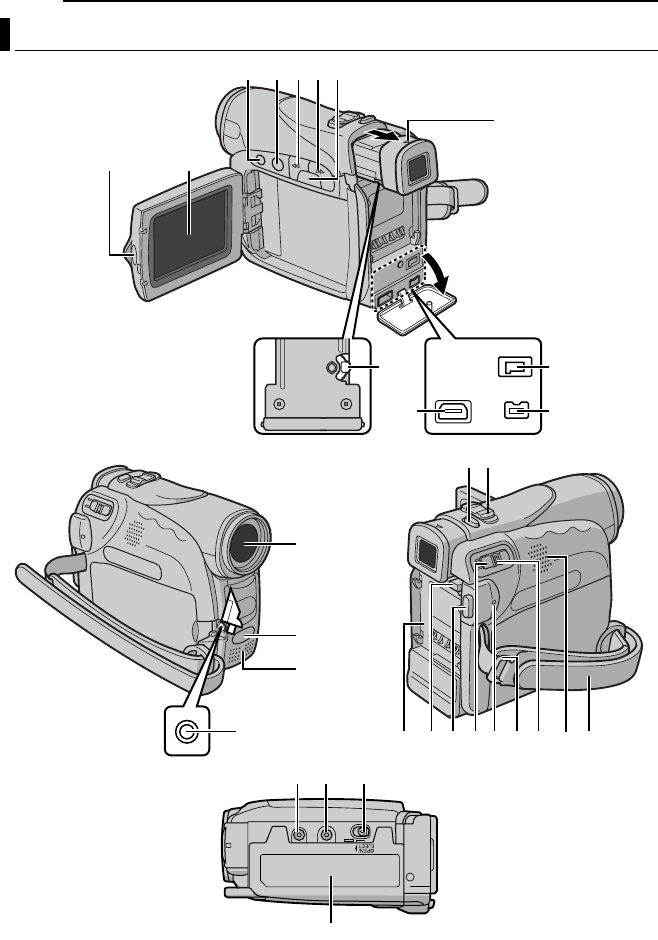

Controls

AStop Button [8] (墌pg. 20)

Backlight Compensation Button [BACK

LIGHT] (墌pg. 31)

BPlay/Pause Button [4/9] (墌pg. 20)

Manual Focus Button [FOCUS] (墌pg. 29)

CRewind Button [3] (墌pg. 20)

Menu select Button [–] (墌pg. 14)

Quick Review Button [ ] (墌pg. 19)

DFast-Forward Button [5] (墌pg. 20)

Menu select Button [+] (墌pg. 14)

Night Button [NIGHT] (墌pg. 28)

EMenu Button [MENU] (墌pg. 22)

Data Battery Button [DATA] (墌pg. 12)

FDioptre Adjustment Control (墌pg. 15)

GSnapshot Button [SNAPSHOT] (墌pg. 29)

HPower Zoom Lever [T/W] (墌pg. 18)

Speaker Volume Control [VOL. +, –]

(墌pg. 20)

IBattery Release Button [PUSH BATT.]

(墌pg. 11)

JRecording Start/Stop Button (墌pg. 17)

KPower Switch [A, M, PLAY, OFF] (墌pg. 13)

LLock Button (墌pg. 13)

MCassette Open/Eject Switch [OPEN/EJECT]

(墌pg. 16)

Connectors

The connectors are located beneath the covers.

NS-Video/Audio/Video Output Connector [S/

AV] (墌pg. 21, 35)

ODC Input Connector [DC] (墌pg. 11)

PDigital Video Connector [DV OUT] (i.Link*)

(墌pg. 36, 37)

QMicrophone connector [MIC] (墌pg. 26)

(An optional microphone can be used during

video recording and audio dubbing. To

stabilise the microphone, use of an optional

shoe adapter is recommended.)

* i.Link refers to the IEEE1394-1995 industry

specification and extensions thereof. The logo

is used for products compliant with the i.Link

standard.

Indicators

RPOWER/CHARGE Lamp (墌pg. 11, 17)

Other Parts

SMonitor Latch (墌pg. 18)

TLCD Monitor (墌pg. 18, 19)

UViewfinder (墌pg. 15)

VBattery Pack Mount (墌pg. 12)

WShoulder Strap Eyelet (墌pg. 11)

XSpeaker (墌pg. 20)

YGrip Strap (墌pg. 14)

ZLens

aCamera Sensor

(Be careful not to cover this area, a sensor

necessary for shooting is built-in here.)

bStereo Microphone

cStud Hole (墌pg. 15)

dTripod Mounting Socket (墌pg. 15)

eCassette Holder Cover (墌pg. 16)

GR-D247PAL.book Page 7 Thursday, November 18, 2004 12:24 PM

GETTING STARTED

8 EN

MasterPage: Left

LCD Monitor/Viewfinder Indications

During Video Recording

aOperation Mode (墌pg. 13)

B: Night-Scope Indicator (墌pg. 28)

: Gain Up Mode (墌pg. 23)

CWhite Balance Indicator (墌pg. 32)

D: Spot Exposure Control Indicator

(墌pg. 31)

: Backlight Compensation Indicator

(墌pg. 31)

±: Exposure Adjustment Indicator (墌pg. 30)

ESelected Program AE With Special Effects

Indicator (墌pg. 34)

FIris Lock Indicator (墌pg. 30)

GSOUND 12BIT/16BIT: Sound Mode Indicator

(墌pg. 23) (Appears for approx. 5 seconds

after turning on the camcorder.)

: Auxiliary Microphone Level

Indicator

(Appears when an optional microphone is

connected. 墌pg. 26, “AUX MIC” )

HDigital Image Stabiliser (“DIS”) (墌pg. 24)

IApproximate Zoom Ratio (墌pg. 18)

JZoom Indicator (墌pg. 18)

KSelected Wipe/Fader Effect Indicator

(墌pg. 33)

LTape Running Indicator (墌pg. 17)

(Rotates while tape is running.)

MSelected Wide Mode Indicator (墌pg. 24)

NRecording Speed Mode (SP/LP) (墌pg. 23)

OTape Remaining Time (墌pg. 17)

PREC: (Appears during recording.) (墌pg. 17)

PAUSE: (Appears during Record-Standby

mode.) (墌pg. 17)

O: (Appears when taking Snapshot.)

(墌pg. 29)

Q5S/Anim.: Displays the 5-Second Recording

mode or Animation recording mode.

(墌pg. 24)

RWind Cut Indicator (墌pg. 24)

SBattery Remaining Power Indicator

(墌pg. 40)

TDate/Time (墌pg. 14)

UBrightness Control Indicator (LCD monitor/

Viewfinder) (墌pg. 15)

VManual Focus Adjustment Indicator

(墌pg. 29)

WTime Code (墌pg. 26, 27)

50m

1

0

1

11

0.

:0

05

0

.

25

x

W

T

BRIGHT

SOUND

12

BIT

1h40m

15:55

REC

4

5

6

1

2

3

90

p

as

8

qwe t

y

u

i

o

r

7

d

L

R

GR-D247PAL.book Page 8 Thursday, November 18, 2004 12:24 PM

EN 9

GETTING STARTED

MasterPage: Start_Right

GETTING STARTED

During Video Playback

aSound Mode Indicator (墌pg. 26)

BBlank Search Indicator (墌pg. 20)

CTape Speed (墌pg. 23)

D4: Playback

5: Fast-Forward/Shuttle Search

3: Rewind/Shuttle Search

9: Pause

9 U: Forward Frame-By-Frame Playback/

Slow-Motion

Y 9: Reverse Frame-By-Frame Playback/

Slow-Motion

EBattery Remaining Power Indicator

(墌pg. 40)

FDate/Time (墌pg. 26, 27)

GVOLUME: Volume Level Indicator (墌pg. 20)

BRIGHT: Brightness Control Indicator (LCD

monitor/Viewfinder) (墌pg. 15)

HTime Code (墌pg. 26, 27)

Before Using This Camcorder

Make sure you only use cassettes with the Mini

DV mark .

This camcorder is designed exclusively for the

digital video cassette. Only cassettes marked

“ ” can be used with this unit.

Remember that this camcorder is not

compatible with other digital video formats.

Remember that this camcorder is intended for

private consumer use only.

Any commercial use without proper permission is

prohibited. (Even if you record an event such as a

show, performance or exhibition for personal

enjoyment, it is strongly recommended that you

obtain permission beforehand.)

Before recording important video, be sure to

make a trial recording.

Play back your trial recording to make sure the

video and audio have been recorded properly.

We recommend cleaning your video heads

before use.

If you haven’t used your camcorder for a while, the

heads may be dirty. We recommend periodically

cleaning the video heads with a cleaning cassette

(optional).

Be sure to store your cassette tapes and

camcorder in the proper environment.

Video heads can become dirty more easily if your

cassette tapes and camcorder are stored in a dusty

area. Cassette tapes should be removed from the

camcorder and stored in cassette cases. Store the

camcorder in a bag or other container.

Use SP (Standard) mode for important video

recordings.

LP (Long Play) mode lets you record 50% more

video than SP (Standard) mode, but you may

experience mosaic-like noise during playback

depending on the tape characteristics and the

usage environment.

So, for important recordings, we recommend using

SP mode.

It is recommended that you use JVC brand

cassette tapes.

Your camcorder is compatible with all brands of

commercially available cassette tapes complying

with the MiniDV standard, but JVC brand cassette

tapes are designed and optimized to maximize the

performance of your camcorder.

Also read “CAUTIONS” on pages 43 – 45.

1

L

2

2

0

:

/

2

M

V

1

I

O

:

X

L

2

1

0

1

1

1

0

.

:

0

0

5

0

.

BIT

U

5

M

E

1243

5

78 6

BLANK SEARCH

PUSH "STOP" BUTTON

TO CANCEL

50m

GR-D247PAL.book Page 9 Thursday, November 18, 2004 12:24 PM

GETTING STARTED

10 EN

MasterPage: Left

aAC Adapter AP-V14E

bPower Cord

cBattery Pack BN-VF707U

dS/AV Cable

eCD-ROM

fCable Adapter

gShoulder Strap (墌pg. 11 for attachment)

hLens Cap (see the right column for

attachment)

NOTES:

●In order to maintain optimum performance of the

camcorder, provided cables may be equipped with

one or more core filter. If a cable has only one core

filter, the end that is closest to the filter should be

connected to the camcorder.

●Make sure to use the provided cables for

connections. Do not use any other cables.

How To Attach The Lens Cap

To protect the lens, attach

the provided lens cap to the

camcorder as shown in the

illustration.

NOTE:

To confirm the lens cap is on

correctly make sure the cap is

flush to the camcorder.

Provided Accessories

Place here during

shooting.

GR-D247PAL.book Page 10 Thursday, November 18, 2004 12:24 PM

EN 11

GETTING STARTED

MasterPage: Start_Right

GETTING STARTED

How To Attach The Shoulder Strap

Follow the illustration.

1Thread the strap through the eyelet.

2Fold it back and thread it through the strap

guide and the buckle.

●To adjust the length of the strap, loosen and then

tighten the strap in the buckle.

3Slide the strap guide fully towards the eyelet.

This camcorder’s 2-way power supply system

lets you choose the most appropriate source of

power. Do not use provided power supply units

with other equipment.

Charging The Battery Pack

1Set the Power Switch to “OFF”.

2With the arrow on the battery pack pointing

downward, push the battery pack slightly against

the battery pack mount a.

3Slide down the battery pack until it locks in

place b.

4Connect the AC Adapter to the camcorder.

5Connect the Power Cord to the AC Adapter.

6Plug the AC Adapter into an AC outlet. The

POWER/CHARGE lamp on the camcorder

blinks to indicate charging has started.

7When the POWER/CHARGE lamp goes out,

charging is finished. Unplug the AC Adapter

from the AC outlet. Disconnect the AC Adapter

from the camcorder.

1

2

2

3

Strap guide

Buckle

Eyelet

Power

POWER/

CHARGE

PLAY

OFF

MA

POWER/CHARGE lamp

Battery pack

PUSH BATT.

Open the cover.

Power switch

mark

Arrow

Battery pack mount

To DC connector

To AC outlet

AC Adapter

CONTINUED ON NEXT PAGE

GR-D247PAL.book Page 11 Thursday, November 18, 2004 12:24 PM

GETTING STARTED

12 EN

MasterPage: Left

To detach the battery pack

Slide the battery pack upward while pressing

PUSH BATT. to detach it.

* Provided

NOTES:

●It is recommended that only genuine JVC

batteries are used in this camcorder. Using

generic non-JVC batteries can cause damage to

the internal charging circuitry.

●If the protective cap is attached to the battery

pack, remove it first.

●During charging, the camcorder cannot be

operated.

●Charging is not possible if the wrong type of

battery is used.

●When charging the battery pack for the first time

or after a long storage period, the POWER/

CHARGE lamp may not light. In this case, remove

the battery pack from the camcorder, then try

charging again.

●If the battery operation time remains extremely

short even after having been fully charged, the

battery is worn out and needs to be replaced.

Please purchase a new one.

●Since the AC Adapter processes electricity

internally, it becomes warm during use. Be sure to

use it only in well-ventilated areas.

●Using the optional AA-VF7 Battery Charger, you

can charge the BN-VF707U/VF714U/VF733U

battery pack without the camcorder.

●After 5 minutes has elapsed in Record-Standby

mode with the cassette inserted, the camcorder

will automatically turn off its power supplied from

the AC adapter. In this case, the battery charge

starts if the battery is attached to the camcorder.

Using The Battery Pack

Perform steps 2 – 3 in “Charging The Battery

Pack”.

Maximum continuous recording time

* Provided

NOTES:

●Recording time is reduced significantly under the

following conditions:

•Zoom or Record-Standby mode is engaged

repeatedly.

•The LCD monitor is used repeatedly.

•The playback mode is engaged repeatedly.

●Before extended use, it is recommended that you

prepare enough battery packs to cover 3 times the

planned shooting time.

A

TTENTION:

Before detaching the power source, make sure that

the camcorder’s power is turned off. Failure to do so

can result in a camcorder malfunction.

Data Battery System

You can check the remaining battery power and

the recordable time.

1) Make sure the battery is attached and the

Power Switch is set to “OFF”.

2) Open the LCD monitor fully.

3) Press DATA, and the battery status screen

appears.

●It can be displayed on the viewfinder when the

LCD monitor is closed.

●It is displayed for 5 seconds if the button is

pressed and released quickly, and for 15

seconds if the button is pressed and hold for

several seconds.

●If “COMMUNICATION ERROR” appears

instead of the battery status even though you

tried to press DATA several times, there may

be a problem on the battery. In such a case,

consult your nearest JVC dealer.

Battery pack Charging time

BN-VF707U* Approx. 1 hr. 30 min.

BN-VF714U Approx. 2 hr. 40 min.

BN-VF733U Approx. 5 hr. 40 min.

Battery pack LCD monitor

on Viewfinder on

BN-VF707U* 1 hr. 5 min. 1 hr. 25 min.

BN-VF714U 2 hr. 20 min. 3 hr.

BN-VF733U 5 hr. 25 min. 7 hr. 5 min.

GR-D247PAL.book Page 12 Thursday, November 18, 2004 12:24 PM

EN 13

GETTING STARTED

MasterPage: Start_Right

GETTING STARTED

Using AC Power

Perform steps 4 – 5 in “Charging The Battery

Pack”.

NOTE:

The provided AC Adapter features automatic

voltage selection in the AC range from 110 V to

240 V.

About Batteries

DANGER! Do not attempt to take the batteries

apart, or expose them to flame or excessive

heat, as it may cause a fire or explosion.

WARNING! Do not allow the battery or its

terminals to come in contact with metals, as this

can result in a short circuit and possibly start a

fire.

To resume the original function of the

accurate battery power indication

If the battery power indication differs from the

actual operating time, fully charge the battery,

and then run it down. However this function may

not turn back if the battery was used for a long

period of time under extremely high/low

temperature condition or charged too many

times.

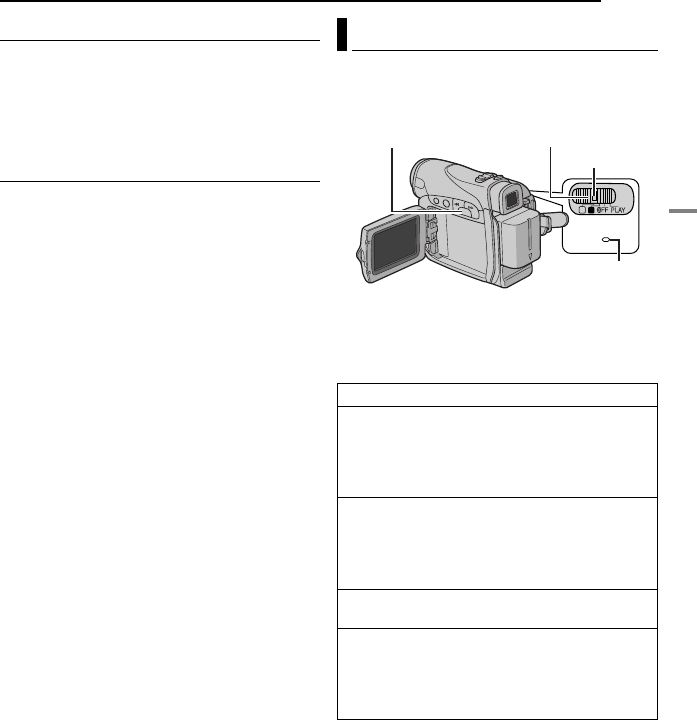

To turn on the camcorder, set the Power Switch

to any operation mode except “OFF” while

pressing down the Lock Button located on the

switch.

Choose the appropriate operation mode

according to your preference using the Power

Switch.

Operation Mode

Power Switch Position

A (Full Auto Recording):

Allows you to record using NO special effects

or manual adjustments. Suitable for standard

recording.

The “A” indicator appears on the display.

M (Manual Recording):

Allows you to set various recording functions

using the Menus. (墌pg. 22)

If you want more creative capabilities than Full

Auto Recording, try this mode.

OFF:

Allows you to switch off the camcorder.

PLAY:

●Allows you to play back a recording on the

tape.

●Allows you to set various playback functions

using the Menus. (墌pg. 22)

POWER/

CHARGE

MA

POWER/

CHARGE lamp

Power Switch

Lock Button

MENU/DATA

CONTINUED ON NEXT PAGE

GR-D247PAL.book Page 13 Thursday, November 18, 2004 12:24 PM

GETTING STARTED

14 EN

MasterPage: Left

Power-Linked Operation

When the Power Switch is set to “A” or “M”, you

can also turn on/off the camcorder by opening/

closing the LCD monitor or pulling out/pushing in

the viewfinder.

INFORMATION:

The following explanations in this manual

supposes the use of LCD monitor in your

operation. If you want to use the viewfinder,

close the LCD monitor and pull out the

viewfinder fully.

The language on the display can be changed.

(墌pg. 22, 26, 27)

1Set the Power Switch to “M” while pressing

down the Lock Button located on the switch.

2Open the LCD monitor fully. (墌pg. 18)

3Press MENU. The Menu Screen appears.

4Press + or – to select

“n”, and press MENU.

The CAMERA DISPLAY

Menu appears.

5Press + or – to select

“LANGUAGE”, and press

MENU.

6Press + or – to select

the desired language, and

press MENU.

7Press + or – to select

“BRETURN”, and press

MENU twice. The Menu

Screen closes.

The date/time is recorded onto the tape at all

times, but its display can be turned on or off

during playback. (墌pg. 22, 27)

1Perform steps 1–4 in “Language Settings”

on the left column.

2Press + or – to select “CLOCK ADJ.”, and

press MENU. The parameter for “Day” is

highlighted.

3Press + or – to input

the day, and press MENU.

Repeat to input the month,

year, hour and minute.

4Press + or – to select

“BRETURN”, and press

MENU twice. The Menu

Screen closes.

1Adjust the velcro strip.

2Pass your right hand

through the loop and grasp

the grip.

3Adjust your thumb and

fingers through the grip to

easily operate the

Recording Start/Stop

Button, Power Switch and

Power Zoom Lever. Be

sure to fasten the velcro strip to your preference.

Language Settings

ON

X–MICAU

NRETUR

LA

DASERA CM I

YP

BRIGHT

LC

–

T/D

AU

MET–/TI DA E OT

OF

DEM– CO TI E

F

V

–

2

OK CL C 210.

J AD . 7

1

. 0 5

:30

NCREON S E

LANGUAGE ENGLISH

LA

DASERA CM I YP

ENGLISH

ESPAÑOL

РУССКИЙ

LANGUAGE –

Date/Time Settings

Grip Adjustment

LA

D

ASERA CM I Y

P

2

OK CL C 210.

J AD . 7

1

. 0 5

:30

GR-D247PAL.book Page 14 Thursday, November 18, 2004 12:24 PM

EN 15

GETTING STARTED

MasterPage: Start_Right

GETTING STARTED

1Set the Power Switch to “A” or “M” while

pressing down the Lock Button located on the

switch.

2Make sure the LCD monitor is closed and

locked. Pull out the viewfinder fully and adjust it

manually for best viewability.

3Turn the Dioptre Adjustment Control until the

indications in the viewfinder are clearly focused.

CAUTION:

When retracting the viewfinder, take care not to

pinch your fingers.

1Set the Power Switch

to “M” or “PLAY” while

pressing down the Lock

Button located on the

switch.

2Open the LCD monitor

fully. (墌pg. 18)

●To adjust the brightness of

the viewfinder, pull out the

viewfinder fully and set

“PRIORITY” to “FINDER”

(墌pg. 22, 25).

3Press MENU. The

Menu Screen appears.

4Press + or – to select “n”, and press MENU.

The CAMERA DISPLAY Menu appears.

5Press + or – to select “BRIGHT”, and press

MENU. The Menu Screen closes and the

brightness control indicator appears.

6Press + or – until the appropriate brightness

is reached.

7Press MENU to clear the brightness control

indicator from the display.

To attach the camcorder

to a tripod, align the

direction stud and screw

to the mounting socket

and stud hole on the

camcorder. Then tighten

the screw clockwise.

●Some tripods are not

equipped with studs.

Viewfinder Adjustment

PAUSE

Dioptre Adjustment Control

Example:

Brightness Adjustment Of The

Display

Tripod Mounting

BRIGHT

MENU

–

+

GR-D247PAL.book Page 15 Thursday, November 18, 2004 12:24 PM

GETTING STARTED

16 EN

MasterPage: Left

The camcorder needs to be powered up to load

or eject a cassette.

1Slide and hold OPEN/EJECT in the direction

of the arrow, then pull the cassette holder cover

open until it locks. The cassette holder opens

automatically.

●Do not touch internal components.

2Insert or remove a tape and press “PUSH

HERE” to close the cassette holder.

●Be sure to press only the section labelled “PUSH

HERE” to close the cassette holder; touching

other parts may cause your finger to get caught in

the cassette holder, resulting in injury or product

damage.

●Once the cassette holder is closed, it recedes

automatically. Wait until it recedes completely

before closing the cassette holder cover.

●When the battery pack’s charge is low, you may

not be able to close the cassette holder cover. Do

not apply force. Replace the battery pack with a

fully charged one or use AC power before

continuing.

3Close the cassette holder cover firmly until it

locks into place.

To protect valuable recordings

Slide the erase protection tab on the back of the

tape in the direction of “SAVE”. This prevents the

tape from being recorded over. To record on this

tape, slide the tab back to “REC” before loading

it.

NOTES:

●If you wait a few seconds and the cassette holder

does not open, close the cassette holder cover

and try again. If the cassette holder still does not

open, turn the camcorder off then on again.

●If the tape does not load properly, open the

cassette holder cover fully and remove the

cassette. A few minutes later, insert it again.

●When the camcorder is suddenly moved from a

cold place to a warm environment, wait a short

time before opening the cassette holder cover.

Loading/Unloading A Cassette

Make sure the window side

is facing out.

Cassette holder

cover

Cassette holder

PUSH HERE

OPEN/EJECT Erase

protection tab

GR-D247PAL.book Page 16 Thursday, November 18, 2004 12:24 PM

MasterPage: Video_Heading0_Right

EN 17

VIDEO RECORDING & PLAYBACK

VIDEO RECORDING

NOTE:

Before continuing, perform the procedures listed

below:

●Power (墌pg. 11)

●Loading A Cassette (墌pg. 16)

1Remove the lens cap. (墌pg. 10)

2Open the LCD monitor fully.

3Set the Power Switch to “A” or “M” while

pressing down the Lock Button located on the

switch.

●The POWER/CHARGE lamp lights and the

camcorder enters the Record-Standby mode.

“PAUSE” is displayed.

●To record in LP (Long Play) mode, 墌pg. 23.

4To start recording, press the Recording Start/

Stop Button. “TREC” appears on the display

while recording is in progress.

5To stop recording, press the Recording Start/

Stop Button again. The camcorder re-enters the

Record-Standby mode.

Approximate recording time

NOTES:

●If the Record-Standby mode continues for

5 minutes, the camcorder’s power shuts off

automatically. To turn the camcorder on again,

push back and pull out the viewfinder again or

close and re-open the LCD monitor.

●When a blank portion is left between recorded

scenes on the tape, the time code is interrupted

and errors may occur when editing the tape. To

avoid this, refer to “Recording From The Middle Of

A Tape” (墌pg. 19).

●To turn the beep sounds off, 墌pg. 22, 25.

Tape Remaining Time

Approximate tape remaining

time appears on the display.

“–h––m” means the

camcorder is calculating the

remaining time. When the

remaining time reaches 2 minutes, the indication

starts blinking.

●The time required to calculate and display the

remaining tape length, and the accuracy of the

calculation, may vary according to the type of tape

used.

Basic Recording

Tape Recording mode

SP LP

30 min. 30 min. 45 min.

60 min. 60 min. 90 min.

80 min. 80 min. 120 min.

POWER/CHARGE Lamp

Recording Start/Stop Button

Power Switch

Lock Button

Power Zoom Lever

VIDEO RECORDING & PLAYBACK

GR-D247PAL.book Page 17 Thursday, November 18, 2004 12:24 PM

VIDEO RECORDING

18 EN

MasterPage: Left

LCD Monitor And Viewfinder

While using the LCD monitor:

Make sure the viewfinder is pushed back in. Pull

on the end of the LCD monitor and open the

LCD monitor fully. It can rotate 270° (90°

downward, 180° upward).

While using the viewfinder:

Make sure the LCD monitor is closed and

locked. Pull out the viewfinder fully.

NOTES:

●The image will not appear simultaneously on the

LCD monitor and the viewfinder. When the

viewfinder is pulled out while the LCD monitor is

opened, you can select which one to use. Set

“PRIORITY” to the desired mode in SYSTEM

Menu. (墌pg. 22, 25)

●Coloured bright spots may appear all over the

LCD monitor or the viewfinder. However, this is not

a malfunction. (墌pg. 39)

Zooming

Produces the zoom in/out effect, or an

instantaneous change in image magnification.

Zoom In

Slide the Power Zoom Lever towards “T”.

Zoom Out

Slide the Power Zoom Lever towards “W”.

●The further you slide the Power Zoom Lever, the

quicker the zoom action.

NOTES:

●Focusing may become unstable during Zooming.

In this case, set the zoom while in Record-

Standby, lock the focus by using the manual focus

(墌pg. 29), then zoom in or out in Record mode.

●Zooming is possible to a maximum of 800X, or it

can be switched to 25X magnification using the

optical zoom. (墌pg. 23)

●Zoom magnification of over 25X is done through

Digital image processing, and is therefore called

Digital Zoom.

●During Digital zoom, the quality of image may

suffer.

●Macro shooting (as close as approx. 5 cm to the

subject) is possible when the Power Zoom Lever

is set all the way to “W”. Also see “TELE MACRO”

in MANUAL Menu on page 24.

●When shooting a subject close to the lens, zoom

out first. If zoomed-in in the auto focus mode, the

camcorder may automatically zoom out

depending on the distance between the

camcorder and the subject. This will not occur

when “TELE MACRO” is set to “ON”. (墌pg. 24)

180˚

90˚

10

x

W

T

1

x

W

T

10

x

W

T

20

x

W

T

40

x

W

T

Digital zoom zone

Zoom in (T: Telephoto)

Zoom out (W: Wide angle)

25X (optical) zoom zone

Approximate zoom ratio

GR-D247PAL_05Video.fm Page 18 Friday, November 19, 2004 3:46 PM

EN 19

VIDEO RECORDING

MasterPage: Start_Right

VIDEO RECORDING & PLAYBACK

Journalistic Shooting

In some situations,

different shooting

angles may provide

more dramatic results.

Hold the camcorder in

the desired position

and tilt the LCD

monitor in the most

convenient direction. It

can rotate 270° (90°

downward, 180°

upward).

Time Code

During recording, a time code is recorded on the

tape. This code is to confirm the location of the

recorded scene on the tape during playback.

* Frames are not displayed during recording.

If recording starts from a blank portion, the time

code begins counting from “00:00:00”

(minute:second:frame). If recording starts from

the end of a previously recorded scene, the time

code continues from the last time code number.

If during recording a blank portion is left partway

through the tape, the time code is interrupted.

When recording is resumed, the time code starts

counting up again from “00:00:00”. This means

the camcorder may record the same time codes

as those existing in a previously recorded scene.

To prevent this, perform Recording From The

Middle Of A Tape (墌pg. 19) in the following

cases;

●When shooting again after playing back a

recorded tape.

●When power shuts off during shooting.

●When a tape is removed and re-inserted during

shooting.

●When shooting using a partially recorded tape.

●When shooting on a blank portion located partway

through the tape.

●When shooting again after shooting a scene then

opening/closing the cassette holder cover.

NOTES:

●The time code cannot be reset.

●During fast-forwarding and rewinding, the time

code indication does not move smoothly.

●The time code is displayed only when “TIME

CODE” is set to “ON”. (墌pg. 26)

Quick Review

Enables to check the end of the last recording.

1) Press during the Recording-Standby

mode.

2) Tape is rewound for about several seconds

and played back automatically, then pauses in

the Recording-Standby mode for the next shot.

●Distortion may occur at start of playback. This is

normal.

Recording From The Middle Of A Tape

1) Play back a tape or use Blank Search

(墌pg. 20) to find the spot at which you want to

start recording, then engage the Still Playback

mode. (墌pg. 20)

2) Set the Power Switch to “A” or “M” while

pressing down the Lock Button located on the

switch, then start recording.

12:34:24

Minutes

Seconds

Frames*

(25 frames = 1 second

)

Display

GR-D247PAL.book Page 19 Thursday, November 18, 2004 12:24 PM

20 EN

MasterPage: Left

VIDEO PLAYBACK

1Load a cassette. (墌pg. 16)

2Set the Power Switch to “PLAY” while

pressing down the Lock Button located on the

switch.

3To start playback, press 4/9.

4To stop playback, press 8.

●During Stop mode, press 3 to rewind, or 5

to fast-forward the tape.

To control the speaker volume

Slide the Power Zoom Lever (VOL. +/–) towards

“+” to turn up the volume, or towards “–” to turn

down the volume.

NOTES:

●The playback picture can be viewed in the LCD

monitor, viewfinder or on a connected TV.

(墌pg. 21)

●If Stop mode continues for 5 minutes when power

is supplied from a battery, the camcorder shuts off

automatically. To turn on again, set the Power

Switch to “OFF”, then to “PLAY”.

●When a cable is connected to the S/AV connector,

the sound is not heard from the speaker.

Still Playback

Pauses during video playback.

1) Press 4/9 during playback.

2) To resume normal playback, press 4/9

again.

●If still playback continues for more than about

3 minutes, the camcorder’s Stop mode is

automatically engaged.

Shuttle Search

Allows high-speed search in either direction

during video playback.

1) During playback, press 5 for forward

search, or 3 for reverse search.

2) To resume normal playback, press 4/9.

●During playback, press and hold 5 or 3. The

search continues as long as you hold the button.

Once you release the button, normal playback

resumes.

●A slight mosaic effect appears on the display

during Shuttle Search. This is not a malfunction.

A

TTENTION:

During Shuttle Search, parts

of the picture may not be

clearly visible, particularly on

the left side of the screen.

Blank Search

Helps you find where you should start recording

in the middle of a tape to avoid time code

interruption. (墌pg. 19)

1Load a cassette. (墌pg. 16)

2Set the Power Switch to “PLAY” while

pressing down the Lock Button located on the

switch.

3Press MENU. The Menu Screen appears.

4Press MENU to select “t”. The VIDEO

Menu appears.

5Press + or – to select “BLANK SRCH”, and

press MENU. The Sub Menu appears.

6Press + or – to select “EXECUTE”, and press

MENU.

●The “BLANK SEARCH” indication appears and

the camcorder automatically starts reverse or

forward search, then stops at the spot which is

about 3 seconds of tape before the beginning of

the detected blank portion.

●To cancel Blank Search midway, press 8.

NOTES:

●Before starting Blank Search, if the current

position is at a blank portion, the camcorder

searches in the reverse direction. If the current

position is at a recorded portion, the camcorder

searches in the forward direction.

●If the beginning or end of the tape is reached

during Blank Search, the camcorder stops

automatically.

●A blank portion which is shorter than 5 seconds of

tape may not be detected.

Normal Playback

MA

Speaker

4/9Lock Button

3

Power

Switch

8

MENU

5VOL. +/–

GR-D247PAL.book Page 20 Thursday, November 18, 2004 12:24 PM

EN 21

VIDEO PLAYBACK

MasterPage: Start_Right

VIDEO RECORDING & PLAYBACK

●The detected blank portion may be located

between recorded scenes. Before you start

recording, make sure there is no recorded scene

after the blank portion.

ABlack to S-VIDEO IN (Connect when your TV/

VCR has S-VIDEO IN and A/V input

connectors. In this case, it is not necessary to

connect the yellow video cable.)

BYellow to VIDEO IN (Connect when your TV/

VCR has only A/V input connectors.)

CRed to AUDIO R IN**

DWhite to AUDIO L IN**

* If your VCR has a SCART connector, use the

provided cable adapter.

** Not required for watching still images only.

NOTE:

Set the video out select switch of the cable adapter

as required:

Y/C: When connecting to a TV or VCR which

accepts Y/C signals and uses an S-Video cable.

CVBS: When connecting to a TV or VCR which

does not accept Y/C signals and uses an audio/

video cable.

1Make sure all units are turned off.

2Connect the camcorder to a TV or VCR as

shown in the illustration.

If using a VCR, go to step 3.

If not, go to step 4.

3Connect the VCR output to the TV input,

referring to your VCR’s instruction manual.

4Turn on the camcorder, the VCR and the TV.

5Set the VCR to its AUX input mode, and set

the TV to its VIDEO mode.

6Start playback on the camcorder. (墌pg. 20)

To choose whether or not the following

displays appear on the connected TV

●Date/Time

Set “DATE/TIME” to “AUTO”, “ON” or “OFF”.

(墌pg. 22, 27)

●Time Code

Set “TIME CODE” to “ON” or “OFF”.

(墌pg. 22, 27)

●Indications other than date/time and time code

Set “ON SCREEN” to “OFF”, “LCD” or “LCD/TV”.

(墌pg. 22, 27)

NOTES:

●It is recommended to use the AC Adapter as

the power supply instead of the battery pack.

(墌pg. 13)

●To monitor the picture and sound from the

camcorder without inserting a tape, set the

camcorder’s Power Switch to “A” or “M”, then set

your TV to the appropriate input mode.

●Make sure you adjust the TV sound volume to its

minimum level to avoid a sudden burst of sound

when the camcorder is turned on.

Connections To A TV Or VCR

2413

TV

VCR

Open the cover.

To AV

connector

To TV or VCR

“Y/C”/“CVBS”

Video Out Select

Switch

Cable

Adapter*

S/AV cable

(provided) mark

GR-D247PAL.book Page 21 Thursday, November 18, 2004 12:24 PM

MasterPage: Heading0_Left

22 EN MENUS FOR DETAILED ADJUSTMENT

This camcorder is equipped with an easy-to-use,

on-screen menu system that simplifies many of

the more detailed camcorder settings.

(墌pg. 23 – 27)

1For Video Recording Menus:

Set the Power Switch to “M” while pressing

down the Lock Button located on the switch.

For Video Playback Menus:

Set the Power Switch to “PLAY” while pressing

down the Lock Button located on the switch.

2Open the LCD monitor fully. (墌pg. 18)

3Press MENU. The Menu Screen appears.

4Press + or – to select the desired function,

and press MENU. The selected function menu

appears.

5Setting procedure hereafter depends on the

selected function.

Menus without Sub Menus

vWIPE/FADER

(墌pg. 33)

rPROGRAM AE

(墌pg. 34)

pEXPOSURE

(墌pg. 30)

uW. BALANCE

(墌pg. 32)

1) Press + or – to select

the desired parameter.

●Example: rPROGRAM

AE Menu

2) Press MENU. Selection is complete. The

Menu Screen returns.

●Repeat the procedure if you wish to set other

function menus.

3) Press MENU. The Menu Screen closes.

Menus with Sub Menus

mCAMERA (墌pg. 23)

qMANUAL

(墌pg. 24)

sSYSTEM (墌pg. 25)

nCAMERA DISPLAY

(墌pg. 26)

tVIDEO (墌pg. 26)

nVIDEO DISPLAY

(墌pg. 27)

1) Press + or – to select

the desired function,

and press MENU. The

Sub Menu appears.

●Example: mCAMERA

Menu

2) Press + or – to select

the desired parameter.

3) Press MENU.

Selection is complete.

●Repeat the procedure if

you wish to set other

function menus.

4) Press MENU. The

Menu Screen returns.

●Repeat the procedure if

you wish to set other

function menus.

5) Press MENU. The Menu Screen closes.

Changing The Menu Settings

MA

Power Switch

Lock Button

MENU

–

+

HIDE

– FA R ET

LADE

– FA R

KC

.WDE

– FA R

RNPE

C WI –

RE

NDE

W I –

WO

IDP

S WI

E

ORPE

D WI –

RO

PE

S WI –

LL

W

B

B

O

I

L

O

C

R/F

DIPE WA

E

UTPE

S WI –RETH

F

OF

PW

E–

ID

O V E

OFONR–AT I NA R F

E C–MOD RE

RC

A KS BL N H

NRETUR

DU DMSO N EO–STRE EO

Screen for Video

Recording Menu Screen for Video

Playback Menu

E RA

ROG PM

A

OR S SP T

O W

SN

OT

I SP

L GHT

TWILIGHT

SEPIA

MONOTONE

CLASSIC FILM

STROBE

Selected menu icon

blinks.

Selected

parameter

ME

A CA R

–

12ODU–D M SO N E TIB

25

O– ZO M

x

FU– SNAP SHOT LL

AG

I– UP GA N C

NRETUR

CMODRE E

Selected menu icon

blinks.

Selected function

ME

A CA R

–

CMODRE E

Sub Menu

ME

A CA R

–

12ODU–D M SO N E TIB

25

O– ZO M

x

FU– LL

AG

I– UP GA N C

CMODRE E

NRETUR

SNAP SHOT

ADVANCED FEATURES

GR-D247PAL.book Page 22 Thursday, November 18, 2004 12:24 PM

EN 23

MENUS FOR DETAILED ADJUSTMENT

MasterPage: Start_Right

ADVANCED FEATURES

CAMERA

The “mCAMERA” settings are effective when

the Power Switch is set to both “A” and “M”.

However, the menu settings can be changed

only when the Power Switch is set to “M”.

[ ] = Factory-preset

[SP]: To record in the SP (Standard Play) mode

LP: Long Play—more economical, providing 1.5

times the recording time.

NOTES:

●If the recording mode is switched, the playback

picture will be blurred at the switching point.

●It is recommended that tapes recorded in the LP

mode on this camcorder be played back on this

camcorder.

●During playback of a tape recorded on another

camcorder, blocks of noise may appear or there

may be momentary pauses in the sound.

[12BIT]: Enables video recording of stereo

sound on four separate channels, and is

recommended for use when performing Audio

Dubbing. (Equivalent to the 32 kHz mode of

previous models)

16BIT: Enables video recording of stereo sound

on two separate channels. (Equivalent to the

48 kHz mode of previous models)

25X: When set to “25X” while using digital zoom,

the zoom magnification will reset to 25X since

digital zoom will be disengaged.

[100X]: Allows you to use the Digital Zoom. By

digitally processing and magnifying images,

zooming is possible from 25X (the optical zoom

limit), to a maximum of 100X digital

magnification.

800X: Allows you to use the Digital Zoom. By

digitally processing and magnifying images,

zooming is possible from 25X (the optical zoom

limit), to a maximum of 800X digital

magnification.

[FULL]: Snapshot mode with no frame

NEGA: Nega mode

PIN-UP: Pin-Up mode

FRAME: Snapshot mode with frame

For details on the procedure, refer to “Snapshot

(For Video Recording)” (墌pg. 29).

OFF: Allows you to shoot dark scenes with no

picture brightness adjustment.

[AGC]: The overall appearance may be grainy,

but the image is bright.

AUTO : The shutter speed is automatically

adjusted. Shooting a subject in low or poor

lighting at slow shutter speed provides a brighter

image than in the AGC mode, but the subject’s

movements are not smooth or natural. The

overall appearance may be grainy. While the

shutter speed is being automatically adjusted,

“ ” is displayed.

Recording Menus

REC MODE

SOUND MODE

ZOOM

SNAP SHOT

GAIN UP

[FULL] PIN-UP FRAMENEGA

GR-D247PAL.book Page 23 Thursday, November 18, 2004 12:24 PM

MENUS FOR DETAILED ADJUSTMENT

24 EN

MasterPage: Left

MANUAL

The “qMANUAL” settings are effective only

when the Power Switch is set to “M”.

[ ] = Factory-preset

OFF: Disables the function.

[ON ]: To compensate for unstable images

caused by camera-shake, particularly at high

magnification.

NOTES:

●Accurate stabilisation may not be possible if hand

shake is excessive, or depending on the shooting

condition.

●The “ ” indicator blinks or goes out if the

Stabiliser cannot be used.

●Switch off this mode when recording with the

camcorder on a tripod.

[OFF]: Disables 5-Second Recording.

5S: Enables 5-Second Recording. (墌pg. 28)

Anim.: Allows you to record a few frames only.

By using an inanimate object and changing its

position between shots, you can record the

subject as though it is moving.

[OFF]: Disables the function.

ON: When the distance to the subject is less

than 1 m, set “TELE MACRO” to “ON”. You can

shoot a subject as large as possible at a

distance of approx. 40 cm.

NOTE:

Depending on the zoom position, the lens may go out

of focus.

[OFF]: Records with no change in the screen

ratio. For playback on a TV with a normal screen

ratio.

CINEMA : Inserts black bands at the top and

bottom of the screen. The indicator appears.

During playback on wide-screen TVs, the black

bands at the top and bottom of the screen are

cut and the screen ratio becomes 16:9. When

using this mode, refer to your wide-screen TV’s

instruction manual. During playback/recording

on 4:3 TVs/LCD monitor/viewfinder, black bands

are inserted at the top and bottom of the screen

and the image appears like a letter boxed 16:9

movie.

SQUEEZE : For playback on TVs with an

aspect ratio of 16:9. Naturally expands the

image to fit the screen without distortion. The

indicator appears. When using this mode,

refer to your wide-screen TV’s instruction

manual. During playback/recording on 4:3 TVs/

LCD monitor/viewfinder, the image is elongated

vertically.

[OFF]: Disengages the function.

ON : Helps cut down on noise created by

wind. The “ ” indicator appears. The quality of

the sound will change. This is normal.

DIS

5S

TELE MACRO

WIDE MODE

WIND CUT

GR-D247PAL.book Page 24 Thursday, November 18, 2004 12:24 PM

EN 25

MENUS FOR DETAILED ADJUSTMENT

MasterPage: Start_Right

ADVANCED FEATURES

SYSTEM

The “sSYSTEM” functions which are set when

the Power Switch is set to “M” are also applied

when the Power Switch is set to “PLAY”.

[ ] = Factory-preset

OFF: Even though not heard while shooting,

shutter sound is recorded on the tape.

BEEP: The beep sounds when the power is

turned on or off, and at the beginning and end of

recording. It also activates the shutter sound

effect. (墌pg. 29)

[MELODY]: Instead of a beep, a melody sounds

when any operation is performed. It also

activates the shutter sound effect. (墌pg. 29)

OFF: Disables the remote control operations.

[ON]: Enables the remote control operations.

It is recommended that this function be set to

“OFF” to prevent improper operation.

OFF: Automatic demonstration will not take

place.

[ON]: Demonstrates certain functions such as

Program AE with special effects, etc., and can

be used to confirm how these functions operate.

Demonstration starts in the following cases:

●When the Menu Screen is closed after “DEMO

MODE” is turned “ON”.

●With “DEMO MODE” set to “ON”, if there is no

operation for about 3 minutes after the Power

Switch is set to “A” or “M”.

●Performing any operation during the

demonstration stops the demonstration

temporarily. If no operation is performed for more

than 3 minutes after that, the demonstration will

resume.

NOTES:

●If a cassette is in the camcorder, the

demonstration cannot be turned on.

●“DEMO MODE” remains “ON” even if the

camcorder power is turned off.

●If “DEMO MODE” remains “ON”, some functions

will not be available. After viewing demo, set to

“OFF”.

[LCD]: The image is displayed on the LCD

monitor when the viewfinder is pulled out while

the LCD monitor is opened.

FINDER: The image is displayed in the

viewfinder when the viewfinder is pulled out

while the LCD monitor is opened.

EXECUTE: Resets all settings to the factory-

preset.

[RETURN]: Does not reset all settings to the

factory-preset.

BEEP

REMOTE

DEMO MODE

PRIORITY

CAM RESET

GR-D247PAL.book Page 25 Thursday, November 18, 2004 12:24 PM

MENUS FOR DETAILED ADJUSTMENT

26 EN

MasterPage: Left

CAMERA DISPLAY

●The “n” (CAMERA DISPLAY) settings are

effective even when the Power Switch is set to

“A”. However, the menu settings can be changed

only when the Power Switch is set to “M”.

●The “n” (CAMERA DISPLAY) settings except

“BRIGHT” and “AUX MIC” are effective only for

shooting.

[ ] = Factory-preset

墌pg. 15, “Brightness Adjustment Of The

Display”

LCD: Keeps the camcorder’s display (except the

date, time and time code) from appearing on the

connected TV screen.

[LCD/TV]: Makes the camcorder’s display

appear on screen when the camcorder is

connected to a TV.

OFF: The date/time does not appear.

[AUTO]: Displays the date/time for approx. 5

seconds when the Power Switch is set from

“OFF” to “A” or “M”.

ON: The date/time is always displayed.

[OFF]: Time code is not displayed.

ON: Time code is displayed on the camcorder

and on the connected TV. Frame numbers are

not displayed during recording. (墌pg. 19)

[ENGLISH] /ESPAÑOL /РУССКИЙ

The language setting can be changed.

(墌pg. 14)

OFF: Auxiliary microphone level indicator does

not appear.

[ON]: Displays auxiliary microphone level

indicator when optional microphone is

connected. (墌pg. 8)

墌pg. 14, “Date/Time Settings”

VIDEO

[ ] = Factory-preset

SOUND MODE and NARRATION

During tape playback, the camcorder detects the

sound mode in which the recording was made,

and plays the sound back. Select the type of

sound to accompany your playback picture.

According to the menu access explanation on

page 22, select “SOUND MODE” or

“NARRATION” from the Menu Screen and set it

to the desired parameter.

[STEREO ]: Sound is output on both “L” and

“R” channels in stereo.

SOUND L : Sound from the “L” channel is

output.

SOUND R : Sound from the “R” channel is

output.

[OFF]: Original sound is output on both “L” and

“R” channels in stereo.

ON: Dubbed sound is output on both “L” and “R”

channels in stereo.

MIX: Original and dubbed sounds are combined

and output in stereo on both “L” and “R”

channels.

Allows you to set the video recording mode (SP

or LP) depending on your preference. It is

recommended you use “REC MODE” in VIDEO

Menu when using this camcorder as a recorder

during dubbing. (墌pg. 35, 36)

墌pg. 20, “Blank Search”

SYSTEM

Each setting is linked with “sSYSTEM”, which

appears when the Power Switch is set to “M”.

(墌pg. 22)

●The parameters are the same as in the

description on page 25.

BRIGHT

ON SCREEN

DATE/TIME

TIME CODE

LANGUAGE

AUX MIC

CLOCK ADJ.

Playback Menus

SOUND MODE

NARRATION

REC MODE [SP] /LP

BLANK SRCH

GR-D247PAL.book Page 26 Thursday, November 18, 2004 12:24 PM

EN 27

MENUS FOR DETAILED ADJUSTMENT

MasterPage: Start_Right

ADVANCED FEATURES

VIDEO DISPLAY

The “n” (VIDEO DISPLAY) settings are

effective only for video playback except

“BRIGHT” and “AUX MIC”.

●The parameters (except “OFF” in ON SCREEN

settings) are the same as in the description

(CAMERA DISPLAY) on page 26.

[ ] = Factory-preset

墌pg. 15, “Brightness Adjustment Of The

Display”

When set to “OFF”, the camcorder’s display

disappears.

When set to “AUTO”, the date/time are displayed

in the following cases:

●When playback starts. The camcorder displays

the date/time when scenes are recorded.

●When the date is changed during playback.

墌pg. 19, “Time Code”

[ENGLISH] /ESPAÑOL /РУССКИЙ

The language setting can be changed.

(墌pg. 14)

墌pg. 26, “AUX MIC”

BRIGHT

ON SCREEN OFF /[LCD] /LCD/TV

DATE/TIME [OFF] /AUTO /ON

TIME CODE [OFF] /ON

LANGUAGE

AUX MIC OFF /[ON]

GR-D247PAL.book Page 27 Thursday, November 18, 2004 12:24 PM

MasterPage: Heading0_Left

28 EN FEATURES FOR RECORDING

Record a vacation or an important event in 5-

second clips to keep the action moving. This

function is available only for video recording.

1Set “5S” to “5S”. (墌pg. 24)

●The “5S” indicator appears.

2Press the Recording Start/Stop Button to

start recording, and after 5 seconds the

camcorder enters Record-Standby mode

automatically.

●Even if you press the Recording Start/Stop Button

again within 5 seconds after recording starts,

Record-Standby mode is not engaged.

3To exit the 5S mode, select “OFF” in step 1.

To take a snapshot in the 5-second recording

mode

Instead of pressing the Recording Start/Stop

Button in step 2, select the desired Snapshot

mode in CAMERA Menu (墌pg. 23), then press

SNAPSHOT. The camcorder records a 5-

second still. When “5S” is set to “Anim.”, this

function is not available.

NOTE:

When “5S” is set to “Anim.”, the 5-Second

Recording mode is not available. Animation

recording of a few frames only is taken instead.

Makes dark subjects or areas even brighter than

they would be under good natural lighting.

Although the recorded image is not grainy, it may

look as if it is strobing due to the slow shutter

speed.

1Set the Power Switch to “M”.

2Press NIGHT so that the Night-Scope

indicator “ ” appears.

●The shutter speed is automatically adjusted to

provide up to 25 times sensitivity.

●“ ” appears beside “ ” while the shutter speed

is being automatically adjusted.

To deactivate Night-Scope

Press NIGHT again so that the Night-Scope

indicator disappears.

NOTES:

●During Night-Scope, the following functions or

settings cannot be activated and its indicator

blinks or goes out:

•Some modes of “Program AE With Special

Effects” (墌pg. 34).

•“GAIN UP” in CAMERA Menu (墌pg. 23).

•“DIS” in MANUAL Menu (墌pg. 24).

●During Night-Scope, it may be difficult to bring the

camcorder into focus. To prevent this, use of a

tripod is recommended.

5-Second Recording Night-Scope

GR-D247PAL.book Page 28 Thursday, November 18, 2004 12:24 PM

EN 29

FEATURES FOR RECORDING

MasterPage: Start_Right

ADVANCED FEATURES

This feature lets you record still images that look

like photographs onto a tape.

1Set the Power Switch to “M”.

2Set “SNAP SHOT” to the desired mode.

(墌pg. 22, 23)

3Press SNAPSHOT.

●There is the sound effect of a shutter closing.

●The “O” indication appears and a still image

will be recorded for approx. 6 seconds, then the

camcorder re-enters the Record-Standby mode.

●You can perform Snapshot also during recording.

A still image will be recorded for approx.

6 seconds, then the normal recording resumes.

●Regardless of the Power Switch position (“A” or

“M”), Snapshot recording takes place using the

selected Snapshot mode.

Motor Drive Mode

Keeping SNAPSHOT pressed in step 3 provides

an effect similar to serial photography. (Interval

between still images: approx. 1 second)

The camcorder’s Full Range AF system offers

continuous shooting ability from close-up (as

close as approx. 5 cm to the subject) to infinity.

However, correct focus may not be obtained

depending on the shooting condition. In this

case, use the manual focus mode.

1Set the Power Switch to

“M”.

2Press FOCUS. The

manual focus indicator

appears.

3Press + or – to focus on

a subject.

●When the focus level

cannot be adjusted any

further or closer, “ ” or “ ” will blink.

4Press MENU. Focus adjustment is complete.

To reset to Auto Focus

Press FOCUS twice or set the Power Switch to

“A”.

Manual focus is recommended in situations

listed below.

●When two subjects overlap in the same scene.

●When illumination is low.*

●When the subject has no contrast (difference in

brightness and darkness), such as a flat, one-

colour wall, or a clear, blue sky.*

●When a dark object is barely visible in the LCD

monitor or the viewfinder.*

●When the scene contains minute patterns or

identical patterns that are regularly repeated.

●When the scene is affected by sunbeams or light

reflecting off the surface of a body of water.

●When shooting a scene with a high-contrast

background.

* The following low-contrast warnings appear

blinking: , , and .

Snapshot (For Video Recording) Manual Focus

Manual focus

indicator

GR-D247PAL.book Page 29 Thursday, November 18, 2004 12:24 PM

FEATURES FOR RECORDING

30 EN

MasterPage: Left

Manual exposure control is recommended in the

following situations:

●When shooting using reverse lighting or when the

background is too bright.

●When shooting on a reflective natural background

such as at the beach or when skiing.

●When the background is overly dark or the subject

is bright.

1Set the Power Switch to “M”.

2Set “p” to “MANUAL”. (墌pg. 22)

●The exposure control indicator appears.

3To brighten the image, press +. To darken the

image, press –. (maximum ±6)

●+3 exposure has the same effect as the backlight

compensation. (墌pg. 31)

●–3 exposure has the same effect as when “r” is

set to “SPOTLIGHT”. (墌pg. 34)

4Press MENU. Exposure adjustment is

complete.

To return to automatic exposure control

Select “AUTO” in step 2. Or, set the Power

Switch to “A”.

NOTES:

●You cannot use the manual exposure control at

the same time when “r” is set to “SPOTLIGHT”

or “SNOW” (墌pg. 34), or with the backlight

compensation.

●If the adjustment does not cause any visible

change in brightness, set “GAIN UP” to “AUTO”.

(墌pg. 22, 23)

Like the pupil of the human eye, the iris

contracts in well-lit environments to keep too

much light from entering, and dilates in dim

environments to allow in more light.

Use this function in the following situations:

●When shooting a moving subject.

●When the distance to the subject changes (so its

size in the LCD monitor or the viewfinder

changes), such as when the subject is backing

away.

●When shooting on a reflective natural background

such as at the beach or when skiing.

●When shooting objects under a spotlight.

●When zooming.

1Set the Power Switch to “M”.

2Set “p” to “MANUAL”. (墌pg. 22)

●The exposure control indicator appears.

3Adjust zoom so that the subject fills the LCD

monitor or the viewfinder, then press and hold

MENU for over 2 seconds. The exposure control

indicator and the “ ” indication appear.

4Press MENU. The “ ” indication changes to

“ ” and the iris is locked.

To return to automatic iris control

Select “AUTO” in step 2. Or, set the Power

Switch to “A”.

●The exposure control indicator and “ ”

disappear.

To lock the exposure control and the iris

After step 2, adjust the exposure by pressing +

or –. Then lock the iris in steps 3 and 4. For

automatic locking, select “AUTO” in step 2. The

exposure control and the iris become automatic.

Exposure Control Iris Lock

GR-D247PAL.book Page 30 Thursday, November 18, 2004 12:24 PM

EN 31

FEATURES FOR RECORDING

MasterPage: Start_Right

ADVANCED FEATURES

Backlight compensation brightens the subject

quickly.

With simple operation, backlight compensation

feature brightens the dark subject portion by

increasing the exposure.

1Set the Power Switch to “M”.

2Press BACK LIGHT so that the Backlight

Compensation indicator “ ” appears.

To cancel Backlight Compensation

Press BACK LIGHT twice so that the “ ”

indicator disappears.

NOTE:

Using Backlight Compensation may cause the light

around the subject to become too bright and the

subject to become white.

Selection of a spot metering area enables more

precise exposure compensation. You can select

one of the three metering areas on the LCD

monitor/viewfinder.

1Set the Power Switch to “M”.

2Press BACK LIGHT twice so that the Spot

Exposure Control indicator “ ” appears.

●A spot metering area frame appears at the

centre of the LCD monitor/viewfinder.

3Press + or – to select the desired spot

metering area frame.

4Press MENU.

●Spot Exposure Control is engaged.

●Exposure is adjusted to make the brightness of

the selected area most appropriate.

To lock the iris

After step 3, press and hold MENU over 2

seconds. The “ ” indication appears and the

iris is locked.

To cancel Spot Exposure Control

Press BACK LIGHT once so that the “ ”

indicator disappears.

NOTES:

●You cannot use the Spot Exposure Control at the

same time with following functions.

•“SQUEEZE” in “WIDE MODE” (墌pg. 24)

•“STROBE” in “PROGRAM AE” (墌pg. 34)

•Digital Zoom (墌pg. 18)

•Manual Exposure Control

●Depending on the shooting location and condition,

optimum result may not be attained.

Backlight Compensation Spot Exposure Control

GR-D247PAL.book Page 31 Thursday, November 18, 2004 12:24 PM

FEATURES FOR RECORDING

32 EN

MasterPage: Left

The white balance refers to the correctness of

colour reproduction under various lighting. If the

white balance is correct, all other colours will be

accurately reproduced.

The white balance is usually adjusted

automatically. However, more advanced

camcorder operators control this function

manually to achieve a more professional colour/

tint reproduction.

To change the setting

Set “u” to the desired mode. (墌pg. 22)

●The selected mode indicator except “AUTO”

appears.

[AUTO]: White balance is adjusted

automatically.

MWB: Adjust the white balance manually

when shooting under various types of lighting.

(墌“Manual White Balance Adjustment”)

FINE: Outdoors on a sunny day.

CLOUD: Outdoors on a cloudy day.

HALOGEN: A video light or similar type of

lighting is used.

[ ] = Factory-preset

To return to automatic white balance

Set “u” to “AUTO”. (墌pg. 22)

Or, set the Power Switch to “A”.

Adjust the white balance

manually when shooting

under various types of

lighting.

1Set the Power Switch

to “M”.

2Select “MWB” in

“uW.BALANCE” menu. (墌pg. 22)

●The indication blinks slowly.

3Hold a sheet of plain white paper in front of

the subject. Adjust zoom or position yourself so

that the white paper fills the screen.

4Press and hold MENU until begins

blinking rapidly.

●When the setting is completed, resumes

normal blinking.

5Press MENU twice. The Menu Screen closes

and the Manual White Balance indicator is

displayed.

NOTES:

●In step 3, it may be difficult to focus on the white

paper. In such a case, adjust focus manually.

(墌pg. 29)

●A subject can be shot under various types of

lighting conditions indoors (natural, fluorescent,

candlelight, etc.). Because the colour temperature

is different depending on the light source, the

subject tint will differ depending on the white

balance settings. Use this function for a more

natural result.

●Once you adjust white balance manually, the

setting is retained even if the power is turned off or

the battery removed.

White Balance Adjustment Manual White Balance Adjustment

White paper

GR-D247PAL.book Page 32 Thursday, November 18, 2004 12:24 PM

EN 33

FEATURES FOR RECORDING

MasterPage: Start_Right

ADVANCED FEATURES

These effects let you make pro-style scene

transitions. Use them to spice up the transition

from one scene to the next.

Wipe or Fader works when video recording is

started or stopped.

1Set the Power Switch to “M”.

2Set “v” to the desired mode. (墌pg. 22)

●The WIPE/FADER menu disappears and the

effect is reserved.

●The selected effect indicator appears.

3Press the Recording Start/Stop Button to

activate the Fade-in/out or Wipe-in/out.

To deactivate the selected effect

Select “OFF” in step 2. The effect indicator

disappears.

NOTES:

●You can extend the length of a Wipe or Fader by

pressing and holding the Recording Start/Stop

Button.

●Some Wipe/Fader Effects cannot be used with

certain modes of Program AE with special effects.

(墌pg. 34) In this case, the selected indicator

blinks or goes out.

WIPE/FADER

OFF: Disables the function. (Factory-preset)

FADER–WHITE: Fade in or out with a white

screen.

FADER–BLACK: Fade in or out with a black

screen.

FADER–B.W: Fade in to a colour screen

from a black and white screen, or fade out from

colour to black and white.

WIPE–CORNER: Wipe in on a black screen

from the upper right to the lower left corner, or

wipe out from lower left to upper right, leaving a

black screen.

WIPE–WINDOW: The scene starts in the

centre of a black screen and wipes in toward the

corners, or comes in from the corners, gradually

wiping out to the centre.

WIPE–SLIDE: Wipe in from right to left, or

wipe out from left to right.

WIPE–DOOR: Wipe in as the two halves of

a black screen open to the left and right,

revealing the scene, or wipe out and the black

screen reappears from left and right to cover the

scene.

WIPE–SCROLL: The scene wipes in from

the bottom to the top of a black screen, or wipes

out from top to bottom, leaving a black screen.

WIPE–SHUTTER: Wipe in from the centre

of a black screen toward the top and bottom, or

wipe out from the top and bottom toward the

centre leaving a black screen.

Wipe Or Fader Effects

GR-D247PAL.book Page 33 Thursday, November 18, 2004 12:24 PM

FEATURES FOR RECORDING

34 EN

MasterPage: Left

1Set the Power Switch to “M”.

2Set “r” to the desired mode. (墌pg. 22)

●The PROGRAM AE menu disappears and the

selected effect is activated.

●The selected effect indicator appears.

To deactivate the selected effect

Select “OFF” in step 2. The effect indicator

disappears.

NOTES:

●Program AE with special effects can be changed

during recording or during Record-Standby.

●Some modes of Program AE with special effects

cannot be used during Night-Scope.

●When a subject is too bright or reflective, a vertical

streak may appear (smear phenomenon). Smear

phenomenon tends to occur when “SPORTS” or

any mode of “SHUTTER 1/250 – 1/4000” is

selected.

●Some modes of Program AE with special effects

cannot be used with certain Wipe/Fader effects.

(墌pg. 33) In this case, the selected indicator

blinks or goes out.

PROGRAM AE

OFF: Disables the function. (Factory-preset)

SHUTTER 1/50: The shutter speed is fixed

at 1/50th of a second. Black bands that usually

appear when shooting a TV screen become

narrower.

SHUTTER 1/120: The shutter speed is

fixed at 1/120th of a second. The flickering that

occurs when shooting under a fluorescent light

or mercury-vapour lamp is reduced.

SHUTTER 1/250/ SHUTTER 1/500/

SHUTTER 1/1000/ SHUTTER 1/2000/

SHUTTER 1/4000: These settings allow fast-

moving images to be captured one frame at a

time, for vivid, stable slow-motion playback by

fixing shutter speed variables. Use these

settings when an automatic adjustment does not

work well, using SPORTS mode. The faster the

shutter speed, the darker the picture becomes.

Use the shutter function under good lighting

conditions.

SPORTS

(Variable Shutter Speed: 1/250 – 1/4000):

This setting allows fast-moving images to be

captured one frame at a time, for vivid, stable

slow-motion playback. The faster the shutter

speed, the darker the picture becomes. Use the

shutter function under good lighting conditions.

SNOW: Compensates for subjects that may

otherwise appear too dark when shooting in

extremely bright surroundings such as in the

snow.

SPOTLIGHT: Compensates for subjects

that may otherwise appear too bright when

shooting under extremely strong direct lighting

such as spotlights.

TWILIGHT: Makes evening scenes look

more natural. White Balance (墌pg. 32) is

automatically set to “ ”, but can be changed to

your desired setting. When Twilight is chosen,

the camcorder automatically adjusts the focus

from approx. 10 m to infinity. From less than 10

m, adjust the focus manually.

SEPIA: Recorded scenes have a brownish

tint like old photos. Combine this with the

Cinema mode for a classic look.

MONOTONE: Like classic black and white

films, your footage is shot in B/W. Used together

with the Cinema mode, it enhances the “classic

film” effect.

CLASSIC FILM: Gives recorded scenes a

strobe effect.

STROBE: Your recording looks like a series

of consecutive snapshots.

MIRROR: Creates a mirror image on the

right half of the screen, juxtaposed to the normal

image on the other half.

Program AE With Special Effects

GR-D247PAL.book Page 34 Thursday, November 18, 2004 12:24 PM

EN 35

MasterPage: Start_Right

ADVANCED FEATURES

EDITING

ATo S-VIDEO IN**

BYellow to VIDEO IN

CRed to AUDIO R IN

DWhite to AUDIO L IN

* If your VCR has a SCART connector, use the

provided cable adapter. (The provided cable

adapter accepts only output signals from this

camcorder. To use this camcorder as a recorder,

use a commercially available cable adapter.)

** Connect when your TV/VCR has an S-VIDEO IN

connector. In this case, it is not necessary to

connect the yellow video cable.

NOTE:

Set the video out select switch of the cable adapter

as required:

Y/C: When connecting to a TV or VCR which

accepts Y/C signals and uses an S-Video cable.

CVBS: When connecting to a TV or VCR which

does not accept Y/C signals and uses an audio/

video cable.

1Following the illustrations, connect the

camcorder and the VCR’s input connectors.

2Start playback on the camcorder. (墌pg. 20)

3At the point you want to start dubbing, start

recording on the VCR. (Refer to the VCR’s

instruction manual.)

4To stop dubbing, stop recording on the VCR,

then stop playback on the camcorder.

NOTES:

●It is recommended to use the AC Adapter as

the power supply instead of the battery pack.

(墌pg. 13)

●To choose whether or not the following displays

appear on the connected TV

•Date/time

Set “DATE/TIME” to “AUTO”, “ON” or “OFF”.

(墌pg. 22, 27)

•Time code

Set “TIME CODE” to “OFF” or “ON”.

(墌pg. 22, 27)

•Indications other than date/time and time code

Set “ON SCREEN” to “OFF”, “LCD” or “LCD/

TV”. (墌pg. 22, 27)

Dubbing To A VCR

2413

TV

VCR

Open the cover.

S/AV cable

(provided)

To S/AV connector

To VCR

“Y/C”/“CVBS”

Video Out Select

Switch

Cable

Adapter*

mark

GR-D247PAL.book Page 35 Thursday, November 18, 2004 12:24 PM

EDITING

36 EN

MasterPage: Left

It is also possible to copy recorded scenes from

the camcorder onto another video unit equipped

with a DV connector. Since a digital signal is

sent, there is little if any image or sound

deterioration.

1Make sure all units are turned off.

2Connect this camcorder to a video unit

equipped with a DV input connector using a DV

cable as shown in the illustration.

3Start playback on the camcorder. (墌pg. 20)

4At the point you want to start dubbing, start

recording on the video unit. (Refer to the video

unit’s instruction manual.)

5To stop dubbing, stop recording on the video

unit, then stop playback on this camcorder.

NOTES:

●It is recommended to use the AC Adapter as

the power supply instead of the battery pack.

(墌pg. 13)

●If a blank portion or disturbed image is played

back on the player during dubbing, the dubbing

may stop so that an unusual image is not dubbed.

●Even though the DV cable is connected correctly,

sometimes the image may not appear in step 4. If

this occurs, turn off the power and make

connections again.

●When using a DV cable, be sure to use the

optional JVC VC-VDV204U DV cable.

Dubbing To A Video Unit Equipped

With A DV Connector (Digital

Dubbing)

Core filter

To DV OUT

DV cable (optional)

To DV IN

Video unit equipped with DV connector

GR-D247PAL.book Page 36 Thursday, November 18, 2004 12:24 PM

EN 37

EDITING

MasterPage: Start_Right

ADVANCED FEATURES

It is also possible to transfer still/moving images

to a PC with a DV connector by using the

provided software, software equipped with the

PC or commercially available software.

If you are using a Windows® XP, you can use

Windows® Messenger to conduct video

conferences over the Internet, using a

camcorder. For details, refer to the help for the

Windows® Messenger.

NOTES:

●Refer to “SOFTWARE INSTALLATION AND PC

CONNECTION GUIDE” for the bundled software.

●It is recommended to use the AC Adapter as

the power supply instead of the battery pack.

(墌pg. 13)

●When using a DV cable, be sure to use the

optional JVC VC-VDV206U or VC-VDV204U DV

cable depending on the type of DV connector

(4 or 6 pins) on the PC.

●The date/time information cannot be captured into

the PC.

●Refer to the instruction manuals of the PC and

Software.

●The still images can also be transferred to a PC

with a DV connector-equipped capture board.

●The system may not work properly depending on

the PC or capture board you are using.

Connection To A Personal Computer

When connecting the camcorder to a PC

using a DV cable, make sure to follow the

procedure below. Connecting the cable

incorrectly may cause malfunctions to the

camcorder and/or the PC.

●Connect the DV cable first to the PC, and then

to the camcorder.

●Connect the DV cable (plugs) correctly

according to the shape of the DV connector.

PC with DV connector

To DV OUT

To DV connector

Core filter

Core filter

DV cable

(optional)

GR-D247PAL_06Advanced.fm Page 37 Friday, November 19, 2004 3:54 PM

MasterPage: Heading0_Left

38 EN TROUBLESHOOTING

If, after following the steps in the chart below, the

problem still exists, please consult your nearest

JVC dealer.

Power

●The power is not connected properly.

HConnect the AC Adapter securely. (墌pg. 13)

●The battery pack is not attached firmly.

HDetach the battery pack once again and re-attach

it firmly. (墌pg. 11)

●The battery is dead.

HReplace the dead battery with a fully charged

one. (墌pg. 11)

Video Recording

●The tape’s erase protection tab is set to “SAVE”.

HSet the tape’s erase protection tab to “REC”.

(墌pg. 16)

●“TAPE END” appears.

HReplace with new cassette. (墌pg. 16)

●The cassette holder cover is open.

HClose the cassette holder cover.

●This is not a malfunction.

●This is not a malfunction.

●“DATE/TIME” is set to “OFF”.

HSet “DATE/TIME” to “ON”. (墌pg. 22, 26)

●Certain Wipe/Fader effects, certain modes of

Program AE with special effects, “DIS” and other

functions that cannot be used together are

selected at the same time.

HRe-read the sections covering Wipe/Fader

effects, Program AE with special effects and

“DIS”. (墌pg. 22, 24, 33, 34)

●25X optical zoom is selected.

HSet “ZOOM” to “100X” or “800X”. (墌pg. 23)

Video Playback

●Your TV has AV input terminals, but is not set to

its VIDEO mode.

HSet the TV to the mode or channel appropriate for

video playback. (墌pg. 21)

●The cassette holder cover is open.

HClose the cassette holder cover. (墌pg. 16)

HClean the video heads with an optional cleaning

cassette. (墌pg. 44)

Advanced features

●Focus is set to the Manual mode.

HSet Focus to the Auto mode. (墌pg. 29)

●The lens is dirty or covered with condensation.

HClean the lens and check the focus again.

(墌pg. 42)

●The 5-Second mode is set to “Anim.” in MANUAL

Menu.

HSet “5S” to “5S” in MANUAL Menu.

(墌pg. 22, 28)

●The Squeeze mode (SQUEEZE) is selected.

HDisengage the Squeeze (SQUEEZE) mode.

(墌pg. 22, 24)

The camcorder is a microcomputer-controlled

device. External noise and interference (from a

TV, a radio, etc.) might prevent it from

functioning properly. In such cases, first

disconnect its power supply unit (battery pack,

AC Adapter, etc.) and wait a few minutes; and

then re-connect it and proceed as usual from

the beginning.

No power is supplied.

Recording cannot be performed.

When shooting a subject illuminated by

bright light, vertical lines appear.

When the screen is under direct sunlight

during shooting, the screen becomes red or

black for an instant.

During recording, the date/ time does not

appear.

The LCD monitor or viewfinder indications

blink.

Digital Zoom does not work.

The tape is moving, but there is no picture.

Blocks of noise appear during playback, or

there is no playback picture and the screen

becomes blue.

The focus does not adjust automatically.

In the 5-Second mode, recording ends

before 5 seconds have elapsed.

Snapshot mode cannot be used.

REFERENCES

GR-D247PAL.book Page 38 Thursday, November 18, 2004 12:24 PM

EN 39

TROUBLESHOOTING

MasterPage: Start_Right

REFERENCES

●The light source or the subject does not include

white. Or there are various different light sources

behind the subject.

HFind a white subject and compose your shot so

that it also appears in the frame. (墌pg. 29)

●Shooting was performed under backlit conditions.

HPress BACK LIGHT. (墌pg. 31)

●The subject is too bright.

HSet “r” to “SPOTLIGHT”. (墌pg. 34)

●The Sepia (SEPIA) or Monotone (MONOTONE)

mode is activated.

HDisengage the Sepia (SEPIA) or Monotone

(MONOTONE) mode before setting White

Balance. (墌pg. 34)

●The Sepia (SEPIA) or Monotone (MONOTONE)

mode is activated.

HDisengage the Sepia (SEPIA) and Monotone

(MONOTONE). (墌pg. 34)

●When shooting in the dark, the unit becomes

highly sensitive to light when “GAIN UP” is set to

“AUTO”.

HIf you want the lighting to look more natural, set

“GAIN UP” to “AGC” or “OFF”. (墌pg. 22, 23)

Other problems

●Charging is difficult in places subject to extremely

high/low temperatures.

HTo protect the battery, it is recommended to

charge it in places with a temperature of 10°C to

35°C. (墌pg. 43)

●The battery pack is not attached firmly.

HDetach the battery pack once again and re-attach

it firmly. (墌pg. 11)

●The date/time is not set.

HSet the date/time. (墌pg. 14)

●The built-in clock battery has run out and the

previously set date/time has been erased.

HConsult your nearest JVC dealer for replacement.

●This is not a malfunction.

HBy recording with “DIS” activated (墌pg. 22, 24)

this can be avoided.

●The DV cable was plugged/unplugged with power

turned on.

HTurn the camcorder’s power off and on again,

then operate it.

●In places subject to low temperature, images

become dark due to the characteristics of the

LCD monitor. This is not a malfunction.

HAdjust the brightness and angle of the LCD

monitor. (墌pg. 15, 18)

●When the LCD monitor’s fluorescent light reaches

the end of its service life, images on the LCD

monitor become dark.

HConsult your nearest JVC dealer.

●The LCD monitor and the viewfinder are made

with high-precision technology. However, black

spots or bright spots of light (red, green or blue)

may appear constantly on the LCD monitor or the

viewfinder. These spots are not recorded on the

tape. This is not due to any defect of the unit.

(Effective dots: more than 99.99 %)

●The battery’s charge is low.

HInstall a fully charged battery. (墌pg. 11)

The colour of Snapshot looks strange.

The image taken using Snapshot is too

dark.

The image taken using Snapshot is too

bright.

White Balance cannot be activated.

The Black & White Fader does not work.

The image looks like the shutter speed is

too slow.

The POWER/CHARGE lamp on the

camcorder does not light during charging.

“SET DATE/TIME!” appears.

When the image is printed from the printer,

a black bar appears at the bottom of the

screen.

When the camcorder is connected via the

DV connector, the camcorder does not

operate.

Images on the LCD monitor appear dark or

whitish.

Coloured bright spots appear all over the

LCD monitor or the viewfinder.

The cassette will not load properly.

GR-D247PAL.book Page 39 Thursday, November 18, 2004 12:24 PM

TROUBLESHOOTING

40 EN

MasterPage: Left

●The viewfinder is pulled out and “PRIORITY” is

set to “FINDER”.

HPush the viewfinder back in or set “PRIORITY” to

“LCD”. (墌pg. 18, 22, 25)

●The LCD monitor’s brightness setting is too dark.

HAdjust the brightness of the LCD monitor.

(墌pg. 15)

HIf the monitor is tilted upward 180 degrees, open

the monitor fully. (墌pg. 18)

●A malfunction of some kind has occurred. In this

case the camcorder’s functions become

unusable.

H墌pg. 41.

Warning Indications

Displays the battery remaining power.

Remaining power level

As the battery power comes close to nil, the

battery remaining power indicator blinks.

When the battery power is exhausted, power

turns off automatically.

Appears when no tape is loaded. (墌pg. 16)

Appears when the erase protection tab is set to

“SAVE” while the Power Switch is set to “A” or

“M”. (墌pg. 13)

Appears if dirt is detected on the heads during

recording. Use an optional cleaning cassette.

(墌pg. 44)

Appears if condensation occurs. When this

indication is displayed, wait more than 1 hour

until condensation disappears.

Appears if a tape is not loaded when the

Recording Start/Stop Button or SNAPSHOT

Button is pressed while the Power Switch is set

to “A” or “M”.

Appears when the tape ends during recording or

playback.

●Appears when the date/time is not set.

(墌pg. 14)

●The built-in clock battery has run out and the

previously set date/time has been erased.

Consult your nearest JVC dealer for

replacement.

Picture does not appear on the LCD

monitor.

An error indication (01 – 04 or 06) appears.

CHECK TAPE’S ERASE PROTECTION TAB

USE CLEANING CASSETTE

CONDENSATION, OPERATION

PAUSED PLEASE WAIT

TAPE!

TAPE END

SET DATE/TIME!

ExhaustedHigh

GR-D247PAL.book Page 40 Thursday, November 18, 2004 12:24 PM

EN 41

TROUBLESHOOTING

MasterPage: Start_Right

REFERENCES

Appears for 5 seconds after power is turned on if

the lens cap is attached or when it is dark.

Appears when pictures recorded in the HDV

format are detected. The pictures in the HDV

format cannot be played back with this

camcorder.

The error indications (01, 02 or 06) show what

type of malfunction has occurred. When an error

indication appears, the camcorder turns off

automatically. Remove the power supply

(battery, etc.) and wait a few minutes for the

indication to clear. When it does, you can

resume using the camcorder. If the indication

remains, consult your nearest JVC dealer.

The error indications (03 or 04) show what type

of malfunction has occurred. When an error

indication appears, the camcorder turns off

automatically. Eject the cassette once and re-

insert it, then check if the indication clears.

When it does, you can resume using the

camcorder. If the indication remains, consult

your nearest JVC dealer.

LENS CAP

HDV

UNIT IN SAFEGUARD MODE

REMOVE AND REATTACH BATTERY

UNIT IN SAFEGUARD MODE

EJECT AND REINSERT TAPE

GR-D247PAL.book Page 41 Thursday, November 18, 2004 12:24 PM

MasterPage: Heading0_Left

42 EN USER MAINTENANCE

Before cleaning, turn off the camcorder and

remove the battery pack and AC Adapter.

To clean the exterior

Wipe gently with a soft cloth. Put the cloth in

diluted mild soap and wring it well to wipe off

heavy dirt. Then wipe again with a dry cloth.

To clean the LCD monitor

Wipe gently with a soft cloth. Be careful not to

damage the monitor. Close the LCD monitor.

To clean the lens

Blow it with a blower brush, then wipe gently

with lens cleaning paper.

NOTES:

●Avoid using strong cleaning agents such as

benzine or alcohol.

●Cleaning should be done only after the battery

pack has been removed or other power units have

been disconnected.

●Mould may form if the lens is left dirty.

●When using a cleaner or chemically treated cloth

refer to the cautions of each product.

●To clean the viewfinder, please consult your

nearest JVC dealer.

Cleaning The Camcorder

GR-D247PAL.book Page 42 Thursday, November 18, 2004 12:24 PM

EN 43

MasterPage: Start_Right

REFERENCES

CAUTIONS

Battery Packs

The supplied battery

pack is a lithium-ion

battery. Before using the

supplied battery pack or

an optional battery pack,

be sure to read the

following cautions:

●To avoid hazards

...do not burn.

...do not short-circuit the terminals. When

transporting, make sure the provided battery cap

is attached to the battery. If the battery cap is

misplaced, carry the battery in a plastic bag.

...do not modify or disassemble.

...do not expose the battery to temperatures

exceeding 60°C, as this may cause the battery to

overheat, explode or catch fire.

...use only specified chargers.

●To prevent damage and prolong service

life

...do not subject to unnecessary shock.

...charge in an environment where temperatures

are within the tolerances shown in the chart

below. This is a chemical reaction type battery —

cooler temperatures impede chemical reaction,

while warmer temperatures can prevent

complete charging.

...store in a cool, dry place. Extended exposure to

high temperatures will increase natural discharge

and shorten service life.

...fully charge and then fully discharge the battery

every 6 months when storing the battery pack

over a long period time.

... remove from charger or powered unit when not in

use, as some machines use current even when

switched off.

NOTES:

●It is normal for the battery pack to be warm after

charging, or after use.

Temperature Range Specifications

Charging: 10°C to 35°C

Operation: 0°C to 40°C

Storage: –20°C to 50°C

●The lower the temperature, the longer recharging

takes.

●Charging times are for a fully discharged battery

pack.

Cassettes

To properly use and store your cassettes, be

sure to read the following cautions:

●During use

...make sure the cassette bears the Mini DV mark.

...be aware that recording onto prerecorded tapes

automatically erases the previously recorded

video and audio signals.

...make sure the cassette is positioned properly

when inserting.

...do not load and unload the cassette repeatedly

without allowing the tape to run at all. This

slackens the tape and can result in damage.

...do not open the front tape cover. This exposes

the tape to fingerprints and dust.

●Store cassettes

...away from heaters or other heat sources.

...out of direct sunlight.

...where they won’t be subject to unnecessary

shock or vibration.

...where they won’t be exposed to strong magnetic

fields (such as those generated by motors,

transformers or magnets).

...vertically, in their original cases.

The Benefits Of Lithium-Ion Batteries

Lithium-ion battery packs are small but have a

large power capacity. However, when one is

exposed to cold temperatures (below 10°C),

its usage time becomes shorter and it may

cease to function. If this happens, place the

battery pack in your pocket or other warm,

protected place for a short time, then re-

attach it to the camcorder.

Terminals

GR-D247PAL.book Page 43 Thursday, November 18, 2004 12:24 PM

CAUTIONS

44 EN

MasterPage: Left

LCD Monitor

●To prevent damage to the LCD monitor, DO

NOT

...push it strongly or apply any shocks.

...place the camcorder with the LCD monitor on the

bottom.

●To prolong service life

...avoid rubbing it with coarse cloth.

●Be aware of the following phenomena for

LCD monitor use. These are not

malfunctions

...While using the camcorder, the surface around

the LCD monitor and/or the back of the LCD

monitor may heat up.

...If you leave power on for a long time, the surface

around the LCD monitor becomes hot.

Main Unit

●For safety, DO NOT

...open the camcorder’s chassis.

...disassemble or modify the unit.

...short-circuit the terminals of the battery pack.

Keep it away from metallic objects when not in

use.

...allow inflammables, water or metallic objects to

enter the unit.

...remove the battery pack or disconnect the power

supply while the power is on.

...leave the battery pack attached when the

camcorder is not in use.

●Avoid using the unit

...in places subject to excessive humidity or dust.

...in places subject to soot or steam such as near a

cooking stove.

...in places subject to excessive shock or vibration.

...near a television set.

...near appliances generating strong magnetic or

electric fields (speakers, broadcasting antennas,

etc.).

...in places subject to extremely high (over 40°C) or

extremely low (under 0°C) temperatures.

●DO NOT leave the unit

...in places of over 50°C.

...in places where humidity is extremely low (below

35%) or extremely high (above 80%).

...in direct sunlight.

...in a closed car in summer.

...near a heater.

●To protect the unit, DO NOT

...allow it to become wet.

...drop the unit or strike it against hard objects.

...subject it to shock or excessive vibration during

transportation.

... keep the lens directed at extremely bright objects

for long periods.

...expose the lens and viewfinder’s lens to direct

sunlight.

...carry it by holding the LCD monitor or the

viewfinder.

...swing it excessively when using the hand strap or

the grip.

...swing the soft camera case excessively when the

camcorder is inside it.

●Dirty heads can cause the following

problems:

...No picture during playback.

...Blocks of noise appear during playback.

...During recording or playback, the Head Clog

Warning indicator “ ” appears.

...Recording cannot be performed properly.

In such cases, use an optional cleaning

cassette. Insert it and play back. If the cassette

is used more than once consecutively, damage

to the video heads may result. After the

camcorder plays back for about 20 seconds, it

stops automatically. Also refer to the cleaning

cassette’s instructions.

If, after using the cleaning cassette, the

problems still exist, consult your nearest JVC

dealer.

Mechanical moving parts used to move the

video heads and video tape tend to become

dirty and worn out over time. In order to maintain

a clear picture at all times, periodic check-ups

are recommended after using the unit for about

1,000 hours. For periodic check-ups please

consult your nearest JVC dealer.

GR-D247PAL.book Page 44 Thursday, November 18, 2004 12:24 PM

EN 45

CAUTIONS

MasterPage: Start_Right

REFERENCES

Serious malfunctioning

About moisture condensation

●You have observed that pouring a cold liquid

into a glass will cause drops of water to form on

the glass’ outer surface. This same

phenomenon occurs on the head drum of a

camcorder when it is moved from a cool place

to a warm place, after heating a cold room,

under extremely humid conditions or in a place

directly subjected to the cool air from an air

conditioner.

●Moisture on the head drum can cause severe

damage to the video tape, and can lead to

internal damage to the camcorder itself.

If malfunctioning occurs, stop using the unit

immediately and consult your local JVC

dealer.

The camcorder is a microcomputer-controlled

device. External noise and interference (from

a TV, a radio, etc.) might prevent it from

functioning properly. In such cases, first

disconnect its power supply unit (battery pack,

AC Adapter, etc.) and wait a few minutes and

then re-connect it and proceed as usual from

the beginning.

GR-D247PAL.book Page 45 Thursday, November 18, 2004 12:24 PM

MasterPage: Heading0_Left

46 EN SPECIFICATIONS

Camcorder

Power supply

DC 11 V (Using AC Adapter)

DC 7.2 V (Using battery pack)

Power consumption

Approx. 3.2 W (LCD monitor off, viewfinder on)

Approx. 4.2 W (LCD monitor on, viewfinder off)

Dimensions (W x H x D)

56 mm x 94 mm x 112 mm (with the LCD monitor

closed and the viewfinder pushed back in)

Weight

Approx. 430 g (without battery, cassette and lens

cap)

Approx. 510 g (incl. battery, cassette and lens cap)

Operating temperature

0°C to 40°C

Operating humidity

35% to 80%

Storage temperature

–20°C to 50°C

Pickup

1/6" CCD

Lens

F 1.8, f = 2.2 mm to 55 mm, 25:1 power zoom lens

Filter diameter

ø27 mm

LCD monitor

2.5" diagonally measured, LCD panel/TFT active

matrix system

Viewfinder

Electronic viewfinder with 0.16" colour LCD

Speaker

Monaural

Format

DV format (SD mode)

Signal format

PAL standard

Recording/Playback format

Video: Digital component recording

Audio: PCM digital recording, 32 kHz 4-channel

(12-BIT), 48 kHz 2-channel (16-BIT)

Cassette

Mini DV cassette

Tape speed

SP: 18.8 mm/s, LP: 12.5 mm/s

Maximum recording time (using 80 min.

cassette)

SP: 80 min., LP: 120 min.

S/AV

S-Video output:

Y: 1.0 V (p-p), 75 Ω, analogue

C: 0.29 V (p-p), 75 Ω, analogue

Video output: 1.0 V (p-p), 75 Ω, analogue

Audio output: 300 mV (rms), 1 kΩ, analogue, stereo

Microphone input

ø3.5 mm, stereo

DV

Output: 4-pin, IEEE 1394 compliant

AC Adapter

Power requirement

AC 110 V to 240 Vd, 50 Hz/60 Hz

Output

DC 11 V G, 1 A

Specifications shown are for SP mode unless

otherwise indicated. E & O.E. Design and

specifications subject to change without notice.

For General

For Digital Video Camera

For Connectors

GR-D247PAL.book Page 46 Thursday, November 18, 2004 12:24 PM

EN 47

MasterPage: Start_Right

TERMS

TERMS

A

AC Adapter .................................................... 13

Animation ....................................................... 24

B

Backlight Compensation ................................ 31

Battery Pack ...................................... 11, 13, 43

Beep .............................................................. 25

Blank Search ................................................. 20

C

Changing The Menu Settings ................ 22 – 27

Charging The Battery Pack ............................ 11

Connection To A Personal Computer ............ 37

Connections To A TV Or VCR ....................... 21

D

Data Battery ................................................... 12

Date/Time Settings ........................................ 14

Demonstration Mode ..................................... 25

Digital Image Stabilisation (DIS) .................... 24

Dubbing ................................................... 35, 36

E

Exposure Control ........................................... 30

I

Iris Lock ......................................................... 30

L

LCD Monitor and Viewfinder .................... 15, 18

Loading A Cassette ....................................... 16

M

Manual Focus ................................................ 29

Motor Drive Mode .......................................... 29

N

Night-Scope ................................................... 28

P

Playback Sound ............................................. 26

Power-Linked Operation ................................ 14

Program AE With Special Effects .................. 34

Q

Quick Review ................................................. 19

R

Recording Capacity

Tape ........................................................ 17

S

Snapshot Mode .............................................. 23

Sound Mode ............................................ 23, 26

Speaker Volume ............................................ 20

Specifications ................................................. 46

Spot Exposure Control ................................... 31

T

Tape Speed (REC MODE) ...................... 23, 26

Telephoto Setting ........................................... 24

Time Code ............................................... 19, 26

Tripod Mounting ............................................. 15

Troubleshooting ............................................. 38

W

Warning Indications ....................................... 40

White Balance ................................................ 32

Wide Mode ..................................................... 24

Wipe Or Fader Effects ................................... 33

Z

Zooming ................................................... 18, 23

5-Second Recording ...................................... 28

GR-D247PAL.book Page 47 Thursday, November 18, 2004 12:24 PM

MasterPage: BackCover

EN

GR-D247

Printed in Malaysia

1104MKH-ID-VM

© 2004 Victor Company of Japan, Limited EK

GR-D247PAL.book Page 48 Thursday, November 18, 2004 12:24 PM
