ENGLISH
CONTENTS
AUTOMATIC DEMONSTRATION
6
GETTING STARTED
7 – 13
RECORDING & PLAYBACK
14 – 22
RECORDING ................................ 15 – 18
PLAYBACK .................................. 19 – 22
ADVANCED FEATURES
23 – 50
FOR RECORDING .......................... 24 – 31
USING MENUS FOR
DETAILED ADJUSTMENT ............. 32 – 37
DUBBING .................................... 38 – 39
USING THE OPTIONAL REMOTE
CONTROL UNIT .......................... 40 – 49
SYSTEM CONNECTIONS ........................ 50
REFERENCES
51 –
Back Cover
DETAILS ............................................ 52
TROUBLESHOOTING ..................... 53 – 56
USER MAINTENANCE ........................... 57
CAUTIONS ................................... 58 – 59
SPECIFICATIONS .......................... 60 – 61
INDEX ........................................ 62 – 66
TERMS ........................ 67 –
Back Cover
LYT0998-001A
Please visit our Homepage on the World Wide Web and
answer our Consumer Survey (in English only):
http://www.jvc-victor.co.jp/english/index-e.html
For Accessories:
http://www.jvc-victor.co.jp/english/accessory/
INSTRUCTIONS
GR-DVL166
DIGITAL VIDEO CAMERA
2
EN
Using This Instruction Manual
All major sections and subsections are listed in the Table Of Contents on the cover page.
Notes appear after most subsections. Be sure to read these as well.
Basic and advanced features/operation are separated for easier reference.
It is recommended that you . . .
..... refer to the Index ( pgs. 62 – 66) and familiarize yourself with button locations, etc. before use.
..... read thoroughly the Safety Precautions. They contain extremely important information regarding the safe use
of this product.
You are recommended to carefully read the cautions on pages 58 through 59 before use.
NOTES:
The rating plate (serial number plate) and safety
caution are on the bottom and/or the back of the
main unit.
The rating information and safety caution of the
AC Adapter are on its upper and lower sides.
WARNING:
TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS
UNIT TO RAIN OR MOISTURE.
Dear Customer,
Thank you for purchasing this digital video camera. Before use, please read the safety information and
precautions contained in the following pages to ensure safe use of this product.
SAFETY PRECAUTIONS
CAUTIONS:
To prevent shock, do not open the cabinet. No
user serviceable parts inside. Refer servicing to
qualified personnel.
When you are not using the AC Adapter for a
long period of time, it is recommended that you
disconnect the power cord from AC outlet.
Connection to the mains supply in the United
Kingdom.
DO NOT cut off the mains plug from this
equipment.
If the plug fitted is not suitable for the power
points in your home or the cable is too short to
reach a power point, then obtain an appropriate
safety approved extension lead or consult your
dealer.
BE SURE to replace the fuse only with an
identical approved type, as originally fitted,
and to replace the fuse cover.
If nonetheless the mains plug is cut off be sure to
remove the fuse and dispose of the plug
immediately, to avoid possible shock hazard by
inadvertent connection to the mains supply.
If this product is not supplied fitted with a mains
plug then follow the instructions given below:
DO NOT make any connection to the Larger
Terminal coded E or Green.
The wires in the mains lead are coloured in
accordance with the following code:
If these colours do not correspond with the
terminal identifications of your plug, connect as
follows:
Blue wire to terminal coded N (Neutral) or
coloured black.
Brown wire to terminal coded L (Live) or coloured
Red.
If in doubt — consult a competent electrician.
IMPORTANT (for owners in the U.K.)
Blue to N (Neutral) or Black
Brown to L (Live) or Red CAUTION:
To avoid electric shock or damage to the unit,
first firmly insert the small end of the power
cord into the AC
Adapter until it is no
longer wobbly, and
then plug the larger
end of the power cord
into an AC outlet.
EN
3
When the equipment is installed in a cabinet or on a shelf, make sure that it has sufficient space on all sides
to allow for ventilation (10 cm or more on both sides, on top and at the rear).
Do not block the ventilation holes.
(If the ventilation holes are blocked by a newspaper, or cloth etc. the heat may not be able to get out.)
No naked flame sources, such as lighted candles, should be placed on the apparatus.
When discarding batteries, environmental problems must be considered and the local rules or laws
governing the disposal of these batteries must be followed strictly.
The apparatus shall not be exposed to dripping or splashing.
Do not use this equipment in a bathroom or places with water.
Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases,
potted plants, cups etc.) on top of this unit.
(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)
CAUTIONS:
This camcorder is designed to be used with PAL-type colour television signals. It cannot be used for
playback with a television of a different standard. However, live recording and LCD monitor/viewfinder
playback are possible anywhere.
Use the JVC BN-V408U/V416U/V428U battery packs and, to recharge them or to supply power to the
camcorder from an AC outlet, use the provided multi-voltage AC Adapter and Power Cord. (An appropriate
conversion adapter may be necessary to accommodate different designs of AC outlets in different countries.)
SOME DO’S AND DON’TS ON THE SAFE USE OF EQUIPMENT
This equipment has been designed and manufactured to meet international safety standards but, like any
electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.
DO read the operating instructions before you attempt to use the equipment.
DO ensure that all electrical connections (including the mains plug, extension leads and interconnections
between pieces of equipment) are properly made and in accordance with the manufacturers
instructions. Switch off and withdraw the mains plug when making or changing connections.
DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.
DO be careful with glass panels or doors on equipment.
DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in
any way switch off, withdraw the mains plug and consult your dealer.
DON’T remove any fixed cover as this may expose dangerous voltages.
DON’T leave equipment switched on when it is unattended unless it is specifically stated that it is designed for
unattended operation or has a standby mode. Switch off using the switch on the equipment and make
sure that your family knows how to do this. Special arrangements may need to be made for infirm or
handicapped people.
DON’T use equipment such as personal stereos or radios so that you are distracted from the requirements of
road safety. It is illegal to watch television whilst driving.
DON’T listen to headphones at high volume, as such use can permanently damage your hearing.
DON’T obstruct the ventilation of the equipment, for example with curtains or soft furnishings. Overheating will
cause damage and shorten the life of the equipment.
DON’T use makeshift stands and NEVER fix legs with wood screws to ensure complete safety always fit the
manufacturers approved stand or legs with the fixings provided according to the instructions.
DON’T allow electrical equipment to be exposed to rain or moisture.
ABOVE ALL
NEVER let anyone especially children push anything into holes, slots or any other opening in the case this
could result in a fatal electrical shock;
NEVER guess or take chances with electrical equipment of any kind it is better to be safe than sorry!
4
EN
Do not point the lens or the viewfinder directly into the sun. This can cause eye injuries, as well as lead to the
malfunctioning of internal circuitry. There is also a risk of fire or electric shock.
CAUTION!
The following notes concern possible physical damage to the camcorder and to the user.
When carrying, be sure to always securely attach and use the provided shoulder strap. Carrying or holding the
camcorder by the viewfinder and/or the LCD monitor can result in dropping the unit, or in a malfunction.
Take care not to get your finger caught in the cassette holder cover. Do not let children operate the camcorder, as
they are particularly susceptible to this type of injury.
Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the camcorder.
CAUTION!
Connecting cables (Audio/Video, S-Video, etc.) to the camcorder and leaving the unit on top of the TV is not
recommended, as tripping on the cables will cause the camcorder to fall, resulting in damage.
This camcorder is designed exclusively for the digital video cassette. Only cassettes marked
“ ” can be used with this unit.
Before recording an important scene . . .
.... make sure you only use cassettes with the Mini DV mark .
.... remember that this camcorder is not compatible with other digital video formats.
.... remember that this camcorder is intended for private consumer use only. Any commercial use without
proper permission is prohibited. (Even if you record an event such as a show, performance or
exhibition for personal enjoyment, it is strongly recommended that you obtain permission before-
hand.)
SAFETY PRECAUTIONS
EN
5
PROVIDED ACCESSORIES
NOTE:
In order to maintain optimum performance of the camcorder, provided cables may be equipped with one or more
core filter. If a cable has only one core filter, the end that is closest to the filter should be connected to the camcorder.
Audio/Video Cable
(ø3.5 mini-plug to
RCA plug)
Shoulder Strap
Battery Pack
BN-V408U
AC Adapter AP-V10EG or
AP-V12EG Lens Cap
(See below for
attachment)
Power Cord
Cable Adapter
How To Attach The Lens Cap
To protect the lens, attach the provided lens cap to the camcorder as shown in the illustration.
NOTE:
To confirm the lens cap is on correctly make sure the cap is flush to the camera.
Core Filter x 2
(for optional S-Video and
Editing cable pg. 6 for
attachment)
1 2 3
CD-ROM
or
PC Connection Cable
6
EN
Automatic Demonstration takes place when DEMO
MODE is set to ON (factory-preset).
Automatic Demonstration starts when there is no operation for
about 3 minutes after the Power Switch is set to
AUTO
or
MANUAL
and no cassette is in the camcorder.
Performing any operation during the demonstration stops the
demonstration temporarily. If no operation is performed for more
than 3 minutes after that, the demonstration will resume.
DEMO MODE remains ON even if the camcorder power is
turned off.
To cancel Automatic Demonstration:
1. Set the Power Switch to
MANUAL
while pressing down the
Lock Button located on the switch and press the MENU/
BRIGHT wheel in. The Menu Screen appears.
2. Rotate the MENU/BRIGHT wheel to select SYSTEM
and press it. The SYSTEM Menu appears.
3. Rotate the MENU/BRIGHT wheel to select DEMO MODE
and press it. The Sub Menu appears.
4. Rotate the MENU/BRIGHT wheel to select OFF and press it.
5. Rotate the MENU/BRIGHT wheel to select RETURN,
and press it twice. The normal screen appears.
NOTE:
If you do not detach the Lens Cap, you cannot see the actual changes of the
Automatic Demonstration activated on the LCD monitor or viewfinder.
AUTOMATIC DEMONSTRATION
MODEDEMO ON
OFF
MENU/BRIGHT Wheel
Sub Menu
Lock Button
Power Switch
How To Attach The Core Filter
Attach the Core Filter(s) (if provided with your model pg. 5) to an optional cable(s). The Core Filter
reduces interference.
Release the
stoppers on both
ends of the Core
Filter.
Run the cable through the Core Filter, leaving approx.
3 cm of cable between the cable plug and the Core Filter.
Wind the cable once around the outside of the Core Filter
as shown in the illustration.
Wind the cable so that it is not slack.
NOTE:
Take care not to damage the cable.
Close the Core Filter until it
clicks shut.
3 cm
Stopper
When connecting cables, attach the end with the Core Filter to the camcorder.
1
Wind once
23
EN
7
GETTING STARTED
GETTING STARTED
CONTENTS
Power.................................................. 8 – 9
Grip Adjustment ......................................... 10
Viewfinder Adjustment.................................. 10
Shoulder Strap Attachment ............................. 10
Tripod Mounting .......................................... 10
Date/Time Settings...................................... 11
Loading/Unloading A Cassette ......................... 12
Recording Mode Setting ................................. 13
8
EN
Battery pack
BN-V408U
BN-V416U (optional)
BN-V428U (optional)
Charging time
approx. 1 hr. 30 min.
approx. 3 hrs.
approx. 5 hrs.
Power
This camcorders 2-way power supply system lets
you choose the most appropriate source of power. Do
not use provided power supply units with other
equipment.
CHARGING THE BATTERY PACK
1Tilt the viewfinder upward 1. With the arrow on
the battery pack pointing downward, push the battery
pack slightly against the battery pack mount 2, then
slide down the battery pack until it locks in place 3.
2Set the Power Switch to OFF. Connect the AC
Adapter to the camcorder 4, then connect the Power
Cord to the AC Adapter 5.
3Plug the Power Cord into an AC outlet 6.
The CHARGE lamp on the camcorder blinks to
indicate charging has started.
4When the CHARGE lamp stops blinking but stays
lit, charging is finished. Unplug the Power Cord from
the AC outlet. Disconnect the AC Adapter from the
camcorder.
To Detach The Battery Pack . . .
..... Press BATT. RELEASE and pull out the battery
pack.
NOTES:
If the protective cap is attached to the battery pack,
remove it first.
During charging, the camcorder cannot be operated.
Charging is not possible if the wrong type of battery is
used.
When charging the battery pack for the first time or
after a long storage period, the CHARGE lamp may not
light. In this case, remove the battery pack from the
camcorder, then try charging again.
If the battery operation time remains extremely short
even after having been fully charged, the battery is
worn out and needs to be replaced. Please purchase a
new one.
Using the optional AA-V40EK AC Power Adapter/
Charger, you can charge the BN-V408U/V416U/V428U
battery pack without the camcorder. However, it cannot
be used as an AC adapter.
GETTING STARTED
(cont.)
5
6
3
2
1
4
To AC outlet
Battery pack
AC Adapter
CHARGE Lamp
To DC
connector
BATT. RELEASE Button
Power Switch
For other notes, pg. 52
EN
9
ATTENTION
Before detaching the power source, make sure that
the camcorders power is turned off. Failure to do so
can result in a camcorder malfunction.
NOTES:
Recording time is reduced significantly under the
following conditions:
Zoom or Record-Standby mode is engaged
repeatedly.
The LCD monitor is used repeatedly.
The playback mode is engaged repeatedly.
Before extended use, it is recommended that you
prepare enough battery packs to cover 3 times the
planned shooting time.
USING THE BATTERY PACK
Perform step 1 of CHARGING THE BATTERY
PACK ( pg. 8).
Approximate recording time
( ) : when the video light is on
USING AC POWER
Use the AC Adapter (connect as shown in the
illustration).
NOTES:
The provided AC Adapter features automatic voltage
selection in the AC range from 110 V to 240 V.
For other notes, pg. 52.
Battery pack
BN-V408U
BN-V416U
(optional)
BN-V428U
(optional)
BN-V840U
(optional)
BN-V856U
(optional)
LCD monitor on
1 hr.
(35 min.)
2 hrs.
(1 hr. 10 min.)
3 hrs. 30 min.
(2 hrs.)
5 hrs.
(2 hrs. 50 min.)
7 hrs.
(4 hrs.)
Viewfinder on
1 hr. 15 min.
(40 min.)
2 hrs. 30 min.
(1 hr. 20 min.)
4 hrs. 20 min.
(2 hrs. 20 min.)
6 hrs. 10 min.
(3 hrs. 20 min.)
8 hrs. 40 min.
(4 hrs. 40 min.)
INFORMATION
The extended-use battery pack kit is a set composed of a battery pack and AC Power Adapter/Charger:
VU-V840 KIT : BN-V840U battery pack & AA-V15EK AC Power Adapter/Charger
VU-V856 KIT : BN-V856U battery pack & AA-V80EK AC Power Adapter/Charger
Read the kit's instruction manual before using.
Also, by using the optional JVC VC-VBN856U DC Cord, it will be possible to connect BN-V840U or BN-V856U
battery packs to the camcorder and supply power directly to the camcorder.
Lithium-ion is vulnerable in colder temperatures.
About Batteries
DANGER! Do not attempt to take the batteries apart,
or expose them to flame or excessive heat, as it may
cause a fire or explosion.
WARNING! Do not allow the battery or its terminals
to come in contact with metals, as this can result in a
short circuit and possibly start a fire.
The Benefits Of Lithium-Ion Batteries
Lithium-ion battery packs are small but have a large
power capacity. However, when one is exposed to
cold temperatures (below 10°C), its usage time
becomes shorter and it may cease to function. If this
happens, place the battery pack in your pocket or
other warm, protected place for a short time, then re-
attach it to the camcorder. As long as the battery pack
itself is not cold, it should not affect performance.
(If youre using a heating pad, make sure the battery
pack does not come in direct contact with it.)
To DC connector
To AC outlet
AC Adapter
10
EN
GETTING STARTED
(cont.)
Grip Adjustment
1Separate the Velcro strip.
2Pass your right hand through the loop and grasp
the grip.
3Adjust your thumb and fingers through the grip, to
easily operate the Recording Start/Stop button and
Power Switch and Power Zoom Lever. Be sure to
fasten the Velcro strip to your preference.
Viewfinder Adjustment
1Set the Power Switch to
AUTO
or
MANUAL
while pressing down the Lock Button located on the
switch.
2Turn the Dioptre Adjustment Control until the
indications in the viewfinder are clearly focused.
Shoulder Strap Attachment
1Make sure the battery pack is removed. Following
the illustration, thread the strap through the eyelet 1,
then fold it back and thread it through the buckle 2.
Repeat the procedure to attach the other end of the
strap to the other eyelet 3 located under the Grip
Strap . Confirm the strap is not twisted.
Tripod Mounting
CAUTION
When attaching the camcorder to a tripod, extend its
legs to stabilise the camcorder. It is not advised to
use small sized tripods. This may cause damage to
the unit by falling over.
1To attach the camcorder to a tripod, align the
direction stud and screw to the mounting socket and
stud hole on the camcorder. Then tighten the screw
clockwise. Some tripods are not equipped with studs.
PAUSE
2
1
3
Dioptre
Adjustment Control
Power Switch
Recording
Start/Stop button
Power
Zoom Lever
EN
11
Date/Time Settings
The date/time is recorded onto the tape at all times,
but its display can be turned on or off during playback
( pg. 36, 37).
1Set the Power Switch to
MANUAL
while pressing
down the Lock Button located on the switch. The
power lamp lights and the camcorder is turned on.
2Press the MENU/BRIGHT wheel in to access the
Menu Screen.
3Rotate the MENU/BRIGHT wheel to select
DISPLAY. Press it and the DISPLAY Menu
appears.
4Rotate the MENU/BRIGHT wheel to select
CLOCK ADJ.. Press it and day is highlighted.
Rotate the MENU/BRIGHT wheel to input the day.
Press it. Repeat to input the month, year, hour and
minute.
Rotate the MENU/BRIGHT wheel to select
RETURN, and press it twice. The Menu Screen
closes.
NOTE:
Even if you select CLOCK ADJ., if the parameter is not
highlighted the camcorders internal clock continues to
operate. Once you move the highlight bar to the first date/
time parameter (day), the clock stops. When you finish
setting the minute and press the MENU/BRIGHT wheel
in, the date and time begin operation from the date and
time you just set.
DSC
OF
F
FADER
/ W I P E AM AEPROGR
ACAMERLMANUAMSYSTE
END
AYDISPL
C
AN E
W. BAL
RE NEON SC LCD / TV
UAOT
IMETDATE /
T I ME CODE
CLOCK
ADJ .
FFO
12..02
52
17
30
:
NRETUR
CLOCK
ADJ .
EXPOSURE
12..02
52
17
30
:
Display
MENU/BRIGHT Wheel
Power Switch
Lock Button
DISPLAY Menu
Power Lamp
12
EN
GETTING STARTED
(cont.)

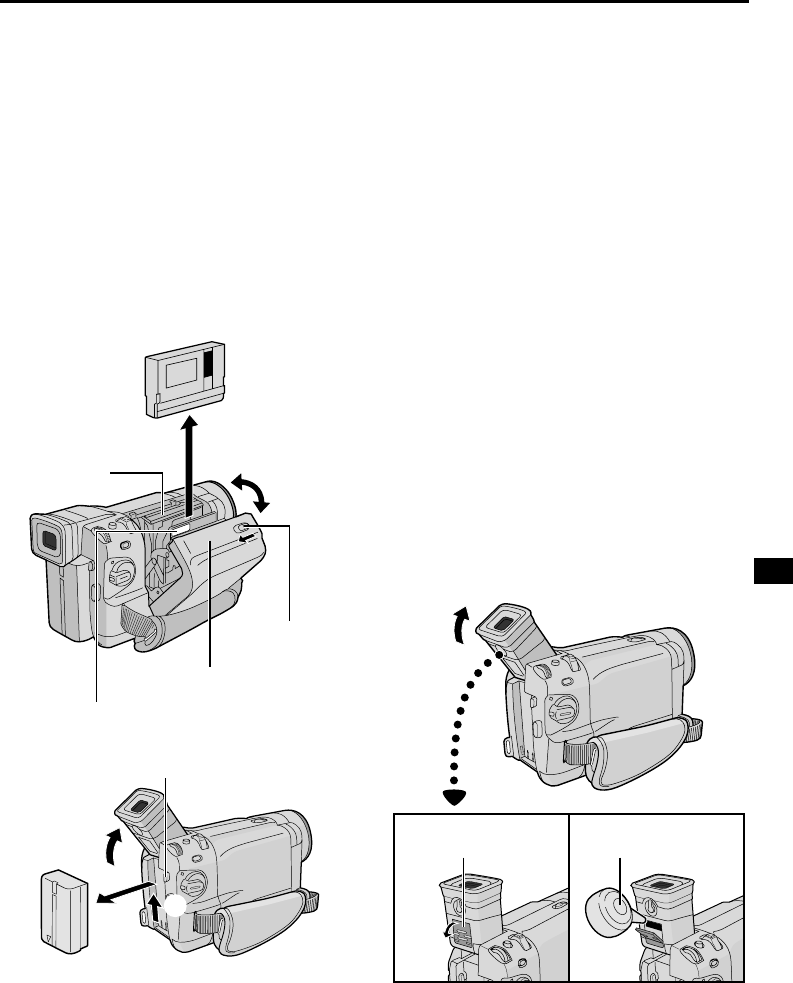

Loading/Unloading A Cassette
The camcorder needs to be powered up to load or
eject a cassette.
1Slide and hold OPEN/EJECT in the direction of
the arrow then pull the cassette holder cover open
until it locks. The cassette holder opens automatically.
Do not touch internal components.
2Insert or remove a tape and press PUSH HERE
to close the cassette holder.
Once the cassette holder is closed, it recedes
automatically. Wait until it recedes completely before
closing the cassette holder cover.
When the batterys charge is low, you may not be
able to close the cassette holder cover. Do not apply
force. Replace the battery with a fully charged one
before continuing.
3Close the cassette holder cover firmly until it
locks into place.
Tape Recording mode
SP LP
30 min. 30 min. 45 min.
60 min. 60 min. 90 min.
80 min. 80 min. 120 min.
Approximate recording time
* To Protect Valuable Recordings . . .
....
slide the erase protection tab on the back of the
tape in the direction of SAVE. This prevents the
tape from being recorded over. To record on this
tape, slide the tab back to REC before loading it.
Be sure to press only the section labeled PUSH
HERE to close the cassette holder; touching other
parts may cause your finger to get caught in the
cassette holder, resulting in injury or product damage.
NOTES:
It takes a few seconds for the cassette holder to open. Do not apply force.
If you wait a few seconds and the cassette holder does not open, close the cassette holder cover and try again. If the
cassette holder still does not open, turn the camcorder off then on again.
If the tape does not load properly, open the cassette holder cover fully and remove the cassette. A few minutes later,
insert it again.
When the camcorder is suddenly moved from a cold place to a warm environment, wait a short time before opening the
cassette holder cover.
Closing the cassette holder cover before the cassette holder comes out may cause damage to the camcorder.
Even when the camcorder is switched off, a cassette can be loaded or unloaded. After the cassette holder is closed
with the camcorder switched off, however, it may not recede. It is recommended to turn the power on before loading or
unloading.
When resuming recording, once you open the cassette holder cover a blank portion will be recorded on the tape or a
previously recorded scene will be erased (recorded over) regardless of whether the cassette holder came out or not.
See page 18 for information about recording from the middle of a tape.
Loosen the Grip Strap if it appears to interfere with the cassette holder cover operation ( pg. 10).
OPEN/EJECT
Switch
PUSH HERE
Cassette holder cover
Make sure the
window side is
facing out.
Erase protection tab*
Cassette holder
EN
13
Recording Mode Setting
Set the tape recording mode depending on your
preference.
1Set the Power Switch to
MANUAL
while pressing
down the Lock Button located on the switch. The
power lamp lights and the camcorder is turned on.
2Press the MENU/BRIGHT wheel in. The Menu
Screen appears.
3Rotate the MENU/BRIGHT wheel to select
CAMERA and press it. The CAMERA Menu
appears.
4Rotate the MENU/BRIGHT wheel to select REC
MODE and press it. The Sub Menu appears. Select
SP or LP by rotating the MENU/BRIGHT wheel
and press it. Rotate the MENU/BRIGHT wheel to
select RETURN, and press it twice. The Menu
Screen closes.
Audio Dubbing ( pg. 48) and Insert Editing
( pg. 49) are possible on tapes recorded in the
SP mode.
•“LP (Long Play) is more economical, providing
1.5 times the recording time.
NOTES:
If the recording mode is switched during recording, the
playback picture will be blurred at the switching point.
It is recommended that tapes recorded in the LP mode
on this camcorder be played back on this camcorder.
During playback of a tape recorded on another
camcorder, blocks of noise may appear or there may be
momentary pauses in the sound.
SPREC MODE LP
Display
Menu Screen
Sub Menu
MENU/BRIGHT Wheel
Power Switch
Lock Button
Power Lamp
14
EN
RECORDING
&
PLAYBACK
CONTENTS
RECORDING ................................. 15 18
Basic Recording ..................................... 15
Journalistic Shooting ............................... 16
Self-Recording ...................................... 16
Operation Mode .................................... 16
Zooming ............................................ 17
Video Light ......................................... 17
Time Code ........................................... 18
PLAYBACK ................................... 19 22
Normal Playback ................................... 19
Still Playback ....................................... 19
Shuttle Search ...................................... 19
Frame-By-Frame Playback ........................ 19
Connections .................................. 20 21
Blank Search ........................................ 22
RECORDING & PLAYBACK
EN
15
RECORDING
Basic Recording
NOTE:
You should already have performed the procedures
listed below. If not, do so before continuing.
Power ( pg. 8)
Grip Adjustment ( pg. 10)
Viewfinder Adjustment ( pg. 10)
Load A Cassette ( pg. 12)
Recording Mode Setting ( pg. 13)
1Remove the lens cap.
2Set the Power Switch to
AUTO
or
MANUAL
while pressing down the Lock Button located on the
switch.
Shooting while using the LCD monitor: Make sure
the LCD monitor is fully open. Tilt it upward/
downward for best viewability.
Shooting while using the viewfinder: Close the
LCD monitor.
The power lamp lights and the camcorder enters the
Record-Standby mode. PAUSE is displayed.
3Press the Recording Start/Stop Button. “ ”
appears while recording is in progress.
To Stop Recording . . .
..... press the Recording Start/Stop Button. The
camcorder re-enters the Record-Standby mode.
To Adjust The Brightness Of The Display . . .
..... rotate the MENU/BRIGHT wheel until the bright
level indicator on the display moves and the
appropriate brightness is reached.
NOTES:
If the Record-Standby mode continues for 5 minutes,
the camcorders power shuts off automatically. To turn
the camcorder on again, set the Power Switch to
OFF, then back to
AUTO
or
MANUAL
.
The image will not appear simultaneously on the LCD
monitor and the viewfinder. It will appear in the
viewfinder when the LCD monitor is in the lock position,
and it will appear on the LCD monitor when fully
extended.
When a blank portion is left between recorded scenes
on the tape, the time code is interrupted and errors may
occur when editing the tape. To avoid this, refer to
Recording from the middle of a tape ( pg. 18).
To turn the tally lamp or beep sounds off, pg. 32,
34.
25
min
BR I GHT
90 min 89 min 3 min
2 min
1 min0 min
min
180°90°
Power lamp
Tally lamp
(lights while
recording is
in progress)
Lock Button
Recording Start/Stop Button
Tape remaining time
indicator (Approximate)
(Now calculating)
(Blinking) (Blinking) (Blinking)
Display
MENU/BRIGHT Wheel
Power Switch
PUSH OPEN Button
During
shooting
For other notes, pg. 52
16
EN
JOURNALISTIC SHOOTING
In some situations, different shooting angles may
provide more dramatic results. Hold the camcorder in
the desired position and tilt the LCD monitor in the
most convenient direction. It can rotate 270° (90°
downward, 180° upward).
SELF-RECORDING
You can shoot yourself while viewing your own image
in the LCD monitor. Open the LCD monitor and tilt it
upward 180° so that it faces forward, then point the
lens toward yourself and start recording.
Operation Mode
Choose the appropriate operation mode according to
your preference using the Power Switch.
To turn on the camcorder, set the Power Switch to
any operation mode except OFFwhile pressing
down the Lock Button located on the switch.
Power Switch Position
MANUAL
:
Allows you to set various recording functions using
the Menus. If you want more creative capabilities than
Full Auto recording, try this mode.
AUTO
(Full Auto):
Allows you to record using NO special effects or
manual adjustments. Suitable for standard recording.
OFF:
Allows you to switch off the camcorder.
PLAY:
Allows you to play back a recording on the tape.
Allows you to transfer a still image recorded on the
tape to a computer.
MANUAL
AUTO
PLAY
OFF
Power Switch
Lock Button
When the Power Switch is set to
AUTO
, “ ” appears.
When set to
MANUAL
or PLAY, there is no indication.
Power lamp
Self-
Recording
RECORDING
(cont.)
EN
17
FEATURE:
Zooming
PURPOSE:
To produce the zoom in/out effect, or an instanta-
neous change in image magnification.
OPERATION:
Zoom In
Slide the Power Zoom Lever towards T.
Zoom Out
Slide the Power Zoom Lever towards W.
The further you slide the Power Zoom Lever, the
quicker the zoom action.
NOTES:
Focusing may become unstable during Zooming. In
this case, set the zoom while in Record-Standby,
lock the focus by using the manual focus
( pg. 29), then zoom in or out in Record mode.
Zooming is possible to a maximum of 500X, or it
can be switched to 10X magnification using the
optical zoom ( pg. 33).
Zoom magnification of over 10X is done through
Digital image processing, and is therefore called
Digital Zoom.
During Digital zoom, the quality of image may
suffer.
Macro shooting (as close as approx. 5 cm to the
subject) is possible when the Power Zoom Lever is
set all the way to W. Also see TELE MACRO in
the Menu Screen on page 34.
FEATURE:
Video Light
PURPOSE:
To brighten the scene when natural lighting is too
dim.
OPERATION:
Set LIGHT OFF/AUTO/ON as required:
OFF : Turns off the light.
AUTO : Automatically turns on the light when the
camcorder senses insufficient lighting on
the subject.
ON : Always keeps the light on as long as the
camcorder is turned on.
The video light can only be used with the
camcorders power on.
It is recommended to set the white balance
( pg. 31) to when you use the video light.
When not using the video light, turn it off to save
battery power.
NOTES:
Even if the battery indicator ( ) does not blink due
to low battery charge, the camcorder may turn off
automatically when you turn on the video light, or
when you start recording with the video light turned
on.
When LIGHT OFF/AUTO/ON is set to AUTO:
Depending on the lighting conditions, the video
light may keep turning on and off. In this case,
manually switch the light on or off using LIGHT
OFF/AUTO/ON.
While the SHUTTER or SPORTS mode
( pg. 25) is engaged, the light is likely to stay on.
While the TWILIGHT mode ( pg. 25) is
engaged, the light will not activate.
While the Night-Scope mode ( pg. 24) is
engaged, the light will not activate.
1x
WT
01x
WT
01x
WT
02x
WT
04x
WT
Zoom in (T: Telephoto)
Zoom out (W: Wide angle)
Power Zoom Lever
Zoom display
Approximate zoom ratio
Digital zoom zone
10X (optical)
zoom zone
LIGHT OFF/AUTO/ON Switch
(Open the LCD monitor to
access this switch.)
DANGER
The video light can become extremely
hot. Do not touch it either while in
operation or soon after turning it off,
otherwise serious injury may result.
Do not place the camcorder into the
carrying case immediately after using the video light,
since it remains extremely hot for some time.
When operating, keep a distance of about 30 cm
between the video light and people or objects.
Do not use near flammable or explosive materials.
Do not place the camcorder in a cabinet or box while
the video light is in operation.
When using the video light, if you wish to install the
camcorder in a fixed position, attach it to a tripod, etc.
Do not affix it directly to a surface such as a table top.
It is recommended that you consult your nearest JVC
dealer for replacing the video light.
18
EN
Time Code
During recording, a time code is recorded on the tape. This code is to confirm the location of the recorded
scene on the tape during playback.
If recording starts from a blank portion, the time code begins counting from 00:00:00
(minute:second:frame). If recording starts from the end of a previously recorded scene, the time code
continues from the last time code number.
To perform Random Assemble Editing ( pg. 43 47), time code is necessary. If during recording a blank
portion is left partway through the tape, the time code is interrupted. When recording is resumed, the time
code starts counting up again from 00:00:00. This means the camcorder may record the same time codes
as those existing in a previously recorded scene. To prevent this, perform Recording From The Middle of A
Tape below in the following cases;
When shooting again after playing back a
recorded tape.
When power shuts off during shooting.
When a tape is removed and re-inserted during
shooting.
When shooting using a partially recorded tape.
When shooting on a blank portion located
partway through the tape.
When shooting again after shooting a scene
then opening/closing the cassette holder cover.
Recording From The Middle Of A Tape
1. Play back a tape or use Blank Search ( pg. 22) to find the spot at which you want to start recording,
then engage the Still Playback mode ( pg. 19).
2. Set the Power Switch to
AUTO
or
MANUAL
while pressing down the Lock Button located on the switch,
then start recording.
NOTES:
The time code cannot be reset.
During fast-forwarding and rewinding, the time code indication does not move smoothly.
The time code is displayed only when TIME CODE is set to ON ( pg. 35, 36).
Shooting start point
Newly recorded sceneBlankAlready recorded scene
Time code
05:43:21 Time code
00:00:00
Tape
Time code
00:00:00
Shooting start pointShooting stop point
Latest sceneNew sceneAlready recorded scene
Frames
(25 frames = 1 second)
Seconds
Minutes
Frames are not displayed
during recording.
When a blank portion is recorded on a tape
Proper recording
Time code
00:00:00 Time code
05:43:21 Time code
05:44:00
Shooting start point Shooting start point Shooting start point
Tape
12:34:24
RECORDING
(cont.)
Display
EN
19
Rewind Button (
2
)
Fast-Forward Button (
3
)
Play/Pause Button (
4
/6)
Stop Button (5)
Power Zoom Lever (VOL.)
Speaker
PLAYBACK
Normal Playback
1Load a tape ( pg. 12).
2Set the Power Switch to PLAY while pressing down
the Lock Button located on the switch. To start playback,
press
4
/6.
To stop playback, press 5.
Press
2
to rewind, or
3
to fast-forward the tape
during Stop mode.
To Control The Speaker Volume . . .
..... slide the Power Zoom Lever (VOL.) towards +
to turn up the volume, or towards to turn down
the volume.
NOTES:
If Stop mode continues for 5 minutes when power is supplied from a battery, the camcorder shuts off automatically. To
turn on again, set the Power Switch to OFF, then to PLAY.
The playback picture can be viewed in the LCD monitor, viewfinder or on a connected TV ( pg. 20).
You can also view the playback picture on the LCD monitor with it flipped over and pushed against the camera body.
LCD monitor/viewfinder indications:
When power is supplied from a battery: the battery pack remaining power indicator is displayed.
When power is supplied from an AC outlet: does not appear.
During Stop mode, none of the indications are displayed.
When a cable is connected to the AV connector, the sound is not heard from the speaker.
Still Playback:
Pauses during playback.
1) Press
4
/6 during playback.
2) To resume normal playback, press
4
/6 again.
If still playback continues for more than about 3 minutes, the camcorders Stop mode is automatically engaged.
After 5 minutes in the Stop mode, the camcorders power is automatically turned off.
When
4
/6 is pressed, the image may not pause immediately while the camcorder stabiliseds the still image.
Shuttle Search:
Allows high-speed search in either direction.
1) Press
3
for forward or
2
for reverse search during playback.
2) To resume normal playback, press
4
/6.
During playback, press and hold
2
or
3
. The search continues as long as you hold the button. Once you
release it, normal playback resumes.
A slight mosaic effect appears on screen during Shuttle Search. This is not a malfunction.
Frame-By-Frame Playback: Allows frame-by-frame search.
1) Engage Still Playback.
2) Rotate the MENU/BRIGHT wheel towards + for forward Frame-By-Frame Playback, or towards for
reverse Frame-By-Frame Playback during Still Playback.
To resume normal playback, press
4
/6.
ATTENTION
During Shuttle Search, parts of the picture may not be clearly visible, particularly on
the left side of the screen.
20
EN
Connections
Use the provided Audio/Video cable and optional S-Video cable.
To S-VIDEO
To AV
Audio/Video cable
[mini-plug to RCA
plug] (provided)
White to
AUDIO L IN**
Red to
AUDIO R IN**
To S-VIDEO IN
To TV or VCR
S-Video cable
(optional)
TV
VCR
Connector cover* Yellow to
VIDEO IN
* When connecting the cables, open this cover.
** The Audio cable is not required for watching still images only.
PLAYBACK
(cont.)
If your TV/VCR has a 21-pin connector
Use the provided Cable Adapter.
S-Video cable
(optional) “Y/C”/“CVBS”
Video Out
Select Switch
Cable
Adapter
NOTE:
Set the video out select switch of the cable adapter as required:
Y/C : When connecting to a TV or VCR which accepts Y/C signals and uses an S-Video cable.
CVBS : When connecting to a TV or VCR which does not accept Y/C signals and uses an audio/video cable.
Camcorder
To AV TV or VCR
Yellow
To -IN
White to
AUDIO L* Red to
AUDIO R*
Audio/Video cable
[mini-plug to RCA plug]
(provided)
* The Audio cable is not required for watching still images only.
To S-VIDEO
When the S-Video
cable is not used.
p
When the S-Video
cable is not used.
p
EN
21
NOTES:
It is recommended to use the AC Adapter as the
power supply instead of the battery pack ( pg. 9).
To monitor the picture and sound from the camcorder
without inserting a tape, set the camcorder’s Power
Switch to “
AUTO
” or “
MANUAL
”, then set your TV to the
appropriate input mode.
Make sure you adjust the TV sound volume to its
minimum level to avoid a sudden burst of sound when
the camcorder is turned on.
If you have a TV or speakers that are not specially
shielded, do not place the speakers adjacent to the TV
as interference will occur in the camcorder playback
picture.
While the Audio/Video cable is connected to the AV
connector, sound cannot be heard from the speaker.
1Make sure all units are turned off.
2Connect the camcorder to a TV or VCR as shown
in the illustration ( pg. 20).
If using a VCR . . . go to step 3.
If not . . . go to step 4.
3Connect the VCR output to the TV input, referring
to your VCR’s instruction manual.
4Turn on the camcorder, the VCR and the TV.
5Set the VCR to its AUX input mode, and set the
TV to its VIDEO mode.
To choose whether or not the following displays
appear on the connected TV . . .
• Date/Time
..... set “DATE/TIME” to “AUTO”, “ON” or “OFF” in the
Menu Screen ( pg. 36).
Time Code
..... set “TIME CODE” to “ON” or “OFF” in the Menu
Screen ( pg. 36).
Playback Sound Mode, Tape Speed And Tape
Running Displays for tape playback
..... set “ON SCREEN” to “LCD” or “LCD/TV” in the
Menu Screen ( pg. 36).
22
EN
Blank Search
Helps you find where you should start recording in
the middle of a tape to avoid time code interruption
( pg. 18).
1Load a tape ( pg. 12).
2Set the Power Switch to PLAY while pressing
down the Lock Button located on the switch.
3Press BLANK.
•“BLANK SEARCH appears blinking and the
camcorder automatically starts reverse or forward
shuttle search, then stops at the spot which is about
3 seconds of tape before the beginning of the
detected blank portion.
To cancel Blank Search midway . . .
..... press 5.
NOTES:
In step 3, if the current position is at a blank portion the
camcorder searches in the reverse direction, and if the
current position is at a recorded portion the camcorder
searches in the forward direction.
Blank Search does not work if HEAD CLEANING
REQUIRED. USE CLEANING CASSETTE has
appeared with the tape.
If the beginning or end of the tape is reached during
Blank Search, the camcorder stops automatically.
A blank portion which is shorter than 5 seconds of tape
may not be detected.
The detected blank portion may be located between
recorded scenes. Before you start recording, make sure
there is no recorded scene after the blank portion.
PLAYBACK
(cont.)
BLANK SEARCH
44
Power Switch
BLANK Button
Lock Button
Display
Stop Button (5)
EN
23
ADVANCED FEATURES
CONTENTS
FOR RECORDING ........................................... 24 – 31
Night-Scope............................................................ 24
Programme AE With Special Effects .......................... 24 – 25
Fade/Wipe Effects ............................................. 26 – 27
Snapshot ............................................................... 28
Auto Focus/Manual Focus ............................................ 29
Exposure Control ...................................................... 30
Iris Lock ................................................................ 30
White Balance Adjustment ........................................... 31
Manual White Balance Operation.................................... 31
USING MENUS FOR DETAILED ADJUSTMENT............. 32 – 37
For Recording Menu............................................ 32 – 35
For Playback Menu ............................................ 36 – 37
DUBBING .................................................... 38 – 39
Dubbing To A VCR ..................................................... 38
Dubbing To A Video Unit Equipped With A DV Connector
.............. 39
USING THE OPTIONAL REMOTE CONTROL UNIT ........ 40 – 49
Installing The Battery ................................................. 40
Playback Zoom ........................................................ 42
Random Assemble Editing ..................................... 43 – 47
For More Accurate Editing ............................................ 47
Audio Dubbing ......................................................... 48
Insert Editing .......................................................... 49
SYSTEM CONNECTIONS ............................................ 50
Connection To A Personal Computer ................................. 50
ADVANCED FEATURES
24
EN
Programme AE With Special Effects
1Set the Power Switch to
MANUAL
while pressing
down the Lock Button located on the switch.
2Press the MENU/BRIGHT wheel in. The Menu
Screen appears.
3Rotate the MENU/BRIGHT wheel to select
PROGRAM AE, then press it.
4Rotate the MENU/BRIGHT wheel to select the
desired mode ( pg. 25), then press it. Selection is
complete. Press the MENU/BRIGHT wheel in again.
The Menu Screen closes.
The PROGRAM AE Menu disappears and the
selected mode is activated. The selected mode
indicator appears.
To Deactivate The Selected Mode . . .
..... select OFF in step 4.
NOTES:
Programme AE with special effects can be changed
during recording or during Record-Standby.
Some modes of Programme AE special effects cannot
be used during Night-Scope.
IMPORTANT
Some modes of Programme AE with special effects
cannot be used with certain Fade/Wipe Effects
( pg. 26, 27). If an unusable mode is selected, its
indicator blinks or goes out.
Night-Scope
Makes dark subjects or areas even brighter than they
would be under good natural lighting. Although the
recorded image is not grainy, it may look as if it is
strobing due to the slow shutter speed.
1Set the Power Switch to
MANUAL
while pressing
down the Lock Button located on the switch.
2Press NIGHT so that the Night-Scope indicator
“ ”appears.
The shutter speed is automatically adjusted to
provide up to 30 times sensitivity.
•“A appears beside “ ” while the shutter speed is
being automatically adjusted.
To Deactivate Night-Scope . . .
..... press NIGHT again so that the Night-Scope
indicator disappears.
NOTES:
During Night-Scope, the following functions or settings
cannot be activated and its indicator blinks or goes out:
Some modes of Programme AE With Special Effects
( pg. 24, 25).
•“GAIN UP in the CAMERA Menu ( pg. 33).
•“DIS in the MANUAL Menu ( pg. 33).
•“Video light when LIGHT OFF/AUTO/ON is set to
AUTO ( pg. 17).
During Night-Scope, it may be difficult to bring the
camcorder into focus. To prevent this, use of manual
focus and/or a tripod is recommended.
FOR RECORDING
IC FILMCLASS
SEP I AGHTT
W
ILI
ONEMONOT
SNO
W
GIHTSPOTL
ESTROB
4
SL XO
W
10
SL XO
W
NIGHT Button
Power Switch
Lock Button
MENU/BRIGHT Wheel
Display
EN
25
SEPIA
Recorded scenes have a brownish tint like old
photos. Combine this with the Cinema mode for a
classic look.
MONOTONE
Like black and white films, your footage is shot in
B/W. Used together with the Cinema mode, it
enhances the classic film effect.
Gives recorded scenes a strobe effect.
STROBE
Your recording looks like a series of consecutive
snapshots.
SLOW (Slow Shutter)
Lights dark subjects or areas even brighter than
they would be under good natural lighting. Use
SLOW only in dark areas.
SLOW 4X
Slow Shutter raises light sensitivity to allow
shooting in dark environments.
SLOW 10X
Slow Shutter raises light sensitivity further to allow
shooting in even darker environments.
NOTES:
When using SLOW, the image takes on a strobe-
like effect.
When using SLOW, it may be difficult to bring the
camcorder into focus. To prevent this, use of manual
focus and/or a tripod is recommended.
SHUTTER
1/50The shutter speed is fixed at 1/50th of a
second. Black bands that usually appear when
shooting a TV screen become narrower.
1/120The shutter speed is fixed at 1/120th of a
second. The flickering that occurs when shooting
under a fluorescent light or mercury-vapour lamp is
reduced.
This setting allows fast-moving images to be
captured one frame at a time, for vivid, stable slow-
motion playback. The faster the shutter speed, the
darker the picture becomes. Use the shutter
function under good lighting conditions.
SNOW
Compensates for subjects that may otherwise
appear too dark when shooting in extremely bright
surroundings such as in the snow.
SPOTLIGHT
Compensates for subjects that may otherwise
appear too bright when shooting under extremely
strong direct lighting such as spotlights.
NOTE:
SPOTLIGHT has the same effect as 3 with the
exposure control (pg. 30).
TWILIGHT
Makes evening scenes look more natural.
White Balance ( pg. 31) is initially set to , but
can be changed to your desired setting. When
Twilight is chosen, the camcorder automatically
adjusts the focus from approx. 10 m to infinity.
From less than 10 m, adjust the focus manually.
SPORTS
(Variable
Shutter Speed:
1/250 1/4000) CLASSIC FILM
26
EN
IMPORTANT
Some Fade/Wipe Effects cannot be used with certain
modes of Programme AE with special effects
( pg. 24, 25). If an unusable Fade/Wipe Effect is
selected, its indicator blinks or goes out.
Fade/Wipe Effects
These effects let you make pro-style scene transi-
tions. Use them to spice up the transition from one
scene to the next.
Fade or Wipe works when tape recording is started or
when you stop recording.
1Set the Power Switch to
MANUAL
while pressing
down the Lock Button located on the switch.
2Press the MENU/BRIGHT wheel in. The Menu
Screen appears.
3Rotate the MENU/BRIGHT wheel to select
WIPE/FADER, then press it.
4Rotate the MENU/BRIGHT wheel to select the
desired function, then press it. Selection is complete.
Press the MENU/BRIGHT wheel in again.
The WIPE/FADER Menu disappears and the effect
is reserved. The indicator representing the selected
effect appears.
5Press the Recording Start/Stop Button to activate
the Fade-in/out or Wipe-in/out.
To Deactivate The Selected Effect . . .
..... select OFF in step 4.
NOTE:
You can extend the length of a Fade or Wipe by pressing
and holding the Recording Start/Stop Button.
FOR RECORDING
(cont.)
Recording Start/Stop Button
MENU/BRIGHT Wheel
Power Switch
Lock Button
EN
27
Fader And Wipe Menu
Menu Effect
Fade in or out with a white screen.
Fade in or out with a black screen.
Fade in to a colour screen from a black and white screen, or fade out
from colour to black and white.
Wipe in on a black screen from the upper right to the lower left corner,
or wipe out from lower left to upper right, leaving a black screen.
The scene starts in the centre of a black screen and wipes in toward
the corners, or comes in from the corners, gradually wiping out to the
centre.
Wipe in from right to left, or wipe out from left to right.
Wipe in as the two halves of a black screen open to the left and right,
revealing the scene, or wipe out and the black screen reappears from
left and right to cover the scene.
The scene wipes in from the bottom to the top of a black screen, or
wipes out from top to bottom, leaving a black screen.
Wipe in from the centre of a black screen toward the top and bottom,
or wipe out from the top and bottom toward the centre leaving a black
screen.
FADER WHITE
FADER BLACK
FADER B.W
WIPE CORNER
WIPE WINDOW
WIPE SLIDE
WIPE DOOR
WIPE SCROLL
WIPE SHUTTER
28
EN
Snapshot
This feature lets you record still images that look like
photographs onto a tape.
SNAPSHOT MODE SELECTION
1Set the Power Switch to
MANUAL
while pressing
down the Lock Button located on the switch.
2Press the MENU/BRIGHT wheel in. The Menu
Screen appears.
3
Rotate the MENU/BRIGHT wheel to select
CAMERA. Press it and the CAMERA Menu appears.
4Rotate the MENU/BRIGHT wheel to select
SNAP MODE, then press it.
5Rotate the MENU/BRIGHT wheel to select the
desired Snapshot mode, then press it.
Rotate the MENU/BRIGHT wheel to select
RETURN and press it twice. The Menu Screen
closes.
SNAPSHOT RECORDING
1Press SNAPSHOT. PHOTO appears while the
snapshot is being taken.
If you press during Record-Standby . . .
..... PHOTO appears and a still image will be
recorded for approx. 6 seconds, then the
camcorder re-enters the Record-Standby mode.
If you press during Recording . . .
..... PHOTO appears and a still image will be
recorded for approx. 6 seconds, then the normal
recording resumes.
Regardless of the Power Switch position (
AUTO
or
MANUAL
), Snapshot recording takes place using the
selected Snapshot mode.
Motor Drive Mode
Keeping SNAPSHOT pressed provides an effect
similar to serial photography. (Interval between still
images: approx. 1 second)
NOTES:
To remove the shutter sound, BEEP on pg. 32, 34.
If Snapshot recording is not possible, PHOTO blinks
when SNAPSHOT is pressed.
If Programme AE with special effects ( pg. 24) is
engaged, certain modes of Programme AE with special
effects are disabled during Snapshot recording. In such
a case, the icon blinks.
If SNAPSHOT is pressed when DIS is set to ON
( pg. 33), the Stabiliser will be disabled.
During tape playback as well, all snapshot modes are
available. However, the shutter sound is not heard.
During Snapshot recording, the image displayed in the
viewfinder may be partially missing. However, there is
no effect in the recorded image.
When a cable is connected to the AV connector, the
shutter sound is not heard from the speaker, however it
is recorded onto the tape.
FOR RECORDING
(cont.)
SNAP MODE PINUP
FRAME
FULL
SNAPSHOT Button
Lock Button
Display
Menu Screen
There is the sound effect of a shutter closing.
FULL
Snapshot mode with no
frame
FRAME
Snapshot mode with frame
PIN-UP
Pin-Up mode
Power Switch
EN
29
While focusing on a nearer
subject
While focusing on a further
subject
FEATURE: Auto Focus
PURPOSE:
The camcorders Full Range AF system offers continuous shooting ability from close-up (as close as approx.
5 cm to the subject) to infinity.
However, correct focus may not be obtainable in the situations listed below (in these cases use manual
focusing):
When two subjects overlap in the same scene.
When illumination is low.*
When the subject has no contrast (difference in brightness and darkness), such as a flat, one-colour wall, or
a clear, blue sky.*
When a dark object is barely visible in the viewfinder.*
When the scene contains minute patterns or identical patterns that are regularly repeated.
When the scene is affected by sunbeams or light reflecting off the surface of a body of water.
When shooting a scene with a high-contrast background.
* The following low-contrast warnings appear blinking: , , and
NOTES:
If the lens is smeared or blurred, accurate focusing is not possible. Keep the lens clean, wiping with a piece of soft
cloth if it gets dirty. When condensation occurs, wipe with a soft cloth or wait for it to dry naturally.
When shooting a subject close to the lens, zoom out first ( pg. 17). If zoomed-in in the auto focus mode, the
camcorder may automatically zoom out depending on the distance between the camcorder and the subject. This
will not occur when TELE MACRO ( pg. 34) is activated.
FEATURE:
Manual Focus
PURPOSE:
To obtain correct focus.
OPERATION:
1) If you are using the viewfinder, you should already have made the necessary viewfinder adjustments
( pg. 10).
2) Set the Power Switch to
MANUAL
while pressing down the Lock Button located on the switch, then press
FOCUS ( pgs. 62 and 63, # FOCUS Button). The manual focus indicator appears.
3) To focus on a farther subject, rotate the MENU/BRIGHT wheel towards +. “ ” appears and blinks.
To focus on a nearer subject, rotate the MENU/BRIGHT wheel towards “–”. “ ” appears and blinks.
4) Press the MENU/BRIGHT wheel in. Focus adjustment is complete.
To reset to Auto Focus, press FOCUS twice or set the Power Switch to
AUTO
.
If FOCUS is pressed once, the camcorder will enter the focus adjustment mode again.
NOTES:
Be sure to focus the lens in the maximum telephoto position when you use the Manual Focus mode. If you focus in
on a subject in the wide-angle position, sharply focused images cannot be obtained when zoomed up because the
depth-of-field is reduced at longer focal lengths.
When the focus level cannot be adjusted any further or closer, or “ ” will blink.
Focus detection zone
30
EN
Exposure Control
Manual exposure adjustment is recommended in the
following situations:
When shooting using reverse lighting or when the
background is too bright.
When shooting on a reflective natural background
such as at the beach or when skiing.
When the background is overly dark or the subject
light.
1Set the Power Switch to
MANUAL
while pressing
down the Lock Button located on the switch.
2Press the MENU/BRIGHT wheel in. The Menu
Screen appears.
3Rotate the MENU/BRIGHT wheel to select
EXPOSURE, then press it.
4Rotate the MENU/BRIGHT wheel to select
MANUAL, then press it. The Menu Screen
disappears. The exposure control indicator appears.
5Rotate the MENU/BRIGHT wheel towards + to
brighten the image, or towards “–” to darken the
image. (maximum ±6)
6Press the MENU/BRIGHT wheel in. Exposure
adjustment is complete.
To Return To Automatic Exposure Control . . .
..... select AUTO in step 4. Or, set the Power Switch
to
AUTO
.
To Brighten The Subject Quickly . . .
..... press BACKLIGHT. is displayed and the
subject is brightened. If pressed again,
disappears and the brightness returns to the
previous level.
+3 exposure has the same effect as the
BACKLIGHT Button.
Using BACKLIGHT may cause the light around the
subject to become too bright and the subject to
become white.
Backlight compensations is also available when the
Power Switch is set to
AUTO
.
NOTE:
You cannot use the manual exposure control at the same
time with backlight, spotlight ( pg. 25) compensation
and SNOW ( pg. 25).
Iris Lock
Use this function in the following situations:
When shooting a moving subject.
When the distance to the subject changes (so its
size in the LCD monitor or the viewfinder changes),
such as when the subject is backing away.
When shooting on a reflective natural background
such as at the beach or when skiing.
When shooting objects under a spotlight.
When zooming.
When the subject is close, keep the iris locked. Even
when the subject moves away from you, the image
will not darken or brighten.
Before the following steps, perform steps 1
through 4 of Exposure Control.
5Adjust zoom so that the subject fills the LCD
monitor or the viewfinder, then press and hold the
MENU/BRIGHT wheel for over 2 seconds. The
exposure control indicator and “ ” appear.
Press the MENU/BRIGHT wheel in. “ ” changes to
“ ” and the iris is locked.
To Return To Automatic Iris Control . . .
..... rotate MENU/BRIGHT to display AUTO then
press it in step 4. The exposure control indicator
and “ ” disappear. Or, set the Power switch to
AUTO
.
To Lock The Exposure Control And The Iris . . .
..... after step 4 of Exposure Control, adjust the
exposure rotating the MENU/BRIGHT wheel.
Then lock the iris in step 5 of Iris Lock. For
automatic locking, rotate the MENU/BRIGHT
wheel to select AUTO, then press it in step 4.
The iris becomes automatic after about 2
seconds.
Iris
Like the pupil of the human eye, it contracts in well-lit
environments to keep too much light from entering,
and dilates in dim environments to allow in more light.
FOR RECORDING
(cont.)
33
MENU/BRIGHT Wheel
Power Switch
BACKLIGHT Button (5)
Iris lock indicator
EN
31
White Balance Adjustment
A term that refers to the correctness of colour
reproduction under various lighting. If the white
balance is correct, all other colours will be accurately
reproduced.
The white balance is usually adjusted automatically.
However, more advanced camcorder operators
control this function manually to achieve a more
professional colour/tint reproduction.
1Set the Power Switch to
MANUAL
while pressing
down the Lock Button located on the switch.
2Press the MENU/BRIGHT wheel in. The Menu
Screen appears.
3Rotate the MENU/BRIGHT wheel to select
W.BALANCE, then press it. The W.BALANCE
Menu appears.
4Rotate the MENU/BRIGHT wheel to select the
desired mode.
AUTO................. White balance is adjusted
automatically (factory preset).
MWB............ White balance is set manually.
FINE............. Outdoors on a sunny day.
CLOUD........ Outdoors on a cloudy day.
HALOGEN... A video light or similar type of
lighting is used.
5Press the MENU/BRIGHT wheel in. Selection is
complete. Press the MENU/BRIGHT wheel in again.
The Menu Screen closes and the selected mode
indicator except AUTO appears.
To Return To Automatic White Balance . . .
..... select AUTO in step 4. Or, set the Power Switch
to
AUTO
.
NOTE:
White balance cannot be used when Sepia or Monotone
( pg. 25) is activated.
Manual White Balance Operation
Perform Manual White Balance when shooting under
various types of lighting.
1Follow steps 1 through 4 of the white balance
adjustment, and select MWB.
2Hold a sheet of plain white paper in front of the
subject. Adjust zoom or position yourself so that the
white paper fills the screen.
3Press the MENU/BRIGHT wheel in until
begins blinking rapidly.
When the setting is completed, resumes normal
blinking.
4Press the MENU/BRIGHT wheel in twice. The
Menu Screen closes and the Manual White Balance
indicator is displayed.
NOTES:
In step 2, it may be difficult to focus on the white paper.
In such a case, adjust focus manually ( pg. 29).
A subject can be shot under various types of lighting
conditions indoors (natural, flourescent, candlelight,
etc.). Because the colour temperature is different
depending on the light source, the subject tint will differ
depending on the white balance settings. Use this
function for a more natural result.
Once you adjust white balance manually, the setting is
retained even if the power is turned off or the battery
removed.
White paper
Power Switch
MENU/BRIGHT Wheel
32
EN
For Recording Menu
This camcorder is equipped with an easy-to-use,
on-screen menu system that simplifies many of the
more detailed camcorder settings ( pg. 33 35)
1Set the Power Switch to
MANUAL
while pressing
down the Lock Button located on the switch.
2Press the MENU/BRIGHT wheel in. The Menu
Screen appears.
3Rotate the MENU/BRIGHT wheel to select the
desired function menu, and press it. The selected
function menu appears.
4Function menu setting depends on the function.
If you have selected WIPE/FADER,
PROGRAM AE, EXPOSURE or
W. BALANCE . . .
..... see pg. 33.
If you have selected CAMERA,
MANUAL, SYSTEM or DISPLAY . . .
..... go to step 5.
5Rotate the MENU/BRIGHT wheel to select the
desired function and press it. The Sub Menu appears.
Then, rotate the MENU/BRIGHT wheel to select the
parameter, and press it. Selection is complete.
6Rotate the MENU/BRIGHT wheel to select
RETURN and press it twice. The Menu Screen
closes.
The icon represents END.
NOTE:
When the Menu Screen is left on for a couple of
minutes, a residual image may be left on the screen
and it may take several seconds for the residual
image to disappear. This is not due to any defect of
the unit.
USING MENUS FOR DETAILED ADJUSTMENT
DSC
DSC
RE NEON SC LCD / TV
UAOT
IMETDATE /
T I ME CODE
CLOCK
ADJ .
FFO
12 0..2
52
17
3:0
NRETUR
MODESNAP
SP I
12
BTMODESOUND
ZOOM
UPGA I N
40
XLFUL
AGC
NRETUR
DIS ON
OFF
BEEP MELODY
NO
TALLY
ID N MUBER
60
DEMO MODE NO
NRETUR
FADER/ W I P E AM AEPROGRUREEXPOS
ACAMERLMANUAMSYSTE
END
AYDISPL
C
AN E
W. BAL
CAM ERSET
OF
F
FADER
/ W I P E AM AEPROGR
ACAMERLMANUAMSYSTE
END
AYDISPL
C
AN E
W. BAL
EXPOSURE
ODEREC M
Display
Menu Screen
MENU/BRIGHT Wheel
Lock Button
Power Switch
Sub Menu
Normal Screen
EN
33
Menu Screen Explanations
CAMERA
MANUAL
: Factory-preset
NOTES:
Settings made in the CAMERA Menu remain effective whether the Power Switch is set to
AUTO
or
MANUAL
.
However, the menu settings can be changed only when the Power Switch is set to
MANUAL
.
The MANUAL settings are effective only when the Power Switch is set to
MANUAL
.
Refer to Fade/Wipe Effects ( pg. 26, 27).
Refer to Programme AE With Special Effects ( pg. 24, 25).
Refer to Exposure Control and Iris Lock ( pg. 30).
Refer to White Balance Adjustment and Manual White Balance Operation
( pg. 31).
Allows you to set the tape recording mode (SP or LP) depending on your
preference ( pg. 13).
Enables tape recording of stereo sound on four separate channels, and is
recommended for use when performing audio dubbing. (Equivalent to the
32 kHz mode of previous models)
Enables tape recording of stereo sound on two separate channels. (Equivalent
to the 48 kHz mode of previous models)
When set to 10X while using digital zoom, the zoom magnification will reset
to 10X since digital zoom will be disengaged.
Allows you to use the Digital Zoom. By digitally processing and magnifying
images, zooming is possible from 10X (the optical zoom limit), to a maximum
of 40X digital magnification.
Allows you to use the Digital Zoom. By digitally processing and magnifying
images, zooming is possible from 10X (the optical zoom limit), to a maximum
of 500X digital magnification.
Refer to Snapshot ( pg. 28).
Allows you to shoot dark scenes with no picture brightness adjustment.
The overall appearance may be grainy, but the image is bright.
The shutter speed is automatically adjusted (1/25 1/200 sec.). Shooting a
subject in low or poor lighting at 1/25 sec. shutter speed provides a brighter
image than in the AGC mode, but the subjects movements are not smooth or
natural. The overall appearance may be grainy. While the shutter speed is
being automatically adjusted, “ ” is displayed.
To compensate for unstable images caused by camera-shake, particularly at
high magnification.
NOTES:
Accurate stabilisation may not be possible if hand shake is excessive, or
under the following conditions:
When shooting subjects with vertical or horizontal stripes.
When shooting dark or dim subjects.
When shooting subjects with excessive backlighting.
When shooting scenes with movement in various directions.
When shooting scenes with low-contrast backgrounds.
Switch off this mode when recording with the camcorder on a tripod.
The “ ” indicator blinks or goes out if the Stabiliser cannot be used.
WIPE/FADER
PROGRAM AE
EXPOSURE
W.BALANCE
REC MODE
SOUND
MODE
ZOOM
SNAP MODE
GAIN UP
DIS
12BIT
16BIT
10X
40X
500X
OFF
AGC
AUTO
OFF
ON
CONTINUED ON NEXT PAGE
34
EN
USING MENUS FOR DETAILED ADJUSTMENT
(cont.)
: Factory-preset
Menu Screen Explanations (cont.)
MANUAL
NOTES:
The MANUAL settings are effective only when the Power Switch is set to
MANUAL
.
SYSTEM functions which are set when the Power Switch is set to
MANUAL
are also applied when the Power
Switch is set to PLAY ( pg. 36).
SYSTEM
TELE
MACRO
WIDE
MODE
WIND
CUT
BEEP
TALLY
ID NUMBER
Usually the distance to a subject where the lens is in focus depends on the
zoom magnification. Unless there is a distance more than 1m to the subject,
the lens is out of focus at the maximum telephoto setting. When set to ON,
you can shoot a subject as large as possible at a distance of approx. 60 cm.
Depending on the zoom position, the lens may go out of focus.
Records with no change in the screen ratio. For playback on a TV with a
normal screen ratio.
Inserts black bands at the top and bottom of the screen. During playback on
wide-screen TVs, the black bands at the top and bottom of the screen are cut
and the screen ratio becomes 16:9. appears. When using this mode, refer
to your wide-screen TVs instruction manual. During playback/recording on 4:3
TVs/LCD monitor/viewfinder, black bands are inserted at the top and bottom of
the screen and the image appears like a letterboxed 16:9 movie.
For playback on TVs with an aspect ratio of 16:9. Naturally expands the image
to fit the screen without distortion. appears. When using this mode, refer
to your wide-screen TVs instruction manual. During playback/recording on 4:3
TVs/LCD monitor/viewfinder, the image is elongated vertically.
Disengages the function which cuts down on noise created by wind.
Helps cut down on noise created by wind. “ ” appears. The quality of the
sound will change. This is normal.
Even though not heard while shooting, shutter sound is recorded on the tape.
The beep sounds when the power is turned on or off, and at the beginning and
end of recording. Also to activate the shutter sound effect ( pg. 28).
Instead of a beep, a melody sounds when any operation is performed. It also
activates the shutter sound effect ( pg. 28).
The tally lamp remains off at all times.
The tally lamp comes on to signal the start of recording.
This number is necessary when connecting the camcorder to a device such as
a computer using the J terminal (JLIP) or PC connector. The numbers range
from 01 to 99. Factory setting is 06.
OFF
ON
OFF
CINEMA
SQUEEZE
OFF
ON
OFF
BEEP
MELODY
OFF
ON
EN
35
: Factory-preset
NOTES:
SYSTEM and DISPLAY functions which are set when the Power Switch is set to
MANUAL
are also applied
when the Power Switch is set to PLAY (
pg. 36). CLOCK ADJ. only appears when the Power Switch is set to
MANUAL
.
Settings made in the DISPLAY Menu remain effective even when the Power Switch is set to
AUTO
. However,
the menu settings can be changed only when the Power Switch is set to
MANUAL
.
SYSTEM
DISPLAY
Automatic demonstration will not take place.
Demonstrates certain functions such as Programme AE with special effects,
etc., and can be used to confirm how these functions operate.
Demonstration starts in the following cases:
When the Menu Screen is closed after DEMO MODE is turned ON.
With DEMO MODE set to ON, if there is no operation for about 3 minutes
after the Power Switch is set to
AUTO
or
MANUAL
.
Performing any operation during the demonstration stops the demonstration
temporarily. If no operation is performed for more than 3 minutes after that, the
demonstration will resume.
NOTES:
If a tape is in the camcorder, the demonstration cannot be turned on.
DEMO MODE remains ON even if the camcorder power is turned off.
If DEMO MODE remains ON, some functions will not be available. After
viewing demo, set to OFF.
Does not reset all settings to the factory-preset.
Resets all settings to the factory-preset.
Keeps the camcorders display (except the date, time and time code) from
appearing on the connected TV screen.
Makes the camcorders display appear on screen when the camcorder is
connected to a TV.
The date/time does not appear.
Displays the date/time for approx. 5 seconds in the following cases:
When the Power Switch is set from OFF to
AUTO
or
MANUAL
.
When tape playback starts. The camcorder displays the date/time when
scenes are recorded.
When the date is changed during tape playback.
The date/time is always displayed.
Time code is not displayed.
Time code is displayed on the camcorder and on the connected TV. Frame
numbers are not displayed during recording.
Allows you to set the current date and time ( pg. 11).
DEMO
MODE
CAM
RESET
ON
SCREEN
DATE/
TIME
TIME
CODE
CLOCK ADJ.
OFF
ON
CANCEL
EXECUTE
LCD
LCD/TV
OFF
AUTO
ON
OFF
ON
36
EN
COPY OFF
COPY
MDOESOUND MDOE
12
BIT
ROSYNCHODEREC M
STEREOSOUND
1
SP
NRETUR
O.O
RE NEON SC LCD / TV
UAOTIMETDATE /
T I ME CODE
FFO
NRETUR
BEEP MELODY
NO
TALLY
ID UNMERB
60
DEMO MODE NO
NRETUR
CAM ERSET
MSYSTEAYDISPL
VIDEO SOUND MODE
MODE
MODE
12
BIT
SYNC ROH
REC
END
For Playback Menu
The following procedure applies to all except Synchro
Comp ( pg. 47).
1Set the Power Switch to PLAY while pressing
down the Lock Button located on the switch.
2Press the MENU/BRIGHT wheel in. The Menu
Screen appears.
3Rotate the MENU/BRIGHT wheel to select the
desired function menu, and press it. The selected
function menu appears.
4Rotate the MENU/BRIGHT wheel to select the
desired function, and press it to display the Sub Menu.
5Rotate the MENU/BRIGHT wheel to select the
desired parameter and press it. Selection is complete.
6Rotate the MENU/BRIGHT wheel to select
RETURN and press it twice to close the Menu Screen.
Display
Power Switch
MENU/BRIGHT Wheel
Recording Start/Stop Button
USING MENUS FOR DETAILED ADJUSTMENT
(cont.)
Lock Button
NOTE:
REC MODE can be set when the Power Switch is set to
PLAY or
MANUAL
( pg. 13, 33).
Menu Screen Explanations
SYSTEM
DISPLAY
Each setting is linked with
DISPLAY or SYSTEM, which
appears when the Power Switch is
set to
MANUAL
( pg. 34, 35).
The parameters are the same as in
the description on pg. 34, 35.
pg. 37.
pg. 37.
pg. 47.
Allows you to set the tape
recording mode (SP or LP)
depending on your preference
( pg. 13).
SOUND MODE
12BIT MODE
SYNCHRO
REC MODE
VIDEO
EN
37
Playback Sound
During tape playback, the camcorder detects the sound mode in which the recording was made, and plays the
sound back. Select the type of sound to accompany your playback picture. According to the menu access
explanation on pg. 36, select SOUND MODE or 12BIT MODE from the Menu Screen and set it to the desired
parameter.
Sound is output on both L and R channels in stereo.
Sound from the L channel is output in stereo.
Sound from the R channel is output in stereo.
Original and dubbed sounds are combined and output in stereo on both
L and R channels in stereo.
Original sound is output on both L and R channels in stereo.
Dubbed sound is output on both L and R channels in stereo.
SOUND MODE
12BIT MODE
STEREO
SOUND L
SOUND R
MIX
SOUND 1
SOUND 2
1
L2
12:34:24
BIT/SOUND
1
PS
4
6
12..02
52
17
30
:
Minutes
Seconds
Frames*
*25 frames = 1 second
NOTES:
The SOUND MODE setting is available for both 12-bit and 16-bit sound. (In previous models functions, 12-bit is
called 32 kHz and 16-bit is called 48 kHz.)
The camcorder cannot detect the sound mode in which the recording was made during fast-forward or rewind. During
playback the sound mode is displayed in the upper left corner.
: Factory-preset
ON SCREEN setting:
For playback sound, tape
speed and tape running. DATE/TIME setting:
For date/time. TIME CODE setting:
For time code.
Display
38
EN
DUBBING
Dubbing To A VCR
1Following the illustration, connect the camcorder
and the VCR. Also refer to pg. 20 and 21.
2Set the camcorders Power Switch to PLAY
while pressing down the Lock Button located on the
switch, turn on the VCRs power, and insert the
appropriate cassettes in the camcorder and the VCR.
3Engage the VCRs AUX and Record-Pause modes.
4Engage the camcorders Play mode to find a spot
just before the edit-in point. Once it is reached, press
4
/6 on the camcorder.
5Press
4
/6 on the camcorder and engage the
VCRs Record mode.
6Engage the VCRs Record-Pause mode and
press
4
/6 on the camcorder.
7Repeat steps 4 through 6 for additional editing,
then stop the VCR and camcorder when finished.
NOTES:
As the camcorder starts to play your footage it will
appear on your TV. This will confirm the connections
and the AUX channel for dubbing purposes.
Before you start dubbing, make sure that the indica-
tions do not appear on the connected TV. If they do,
they are being recorded onto the new tape.
Set the video out select switch of the cable adapter as
required:
Y/C : When connecting to a TV or VCR which
accepts Y/C signals and uses an S-Video
cable.
CVBS : When connecting to a TV or VCR which does
not accept Y/C signals and uses an audio/video
cable.
To choose whether or not the following displays
appear on the connected TV . . .
Date/Time
..... set DATE/TIME to AUTO, ON or OFF in
the Menu Screen ( pg. 36).
Time Code
..... set TIME CODE to ON or OFF in the Menu
Screen ( pg. 36).
Playback Sound Mode, Tape Speed And Tape
Running Displays
..... set ON SCREEN to LCD or LCD/TV in the
Menu Screen ( pg. 36).
*When connecting the cables, open this cover.
** Connect when an S-Video cable is not used.
VCR
Connector cover*
TV
To AV
To
S-VIDEO
S-Video cable
(optional)
Power Switch
To AUDIO, VIDEO**
and -IN
connectors
Y/C/CVBS
video out
select switch
Cable Adapter (provided)
If your VCR has a SCART
connector, use the provided
cable adapter.
Audio/Video cable
[mini-plug to RCA plug]
(provided)
EN
39
Dubbing To A Video Unit Equipped With A
DV Connector (Digital Dubbing)
It is also possible to copy recorded scenes from this
camcorder onto another video unit equipped with a
DV connector. Since a digital signal is sent, there is
little if any image or sound deterioration.
1Make sure all units are turned off. Connect this
camcorder to a video unit equipped with a DV input
connector using a DV cable as shown in the
illustration.
2Set this camcorders Power Switch to PLAY
while pressing down the Lock Button located on the
switch, turn on the video units power, and insert the
appropriate cassettes in this camcorder and the video
unit.
3Press
4
to play back the source tape.
4While watching the playback on the monitor,
engage the DV connector-equipped video units
record mode from the spot on the source tape you
want to begin recording.
NOTES:
It is recommended to use the AC Adapter as the
power supply instead of the battery pack ( pg. 9).
If the remote control is used when both the player and
recorder are JVC video units, both units will perform the
same operation. To prevent this from happening, press
the buttons on both units.
If a blank portion or disturbed image is played back on
the player during dubbing, the dubbing may stop so that
an unusual image is not dubbed.
Even though the DV cable is connected correctly,
sometimes the image may not appear in step 4. If this
occurs, turn off the power and make connections again.
If Playback Zoom ( pg. 42) or Snapshot is
attempted during playback, only the original playback
image recorded on the tape is output from the DV
connector.
When using a DV cable, be sure to use the optional
JVC VC-VDV204U DV cable.
MANUAL
AUTO
PLAY
OFF
DV cable
(optional)
Video unit equipped with
DV input connector
To DV IN
To DV
Power Switch
Core filter
Core filter
Lock Button
40
EN
A
B
11
1
1
1
2
2
3
3
USING THE OPTIONAL REMOTE CONTROL UNIT
The Full-Function Remote Control Unit can operate
this camcorder from a distance as well as the basic
operations (Playback, Stop, Pause, Fast-Forward and
Rewind) of your VCR. It also makes additional
playback functions possible.
Installing The Battery
(RM-V700U, optional)
The remote control uses one lithium battery
(CR2025).
1There are 2 ways to pull the battery holder out of
the RM-V700U.
: Pull out the battery holder while sliding the lock
hole.
: Pinch the release tab and pull out the battery
holder.
2Insert the battery in the holder, and be sure to
have the “+” mark visible.
3Slide the holder back in until you hear a click.
Read the caution concerning lithium batteries in the
RM-V700U instruction manual.
When using the remote control, be sure to point it at the remote
sensor. The transmitted beam’s approximate effective distance
for indoor use is 5m.
The transmitted beam may not be effective or may cause
incorrect operation outdoors or when the remote sensor is directly
exposed to sunlight or powerful lighting.
Lock hole
Remote sensor
Knob
EN
41
Buttons
1PAUSE IN Connector
2MBR SET Button
3INT. TIME Button*
SELF TIMER Button*
4REC TIME Button*
ANIM. Button*
5FF Button
6REW Button
7PAUSE Button
8PLAY Button
9Infrared beam
transmitting window
0START/STOP Button
!VISS Button*
@ZOOM (T/W) Buttons
#VCR CTL Button
$A.DUB Button
%STOP Button
^INSERT Button
&R.A.EDIT Buttons
RM-V700U
(optional)
19
7
5
3!
#
%
&
2
4
6
8
0
@
$
^
Functions
With the camcorder’s Power Switch set to
the camera position (“
AUTO
or
MANUAL
).
Transmits the beam signal.
Functions the same as the Recording Start/Stop Button on the camcorder.
Zoom in/out ( pg. 17)
With the camcorders Power Switch
set to PLAY.
pg. 44
pg. 43
Forward, Forward Shuttle Search
( pg. 19)
Rewind, Reverse Shuttle Search
( pg. 19)
Pause ( pg. 19)
Playback start ( pg. 19)
Zoom in/out ( pg. 42)
pg. 43
pg. 48
Stops ( pg. 19)
pg. 49
pg. 43 47
* This function is unavailable with this camcorder.
42
EN
USING THE OPTIONAL REMOTE CONTROL UNIT
(cont.)
FEATURE:
Playback Zoom
PURPOSE:
To magnify the recorded image up to 50X at any
time during playback.
OPERATION:
1) Press PLAY (
4
) to find the scene of interest.
2) Press the Zoom Buttons (T/W) on the remote
control. Make sure the remote control is pointed
at the camcorder's remote sensor. Pressing T
zooms in.
To end zoom, press and hold W until magnifica-
tion returns to normal. Or, press STOP (5) and
then press PLAY (
4
).
NOTES:
Zoom can also be used during still playback.
Due to ditital image processing, the quality of the
image may suffer.
Remote sensor
Press T
Normal playback
Zoom Buttons
PLAY STOP
RM-V700U
(optional)
EN
43
Random Assemble Editing [R.A.Edit]
Create edited videos easily using your camcorder as
the source player. You can select up to 8 cuts for
automatic editing, in any order you like. R.A.Edit is
more easily performed when the MBR (Multi-Brand
Remote) is set to operate with your brand of VCR
(see VCR CODE LIST), but can also be performed by
operating the VCR manually.
Use the optional RM-V700U remote control.
Before operation, make sure the lithium battery is
installed in the remote control ( pg. 40).
SET REMOTE/VCR CODE
1Turn off the power to the VCR and point the
remote towards the VCRs infrared sensor. Then,
referring to the VCR CODE LIST, press and hold
MBR SET, and enter the brand code.
The code is automatically set once you release MBR
SET, and the VCRs power comes on.
2Make sure the VCRs power is on. Then, while
holding VCR CTL, press the button on the remote for
the desired function. The functions the remote can
control are PLAY, STOP, PAUSE, FF, REW and VCR
REC STBY (you do not need to press VCR CTL for
this one).
You are now ready to try Random Assemble
Editing.
IMPORTANT
Although the MBR is compatible with JVC VCRs
and those of many other makers, it may not work
with yours or may offer limited functions.
NOTES:
If the VCRs power does not come on in step 1, try
another code from the VCR CODE LIST.
Some brands of VCR do not come on automatically. In
this case, turn the power on manually and try step 2.
If the remote control is not able to control the VCR, use
the controls on the VCR.
When the remote controls batteries run out, the VCR
brand you have set will be erased.
In that case, replace the old battery with a new one to
reset the VCR brand.
CONTINUED ON NEXT PAGE
VCR CODE LIST
6 2
6 4
7 7
MITSUBISHI 6 7
6 8
NEC 3 7
3 8
GRUNDIG 1 4
3 4
HITACHI 6 6
6 3
PANASONIC 1 3
1 7
1 1
9 4
1 8
JVC 9 1
9 6
9 3
BLAUPUNKT
AKAI
9 7
9 8
3 2
FERGUSON
1 3
A
B
C
VCR BRAND
NAME
BRAND
CODE
SANYO 3 6
3 5
SHARP 1 5
1 `
TOSHIBA 6 9
6 1
SONY 6 5
6 `
3 9
3 1
THOMSON,
TELEFUNKEN,
SABA,
NORDMENDE
9 1
9 6
9 7
3 2
SELECO,
REX
9 1
9 6
PHILIPS 1 9
9 5
1 1
9 4
9 1
9 6
1 2
3 3
7 2
VCR BRAND
NAME
BRAND
CODE
12 3
45 6
7890
VCR CTL
MBR SET
VCR (Recording deck)
RM-V700U
(optional)
44
EN
MAKE CONNECTIONS
Also refer to pg. 20 and 21.
1 A JVC VCR equipped with a remote
pause connector . . .
..... connect the editing cable to the Remote PAUSE
connector.
A JVC VCR not equipped with a remote
pause connector but equipped with an
R.A.EDIT connector . . .
..... connect the editing cable to the R.A.EDIT
connector.
A VCR other than above . . .
..... connect the editing cable to the remote controls
PAUSE IN connector.
2Insert a recorded tape into the camcorder. Set the
Power Switch to PLAY while pressing down the
Lock Button located on the switch.
3Turn the VCR power on, insert a recordable tape
and engage the AUX mode (refer to the VCRs
instructions).
NOTES:
Before Random Assemble Editing, make sure the
indications do not appear on the TV monitor. If they do,
they will be recorded onto the new tape.
To choose whether or not the following displays
appear on the connected TV . . .
Date/Time
..... set DATE/TIME to AUTO, ON or OFF in the
Menu Screen ( pg. 36).
Time Code
..... set TIME CODE to ON or OFF in the Menu
Screen ( pg. 36).
Playback Sound Mode, Tape Speed And Tape Running
Displays
..... set ON SCREEN to LCD or LCD/TV in the Menu
Screen ( pg. 36).
Set the video out select switch of the cable adapter as
required:
Y/C : When connecting to a TV or VCR which
accepts Y/C signals and uses an S-Video
cable.
CVBS : When connecting to a TV or VCR which does
not accept Y/C signals and uses an audio/video
cable.
When editing on a VCR equipped with a DV input
connector, an optional DV cable can be connected
instead of an S-Video cable and audio/video cable.
To Remote
PAUSE or R.A.EDIT
To PAUSE IN
Editing cable
(optional)
S-Video cable
(optional)
Audio/Video cable
(provided)
* Connect when an S-Video cable is not used.
** When connecting cables, open this cover.
Connector cover**
To AV
To JLIP
To S-VIDEO
To AUDIO,
VIDEO*
and -IN
connectors
Y/C/CVBS
video out
select switch
If your VCR has the
SCART connector,
use the provided
cable adapter.
ATTENTION FOR EDITING CABLE
Make sure you use the optional editing cable
QAM0214-001. Consult the JVC Service
Center for details on its availability.
Make sure you connect the end with the core
filter (plug which has 3 rings around the pin) to
the camcorder.
VCR
TV
RM-V700U
(optional)
USING THE OPTIONAL REMOTE CONTROL UNIT
(cont.)
EN
45
SELECT SCENES
4Point the remote control at the camcorders
remote sensor. Press PLAY (
4
) and then press ON/
OFF on the remote control.
The Random Assemble Editing Menu appears.
5At the beginning of the scene, press IN/OUT on
the remote control. The Edit-In position appears in
the Random Assemble Editing Menu.
6At the end of the scene, press IN/OUT. The Edit-
Out position appears in the Random Assemble
Editing Menu.
7Repeat steps 5 and 6 to register additional
scenes.
To change previously registered points, press
CANCEL on the remote control. The registered
points disappear, one at a time, from the most
recently registered point.
NOTES:
When choosing a scene, set Edit-In and Edit-Out points
so that there is a relatively large difference between
them.
If the search time for an in-point exceeds 5 minutes, the
recording decks Record-Standby mode will be
cancelled and editing will not take place.
If there are blank portions before or after the Edit-In and
Edit-Out points, a blue screen may be included in the
edited version.
Since time codes register time only as accurately as
seconds, the time code total time may not match the
total programme time exactly.
Turning off the camcorders power erases all registered
Edit-In and Edit-Out points.
CONTINUED ON NEXT PAGE
1
2
3
4
5
6
7
8
––:–– ~
~
~
~
~
~
~
~
:
––
0:000
––
TOTAL
CODETIME
NIOUT
MODE
PLAY
CANCEL
REW FF
ON/OFF
IN/OUT
Random Assemble
Editing Menu
Programme
Remote sensor
RM-V700U
(optional)
46
EN
AUTOMATIC EDITING TO VCR
8Rewind the tape in the camcorder to the
beginning of the scene you want to edit and press
PAUSE (6).
9Point the remote control towards the VCRs
remote sensor and press VCR REC STBY (q6), or
manually engage the VCRs Record-Pause mode.
10
Press the Recording Start/Stop Button on the
camcorder. Editing proceeds as programmed, right
through to the end of the last registered scene.
When dubbing is complete, the camcorder enters
the Pause mode, and the VCR enters its Record-
Pause mode.
If you do not register an Edit-Out point, the tape will
be dubbed all the way to the end automatically.
If you operate the camcorder during automatic
editing, the VCR will enter its Record-Pause mode
and automatic editing will stop.
11
Engage the Stop modes for the camcorder and
the VCR.
To make the R.A.Edit counter display disappear,
press ON/OFF on the remote control.
NOTES:
Pressing ON/OFF on the remote control clears all
settings registered during Random Assemble Editing.
When the editing cable is connected to the remote
controls Pause In connector during dubbing, make sure
the remote control is pointed at the VCRs sensor, and
the path between the two is unobstructed.
Random Assemble Editing may not function properly
when using a tape including several duplicated time
codes ( pg. 18).
1
2
3
4
5
6
7
8
00:25
~
02:05
––––
07:18
~
08:31
–– ––
––––
–– ––
03:33
~
05:53
13:15
15:
:55
~
~
~
~
16:29
––––
––
––
––
––
––
–– –– ––
NIOUTMODE
09:30
~
16
:
30
9:39
TOTAL
CODETIME
PAUSE
VCR REC STBY
ON/OFF
Recording Start/Stop Button
Random Assemble
Editing Menu
Remote Sensor
RM-V700U
(optional)
USING THE OPTIONAL REMOTE CONTROL UNIT
(cont.)
EN
47
For More Accurate Editing
Some VCRs make the transition from Record-Pause
to Record mode faster than others. Even if you begin
editing for the camcorder and the VCR at exactly the
same time, you may lose scenes you wanted, or find
that you have recorded scenes you did not want. For
a cleanly edited tape, confirm and adjust the timing of
the camcorder against your VCR.
DIAGNOSING VCR/CAMCORDER TIMING
1Play back the tape in the camcorder, then point
the remote control at the camcorders remote sensor
and press ON/OFF.
The Random Assemble Editing Menu appears.
2Perform Random Assemble Editing on Pro-
gramme 1 only. In order to check VCR and
camcorder timing, select the beginning of a scene
transition as your Edit-In point.
3Play back the dubbed scene.
If any images from the scene prior to the transition
you chose for your Edit-In point were recorded, that
means your VCR moves too quickly from Record-
Pause to Record mode.
If the scene you tried to dub starts in progress, the
VCR is slow to start recording.
ADJUSTMENT OF VCR/CAMCORDER TIMING
4Point the remote control at the camcorders
remote sensor and press ON/OFF to make the
Random Assemble Editing menu disappear, then
press the MENU/BRIGHT wheel in. The Menu
Screen appears.
5Rotate the MENU/BRIGHT wheel to select
VIDEO and press it. The VIDEO Menu appears.
Then, rotate it to SYNCHRO and press it. The value
for SYNCHRO is highlighted.
6Based on the diagnostics performed, you can
now advance the VCRs record timing by rotating the
MENU/BRIGHT wheel towards +. You can also
delay the VCRs record timing by rotating the MENU/
BRIGHT wheel towards . The adjustment range is
from 1.3 to +1.3 seconds, in 0.1-second increments.
Press the MENU/BRIGHT wheel in to finish the
setting.
7Rotate the MENU/BRIGHT wheel to select
RETURN and press it twice.
Now perform Random Assemble Editing beginning
with step 4 on page 45.
NOTES:
Before performing actual Random Assemble Editing, do
a few Random Assemble Editing trial runs to check
whether the value you have input is appropriate or not,
and make adjustments accordingly.
Depending on the recorder, there may be situations
where the timing difference cannot be fully corrected.
1
2
3
4
5
6
7
8
––:–– ~
~
~
~
~
~
~
~
–– NIOUT
MODE
ROSYNCH O.1
:
––
0:000
TOTAL
CODETIME
ON/OFF
Random Assemble
Editing Menu
Programme 1
Remote sensor
VIDEO Menu
RM-V700U
(optional)
48
EN
Audio Dubbing
The audio track can be customized only when
recorded in the 12-bit mode ( pg. 33).
NOTES:
Audio Dubbing is not possible on a tape recorded in 16-
bit audio, on a tape recorded in the LP mode or on a
blank portion of a tape.
To perform Audio Dubbing while watching on the
television, make connections ( pg. 20).
1Play back the tape to locate the point where
editing will start, then press PAUSE (6).
2While holding A.DUB (e) on the remote control,
press PAUSE (6). 6e appears.
3Press PLAY (
4
) , then begin narrating.
Speak into the microphone.
To pause dubbing, press PAUSE (6).
4To end Audio Dubbing, press PAUSE (6), then
STOP (5).
To hear the dubbed sound during playback . . .
..... set 12BIT MODE to SOUND 2 or MIX in the
Menu Screen ( pg. 36, 37).
NOTES:
Sound is not heard from the speaker during Audio
Dubbing.
When editing onto a tape that was recorded at 12-bit,
the old and new soundtracks are recorded separately.
If you dub onto a blank space on the tape, the sound
may be disrupted. Make sure you only edit recorded
areas.
If feedback or howling occurs during TV playback,
move the camcorders microphone away from the TV,
or turn down the TVs volume.
If you change from 12-bit to 16-bit in mid-recording and
then use the tape for Audio Dubbing, it is not effective
from the point where 16-bit recording began.
During Audio Dubbing, when the tape moves to scenes
recorded in the LP mode, scenes recorded in 16-bit
audio or a blank portion, Audio Dubbing stops
( pg. 66).
e
6
A.DUB
PAUSE
PLAY
STOP
Speaker
Stereo
microphone
Audio Dub
Standby mode
Power Switch
Remote sensor
Display
RM-V700U
(optional)
USING THE OPTIONAL REMOTE CONTROL UNIT
(cont.)
EN
49
Insert Editing
You can record a new scene into a previously
recorded tape, replacing a section of the original
recording with minimal picture distortion at the in and
outpoints. The original audio remains unchanged.
NOTES:
Before performing the following steps, make sure that
TIME CODE is set to ON in the Menu Screen
( pg. 35, 37).
Insert Editing is not possible on a tape recorded in the
LP mode or on a blank portion of a tape.
To perform Insert Editing while watching in the
television, make connections ( pg. 20).
1Play back the tape, locate the Edit-Out point and
press PAUSE (6). Confirm the time code at this point
( pg. 35, 37).
2Press REW (
2
) until the Edit-In point is located,
then press PAUSE (6).
3Press and hold INSERT (w) on the remote
control, then press PAUSE (6). 6w and the Time
Code (min.:sec.) appear and the camcorder enters
Insert-Pause mode.
4Press START/STOP to begin editing.
Confirm the insert at the time code you checked in
step 1.
To pause editing, press START/STOP. Press it
again to resume editing.
5To end Insert Editing, press START/STOP, then
STOP (5).
NOTES:
Programme AE with special effects ( pg. 24, 25) can
be used to spice up the scenes being edited during
Insert Editing.
During Insert Editing, the date and time information
changes.
If you perform Insert Editing onto a blank space on the
tape, the audio and video may be disrupted. Make sure
you only edit recorded areas.
During Insert Editing, when the tape moves to scenes
recorded in the LP mode or a blank portion, Insert
Edting stops ( pg. 66).
w
6
12: 34
PAUSE
PLAY INSERT
START/STOP
STOP
REW
Power Switch
Display
Remote sensor
Lock Button
RM-V700U
(optional)
50
EN
NOTES:
Refer to SOFTWARE INSTALLATION AND PC
CONNECTION GUIDE for the installation of the
bundled software and drivers.
It is recommended to use the AC Adapter as the
power supply instead of the battery pack ( pg. 9).
Never connect the PC connection cable and the DV
cable simultaneously to the camcorder. Connect
only the cable you wish to use to the camcorder.
The date/time information cannot be captured into the
PC.
Refer to the instruction manuals of the PC and
Software.
The still images can also be transferred to a PC with a
DV connector-equipped capture board.
When using a DV cable, be sure to use the optional
JVC VC-VDV206U or VC-VDV204U DV cable
depending on the type of DV connector (4 or 6 pins)
on the PC, or use the DV cable provided with the
capture board.
The system may not work properly depending on the
PC or capture board you are using.
Connection To A Personal Computer
[A] Using PC connection cable
This camcorder can transfer still images to a PC by
using the software (provided).
[B] Using DV cable
It is also possible to transfer still images to a PC with
a DV connector by using software equipped with the
PC or commercially available software.
1Make sure the camcorder and PC are turned off.
2Connect the camcorder to your PC using the
appropriate cable as shown in the illustration.
3Turn the camcorders Power Switch to PLAY
while pressing down the Lock Button located on the
switch and turn on the PC.
Refer to the instruction manual of the software on
how to transfer a still image to the PC.
4When finished, turn off the PC first, then the
camcorder.
To DV DV cable (optional) To DV
connector
Power Switch
PC with DV
connector
PC
Core filter
OR
Core filter
To RS-232C
PC connection cable
(provided)
To PC
[A] Using PC connection cable
[B] Using DV cable
SYSTEM CONNECTIONS
EN
51
REFERENCES
CONTENTS
DETAILS ............................................ 52
TROUBLESHOOTING ....................... 53 – 56
USER MAINTENANCE ............................. 57
CAUTIONS .................................. 58 – 59
SPECIFICATIONS ........................... 60 – 61
INDEX ....................................... 62 – 66
Controls, Connectors And Indicators ....... 62 – 63
Indications ................................... 64 – 66
TERMS ........................ 67
Back Cover
REFERENCES
52
EN
DETAILS
I T E M S N O T E S
Perform charging where the temperature is between 10°C and 35°C. 20°C to
25°C is the ideal temperature range for charging. If the environment is too
cold, charging may be incomplete.
Charging times are for a fully discharged battery pack.
Charging time varies according to the ambient temperature and the status of
the battery pack.
To avoid interference with reception, do not use the AC Adapter near a radio.
Since the AC Adapter processes electricity internally, it becomes warm
during use. Be sure to use it only in well-ventilated areas.
The following operation stops charging:
Set the Power Switch to PLAY,
AUTO
or
MANUAL
.
Disconnect the AC adapter from the camcorder.
Unplug the AC adapters power cord from the AC outlet.
Detach the battery from the camcorder.
When you use the LCD monitor outdoors in direct sunlight, the LCD monitor
may be difficult to see. If this happens, use the viewfinder instead.
The cassette holder cannot be opened unless a power supply is attached.
There may be a delay after you open the cassette holder cover until the
cassette holder opens. Do not use force.
Once the cassette holder is closed, it recedes automatically. Wait until it
recedes completely before closing the cassette holder cover.
When the Recording Start/Stop button is pressed, it may take a few seconds
before actual recording starts. “ ” starts rotating when the camcorder
actually starts recording.
The time required to calculate and display the remaining tape length, and the
accuracy of the calculation, may vary according to the type of tape used.
TAPE END appears when the tape reaches its end, and the power goes off
automatically if left in this condition for 5 minutes. TAPE END also appears
when a cassette at its end is loaded.
RECORDING
( pg. 15, 16)
Power
( pg. 8)
EN
53
If, after following the steps in the chart below, the problem still exists, please consult your nearest JVC dealer.
The camcorder is a microcomputer-controlled device. External noise and interference (from a TV, a radio,
etc.) might prevent it from functioning properly. In such cases, first disconnect its power supply unit (battery
pack, AC Adapter, etc.) and wait a few minutes; and then re-connect it and proceed as usual from the
beginning.
The power is not connected
properly.
The battery is dead.
The date/time is not set.
The built-in clock battery has run
out and the previously set date/time
has been erased.
The tapes erase protection tab is
set to SAVE.
The Power Switch is set to PLAY
or OFF.
•“TAPE END appears.
The cassette holder cover is open.
The camcorder is not getting
power, or some other malfunction
exists.
Focus is set to the Manual mode.
The recording was done in a dark
place, or the contrast was low.
The lens is dirty or covered with
condensation.
The cassette is in the wrong
position.
The batterys charge is low.
The Squeeze mode is selected.
The light source or the subject does
not include white. Or there are
various different light sources
behind the subject.
The Sepia or Monotone mode is
activated.
Connect the AC Adapter securely
( pg. 9).
Replace the dead battery with a
fully charged one ( pg. 8, 9).
Set the date/time ( pg. 11).
Consult your nearest JVC dealer
for replacement.
Set the tapes erase protection tab
to REC ( pg. 12).
Set the Power Switch to
AUTO
or
MANUAL
( pg. 16).
Replace with new cassette
( pg. 12).
Close the cassette holder cover.
Turn the camcorders power off
and on again ( pg. 16).
Set Focus to the Auto mode
( pg. 29).
Clean the lens and check the focus
again ( pg. 57).
Set it in the right position
( pg. 12).
Install a fully charged battery
( pg. 8, 9).
Disengage the Squeeze mode
( pg. 34).
Find a white subject and compose
your shot so that it also appears in
the frame ( pg. 28).
Turn off Sepia and Monotone
( pg. 24, 25).
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION
1No power is supplied.
2SET DATE/TIME!
appears.
3Recording cannot be
performed.
4There is no picture.
5The focus does not adjust
automatically.
6The cassette will not load
properly.
7Snapshot mode cannot be
used.
8The colour of Snapshot
looks strange.
CONTINUED ON NEXT PAGE
TROUBLESHOOTING
54
EN
Shooting was performed under
backlit conditions.
The subject is too bright.
10X optical zoom is selected.
The Sepia or Monotone mode is
activated.
When shooting in the dark, the unit
becomes highly sensitive to light
and the image takes on an effect
similar to Slow Shutter.
The Sepia or Monotone mode is
activated.
This is a result of exceedingly high
contrast, and is not a malfunction.
This is not a malfunction.
•“DATE/TIME is set to OFF in the
Menu Screen.
•“TIME CODE is set to OFF in the
Menu Screen.
In places subject to low tempera-
ture, images become dark due to
the characteristics of the LCD
monitor. When this happens, the
displayed colours differ from those
that are actually recorded. This is
not a defect of the camcorder.
When the LCD monitor's fluores-
cent light reaches the end of its
service life, images on the LCD
monitor become dark. Consult your
nearest JVC dealer.
Press the BACKLIGHT Button
( pg. 30).
Set PROGRAM AE to
SPOTLIGHT in the Menu Screen
( pg. 24).
Set ZOOM to 40X or 500X in
the Menu Screen ( pg. 33).
Turn off Sepia and Monotone
( pg. 24, 26).
If you want the lighting to look
more natural, set GAIN UP to
AGC or OFF in the Menu
Screen ( pg. 33).
Turn off Sepia or Monotone before
setting White Balance ( pg. 25,
31).
————
————
Set DATE/TIME to ON in the
Menu Screen ( pg. 35).
Set TIME CODE to ON in the
Menu Screen ( pg. 35, 36).
Adjust the brightness and angle of
the LCD monitor ( pg. 15, 16).
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION
9The image taken using
Snapshot is too dark.
0The image taken using
Snapshot is too bright.
!Digital Zoom does not work.
@The Black & White Fader
does not work.
#Even when Slow Shutter is
not selected, the image
looks like it is activated.
$White Balance cannot be
activated.
%When shooting a subject
illuminated by bright light,
vertical lines appear.
^When the screen is under
direct sunlight during
shooting, the screen
becomes red or black for an
instant.
&During recording, the date/
time does not appear.
*Time code does not appear.
(Images on the LCD monitor
appear dark or whitish.
TROUBLESHOOTING
(cont.)
EN
55
CONTINUED ON NEXT PAGE
The light used to illuminate the LCD
monitor causes it to become hot.
This may occur when the surface or
the edge of the LCD monitor is
pressed.
Certain Fade/Wipe effects, certain
modes of Programme AE with
special effects, DIS and other
functions that cannot be used
together are selected at the same
time.
The LCD monitor and the view-
finder are made with high-precision
technology. However, black spots
or bright spots of light (red, green
or blue) may appear constantly on
the LCD monitor or the viewfinder.
These spots are not recorded on
the tape. This is not due to any
defect of the unit. (Effective dots:
more than 99.99 %)
This is normal.
The Power Switch is set to
AUTO
or
MANUAL
.
During playback of the unrecorded
portion, High-speed Search and still
playback, LCD monitor indications
appear distorted. This is not a
defect.
The speaker volume is too great.
————
Close the LCD monitor to turn it off
or set the Power Switch to OFF,
and let the unit cool down.
————
Re-read the sections covering
Fade/Wipe effects, Programme AE
with special effects and DIS
( pg. 24 27, 33).
————
————
Set the Power Switch to PLAY
( pg. 19).
————
Turn the speaker volume down
( pg. 19).
Clean the video heads with an
optional cleaning cassette
( pg. 59).
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION
)The rear of the LCD monitor
is hot.
qThe indicators and the
image colour on the LCD
monitor are not clear.
wThe LCD monitor or
viewfinder indications blink.
eColoured bright spots
appear all over the LCD
monitor or the viewfinder.
rDuring recording, sound
cannot be heard.
tPlay, Rewind and Fast-
Forward functions do not
work.
yThe LCD monitor image is
distorted.
uImages on the LCD monitor
are jittery.
iBlocks of noise appear
during playback, or there is
no playback picture and the
screen becomes blue.
56
EN
TROUBLESHOOTING
(cont.)
————
————
A malfunction of some kind has
occurred. In this case the
camcorders functions become
unusable.
A malfunction of some kind has
occurred. In this case the
camcorders functions become
unusable.
The temperature of the battery is
extremely high/low.
Charging is difficult in places
subject to extremely high/low
temperatures.
This is not a malfunction.
The DV cable was plugged/
unplugged with power turned on.
Wipe them gently with soft cloth.
Wiping strongly can cause damage
( pg. 57).
Check the section of the manual
that explains LCD monitor/
viewfinder indications
( pg. 64 66).
Remove the power supply (battery
pack, etc.) and wait a few minutes
for the indication to clear. When it
does, you can resume using the
camcorder. If the indication
remains even though you repeat
the above two or three times,
please consult your nearest JVC
dealer. Do not eject the cassette.
This will cause damage to the tape.
Eject the cassette once and re-
insert it, then check if the indication
clears. When it does, you can
resume using the camcorder. If the
indication remains even though
you repeat the above two or three
times, please consult your nearest
JVC dealer.
To protect the battery, it is
recommended to charge it in
places with a temperature of 10°C
to 35°C ( pg. 58).
By recording with DIS activated
( pg. 33) this can be avoided.
Turn the camcorders power off
and on again, then operate it.
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION
oThe LCD monitor, the
viewfinder and the lens
have become dirty (ex.
fingerprints).
pAn unusual mark appears.
QAn error indication
(E01, E02 or E06) appears.
WAn error indication
(E03 or E04) appears.
EThe charger indicator on
the camcorder does not
light.
RWhen the image is printed
from the printer, a black bar
appears at the bottom of
the screen.
TWhen the camcorder is
connected via the DV
connector, the camcorder
does not operate.
EN
57
Cleaning The Camcorder
1To clean the exterior, wipe gently with a soft cloth.
Put the cloth in diluted mild soap and wring it well to
wipe off heavy dirt. Then wipe again with a dry cloth.
2Press PUSH OPEN and open the LCD monitor.
Wipe gently with a soft cloth. Be careful not to
damage the monitor. Close the LCD monitor.
3To clean the lens, blow it with a blower brush,
then wipe gently with lens cleaning paper.
4To clean the viewfinder, raise it to the vertical
position. Open the viewfinder cleaning hatch in the
direction of the arrow 1.
5Insert a lens blower or soft cloth into the gap at
the bottom of the viewfinder and clean the interior of
the viewfinder with it 2.
6Close the hatch. Tilt the viewfinder back to the
horizontal position.
NOTES:
Avoid using strong cleaning agents such as benzine or
alcohol.
Cleaning should be done only after the battery pack
has been removed or other power units have been
disconnected.
Mould may form if the lens is left dirty.
When using a cleaner or chemically treated cloth refer
to the cautions of each product.
After Use
1Turn off the camcorder.
2Slide and hold OPEN/EJECT in the direction of
the arrow, then pull the cassette holder cover open
until it locks. The cassette holder opens automatically.
Remove the cassette.
3Press PUSH HERE to close the cassette holder.
Once the cassette holder is closed, it recedes
automatically. Wait until it recedes completely before
closing the cassette holder cover.
4Tilt the viewfinder upward 1. Press BATT.
RELEASE 2 and remove the battery pack 3 .
USER MAINTENANCE
21
3
2
1
Cassette holder cover
OPEN/EJECT
Switch
PUSH HERE
Hatch
BATT. RELEASE Button
Remove.
Lens blower
Cassette holder
58
EN
CAUTIONS
Video Light
DANGER
The video light can become
extremely hot. Do not touch it either
while in operation or soon after
turning it off, otherwise serious injury
may result.
Do not place the camcorder into the carrying case
immediately after using the video light, since it
remains extremely hot for some time.
When operating, keep a distance of about 30 cm
between the video light and people or objects.
Do not use near flammable or explosive materials.
Do not place the camcorder in a cabinet or box
while the video light is in operation.
When using the video light, if you wish to install the
camcorder in a fixed position, attach it to a tripod,
etc. Do not affix it directly to a surface such as a
table top.
It is recommended that you consult your nearest
JVC dealer for replacing the video light.
Battery Packs
The supplied battery pack is a
lithium-ion battery. Before using
the supplied battery pack or an
optional battery pack, be sure to
read the following cautions:
1. To avoid hazards . . .
... do not burn.
... do not short-circuit the terminals. When
transporting, make sure the provided battery cap
is attached to the battery. If the battery cap is
misplaced, carry the battery in a plastic bag.
... do not modify or disassemble.
... do not expose the battery to temperatures
exceeding 60°C, as this may cause the battery
to overheat, explode or catch fire.
... use only specified chargers.
2. To prevent damage and prolong service life . . .
... do not subject to unnecessary shock.
... charge in an environment where temperatures
are within the tolerances shown in the chart
below. This is a chemical reaction type battery
cooler temperatures impede chemical reaction,
while warmer temperatures can prevent
complete charging.
... store in a cool, dry place. Extended exposure to
high temperatures will increase natural
discharge and shorten service life.
... fully charge and then fully discharge the battery
every 6 months when storing the battery pack
over a long period time.
... remove from charger or powered unit when not
in use, as some machines use current even
when switched off.
NOTES:
It is normal for the battery pack to be warm after
charging, or after use.
Temperature Range Specifications
Charging ................ 10°C to 35°C
Operation ............... 0°C to 40°C
Storage .................. 10°C to 30°C
Recharging time is based on room temperature of
20°C.
The lower the temperature, the longer recharging takes.
Cassettes
To properly use and store your cassettes, be sure to
read the following cautions:
1. During use . . .
... make sure the cassette bears the Mini DV mark.
... be aware that recording onto prerecorded tapes
automatically erases the previously recorded
video and audio signals.
... make sure the cassette is positioned properly
when inserting.
... do not load and unload the cassette repeatedly
without allowing the tape to run at all. This
slackens the tape and can result in damage.
... do not open the front tape cover. This exposes
the tape to fingerprints and dust.
2. Store cassettes . . .
... away from heaters or other heat sources.
... out of direct sunlight.
... where they wont be subject to unnecessary
shock or vibration.
... where they wont be exposed to strong magnetic
fields (such as those generated by motors,
transformers or magnets).
... vertically, in their original cases.
LCD Monitor
1. To prevent damage to the LCD monitor,
DO NOT . . .
... push it strongly or apply any shocks.
... place the camcorder with the LCD monitor on
the bottom.
2. To prolong service life . . .
... avoid rubbing it with coarse cloth.
3. Be aware of the following phenomena for LCD
monitor use.
These are not malfunctions:
While using the camcorder, the surface around
the LCD monitor and/or the back of the LCD
monitor may heat up.
If you leave power on for a long time, the surface
around the LCD monitor becomes hot.
Terminals
EN
59
Main Unit
1. For safety, DO NOT . . .
... open the camcorders chassis.
... disassemble or modify the unit.
... short-circuit the terminals of the battery pack.
Keep it away from metallic objects when not in
use.
... allow inflammables, water or metallic objects to
enter the unit.
... remove the battery pack or disconnect the
power supply while the power is on.
... leave the battery pack attached when the
camcorder is not in use.
2. Avoid using the unit . . .
... in places subject to excessive humidity or dust.
... in places subject to soot or steam such as near
a cooking stove.
... in places subject to excessive shock or
vibration.
... near a television set.
... near appliances generating strong magnetic or
electric fields (speakers, broadcasting antennas,
etc.).
... in places subject to extremely high (over 40°C)
extremely low (under 0°C) temperatures.
3. DO NOT leave the unit . . .
... in places of over 50°C.
... in places where humidity is extremely low
(below 35%) or extremely high (above 80%).
... in direct sunlight.
... in a closed car in summer.
... near a heater.
4. To protect the unit, DO NOT . . .
... allow it to become wet.
... drop the unit or strike it against hard objects.
... subject it to shock or excessive vibration during
transportation.
... keep the lens directed at extremely bright
objects for long periods.
... expose the lens to direct sunlight.
... carry it by holding the LCD monitor or the
viewfinder.
... swing it excessively when using the shoulder
strap or the grip.
5. Dirty heads can cause the following problems:
No picture during playback.
Blocks of noise appear during playback.
During recording or playback, the Head Clog
Warning indicator “ ” appears.
Recording cannot be performed properly.
In such cases, use an optional cleaning cassette.
Insert it and play back. If the cassette is used more
than once consecutively, damage to the video
heads may result. After the camcorder plays back
for about 20 seconds, it stops automatically. Also
refer to the cleaning cassettes instructions.
If, after using the cleaning cassette, the problems
still exist, consult your nearest JVC dealer.
Mechanical moving parts used to move the video
heads and video tape tend to become dirty and
worn out over time. In order to maintain a clear
picture at all times, periodic check-ups are
recommended after using the unit for about 1,000
hours. For periodic check-ups please consult your
nearest JVC dealer.
Serious malfunctioning
If malfunctioning occurs, stop using the unit
immediately and consult your local JVC dealer.
The camcorder is a microcomputer-controlled
device. External noise and interference (from a
TV, a radio, etc.) might prevent it from functioning
properly. In such cases, first disconnect its power
supply unit (battery pack, AC Adapter, etc.) and
wait a few minutes and then re-connect it and
proceed as usual from the beginning.
About moisture condensation . . .
You have observed that pouring a cold liquid
into a glass will cause drops of water to form
on the glass outer surface. This same
phenomenon occurs on the head drum of a
camcorder when it is moved from a cool place
to a warm place, after heating a cold room,
under extremely humid conditions or in a place
directly subjected to the cool air from an air
conditioner.
Moisture on the head drum can cause severe
damage to the video tape, and can lead to
internal damage to the camcorder itself.
60
EN
SPECIFICATIONS
Camcorder
General
Power supply : DC 11.0 V (Using AC Adapter)
DC 7.2 V (Using battery pack)
Power consumption
LCD monitor off, viewfinder on : Approx. 4.3 W
LCD monitor on, viewfinder off : Approx. 5.3 W
Video light : Approx. 3.5 W
Dimensions (W x H x D) : 79 mm x 89 mm x 167 mm
(with the LCD monitor closed and the viewfinder pushed down)
Weight : Approx. 550 g
Operating temperature : 0°C to 40°C
Operating humidity : 35% to 80%
Storage temperature : –20°C to 50°C
Pickup : 1/4" CCD
Lens : F 1.8, f = 3.6 mm to 36 mm, 10:1 power zoom lens
Filter diameter : ø37 mm
LCD monitor : 2.5" diagonally measured, LCD panel/TFT active matrix system
Viewfinder : Electronic viewfinder with 0.24" black/white LCD
Speaker : Monaural
Digital Video Camera
Format : DV format (SD mode)
Signal format : PAL standard
Recording/Playback format : Video: Digital component recording
: Audio: PCM digital recording, 32 kHz 4-channel (12-bit),
48 kHz 2-channel (16-bit)
Cassette : Mini DV cassette
Tape speed : SP : 18.8 mm/s
LP : 12.5 mm/s
Maximum recording time : SP : 80 min.
(using 80 min. cassette) LP : 120 min.
EN
61
Connectors
S-Video
Output : Y:1 V (p-p), 75 , analogue
C:0.29 V (p-p), 75 , analogue
AV
Video output : 1 V (p-p), 75 , analogue
Audio output : 300 mV (rms), 1 k, analogue, stereo
DV
Output : 4-pin, IEEE 1394 compliant
PC :ø2.5 mm, 3-pole
JLIP :ø3.5 mm, 4-pole
AC Adapter
Power requirement : AC 110 V to 240 V`, 50 Hz/60 Hz
Output : DC 11 V , 1 A
Specifications shown are for SP mode unless otherwise indicated. E & O.E. Design and specifications
subject to change without notice.
62
EN
INDEX
Controls, Connectors And Indicators
MANUAL
AUTO
PLAY
OFF
6
i
E
o
e
7
8
9
Q
p
u
T
32 4 5
@ #0 !
t
%
UY
y
R
W
$
^
)
wq
*&
1r
(
EN
63
Controls
1OPEN/EJECT Switch ............................ pg. 12
2Stop Button [5] .................................... pg. 19
BACKLIGHT Button ............................. pg. 30
3Rewind Button [
2
] ............................. pg. 19
NIGHT Button ...................................... pg. 24
4Play/Pause Button [
4
/6] ....................... pg. 19
5Fast-Forward Button [
3
] ..................... pg. 19
6Monitor Open Button [PUSH OPEN] ..... pg. 15
7Dioptre Adjustment Control .................... pg. 10
8Battery Release Button
[BATT. RELEASE] ................................... pg. 8
9Recording Start/Stop Button .................. pg. 15
0MENU Wheel [+, , PUSH] .................. pg. 32
LCD Monitor BRIGHT (Brightness)
Control [+, ] ........................................ pg. 15
!Snapshot Button
[SNAPSHOT] ......................................... pg. 28
@Power Zoom Lever [T/W]..................... pg. 17
Speaker Volume Control [VOL.] .......... pg. 19
#FOCUS Button..................................... pg. 29
BLANK Button ..................................... pg. 22
$Lock Button............................................ pg. 16
%Power Switch
[
AUTO
,
MANUAL
, PLAY, OFF] ................. pg. 16
^Video Light Switch
[LIGHT OFF/AUTO/ON] ......................... pg. 17
Connectors
The connectors & to ( are located beneath a cover.
&Audio/Video Output Connector
[AV] ............................................ pg. 20, 38, 44
*J Terminal [JLIP (Joint Level Interface
Protocol)] ............................................... pg. 44
You can also connect to a JLIP-compatible
camcorder or VCR to control it from the computer
using the optional software
HS-V16KITE.
(DC Input Connector ............................. pg. 8, 9
)Digital Video Connector
[DV OUT] (i.Link*) ............................ pg. 39, 50
* i.Link refers to the IEEE1394-1995 industry
specification and extensions thereof. The logo
is used for products compliant with the i.Link
standard.
qS-Video Output Connector
[S-VIDEO] .................................. pg. 20, 38, 44
wPC Connector ........................................ pg. 50
Indicators
eTally Lamp ....................................... pg. 15, 34
rCHARGE Lamp ....................................... pg. 8
tPower Lamp .................................... pg. 15, 16
Other Parts
yRemote Sensor.................................... pg. 40
Camera Sensor
Be careful not to cover this area, a sensor
necessary for shooting is built-in here.
uViewfinder .............................................. pg. 10
iVideo Light............................................. pg. 17
oStereo Microphone ................................ pg. 48
pViewfinder Cleaning Hatch .................... pg. 57
QShoulder Strap Eyelets .......................... pg. 10
WGrip Strap .............................................. pg. 10
ELCD Monitor .................................... pg. 15, 16
RSpeaker ................................................. pg. 19
TBattery Pack Mount ................................. pg. 8
YStud Hole ............................................... pg. 10
UTripod Mounting Socket ......................... pg. 10
64
EN
INDEX
Indications
LCD Monitor/Viewfinder Indications During Recording
4
3
20.1 00:01
0.01
0
xW T
BR I GHT
PL
CER
5
15:55
0
min
6
w
1
2
4
7
6
3
5
)
8 0 ! @ # $9
%
^
&
*
(q
1Appears when the Power Switch is set to
AUTO
.
( pg. 16)
2 : Appears when Night-Scope is engaged.
( pg. 24)
: Appears when GAIN UP is set to
AUTO and the shutter speed is being
automatically adjusted. ( pg. 33)
3Appears when the white balance is adjusted.
( pg. 31)
4•“:Appears when the exposure is adjusted.
( pg. 30)
: Appears when backlight compensation is
used. ( pg. 30)
5Displays the selected Programme AE with special
effects. ( pg. 24)
6Appears when the iris is locked. ( pg. 30)
7Appears when Digital Image Stabiliser (DIS) is
engaged. ( pg. 33)
8Approximate zoom ratio: Appears during
zooming. ( pg. 17)
9Appears during zooming.
Zoom level indicator ( pg. 17)
0Displays the selected Fade/Wipe effect.
( pg. 26, 27)
!Appears when in the Squeeze or Cinema mode.
( pg. 34)
@Rotates while the tape is running. ( pg. 15)
#Displays the recording mode (SP or LP).
( pg. 13)
$Displays the tape remaining time. ( pg. 15)
%•“REC appears during recording.
•“PAUSE appears during Record-Standby
mode. ( pg. 15)
•“PHOTO appears when taking a Snapshot.
( pg. 28)
^Appears when the Insert Editing (w) or Insert
Editing Pause (6w) mode is engaged.( pg. 49)
&Appears when the wind cut mode is engaged to
cut down on noise created by wind. ( pg. 34)
*BRIGHT : Displays the brightness of the LCD
monitor. ( pg. 15)
SOUND : Displays the sound mode for approx.
5 seconds after turning on the
camcorder. ( pg. 33)
(Displays the date/time. ( pg. 11)
)Appears when the focus is adjusted manually.
( pg. 29)
qDisplays the Time Code. ( pg. 18, 35)
EN
65
LCD Monitor/Viewfinder Indications During Playback
1Displays the sound mode. ( pg. 36, 37)
2Displays the Blank Search mode. ( pg. 22)
3Displays the tape speed. ( pg. 13)
4Appears while a tape is running.
4
: Playback
3
: Fast-Forward/Shuttle search
2
: Rewind/Shuttle search
6: Pause
6
4
: Forward slow-motion
1
6: Reverse slow-motion
e: Audio Dubbing
6e : Audio Dubbing Pause
5Displays the date/time. ( pg. 36, 37)
6BRIGHT : Displays the brightness of the LCD
monitor. ( pg. 15)
VOLUME : Displays the speaker volume.
( pg. 19)
The level indicator moves.
7Displays the time code. ( pg. 36, 37)
6
w
12 / 1
BI SOUND
BLANK SEARCH
VOLUME
T
116:21:25
PS
6
4
L
2
0
.2
01:
1
25. 00
5
1 32 4
7 6
66
EN
Indications Function
Displays the battery remaining power.
Remaining power level: high
Remaining power level: exhausted
As the battery power comes close to nil, the battery indicator blinks.
When the battery power is exhausted, power turns off automatically.
Appears when no tape is loaded. ( pg. 12)
Appears when the erase protection tab is set to “SAVE” while the Power Switch is set to
AUTO
or
MANUAL
.(
pg. 12)
Appears if dirt is detected on the heads during recording or playback.
Use an optional cleaning cassette. ( pg. 59)
Appears if condensation occurs. When this indication is displayed, wait more than
1 hour until condensation disappears.
Appears if a tape is not loaded when the Recording Start/Stop Button or SNAP-
SHOT Button is pressed while the Power Switch is set to
AUTO
or
MANUAL
.
Appears when the tape ends during recording or playback. ( pg. 52)
Appears if a tape in another format is loaded.
Appears when the date/time is not set. ( pg. 11)
Appears when the built-in clock battery runs out and the previously set
date/time is erased. Consult your nearest JVC dealer for replacement.
Appears for 5 seconds after power is turned on if the lens cap is attached.
Appears if Audio Dubbing is attempted on a blank portion of a tape. ( pg. 48)
Appears if Audio Dubbing is attempted on a tape recorded in the LP mode.
( pg. 48)
Appears if Audio Dubbing is attempted on a tape recorded in 16-bit audio.
( pg. 48)
Appears if A. DUB (e) on the remote control is pressed when the erase protection
tab is set to SAVE.(
pg. 48)
Appears if Insert Editing is attempted on a blank portion of a tape. ( pg. 49)
Appears if Insert Editing is attempted on a tape recorded in the LP mode.
( pg. 49)
Appears if INSERT (w) on the remote control is pressed when the erase
protection tab is set to SAVE.( pg. 49)
The error indications (E01, E02 or E06) show what type of malfunction has occured.
When an error indication appears, the camcorder turns off automatically. Remove
the power supply (battery, etc.) and wait a few minutes for the indication to clear.
When it does, you can resume using the camcorder. If the indication remains,
consult your nearest JVC dealer.
The error indications (E03 or E04) show what type of malfunction has occured. When
an error indication appears, the camcorder turns off automatically. Eject the cassette
once and re-insert it, then check if the indication clears. When it does, you can resume
using the camcorder. If the indication remains, consult your nearest JVC dealer.
Warning Indications
TAPE!
TAPE END
SET DATE/TIME!
CHECK TAPES ERASE
PROTECTION TAB
HEAD CLEANING
REQUIRED USE
CLEANING CASSETTE
CONDENSATION
OPERATION PAUSED
PLEASE WAIT
DIFFERENT
FORMATTED TAPE
A. DUB ERROR!
<CANNOT DUB
ON A LP RECORDED TAPE>
<CANNOT DUB
ON A 16BIT
RECORDING>
<CHECK TAPES ERASE
PROTECTION TAB>
A. DUB ERROR!
LENS COVER
INDEX
Indications (cont.)
INSERT ERROR!
<CANNOT EDIT
ON A LP RECORDED TAPE>
<CHECK TAPES ERASE
PROTECTION TAB>
INSERT ERROR!
E01, E02 or E06
UNIT IN SAFEGUARD
MODE REMOVE AND
REATTACH BATTERY
E03 or E04
UNIT IN SAFEGUARD
MODE EJECT AND
REINSERT TAPE
EN
67
Terms
I
Icons ................................................... pg. 33 35
Insert Editing ............................................... pg. 49
Iris ............................................................... pg. 30
Iris Lock ....................................................... pg. 30
J
Journalistic Shooting ................................... pg. 16
L
LCD monitor/Viewfinder Indications .... pg. 64 66
Load A Tape ................................................ pg. 12
M
Manual Focus ............................................. pg. 29
Menu Screen, CAMERA ............................. pg. 33
Menu Screen, DISPLAY ........................ pg. 35, 36
Menu Screen, MANUAL ........................ pg. 33, 34
Menu Screen, SYSTEM ...................... pg. 34 36
Menu Screen, VIDEO ................................. pg. 36
Monotone .................................................... pg. 25
Motor Drive Mode ....................................... pg. 28
N
Night-Scope ................................................ pg. 24
P
Playback Zoom ........................................... pg. 42
Power Switch Position ................................ pg. 16
Programme AE With Special Effects ..... pg. 24, 25
Provided Accessories .................................... pg. 5
R
Random Assemble Editing .................. pg. 43 47
Record-Standby .......................................... pg. 15
Recording Mode.......................................... pg. 13
Remote Control ........................................... pg. 40
Reset........................................................... pg. 35
Rewind The Tape ........................................ pg. 19
CONTINUED ON NEXT PAGE
A
AC Adapter ................................................ pg. 8, 9
Audio Dubbing ............................................ pg. 48
Auto Date .................................................... pg. 35
Auto Focus .................................................. pg. 29
Auto Shut off ......................................... pg. 15, 19
B
Backlight Compensation ............................. pg. 30
Battery Low ................................................. pg. 66
Battery Pack ........................................ pg. 8, 9, 58
Beep ............................................................ pg. 34
Blank Search ............................................... pg. 22
Brighten The LCD Monitor .......................... pg. 15
C
Channels (Left/Right) .................................. pg. 37
Charge The Battery Pack .............................. pg. 8
Cinema ........................................................ pg. 34
Classic Film ................................................. pg. 25
Clean The Camcorder ................................. pg. 57
Connections ................ pg. 8, 9, 20, 21, 38, 44, 50
D
Darken The LCD Monitor ............................ pg. 15
Date/Time Display ............................... pg. 35 37
Date/Time Settings...................................... pg. 11
Demonstration Mode ............................... pg. 6, 35
Digital Zoom .......................................... pg. 17, 33
DIS (Digital Image Stabiliser) ...................... pg. 33
Dioptre Adjustment...................................... pg. 10
Dubbing ................................................. pg. 38, 39
E
Erase Protection ......................................... pg. 12
Exposure Control ........................................ pg. 30
F
Fade-In/Out ........................................... pg. 26, 27
Fast-Forward The Tape ............................... pg. 19
Frame-By-Frame Playback ......................... pg. 19
G
Gain Up ....................................................... pg. 33
Grip Adjustment .......................................... pg. 10
COPYRIGHT© 2002 VICTOR COMPANY OF JAPAN, LTD.
VICTOR COMPANY OF JAPAN, LIMITED
EK Printed in Japan
0202HOV*UN*VP
S
Self-Recording ............................................ pg. 16
Sepia ........................................................... pg. 25
Set Remote Control/VCR Code .................. pg. 43
Shuttle Search ............................................ pg. 19
Shutter Speed ............................................. pg. 25
Slow Shutter ................................................ pg. 25
Snapshot ..................................................... pg. 28
Snapshot Mode ........................................... pg. 28
Snow ........................................................... pg. 25
Sound Mode .................................... pg. 33, 36, 37
Speaker Volume .......................................... pg. 19
Specifications ........................................ pg. 60, 61
Sports .......................................................... pg. 25
Spotlight ...................................................... pg. 25
Squeeze ...................................................... pg. 34
Still Playback ............................................... pg. 19
Strobe ......................................................... pg. 25
T
Tally ............................................................. pg. 34
Tele Macro .................................................. pg. 34
Time Code ..................................... pg. 18, 35 – 37
Tripod Mounting .......................................... pg. 10
Twilight ........................................................ pg. 25
U
Unload A Tape ............................................. pg. 12
V
Video Light .................................................. pg. 17
WW
White Balance ............................................. pg. 31
Wide Mode .................................................. pg. 34
Wind Cut ..................................................... pg. 34
Wipe In/Out ........................................... pg. 26, 27
Z
Zooming ...................................................... pg. 17
See previous page as well.

Navigation menu
