Verifying the Accessories
If any of the items are missing or defective, consult your JVC dealer or the nearest JVC service center.
Illustration Description
.
AC Adapter
AC-V11U
0Charges this unit. Attach the charging adapter cable to the tip of the cord.
It can also be used when recording or playing back videos indoors.
.
Charging Adapter Cable
QAM1580-001
0Attach to the tip of the cord of the AC adapter and connect to the USB connector of this unit to charge.
.
USB Cable
(Type A - Micro Type B)
0Connects this unit to a computer.
.
AV Cable
E3A-0085-00
0Connects this unit to a TV to play back recorded images on the TV.
0Please consult your JVC dealer or the nearest JVC service center when purchasing a new AV cable.
.
Lens Cap
0Attach the lens cap when this unit is not used or during transportation.
.
Large Core Filter (AV Cable)
Small Core Filter (for AC Adapter)
.
Basic User Guide
0Read well and keep in a safe place where it can be accessed easily when necessary.
Memo :
0The provided software (application software) is built into this unit.
“Verifying System Requirements (Guideline)” (A p. 73)
0The large core filter is for use with an AV cable. Do not use it with any cable other than the AV cable.
The small core filter is for use with the AC adapter. Do not use it with anything other than the AC adapter.
“Attaching the Core Filter” (A p. 8)
0SD cards are sold separately.
“Types of Usable SD Card” (A p. 9)
0When using the AC adapter overseas, please prepare a commercially available converter plug for the country or region of visit.
“Charging the Battery Pack Overseas” (A p. 18)
Getting Started
3
Turning on this Unit
Open the LCD monitor to turn on this unit.
To turn off the power, close the LCD monitor.
oTo turn on the power
Open the LCD monitor.
.
oTo turn off the power
Close the LCD monitor.
.
The POWER/ACCESS lamp goes off and the power is turned off.
“POWER/ACCESS (Power/Access) Lamp” (A p. 105)
Memo :
0When “AUTO POWER OFF” is set to “ON”, this unit turns itself off
automatically to conserve power when it is not operated for 5 minutes.
(When using the AC adapter, this unit goes into standby mode.)
“ AUTO POWER OFF ” (A p. 100)
0If “LCD CLOSED RECORDING” is activated, this unit does not turn off
even when the LCD monitor is closed during recording.
“LCD CLOSED RECORDING” (A p. 92)
Opening the Terminal Cover (SD Card Cover)
oTo open
.
(Rear)
AOpen the LCD monitor.
BSlide down the cover lock and slide the cover aside.
CLift the cover slowly.
oTo close
.
The cover is not properly closed if the red mark
at the terminal cover lock is visible.
Leave the LCD monitor open first.
AFlip down the cover slowly while making sure the gray waterproof seal
fits into the opening at the terminals.
BPress the entire cover against the camcorder with equal force and firmly
attach the cover completely.
CSlide the cover until it clicks into place.
The cover is not properly closed if the red mark on the cover lock is visible.
Caution :
0Ensure that the terminal cover and the gray waterproof seal are not
damaged and that there are no foreign materials (such as hair, lint, sand
or dust) adhered on the cover.
0Stop using the unit underwater if there are damages to the cover, etc. and
consult your JVC dealer or the nearest JVC service center.
0Do not apply excessive force when opening/closing the terminal cover.
0Read the “Cautions on Using Underwater” (A p. 6) before using the
camera underwater or in places exposed to water droplets.
Getting Started
4
Charging
This unit is equipped with a built-in battery.
Open the connector cover, and connect the AC adapter for charging as
shown in the figure.
.
T
W
VOL.
＋
CHARGE POWER/ACCESS
To USB Connector
CHARGE Lamp
Charging in progress: Lights
upCharging finished: Goes out
AC Adapter
(Provided)
AC Adapter To
AC Outlet(AC 100
V to 240 V)
Charging Adapter Cable
(Provided)
Caution :
0The built-in battery is not charged at the time of purchase.
0At the time of purchase or in case of the battery is not used for a long period
of time, the charging time will be longer than usual. The camera does not
turn on if the remaining battery power is low. In this case, charge the battery
for more than 40 minutes before turning on the power.
0Charging time: Approx. 6 h 10 m (when charging at 25°C (77°F))
0The battery cannot be charged outside the room temperature range of
10°C to 35°C (50°F to 95°F). The CHARGE lamp does not light up when
the battery is not being charged. If the temperature increases or decreases
during charging, the CHARGE lamp will blink slowly and charging will stop.
In this case, remove the AC adapter, press the Reset button and wait until
the room temperature is within the above stated range before charging
again.
0You can record or play back videos during charging. (However, the
charging time will be longer than usual. In addition, the remaining battery
power may decrease according to conditions.) If the internal temperature
rises when using the unit, stop the charging temporarily. (The CHARGE
lamp goes off.)
0If malfunctions (such as overvoltage) occur, charging will stop. In these
cases, CHARGE lamp blinks quickly as a notification.
0During charging, the P icon on the screen changes to O to indicate that
charging is in progress. (when the provided AC adapter is used)
0When the recording time becomes extremely short even when the battery
is fully charged, the battery needs to be replaced. For details on replacing
the built-in battery (subject to a fee), consult the nearest JVC service
center.
Caution :
0There are certain specifications for a USB rechargeable device. To
charge, use a device with the output voltage of 5 V/1 A or more.
0Depending on the specification of your charging device and the thickness
and length of an USB cable used to connect to this unit, the charging time
may be longer than usual, or it may not even start.
0We shall not be held liable for malfunctions that are due to using non-
standard device or a device with poor quality.
Resetting this Unit
When a malfunction occurs on this unit, reset the unit in the following way.
(Resetting the unit does not erase the recorded data.)
1Open the terminal cover.
0Remove the power cord and all connecting cables.
2Close the LCD monitor to turn off this unit.
3Press the Reset button gently using an object with pointed tip.
Caution :
0Press the Reset button just once gently.
0Do not use sharp pointed objects. It may damage the unit or cause electric
shock.
Memo :
0If malfunction persists even after pressing the Reset button, consult the
nearest JVC service center.
Getting Started
5
Quad Proof
This unit is equipped with Waterproof, Dust-proof, Drop-proof and Freeze-
proof features.
.
Waterproof:
Equivalent to IEC
Standard publication
529 IPX8 and IPX6 (30
minutes at depths up
to 5 m (16.4 ft))
.
Dust-proof: Equivalent
to IEC Standard
publication 529 IP5X
.
Drop-proof: This
camera clears
company testing
compliant with MIL-
STD-810F Method;
516.5
Shock: Dropping onto
plywood 3 cm
(1-3/16") thick from a
height of 1.5 m (4.9 ft)
.
Freeze-proof:
Allowable operating
temperatures: −10°C
to +40°C (14°F to
104°F)
Note: Temperatures
between −10°C and
0°C (14°F and 32°F)
temporarily lower
battery performance,
reducing the time
available for recording.
Caution :
0There is no guarantee that there will be no damages when the unit is used
within the above-mentioned limits.
Scratches and dent caused by the impact if the unit is dropped, or other
changes in appearance are not included in the warranty.
0Malfunction due to mishandling will void the warranty.
0Before use in water, be sure to read and understand the “Before Using
Underwater or under Low Temperature” (A p. 6) .
0Close the terminal cover firmly until it clicks and confirm that the red sign
completely goes off.
0Make sure that there is no damage to and no foreign material adhered to
the packing inside the cover.
0Use within a water depth of 5 m (16.4 ft) and a duration of 30 minutes.
0The waterproof performance cannot be guaranteed if the camcorder is
subject to impact such as dropping.
0Do not jump or dive into water holding the camcorder.
0Do not use the camcorder in strong water flows such as in rapids or under
waterfalls. The strong water pressure may impair the waterproof
performance.
0Do not immerse into hot spring, or hot water above 40°C (104°F).
Before Using Underwater or under Low Temperature
“Cautions on Using Underwater” (A p. 6)
“Maintenance after Use” (A p. 7)
“Cautions on Using under Low Temperature” (A p. 7)
Cautions on Using Underwater
Please take note of the followings when using this unit near water or
underwater.
0Ensure that the cover is closed tightly.
“Opening the Terminal Cover (SD Card Cover)” (A p. 4)
0Ensure that the terminal cover and the gray waterproof seal are not
damaged and that there are no foreign materials (such as hair, lint, sand
or dust) adhered on the cover.
0Stop using the unit underwater if there are damages to the cover, etc.
and consult your JVC dealer or the nearest service center.
0Use within a water depth of 5 m (16.4 ft) and a duration of 30 minutes.
.
Within Duration
of 30 Minutes
Within Water
Depth of 5 m
0Do not open/close the cover or insert/remove an SD card or any cables
while using underwater or on the beach, or if your hands contain water
droplets or sands. Doing so may cause water to enter into the camera or
malfunction.
0Do not subject the camera to high pressure or vibration resulted from swift
current, waterfall or diving into water.
0The waterproof performance is not guaranteed if the camera is dropped
or subjected to other impact shock. If the camera has been subjected to
impact shock, consult your nearest service center.
0While shooting underwater, noise generated inside of the camera
(zooming sounds, etc) may be picked up. This is not a malfunction.
0Do not immerse into hot spring, or hot water above 40°C (104°F). Doing
so deteriorates waterproof performance.
0Keep away from hands with sun oil or sun screen. Doing so may cause
discoloration or deterioration of material.
0The accessories are not waterproof.
0Do not use the lens filter or conversion lens underwater or at locations
where there is water.
Getting Started
6
Maintenance after Use
After using underwater or in dusty places, rinse the camera with water
immediately and dry it completely.
1Ensure that the terminal cover is closed.
2Rinse with clean water.
Soak the camera in a container filled with enough water to immerse the
camera completely, and rinse it gently.
.
0After using the camera under the sea or on the beach, immerse the
camera in fresh water for about 10 minutes to remove salt particles,
replace the water and rinse the camera.
0Open and close the LCD screen, and operate the buttons or zoom
operations to get rid of sands or dusts in the gap.
3Dry the camera.
Wipe the camera completely with a soft dry cloth and allow it to dry in a
well-ventilated and shady location.
0Place the camera with the lens facing downward while the LCD
monitor is closed, and leave it for approximately 10 minutes. (By doing
so, microphone and LDC part are dried out easily.) Place the camera
in a up right position on a dry cloth afterward Close the terminal cover
after the camera is dried out completely.
0Wipe off any foreign materials or water droplets inside the cover.
* If you leave the camera immersed in salt water or allow water droplets from
the salt water to remain on the camera, this may cause corrosion,
discoloration or deterioration of waterproof performance.
* If you wipe or dry the camera with sand particles adhered, this may cause
scratches on the camera.
* Do not wash with chemicals, soap, neutral detergents, or alcohol.
* Do not dry the camera with a hair dryer or other heat sources. This could
impair its waterproof performance.
Cautions on Using under Low Temperature
0The performance of the battery will drop temporarily when the temperature
is -10°C to 0°C (14°F to 32°F), this will cause the remaining recording time
to shorten.
0Charging cannot be performed when the surrounding temperature is
below 10°C (50°F).
0Turning on the camera while it is still cold will deteriorate the performance
of the LCD monitor. Problems such as the screen becoming dark
momentarily or residual image can occur.
0If snow or water droplets adhere to the camera under sub-zero
temperature environment, ice can formed between the gaps around the
buttons, speaker or microphone. This will cause difficulty in operating the
buttons as well as decrease in the volume level.
0Direct contact with exposed metal part under cold temperature can cause
the skin to stick on the metal part resulting in injuries such as frostbite. Do
not touch with bare hands.
Other Precautions
0Do not leave the camera under low temperature in cold climates or under
high temperature above 40 °C (such as under direct sunlight, inside a
vehicle in the hot sun, or near a heater). This will cause deterioration of
the waterproof performance.
0Malfunction due to mishandling will void the warranty.
0We are not responsible for any loss of data due to water entering into inside
of the camera. Please be forewarned.
0It is recommended to replace the waterproof packing once a year to
maintain the waterproof performance. Consult your nearest service
center. (Subject to a fee)
Getting Started
7
Grip Adjustment
.
AOpen the pad
BAdjust the position of the pad and the length of the belt
CClose the pad
Caution :
0Be sure to fasten the grip belt properly.
If the belt is loose, this unit may drop and result in injuries or damages.
Attaching the Core Filter
Attaching core filter to the cable of the AC adapter and the AV cable (on the
end connected to this unit) can reduce the interference generated when this
unit is connected to an external device.
0Use the small core filter with the power cable, and the large core filter with
the AV cable.
0Do not attach the core filter to the provided adapter cable.
.
Wind once (for AV Cable)
Wind twice (for AC Adapter cable)
To be connected to this unit
3 cm
Release the stopper
Getting Started
8
Inserting an SD Card
When a commercially available SD card is inserted, recordings can still be
made to the card without stopping when the remaining recording time on the
built-in memory runs out.
“ SEAMLESS RECORDING ” (A p. 90)
Depending on the setting of the recording media, recording can be made to
the SD card without using the built-in memory.
“Types of Usable SD Card” (A p. 9)
“Approximate Video Recording Time” (A p. 52)
1Open the terminal cover.
.
2Close the LCD monitor to turn off this unit.
3Insert an SD card.
.
Label
Warning
0Make sure not to insert the SD card in the wrong direction.
It may cause damage to the unit and SD card.
0Before inserting or removing the SD card, close the LCD monitor and
ensure that the POWER/ACCESS lamp goes off.
0Do not touch the metal contact area when inserting the SD card.
Memo :
0When “SEAMLESS RECORDING” is set to “ON”, recordings can still be
made to the SD card without stopping when the remaining recording time
on the built-in memory runs out.
“ SEAMLESS RECORDING ” (A p. 90)
0Both videos and still images can be recorded on one SD card. It is
recommended to confirm the video operation of the SD card before usage.
0To record to an SD card, it is necessary to set the recording media to “SD
CARD”.
“ REC MEDIA FOR VIDEO ” (A p. 100)
“ REC MEDIA FOR IMAGE ” (A p. 101)
0To use a new SD card, or SD card used on other devices, it is necessary
to format (initialize) the SD card using “FORMAT SD CARD” from the
“SETUP” menu.
“ FORMAT SD CARD ” (A p. 101)
Removing the Card
Push the SD card inward once, then pull it out straight.
.
Types of Usable SD Card
The following SD cards can be used on this unit.
Operations are confirmed on the SD cards from the following manufacturers.
0Panasonic
0TOSHIBA
0SanDisk
SD Card
.
0This unit supports 256 MB to 2 GB SD cards.
0Use a Class 4 or higher compatible SD card (2 GB) for video recording.
SDHC Card
.
0Use a Class 4 or higher compatible SDHC card (4 GB to 32 GB) for video
recording.
SDXC Card
.
0Use a Class 4 or higher compatible SDXC card (Max. 128 GB) for video
recording.
Getting Started
9
Memo :
0This unit is not guaranteed to operate with all SD cards.
0Do not use a miniSD card or microSD card (even if the card is inserted in
an adapter). It may cause malfunction.
0To record videos with “VIDEO QUALITY” set to “UXP”, use of a Class 6 or
higher compliant SDHC/SDXC card is recommended.
0To select “60p” in “SYSTEM SELECT”, use a Class 6 or higher compliant
SDHC/SDXC card.
0UHS-I SDHC/SDXC cards can be used in the same manner as standard
SDHC/SDXC cards.
UHS Speed Class is not supported.
0SD card used for recording and edited using this unit can only be played
back and edited on this unit.
When your computer cannot recognize the SDXC card
Confirm and update the OS of your computer.
Windows 7 Download and install the updating program (KB976422)
from the following URL.
32 bit version
http://www.microsoft.com/downloads/details.aspx?
displaylang=ja&FamilyID=3ee91fc2-a9bc-4ee1-
aca3-2a9aff5915ea
http://www.microsoft.com/downloads/en/details.aspx?
FamilyID=3ee91fc2-a9bc-4ee1-aca3-2a9aff5915ea
64 bit version
http://www.microsoft.com/downloads/details.aspx?
displaylang=ja&FamilyID=73f766dd-7127-4445-
b860-47084587155f
http://www.microsoft.com/downloads/en/details.aspx?
FamilyID=73f766dd-7127-4445-b860-47084587155f
Mac OS X
10.4 Tiger /
Mac OS X
10.5
Leopard
Not compatible.
Mac OS X
10.6 Snow
Leopard
Update the OS version to 10.6.5 or later.
Using the Touch Screen
The LCD monitor of this unit is a touch panel which enables operations by
touching the screen with your finger.
The operation buttons, thumbnails, and menu items are displayed on the
screen according to each mode (recording/playback/setting).
0There are two ways to operate the touch screen, namely “tap” and “drag”.
The following are some examples.
A Tap the button (icon) or thumbnail (file) on the screen to make a selection.
B Drag the thumbnails on the screen to search for the desired file.
.
0:01:23 0:12:34
Recording Screen Playback Screen
Index screen (thumbnail display)
4
0:01:23 0:12:34
Memo :
0The touch screen of this unit is pressure-sensitive. When the touch screen
does not respond smoothly, apply slightly more force to your fingertip.
0Do not press or rub with excessive force.
0Do not operate the touch screen using an object with a sharp tip.
0Perform “TOUCH SCREEN ADJUST” if the reactive area of the screen is
misaligned with the touched area.
“Adjusting the Touch Screen” (A p. 11)
0You cannot operate the touch screen under water. Lock the screen to
prevent operation errors.
“Shooting under Water” (A p. 33)
Locking the Screen (when Shooting Underwater)
Lock the screen before using this unit underwater to prevent operation errors
on the touch screen due to water pressure.
0Once the screen is locked, operations on the touch screen except L are
disabled.
0The START/STOP (recording) button and the zoom lever can be used
while the screen is locked.
0You can set for both video and still image modes.
0If “SCREEN LOCK” has been set, it will take a longer time for the unit to
power off after closing the LCD monitor.
oSetting the “SCREEN LOCK”
ACheck that the unit is in the recording mode.
BTap “MENU”.
CTap “RECORD SETTING”.
DTap “SCREEN LOCK”.
0The L button appears on the screen.
.
oTo cancel “SCREEN LOCK”
Tap the L button.
Memo :
0Once “SCREEN LOCK” is set, only the L button on the touch screen can
be operated.
0“SCREEN LOCK” cannot be set for the following cases:
- during recording
- when “TIME-LAPSE RECORDING” or “DATE/TIME RECORDING” has
been set
Getting Started
10
Adjusting the Touch Screen
Adjust the response position when the touch screen is touched.
1Tap “MENU”.
.
REC
≪PLAY
MENU
2Tap “SETUP”.
.
OFF
TOP MENU
SETUP
CONNECTION
SETTING
RECORD
SETTINGS
3Tap “TOUCH SCREEN ADJUST”.
.
TOUCH SCREEN ADJUST
SETUP
0The touch screen adjustment screen appears.
4Tap “+”. (3 times in total)
.
1/3
PRESS THE + MARK
0Keep tapping “+” as its position changes with every tap.
0If areas other than the “+” mark are tapped, errors will occur. Make
sure to tap the “+” mark.
5Tap “+” again to confirm the adjusted positions. (3 times in total)
.
1/3
PRESS + MARK AGAIN
CONFIRM THE ADJUSTMENT
0Keep tapping “+” as its position changes with every tap.
6Tap “OK”.
.
OK
COMPLETED
0Setting ends and returns to the menu screen.
Caution :
0Do not tap areas other than the “+” mark during touch screen adjustment
(steps 4 - 5). Doing so may cause the touch screen to malfunction.
Memo :
0Adjust by lightly tapping with a corner of an SD card, etc.
0Do not press with an object with a sharp tip or do not press hard.
Getting Started
11
Names of Buttons and Functions on the LCD Monitor
The following screens are displayed during A video and B still image
modes.
Recording Screen (Video/Still Image)
.
MENU
REC
≪PLAY
8
1A/B (Video/Still Image) Mode Button
0Switches between A video (60i/60p) and B still image modes.
2Zoom Button
“Zooming” (A p. 26)
3Still Image Recording Button
0Records still images during video recording.
“Capturing Still Images During Video Recording” (A p. 23)
4Playback Mode Button
0Switches to the playback mode.
5Recording Start/Stop Button
06: Video Recording Start Button
07: Video Recording Stop Button
6Menu Button
“Operating the Menu” (A p. 87)
7Display Button
Switches the display between full (m) and simple (n) with every tap of
the button.
0Simple display: Some displays disappear automatically when the
screen is not operated.
0Full display: Displays everything. The display button changes from n
to m.
0When the power is turned off, the display setting will revert to simple
display (n).
8Recording Mode Button
Switches the recording mode (P Intelligent Auto/H Manual).
Playback Screen (Video)
.
00:01:23 00:12:34
0When this unit is not operated for a certain period of time, the operation
buttons on the LCD monitor disappear automatically. Tap on the screen
to display the operation buttons again.
1A/B (Video/Still Image) Mode Button
0Switches between A video (60i/60p) and B still image modes.
2Video Scene Capture Button
0Displayed when playback is paused.
0Saves one scene of the video being played back as a still image.
3Recording Mode Button
0Switches to the recording mode.
4Index Screen (Thumbnail Display) Button
0Returns to the index screen (thumbnail display).
“Operation Buttons for Video Playback” (A p. 54)
5Delete Button
“Deleting the Currently Displayed File” (A p. 65)
6Playback Zoom Button
0Enlarges the video image that is played back.
“During Video Playback” (A p. 54)
7Menu Button
“Operating the Menu” (A p. 87)
8Operation Buttons
“Operation Buttons for Video Playback” (A p. 54)
9Display Button
Switches the display between full (m) and simple (n) with every tap of
the button.
0Simple display: Some displays disappear automatically when the
screen is not operated.
0Full display: Displays everything. The display button changes from n
to m.
0When the power is turned off, the display setting will revert to simple
display (n).
Getting Started
12
Playback Screen (Still Image)
.
0When this unit is not operated for a certain period of time, the operation
buttons on the LCD monitor disappear automatically. Tap on the screen
to display the operation buttons again.
1A/B (Video/Still Image) Mode Button
0Switches between A video (60i/60p) and B still image modes.
2Recording Mode Button
0Switches to the recording mode.
3Index Screen (Thumbnail Display) Button
0Returns to the index screen (thumbnail display).
“Operation Buttons for Still Image Playback” (A p. 60)
4Delete Button
“Deleting the Currently Displayed File” (A p. 65)
5Playback Zoom Button
0Enlarges the still image that is being played back.
“Playing Back Still Images” (A p. 61)
6Menu Button
“Operating the Menu” (A p. 87)
7Operation Buttons
“Operation Buttons for Still Image Playback” (A p. 60)
8Display Button
Switches the display between full (m) and simple (n) with every tap of
the button.
0Simple display: Some displays disappear automatically when the
screen is not operated.
0Full display: Displays everything. The display button changes from n
to m.
0When the power is turned off, the display setting will revert to simple
display (n).
Index Screen (Thumbnail Display) Display
.
≪REC
3 4 5 6
1
2
7
1A/B (Video/Still Image) Mode Button
0Switches between A video (60i/60p) and B still image modes.
2Page Forward/Back Button
“Operation Buttons for Video Playback” (A p. 54)
“Operation Buttons for Still Image Playback” (A p. 60)
3Recording Mode Button
0Switches to the recording mode.
4Delete Button
“Deleting Selected Files” (A p. 65)
“Deleting the Currently Displayed File” (A p. 65)
5Playback Media Button
0Switches between SD card and built-in memory.
6Menu Button
“Operating the Menu” (A p. 87)
7Date Button
“Operation Buttons for Video Playback” (A p. 54)
“Operation Buttons for Still Image Playback” (A p. 60)
Getting Started
13
Menu screen (recording mode)
.
OFF
TOP MENU
SETUP
CONNECTION
SETTING
RECORD
SETTINGS
1
2
34 5
6
1SILENT Button
“Using the Silent Mode” (A p. 22)
2INFO. Button
“Checking the Remaining Recording Time” (A p. 51)
3SETUP Menu
“SETUP (video/still image)” (A p. 99)
4CONNECTION SETTINGS Menu
“CONNECTION SETTINGS (video/still image)” (A p. 102)
5RECORD SETTING Menu
“RECORD SETTING Menu (video)” (A p. 88)
“RECORD SETTING Menu (still image)” (A p. 93)
6Close Button
Exit the menu.
Menu screen (playback mode)
.
OFF
TOP MENU
SETTING
PLAYBACK
EDIT
SETTINGS
CONNECTION
SETUP
1
2
3
6
7
45
1SILENT Button
“Using the Silent Mode” (A p. 22)
2INFO. Button (Displayed only after playback)
“Checking the Recording Date and Other Information” (A p. 56)
3PLAYBACK SETTING Menu
“PLAYBACK SETTING Menu (video)” (A p. 95)
“PLAYBACK SETTING Menu (still image)” (A p. 97)
4SETUP Menu
“SETUP (video/still image)” (A p. 99)
5CONNECTION SETTINGS Menu
“CONNECTION SETTINGS (video/still image)” (A p. 102)
6EDIT Menu
“EDIT Menu (video)” (A p. 96)
“EDIT Menu (still image)” (A p. 98)
7Close Button
Exit the menu.
Getting Started
14
Clock Setting
“SET DATE/TIME!” is displayed when you turn on the unit for the first time
or when the unit has not been used for a prolonged period.
Set the clock before recording.
1Open the LCD monitor.
.
0The unit turns on.
0When the LCD monitor is closed, the unit turns off.
2Tap “OK” when “SET DATE/TIME!” is displayed.
.
OK
SET DATE/TIME!
3Set the date and time.
.
201712 10 00
AM
TIME
DATE
SAVE
DATE & TIME SETTING
24
0When the day, month, year, hour, or minute item is tapped, “3” and
“2” will be displayed.
0Tap 3 or 2 to adjust the year, month, day, hour, and minute.
4After setting the date and time, tap “SAVE”.
5Select the region where you live and tap “SAVE”.
.
GMT
SAVE
DATE & TIME/AREA
0Time difference between the selected city and the GMT (Greenwich
Mean Time) is displayed.
0Tap 0 or 1 to select the city name.
Memo :
0The clock can be reset again later.
“Resetting the Clock” (A p. 15)
0When using this unit overseas, you can set it to the local time for recording.
“Setting the Clock to Local Time when Traveling” (A p. 18)
0The clock is reset about one month after the battery is depleted. “SET
DATE/TIME!” is displayed the next time you turn on this unit. Set the clock
again after charging the battery.
Resetting the Clock
Set the clock with “DATE & TIME” from the menu.
1Tap “MENU”.
.
REC
≪PLAY
MENU
2Tap “SETUP”.
.
OFF
TOP MENU
SETUP
CONNECTION
SETTING
RECORD
SETTINGS
3Tap “DATE & TIME”.
.
SETUP
DATE & TIME
0Tap 3 or 2 to scroll the screen.
4Tap “CLOCK SETTING”.
.
DATE & TIME SETTING
DATE & TIME
5Set the date and time.
.
AM
201712 10 00
24 TIME
DATE
DATE & TIME SETTING
SET
0When the day, month, year, hour, or minute item is tapped, “3” and
“2” will be displayed.
0Tap 3 or 2 to adjust the year, month, day, hour, and minute.
6After setting the date and time, tap “SET”.
Getting Started
15
7Select the region where you live and tap “SAVE”.
.
GMT
SAVE
DATE & TIME/AREA
0Time difference between the selected city and the GMT (Greenwich
Mean Time) is displayed.
0Tap 0 or 1 to select the city name.
Changing the Display Language
The language on the display can be changed.
1Tap “MENU”.
.
REC
≪PLAY
MENU
2Tap “SETUP”.
.
OFF
TOP MENU
SETUP
CONNECTION
SETTING
RECORD
SETTINGS
3Tap “LANGUAGE”.
.
SETUP
LANGUAGE
0Tap 3 or 2 to scroll the screen.
4Tap to the desired language.
.
LANGUAGE
ENGLISH
0Tap 3 or 2 to scroll the screen.
Getting Started
16
Holding this Unit
When holding this unit, keep your elbows close to your sides to prevent
camera shake.
.
0Hold the LCD monitor with your left hand and adjust the angle accordingly.
Holding the LCD monitor with your left hand helps to stabilize the camera
for recording.
Caution :
0The photographer should pay attention to the surroundings during
shooting, making sure that he/she is in no danger of falling or collision with
another person or vehicle.
0Be careful not to drop this unit during transportation.
0Guardians should pay close attention when this unit is used by children.

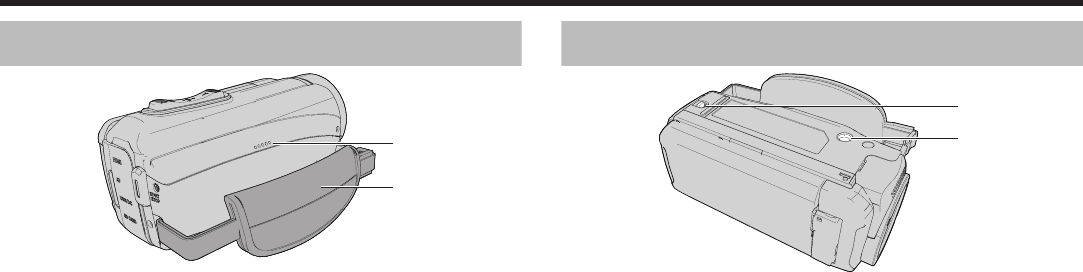

Tripod Mounting
This unit can be mounted on a tripod (or monopod). This is useful for
preventing camera shake and recording from the fixed position.
.
0To prevent this unit from falling off, check the tripod mounting screw holes
and positioning holes on the unit carefully before mounting, and turn the
screws until they are fastened firmly.
Caution :
0To prevent injuries or damages which may result if this unit falls off, read
the instruction manual of the tripod (or monopod) to be used and make
sure that it is securely attached.
0In strong wind conditions and when placed at an unstable location, there
is a risk of the tripod toppling and falling.
0Please check beforehand if the use of a tripod is allowed as it may be
prohibited depending on the shooting location.
Memo :
0It is recommended to use a tripod or monopod when recording in
conditions prone to camera shake (such as in dark places or when zoomed
to the telephoto end).
0Set the image stabilizer to b (OFF) when using a tripod for recording.
“Reducing Camera Shake” (A p. 42)
Getting Started
17
Using this Unit Overseas
The shape of the power outlet varies according to countries and regions.
To charge the battery pack, you need a converter plug that matches the
shape of the outlet.
“Charging the Battery Pack Overseas” (A p. 18)
Change the date and time display to the local time by selecting your travel
destination in “AREA SETTING” of “DATE & TIME”.
“Setting the Clock to Local Time when Traveling” (A p. 18)
When “ON” is selected in “DST SETTING” of “DATE & TIME”, the time is set
1 hour ahead.
“Setting Daylight Saving Time” (A p. 19)
Charging the Battery Pack Overseas
The shape of the power outlet varies according to countries and regions.
To charge the battery pack, you need a converter plug that matches the
shape of the outlet.
.
ABBFCO
Morocco
Mozambique
Republic of South
Africa
Tanzania
Zambia
Kenya
Guinea
Egypt
Algeria
Africa
Jordan
Kuwait
Iran
Israel
Middle East
Peru
Venezuela
Brazil
Puerto Rico
Bahamas
Panama
Haiti
Chile
Jamaica
Colombia
Argentina
Latin
Fiji
New Zealand
To n g a
Tahiti
Guam
Australia
Oceania
Romania
Portugal
Poland
Belgium
France
Finland
Hungary
Norway
Germany
Denmark
Spain
Sweden
Switzerland
Greece
Canary Islands
Netherlands
Austria
Italy
United Kingdom
Ireland
Iceland
Europe
Asia
Mexico
Japan
United States
North America
Canada
Malaysia
Macau Special
Administrative Region
Hong Kong Special
Administrative Region
Vietnam
Philippines
Bangladesh
Pakistan
Nepal
China
South Korea
Thailand
Sri Lanka
Singapore
Indonesia
India
Setting the Clock to Local Time when Traveling
Change the date and time display to the local time by selecting your travel
destination in “AREA SETTING” of “DATE & TIME”.
Restore the region settings after you returned from the trip.
1Tap “MENU”.
.
REC
≪PLAY
MENU
2Tap “SETUP”.
.
OFF
TOP MENU
SETUP
CONNECTION
SETTING
RECORD
SETTINGS
3Tap “DATE & TIME”.
.
SETUP
DATE & TIME
0Tap 3 or 2 to scroll the screen.
4Tap “AREA SETTING”.
.
AREA SETTING
DATE & TIME
5Select the area you are traveling to and tap “SAVE”.
.
GMT
SAVE
AREA SETTING
0Time difference between the selected city and the GMT (Greenwich
Mean Time) is displayed.
0Tap 0 or 1 to select the city name.
Memo :
0Setting “AREA SETTING” changes the clock time such that time difference
is accounted for.
After returning to your country, re-select the region that was set initially to
restore the original clock settings.
Getting Started
18
Setting Daylight Saving Time
When “ON” is selected in “DST SETTING” of “DATE & TIME”, the time is set
1 hour ahead.
1Tap “MENU”.
.
REC
≪PLAY
MENU
2Tap “SETUP”.
.
OFF
TOP MENU
SETUP
CONNECTION
SETTING
RECORD
SETTINGS
3Tap “DATE & TIME”.
.
SETUP
DATE & TIME
0Tap 3 or 2 to scroll the screen.
4Tap “DST SETTING”.
.
DST SETTING
DATE & TIME
5Tap “ON”.
.
OFFON
CURRENT SETTING: OFF
DAYLIGHT SAVING TIME (DST)
DST SETTING
Memo :
0What is daylight saving time?
Daylight saving time is the system of setting the clock 1 hour ahead for a
fixed period in summer.
It is used mainly in the Western countries.
0Restore the daylight saving time settings after you returned from the trip.
Optional Accessories
Product Name Description
HDMI Mini Cable
0VX-HD310
0VX-HD315
0Allows viewing in high picture quality when
connected to a TV.
0Transmits video, audio, and control signals
between devices.
Memo :
0The optional accessories above may not be supported in some regions.
0For more information, refer to the catalog.
0For details on the provided accessories, refer to “Verifying the
Accessories”.
“Verifying the Accessories” (A p. 3)
Getting Started
19
Taking Videos in Auto Mode
With Intelligent Auto recording, the camera automatically adjusts the settings
such as brightness and focus to suit the shooting conditions.
0In case of specific shooting scenes such as person etc., its icon is
displayed on the screen.
0Before recording an important scene, it is recommended to conduct a trial
recording.
1Open the LCD monitor.
.
A
0Check if the recording mode is A.
0If the mode is B still image, tap B on the recording screen to display
the mode switching screen.
Tap A to switch the mode to video.
2Check if the recording mode is P Intelligent Auto.
.
≪PLAY
0If the mode is H Manual, tap H on the recording screen to display
the mode switching screen.
Tap P to switch the recording mode to Intelligent Auto.
.
intelligent AUTO MANUAL
3Press the START/STOP button to start recording.
.
0Press again to stop.
0Some displays disappear after approximately 3 seconds.
Use the n button to change the displays.
Indications for Video Recording
.
0:00:00 [2:04]
10:10
MENU
REC
≪PLAY
Display Icon Description
AVideo Quality Displays the icon of the “VIDEO QUALITY”
setting selected in the recording menu when
“SYSTEM SELECT” is set to “60i”.
“ VIDEO QUALITY ” (A p. 90)
BTOUCH PRIORITY
AE/AF
Displays the setting of “TOUCH PRIORITY AE/
AF”.
By default, it is set to “FACE TRACKING”.
“Capturing Subjects Clearly (TOUCH
PRIORITY AE/AF)” (A p. 40)
CTime Displays the current time.
“Clock Setting” (A p. 15)
DRECORDING
EFFECT
Displays the corresponding icon when a
recording effect is specified.
C: GRAINY MONOCHROME
D: FOOD
B: BABY
“Recording with Effects (RECORDING
EFFECT)” (A p. 34)
EImage Stabilizer Displays the image stabilizer setting.
“Reducing Camera Shake” (A p. 42)
FRecording Media Displays the icon of the media where videos
are recorded to.
The recording media can be changed.
“ REC MEDIA FOR VIDEO ” (A p. 100)
GBattery Indicator Displays the approximate remaining battery
power during use.
“Checking the Remaining Recording Time”
(A p. 51)
HRecording Mode Displays the current recording mode of P
(Intelligent Auto) or H (Manual).
Current shooting mode is displayed.
ISetting Scenes of
Intelligent Auto
Displays scenes detected automatically in the
Intelligent Auto function. Multiple scenes may
be detected.
JSEAMLESS
RECORDING
Displays the seamless recording icon when it
is set. q appears if seamless recording
cannot be performed.
“ SEAMLESS RECORDING ” (A p. 90)
KRemaining
Recording Time
Displays the remaining time for video
recording.
“Checking the Remaining Recording Time”
(A p. 51)
LScene Counter
(Recorded Time)
Displays the elapsed time of the video that is
currently being recorded.
Recording
20
oScenes of Intelligent Auto
Display Icon Description
gCaptures one’s skin beautifully.
VAllows people to be captured naturally.
fRecord a group of people with the most suitable
settings.
SRecords while focusing on a near object.
aFocuses at a far distance and captures a sharp
image with vivid colors.
ZRecords in dark places with minimal noise in the
overall image.
TAllows night scenes to be captured accurately with
minimal noise in the overall image.
dPrevents colors from fading even when recording
in a bright environment, such as snowfield and
beaches.
XPrevents colors from fading when recording a
subject in a spotlight.
iReproduces the green color of trees vividly.
YReproduces the colors of sunset naturally.
hAdjusts settings so that the subject does not
appear too dark due to backlight.
kRecords while emphasizing the brightness of the
colors.
UReproduces the natural colors of the outdoors
during the day.
cReproduces the natural colors of the indoors in a
cold-color illumination.
bReproduces the natural colors of the indoors in a
warm-color illumination.
eSelects the most suitable settings for handheld
shooting.
jSelects the most suitable settings when a tripod is
used for shooting.
Memo :
0Scenes can be detected according to the shooting conditions and
automatically adjusted in Intelligent Auto mode.
0Multiple scenes may be detected depending on the recording conditions.
0Some functions may not work properly depending on the shooting
conditions.
Operation Buttons for Video Recording
.
Operation
Buttons
Description
AVideo/Still Image
Mode
A/B
Switches between video and still image
modes.
BWT Zoom Allows the same functions as the zoom
lever to be performed.
Camera shake that often occurs when
using the zoom lever can be minimized.
“Zooming” (A p. 26)
CStill Image
Recording A
Tap this button to record a still image during
video recording.
“Capturing Still Images During Video
Recording” (A p. 23)
DPlayback Mode Switches to the playback mode.
E/ FRecording Start
6
Record-Standby
7
Functions as the START/STOP button.
GMENU Displays the various menus of video
recording.
“Operating the Menu” (A p. 87)
HDisplay Button nSwitches the display between full (m) and
simple (n) with every tap of the button.
0Simple display: Some displays
disappear automatically when the
screen is not operated.
0Full display: Displays everything. The
display button changes from n to m.
0When the power is turned off, the display
setting will revert to simple display (n).
IRecording Mode
P/H
Switches between the P Intelligent Auto
and H Manual recording mode.
Recording
21
Using the Silent Mode
When the Silent mode is used, the LCD monitor darkens and operation
sounds will not be output. Use this mode to record quietly in dark places such
as during a performance.
0T appears when “SILENT MODE” is set to “ON”.
0To mute only the operating sound, set “OPERATION SOUND” in the menu
to “OFF” instead of using the silent mode.
“ OPERATION SOUND ” (A p. 100)
oOperating procedure
ATap “MENU”.
0The top menu appears.
BTap T.
.
OFF
TOP MENU
SETUP
CONNECTION
SETTING
RECORD
SETTINGS
CTap “ON”.
.
OFF ON
SILENT MODE
Useful Settings for Recording
0When “DATE/TIME RECORDING” is used, the date and time can be
recorded together with the video.
“Recording Videos with Date and Time” (A p. 49)
Caution :
0Do not expose the lens to direct sunlight.
0While this unit can be used with the LCD monitor reversed or the LCD
monitor closed with “LCD CLOSED RECORDING” activated, the
temperature of this unit rises more easily. Leave the LCD monitor open
when using this unit for long periods of time, or in places exposed to direct
sunlight or high temperatures.
0The power may turn off to protect the circuit if the temperature of this unit
rises too much.
0If the temperature of this unit rises during recording, 7 changes color
to yellow as a notification.
0This unit is a microcomputer-controlled device. Electrostatic discharge,
external noise and interference (from a TV, a radio, etc.) might prevent it
from functioning properly. In such a case, close the monitor screen to turn
off the power and remove the AC adapter, then press the Reset button to
reset this unit.
“Resetting this Unit” (A p. 5)
0Disclaimer
- We shall not be held responsible for loss of recorded contents when
recording videos/audio or playback cannot be operated due to
malfunctions in this unit, provided parts, or SD card.
- Once deleted, recorded contents (data), including data loss due to
malfunctions in this unit, cannot be restored. Please be forewarned.
- JVC will not be responsible for any lost data.
Memo :
0Check that the remaining recording time in the media is sufficient before
you start recording. “Checking the Remaining Recording Time”
(A p. 51)
If the remaining recording time is not sufficient, save the files on a PC or
disc before deleting the files from the unit. “Deleting Unwanted Files”
(A p. 65)
0When there are many files in the media, it may take time for them to be
displayed on the playback screen. Wait for a while as the POWER/
ACCESS lamp blinks, indicating normal operation.
0Recording stops automatically as it cannot be performed for 12 or more
consecutive hours according to specifications.
(It may take some time to resume recording.)
0Up to 4GB per video file can be recorded. File recorded using long
recordings that exceeds 4GB is split and recorded into several video files.
0Depending on the shooting conditions, the four corners of the screen may
appear dark, but this is not a malfunction. In this case, change the shooting
conditions by moving the zoom lever, etc.
Recording
22
Capturing Still Images During Video Recording
Still images can be captured by tapping the A button while in the video mode
(standby or recording).
.
MENU
REC
≪PLAY
0“PHOTO” lights up on the screen when a still image is being captured.
.
0The still images captured during video recording are saved to the
destination set in “REC MEDIA FOR IMAGE”.
Memo :
0The size of the still image that is captured in the video mode is 1,920 x
1,080.
0Operation is invalid under the following conditions:
- when menu is being displayed
- when remaining recording time or battery power is being displayed
- when any functions in “TIME-LAPSE RECORDING”, “ANIMATION
EFFECT”, “RECORDING EFFECT”, “CLOSE-UP SUB-WINDOW” or
“DATE/TIME RECORDING” is set
- when the AV cable is connected to the AV connector
- when the HDMI cable is connected and a resolution other than 1080i is
output
Taking Still Images in Auto Mode
You can record without worrying about the setting details by using the P
Intelligent Auto mode.
1Open the LCD monitor.
.
B
0Check if the recording mode is B.
0If the mode is A video, tap A on the recording screen to display the
mode switching screen.
Tap B to switch the mode to still image.
2Check if the recording mode is P Intelligent Auto.
.
MENU
MENU
≪PLAY
0If the mode is H Manual, tap H on the recording screen to display
the mode switching screen.
Tap P to switch the recording mode to Intelligent Auto.
.
intelligent AUTO MANUAL
3Press the START/STOP button.
.
0PHOTO lights up when a still image is being captured.
Memo :
0Depending on the subject and shooting conditions, recording may not be
performed properly even in the Intelligent Auto mode.
oStart recording after adjusting the focus
APress and hold the A button on the touch screen until the focus is
adjusted.
.
Lights up in green when in focus
BRemove your finger from the button to release the shutter.
Available only when “SHUTTER MODE” is set to “RECORD ONE SHOT”.
Recording
23
Indications During Still Image Recording
.
[6630]
10:10
MENU
≪PLAY
0Some displays disappear after approximately 3 seconds.
Use the n button to change the displays.
Display Icon Description
AImage Size Displays the icon of the image size.
0The size of still images can be changed.
“ IMAGE SIZE ” (A p. 94)
BTOUCH PRIORITY
AE/AF
Displays the setting of “TOUCH PRIORITY AE/
AF”.
By default, it is set to “FACE TRACKING”.
“Capturing Subjects Clearly (TOUCH
PRIORITY AE/AF)” (A p. 40)
CTime Displays the current time.
“Clock Setting” (A p. 15)
DRECORDING
EFFECT
Displays the corresponding icon when a
recording effect is specified.
C: GRAINY MONOCHROME
D: FOOD
B: BABY
“Recording with Effects (RECORDING
EFFECT)” (A p. 34)
ERecording media Displays the icon of the media where still
images are recorded to.
The recording media can be changed.
“ REC MEDIA FOR IMAGE ” (A p. 101)
FBattery Indicator Displays the approximate remaining battery
power during use.
“Checking the Remaining Recording Time”
(A p. 51)
GRecording Mode Displays the current recording mode of P
(Intelligent Auto) or H (Manual).
HSetting Scenes of
Intelligent Auto
Displays scenes detected automatically in the
Intelligent Auto function. Multiple scenes may
be detected.
IRemaining Number
of Shots
Displays the remaining number of shots for still
image recording.
“Approximate Number of Still Images (Unit:
Number of Shots)” (A p. 52)
JRecording in
Progress
“PHOTO” appears when a still image is being
captured.
KFocus Lights up in green when focused.
oScenes of Intelligent Auto
Display Icon Description
gCaptures one’s skin beautifully.
VAllows people to be captured naturally.
fRecord a group of people with the most suitable
settings.
SRecords while focusing on a near object.
aFocuses at a far distance and captures a sharp
image with vivid colors.
ZRecords in dark places with minimal noise in the
overall image.
TAllows night scenes to be captured accurately with
minimal noise in the overall image.
dPrevents colors from fading even when recording
in a bright environment, such as snowfield and
beaches.
XPrevents colors from fading when recording a
subject in a spotlight.
iReproduces the green color of trees vividly.
YReproduces the colors of sunset naturally.
hAdjusts settings so that the subject does not
appear too dark due to backlight.
kRecords while emphasizing the brightness of the
colors.
UReproduces the natural colors of the outdoors
during the day.
cReproduces the natural colors of the indoors in a
cold-color illumination.
bReproduces the natural colors of the indoors in a
warm-color illumination.
eSelects the most suitable settings for handheld
shooting.
jSelects the most suitable settings when a tripod is
used for shooting.
Memo :
0Scenes can be detected according to the shooting conditions and
automatically adjusted in Intelligent Auto mode.
0Multiple scenes may be detected depending on the recording conditions.
0Some functions may not work properly depending on the shooting
conditions.
Recording
24
Operation Buttons for Still Image Recording
.
[6630]
MENU
≪PLAY
Operation
Buttons
Description
AVideo/Still Image
Mode
A/B
Switches between video and still image
modes.
BWT Zoom Allows the same functions as the zoom
lever to be performed.
Camera shake that often occurs when
using the zoom lever can be minimized.
“Zooming” (A p. 26)
CStill Image
Recording A
Allows you to take still images using the
touch panel. Pressing and holding the
button allows you to adjust the focus before
shooting.
“Start recording after adjusting the focus”
(A p. 23)
DPlayback Mode Switches to the playback mode.
EMENU Displays the various menus of still image
recording.
“Operating the Menu” (A p. 87)
FDisplay Button nSwitches the display between full (m) and
simple (n) with every tap of the button.
0Simple display: Some displays
disappear automatically when the
screen is not operated.
0Full display: Displays everything. The
display button changes from n to m.
0When the power is turned off, simple
display (n) will be set.
GRecording Mode
P/H
Switches between the P Intelligent Auto
and H Manual recording mode.
Using the Silent Mode
When the Silent mode is used, the LCD monitor darkens and operation
sounds will not be output. Use this mode to record quietly in dark places such
as during a performance.
0T appears when “SILENT MODE” is set to “ON”.
0To mute only the operating sound, set “OPERATION SOUND” in the menu
to “OFF” instead of using the silent mode.
“ OPERATION SOUND ” (A p. 100)
oOperating procedure
ATap “MENU”.
0The top menu appears.
BTap T.
.
OFF
TOP MENU
SETUP
CONNECTION
SETTING
RECORD
SETTINGS
CTap “ON”.
.
OFF ON
SILENT MODE
Caution :
0Do not expose the lens to direct sunlight.
0While this unit may be used with the LCD monitor reversed and closed,
the temperature rises more easily. Leave the LCD monitor open when
using this unit for long periods of time, or in places exposed to direct
sunlight or high temperatures.
0The power may turn off to protect the circuit if the temperature of this unit
rises too much.
0Do not remove the AC adapter or SD card when the POWER/ACCESS
lamp is lighted. The recorded data may become unreadable.
0This unit is a microcomputer-controlled device. Electrostatic discharge,
external noise and interference (from a TV, a radio, etc.) might prevent it
from functioning properly. In such a case, close the monitor screen to turn
off the power and remove the AC adapter, then press the Reset button to
reset this unit.
“Resetting this Unit” (A p. 5)
Memo :
0Before recording an important scene, it is recommended to conduct a trial
recording.
0Depending on the shooting conditions, the four corners of the screen may
appear dark, but this is not a malfunction. In this case, change the shooting
conditions by moving the zoom lever, etc.
Recording
25
Zooming
The angle of view can be adjusted using zoom.
0Use the W end (wide angle end) to shoot a wider field of view.
0Use the T end (telephoto end) to magnify the subject for shooting.
.
T
W
VOL.
＋
T (Telephoto End)
W (Wide Angle End)
0The following zoom options are available:
- Optical Zoom (1 - 40x)
- Digital Zoom (41 - 200x)
0You can also use the zoom (WT) button on the touch screen to zoom.
0Tap the WT button, then press and hold the T (telephoto end) or W (wide
angle end) button.
.
MENU
MENU
≪PLAY REC
Zoom Button (T/W)
Memo :
0When digital zoom is used, the image becomes grainy as it is digitally
enlarged.
0The zoom ratio range can be changed.
“ ZOOM ” (A p. 91)
Zoom Memory
The zoom position can be stored by the Zoom Memory icon (WT) on the
touch screen.
oStoring Method
1Zoom to the position to reach to the desired position for storing.
.
T
W
VOL.
＋
2Tap “WT”.
.
MENU
MENU
≪PLAY REC
3Press and hold “M” (approx. 1 second).
.
MENU
MENU
REC
0Store the zoom position.
oOperating Detail
1Tap “WT”.
.
MENU
MENU
≪PLAY REC
2Tap “M”.
.
MENU
MENU
REC
0Zoom to the point that is stored in advance.
Memo :
0If the setting of DIS, VIDEO QUALITY, SYSTEM SELECT or ZOOM is
changed, the zoom position stored will be erased.
Recording
26
Manual Recording
In situations where you are unable to recording properly using Intelligent
Auto recording, you can change the settings and record using manual
recording.
1Open the LCD monitor.
.
A
0Set the recording mode to either A video or B still image.
0To switch the mode between video and still image, tap A or B on the
recording screen to display the mode switching screen.
Tap A or B to switch the mode to video or still image respectively.
2Select the Manual recording mode.
.
≪PLAY
0If the mode is P Intelligent Auto, tap P on the recording screen
to display the mode switching screen.
Tap H to switch the recording mode to Manual.
.
intelligent AUTO MANUAL
3Tap “MENU”.
.
REC
≪PLAY
MENU
0The top menu appears.
4Tap “RECORD SETTING”.
.
OFF
TOP MENU
SETUP
CONNECTION
SETTING
RECORD
SETTINGS
5Tap the item to set manually.
.
RECORD SETTING
0For details on the various manual settings, refer to “Manual Recording
Menu”.
Manual Recording Menu
The following items can be set.
Name Description
FOCUS 0Use manual focus if the subject is not
focused automatically.
“Adjusting Focus Manually (FOCUS)”
(A p. 28)
BRIGHTNESS
ADJUST
0Overall brightness on the screen can be
adjusted.
0Use this when recording in a dark or bright
location.
“Adjusting Brightness” (A p. 29)
BACKLIGHT COMP. 0Corrects the image when the subject
appears dark due to backlight.
0Use this when shooting against the light.
“Setting Backlight Compensation” (A p. 30)
WHITE BALANCE 0Overall color on the screen can be adjusted.
0Use this when the color on the screen
appears differently from the actual color.
“Setting White Balance” (A p. 31)
TELE MACRO 0Use this to take close-up (macro) shots of the
subject.
“Taking Close-up Shots (TELE MACRO)”
(A p. 32)
Recording
27
Adjusting Focus Manually (FOCUS)
Adjust the focus manually when you are unable to focus clearly using
Intelligent Auto or when you want to lock the focus.
1Select the Manual recording mode.
.
≪PLAY
0If the mode is P Intelligent Auto, tap P on the recording screen
to display the mode switching screen.
Tap H to switch the recording mode to Manual.
.
intelligent AUTO MANUAL
2Tap “MENU”.
.
REC
≪PLAY
MENU
0The top menu appears.
3Tap “RECORD SETTING”.
.
OFF
TOP MENU
SETUP
CONNECTION
SETTING
RECORD
SETTINGS
4Tap “FOCUS”.
.
RECORD SETTING
0Tap L to exit the menu.
0Tap J to return to the previous screen.
5Tap “MANUAL”.
.
MANUAL
AUTO
FOCUS
6Adjust the focus.
.
MENU
MENU
≪PLAY REC
SET
0Tap E to focus on a distant subject.
If E appears blinking, focus cannot be set any further.
0Tap p to focus on a near subject.
If p appears blinking, focus cannot be set any nearer.
7Tap “SET” to confirm.
.
MENU
MENU
REC
≪PLAY
0When focus is confirmed, the focusing frame disappears and E and
p are displayed.
Recording
28
Adjusting Brightness
You can adjust the brightness to your preferred level.
1Select the Manual recording mode.
.
≪PLAY
0If the mode is P Intelligent Auto, tap P on the recording screen
to display the mode switching screen.
Tap H to switch the recording mode to Manual.
.
intelligent AUTO MANUAL
2Tap “MENU”.
.
REC
≪PLAY
MENU
0The top menu appears.
3Tap “RECORD SETTING”.
.
OFF
TOP MENU
SETUP
CONNECTION
SETTING
RECORD
SETTINGS
4Tap “BRIGHTNESS ADJUST”.
.
RECORD SETTING
0Tap L to exit the menu.
0Tap J to return to the previous screen.
5Tap “MANUAL”.
.
MANUAL
AUTO
BRIGHTNESS ADJUST
6Adjust the brightness value.
.
≪PLAY
REC MENU
SET
0Compensation range: -2.0 to +2.0
0Tap 3 to increase the brightness.
0Tap 2 to decrease the brightness.
7Tap “SET” to confirm.
.
≪PLAY
REC MENU
Memo :
0Settings can be adjusted separately for videos and still images.
Recording
29
Setting Backlight Compensation
You can correct the image when the subject appears too dark due to
backlight.
1Select the Manual recording mode.
.
≪PLAY
0If the mode is P Intelligent Auto, tap P on the recording screen
to display the mode switching screen.
Tap H to switch the recording mode to Manual.
.
intelligent AUTO MANUAL
2Tap “MENU”.
.
REC
≪PLAY
MENU
0The top menu appears.
3Tap “RECORD SETTING”.
.
OFF
TOP MENU
SETUP
CONNECTION
SETTING
RECORD
SETTINGS
4Tap “BACKLIGHT COMP.”.
.
RECORD SETTING
0Tap L to exit the menu.
0Tap J to return to the previous screen.
5Tap “ON” or “ADVANCE”.
.
ON
OFF
BACKLIGHT COMP.
ADVANCE
0“ADVANCE” is designed to perform more effective backlight
compensation. Choose this when the backlight compensation is not
adjusted appropriately by “ON”.
0After setting, the l icon (Advance: Q) appears.
Setting Details
OFF Backlight compensation is disabled.
ON Backlight compensation is enabled.
ADVANCE Should be selected for a better backlight
compensation effect.
Recording
30
Setting White Balance
You can set the color tone to suit the light source.
1Select the Manual recording mode.
.
≪PLAY
0If the mode is P Intelligent Auto, tap P on the recording screen
to display the mode switching screen.
Tap H to switch the recording mode to Manual.
.
intelligent AUTO MANUAL
2Tap “MENU”.
.
REC
≪PLAY
MENU
0The top menu appears.
3Tap “RECORD SETTING”.
.
OFF
TOP MENU
SETUP
CONNECTION
SETTING
RECORD
SETTINGS
4Tap “WHITE BALANCE”.
.
RECORD SETTING
0Tap L to exit the menu.
0Tap J to return to the previous screen.
5Select the white balance setting.
.
AUTO
SET
0You can either tap the icon, or select the item using the “0” “1” button
and tap “SET”.
0The White Balance icon appears on the screen upon completing the
setting.
Setting Details
n AUTO Adjusts automatically to the natural colors.
l MWB Use this when the problem of unnatural colors is
not resolved.
m FINE Set this when shooting outdoors on a sunny day.
p CLOUD Set this when shooting on a cloudy day or inside a
shade.
o HALOGEN Set this when shooting under illumination such as
a video light.
q MARINE:BLUE Set this when shooting in deep waters (water
appears blue).
r
MARINE:GREEN
Set this when shooting in shallow waters (water
appears green).
Using MWB
1Point the cursor to “MWB” using the “0” “1” button.
2Hold a sheet of plain white paper in front of the lens so that the white
paper fills the screen, tap and hold the “SET” button.
3o blinks, release your finger after the setting screen disappears.
0You can also tap and hold the “MWB” icon to perform the setting.
Memo :
0The setting will not change if “MWB” is being tapped too fast (less than 1
second).
Recording
31
Taking Close-up Shots (TELE MACRO)
You can take close-up shots of an object using the tele macro function even
when the unit is at the telephoto zoom setting.
.
*The image is only an impression.
1Select the Manual recording mode.
.
≪PLAY
0If the mode is P Intelligent Auto, tap P on the recording screen
to display the mode switching screen.
Tap H to switch the recording mode to Manual.
.
intelligent AUTO MANUAL
2Tap “MENU”.
.
REC
≪PLAY
MENU
0The top menu appears.
3Tap “RECORD SETTING”.
.
OFF
TOP MENU
SETUP
CONNECTION
SETTING
RECORD
SETTINGS
4Tap 1.
.
RECORD SETTING
5Tap “TELE MACRO”.
.
RECORD SETTING
0Tap L to exit the menu.
0Tap J to return to the previous screen.
6Tap “ON”.
.
ON
OFF
TELE MACRO
0After setting, the tele macro icon o appears.
Setting Details
OFF Enables close-up shots up to 1 m at the telephoto (T) end.
Enables close-up shots up to 5 cm at the wide angle (W) end.
ON Enables close-up shots up to 60 cm at the telephoto (T) end.
Enables close-up shots up to 5 cm at the wide angle (W) end.
Caution :
0When you are not taking close-up shots, set “TELE MACRO” to “OFF”.
Otherwise, the image may be blur.
Recording
32
Shooting under Water
Perform the following settings to shoot underwater.
Setting the White Balance to Underwater Mode
Corrects the color when shooting underwater to record more natural images.
Select from the following two settings depending on the color of the water at
the shooting location.
1Select the Manual recording mode.
.
≪PLAY
0If the mode is P Intelligent Auto, tap P on the recording screen
to display the mode switching screen.
Tap H to switch the recording mode to Manual.
.
intelligent AUTO MANUAL
2Tap “MENU”.
.
REC
≪PLAY
MENU
0The top menu appears.
3Tap “RECORD SETTING”.
.
OFF
TOP MENU
SETUP
CONNECTION
SETTING
RECORD
SETTINGS
4Tap “WHITE BALANCE”.
.
RECORD SETTING
5Tap q or r.
.
AUTO
SET
Setting Details
q MARINE:BLUE Set this when shooting in deep waters (water
appears blue).
r
MARINE:GREEN
Set this when shooting in shallow waters (water
appears green).
Memo :
0You may not necessarily achieve the correction effect as expected.
0It is recommended to conduct a trial recording in advance.
Locking the Screen
1Tap “MENU”.
.
REC
≪PLAY
MENU
0The top menu appears.
2Tap “RECORD SETTING”.
.
OFF
TOP MENU
SETUP
CONNECTION
SETTING
RECORD
SETTINGS
3Tap 1 to change the items displayed.
.
RECORD SETTING
Recording
33
4Tap “SCREEN LOCK”.
0The L button appears.
.
0:00:00 [2:04]
Memo :
0If “SCREEN LOCK” has been set, it will take a longer time for the unit to
power off after closing the LCD monitor. If you open the LCD monitor after
closing it, and the power is still turned on, you can continue to record.
oTo cancel “SCREEN LOCK”
Tap the L button.
.
0:00:00 [2:04]
Memo :
0Once “SCREEN LOCK” is set, only the L button on the touch screen can
be operated.
0The START/STOP (recording) button and the zoom lever can be used
while the screen is locked.
0“SCREEN LOCK” cannot be set for the following cases:
- during recording
- when “TIME-LAPSE RECORDING” or “DATE/TIME RECORDING” has
been set
Caution :
0Before using the camera underwater, read “Before Using Underwater or
under Low Temperature” (A p. 6) carefully. Improper usage resulting in
water submersion will damage the device and cause injury.
0Ensure that the terminal cover is closed tightly before using underwater or
on the beach.
“Opening the Terminal Cover (SD Card Cover)” (A p. 4)
Recording with Effects (RECORDING
EFFECT)
You can add and record various effects to videos or still images.
Once setting is done, you can easily record images that are suitable for each
image.
Type of Effect Description of Effect
C
GRAINY
MONOCHROME
Captures film-like monochrome images by
increasing the contrast of mid-level brightness and
emphasizing the rough grainy feel on the image.
“Recording Images Like an Old Black and White
Photo (GRAINY MONOCHROME)” (A p. 35)
D
FOOD
Captures food images such that the food looks
appetizing even under fluorescent lighting in
homes by changing the colors to warm-colors and
deepening the colors.
“Recording Food Images (FOOD)” (A p. 36)
B
BABY
Captures a soft and gentle image by lightening the
skin tone while retaining the reddish hue,
enhancing the skin beautifying effect as well as
smoothing the appearance of the skin.
“Recording Images of a Baby (BABY)”
(A p. 37)
Caution :
0Depending on the shooting environment and subject, you may not achieve
the shooting effect as intended.
Recording
34
Recording Images Like an Old Black and White Photo
(GRAINY MONOCHROME)
Captures film-like monochrome images by increasing the contrast of mid-
level brightness and emphasizing the rough grainy feel on the image.
1Open the LCD monitor.
.
A
0Set the recording mode to either A video or B still image.
0To switch the mode between video and still image, tap A or B on the
recording screen to display the mode switching screen.
Tap A or B to switch the mode to video or still image respectively.
2Tap “MENU”.
.
REC
≪PLAY
MENU
0The top menu appears.
3Tap “RECORD SETTING”.
.
OFF
TOP MENU
SETUP
CONNECTION
SETTING
RECORD
SETTINGS
4Tap “RECORDING EFFECT”.
.
RECORD SETTING
0If the icon is not displayed on the screen, tap 1 to scroll the screen.
0Tap L to exit the menu.
0Tap J to return to the previous screen.
5Tap “GRAINY MONOCHROME”.
.
RECORDING EFFECT
OFF
GRAINY
MONOCHROME
BABY
FOOD
0Tap L to exit the menu.
0Tap J to return to the previous screen.
6Start recording.
0To cancel the setting, repeat the procedure from the beginning and
tap “OFF” in Step 5.
Recording
35
Recording Food Images (FOOD)
Captures food images such that the food looks appetizing even under
fluorescent lighting in homes by changing the colors to warm-colors and
deepening the colors.
1Open the LCD monitor.
.
A
0Set the recording mode to either A video or B still image.
0To switch the mode between video and still image, tap A or B on the
recording screen to display the mode switching screen.
Tap A or B to switch the mode to video or still image respectively.
2Tap “MENU”.
.
REC
≪PLAY
MENU
0The top menu appears.
3Tap “RECORD SETTING”.
.
OFF
TOP MENU
SETUP
CONNECTION
SETTING
RECORD
SETTINGS
4Tap “RECORDING EFFECT”.
.
RECORD SETTING
0If the icon is not displayed on the screen, tap 1 to scroll the screen.
0Tap L to exit the menu.
0Tap J to return to the previous screen.
5Tap “FOOD”.
.
RECORDING EFFECT
OFF
GRAINY
MONOCHROME
BABY
FOOD
0Tap L to exit the menu.
0Tap J to return to the previous screen.
6Start recording.
0To cancel the setting, repeat the procedure from the beginning and
tap “OFF” in Step 5.
Recording
36
Recording Images of a Baby (BABY)
Captures a soft and gentle image by lightening the skin tone while retaining
the reddish hue, enhancing the skin beautifying effect as well as smoothing
the appearance of the skin.
1Open the LCD monitor.
.
A
0Set the recording mode to either A video or B still image.
0To switch the mode between video and still image, tap A or B on the
recording screen to display the mode switching screen.
Tap A or B to switch the mode to video or still image respectively.
2Tap “MENU”.
.
REC
≪PLAY
MENU
0The top menu appears.
3Tap “RECORD SETTING”.
.
OFF
TOP MENU
SETUP
CONNECTION
SETTING
RECORD
SETTINGS
4Tap “RECORDING EFFECT”.
.
RECORD SETTING
0If the icon is not displayed on the screen, tap 1 to scroll the screen.
0Tap L to exit the menu.
0Tap J to return to the previous screen.
5Tap “BABY”.
.
RECORDING EFFECT
OFF
GRAINY
MONOCHROME
BABY
FOOD
0Tap L to exit the menu.
0Tap J to return to the previous screen.
6Start recording.
0To cancel the setting, repeat the procedure from the beginning and
tap “OFF” in Step 5.
Recording
37
Recording with Animation Effects
(ANIMATION EFFECT)
You can add animation effects to video recordings.
The animation effects appear when smiles are detected or when the screen
is touched.
1Open the LCD monitor.
.
A
0Set the recording mode to either A video or B still image.
0To switch the mode between video and still image, tap A or B on the
recording screen to display the mode switching screen.
Tap A or B to switch the mode to video or still image respectively.
2Tap “MENU”.
.
REC
≪PLAY
MENU
0The top menu appears.
3Tap “RECORD SETTING”.
.
OFF
TOP MENU
SETUP
CONNECTION
SETTING
RECORD
SETTINGS
4Tap “ANIMATION EFFECT”.
.
RECORD SETTING
0If the icon is not displayed on the screen, tap 1 to scroll the screen.
0Tap L to exit the menu.
0Tap J to return to the previous screen.
5Select a desired effect and tap “SET”.
.
SET
0Tap 0 or 1 to change the effect.
0Press the START/STOP button the camera to start recording.
Press again to stop.
0To select another effect again after tapping “SET”, tap J.
0Tap L to exit “ANIMATION EFFECT”.
(To perform operations other than recording, tap L to cancel the
“ANIMATION EFFECT” first.)
Recording
38
During Setting After Setting Note
..
Animation (effect) appears when
smiles are detected.
..
Animation (effect) appears when
smiles are detected.
. .
Animation (effect) appears when
smiles are detected.
..
Animation (effect) appears when the
screen is touched.
Recording
39
Capturing Subjects Clearly (TOUCH PRIORITY
AE/AF)
“TOUCH PRIORITY AE/AF” is a function that adjusts focus and brightness
based on a tapped position.
This function is available for both videos and still images.
1Open the LCD monitor.
.
A
0Set the recording mode to either A video or B still image.
0To switch the mode between video and still image, tap A or B on the
recording screen to display the mode switching screen.
Tap A or B to switch the mode to video or still image respectively.
2Tap “MENU”.
.
REC
≪PLAY
MENU
0The top menu appears.
3Tap “RECORD SETTING”.
.
OFF
TOP MENU
SETUP
CONNECTION
SETTING
RECORD
SETTINGS
4Tap “TOUCH PRIORITY AE/AF”.
.
RECORD SETTING
0If the icon is not displayed on the screen, tap 1 to scroll the screen.
0Tap L to exit the menu.
0Tap J to return to the previous screen.
5Tap the desired setting.
.
OFF
TOUCH PRIORITY AE/AF
TRACKING
COLOR
SELECT
AREA
TRACKING
FACE
.
AREA SELECT
COLOR TRACKING
FACE TRACKING
0Focus and brightness will be adjusted automatically based on the
tapped position (face/color/area). A blue frame appears around the
selected subject (face/color), while a white frame appears around the
selected area.
0To reset, tap the desired position (face/color/area) again.
0To cancel “FACE TRACKING” or “COLOR TRACKING”, tap the blue
frame.
0To cancel “AREA SELECT”, tap the white frame.
Setting Details
OFF Deactivates the function.
FACE
TRACKING
e appears on the screen. Recording is performed while
tracking and automatically adjusting the tapped face
(subject) with appropriate focus and brightness. In
addition, a blue frame appears around the tapped face
(subject).
COLOR
TRACKING
f appears on the screen. Recording is performed while
tracking and automatically adjusting the tapped color
(subject) with appropriate focus. In addition, a blue frame
appears around the tapped color (subject).
AREA
SELECT
g appears on the screen. Recording is performed while
automatically adjusting the tapped area (fixed position)
with appropriate focus and brightness. In addition, a
white frame appears around the tapped area.
AREA SELECT in TOUCH PRIORITY AE/AF is only
available within the optical zoom range. (unavailable
when digital zoom is being used)
Recording
40
Memo :
0When “TOUCH PRIORITY AE/AF” is set, “FOCUS” will be set to “AUTO”
automatically.
Tap the selected position (face/color/area) again to cancel the setting.
0Tap on an unselected position (face/color/area) to reset.
0If the camera loses track of a subject, tap the subject again.
0Settings are canceled when zoom operation is performed. (“AREA
SELECT” only)
0When “COLOR TRACKING” is set, the targeted subject (color) may
change if similar colors are detected. In this case, tap the subject again.
The targeted subject (color) may also be tracked back again if it appears
in the center of the screen within a specific time.
Caution :
0Subjects near the sides of the LCD monitor may not respond or be
recognized when tapped. In this case, move the subject to the center and
tap again.
0“FACE TRACKING” may not work properly depending on the shooting
conditions (distance, angle, brightness, etc.) and the subject (direction of
face, etc.). It is also particularly difficult to detect faces in backlight.
0“COLOR TRACKING” may not function properly in the following cases:
- when recording subjects with no contrast
- when recording subjects that are moving at high speed
- when recording in a dark place
- when the surrounding brightness changes
0“AREA SELECT” is not available while the digital zoom is in use.
0When “FACE TRACKING” is set, the subject may be lost if the camera is
moved vertically or horizontally very fast.
Recording
41
Reducing Camera Shake
When the image stabilizer is set, camera shake during video recording can
be effectively reduced.
1Tap “MENU”.
.
REC
≪PLAY
MENU
2Tap “RECORD SETTING”.
.
OFF
TOP MENU
SETUP
CONNECTION
SETTING
RECORD
SETTINGS
3Tap “OIS”.
.
RECORD SETTING
0If the icon is not displayed on the screen, tap 1 to scroll the screen.
0Tap L to exit the menu.
0Tap J to return to the previous screen.
4Tap the desired setting.
.
ON(ENH.AIS)
ON(AIS)
DIS
OFF
ON
Setting Details
b OFF Deactivates image stabilizer.
a ON Reduces camera shake under normal
shooting conditions.
r ON (AIS) Reduces camera shake more effectively
when shooting bright scenes on the wide
angle end.
Only on the wide angle end (approx. 5x).
s (Enhanced AIS) The area of correction in the enhanced AIS
mode is greater than that in the AIS mode.
Camera shake can be reduced more
effectively even when recording is performed
by zooming from wide angle to telephoto.
Memo :
0It is recommended to set the image stabilizer to “OFF” when shooting a
subject of little movement with the unit on a tripod.
0Complete stabilization may not be possible if camera shake is excessive.
0This setting is effective for video recording only.
0Using the image stabilizer will narrow the angle of view.
0Dynamic zoom is not available in the enhanced AIS mode.
0The resolution for the enhanced AIS mode is lower compared to the other
modes.
Recording
42
Recording at Intervals (TIME-LAPSE
RECORDING)
This function enables the changes of a scene that occur slowly over a long
period to be shown within a short time by taking frames of it at a certain
interval.
This is useful for making observations such as the opening of a flower bud.
1Open the LCD monitor.
.
A
0Check if the recording mode is A.
0If the mode is B still image, tap B on the recording screen to display
the mode switching screen.
Tap A to switch the mode to video.
2Tap “MENU”.
.
REC
≪PLAY
MENU
0The top menu appears.
3Tap “RECORD SETTING”.
.
OFF
TOP MENU
SETUP
CONNECTION
SETTING
RECORD
SETTINGS
4Tap “TIME-LAPSE RECORDING”.
.
RECORD SETTING
0If the icon is not displayed on the screen, tap 1 to scroll the screen.
0Tap L to exit the menu.
0Tap J to return to the previous screen.
5Tap to select a recording interval (1 to 80 seconds).
.
OFF
INTERVAL
20SEC
INTERVAL
5SEC
INTERVAL
1SEC
TIME-LAPSE RECORDING
0If the icon is not displayed on the screen, tap 1 to scroll the screen.
0The greater the number of seconds, the longer the recording interval.
0Tap L to exit the menu.
0Tap J to return to the previous screen.
6Start recording.
.
0A frame is taken at intervals of the selected period.
0When the recording interval is set to “20SEC INTERVAL” or higher,
this unit switches to the power-saving mode between recordings.
At the next point to record, the power-saving mode will be turned off
and recording will start automatically.
0Settings of Time-Lapse recording are not saved when the power is
turned off.
Indications During Time-Lapse Recording
.
0:00:01 [5:56]
0:00:01 [5:56]
0:00:00:01
0:00:00:01
Display Description
ARecording interval Displays the recording interval that is set.
BRecorded Time Displays the actual recorded time of the video.
Recorded time increases in units of frames.
CActual Elapsed
Time
Displays the actual elapsed time after
recording starts.
DRemaining
Recording Time
Remaining time left to record with the currently
selected video quality.
Recording
43
Time-Lapse Setting
The greater the number of seconds, the longer the recording interval.
Setting Details
OFF Deactivates the function.
1SEC INTERVAL Takes a frame at 1-second intervals.
Recorded videos will be played back at 30 times
speed.
5SEC INTERVAL Takes a frame at 5-second intervals.
Recorded videos will be played back at 150 times
speed.
20SEC INTERVAL Takes a frame at 20-second intervals.
Recorded videos will be played back at 600 times
speed.
80SEC INTERVAL Takes a frame at 80-second intervals.
Recorded videos will be played back at 2 400 times
speed.
Caution :
0During the time-lapse recording, video quality is set to XP mode.
0Audio cannot be recorded during time-lapse recording.
0When recording is stopped with the recorded time less than “0:00:00:14”,
the video will not be saved.
0Zooming, simultaneous still image recording, and image stabilizer are not
available in time-lapse recording.
0Seamless recording is disabled in time-lapse recording.
0When Time-Lapse recording is set, you cannot record still images.
Memo :
0Settings of time-lapse recording are reset when the power is turned off.
To start time-lapse recording again, it is necessary to make the selection
once more.
0Recording stops automatically 99 hours after it is started.
0Make use of a tripod and AC adapter for time-lapse recordings with long
intervals.
It is also recommended to fix the focus and white balance manually.
“Tripod Mounting” (A p. 17)
Recording
44
Recording with a Part of the Screen Enlarged
in Sub Screen (CLOSE-UP SUB-WINDOW)
Record with a portion of the screen enlarged and displayed in a sub screen.
This allows you to record the surrounding and the expression of the subject
at the same time.
1Open the LCD monitor.
.
A
0Check if the recording mode is A.
0If the mode is B still image, tap B on the recording screen to display
the mode switching screen.
Tap A to switch the mode to video.
2Tap “MENU”.
.
REC
≪PLAY
MENU
0The top menu appears.
3Tap “RECORD SETTING”.
.
OFF
TOP MENU
SETUP
CONNECTION
SETTING
RECORD
SETTINGS
4Tap “CLOSE-UP SUB-WINDOW”.
.
RECORD SETTING
0If the icon is not displayed on the screen, tap 1 to scroll the screen.
0Tap L to exit the menu.
0Tap J to return to the previous screen.
5Select and tap on the position to be displayed in the sub screen.
.
0:00:01 [5:56]
0:00:01 [5:56]
0Tap A to switch the position of sub screen between right and left.
0When the position to be displayed in the sub screen and the position
of the sub screen overlaps, the sub screen will be positioned at the
center.
6Start recording.
.
0Press the START/STOP button again to stop recording.
0Tap L to exit “CLOSE-UP SUB-WINDOW”.
(To perform operations other than recording, tap L to cancel the
“CLOSE-UP SUB-WINDOW” first.)
Caution :
0The sub screen is electronically enlarged from the normal screen display
so the image may appear grainy.
Recording
45
Using the Self-timer
You can record video or still image using the self-timer.
This is useful when taking a video or still image that includes the
photographer.
The 2-second self-timer is useful for preventing camera shake caused by
pressing the shutter button when taking a still image.
Memo :
0When shooting a photo using the self-timer function, use of a tripod is
recommended.
“Tripod Mounting” (A p. 17)
oUsing the Self-timer in Video Mode
1Open the LCD monitor.
.
A
0Check if the recording mode is A.
0If this unit is in the still image mode B, tap the D (video/still image)
button on the touch screen to display the mode switching screen.
Tap A to switch the mode to video.
2Tap “MENU”.
.
REC
≪PLAY
MENU
0The top menu appears.
3Tap “RECORD SETTING”.
.
OFF
TOP MENU
SETUP
CONNECTION
SETTING
RECORD
SETTINGS
4Tap “SELF-TIMER”.
.
RECORD SETTING
0If the icon is not displayed on the screen, tap 1 to scroll the screen.
0Tap L to exit the menu.
0Tap J to return to the previous screen.
5Tap “ON”.
.
ON
OFF
SELF-TIMER
6Press the START/STOP button.
.
0The countdown to recording appears and recording will start after 5
seconds.
0To stop the self-timer, press the recording button again.
Recording
46
oUsing the Self-timer in Still Image Mode
1Open the LCD monitor.
.
B
0Check if the recording mode is B.
0If the mode is A video, tap A on the recording screen to display the
mode switching screen.
Tap B to switch the mode to still image.
2Tap “MENU”.
.
MENU
MENU
≪PLAY
0The top menu appears.
3Tap “RECORD SETTING”.
.
OFF
TOP MENU
SETUP
CONNECTION
SETTING
RECORD
SETTINGS
4Tap “SELF-TIMER”.
.
RECORD SETTING
0If the icon is not displayed on the screen, tap 1 to scroll the screen.
0Tap L to exit the menu.
0Tap J to return to the previous screen.
5Tap “2SEC” or “10SEC”.
.
2SEC
10SECOFF
SELF-TIMER
6Take a still image.
0A timer appears and countdown to shooting starts.
0To stop the self-timer, press the START/STOP button again.
Memo :
0The START/STOP button on this unit cannot be used to adjust the focus
in advance. To adjust the focus in advance, press and hold the A button
on the touch screen until the focus is adjusted.
“Start recording after adjusting the focus” (A p. 23)
0While the countdown timer is displayed, the buttons cannot be used as
they are not displayed on the screen.
Recording
47
Recording at a Fixed Interval and Playing
Back Repeatedly
After recording for a specified duration, this unit automatically plays back the
scene and then repeats the recording process and the playback process
over and over again. This can be used to check a sports form or dance form.
The recorded scene can also be deleted automatically depending on the
setting.
1Open the LCD monitor.
.
A
0Check if the recording mode is A.
0If the mode is B still image, tap B on the recording screen to display
the mode switching screen.
Tap A to switch the mode to video.
2Tap “MENU”.
.
REC
≪PLAY
MENU
0The top menu appears.
3Tap “RECORD SETTING”.
.
OFF
TOP MENU
SETUP
CONNECTION
SETTING
RECORD
SETTINGS
4Tap “SELF-CHECK REC/PLAY”.
.
RECORD SETTING
0If the icon is not displayed on the screen, tap 1 to scroll the screen.
0Tap L to exit the menu.
0Tap J to return to the previous screen.
5Tap “SET”.
.
SELF-CHECK REC/PLAY
5(&25',1*7,0(㸸6(&
$872'(/(7(㸸2))
START SET
.
SET
RECORDING TIME
AUTO DELETE
RECORDING TIME 10 to 40 seconds (Can be set in 5-second interval.)
AUTO DELETE Off: The recorded video is retained.
On: The recorded video is deleted.
0Tap L to return to the previous screen.
0This operation is not necessary if you do not intend to change the
current setting displayed.
6Tap “START”.
0There is a 5 second countdown before recording starts at the
beginning of the operation only.
.
SELF-CHECK REC/PLAY
STOP
0When the recording starts, the color of the number changes and the
remaining number of seconds for recording is displayed.
.
SELF-CHECK REC/PLAY
STOP
0When recording is complete, playback starts automatically.
.
SELF-CHECK REC/PLAY
STOP
0When playback ends, the next recording starts automatically.
0Tap “STOP” to exit “SELF-CHECK REC/PLAY”.
Memo :
0The START/STOP button cannot be used during the “SELF-CHECK REC/
PLAY” operation.
Recording
48
Recording Videos with Date and Time
You can record videos together with the date and time.
Set this when you want to save the file with date and time display.
(The date and time cannot be deleted after recording.)
1Open the LCD monitor.
.
A
0Check if the recording mode is A.
0If the mode is B still image, tap B on the recording screen to display
the mode switching screen.
Tap A to switch the mode to video.
2Tap “MENU”.
.
REC
≪PLAY
MENU
0The top menu appears.
3Tap “RECORD SETTING”.
.
OFF
TOP MENU
SETUP
CONNECTION
SETTING
RECORD
SETTINGS
4Tap “DATE/TIME RECORDING”.
.
RECORD SETTING
0If the icon is not displayed on the screen, tap 1 to scroll the screen.
0Tap L to exit the menu.
0Tap J to return to the previous screen.
5Select the type of clock with 0 or 1, and tap “SET”.
.
SET
0When “SET” is tapped, the precaution for date/time recording
appears.
0Tap L to exit the menu.
6Tap the display position with your finger and drag your finger to adjust.
.
0Move the date and time display while touching it with your finger and
tracing it on a screen.
7Press the START/STOP button to start recording.
.
.
0Press the START/STOP button again to stop recording.
0Tap J to return to the screen for selecting the types of clock.
0Tap L to exit “DATE/TIME RECORDING”.
(To perform operations other than recording, tap L to cancel the
“DATE/TIME RECORDING” first.)
Caution :
0The date and time cannot be deleted after recording.
Recording
49
Recording Videos with Time Counter
You can take a video with a stopwatch recorded. You can start, stop and
reset the stopwatch as with any stopwatch.
This can be used to record sports video.
(The recorded time counter cannot be deleted afterward.)
1Open the LCD monitor.
.
A
0Check if the recording mode is A.
0If the mode is B still image, tap B on the recording screen to display
the mode switching screen.
Tap A to switch the mode to video.
2Tap “MENU”.
.
REC
≪PLAY
MENU
0The top menu appears.
3Tap “RECORD SETTING”.
.
OFF
TOP MENU
SETUP
CONNECTION
SETTING
RECORD
SETTINGS
4Tap “TIME COUNTER RECORDING”.
.
RECORD SETTING
0If the icon is not displayed on the screen, tap 1 to scroll the screen.
0Tap L to exit the menu.
0Tap J to return to the previous screen.
5Tap the display position with your finger and drag your finger to adjust.
.
0The position can be adjusted when the recording stops.
6Press the START/STOP button to start recording.
.
.
0Press the START/STOP button again to stop recording.
0Tap L to exit “TIME COUNTER RECORDING” when the recording
stops.
(To perform operations other than recording, tap L to exit the “TIME
COUNTER RECORDING” first.)
7Tap “E START” on the screen to start the counter.
.
0You can start the recording after the counter has been started.
0You can freely stop, reset or resume the counter during recording.
AE START/STOP Starts and stops the counter.
BRESET Sets the counter reading to 0:00:00.
Memo :
0If “TIME COUNTER RECORDING” is exited while the counter is still
running, the counter continues to count from where it left off the next time
“TIME COUNTER RECORDING” is operated.
0If 24 hours have elapsed since the counter started running or if the clock
has been set, the counter reading automatically returns to “0:00:00” and
the counter stops running.
0The recorded time counter cannot be deleted afterward.
Recording
50
Checking the Remaining Recording Time
Display the remaining battery power and the remaining recording time.
Memo :
0The remaining battery power and the remaining recording time are
estimates.
0The remaining recording time is displayed only during video mode.
0The remaining recording time is displayed for the recording media that is
currently selected.
1Open the LCD monitor.
.
≪PLAY
0Check that the camera is set to the recording mode. If the camera is
in the playback mode, click 3 to switch to recording mode.
2Tap “MENU”.
.
REC
≪PLAY
MENU
0The top menu appears.
3Tap C.
.
OFF
TOP MENU
SETUP
CONNECTION
SETTING
RECORD
SETTINGS
4Display the remaining recording time.
.
REMAINING BATTERY
MAX RECORDING TIME
FREE
0The remaining recording time is displayed only in the video recording
mode.
0The remaining recording time is displayed for the recording media
that is currently selected.
0O is displayed instead of the remaining battery power when the AC
adapter is connected.
0To exit the display, tap L.
Recording
51
Approximate Video Recording Time
Picture quality Built-in memory
32GB
UXP 2 h 40 m
XP 3 h 40 m
EP 13 h 30 m
60p 2 h 20 m
Picture quality SDHC/SDXC card
4GB 8GB 16GB 32GB 64GB 128GB
UXP 20 m 40 m 1 h 20 m 2 h 40 m 5 h 40 m 11 h 30 m
XP 30 m 1 h 1 h 50 m 3 h 50 m 8 h 10 m 16 h 20 m
EP 1 h 40 m 3 h 30 m 7 h 14 h 28 h 50 m 57 h 50 m
60p 15 m 35 m 1 h 10 m 2 h 30 m 5 h 10 h 10 m
0The recording time indicated above will change depending on the recording conditions.
0“UXP”, “XP”, “SP”, and “EP” can only be selected in the 60i mode (when “SYSTEM SELECT” is set to “60i”).
Approximate Number of Still Images (Unit: Number of Shots)
Image size Built-in memory SDHC/SDXC card
8GB 4GB 8GB 16GB 32GB 64GB
3680x2760(10M)(4:3) 1100 600 1300 2500 5100 9999
1920x1080(2M)(16:9) 5600 3100 6400 9999 9999 9999
1440x1080(1.5M)(4:3) 7400 4200 8400 9999 9999 9999
640x480(0.3M)(4:3) 9999 9999 9999 9999 9999 9999
0Still images that are captured during video recording or video playback are saved at a size of 1920 x 1080.
Approximate Duration of Built-in Battery
Actual recording time Continuous recording time
(Maximum Recording Time)
2 h 40 m 4 h 50 m
0The above are values when “LIGHT” is set to “OFF”, “MONITOR BRIGHTNESS” is set to “3” (standard), and “SYSTEM SELECT” is set to “60i”.
0The actual recording time is the recording time when operations such as starting/stopping recording, turning on/off the unit or zooming is performed
repeatedly.
0Recording time may differ depending on the shooting environment and usage.
0When the recording time becomes extremely short even when the battery is fully charged, the battery needs to be replaced. For details on replacing the
built-in battery (subject to a fee), consult the nearest JVC service center.
Recording
52
Playing Back Videos
The followings are the types of playback that can be performed by this unit.
Item Description
Normal
Playback
Plays back the recorded videos.
DIGEST
PLAYBACK
From the recorded video, scenes are extracted
automatically, pieced together for a digest playback
within the specified length.
Start playback from “DIGEST PLAYBACK” in the
“PLAYBACK SETTING” menu.
PLAYBACK
OTHER FILE
Videos with defective management information can be
played back.
Start playback from “PLAYBACK OTHER FILE” in the
“PLAYBACK SETTING” menu.
Caution :
0Make a backup of important recorded data.
It is recommended to copy your important recorded data to a BD or other
recording media for storage.
0This unit is a microcomputer-controlled device. Electrostatic discharge,
external noise and interference (from a TV, a radio, etc.) might prevent it
from functioning properly. In such a case, close the monitor screen to turn
off the power and remove the AC adapter, then press the Reset button to
reset this unit.
“Resetting this Unit” (A p. 5)
0When there are many files in the media, it may take time for them to be
displayed on the playback screen. Wait for a while as the POWER/
ACCESS lamp blinks, indicating normal operation.
0Disclaimer
- We shall not be held responsible for loss of recorded contents when
recording videos/audio or playback cannot be operated due to
malfunctions in this unit, provided parts, or SD card.
- Once deleted, recorded contents (data), including data loss due to
malfunctions in this unit, cannot be restored. Please be forewarned.
- JVC will not be responsible for any lost data.
- In order for quality improvement, defective recording medium is subject
to be analyzed. Therefore, it may not be returned.
Normal Playback
Plays back the recorded videos.
1Open the LCD monitor.
.
A
0Check if the recording mode is A.
0If the mode is B still image, tap B on the recording screen to display
the mode switching screen.
Tap A to switch the mode to video.
2Tap M to select the playback mode.
.
≪PLAY
REC MENU
3Tap the file (image).
.
≪REC
0Tap I/J to select the media for playback and change the index
screen (thumbnail display).
0L appears on the last image played back.
0Lines in different colors are displayed under the thumbnail display to
distinguish the recording date.
0Images recorded in 60p mode and 60i mode are displayed on the
index screen separately.
0To view the videos recorded in 60p mode, set “SYSTEM SELECT” in
the video recording menu to “60p” before setting to the playback
mode. And for operations such as Digest Playback, set “SYSTEM
SELECT” in the same way before performing the operation.
0To view the images recorded in 60i mode, set “SYSTEM SELECT” in
the video recording menu to “60i” before selecting the playback
mode. In cases such as during Digest Playback or when playing back/
editing a playlist, set “SYSTEM SELECT” in the same way before
operating.
4Playback starts.
0Tap e to pause.
0Tap u to return to the index screen.
Caution :
0While this unit may be used with the LCD monitor reversed and closed,
the temperature rises more easily. Do not use this unit with the LCD
monitor reversed and closed for long periods of time, or in places exposed
to direct sunlight or high temperatures.
0The power may turn off to protect the circuit if the temperature of this unit
rises too much.
Playback
53
Operation Buttons for Video Playback
During Index Screen Display
.
≪REC
Display Description
AA/BSwitches between video mode (60i/60p) and
still image mode.
B(Date and Time
Display)
Moves to the previous/next date
C> Displays the next index screen (thumbnail
display)
0You can perform the same operation with the
zoom lever.
D< Displays the previous index screen (thumbnail
display)
0You can perform the same operation with the
zoom lever.
E3Switches to the recording mode.
FRDisplays the index screen (thumbnail display)
to perform deletion
GI/JSwitches between the memories in which
images are recorded (I built-in memory/J
SD card)
HMENU Displays the menu screen
IThumbnail (File) Tap: Starts playback
Drag to right: Displays the file taken before the
recording date
Drag to left: Displays the file taken after the
recording date
Thumbnails with the same underlined color
indicate files with the same recording date.
During Video Playback
.
MENU
≪REC
0:01:23 0:12:34
0When this unit is not operated, the operation buttons on the touch screen
disappear automatically. Tap on the screen to display the operation
buttons again.
Display Description
AA/BSwitches between video and still image
modes.
B(Timeline Bar) Tap on a random position - Moves to the
tapped position
Drag playback point to the left or right - Starts
playback from the new position
Tap on a random position - Moves to the
tapped position
C(Pointer) Displays the current estimated playback
position within the scene
DASaves one scene of the video being played
back as a still image.
0Displayed while playback is paused.
EhReturns to the beginning of the scene Returns
to the previous scene if tapped at the beginning
of a scene.
0Allows the same functions as the zoom lever
to be performs while pausing playback.
Fj (during
playback)
Reverse search (speed increases with each
tap)
l (during pause
mode)
Reverse slow-motion / Press and hold to start
reverse slow playback
GdStarts playback
ePause
Hi (during
playback)
Forward search (speed increases with each
tap)
k (during pause
mode)
Forward slow-motion / Press and hold to start
slow playback
IgAdvances to the next scene
Je dSlow playback
0The speed can be set using “SLOW-
MOTION SPEED” (A p. 95) .
Playback
54
Display Description
KnSwitches the display between full (m) and
simple (n) with every tap of the button.
0Simple display: Some displays disappear
automatically when the screen is not
operated.
0Full display: Displays everything. The
display button changes from n to m.
0When the power is turned off, the display
setting will revert to simple display (n).
L3Switches to the recording mode.
cuStop (returns to index screen)
dRDeletes the currently displayed video.
e2Enlarges the displayed video.
0Tap the position of the image you want to
enlarge.
0Zoom ratio changes by using the (+) and (-)
buttons.
fMENU Displays the menu screen
Memo :
0Tap or drag on the operation area of the touch screen.
0The recording date and time can be displayed on the screen during
playback.
(A p. 95)
Adjusting the Volume of Videos
You can use the zoom/volume lever to control the volume.
.
T
W
VOL.
＋
Turn up the volume
Turn down the volume
Playback
55
Checking the Recording Date and Other Information
You can see the recording information of the recorded videos.
1Open the LCD monitor.
.
A
0Tap A or B to select the video or still image mode.
2Tap M to select the playback mode.
.
≪PLAY
REC MENU
3Tap on the file to start playback.
.
≪REC
4Tap “MENU”.
.
MENU
≪REC
0:01:23 0:12:34
5Tap C.
.
OFF
TOP MENU
SETTING
PLAYBACK
EDIT
SETTINGS
CONNECTION
SETUP
0Tap L to exit the menu.
You can display the recording date and duration of the selected file.
.
00:10:00
:
:
:
:
PROTECT
QUALITY
PB TIME
DATE/TIME
OFF
Playback
56
TIME COUNTER PLAYBACK
A time counter that can be reset can be displayed during playback.
This can be used to play sports video.
1Open the LCD monitor.
.
A
0Check if the recording mode is A.
0If the mode is B still image, tap B on the recording screen to display
the mode switching screen.
Tap A to switch the mode to video.
2Tap M to select the playback mode.
.
≪PLAY
REC MENU
3Tap “MENU”.
.
≪REC
4Tap “PLAYBACK SETTING”.
.
OFF
TOP MENU
SETTING
PLAYBACK
EDIT
SETTINGS
CONNECTION
SETUP
5Tap “TIME COUNTER PLAYBACK”.
.
PLAYBACK SETTING
TIME COUNTER PLAYBACK
6Set “TIME COUNTER PLAYBACK” to ON.
.
TIME COUNTER PLAYBACK
ON
OFF
7Tap on the file to start playback.
.
≪REC
PLAY
0An hours:minutes:seconds counter appears.
8Pause the playback and reset the counter.
.
MENU
≪REC
0:01:23 0:12:34
RESET
Button
Display
Button
0Tapping “RESET” sets the counter reading to “0:00:00”.
0The 1/10 second digit is displayed while playback is paused.
0The counter can also be reset during normal playback and slow
playback.
Memo :
0To reset the counter during playback, switch to full display using the
“Display Buttonn” (A p. 21) button.
0To reset the counter at the precise position, it is recommended to pause
the playback then tap “RESET”.
0When the unit switches to the next scene, the counter is automatically
reset.
Playback
57
DIGEST PLAYBACK
You can play back a digest of recorded videos (Digest Playback).
This is useful for checking the content of videos quickly.
1Open the LCD monitor.
.
A
0Check if the recording mode is A.
0If the mode is B still image, tap B on the recording screen to display
the mode switching screen.
Tap A to switch the mode to video.
2Tap M to select the playback mode.
.
≪PLAY
REC MENU
3Tap “MENU”.
.
≪REC
4Tap “PLAYBACK SETTING”.
.
OFF
TOP MENU
SETTING
PLAYBACK
EDIT
SETTINGS
CONNECTION
SETUP
5Tap “DIGEST PLAYBACK”.
.
DIGEST PLAYBACK
PLAYBACK SETTING
6Tap to select a date for Digest Playback.
.
NEXT
SELECT DATE
0After selecting a date, tap “NEXT”.
0When “ALL” is tapped, Digest Playback will be performed for all the
dates.
0Tap L to exit the menu.
0Tap J to return to the previous screen.
7Select the Digest Playback time
(Only when “AUTO” is selected in Step 7)
.
2h21m
≪REC
1 min
1 min
1 min 5 min
5 min
5 min 15 min
15 min
15 min 45 min
45 min
45 min
3 min
3 min
10 min
10 min
30 min
30 min
60 min
60 min
3 min 10 min 30 min 60 min
DIGEST TIME
0Select the Digest Playback time in minutes (min).
0The time display of Digest Playback varies according to the recording
time.
0When it takes time (more than 2 seconds) for “DIGEST PLAYBACK”
to start after selecting Digest Playback time, a progress status will be
displayed.
0The Digest Playback time is only a guide.
8Digest Playback starts.
.
MENU
≪REC
DIGEST
0:01:23 0:12:34
0Tap e to pause.
0Tap u to return to the index screen.
0Tap “DIGESTL“ to return to the normal playback screen.
0Operations During Video Playback
“Operation Buttons for Video Playback” (A p. 54)
9Digest playback stops automatically, or display the next screen by
tapping “MENU”.
.
TO NORMAL PLAYBACK
PLAYBACK AGAIN
SELECT DATE
0TO NORMAL PLAYBACK: start normal playback.
0PLAYBACK AGAIN: start the digest playback again.
0SELECT DATE: return to step 6.
Playback
58
PLAYBACK OTHER FILE
The management information of a video may be damaged if recording is not
performed correctly, such as turning off the power in the middle of recording.
You can perform the following operations to play back the videos with
defective management information.
1Open the LCD monitor.
.
A
0Check if the recording mode is A.
0If the mode is B still image, tap B on the recording screen to display
the mode switching screen.
Tap A to switch the mode to video.
2Tap M to select the playback mode.
.
≪PLAY
REC MENU
3Tap “MENU”.
.
≪REC
4Tap “PLAYBACK SETTING”.
.
OFF
TOP MENU
SETTING
PLAYBACK
EDIT
SETTINGS
CONNECTION
SETUP
5Tap “PLAYBACK OTHER FILE”.
.
PLAYBACK SETTING
PLAYBACK OTHER FILE
6Tap on the file to start playback.
.
MENU
≪REC
“Operation Buttons for Video Playback” (A p. 54)
0Tap “L” to return to the usual index screen.
Memo :
0An MTS file is created in the EXTMOV folder when management
information is corrupted.
0Depending on the condition of the damaged file, playback might fail or
may not run smoothly.
Playback
59
Playing Back Still Images
You can select and play back the recorded still images from an index screen
(thumbnail display).
1Open the LCD monitor.
.
B
0Check if the recording mode is B.
0If the mode is A video, tap A on the recording screen to display the
mode switching screen.
Tap B to switch the mode to still image.
2Tap M to select the playback mode.
.
MENU
MENU
≪PLAY
3Tap on the file to start playback.
.
MENU
≪REC
0Tap I/J to select the media for playback and change the index
screen (thumbnail display).
0Tap u to return to the index screen.
0L appears on the last image played back.
0Lines in different colors are displayed under the thumbnail display to
distinguish the recording date.
Operation Buttons for Still Image Playback
During Index Screen Display
.
MENU
≪REC
0Still images that are recorded continuously in high-speed or medium-
speed will be grouped together. Only the first recorded file (still image) is
shown and the group is displayed with a green frame.
Display Description
AA/BSwitches between video and still image
modes.
B(Date and Time
Display)
Moves to the previous/next date
C> Displays the next index screen (thumbnail
display)
0You can perform the same operation with the
zoom lever.
D< Displays the previous index screen (thumbnail
display)
0You can perform the same operation with the
zoom lever.
E3Switches to the recording mode.
FRDisplays the index screen (thumbnail display)
to perform deletion
GI/JSwitches between the index screen of the built-
in memory and SD card
HMENU Displays the menu screen
IFile (Still Image) Tap on thumbnail - Starts playback
Drag to right - Scrolls to the right to show the
previous index screen (thumbnail display)
Drag to left - Scrolls to the left to show the next
index screen (thumbnail display)
Playback
60
During Still Image Playback
.
≪REC MENU
0When this unit is not operated, the operation buttons on the touch screen
disappear automatically. Tap on the screen to display the operation
buttons again.
Display Description
AVideo/Still Image
Mode
A/B
Switches between video and still image
modes.
BhReturns to the previous still image
0You can perform the same operation with the
zoom lever.
Cd / eStarts/pauses slideshow
DgAdvances to the next still image
0You can perform the same operation with the
zoom lever.
E3Switches to the recording mode.
FuReturns to index screen
GRDeletes the currently displayed still image.
H2Playback Zoom Enlarges the displayed video.
0Tap the position of the image you want to
enlarge.
0Zoom ratio changes by using the (+) and (-)
buttons.
IMENU Displays the menu screen
Memo :
0Tap or drag on the operation area of the touch screen.
Caution :
0This unit is a microcomputer-controlled device. Electrostatic discharge,
external noise and interference (from a TV, a radio, etc.) might prevent it
from functioning properly. In such a case, close the monitor screen to turn
off the power and remove the AC adapter, then press the Reset button to
reset this unit.
“Resetting this Unit” (A p. 5)
Slideshow Playback
Still images can be played back in a slideshow.
Tap I during still image playback to start the slideshow.
.
≪REC MENU
“Operation Buttons for Still Image Playback” (A p. 60)
Memo :
0Effects can be added to the transitions in slideshow playback.
“ SLIDE SHOW EFFECTS ” (A p. 97)
Playback
61
Connecting to and Viewing on TV
You can connect this unit to a TV for playback. The image quality on TV
varies with the type of TV and the connecting cable. Select the connector
that best suits your TV.
0Refer also to the instruction manual of the TV in use.
“Connecting via the HDMI Mini Connector” (A p. 62)
“Connecting via the AV Connector” (A p. 64)
0To display the date and time on TV, set both “DISPLAY DATE/TIME” and
“DISPLAY ON TV” to “ON”.
(A p. 95)
“ DISPLAY ON TV ” (A p. 102)
Unnatural Displays on TV
Trouble Action
Images do not
appear on the TV
properly.
0Disconnect the cable and connect again.
0Turn off and on this unit again.
0Images may not appear properly when the
remaining battery power is low. Use an AC
adapter.
Images are
projected vertically
on the TV.
0Set “VIDEO OUTPUT” in the “CONNECTION
SETTINGS” menu to “4:3”.
“ VIDEO OUTPUT ” (A p. 102)
Images are
projected
horizontally on the
TV.
0Adjust the TV's screen accordingly.
The color of images
looks strange.
0Adjust the TV's screen accordingly.
HDMI-CEC
functions do not
work properly, and
the TV does not
work in conjunction
with this unit.
0TVs may operate differently depending on the
specifications, even if they are HDMI-CEC
compliant. Therefore, the HDMI-CEC functions
of this unit cannot be guaranteed to operate in
combination with all the TVs. In such cases, set
“HDMI CONTROL” to “OFF”.
“ HDMI CONTROL ” (A p. 102)
The language on
the display
changed.
0It may occur when you connect this unit to a TV
with different language setting using an HDMI
mini cable.
Caution :
0Turn off this unit and the TV before making any connection.
0Before inserting or removing the SD card, close the LCD monitor and
ensure that the POWER/ACCESS lamp goes off.
Connecting via the HDMI Mini Connector
If you are using an HDTV, you can play back in HD quality by connecting to
the HDMI mini connector.
“Optional Accessories” (A p. 19)
0Use a High Speed HDMI mini cable as the HDMI mini cable when not using
the provided one.
0Refer also to the instruction manual of the TV in use.
1Connect to a TV.
.
TV
HDMI Mini Cable (Provided)
HDMI Connector Input
To HDMI Mini Connector
2Connect the adapter cable and AC adapter to this unit.
.
To USB Connector
Adapter Cable
(Provided)
AC Adapter
(Provided)
AC Adapter To
AC Outlet(AC
100 V to 240 V)
3Open the LCD monitor.
.
0The unit turns on automatically.
4Press the external input button on the TV to switch to the input from this
unit via the connected connector.
.
External Input
External Input
Playback
62
5Play back a file.
.
≪REC
“Playing Back Videos” (A p. 53)
“Playing Back Still Images” (A p. 60)
Memo :
0Change the settings in “HDMI OUTPUT” according to the connection.
“ HDMI OUTPUT ” (A p. 102)
0When connected to the TV via the HDMI mini cable, images and sounds
may not be output properly depending on the TV connected.
In such cases, perform the following operations.
1) Disconnect the HDMI mini cable and connect it again.
2) Turn off and on this unit again.
0For questions about the TV or method of connection, contact your TV's
manufacturer.
Operating in Conjunction with TV via HDMI
Connecting this unit to an HDMI-CEC enabled TV using the HDMI mini cable
allows linked operations with the TV to be performed.
0HDMI-CEC (Consumer Electronics Control) is an industry standard that
enables interoperability between HDMI-CEC compliant devices that are
connected via HDMI cables.
Memo :
0Not all HDMI control devices comply with the HDMI-CEC standard. The
HDMI control function of this unit will not work when connected to these
devices.
0This unit is not guaranteed to operate with all HDMI-CEC enabled devices.
0Depending on the specifications of each HDMI-CEC enabled device,
some functions may not work with this unit. (For details, refer to the
instruction manual of your TV.)
0Unintended operations may occur with some connected devices. In these
cases, set “HDMI CONTROL” to “OFF”.
“ HDMI CONTROL ” (A p. 102)
Preparations
0Connect an HDMI mini cable between this unit and the TV.
“Connecting via the HDMI Mini Connector” (A p. 62)
0Turn on the TV and set the HDMI-CEC related setting to “ON”. (For details,
refer to the instruction manual of the TV.)
0Set “HDMI CONTROL” in the CONNECTION SETTINGS menu to “ON”.
“ HDMI CONTROL ” (A p. 102)
Operation Method 1
1Turn on this unit.
2Select the playback mode.
3Connect the HDMI mini cable.
0TV turns on automatically and switches to HDMI input mode when
this unit is turned on.
Operation Method 2
1Turn off the TV.
0This unit turns off automatically.
Memo :
0Depending on the TV connected, the display language of this unit will
automatically switch to the language that is selected for the TV when this
unit is turned on.
(This is applicable only if this unit supports the language selected for the
TV.) To use this unit with a language that differs from the display language
of the TV, set “HDMI CONTROL” to “OFF”.
0The display language of the TV will not switch automatically, even if the
display language of this unit is changed.
0These functions may not work correctly when devices such as amplifier
and selector are connected. Set “HDMI CONTROL” to “OFF”.
0If HDMI-CEC does not work properly, turn off and on this unit again.
Playback
63
Connecting via the AV Connector
To playback videos on TV, connect the AV cable (provided: E3A-0085-00)
to the AV terminal of this unit.
0Refer also to the instruction manual of the TV in use.
1Connect to a TV.
.
Audio Input (R)
Audio Input (L)
Video Input
TV
Red
White
Ye l l o w
AV Cable
(E3A-0085-00)
(Provided)
AV Input
To AV Connector
2Connect the adapter cable and AC adapter to this unit.
.
To USB Connector
Adapter Cable
(Provided)
AC Adapter
(Provided)
AC Adapter To
AC Outlet(AC
100 V to 240 V)
3Open the LCD monitor.
.
0The unit turns on automatically.
4Press the external input button on the TV to switch to the input from this
unit via the connected connector.
.
External Input
External Input
5Play back a file.
.
≪REC
“Playing Back Videos” (A p. 53)
“Playing Back Still Images” (A p. 60)
Memo :
0For questions about the TV or method of connection, contact your TV's
manufacturer.
0AV cable (provided: E3A-0085-00)
Wiring specifications (for video/audio) of the 4-pole mini plug are described
in the following.
To purchase, consult your nearest JVC dealer or JVC service center.
.
Audio (Lch: white)
Audio (Rch: red)
Ground
Video (yellow)
0When using the provided AV cable, attach the core filter provided with this
unit first.
“Attaching the Core Filter” (A p. 8)
Playback
64
Deleting Unwanted Files
Delete unwanted videos and still images when the space in the recording
media is running out.
Doing so frees up more space in the recording media.
“Deleting the Currently Displayed File” (A p. 65)
“Deleting Selected Files” (A p. 65)
Memo :
0Deleted files cannot be restored.
0Files that are protected cannot be deleted.
Release protection before deleting the file.
“Protecting Files” (A p. 66)
0Be sure to back up important files on a computer.
“Backing Up All Files” (A p. 80)
Deleting the Currently Displayed File
Deletes the currently displayed file.
Caution :
0Deleted files cannot be restored.
1Tap R.
.
MENU
≪REC
0:01:23 0:12:34
0While the video mode is shown in the image, the same operations
apply for the still image mode.
2Tap “YES”.
.
NOYES
(REMAINING SCENES: 0030)
DELETE?
0Tap h / g to select the previous or next file.
0When no file remains, the screen returns to the index screen.
Deleting Selected Files
Deletes the selected files.
Caution :
0Deleted files cannot be restored.
1Open the LCD monitor.
.
A
0Tap A or B to select the video or still image mode.
0Tap B or A on the recording screen to display the mode switching
screen.
Tap A to switch to the video mode A.
Tap B to switch to the still image mode B.
2Tap M to select the playback mode.
.
REC
≪PLAY
MENU
0While the video mode is shown in the image, the same operations
apply for the still image mode.
3Tap R.
.
≪REC
4Tap on the files to delete.
.
QUIT
SET
REL ALL
SEL ALL
DELETE
0P appears on the selected files.
To remove P from a file, tap on the file again.
0Tap “SEL ALL” to select all files.
0Tap “REL ALL” to release all selections.
Editing
65
5Tap “SET”.
.
QUITSET
REL ALLSEL ALL
DELETE
0If no file is selected, the “SET” button cannot be pressed.
6Tap “EXECUTE” to confirm the deletion.
.
RETURN
EXECUTE
DELETE?
(REMAINING SCENES: 0030)
STOP
0After deleting is complete, tap “OK”.
0To cancel the deletion, tap “QUIT”.
Protecting Files
Prevent important videos/still images from being deleted accidently by
protecting them.
“Protecting/Releasing Protection of the Currently Displayed File”
(A p. 66)
“Protecting/Releasing Protection of Selected Files” (A p. 67)
Caution :
0When the recording media is formatted, even the protected files will be
deleted.
Protecting/Releasing Protection of the Currently Displayed
File
Protects or releases protection of the currently displayed file.
1Tap “MENU”.
.
MENU
≪REC
0:01:23 0:12:34
0While the video mode is shown in the image, the same operations
apply for the still image mode.
2Tap “EDIT”.
.
OFF
TOP MENU
SETTING
PLAYBACK
EDIT
SETTINGS
CONNECTION
SETUP
3Tap “PROTECT/CANCEL”.
.
PROTECT/CANCEL
EDIT
4Tap “YES”.
.
PROTECT?
NO
YES
0Tap h / g to select the previous or next file.
0After setting, tap “OK”.
Editing
66
Protecting/Releasing Protection of Selected Files
Protects or releases protection of the selected files.
1Open the LCD monitor.
.
A
0Tap A or B to select the video or still image mode.
0Tap B or A on the recording screen to display the mode switching
screen.
Tap A to switch to the video mode A.
Tap B to switch to the still image mode B.
2Tap M to select the playback mode.
.
REC
≪PLAY
MENU
0While the video mode is shown in the image, the same operations
apply for the still image mode.
3Tap “MENU”.
.
≪REC
4Tap “EDIT”.
.
OFF
TOP MENU
SETTING
PLAYBACK
EDIT
SETTINGS
CONNECTION
SETUP
5Tap “PROTECT/CANCEL”.
.
PROTECT/CANCEL
EDIT
6Tap on the files to protect or release protection of.
.
SETREL ALL
SEL ALL
PROTECT/CANCEL
0P appears on the selected files.
To remove P from a file, tap on the file again.
0I and P are displayed on the files that are already protected.
To release protection of a file, tap on the file such that P is removed.
0Tap “SEL ALL” to select all files.
0Tap “REL ALL” to release all selections.
7Tap “SET” to complete the setting.
.
SETREL ALLSEL ALL
PROTECT/CANCEL
0Protect marks I appear on the selected files.
Protect marks I disappear from the deselected files.
Editing
67
Capturing a Still Image in the Video During
Playback
You can capture still images of the scenes you like in the recorded videos.
1Open the LCD monitor.
.
A
0Check if the recording mode is A.
0If the mode is B still image, tap B on the recording screen to display
the mode switching screen.
Tap A to switch the mode to video.
2Tap M to select the playback mode.
.
≪PLAY
REC MENU
3Tap on the desired video.
.
≪REC
4Tap pause e at the desired scene during playback.
.
MENU
≪REC
0:01:23 0:12:34
0After pausing the video, you can fine-tune the point to capture by
tapping forward slow-motion k and reverse slow-motion l.
5Tap the A button.
.
MENU
≪REC
0:01:23 0:12:34
Memo :
0Still images are captured with a size of 1920×1080.
0Captured still images are stored in the media where the video is being
played back from.
Editing
68
Combining Videos Recorded by Seamless
Recording
Videos that are recorded on two separate media and with “SEAMLESS
RECORDING” in the video recording menu enabled can be combined into
a single video.
“ SEAMLESS RECORDING ” (A p. 90)
1Open the LCD monitor.
.
A
0Check if the recording mode is A.
0If the mode is B still image, tap B on the recording screen to display
the mode switching screen.
Tap A to switch the mode to video.
2Tap M to select the playback mode.
.
≪PLAY
REC MENU
3Tap “MENU”.
.
≪REC
4Tap “EDIT”.
.
OFF
TOP MENU
SETTING
PLAYBACK
EDIT
SETTINGS
CONNECTION
SETUP
5Tap “SEAMLESS REC CTRL”.
.
SEAMLESS REC CTRL
EDIT
6Tap “COMBINE SCENES”.
.
COMBINE SCENES
SEAMLESS REC CTRL
0This unit starts a search to detect seamless videos.
Combining cannot be performed if no seamless videos are found.
7Tap “YES”.
.
NOYES
COMBINE WITH THIS SCENE?
THE ABOVE SCENE IS FOUND
8Tap the media to store to.
.
SD CARDBUILT-IN MEMORY
THE COMBINED SCENES
SELECT THE MEDIA TO STORE
9Tap “YES”.
.
NOYES
START COMBINING THE SCENES?
0Combining of the videos starts.
0After videos are combined, tap “OK”.
Memo :
0Seamless videos cannot be combined if there is not enough free space in
the built-in memory or SD card. Check the amount of remaining free space
before combining.
How to Enable Seamless Video Recording Again
To start seamless recording again after the previous session is complete, it
is necessary to combine seamless videos, or delete the combination
information of the seamless videos.
To delete the combination information of seamless videos, select “DEL
COMBINED SCENES” in step 6.
Editing
69
Capturing a Required Part in the Video
(TRIMMING)
Select the required part of a video and save it as a new video file.
0The original video remains in its existing location.
1Open the LCD monitor.
.
A
0Check if the recording mode is A.
0If the mode is B still image, tap B on the recording screen to display
the mode switching screen.
Tap A to switch the mode to video.
2Tap M to select the playback mode.
.
≪PLAY
REC MENU
3Tap “MENU”.
.
≪REC
4Tap “EDIT”.
.
OFF
TOP MENU
SETTING
PLAYBACK
EDIT
SETTINGS
CONNECTION
SETUP
5Tap “TRIMMING”.
.
TRIMMING
EDIT
6Tap the video to edit.
.
QUIT
TRIMMING
7Tap e to pause playback at the desired start point, then tap “A”.
.
0:01:23 0:12:34
QUIT
TRIMMING
0When “A” is tapped, the start point is set.
0After setting the start point, tap d to continue playback.
8Tap e to pause playback at the desired end point, then tap “B”.
.
0:01:23
A 0:00:23
0:12:34
QUIT
TRIMMING
0When “B” is tapped, the end point is set.
0To reset the start or end point, tap “A” or “B” at the desired scene
(position).
0You can fine adjust the position by pressing l and k while
playback is paused.
9Tap “SET”.
.
0:01:23
A 0:00:23 B 0:12:34
0:12:34
QUIT
SET
TRIMMING
0When “SET” is tapped, the trimming area is confirmed.
10 Tap “YES”.
.
NOYES
SPECIFIC AREA?
DO YOU WANT TO CAPTURE A
0After copying, tap “OK”.
0When copying finishes, the copied file is added to the index screen.
Memo :
0The division point may deviate slightly from the selected scene.
Editing
70
Dubbing Files to a Disc by Connecting to a
Blu-ray Recorder
You can dub videos in the high definition quality by connecting an AVCHD-
compliant Blu-ray recorder to this unit via a USB cable. For details on creating
the disc, refer to the instruction manual of your Blu-ray recorder.
0This operation cannot be completed if the remaining battery power is not
enough. Charge the battery fully first.
1Open the terminal cover.
2Connect to a Blu-ray recorder.
0Connect using the USB cable provided with this unit.
0Before making any connection, close the LCD monitor to turn off this
unit.
.
Blu-ray Recorder
USB Cable
(Provided) USBUSB
3Open the LCD monitor.
.
0This unit turns on and the “SELECT DEVICE” screen appears.
4Tap “CONNECT TO OTHER”.
.
CONNECT TO OTHER
TYPE TO CONNECT
SELECT DEVICE
SELECT DEVICE
5Tap the desired media.
.
SD CARDBUILT-IN MEMORY
SELECT MEDIA TO OPEN
CONNECT TO OTHER
0The following screen is displayed after the camera operation is
completed.
.
CONNECT TO OTHER
SD CARD
0Operations are to be performed on the Blu-ray recorder after the
screen switches.
6Perform dubbing on the Blu-ray recorder.
0Refer also to the instruction manual of the Blu-ray recorder.
0After dubbing is complete, close the LCD monitor of this unit and
check that the POWER/ACCESS lamp goes off before disconnecting
the USB cable. Operations cannot be performed on this unit until the
USB cable is disconnected.
Copying
71
Copying Files to an SD Card
You can copy videos and still images from the built-in memory to SD card.
Copying still images to cards makes it convenient to bring them to the shop
for printing (developing).
0This operation cannot be completed if the remaining battery power is not
enough. Charge the battery fully first.
Caution :
0Make sure that there is enough space left in the destination medium.
0Videos in the SD card cannot be copied to the built-in memory.
1Open the LCD monitor.
.
A
0Tap A or B to select the video or still image mode.
2Tap M to select the playback mode.
.
REC
≪PLAY
MENU
0The mode changes between recording and playback with every tap.
3Tap “MENU”.
.
≪REC MENU
4Tap “EDIT”.
.
OFF
TOP MENU
SETTING
PLAYBACK
EDIT
SETTINGS
CONNECTION
SETUP
5Tap “COPY”.
.
EDIT
COPY
6Tap on the files to copy.
.
QUIT
SETREL ALL
SEL ALL
QUANTITY:0030
0P appears on the selected files.
To remove P from a file, tap on the file again.
0Tap “SEL ALL” to select all files.
0Tap “REL ALL” to release all selections.
7Tap “SET”.
.
QUITSET
REL ALL
SEL ALL
QUANTITY:0030
0“SET” is deactivated when no file is selected.
8Tap “YES”.
.
NOYES
START COPY?
COPY QUANTITY:30
COPY VIDEO
0Copying starts.
0After copying, tap “OK”.
Copying
72
Copying to Windows PC
You can copy files to a computer using the provided software.
Discs can also be created using the computer’s DVD or Blu-ray drive.
If the provided software is not installed, this unit will be recognized as an external storage when connected.
Memo :
0To record to discs, a recordable DVD or Blu-ray drive is required for the computer in use.
0To create DVD-Video discs using the provided software, it is necessary to install the additional software (software for creating DVD-Video).
For details, refer to the Pixela homepage.
http://www.pixela.co.jp/oem/jvc/mediabrowser/e/
0Backing up of files using other softwares is not supported.
Trouble with Using the Provided Software Everio MediaBrowser 4
Consult the customer service center below.
0Pixela User Support Center
Telephone USA and Canada (English): +1-800-458-4029 (toll-free)
Europe (UK, Germany, France, and Spain)
(English):+800-1532-4865 (toll-free)
Other Countries in Europe
(English):+44-1489-564-764
Asia (Philippines) (English): +63-2-438-0090
Homepage http://www.pixela.co.jp/oem/jvc/mediabrowser/e/
0For details on how to use the software, refer to “MediaBrowser Help” in the “Help” menu of Everio MediaBrowser 4.
.
Verifying System Requirements (Guideline)
Windows 10
1Right-click the “start button”, then select and click “System”.
.
2Check the items with the table below.
.
0If a “This PC” icon is shown on desktop, right-click the icon and select “Properties” in the menu to display your computer information.
Copying
73
Windows 8/Windows 8.1
1Display “Apps”.
(For Windows 8) Click the “Search” charm.
(For Windows 8.1) Click F.
.
㩷
2Right-click “Computer” or “PC” in the “Windows System Tool” menu to select the checkbox.
.
3Click “Properties” on the bottom bar to display.
.
0If a “Computer” icon is shown on desktop, right-click the icon and select “Properties” in the menu to display your computer information.
Copying
74
Windows 7
1Click the start button.
.
2Right-click Computer.
.
3Click “Properties”.
.
Copying
75
4Check the items with the table below.
.
Windows 10/Windows 8/Windows 8.1 Windows 7
OS Windows 10 64-bit
Windows 10 Home or Windows 10 Pro
(Pre-installed versions, desktop mode only)
Windows 8 64-bit
Windows 8 or Windows 8 Pro
(Pre-installed versions, desktop mode only)
Windows8.1 64-bit
Windows8.1 or Windows8.1 Pro
(Pre-installed versions, desktop mode only)
Windows 7 32/64-bit
Home Premium
(Pre-installed versions only) Service Pack 1
CPU Intel Core Duo, CPU 1.66 GHz or higher
(Intel Core 2 Duo, CPU 2.13 GHz or higher recommended)
Intel Core Duo, CPU 1.66 GHz or higher
(Intel Core 2 Duo, CPU 2.13 GHz or higher recommended)
RAM At least 2 GB At least 2 GB
Video editing Intel Core i7, CPU 2.53 GHz or higher recommended Intel Core i7, CPU 2.53 GHz or higher recommended
oOther requirements
Display: 1024×768 pixels or above (1280×1024 pixels or above recommended)
Graphic: Intel G965 or higher recommended
Memo :
0If your PC does not meet the above system requirements, operations of the provided software cannot be guaranteed.
0For more information, contact your PC's manufacturer.
Copying
76
Installing the Provided Software (Built-in)
You can display the recorded images in calendar format and perform editing
using the provided software.
0This operation cannot be completed if the remaining battery power is not
enough. Charge the battery fully first.
Preparations
Connect this unit to a computer with a USB cable.
oWindows 10
1Open the terminal cover.
2Connect to your PC using the provided USB cable.
0Before connecting the cable, close the LCD monitor to turn off this
unit.
.
To USB
Connector
To USB
Connector
Computer
3Open the LCD monitor.
.
0This unit turns on and the “SELECT DEVICE” menu appears.
4Tap “CONNECT TO PC”.
.
CONNECT TO PC
TYPE TO CONNECT
SELECT DEVICE
SELECT DEVICE
5Tap “PLAYBACK ON PC”.
.
PLAYBACK ON PC
CONNECT TO PC
0Disconnect the USB cable to return to the recording or playback
screen.
0“Everio Software Setup” appears on the computer.
Operations are to be performed on the computer after the screen
switches.
6Perform the following operations on your computer.
AOpen the “Start menu”, then click “All apps”.
.
BClick “This PC” in the “Windows System” menu.
.
0If a “This PC” icon is shown on desktop, double-click the icon to open “This
PC”.
CDouble-click the “JVCCAM_APP” icon in “Devices and drives”.
.
DDouble-click “install (or Install.exe)”.
.
EClick “Yes” on the User Account Control screen.
0“Software Setup” appears after a while.
7Click “Everio MediaBrowser 4”.
.
0Follow the on-screen instructions to finish the installation.
Copying
77
8Click “Finish”.
.
9Click “Quit”.
.
0Installation is complete, and two icons are created on the desktop.
10 Remove this unit from your PC.
“Disconnecting this Unit from Computer” (A p. 81)
Memo :
0If “Everio Software Setup” doesn’t appear, double-click “JVCCAM_APP”
in “My Computer” or “Computer”, then double-click “install (or Install.exe)”.
0If the auto play dialog box appears, select “Open folder to view files” and
click “OK”. Then, click “install (or Install.exe)” in the folder.
oWindows 8/Windows 8.1
1Open the terminal cover.
2Connect to your PC using the provided USB cable.
0Before connecting the cable, close the LCD monitor to turn off this
unit.
.
To USB
Connector
To USB
Connector
Computer
3Open the LCD monitor.
.
0This unit turns on and the “SELECT DEVICE” menu appears.
4Tap “CONNECT TO PC”.
.
CONNECT TO PC
TYPE TO CONNECT
SELECT DEVICE
SELECT DEVICE
5Tap “PLAYBACK ON PC”.
.
PLAYBACK ON PC
CONNECT TO PC
0Disconnect the USB cable to return to the recording or playback
screen.
0“Everio Software Setup” appears on the computer.
Operations are to be performed on the computer after the screen
switches.
6Perform the following operations on your computer.
ADisplay “Apps”.
(For Windows 8) Click the “Search” charm.
(For Windows 8.1) Click F.
.
㩷
BClick “Computer” or “PC” in the “Windows System Tool” menu.
.
0If a “Computer” icon is shown on desktop, double-click the icon to open
“Computer”.
CDouble-click the “JVCCAM_APP” icon in “Devices with Removable
Storage”.
.
DDouble-click “install (or Install.exe)”.
.
EClick “Yes” on the User Account Control screen.
0“Software Setup” appears after a while.
Copying
78
7Click “Everio MediaBrowser 4”.
.
0Follow the on-screen instructions to finish the installation.
8Click “Finish”.
.
9Click “Quit”.
.
0Installation is complete, and two icons are created on the desktop.
10 Remove this unit from your PC.
“Disconnecting this Unit from Computer” (A p. 81)
Memo :
0If “Everio Software Setup” doesn’t appear, double-click “JVCCAM_APP”
in “My Computer” or “Computer”, then double-click “install (or Install.exe)”.
0If the auto play dialog box appears, select “Open folder to view files” and
click “OK”. Then, click “install (or Install.exe)” in the folder.
oWindows 7
1Open the terminal cover.
2Connect to your PC using the provided USB cable.
0Before connecting the cable, close the LCD monitor to turn off this
unit.
.
To USB
Connector
To USB
Connector
Computer
3Open the LCD monitor.
.
0This unit turns on and the “SELECT DEVICE” menu appears.
4Tap “CONNECT TO PC”.
.
CONNECT TO PC
TYPE TO CONNECT
SELECT DEVICE
SELECT DEVICE
5Tap “PLAYBACK ON PC”.
.
PLAYBACK ON PC
CONNECT TO PC
0“Everio Software Setup” appears on the computer.
Operations are to be performed on the computer after the screen
switches.
6Perform the following operations on your computer.
AClick “Open folder to view files” on the auto play dialog box, and then
double-click “install.exe”.
BClick “Yes” on the User Account Control screen.
.
0“Software Setup” appears after a while.
0If it doesn’t appear, double-click “JVCCAM_APP” in “Computer” or “My
Computer”, then double-click “install.exe”.
Copying
79
7Click “Everio MediaBrowser 4”.
.
0Follow the on-screen instructions to finish the installation.
8Click “Finish”.
.
9Click “Quit”.
.
0Installation is complete, and two icons are created on the desktop.
10 Remove this unit from your PC.
“Disconnecting this Unit from Computer” (A p. 81)
Memo :
0If “Everio Software Setup” doesn’t appear, double-click “JVCCAM_APP”
in “My Computer” or “Computer”, then double-click “install (or Install.exe)”.
0If the auto play dialog box appears, select “Open folder to view files” and
click “OK”. Then, click “install (or Install.exe)” in the folder.
Backing Up All Files
Before making backup, make sure that enough free space is left in the
computer's hard disk (HDD).
Backup will not start if there is not enough free space.
0This operation cannot be completed if the remaining battery power is not
enough. Charge the battery fully first.
1Open the terminal cover.
2Connect to your PC using the provided USB cable.
0Before connecting the cable, close the LCD monitor to turn off this
unit.
.
To USB
Connector
To USB
Connector
Computer
3Open the LCD monitor.
.
0This unit turns on and the “SELECT DEVICE” menu appears.
4Tap “CONNECT TO PC”.
.
CONNECT TO PC
TYPE TO CONNECT
SELECT DEVICE
SELECT DEVICE
5Tap “BACK UP”.
.
BACK UP
CONNECT TO PC
0Disconnect the USB cable to return to the recording or playback
screen.
0The provided software Everio MediaBrowser 4 starts up on the
computer.
The subsequent operations are to be performed on the computer.
Copying
80
6Select the source of the image file.
.
1
2
Click
Click
Click “Next”
Click “All volume in camcorder”
7Start backup.
.
Click
Saving Destination (PC)
0Backup starts.
8After backup is complete, click “OK”.
.
Click
9Remove this unit from your PC.
Memo :
0Before making backup, load the SD card in which the videos and still
images are stored on this unit.
0If you encounter any problems with the provided software Everio
MediaBrowser 4, please consult the “Pixela User Support Center”.
Telephone USA and Canada (English): +1-800-458-4029 (toll-free)
Europe (UK, Germany, France, and Spain)
(English):+800-1532-4865 (toll-free)
Other Countries in Europe
(English):+44-1489-564-764
Asia (Philippines) (English): +63-2-438-0090
Homepage http://www.pixela.co.jp/oem/jvc/mediabrowser/e/
0Delete unwanted videos before making backup.
It takes time to back up many videos.
“Deleting Unwanted Files” (A p. 65)
Disconnecting this Unit from Computer
.
Click
1Click “Safely Remove Hardware and Eject Media”.
2Click all “JVCCAM~”.
3Disconnect the USB cable and close the LCD monitor.
Copying
81
Organizing Files
After backing up your files, organize them by adding labels such as “Family
Trip” or “Athletic Meet”.
This is useful not only for creating discs, but for viewing the files too.
1Double-click on the Everio MediaBrowser 4 icon.
0The provided software starts up.
.
2Display the month of the files to organize.
.
Click
Recording Month
3Create a user list.
.
Recording Date
Click
.
2
1
Click
Input the name of the new
user list
0A new user list is added to the user list library.
4Click on the recording day.
0The thumbnails of the files recorded on the day are displayed.
.
Recording Date
5Register files to the created user list.
.
Drop
Drag
Thumbnails
User List
Identifying Video or Still Image：
0You can select files using the “SELECT” menu on the top right of the
screen.
0Check the video/still image icon on the top right corner of the thumbnail.
.
Still Image
Video
Memo :
0If you encounter any problems with the provided software Everio
MediaBrowser 4, please consult the “Pixela User Support Center”.
Telephone USA and Canada (English): +1-800-458-4029 (toll-free)
Europe (UK, Germany, France, and Spain)
(English):+800-1532-4865 (toll-free)
Other Countries in Europe
(English):+44-1489-564-764
Asia (Philippines) (English): +63-2-438-0090
Homepage http://www.pixela.co.jp/oem/jvc/mediabrowser/e/
Copying
82
Recording Videos to Discs
Copy the files that are arranged using the user list to discs.
1Insert a new disc into the PC’s recordable DVD drive.
2Select the desired user list.
.
Click
3Select the disc type.
.
Click
4Select the files to copy to disc in order.
.
Drop
Drag
Click
0Click “Settings” to select the disc type.
0Click “Select all” to select all the displayed files.
0After selecting, click “Next”.
5Set the title of the top menu of the disc.
.
Click
0Click “Settings” to select the menu background.
0After setting, click “Start”.
6After copying is complete, click “OK”.
.
Click
Memo :
0The following types of discs can be used on the provided software Everio
MediaBrowser 4.
DVD-R
DVD-R DL
DVD-RW
DVD+R
DVD+R DL
DVD+RW
0The following formats are supported by the provided software Everio
MediaBrowser 4.
AVCHD
DVD-Video*
* To create DVD-Video discs using the provided software, it is necessary to
install the additional software (software for creating DVD-Video).
For details, refer to the Pixela homepage.
http://www.pixela.co.jp/oem/jvc/mediabrowser/e/
0Use commercially-available software to create a Blu-ray disc.
0Use Everio MediaBrowser 4 Player to play back an AVCHD disc. Refer to
the help file of the provided Everio MediaBrowser 4 software to operate.
0When copying videos recorded in UXP recording mode to create an
AVCHD disc, the videos need to be converted to XP recording mode
before copying. Therefore, it may take a longer time than copying videos
recorded in other modes.
0To view the help file of Everio MediaBrowser 4, select “Help” from the
Everio MediaBrowser 4’s menu bar or press F1 on the keyboard.
0If you encounter any problems with the provided software Everio
MediaBrowser 4, please consult the “Pixela User Support Center”.
Telephone USA and Canada (English): +1-800-458-4029 (toll-free)
Europe (UK, Germany, France, and Spain)
(English):+800-1532-4865 (toll-free)
Other Countries in Europe
(English):+44-1489-564-764
Asia (Philippines) (English): +63-2-438-0090
Homepage http://www.pixela.co.jp/oem/jvc/mediabrowser/e/
Copying
83
Backing Up Files Without Using Provided Software
Copy the files to a computer using the following method.
0This operation cannot be completed if the remaining battery power is not
enough. Charge the battery fully first.
1Open the terminal cover.
2Connect to your PC using the provided USB cable.
0Before connecting the cable, close the LCD monitor to turn off this
unit.
.
To USB
Connector
To USB
Connector
Computer
3Open the LCD monitor.
.
0This unit turns on and the “SELECT DEVICE” menu appears.
4Tap “CONNECT TO PC”.
.
CONNECT TO PC
TYPE TO CONNECT
SELECT DEVICE
SELECT DEVICE
5Tap “PLAYBACK ON PC”.
.
PLAYBACK ON PC
CONNECT TO PC
0Disconnect the USB cable to return to the recording or playback
screen.
0Close the Everio MediaBrowser 4 program, if it starts.
0The following screen is displayed after the camera operation is
completed.
.
PLAYBACK ON PC
0Operations are to be performed on the computer after the screen
switches.
6(Windows 10)
Click “This PC” in “Windows System”, then click the “JVCCAM_MEM”
or “JVCCAM_SD” icon of “This PC”.
(Windows 8)
Right-click “Computer” in the “Windows System Tool” menu to select
the checkbox, and then click the “JVCCAM_MEM” or “JVCCAM_SD”
icon.
(Windows 7)
Select “Computer” from the “Start” menu, then click on the
“JVCCAM_MEM” or “JVCCAM_SD” icon.
0Open the folder with the desired files.
“List of Files and Folders” (A p. 85)
7Copy the files to any folder in the computer (desktop, etc).
Caution :
0When the camera and PC are connected by an USB cable, recorded
media are read-only.
Memo :
0To edit/view the files, use a software that supports AVCHD (video)/JPEG
(still image) files.
0The above operations on computer may vary with the system used.
Disconnecting this Unit from Computer
.
Click
1Click “Safely Remove Hardware and Eject Media”.
2Click all “JVCCAM~”.
3Disconnect the USB cable and close the LCD monitor.
Copying
84
List of Files and Folders
Folders and files are created in the built-in memory and SD card as shown below.
They are created only when necessary.
.
[JVCCAM_MEM]
[JVCCAM_SD]
[ DCIM ] [ 100JVCSO ]
[ 101JVCSO ]
[ 102JVCSO ]
[ AVCHD ]
[ AVCHD ]
[ BDMV ] [ STREAM ]
[ BACKUP ]
[ CLIPINF ]
[ PLAYLIST ]
[ INDEX.BDM ]
[ MOVIEOBJ.BDM ]
[ EXTMOV ]
[ PRIVATE ]
DEM_0000.MTS
MOV_0001.MTS
MOV_0002.MTS
MOV_0003.MTS
…
…
…
[ XXXXX.MTS ]
[ JVC ]
(Video files with defective management information)
*There may be no demo video file.
(Demo Video File)
(Video File)
Still Image File
(Management Information)
Still Image Folder
(SD Card)
(SD Card)
(Built-In Memory)
(Built-In Memory)
[ BDMV ] [ STREAM ]
[ BACKUP ]
[ CLIPINF ]
[ PLAYLIST ]
[ INDEX.BDM ]
[ MOVIEOBJ.BDM ]
…
[ XXXXX.MTS ] (Video File)
Caution :
0When the camera and PC are connected by an USB cable, recorded media are read-only.
Copying
85
Copying to Mac Computer
Copy the files to a Mac computer using the following method.
Caution :
0This operation cannot be completed if the remaining battery power is not
enough. Charge the battery fully first.
1Open the terminal cover.
2Connect to your PC using the provided USB cable.
0Before connecting the cable, close the LCD monitor to turn off this
unit.
.
To USB
Connector
To USB
Connector
Computer
3Open the LCD monitor.
.
4Tap “CONNECT TO PC”.
.
CONNECT TO PC
TYPE TO CONNECT
SELECT DEVICE
SELECT DEVICE
5Tap “PLAYBACK ON PC”.
.
PLAYBACK ON PC
CONNECT TO PC
0Disconnect the USB cable to return to the recording or playback
screen.
0The following screen is displayed after the camera operation is
completed.
.
PLAYBACK ON PC
0The “JVCCAM_MEM” or “JVCCAM_SD” icon appears on the
desktop.
6Load image file to iPhoto.
0iPhoto launches automatically and videos recorded in the camera are
displayed. Load the necessary images.
0Images on the built-in memory and SD card are displayed separately.
Switch between JVCCAM_MEM (built-in memory) and JVCCAM-SD
(SD card) displayed under “Devices” in the iPhoto “Source list”.
0Videos loaded using iPhoto cannot be edited using iMovie. To edit
videos, load the files from iMovie.
7Edit the video using iMovie.
0Run iMovie and load the necessary videos to iMovie.
0Videos loaded using iPhoto cannot be imported to iMovie.
0For details on operating iMovie, refer to the help file of iMovie.
Caution :
0Do not remove the cable or turn off this unit before image loading is
complete.
0When the camera and PC are connected by an USB cable, recorded
media are read-only.
0MTS files that are copied to a Mac computer cannot be imported to iMovie.
To use MTS files with iMovie, import the files using iMovie.
Memo :
0To edit/view the files, use a software that supports AVCHD (video) files.
0When removing this unit from the computer, drag and drop the
“JVCCAM_MEM” or “JVCCAM_SD” icon on the desktop to the trash bin.
iMovie and iPhoto
You can import files from this unit to a computer using Apple’s iMovie ’8,
iMovie ’9, iMovie ’11, iMovie version 10 (video), or iPhoto (still image).
For the PC operating system of iMovie and iPhoto, check the information
provided by Apple.
0For the latest information on iMovie or iPhoto, refer to the Apple website.
0For details on how to use iMovie or iPhoto, refer to the help file of the
respective softwares.
0There is no guarantee that the operations will work with all computer
environments.
Copying
86
Operating the Menu
The following menu is available on this unit.
0TOP MENU: Menu that contains all the items specific to the video
recording, still image recording, video playback, and still image playback
modes respectively.
Operating the Top Menu
You can configure various settings using the menu.
1Tap “MENU”.
.
REC
≪PLAY
MENU
0The top menu appears.
0The menu differs according to the mode in use.
2Tap the desired menu.
.
OFF
TOP MENU
SETUP
CONNECTION
SETTING
RECORD
SETTINGS
3Tap the desired setting.
.
RECORD SETTING
Memo :
0To display the previous/next menu
Tap 0 or 1.
0To return to the previous screen
Tap J.
0To exit the screen
Tap L (quit).
Settings Menu
87
RECORD SETTING Menu (video)
.
FOCUS
Focus can be adjusted manually.
“Adjusting Focus Manually (FOCUS)” (A p. 28)
*Displayed only in the manual recording mode.
BRIGHTNESS ADJUST
Adjusts the overall brightness of the screen.
“Adjusting Brightness” (A p. 29)
*Displayed only in the manual recording mode.
BACKLIGHT COMP.
Corrects the image when the subject appears dark due to backlight.
“Setting Backlight Compensation” (A p. 30)
*Displayed only in the manual recording mode.
WHITE BALANCE
Adjusts the color according to the light source.
“Setting White Balance” (A p. 31)
*Displayed only in the manual recording mode.
TELE MACRO
Enables close-up shots when using the telephoto (T) end of the zoom.
“Taking Close-up Shots (TELE MACRO)” (A p. 32)
*Displayed only in the manual recording mode.
TOUCH PRIORITY AE/AF
Automatically adjusts focus and brightness based on the subjects’ faces or selected area.
“Capturing Subjects Clearly (TOUCH PRIORITY AE/AF)” (A p. 40)
LIGHT
Turns on/off the light.
Setting Details
OFF Does not light up.
AUTO Lights up automatically when the surrounding is dark.
ON Lights up at all times.
DIS
Camera shake during video recording can be effectively reduced.
“Reducing Camera Shake” (A p. 42)
GAIN UP
Makes the subject appear bright automatically when recording in dark places.
Setting Details
OFF Deactivates the function.
ON Electrically brightens the scene when it is dark.
AUTO SLOW-SHUTTER Slows down the shutter speed to brighten the scene when it is dark.
Memo :
0Although “AUTO SLOW-SHUTTER” brightens the scene more than “ON”, movements of the subject may become unnatural.
Settings Menu
88
WIND CUT
Reduces the noise caused by wind.
Setting Details
OFF Deactivates the function.
ON Activates the function.
AUTO Activate the function automatically.
SELF-TIMER
Use this function when you wish to include the photographer in the picture or video.
“Using the Self-timer in Video Mode” (A p. 46)
TIME-LAPSE RECORDING
This function enables the changes of a scene that occur slowly over a long period to be shown within a short time by taking frames of it at a certain interval.
This is useful for making observations such as the opening of a flower bud.
“Recording at Intervals (TIME-LAPSE RECORDING)” (A p. 43)
SELF-CHECK REC/PLAY
After recording for a specified duration, this unit automatically plays back the scene and then repeats the recording process and the playback process over
and over again.
“Recording at a Fixed Interval and Playing Back Repeatedly” (A p. 48)
DATE/TIME RECORDING
You can record videos together with the date and time.
Set this when you want to save the file with date and time display.
(The date and time cannot be deleted after recording.)
“Recording Videos with Date and Time” (A p. 49)
TIME COUNTER RECORDING
You can take a video with a stopwatch recorded. You can start, stop and reset the stopwatch as with any stopwatch.
“Recording Videos with Time Counter” (A p. 50)
CLOSE-UP SUB-WINDOW
Enlarges and displays a part of the screen in the sub screen.
“Recording with a Part of the Screen Enlarged in Sub Screen (CLOSE-UP SUB-WINDOW)” (A p. 45)
ANIMATION EFFECT
Records videos with animation effects.
“Recording with Animation Effects (ANIMATION EFFECT)” (A p. 38)
RECORDING EFFECT
You can add and record various effects to the images. Once setting is done, you can easily record images that are suitable for each image.
oGRAINY MONOCHROME
You can record images with a grainy black and white photo feel.
“Recording Images Like an Old Black and White Photo (GRAINY MONOCHROME)” (A p. 35)
oFOOD
You can capture images of the food to make the food look appetizing.
“Recording Food Images (FOOD)” (A p. 36)
oBABY
You can capture soft images by enhancing the clarity and brightness of skin color. This effect is suitable for capturing images of a baby.
“Recording Images of a Baby (BABY)” (A p. 37)
Settings Menu
89
SHUTTER MODE
Continuous shooting settings can be adjusted.
Setting Details
RECORD ONE SHOT Records one still image.
CONTINUOUS SHOOTING Records still images continuously while the A button on the LCD screen is tapped.
Memo :
0The size of the still image that is captured in the video mode is 1,920 x 1,080.
0Some SD cards may not support continuous shooting.
0The continuous shooting speed will drop if this function is used repeatedly.
SEAMLESS RECORDING
Continues recording on the SD card without stopping when the remaining space on the built-in memory runs out.
Setting Details
OFF Does not switch recording media automatically.
ON Switches recording media automatically.
Memo :
0Seamless recording cannot be performed if there is not enough free space in the SD card.
0q appears if seamless recording cannot be performed.
0To start seamless recording again after the previous session is complete, it is necessary to combine seamless videos, or delete the combination information
of the seamless videos.
“Combining Videos Recorded by Seamless Recording” (A p. 69)
SYSTEM SELECT
Sets the frame rate for recording.
Sets whether to perform progressive recording of videos.
When progressive recording is set, high quality images with a smooth depth of field can be recorded. In addition, fast-moving subjects can also be captured
sharply without flickering.
Setting Details
60p Records in progressive format.
60i Does not record in progressive format.
Memo :
0Video quality cannot be set in 60p mode.
0Videos recorded in 60p mode are playable only on AVCHD Progressive compatible devices.
VIDEO QUALITY
Sets the video quality.
Setting Details
UXP Enables recording in the best picture quality.
XP Enables recording in high picture quality.
EP Enables long recordings.
Memo :
0Set to “UXP” or “XP” mode when recording fast-moving scenes or scenes with extreme changes of brightness to avoid noise.
Settings Menu
90
ZOOM
Sets the maximum zoom ratio.
Setting Details
40x OPTICAL Enables recording with 1 - 40x optical zoom. Set this when digital zoom is not desired.
60x DYNAMIC
(55x DYNAMIC)
Enables recording with 1 - 40x optical zoom and 41 - 60x dynamic zoom, when the image stabilizer is in
normal mode or set to off.
(Enables recording with 1 - 40x optical zoom and 41 - 55x dynamic zoom, when the image stabilizer is in
active mode. Not available in the enhanced AIS mode.)
120x DIGITAL Enables recording with 1 - 40x optical zoom and 41 - 120x digital zoom.
200x DIGITAL Enables recording with 1 - 40x optical zoom and 41 - 200x digital zoom.
Memo :
0When digital zoom is used, the image becomes grainy as it is digitally enlarged.
0The angle of view changes when the image stabilizer is turned on or off.
ZOOM MIC
Sets the zoom microphone.
Setting Details
OFF Deactivates the zoom microphone.
ON Records audio sounds in the same direction as the zoom operation.
Memo :
0When “ON” is selected, the volume of the wide angle (W) end is lower than the telephoto (T) end.
MIC LEVEL
Make the adjustments such that “MIC LEVEL” does not turn red.
Setting Details
OFF Hides display of microphone input level.
ON Shows display of microphone input level.
MIC LEVEL SETTING
Sets the microphone level.
Make the adjustments such that “MIC LEVEL” does not turn red.
Setting Details
+1 Increases the microphone input level.
0 The microphone input level is not changed.
-1 Decreases the microphone input level.
K2 TECHNOLOGY
Reduces the degradation of sound quality caused by digital signal processing, and records a sound quality close to the original.
Setting Details
OFF Deactivates K2 TECHNOLOGY.
ON Activates K2 TECHNOLOGY.
SCREEN LOCK
When shooting under water, lock the touch screen to prevent operation errors.
“Locking the Screen (when Shooting Underwater)” (A p. 10)
Settings Menu
91
LCD CLOSED RECORDING
This unit does not turn off even when the LCD monitor is closed during recording.
Setting Details
OFF The unit is turned off when the LCD monitor is closed.
ON Activates LCD CLOSED RECORDING.
Memo :
0If “LCD CLOSED RECORDING” is set to “ON”, stop the recording before turning off the unit.
0When “LCD CLOSED RECORDING” set to “ON” and recording is in progress with the LCD monitor closed (or LCD monitor reversed), the zoom lever and
the START/STOP button cannot be operated.
Settings Menu
92
RECORD SETTING Menu (still image)
.
FOCUS
Focus can be adjusted manually.
“Adjusting Focus Manually (FOCUS)” (A p. 28)
*Displayed only in the manual recording mode.
BRIGHTNESS ADJUST
Adjusts the overall brightness of the screen.
“Adjusting Brightness” (A p. 29)
*Displayed only in the manual recording mode.
BACKLIGHT COMP.
Corrects the image when the subject appears dark due to backlight.
“Setting Backlight Compensation” (A p. 30)
*Displayed only in the manual recording mode.
WHITE BALANCE
Adjusts the color according to the light source.
“Setting White Balance” (A p. 31)
*Displayed only in the manual recording mode.
TELE MACRO
Enables close-up shots when using the telephoto (T) end of the zoom.
“Taking Close-up Shots (TELE MACRO)” (A p. 32)
*Displayed only in the manual recording mode.
TOUCH PRIORITY AE/AF
Automatically adjusts focus and brightness based on the subjects’ faces or selected area.
“Capturing Subjects Clearly (TOUCH PRIORITY AE/AF)” (A p. 40)
LIGHT
Turns on/off the light.
Setting Details
OFF Does not light up.
AUTO Lights up automatically when the surrounding is dark.
ON Lights up at all times.
SELF-TIMER
Use this when taking a group photo.
“Using the Self-timer” (A p. 46)
GAIN UP
Makes the subject appear bright automatically when recording in dark places.
Setting Details
OFF Deactivates the function.
ON Electrically brightens the scene when it is dark.
Memo :
0Setting can be adjusted separately for videos.
“GAIN UP (Video)” (A p. 88)
Settings Menu
93
RECORDING EFFECT
You can add and record various effects to the images. Once setting is done, you can easily record images that are suitable for each image.
oGRAINY MONOCHROME
You can record images with a grainy black and white photo feel.
“Recording Images Like an Old Black and White Photo (GRAINY MONOCHROME)” (A p. 35)
oFOOD
You can capture images of the food to make the food look appetizing.
“Recording Food Images (FOOD)” (A p. 36)
oBABY
You can capture soft images by enhancing the clarity and brightness of skin color. This effect is suitable for capturing images of a baby.
“Recording Images of a Baby (BABY)” (A p. 37)
SHUTTER MODE
Continuous shooting settings can be adjusted.
Setting Details
RECORD ONE SHOT Records one still image.
CONTINUOUS SHOOTING Records still images continuously while the START/STOP button is pressed.
Records still images continuously while the START/STOP button is pressed, or while the A button on the
LCD screen is tapped.
Memo :
0Some SD cards may not support continuous shooting.
0The continuous shooting speed will drop if this function is used repeatedly.
IMAGE SIZE
Sets the image size (number of pixels) for still images.
Setting Details
1920X1080(2M) Takes still images with aspect ratio 16:9.
0The sides of still images recorded in 16:9 aspect ratio may be cut off when printed.
3680X2760(10M)
1440X1080(1.5M)
640X480(0.3M)
Takes still images with aspect ratio 4:3.
*12 Megapixel Still Picture by Ultra Resolution Technology
SCREEN LOCK
When shooting under water, lock the touch screen to prevent operation errors.
“Locking the Screen (when Shooting Underwater)” (A p. 10)
Settings Menu
94
PLAYBACK SETTING Menu (video)
.
DISPLAY DATE/TIME
Sets whether to display the recording date and time during video playback.
Setting Details
OFF Does not display the date and time during playback.
ON Displays the date and time during playback.
TIME COUNTER PLAYBACK
A time counter that can be reset can be displayed during playback.
“TIME COUNTER PLAYBACK” (A p. 57)
SLOW-MOTION SPEED
For specifying the playback speed of slow playback.
Setting Details
1/2 Sets the speed of slow playback to 1/2 normal playback speed.
1/4 Sets the speed of slow playback to 1/4 normal playback speed.
1/8 Sets the speed of slow playback to 1/8 normal playback speed.
DIGEST PLAYBACK
Plays back a digest of the recorded videos.
“ DIGEST PLAYBACK ” (A p. 58)
PLAYBACK OTHER FILE
Plays videos with defective management information.
“ PLAYBACK OTHER FILE ” (A p. 59)
Settings Menu
95
EDIT Menu (video)
.
PROTECT/CANCEL
Protects files from being deleted accidently.
“Protecting/Releasing Protection of the Currently Displayed File” (A p. 66)
“Protecting/Releasing Protection of Selected Files” (A p. 67)
COPY
Copies files from the built-in memory to the SD card.
“Copying Files to an SD Card” (A p. 72)
TRIMMING
Select the required part of a video and save it as a new video file.
The original video remains in its existing location.
“Capturing a Required Part in the Video (TRIMMING)” (A p. 70)
SEAMLESS REC CTRL
Videos that are recorded on two separate media and with “SEAMLESS RECORDING” in the video recording menu enabled can be combined into a single
video.
“Combining Videos Recorded by Seamless Recording” (A p. 69)
Settings Menu
96
PLAYBACK SETTING Menu (still image)
.
SLIDE SHOW EFFECTS
Sets the transition effects in slideshow playback.
Setting Details
SLIDE Switches the screen by sliding in from right to left.
BLINDS Switches the screen by dividing into vertical strips.
CHECKERBOARD Switches the screen by changing through a checkered pattern.
RANDOM Switches the screen with a random effect from SLIDE, “BLINDS”, and “CHECKERBOARD”.
Memo :
0Slideshow effects are not available when playing back still images in external devices (such as USB external hard disk drives).
Settings Menu
97
EDIT Menu (still image)
.
PROTECT/CANCEL
Protects files from being deleted accidently.
“Protecting/Releasing Protection of the Currently Displayed File” (A p. 66)
“Protecting/Releasing Protection of Selected Files” (A p. 67)
COPY
Copies files from the built-in memory to the SD card.
“Copying Files to an SD Card” (A p. 72)
Settings Menu
98
SETUP (video/still image)
.
Mobile User Guide
Displays the QR code to access the Mobile User Guide.
.
URL:
MOBILE USER GUIDE
0The portal site appears when the QR code has been read correctly.
Select the model name of your camera to display its Mobile User Guide.
Memo :
0To read the QR code, a relevant application is required. Enter the URL in the internet browser manually if the QR code cannot be read.
0The Mobile User Guide is supported by Android devices and iPhone. You can view it on standard browsers such as Google Chrome (Android) and Mobile
Safari (iPhone).
0QR Code is a registered trademark of Denso Wave Incorporated.
DATE & TIME
Resets the current time or sets to the local time when using this unit overseas.
“Clock Setting” (A p. 15)
“Setting the Clock to Local Time when Traveling” (A p. 18)
“Setting Daylight Saving Time” (A p. 19)
DATE DISPLAY STYLE
Sets the order of year, month, day and the time display format (24H/12H).
Sorting Order Time Display
year.month.day 12h
month.day.year 24h
day.month.year -
LANGUAGE
The language on the display can be changed.
“Changing the Display Language” (A p. 16)
Settings Menu
99
MONITOR BRIGHTNESS
Sets the brightness of the LCD monitor.
Setting Details
AUTO Sets the brightness automatically to “4” when using outdoors and to “3” when using indoors.
4 Brightens the backlight of the monitor regardless of the surrounding conditions.
3 Sets to the standard brightness.
2 Darkens the backlight of the monitor regardless of the surrounding conditions.
1 Sets to dim brightness.
Helps to save battery life when selected.
OPERATION SOUND
Turns on or off the operation sound.
Setting Details
OFF Turns off the operation sound.
ON Turns on the operation sound.
AUTO POWER OFF
When no operation is made for 5 minutes, this function turns off this unit or sets this unit to standby mode when using the AC adapter in case you forgot to
turn off the power.
Setting Details
OFF Power is not turned off even if this unit is not operated for 5 minutes.
ON Turns off the power automatically if this unit is not operated for 5 minutes.
Memo :
0Turns off the power automatically if this unit is not operated for 5 minutes.
0When using the AC adapter, this unit goes into standby mode.
DEMO MODE
Plays a demonstration of the special features of this unit.
Setting Details
OFF Deactivates the function.
ON Plays a demonstration of the special features of this unit.
Memo :
0This mode is not available in the playback mode.
TOUCH SCREEN ADJUST
Adjusts the response position of the buttons on the touch screen.
“Adjusting the Touch Screen” (A p. 11)
REC MEDIA FOR VIDEO
Sets the recording/playback media of videos.
Setting Details
I BUILT-IN MEMORY Records videos to this unit's built-in memory.
G SD CARD Records videos to the SD card.
Settings Menu
100
REC MEDIA FOR IMAGE
Sets the recording/playback media of still images.
Setting Details
I BUILT-IN MEMORY Records still images to this unit’s built-in memory.
G SD CARD Records still images to the SD card.
FORMAT BUILT-IN MEM.
Deletes all files on the built-in memory.
Setting Details
FILE Deletes all files on the built-in memory.
FILE + MANAGEMENT NO Deletes all files on the built-in memory and resets the folder and file numbers to "1".
(File number of the AVCHD video file starts from “0”.)
Caution :
0All data on the built-in memory will be deleted when it is formatted.
Copy all files on the built-in memory to a computer before formatting.
0Make sure that the battery pack is fully charged or connect the AC adapter as the formatting process may take some time.
FORMAT SD CARD
Deletes all files on the SD card.
Setting Details
FILE Deletes all files on the SD card.
FILE + MANAGEMENT NO Deletes all files on the SD card and resets the folder and file numbers to "1".
Caution :
0Not available for selection when no SD card is inserted.
0All data on the SD card will be deleted when it is formatted.
Copy all files on the SD card to a computer before formatting.
0Make sure that the battery pack is fully charged or connect the AC adapter as the formatting process may take some time.
FACTORY PRESET
Returns all the settings to their default values.
FIRMWARE UPDATE
Updates the functions of this unit to the latest version.
For details, refer to the JVC homepage.
(When no program to update the software of this unit is available, nothing will be provided on the homepage.)
http://www3.jvckenwood.com/english/support/index.html
OPEN SOURCE LICENSES (recording only)
Displays the open source software licenses that are used in this unit.
Settings Menu
101
CONNECTION SETTINGS (video/still image)
.
DISPLAY ON TV
Displays icons and date/time on a TV screen.
Setting Details
OFF Does not display icons and date/time on TV.
ON Displays icons and date/time on TV.
VIDEO OUTPUT
Sets the aspect ratio (16:9 or 4:3) according to the connecting TV.
Setting Details
4:3 Select this when connecting to a conventional TV (4:3).
16:9 Select this when connecting to a widescreen TV (16:9).
HDMI OUTPUT
Sets the output from the HDMI connector of this unit when it is connected to a TV.
Setting Details
AUTO It is recommended to select “AUTO” usually.
576p Select this when the video is not output in “AUTO” correctly.
HDMI CONTROL
Sets whether to link operations with an HDMI-CEC compliant TV.
Setting Details
OFF Turns off linked operations.
ON Turns on linked operations.
Settings Menu
102
USB CONNECTION MENU
This menu appears when this unit is connected to a computer using an USB cable.
PLAYBACK ON PC
0Displays videos recorded by this unit by using the Everio MediaBrowser 4.
“Installing the Provided Software (Built-in)” (A p. 77)
0Saves videos recorded by this unit on your computer without using the provided software.
“Backing Up Files Without Using Provided Software” (A p. 84)
“Copying to Mac Computer” (A p. 86)
BACK UP
Backup videos recorded by this unit to your computer using the Everio MediaBrowser 4.
“Backing Up All Files” (A p. 80)
Memo :
0Before making backup, load the SD card in which the videos are stored on this unit.
0After backing up your files using the provided software, they cannot be restored to this unit.
0Delete unwanted videos before making backup.
It takes time to back up many videos.
“Deleting Unwanted Files” (A p. 65)
Settings Menu
103
Right Side
.
2
1
A Speaker
B Grip Belt
0Pass your hand through the grip belt to hold this unit firmly.
“Grip Adjustment” (A p. 8)
Bottom Side
.
2
1
A Cover Lock
B Tripod Mounting Hole
“Tripod Mounting” (A p. 17)
Names of Parts
104
Top/Left/Rear Side
.
T
W
VOL.
＋
CHARGE POWER/ACCESS
5
6
7
8
9
4
3
2
1
A Lens
0The lens is protected by a protective glass cover.
0If the lens is dirty, use a commercially available lens blower to remove
any dust, and a commercially available cleaning cloth to wipe off any
dirt.
0Do not cover the front of the lens with your fingers during recording.
B Light
0Turn on the light when shooting in dark places.
C Stereo Microphone
0Do not cover the microphone with your fingers during video recording.
D LCD Monitor
E CHARGE (Charging) Lamp
0Lights up: Charging in progress
0Goes off: Charging completed/Beyond temperature range
0Blinks: Charging error or abnormal temperature
F POWER/ACCESS (Power/Access) Lamp
0Lights up/blinks during recording or playback.
Do not remove the SD card or any connecting cables.
G Zoom/Volume Lever
0During shooting: Adjusts the shooting range.
0During playback (index screen): Moves to the next or previous page.
0During video playback: Adjusts the volume.
H START/STOP (Video Recording) Button
0Starts/stops recording of videos/still images.
I Terminal Cover
Inside Terminal Cover
.
2
1
5
4
3
A SD Card Slot
0Insert an optional SD card.
B Reset Button
C HDMI mini connector
0Connects to TV using an HDMI mini cable.
D AV Connector
0Connects to the AV connector of a TV, etc.
E USB Connector (Micro USB AB type)
0Connect to the AC adapter to perform charging.
You can also connect to the external device or computer using the USB
cable.
Names of Parts
105
LCD Monitor
.
A LCD Monitor
0Turns the power on/off by opening and closing.
0Enables self-portraits to be taken by rotating the monitor.
.
“Using the Touch Screen” (A p. 10)
“Names of Buttons and Functions on the LCD Monitor” (A p. 12)
Caution :
0Do not press against the surface with force or subject it to strong impact.
Doing so may damage or break the screen.
Names of Parts
106
Common Recording Indications
.
10X
10X
10:45
F+2.0
F+2.0
25790
a
b
6 8
f
43
1
d
e
c
A TOUCH PRIORITY AE/AF
“Capturing Subjects Clearly (TOUCH PRIORITY AE/AF)” (A p. 40)
B Backlight Compensation
“Setting Backlight Compensation” (A p. 30)
C Tele Macro
“Taking Close-up Shots (TELE MACRO)” (A p. 32)
D WHITE BALANCE
“Setting White Balance” (A p. 31)
E Time
“Clock Setting” (A p. 15)
F RECORDING EFFECT
“Recording with Effects (RECORDING EFFECT)” (A p. 34)
G Recording media
“ REC MEDIA FOR VIDEO ” (A p. 100)
“ REC MEDIA FOR IMAGE ” (A p. 101)
H Battery Indicator
“Checking the Remaining Recording Time” (A p. 51)
I CONTINUOUS SHOOTING
“SHUTTER MODE (Video)” (A p. 90)
“SHUTTER MODE (Still Image)” (A p. 94)
L Recording Mode
“Taking Videos in Auto Mode” (A p. 20)
“Manual Recording” (A p. 27)
M Setting Scenes of Intelligent Auto
0Displays scenes detected automatically in the Intelligent Auto function.
Multiple scenes may be detected.
“Scenes of Intelligent Auto” (A p. 21)
N SILENT MODE
“Using the Silent Mode” (A p. 22)
O Zoom
“ ZOOM ” (A p. 91)
P Shutter
Q Focus
“Adjusting Focus Manually (FOCUS)” (A p. 28)
R Brightness
“Adjusting Brightness” (A p. 29)
Video Recording
.
0:00:12:34
0:12:34[010:00]
4
1 2 3
5
6
9
8
7
0
a
A Video Mode
0Switches between video and still image modes.
B Video Quality
“ SYSTEM SELECT ” (A p. 90)
“ VIDEO QUALITY ” (A p. 90)
C TIME-LAPSE RECORDING(1SEC)
“Recording at Intervals (TIME-LAPSE RECORDING)” (A p. 43)
D Image Stabilizer
“Reducing Camera Shake” (A p. 42)
E Seamless Recording
“ SEAMLESS RECORDING ” (A p. 90)
F Wind Cut
“ WIND CUT ” (A p. 89)
G LCD CLOSED RECORDING
“LCD CLOSED RECORDING” (A p. 92)
H Time-Lapse Recording Counter
“Recording at Intervals (TIME-LAPSE RECORDING)” (A p. 43)
I Remaining Recording Time
“Checking the Remaining Recording Time” (A p. 51)
J Scene Counter
K MIC LEVEL METER
“MIC LEVEL” (A p. 91)
Indications on the LCD monitor
107
Still Image Recording
.
[9999]
1 2
3
4
5
6
A Still Image Mode
0Switches between video and still image modes.
B Image Size
“ IMAGE SIZE ” (A p. 94)
C Self-Timer
“Using the Self-timer” (A p. 46)
D Remaining Number of Shots
“Checking the Remaining Recording Time” (A p. 52)
E Focus
F Recording in Progress
Video Playback
.
≪REC
00:01:23
1SEC
00:12:34
10:00
2134
9
5
7
a
6
08
A Video Mode
0Switches between video and still image modes.
B Video Quality
“ VIDEO QUALITY ” (A p. 90)
C Operation Indicator
“Operation Buttons for Video Playback” (A p. 54)
D Date/Time
0Displays the recording date and time.
E Recording media
“ REC MEDIA FOR VIDEO ” (A p. 100)
F Battery Indicator
“Checking the Remaining Recording Time” (A p. 51)
G Playback Time
H Time-Lapse Playback
“Time-Lapse Setting” (A p. 44)
I 1080p Output
“ HDMI OUTPUT ” (A p. 102)
J SILENT MODE
“Using the Silent Mode” (A p. 22)
K Scene Counter
Indications on the LCD monitor
108
Still Image Playback
.
≪REC
10:00
100-0001
123 4 56
8
7
A Still Image Mode
0Switches between video and still image modes.
B Folder Number
C File Number
D Date/Time
0Displays the recording date and time.
E Recording media
“ REC MEDIA FOR IMAGE ” (A p. 101)
F Battery Indicator
“Checking the Remaining Recording Time” (A p. 51)
G SILENT MODE
“Using the Silent Mode” (A p. 22)
H 1080p Output
“ HDMI OUTPUT ” (A p. 102)
Indications on the LCD monitor
109
When the unit is not working properly
Resetting this Unit
This unit is a microcomputer-controlled device. Electrostatic discharge,
external noise and interference (from a TV, a radio, etc.) might prevent it from
functioning properly. In that case, perform the steps below to reset this unit.
(The recorded data will not be erased.)
“Resetting this Unit” (A p. 5)
1Open the terminal cover.
0Remove the power cord and all connecting cables.
2Close the LCD monitor to turn off this unit.
3Press the Reset button gently using an object with pointed tip.
“Reset Button” (A p. 105)
.
Reset Button
Charging
Unable to charge the battery.
When the battery pack is fully charged, the lamp does not light up.
Be sure to charge using the supplied AC adapter. Malfunction in the unit that
occurred due to the use of an AC adapter other than the one provided is not
included in the warranty.
Check the connection, then disconnect and reconnect the charging adapter
cable.
Charging cannot be performed under low or high temperature environments.
Charge under the room temperature range of 10°C to 35°C. (Under
environments beyond the temperature range, charging may stop to protect
the battery pack.)
Using a non-original AC adapter may result in damage to this unit. Be sure
to use an original AC adapter.
The remaining battery display is not correct.
If this unit is used for long periods of time in high or low temperatures, or if
the battery pack is repeatedly charged, the amount of remaining battery may
not be displayed correctly.
The battery runs out quickly even after charging.
Be sure to charge using the supplied AC adapter. Malfunction in the unit that
occurred due to the use of an AC adapter other than the one provided is not
included in the warranty.
The performance of the battery will drop temporarily when the temperature
is -10°C to 0°C, this will cause the remaining recording time to shorten.
When the recording time becomes extremely short even when the battery is
fully charged, the battery needs to be replaced. For details on replacing the
built-in battery (subject to a fee), consult the nearest JVC service center.
Troubleshooting
110
Power supply
Unable to turn on the power.
The camera does not turn on if the remaining battery power is low.
In this case, charge the battery for more than 40 minutes before turning on
the power.
0When the unit does not turn on even after charging, reset the unit.
“Resetting this Unit” (A p. 110)
Recording
Recording cannot be performed.
Check the A / B button.
“Top/Left/Rear Side” (A p. 105)
Set to the recording mode by tapping the E button on the screen.
Recording stops automatically.
Recording stops automatically as it cannot be performed for 12 or more
consecutive hours according to specifications. (It may take some time to
resume recording.)
Turn off this unit, wait for a while, and turn it on again. (This unit stops
automatically to protect the circuit when the temperature rises.)
The continuous shooting speed of still images is slow.
The continuous shooting speed will drop if this function is used repeatedly.
Continuous shooting speed may drop depending on the SD card or under
certain recording conditions.
The focus is not adjusted automatically.
If you are recording in a dark place or a subject that has no contrast between
dark and light, adjust the focus manually.
“Adjusting Focus Manually (FOCUS)” (A p. 28)
Wipe the lens with a lens cleaning cloth.
Cancel manual focus on the manual recording menu.
“Adjusting Focus Manually (FOCUS)” (A p. 28)
Zoom does not work.
Digital zoom is not available in the still image recording mode.
Zoom operation is not available in time-lapse recording. (Simultaneous still
image recording and image stabilizer are also not available.)
To use digital zoom, set “ZOOM” in the menu accordingly.
“ ZOOM ” (A p. 91)
Mosaic-type noise occurs when recording scenes with fast
movements or extreme changes in brightness.
Set the “VIDEO QUALITY” to “UXP” or “XP” for recording.
“ VIDEO QUALITY ” (A p. 90)
The inside of the lens is foggy.
Open the terminal cover; close the LCD monitor and leave as is for a while
to reduce the temperature.
Preventing fogging inside the lens
0Models with waterproof function are airtight. When the temperature rises
during recording, condensation can occur inside the lens due to the
internal humidity.
oDuring recording
To prevent the temperature of this unit from rising, we recommend that you
use the unit in the following ways.
AAvoid frequent exposure to direct sunlight.
Record under the shade or use an umbrella. Best if you could keep a
wet towel cover the unit.
BThe use of a tripod is recommended.
Long hours of recording while holding the unit in your hands will cause
the temperature of the unit to rise.
CIt is better to leave the terminal cover open while recording.
However, the waterproof, dust-proof and shockproof features do not
function in this condition. Do take note of the environment when using
the camera. (Do not use a wet towel.)
DMake sure to turn off the power when you are not recording.
When the LCD monitor is closed, the unit turns off.
oDuring charging
It is recommended to charge the unit in a low humidity environment.
The moist air inside the unit can cause condensation.
We recommend that you charge the unit in a room where humidifier is not in
use, and in an air-conditioned room during summer.
Troubleshooting
111
SD Card
Cannot insert the SD card.
Make sure not to insert the SD card in the wrong direction.
“Inserting an SD Card” (A p. 9)
Do not use a miniSD card or microSD card on this unit (even if the card is
inserted in an adapter). It may cause malfunction.
“Types of Usable SD Card” (A p. 9)
Unable to copy to SD card.
Set “REC MEDIA FOR VIDEO”/“REC MEDIA FOR IMAGE” to SD card.
“ REC MEDIA FOR VIDEO ” (A p. 100)
“ REC MEDIA FOR IMAGE ” (A p. 101)
To use a new SD card, or SD card used on other devices, it is necessary to
format (initialize) the SD card using “FORMAT SD CARD” from the “SETUP”
menu.
“ FORMAT SD CARD ” (A p. 101)
When “CHECK CARD'S WRITE PROTECTION SWITCH” appears, release
the lock on the SD card.
.
Playback
Sound or video is interrupted.
Sometimes playback is interrupted at the connecting section between two
scenes. This is not a malfunction.
There is no sound.
When the Silent mode is used, operation sounds will not be output. Turn off
the Silent mode.
“Using the Silent Mode” (A p. 22)
Set “OPERATION SOUND” in the “SETUP” menu to “ON”.
“ OPERATION SOUND ” (A p. 100)
Audio sound is not recorded for videos taken in TIME-LAPSE RECORDING.
“Recording at Intervals (TIME-LAPSE RECORDING)” (A p. 43)
The same image is displayed for a long time.
Use a high speed SD card (Class 4 or higher).
“Types of Usable SD Card” (A p. 9)
Clean the terminals of the SD card with a dry cotton swab or something
similar.
Execute “FORMAT SD CARD” in the “SETUP” menu. (All data will be
deleted.)
“ FORMAT SD CARD ” (A p. 101)
The motion is choppy.
Use a high speed SD card (Class 4 or higher).
“Types of Usable SD Card” (A p. 9)
Clean the terminals of the SD card with a dry cotton swab or something
similar.
Execute “FORMAT SD CARD” in the “SETUP” menu. (All data will be
deleted.)
“ FORMAT SD CARD ” (A p. 101)
Verify the system requirements of your PC when using Everio MediaBrowser
4 to play back.
“Verifying System Requirements (Guideline)” (A p. 73)
Cannot find a recorded file.
Change the playback media by tapping I/J on the touch screen.
“Operation Buttons for Video Playback” (A p. 54)
“Operation Buttons for Still Image Playback” (A p. 60)
Select “PLAYBACK OTHER FILE” in the menu. (Video files that have
damaged management information can be played back.)
“ PLAYBACK OTHER FILE ” (A p. 59)
Images do not appear on the TV properly.
Disconnect the cable and connect again.
“Connecting via the HDMI Mini Connector” (A p. 62)
Reset this unit.
“Resetting this Unit” (A p. 110)
Images are projected vertically on the TV.
Set “VIDEO OUTPUT” in the “CONNECTION SETTINGS” menu to “4:3”.
“ VIDEO OUTPUT ” (A p. 102)
Adjust the TV's screen accordingly.
The image displayed on TV is too small.
Set “VIDEO OUTPUT” in the “CONNECTION SETTINGS” menu to “16:9”.
“ VIDEO OUTPUT ” (A p. 102)
When connected to the TV via the HDMI mini cable, proper
images and sounds are not output.
Images and sounds may not be output properly depending on the TV
connected. In such cases, perform the following operations.
ADisconnect the HDMI mini cable and connect it again.
“Connecting via the HDMI Mini Connector” (A p. 62)
Troubleshooting
112
When connected to the TV via the HDMI mini cable, displays
such as buttons on the screen are slow to appear.
Depending on the type of TV connected, this symptom is normal and not a
malfunction.
Editing/Copying
Unable to delete file.
Files (videos/still images) that are protected cannot be deleted. Release
protection before deleting the file.
“Protecting Files” (A p. 66)
Unable to copy to SD card.
If the SD card is write protected, set it to off.
BACK-UP menu does not disappear.
While the USB cable is connected, the “BACK UP” menu is displayed.
Troubleshooting
113
Computer
Unable to copy files to the computer’s HDD.
If the provided software Everio MediaBrowser 4 is not installed, some
functions may not work properly.
“Installing the Provided Software (Built-in)” (A p. 77)
Before making backup, make sure that enough free space is left in the
computer's hard disk (HDD).
Unable to copy files to DVD or Blu-ray disc with a PC.
To record to discs, a recordable DVD or Blu-ray drive is required for the
computer in use.
Cannot upload the file to YouTube.
Check if you have created an account with YouTube. (You need a YouTube
account to upload files to YouTube.)
Changing videos to the file format for uploading cannot be performed on this
unit.
Refer to the help file of the provided software Everio MediaBrowser 4
I am using a Mac computer.
Load the files to a Mac computer using the following method.
“Copying to Mac Computer” (A p. 86)
The computer cannot recognize the SDXC card.
Confirm and update the OS of your computer.
“When your computer cannot recognize the SDXC card” (A p. 10)
Screen/Image
The LCD monitor is difficult to see.
The LCD monitor may be difficult to see if used in bright areas such as under
direct sunlight.
Color and brightness of the screen changes and horizontal
stripes and flickers appear on screen
For images recorded under lighting from fluorescent or mercury lamps, the
color and brightness of the screen may change and horizontal stripes and
flickers may appear on the screen, but this is not a malfunction.
If the image stabilizer has been set to “ON (AIS)”, switch to “ON” to improve
the condition.
“Reducing Camera Shake” (A p. 42)
A band or a ball of bright light appears on the LCD monitor.
Change the direction of this unit to prevent the light source from coming into
view. (A band or a ball of bright light may appear when there is a bright light
source near this unit, but this is not a malfunction.)
The recorded subject is too dark.
Use backlight compensation when the background is bright and the subject
is dark.
“Setting Backlight Compensation” (A p. 30)
Use “LIGHT” in the menu.
Use “GAIN UP” in the menu.
“ GAIN UP ” (A p. 88)
Set “BRIGHTNESS ADJUST” in the recording menu to the “+” side.
“Adjusting Brightness” (A p. 29)
The recorded subject is too bright.
Set the backlight compensation to “OFF” if it is being used.
“Setting Backlight Compensation” (A p. 30)
Set “BRIGHTNESS ADJUST” in the recording menu to the “-” side.
“Adjusting Brightness” (A p. 29)
The color looks strange. (Too bluish, too reddish, etc.)
Wait for a while until natural colors are achieved. (It may take some time for
white balance to be adjusted.)
Set “WHITE BALANCE” in the recording menu to “MANUAL”. Select from
“FINE”/“CLOUD”/“HALOGEN” according to the light source. Select “MWB”
and adjust accordingly.
“Setting White Balance” (A p. 31)
The color looks different.
Set “WHITE BALANCE” in the recording menu accordingly.
“Setting White Balance” (A p. 31)
There are bright or dark spots on the screen.
While the LCD monitor screen has more than 99.99% effective pixels, 0.01%
of the pixels may be bright spots (red, blue, green) or dark spots. This is not
a malfunction. The spots will not be recorded.
Troubleshooting
114
Other Problems
The buttons on the touch screen do not work.
Tap the buttons on the touch screen with your fingers.
The buttons may not respond if you touch them with your fingernails or with
gloves on.
Disable “SCREEN LOCK”. You cannot operate the touch panel when
“SCREEN LOCK” is enabled.
“Locking the Screen” (A p. 33)
Save the recorded data before requesting service.
AConnect to computer using a USB cable.
The “SELECT DEVICE” menu appears.
BPress and hold the START/STOP button for more than 2 seconds.
The “PLAYBACK ON PC” appears.
COperations are to be performed on the computer after the screen
switches.
The image is grainy.
When digital zoom is used, the image becomes grainy as it is digitally
enlarged.
This unit heats up.
This is not a malfunction. (This unit may become warm when used for a long
time.) Stop using the unit if it gets too warm.
The language on the display changed.
It may occur when you connect this unit to a TV with different language setting
using an HDMI mini cable.
“Operating in Conjunction with TV via HDMI” (A p. 63)
When connected to the TV via the HDMI mini cable, proper
images and sounds are not output.
Images and sounds may not be output properly depending on the TV
connected. In such cases, perform the following operations.
ADisconnect the HDMI mini cable and connect it again.
BTurn off and on this unit again.
“Connecting via the HDMI Mini Connector” (A p. 62)
HDMI-CEC functions do not work properly, and the TV does
not work in conjunction with this unit.
TVs may operate differently depending on the specifications, even if they
are HDMI-CEC compliant. Therefore, the HDMI-CEC functions of this unit
cannot be guaranteed to operate in combination with all the TVs. In such
cases, set “HDMI CONTROL” to “OFF”.
“ HDMI CONTROL ” (A p. 102)
The unit operates slowly when switching between video mode
and still image mode, or when switching the power on or off.
It is recommended that you copy all videos and still images onto your
computer, and erase the files from this unit. (If there are many recorded files
on this unit, it takes time for the unit to respond.)
This unit does not function properly and error messages
appear.
This unit is a microcomputer-controlled device. Electrostatic discharge,
external noise and interference (from a TV, a radio, etc.) might prevent it from
functioning properly. In such a case, close the monitor screen to turn off the
power and remove the AC adapter, then press the Reset button to reset this
unit.
“Resetting this Unit” (A p. 5)
CHARGE lamp and POWER/ACCESS lamp are blinking and
operation is disabled
Close the monitor screen to turn off the power and remove the AC adapter,
then press the Reset button to reset this unit.
“Resetting this Unit” (A p. 5)
If these operations won’t solve the problem, contact your JVC dealer or the
JVC service center.
Disclaimer
- We shall not be held responsible for loss of recorded contents when
recording videos/audio or playback cannot be operated due to malfunctions
in this unit, provided parts, or SD card.
- Once deleted, recorded contents (data), including data loss due to
malfunctions in this unit, cannot be restored. Please be forewarned.
- JVC will not be responsible for any lost data. Please be forewarned.
- In order for quality improvement, defective recording medium is subject to
be analyzed. Therefore, it may not be returned.
Troubleshooting
115
Error Message?
SET DATE/TIME!
The clock is reset about one month after the battery is depleted. Therefore,
“SET DATE/TIME!” will appear the next time the power is turned on. Set the
clock again after charging the battery.
“Clock Setting” (A p. 15)
COMMUNICATION ERROR
Reconnect the USB cable.
Turn off and on the devices connected to this unit, and reset this unit.
“Resetting this Unit” (A p. 110)
FORMAT ERROR!
Check the operating procedure, and perform once again.
Reset this unit.
“Resetting this Unit” (A p. 110)
ERROR IN BUILT-IN MEMORY!
Reset this unit.
“Resetting this Unit” (A p. 110)
If the above does not solve the problem, back up your files and execute
“FORMAT BUILT-IN MEM.” in the “SETUP” menu. (All data will be deleted.)
“ FORMAT BUILT-IN MEM. ” (A p. 101)
MEMORY CARD ERROR!
Check that the card is supported by this unit.
“Types of Usable SD Card” (A p. 9)
Reset this unit.
“Resetting this Unit” (A p. 110)
Turn off this unit, then remove and re-insert the SD card.
Remove any dirt from the SD card terminals.
If the above does not solve the problem, back up your files and execute
“FORMAT SD CARD” in the “SETUP” menu. (All data will be deleted.)
“ FORMAT SD CARD ” (A p. 101)
NOT FORMATTED
Select “OK”, then select “YES” on the “DO YOU WANT TO FORMAT?”
screen.
RECORDING FAILURE
Reset this unit.
“Resetting this Unit” (A p. 110)
CANNOT TAKE MORE STILL IMAGES AT THIS TIME
Stop video recording before taking still images. (If the SD card is removed
and inserted during video recording, still images cannot be recorded.)
PLAYBACK FAILED
Remove and re-insert the SD card.
“Inserting an SD Card” (A p. 9)
Remove any dirt from the SD card terminals.
Insert the SD card before turning on the power.
Do not subject this unit to any strong impact or vibration.
UNSUPPORTED SCENE!
Use files recorded with this unit. (Files recorded with other devices may not
be playable.)
UNSUPPORTED FILE!
Use files recorded with this unit. (Files recorded with other devices may not
be playable.)
THIS FILE IS PROTECTED
Switch off the “PROTECT/CANCEL” function in the “EDIT” menu.
“Protecting Files” (A p. 66)
CHECK CARD'S WRITE PROTECTION SWITCH
Set the write protect switch of the SD card to off.
INSUFFICIENT AVAILABLE SPACE
Delete files, or move files to a computer or other devices.
Replace the SD card with a new one.
Seamless videos cannot be combined if there is not enough free space in
the built-in memory or SD card. Check the amount of remaining free space
before combining.
RECORDABLE MANAGEMENT CAPACITY LEVEL HAS BEEN
REACHED
AMove the files or folders to a computer or other device. (Back up your
files.)
BSelect “FILE + MANAGEMENT NO” in “FORMAT BUILT-IN MEM.” or
“FORMAT SD CARD” of the “SETUP” menu. (All data on the built-in
memory or SD card will be deleted.)
“ FORMAT BUILT-IN MEM. ” (A p. 101)
“ FORMAT SD CARD ” (A p. 101)
SCENE QUANTITY EXCEEDED LIMIT
AMove the files or folders to a computer or other device. (Back up your
files.)
BSelect “FILE + MANAGEMENT NO” in “FORMAT BUILT-IN MEM.” or
“FORMAT SD CARD” of the “SETUP” menu. (All data on the built-in
memory or SD card will be deleted.)
“ FORMAT BUILT-IN MEM. ” (A p. 101)
“ FORMAT SD CARD ” (A p. 101)
NUMBER OF FOLDERS OVERFLOW
AMove the files or folders to a computer or other device. (Back up your
files.)
BSelect “FILE + MANAGEMENT NO” in “FORMAT BUILT-IN MEM.” or
“FORMAT SD CARD” of the “SETUP” menu. (All data on the built-in
memory or SD card will be deleted.)
“ FORMAT BUILT-IN MEM. ” (A p. 101)
“ FORMAT SD CARD ” (A p. 101)
FILE QUANTITY LIMIT EXCEEDED
AMove the files or folders to a computer or other device. (Back up your
files.)
BSelect “FILE + MANAGEMENT NO” in “FORMAT BUILT-IN MEM.” or
“FORMAT SD CARD” of the “SETUP” menu. (All data on the built-in
memory or SD card will be deleted.)
“ FORMAT BUILT-IN MEM. ” (A p. 101)
“ FORMAT SD CARD ” (A p. 101)
Troubleshooting
116
NO FILES
Change the setting of “REC MEDIA FOR IMAGE” or “REC MEDIA FOR
VIDEO” in the “SETUP” menu, and check that files are not recorded to the
other media.
“ REC MEDIA FOR VIDEO ” (A p. 100)
“ REC MEDIA FOR IMAGE ” (A p. 101)
RECORDING CANCELLED
Set “REC MEDIA FOR VIDEO” to “SD CARD”, then record to an SD card.
“ REC MEDIA FOR VIDEO ” (A p. 100)
Reset this unit.
“Resetting this Unit” (A p. 110)
Protect the unit from vibration and shock.
DATA RECORDED FILE IS TOO SMALL TO BE SAVED
(CONTINUE RECORDING?)
If time-lapse recording is stopped when the actual recorded time displayed
is "0:00:00:17" or less, the video cannot be saved.
CAMERA TEMPERATURE IS HIGH PLEASE TURN CAMERA
OFF TO ALLOW IT TO COOL DOWN PLEASE WAIT
Turn off the power of this unit, let and it cool down before turning on the power
again.
Troubleshooting
117
Perform regular maintenance of this unit to enable it to be used for a long
time.
Caution :
0Be sure to detach the AC adapter and power plug before performing any
maintenance.
Camcorder
0Wipe this unit with a dry, soft cloth to remove any dirt.
0When it is extremely dirty, soak the cloth in a solution of neutral detergent,
wipe the body with it, and then use a clean cloth to remove the detergent.
Caution :
0Do not use solvents such as benzene, thinner, or alcohol. Doing so may
cause damage to the unit.
0When using a chemical cloth or cleaner, be sure to observe the warning
labels and instructions of the product.
0Do not leave the device in contact with rubber or plastic products for a long
time.
Lens/LCD Monitor
0Use a lens blower (commercially available) to remove any dust, and a
cleaning cloth (commercially available) to wipe off any dirt.
Mold may form if the lens is left dirty.
0You can use a commercially available anti-reflection or protective film on
the screen.
However, depending on the thickness of the film, operations on the touch
screen may not be performed smoothly or the screen may darken slightly.
After using underwater or on the beach
0For care and cleaning where there is mud or dirt on the camera after using
underwater or on the beach, read “Before Using Underwater or under Low
Temperature” (A p. 6) .
Maintenance
118
Camera
Item Details
Power supply Using AC adapter: DC 5.2 V
Power consumption 2.3 W (60i mode, “LIGHT”: “OFF”, MONITOR
BRIGHTNESS: 3 (standard))
2.5 W (60i mode, “LIGHT”: “OFF”, MONITOR
BRIGHTNESS: 4 (brighter))
Rated Current Consumption: 1A
Dimensions (mm) 60 x 59.5 x 127 (2-3/8" x 2-3/8" x 4-15/16")
(W x H x D: excluding grip belt)
Mass Approx. 290 g (0.64 lbs) (camera only)
Operating
environment
Allowable operating temperature: -10 °C to 40 °C
Allowable storage temperature: -20 °C to 50 °C
Allowable charging temperature: 10 °C to 35 °C
Allowable relative humidity: 35 % to 80 %
Image pickup
device
1/5.8” 2,510,000 pixels (CMOS, back-illuminated)
Recording area
(Video)
1,280,000 to 2,290,000 pixels (image stabilizer:
off)
Recording area
(Still image)
2,290,000 pixels (16:9)
1,710,000 pixels (4:3)
Lens F1.8 to F6.3
f= 2.9 mm to 116.0 mm
35 mm conversion:
Video
40.5 mm to 1620 mm (image stabilizer: off)
Still Image
40.5 mm to 1620 mm (16:9)
49.5 mm to 1980 mm (4:3)
Filter diameter * 37 mm (screw pitch: 0.75 mm)
Lowest illumination 3 lux
Zoom (during video
recording)
Optical zoom: Up to 40x
Dynamic zoom: Up to 60x
Digital zoom: Up to 200x
Zoom (during still
image recording)
Optical zoom: Up to 40x
LCD monitor 3.0” Wide, 230,000 dots, color LCD
Recording media Built-in memory (32 GB)
SD/SDHC/SDXC card (commercially available)
“Types of Usable SD Card” (A p. 9)
* When a lens filter or conversion lens is attached, vignetting (the screen
getting dark, or appearance of shadows) may occur.
Connectors
Item Details
HDMI output
connector
HDMI mini connector
AV output
connector
Video output: 1.0 V (p-p), 75 Ω
Audio output: 300 mV (rms), 1 KΩ
USB connector Micro USB Type AB, USB 2.0 compliant
Video
Item Details
Recording/
Playback format
AVCHD standard
Video: MPEG-4 AVC/H.264
Audio: Dolby Digital 2ch
Extension .MTS
Signal system NTSC standard
Video Quality
(Recording pixel
count/Average
recording bit rate)
UXP
1920 pixels x 1080 pixels
Average Approximate 24 Mbps
XP
1920 pixels x 1080 pixels
Average Approximate 17 Mbps
EP
1920 pixels x 1080 pixels
Average Approximate 4.8 Mbps
60p
1920 pixels x 1080 pixels
Average Approximate 28 Mbps
Sound quality
(Audio)
48 kHz, 256 kbps
Still Image
Item Details
Recording format JPEG standard
Extension .JPG
Image Size
(Recording pixel
count)
(16:9 aspect ratio)
1920 pixels x 1080 pixels (2M)
(4:3 aspect ratio)
3680 pixels x 2760 pixels (10.15M)
1440 pixels x 1080 pixels (1.5M)
640 pixels x 480 pixels (0.3M)
“Approximate Number of Still Images (Unit:
Number of Shots)” (A p. 52)
Specifications
119
AC Adapter (AC-V11U)
Item Details
Power supply AC 110 V to 240 V, 50 Hz/60 Hz
Output DC 5.2 V, 1 A
Allowable operating
temperature
0°C to 40°C (32°F to 104°F)
(10°C to 35°C (50°F to 95°F) during charging)
Dimensions (mm) 66 x 28 x 47 (2-5/8” x 1-1/8” x 1-7/8”)
(W x H x D: excluding cord and AC plug)
Mass Approx. 71 g (0.16 lbs)
Memo :
0The specifications and appearance of this product are subject to changes
for further improvement without prior notice.
Specifications
120
Trademarks
0AVCHD Progressive and AVCHD Progressive logo are trademarks of
Panasonic Corporation and Sony Corporation.
0HDMI (High-Definition Multimedia Interface) and HDMI logo are either
registered trademarks or trademarks of HDMI Licensing, LLC in the United
States and/or other countries.
.
0Manufactured under license from Dolby Laboratories. Dolby and the
double-D symbol are trademarks of Dolby Laboratories.
0SDXC logo is a trademark of SD-3C LLC.
0Microsoft and Windows are either registered trademarks or trademarks of
Microsoft Corporation in the United States and/or other countries.
0Mac, OS X, iMovie, iPhoto, iPhone and Safari are trademarks of Apple
Inc., registered in the U.S. and other countries.
0Intel and Intel Core are trademarks or registered trademarks of Intel
Corporation in the United States.
0Android, YouTube and Chrome are trademarks or registered trademarks
of Google Inc.
0QR Code is a registered trademark of Denso Wave Incorporated.
0Other product and company names included in this instruction manual are
trademarks and/or registered trademarks of their respective holders.
0Marks such as ™ and ® have been omitted in this manual.
Trademarks
121
