HR-V705EK
VIDEO CASSETTE RECORDER
INSTRUCTIONS
LPT0767-001A
PAL
– –:– –
AUDIO
0000
VPS/PDC
3
5
3
2 4
30 SEC
?
PR
PR
PR
ENTER
LP00000-000
VCR/TV
i
SAT
VCR
SAT
REVIEW
/I
b
r
SP/LP
AUTO/PDC
24H EXPRESS
1 3 2
PR -- /
+
PUSH / TURN
HR-V705EK-Cover 1/25/03, 11:22 AM1
safety first2
Safety Precautions
The rating plate and the safety caution are on the rear of the unit.
WARNING: DANGEROUS VOLTAGE INSIDE
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN
OR MOISTURE.
IMPORTANT
■Please read the various precautions on pages 2–4 of this instruction manual before installing or
operating the recorder.
■It should be noted that it may be unlawful to re-record pre-recorded tapes, records, or discs
without the consent of the owner of copyright in the sound or video recording, broadcast or cable
programme and in any literary, dramatic, musical, or artistic work embodied therein.
IMPORTANT
Connection to the mains supply in the United Kingdom. DO NOT cut off the mains plug from
this equipment. If the plug fitted is not suitable for the power points in your home or the cable is
too short to reach a power point, then obtain a proper safety approved extension lead/adapter or
consult your dealer.
In the unlikely event of the plug fuse failing be sure to replace the fuse only with an identical
approved type, as originally fitted, and to replace the fuse cover. If the fuse fails again consult
your nearest JVC dealer.
If nonetheless the mains plug is cut off remove the fuse and dispose of the plug immediately, to
avoid a possible shock hazard by inadvertent connection to the mains supply.
If this product is not supplied fitted with a mains plug then follow the instructions given below:
DO NOT make any connection to the Larger Terminal coded E or Green.
The wires in the mains lead are coloured in accordance with the following code:
Blue to N (Neutral) or Black
Brown to L (Live) or Red
If these colours do not correspond with the terminal identifications of your plug, connect as
follows:
Blue wire to terminal coded N (Neutral) or coloured Black.
Brown wire to terminal coded L (Live) or coloured Red.
If in doubt — consult a competent electrician.
CAUTION
■When you are not using the recorder for a long period of time, it is recommended that you
disconnect the power cord from the mains outlet.
■Dangerous voltage inside. Refer internal servicing to qualified service personnel. To prevent
electric shock or fire hazard, remove the power cord from the mains outlet prior to connecting or
disconnecting any signal lead or aerial.
The STANDBY/ON o button does not completely shut off mains power from the unit, but switches
operating current on and off. “y ” shows electrical power standby and “ z” shows ON.
Video tapes recorded with this video recorder in the LP (Long Play) mode cannot be played back on
a single-speed video recorder.
HR-V705EK-EN/p02-07 1/25/03, 10:57 AM2
safety first 3
When the equipment is installed in a cabinet or a shelf, make sure that it has sufficient space on all sides
to allow for ventilation (10 cm or more on both sides, on top and at the rear.)
When discarding batteries, environmental problems must be considered and the local rules or laws
governing the disposal of these batteries must be followed strictly.
Failure to heed the following precautions may result in damage to the recorder, remote control or video
cassette.
1. DO NOT place the recorder…
… in an environment prone to extreme temperatures or humidity.
… in direct sunlight.
… in a dusty environment.
… in an environment where strong magnetic fields are generated.
… on a surface that is unstable or subject to vibration.
2. DO NOT block the recorder’s ventilation openings or holes.
(If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be
able to get out.)
3. DO NOT place heavy objects on the recorder or remote control.
4. DO NOT place anything which might spill on top of the recorder or remote control.
(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)
5. DO NOT expose the apparatus to dripping or splashing.
6. DO NOT use this equipment in a bathroom or places with water. Also DO NOT place any con-
tainers filled with water or liquids (such as cosmetics or medicines, flower vases, potted plants,
cups, etc.) on top of this unit.
7. DO NOT place any naked flame sources, such as lighted candles, on the apparatus.
8. AVOID violent shocks to the recorder during transport.
MOISTURE CONDENSATION
Moisture in the air will condense on the recorder when you move it from a cold place to a warm place,
or under extremely humid conditions—just as water droplets form in the surface of a glass filled with
cold liquid. Moisture condensation on the head drum will cause damage to the tape. In conditions
where condensation may occur, keep the recorder turned on for a few hours to let the moisture dry.
ATTENTION
TO MOBILE PHONE USERS:TO MOBILE PHONE USERS:
TO MOBILE PHONE USERS:TO MOBILE PHONE USERS:
TO MOBILE PHONE USERS:
Using a mobile phone in the vicinity of the recorder may cause picture vibration on the TV screen or
change the screen to a blue back display.
ON PLACING THE RECORDER:ON PLACING THE RECORDER:
ON PLACING THE RECORDER:ON PLACING THE RECORDER:
ON PLACING THE RECORDER:
Some TVs or other appliances generate strong magnetic fields. Do not place this appliance on top of the
recorder as it may cause picture disturbance.
Caution on Replaceable lithium batteryCaution on Replaceable lithium battery
Caution on Replaceable lithium batteryCaution on Replaceable lithium battery
Caution on Replaceable lithium battery
The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not
recharge, disassemble, heat above 100˚C or incinerate.
Replace battery with CR2032. Panasonic (Matsushita Electric) or Maxell is recommended.
Danger of explosion or Risk of fire if the battery is incorrectly replaced.
■Dispose of used battery promptly.
■Keep away from children.
■Do not disassemble and do not dispose of in fire.
■Cassettes marked “VHS” (or “S-VHS”) can be used with this video cassette recorder. However, S-VHS
recording is not possible with this model.
■This model is equipped with SQPB (S-VHS QUASI PLAYBACK) that makes it possible to play back
S-VHS recordings in the SP mode with regular VHS resolution.
■HQ VHS is compatible with existing VHS equipment.
■VIDEO Plus+ and PlusCode are registered trademarks of Gemstar Development Corporation. The
VIDEO Plus+ system is manufactured under license from Gemstar Development Corporation.
HR-V705EK-EN/p02-07 1/25/03, 10:57 AM3
safety first4
Some Do’s And Don’ts
On The Safe Use Of Equipment
This equipment has been designed and manufactured to meet international safety standards but, like
any electrical equipment, care must be taken if you are to obtain the best results and safety is to be
assured.
DO read the operating instructions before you attempt to use the equipment.
DO ensure that all electrical connections (including the mains plug, extension leads and interconnec-
tions between pieces of equipment) are properly made and in accordance with the manufacturer’s
instructions. Switch off and withdraw the mains plug when making or changing connections.
DO consult your dealer if you are ever in doubt about the installation, operation or safety of your
equipment.
DO be careful with glass panels or doors on equipment.
DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is
damaged in any way — switch off, withdraw the mains plug and consult your dealer.
DON’T remove any fixed cover as this may expose dangerous voltages.
DON’T leave equipment switched on when it is unattended unless it is specifically stated that it is
designed for unattended operation or has a standby mode. Switch off using the switch on the
equipment and make sure that your family knows how to do this. Special arrangements may
need to be made for infirm or handicapped people.
DON’T use equipment such as personal stereos or radios so that you are distracted from the require-
ments of road safety. It is illegal to watch television whilst driving.
DON’T listen to headphones at high volume, as such use can permanently damage your hearing.
DON’T obstruct the ventilation of the equipment, for example with curtains or soft furnishings.
Overheating will cause damage and shorten the life of the equipment.
DON’T use makeshift stands and NEVER fix legs with wood screws — to ensure complete safety
always fit the manufacturer’s approved stand or legs with the fixings provided according to the
instructions.
DON’T allow electrical equipment to be exposed to rain or moisture.
ABOVE ALL...
—NEVER let anyone especially children push anything into holes, slots or any other opening in
the case — this could result in a fatal electrical shock;
—NEVER guess or take chances with electrical equipment of any kind — it is better to be safe than
sorry!
HR-V705EK-EN/p02-07 1/25/03, 10:57 AM4
Contents
Diagrams of Equipment ................................ 6
Equipment Key ............................................. 7
Welcome to JVC ............................................8

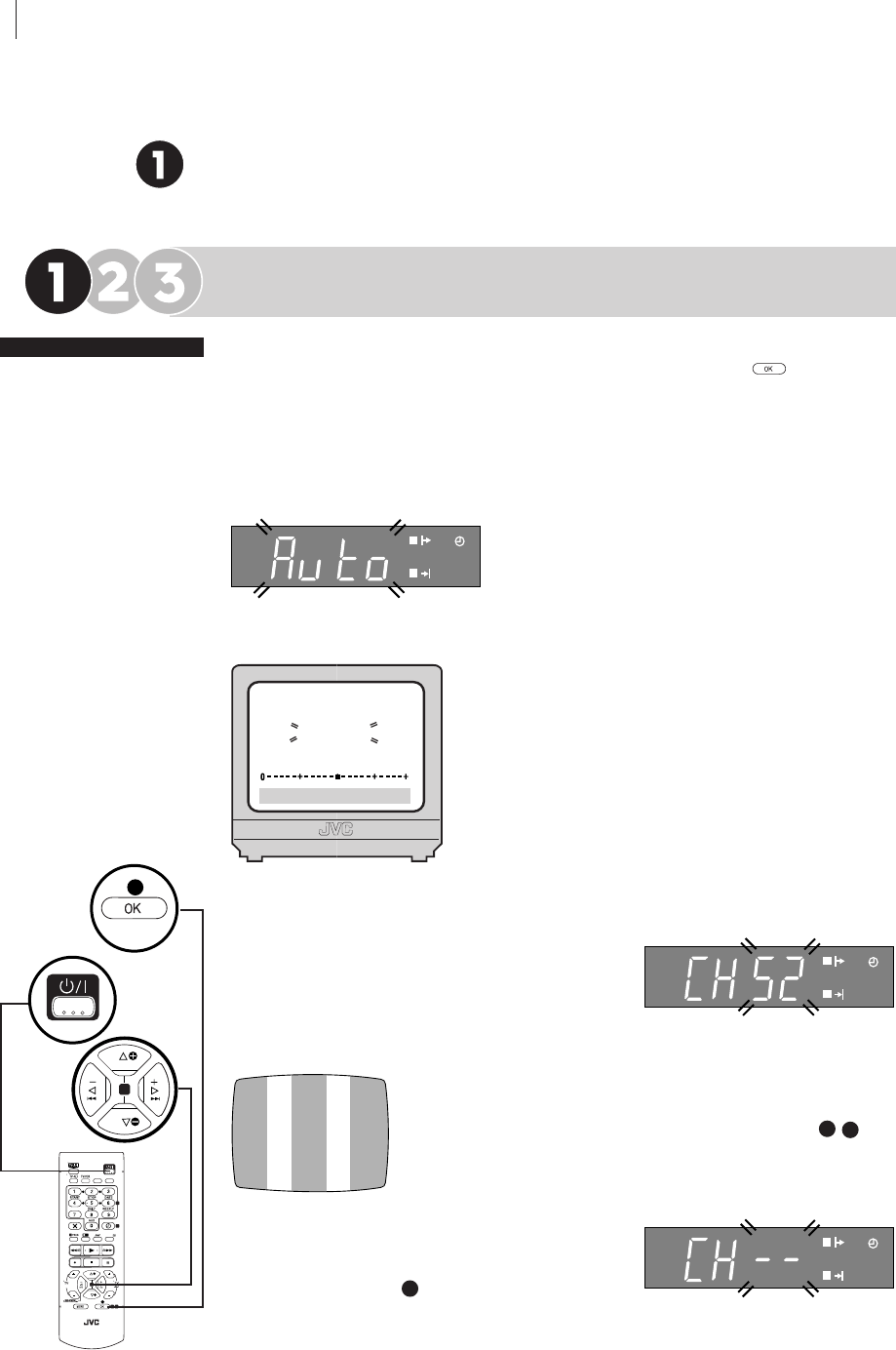

Three-Step Quick Start............................... 10
Basic Features ............................................ 13
Advanced Features .....................................29
Subsidiary Information .............................. 55
List of Terms .............................................. 59
HR-V705EK-EN/p02-07 1/25/03, 10:57 AM5

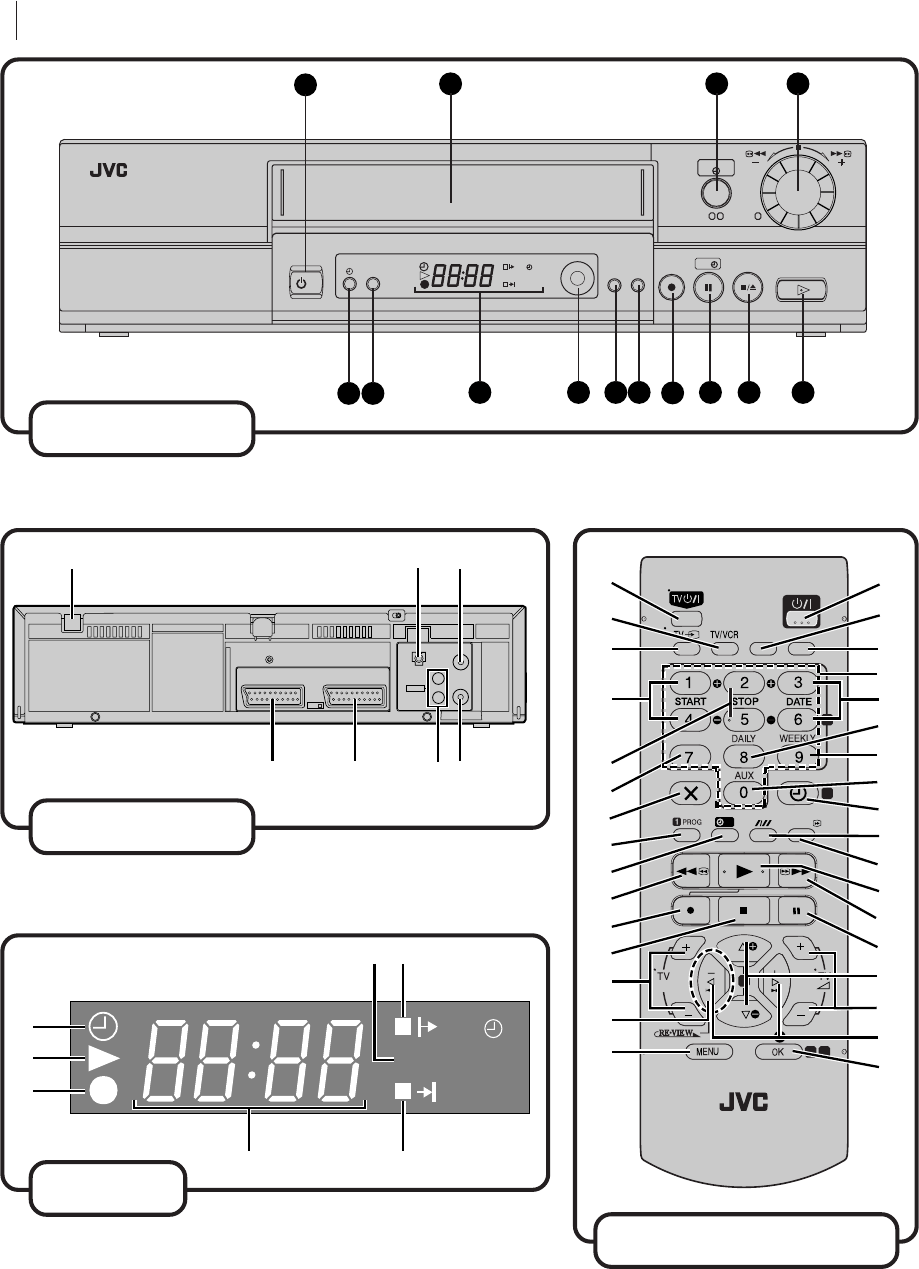

diagrams of equipment6
front panel
display
rear panel
SAT
VCR
SAT
REVIEW
/I
b
r
SP/LP
AUTO/PDC
24H EXPRESS
1 3 2
PR -- /
+
PUSH / TURN
12 3 4
5 6 7 8 9 10 11 12 13 14
VCR
SAT
REVIEW
1
2
3
4 5
67
L
AUDIO
CONTROLEUR SAT
010
ENTREE
ANT. IN
ENTREE/DECODEUR
IN/DECODER
ENTREE/SORTIE
IN/OUT
SORTIE
RF OUT
ANTENNE
SORTIE
OUT
R
L
AUDIO
CONTROLEUR SAT
SAT CONTROL
L-1L-2
010
1
7
45
3
2
6
– –:– –
AUDIO
0000
VPS/PDC
3
5
3
2 4
30 SEC
?
PR
PR
PR
ENTER
LP00000-000
VCR/TV
i
t
y
o
u
2
7
6
1
8
3
9
4
0
!
@
$
^
&
r
Q
5
i
q
*
#
%
)
w
(
e
p
W
E
remote control
*DECODER function is not available in the UK.
HR-V705EK-EN/p02-07 1/25/03, 10:57 AM6
equipment key 7
Diagram Key
3ANT. IN Connector enables
connection of aerial.
4L-2 IN/DECODER
Connector enables connection
of satellite receiver or second
recorder.
FRONT PANEL
1STANDBY/ON o Button
turns VCR on/off (loading a
cassette also turns power on).
2Cassette Loading Slot is
where cassette is inserted;
door closes.
324H EXPRESS c Button
enables 24H Express Timer
Programming.
4Advanced JOG Dial enables
picture search, preset position
selection or 24H Express
Timer Programming.
5c Button engages timer—
standby mode.
6b(Display) Button
switches display between
clock time and Preset
Position *(or Mode).
* Preset Position (or Mode) is
not displayed during playback.
7Display Panel provides
clear view of various displays
and indicators.
8Infrared Beam Receiving
Window is where Remote
Control should be aimed when
in use.
9r Button
‘review’ timer-recorded
programme.
10 SP/LP Button select tape
speed.
11 T Button starts regular
recording (press once), Instant
Timer Recording (press twice);
sets duration of ITR.
12 | Button stops tape
temporarily during recording;
stops tape temporarily during
playback; plays back frame by
frame with each additional
press.
SATc Button enables/
disables the Auto Satellite
Programme Recording mode.
13 § Button stops tape;
ejects tape during Stop mode.
14 . Button plays back tape;
cancels Pause, Still, Slow,
Search modes.
REAR PANEL
1Mains Power Cord
supplies power to VCR.
2SAT CONTROL Connector
enables connection of the
Satellite Controller for timer
recording with a satellite
receiver.
* DECODER function is not available in the
UK.
5L-1 IN/OUT Connector
enables AV connection to TV
or second VCR.
6AUDIO OUT (L/R)
Connectors enable connection
of audio cassette recorder, TV
or second VCR for dubbing.
7RF. OUT Connector enables
connection to aerial terminal
of TV receiver.
VCR DISPLAY PANEL
1c Indicator lights when
the c button has been
pressed to engage Timer
mode.
2Play Indicator lights up
during playback; blinks during
Repeat Playback or when
using Next Function Memory
for playback.
3Record Indicator lights up
during recording; blinks
during Instant Timer
Recording.
4Channel Display shows
preset position where the
station currently being
received is stored.
Mode shows external
input mode selected (L-1 or L-
2).
Clock Display shows
current time.
Preset Position* (or Mode)
and Clock Display appear
alternately when b is
pressed.
* Preset Position (or Mode) is
not displayed during playback.
5REVIEW Indicator blinks
after timer-recording and
shows how many
programmes have been timer-
recorded.
Programme Stop Time
Indicator shows the
programme stop time for 24H
Express Timer Programming.
SATc Indicator lights up
during Auto Satellite
Programme Recording
standby mode; blinks when
Auto Satellite Programme
Recording is in progress.
7VCR Indicator lights when
the VCR is in the video mode.
At this point, the TV automati-
cally enters AV mode.
REMOTE CONTROL
1TV STANDBY/ON o
Button turns TV on/off.
2TV/VCR Button switches
connected TV’s mode between
TV and AV.
3TV Button switches TV
input terminal.
4START + / – Buttons
inputs programme Start Time.
5STOP + / – Buttons inputs
programme Stop Time.
6PDC Button enables/
disables PDC recording.
* VPS (Video Programme
System) recording is not currently
available in the U.K. and not
possible with this VCR.
7 x Button cancels timer-
programme.
0000 Button resets
counter on the on-screen
display to ‘0:00:00’.
8PROG Button accesses
Timer Programming Set
screen.
9C Button accesses
Program screens/displays to
check the programme that you
have programmed (next
programme’s information
screen appears each time
button is pressed).
10 < Button rewinds
the tape; inltiates reverse
picture search.
11 T Button — same as
button on VCR.
12 S Button stops tape.
13 TV PR +/– Buttons select
the connected JVC TV's
channel.
14 rButton
‘reviews’ timer-recorded
programme.
15 Button accesses
Menu screen.
16 STANDBY/ON o Button
— same as button on VCR.
6 Programme Start Time
Indicator shows the
programme start time for 24H
Express Timer Programming.
17 AUDIO Button changes
output sound mode.
18 b(Display) Button
switches display between
clock time and Preset
Position* (or Mode).
Preset Position (or Mode) is not
displayed during playback.
19 Number Keys are used in
preset position selection and
the VIDEO Plus+ Timer
Programming.
20 DATE + / – Buttons inputs
date of programme for timer
recording
21 DAILY Button enables
timer recording of daily
serials.
22 WEEKLY Button enables
timer recording of weekly
serials.
23 AUX Button selects VCR’s
auxiliary input mode.
24 c Button engages timer-
standby mode.
25 Auto Tracking Button
enables/disables auto
tracking mode during
playback.
/ Button selects tape
speed.
26 3 Button
initiates a 30-second period of
fast-motion playback.
27 . Button — same as
button on VCR.
28 > Button fast-
forwards tape; inltiates
forward picture search.
29 | Button — same as
button on VCR.
30 PR
PR Buttons are used
for selection in on-screen
menus.
PR + / – Buttons select a
preset position.
31 TV +/– Buttons control
volume of connected JVC TV.
32 D E Buttons initiate
functions such as Index
Search, variable-speed search,
frame by frame playback.
33 Button enters
selections made in on-screen
menus.
Button — Shows
current VCR status on the TV
screen if O.S.D is set to ON.
HR-V705EK-EN/p02-07 1/25/03, 10:57 AM7
welcome to jvc8
before you start
Please read the SAFETY
FIRST on pages 2–4
it tells you about some
safety points
Refer to the diagrams on
pages 6–7 when reading
through these
instructions
Refer to the List of
Terms on page 60 if you
need an explanation for
any terms in this manual
remote control
The Remote Control can
operate most of your
VCR’s functions, as well
as basic functions of JVC
TV sets. (see page 7)
When inserting the
lithium battery -CR
2032-, be sure to insert
in the correct directions
as indicated below.
To open the battery
compartment, press the
release tab and
carefully, pull the
compartment out.
Depending on the type
of JVC TV. Some or all
functions cannot be
operated using the
Remote Control.
If the Remote Control
doesn’t work properly,
remove it’s battery,
replace the battery and
then try again.
Video Cassette Recorder
SAT
VCR
SAT
REVIEW
/I
b
r
SP/LP
AUTO/PDC
24H EXPRESS
1 3 2
PR -- /
+
PUSH / TURN
RF Cable
Infrared Remote
Control Unit
Lithium Battery -CR 2032-
– –:– –
AUDIO
0000
VPS/PDC
3
5
3
2 4
30 SEC
?
PR
PR
PR
ENTER
LP00000-000
VCR/TV
i
Welcome to JVC
Thank you for choosing JVC.
We hope that you will get many hours of enjoy-
ment from your new unit.
In just three easy steps you will be ready to enjoy the exceptional perfor-
mance of your new VCR. More detailed instructions begin on page 10. They
will explain how to use the many sophisticated features this VCR boasts.

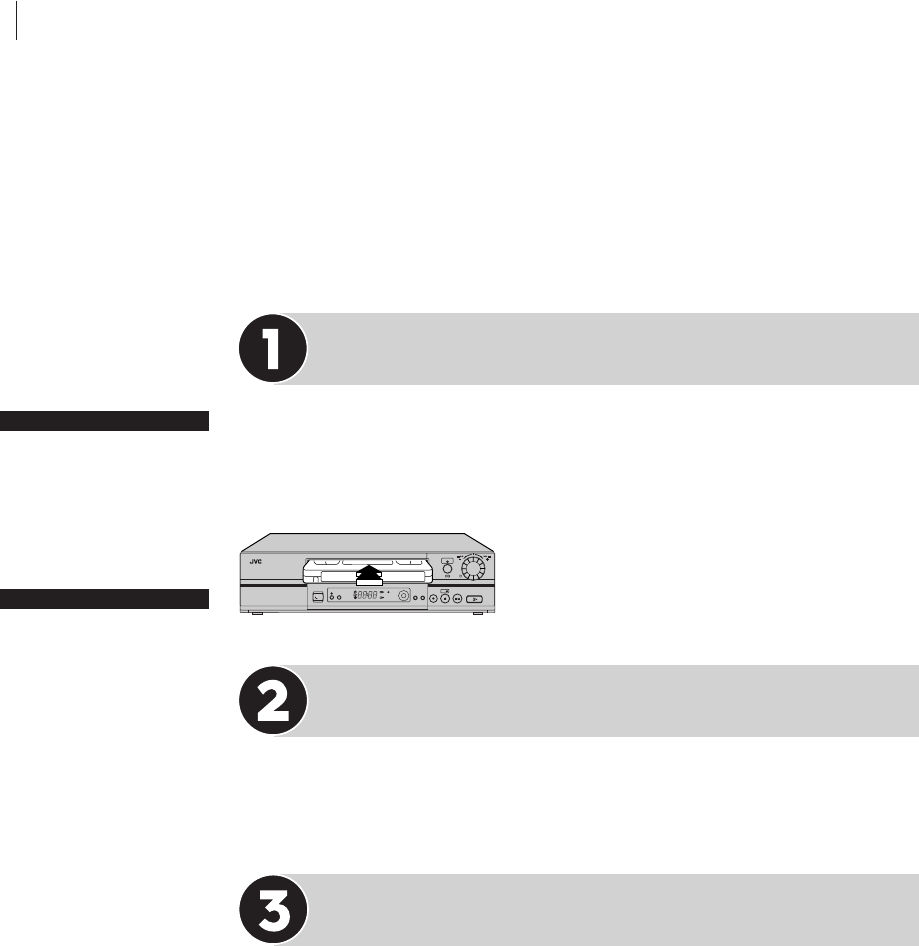

Getting Everything Ready
check the contents Unpack the box and place the VCR on a flat, stable surface.
Check that you have the items shown below.
Release
tab
HR-V705EK-EN/p08-12 1/25/03, 10:58 AM8
welcome to jvc 9
GETTING EVERYTHING READY (continued)

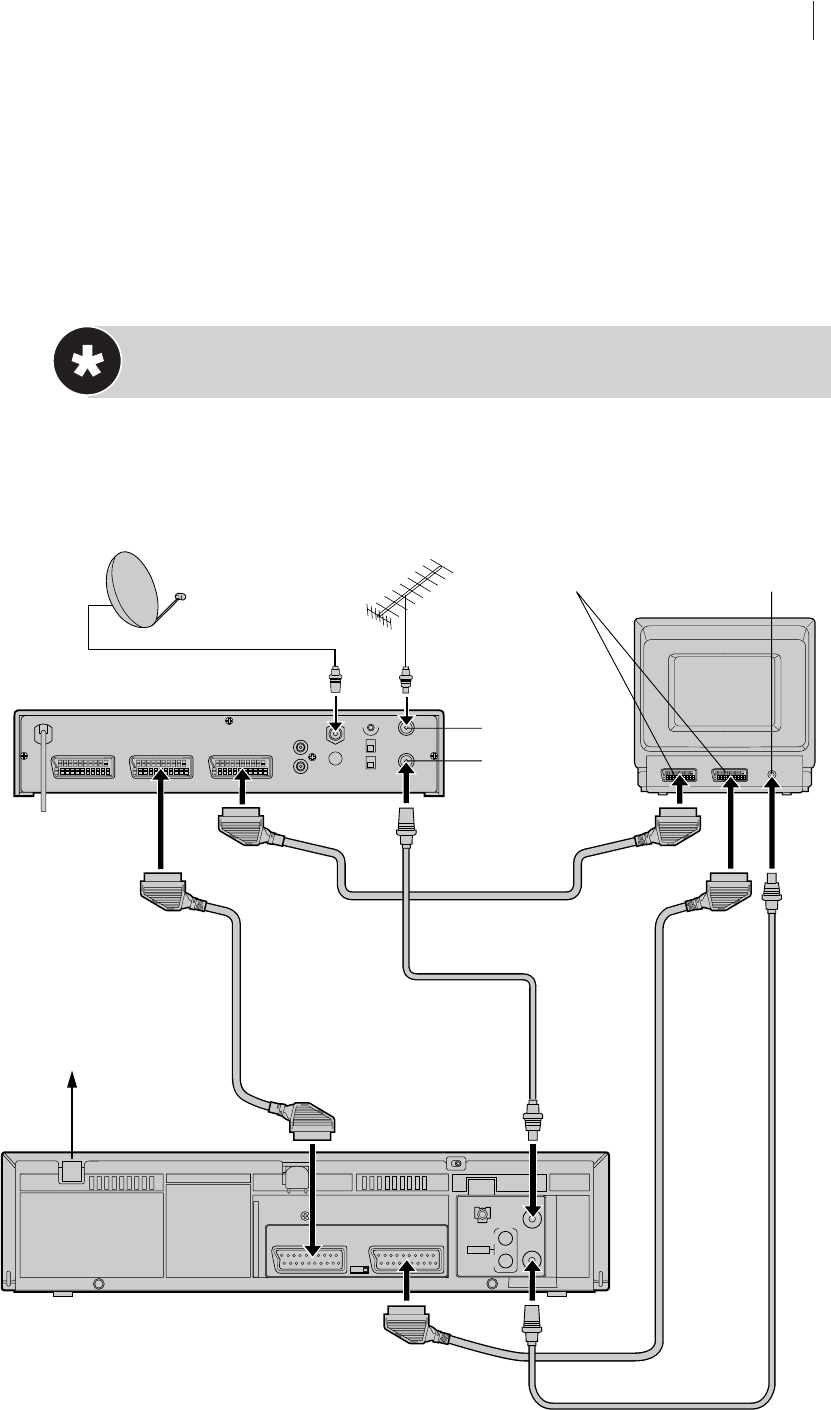

connect cables Connect the cables as indicated in the diagram (below), using
the TV Aerial Cable, the RF Cable and the 21-pin SCART Cable (not provided).
scart and rf
SCART is a
recommended option
because its use
improves the quality of
the picture.
If connecting to a stereo
TV you will need a
SCART cable.
There are several types
of SCART cables, fully-
wired and others.
If you use a SCART
cable, you must also
connect the RF cable. You are now ready to start the Three-Step Quick Start which begins on the next
page.
You have two ways for initial setup of your new VCR depending upon the
connection method and your TV.
If you have connected only the RF cable,
perform Auto Setup (墌 pg. 10).
If you have connected both the RF cable and the fully-
wired 21-pin SCART cable, and if your TV does not offer
T-VLink, etc.*,
perform Auto Setup (墌 pg. 10).
If you have connected both the RF cable and the fully-
wired 21-pin SCART cable, and if your TV offer T-VLink,
etc.*,
perform Preset Download (墌 pg. 11).
* Compatible with TVs offering T-VLink, EasyLink, Megalogic, SMARTLINK,
Q-Link, DATA LOGIC or NexTView Link via fully-wired 21-pin SCART cable.
The degree of compatibility and available functions may differ by system.
ENTREE
ANT. IN
ENTREE/DECODEUR
IN/DECODER
ENTREE/SORTIE
IN/OUT SORTIE
RF OUT
ANTENNE
SORTIE
OUT
R
L
AUDIO
CONTROLEUR SAT
SAT CONTROL
L-1L-2
010
RF Cable
(provided)
TV Aerial
Cable
(not
provided)
21-pin SCART Cable
(not provided)
Mains Power
Cord
Mains Outlet
Back of VCR
*DECODER function is not available in the UK.
HR-V705EK-EN/p08-12 1/25/03, 10:58 AM9
three-step quick start10
Auto Setup
START AUTO SETUP
Press the o button. If ‘Auto’ appears on the display panel, press (or E).
what will happen? The display panel on the front of the VCR will show the
word ‘Auto’. Do not press any button on the VCR or the Remote Control.
note If you have connected both the RF cable and the fully-wired 21-pin SCART
cable, and if your TV offers T-VLink, etc., and the TV is turned on, the VCR
automatically performs the Preset Download (墌 pg. 11) even if you select ‘Auto’
for Auto Setup function.
The VCR is automatically setting up the tuner
channels, clock, the VIDEO Plus+ assigned Guide
Program numbers and the video channel. This only
happens the first time that the VCR is turned on.
rf and scart connection If you have chosen to
connect the VCR to the TV with both the RF Cable
and a 21-pin SCART Cable (not provided) and the
TV set is in its AV mode (see the TV manual), you
will see the following information displayed on
your TV screen:
SELECT THE VIDEO CHANNEL

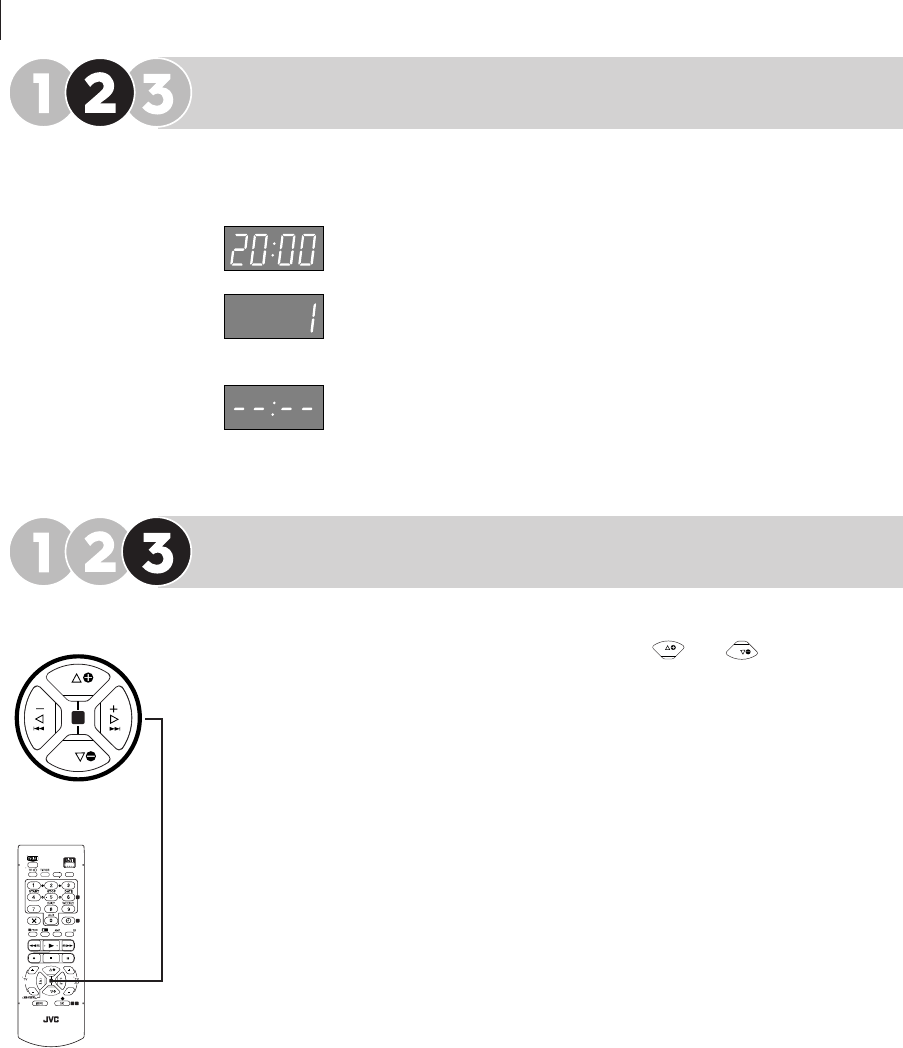

When Auto Setup has finished, you will see the following display panel on your VCR:
rf cable only If you have only used the RF
Cable to connect the VCR to the TV, you will
see this display. The number is the channel on
the TV that the Auto Setup has chosen to be the
video channel. In the example, we have presumed that channel 52 is vacant and
have set the VCR to 52:
Now tune the TV set to channel 52 (refer to TV manual if
necessary); you should see two vertical white bars appear
on the TV screen. If the bars do not appear or are not
clear, choose another vacant channel pressing PR +/ -- on
the Remote Control and try again. If you cannot obtain
the vertical white bars on any channel between 22 and 69,
consult your local JVC dealer.
rf and scart connection If you have chosen
to connect the VCR to the TV with both the RF
Cable and a 21-pin SCART Cable (not provided),
you need to press PR -- on the Remote Control
until the figure reads ‘– –’. This is because you will use the TV in AV mode to view
video pictures and therefore do not need a dedicated video channel.
before you start
Check that the VCR is
turned off and no
cassette is inserted
Load the battery into the
Remote Control
Refer to the Remote
Control diagram
on pages 6–7
Unless indicated
otherwise, use the
buttons on the Remote
Control
Check that the
connection is completed
Turn on the TV
VCR
SAT
REVIEW
VCR
SAT
REVIEW
Three-Step Quick Start
For Step , be sure to perform either of the methods:
Auto Setup or Preset Download.
Auto Setup is running: don’t
touch any buttons
Your TV screen during Auto Setup if SCART is used
VCR
SAT
REVIEW
– –:– –
AUDIO
0000
VPS/PDC
3
5
3
2 4
30 SEC
?
PR
PR
PR
ENTER
LP00000-000
VCR/TV
i
ENTER
i
– –:– –
3
PR
PR
AUTO SET
PLEASE WAIT
[MENU]: EXIT
HR-V705EK-EN/p08-12 1/25/03, 10:58 AM10
three step quick start 11
– –:– –
AUDIO
0000
VPS/PDC
3
5
3
2 4
30 SEC
?
PR
PR
PR
ENTER
LP00000-000
VCR/TV
i
before you start
Check that the VCR is
turned off and no
cassette is inserted
Load the battery into the
Remote Control
Refer to the Remote
Control diagram
on pages 6–7
Unless indicated
otherwise, use the
buttons on the Remote
Control
Check that the
connection is completed
Be sure to use the fully-
wired 21-pin SCART cable
Turn on the TV whose
channels have already
been stored
Preset Download
START PRESET DOWNLOAD
Press the o button. The display panel on the
front of the VCR will show the word ‘Auto’.
Press the
PR
or
PR
button to select
‘CH – –’ and press (or E).
what will happen? The VCR is automati-
cally setting up the tuner channels by down-
loading from your TV, clock and the VIDEO
Plus+ system assigned Guide Program
numbers. During downloading, preset position
on the display panel increases from “CH1”.
rf and scart connection If the TV set is in its AV mode (see the TV
manual), you will see the following information displayed on your TV screen:
SET THE VIDEO CHANNEL TO OFF
When Preset Download has finished, ‘COM-
PLETED’ appears on the TV screen. Press o to
turn off the VCR. Press and hold down S on
the VCR until you will see the display on the
right. Press PR -- on the Remote Control until the figure reads ‘– –’.
FINISH PRESET DOWNLOAD
Press and move on to Step 2 to check the results.
oops! If there is a power cut or you accidentally press a button during Preset
Download, turn the VCR off and then on again. Re-perform Preset Download.
NOTES
• In areas where no TV station transmits the PDC signal, the VCR cannot setup
either the clock or Guide Program numbers.
• On this VCR, the characters available for station names (ID) are A–Z, 0–9, –,
*, + and (space). The names of some downloaded stations may differ from
those on your TV.
Preset Download is running:
don’t touch any buttons
VCR
SAT
REVIEW
VCR
SAT
REVIEW
Your TV screen during Preset
Download
T-VLINK
PLEASE WAIT
[MENU]: EXIT
VCR
SAT
REVIEW
FINISH AUTO SETUP
Press and move on to Step 2 to check the results.
oops! If there is a power cut or you accidentally press a button during Auto
Setup, turn the VCR off and then on again. Re-perform Auto Setup.
– –:– –
3
PR
PR
ENTER
i
HR-V705EK-EN/p08-12 1/25/03, 10:58 AM11
three-step quick start12
3
PR
PR
– –:– –
AUDIO
0000
VPS/PDC
3
5
3
2 4
30 SEC
?
PR
PR
PR
ENTER
LP00000-000
VCR/TV
i

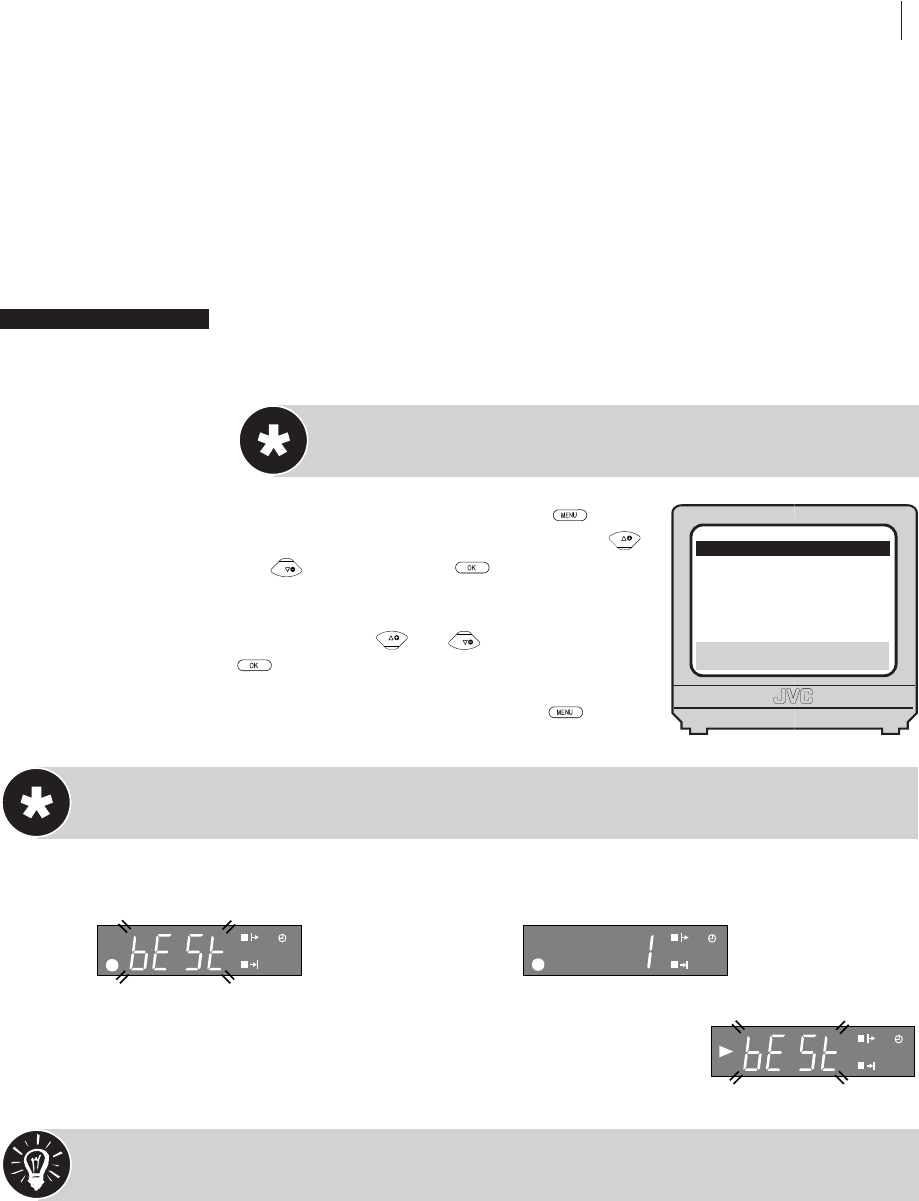

Check the Results
When Auto Setup or Preset Download finishes, you will see one of the three
following examples on the VCR display panel:
The Preset Positions and the Clock have been set successfully
Go straight to Step 3 (20:00 used as example only).
The Preset Positions have been set successfully but the Clock has not
Perform Clock Set on page 54.
Go to Step 3.
Neither the Preset Positions or the Clock have been set successfully
Make sure the cables are connected properly to the VCR and turn
the VCR off and then on again. Try Auto Set Up or Preset Download
again.
Finish Off
Select the Video channel or AV mode, then make sure that all necessary stations
have been stored in the VCR’s memory by using the
PR
and
PR
buttons.
If station names (ID — 墌 pg.50) have also been stored in the VCR’s memory, the
station name will be displayed at the top left corner of the TV screen for about 5
seconds each time you select a different channel via the VCR.
The VCR is now set up. You can now use it to play and record.
IMPORTANT
•re-running setup Auto Setup or Preset Download may not behave as
described if it has already been run on the VCR. This is because some of the
information gathered on the first Auto Setup or Preset Download is retained in
memory and that part of the process may be skipped by the VCR.
•bad reception In certain reception conditions, station names may not be
stored correctly, and Guide Program Numbers may not be set properly. If this
happens, when you timer-record a TV programme using the VIDEO Plus+
system, the VCR will record a TV programme of a different station. When
programming the timer using the VIDEO Plus+ system, be sure to check that
the preset position corresponding to the broadcasting station you wish to
record has been selected (墌 pg.21, VIDEO Plus+ Timer Programming).
•duplicate stations You may be able to receive the same station from two
different transmitters in which case Auto Setup will detect and store both. It is
normal for one transmitter to give you a better quality picture than the other; to
delete those stations which have a poor picture 墌 Delete A Channel on page50.
•manual station setting If any of the above problems occur, refer to
pages50–51 to input station names (墌 Change Station Name). You can also
change station preset positions (墌 Change Station Preset Position).
•rf connections In certain reception conditions, the Video Channel may not
be set correctly and interference may appear in the TV picture while the VCR’s
power is on. Set your Video Channel manually. (墌 pg.47, Video Channel Set)
IF YOU HAVE ANY DIFFICULTY WITH THE ABOVE PROCEDURES CALL THE JVC
CUSTOMER SERVICE HOT LINE ON 0870 330 5000
HR-V705EK-EN/p08-12 1/25/03, 10:58 AM12
Basic
Features
Playback..................................................... 14
Playback Features ...................................... 16
Recording ................................................... 18
VIDEO Plus+® Timer Programming ............ 21
Express Timer Programming ...................... 24
24H Express Timer Programming ............... 26
HR-V705EK-EN/p13-20 1/25/03, 10:58 AM13
basic features14
before you start
Turn the TV on
Tune the TV to your
Video Channel or to its
AV mode
ntsc tapes
If an NTSC tape is
played, ‘NTSCaPAL’
appears on screen for
about 5 seconds
Some TVs will shrink
the picture and place
black bars at the top and
bottom of the screen.
This is not a malfunction
but you may lose some
on-screen information
The picture may roll up
or down. Correct this by
adjusting the vertical
hold on the TV set
The counter and tape
remaining times will be
incorrect
The picture will be
distorted during search,
still or frame-by-frame
playback
Playback
Playback is the most basic operation possible with your VCR. Audio-visual
information recorded on a cassette will be played back on your TV screen
just like a broadcast programme.
Load a Video Cassette
Make sure that the window side of the cassette is facing up and the spine label is
facing away from the VCR. Insert the cassette as shown in the diagram below;
don’t use too much force. If the VCR was turned off before you inserted the
cassette, the power will come on automatically.
The counter on the TV screen will reset to read
‘0:00:00’. If the record safety tab on the video
cassette has been removed, playback begins
automatically.
Play
If the cassette that you inserted does not start playing automatically, press the .
button on the VCR or the Remote Control. ‘bESt’ appears blinking in the display
panel during automatic tracking (墌 pg.31).
Stop & Eject
stop Press the § button on the VCR or the S button on the Remote
Control once to stop playback.
eject Press the § button on the VCR a second time to eject the cassette
from the VCR. The cassette will take about 6 seconds to appear once the §
button has been pressed.
NOTE: You can also eject the cassette while the VCR is turned off.
SAT
VCR
SAT
REVIEW
/I
brSP/LP
AUTO/PDC
24H EXPRESS
1 3 2
PR -- /
+
PUSH / TURN
HR-V705EK-EN/p13-20 1/25/03, 10:58 AM14
basic features 15

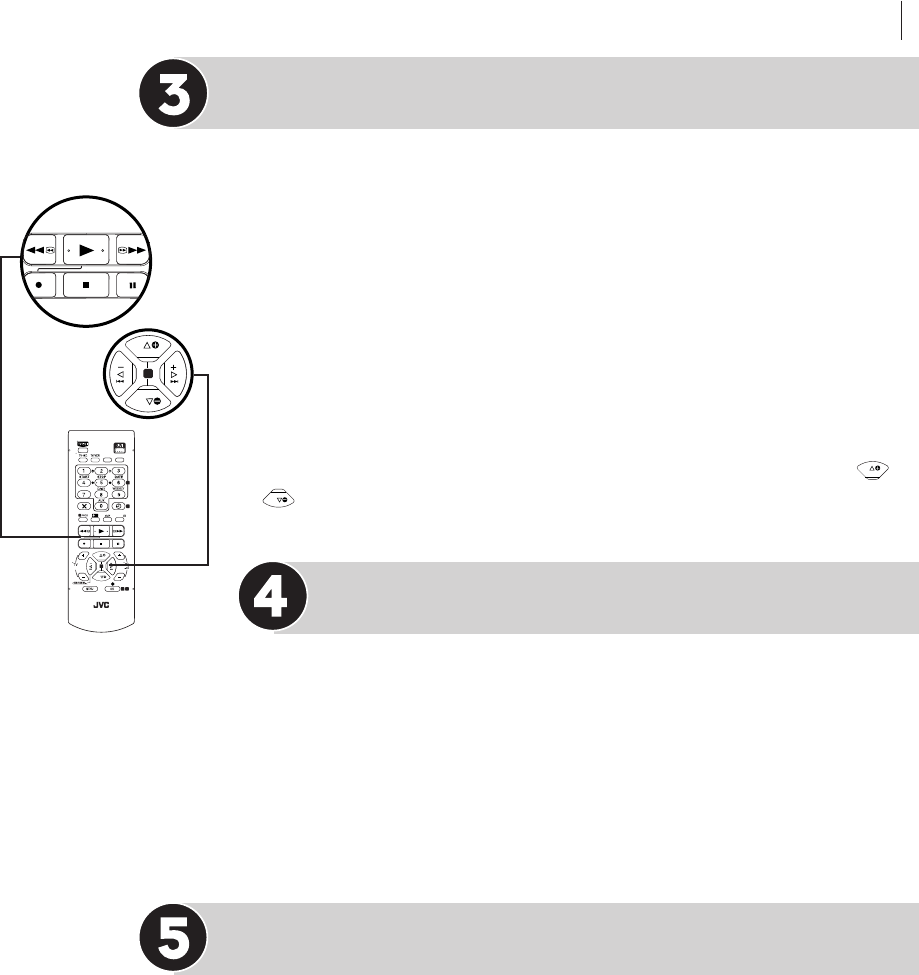

Rewind and Fast Forward
During Stop Mode:
rewind Press the < button on the Remote Control or turn the JOG Dial to
the left.
fast forward Press the > button on the Remote Control or turn the
JOG Dial to the right.
SQPB
This VCR is equipped with SQPB (S-VHS QUASI PLAYBACK) that lets you
watch tapes recorded in the S-VHS format and the SP mode, with regular VHS
resolution.
NOTES:
• SQPB does not deliver Super VHS resolution.
• S-VHS recording is not possible with this VCR.
• When you play back a tape recorded in S-VHS format and the SP mode, noise
may appear in the still, slow motion, or frame-by-frame playback mode.
• Depending on the tape, noise may appear during normal playback.
Video Heads Cleaning
The heads get dirty in the following cases:
• In an environment prone to extreme temperature or humidity.
• In a dusty environment.
• Flaw, dirt or mold on video tapes.
• Continuous usage for a long time.
Use a dry cleaning cassette — JVC TCL-2 — in the following cases:
• Rough, poor picture appears while a tape is played back.
• The picture is unclear or no picture appears.
• ‘USE CLEANING CASSETTE’ appears on the screen (only with ‘O.S.D.’ set to
‘ON’ (墌 pg.43)).
HR-V705EK-EN/p13-20 1/25/03, 10:58 AM15
basic features16
Playback Features
Advanced JOG Dial
The JOG Dial can be found on the front right of the VCR. It has various functions,
such as picture search (墌this page and pg.17), selecting preset position
(墌pg.18), 24H Express Timer Programming (墌pg.26), etc.
Pause During Playback
There are two ways to view a still picture during playback:
method one Push the center part of the JOG Dial.
method two Press the | button on the VCR or the Remote Control.
Press the | button on the VCR or the Remote Control.
• If the paused picture on the TV screen jumps vertically, press the PR or
PR
until the picture is steady.
• Press . to resume playback.
Single Frame Movement
You can move backward or forward from the still picture in one of three ways:
method one Turn the JOG Dial right for forward or left for back.
method two Press the | button on the VCR or the Remote Control. Each time
the | button is pressed, the frame will move forward one frame.
method three Press D or E on the Remote Control. Each time one of
these buttons is pressed, the frame will advance or move back one frame.
• Press . to resume playback.
HR-V705EK-EN/p13-20 1/25/03, 10:58 AM16
basic features 17
Slow Motion
This VCR will play your cassette forwards or backwards in slow motion. You can
make it do this in one of three ways:
method one During playback, turn the JOG Dial to the left for forward slow
motion. To play in reverse slow motion, continue to turn the JOG Dial to the left
one more time.
method two During still picture, press and hold | on the VCR or the Remote
Control for 2 seconds, then release. Press and release | again to return to still
picture.
method three During still picture, press and hold the D or E button on
the Remote Control. The picture will return to still when you release the button.
• If the slow motion picture on the TV screen jumps vertically, press the PR or
PR
button until the picture is steady.
• Press . to resume playback.
Variable Speed Search
You can use variable speed search with one of two methods:
method one During playback, turn the JOG Dial. The speed forward or reverse
depends upon the number of click stops of the JOG Dial.
method two During playback, press the D or E button on the Remote
Control. The more times that you press either button, the faster the rate of
search. To decrease the speed of search, press the button for the opposite
direction.
• Press . to resume playback.
Picture Search
You can perform a picture search in either direction using the JOG Dial or the
Remote Control.
jog dial During playback, turn the JOG Dial to the right (for forward search) or
left (for reverse search).
remote control During playback or still picture, press the > on the
Remote Control for forward picture search, or the < button for reverse
picture search. Each time you press <or >, the search speed changes
between low-speed and high-speed.
• Press . to resume playback.
NOTES:
In the search, still, slow motion or frame-by-frame playback mode
• The picture will be distorted
• The noise bars will appear
• There will be a loss of colour with an LP-recorded tape.
– –:– –
AUDIO
0000
VPS/PDC
3
5
3
2 4
30 SEC
?
PR
PR
PR
ENTER
LP00000-000
VCR/TV
i
3
PR
PR
HR-V705EK-EN/p13-20 1/27/03, 10:53 AM17
basic features18
before you start
Turn the TV on
Tune the TV to your
Video Channel or to its
AV mode
Choose a blank
cassette which has the
record safety tab still in
place
Record
Safety Tab
Load the cassette into
the VCR (see page 14)
Recording
TV signals being received by the recorder’s built in tuner can be recorded
onto a video tape. You can ‘capture’ a TV programme using your VCR.
Choose a Programme
There are two ways to select a preset position of the VCR.
method one Press PR or
PR
or the number keys on the Remote Control to
select the channel that you wish to record.
method two Push the center part of the JOG Dial so that the preset position
appears on the display panel. While the display is shown, turn the JOG Dial to the
right or left.
Set the Tape Speed
Press /. The current setting for the tape speed appears on the on-screen
display or the VCR display panel for about 5 seconds. Press /again to
change the setting while tape speed is displayed. You can choose Standard Play
(SP) or Long Play (LP). The picture quality on LP recordings will not be as high
as on SP recordings, but the tape will last longer.
Start Recording
There are two ways to start recording:
method one Press and hold T and then press . on the Remote Control.
method two Press T on the VCR.
When “DIRECT REC” is set to “ON” (墌pg. 35), if you press any button just
after pressing Ton the VCR (or Tand . on the Remote Control), the recorder
may not function properly.
Pause and Resume During Recording
On either the VCR or the Remote Control, press | to temporarily stop recording
and press . to resume. You cannot change the preset position on the VCR while
it is recording but you can while it is paused (see Choose a Programme at the top
of this page).
– –:– –
AUDIO
0000
VPS/PDC
3
5
3
2 4
30 SEC
?
PR
PR
PR
ENTER
LP00000-000
VCR/TV
i
3
PR
PR
HR-V705EK-EN/p13-20 1/25/03, 10:59 AM18
basic features 19
Notes on Recording
When using both the RF and SCART connections, you can switch between TV
and VCR by pressing the TV/VCR button on the Remote Control.
If the tape reaches its end during recording, the recording stops and “U” and
“,” on the display panel blink. Press S/0on the VCR to eject the tape or press
<to rewind the tape.
Display Tape Remaining Time
Press the bbutton so that the tape remaining time is shown on the TV
screen with ‘REMAIN’ indication. The on-screen information will disappear
after about 5 seconds.
non-standard tapes Sometimes, a tape will not conform to the standards
accepted by this VCR. In such cases the tape remaining time may not appear
immediately, be incorrect or simply show as ‘– – : – –’.
Change Display Information
By pressing the bbutton repeatedly, you can change the display on the VCR
between the clock time and the preset position. The preset position cannot be
shown during playback.
Resetting the Counter
Press the bbutton so that the counter display appears on the TV screen.
While the display is shown, press the 0000 button. You can reset the counter to
‘0:00:00’ before starting playback or recording.
Record a Programme While Watching Another
Once you have started recording all you need to do is use the controls on your
TV set to tune to a different programme. The programme set using PR + / –
button on the Remote Control or the JOG Dial on the VCR is the one which will
be recorded.
– –:– –
AUDIO
0000
VPS/PDC
3
5
3
2 4
30 SEC
?
PR
PR
PR
ENTER
LP00000-000
VCR/TV
i
– –:– –
0000
3
PR
PR
HR-V705EK-EN/p13-20 1/25/03, 10:59 AM19
basic features20
Recording Resume Function
If there is a power cut during recording (or Instant Timer Recording or timer
recording), the recording will resume automatically when power is restored to
the VCR unless the VCR’s memory backup has expired.
Instant Timer Recording
This method allows you to quickly set the VCR to record in 30 minute
increments.
start recording Press T on the VCR once. If left in this state, the VCR will
keep recording until the tape runs out.
engage instant timer recording Press T again and the display panel will
show a flashing Record indicator (U) and ‘0:30’. This means that the VCR will
record for 30 minutes on the programme already selected and then stop
automatically.
increase time Each time T is pressed, the time limit is increased by
30minutes to a maximum of 6 hours.
This function only works with the T button on the VCR, not the Remote
Control.
If the tape reaches its end during recording, the recording stops and “U” and
“ ,” on the display panel blink. Press S/0on the VCR to eject the tape or press
<to rewind the tape.
HR-V705EK-EN/p13-20 1/25/03, 10:59 AM20
basic features 21
before you start
Make sure that the
VCR’s clock is set
correctly
Insert a cassette with
the safety tab in place
Turn on the TV and
select the Video channel
or the AV Mode
– –:– –
AUDIO
0000
VPS/PDC
3
5
3
2 4
30 SEC
?
PR
PR
PR
ENTER
LP00000-000
VCR/TV
i
0000
VIDEO Plus +®
Timer Programming
The VIDEO Plus+ system uses the code numbers – called PlusCode numbers
– printed after each programme in your TV listings guide. These are a kind of
shorthand for video recorders and using them automatically sets your VCR
to record the correct programme, channel and time.
The VIDEO Plus+ Deluxe system enables a VCR to automatically control
satellite channels through a satellite receiver using an optional Satellite
Controller (墌 pg. 36).
Get to the VIDEO Plus + Screen
Press p. Press 1 to place the pointer
next to “VIDEO PLUS+”, then press OK or .. The
PLUSCODE NO. screen appears.

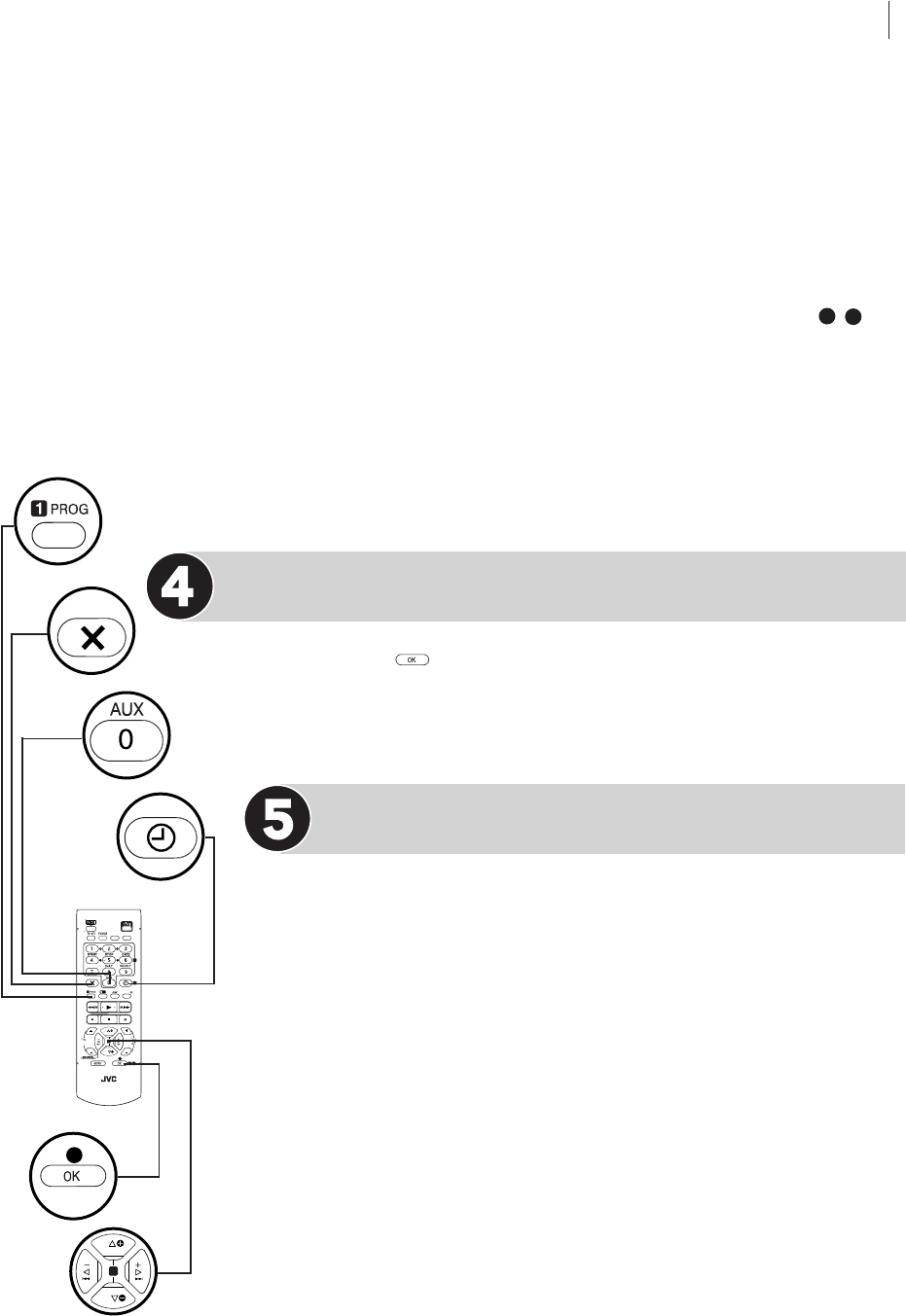

Enter the PlusCode Number
Press the number keys on the Remote Control to
enter the PlusCode number of the programme you
wish to record. If you make a mistake, press x to
delete the incorrect number and then enter the
correct one.
[0–9] a VIDEO PLUS+ PROG
[PROG] : EXIT
PLUSCODE NO.
[0–9] a k
[x]: DELETE
[PROG]: EXIT
PLUSCODE NO.
5 6 7 8 1 2 3 4
HR-V705EK-EN/p21-28 1/29/03, 02:50 PM21
basic features22
set tape speed You can change the tape speed between Standard Play (SP)
and Long Play (LP) by pressing /.

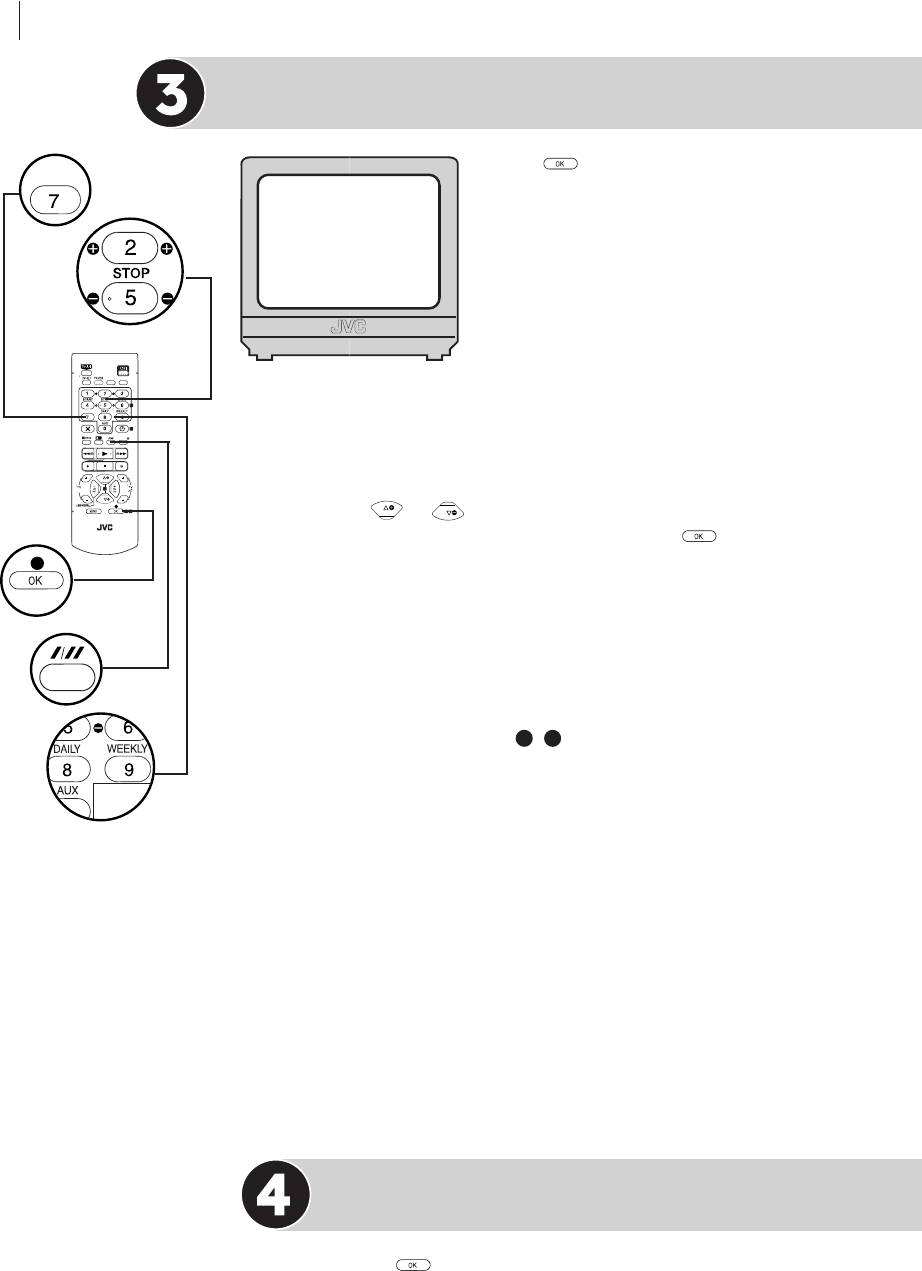

set channel position number Make sure the channel position you wish to
record is displayed. If “TV PROG” displays “– –”, set the Channel Position number
correctly. Press PR or
PR
button to input the channel position number on
which your recorder receives the station. Then press (or E).
set pdc mode Press PDC (number key 7) to change between ON and OFF.
Programme Delivery Control (PDC) is a service designed to ensure that timer
recording still works in the event of a change in time of broadcast. If you set PDC
to ON, your VCR will be turned on not by its own timer but by a signal
transmitted by the broadcaster. This means that if an advertised programme is
delayed, your VCR will still record it properly.
change stop time Press STOP + / – (number key 2 and 5). You can
compensate for anticipated changes in schedule using this method.
serial recording To set the VCR to record the same programme on a daily
(Monday-Friday) or weekly basis, press DAILY (number key 8) or WEEKLY
(number key 9) to turn the function on. Pressing the same key again turns the
function off. You will see your selection appear on the TV screen.
capacity You can set this VCR to timer record up to eight programmes. If you
try to enter a ninth, PROGRAM FULL appears on the screen.
satellite receiver users To timer-record a satellite broadcast using the
VIDEO Plus+ system:
• Perform ‘Satellite Receiver Control Settings’ (墌 pg. 36).
• You cannot set PDC to ON.
• You cannot timer-record the satellite broadcast received on the channel
position ‘0’ by the satellite receiver.
• Leave the satellite receiver’s power on.
Return to Normal Screen
Press p or . PROGRAM COMPLETED appears on the TV screen for
about 5seconds, then the normal TV screen appears. If the timer programme is
overlapped with another one that was already set, PROGRAM OVERLAPPED
appears on the TV screen. (墌 pg. 28)
Check the Results
Press . The VIDEO Plus+ Program screen
appears.
Make sure that the preset number displayed is the
one that you want. If it is incorrect, the wrong
programme will be recorded.
errors If the PlusCode number you entered is
invalid, ERROR appears on the TV screen.
– –:– –
AUDIO
0000
VPS/PDC
3
5
3
2 4
30 SEC
?
PR
PR
PR
ENTER
LP00000-000
VCR/TV
i
VPS/PDC
ENTER
i
-P1-
k: OK [0]: SAT
PLUSCODE NO.
START
21:00
SP
DATE
25.12
56781234
STOP
22:00
VPS/PDC OFF
TV PROG
1
BBC1
-P2-
HR-V705EK-EN/p21-28 1/25/03, 10:59 AM22
basic features 23

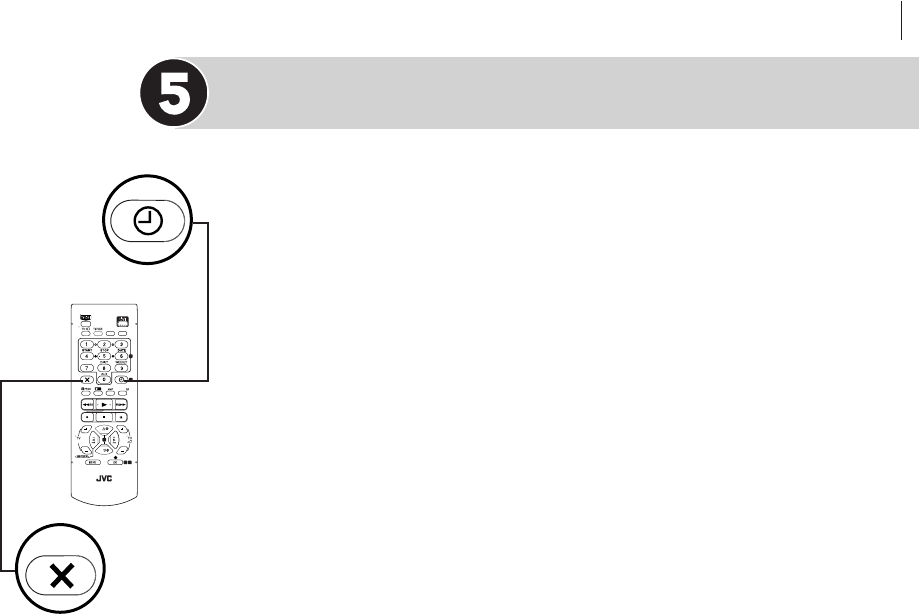

Engage Timer Mode
You must now put the VCR into Timer Mode by pressing c otherwise no
recording will take place. c will appear on the display panel. Make sure that the
VCR turns off automatically. To disengage the Timer Mode, press c again.
If a video tape with the safety tab removed is loaded, c, Play indicator (,) and
Record indicator (U) will flash. Insert another tape with the safety tab in place to
record!
If no video tape is loaded, c indicator will flash. Insert a tape to record!
If the tape reaches its end during timer recording, the recording stops and “c”,
“U” and “,” on the display panel blink. Press “c” to disengage timer, then
press S/0on the VCR to eject the tape or press othen press <to rewind
the tape.
– –:– –
AUDIO
0000
VPS/PDC
3
5
3
2 4
30 SEC
?
PR
PR
PR
ENTER
LP00000-000
VCR/TV
i
0000
HR-V705EK-EN/p21-28 1/25/03, 10:59 AM23
basic features24
before you start
Make sure that the
VCR’s clock is set
correctly
Insert a cassette with
the safety tab in place
Turn on the TV and
select the Video channel
or the AV Mode
Express Timer
Programming
If you do not know the PlusCode number for the programme that you wish to
record, follow the instructions below to manually set your VCR to record.
Get to the Timer Programming Set Screen
Press p. You will see the following TV screen
information.
Get to the Programme Screen
Press 1 to place the pointer (highlighted bar) next to “EXPRESS
PROGRAMING”, then press OK or ..
Enter Programme Details
set start time Use the START + / – buttons
(number keys 1 and/or 4) to enter the start time.
set stop time Use the STOP + / – buttons
(number keys 2 and/or 5) to enter the stop time.
set date Use the DATE + / – buttons (number
keys 3 and/or 6) to adjust the date (current date
will automatically appear).
set programme Use the PR + / – buttons to enter
the programme required.
set tape speed You can change the tape speed between Standard Play (SP)
and Long Play (LP) by pressing /.
– –:– –
AUDIO
0000
VPS/PDC
3
5
3
2 4
30 SEC
?
PR
PR
PR
ENTER
LP00000-000
VCR/TV
i
VPS/PDC
VPS/PDC
3
3
PR
PR
[1] a k
[PROG]: EXIT
VIDEO PLUS+
EXPRESS PROGRAMING
F
– P1 –
[+/–] a k
[PROG]: EXIT [0]: SAT
START STOP
SP VPS/PDC OFF
DATE TV PROG
21:00 - -:- -
- -.- - - -
a
HR-V705EK-EN/p21-28 1/25/03, 10:59 AM24
basic features 25
– –:– –
AUDIO
0000
VPS/PDC
3
5
3
2 4
30 SEC
?
PR
PR
PR
ENTER
LP00000-000
VCR/TV
i
0000
ENTER
i
3
PR
PR
set pdc mode Press PDC (number key 7) to change between ON and OFF.
Programme Delivery Control (PDC) is a service designed to ensure that timer
recording still works in the event of a change in time of broadcast. If you set PDC
to ON, your VCR will be turned on not by its own timer but by a signal
transmitted by the broadcaster. This means that if an advertised programme is
delayed, your VCR will still record it properly.
satellite receiver users To timer-record a satellite broadcast using Express
Timer Programming:
• Perform ‘Satellite Receiver Control Settings’ (墌 pg. 36).
• Press AUX (number key 0) to change TV PROG to SAT. Then press PR + / – to
enter the preset position for the satellite receiver.
• You cannot set PDC to ON.
• You cannot timer-record the satellite broadcast received on the channel
position ‘0’ by the satellite receiver.
• Leave the satellite receiver’s power on.
For memory capacity and Serial Recording, see VIDEO Plus+ Timer Programming
on page22.
Return to Normal Screen
Press p or . PROGRAM COMPLETED appears on the TV screen for
about 5 seconds, then the normal TV screen appears. If the timer programme is
overlapped with another one that was already set, PROGRAM OVERLAPPED
appears on the TV screen.(墌 pg. 27)
Engage Timer Mode
You must now put the VCR into Timer Mode by pressing c otherwise no
recording will take place. c will appear on the display panel. To disengage the
Timer Mode, press c again.
If a video tape with the safety tab removed is loaded, c, Play indicator (,) and
Record indicator (U) will flash. Insert another tape with the safety tab in place to
record!
If no video tape is loaded, c indicator will flash. Insert a tape to record!
If the tape reaches its end during timer recording, the recording stops and “c”,
“U” and “,” on the display panel blink. Press c to disengage timer, then press
S/0 on the VCR to eject the tape or press othen press < to rewind the
tape.
HR-V705EK-EN/p21-28 1/25/03, 10:59 AM25
basic features26
24H Express Timer
Programming
You can program a timer recording that starts within 24 hours using the 24H
EXPRESS c button and the Advanced JOG Dial on the VCR.
enter program mode Press the 24H
EXPRESS c button on the VCR. The
Programme Start Time indicator starts blinking
on the display panel.
set start time Turn the JOG Dial to the right
or left. One click stop of the JOG Dial changes
the time in 5-minute intervals.
set stop time Push the center part of the JOG
Dial. The Programme Stop Time indicator starts
blinking on the display panel. Turn the JOG Dial
to the right or left.
set preset position Push the center part of
the JOG Dial. Turn the JOG Dial to the right or
left.
engage timer mode Press the 24H EXPRESS c button on the VCR. The VCR
turns off automatically and c is displayed on the display panel.
• Before pressing the 24H EXPRESS c button to engage the timer mode, you
can cancel the setting at anytime by pressing the center part of the JOG Dial for
more than 3seconds. Repeat the above steps from setting the start time.
• To disengage the Timer Mode, press cor 24H EXPRESS c.
Notes
• You can set this VCR to timer record up to eight programmes. If you try to
enter a ninth, FULL appears on the display panel.
• If Err appears on the display panel, repeat the above steps again.
• When a menu screen is shown, you cannot use the 24H Express Timer
Programming function. Press to return to normal screen, and try again.
• You can use the 24H Express Timer Programming function also when the
VCR is turned off.
before you start
Set the tape speed
Make sure that the
VCR’s clock is set
correctly
Insert a cassette with
the safety tab in place
VCR
SAT
REVIEW
VCR
SAT
REVIEW
VCR
SAT
REVIEW
VCR
SAT
REVIEW
HR-V705EK-EN/p21-28 1/25/03, 10:59 AM26
basic features 27
Screen A
Screen B
Check, Cancel & Change Programmes
Press c, then press o to disengage the timer
mode.
review the programmes Press C. The TV
screen will display a list of the programmes set for
timer recording (screen A).
Pressing C again will cycle through each of the
entries in the VCR’s memory (screen B).
cancel a programme Press x to cancel a
programme.
change a programme Use START + / –
(number keys 1 and 4), STOP + / – (number keys 2
and 5), DATE + / – (number keys 3 and 6), PR + / –
, /, DAILY (number key 8), WEEKLY (number
key 9) and PDC (number key 7) buttons as
necessary.
return to normal screen Press C as many
times as necessary.
return to timer mode If there are still
programmes to be recorded, press c.
– P1 –
[]: NEXT
START STOP
SP VPS/PDC OFF
DATE TV PROG
8:00 10:00
24.12 3
ITV
[]: NEXT
1
2
3
4
5
6
7
8
START
8:00
10:00
11:30
STOP
10:00
10:45
13:00
CH
3
2
1
DATE
24.12
25.12
25.12
a
HR-V705EK-EN/p21-28 1/25/03, 10:59 AM27
basic features28
[1] a k
[PROG]: EXIT
1
2
3
4
5
6
7
8
START
8:00
10:00
11:30
9:00
STOP
10:00
10:45
13:00
10:00
CH
3
2
1
92
DATE
24.12
25.12
25.12
DAILY
When Programmes Overlap Each Other
If PROGRAM OVERLAPPED appears, you have another programme overlapping the
programme you have just made.
confirm overlapping programmes The
Program Check screen appears and conflicting
programmes will start blinking.
Example: Programme 1 (you have just made) and
Programme 4 overlap each other.
select programme to modify Press the PR
and
PR
buttons, then press (or E). You
can only select one of the overlapping programmes.
note If you do not mind this overlap, press
PROG to finish the timer programme setting. The
program starting earlier or program with the
lower program will be recorded.
cancel a programme Press x to cancel a
programme when the Program screen you do not
want is shown.
change a programme Use the START + / – (number keys 1 and 4), STOP+ / –
(number keys 2 and 5), DATE + / – (number keys 3 and 6), PR + / – , /and
PDC buttons as necessary, then press .
PROGRAM COMPLETED appears on the screen for about 5seconds, then normal
screen appears.
note If the overlap is not yet solved or another overlap occurs with the timer
programme setting made last after making correction on a programme, the
conflicting programmes will be shown on the Program Check screen again.
Repeat the above steps again until the overlap is solved.
– P1 –
[x]: DELETE [+/–] a k
[PROG]: EXIT
START STOP
SP VPS/PDC OFF
DATE TV PROG
24.12 3
ITV
8:00 10:00
HR-V705EK-EN/p21-28 1/27/03, 09:47 AM28
Advanced
Features
Picture Quality ........................................... 30
The B.E.S.T. Picture System ...................... 31
Sound Modes ............................................ 32
Finding Specific Scenes ............................ 33
T-VLink Functions..................................... 34
Satellite Receiver Control Settings ........... 36
Auto Satellite Programme Recording ........ 39
Editing ....................................................... 41
Other Functions ......................................... 43
Connection to a Stereo System ..................46
Video Channel Set ..................................... 47
Tuner Set ................................................... 48
Clock Set ................................................... 54
HR-V705EK-EN/p29-42 1/25/03, 11:00 AM29
advanced features30

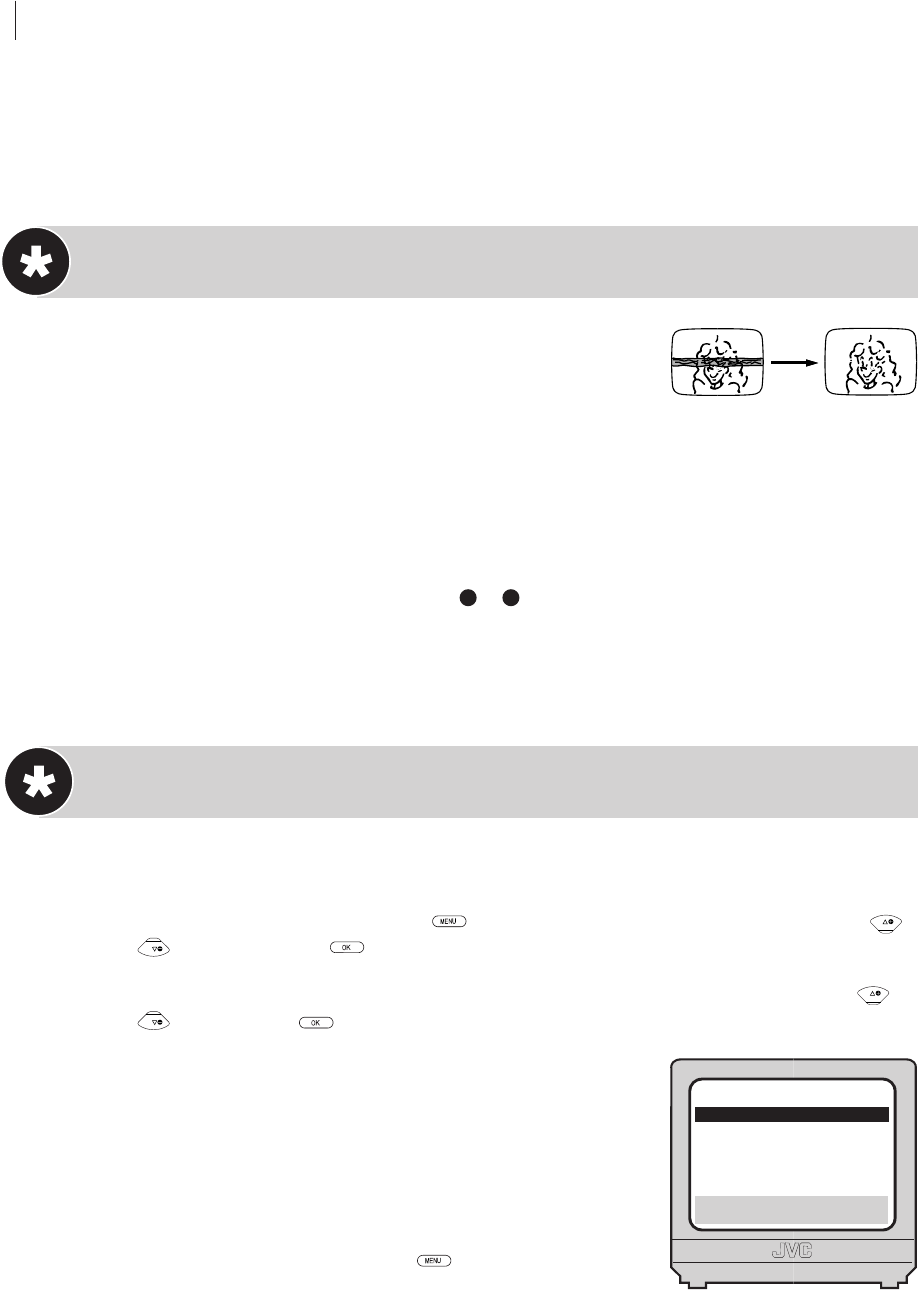

Picture Quality
Manual Tracking
Your VCR is equipped with automatic tracking control. This will
be adequate for most tapes and will automatically adjust the
tracking to suit the particular tape in use but if you insert an old
or worn tape, it may be necessary to manually adjust the track-
ing in order to get the best picture. If automatic tracking fails, you will notice noise bars appear-
ing across the picture; you can correct this by manually overriding the tracking using the follow-
ing steps.
override automatic tracking During playback, press / on the Remote Control to
engage manual tracking.
adjust tracking manually Use the PR + or – buttons to adjust the tracking manually.
NOTES:
• Press / again to re-engage automatic tracking.
• When a new tape is inserted, the VCR returns to automatic tracking.
Picture Control
This feature allows you to select the most appropriate picture quality according to the type of
tape or use of this VCR. The default setting is AUTO.
get to the mode set screen Press . Move the highlight bar to MODE SET using the PR
and
PR
buttons and press (or E).
select picture control mode Move the highlight bar to PICTURE CONTROL using the PR
and
PR
buttons. Press (or E) to select the desired mode:
•AUTO (NORM) Provides optimised picture benefits of
B.E.S.T. Picture System. When B.E.S.T. is OFF, PICTURE
CONTROL switches automatically from AUTO to NORM.
•EDIT Minimizes picture degradation during editing (record-
ing or playback).
•SOFT Reduces image coarseness when viewing overplayed
tapes containing lots of noise.
return to normal screen Press .
[1] a k
[MENU]: EXIT
MODE SET
B.E.S.T. ON
PICTURE CONTROL AUTO
AUTO TIMER OFF
O.S.D. ON
DIRECT REC ON
AUTO SP a LP TIMER OFF
POWER SAVE OFF
AUTO POWER OFF OFF
F
HR-V705EK-EN/p29-42 1/25/03, 11:00 AM30
advanced features 31
about b.e.s.t.
Works in SP and LP
modes
Does not work with
Auto Satellite Prog
Recording
Works before Timer
Recording
B.E.S.T. data is lost
when tape is ejected
Pressing the T button on
VCR does not start Instant
Timer Recording while
B.E.S.T. is turned ON
a pause of 7 seconds a
During B.E.S.T. B.E.S.T. complete
The B.E.S.T.
PictureSystem
The Biconditional Equalised Signal Tracking (B.E.S.T.) System checks the
condition of the tape in use and compensates during recording and playback
to give the best picture quality possible. The default setting is ON.
Turning B.E.S.T. ON or OFF
get to the mode set screen Press .
Move the highlight bar to MODE SET using the PR
and
PR
buttons and press (or E).
select b.e.s.t. mode Move the highlight bar to
B.E.S.T. using the PR and
PR
buttons and press
(or E) to set B.E.S.T. ON or OFF.
return to normal screen Press .
Recording and Playback Using B.E.S.T.
recording Press and hold T and press . on the Remote Control (or press T on the VCR). The
VCR spends about 7 seconds assessing the condition of the tape and then begins recording.
playback Press .. The VCR adjusts the playback picture quality
based on the condition of the tape in use. B.E.S.T. is active during Auto
Tracking. bESt appears on the VCR’s display panel.
Avoiding B.E.S.T. Time Delay
Since B.E.S.T. introduces a 7 second delay before recording starts, you may wish to compensate by
first pressing | and T together (this puts the VCR into RECORD PAUSE mode during which time
the VCR performs the B.E.S.T. tape assessment) and then pressing . when you wish to start
recording.
VCR
SAT
REVIEW
VCR
SAT
REVIEW
VCR
SAT
REVIEW
F
[1] a k
[MENU]: EXIT
MODE SET
B.E.S.T. ON
PICTURE CONTROL AUTO
AUTO TIMER OFF
O.S.D. ON
DIRECT REC ON
AUTO SP a LP TIMER OFF
POWER SAVE ON
AUTO POWER OFF OFF
HR-V705EK-EN/p29-42 1/25/03, 11:00 AM31
advanced features32
before you start
Set On Screen Display
(O.S.D.) to ON
( pg. 43)
Sound Modes
NICAM Stereo and Bilingual Broadcasts
This VCR is equipped with a digital stereo sound decoder (NICAM) which makes
the reception of stereo and bilingual broadcasts possible. When the VCR is tuned
to a different preset, the type of broadcast will be displayed on the TV screen for
a few seconds.
select stereo Press AUDIO until HIFI L l L R appears on the TV screen.
select bilingual Press AUDIO until HIFI L l or HIFI L R appears on the TV
screen (as required).
select standard To listen to standard monaural audio during a NICAM
broadcast, press AUDIO until NORM appears on the TV screen.
Soundtrack Selection
This VCR is capable of recording three soundtracks and will play back the one
that you select with the AUDIO button.
track use
Hi-Fi stereo pre-recorded tapes
Main audio of bilingual tapes
Sub-audio of bilingual tapes
Audio-dubbed tapes
Audio-dubbed tapes
Notes
normal selection hi fi l l L r should normally be selected. In this mode,
Hi-Fi stereo tapes are played back in stereo and the normal audio track is played
back automatically for tapes which only have normal audio.
recording If the NICAM stereo signal is poor or unavailable, the VCR will
automatically record standard monoaural audio onto both the Hi-Fi and normal
audio tracks. This will eliminate possible audio interference.
NORM
HI FI
L l L R
HI FI
L l
HI FI
NORM
HI FI
L R
HR-V705EK-EN/p29-42 1/25/03, 11:00 AM32
advanced features 33
Finding Specific Scenes
Skip Search
During playback, press 3 up to 4 times. Each press of the 3 button will cause
the VCR to go into fast-motion playback for a period of 30 seconds. Normal playback resumes
automatically.
• To return to normal playback during a Skip Search, press ..
Index Search
Each time you record a programme, this VCR puts an index marker at the point that you started
recording. The VCR can fast wind to any one of nine index markers in either direction from the
point that you stop the tape.
NOTE:
Before starting, make sure the VCR is in the Stop mode.
finding first index marker Press D or E once. The TV screen will display
[
1 or
]
1
and the VCR begins searching through the tape in the corresponding direction for the first index
marker from its current position.
finding subsequent index markers Press D or E the required number of times (e.g.
five). The TV screen will display
[
5 or
]
5 and the VCR begins searching through the tape in the
corresponding direction for the fifth index marker from its current position.
Instant Review
After ensuring that the VCR is turned off and that the timer
mode is disengaged, press r.
Pressing the rbutton causes the VCR to turn on,
rewind to the beginning of the last timer-recorded programme and begin playback. The display
panel tells you how many timer-recorded programmes are on the tape. If you have three, the
REVIEW indicator and ‘3’ blink on the display panel. To watch the first of these three
programmes, press rthree times. You can move back up to nine programmes from
your current position.
NOTE:
Instant Review will also operate if the VCR is turned on.
timer mode Instant Review will not work while the VCR is in Timer mode.
auto satellite programme recording If Auto Satellite Programme Recording has been used
to record the programmes, the number of recorded programmes will not be displayed on the
display panel.
VCR
SAT
REVIEW
HR-V705EK-EN/p29-42 1/25/03, 11:00 AM33
advanced features34
T-V Link Functions
When you connect the VCR and your TV via both the RF cable and the fully-
wired 21-pin SCART cable ( pg. 9), the following functions are available.
You can use these functions only with a TV offering T-V Link, etc.*
For details, refer to the instruction manual for your TV.
* Compatible with TVs offering T-V Link, EasyLink, Megalogic, SMARTLINK,
Q-Link, DATA LOGIC or NexTView Link via fully-wired 21-pin SCART cable. The
degree of compatibility and available functions may differ by system.
Next View Link
You can download the EPG (Electronic Programme Guide) information from
your TV for timer-programming on the VCR.
For details, refer to the instruction manual for your TV.
TV Auto Power On
You can turn on the TV and set it to video mode automatically whenever you
play a tape.
For details, refer to the instruction manual for your TV.
VCR Auto Standby
You can use your TV’s Remote Control to turn off the VCR.
For details, refer to the instruction manual for your TV.
HR-V705EK-EN/p29-42 1/25/03, 11:00 AM34
advanced features 35
Direct Rec
You can start recording the programme that you are watching on your TV with
simple operation. Press and hold T and press . on the Remote Control, or press
T on the VCR. Follow the procedure below to use this function.
get to the mode set screen Press . Move the highlight bar to MODE
SET using the PR and
PR
buttons and press (or E).
select direct rec mode Move the highlight
bar to DIRECT REC using the PR and
PR
buttons. Press (or E) to select ON or
OFF.
return to normal screen Press .
NOTES
• When DIRECT REC is set to ON, if you press
any button just after pressing Ton the VCR
(or Tand . on the Remote Control), the
recorder may not function properly.
• If DIRECT REC is set to OFF, the T button functions as described in Recording
( pg. 18).
• During the Direct Rec, ‘– –’ appears on the display panel.
• Direct Rec is not possible with a scrambled broadcast. To record a scrambled
broadcast, set DIRECT REC to OFF and follow the procedure described in
Recording on page 18.
[1] a k
[MENU]: EXIT
MODE SET
B.E.S.T. ON
PICTURE CONTROL AUTO
AUTO TIMER OFF
O.S.D. ON
DIRECT REC ON
AUTO SP a LP TIMER OFF
POWER SAVE OFF
AUTO POWER OFF OFF
F
F
HR-V705EK-EN/p29-42 1/25/03, 11:00 AM35
advanced features36
Satellite Receiver
Control Settings
The following procedure is required if you receive satellite channels through
a satellite receiver. Around 20 seconds before the VIDEO Plus+ timer record-
ing or Manual timer recording starts, the VCR sets its input mode to L-2 and
automatically switches the satellite receiver’s channels using an optional
Satellite Controller.
Installing Satellite Controller
situate satellite controller Place
the Satellite Controller so that the path
between its transmitter and the satellite
receiver’s remote sensor is unobstructed.
attach satellite controller Fix
securely using the adhesive strip at-
tached on the back of the Satellite
Controller.
connect up Be sure to connect the
recorder’s L-2 IN/DECODER connector to
the satellite receiver’s 21-pin SCART
connector.
note When connecting your satellite
receiver, refer to its instruction manual.
connect satellite controller to
vcr Connect the Satellite Controller to
the SAT CONTROL connector on the rear
panel.
ENTREE
ANT. IN
ENTREE/DECODEUR
IN/DECODER
ENTREE/SORTIE
IN/OUT
SORTIE
RF OUT
ANTENNE
SORTIE
OUT
R
L
AUDIO
CONTROLEUR SAT
SAT CONTROL
L-1L-2
010
DECODER VCR TV
Satellite Receiver
Satellite Controller
(not provided)
(suggested locations)
Your VCR
Satellite Receiver
Satellite Controller
(not provided)
Your VCR
Transmitter
*DECODER function is not available in the UK.
HR-V705EK-EN/p29-42 1/25/03, 11:00 AM36
advanced features 37
SATELLITE RECEIVER BRAND CODE
JVC 73
AMSTRAD 60, 61, 62, 63, 92
ASTON 97
CANAL SATELLITE 81
CANAL + 81
D-BOX 85
ECHOSTAR (VIA DIGITAL) 82
FINLUX 68
FORCE 89
GALAXIS 88
GRUNDIG 64, 65, 102
HIRSCHMANN 64, 78, 99
HUMAX 88
ITT NOKIA 68
JERROLD 75
KATHREIN 70, 71, 96
LUXOR 68
MASCOM 93
SATELLITE RECEIVER BRAND CODE
MASPRO 70
NOKIA 87, 94
PACE
65,67,74,86,92,97
PANASONIC 74, 92
PHILIPS 66, 84, 101
RADIX 78
RFT 69
SABA 97
SAGEM 83, 90
SALORA 68
SAMSUNG 83
SIEMENS 64
SKYMASTER 69, 98
TECHNISAT 66, 100
THOMSON 97
TPS 83
TRIAX 91
WISI 64
Setting satellite receiver’s brand
After installation, set the satellite receiver’s brand correctly and perform test;
otherwise, the Satellite Controller cannot work correctly.
turn on satellite receiver Turn on the satellite receiver’s power.
get to the mode set screen Press . Move the highlight bar to INITIAL
SET using the PR and
PR
buttons and press (or E).
get to the sat control set screen Move the highlight bar to SAT CONTROL
SET using the PR and
PR
buttons. Press (or E).
enter satellite receiver’s brand Press the
appropriate number keys to enter the brand
code from the list below, then press .
• If the brand code you entered is invalid, the
code field is reset. Enter the correct brand
code again.
• If the VCR is in playback or recording mode,
you cannot set the brand code.
select satellite receiver’s preset
position for testing Press the appropriate
number keys to enter one of the channel
positions on the satellite receiver, then press
.
• You can select the channel position between
1 to 999.
• After pressing , the VCR enters the Test
mode.
.
[0–9] a k
[MENU]: EXIT
F
[0–9] a k : TEST
[MENU]: EXIT
F
SAT CONTROL SET
SAT PROG : – – –
SAT CONTROL SET
BRAND : – – –
HR-V705EK-EN/p29-42 1/25/03, 11:00 AM37
advanced features38

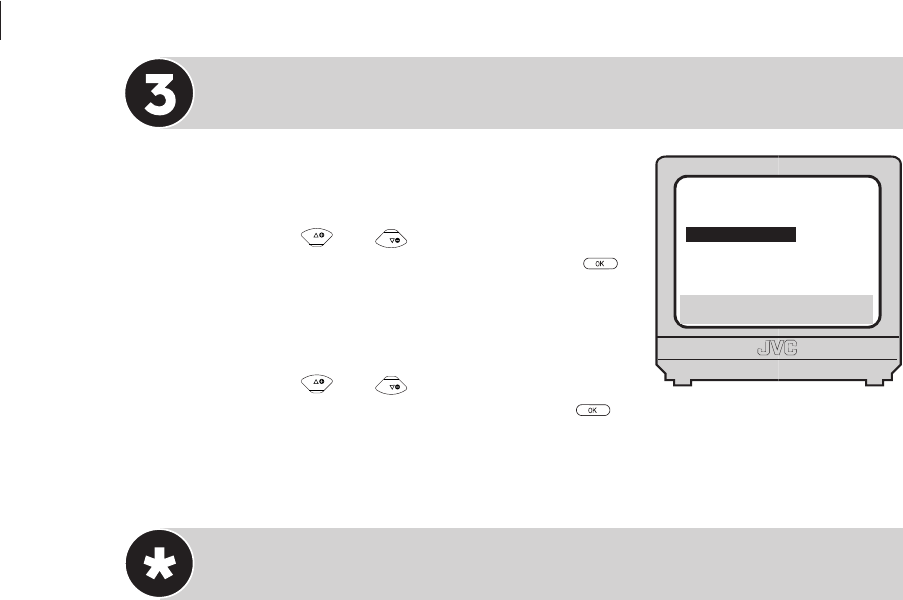

Check Result of Test
If the satellite receiver’s channel number
has been changed to the same channel as
you set ...
Press the PR and
PR
buttons to move the
highlight bar to CHANGED TO ..., then press
(or E) to finish the Sat Control Set mode.
If the satellite receiver’s channel number
has not been changed correctly ...
Press the PR and
PR
buttons to move the
highlight bar to NOT CHANGED, then press
(or E). Then perform the procedure again
from entering the satellite receiver’s brand code.
Notes
• The Satellite Controller may not work with all types of satellite receiver.
• For some satellite receivers, you need to set its channel input mode to 2-digit.
• If your satellite receiver has more than two channel modes, be sure to set to
All Channel Mode. For details, refer to the instruction manual of the satellite
receiver.
• When selecting the satellite receiver’s preset position for testing, signals from
the Remote Control may interfere with signals transmitted from the Satellite
Controller. In this case, move the Remote Control as close to the recorder’s
infrared beam receiving window as possible.
.
F
[1] a k
[MENU]: EXIT
[1] a k
[MENU]: EXIT
F
SAT CONTROL SET
SAT PROG : 111
CHANGED TO 111
NOT CHANGED
HR-V705EK-EN/p29-42 1/25/03, 11:00 AM38
advanced features 39
Auto Satellite
Programme Recording
Auto Record from Satellite Receiver
This facility allows a programme timer-recorded using the satellite receiver to be
recorded on the VCR.
connect up Connect your satellite receiver, TV and VCR (see diagram below).
ENTREE
ANT. IN
ENTREE/DECODEUR
IN/DECODER
ENTREE/SORTIE
IN/OUT
SORTIE
RF OUT
ANTENNE
SORTIE
OUT
R
L
AUDIO
CONTROLEUR SAT
SAT CONTROL
L-1L-2
010
DECODER VCR TV
EXT.2 EXT.1
010
Outdoor Unit
Satellite Cable
TV Aerial
TV Aerial Cable
ANT. IN
RF OUT
Mains Outlet
21-pin AV Input
Connectors
(SCART)
Aerial
Connector
Satellite Receiver
Back of VCR
Back of TV
*DECODER function is not available in the UK.
HR-V705EK-EN/p29-42 1/25/03, 11:00 AM39
advanced features40
programme satellite receiver Enter the details of the programme into your satellite
receiver (see receiver manual) and put a tape in the VCR.
set tape speed Press / on the Remote Control to set the tape speed to either SP or LP.
engage vcr in auto mode Press and hold SATc (|) on the VCR for about 2 seconds. The
SATc indicator on the VCR display panel lights up and the VCR turns off automatically. Any
signal detected at the L-2 IN/DECODER connecter will automatically start the VCR recording;
when the signal stops, so will the VCR.
Notes
connectors Auto Satellite Prog Recording is only possible using the L-2 IN/DECODER connec-
tor.
timer mode You cannot put the VCR into TIMER MODE when using Auto Satellite Prog
Recording Mode.
r The number of programmes recorded will not be displayed on the VCR display
panel when the r button is pressed.
timer recording Auto Satellite Prog Recording is not possible if your satellite receiver does
not have a timer.
indicator The SATc indicator light flashes when Auto Satellite Prog Recording is in progress.
disengage To disengage the VCR during Auto Satellite Prog Recording, press the o button.
The VCR will stop recording and turns off.
tape speed When recording two or more programmes consecutively, you cannot set a different
tape speed for each programme. The first speed selected will apply to all programmes in that
recording session.
b.e.s.t. The B.E.S.T. system will not work during Auto Satellite Prog Recording.
just clock Just Clock does not work when in Auto Satellite Prog Recording mode.
incoming signal The VCR will only react to the start of an incoming signal at the L-2 IN/
DECODER connecter. If you try to engage Auto Satellite Prog Recording Mode whilst the satellite
receiver is powered on, the SATc indicator light will flash but the VCR will not record. You must
power the satellite receiver off then on again to begin recording in these circumstances.
cable input You can record in the same way from a cable system as long as you connect the
cable system has a timer on/off function and is connected to the L-2 IN/DECODER connector.
incompatibilities Some satellite receivers output signals even when turned off. These receiv-
ers cannot be used with this VCR in this way.
HR-V705EK-EN/p29-42 1/25/03, 11:00 AM40
advanced features 41
ENTREE
ANT. IN
ENTREE/DECODEUR
IN/DECODER
ENTREE/SORTIE
IN/OUT
SORTIE
RF OUT
ANTENNE
SORTIE
OUT
R
L
AUDIO
CONTROLEUR SAT
SAT CONTROL
L-1L-2
010
ENTREE
ANT. IN
ENTREE/DECODEUR
IN/DECODER
ENTREE/SORTIE
IN/OUT
SORTIE
RF OUT
ANTENNE
SORTIE
OUT
R
L
AUDIO
CONTROLEUR SAT
SAT CONTROL
L-1L-2
010
TV Set
Video Channel
or AV Mode
Another VCR
Your VCR
21-pin SCART Cables
(not provided)
Your VCR as the Player
Your VCR as the Recorder
RF Cable
(provided)
Your VCR
Another VCR
TV Set
Video Channel
or AV Mode
RF Cable
(provided)
21-pin SCART Cables
(not provided)
Editing Using Another VCR
connect up Connect the two VCRs together using a 21-pin SCART cable. If
this VCR is to be the player, connect its L-1 IN/OUT connecter to the recording
VCR. If this VCR is to be the recorder, you can use either the L-1 IN/OUT or the
L-2 IN/DECODER connecter to connect to the player VCR.
set recorder input mode The recording VCR mode must be set to AUX. If
this VCR is the recorder, press AUX and /or PR to select L-1 (if you’ve used the L-2
IN/DECODER connecter) or L-2 (if you’ve used the L-1 IN/OUT connecter). If this
VCR is the player, set O.S.D. to OFF. ( pg.43)
set edit mode See Picture Control on page30.
start source vcr Engage its PLAY mode.
start recording vcr Engage its RECORD mode.
Editing
HR-V705EK-EN/p29-42 1/25/03, 11:00 AM41
advanced features42
ENTREE
ANT. IN
ENTREE/DECODEUR
IN/DECODER
ENTREE/SORTIE
IN/OUT SORTIE
RF OUT
ANTENNE
SORTIE
OUT
R
L
AUDIO
CONTROLEUR SAT
SAT CONTROL
L-1L-2
010
Editing from a Camcorder
connect up Connect the Camcorder’s AUDIO/VIDEO OUT connecter to the
VCR’s rear panel L-1 IN/OUT or the L-2 IN/DECODER connecter, via an optional
cable adapter.
set input mode Press AUX or PR so that L-1 (for L-1 IN/OUT connecter) or L-2
(for L-2 IN/DECODER connecter) appears in the place of a preset position number.
set edit mode See Picture Control on page30.
start camcorder Engage the camcorder’s PLAY mode.
start recorder Press T.
Your VCR
Audio/Video Cable
(not provided)
AUDIO OUT
Camcorder
VIDEO OUT
Cable adapter
(not provided)
HR-V705EK-EN/p29-42 1/25/03, 11:00 AM42
advanced features 43
Other Functions
On-Screen Display (O.S.D.)
This function allows you to turn the on-screen information ON or OFF.
get to the mode set screen Press , move the highlight
bar to MODE SET using the PR and PR buttons and press
(or E).
enable/disable osd The default setting for OSD is ON. Move
the highlight bar to OSD using the PR and PR buttons and
press (or E) to toggle between ON and OFF.
return to normal screen Press .
GUIDE TO ON-SCREEN DISPLAY INFORMATION 1
1Operation mode
indicators
2Tape speed SP/LP/EP
(EP is for NTSC only)
3NTSC playback display
4Tape direction
5Counter display
6Tape remaining time
7Audio mode
8Tape position indicator
9VPS/PDC indicator
0NICAM display
!Day/month/year
@Current time
#Preset position number
and station name/
Auxiliary input mode
indicator (L-1 or L-2)
$‘Cassette Loaded’
indicator
$
2
3
4
5
6
7
8
9
0
!
@
#
[1] a k
[MENU]: EXIT
MODE SET
B.E.S.T. ON
PICTURE CONTROL AUTO
AUTO TIMER OFF
O.S.D. ON
DIRECT REC ON
AUTO SP a LP TIMER OFF
POWER SAVE OFF
AUTO POWER OFF OFF
F
T
|
PR.1 BBC1 tSP
21:00 NTSC a PAL
24.12.01
ST NICAM
VPS/PDC
1
¡
HIFI –1:23:45
NORM REMAIN 10:00
HR-V705EK-EN/p43-47 1/25/03, 11:00 AM43

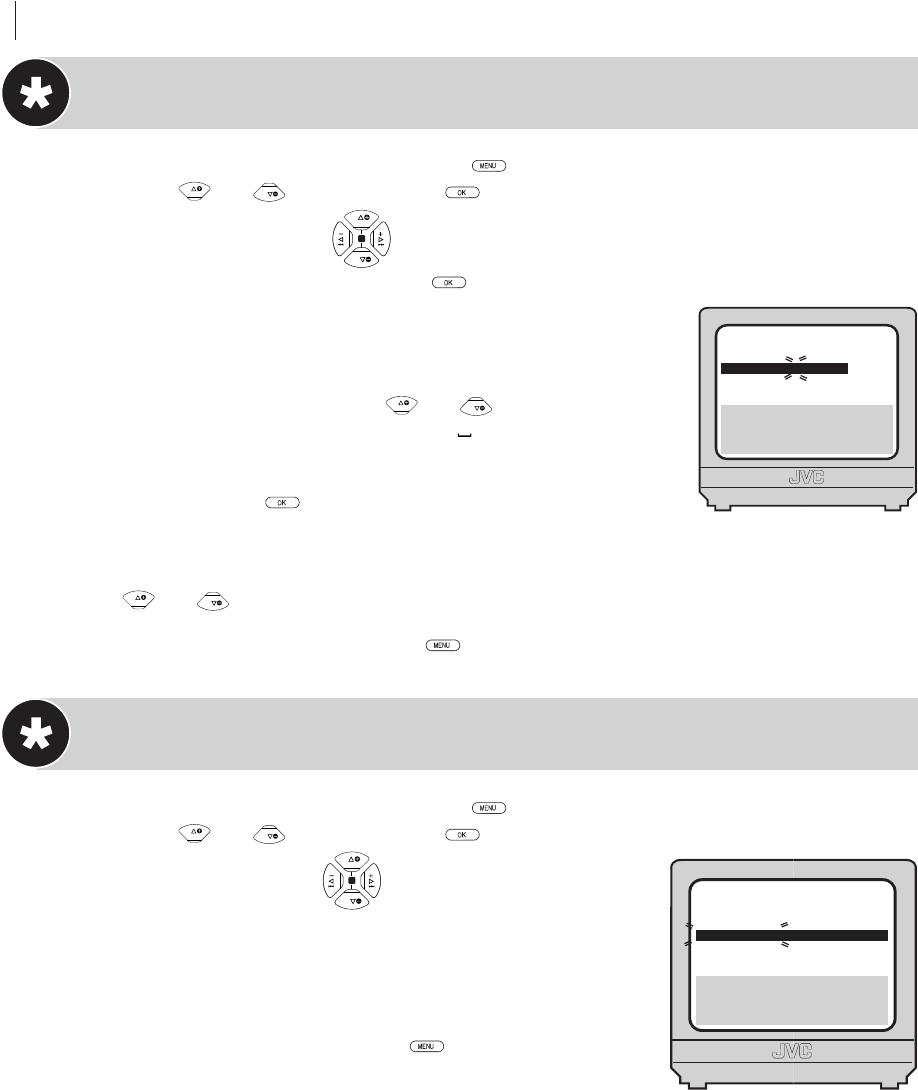

advanced features44
Power Save Mode
You can reduce the power consumption while the VCR is turned off.
get to the mode set screen Press . Move the highlight
bar to MODE SET using the PR and
PR
buttons and press
(or E).
select power save mode Move the highlight bar to POWER
SAVE using the PR and
PR
buttons. Press (or E) to
select ON or OFF.
return to normal screen Press .
NOTES:
• During Power Save, the display panel will be turned off.
• The Just Clock function (墌 pg. 54) does not work while the Power Save mode is engaged.
• While the VCR is in the Power Save mode, the picture may be distorted momentarily when
you turn on/off the VCR.
• Power Save does not work when ...
... the VCR is in the Timer mode.
... the VCR’s power is turned off after timer-recording (or Instant Timer Recording).
... the Auto Satellite Prog Recording mode is engaged (墌 pg. 39).
Auto SP a LP Timer
When timer recording in SP mode, if the VCR calculates that there isn’t enough tape to record
the complete programme, it will automatically switch from SP to LP mode.
get to the mode set screen Press . Move the highlight
bar to MODE SET using the PR and
PR
buttons and press
(or E).
enable/disable auto spalp timer Select AUTO SPaLP
TIMER using the PR and
PR
buttons and press (or E)
to toggle between ON and OFF.
return to normal screen Press .
[1] a k
[MENU]: EXIT
MODE SET
B.E.S.T. ON
PICTURE CONTROL AUTO
AUTO TIMER OFF
O.S.D. ON
DIRECT REC ON
AUTO SP a LP TIMER OFF
POWER SAVE ON
AUTO POWER OFF OFF
F
[1] a k
[MENU]: EXIT
MODE SET
B.E.S.T. ON
PICTURE CONTROL AUTO
AUTO TIMER OFF
O.S.D. ON
DIRECT REC ON
AUTO SP a LP TIMER ON
POWER SAVE OFF
AUTO POWER OFF OFF
F
HR-V705EK-EN/p43-47 1/25/03, 11:01 AM44
advanced features 45
Auto Timer
When the AUTO TIMER is set to ON, the timer is automatically engaged when the VCR power is
turned off and automatically disengaged when the VCR is
powered back on.
get to the mode set screen Press . Move the highlight
bar to MODE SET using the PR and
PR
buttons and press
(or E).
enable/disable auto timer Select AUTO TIMER using the
PR and
PR
buttons and press (or E) to toggle between
ON and OFF.
return to normal screen Press .
Auto Power Off/3H
When this function is set to “3H”, the recorder is turned off
automatically if no operation is done within 3 hours. “AUTO
POWER OFF IN 3 MIN” appears on the screen 3 minutes before
the recorder is turned off.
get to the mode set screen Press . Move the highlight
bar to MODE SET using the PR and
PR
buttons and press
(or E).
select auto power mode Move the highlight bar to AUTO
POWER using the PR and
PR
buttons. Press (or E) to select 3H or OFF.
return to normal screen Press .
Repeat Playback
start repeat playback Press ., then press and hold . again for over 5 seconds, then release.
The Play indicator (#) will flash on the display panel and the VCR will automatically playback
and rewind the tape 100 times and then stop.
stop playback Pressing S, ., < or > stops repeat playback.
Next Function Memory
play To playback immediately after rewinding, press < and then . within 2seconds.
power off To power off the VCR immediately after rewinding, press < and then o
within 2seconds.
timer standby To put the VCR in timer standby mode immediately after rewinding, press
< and then c within 2seconds.
[1] a k
[MENU]: EXIT
MODE SET
B.E.S.T. ON
PICTURE CONTROL AUTO
AUTO TIMER ON
O.S.D. ON
DIRECT REC ON
AUTO SP a LP TIMER OFF
POWER SAVE OFF
AUTO POWER OFF OFF
F
[1] a k
[MENU]: EXIT
MODE SET
B.E.S.T. ON
PICTURE CONTROL AUTO
AUTO TIMERER ON
O.S.D. ON
DIRECT REC ON
AUTO SP a LP TIMER OFF
POWER SAVE OFF
AUTO POWER OFF 3H
F
HR-V705EK-EN/p43-47 1/25/03, 11:01 AM45
advanced features46
Connection to a Stereo
System
It is possible to connect your VCR to a suitably equipped stereo system and listen to the
soundtrack through the stereo system.
connect up Connect the AUDIO OUT L and R connecters on the VCR to the AUX IN or TAPE MONITOR
connecters on your stereo. See diagram below.
NOTES ON STEREO CONNECTIONS
speaker connections Make sure that you connect the L and R speakers in the right order.
nicam tv If you can receive NICAM TV broadcasts in your area, this VCR can record them indepen-
dently of the TV set and play them back through the stereo.
volume When listening to sound through the connected stereo, turn the TV’s volume down to zero.
dynamic range This VCR has a Hi-Fi audio dynamic range of 80 dB. Check that your stereo is
capable of handling this level of input. If it cannot, you risk speaker damage.
ENTREE
ANT. IN
ENTREE/DECODEUR
IN/DECODER
ENTREE/SORTIE
IN/OUT
SORTIE
RF OUT
ANTENNE
SORTIE
OUT
R
L
AUDIO
CONTROLEUR SAT
SAT CONTROL
L-1L-2
010
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
FM Tuner
CD Player
Stereo Amplifier
AUX IN or TAPE MONITOR
Audio Cable
(not provided)
Speaker Television Speaker
Mains Outlet AUDIO OUT Back of VCR
*DECODER function is not available in the UK.
HR-V705EK-EN/p43-47 1/25/03, 11:01 AM46
advanced features 47
before you start
The power cord must be
plugged in and
connected to the VCR
The VCR must be turned
off and no cassette
inserted
The Remote Control
must have the battery
inserted
The TV set must be
turned on
Video Channel Set
The VCR can send picture signals to the TV set in one of two ways; RF
(ordinary cable included with this VCR) and AV (via a 21-pin SCART cable
available from TV and Hi-Fi dealers). Depending upon which method you
use, the VCR must have the correct method set up in order to work. The Auto
Setup procedure normally takes care of this but if for any reason this fails to
happen, the instructions below describe how to set the Video Channel
manually.
Access Video Channel Mode
Press and hold the S button for 5 seconds on
the VCR until the display panel shows the
following information:
Set Video Channel
for av connection Press
PR
until the
display panel shows:
The Video Channel is now set to OFF.
Go to Step 3.
for rf connection Press PR or
PR
to set
the VCR to a vacant channel number between 52
and 69 which is not occupied by any station in
your area (refer to station list on page53). In the
example, we have presumed that channel 52 is vacant and have set the VCR to 52:
Now tune the TV set to channel 52 (refer to TV manual if
necessary); you should see two vertical white bars appear
on the TV screen. If the bars do not appear or are not
clear, choose another vacant channel and try again. If you
cannot obtain the vertical white bars on any channel
between 52 and 69, consult your local JVC dealer.
Exit Video Channel Set Mode
Press .
To view pictures from your VCR you must now set your TV to either the Video
Channel or to AV mode, depending upon your choice above.
VCR
SAT
REVIEW
VCR
SAT
REVIEW
VCR
SAT
REVIEW
HR-V705EK-EN/p43-47 1/25/03, 11:01 AM47

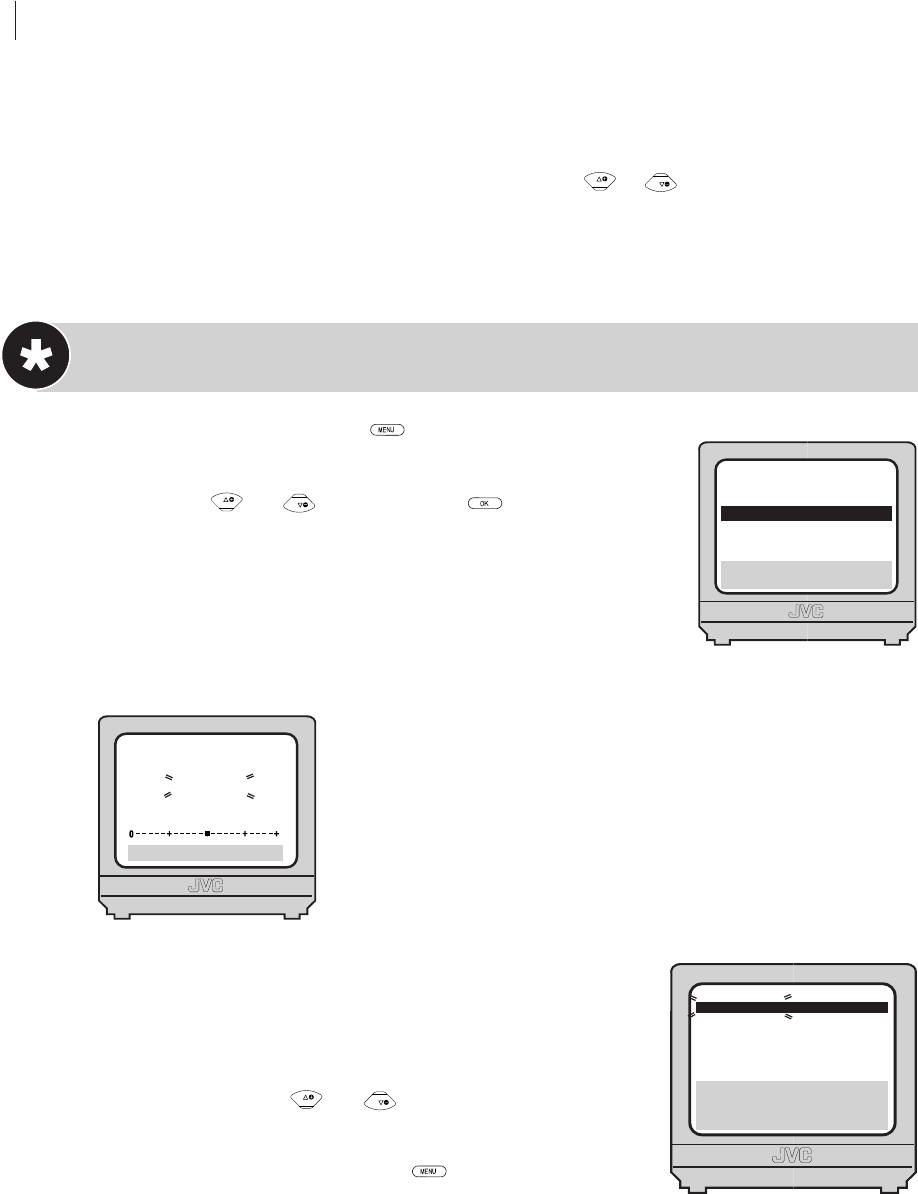

advanced features48
Tuner Set
The VCR needs to find, identify and memorise all available stations in your area in order to
record programmes correctly. Once done, pressing the PR or
PR
buttons enables you to
jump to the available channels without going via any vacant channels. This channel search
can be done either automatically or manually. You should only need to perform either of the
following procedures if Auto Setup or Preset Download has failed to identify and record
available channels or you have moved to a new area.
Auto Channel Setup
get to the main menu Press .
perform auto channel set Move the highlight bar to AUTO CH
SET using the PR and
PR
buttons and press (or E) twice.
rf and scart connection If you have chosen to connect the
VCR to the TV with both the RF Cable and a 21-pin SCART Cable
(not provided) and the TV set is in its AV mode (see the TV
manual), the AUTO SET screen will appear on the TV and remains
there for about 4–12 minutes while the VCR searches for receivable
stations. During Auto Channel Set the
S
mark on the screen moves from left to right.
note: If you have connected both the RF cable and the fully-wired
21-pin SCART cable, and if your TV offers T-V Link, etc., and the
TV is turned on, the VCR automatically performs the Preset
Download ( pg. 11) even if you select “Auto’ for Auto Setup
function.
The caption SCAN COMPLETED appears at the end of the process for
about 5 seconds.
confirmation screen Once Auto Channel Set has completed its
search, the confirmation screen will appear showing the details
(PR = Preset Number, CH = Channel Number and ID = Station
Name) of the TV stations that the process has found. The first
station will have a highlight bar over it and will be blinking. This
screen and the programme currently being broadcast on the
selected station will alternate at 8second intervals. To view the
next channel, press the PR and
PR
buttons to move the
highlight bar to the required channel.
return to normal screen Press .
NOTES ON CHANNEL RECEPTION
incorrect station id In certain reception conditions, station
names may not be stored correctly by the VCR and Auto Guide Program Number Set may not
work properly. If the Guide Program Numbers are not set, entering a PlusCode number, may
result in an incorrect channel being recorded.
poor reception The VCR memorises all stations found regardless of their quality. If a station’s
quality is poor, you can delete that station from the memory (see page 50).
AUTO SET
PLEASE WAIT
[MENU]:EXIT
PR
01
02
03
04
05
06
07
CH
26
33
23
30
37
[10]
a k: EDIT
a [x]: DELETE
[MENU]: EXIT
ID
BBC1
BBC2
ITV
CH4
CH5
- - - -
- - - -
PR
08
09
10
11
12
13
14
CH ID
- - - -
- - - -
- - - -
- - - -
- - - -
- - - -
- - - -
[1] a k
[MENU]: EXIT
MAIN MENU
MODE SET
AUTO CH SET
MANUAL CH SET
INITIAL SET
F
HR-V705EK-EN/p48-53 1/25/03, 11:01 AM48
advanced features 49
Manual Channel Setup
get to the confirmation screen Press . Move the high-
light bar to MANUAL CH SET using the PR and
PR
buttons and
press (or E).
select position Use the button on the Remote Control to move the highlight bar to a
vacant position then press .
In this example, we have chosen position6.
select band When the
MANUAL CH SET screen appears,
press the PR and
PR
buttons
to change the band between CH
(regular) and CC (cable).
input channel number
Press the E button and you
will see the channel number
space flashing. Use the number keys to enter the Channel
Number that you want to store.
input channel id Press the E button to move to the Channel ID space and use the PR and
PR
buttons to select the required ID from the stored list.
fine tuning Press the E button repeatedly to move to the Fine Tuning ‘+/–’ and use the PR
and
PR
buttons to fine-tune the channel. A ‘+’ or a ‘–’ symbol will appear during this process.
save new channel details Press to save the details you have just entered. The Confir-
mation Screen will appear again. Repeat the above procedure from Select Position onwards as
many times as required.
close confirmation screen Press .
3
PR
PR
[1] a k
[MENU]: EXIT
MAIN MENU
MODE SET
AUTO CH SET
MANUAL CH SET
INITIAL SET
F
[1]: SELECT
[0]: CURSOR g
k: OK
[MENU]: EXIT
PR
06
CH
CH011
ID
- - - -
FINE
+/–
PR
01
02
03
04
05
06
07
CH
26
33
23
30
37
[10]
a k: EDIT
a [x]: DELETE
[MENU]: EXIT
ID
BBC1
BBC2
ITV
CH4
CH5
- - - -
- - - -
PR
08
09
10
11
12
13
14
CH ID
- - - -
- - - -
- - - -
- - - -
- - - -
- - - -
- - - -
HR-V705EK-EN/p48-53 1/25/03, 01:14 PM49
advanced features50
PR
01
02
03
04
05
06
07
CH
26
33
23
30
37
[10]
a k: EDIT
a [x]: DELETE
[MENU]: EXIT
ID
BBC1
BBC2
ITV
CH4
CH5
- - - -
- - - -
PR
08
09
10
11
12
13
14
CH ID
- - - -
- - - -
- - - -
- - - -
- - - -
- - - -
- - - -
Change Station Name
get to the confirmation screen Press . Move the highlight bar to MANUAL CH SET
using the PR and
PR
buttons and press (or E).
select position Use the button on the Remote Control to move the highlight bar to
the preset position you want then press twice.
select character Press E until the first letter of the station
name begins blinking.
enter new character Press the PR and
PR
buttons to cycle
through the characters (A–Z, 0–9, –, *, +, (space)) and stop when
the desired character is indicated, then press E to enter. Enter the
remaining characters the same way (maximum of 4). After entering
all characters, press .
• The Confirmation screen appears.
• If you make a mistake, press D until the incorrect character
begins blinking. Then enter the correct character by pressing the
PR and
PR
buttons.
close confirmation screen Press .
Delete a Channel
get to the confirmation screen Press . Move the highlight bar to MANUAL CH SET
using the PR and
PR
buttons and press (or E).
select channel Use the button on the Remote
Control to move the highlight bar to the channel that you wish
to delete.
delete channel Press x.
return to normal screen Press .
[0–9]: A–Z, 0–9
[0]: CURSOR g
k: OK
[MENU]: EXIT
PR
06
CH
CH45
ID
BBC1
FINE
+/–
3
PR
PR
3
PR
PR
HR-V705EK-EN/p48-53 1/25/03, 11:01 AM50
advanced features 51
Change Station Preset Position
get to the confirmation screen Press . Move the highlight bar to MANUAL CH SET
using the PR and
PR
buttons and press (or E).
select item Use the button on the Remote Control until the item you want to move
begins blinking then press . The station name (ID) and its channel (CH) number begin
blinking.
select new position Use the button to move the station to the new preset position,
then press .
close confirmation screen Press .
PR
01
02
03
04
05
06
07
CH
26
23
30
33
37
[10]: MOVE
k: MANUAL CH SET
[MENU]: EXIT
ID
BBC1
ITV
CH4
BBC2
CH5
– – – –
– – – –
PR
08
09
10
11
12
13
14
CH ID
– – – –
– – – –
– – – –
– – – –
– – – –
– – – –
– – – –
PR
01
02
03
04
05
06
07
CH
26
33
23
30
37
[10]: MOVE a k
[MENU]: EXIT
ID
BBC1
BBC2
ITV
CH4
CH5
– – – –
– – – –
PR
08
09
10
11
12
13
14
CH ID
– – – –
– – – –
– – – –
– – – –
– – – –
– – – –
– – – –
Example: If you moved the
station in position 4 to
position 2, the stations
originally in positions 2
and 3 each move down
one space.
3
PR
PR
3
PR
PR
HR-V705EK-EN/p48-53 1/25/03, 11:01 AM51
advanced features52
STATION NAME ID
Granada TV GRNA
Grampian TV GRMP
Hessen1 HR1
Hessen3 HR3
HRT HRT
HTV HTV
ITV Network ITV
Kabelkanal KABL
London LNDN
MDR MDR
MTV MTV
Nord3 N3
NDR1 NDR1
NDR3 NDR3
NED1 NED1
NED2 NED2
NED3 NED3
Network 2 NET2
NRK NRK
N-TV N-TV
Offener Kanal OKAN
ORF1 ORF1
ORF2 ORF2
ORF3 ORF3
OWL 3 OWL3
Premiere PRMI
PR07 PR07
RAI1 RAI1
RAI2 RAI2
RAI3 RAI3
STATION NAME ID
Anglia TV ANGL
ARD ARD
ARTE ARTE
BBC Group BBC
BBC1 BBC1
BBC2 BBC2
Berlin 1 BLN1
Berlin 2 BLN2
Border TV BORD
Bayern1 BR1
Bayern3 BR3
BRT1 BRT1
BRT2 BRT2
Children Ch CHLD
Canal + CH+
CNN CNN
Channel TV CHNL
Central TV CNTR
Channel 4 CH 4
Channel 5 CH 5
Discovery DISC
DRS DRS
DR TV DRTV
DSF DSF
Euronews EURN
Euronews EURO
Eurosports EURS
France1 FR1
France2 FR2
France3 FR3
STATION NAME ID
RB1 RB1
RB3 RB3
Rikisutvarpid-S RKPS
RTBF 1 RTB1
RTBF 2 RTB2
RTE 1 RTE1
RTL RTL
RTL 2 RTL2
RTP RTP
SAT SAT
SAT 1 SAT1
Scottish TV SCOT
SC4 SC4
SDR SDR
SDR1 SDR1
SFB1 SFB1
SFB3 SFB3
SKY SKY
Sky One SKY1
Sky Net SKYN
Sport SPRT
SR 1 SR1
Super RTL SRTL
STV Test STVT
STV 1 STV1
STV 2 STV2
Suedwest3 SWR
SWF 1 SWF1
Schweiz4 SWZ4
TYNE TEES TEES
STATION NAME ID
Text TEXT
TF1 TF1
TNT int TNT
TRT int TRT
TSI TSI
TSR TSR
TSW TSW
TVE TVE
TV Polonia TVPA
TVP 1 TVP1
TVP 2 TVP2
TVS TVS
TV2 TV2
TV5 TV5
Tele Zurich TZUR
Ulster TV ULST
Veronica VERN
VIVA VIVA
VIVA2 VIV2
VOX VOX
VTM VTM
VT4 VT4
West1 WDR1
West3 WDR3
YLE 1 YLE1
YLE 2 YLE2
Yorkshire TV YORK
ZDF ZDF
Zurich 1 ZUR1
3SAT 3SAT
Fine-Tuning Stored Channels
get to the confirmation screen Press . Move the highlight bar to MANUAL CH SET using
the PR and
PR
buttons and press (or E).
select item Use the button on the Remote Control to move the highlight bar to the
channel that you wish to fine-tune then press twice.
fine tuning Press the E button to move to the Fine Tuning ‘+/–’ and use the PR and
PR
buttons to fine-tune the channel. A ‘+’ or a ‘–’ symbol will appear during this process.
save new details Press to save the details you have just entered. The Confirmation
Screen will appear again.
close confirmation screen Press .
TV Station ID Guide
3
PR
PR
HR-V705EK-EN/p48-53 1/25/03, 11:01 AM52
advanced features 53
Region Transmitter BBC1 BBC2 ITV CH4 CH5
London & South-East
Bluebell Hill 40 46 43 65 —
Crystal Palace 26 33 23 30 37
Dover 50566653—
Heathfield 49 52 64 67 —
Oxford 57 63 60 53 49
South-West
Beacon Hill 57 63 60 53 —
Caradon Hill 22 28 25 32 —
Huntshaw Cross 55 62 59 65 67
Redruth 51 44 41 47 37
Stockland Hill 33 26 23 29 —
Channel Islands
Fremont Point 51 44 41 47 —
South
Hannington 39 45 42 66 35
Midhurst 61 55 58 68 —
Rowridge 31 24 27 21 —
West
Mendip 58 64 61 54 37
East
Sandy Heath 31 27 24 21 39
Sudbury 51 44 41 47 35
Tacolneston 62 55 59 65 52
Midlands
Ridge Hill 22 28 25 32 35
Sutton Coldfield 46 40 43 50 37
The Wrekin 26 33 23 29 35
Waltham 58 64 61 54 35
North
Belmont 22 28 25 32 56
Emley Moor 44 51 47 41 37
North-West
Caldbeck 30 34 28 32 56
Winter Hill 55 62 59 65 48
North-East
Bilsdale West Moor 33 26 29 23 35
Chatton 39 45 49 42 —
Pontop Pike 58 64 61 54 68
Scotland
Angus 57 63 60 53 —
Black Hill 40 46 43 50 37
Sandale 22 ————
Caldbeck — 34 28 32 56
Creigkelly 31 27 24 21 48
Darvel 3326232935
Durris 22 28 25 32 67
Eitshal 33 26 23 29 —
Keelylang Hill 40 46 43 50 —
Knock More 33 26 23 29 —
Rosemarkie 39 45 49 42 67
Rumster Forest 31 27 24 21 —
Selkirk 55 62 59 65 52
Wales
Blaenplwyf 31 27 24 21 56
Carmel 57 63 60 53 —
Llanddona 57 63 60 53 —
Moel-y-Parc 52 45 49 42 —
Presely 46 40 43 50 37
Wenvoe 44 51 41 47 —
Northern Ireland
Brougher Mountain 22 28 25 32 —
Divis 31 27 24 21 37
Limavady 55 62 59 65 —
TV Station Channel Number Guide
HR-V705EK-EN/p48-53 1/25/03, 11:02 AM53
advanced features54
Clock Set
You should only need to perform this function if:
• Auto Clock Set was not performed correctly by Auto Setup, Preset Download or Auto Channel
Set
• The VCR’s memory backup has expired
• You want to change the Just Clock setting
Setting the Clock
get to the initial set screen Press . Move the highlight bar to INITIAL SET using the
PR and
PR
buttons and press (or E).
get to the clock set screen Move the highlight bar to CLOCK SET using the PR and
PR
buttons and press (or E).
set time and date When the CLOCK SET screen appears, the
time will be blinking. Use the PR and
PR
buttons to set the
correct time (pressing and holding will advance the time in
30minute increments) and then press (or E). The date
will blink. Use the PR and
PR
buttons to set the correct date
(pressing and holding will advance the date in 15day increments)
and then press (or E). Set the correct year in the same
way and press .
set just clock Set as desired using the PR and
PR
buttons
then press (or E).
set preset for clock data source If you have set JUST CLOCK to ON, you will need to
specify a preset (station) for JUST CLOCK to take its source data from. Use the PR and
PR
buttons to select the preset and press (or E).
start clock operation Press .
Notes on Just Clock
Some TV stations transmit a time signal with their broadcasts. This VCR has the ability to use
this signal to update its internal clock (including the adjustment for British Summer Time). It will
do this every hour except for 23:00, 00:00, 01:00 and 02:00. By setting Just Clock to ON, you are
enabling the VCR to do this.
Just Clock is not effective in the following circumstances:
• when the VCR is powered on
• when the VCR is in Timer or Auto Satellite Programme Recording modes
• when a difference of more than 3minutes between the internal clock and the time signal exists.
• when reception conditions are poor.
[1] a k
[MENU]: EXIT
CLOCK SET
TIME DATE YEAR
0: 00 01 . 01 03
JUST CLOCK : ON
TV PR. : 1
HR-V705EK-EN/p54-59 1/25/03, 11:02 AM54
subsidiary information 55
Question and Answers
PLAYBACK
Q: What happens if the end of the tape is
reached during playback or search?
A: The tape is automatically rewound to the
beginning.
Q: Can the VCR indefinitely remain in the
still mode?
A: No. It stops automatically after 5minutes
to protect the heads.
Q: During search, slow, still and frame-by-
frame playback, I can’t hear any audio.
What’s the problem?
A: This is normal.
Q: When returning from variable-speed
search to normal playback, the picture is
disturbed. Should I be concerned about
this?
A: No, it is normal.
Q: Noise bars appear during variable-speed
search. What’s the problem?
A: This is normal.
Q: Sometimes, during Index Search, the
VCR can’t find the programme I want to
see. Why not?
A: There may be index codes too close
together.
RECORDING
Q: When I pause and then resume a
recording, the end of the recording before
the pause is overlapped by the beginning of
the continuation of recording. Why does
this happen?
A: This is normal. It reduces distortion at the
pause and resume points.
Q: Can the VCR indefinitely remain in the
Record-Pause mode?
A: No. The VCR shuts off automatically after
5minutes to protect the heads.
Q: What happens if the tape runs out
during recording?
A:The VCR stops recording, then if Timer
Recording, the VCR shuts off.
TIMER RECORDING
Q: U and c remain lit on the display panel.
Is there a problem?
A: No. This is a normal condition for a timer
recording in progress.
Q: Can I programme the timer while I’m
watching a tape or a TV broadcast?
A: You won’t see the picture as it is replaced
by the on-screen menu, but the audio from
the program or tape you’re viewing can be
heard.
HR-V705EK-EN/p54-59 1/25/03, 11:02 AM55
subsidiary information56
Troubleshooting
SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION
POWER
1. No power is applied to the VCR.
2. The clock is functioning
properly, but the VCR cannot be
powered.
3. The Remote Control won’t
function.
TAPE TRANSPORT
1. The tape does not run during
recording. U lights up and
preset position blinks on the
display panel.
2. The tape will not rewind or fast-
forward.
PLAYBACK
1. The playback picture does not
appear while the tape is
running.
2. Noise appears during visual
search.
3. Noise appears during normal
playback.
4. The playback picture is blurred
or interrupted while TV broad-
casts are clear or USE CLEAN-
ING CASSETTE message
appears on the screen.
5. Breaks are noticeable in Hi-Fi
soundtrack.
• The mains power cord is
disconnected.
•c is displayed on the display
panel with AUTO TIMER set to
OFF.
• The battery is discharged.
• The VCR is in the RECORD
PAUSE MODE.
• The tape is already fully
rewound or fast-forwarded.
• If you’re using only the RF cable
for connection…
…the TV’s channel selector is
not set to the Video Channel.
…the VCR’s Video Channel has
not been correctly set.
• If you’re using both the RF
cable and 21-pin SCART cable
for connection, the TV is not set
to the AV mode.
• This is normal.
• The automatic tracking mode is
engaged.
• The video heads may be dirty.
• Automatic tracking is engaged.
Connect the mains power cord.
Press the c button to turn the c
indicator off.
Replace the dead battery with a
new one.
Press . to resume recording.
Check the cassette.
If you are using only the RF cable
for connection…
…set the TV to the Video Channel.
…Perform Video Channel Set.
(墌pg.47)
If you are using both the RF cable
and 21-pin SCART cable for
connection, set the TV to its AV
mode.
Try manual tracking. (墌 pg. 30)
Use a dry cleaning cassette JVC
TCL-2 or consult your JVC dealer.
Try manual tracking (墌 pg. 30) or
press AUDIO to change the
soundtrack to NORM (墌pg.32).
HR-V705EK-EN/p54-59 1/25/03, 11:02 AM56
subsidiary information 57
SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION
RECORDING
1. Recording cannot be started.
2. TV broadcasts cannot be
recorded.
3. Tape-to-tape editing is not
possible.
4. Camcorder recording is not
possible.
TIMER RECORDING
1. Timer recording won’t work.
2. Timer programming is not
possible.
3. c on the display panel won’t
stop blinking.
4. c, U and , on the display
panel won’t stop blinking.
5. c blinks for 10 seconds and the
Timer mode is disengaged.
6. The VIDEO Plus+ system does
not timer record properly.
• There is no cassette loaded, or
the cassette loaded has had its
record safety tab removed.
• L-1 or L-2 has been selected as
the input mode.
• The source (another VCR,
camcorder) has not been
properly connected.
• All necessary power switches
have not been turned on.
• The input mode is not correct.
• The camcorder has not been
properly connected.
• The input mode is not correct.
• The clock and/or the timer
have been set incorrectly.
• The timer is not engaged.
• Timer recording is in progress.
• The timer is engaged but
there’s no cassette loaded.
• The loaded cassette has had its
record safety tab removed.
• The end of the tape was
reached during timer recording.
•c has been pressed when
there are no programs in
memory, or the timer record
information has been pro-
grammed incorrectly.
• The VCR’s preset positions
have been set incorrectly.
Insert a cassette, or using
adhesive tape, cover the hole
where the tab was removed.
Set to the desired preset.
Confirm that the source is prop-
erly connected.
Confirm that all units’ power
switches are turned on.
Set the input mode to L-1 or L-2.
Confirm that the camcorder is
properly connected.
Set the input mode to L-1 or L-2.
Re-perform the clock and/or timer
settings.
Press c and confirm that c is
displayed on the display panel.
Timer programming can’t be
performed while a timer recording
is in progress. Wait until it
finishes.
Load a cassette with the record
safety tab intact.
Remove the cassette and cover
the hole with adhesive tape, or
insert a cassette with the record
safety tab intact.
The programme may not have
been recorded in its entirety. Next
time make sure you have enough
time on the tape to record the
entire programme.
Check the programmed data and
re-programme as necessary, then
press c again.
Refer to Set Guide Program
Numbers (墌 pg. 22) and re-
perform the procedure.
HR-V705EK-EN/p54-59 1/25/03, 11:02 AM57
subsidiary information58
SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION
TIMER RECORDING (cont.)
7. U, , and the SAT c indicator
won’t stop blinking.
8. Uand , on the display panel
won’t stop blinking.
• The loaded cassette has had its
record safety tab removed.
• The end of the tape was
reached during Auto Satellite
Programme Recording.
• The end of the tape was
reached during Instant Timer
Recording.
Remove the cassette and cover
the hole with adhesive tape, or
insert a cassette with the record
safety tab intact.
The programme may not have
been recorded in its entirety. Next
time make sure you have enough
time on the tape to record the
entire programme.
The programme may not have
been recorded in its entirety. Next
time make sure you have enough
time on the tape to record the
entire programme.
OTHER PROBLEMS
1. Whistling or howling is heard
from the TV during camcorder
recording.
2. When scanning channels, some
of them are skipped over.
3. The preset cannot be changed.
4. Channel settings that were
made manually seem to have
changed or disappeared.
5. No channels are stored in the
VCR’s memory.
• The camcorder’s microphone is
too close to the TV.
• The TV’s volume is too high.
• Those channels have been
designated to be skipped.
• Recording is in progress.
• After the manual settings were
made, Auto Channel Set was
performed.
• The TV aerial cable was not
connected to the VCR when
Auto Set Up was performed.
• The fully-wired 21-pin SCART
cable was not connected
between TV and the VCR when
Preset Download was per-
formed.
Position the camcorder so its
microphone is away from the TV.
Turn the TV’s volume down.
If you need the skipped channels,
restore them.
Press | to pause the recording,
change presets, then press . to
resume recording.
Perform manual setting again.
Turn off the VCR once and connect
the TV aerial cable to the VCR
properly, then turn on the VCR
again. Then perform Auto Setup
again (墌pg.10).
Turn off the VCR once and connect
the fully-wired 21-pin SCART cable
to the VCR properly, then turn on
the VCR again. Then perform
Preset Download again
(墌pg.11).
HR-V705EK-EN/p54-59 1/25/03, 11:02 AM58
subsidiary information 59
list of terms
List of Terms
NN
NN
N
Next Function Memory ........................................... 45
NICAM Stereo and Bilingual Broadcasts ................ 32
NTSC Tapes .............................................................. 14
OO
OO
O
On-Screen Display (O.S.D.)..................................... 43
PP
PP
P
Pause During Playback ............................................. 16
Picture Control .........................................................30
Playback .................................................................... 14
PlusCode Number .................................................... 21
Power Save Mode .....................................................44
Preset Download........................................................ 11
RR
RR
R
Record a Programme While Watching Another .... 19
Recording .................................................................. 18
Recording Resume Function ...................................20
Repeat Playback ........................................................ 45
SS
SS
S
Satellite Controller.................................................... 36
Satellite Receiver Control Settings ........................... 36
Single Frame Movement .......................................... 16
Skip Search ................................................................ 33
Slow Motion ............................................................. 17
Soundtrack Selection ................................................ 32
SQPB ......................................................................... 15
TT
TT
T
Tape Remaining Time ....................................... 19, 43
Tuner Set ................................................................... 48
TV Station Channel Number Guide ....................... 53
TV Station ID Guide ................................................ 52
VV
VV
V
Variable Speed Search .............................................. 17
Video Channel Set .................................................... 47
Video Heads Cleaning .............................................. 15
VIDEO Plus+® Timer Programming ...................... 21
24H Express Timer Programming ...........................26
AA
AA
A
Auto Channel Setup ................................................. 48
Auto Power ............................................................... 45
Auto Satellite Programme Recording ...................... 39
Auto Setup ................................................................ 10
Auto SP a LP Timer ................................................ 44
Auto Timer ............................................................... 45
BB
BB
B
B.E.S.T. ...................................................................... 31
CC
CC
C
Change Station Name .............................................. 50
Change Station Preset Position ................................ 51
Clock Set ................................................................... 54
Connection to a Stereo System ............................... 46
Counter Display................................................. 19, 43
DD
DD
D
Delete a Channel ....................................................... 50
Direct Rec .................................................................. 35
EE
EE
E
Editing ....................................................................... 41
Editing from a Camcorder .......................................42
Editing Using Another VCR .................................... 41
Express Timer Programming ................................... 24
FF
FF
F
Fine-Tuning Stored Channels.................................. 52
HH
HH
H
High Speed Search .................................................... 17
II
II
I
Index Search.............................................................. 33
Instant ReView.......................................................... 33
Instant Timer Recording ......................................... 20
JJ
JJ
J
Just Clock .................................................................. 54
MM
MM
M
Manual Channel Setup ............................................ 49
Manual Tracking ...................................................... 30
HR-V705EK-EN/p54-59 1/25/03, 11:02 AM59
HR-V705EK
COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LTD. EK Printed in Germany
0203-AH-YL-JVE
VICTOR COMPANY OF JAPAN, LIMITED
s p e c i f i c a t i o n s
g e n e r a l
Power requirement : AC 220 V – 240 V Ó, 50 Hz/60 Hz
Power consumption : on : 14 W, off : 3.2 W
Operating Temperature : 5°C to 40°C
Storage Temperature: –20°C to 60°C
Operating position : Horizontal only
Dimensions (WxHxD) : 400 mm x 94 mm x 270 mm
Weight : 3.1 kg
Format : VHS PAL standard
Maximum recording time :
(SP) : 240 min. with E-240 video cassette
(LP) : 480 min. with E-240 video cassette
v i d e o / a u d i o
Signal system : PAL-type colour signal and CCIR monochrome signal, 625 lines/50 fields
Recording system : DA4 (Double Azimuth) helical scan system
Signal-to-noise ratio : 45 dB
Horizontal resolution : 250 lines
Frequency range : 70 Hz to 10,000 Hz (Normal audio)
20 Hz to 20,000 Hz (Hi-Fi audio)
Input/Output : 21-pin SCART connectors
(IN/OUT x 1, IN/DECODER x 1)
RCA connectors
(AUDIO OUT x 1)
t u n e r / t i m e r
TV channel storage capacity : 99 positions (+AUX position)
Tuning system :Frequency synthesized tuner
Channel coverage : VHF 44.5 MHz – 143 MHz/
143 MHz – 470 MHz/
UHF 470 MHz – 862 MHz
Aerial output : UHF channels 22 – 69 (Adjustable)
Memory backup time : Approx. 10 min.
a c c e s s o r i e s
Provided accessories : RF cable, Infrared remote control unit, Lithium Battery (CR-2032-)
Specifications shown are for SP mode unless otherwise specified.
E.& O.E. Design and specifications subject to change without notice.
HR-V705EK-EN/p60Back 1/25/03, 11:21 AM60
