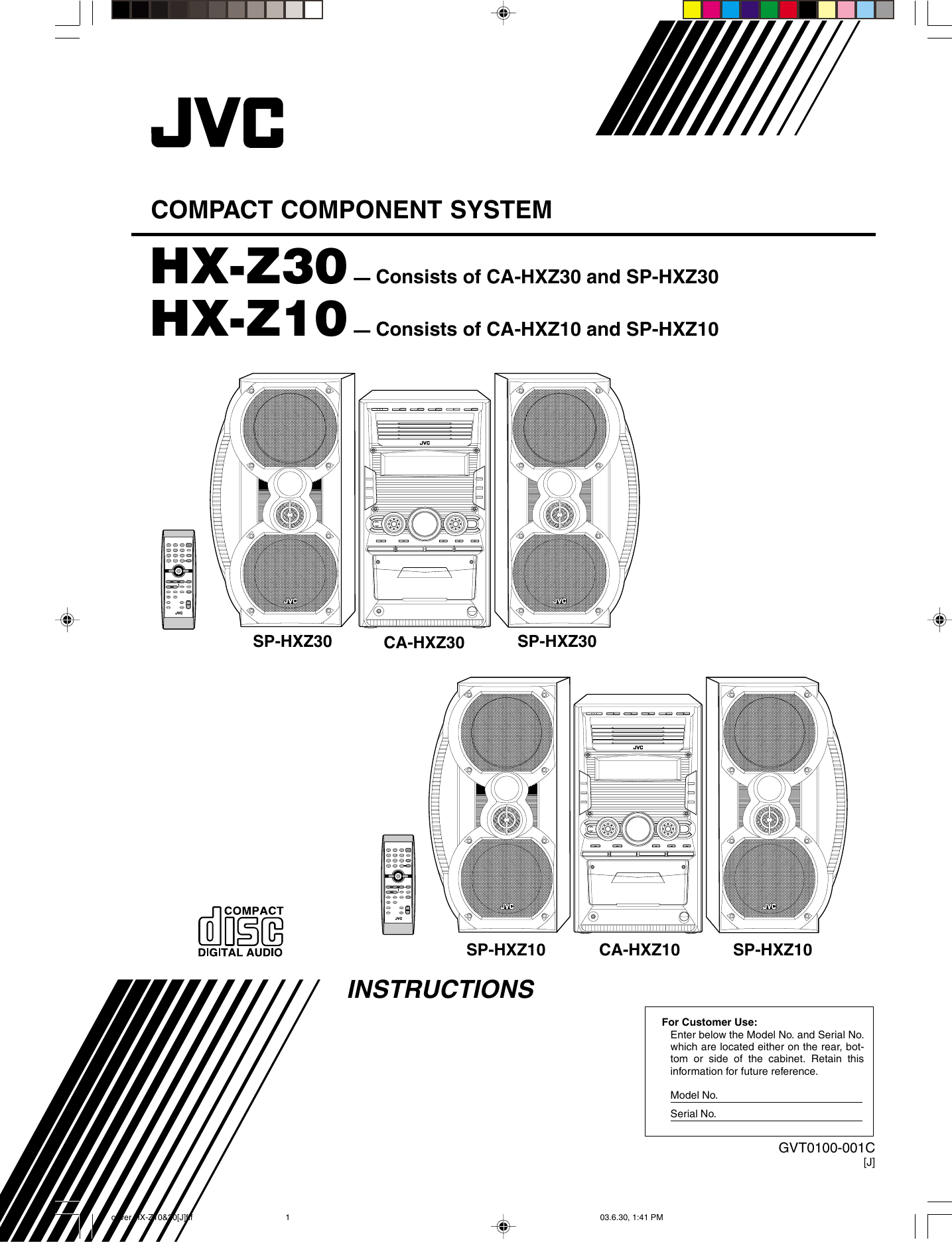

GVT0100-001C[J]INSTRUCTIONSHX-Z30 — Consists of CA-HXZ30 and SP-HXZ30HX-Z10 — Consists of CA-HXZ10 and SP-HXZ10COMPACT COMPONENT SYSTEMSP-HXZ30 SP-HXZ30CA-HXZ30SP-HXZ10 SP-HXZ10CA-HXZ10For Customer Use:Enter below the Model No. and Serial No.which are located either on the rear, bot-tom or side of the cabinet. Retain thisinformation for future reference.Model No. Serial No. cover.HX-Z10&30[J]fff 03.6.30, 1:41 PM1

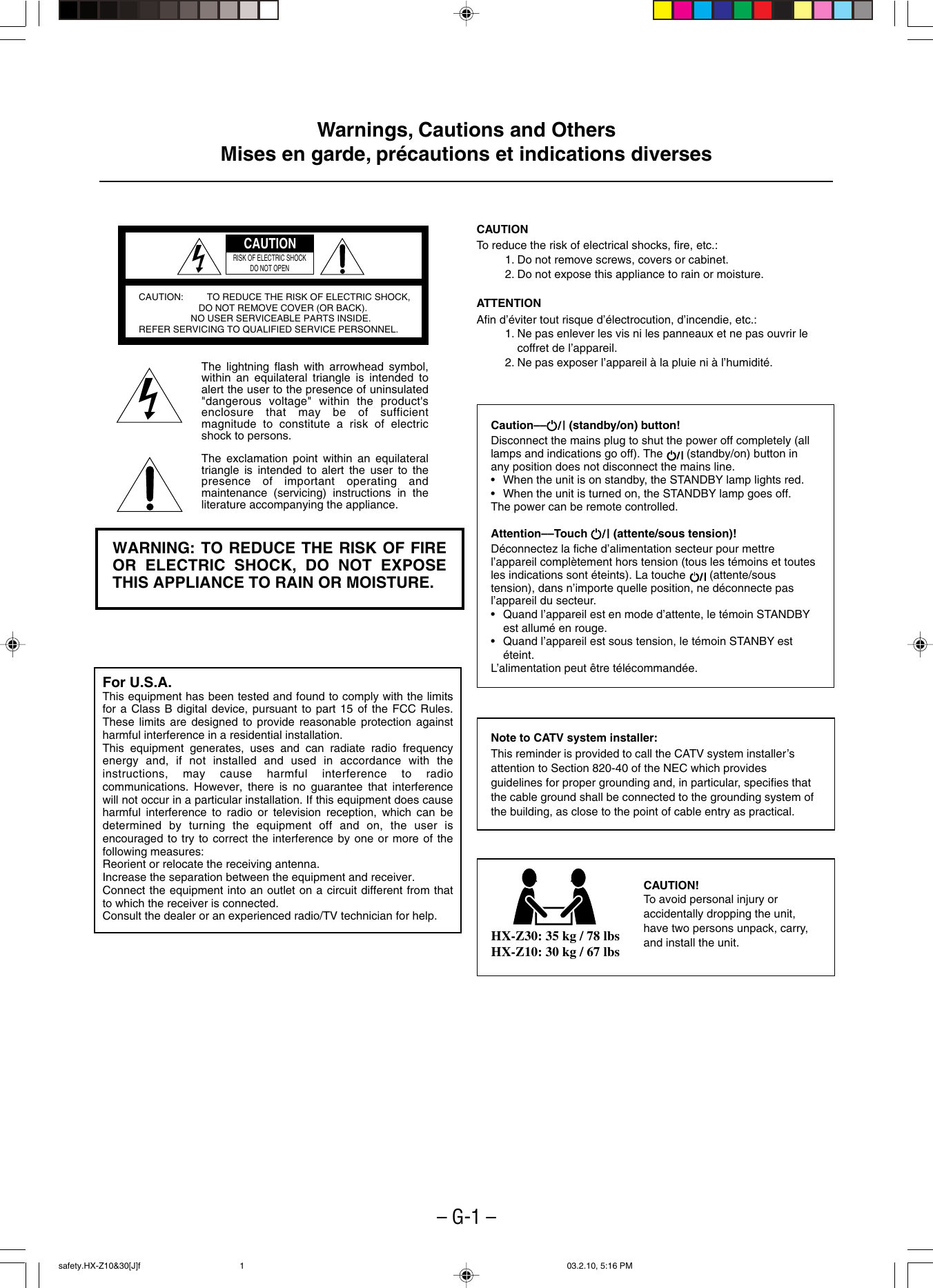

– G-1 –Warnings, Cautions and OthersMises en garde, précautions et indications diversesCAUTIONTo reduce the risk of electrical shocks, fire, etc.:1. Do not remove screws, covers or cabinet.2. Do not expose this appliance to rain or moisture.ATTENTIONAfin d’éviter tout risque d’électrocution, d’incendie, etc.:1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir lecoffret de l’appareil.2. Ne pas exposer l’appareil à la pluie ni à l’humidité.Caution–– (standby/on) button!Disconnect the mains plug to shut the power off completely (alllamps and indications go off). The (standby/on) button inany position does not disconnect the mains line.• When the unit is on standby, the STANDBY lamp lights red.• When the unit is turned on, the STANDBY lamp goes off.The power can be remote controlled.Attention––Touch (attente/sous tension)!Déconnectez la fiche d’alimentation secteur pour mettrel’appareil complètement hors tension (tous les témoins et toutesles indications sont éteints). La touche (attente/soustension), dans n’importe quelle position, ne déconnecte pasl’appareil du secteur.• Quand l’appareil est en mode d’attente, le témoin STANDBYest allumé en rouge.• Quand l’appareil est sous tension, le témoin STANBY estéteint.L’alimentation peut être télécommandée.Note to CATV system installer:This reminder is provided to call the CATV system installer’sattention to Section 820-40 of the NEC which providesguidelines for proper grounding and, in particular, specifies thatthe cable ground shall be connected to the grounding system ofthe building, as close to the point of cable entry as practical. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.RISK OF ELECTRIC SHOCKDO NOT OPENThe lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.CAUTIONWARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.For U.S.A.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for help.CAUTION!To avoid personal injury oraccidentally dropping the unit,have two persons unpack, carry,and install the unit.HX-Z30: 35 kg / 78 lbsHX-Z10: 30 kg / 67 lbssafety.HX-Z10&30[J]f 03.2.10, 5:16 PM1
