VCD/CD RECEIVER
KD-SV3204
For installation and connections, refer to the separate manual.
INSTRUCTIONS
GET0348-001A
[UI]
For canceling the display demonstration, see page 7
VIDEO CD
PBCENTER
SOURCE
EQ
BAND
VOL.
DOWN
UP
ATT
OSD
AUDIO
123
456
78
0
9
RETURN
REV FWD
Cover_KD-SV3204[UI]2.indd 2Cover_KD-SV3204[UI]2.indd 2 1/23/06 5:51:58 PM1/23/06 5:51:58 PM
2
Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and to
obtain the best possible performance from the unit.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave
all servicing to qualified service personnel.
3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated.
Avoid direct exposure to beam.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.
How to reset your unit
• Your preset adjustments will also be erased.
How to use the M MODE button
If you press M MODE, the unit goes into
functions mode, then the number buttons and
4 /¢ buttons work as different
function buttons.
Ex.: When number button 2 works as
MO (monaural) button.
To use these buttons for their original
functions again after pressing M MODE, wait
for 5 seconds without pressing any of these
buttons until the functions mode is cleared or
press M MODE again.
Time countdown indicator
WARNINGS:
To prevent accidents and damage
• DO NOT install any unit in locations where;
– it may obstruct the steering wheel and
gearshift lever operations.
– it may obstruct the operation of safety devices
such as air bags.
– it may obstruct visibility.
• DO NOT operate the unit while driving.
• If you need to operate the unit while driving, be
sure to look ahead carefully.
• The driver must not watch the monitor while
driving.
If the parking brake is not engaged, “PARKING”
flashes on the display, and no playback picture
will be shown on the monitor.
– This warning appears only when the parking
brake wire is connected to the parking brake
system built in the car (refer to the Installation/
Connection Manual).
How to forcibly eject a disc
• If this does not work, reset your unit.
• Be careful not to drop the disc when it ejects.
EN02-07_KD-SV3204[UI]2.indd 2EN02-07_KD-SV3204[UI]2.indd 2 1/23/06 5:52:37 PM1/23/06 5:52:37 PM
3
How to read this manual
• Button operations are mainly explained with
the illustrations in the table below.
• Some related tips and notes are explained in
“More about this unit” (see pages 20 – 22).
Press briefly.
Press repeatedly.
Press either
one.
Press and hold until your
desired response begins.
Press and hold both
buttons at the same time.
The following marks are used to indicate...
: Built-in VCD/CD player
operations.
: External CD changer operations.
: Indicator displayed for the
corresponding operation.
How to detach/attach the control
panel
Detaching...
Attaching...
CONTENTS
Control panel ................................... 4
Remote controller — RM-RK120 ............. 5
Getting started ................................. 7
Basic operations .................................................... 7
Radio operations .............................. 8
Disc operations ................................. 9
Playing a disc in the unit ...................................... 9
Playing discs in the CD changer ............................ 9
Sound adjustments ........................... 14

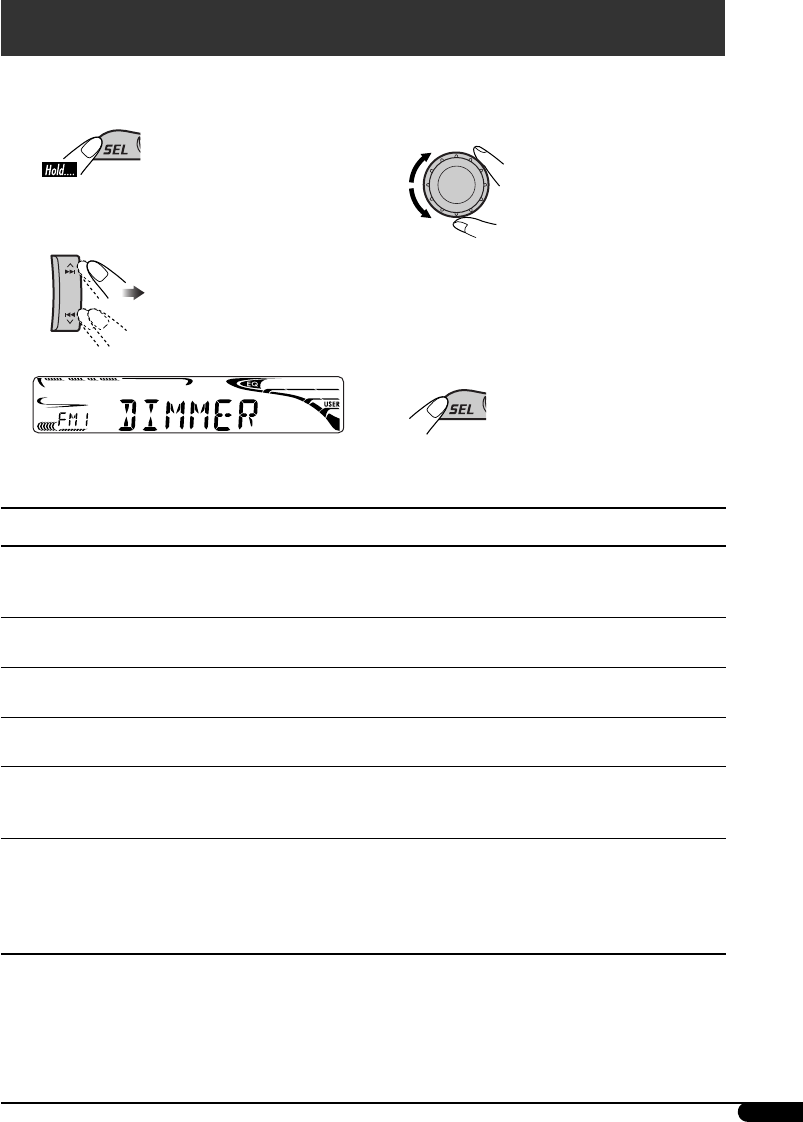

General settings — PSM ................... 15
iPod®/D. player operations ................ 17

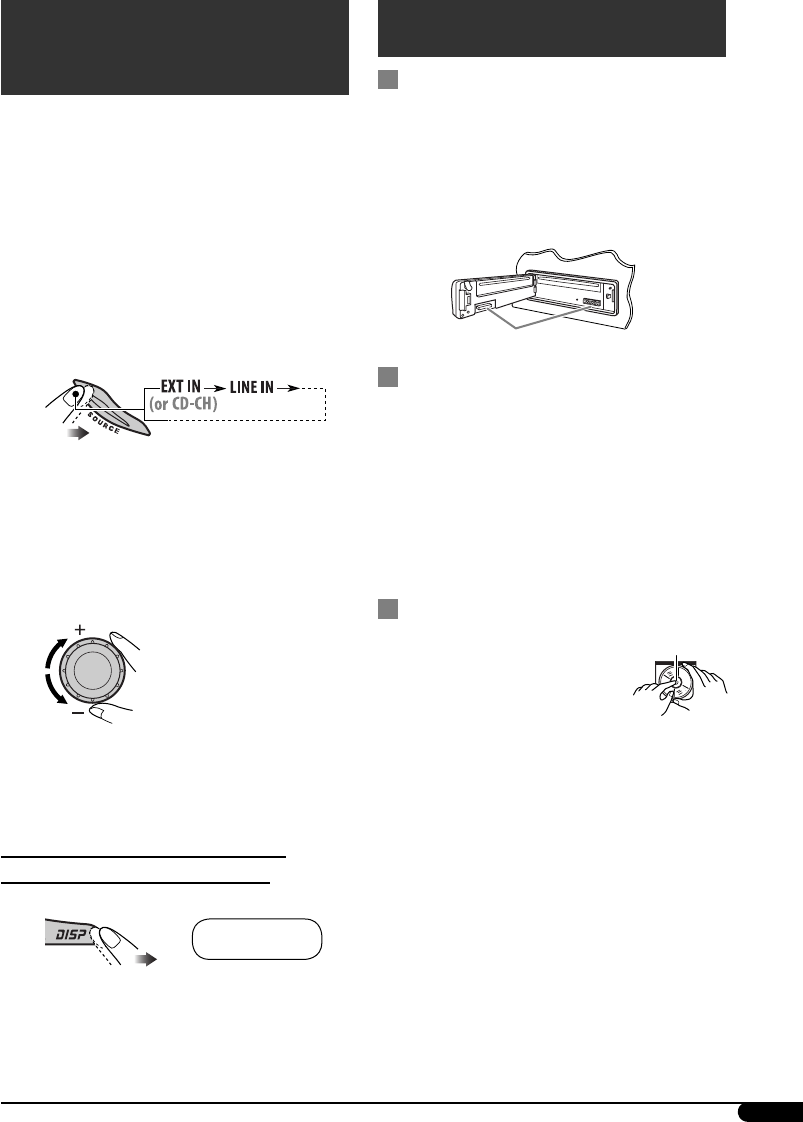

Other external component operations
... 19
Maintenance .................................... 19
More about this unit ......................... 20
Troubleshooting ............................... 23
Specifications ................................... 25
For safety...
• Do not raise the volume level too much, as
this will block outside sounds, making driving
dangerous.
• Stop the car before performing any
complicated operations.
Temperature inside the car...
If you have parked the car for a long time in hot
or cold weather, wait until the temperature in
the car becomes normal before operating the
unit.
EN02-07_KD-SV3204[UI]2.indd 3EN02-07_KD-SV3204[UI]2.indd 3 1/23/06 5:52:43 PM1/23/06 5:52:43 PM
4
Display window
; Disc information indicators—TAG (ID3
Tag), (folder), (track/file)
a Disc type indicators—WMA, MP3
s Playback source indicators—
CH: Lights up only when CD-CH is
selected as the playback source.
DISC: Lights up for the built-in CD player.
d Playback mode / item indicators—
RND (random), (disc), (folder),
RPT (repeat)
f LOUD (loudness) indicator
g EQ (equalizer) indicator
h Sound mode (C-EQ: custom equalizer)
indicators—JAZZ, CLASSIC, HIP HOP,
POPS, ROCK, USER
j Tr (track) indicator
k Source display / Volume level indicator
l Main display
/ Tuner reception indicators—ST (stereo),
MO (monaural)

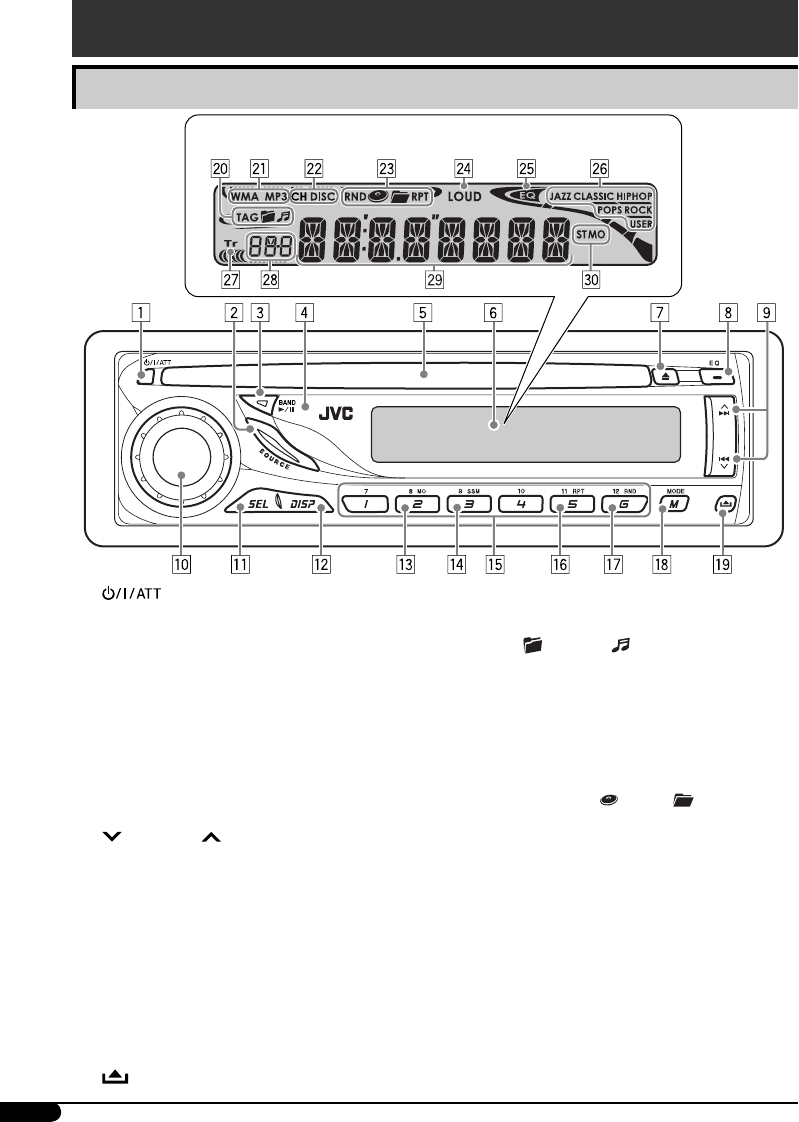

Parts identification
Display window
Control panel
1 (standby/on/attenuator) button
2 SOURCE button
3 BAND button
6 (play/pause) button
4 Remote sensor
DO NOT expose the remote sensor to strong
light (direct sunlight or artificial lighting).
5 Loading slot
6 Display window
7 0 (eject) button
8 EQ (equalizer) button
9 4 /¢ buttons
p Control dial
q SEL (select) button
w DISP (display) button
e MO (monaural) button
r SSM (Strong-station Sequential Memory)
button
t Number buttons
y RPT (repeat) button
u RND (random) button
i M MODE button
o (control panel release) button
EN02-07_KD-SV3204[UI]2.indd 4EN02-07_KD-SV3204[UI]2.indd 4 1/23/06 5:52:44 PM1/23/06 5:52:44 PM
5
Remote controller —
RM-RK120
Installing the lithium coin battery
(CR2025)
Aim the remote controller directly at the
remote sensor on the unit. Make sure there is
no obstacle in between.
Warning:
• Do not install any battery other than
CR2025 or its equivalent; otherwise, it may
explode.
• Store the battery in a place where children
cannot reach to avoid risk of accident.
• To prevent the battery from over-heating,
cracking, or starting a fire:
– Do not recharge, short, disassemble,
heat the battery, or dispose of it in a fire.
– Do not leave the battery with other
metallic materials.
– Do not poke the battery with tweezers or
similar tools.
– Wrap the battery with tape and insulate
when throwing away or saving it.
Caution:
Main elements and features
1 SOURCE button
• Selects the playback source.
2 (standby/on attenuator) button
• Turns the power on if pressed briefly or
attenuates the sound when the power is
on.
• Turns the power off if pressed and held.
3 2 REV / FWD 3 buttons
• Searches for stations if pressed briefly.
• Fast-forwards or reverses the track if
pressed and held.
• Changes the tracks if pressed briefly.
• While listening to an Apple iPod® or a
JVC D. player (in menu selecting mode):
– Selects an item if pressed briefly.
(Then, press DOWN ∞ to confirm the
selection.)
4 VOL. + / – buttons
• Adjusts the volume level.
Continued on the next page...
EN02-07_KD-SV3204[UI]2.indd 5EN02-07_KD-SV3204[UI]2.indd 5 1/23/06 5:52:45 PM1/23/06 5:52:45 PM
6
5 ENTER and number buttons
• Selects a track/file directly.
– Press the number button(s), then press
ENTER.
– Not used for iPod/D. player operations.
• Selects an item from the menu while
playing back a Video CD (VCD) in
Playback Control (PBC) function.
– Press the number button(s), then press
ENTER.
• Selects the discs while operating the CD
changer.
– To select disc number 1 – 6, press
number button 1 – 6 briefly.
– To select disc number 7 – 12, press and
hold number button 1 (7) – 6 (12).
6 EQ (equalizer) button
• Selects the sound mode (C-EQ: custom
equalizer).
7 BAND 6 button
• Changes the FM/AM bands.
• Stops disc playback temporarily. To
resume playback, press the button again.
– While playing a VCD, the playback
scene at the moment stops and remain
still.
– Not used for CD changer, iPod, or
D. player operations.
8 5 UP / DOWN ∞ buttons
• Changes the preset stations.
• Changes the folder of the MP3/WMA
discs if pressed briefly.
• Changes the disc while operating the CD
changer if pressed and held.
• While listening to an iPod or a D. player:
– Pauses/stops or resumes playback with
DOWN ∞.
– Enters the main menu with 5 UP.
(Now 5 UP / DOWN ∞/
2 REV / FWD 3 work as the menu
selecting buttons.)*
9 PBC (Playback Control) button
• Activates or deactivates the PBC function.
p RETURN button
• Returns to the previous menu while
playing a VCD in PBC function.
q OSD (On-Screen Display) button
• Turn on and off the OSD on the monitor.
w AUDIO button
• Selects the audio channel for VCD
playback.
* 5 UP : Returns to the previous menu.
DOWN ∞: Confirms the selection.
EN02-07_KD-SV3204[UI]2.indd 6EN02-07_KD-SV3204[UI]2.indd 6 1/23/06 5:52:45 PM1/23/06 5:52:45 PM
7
@ Adjust the sound as you want. (See
page 14.)
To drop the volume in a
moment (ATT)
To restore the sound, press
it again.
To turn off the power
Basic settings
• See also “General settings — PSM” on pages
15 and 16.
1
2
1 Canceling the display
demonstrations
Select “DEMO,” then “DEMO OFF.”
2 Setting the clock
Select “CLOCK H” (hour), then adjust
the hour.
Select “CLOCK M” (minute), then
adjust the minute.
3 Finish the procedure.
To check the current clock
time when the power is
turned off
Getting started
Basic operations
~ Turn on the power.
Ÿ
* You cannot select these sources if they
are not ready or not connected.
! For FM/AM tuner
⁄ Adjust the volume.
Volume level indicator
Volume level appears.
Caution on volume setting:
Discs produce very little noise compared
with other sources. Lower the volume
before playing a disc to avoid damaging
the speakers by the sudden increase of the
output level.
EN02-07_KD-SV3204[UI]2.indd 7EN02-07_KD-SV3204[UI]2.indd 7 1/23/06 5:52:46 PM1/23/06 5:52:46 PM
8

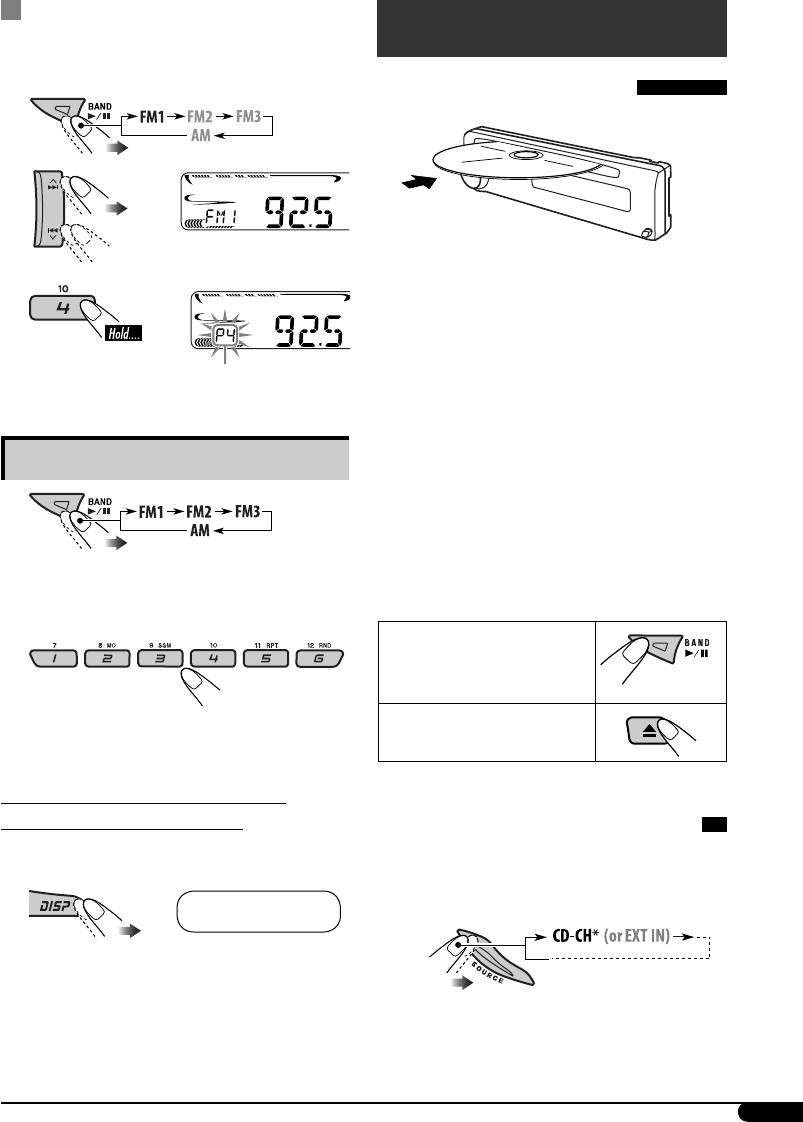

Radio operations
~
Ÿ
! Start searching for a station.
When a station is received, searching
stops.
To stop searching, press the same button
again.
To tune in to a station manually
In step ! above...
1
2 Select a desired station frequency.
Lights up when receiving an FM stereo
broadcast with sufficient signal strength.
Selected band appears.
When an FM stereo broadcast is hard to
receive
Reception improves, but stereo effect will be
lost.
To restore the stereo effect, repeat the same
procedure. “MONO OFF” appears and the MO
indicator goes off.
Storing stations in memory
You can preset six stations for each band.
FM station automatic presetting —
SSM (Strong-station Sequential
Memory)
1 Select the FM band (FM1 – FM3) you
want to store into.
2
3
“SSM” flashes, then disappears when
automatic presetting is over.
Local FM stations with the strongest signals are
searched and stored automatically in the FM
band.
Lights up when monaural mode is activated.
EN08-13_KD-SV3204[UI]2.indd 8EN08-13_KD-SV3204[UI]2.indd 8 1/23/06 5:53:04 PM1/23/06 5:53:04 PM
9
Manual presetting
Ex.: Storing FM station of 92.5 MHz into preset
number 4 of the FM1 band.
1
2
3
Listening to a preset station
1
2 Select the preset station (1 – 6) you
want.
To check the other information while
listening to an FM or AM station
Disc operations
Playing a disc in the unit
All tracks will be played repeatedly until you
change the source or eject the disc.
• If a disc menu appears on the monitor while
playing a VCD with PBC, see page 11.
Before performing any operations, make
sure the following....
• Turn on the monitor and select the
appropriate monitor input before playing a
VCD.
• If you turn on the monitor, you can also
control the MP3/WMA playback by referring
to the monitor screen (see page 12).
• Select the video system suitable for your
monitor (see page 16).
To stop play temporarily
To resume playback, press
the button again
To stop play and eject the
disc
Playing discs in the CD changer
All discs in the magazine will be played
repeatedly until you change the source.
• Ejecting the magazine will also stop playing.
~
* If you have changed the external input
setting to “EXT IN” (see page 16), you
cannot select the CD changer.
Clock Ô Frequency
Preset number flashes for a while.
EN08-13_KD-SV3204[UI]2.indd 9EN08-13_KD-SV3204[UI]2.indd 9 1/23/06 5:53:11 PM1/23/06 5:53:11 PM
10
To go to the next or previous folders (only for
MP3 or WMA discs)
For MP3 discs:
For WMA discs:
1
2
To locate a particular track (for CD or VCD with
PBC set to “PBC OFF”) or folder (for MP3 or
WMA discs) directly
To select a number from 01 – 06:
To select a number from 07 – 12:
• To use direct folder access on MP3/WMA
discs, it is required that folders are assigned
with 2-digit numbers at the beginning of their
folder names—01, 02, 03, and so on.
To select a particular track in a folder (for
MP3 or WMA discs):
Ÿ Select a disc.
For disc number from 01 – 06:
For disc number from 07 – 12:
About MP3 and WMA discs
MP3 and WMA “tracks” (words “file” and
“track” are used interchangeably) are recorded
in “folders.”
About the CD changer
It is recommended to use a JVC
MP3-compatible CD changer with your unit.
• You can also connect MP3-incompatible
CD changers. However, these units are not
compatible with MP3 discs.
• You cannot use the CH-X99, CH-X100, and
KD-MK series CD changers with this unit.
• You cannot control and play any WMA or
VCD disc in the CD changer.
• Disc text information recorded in the CD
Text can be displayed when a JVC CD Text
compatible CD changer is connected.
• For connection, see Installation/Connection
Manual (separate volume).
To fast-forward or reverse the track
To go to the next or previous tracks
EN08-13_KD-SV3204[UI]2.indd 10EN08-13_KD-SV3204[UI]2.indd 10 1/23/06 5:53:13 PM1/23/06 5:53:13 PM
11
Playback Control (PBC) operations
This operation is only possible when using
the remote controller.
1 While playing a VCD....
PBC ON : A menu appears on the
monitor.
PBC OFF : Cancels.
• A menu may be a list of items, submenus,
or some moving pictures.
2 Select the item you want.
• To select an item from the submenus,
repeat this step.
The selected item starts playback
automatically.
To correct a mis-entry and to return to the
previous menu
On-Screen (OSD) information
This operation is only possible when using
the remote controller.
You can check the track number and elapsed
playing time if the monitor is turned on.
While playing a disc....
• To turn off the On-Screen
Display, press the button
again.
Selecting the audio channel
This operation is only possible when using
the remote controller.
You can select the audio channel to play. ( is is
convenient when playing a Karaoke VCD.)
STEREO : To listen to normal stereo (left/
right) playback.
MONO L : To listen to the L (left) audio
channel.
MONO R : To listen to the R (right) audio
channel.
• The audio channel is automatically set to
“STEREO” when you change the disc or
source.
Current/total track
number
Elapsed playing time
EN08-13_KD-SV3204[UI]2.indd 11EN08-13_KD-SV3204[UI]2.indd 11 1/23/06 5:53:14 PM1/23/06 5:53:14 PM
12
MP3/WMA control screen operations
You can also control the playback of an MP3/
WMA disc by referring to the monitor.
• The control screen automatically appears on the
monitor when you insert an MP3/WMA disc.
1 Artiste name* (only for MP3 discs)
• The artiste name will scroll on the
monitor if it cannot be shown at a time.
2 Operation mode—PLAY, PAUSE,
FF (fast-forward), FR (fast-reverse),
SELECT (selected track number), REPEAT
TRACK, REPEAT FOLDER, REPEAT OFF,
RANDOM FOLDER, RANDOM DISC,
RANDOM OFF
• Operation mode appears for a while on
the monitor.
3 Folder name*
4 Track title* (only for MP3 discs)
• The track title will scroll on the monitor if
it cannot be shown at a time.
5 Highlighted bar for the current file name*
6 OSD indication—Current/total track
number, Elapsed playing time
• Appears only if you turn on the OSD (see
page 11).
7 Current list/total list number
8 Track list
• The monitor can show 12 tracks at a time
and a maximum of 239 tracks for a disc.
* Some symbols will not be shown (and will be
substituted or blanked) on the control screen.
To select a folder
To select a track
• Pressing these buttons
repeatedly can also
select tracks from the
previous/next folders.
• See also page 10 for using the buttons on the
control panel to select a folder or track.
Selecting the playback modes
You can use only one of the following playback
modes at a time.
• For VCD: While PBC (see page 11) is not in
use.
1
2 Select your desired playback mode.
7 Repeat play
Mode Plays repeatedly
TRK RPT : The current track.
FLDR RPT*1 : All tracks of the current
folder.
DISC RPT*2 : All tracks of the current disc.
RPT OFF : Cancels.
EN08-13_KD-SV3204[UI]2.indd 12EN08-13_KD-SV3204[UI]2.indd 12 1/23/06 5:53:15 PM1/23/06 5:53:15 PM
13

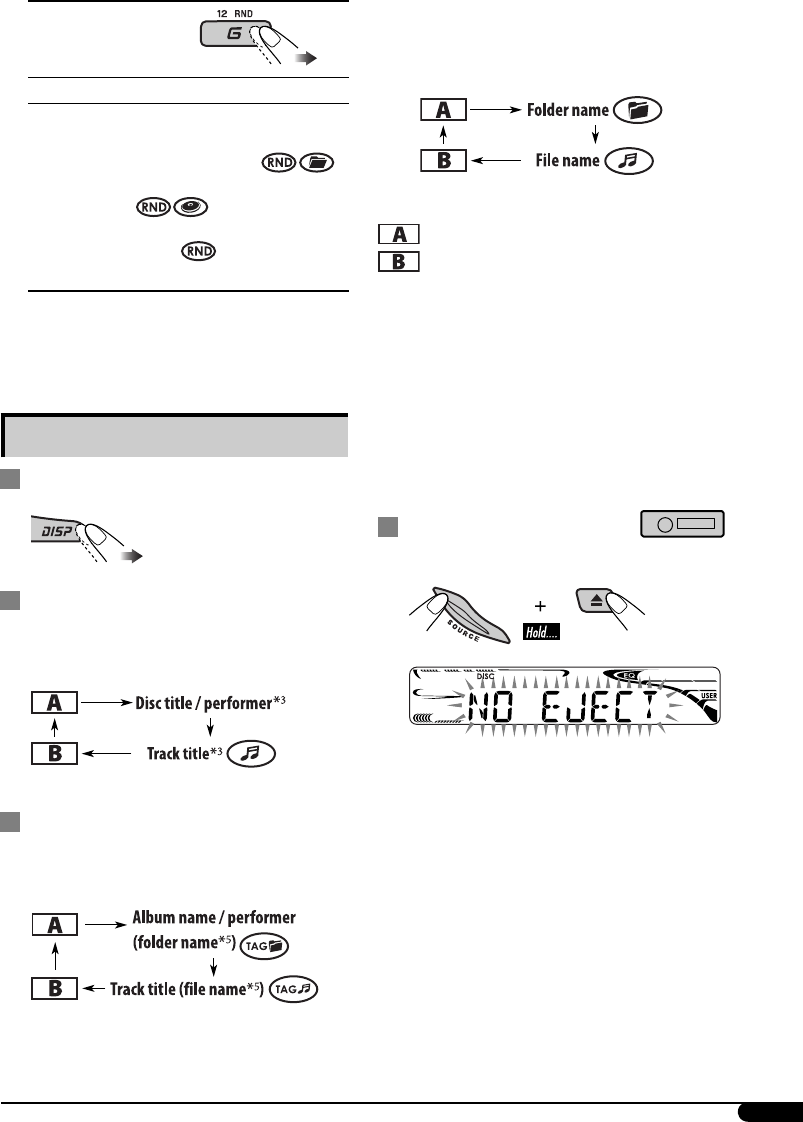

• For MP3 disc : When “TAG DISP” is set
to “TAG OFF”
• For WMA disc :
: Clock with the current track number
: Elapsed playing time with the current
track number
*3 If the current disc is an audio CD or a VCD,
“NO NAME” appears.
*4 Only for the built-in CD player.
*5 If an MP3 file does not have Tag information,
folder name and file name appear. In this
case, the TAG indicator will not light up.
Prohibiting disc ejection
You can lock a disc in the loading slot.
To cancel the prohibition, repeat the same
procedure.
7 Random play
Mode Plays at random
FLDR RND*1 : All tracks of the current
folder, then tracks of the next
folder and so on.
DISC RND : All tracks of the current disc.
MAG RND*2 : All tracks of the inserted
discs.
RND OFF : Cancels.
*1 Only while playing an MP3 or a WMA
disc.
*2 Only while playing discs in the CD
changer.
Other main functions
Changing the display information
While playing an audio CD, a CD Text,
or a VCD with PBC set to “PBC OFF” (see
page 11)
While playing an MP3 or a WMA*4 disc
• Only for MP3 disc : When “TAG DISP”
is set to “TAG ON” (see page 16)
EN08-13_KD-SV3204[UI]2.indd 13EN08-13_KD-SV3204[UI]2.indd 13 1/23/06 5:59:58 PM1/23/06 5:59:58 PM
14
Sound adjustments
You can select a preset sound mode suitable to
the music genre (C-EQ: custom equalizer).
Indication (For)
BAS TRE LOUD
(bass) (treble) (loudness)
USER
(Flat sound) 00 00 OFF
ROCK
(Rock or disco music) +03 +01 ON
CLASSIC
(Classical music) +01 –02 OFF
POPS
(Light music) +04 +01 OFF
HIP HOP
(Funk or rap music) +02 00 ON
JAZZ
(Jazz music) +02 +03 OFF
Adjusting the sound
You can adjust the sound characteristics to your
preference.
1
Preset values
Ex.: When “ROCK” is selected
2
Indication [Range]
BAS*1 (bass)
Adjust the bass. [–06 to +06]
TRE*1 (treble)
Adjust the treble. [–06 to +06]
FAD*2 (fader)
Adjust the front and rear speaker balance.
[R06 to F06]
BAL (balance)
Adjust the left and right speaker balance.
[L06 to R06]
LOUD*1 (loudness)
Boost low and high frequencies to produce
a well-balanced sound at low volume level.
[LOUD ON or LOUD OFF]
VOL (volume)
Adjust the volume. [00 to 30 or 50*3]
*1 When you adjust the bass, treble, or loudness,
the adjustment you have made is stored for
the currently selected sound mode (C-EQ)
including “USER.”
*2 If you are using a two-speaker system, set the
fader level to “00.”
*3 Depending on the amplifier gain control
setting. (See page 16 for details.)
EN14-19_KD-SV3204[UI]2.indd 14EN14-19_KD-SV3204[UI]2.indd 14 1/23/06 5:53:39 PM1/23/06 5:53:39 PM
15
Continued on the next page...
3 Adjust the PSM item selected.
4 Repeat steps 2 and 3 to adjust other
PSM items if necessary.
5 Finish the procedure.
1
2 Select a PSM item.
Indications Selectable settings, [reference page]
DEMO
Display
demonstration
DEMO ON : [Initial]; Display demonstration will be activated automatically
if no operation is done for about 20 seconds, [7].
DEMO OFF : Cancels.
CLOCK H
Hour adjustment
1 – 12, [7]
[Initial: 1 (1:00)]
CLOCK M
Minute adjustment
00 – 59, [7]
[Initial: 00 (1:00)]
DIMMER
Dimmer
ON : Dims the display illumination of this unit.
OFF : [Initial]; Cancels.
TEL
Telephone muting
MUTING 1/MUTING 2 : Select either one which mutes the sounds while
using a cellular phone.
OFF : [Initial]; Cancels.
SCROLL*1
Scroll
ONCE : [Initial]; Scrolls the disc information once.
AUTO : Repeats scrolling (5-second intervals in between).
OFF : Cancels.
• Pressing DISP for more than one second can scroll the display regardless of
the setting.
General settings — PSM
You can change PSM (Preferred Setting Mode) items listed in the table that follows.
Ex.: When “DIMMER” is selected
EN14-19_KD-SV3204[UI]2.indd 15EN14-19_KD-SV3204[UI]2.indd 15 1/23/06 5:53:46 PM1/23/06 5:53:46 PM
16
Indications Selectable settings, [reference page]
TAG DISP
Tag display
TAG ON : [Initial]; Shows the Tag information while playing MP3
tracks, [13].
TAG OFF : Cancels.
AMP GAIN
Amplifier gain
control
You can change the maximum volume level of this unit.
LOW PWR : VOL 00 – VOL 30 (Select this if the maximum power of
the speaker is less than 50 W to prevent them from being
damaged.)
HIGH PWR : [Initial]; VOL 00 – VOL 50
VIDEO
Video system
PAL : [Initial]; Select this if your monitor is of the PAL color
system.
NTSC : Select this if your monitor is of the NTSC color system.
• Press SEL to activate the selection before you select the other PSM items
to adjust.
EXT IN*2
External input
CHANGER : [Initial]; To use a JVC CD changer, [9], an Apple iPod or a
JVC D. player, [17].
EXT IN : To use any other external component than the above, [19].
*1 Some characters or symbols will not be shown correctly (or will be blanked) on the display.
*2 Displayed only when one of the following sources is selected—FM, AM, DISC, or LINE IN.
EN14-19_KD-SV3204[UI]2.indd 16EN14-19_KD-SV3204[UI]2.indd 16 1/23/06 5:53:46 PM1/23/06 5:53:46 PM
17

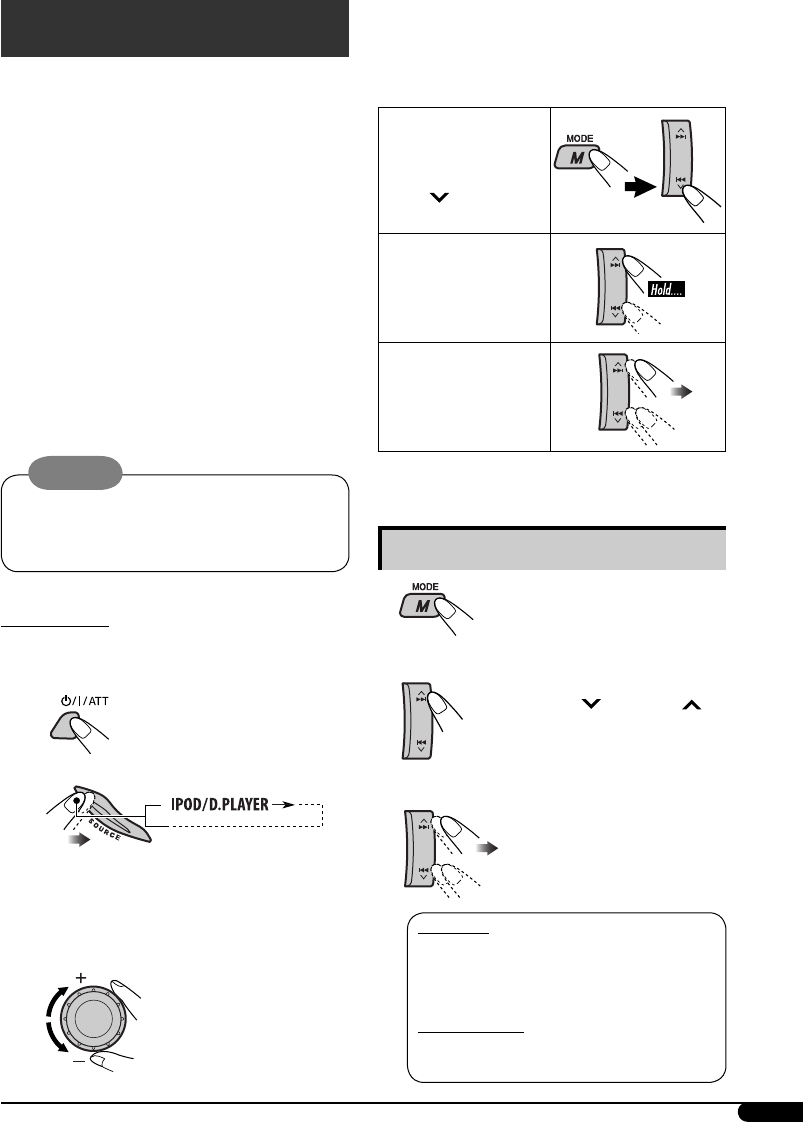

⁄ Adjust the sound as you want. (See
page 14.)
• Make sure the equalizer on the iPod or
D. player is deactivated.
To pause*1 or stop*2
playback
To resume playback,
press 4 after
pressing M MODE.
To fast-forward or
reverse the track
To go to the next or
previous tracks
*1 For iPod
*2 For D. player
Selecting a track from the menu
1
2 Enter the main menu.
Now the 5/∞/ 4 /¢
buttons work as the menu selecting
buttons*3.
3 Select the desired menu.
For iPod:
PLAYLIST Ô ARTISTS Ô ALBUMS Ô SONGS
Ô GENRES Ô COMPOSER Ô (back to the
beginning)
For D. player:
PLAYLIST Ô ARTIST Ô ALBUM Ô GENRE
Ô TRACK Ô (back to the beginning)
iPod®/D. player operations
This unit is ready for operating an Apple iPod
or a JVC D. player from the control panel.
Before operating your iPod or D. player:
Connect either one of the following (separately
purchased) to the CD changer jack on the rear
of this unit.
• Interface adapter for iPod®—KS-PD100 for
controlling an iPod.
• D. player interface adapter—KS-PD500 for
controlling a D. player.
• For connection, see Installation/Connection
Manual (separate volume).
• For details, refer also to the manual supplied
with the interface adapter.
Caution:
Make sure to turn off this unit or turn off the
vehicle’s ignition switch before connecting
or disconnecting the iPod or D. player.
Preparations:
Make sure “CHANGER” is selected for the
external input setting, see page 16.
~
Ÿ
Playback starts automatically from
where it has been paused*1 or stopped*2
previously.
! Adjust the volume.
EN14-19_KD-SV3204[UI]2.indd 17EN14-19_KD-SV3204[UI]2.indd 17 1/23/06 5:53:47 PM1/23/06 5:53:47 PM
18
7 Random play
ALBM RND*4
Functions the same as “Shuffle Albums” of
the iPod.
SONG RND/RND ON
Functions the same as “Shuffle Songs” of
the iPod or “Random Play
=
On” of the
D. player.
RND OFF
Cancels.
*4 For iPod: Only if you select “ALL” in
“ALBUMS” of the main “MENU.”
To check the other information while
listening to an iPod or a D. player
4 Confirm the selection.
To move back to the previous menu, press
¢ after pressing M MODE.
• If a track is selected, playback starts
automatically.
• If the selected item has another layer, you
will enter the layer. Repeat steps 3 and 4
until the desired track is played.
• Holding 4 /¢ can skip 10
items at a time.
*3 The menu selecting mode will be canceled:
– If no operations are done for about
5 seconds.
– When you confirm the selection of a track.
Selecting the playback modes
1
2 Select your desired playback mode.
7 Repeat play
ONE RPT
Functions the same as “Repeat One” of
the iPod or “Repeat Mode
=
One” for the
D. player.
ALL RPT
Functions the same as “Repeat All” of
the iPod or “Repeat Mode
=
All” for the
D. player.
RPT OFF
Cancels.
EN14-19_KD-SV3204[UI]2.indd 18EN14-19_KD-SV3204[UI]2.indd 18 1/23/06 5:53:48 PM1/23/06 5:53:48 PM
19
Other external component
operations
You can connect an external component to
the LINE IN plugs on the rear, and another to
the CD changer jack on the rear using the Line
Input Adapter—KS-U57 (not supplied) or AUX
Input Adapter—KS-U58 (not supplied).
• For connection, see Installation/Connection
Manual (separate volume).
For listening to the iPod or D. player, refer to
pages 17 and 18.
~
If “EXT IN” does not appear, see page 16
and select the external input (“EXT IN”).
Ÿ Turn on the connected component
and start playing the source.
! Adjust the volume.
⁄ Adjust the sound as you want. (See
page 14.)
To check the other information while
listening to an external component
Clock Ô EXT IN
Maintenance
How to clean the connectors
Frequent detachment will deteriorate the
connectors.
To minimize this possibility, periodically wipe
the connectors with a cotton swab or cloth
moistened with alcohol, being careful not to
damage the connectors.
Moisture condensation
Moisture may condense on the lens inside the
VCD/CD player in the following cases:
• After starting the heater in the car.
• If it becomes very humid inside the car.
Should this occur, the VCD/CD player may
malfunction. In this case, eject the disc and
leave the unit turned on for a few hours until
the moisture evaporates.
How to handle discs
When removing a disc from
its case, press down the center
holder of the case and lift the
disc out, holding it by the edges.
• Always hold the disc by the
edges. Do not touch its recording surface.
When storing a disc into its case, gently insert
the disc around the center holder (with the
printed surface facing up).
• Make sure to store discs into the cases after
use.
Center holder
Connector
Continued on the next page...
EN14-19_KD-SV3204[UI]2.indd 19EN14-19_KD-SV3204[UI]2.indd 19 1/23/06 5:53:49 PM1/23/06 5:53:49 PM
20

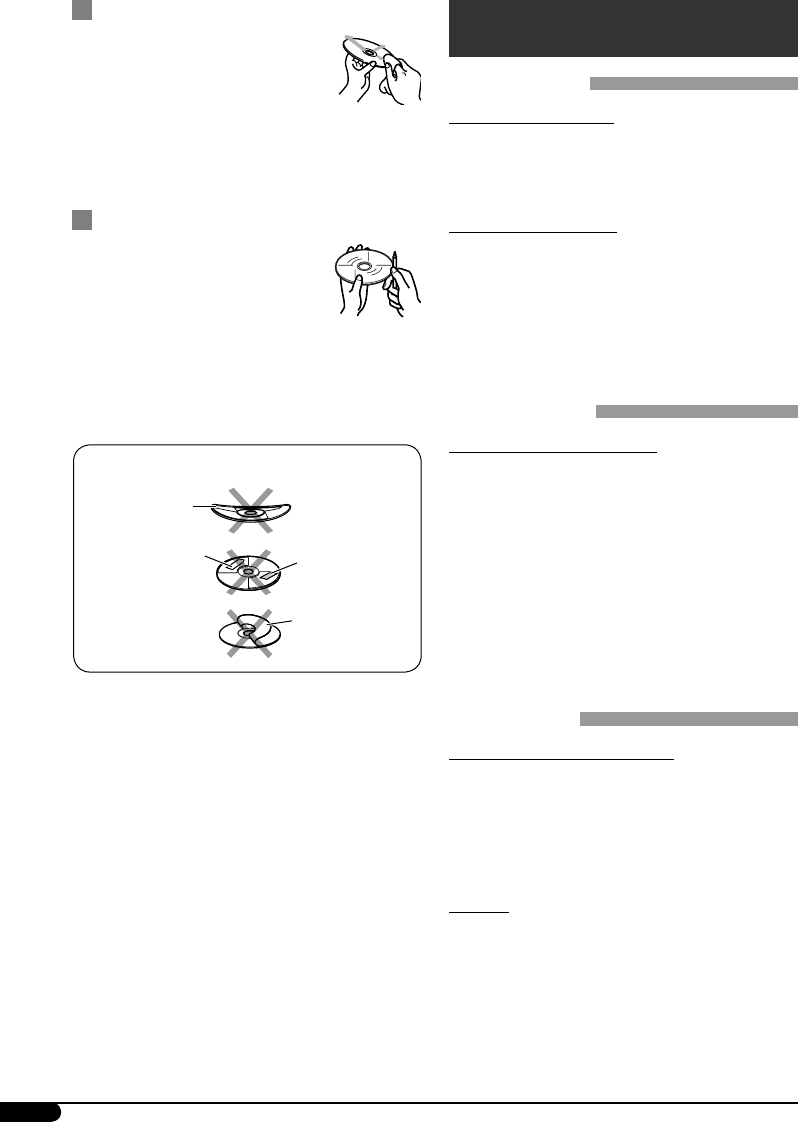

To keep discs clean
A dirty disc may not play correctly.
If a disc does become dirty, wipe it
with a soft cloth in a straight line
from center to edge.
• Do not use any solvent (for example,
conventional record cleaner, spray, thinner,
benzine, etc.) to clean discs.
To play new discs
New discs may have some rough
spots around the inner and outer
edges. If such a disc is used, this
unit may reject the disc.
To remove these rough spots, rub the edges with
a pencil or ball-point pen, etc.
Warped disc
Sticker Sticker residue
Stick-on label
Do not use the following discs:
More about this unit
Basic operations
Turning on the power
• By pressing SOURCE on the unit, you can
also turn on the power. If the source is ready,
playback also starts.
Turning off the power
• If you turn off the power while listening to a
disc, disc play will start from where playback
has been stopped previously, next time you
turn on the power.
• For MP3/WMA discs, playback will start from
the beginning of the last playing track.
Tuner operations
Storing stations in memory
• During SSM search...
– All previously stored stations are erased and
stations are stored newly.
– Received stations are preset in No. 1 (lowest
frequency) to No. 6 (highest frequency).
– When SSM is over, the station stored in
No. 1 will be automatically tuned in.
• When storing a station manually, the
previously preset station is erased when a new
station is stored in the same preset number.
Disc operations
Caution for DualDisc playback
• The Non-DVD side of a “DualDisc” does
not comply with the “Compact Disc Digital
Audio” standard. Therefore, the use of Non-
DVD side of a DualDisc on this product may
not be recommended.
General
• This unit has been designed to reproduce
CDs/CD Texts, and CD-Rs (Recordable)/
CD-RWs (Rewritable) in audio CD (CD-DA),
MP3 and WMA formats.
• This unit cannot playback SVCD, DVDs,
CD-Gs, or CD-I discs.
EN20-25_KD-SV3204[UI]2.indd 20EN20-25_KD-SV3204[UI]2.indd 20 1/23/06 5:54:09 PM1/23/06 5:54:09 PM
21
Playing a VCD disc
• The PBC function is not available for some
VCDs.
• The PBC function is automatically canceled
when you change the source or turn off the
unit. Playback starts from the beginning of the
dics when you play the VCD again.
• The On-Screen Display (OSD) will
automatically canceled when you change the
source or turn off the unit.
Playing an MP3/WMA disc
• This unit can play back MP3/WMA files
with the extension code <.mp3> or <.wma>
(regardless of the letter case—upper/lower).
• This unit can show the names of albums,
artists (performer), and Tag (Version 1.0, 1.1,
2.2, 2.3, or 2.4) for MP3 files.
• This unit can display only one-byte
characters. No other characters can be
correctly displayed.
• This unit can play back MP3/WMA files
meeting the conditions below:
– Bit rate: MP3: 32 kbps — 320 kbps
WMA: 48 kbps — 192 kbps
– Sampling frequency:
48 kHz, 44.1 kHz, 32 kHz (for MPEG-1)
24 kHz, 22.05 kHz, 16 kHz (for MPEG-2)
48 kHz, 44.1 kHz, 32 kHz (for WMA)
– Disc format: ISO 9660 Level 1/Level 2,
Romeo, Joliet, Windows long file name
• The maximum number of characters for file/
folder names vary among the disc format used
(includes 4 extension characters—<.mp3> or
<.wma>).
– ISO 9660 Level 1: up to 12 characters
– ISO 9660 Level 2: up to 31 characters
– Romeo: up to 40 characters
– Joliet: up to 40 characters
– Windows long file name: up to 40
characters
Inserting a disc
• When a disc is inserted upside down, the disc
automatically ejects.
• Do not insert 8 cm discs (single CD) and
unusual shape discs (heart, flower, etc.) into
the loading slot.
Playing a disc
• While fast-forwarding or reversing on an MP3
or WMA disc, you can only hear intermittent
sounds.
Playing a CD-R or CD-RW
• Use only “finalized” CD-Rs or CD-RWs.
• This unit can play back only files of the same
type which are first detected if a disc includes
both audio CD (CD-DA) files and MP3/
WMA files.
• This unit can play back multi-session discs;
however, unclosed sessions will be skipped
while playing.
• Some CD-Rs or CD-RWs may not play
back on this unit because of their disc
characteristics, or for the following reasons:
– Discs are dirty or scratched.
– Moisture condensation occurs on the lens
inside the unit.
– The pickup lens inside the unit is dirty.
– CD-R/CD-RW on which the files are
written with “Packet Write” method.
– There are improper recording conditions
(missing data, etc.) or media conditions
(stained, scratched, warped, etc.).
• CD-RWs may require a longer readout time
since the reflectance of CD-RWs is lower than
that of regular CDs.
• Do not use the following CD-Rs or CD-RWs:
– Discs with stickers, labels, or a protective
seal stuck to the surface.
– Discs on which labels can be directly
printed by an ink jet printer.
Using these discs under high temperatures or
high humidities may cause malfunctions or
damage to the unit.
Continued on the next page...
EN20-25_KD-SV3204[UI]2.indd 21EN20-25_KD-SV3204[UI]2.indd 21 1/23/06 5:54:15 PM1/23/06 5:54:15 PM
22
General settings—PSM
• If you change the “AMP GAIN” setting from
“HIGH PWR” to “LOW PWR” while the
volume level is set higher than “VOL 30,” the
unit automatically changes the volume level to
“VOL 30.”
iPod® or D. player operations
• When you turn on this unit, the iPod or
D. player is charged through this unit.
• While the iPod or D. player is connected, all
operations from the iPod or D. player are
disabled. Perform all operations from this
unit.
• If the text information includes more than
8 characters, it scrolls on the display (see
also page 15). This unit can display up to 40
characters.
Notice:
When operating an iPod or a D. player,
some operations may not be performed
correctly or as intended. In this case, visit the
following JVC web site:
For iPod users: <http://www.jvc.co.jp/
english/car/support/ks-pd100/index.html>
For D. player users: <http://www.jvc.co.jp/
english/car/support/ks-pd500/index.html>
• This unit can play back files recorded in VBR
(variable bit rate).
Files recorded in VBR have a discrepancy
in elapsed time display, and do not show
the actual elapsed time. Especially, after
performing the search function, this
difference becomes noticeable.
• This unit can recognize a total of 512 files, of
200 folders, and of 8 hierarchies.
• This unit cannot play back the following files:
– MP3 files encoded with MP3i and
MP3 PRO format.
– MP3 files encoded in an inappropriate
format.
– MP3 files encoded with Layer 1.
– WMA files encoded with lossless,
professional, and voice format.
– WMA files which are not based upon
Windows Media® Audio.
– WMA files copy-protected with DRM.
– Files which have the data such as WAVE,
ATRAC3, etc.
• The search function works but search speed is
not constant.
Changing the source
• If you change the source, playback also stops
(without ejecting the disc).
Next time you select “DISC” for the playback
source, disc play starts from where it has been
stopped previously.
• For MP3/WMA discs, playback will start
from the beginning of the last playing track.
Ejecting a disc
• If the ejected disc is not removed within
15 seconds, the disc is automatically inserted
again into the loading slot to protect it from
dust. (Disc will not play this time.)
EN20-25_KD-SV3204[UI]2.indd 22EN20-25_KD-SV3204[UI]2.indd 22 1/23/06 5:54:15 PM1/23/06 5:54:15 PM
23
Troubleshooting
What appears to be trouble is not always serious. Check the following points before calling a service
center.
Symptoms Remedies/Causes
General
• Sound cannot be heard from the
speakers.
• Adjust the volume to the optimum level.
• Check the cords and connections.
• The unit does not work at all. Reset the unit (see page 2).
FM/AM
• SSM automatic presetting does not
work.
Store stations manually.
• Static noise while listening to the radio. Connect the antenna firmly.
Disc playback
• Disc automatically ejects. Insert the disc correctly.
• CD-R/CD-RW cannot be played back.
• Tracks on the CD-R/CD-RW cannot be
skipped.
• Insert a finalized CD-R/CD-RW.
• Finalize the CD-R/CD-RW with the component
which you used for recording.
• Disc can be neither played back nor
ejected.
• Unlock the disc (see page 13).
• Eject the disc forcibly (see page 2).
• Sound and pictures are sometimes
interrupted or distorted.
• Stop playback while driving on rough roads.
• Change the disc.
• Check the cords and connections.
• “NO DISC” appears on the display. Insert a playable disc into the loading slot.
• No playback picture appears on the
monitor.
Parking brake wire is not connected properly.
(See Installation/Connection manual.)
• No picture appears on the monitor at
all.
• Connect the video cord correctly.
• Select a correct input on the monitor.
MP3/WMA playback
• Disc cannot be played back. • Use a disc with MP3/WMA tracks recorded in
the format compliant with ISO 9660 Level 1,
Level 2, Romeo, or Joliet.
• Add the extension code <.mp3> or <.wma> to
the file names.
• Noise is generated. Skip to another track or change the disc. (Do not
add the extension code <.mp3> or <.wma> to
non-MP3 or WMA tracks.)
• A longer readout time is required
(“CHECK” keeps flashing on the
display).
Do not use too many hierarchies and folders.
• Tracks do not play back in the order
you have intended them to play.
Playback order is determined when the files are
recorded.
• Elapsed playing time is not correct. This sometimes occurs during play. This is caused
by how the tracks are recorded on the disc.
• “NO FILES” appears on the display. Insert a disc that contains MP3/WMA tracks.
• Correct characters are not displayed
(e.g. album name).
This unit can only display letters (upper case),
numbers, and a limited number of symbols.
EN20-25_KD-SV3204[UI]2.indd 23EN20-25_KD-SV3204[UI]2.indd 23 1/23/06 5:54:15 PM1/23/06 5:54:15 PM
24
Symptoms Remedies/Causes
CD changer
• “NO DISC” appears on the display. Insert a disc into the magazine.
• “NO MAG” appears on the display. Insert the magazine.
• “RESET 8” appears on the display. Connect this unit and the CD changer correctly
and press the reset button of the CD changer.
• “RESET 1” – “RESET 7” appears on
the display.
Press the reset button of the CD changer.
• The CD changer does not work at all. Reset the unit (see page 2).
iPod/D. player playback
• The iPod or D. player does not turn
on or does not work.
• Check the connecting cable and its connection.
• Update the firmware version.
•
Change the battery.
• Buttons do not work as intended. The functions of the buttons have been changed.
Press MODE before performing the operation.
• The sound is distorted. Deactivate the equalizer either on the unit or the
iPod/D. player.
• “NO IPOD” or “NO DP” appears on
the display.
Check the connecting cable and its connection.
• Playback stops. The headphones are disconnected during
playback. Restart the playback operation using the
control panel (see page 17).
• No sound can be heard when
connecting an iPod nano.
Disconnect the headphones from the iPod nano.
• No sound can be heard.
• “ERROR 01” appears on the display
when connecting a D. player.
Disconnect the adapter from the D. player. Then,
connect it again.
• “NO FILES” or “NO TRACK”
appears on the display.
No tracks are stored. Import tracks to the iPod or
D. player.
• “RESET 1” – “RESET 7” appears on
the display.
Disconnect the adapter from both the unit and
iPod/D. player. Then, connect it again.
• “RESET 8” appears on the display. Check the connection between the adapter and
this unit.
• The iPod’s or D. player’s controls do
not work after disconnecting from
this unit.
Reset the iPod or D. player.
EN20-25_KD-SV3204[UI]2.indd 24EN20-25_KD-SV3204[UI]2.indd 24 1/23/06 5:54:16 PM1/23/06 5:54:16 PM
25
Specifications
AUDIO AMPLIFIER SECTION
Maximum Power Output:
Front: 50 W per channel
Rear: 50 W per channel
Continuous Power Output (RMS):
Front: 19 W per channel into 4 Ω, 40 Hz
to 20 000 Hz at no more than 0.8%
total harmonic distortion.
Rear: 19 W per channel into 4 Ω, 40 Hz
to 20 000 Hz at no more than 0.8%
total harmonic distortion.
Load Impedance: 4 Ω (4 Ω to 8 Ω allowance)
Tone Control Range:
Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz
Frequency Response: 40 Hz to 20 000 Hz
Signal-to-Noise Ratio: 70 dB
Line-Out Level/Impedance:
2.5 V/20 kΩ load (full scale)
Output Impedance: 1 kΩ
Other Terminal: LINE IN, CD changer
VIDEO SECTION
Color system: PAL/NTSC
Video output (composite): 1 Vp-p/75 Ω
TUNER SECTION
Frequency Range:
FM: 87.5 MHz to 108.0 MHz
AM: 531 kHz to 1 602 kHz
[FM Tuner]
Usable Sensitivity: 11.3 dBf (1.0 μV/75 Ω)
50 dB Quieting Sensitivity:
16.3 dBf (1.8 μV/75 Ω)
Alternate Channel Selectivity (400 kHz): 65 dB
Frequency Response: 40 Hz to 15 000 Hz
Stereo Separation: 30 dB
[AM Tuner]
Sensitivity: 20 μV
Selectivity: 35 dB
VCD/CD PLAYER SECTION
Type: Compact disc player
Signal Detection System: Non-contact optical
pickup (semiconductor laser)
Number of Channels: 2 channels (stereo)
Frequency Response: 5 Hz to 20 000 Hz
Dynamic Range: 96 dB
Signal-to-Noise Ratio: 98 dB
Wow and Flutter: Less than measurable limit
MP3 Decoding Format:
MPEG1/2 Audio Layer 3
Max. Bit Rate: 320 kbps
WMA (Windows Media® Audio) Decoding
Format:
Max. Bit Rate: 192 kbps
GENERAL
Power Requirement:
Operating Voltage:
DC 14.4 V (11 V to 16 V allowance)
Grounding System: Negative ground
Allowable Operating Temperature:
0°C to +40°C
Dimensions (W × H × D):
Installation Size (approx.):
182 mm × 52 mm × 150 mm
Panel Size (approx.):
188 mm × 58 mm × 11 mm
Mass (approx.):
1.4 kg (excluding accessories)
Design and specifications are subject to change
without notice.
• Microsoft and Windows Media are either
registered trademarks or trademarks of
Microsoft Corporation in the United States
and/or other countries.
• iPod is a trademark of Apple Computer, Inc.,
registered in the U.S. and other countries.
EN20-25_KD-SV3204[UI]2.indd 25EN20-25_KD-SV3204[UI]2.indd 25 1/23/06 5:54:16 PM1/23/06 5:54:16 PM
© 2006 Victor Company of Japan, Limited
EN
0106DTSMDTJEIN
Having TROUBLE with operation?
Please reset your unit
Refer to page of How to reset your unit
Rear_KD-SV3204[UI]2.indd 2Rear_KD-SV3204[UI]2.indd 2 1/23/06 5:52:16 PM1/23/06 5:52:16 PM

Navigation menu
