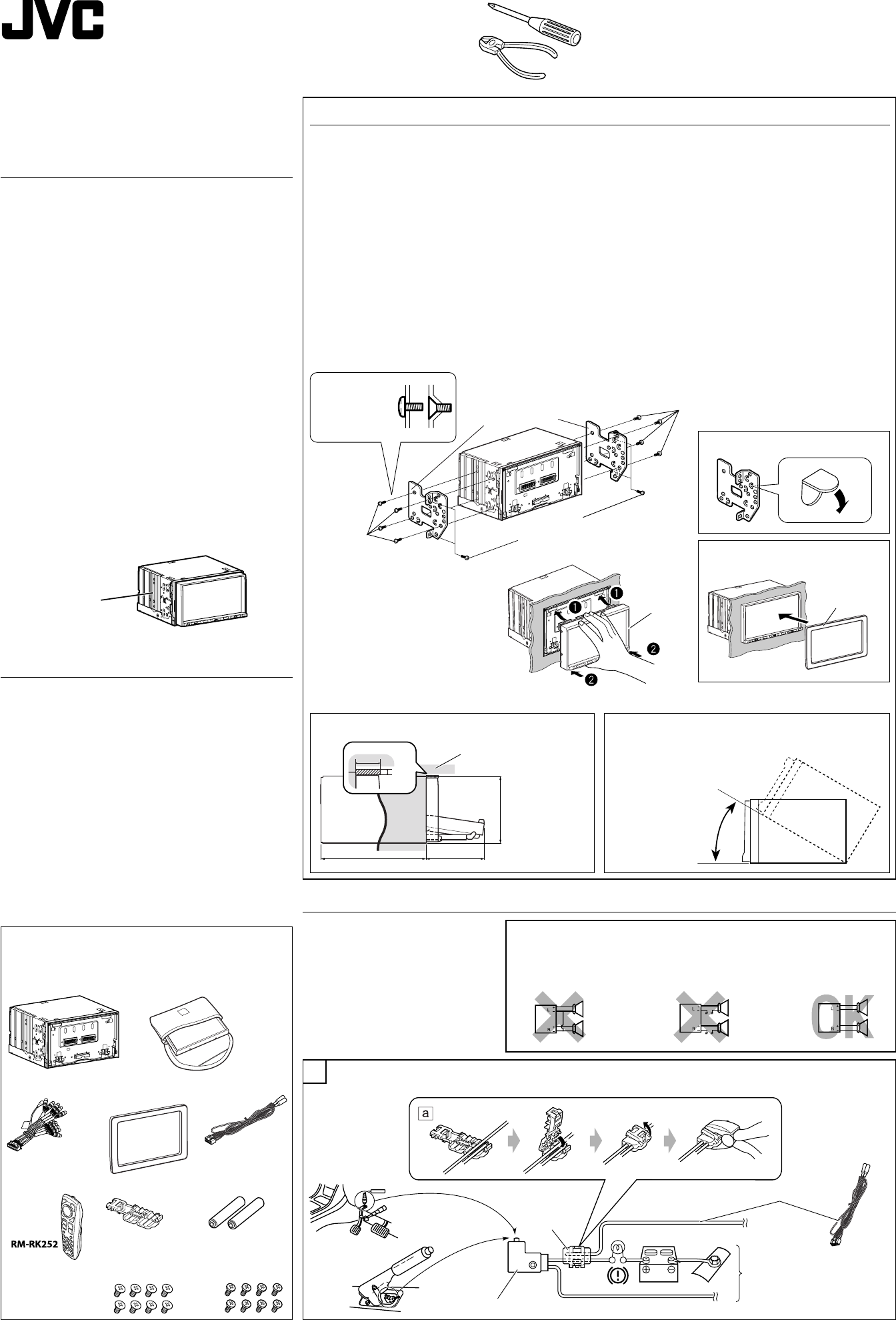

KW-AVX810
Installation/Connection Manual
Crimp connector
Power cord
Batteries
Heat sink
1
0108MNMMDWJEIN
EN
© 2008 Victor Company of Japan, Limited
Remote controller
Parts list for installation and connection
The following parts are provided for this unit.
If anything is missing, contact your dealer immediately.
Main unit
Round head screws
(M5 x 8 mm)
Flat head screws
(M5 x 8 mm)
LVT1794-006A
[A]
This unit is designed to operate on 12 V DC, NEGATIVE ground
electrical systems. If your vehicle does not have this system, a
voltage inverter is required, which can be purchased at JVC car audio
dealers.
WARNINGS
• DO NOT install any unit or wire any cable in a location where;
– it may obstruct the steering wheel and gearshift lever operations,
as this may result in a traffic accident.
– it may obstruct the operation of safety devices such as air bags, as
this may result in a fatal accident.
– it may obstruct visibility.
• DO NOT operate any unit while manipulating the steering wheel, as
this may result in a traffic accident.
• The driver must not watch the monitor while driving. It may lead to
carelessness and cause an accident.
• If you need to operate the unit while driving, be sure to look around
carefully or you may be involved in a traffic accident.
• If the parking brake is not engaged, “Parking Brake” flashes on the
monitor, and no playback picture will be shown.
– This warning appears only when the parking brake wire is
connected to the parking brake system built in the car.
Notes on electrical connections:
• Replace the fuse with one of the specified rating. If the fuse blows
frequently, consult your JVC car audio dealer.
• It is recommended to connect speakers with a maximum power
of more than 50 W (both at the rear and at the front, with an
impedance of 4 Ω to 8 Ω).
If the maximum power is less than 50 W, change “Amplifier Gain”
setting to prevent the speakers from being damaged (see page 58 of
the INSTRUCTIONS).
• To prevent short circuits, cover the terminals of the UNUSED leads
with insulating tape.
• The heat sink becomes very hot after use. Be careful not to touch it
when removing this unit.
Plate for use with a
Nissan car
INSTALLATION (IN-DASH MOUNTING)
The following illustration shows a typical installation. However, you should make adjustments corresponding to your specific car. If you
have any questions or require information regarding installation kits, consult your JVC car audio dealer or a company supplying kits.
• If you are not sure how to install this unit correctly, have it installed by a qualified technician.
Before installing the unit
• When mounting the unit, be sure to use the screws provided, as instructed. If other screws are used, parts could become loose or
damaged.
• When tightening screws or bolts, be careful not to pinch any connection cord.
• Make sure not to block the fan on the rear to maintain proper ventilation when installing the unit.
Screws removed from the car in step 1
1 Remove the audio system originally installed in the car,
together with its mounting brackets.
Note: Be sure to keep all the screws and parts removed from
your car for future use.
2 Attach the mounting brackets (removed from the car), to this
unit (see below).
3 Do the required electrical connections.
• See “ELECTRICAL CONNECTIONS” on pages 1 and 2.
4 Install this unit using the screws removed in step 1.
5 Attach the monitor panel (see below).
Mounting bracket
removed from the car
Supplied
screws
Install the unit at an
angle of less than 30˚,
taking it into account
that the monitor would
eject when in use.
Note: When installing the unit on the mounting bracket, make sure to use the supplied screws (M5 x 8 mm). If longer screws are used,
they could damage the unit.
30˚
Select the
appropriate type
fitting to your
audio system
space.
If necessary, restore the protruding tabs.
Unit: mm
Supplied
screws
Required space for installation and the monitor ejection
20
91.3
100
When installing the unit in a
Nissan car
Plate for use with
a Nissan car
Monitor panel and soft case
AV I/O cord
To prevent short circuits, we recommend that
you disconnect the battery’s negative terminal
and make all electrical connections before
installing the unit.
• Be sure to ground this unit to the car’s
chassis again after installation.
Monitor
panel
Connecting the parking brake lead
Connect the parking brake lead to the parking brake system built in the car.
Parking brake lead (light green)
Parking brake
Crimp
connector
Parking brake switch (inside the car)
To metallic body
or chassis of the
car
A
TROUBLESHOOTING
• The fuse blows.
* Are the red and black leads connected correctly?
• Power cannot be turned on.
* Is the yellow lead connected?
• No sound from the speakers.
* Is the speaker output lead short-circuited?
• Sound is distorted.
* Is the speaker output lead grounded?
* Are the “–” terminals of L and R speakers grounded in common?
• Noise interfere with sounds.
* Is the rear ground terminal connected to the car’s chassis using
shorter and thicker cords?
• Unit becomes hot.
* Is the speaker output lead grounded?
* Are the “–” terminals of L and R speakers grounded in common?
• This unit does not work at all.
* Have you reset your unit?
PRECAUTIONS on power supply and speaker connections:
• DO NOT connect the speaker leads of the power cord to the car battery;
otherwise, the unit will be seriously damaged.
• BEFORE connecting the speaker leads of the power cord to the speakers, check the
speaker wiring in your car.
The following example is for installation in a Toyota car. For more details, consult your JVC car audio dealer.

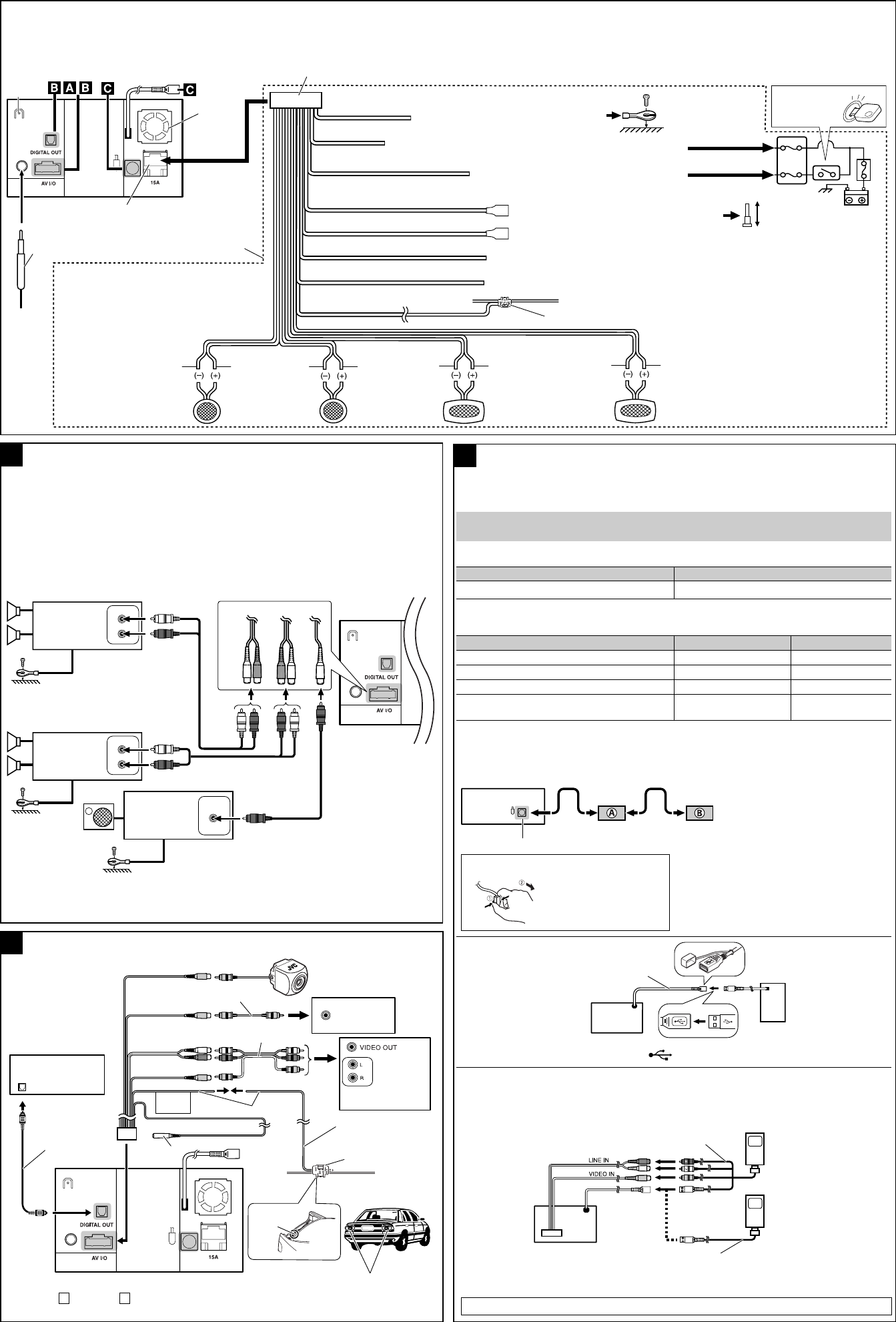

ELECTRICAL CONNECTIONS
4
160
Dashboard
Step 5
1-2_AVX810[A]006A.indd 11-2_AVX810[A]006A.indd 1 08.1.28 2:29:09 PM08.1.28 2:29:09 PM
1
2
3
4
5
9
6
1
(REMOTE OUT)
(ILLUMINATION CONTROL)
(POWER ANTENNA)
(PARKING BRAKE)
7
(TEL MUTING)
3
8
2
LRL
L
INPUT
INPUT
R
L
INPUT
R
L
R
L
R
R
*3
*3
*3
LINE OUT (FRONT)
LINE OUT (REAR)
SUBWOOFER
Rear speakers
Front speakers
JVC Amplifier
AConnecting the AV I/O cord—external amplifiers
You can connect amplifiers to upgrade surround system in the car compartment.
• You can supply the power to the amplifiers by connecting the remote leads (blue with white stripe)
of this unit and amplifiers. (To connect more than one amplifier using the remote leads, Y-connectors
need to be separately purchased.)
• Disconnect the speakers from the unit, and connect them to the amplifier. Leave the speaker leads of
the unit unused.
• You can switch off the built-in amplifier and send the audio signals only to the external amplifier(s)
to get clear sounds and to prevent internal heat built-up inside the unit. See page 58 of the
INSTRUCTIONS.
JVC Amplifier
JVC Amplifier
Subwoofer
*3 Firmly attach the ground lead to the metallic body or to the chassis of the car—to the place
uncoated with paint (if coated with paint, remove the paint before attaching the lead). Failure to do
so may cause damage to the unit.
POSITION OUT
*6
CAMERA IN
VIDEO OUT
LINE IN
VIDEO IN
REVERSE
GEAR
SIGNAL
L
R
*4
L
R
B
KV-CM1
Rear view camera
(not supplied)
AV amplifier or
decoder
Camcorder,
Navigation
System,
etc.
External
monitor
Extension lead (not
supplied)
Video cord (not supplied)
Crimp connector (not
supplied)*5
Audio/video cord (not supplied)
Digital optical
cable (not
supplied)
Reverse lamp
To reverse
lamp
Reverse
lamp lead
To car
battery
*4 Required only when connecting a rear view camera to CAMERA IN plug.
*5 Refer to a in diagram A on page 1.
*6 Used as the extension terminal.
Connecting the AV I/O cord—others
Connecting external components
To disconnect the connector
Hold the connector top
tightly ( 1 ), then pull it out
( 2 ).
iPod is a trademark of Apple Inc., registered in the U.S. and other countries.
C
When connecting the external components, refer also to the manuals supplied for the components and
adapter.
CAUTION:
Before connecting the external components, make sure that the unit is turned off.
You can connect the following JVC components to the CD changer jack.
JVC component Model name
CD changer (CD-CH) CH-X1500, etc.
You can also connect the following components through the various JVC adapters.
• Connection cords may need to be purchased separately.
Component Adapter Model name
Bluetooth device Bluetooth adapter KS-BTA200
iPod Interface adapter for iPod KS-PD100
Portable audio player with line output jacks Line input adapter KS-U57
Portable audio player with 3.5 mm stereo mini
jack
AUX input adapter KS-U58
When connecting more than one component (maximum: two), it is recommended that you connect the
components in series as explained below.
When connecting two components in series
*7 To use these components, set the external
input setting correctly (see page 56 of the
INSTRUCTIONS).
CD changer jack
A KS-BTA200
B*7 CD-CH / KS-PD100 / KS-U57 /
KS-U58
KW-AVX810
USB devices
You cannot connect a computer to the USB ( ) terminal of the unit.
Connecting the iPod to the USB terminal
*8 When using the cable, make sure <iPod (Off)> is selected for <AV Input> (see page 56 of the
INSTRUCTIONS).
You can connect the iPod to the USB terminal using the following cables:
– To listen to the music: USB 2.0 cable (supplied for the iPod)
– To watch the video: USB Audio and Video cable for iPod—KS-U20K (not supplied)*8
USB cable (approx. 1.2 m)
USB device
KW-AVX810
Apple iPod
Apple iPod
KS-U20K
USB 2.0 cable
KW-AVX810
2
Before connecting: Check the wiring in the vehicle carefully. Incorrect connection may cause serious
damage to this unit.
The leads of the power cord and those of the connector from the car body may be different in color.
1 Connect the colored leads of the power cord in the order specified in the illustration below.
2 Connect the antenna cord.
3 Finally connect the wiring harness to the unit.
Rear
ground
terminal
Fan
15 A fuse
Ignition switch
Fuse block
To metallic body or chassis of the car
To a live terminal in the fuse block connecting to the car battery
(bypassing the ignition switch) (constant 12 V)
To an accessory terminal in the fuse block
To car light control switch
To cellular phone system
Black
Yellow *2
Red
Blue
Orange with white stripe
Brown
Light green To parking brake (see diagram Å on page 1.)
Crimp connector
Blue with white stripe To automatic antenna if any (250 mA max.)
To the remote lead of other equipment (200 mA max.)
White with black
stripe
White Gray with
black stripe
Gray Green with
black stripe
Green Purple with
black stripe
Purple
Left speaker (front) Right speaker (front) Left speaker (rear) Right speaker (rear)
*1 Not included for this unit
*2 Before checking the operation of this unit
prior to installation, this lead must be
connected, otherwise power cannot be
turned on.
*1
*1
1-2_AVX810[A]006A.indd 21-2_AVX810[A]006A.indd 2 08.1.28 2:29:13 PM08.1.28 2:29:13 PM
