B5A-2304-00 (M/M2/X)© 2018 JVC KENWOOD Corporation

KW-M740BT

KW-M740BTM

MONITOR WITH RECEIVER

INSTRUCTION MANUAL

• Updated information (the latest Instruction Manual, system updates, new

functions, etc.) is available from

<http://www.jvc.net/cs/car/>.

!B5A-2304-00_KWV-M_En.indb 1 2018/01/09 16:04

2

Contents

Before Use 4

Precautions ................................................................... 4

How to read this manual .........................................4

Basic Operations 5

Functions of the Buttons on the Front Panel ... 5

Turning on the Unit ................................................... 6

Initial Settings .............................................................. 6

Adjusting the volume ............................................... 8

Touch screen operations .........................................9

HOME screen descriptions ...................................... 9

Source selection screen descriptions ................ 10

Source control screen descriptions ...................12

Popup menu ..............................................................13

List screen ...................................................................13

APPS—Android Auto™/

Apple CarPlay 14

Apple CarPlay Operation .......................................14

Android Auto™ Operation .....................................15

WebLink™/Waze Operation ..................................17

Spotify Operation .....................................................18

USB 19

Connecting a USB device ......................................19

USB Basic Operation ................................................19

Search Operation ......................................................21

iPod/iPhone 22

Preparation .................................................................22

iPod/iPhone Basic Operation ...............................23

Search Operation ......................................................24

Tuner 25

Tuner Basic Operation ............................................25

Memory Operation ..................................................26

Selecting Operation ................................................26

Traffic Information ...................................................27

Tuner Setup ................................................................27

Bluetooth Control 29

Information for using Bluetooth® devices .......29

Register the Bluetooth device .............................30

Bluetooth Setup ........................................................ 31

Playing Bluetooth Audio Device .........................33

Using Hands-Free Unit ............................................35

Hands-Free Setup ..................................................... 39

!B5A-2304-00_KWV-M_En.indb 2 2018/01/09 16:04

3English

Other External Components 40

View Camera ..............................................................40

External audio/video players—AV-IN ...............41

Using the external navigation unit ....................41

TV tuner .......................................................................42

Setting Up 43

Monitor Screen Setup ............................................. 43

System Setup .............................................................43

User Interface Setup ................................................ 44

Special Setup .............................................................45

Display Setup .............................................................46

AV Setup ......................................................................47

Controlling Audio 48

3 way speaker system setup .................................48

Speaker/ X’over setup .............................................49

Controlling General Audio ....................................51

Equalizer Control ......................................................51

Volume Offset ............................................................52

Zone Control ..............................................................52

Sound Effect ...............................................................53

Listening Position/ DTA ..........................................54

Remote control 56

Functions of the Remote control Buttons .......57

Connection/Installation 58

Before Installation ....................................................58

Installing the unit .....................................................60

Troubleshooting 65

Problems and Solutions .........................................65

Error Messages ..........................................................65

Appendix 66

Playable Media and Files........................................66

Specifications ............................................................. 67

About this Unit ..........................................................69

!B5A-2304-00_KWV-M_En.indb 3 2018/01/09 16:04

Before Use

4

Before Use

Precautions

# WARNINGS

Ñ To prevent injury or fire, take

the following precautions:

• To prevent a short circuit, never put or leave

any metallic objects (such as coins or metal

tools) inside the unit.

• Do not watch or fix your eyes on the unit’s

display when you are driving for any extended

period.

• If you experience problems during installation,

consult your JVC dealer.

Ñ Precautions on using this unit

• When you purchase optional accessories,

check with your JVC dealer to make sure that

they work with your model and in your area.

• You can select language to display menus,

audio file tags, etc. See User Interface Setup

(P.44).

• The Radio Data System or Radio Broadcast

Data System feature won’t work where the

service is not supported by any broadcasting

station.

• The unit may not function properly if the

connectors between the unit and front panel

are dirty. Detach the front panel and clean the

connector with a cotton swab gently, being

careful not to damage the connector.

Ñ Protecting the monitor

• To protect the monitor from damage, do not

operate the monitor using a ball point pen or

similar tool with the sharp tip.

Ñ Cleaning the unit

• If the faceplate of this unit is stained, wipe it

with a dry soft cloth such as a silicon cloth. If

the faceplate is stained badly, wipe the stain

off with a cloth moistened with neutral cleaner,

then wipe it again with a clean soft dry cloth.

NOTE

• Applying spray cleaner directly to the unit may

affect its mechanical parts. Wiping the faceplate

with a hard cloth or using a volatile liquid such

as thinner or alcohol may scratch the surface or

erase screened print.

Ñ Acquiring GPS signal

The first time you turn on this unit, you must

wait while the system acquires satellite signals

for the first time. This process could take up

to several minutes. Make sure your vehicle

is outdoors in an open area away from tall

buildings and trees for fastest acquisition.

After the system acquires satellites for the first

time, it will acquire satellites quickly each time

thereafter.

How to read this manual

• The screens and panels shown in this manual are

examples used to provide clear explanations of the

operations.

For this reason, they may be different from the actual

screens or panels used, or some display patterns may

be different.

• Indication language: English indications are used

for the purpose of explanation. You can select the

indication language from the [SETUP] menu. See

User Interface Setup (P.44).

!B5A-2304-00_KWV-M_En.indb 4 2018/01/09 16:04

Basic Operations

5English

Basic Operations

Functions of the Buttons on the Front Panel

1 2 3

NOTE

• The panels shown in this guide are examples used to provide clear explanations of the operations. For this reason,

they may be different from the actual panels.

Number Name Motion

1

–, +

(Volume)

• Adjusts volume.

The volume will go up until 15 when you keep pressing [+].

2

FNC • Displays the popup menu screen.

• Pressing for 1 second displays the Voice Recognition screen (P.36).

• When the power off, turns the power on.

3

Remote

Sensor

• Receives the remote control signal.

!B5A-2304-00_KWV-M_En.indb 5 2018/01/09 16:04

Basic Operations

6

Turning on the Unit

The method of turning on is different

depending on the model.

1

Press the [FNC] button.

 The unit is turned on.

NOTE

• If it is your first time turning the unit on after

installation, it will be necessary to perform Initial

setup (P.6).

●To turn off the unit:

1

Press the [FNC] button.

 Popup menu appears.

2

Touch [ ].

 HOME screen appears.

3

Touch [ ].

4

Touch [Power Off].

Initial Settings

Initial setup

Perform this setup when you use this unit first

time.

1

Set each item as follows.

■[Language]

Select the language used for the control

screen and setting items. Default is “British

English (en)”.

1Touch [Language].

2Touch [Language Select].

3Select the desired language.

4Touch [

].

For detailed operation, see User Interface

Setup (P.44).

■[Clock]

Sets the synchronization of the clock and

adjusts it.

For detailed operation, see Calendar/clock

settings (P.8).

■[Display]

If it is hard to see the image on the screen

even, adjust the viewing angle.

1Touch [Display].

2Touch [Viewing Angle].

3Select an angle

4Touch [

].

For detailed operation, see Display Setup

(P.46).

■[Camera]

Set the parameters for the camera.

1Touch [Camera].

2Set each item and touch [

].

For detailed operation, see Camera Setup

(P.40).

!B5A-2304-00_KWV-M_En.indb 6 2018/01/09 16:04

Basic Operations

7English

■[DEMO]

Set the demonstration mode. Default is "ON".

1Touch [DEMO] and set ON or OFF.

2

Touch [Finish].

NOTE

• These settings can be set from the SETUP menu.

See Setting Up (P.43).

Security Code Setup

You can set up a security code to protect your

receiver system against theft.

When the Security Code function is activated,

the code cannot be changed and the function

cannot be released. Note the Security Code

can be set as 4 to 8-digit number of your

choice.

1

Press the [FNC] button.

 Popup menu appears.

2

Touch [ ].

 HOME screen appears.

3

Touch [ ].

4

Touch [Security].

 Security screen appears.

5

Touch [Security Code Set] on the Security

screen.

 Security Code Set screen appears.

6

Enter a security code with 4 to 8-digit

number and touch [Enter].

7

Enter the same code again and touch

[Enter].

Now, your security code is registered.

NOTE

• Touch [BS] to delete the last entry.

• If you enter a different security code, the screen

returns to step 6 (for the first code entry).

• If you have disconnected the Receiver from

battery, enter the correct security code as that

you have entered in step 6 and touch [Enter]. You

can use your receiver.

To change the security code:

1

Touch [Security Code Change] on the

Security screen, then repeat step 6 and 7.

To clear the security code:

1

Touch [Security Code Cancellation] on

the Security screen.

!B5A-2304-00_KWV-M_En.indb 7 2018/01/09 16:04

Basic Operations

8

Calendar/clock settings

1

Press the [FNC] button.

 Popup menu appears.

2

Touch [ ].

 HOME screen appears.

3

Touch [ ].

4

Touch [User Interface].

 User Interface screen appears.

5

Touch [Time Zone] in the User Interface

screen.

6

Select the time zone.

7

Set each item as follows.

Scroll the page to show the item.

■[Clock]

[GPS-SYNC ](Default): Synchronizes the clock

time with the GPS.

[Manual]: Sets the clock manually.

■[Time Zone]

Select the time zone.

■[Clock Adjust]

If you select [Manual] for Clock, adjust the

date and time manually. (P.44)

NOTE

• Please set the date and time. If it is not set, it may

not work with some functions.

Adjusting the volume

To adjust the volume (0 to 40),

Press [+] to increase, and press [–] to decrease.

Holding [+] increases the volume continuously

to level 15.

!B5A-2304-00_KWV-M_En.indb 8 2018/01/09 16:04

Basic Operations

9English

Touch screen operations

To perform operations on the screen, you need

to touch, touch and hold, flick or swipe to

select an item, display setting menu screen or

to change the page, etc.

●Touch

Touch the screen gently to

select an item on the screen.

●Touch and hold

Touch the screen and keep

your finger in place until

the display changes or a

message is displayed.

●Flick

Slide your finger quickly

to the left or right on the

screen to change the page.

You can scroll the list screen

by flicking the screen up/

down.

●Swipe

Slide your finger up or down

on the screen to scroll the

screen.

Monitor Touch Control:

You can also control playback by moving your

finger on the touch panel as follows (for some

sources, the gesture control is not available).

• Sliding the finger towards up/down: Functions

same as pressing [ ] / [ ] (Media). Tuner

Preset broadcast stations are switched.

• Sliding the finger towards left/right: Functions

same as pressing [E] / [F].

• Moving your finger clockwise or counter-

clockwise: increases/decreases the volume.

HOME screen descriptions

Most functions can be performed from the

HOME screen.

1

1 64 5

12 3

1

• Short-cut playback source icons (P.11)

2

• Current source information.

• Touch to display the control screen of current

source.

3

• Widget

– You can change the widget by touching

[

]/[ ].

– Touch the widget to display the detailed

screen.

4

• Displays the SETUP Menu screen. (P.43)

5

• Displays the source selection screen. (P.10)

6

• Displays the Hands Free screen. (P.35)

• When connecting as Apple CarPlay or

Android Auto, it works as a phone provided

in Apple CarPlay or Android Auto.

Display the HOME

1

Press the [FNC] button.

 Popup menu appears.

2

Touch [ ].

 HOME screen appears.

!B5A-2304-00_KWV-M_En.indb 9 2018/01/09 16:04

Basic Operations

10

Source selection screen

descriptions

You can display all playback sources and

options on the source selection screen.

3 5

2

4

1

1

• Changes the playback source.

For playback sources, see P.10.

2

• Changes the page. (Touch []/[ ].)

You can also change the page by flicking left

or right on the screen.

3

• Returns to previous screen.

4

• Page indication

5

• Displays the SETUP Menu screen. (P.43)

Select the playback source

1

Touch [ ].

From the screen, you can select the

following sources and functions.

• Switches to the Android Auto/ Apple

CarPlay screen from the connected

iPhone/Android device.*1 (P.14)

• Switches to the Radio broadcast.

(P.25)

• Plays a Bluetooth audio player. (P.33)

• Plays an iPod/iPhone. (P.22)

• Plays files on a USB device. (P.19)

• Switches to the Spotify. (P.18)

• Switches to an external component

connected to the AV-IN input terminal.

(P.41)

• Displays the WebLink screen. (P.17)

• Displays the Waze screen. (P.17)

• Displays the Audio screen. (P.48)

• Turns off the AV source. (P.11)

• Turn off the unit. (P.6)

*1 When iPhone compatible with CarPlay is

connected, [Apple CarPlay] is displayed.

When an Android device compatible with

Android Auto is connected, [Android Auto] is

displayed.

!B5A-2304-00_KWV-M_En.indb 10 2018/01/09 16:04

Basic Operations

11English

To select the playback source on the

HOME screen

The 3 items displayed on the source selection

screen as the large icons are shown on the

HOME screen.

You can change items displayed on this area

by customizing the source selection screen.

(P.11)

To select the playback source on the

source control screen

Display source selection buttons by touching

[ ]/[ ] or flicking left or right on the source

control screen, then select a playback source.

To turn off the AV source

1

Touch [ ].

2

Touch [AV Off].

Customize Short-cut buttons on

HOME screen

You can arrange the position of the source

icons as you like.

1

Touch [ ].

2

Touch and hold the icon which you want

to move to go into the customizing

mode.

3

Drag it where you want to move.

Changes the page

!B5A-2304-00_KWV-M_En.indb 11 2018/01/09 16:04

Basic Operations

12

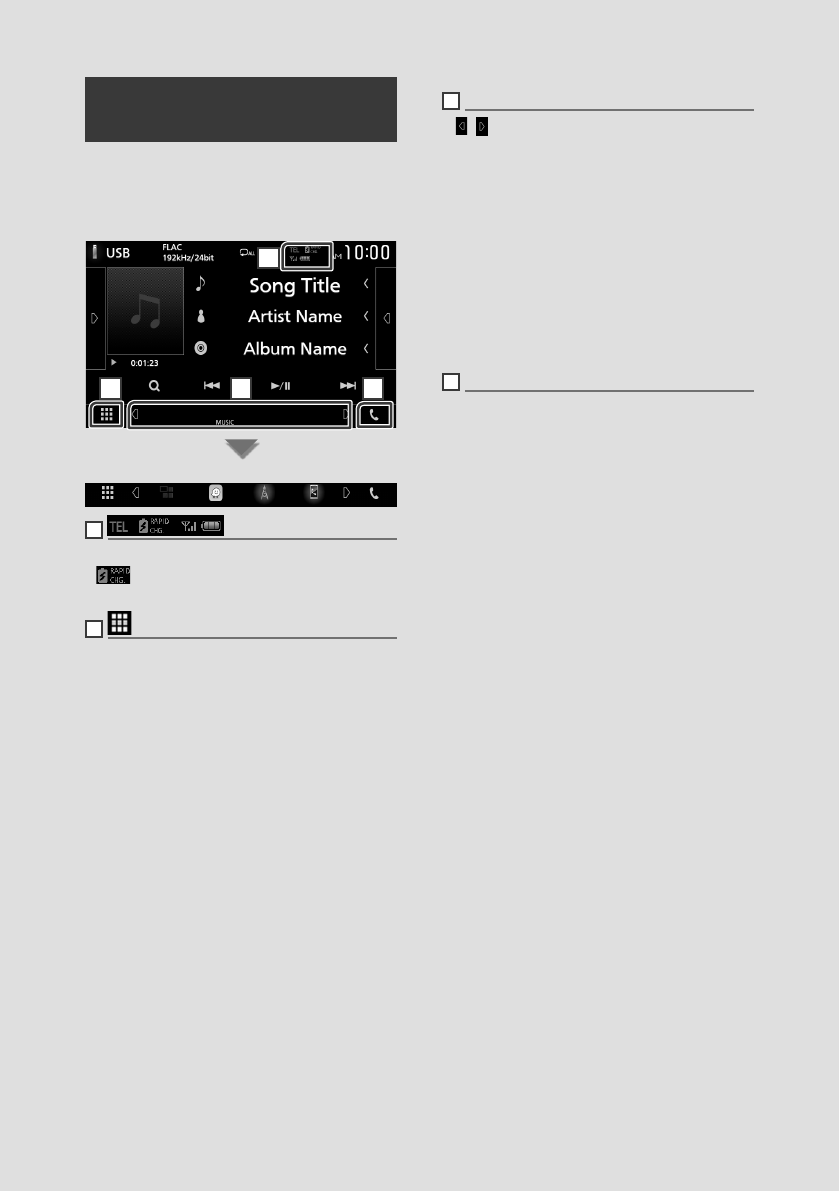

Source control screen

descriptions

There are some functions which can be

operated from most screens.

Indicators

1

2 3 4

Short-cut buttons

1

• Connected Bluetooth device information.

• : Lights up when quick charging battery

of the connected iPod/ iPhone/ Smartphone.

2

All sources icon

Displays all sources.

3

Secondary screen

• [

]/[ ] : The Secondary screen changes every

time you touch it. You can also change the

Secondary screen by flicking left or right on

the screen.

• Indicators: Displays the current source

condition and so on.

– [ATT]: The attenuator is active.

– [DUAL]: The dual zone function is on.

– [LOUD]: The loudness control function is on.

• Short-cut buttons: The source changes to the

one you have set as a short-cut. For the short-

cut setting, refer to Customize Short-cut

buttons on HOME screen (P.11).

4

[Û]

Touch to display the Hands Free screen. (P.35)

When connecting as Apple CarPlay or Android

Auto, it works as a phone provided in Apple

CarPlay or Android Auto.

!B5A-2304-00_KWV-M_En.indb 12 2018/01/09 16:04

Basic Operations

13English

Popup menu

1

Press the [FNC] button.

 Popup menu appears.

2

Touch to display the popup menu.

The contents of the menu are as follows.

• Displays the HOME screen. (P.9)

• Switches the screen.

The screen switched to depends on the

[DISP Key] setting in the [User Interface]

screen. (P.44).

• Touch and hold to turns the screen off.

• Display the Hands Free screen. (P.35)

When connecting as Apple CarPlay

or Android Auto, it works as a phone

provided in Apple CarPlay or Android

Auto.

• Displays the view camera. (P.40)

• Displays the Screen Adjustment screen.

(P.43)

• Displays the Graphic Equalizer screen.

(P.51)

• Close the popup menu.

• Short-cut buttons: The source changes to

the one you have set as a short-cut. For

the short-cut setting, refer to Customize

Short-cut buttons on HOME screen

(P.11).

• Touch to display the Hands Free screen.

(P.35)

• When connecting as Apple CarPlay

or Android Auto, it works as a phone

provided in Apple CarPlay or Android

Auto.

List screen

There are some common function keys in the

list screens of most sources.

61 2

3 4 5

1

Displays list type selection window.

2

Displays music/movie file list.

3

Text scroll

Scrolls the displayed text.

4

etc.

Keys with various functions are displayed here.

• : Plays all tracks in the folder containing

the current track.

• : Jump to the letter you entered

(alphabet search).

• : Moves to the upper hierarchy.

5

[ ] / [ ] / [ ] / [ ] Page scroll

You can change the page to display more items

by pressing [

]/[ ].

• [

]/[ ] : Displays the top or bottom page.

6

Return

Returns to previous screen.

NOTE

• Buttons which cannot be activated from the list

screen are not displayed.

!B5A-2304-00_KWV-M_En.indb 13 2018/01/09 16:04

APPS—Android Auto™/Apple CarPlay

14

APPS—Android Auto™/Apple CarPlay

Apple CarPlay Operation

CarPlay is a smarter, safer way to use your

iPhone in the car. CarPlay takes the things

you want to do with iPhone while driving and

displays them on the screen of the product.

You can get directions, make calls, send and

receive messages, and listen to the music

from iPhone while driving. You can also use

Siri voice control to make it easier to operate

iPhone.

For details about CarPlay, visit https://ssl.

apple.com/ios/carplay/.

Compatible iPhone devices

You can use CarPlay with the following iPhone

models.

• iPhone 7 Plus

• iPhone 7

• iPhone SE

• iPhone 6s Plus

• iPhone 6s

• iPhone 6 Plus

• iPhone 6

• iPhone 5s

• iPhone 5c

• iPhone 5

Ñ Preparation

1 Connect iPhone using KS-U62 via USB

(Black) terminal. (P.64)

When iPhone compatible with CarPlay is

connected to the USB (Black) terminal, the

Bluetooth Hands-Free phone currently

connected is disconnected.

2 Unlock your iPhone.

Ñ Operation buttons and

available Apps on the home

screen of CarPlay

You can use the Apps of the connected iPhone.

The items displayed and the language used

on the screen differ among the connected

devices.

To enter CarPlay mode, touch [Apple CarPlay]

icon in the source selection screen. (P.10)

3

1

2

1

[ ]

• Displays the home screen of CarPlay.

• Touch and hold to activate Siri.

2

Application buttons

Starts the application.

3

[HOME]

Exits the CarPlay screen and displays the Home

screen.

To exit the CarPlay screen

1 Press the [FNC] button.

 Popup menu appears.

2 Touch [ ].

 HOME screen appears.

!B5A-2304-00_KWV-M_En.indb 14 2018/01/09 16:04

APPS—Android Auto™/Apple CarPlay

15English

Ñ Use Siri

You can activate Siri.

1 Press the [FNC] button for 1 second.

Press for 1 second

2 Talk to Siri.

To deactivate

1 Press the [FNC] button.

Ñ Switch to the Apple CarPlay

screen while listening to

another source

1 Press the [FNC] button.

 Popup menu appears.

2 Touch [DISP].

NOTE

• This operation is available when [DISP Key] is set

to [Mirroring] in the [User Interface] screen.

(P.44)

• If sound is output using Apple CarPlay when the

Apple CarPlay screen is displayed, the source is

switched to Apple CarPlay.

Android Auto™ Operation

Android Auto enables you to use functions of

your Android device convenient for driving.

You can easily access route guidance, make

calls, listen to music, and access convenient

functions on the Android device while driving.

For details about Android Auto, visit https://

www.android.com/auto/ and https://support.

google.com/androidauto.

Compatible Android devices

You can use Android Auto with Android

devices of Android version 5.0 (Lollipop) or

later.

NOTE

• Android Auto may not be available on all devices

and is not available in all countries or regions.

Ñ Preparation

1 Connect an Android device via USB

terminal. (P.63)

To use the hands-free function, connect the

Android device via Bluetooth.

When an Android device compatible

with Android Auto is connected to the

USB terminal, the device is connected via

Bluetooth automatically, and the Bluetooth

Hands-Free phone currently connected is

disconnected.

2 Unlock your Android device.

!B5A-2304-00_KWV-M_En.indb 15 2018/01/09 16:04

APPS—Android Auto™/Apple CarPlay

16

Ñ Operation buttons and

available Apps on the Android

Auto screen

You can perform the operations of the Apps of

the connected Android device.

The items displayed on the screen differ

among the connected Android devices.

To enter Android Auto mode, touch [Android

Auto] icon in the source selection screen.

(P.10)

1

1

Application/information buttons

Starts the application or displays information.

To exit the Android Auto screen

1 Press the [FNC] button.

 Popup menu appears.

2 Touch [ ].

 HOME screen appears.

Ñ Using voice control

1 Press the [FNC] button for 1 second.

Press for 1 second

To cancel

1 Press the [FNC] button.

Ñ Switch to the Android Auto

screen while listening to

another source

1 Press the [FNC] button.

 Popup menu appears.

2 Touch [DISP].

NOTE

• This operation is available when [DISP Key] is set

to [Mirroring] in the [User Interface] screen.

(P.44)

• If sound is output using Android Auto when the

Android Auto screen is displayed, the source is

switched to Android Auto.

!B5A-2304-00_KWV-M_En.indb 16 2018/01/09 16:04

APPS—Android Auto™/Apple CarPlay

17English

WebLink™/Waze Operation

You can display and control the App on the

unit while your smartphone is connected to

the USB terminal.

Ñ Available Apps

You can use the following Apps on this

unit. Install the Apps on your smartphone

beforehand.

WebLink™

WebLink™ enables you to use the following

Apps with the unit.

• Media player

• Waze

• Yelp

• YouTube

• OpenWeatherMap

Waze

Waze is the world's largest community based

traffic and navigation App. Join other drivers in

your area who share real-time traffic and road

info, saving everyone time and gas money on

their daily commute.

• To use Waze on the unit, you need to install

WebLink™ and Waze on your smartphone

beforehand.

1 Connecting a smartphone

• Connect an Android device via USB

terminal. (P.63)

• Connect iPhone using KS-U62 via USB

(Black) terminal. (P.64)

• When the smartphone is connected

to the unit, a confirmation message to

communicate each other appears on the

smartphone. Touch [Allow] to establish

connection, or [Ignore] to cancel the

connection.

• You can check the connection status

on the WebLink™ screen on your

smartphone.

Ñ Operation buttons and

available Apps on the App

screen

To enter WebLink™ or Waze mode, touch

[WebLink] or [Waze] icon in the source

selection screen. (P.10)

WebLink source screen

1

1

[ ]

Displays the main menu of the “WebLink”

source screen.

Returns to the previous screen.

2 Operate on your smartphone.

• When you are asked to communicate

between your smartphone and the unit,

touch [Allow] to proceed.

Ñ Switching to the App screen

while listening to the another

source

1 Press the [FNC] button.

 Popup menu appears.

2 Touch [DISP].

NOTE

• This operation is available when [DISP Key] is set

to [Mirroring] in the [User Interface] screen.

(P.44)

• If sound is output using WebLink when the App

screen is displayed, the source is switched to

WebLink.

!B5A-2304-00_KWV-M_En.indb 17 2018/01/09 16:04

APPS—Android Auto™/Apple CarPlay

18

Spotify Operation

You can listen to the Spotify on this unit by

controlling the application installed in the

iPhone or Android.

To enter Spotify source, touch [Spotify] icon in

the source selection screen. (P.10)

Preparation

• Install the latest version of the Spotify application

"Spotify" on your iPhone or Android.

iPhone: Search for "Spotify" in the Apple App

Store to find and install the most current version.

Android: Search for "Spotify" in Google play to

find and install the most current version.

• iPhones are connected on either USB or

Bluetooth.

• Android devices are connected on Bluetooth.

• To connect a smartphone via Bluetooth, register

it as the Bluetooth device and do the App (SPP)

profile setting of the connection beforehand. See

Register the Bluetooth device (P.30) and

Connect the Bluetooth device (P.32).

1

2

3

4

1

Artwork/ Playing time

• The picture data is displayed if available from

current content.

• For confirmation of play time.

2

Operation keys

• [

] : Displays the Menu screen

• [

] : New radio station that relates to the

artist of the currently playing song is selected

and playback starts.

• [

] , [ ] : Skips the current song.

• [

] , [ ] : Plays or pauses the content of the

current station.

• [

] : Saves currently playing song to My

Music.

• [

] : Touch to attenuates/restores the sound.

3

Content information

Displays the information of the current content

being played.

4

[ ] / [ ] / [ ] / [ ]

• [ ] : Thumbs down to the current contents

and skip to the next contents.

• [ ] : Registers the current contents as favorite

content.

• [ ] : Repeats the current song.

• [ ] : Randomly plays all song in current

playlist.

Ñ Selecting a track

1 Touch [ ].

 Menu screen appears.

2 Select the list type, then select a desired

item.

■Selects the category and station

Touch the category and station name in the

list.

■[ Top]

Returns to the first hierarchy of the list.

■[ Up]

Returns to the previous list.

About Spotify®

Note

• Ensure you are logged in to your smartphone

application. If you do not have an Spotify account,

you can create one for free from your smartphone

or at www.spotify.com.

• Because Spotify is a third-party service, the

specifications are subject to change without

prior notice. Accordingly, compatibility may

be impaired or some or all of the services may

become unavailable.

• Some functions of Spotify cannot be operated

from this unit.

• For issues using the application, contact Spotify at

www.spotify.com.

• Establish an Internet connection.

!B5A-2304-00_KWV-M_En.indb 18 2018/01/09 16:04

USB

19English

USB

Connecting a USB device

1 Connect the USB device with the USB

cable. (P.63)

2 Press the [FNC] button.

 Popup menu appears.

3 Touch [ ].

 HOME screen appears.

4 Touch [ ].

5 Touch [USB]. (P.10)

Ñ Disconnect the USB device

1 Press the [FNC] button.

 Popup menu appears.

2 Touch [ ].

 HOME screen appears.

3 Touch [ ].

4 Touch a source other than [USB].

5 Detach the USB device.

Ñ Usable USB device

You can use a mass-storage-class USB device on

this unit.

The word “USB device” appearing in this manual

indicates a flash memory device.

●About file system

The file system should be the one of the

following.

• FAT16 • FAT32 • exFAT • NTFS

NOTE

• Install the USB device in the place where it will

not affect safe driving.

• You cannot connect a USB device via a USB hub

and Multi Card Reader.

• Take backups of the audio files used with this

unit. The files can be erased depending on the

operating conditions of the USB device.

We shall have no compensation for any damage

arising from any erased data.

USB Basic Operation

Most functions can be controlled from the

source control screen and playback screen.

Control screen

4

3

5

2

6

1

7

Open the drawer

5

4

1

CODEC / [ ] / [ ]

• When a high-resolution source is played, its

format information is displayed.

• [

] : Repeats the current track/folder. Each

time you touch the key, repeat mode switches

in the following sequence;

File repeat ( ), Folder repeat ( ), Repeat

all ( )

• [

] : Randomly plays all tracks in current

folder. Each time you touch the key, random

mode switches in the following sequence;

File random ( ), Random off ( )

!B5A-2304-00_KWV-M_En.indb 19 2018/01/09 16:04

USB

20

2

Track information

Displays the information of the current file.

Only a file name and a folder name are displayed

if there is no tag information.

3

Operation keys

• 1] : Searches track/file. For details on search

operation, see Search Operation (P.21).

• E] [F] : Searches the previous/next track/

file.

Touch and hold to fast forward or fast

backward.

• [DH] : Plays or pauses.

• [

] : Touch to attenuates/restores the sound.

4

Function panel

Touch on the left side of the screen to display

the function panel. Touch again to close the

panel.

• [

] [ ] : Searches previous/next folder.

• [USB DEVICE CHANGE]

Switches to another USB device when two USB

devices are connected.

5

Content list

• Touch on the right side of the screen to display

the Content list. Touch again to close the list.

• Displays the playing list. When you touch a

track/file name on the list, playback will start.

6

Indicator Items

• [VIDEO]: Identifies the video file.

• [MUSIC]: Identifies the music file.

7

Artwork/ Play mode indicator/ Playing

time

The jacket of the currently playing file is

displayed.

• D, B, etc.: Current play mode indicator

The meanings of each icon are as follows;

D (play), B (fast forward),

A (fast backward), H (pause).

Video screen

9

88

8

Searching file area (Video file only)

Touch to search the next/previous file.

9

Key display area (Video file only)

Touch to display the control screen.

!B5A-2304-00_KWV-M_En.indb 20 2018/01/09 16:04

USB

21English

Search Operation

You can search music or video files by the

following operations.

1 Touch [1].

2 Touch [S].

3 Select the list type.

NOTE

• For operations in the list screen, see List screen

(P.13).

Ñ Category search

You can search a file by selecting category.

1 Touch [Category List].

2 Select whether you search by audio files

or video files .

3 Touch the desired category.

 The list corresponding to your selection

appears.

4 Touch to select desired item in the list.

Repeat this step until you find the desired

file.

Ñ Link search

You can search a file of same artist/album/

genre as the current track.

1 Touch [Link Search].

2 Touch the desired tag type. You can select

from artists, albums and genres.

 The list corresponding to your selection

appears.

3 Touch desired item from the content list.

Ñ Folder search

You can search a file according to hierarchy.

1 Touch [Folder List].

2 Touch the desired folder.

When you touch a folder its contents are

displayed.

3 Touch to select desired item in the list.

Repeat this step until you find the desired

file.

!B5A-2304-00_KWV-M_En.indb 21 2018/01/09 16:04

iPod/iPhone

22

iPod/iPhone

Preparation

Ñ Connectable iPod/iPhone

The following models can be connected to

this unit.

Made for

• iPhone 7 Plus

• iPhone 7

• iPhone SE

• iPhone 6s Plus

• iPhone 6s

• iPhone 6 Plus

• iPhone 6

• iPhone 5s

• iPhone 5c

• iPhone 5

• iPod touch (6th generation)

• iPod touch (5th generation)

NOTE

• By connecting your iPod/iPhone to this unit with

an optional accessory iPod connection cable KS-

U62, you can supply power to your iPod/iPhone

as well as charge it while playing music. However,

the power of this unit must be on.

• If you start playback after connecting the iPod,

the music that has been played by the iPod is

played first.

Ñ Connect iPod/iPhone

Wired connection

Preparation

• Connect an iPod/iPhone with the KS-U62

(optional accessory) while CarPlay is not

connected.

• With a CarPlay-capable iPhone, turn off CarPlay

by operating the iPhone at functional setup

before connecting iPhone. For details of the

setup method, contact the manufacturer of the

terminal.

• Plug the iPod/iPhone into the gray USB terminal

with the KS-U62 (optional accessory).

• Only one iPod/iPhone can be connected.

1 Connect the iPod/iPhone using KS-U62.

(P.64)

2 Press the [FNC] button.

 Popup menu appears.

3 Touch [ ].

 HOME screen appears.

4 Touch [ ].

5 Touch [iPod]. (P.10)

●To disconnect the iPod/iPhone connected

with the cable:

1 Detach the iPod/iPhone.

Bluetooth connection

Pair the iPhone through Bluetooth.

Preparation

• To connect an iPhone via Bluetooth, register it as

the Bluetooth device and do the profile setting

of the connection beforehand. See Register the

Bluetooth device (P.30) and Connect the

Bluetooth device (P.32).

• Connect an iPhone on Bluetooth while CarPlay

and an iPod/iPhone are not connected on USB.

!B5A-2304-00_KWV-M_En.indb 22 2018/01/09 16:04

iPod/iPhone

23English

iPod/iPhone Basic Operation

Control screen

3

4

2

5

Open the drawer

1

4

6

1

[ ] / [ ]

• [

] : Repeats the current track/album. Each

time you touch the key, repeat mode switches

in the following sequence;

Song repeat ( ), All songs repeat ( )

• [

] : Randomly plays all tracks in current

album. Each time you touch the key, random

mode switches in the following sequence;

Song random ( ), Random off ( )

2

Track information

• Displays the information of the current file.

• Touch to display the category list screen. See

Category search (P.24).

3

Operation keys

• 1] : Searches track/file. For details on search

operation, see Search Operation (P.24).

• E] [F] : Searches the previous/next track/

file. Touch and hold to fast forward or fast

backward.

• [DH] : Plays or pauses.

• [

] : Touch to attenuates/restores the sound.

4

Content list

• Touch on the right side of the screen to display

the Content list. Touch again to close the list.

• Displays the playing list. When you touch a

track/file name on the list, playback will start.

5

Indicator Items

• [MUSIC]: Identifies the music file.

6

Artwork/ Play mode indicator/ Playing

time

The jacket of the currently playing file is

displayed.

• D, B, etc.: Current play mode indicator

The meanings of each icon are as follows;

D (play), B (fast forward),

A (fast backward), H (pause).

!B5A-2304-00_KWV-M_En.indb 23 2018/01/09 16:04

iPod/iPhone

24

Search Operation

You can search music files by the following

operations.

1 Touch [1].

2 Touch [S].

3 Select the list type.

NOTE

• For operations in the list screen, see List screen

(P.13).

Ñ Category search

You can search a file by selecting category.

1 Touch [Category List].

2 Touch the desired category.

 The list corresponding to your selection

appears.

3 Touch to select desired item in the list.

Repeat this step until you find the desired

file.

Ñ Link search

You can search a file of same artist/album/

genre/composer as the current track.

1 Touch [Link Search].

2 Touch the desired tag type. You can

select from artists, albums, genres and

composers.

 The list corresponding to your selection

appears.

3 Touch desired item from the content list.

!B5A-2304-00_KWV-M_En.indb 24 2018/01/09 16:04

Tuner

25English

Tuner

Tuner Basic Operation

Most functions can be controlled from the

source control screen.

To enter Tuner source, touch [TUNER] icon in

the source selection screen. (P.10)

2

3

4

5

1

8

7

6

9

1

Information display

Displays the information of the current station:

Frequency, PS name

P#: Preset number

2

Seek mode

Switches the seek mode in the following

sequence; [AUTO1], [AUTO2], [MANUAL].

• [AUTO1]: Tunes in a station with good

reception automatically.

• [AUTO2]: Tunes in stations in memory one

after another.

• [MANUAL]: Switches to the next frequency

manually.

3

Band button

Switches the band (FM1/ FM2/ FM3, AM).

4

Preset key

Recalls the memorized station.

When touched for 2 seconds, stores the current

receiving station in memory.

5

Operation keys

• [E] [F] : Tunes in a station. The method of

frequency switching can be changed (see 2

in table).

• [SSM] : Presets stations automatically. For

details, see Auto memory (P.26).

• [

] : Displays the TUNER SETUP screen. For

details, see Tuner Setup (P.27).

• [

] : Touch to attenuates/restores the sound.

6

[PTY] (FM only)

Searches a program by setting program type. For

details, see Search by program type (P.26).

7

[MONO] (FM only)

Select the Monaural reception.

8

[TI] (FM only)

Sets the traffic information mode on. For details,

see Traffic Information (P.27).

9

Indicator Items

• [ST]: A stereo broadcast is being received.

• [MONO]: The forced monaural function is on.

• [AF]: The AF search function is on.

• [EON]: The Radio Data System station is

sending EON.

• [LOS]: The Local Seek function is on.

• [NEWS]: News bulletin interruption is in

progress.

• [RDS]: Indicates the state of the Radio Data

System station when the AF function is on.

White: Radio Data System is being received.

Orange: Radio Data System is not being

received.

• [TI]: Indicates the reception state of traffic

information.

White: TP is being received.

Orange: TP is not being received.

!B5A-2304-00_KWV-M_En.indb 25 2018/01/09 16:04

Tuner

26

Memory Operation

Ñ Auto memory (FM only)

You can store stations with good reception in

memory automatically.

1 Touch [FM].

2 Touch [SSM].

3 Touch [Ye s ].

 Auto memory starts.

Ñ Manual memory

You can store the current receiving station in

memory.

1 Touch desired band key.

2 Select a station you wish to store in

memory.

3 Touch [#] (#:1-6) in which you want to

store the station for 2 seconds until a

beep sounds.

Selecting Operation

Ñ Preset select

You can list and select memorized station.

1 Select a station from the list.

Ñ Search by program type

(FM only)

You can tune to a station with a specific

program type when listening to FM.

1 Touch [PTY].

 PTY Search screen appears.

2 Select a program type from the list.

3 Touch [Search].

You can search a station of the selected

program type.

!B5A-2304-00_KWV-M_En.indb 26 2018/01/09 16:04

Tuner

27English

Traffic Information (FM only)

You can listen and watch the traffic

information automatically when a traffic

bulletin starts. However, this feature requires

a Radio Data System that includes the TI

information.

1 Touch [TI].

 Traffic information mode is set.

Ñ When the traffic bulletin starts

The Traffic Information screen appears

automatically.

NOTE

• It is necessary to have Traffic Information function

set to on in order to have the Traffic Information

screen appear automatically.

• The volume setting during reception of traffic

information is automatically stored. The next time

the traffic information is received, this unit recalls

the volume setting automatically.

Tuner Setup

You can set tuner related parameters.

1 Touch [ ].

 Radio SETUP screen appears.

2 Set each item as follows.

■[NEWS]

Sets a news bulletin interrupt time. Default

is “OFF”.

■[AF]

When station reception is poor, automatically

switches to the station that is broadcasting

the same program over the same Radio Data

System network. Default is “OFF”.

■[Regional]

Sets whether to switch to the station only

in the specific region using the “AF” control.

Default is “OFF”.

■[LO.S] (FM only)

Turns the Local Seek function on or off.

■[Auto TP Seek]

When traffic information station reception is

poor, automatically searches for a station that

can be received better. Default is “ON”.

■[Language Select]

Selects a display language for the PTY

function.

■[Aerial Control]

Allows you to turn off the Radio Data System

function to prevent the motor-driven

antenna from extending. Default is “ON”.

!B5A-2304-00_KWV-M_En.indb 27 2018/01/09 16:04

Tuner

28

■[Area Setting](KW-M740BT)

The tuner channel interval changes

depending on the area you use this unit.

For Oceania sales area

[Australia] (Default): Select this when using

in Australia countries. FM/AM intervals are

set to 50 kHz/9 kHz.

[US]: Select this when using in North/

Central/South America. FM/AM intervals

are set to 200 kHz/10 kHz.

[Europe]: Select this when using in any other

areas. FM/AM intervals are set to 50 kHz/

9 kHz.

Outside oceania area

[Others] (Default): FM/AM intervals are set to

50 kHz/9 kHz.

[US]: Select this when using in North/

Central/South America. FM/AM intervals

are set to 200 kHz/10 kHz.

!B5A-2304-00_KWV-M_En.indb 28 2018/01/09 16:04

Bluetooth Control

29English

Bluetooth Control

Using the Bluetooth function, various

functions can be used: listening to the audio

file, making/receiving a call.

Information for using

Bluetooth® devices

Bluetooth is a short-range wireless radio

communication technology for mobile devices

such as mobile phones, portable PCs, and

other devices.

Bluetooth devices can be connected without

cables and communicate with each other.

NOTE

• While driving, do not perform complicated

operations such as dialing numbers, using the

phone book, etc. When you perform these

operations, stop your car in a safe place.

• Some Bluetooth devices may not connect to this

unit depending on the Bluetooth version of the

device.

• This unit may not work for some Bluetooth

devices.

• Connecting conditions may vary depending on

your environment.

• For some Bluetooth devices, the device is

disconnected when the unit is turned off.

Ñ About the cell-phone and

Bluetooth audio player

This unit conforms to the following Bluetooth

specifications:

Version

Bluetooth Ver. 3.0

Profile

Cell-phone:

HFP (V1.6) (Hands Free Profile)

SPP (Serial Port Profile)

PBAP (Phonebook Access Profile)

Audio player:

A2DP (Advanced Audio Distribution Profile)

AVRCP (V1.5) (Audio/Video Remote Control

Profile)

Sound codec

SBC, AAC

NOTE

• The units supporting the Bluetooth function have

been certified for conformity with the Bluetooth

Standard following the procedure prescribed by

Bluetooth SIG.

• However, it may be impossible for such units to

communicate with your cell-phone depending

on its type.

!B5A-2304-00_KWV-M_En.indb 29 2018/01/09 16:04

Bluetooth Control

30

Register the Bluetooth device

It is necessary to register the Bluetooth audio

player or cell-phone to this unit before using

the Bluetooth function.

You can register up to 10 Bluetooth devices.

NOTE

• Up to 10 Bluetooth devices can be registered. If

an attempt is made to register the 11th Bluetooth

device, the Bluetooth device connected on the

earliest date will be deleted to register the 11th

one.

• This unit is compatible with the Apple Easy

Pairing function. When an iPod touch or iPhone is

connected to this unit, an authentication dialog

appears. Performing operation for authentication

on this unit or iOS smartphone registers the

smartphone as a Bluetooth device.

Follow the step 1, 2 and 3 for registration.

Step 1: Registration the Bluetooth

device

1 Search the unit (“KW-M****”) from your

smartphone/cell-phone.

2 Input the PIN Code in your smartphone/

cell-phone.

PIN Code is set to “0000” as the default.

●SSP (Secure Simple Pairing of Bluetooth

2.1 or later)

1 Search the unit (“KW-M****”) from your

smartphone/cell-phone.

2 Confirm the request both on the

smartphone/cell-phone and the unit.

Step 2: Connection settings

• When the HFP profile is supported, Hands Free

1 or 2 is automatically selected for connection,

proceeding to the next step.

• When the A2DP or SPP profile is supported,

the cell-phone or audio player is automatically

connected, proceeding to the next step.

If cell-phones and/or audio players have already

been connected, a selection screen appears.

1 Select the hands-free number to connect.

2 Select if you want to use the audio player

app in your smartphone over A2DP, and

the other apps in your smartphone over

SPP.

This message appears if the device

supports BT audio (A2DP) or smartphone

link (SPP).

!B5A-2304-00_KWV-M_En.indb 30 2018/01/09 16:04

Bluetooth Control

31English

Step 3: Phonebook transfer

1 Select if you want to transfer your

phonebook data.

This message appears if the device

supports PBAP.

The phonebook data transmission starts.

Some smartphones may request

permission to access the data. The

data transmission will start with your

permission.

When the data transmission and

connection have completed, the Bluetooth

connection icon appears on the screen.

Bluetooth Setup

1 Press the [FNC] button.

 Popup menu appears.

2 Touch [ ].

 HOME screen appears.

3 Touch [ ].

 SETUP Menu screen appears.

4 Touch [Bluetooth].

 Bluetooth SETUP screen appears.

See the following section for each

setting.

• Connect the Bluetooth device (P.32)

• Change the PIN Code (P.33)

• Change the device name (P.33)

!B5A-2304-00_KWV-M_En.indb 31 2018/01/09 16:04

Bluetooth Control

32

Ñ Connect the Bluetooth device

1 Touch [Select Device] in the Bluetooth

SETUP screen.

2 Touch the device name you want to

connect.

 Profile select screen appears.

NOTE

• If the icon is lighted, it means that the unit will

use that device.

3 Set each profile as follows.

■[TEL (HFP) 1], [TEL (HFP) 2]

The device is connected with the unit as

hands-free phone 1 or 2.

■[Audio (A2DP)/App (SPP)]

Set to interwork with an application installed

in a smartphone or to use as an audio player.

4 Touch [Close].

To delete the registered Bluetooth

device

1 Touch [Delete].

2 Touch the device name to check.

■[þ All]

Select all Bluetooth device.

■[¨ All]

Erases all check marks.

3 Touch [Delete].

 Confirmation message appears.

4 Touch [Ye s ].

!B5A-2304-00_KWV-M_En.indb 32 2018/01/09 16:04

Bluetooth Control

33English

Ñ Change the PIN Code

1 Touch [PIN Code] in the Bluetooth SETUP

screen.

 PIN Code Set screen appears.

2 Touch and hold [ ].

3 Input the PIN Code.

4 Touch [SET].

Ñ Change the device name

1 Touch [Device Name] in the Bluetooth

SETUP screen.

 Change Device Name screen appears.

2 Touch and hold [ ].

3 Input the device name.

4 Touch [Enter].

Playing Bluetooth Audio

Device

Most function can be controlled from the

source control screen.

To enter Bluetooth source, touch [BT Audio]

icon in the source selection screen. (P.10)

Ñ Bluetooth basic operation

Control screen

3

4

5

2

1

1

Device name/ [ ] / [ ]

• Connected device name.

• [

] : Repeats the current track/folder. Each

time you touch the key, repeat mode switches

in the following sequence; File repeat ( ),

Folder repeat ( ), All songs repeat ( ),

Repeat off ( )

• [

] : Randomly plays all tracks in current

folder. Each time you touch the key, random

mode switches in the following sequence;

Folder random ( ), All random ( ),

Random off ( )

2

Information display *

Displays the name of the track information.

3

Operation keys *

• [1]: Searches file. See File search (P.34).

• [E] [F]: Searches the previous/next

content. Touch and hold to fast forward or fast

backward.

• [D]: Plays.

• [H]: Pauses.

• [

] : Touch to attenuates/restores the sound.

!B5A-2304-00_KWV-M_En.indb 33 2018/01/09 16:04

Bluetooth Control

34

4

Function panel

Touch on the left side of the screen to display

the function panel. Touch again to close the

panel.

• [BT DEVICE CHANGE] : Selects the device to

connect via Bluetooth audio (A2DP) or APP

(SPP). See Connect the Bluetooth audio

(P.34).

5

Play mode indicator/ Playing time

D, H: Current play mode indicator

The meanings of each icon are as follows;

D (play), B (fast forward), A (fast backward),

H (pause), I (stop).

* These items appear only when the audio player

which supports AVRCP profile is connected.

NOTE

• The operation buttons, indications and

information displayed on the screen differ

depending on the connected device.

• If the operation keys do not appear, operate from

the player.

• Depending on your cell-phone or audio player,

audio may be heard and controlled but text

information may not appear.

• If the volume is too low, raise it on your cell-

phone or audio player.

Ñ Connect the Bluetooth audio

Selects the device to connect via Bluetooth

audio (A2DP) or APP (SPP).

1 Touch [ ] on the left side of the screen.

Touch [BT DEVICE CHANGE].

2 Touch the device name you want to

connect.

3 Touch [Close].

Ñ File search

1 Touch [1].

2 Touch the desired file or folder.

When you touch a folder its contents are

displayed.

3 Touch desired item from the content list.

 Playback starts.

NOTE

• For operations in the list screen, see List screen

(P.13).

!B5A-2304-00_KWV-M_En.indb 34 2018/01/09 16:04

Bluetooth Control

35English

Using Hands-Free Unit

You can use telephone function by connecting

the Bluetooth telephone to this unit.

NOTE

• While Apple CarPlay or Android Auto is being

connected, Bluetooth Hands-Free function and

two Bluetooth devices connections cannot be

used. Only Apple CarPlay or Android Auto Hands-

Free function can be used.

Ñ Make a call

1 Press the [FNC] button.

 Popup menu appears.

2 Touch [Û].

 Hands Free screen appears.

NOTE

• If your mobile phone supports PBAP, you can

display the phone book and call lists on the

touch panel screen when the mobile phone is

connected.

– Phone book: up to 1000 entries

– Up to 50 entries including dialed calls, received

calls, and missed calls

3 Select a dialing method.

• [ ]: Call using call records

• [

]: Call using the phonebook

• [

]: Call using the preset number

• [

]: Call by entering a phone number

• [

]: Voice Recognition (P.36)

●Select the cell-phone to use

When you connect two cell-phones

1) Touch [

] to select the phone

you want to use.

●Bluetooth SETUP

1) Touch [

].

Bluetooth SETUP screen appears.

NOTE

• The status icons such as battery and antenna

displayed may differ from those displayed on the

cell-phone.

• Setting the cell-phone in the private mode can

disable the hands-free function.

Call using call records

1 Touch [ ].

2 Select the phone number from the list.

Call by entering a phone number

1 Touch [ ].

2 Enter a phone number with number keys.

3 Touch [ ].

!B5A-2304-00_KWV-M_En.indb 35 2018/01/09 16:04

Bluetooth Control

36

Call using the preset number

1 Touch [ ].

2 Touch the Name or phone number.

Call using the phonebook

1 Touch [ ].

2 Touch [ ].

3 Select the initial.

• Characters with no corresponding name

will not appear.

• A first character with an accent character

such as “ü” can be searched for with a

non-accent character “u” . A character

with an accent character in a sentence

cannot be searched.

4 Select the person you want to call from

the list.

5 Select the phone number from the list.

NOTE

• You can set the list to arrange in the order of last

name or first name. For details, see Hands-Free

Setup (P.39).

Ñ Voice Recognition

You can access the voice recognition function

of the cell-phone connected to this unit.

You can search the cell-phone phonebook

by voice. (The functionality depends on the

cell-phone.)

1 Press the [FNC] button for 1 second.

Press for 1 second

 Voice Recognition screen appears.

2 Start speaking.

NOTE

• You can use voice recognition function by

touching [ ] on the Hands Free screen.

!B5A-2304-00_KWV-M_En.indb 36 2018/01/09 16:04

Bluetooth Control

37English

Ñ Receive a call

1 Touch [ ] to answer a phone call or

[

] to reject an incoming call.

NOTE

• While monitoring the view camera, this screen

does not appear even if a call comes in.

To end call

1 While talking, touch [ ].

Ñ Operations during a call

●Adjust the volume of your voice

1) Touch [Speech Quality].

2) Touch [T] or [U] of [Microphone Level].

●Adjust the receiver volume

Press the [–] or [+] button.

●Mute your voice

Touch [

] to mute or not to mute your voice.

●Output the dial tone

Touch [DTMF] to display the tone input screen.

You can send tones by touching desired keys

on the screen.

●Switching the speaking voice output

Touching [

]/ [ ] each time switches

the speaking voice output between cell-phone

and speaker.

●Call-waiting

When you receive a call while talking on

another call, you can answer the newly

received call by touching [

]. The current call

is on hold.

Each time you touch [

], the caller will change.

When you touch [

], the current call will end

and switch to the call in hold.

●To close the Hands-Free popup screen

Touching [×] closes the Hands-Free popup

screen. To display it again, touch [

] after

pressing the [FNC] button.

!B5A-2304-00_KWV-M_En.indb 37 2018/01/09 16:04

Bluetooth Control

38

Ñ Phone number preset

You can register frequently used phone

numbers to this unit.

1 Touch [ ].

2 Touch [Edit].

3 Select where to preset.

■[Delete all]

To delete all preset numbers, touch [Delete

all] and then touch [OK] on the confirmation

screen.

4 Select how to preset.

■[Add number from phonebook]

Select the number to preset by referring to

“Call using the phonebook”. See Call using

the phonebook (P.36).

■[Add number direct]

Enter the telephone number directly and

touch [SET]. See Call by entering a phone

number (P.35).

■[Delete]

To delete the preset number, touch [Delete]

and then touch [OK] on the confirmation

screen.

Ñ Phonebook transfer

You can transfer the phonebook in your

Bluetooth smartphone via PBAP.

1 Touch [ ].

2 Touch [ ].

 The phonebook data transmission starts.

Phonebook deletion

1 Touch [ ].

2 Touch the name to check.

■[þ All]

Checks all boxes.

■[¨ All]

Erases all check marks.

3 Touch [Delete].

 Confirmation message appears.

4 Touch [OK].

!B5A-2304-00_KWV-M_En.indb 38 2018/01/09 16:04

Bluetooth Control

39English

Hands-Free Setup

You can perform various setup about

handsfree function.

1 Press the [FNC] button.

 Popup menu appears.

2 Touch [ ].

 HOME screen appears.

3 Touch [ ].

 SETUP Menu screen appears.

4 Touch [Bluetooth].

 Bluetooth SETUP screen appears.

5 Touch [TEL SETUP].

 TEL SETUP screen appears.

6 Set each item as follows.

■[Bluetooth HF/Audio]

Select the speakers to output the sound from

cell-phone (such as phone call voice and

ringing tone) and Bluetooth audio player.

[Front]: Outputs from the front speakers.

[All ](Default): Outputs from all speakers.

■[Auto Response]*

Sets an automatic response time to pick-up

an incoming call.

[OFF ](Default): Automatic response is not

available.

[1]/ [5]/ [10]/ [15]/ [20]/ [25]/ [30]: Set calling

ring time (second).

■[Auto Pairing]

When set to “ON”, the Apple Auto Pairing

function is turned on to automatically

register the iPod touch or iPhone connected

to this unit.

[ON ](Default): Uses Apple Auto Pairing

function.

[OFF]: Not uses Apple Auto Pairing function.

■[Sort Order]

Sets how to arrange the cell-phone

phonebook.

[First]: Arranges in the order of first name.

[Last ](Default): Arranges in the order of last

name.

■[Echo Cancel Level]

Adjusts the level of echo cancellation.

Default is “0”.

■[Noise Reduction Level]

Reduces the noises generated by

surrounding environment without changing

the microphone volume. Use this setting

when the voice of caller is not clear. Default

is “0”.

* Either the time interval for automatic

answer set on this unit or the time

interval set on the cell-phone, whichever

is shorter takes effect.

7 Touch [OK].



!B5A-2304-00_KWV-M_En.indb 39 2018/01/09 16:04

Other External Components

40

Other External Components

View Camera

NOTE

• To connect a camera, see P.62.

• To use a rear view camera, a REVERSE lead

connection is required. (P.61)

• If [Rear Camera Interruption] is set to on, the

camera screen is displayed when you shift the

gear to the reverse (R) position.

Ñ Display the camera screen

1 Press the [FNC] button.

 Popup menu appears.

2 Touch [Camera].

 View camera screen appears.

3 Adjust each item as follows.

To erase the caution message, touch the

screen.

1

1

Camera off

Touch to exit the camera screen.

Ñ Camera Setup

1 Press the [FNC] button.

 Popup menu appears.

2 Touch [ ].

 HOME screen appears.

3 Touch [ ].

 SETUP Menu screen appears.

4 Touch [Camera].

 Camera screen appears.

5 Set each item as follows.

■[Rear Camera Interruption]

[ON ](Default): Displays the picture from the

rear view camera when you shift the gear

to the reverse (R) position.

[OFF]: Select this when no camera is

connected.

■[Parking Guidelines]

You can display parking guidelines to enable

easier parking when you shift the gear to the

reverse (R) position.

Default is “ON”.

■[Guidelines SETUP]

If you select [ON] for [Parking Guidelines],

adjust the parking guidelines. See To adjust

the parking guidelines (P.41).

!B5A-2304-00_KWV-M_En.indb 40 2018/01/09 16:04

Other External Components

41English

To adjust the parking guidelines

NOTE

• Install the rear view camera in the appropriate

position according to the instructions supplied

with the rear view camera.

• When adjusting the parking guidelines, make

sure to use the parking brake to prevent the car

from moving.

1 Touch [ON] of [Parking Guidelines] in the

Camera screen. (P.40)

2 Touch [Guidelines SETUP] in the Camera

screen.

3 Adjust the parking guidelines by

selecting the mark.

4 Adjusting the position of the selected

mark.

A

B

CD

Make sure that A and B are horizontally

parallel, and that C and D are the same

length.

NOTE

• Touch [Initialise] and after touch [Ye s ] to set all

the marks to the initial default position.

External audio/video players—

AV-IN

1 Connect an external component to the

AV-IN input terminal. (P.62)

2 Press the [FNC] button.

 Popup menu appears.

3 Touch [ ].

 HOME screen appears.

4 Touch [ ].

5 Select [AV-IN] as the source. (P.10)

6 Turn on the connected component and

start playing the source.

Using the external navigation

unit (outside oceania area)

You can connect a navigation unit

(commercially available) to the navigation

input terminal so that you can view the

navigation screen. (P.62)

The navigation guidance comes out of the

front speakers even when you are listening to

an audio source.

Ñ Display the navigation screen

1 Press the [FNC] button.

 Popup menu appears.

2 Touch [DISP].

 The navigation screen appears.

NOTE

• Touch on the popup manu screen to

navigation screen.

This operation is available when [DISP Key] is set

to [NAV] in the [User Interface] screen. (P.44)

!B5A-2304-00_KWV-M_En.indb 41 2018/01/09 16:04

Other External Components

42

Ñ Navigation Setup

1 Press the [FNC] button.

 Popup menu appears.

2 Touch [ ].

 HOME screen appears.

3 Touch [ ].

 SETUP Menu screen appears.

4 Touch [Navigation].

 Navigation SETUP screen appears.

5 Set each item as follows.

■[NAV Voice Volume]

Adjusts the volume for voice guidance of the

navigation system. Default is “24”.

TV tuner

You can connect the TV tuner (commercially

available) with this unit and watch TV.

Preparation

• When you use TV control function, connect the

TV tuner (commercially available) and set 3rd

Party TV Tuner Control in AV Setup (P.47) to

ON.

• The TV tuner can be controlled with its supplied

remote control through the remote sensor on the

front panel of this unit.

1 Press the [FNC] button.

 Popup menu appears.

2 Touch [ ].

 HOME screen appears.

3 Touch [ ].

4 Select [AV-IN] as the source. (P.10)

5 Touch Key display area.

■Hides the indicators and buttons.

Touch [Hide].

■Change the channel.

Touch [CHR], [CHS].

!B5A-2304-00_KWV-M_En.indb 42 2018/01/09 16:04

Setting Up

43English

Setting Up

Monitor Screen Setup

You can adjust image quality in video, menu

screen, etc.

1 Press the [FNC] button.

 Popup menu appears.

2 Touch [Screen Adjust].

 Screen Control screen appears.

3 Adjust each item as follows.

■[Backlight] / [Contrast] / [Black] /

[Brightness] / [Colour] / [Tint]

Adjusts each item.

■[Aspect]

Select screen mode.

[Full]: Changes the aspect ratio of video and

displays fully on the screen.

[Normal]: Displays with 4:3 ratio.

[Auto]:

Displays video fully on vertical or

horizontal with no ratio change.

NOTE

• Adjusting items are different depending on the

current source.

System Setup

NOTE

• Each operation in this section can be started from

the multi function menu.

1 Press the [FNC] button.

 Popup menu appears.

2 Touch [ ].

 HOME screen appears.

3 Touch [ ].

See the following section for each

setting.

• Set up AV (P.47)

• Set up display (P.46)

• Set up the user interface (P.44)

• Set up camera (P.40)

• Set up special (P.45)

• Set up Bluetooth (P.31)

• Set up security (P.7)

!B5A-2304-00_KWV-M_En.indb 43 2018/01/09 16:04

Setting Up

44

User Interface Setup

You can setup user interface parameters.

1 Press the [FNC] button.

 Popup menu appears.

2 Touch [ ].

 HOME screen appears.

3 Touch [ ].

 SETUP screen appears.

4 Touch [User Interface].

 User Interface screen appears.

5 Set each item as follows.

■[Steering Remote Controller]

Sets the desired function in the steering

remote controller. See Learning function of

steering remote (P.45).

■[Beep]

Turns the key touch tone on or off.

Default is “ON”.

■[Language Select]

Selects a language.

■[Touch Panel Adjust]

Adjust the sensing position of touch panel.

(P.44)

■[Clock]

[GPS-SYNC ](Default): Synchronizes the clock

time with the GPS.

[Manual]: Sets the clock manually

■[Time Zone]

Select the time zone.

■[Clock Adjust]

If you select [Manual] for Clock, adjust the

date and time manually. (P.44)

■[DISP Key]

Select the source screen displayed when

on the popup menu screen is pressed.

[NAV]: Switches to the navigation screen from

the connected navigation unit by pressing

the button. (P.41) (Not-covered areas:

Oceania)

[Mirroring] (Default): Switches to the App

screen from the connected iPod touch/

iPhone/Android device or Apple CarPlay

screen from the connected iPhone by

pressing the button. (P.14)

[OFF]: Displays the control screen of current

source.

Ñ Adjust the date and time

manually.

1 Touch [Clock] in the User Interface screen.

2 Select [Manual].

3 Touch [Time Zone] in the User Interface

screen.

4 Select the time zone.

5 Touch [Clock Adjust] in the User Interface

screen.

6 Adjust the date, then adjust the time.

7 Touch [Set].

Ñ Touch panel adjustment

1 Touch [Touch Panel Adjust] on the User

Interface screen.

 Touch Panel Adjust screen appears.

2 Follow the instruction on the screen and

long touch the center of each [ ].

1

2

!B5A-2304-00_KWV-M_En.indb 44 2018/01/09 16:04

Setting Up

45English

NOTE

• To cancel the touch panel adjustment, touch

[Cancel].

• To reset to the initial status, touch [Reset].

Ñ Learning function of steering

remote

This function is available only when your

vehicle is equipped with the electrical steering

remote controller.

If your steering remote controller is not

compliant, learning may not be completed

and error message may appear.

1 Touch [Steering Remote Controller] in

the User Interface screen.

 Steering Remote Controller Setting

screen appears.

2 Press and hold the steering remote

controller button

NOTE

• You can have the unit learned all buttons

at a time. In that case, press the all buttons

one at a time and after pressing all of them,

touch [Learning completed] in Steering

Remote Controller Setting screen. However,

new functions cannot be learned after this

operation.

3 Touch the function you want to set.

4 Repeat steps 2 and 3 as necessary.

5 Touch [Learning completed].

NOTE

• When changing the function already learned,

press and hold the button you want to change

in step 2 and then touch to select the changed

function from the function list.

• Confirm the contents of the settable function on

the function list. You cannot edit the function list.

• To initialize the contents, touch [Learning

initialisation] of [Steering Remote

Controller] in User Interface screen. After you

touch [Initialise], a confirmation message

appears. Follow the message and complete the

operation.

Special Setup

You can setup Special parameters.

1 Press the [FNC] button.

 Popup menu appears.

2 Touch [ ].

 HOME screen appears.

3 Touch [ ].

 SETUP screen appears.

4 Touch [Special].

 Special screen appears.

5 Set each item as follows.

■[DEMO]

Set the demonstration mode. Default is "ON".

■[SETUP Memory]

Locks or unlocks the Audio SETUP Memory/

Recall/Clear.

■[Audio SETUP Memory]

Memorizes the current audio setting.

• Fader/ Balance, Speaker / X’over, Equalizer

(User Preset, SW Level), Position/DTA,

Sound Effect (P.48)

■[Audio SETUP Recall]

Recalls the memorized audio setting.

■[Audio SETUP Clear]

Clears the AUDIO SETUP Memory and the

currently memorized audio setting.

!B5A-2304-00_KWV-M_En.indb 45 2018/01/09 16:04

Setting Up

46

■[Software Information]

Check the software version of this unit.

(P.46)

■[Open Source Licenses]

Displays the open source licenses.

■[Initialise]

Touch [Initialise] and then touch [Ye s ] to set

all the settings to the initial default settings.

• Audio SETUP Memory is not initialized.

Ñ Software Information

Check the software version of this unit.

1 Touch [Software Information] in the

Special screen.

2 Confirm the software version.

NOTE

• For how to update the software, see the relevant

update procedure manual which comes with the

software.

Display Setup

1 Press the [FNC] button.

 Popup menu appears.

2 Touch [ ].

 HOME screen appears.

3 Touch [ ].

 SETUP screen appears.

4 Touch [Display].

 Display screen appears.

5 Set each item as follows.

■[Dimmer]

Select dimmer mode.

[OFF]: The display and buttons do not dim.

[ON]: The display and buttons dim.

[SYNC ](Default): Turns the dimmer function

on or off when the vehicle light control

switch is turned on or off.

■[OSD Clock]

Select if you want to display the clock while

watching video, etc.

"ON" (Default)/ "OFF"

■[Wallpaper Customize]

Changing wallpaper image. (P.46)

■[Viewing Angle]

If it is hard to see the image on the screen

even, adjust the viewing angle. The smaller

the (negative) value, the more whitish the

image on the screen looks.

"0" (Default)/ "-1"/ "-2"/ "-3"

Ñ Change wallpaper image

1 Touch [Wallpaper Customize] in the

Display screen.

2 Select an image.

*1

*1 Select an original image in advance.

!B5A-2304-00_KWV-M_En.indb 46 2018/01/09 16:04

Setting Up

47English

To register original image

You can load an image from the connected

USB device and set it for the wallpaper image.

Before operating this procedure, it is necessary

to connect the device which has the image to

load.

1 Touch [User1 Select] or [User2 Select] in

the Wallpaper Customize screen.

2 Select the image to load.

3 Touch [Enter].

 The selected image is loaded and

the display returns to the Wallpaper

Customize screen.

NOTE

• Touching [ ] rotates counter clockwise.

• Touching [

] rotates clockwise.

• Picture files: JPEG (.jpg, .jpeg), PNG (.png), BMP

(.bmp)

AV Setup

You can set AV parameters.

1 Press the [FNC] button.

 Popup menu appears.

2 Touch [ ].

 HOME screen appears.

3 Touch [ ].

 SETUP screen appears.

4 Touch [AV].

 AV screen appears.

5 Set each item as follows.

■[TV Tuner Control]

Sets when connecting the TV tuner to AV

INPUT.

[ON]: Set to ON when connecting the 3rd

party TV tuner. AV-IN Name is set to TV. If

you connect the TV tuner made by DOS

and watch TV, you can perform some

simple operations by touching the screen

of this unit.

[OFF] (Default): Set to OFF when not

connecting the 3rd party TV tuner.

■[AV-OUT]

You can select an AV source to be output

from the AV OUTPUT port.

OFF, AV-IN, USB, or iPod

• You cannot select iPod if it is connected via

Bluetooth.

• If you select USB, iPod, Spotify, Bluetooth

audio, Mirroring (WebLink/ Waze), Apple

CarPlay or Android Auto as the main

source, you cannot select USB or iPod as

the AV output source.

■[Driving Position]

Select the driving position (left or right).

“Left”/ “Right” (Default)

!B5A-2304-00_KWV-M_En.indb 47 2018/01/09 16:04

Controlling Audio

48

Controlling Audio

You can adjust the various settings such as

audio balance or subwoofer level.

1 Press the [FNC] button.

 Popup menu appears.

2 Touch [ ].

 HOME screen appears.

3 Touch [ ].

 Source selection screen appears.

4 Touch [Audio].

See the following section for each

setting.

• Set up speaker/ X’over (P.49)

• Controlling equalizer (P.51)

• Set listening position/ DTA (P.54)

• Controlling general audio (Fader /

Balance) (P.51)

• Set volume offset (P.52)

• Performing zone control (P.52)

• Set sound effect (P.53)

3 way speaker system setup

Select the appropriate crossover network

mode according to the speaker system (2-way

speaker system or 3-way speaker system).

1 Press the [FNC] button.

 Popup menu appears.

2 Touch [ ].

 HOME screen appears.

3 Touch [ ].

 Source selection screen appears.

4 Touch [AV Off].

5 Press the [FNC] (1) button and the [–] (2)

button for 1 second at the same time.

12

 Speaker system select screen appears.

6 Select the crossover network mode.

 A confirmation screen appears.

7 Touch [Ye s ].

NOTE

• When the 3-way speaker system is selected, the

following functions are disabled.

– Zone Control

– Fader of Controlling General Audio

– Front focus of Listening Position/ DTA

– Select the speakers to output the sound from

cell-phone of Blutooth HF/Audio

– Beep of User Interface Setup

• Connecting 3-way speakers with the 2-way mode

selected can break the speakers.

!B5A-2304-00_KWV-M_En.indb 48 2018/01/09 16:04

Controlling Audio

49English

Speaker/ X’over setup

1 Press the [FNC] button.

 Popup menu appears.

2 Touch [ ].

 HOME screen appears.

3 Touch [ ].

 Source selection screen appears.

4 Touch [Audio].

 Audio screen appears.

5 Touch [Speaker/Xʼover].

6 Select a car type.

You can setup the car type and speaker

network, etc.

If your car type is selected, the Delay Time

Alignment is set automatically (for timing

adjustment of sound output for each

channel) to have the highest surround

effects.

7 Touch the speaker (1) you wish to adjust

and set each item (2) as follows.

1

2

■[Speaker]

You can select a speaker type and its size to

get the best sound effects.

When the speaker type and size are set,

the speaker crossover network is set

automatically.

■[Location] (Only for Front, Rear)

Select the speaker position you have fixed.

■[Tweeter] (Only for Front)

You can set the tweeter when you are

selecting front speakers.

None, Small, Medium, Large

■[Xʼover]

Displays the speaker crossover setup screen.

You can adjust the crossover setup that was

set automatically when you selected the

speaker type.

For details, see Crossover network setup

(P.50)

When Speaker network is set to 3 way:

1

2

NOTE

• For how to switch to the 3-way speaker system,

see 3 way speaker system setup (P.48).

Connecting 3-way speakers with the 2-way mode

selected can break the speakers.

• Select “None” if you have no speakers.

!B5A-2304-00_KWV-M_En.indb 49 2018/01/09 16:04

Controlling Audio

50

Ñ Crossover network setup

You can set a crossover frequency of speakers.

1 Touch [Xʼover].

2 Touch the speaker to set.

3 Set each item as follows.

■[HPF FREQ]

High Pass Filter adjustment. (When front or

rear speaker is selected on Speaker Select

screen)

■[LPF FREQ]

Low Pass Filter adjustment. (When subwoofer

is selected on Speaker Select screen)

■[Slope]*1

Sets a crossover slope.

■[Gain]

Adjusts the front speaker, rear speaker, or

subwoofer level.

■[TW Gain] *2

Adjusts the tweeter level. (When front is

selected on Speaker Select screen)

■[Phase Inversion]*3

Sets the phase of subwoofer output.

Check [Phase Inversion] to shift the phase

180 degrees. (When subwoofer is selected

on Speaker Select screen)

*1 Only when “LPF FREQ”/“HPF FREQ” is set to

a mode other than “Through” in [Xʼover].

*2 Only when “Tweeter” is set to “Small”,

“Medium”, “Large” in [Speaker Setup].

*3 Only when “Subwoofer” is set to a mode

other than “None” in [Speaker Setup].

When Speaker network is set to 3 way:

■[FREQ] (High Pass)

High Pass Filter adjustment. (When tweeter is

selected on Speaker Select screen)

■[HPF FREQ], [LPF FREQ] (Band Pass)

Band Pass Filter adjustment. (When mid

range speaker is selected on Speaker Select

screen)

■[FREQ] (Low Pass)

Low Pass Filter adjustment. (When woofer is

selected on Speaker Select screen)

■[Slope]*1

Sets a crossover slope.

■[Gain]

Sets gain of each speaker.

■[Phase Inversion]*2

Sets the phase of tweeter, mid range, and

woofer output.

Check [Phase Inversion] to shift the phase

180 degrees.

*1 Only when “LPF FREQ”/“HPF FREQ” is set to

a mode other than “Through” in [Xʼover].

*2 Only when “Subwoofer” is set to a mode

other than “None” in [Speaker Setup].

NOTE

• For how to switch to the 3-way speaker system,

see 3 way speaker system setup (P.48).

Connecting 3-way speakers with the 2-way mode

selected can break the speakers.

!B5A-2304-00_KWV-M_En.indb 50 2018/01/09 16:04

Controlling Audio

51English

Controlling General Audio

1 Press the [FNC] button.

 Popup menu appears.

2 Touch [ ].

 HOME screen appears.

3 Touch [ ].

 Source selection screen appears.

4 Touch [Audio].

 Audio screen appears.

5 Touch [Fader / Balance].

6 Set each item as follows.

■[Fader / Balance]

Adjust the volume balance around the

touched area.

[C] and [D] adjust the right and left volume

balance.

[R] and [S] adjust the front and rear volume

balance.

■[Center]

Clear the adjustment.

Equalizer Control

You can adjust equalizer by selecting the

optimized setting for each category.

1 Press the [FNC] button.

 Popup menu appears.

2 Touch [ ].

 HOME screen appears.

3 Touch [ ].

 Source selection screen appears.

4 Touch [Audio].

 Audio screen appears.

5 Touch [Equalizer].

6 Touch the screen and set the Graphic

Equalizer as desired.

■Gain level (dotted frame area)

Adjust the gain level by touching the each

frequency bar.

You can select frequency bar and adjust its

level by [R], [S].

■[Preset Select]

Displays the screen to recall the preset

equalizer curve.

■[Memory]

Saves the adjusted equalizer curve from

“User1” to “User4”.

■[Initialise]

The current EQ curve returns to flat.

■[ALL SRC]

Apply the adjusted equalizer to all sources.

Touch [ALL SRC] and then touch [OK] on the

confirmation screen.

■[Bass EXT] (Bass Extend Settings)

When turned on, the frequency lower than

62.5 Hz is set to the same gain level as

62.5 Hz.

■[SW Level]

Adjusts the subwoofer volume. This setting

is not available when subwoofer is set to

“None”. See Speaker/ X’over setup (P.49).

!B5A-2304-00_KWV-M_En.indb 51 2018/01/09 16:04

Controlling Audio

52

Ñ Recall the EQ curve

1 Touch [Preset Select].

2 Select EQ curve.

NOTE

• [iPod] is available only during iPod source.

Ñ Save the EQ curve

1 Adjust the EQ curve.

2 Touch [Memory].

3 Select where to save.

Volume Offset

Finely adjust the volume of the current source

to minimize the difference in volume between

different sources.

1 Press the [FNC] button.

 Popup menu appears.

2 Touch [ ].

 HOME screen appears.

3 Touch [ ].

 Source selection screen appears.

4 Touch [Audio].

 Audio screen appears.

5 Touch [Volume Offset].

6 Touch [+] or [–] to adjust the level.

■[Initialise]

Returns to the initial settings.

* If you have increased the volume first, then

reduced the volume using the “Volume

Offset”, the sound generated if you suddenly

switch to another source may be extremely

loud.

Zone Control

You can select different sources for both front

and rear positions in the vehicle.

1 Press the [FNC] button.

 Popup menu appears.

2 Touch [ ].

 HOME screen appears.

3 Touch [ ].

 Source selection screen appears.

4 Touch [Audio].

 Audio screen appears.

5 Touch [Zone Control].

 Zone Control screen appears.

6 Touch [Zone Select].

!B5A-2304-00_KWV-M_En.indb 52 2018/01/09 16:04

Controlling Audio

53English

7 Touch [Dual Zone].

8 Set each source as follows.

■[Zone Select]

Touch [Single Zone] to turn off the dual

zone function.

■[Front Source] [Rear Source]

Select the audio source for each.

■[Rear VOL.]

Adjusts the rear source volume.

NOTE

• When the rear speaker sound is switched, the

audio source that is output at the AV OUTPUT

terminal is also switched to the same source.

• When the dual zone function is set to on, the

following functions are not available.

– Output from the subwoofer

– Subwoofer Level/ Bass Boost (P.53)

– Equalizer Control/ Sound Effect/ Listening

Position (P.51, 53, 54)

– Speaker Setup (P.49)

– High-resolution Sound Source File Playback

• You cannot select iPod if it is connected via

Bluetooth.

• If you select USB, iPod, Spotify, Bluetooth audio,

Mirroring (WebLink/ Waze), Apple CarPlay or

Android Auto as the Front Source, you cannot

select USB or iPod as the Rear Source.

Sound Effect

You can set sound effects.

1 Press the [FNC] button.

 Popup menu appears.

2 Touch [ ].

 HOME screen appears.

3 Touch [ ].

 Source selection screen appears.

4 Touch [Audio].

 Audio screen appears.

5 Touch [Sound Effect].

6 Set each item as follows.

■[Bass Boost]

Sets the amount of bass boost among “OFF”/

“1”/ “2”/ “3”.

■[Loudness]

Sets the amounts of boost of low and high

tones.

“OFF”, “Low”, “High”

■[Volume Link EQ]

Reduces the driving noise by raising the

bandwidth.

“OFF”, “ON”

■[Space Enhancement]

Select the feeling of sound space

enhancement.

“OFF”/ “Small”/ “Medium”/ “Large”.

This setting is not available during tuner

source.

!B5A-2304-00_KWV-M_En.indb 53 2018/01/09 16:04

Controlling Audio

54

■[K2]

Turns ON/OFF the K2 function.

Technology to extrapolate and supplement

with proprietary algorithm, the high-

frequency range that is cut off when

encoding.

■[Sound Response]

Virtually makes the sound more realistic

using the Digital Signal Processor (DSP)

system.

Select the level from “OFF”/ “1”/ “2”/ “3”.

■[Sound Lift]

You can adjust the height of speakers

virtually to suit your listening position.

“OFF”/ “Low”/ “Middle”/ “High”.

Listening Position/ DTA

Listening Position/DTA allows you to improve

the sound field depending on the position of

the seat you sit.

Listening Position/DTA allows you to set

“Listening Position” and “Front Focus”. You

cannot set both at the same time.

1 Press the [FNC] button.

 Popup menu appears.

2 Touch [ ].

 HOME screen appears.

3 Touch [ ].

 Source selection screen appears.

4 Touch [Audio].

 Audio screen appears.

5 Touch [Position/DTA].

• Set up Listening Position (P.54)

• Set up Front Focus (P.55)

Ñ Listening Position

Adjust the sound delay time as nearer speakers

to the selected seat have more delay time,

so that the sound from each speaker arrive a

listener at the same time.

1 Touch [Listening Position] in the Position/

DTA screen.

2 Select listening position from [Front R]

(Right front), [Front L] (Left front),

[Front All] (All front), and [All].

Position DTA control

You can fine-adjust your listening position.

1 Touch [Adjust].

2 Touch [Delay].

3 Touch [T] or [U] to adjust the delay time of

the selected speaker.

4 Touch [Level].

5 Touch [T] or [U] to adjust the sound level

of the selected speaker.

!B5A-2304-00_KWV-M_En.indb 54 2018/01/09 16:04

Controlling Audio

55English

NOTE

• To return to the initial setting of Delay and Level,

touch [Initialise] and [YES] in the confirmation

screen.

Ñ Front Focus

This is the function to focus the imaginary

sound image in front of the selected seat.

1 Touch [Front Focus] in the Position/DTA

screen.

2 Select a front focus position.

For [Front All] and [All], select Priority L or R

depending on which side you want to put

the imaginary sound image.

Ñ Front Focus fine adjustment

1 Touch [Adjust].

2 Touch [Delay].

3 Set each item as follows.

■[Sound Image LR (Front)]

Adjust the sound image to focus on in front

of front seats.

■[Sound Image LR (Rear)]

Adjust the sound image to focus on in front

of rear seats.

■[Size of the Virtual Sound Field]

Adjust the size of sound image to meet your

taste. If the sound image is shifted from the

front, adjust it by [Sound Image LR (Front)]

or [Sound Image LR (Rear)].

■[Subwoofer Delay]

Adjust the delay time of subwoofer.

4 Touch [Level].

5 Touch [T] or [U] to adjust the sound level

of the selected speaker.

NOTE

• To return to the initial setting of Delay and Level,

touch [Initialise] and [YES] in the confirmation

screen.

!B5A-2304-00_KWV-M_En.indb 55 2018/01/09 16:04

Remote control

56

Remote control

This unit can be operated using the remote

control.

For oceania sales area, the remote control is

the optional accessory (RM-RK258).

# WARNING

• Do not ingest the battery, Chemical Burn

Hazard

The remote control supplied with this product

contains a coin / button cell battery. If the

coin/button cell battery is swallowed, it can

cause severe internal burns in just 2 hours and

can lead to death.

Keep new and used batteries away from

children. If the battery compartment does not

close securely, stop using the product and

keep it away from children.

If you think batteries might have been

swallowed or placed inside any part of the

body, seek immediate medical attention.

# CAUTION

• Put the remote control in a place where it will

not move during braking or other operations.

A dangerous situation could result, if the

remote control falls down and gets wedged

under the pedals while driving.

• Do not leave the battery near fire or under

direct sunlight. A fire, explosion or excessive

heat generation may result.

• Do not recharge, short, break up or heat the

battery or place it in an open fire. Such actions

may cause the battery to leak fluid. If spilled

fluid comes in contact with your eyes or on

clothing, immediately rinse with water and

consult a physician.

• Danger of explosion if Lithium battery is

incorrectly replaced. Replace only with the

same or equivalent type.

Ñ Removing the battery sheet

Pull the battery sheet out from the remote

controller to activate the battery.

Ñ Changing the battery of the

remote controller

CR2025 (+side)

• Use a commercially available button battery

(CR2025).

• Insert the battery with the + and – poles

aligned properly.

– If the effectiveness of the remote controller

decreases, replace the battery.

!B5A-2304-00_KWV-M_En.indb 56 2018/01/09 16:04

Remote control

57English

Functions of the Remote

control Buttons

Key

Name

Function

SRC Switches to the source to be played.

In hands-free mode, hangs up the

phone.

VOL + – Adjusts the volume.

AT T Lowers the volume by pressing the

key once.

Restores the previous volume by

pressing the key twice.

DISP Switches the screen between the

current source and the App screen

from the connected iPod touch/

iPhone/Android.

FM/R

AM/S

Selects the folder to be played.

During tuner source, select FM/ AM

band to be received.

E 2

F 3

Selects the track or file to be played.

ANGLE Not used.

When a call comes in, answers the call.

DIRECT Switches to the direct search mode.

For details on the direct search mode,

see Direct search mode (P.57).

ASPECT Changes the aspect ratio.

• To check the current aspect ratio

setting, operate on the touch panel.

(P.43)

Key

Name

Function

Numeric

Keypad

• Enters a preset station number

(1 - 6)

• Specifies the number to search in

direct search.

For details on the direct search

mode, see Direct search mode

(P.57).

CLR Deletes a character while in direct

search mode.

ENT Performs the selected function.

Ñ Direct search mode

Using the remote control, you can jump

directly to the desired file, track chapter, etc.

with entering the number corresponding to

the content.

NOTE

• This operation cannot be performed for USB

device and iPod.

1 Press the [SRC] button several times until

the desired content appears.

The available contents are different

depending on the source.

■Tuner

Frequency value

2 Press the [DIRECT] button.

3 Enter the number of the content you want

to play using the numeric keypad.

4 Press the [E] or [F] button.

 The content you entered is played.

!B5A-2304-00_KWV-M_En.indb 57 2018/01/09 16:04

Connection/Installation

58

Connection/Installation

Before Installation

Before installation of this unit, please note the

following precautions.

# WARNINGS

• If you connect the ignition wire (red) and

the battery wire (yellow) to the car chassis

(ground), you may cause a short circuit, that

in turn may start a fire. Always connect those

wires to the power source running through

the fuse box.

• Do not cut out the fuse from the ignition wire

(red) and the battery wire (yellow). The power

supply must be connected to the wires via

the fuse.

# CAUTION

• Install this unit in the console of your vehicle.

Do not touch the metal part of this unit during

and shortly after the use of the unit. Metal part

such as the heat sink and enclosure become

hot.

NOTE

• Mounting and wiring this product requires

skills and experience. For best safety, leave the

mounting and wiring work to professionals.

• Make sure to ground the unit to a negative 12V

DC power supply.

• Do not install the unit in a spot exposed to

direct sunlight or excessive heat or humidity.

Also avoid places with too much dust or the

possibility of water splashing.

• Do not use your own screws. Use only the

screws provided. If you use the wrong screws,

you could damage the unit.

• If the power is not turned ON (“There is an

error in the speaker wiring. Please check the

connections.” is displayed), the speaker wire

may have a short-circuit or touched the chassis

of the vehicle and the protection function may

have been activated. Therefore, the speaker

wire should be checked.

• If your car’s ignition does not have an ACC

position, connect the ignition wires to a power

source that can be turned on and off with the

ignition key. If you connect the ignition wire to

a power source with a constant voltage supply,

such as with battery wires, the battery may be

drained.

• If the console has a lid, make sure to install the

unit so that the front panel will not hit the lid

when closing and opening.

• If the fuse blows, first make sure the wires

aren’t touching to cause a short circuit, then

replace the old fuse with one with the same

rating.

• Insulate unconnected wires with vinyl tape or

other similar material. To prevent a short circuit,

do not remove the caps on the ends of the

unconnected wires or the terminals.

• Connect the speaker wires correctly to the

terminals to which they correspond. The unit

may be damaged or fail to work if you share

the ¤ wires or ground them to any metal part

in the car.

• When only two speakers are being connected

to the system, connect the connectors either

to both the front output terminals or to both

the rear output terminals (do not mix front

and rear). For example, if you connect the ¢

connector of the left speaker to a front output

terminal, do not connect the ¤ connector to

a rear output terminal.

• After the unit is installed, check whether the

brake lamps, blinkers, wipers, etc. on the car

are working properly.

• Mount the unit so that the mounting angle is

30° or less.

• This unit has the cooling fan to decrease the

internal temperature. Do not mount the unit

in a place where the cooling fan of the unit is

blocked. Blocking these openings will inhibit

the cooling of the internal temperature and

result in malfunction.

Cooling fan

!B5A-2304-00_KWV-M_En.indb 58 2018/01/09 16:04

Connection/Installation

59English

• Do not press hard on the panel surface when

installing the unit to the vehicle. Otherwise

scars, damage, or failure may result.

• Reception may drop if there are metal objects

near the Bluetooth antenna.

Bluetooth antenna unit

Ñ Supplied accessories for

installation

1

x1

2

(Black 1 m)

x1

3

(Gray 1 m)

x1

4

(3 m)

x1

5

(M5 x 8 mm)

x6

6

(M5 x 8 mm)

x6

7

(3.5 m) x1

8

x1

9

x1

Ñ Installation procedure

1) To prevent a short circuit, remove the key

from the ignition and disconnect the ¤

terminal of the battery.

2) Make the proper input and output wire

connections for each unit.

3) Connect the speaker wires of the wiring

harness.

4) Connect the wiring harness wires in the

following order; ground, battery, ignition.

5) Connect the wiring harness connector to the

unit.

6) Install the unit in your car.

7) Reconnect the ¤ terminal of the battery.

8) Perform the Initial Setup.

See Initial setup (P.6).

!B5A-2304-00_KWV-M_En.indb 59 2018/01/09 16:04

Connection/Installation

60

Installing the unit

5 or 6

5 or 6

Car Bracket

NOTE

• Make sure that the unit is installed securely in

place. If the unit is unstable, it may malfunction

(eg, the sound may skip).

Ñ GPS antenna

GPS antenna is installed inside of the car. It

should be installed as horizontally as possible

to allow easy reception of the GPS satellite

signals.

To mount the GPS antenna inside your vehicle:

1) Clean your dashboard or other surface.

2) Remove the separator of the metal plate

(accessory 8).

3) Press the metal plate (accessory 8) down

firmly on your dashboard or other mounting

surface. You can bend the metal plate

(accessory 8) to conform to a curved surface,

if necessary.

4) Remove the separator of the GPS antenna

(accessory 7), and stick the antenna to the

metal plate (accessory 8).

8

7

NOTE

• Depending on the type of car, reception of the

GPS satellite signals might not be possible with

an inside installation.

• Please install this GPS antenna in an area away

from any antennas that are used with CB radios or

satellite televisions.

• The GPS antenna should be installed at a position

that is spaced at least 12 inch (30 cm) from

cellular phone or other transmitting antennas.

Signals from the GPS satellite may be interfered

with by these types of communication.

• Painting the GPS antenna with (metallic) paint

may cause a drop in performance.

Ñ Microphone unit

1) Check the installation position of the

microphone (accessory 4).

2) Clean the installation surface.

3) Remove the separator of the microphone

(accessory 4), and stick the microphone to

the place shown below.

4) Wire the microphone cable up to the unit

with it secured at several positions using tape

or other desired method.

5) Adjust the direction of the microphone

(accessory 4) to the driver.

4

Fix a cable with a commercial item of tape.

!B5A-2304-00_KWV-M_En.indb 60 2018/01/09 16:04

Connection/Installation

61English

Ñ Connecting wires to terminals

ILLUMI

ANT CONT

STEERING WHEEL

REMOTE INPUT

REMOTE CONT

PRK SW

REVERSE

P. CONT

Fuse (15A)

When using the optional power amplifier,

connect to its power control terminal. (Max.

200mA, 12V)

Depending on what antenna you are using,

connect either to the control terminal of the

motor antenna, or to the power terminal for

the booster amplifier of the film-type antenna.

(Max. 300mA, 12V)

Blue/White

(Power control wire)

Blue

(Antenna control wire)

To car light control switch

Orange/White

(Dimmer control wire)

Purple/White

(Reverse sensor wire) (2 m)

Light Blue/Yellow

(Steering remote control wire)

Connect to vehicle’s reverse lamp harness when

using the optional rear view camera.

To steering remote

To use the steering wheel remote control

feature, you need an exclusive remote

adapter (not supplied) matched to your car.

If no connections are made, do not let

the cable come out from the tab.

Purple/Black

To rear right speaker

To rear left speaker

To front right speaker

To front left speaker

Speaker impedance: 4-8 Ω

Purple

Green/Black

Green

Gray/Black

Gray

White/Black

White

Accessory 1

Connect to the vehicle’s

parking brake detection switch

harness. Light Green

(Parking sensor wire)

(2 m)

For best safety, be sure to

connect the parking sensor.

Ignition key switch

Red

(Ignition wire)

Yellow

(Battery wire)

Car fuse box

Battery

Black

(Ground wire) ¤

(To car chassis)

!B5A-2304-00_KWV-M_En.indb 61 2018/01/09 16:04

Connection/Installation

62

Ñ 3 way speaker system setup

+

+

+

+

When connecting to an external amplifier,

connect its ground wire to the car’s chassis to

avoid damaging the unit.

White/Black

Gray/Black

Green/Black

Purple/Black

Speaker impedance: 4-8 Ω

Purple

Green

Gray

White

To mid range left

speaker

Subwoofer Preout

To mid range right

speaker

Mid Range Preout

To tweeter left speaker

Tweeter Preout

To tweeter right

speaker

Power amplifier

(optional

accessory)

RCA Cable

(Sold separately)

Input

Speaker

Preout

NOTE

• For speaker system setup, see 3 way speaker

system setup (P.48).

• For speaker setup and crossover setup, see

Speaker/ X’over setup (P.49).

• For how to connect speaker wires to terminals

other than speaker terminals and Preout

terminals, see Connecting the system and

external components (P.62) and Connecting

wires to terminals (P.61).

Ñ Connecting the system and

external components

2

1

3

6 5 47

10

11

89

1

AV Audio output (ø3.5 mini jack)

2

FM/AM antenna input

3

When connecting to an external amplifier,

connect its ground wire to the car’s chassis to

avoid damaging the unit.

Rear Audio Preout

(Left; White, Right; Red)

Front Audio Preout

(Left; White, Right; Red)

Subwoofer Preout

(Left; White, Right; Red)

4

TV tuner remote output

5

External navigation interface

(Not-covered areas: Oceania)

6

AV-IN input (1; Left audio, 2; Right audio, 3;

Ground, 4; Visual)

1 2 3 4

7

Accessory 7: GPS Antenna

8

Accessory 4: Bluetooth Microphone

9

Accessory 9: Steering remote harness

Connect to vehicle’s steering remote harness.

Contact your JVC dealer for details.

10

Rear view camera input (Yellow)

11

Visual Output (Yellow)

!B5A-2304-00_KWV-M_En.indb 62 2018/01/09 16:04

Connection/Installation

63English

Ñ Connecting a USB device

USB device[2]

USB (Gray) terminal[1]

USB (Black) terminal[1]

Accessory 2 (Black) (1 m)[3]

Accessory 3 (Gray) (1 m)[3]

[1] USB maximum power supply current :

DC 5 V = 1.5 A

[2] Sold separately

[3] See Securing the USB extension cable

(P.64).

Ñ Connecting an Android

smartphone

Micro USB to USB cable[2]

Android smartphone[2]

USB (Gray) terminal[1]

USB (Black) terminal[1]

Accessory 2 (Black) (1 m)[3]

Accessory 3 (Gray) (1 m)[3]

[1] USB maximum power supply current :

DC 5 V = 1.5 A

[2] Sold separately

[3] See Securing the USB extension cable

(P.64).

!B5A-2304-00_KWV-M_En.indb 63 2018/01/09 16:04

Connection/Installation

64

Ñ Connecting an iPod/iPhone

●Lightning connector

KS-U62 (0.8m)[3]

KS-U62 (0.8m)[3]

iPod/iPhone[2]

iPhone (with CarPlay/ WebLink/ Waze)[2]

USB (Gray) terminal[1]

USB (Black) terminal[1]

Accessory 2 (Black) (1 m)[4]

Accessory 3 (Gray) (1 m)[4]

[1] USB maximum power supply current :

DC 5 V = 1.5 A

[2] Sold separately

[3] Optional accessory

[4] See Securing the USB extension cable

(P.64).

Ñ Securing the USB extension

cable

Secure the USB extension cable with insulating

tape or the like so that its connectors are not

disconnected.

!B5A-2304-00_KWV-M_En.indb 64 2018/01/09 16:04

Troubleshooting

65English

Troubleshooting

Problems and Solutions

If any trouble occurs, first check the following

table for possible problems.

NOTE

• Some functions of this unit may be disabled by

some settings made on this unit.

• What might seem to be a malfunction in your

unit may just be the result of slight misoperation

or miswiring.

Ñ About settings

• Cannot set up the subwoofer.

• Cannot set up subwoofer phase.

• No output from the subwoofer.

• Cannot set up the low pass filter.

• Cannot set up the high pass filter.

Subwoofer is not set to on.

Set the subwoofer to on. See Speaker/ X’over

setup (P.49).

The dual zone function is enabled.

Set the dual zone function to off. See Zone Control

(P.52).

• Cannot select the output destination of the

subsource in the dual zone.

• Cannot adjust the volume of the rear speakers.

The dual zone function is disabled.

Set the dual zone function to on. See Zone Control

(P.52).

• Cannot set up the equalizer.

• Cannot set up the crossover network.

The dual zone function is enabled.

Set the dual zone function to off. See Zone Control

(P.52).

Ñ About audio operations

Radio reception is poor.

The car antenna is not extended.

Pull out the antenna all the way.

The antenna control wire is not connected.

Connect the wire correctly. See Connecting the

system and external components (P.62).

Cannot select a folder.

The random play function is enabled.

Turn off the random function.

Ñ Other

The Touch Sensor Tone doesn’t sound.

The preout jack is being used.

The Touch Sensor Tone cannot be output from the

preout jack.

Error Messages

When you fail to operate the unit correctly, the

cause of the failure appears as the message on

the screen.

There is an error in the speaker wiring. Please

check the connections.

Protective circuit has been activated because a speaker

cord has shorted or it has come in contact with the car

chassis.

Wire or insulate the speaker cord as appropriate and

turn the power off and on again.

Error 07–67

The unit is not operating correctly due to some reason

or other.

Turn the power off and on again. If the “Error 07−67”

message does not disappear, see your nearest JVC

dealer.

No Device (USB device)

The USB device is selected as a source although no USB

device is connected.

Change the source to any source other than USB/

iPod. Connect a USB device, and change the source

to USB again.

Disconnected (iPod, Bluetooth audio player)

The iPod/Bluetooth audio player is selected as a source

although no iPod/Bluetooth audio player is connected.

Change the source to any source other than iPod/

Bluetooth. Connect an iPod/Bluetooth audio player,

and change the source to iPod/Bluetooth again.

No Media file

The connected USB device contains no playable audio

file. Media was played that doesn’t have data recorded

that the unit can play.

See Playable Media and Files (P.66) and try

another USB device.

USB device over current status detected.

The connected USB device is rated a current capacity

higher than the allowable limit.

Check the USB device. Some trouble may have

occurred to the connected USB device.

Change the source to any source other than USB.

Remove the USB device.

!B5A-2304-00_KWV-M_En.indb 65 2018/01/09 16:04

Appendix

66

Appendix

Playable Media and Files

You can play various kinds of media and files on this unit.

Ñ About files

The following audio and video files are supported.

■Playable Audio files

Format Bit rate Sampling frequency Bit count

AAC-LC (.m4a) MPEG2/4 AAC LC

HE-AAC(V1,V2)

8 – 320kbps, VBR 16 – 48 kHz 16 bit

MP3 (.mp3) MPEG 1/2 Audio Layer 3 8 – 320kbps, VBR 16 – 48 kHz 16 bit

WMA (.wma) Windows Media Audio Standard

L3 profile (Version 7,8,9)

8 – 320kbps 16 – 48 kHz 16 bit

Linear PCM

(WAVE) (.wav) RIFF waveform Audio Format – 16 – 192 kHz 16/ 24 bit

FLAC (.flac) flac – 16 – 192 kHz 16/ 24 bit

Vorbis (.ogg) vorbis VBR 16 – 48 kHz 16 bit

DSD (.dsf, .dff) DSF, DSDIFF – 2.8 MHz, 5.6 MHz, 11.2 MHz 1 bit

• WMA and AAC of which is covered with DRM cannot be played.

• DSD sound is converted to PCM sound before playback.

• The EmChinks tag of DSDIFF is not supported.

• Although the audio files are complied with the standards listed above, the play may be impossible depending on the

types or conditions of media or device.

• This unit supports playback of High-Resolution Audio files.

It is recommended that a car audio system should be configured with all High-Resolution Audio compatible products

from player to speaker to enjoy its high quality sound.

■Acceptable Video files

Profile Max. Picture size Max. bit rate Audio format

MPEG-1 (.mpg, .mpeg) – 352 × 240, 352 × 288 1.5 Mbps MPEG Audio Layer 2

MPEG-2 (.mpg, .mpeg) MP@ML 720 × 480, 720 × 576 8 Mbps MPEG Audio Layer 2

H.264/MPEG-4 AVC

(.mp4, .m4v, .avi, .flv, .f4v)

Baseline Profile, Main

Profile

1920 × 1080 (30 fps) 8 Mbps MP3, AAC

MPEG-4 (.mp4, .avi) Advanced Simple Profile 1920 × 1080 (30 fps) 8 Mbps MP3, AAC

WMV (.wmv) Main Profile 1920 × 1080 (30 fps) 8 Mbps WMA

MKV (.mkv) Video Format follows H.264/MPEG-4 AVC, MPEG-4, WMV MP3, AAC, WMA,

Vorbis, FLAC

• This unit can only play back files which are less than 4 GB.

■Limitation of structure for the file and the folder

USB device

Maximum number of folder layers 8

Maximum number of files (per folder) 999

Maximum number of folders (per folder) 9999

Maximum number of folders (per device) Unlimited

• You can enter a folder name and file name with 255 or fewer single-byte characters.

• Files in the folder whose folder name begins with a dot (.) cannot be played.

!B5A-2304-00_KWV-M_En.indb 66 2018/01/09 16:04

Appendix

67English

Specifications

■Monitor section

Picture Size

: 6.75 inches (diagonal) wide

: 151.8 mm (W) × 79.68 mm (H)

Display System

: TN LCD panel

Drive System

: TFT active matrix system

Number of Pixels

: 1,152,000 (800H x 480V x RGB)

Effective Pixels

: 99.99 %

Pixel Arrangement

: RGB striped arrangement

Back Lighting

: LED

■USB interface section

USB Standard

: USB 2.0 High Speed

File System

: FAT 16/ 32, exFAT, NTFS

Maximum Power Supply Current

: DC 5 V 1.5 A × 2

D/A Converter

: 24/ 32 bit

Audio Decoder

: MP3/ WMA/ AAC/ WAV/ FLAC/ Vorbis/ DSD

Video Decoder

: MPEG1/ MPEG2/ MPEG4/ WMV/ H.264/ MKV

Frequency Response

• 192 kHz : 20 – 88,000 Hz

• 96 kHz : 20 – 44,000 Hz

• 48 kHz : 20 – 22,000 Hz

• 44.1 kHz : 20 – 20,000 Hz

Total Harmonic Distortion

: 0.0001 % (1 kHz)

S/N Ratio (dB)

: 98.5 dB

Dynamic Range

: 89 dB

■Bluetooth section

Technology

: Bluetooth Ver.3.0

Frequency

: 2.402 – 2.480 GHz

Output Power

: +4dBm (MAX), 0dBm (AVE), Power Class2

Maximum Communication range

: Line of sight approx. 10m (32.8 ft)

Audio Codec

: SBC/ AAC

Profile (Multi Profile support)

• HFP (V1.6) (Hands Free Profile)

• SPP (Serial Port Profile)

• A2DP (Advanced Audio Distribution Profile)

• AVRCP (V1.5) (Audio/Video Remote Control Profile)

• PBAP (Phonebook Access Profile)

■FM tuner section

Frequency Range (step)

: 87.5 MHz – 108.0 MHz (50 kHz)

Usable Sensitivity (S/N : 30 dB)

: 9.3 dBf (0.8 μV/ 75 Ω)

Quieting Sensitivity (S/N : 46 dB)

: 15.2 dBf (1.6 μV/75 Ω)

Frequency Response

: 30 Hz – 15 kHz

S/N Ratio (dB)

: 75 dB (MONO)

Selectivity (± 400 kHz)

: Over 80 dB

Stereo Separation

: 45 dB (1 kHz)

■AM tuner section

Frequency Range (step)

KW-M740BT (for asia sales area):

531 kHz – 1611 kHz (9 kHz)

KW-M740BT (for oceania sales area):

531 kHz – 1701 kHz (9 kHz)

KW-M740BTM: 531 kHz – 1602 kHz (9 kHz)

Usable Sensitivity

KW-M740BT: 28 dBμ

KW-M740BTM: 25 μV

!B5A-2304-00_KWV-M_En.indb 67 2018/01/09 16:04

Appendix

68

■Video section

Color System of External Video Input

: NTSC/PAL

External Video Input Level (RCA jacks)

: 1 Vp-p/ 75 Ω

External Video Input Level (mini jack)

: 1 Vp-p/ 75 Ω

External Audio Max Input Level (mini jack)

: 2 V/ 25 kΩ

Video Output Level (RCA jacks)

: 1 Vp-p/ 75 Ω

Audio Output Level (mini jack)

: 1.2 V/ 10 kΩ

■Audio section

Maximum Power (Front & Rear)

: 50 W × 4

Full Bandwidth Power (Front & Rear)

: 22 W × 4 (4Ω,14.4V, at less than 1%THD)

Output frequency band

: 20 – 88,000 Hz

Preout Level (V)

: 4 V/ 10 kΩ

Preout Impedance

: ≤ 600 Ω

Speaker Impedance

: 4 – 8 Ω

■DSP section

Graphics equalizer

Band: 13 Band

Frequency (BAND1 – 13)

: 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/

6.3k/ 10k/ 16k Hz

Q: 1.35/ 1.5/ 2.0

Gain

: -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9 dB

2Way X'Over

High pass filter

Frequency: Through, 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/

120/ 150/ 180/ 220/ 250 Hz

Slope: -6/-12/-18/-24 dB/Oct.

Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB

Low pass filter

Frequency: 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/

150/ 180/ 220/ 250 Hz, Through

Slope: -6/-12/-18/-24 dB/Oct.

Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB

3Way X'Over

High pass filter

Frequency: 1k/ 1.6k/ 2.5k/ 4k/ 5k/ 6.3k/ 8k/ 10k/

12.5k Hz

Slope: -6/-12 dB/Oct.

Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB

Band pass filter

Frequency: Through, 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/

120/ 150/ 180/ 220/ 250 Hz

1k/ 1.6k/ 2.5k/ 4k/ 5k/ 6.3k/ 8k/ 10k/

12.5k Hz , Through

Slope: -6/-12 dB/Oct.

Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB

Low pass filter

Frequency: 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/

150/ 180/ 220/ 250 Hz, Through

Slope: -6/-12 dB/Oct.

Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB

■General

Operating Voltage

: 14.4 V (10.5 – 16 V allowable)

Maximum Current Consumption

: 15 A

Installation Dimensions (W × H × D)

: 178 × 100 × 155 mm

Operational Temperature Range

: -10 °C – +60 °C

Weight

: 1.7 kg

NOTE

• Although the effective pixels for the liquid crystal

panel is given as 99.99% or more, 0.01% of pixels

may not light or may light incorrectly.

Specifications subject to change without notice.

!B5A-2304-00_KWV-M_En.indb 68 2018/01/09 16:04

Appendix

69English

About this Unit

■Copyrights

• The Bluetooth® word mark and logos are registered

trademarks owned by Bluetooth SIG, Inc. and any

use of such marks by JVC KENWOOD Corporation is

under license. Other trademarks and trade names are

those of their respective owners.

• Microsoft and Windows Media are either registered

trademarks or trademarks of Microsoft Corporation in

the United States and/or other countries.

• This software is based in part on the work of the

independent JPEG Group.

• The “AAC” logo is a trademark of Dolby Laboratories.

• “Made for iPod” and “Made for iPhone” mean that an

electronic accessory has been designed to connect

specifically to iPod, or iPhone, respectively, and

has been certified by the developer to meet Apple

performance standards. Apple is not responsible for

the operation of this device or its compliance with

safety and regulatory standards. Please note that the

use of this accessory with iPod, or iPhone may affect

wireless performance.

• iPhone, iPod, and iPod touch are trademarks of Apple

Inc., registered in the U.S. and other countries.

• Apple, Siri, Apple CarPlay and Apple CarPlay logo are

trademarks of Apple Inc., registered in the U.S. and

other countries. Lightning is a trademark of Apple

Inc.

• SPOTIFY and the Spotify logo are among the

registered trademarks of Spotify AB.

• Android, Android Auto, Google Play and other marks

are trademarks of Google LLC.

• WebLink™ is a trademark of Abalta Technologies, Inc.

• This License does not grant permission to use the

trade names, trademarks, service marks, or product

names of the Licensor (Abalta Technologies, Inc.),

except as required for reasonable and customary use

in describing the origin of the **WEBLINK Product**.

• Waze and Waze logo are registered trademarks of

Google LLC.

• YouTube and the YouTube logo are registered

trademarks of Google LLC.

• This product includes FontAvenue® fonts licenced

by NEC Corporation.FontAvenue is a registered

trademark of NEC Corporation.

• This product includes "Ubiquitous QuickBoot

TM" technology developed by Ubiquitous Corp.

Ubiquitous QuickBoot TM is a trademark of

Ubiquitous Corp. Copyright© 2017 Ubiquitous Corp.

All rights reserved.

• THIS PRODUCT IS LICENSED UNDER THE AVC

PATENT PORTFOLIO LICENSE FOR THE PERSONAL

USE OF A CONSUMER OR OTHER USES IN WHICH IT

DOES NOT RECEIVE REMUNERATION TO (¡)ENCODE

VIDEO IN COMPLIANCE WITH THE AVC STANDARD

(“AVC VIDEO”) AND/OR (¡¡)DECODE AVC VIDEO

THAT WAS ENCODED BY A CONSUMER ENGAGED

IN A PERSONAL ACTIVITY AND/OR WAS OBTAINED

FROM A VIDEO PROVIDER LICENSED TO PROVIDE

AVC VIDEO. NO LICENSE IS GRANTED OR SHALL

BE IMPLIED FOR ANY OTHER USE. ADDITIONAL

INFORMATION MAY BE OBTAINED FROM MPEG LA,

L.L.C. SEE HTTP://WWW.MPEGLA.COM

• THIS PRODUCT IS LICENSED UNDER THE MPEG-

4 VISUAL PATENT PORTFOLIO LICENSE FOR

THE PERSONAL AND NON-COMMERCIAL USE

OF A CONSUMER FOR (¡) ENCODING VIDEO IN

COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD

(“MPEG-4 VIDEO”) AND/OR (¡¡) DECODING MPEG-

4 VIDEO THAT WAS ENCODED BY A CONSUMER

ENGAGED IN A PERSONAL AND NON-COMMERCIAL

ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO

PROVIDER LICENSED BY MPEG LA TO PROVIDE

MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL

BE IMPLIED FOR ANY OTHER USE. ADDITIONAL

INFORMATION INCLUDING THAT RELATING TO

PROMOTIONAL, INTERNAL AND COMMERCIAL USES

AND LICENSING MAY BE OBTAINED FROM MPEG LA,

LLC. SEE HTTP://WWW.MPEGLA.COM.

• THIS PRODUCT IS LICENSED UNDER THE VC-1 PATENT

PORTFOLIO LICENSE FOR THE PERSONAL AND NON-

COMMERCIAL USE OF A CONSUMER TO ( i ) ENCODE

VIDEO IN COMPLIANCE WITH THE VC-1 STANDARD

(“VC-1 VIDEO”) AND/OR ( ii ) DECODE VC-1 VIDEO

THAT WAS ENCODED BY A CONSUMER ENGAGED

IN A PERSONAL AND NON-COMMERCIAL ACTIVITY

AND/OR WAS OBTAINED FROM A VIDEO PROVIDER

LICENSED TO PROVIDE VC-1 VIDEO. NO LICENSE IS

GRANTED OR SHALL BE IMPLIED FOR ANY OTHER

USE. ADDITIONAL INFORMATION MAY BE OBTAINED

FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.

COM

!B5A-2304-00_KWV-M_En.indb 69 2018/01/09 16:04

Appendix

70

• libFLAC

Copyright (C) 2000-2009 Josh Coalson

Copyright (C) 2011-2013 Xiph.Org Foundation

Redistribution and use in source and binary forms,

with or without modification, are permitted provided

that the following conditions are met:

– Redistributions of source code must retain the

above copyright notice, this list of conditions and

the following disclaimer.

– Redistributions in binary form must reproduce the

above copyright notice, this list of conditions and

the following disclaimer in the documentation

and/or other materials provided with the

distribution.

– Neither the name of the Xiph.org Foundation

nor the names of its contributors may be used to

endorse or promote products derived from this

software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT

HOLDERS AND ONTRIBUTORS ``AS IS’’ AND ANY

EXPRESS OR IMPLIED WARRANTIES, INCLUDING,

BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE

FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY

DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT

NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE

GOODS OR SERVICES; LOSS OF USE, DATA, OR

PROFITS; OR BUSINESS INTERRUPTION) HOWEVER

CAUSED AND ON ANY THEORY OF LIABILITY,

WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT

(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING

IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,

EVEN IF ADVISED OF THE POSSIBILITY OF SUCH

DAMAGE.

• libvorbis

Copyright (c) 2002-2008 Xiph.org Foundation

Redistribution and use in source and binary forms,

with or without modification, are permitted provided

that the following conditions are met:

– Redistributions of source code must retain the

above copyright notice, this list of conditions and

the following disclaimer.

– Redistributions in binary form must reproduce the

above copyright notice, this list of conditions and

the following disclaimer in the documentation

and/or other materials provided with the

distribution.

– Neither the name of the Xiph.org Foundation

nor the names of its contributors may be used to

endorse or promote products derived from this

software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT

HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY

EXPRESS OR IMPLIED WARRANTIES, INCLUDING,

BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE

FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY

DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT

NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE

GOODS OR SERVICES; LOSS OF USE, DATA, OR

PROFITS; OR BUSINESS INTERRUPTION) HOWEVER

CAUSED AND ON ANY THEORY OF LIABILITY,

WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT

(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING

IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,

EVEN IF ADVISED OF THE POSSIBILITY OF SUCH

DAMAGE.

• libogg

Copyright (c) 2002, Xiph.org Foundation

Redistribution and use in source and binary forms,

with or without modification, are permitted provided

that the following conditions are met:

– Redistributions of source code must retain the

above copyright notice, this list of conditions and

the following disclaimer.

– Redistributions in binary form must reproduce the

above copyright notice, this list of conditions and

the following disclaimer in the documentation

and/or other materials provided with the

distribution.

– Neither the name of the Xiph.org Foundation

nor the names of its contributors may be used to

endorse or promote products derived from this

software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT

HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY

EXPRESS OR IMPLIED WARRANTIES, INCLUDING,

BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE

FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY

DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT

NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE

GOODS OR SERVICES; LOSS OF USE, DATA, OR

PROFITS; OR BUSINESS INTERRUPTION) HOWEVER

CAUSED AND ON ANY THEORY OF LIABILITY,

WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT

(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING

IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,

EVEN IF ADVISED OF THE POSSIBILITY OF SUCH

DAMAGE.

!B5A-2304-00_KWV-M_En.indb 70 2018/01/09 16:04

Appendix

71English

■Eski Elektrik ve Elektronik Ekipmanların

İmha Edilmesi Hakkında Bilgi (ayrı atık

toplama sistemlerini kullanan ülkeleri

için uygulanabilir)

Sembollü (üzerinde çarpı işareti olan çöp kutusu)

ürünler ev atıkları olarak atılamaz.

Eski elektrik ve elektronik ekipmanlar, bu ürünleri

ve ürün atıklarını geri dönüştürebilecek bir tesiste

değerlendirilmelidir. Yaşadığınız bölgeye en yakın

geri dönüşüm tesisinin yerini öğrenmek için yerel

makamlara müracaat edin. Uygun geri dönüşüm ve atık

imha yöntemi sağlığımız ve çevremiz üzerindeki zararlı

etkileri önlerken kaynakların korunmasına da yardımcı

olacaktır.

■For KW-M740BTM

Declaration of Conformity with regard to the

RE Directive 2014/53/EU

Declaration of Conformity with regard to the

RoHS Directive 2011/65/EU

Manufacturer:

JVC KENWOOD Corporation

3-12, Moriyacho, Kanagawa-ku, Yokohama-shi,

Kanagawa 221-0022, JAPAN

EU Representative:

JVCKENWOOD Deutschland GmbH

Konrad-Adenauer-Allee 1-11, 61118 Bad Vilbel,

GERMANY

English

Hereby, JVC KENWOOD declares that the radio equipment

KW-M740BTM is in compliance with Directive 2014/53/EU. The full

text of the EU declaration of conformity is available at the following

internet address:

Türkçe

Burada, JVC KENWOOD KW-M740BTM radyo ekipmanının 2014/53/

AB Direktifine uygun olduğunu bildirir. AB uyumluluk deklarasyonunun

tam metni aşağıdaki internet adresinde mevcuttur.

URL: http://www.jvc.net/cs/car/eudoc/

■For Turkey

Bu ürün 28300 sayılı Resmi Gazete’de yayımlanan Atik Elektrikli ve

Elektronik Eşyalarin Kontrolü Yönetmeliğe uygun olarak üretilmiştir.

■ ילמשח דויצ לש הפשאל הכלשה רבדב עדימ

תונידמל יטנוולר( תוללוס ןכו ןשי ינורטקלאו

.)תדרפומ הפשא ףוסיא תכרעמב תושמתשמש

X םע הפשא חפ( ןומיסה םע תוללוסו םירצומ ךילשהל ןתינ אל

.הליגר תיתיב הפשאכ )וילע

ןקתמב תוללוס ןכו ןשי ינורטקלאו ילמשח דויצ רזחמל שי

.םהלש יאוולה ירצותבו הלאכ םיטירפב לפטל לגוסמה

ןקתמ תודוא םיטרפ תלבקל תימוקמה תושרה םע רשק ורצ

ורזעי םיתואנ הפשאל הכלשהו רוזחימ .םכילא בורקה רוזחימה

לעו ונתואירב לע תוילילש תועפשה עונמלו םיבאשמ רמשל

.הביבסה

ןייצמ תוללוס רובע ןומיסל תחתמש Pb ןומיסה :בל ומיש

.תרפוע הליכמ הללוסהש

!B5A-2304-00_KWV-M_En.indb 71 2018/01/09 16:04

!B5A-2304-00_KWV-M_En.indb 72 2018/01/09 16:04
