JVC KW V850BT User Manual Instruction B5A 2850 00
User Manual: JVC KW-V850BT KW-V850BT Instruction manual
Open the PDF directly: View PDF
.
Page Count: 108 [warning: Documents this large are best viewed by clicking the View PDF Link!]
2
Contents
Before Use 4
Precautions ................................................................... 4
How to read this manual .........................................5
Basic Operations 6
Functions of the Buttons on the Front Panel ... 6
Turning on the Unit ................................................... 7
Initial Settings .............................................................. 8
Adjusting the volume .............................................11
Touch screen operations .......................................11
Popup menu ..............................................................11
HOME screen descriptions ....................................12
Source selection screen description .................. 13
Source control screen descriptions ...................16
List screen ...................................................................17
Information Window 18
Photo Frame ............................................................... 18
Disc 19
Playing a disc .............................................................19
DVD/ VCD Basic Operation ....................................19
Music CD/ Disc media Basic Operation ............21
File search Operation ..............................................22
DVD Disc Menu Operation .................................... 23
DVD Setup ...................................................................24
APPS—Apple CarPlay/
Android Auto™ 25
Apple CarPlay Operation .......................................25
Android Auto™ Operation .................................... 26

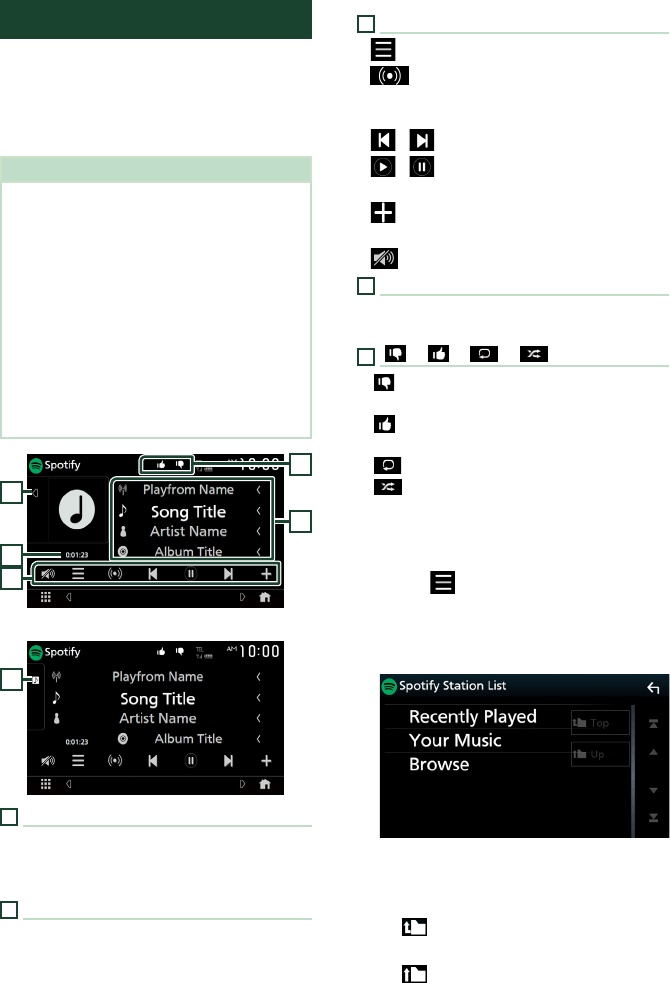

Spotify Operation .....................................................28
Pandora® Operation ................................................29
USB 32
Connecting a USB device ......................................32
USB Basic Operation ................................................32
Search Operation ......................................................33
iPod/iPhone 35
Preparation .................................................................35
iPod/iPhone Basic Operation ...............................36
Search Operation ......................................................37
Tuner 38
Tuner Basic Operation ............................................38
Memory Operation ..................................................39
Selecting Operation ................................................39
Traffic Information ...................................................40
Tuner Setup ................................................................40
SiriusXM® 41
SiriusXM® Basic Operation ....................................41
Storing Channels in Preset Memory .................. 43
Preset select ...............................................................43
Direct search ..............................................................43
Category/Channel search ...................................... 44
Replay ...........................................................................44
TuneMix™ ....................................................................45
SmartFavorites, TuneStart™ ..................................45
TuneScan™ ..................................................................45
Traffic & Weather Now™ .........................................46
Content Alerts ...........................................................46
SportsFlash™ ..............................................................47
SiriusXM Setup ..........................................................47
3English
Other External Components 53
View Camera ..............................................................53
External audio/video players (AV-IN).................54
OEM Features Operation .......................................55
Bluetooth Control 56
Information for using Bluetooth® devices .......56
Register the Bluetooth device .............................57
Bluetooth Setup ........................................................ 57
Playing the Bluetooth Audio Device .................59
Using the Hands-Free Unit .................................... 61
Hands-Free Setup .....................................................66
Setup 67
Monitor Screen Setup ............................................. 67
System Setup .............................................................67
User Interface Setup ................................................ 68
Special Setup .............................................................69
Display Setup .............................................................70
AV Setup ......................................................................72
Controlling Audio 73
3-way speaker system setup ................................73
Speaker / X’over setup ............................................74
Controlling General Audio ....................................76
Equalizer Control ......................................................76
Volume Offset ............................................................77
Zone Control ..............................................................78
Sound Effect ...............................................................79
Listening Position / DTA .........................................80
Audio Setup memory .............................................82
Remote control 83
Battery Installation ...................................................83
Functions of the Remote control Buttons .......83
Connection/Installation 85
Before Installation ....................................................85
Installing the unit .....................................................87
Troubleshooting 95
Problems and Solutions .........................................95
Error Messages ..........................................................95
Appendix 97
Playable Media and Files........................................97
Region Codes in the World ...................................99
DVD Language Codes .......................................... 100
Specifications .......................................................... 101
About this Unit ....................................................... 104
Before Use
4
Before Use
Precautions
# WARNINGS
Ñ To prevent injury or fire, take
the following precautions:
• To prevent a short circuit, never put or leave
any metallic objects (such as coins or metallic
tools) inside the unit.
• Do not watch or fix your eyes on the unit’s
display when you are driving for any extended
period.
• If you experience problems during installation,
consult your JVC dealer.
Ñ Precautions on using this unit
• When you purchase optional accessories,
check with your JVC dealer to make sure that
they work with your model and in your area.
• You can select a language to display menus,
audio file tags, etc. See User Interface Setup
(P.68).
• The Radio Data System or Radio Broadcast
Data System feature won’t work in areas
where the service is not supported by any
broadcasting station.
Ñ Protecting the monitor
• To protect the monitor from damage, do not
operate the monitor using a ball point pen or
similar tool with a sharp tip.
Ñ Cleaning the unit
• If the faceplate of this unit is stained, wipe it
with a dry soft cloth such as a silicon cloth.
If the faceplate is stained badly, wipe it with
a cloth moistened with neutral cleaner, then
wipe it again with a clean soft dry cloth.
NOTE
• Applying spray cleaner directly to the unit
may damage its mechanical parts. Wiping the
faceplate with a hard cloth or using a volatile
liquid such as thinner or alcohol may scratch the
surface or erase the screened print.
Ñ Lens fogging
When you turn on the car heater in cold
weather, dew may form on the lens in the
disc player of the unit due to condensation.
This condensation on the lens (also called lens
fogging) may not allow discs to play. In such a
situation, remove the disc and wait for the dew
to evaporate. If the unit still does not operate
normally after a while, consult your JVC dealer.
Ñ Precautions on handling discs
• Do not touch the recording surface of the disc.
• Do not stick tape etc. on the disc, or use a disc
with tape stuck on it.
• Do not use disc type accessories.
• Clean the disc from the center toward the
outside rim.
• When removing a disc from this unit, pull it out
horizontally.
• If the disc center hole or outside rim has burrs,
use the disc only after removing the burrs with
a ballpoint pen etc.
• Discs that are not round cannot be used.
• 8-cm (3 inch) discs cannot be used.
• Discs with coloring on the recording surface or
discs that are dirty cannot be used.
Before Use
5English
• This unit can only play the following types of
CDs.
• This unit may not correctly play discs which do
not have the mark.
• You cannot play a disc that has not been
finalized. (For the finalization process, see
your writing software and your recorder's
instruction manual.)
How to read this manual
• The screens and panels shown in this manual are
examples used to provide a clear explanation of
operations.
For this reason, they may be different from the actual
screens or panels, or some display patterns may be
different from the actual ones.
• Display language: English is used for the purpose
of explanation. You can select a display language
from the [SETUP] menu. See User Interface Setup
(P.68).
Basic Operations
6
Basic Operations
Functions of the Buttons on the Front Panel
KW-V850BT/ KW-V85BT
1 2 3 4
KW-M750BT/ KW-M75BT
1 3 4
KW-M650BT
1
4
3
5
Basic Operations
7English
NOTE
• The panels shown in this guide are examples used to provide a clear explanation of operations. For this reason,
they may be different from the actual panels.
Number Name Motion
1
–, +
(Volume)
• Adjusts the volume.
The volume will go up to 15 when you keep pressing [+].
2
Disc insert
slot
• A slot to insert a disc media.
3
FNC
[ ]
• Displays the popup menu screen.
• Pressing for 1 second displays the Voice Recognition screen (P.63).
• When the power is off, turns the power on.
4
Remote
Sensor
• Receives the remote control signal.
5
[ ][ ] • Displays the HOME screen (P.13).
• Pressing for 1 second turns the power off.
• When the power is off, turns the power on.
Turning on the Unit
The method of turning on is different
depending on the model.
KW-V850BT/ KW-V85BT/
KW-M750BT/ KW-M75BT
1
Press the [FNC] button.
The unit is turned on.
KW-M650BT
1
Press the [ ] button.
The unit is turned on.
NOTE
• If it is your first time to turn the unit on after
installation, it will be necessary to perform Initial
setup (P.8).
Basic Operations
8
●To turn off the unit:
KW-V850BT/ KW-V85BT/
KW-M750BT/ KW-M75BT
1
Press the [FNC] button.
Popup menu appears.
2
Touch [ ].
HOME screen appears.
3
Touch [ ].
4
Touch [Power Off].
KW-M650BT
1
Press the [ ] button for 1 second.
Initial Settings
Initial setup
Perform this setup when you use this unit first
time.
1
Set each item as follows.
■[Language]
Select the language used for the control
screen and setting items. Default is “American
English(en)”.
1 Touch [Language].
2 Touch [Language Select].
3 Select the desired language.
4 Touch [
].
For details, see User Interface Setup
(P.68).
■[Clock]
Sets the synchronization of the clock and
adjusts it.
For details, see Calendar/clock settings
(P.10).
■[Display]
Set the button illumination color.
If it is hard to see the image on the screen
even, adjust the viewing angle.
1 Touch [Display].
2 Touch [Viewing Angle].
3 Select an angle
4 Touch [
].
For details, see Display Setup (P.70).
Basic Operations
9English
■[Camera]
Set the parameters for the camera.
1 Touch [Camera].
2 Set each item and touch [
].
For details, see Camera Setup (P.53).
■[OEM SETUP]
This function requires a commercial adaptor.
Consult your JVC dealer for details.
■[DEMO]
Set the demonstration mode. Default is “ON”.
1Touch [DEMO] to turn ON or OFF.
2
Touch [Finish].
NOTE
• These settings can be made from the SETUP
menu. See Setup (P.67).
Security Code Setup
You can set up a security code to protect your
receiver system against theft.
When the Security Code function is activated,
the code cannot be changed and the function
cannot be deactivated. Note that the Security
Code can be set with a 4 to 8 digit number of
your choice.
1
Press the [FNC] button.
Popup menu appears.
2
Touch [ ].
HOME screen appears.
3
Touch [ ].
4
Touch [Security].
Security screen appears.
5
Touch [Security Code Set] on the Security
screen.
Security Code Set screen appears.
6
Enter a security code with 4 to 8 digits
and touch [Enter].
Basic Operations
10
7
Enter the same code again and touch
[Enter].
Now, your security code is registered.
NOTE
• Touch [BS] to delete the last entry.
• If you enter a different security code, the
procedure returns to step 6 (for first code entry).
• If you have disconnected the Receiver from the
battery, enter the correct security code as that
you have entered in step 6 and touch [Enter]. You
can use your receiver.
To change the security code:
1
Touch [Security Code Change] on the
Security screen, then repeat step 6 and 7.
To clear the security code:
1
Touch [Security Code Cancellation] on
the Security screen, then repeat step 6.
Calendar/clock settings
1
Press the [FNC] button.
Popup menu appears.
2
Touch [ ].
HOME screen appears.
3
Touch [ ].
4
Touch [User Interface].
User Interface screen appears.
5
Touch [Time Zone].
6
Select the time zone.
7
Set each item as follows.
Scroll the page to show hidden items.
■[Time Format]
Select the time display format.
[12-Hour] (Default)/ [24-Hour]
■[Clock]
[[RDS-SYNC] ](Default): Synchronizes the
clock time with the RDS.
[Manual]: Set the clock manually.
■[Time Zone]
Select the time zone.
■[Clock Adjust]
If you select [Manual] for Clock, adjust the
date and time manually. (P.69)
NOTE
• Please set the date and time. If they are not set,
some functions may not work.
Basic Operations
11English
Adjusting the volume
You can adjust the volume (0 to 40).
Press [+] to increase, and press [–] to decrease.
Holding [+] increases the volume continuously
to level 15.
KW-V850BT/ KW-V85BT/
KW-M750BT/ KW-M75BT
KW-M650BT
Touch screen operations
To perform operations on the screen, you need
to touch, touch and hold, flick or swipe to
select an item, display a setting menu screen
or change pages.
●Touch
Touch the screen gently to
select an item on the screen.
●Touch and hold
Touch the screen and keep
your finger in place until
the display changes or a
message is displayed.
●Flick
Slide your finger quickly
to the left or right on the
screen to change the page.
You can scroll a list screen
by flicking up/ down on the
screen.
●Swipe
Slide your finger up or down
on the screen to scroll the
screen.
Monitor Touch Control:
You can also control playback by moving your
finger on the touch panel as follows (for some
sources, the monitor touch control function is
not available).
• Sliding the finger upward/downward:
Equivalent to the operation of pressing [ ] /
[ ] (Media). Tuner Preset broadcast stations
are switched.
• Sliding the finger leftward/rightward:
Equivalent to the operation of pressing [E]
/ [F].
• Moving your finger clockwise or counter-
clockwise: Increases/decreases the volume.
Popup menu
1
Press the [FNC] button.
KW-V850BT/ KW-V85BT/
KW-M750BT/ KW-M75BT
KW-M650BT
Popup menu appears.
Basic Operations
12
2
Touch to display the popup menu.
KW-V850BT/ KW-V85BT
1
KW-M750BT/ KW-M75BT/ KW-M650BT
1
The contents of the menu are as follows.
• Displays the HOME screen. (P.12)
• Switches between screens.
The screen to be switched to depends
on the [DISP Key] setting on the [User
Interface] screen. (P.68).
• Touch and hold to turns the screen off.
• Displays the Hands Free screen. (P.61)
When connecting as Apple CarPlay
or Android Auto, it works as a phone
provided in Apple CarPlay or Android
Auto.
• Displays the view camera screen. (P.53)
• Displays the Screen Adjustment screen.
(P.67)
• Displays the Audio screen. (P.73)
• Touch to eject the disc and to close the
popup menu.
• Touch and hold to forcibly eject the disc.
• To forcibly eject the disc, touch it for 2
seconds and then touch [Ye s ] after the
message is displayed.
KW-V850BT/ KW-V85BT only
• Close the popup menu.
KW-M750BT/ KW-M75BT/ KW-M650BT only
1
• Short-cut buttons: The source changes to
the one you have set with a short-cut. For
the short-cut setting, refer to Customize
Short-cut buttons on HOME screen
(P.15).
Turn off the screen
1
Touch and hold [DISP] on the popup
menu.
●To turn on the screen
1
Touch the display.
HOME screen descriptions
Most functions can be performed from the
HOME screen.
1
1 14 5 6
12 3
1
• Short-cut playback source icons (P.14)
2
• Current source information.
• Touch to display the control screen of the
current source.
3
• Information Window
– You can change the information window
by touching [
]/[ ].
– Touch the Information Window to display
the detailed screen.
4
• Displays the SETUP screen. (P.70)
5
• Displays the source selection screen. (P.14)
6
• Touch to eject the disc.
• Touch and hold to forcibly ejects the disc.
KW-V850BT/ KW-V85BT only
Basic Operations
13English
Display the HOME screen
1
Press the [FNC] button.
KW-V850BT/ KW-V85BT/
KW-M750BT/ KW-M75BT
KW-M650BT
Popup menu appears.
2
Touch [ ].
HOME screen appears.
Source selection screen
description
You can display icons of all playback sources
and options on the source selection screen.
4 5
3
21
1
• Changes playback sources.
For playback sources, see P.14.
2
• Page indication
3
• Changes pages. (Touch []/[ ])
You can also change pages by flicking left or
right on the screen.
4
• Returns to the previous screen.
5
• Displays the SETUP screen. (P.70)
Basic Operations
14
Select the playback source
1
Press the [FNC] button.
Popup menu appears.
2
Touch [ ].
HOME screen appears.
3
Touch [ ].
From the screen, you can select the
following sources and functions.
• [Apple CarPlay]: Switches to the Apple
CarPlay screen from the connected
iPhone. (P.25)
• [Android Auto]: Switches to the Android
Auto screen from the connected Android
device. *1 (P.26)
• Displays the Hands Free screen. (P.61)
When connecting as Apple CarPlay
or Android Auto, it works as a phone
provided in Apple CarPlay or Android
Auto.
• Switches to the Radio broadcast.
(P.38)
• Switches to the SiriusXM® satellite radio
broadcast. (P.41)
• Plays a Bluetooth audio player. (P.56)
• Plays a disc. *2 (P.19)
• Plays an iPod/iPhone. (P.35)
• Plays files on a USB device. (P.32)
• Switches to Pandora. (P.29)
• Switches to Spotify. (P.28)
• Switches to an external component
connected to the AV-IN input terminal.
(P.54)
• Displays the Audio screen. (P.73)
• Turns off the AV source. (P.15)
• Turns off the unit. *1 (P.8)
• For sources and information displayed when
an ADS adapter is connected, see OEM
Features Operation (P.55).
*1 Except KW-M650BT
*2 KW-V850BT/ KW-V85BT only
To select the playback source on the
HOME screen
The 4 items displayed on the source selection
screen with large icons are shown on the
HOME screen.
You can change the items displayed on this
area by customizing the source selection
screen. (P.15)
To select the playback source on the
source control screen
Display source selection buttons by touching
[
]/[ ] or flicking left or right on the source
control screen, then select a playback source.
Basic Operations
15English
To turn off the AV source
1
Press the [FNC] button.
Popup menu appears.
2
Touch [ ].
HOME screen appears.
3
Touch [ ].
4
Touch [AV Off].
Customize Short-cut buttons on
HOME screen
You can arrange the positions of the source
icons as you like.
1
Press the [FNC] button.
Popup menu appears.
2
Touch [ ].
HOME screen appears.
3
Touch [ ].
4
Touch and hold the icon which you want
to move in the customizing mode.
5
Drag the icon to the desired position.
Changes the page
Basic Operations
16
Source control screen
descriptions
There are some functions which can be
performed from most screens.
Indicators
5
6
8
3
4
127
Short-cut buttons
1
All sources icon
Displays the source selection screen. (P.14)
2
Secondary screen
• [
]/[ ] : The Secondary screen changes to
another one every time you touch it. You can
also change the Secondary screen by flicking
left or right on the screen.
• Indicators: Displays the current source
condition and so on.
– [ATT]: The attenuator is active.
– [DUAL]: The dual zone function is active.
– [LOUD]: The loudness control function is active.
• Short-cut buttons: The source changes to the
one you have set with a short-cut. For the
short-cut setting, refer to Customize Short-
cut buttons on HOME screen (P.15).
3
Content list
Displays the track/file/station/channel list.
4
Connected Bluetooth device information.
5
Artwork & information
You can select whether to display an artwork
and song information or only song information
in more detail.
Touching the artwork area switches to the VU
meter.
6
Function panel
Touch the left side of the screen to display the
function panel. Touch again to close the panel.
7
HOME button
Displays the HOME screen. (P.12)
8
Operation keys
You can operate the current source with these
operation keys. The available functions are
different depending on the source type.
Basic Operations
17English
List screen
There are some common function keys in the
list screens of most sources.
61 2
3 4 5
1
Displays the list type selection window.
2
Displays a music/movie file list.
3
Text scroll
Scrolls the displayed text.
4
etc.
Keys with various functions are displayed here.
• : Plays all tracks in the folder containing
the current track.
• : Jumps to the letter you entered
(alphabetical search).
• : Moves to the upper hierarchy
level.
5
[ ] / [ ] / [ ] / [ ] Page scroll
You can change pages to display more items by
pressing [
]/[ ].
• [
]/[ ] : Displays the top or bottom page.
6
Return
Returns to the previous screen.
NOTE
• Depending on the current source or mode, some
function key may not appear..
Information Window
18
Information Window
Photo Frame
You can display a slideshow of the image
files stored in the USB memory on the HOME
screen.
Ñ Acceptable Picture files
Max. Picture size
JPEG (.jpg, .jpeg) *15,000 × 5,000
PNG (.png) 1,000 × 1,000
BMP (.bmp) 1,000 × 1,000
• This unit can only play back files which are less
than 50 MB.
• The maximum number of files per device is
500.
• Picture files may not be played depending on
their condition.
*1 A progressive format is not supported.
Ñ Photo Frame
1 Press the [FNC] button.
Popup menu appears.
2 Touch [ ].
HOME screen appears.
3 Touch [ ] / [ ] in the Information Window
area to select the photo frame.
Ñ Photo Frame Setup
Make settings related to display of the photo
frame.
1 Press the [FNC] button.
Popup menu appears.
2 Touch [ ].
HOME screen appears.
3 Touch [ ].
SETUP screen appears.
4 Touch [User Interface].
User Interface screen appears.
5 Touch [Information Window SETUP] in
the User Interface screen.
6 Set each item as follows.
■[Photo Frame]
Determine whether to use the photo frame.
"ON" (Default)/ "OFF"
■[Photo Frame SETUP]
Make settings related to photo play display.
7 Touch [ ].
To Photo Frame Setup
1 Touch [Photo Frame SETUP] on the
Information Window SETUP screen.
2 Set each item as follows.
■[Sort Order]
Specify a file sorting criterion.
"By Name(Ascending)"/ "By
Name(Descending)"/ "By Date(Newest First)"
(Default)/ "By Date(Oldest First)"
■[Slide Show Interval]
Specify the slideshow interval.
"5" (Default) to "30" seconds
■[Photo Frame is •••••]
Display help topics about the photo frame.
3 Touch [ ].
Disc
19English
Disc (KW-V850BT/ KW-V85BT)
Playing a disc
Ñ Insert a disc
1 Insert the disc into the slot.
The unit loads the disc and playback
starts.
Ñ Eject a disc
1 Press the [FNC] button.
Popup menu appears.
2 Touch [G].
When removing a disc, pull it horizontally.
NOTE
• This is not displayed on the popup menu screen
of Apple CarPlay or Android Auto source. Change
Apple CarPlay or Android Auto source to other
one to display the popup menu screen.
DVD/ VCD Basic Operation
Most functions can be controlled from the
source control screen and playback screen.
NOTE
• The screen shot below is for DVD. It may be
different from the one for VCD.
1 When the operation buttons are not
displayed on the screen, touch
7
area.
Control screen
1
2
3
4
5
DVD VCD
2
Video screen
7
6
8
6
1
Information display area
Displays the following information.
• Title #, Chapter #: DVD title and chapter
number
• Track #/Scene #: VCD track or scene number.
Scene # is displayed only when Playback
control (PBC) is on.
• Linear PCM, etc.: Audio format
Disc
20
• [Hide]: Hides the control screen.
• [
] : Repeats the current content. Each time
you touch the key, repeat modes are switched
in the following sequence;
DVD: Chapter repeat ( ), Title repeat
( ), Repeat off ( )
VCD (PBC On): Does not repeat
VCD (PBC Off ): Track repeat ( ), Repeat off
( )
2
Function panel
Touch the left side of the screen to display the
function panel. Touch again to close the panel.
• I]: Stops playback. Touching twice will play
the disc from the beginning when you play it
next time.
• [
] [ ]: Fast-forwards or fast-backward the
disc. Each time you touch the key, the speed
changes. 2 times, 10 times.
• [
] [ ] (DVD only): Plays in slow motion
forward or backward.
• [SETUP] (DVD only): Touch to display the DVD
SETUP screen. See DVD Setup (P.24).
• [MENU CTRL] (DVD only): Touch to display
the DVD-VIDEO disc menu control screen. See
DVD Disc Menu Operation (P.23).
• [PBC] (VCD only): Touch to turn Playback
control (PBC) on or off.
• [Audio] (VCD only): Touch to change audio
output channels.
3
Play mode indicator/ Playing time
• D, B, I, etc.: Current play mode indicator
Meanings of the icons are as follows: D (play),
B (fast forward), A (fast backward),
I (stop), R (resume stop), H (pause), (slow
playback), (slow reverse playback).
• For confirmation of current playing position.
You can drag the circle left or right to change
the playing position.
4
Operation keys
• [E] [F] : Searches for the previous/next
content.
Touch and hold to fast-forward or fast-
backward the disc.
• [DH] : Plays or pauses.
• [
] : Touch to attenuate/restore the sound.
5
Indicator Items
• [IN]: Disc insertion status.
White: A Disc is inside the unit.
Orange: Disc player failure.
VCD
• [1chLL/2chLL]: Identifies the left audio output
of channel 1 or 2.
• [1chLR/2chLR]: Identifies the monaural audio
output of channel 1 or 2.
• [1chRR/2chRR]: Identifies the right audio
output of channel 1 or 2.
• [1chST/2chST]: Identifies the stereo audio
output of channel 1 or 2.
• [LL]: Identifies the left audio output.
• [LR]: Identifies the monaural audio output.
• [RR]: Identifies the right audio output.
• [ST]: Identifies the stereo audio output.
• [PBC]: The PBC function is on.
• [VER1]: The VCD version is 1.
• [VER2]: The VCD version is 2.
6
Searching area
Touch to search for the next/previous content.
7
Key display area
Touch to display the control screen.
8
[MENU CTRL] (DVD only)
Touch to display the DVD-VIDEO disc menu
control screen. See DVD Disc Menu Operation
(P.23).
NOTE
• The control screen disappears when no operation
is done for 5 seconds.
• If you use a remote control, you can jump directly
to the desired image by entering the chapter
number, scene number, play time, etc. (P.84).
Disc
21English
Music CD/ Disc media Basic
Operation
Most functions can be controlled from the
source control screen and playback screen.
NOTE
• In this manual, “Music CD” means a general CD
which includes music tracks.
“Disc media” means a CD/DVD disc which
includes audio or video files.
• The screen shot below is for disc media. It may be
different from the one for CD.
Control screen
7
3
4
5
2
1
6
Open the drawer
5
7
Close the drawer
5
7
6
8
1
CODEC / [ ] / [ ]
• When a high-resolution source is played, its
format information is displayed. (Disc media
only)
• [
] : Repeats the current track/folder. Each
time you touch the key, repeat mode switches
in the following sequence;
Track/ File repeat ( ), Folder repeat ( )
(Disc media only), Repeat all ( )
• [ ] : Randomly plays all tracks in current
folder/disc. Each time you touch the key,
random mode switches in the following
sequence;
Track random ( ) (Music CD only), Folder
random ( ) (Disc media only), Random off
( )
2
Track information
• Displays the information of the current track/
file.
Only a file name and a folder name are
displayed if there is no tag information. (Disc
media only)
• Touch to display the Folder List screen. See File
search Operation (P.22). (Disc media only)
3
Play mode indicator/ Playing time
• D, B, etc.: Current play mode indicator
Meanings of the icons are as follows: D (play),
B (fast forward), A (fast backward),
H (pause).
• For confirmation of current playing position.
You can drag the circle left or right to change
the playing position. (Video file only)
4
Operation keys
• [1] (Disc media only) : Searches files. For
details on search operation, see File search
Operation (P.22).
• [E] [F] : Searches for the previous/next
content.
Touch and hold to fast-forward or fast-
backward the disc.
• [DH] : Plays or pauses.
• [
] : Touch to attenuate/restore the sound.
5
Content list
• Touch the right side of the screen to display
the Content list. Touch again to close the list.
• Displays the playing list. When you touch a
track/file name on the list, playback will start.
6
Artwork/ VU meter
• Displays/hides artwork area.
• The jacket of the currently playing file is
displayed. (Disc media only)
• When touched, switches the artwork to the
VU meter.
Disc
22
7
Function panel (Disc media only)
Touch the left side of the screen to display the
function panel. Touch again to close the panel.
• [
] [ ] : Searches for the previous/next
folder.
8
Indicator Items
• [IN]: Disc insertion status.
White: A Disc is inside the unit.
Orange: Disc player failure.
• [VIDEO]: Identifies the video file.
• [MUSIC]: Identifies the music file.
Video screen
10
99
9
File search area (Video file only)
Touch to search for the next/previous file.
10
Key display area (Video file only)
Touch to display the control screen.
File search Operation
(Disc media only)
You can search for a file according to hierarchy.
NOTE
• For operations in the list screen, see List screen
(P.17).
1 Touch [1].
Folder List screen appears.
2 Touch the desired folder.
When you touch a folder its contents are
displayed.
3 Touch the desired item in the content list.
Playback starts.
Disc
23English
DVD Disc Menu Operation
You can set up some functions using the DVD-
VIDEO disc menu.
1 Touch the framed area during playback.
Menu Control screen appears.
2 Perform your desired operation as
follows.
■To display the top menu
Touch [TOP].*
■To display the menu
Touch [MENU].*
■To display the previous menu
Touch [Return].*
■To enter selected item
Touch [Enter].
■To enable direct operation
Touch [Highlight] to enter the highlight
control mode (P.23).
■To move the cursor
Touch [R], [S], [C], [D].
■To switch among subtitle languages
Touch [Subtitle]. Each time you touch this
key, subtitle languages are switched.
■To switch among audio languages
Touch [Audio]. Each time you touch this key,
audio languages are switched.
■To switch among picture angles
Touch [Angle]. Each time you touch this key,
picture angles are switched.
* These keys may not function depending on
the disc.
Ñ Highlight control
Highlight control lets you control the DVD
menu by touching the menu key directly on
the screen.
1 Touch [Highlight] on the Menu Control
screen.
2 Touch your desired item on the screen.
NOTE
• The highlight control function is cancelled
automatically if you do not operate for a
predetermined period of time.
Disc
24
DVD Setup
You can set up the DVD playback functions.
1 Touch the framed area during playback.
2 Touch [ ] on the left side of the screen.
Touch [SETUP].
DVD SETUP screen appears.
3 Set each function as follows.
■[
Menu Language] / [Subtitle Language]
/ [Audio Language]
See Language setup (P.24).
■[Dynamic Range Control]
Sets the dynamic range.
[Wide]: The dynamic range is wide.
[Normal]: The dynamic range is normal.
[Dialog] (Default): Makes the total sound
volume larger than the volumes in other
modes. This is effective only when the
Dolby Digital software is in use.
■[Screen Ratio]
Sets the screen display mode.
[16:9 ](Default): Displays wide pictures.
[4:3 LB]: Displays wide pictures in the Letter
Box format (having black stripes at the top
and bottom of screen).
[4:3 PS]: Displays wide pictures in the Pan &
Scan format (showing pictures cut at the
right and left ends).
Ñ Language setup
This setting is for the languages used for the
menu, subtitle, and voice.
1 Touch the desired item;
[Menu Language], [Subtitle Language],
[Audio Language].
Language Set screen appears.
2 Select a language.
For language codes, refer to DVD
Language Codes (P.100).
Touch [Close] to set the entered language
and return to the DVD SETUP screen.
NOTE
• To set the DVD’s original language as the audio
language, touch [Original].
APPS—Apple CarPlay/Android Auto™
25English
APPS—Apple CarPlay/Android Auto™
Apple CarPlay Operation
Apple CarPlay is a smarter, safer way to use
your iPhone in the car. Apple CarPlay takes
the things you want to do with iPhone while
driving and displays them on the screen of
the product. You can get directions, make
calls, send and receive messages, and listen to
the music from iPhone while driving. You can
also use Siri voice control to make it easier to
operate iPhone.
For details about Apple CarPlay, visit https://
apple.com/ios/carplay/.
Compatible iPhone devices
You can use Apple CarPlay with the following
iPhone models.
• iPhone 7 Plus
• iPhone 7
• iPhone SE
• iPhone 6s Plus
• iPhone 6s
• iPhone 6 Plus
• iPhone 6
• iPhone 5s
• iPhone 5c
• iPhone 5
Ñ Connecting an iPhone
1 Connect your iPhone using KS-U62 via
the USB terminal. (P.93)
When an iPhone compatible with Apple
CarPlay is connected to the USB terminal,
the Bluetooth Hands-Free phone currently
connected is disconnected. If the
Bluetooth Hands-Free phone is being used,
disconnection will occur after ending the
call.
2 Unlock your iPhone.
●Switching the Current Screen to the
Apple CarPlay Screen When Connecting
Your iPhone
– Touch [Apple CarPlay] icon on the source
selection screen. (P.14)
– Touch the following connection message if the
message appears.
NOTE
• The connection message appears when;
– The iPhone you used previously is connected
again.
– The screen other than HOME and the source
selection screen is displayed.
• The connection message is displayed for about
5 seconds.
Ñ Operation buttons and
available Apps on the home
screen of Apple CarPlay
You can use the Apps of the connected iPhone.
The items displayed and the language used
on the screen differ among the connected
devices.
To enter the Apple CarPlay mode, touch
[Apple CarPlay] icon on the source selection
screen. (P.14)
3
1
2
1
[ ]
• Displays the home screen of Apple CarPlay.
• Touch and hold to activate Siri.
2
Application buttons
Starts the application.
3
[HOME]
Exits the Apple CarPlay screen and displays the
HOME screen.
APPS—Apple CarPlay/Android Auto™
26
To exit the Apple CarPlay screen
1 Press the [FNC] button.
Popup menu appears.
2 Touch [ ].
HOME screen appears.
Ñ Use Siri
You can activate Siri.
1 Press the [FNC] button for 1 second.
KW-V850BT/ KW-V85BT/
KW-M750BT/ KW-M75BT
Press for 1 second
KW-M650BT
Press for 1 second
2 Talk to Siri.
To deactivate
1 Press the [FNC] button.
Ñ Switch to the Apple CarPlay
screen while listening to
another source
1 Press the [FNC] button.
Popup menu appears.
2 Touch [DISP].
NOTE
• This operation is available when [DISP Key] is set
to [Mirroring] on the [User Interface] screen.
(P.68)
• When listening to another source with the Apple
CarPlay screen displayed, playing music in the
Apple CarPlay mode will switch the current
source to the Apple CarPlay source.
Android Auto™ Operation
(Except KW-M650BT)
Android Auto enables you to use the functions
of your Android device convenient for driving.
You can easily access route guidance, make
calls, listen to music, and access convenient
functions on the Android device while driving.
For details about Android Auto, visit https://
www.android.com/auto/ and https://support.
google.com/androidauto.
Compatible Android devices
You can use Android Auto with Android
devices of Android version 5.0 (Lollipop) or
later.
NOTE
• Android Auto may not be available on all devices
and may not be available in all countries or
regions.
●About the placement of smartphone
Install the smartphone connected as Android
Auto device in the place where the unit can
receive the GPS signals of the smartphone.
When using Google Assistant, install
the smartphone in the place where the
smartphone easily catch a voice by the
microphone.
NOTE
• Do not put the smartphone in a spot exposed
to direct sunlight or near an air blowing out
port of an air conditioner. The placement of
the smartphone in such places can lead to
malfunction or damage of your smartphone.
• Do not leave the smartphone in the vehicle.
APPS—Apple CarPlay/Android Auto™
27English
Ñ Connect Android device
1 Connect an Android device via the USB
terminal. (P.92)
To use the hands-free function, connect the
Android device via Bluetooth.
When an Android device compatible
with Android Auto is connected to the
USB terminal, the device is connected via
Bluetooth automatically, and the Bluetooth
Hands-Free phone currently connected is
disconnected. If the Bluetooth Hands-Free
phone is being used, disconnection will
occur after ending the call.
2 Unlock your Android device.
3 Press the [FNC] button.
Popup menu appears.
4 Touch [ ].
5 Touch [ ].
6 Touch [Android Auto]. (P.14)
Ñ Operation buttons and
available Apps on the Android
Auto screen
You can perform the operations of the Apps of
the connected Android device.
The items displayed on the screen differ
among the connected Android devices.
To enter the Android Auto mode, touch the
[Android Auto] icon on the source selection
screen. (P.14)
1
1
Application/information buttons
Starts the application or displays information.
To exit the Android Auto screen
1 Press the [FNC] button.
Popup menu appears.
2 Touch [ ].
HOME screen appears.
Ñ Using voice control
1 Press the [FNC] button for 1 second.
Press for 1 second
To cancel
1 Press the [FNC] button.
Ñ Switch to the Android Auto
screen while listening to
another source
1 Press the [FNC] button.
Popup menu appears.
2 Touch [DISP].
NOTE
• This operation is available when [DISP Key] is set to
[Mirroring] on the [User Interface] screen. (P.68)
• When listening to another source with the
Android Auto screen displayed, playing music in
the Android Auto mode will switch the current
source to the Android Auto source.
APPS—Apple CarPlay/Android Auto™
28
Spotify Operation
You can listen to Spotify on this unit by
controlling the application installed in the
iPhone or Android.
To select the Spotify source, touch [Spotify]
icon on the source selection screen. (P.14)
Preparation
• Install the latest version of the Spotify application
"Spotify" on your iPhone or Android.
iPhone: Search for "Spotify" in the Apple App
Store to find and install the most current version.
Android: Search for "Spotify" in Google play to
find and install the most current version.
• iPhones are connected via either USB or
Bluetooth.
• Android devices are connected via Bluetooth.
• To connect a smartphone via Bluetooth, register
it as the Bluetooth device and do the App (SPP)
profile setting for the connection beforehand.
See Register the Bluetooth device (P.57) and
Connect the Bluetooth device (P.58).
1
2
3
4
5
Close the drawer
1
1
Artwork
• Displays/hides artwork area.
• Picture data is displayed if available from the
current content.
2
Playing time
• For confirmation of play time.
3
Operation keys
• [
] : Displays the Menu screen
• [
] : New radio station that relates to the
artist of the currently being played song is
selected and playback starts.
• [
] , [ ] : Skips the current song.
• [
] , [ ] : Plays or pauses the content of the
current station.
• [
] : Saves the currently being played song
to My Music.
• [
] : Touch to attenuate/restore the sound.
4
Content information
Displays the information on the current content
being played.
5
[ ] / [ ] / [ ] / [ ]
• [ ] : Thumbs down to the current contents
and skip to the next content.
• [ ] : Registers the current content as a
favorite content.
• [ ] : Repeats the current song.
• [ ] : Randomly plays all songs in the current
playlist.
Ñ Selecting a track
1 Touch [ ].
Menu screen appears.
2 Select the list type, then select a desired
item.
■To select the category and station
Touch the category and station name in the
list.
■[ Top]
Returns to the top of the list.
■[ Up]
Returns to the previous list.
APPS—Apple CarPlay/Android Auto™
29English
About Spotify®
Note
• Ensure you are logged in to your smartphone
application. If you do not have an Spotify account,
you can create one for free from your smartphone
or at www.spotify.com.
• Because Spotify is a third-party service, the
specifications are subject to change without
prior notice. Accordingly, compatibility may
be impaired or some or all of the services may
become unavailable.
• Some functions of Spotify cannot be operated
from this unit.
• For issues on using the application, contact
Spotify at www.spotify.com.
• Establish an Internet connection.
Pandora® Operation
You can listen to Pandora® on this unit by
controlling the application installed in the
iPhone or Bluetooth device.
To select the Pandora source, touch the
[Pandora] icon on the source selection screen.
(P.14)
Preparation
• Install the latest version of the Pandora®
application on your iPhone, Android or BlackBerry.
iPhone: Search for "Pandora" in the Apple App
Store to find and install the most current version.
Android: Visit the Google play and search for
Pandora to install.
BlackBerry: Visit www.pandora.com from the
built in browser to download the Pandora
application.
• iPhones are connected via either USB or
Bluetooth.
• Android or BlackBerry devices are connected via
Bluetooth.
• To connect a smartphone via Bluetooth, register
it as the Bluetooth device and do the App (SPP)
profile setting for the connection beforehand.
See Register the Bluetooth device (P.57) and
Connect the Bluetooth device (P.58).
4
1
3
2
1
Artwork
Picture data is displayed if available from the
current content.
2
Playing time
For confirmation of play time.
3
Operation keys
• [
] : Searches for a station. For details on
searching, see Station list screen (P.30).
• [
] (Thumbs down) : Thumbs down to
the current contents and skips to the next
contents.
• [
] (Thumbs up) : Registers the current
content as a favorite content.
• [D] , [H] : Plays or pauses the content of the
APPS—Apple CarPlay/Android Auto™
30
current station.
• [F] : Skips the current song.
(Note that this function is disabled when the
Pandora skip limitation is exceeded.)
• [
] (Bookmark Song) : Bookmarks a song in
the current contents.
• [
] : Creates a new station. See Creates a
new station (P.30).
• [
] : Touch to attenuate/restore the sound.
4
Content information
Displays the information on the current content
being played.
Ñ Station list screen
You can perform the following functions from
this screen.
1 Touch [ ].
Station List screen appears.
■To select the station
Touch the station name in the list.
■To sort the list by played date
Touch [By Recent]. The list is sorted to begin
with the last played station.
■To sort the list in alphabetical order
Touch [By Name]. You can select the desired
letter from the list which corresponds to
the station name to help narrow the search
range.
NOTE
• You can operate Pandora by using the remote
control function. However, you can perform only
play, pause, and skip operations.
Ñ Creates a new station
1 Touch [ ].
2 Touch your desired item.
■Create station from artist
Creates a new station based on the artist
who is playing now.
■Create station from track
Creates a new station based on the song
being played.
■Create station from genre
Displays the genre list screen.
Genre list screen
1 Touch [Create station from genre].
2 The selected genre is created as a new
station.
APPS—Apple CarPlay/Android Auto™
31English
About Pandora®
NOTE
• In the application on your device, log in and
create an account with Pandora.
(If you are not already a registered user, an
account can also be created at www.pandora.
com.)
• Establish an Internet connection.
• Pandora is only available in certain countries.
Please visit http://www.pandora.com/legal for
more information.
• Because Pandora® is a third-party service, the
specifications are subject to change without
prior notice. Accordingly, compatibility may
be impaired or some or all of the services may
become unavailable.
• Some functions of Pandora® cannot be operated
from this unit.
• For issues on using the application, please
contact Pandora® at pandora-support@pandora.
com.
USB
32
USB
Connecting a USB device
1 Connect the USB device to the USB cable.
(P.92)
2 Press the [FNC] button.
Popup menu appears.
3 Touch [ ].
HOME screen appears.
4 Touch [ ].
5 Touch [USB]. (P.14)
Ñ Disconnect the USB device
1 Press the [FNC] button.
Popup menu appears.
2 Touch [ ].
HOME screen appears.
3 Touch a source other than [USB].
4 Detach the USB device.
Ñ Usable USB device
You can use a mass-storage-class USB device
with this unit.
The word “USB device” appearing in this manual
indicates a flash memory device.
●About the file system
The file system should be the one of the
following.
• FAT16 • FAT32 • exFAT • NTFS
NOTE
• Install the USB device in the place where it will
not affect safe driving.
• You cannot connect a USB device via a USB hub
and Multi Card Reader.
• Take backups of the audio files used with this
unit. The files can be erased depending on the
operating conditions of the USB device.
We shall have no compensation for any damage
arising from any erased data.
USB Basic Operation
Most functions can be controlled from the
source control screen and playback screen.
Control screen
7
4
3
5
2
1
6
Open the drawer
5
7
Close the drawer
5
7
6
8
1
[CODEC / ] / [ ]
• When a high-resolution source is played, its
format information is displayed.
• [
] : Repeats the current track/folder. Each
time you touch the key, repeat modes are
switched in the following sequence:
File repeat ( ), Folder repeat ( ), Repeat
all ( )
• [
] : Randomly plays all tracks in the current
folder. Each time you touch the key, random
modes are switched in the following sequence:
File random ( ), Random off ( )
USB
33English
2
Track information
• Displays the information on the current file.
Only a file name and a folder name are
displayed if there is no tag information.
• Touch to display the Category List screen. See
Category search (P.34).
3
Play mode indicator/ Playing time
• D, B, etc.: Current play mode indicator
Meanings of individual icons are as follows:
D (play), B (fast forward), A (fast
backward), H (pause).
• For confirmation of current playing position.
You can drag the circle left or right to change
the playing position. (Video file only)
4
Operation keys
• 1] : Searches track/file. For details on search
operation, see Search Operation (P.33).
• E] [F] : Searches the previous/next track/
file.
Touch and hold to fast forward or fast
backward.
• [DH] : Plays or pauses.
• [
] : Touch to attenuate/restore the sound.
5
Content list
• Touch the right side of the screen to display
the Content list. Touch again to close the list.
• Displays the playing list. When you touch a
track/file name on the list, playback will start.
6
Artwork/ VU meter
• Displays/hides artwork area.
• The jacket of the currently playing file is
displayed.
• When touched, switches the artwork to the
VU meter.
7
Function panel
Touch the left side of the screen to display the
function panel. Touch again to close the panel.
• [
] [ ] : Searches for the previous/next
folder.
8
Indicator Items
• [VIDEO]: Identifies the video file.
• [MUSIC]: Identifies the music file.
Video screen
10
99
9
File search area (Video file only)
Touch to search for the next/previous file.
10
Key display area (Video file only)
Touch to display the control screen.
Search Operation
You can search music or video files by the
following operations.
1 Touch [1].
2 Touch [S].
3 Select a list type.
NOTE
• For operations on the list screen, see List screen
(P.17).
USB
34
Ñ Category search
You can search for a file by selecting a
category.
1 Touch [Category List].
2 Select whether you search audio files
or video files .
3 Touch the desired category.
The list corresponding to your selection
appears.
4 Touch to select the desired item in the
list. Repeat this step until you find the
desired file.
Ñ Link search
You can search for a file of the same artist/
album/genre as that in the current track.
1 Touch [Link Search].
2 Touch the desired tag type. You can select
from artists, albums and genres.
The list corresponding to your selection
appears.
3 Touch the desired item in the content list.
Ñ Folder search
You can search for a file according to hierarchy.
1 Touch [Folder List].
2 Touch the desired folder.
When you touch a folder its contents are
displayed.
3 Touch to select your desired item in the
list. Repeat this step until you find the
desired file.
iPod/iPhone
35English
iPod/iPhone
Preparation
Ñ Connectable iPod/iPhone
The following models can be connected to
this unit.
Made for
• iPhone 7 Plus
• iPhone 7
• iPhone SE
• iPhone 6s Plus
• iPhone 6s
• iPhone 6 Plus
• iPhone 6
• iPhone 5s
• iPhone 5c
• iPhone 5
• iPod touch (6th generation)
NOTE
• Latest compatible list of iPod/iPhone. For details,
see www.jvc.net/cs/car/ipod/.
• By connecting your iPod/iPhone to this unit
with the iPod connection cable KS-U62 (optional
accessory), you can supply power to your iPod/
iPhone as well as charge it while playing music.
Note that the power of this unit must be held on.
• If you restart playback after connecting the iPod,
the music that has been played by the iPod is
played first.
Ñ Connect iPod/iPhone
Wired connection
Preparation
• Connect an iPod/iPhone with the KS-U62
(optional accessory) while Apple CarPlay is not
connected.
• With an Apple CarPlay-capable iPhone, turn
off Apple CarPlay by operating the iPhone at
functional setup before connecting iPhone.
For details of the setup method, contact the
manufacturer of the terminal.
• Plug the iPod/iPhone into the USB terminal with
the KS-U62 (optional accessory).
• Only one iPod/iPhone can be connected.
1 Connect the iPod/iPhone using the KS-
U62. (P.93)
2 Press the [FNC] button.
Popup menu appears.
3 Touch [ ].
HOME screen appears.
4 Touch [ ].
5 Touch [iPod]. (P.14)
●To disconnect the iPod/iPhone connected
with the cable:
1 Detach the iPod/iPhone.
Bluetooth connection
Pair the iPhone through Bluetooth.
Preparation
• To connect an iPhone via Bluetooth, register it
as a Bluetooth device and do the profile setting
for the connection beforehand. See Register the
Bluetooth device (P.57) and Connect the
Bluetooth device (P.58).
• Connect an iPhone via Bluetooth while Apple
CarPlay and an iPod/iPhone are not connected
via USB.
iPod/iPhone
36
iPod/iPhone Basic Operation
Control screen
4
2
3
5
1
Open the drawer
6
5
2
Close the drawer
5
7
2
1
Track information
• Displays the information on the current file.
• Touch to display the Category List screen. See
Category search (P.37).
2
Artwork/ VU meter
• Displays/hides artwork area.
• The jacket of the currently being played file is
displayed.
• When touched, switches the artwork to the
VU meter.
3
Play mode indicator/ Playing time
• D, B, etc.: Current play mode indicator
Meanings of individual icons are as follows:
D (play), B (fast forward), A (fast
backward), H (pause).
4
Operation keys
• 1] : Searches for a track/file. For details on
search operation, see Search Operation
(P.37).
• E] [F] : Searches for the previous/next
track/file.
Touch and hold to fast forward or fast
backward.
• [DH] : Plays or pauses.
• [
] : Touch to attenuate/restore the sound.
5
Content list
• Touch the right side of the screen to display
the Content list. Touch again to close the list.
• Displays the playing list. When you touch a
track/file name on the list, playback will start.
6
[ ] / [ ]
• [
] : Repeats the current track/album. Each
time you touch the key, repeat modes are
switched in the following sequence:
Song repeat ( ), All songs repeat ( ),
Repeat off ( )
• [
] : Randomly plays all tracks in the current
album. Each time you touch the key, random
modes are switched in the following sequence:
Song random ( ), Random off ( )
7
Indicator Items
• [MUSIC]: Identifies the music file.
iPod/iPhone
37English
Search Operation
You can search music files by the following
operations.
1 Touch [1].
2 Touch [S].
3 Select a list type.
NOTE
• For operations on the list screen, see List screen
(P.17).
Ñ Category search
You can search for a file by selecting a
category.
1 Touch [Category List].
2 Touch the desired category.
The list corresponding to your selection
appears.
3 Touch to select the desired item in the
list. Repeat this step until you find the
desired file.
Ñ Link search
You can search for a file of the same artist/
album/genre/composer as that in the current
track.
1 Touch [Link Search].
2 Touch the desired tag type. You can
select from artists, albums, genres and
composers.
The list corresponding to your selection
appears.
3 Touch the desired item in the content list.
Tuner
38
Tuner
Tuner Basic Operation
Most functions can be controlled from the
source control screen.
To listen to the Tuner source, touch [Tuner]
icon on the source selection screen. (P.14)
Control screen
5
3
4
2
6
1
Open the drawer
6
3
Close the drawer
6
3
7
1
Information display
Displays the information on the current station:
Frequency
Touching [
] allows you to switch between
Content A and Content B.
Content A: PS name, Radio Text, Title & Artist
Content B :PTY Genre, Radio Text plus
Preset#: Preset number
2
Seek mode
Touch to switch seek mode in the following
sequence: [AUTO1], [AUTO2], [MANUAL].
• [AUTO1]: Tunes in a station with good
reception automatically.
• [AUTO2]: Tunes in the memorized stations one
after another.
• [MANUAL]: Switches to the next frequency
manually.
3
Function panel
Touch the left side of the screen to display the
function panel. Touch again to close the panel.
• [TI] (FM only): Selects the traffic information
mode. For details, see Traffic Information
(P.40).
• [SETUP] (FM only): Displays the Tuner SETUP
screen. For details, see Tuner Setup (P.40).
• [SSM] (FM only): Presets stations automatically.
For details, see Auto memory (P.39).
• [PTY] (FM only): Searches for a program by
program type. For details, see Search by
program type (P.39).
• [MONO] (FM only): Selects the Monaural
reception mode.
4
Band buttons
Switches bands (between FM and AM).
5
Operation keys
• [E] [F] : Tunes in a station. The method of
switching frequencies can be changed (see
2
Seek mode).
• [
] : Touch to attenuate/restore the sound.
6
Preset list
• Touching [ ]/ [ ] allows you to change the
display size.
• Recalls the memorized station.
• When touched for 2 seconds, stores the
currently being received station in the
memory.
7
Indicator Items
• [ST]: A stereo broadcast is being received.
• [MONO]: The forced monaural function is
active.
• [TI]: Indicates the reception state of traffic
information.
White: TP is being received.
Orange: TP is not being received.
Tuner
39English
Memory Operation
Ñ Auto memory (FM only)
You can store stations with good reception in
the memory automatically.
1 Touch [FM].
2 Touch [ ] on the left side of the screen.
Touch [SSM].
3 Touch [Ye s ].
Auto memory starts.
Ñ Manual memory
You can store the currently being received
station in the memory.
1 Select the station you wish to store in the
memory.
2 Touch [FM#] (#:1-15) or [AM#] (#:1-5) in
which you want to store the station for 2
seconds until a beep sounds.
Selecting Operation
Ñ Preset select
You can list and select memorized stations.
1 Touch [ ] on the right side of the screen.
Select a station from the list.
Ñ Search by program type
(FM only)
You can tune in the station broadcasting the
specified type of program when listening to
FM.
1 Touch [ ] on the left side of the screen.
Touch [PTY].
PTY Search screen appears.
2 Select a program type from the list.
3 Touch [Search].
You can search for the station broadcasting
the selected type of program.
Tuner
40
Traffic Information (FM only)
You can listen to and watch traffic information
automatically when a traffic bulletin starts.
However, this feature requires a Radio
Broadcast Data System that includes TI
information.
1 Touch [ ] on the left side of the screen.
Touch [TI].
Traffic information mode is set.
Ñ When the traffic bulletin starts
The Traffic Information screen appears
automatically.
NOTE
• It is necessary to turn on the Traffic Information
function in order to allow the Traffic Information
screen to appear automatically.
• The volume setting made during reception of
traffic information is automatically memorized.
When the traffic information is received next time,
this unit recalls the volume setting automatically.
Tuner Setup (FM only)
You can set tuner related parameters.
1 Touch [ ] on the left side of the screen.
Touch [SETUP].
Tuner SETUP screen appears.
2 Set each function as follows.
■[Area Setting]
The tuner channel interval changes
depending on the area where you use this
unit.
[US] (Default): Select this when using this unit
in North/ Central/ South America. FM and
AM intervals are set to 200 kHz and 10 kHz
respectively.
[SA]: Select this when using this unit in South
American countries where the FM interval
is 50 kHz. The AM interval is set to 10 kHz.
[Europe]: Select this when using this unit in
any other areas. FM and AM intervals are
set to 50 kHz and 9 kHz respectively.
SiriusXM®
41English
SiriusXM®
SiriusXM® Basic Operation
Only SiriusXM® brings you more of what you
love to listen to, all in one place. Get over 140
channels, including commercial-free music
plus the best sports, news, talk, comedy
and entertainment. Welcome to the world
of satellite radio. A SiriusXM Vehicle Tuner
and Subscription are required. For more
information, visit www.siriusxm.com.
To listen to the SiriusXM source, touch the
[SiriusXM] icon on the source selection screen.
(P.14)
Activating subscription
• Check your Radio ID.
The SiriusXM Satellite Radio ID is required for
activation and can be found by tuning in Channel
0 as well as on the label found on the SiriusXM
Connect tuner and its package.
The Radio ID does not include the letters I, O, S
or F.
• Activate the SiriusXM Connect Vehicle Tuner
using either one of the two methods below:
– For users in U.S.A.
Online: Visit www.siriusxm.com/activatenow
Phone: Call SiriusXM Listener Care at 1-866-
635-2349
– For users in Canada:
Online: Visit http://www.siriusxm.ca/help/
activation-help/
Phone: Call XM customer Care at 1-877-438-
9677
NOTE
• To use SiriusXM® Satellite Radio, the optional
accessory is necessary.
Control screen
2
7
3
1
5
4
Open the drawer
5
7
Close the drawer
6
5
7
3
1
Information display
Displays the information on the current channel:
Channel Name
P#: Preset number
#CH: Channel number
Logo: Channel logo
Touching [
] allows you to switch between
Content A, Content B and Content C.
Content A: Artist Name, Song Title
Content B: Content Info, Category Name
Content C: Channel Description, Similar
Channels
[ ] : Touch for 2 seconds to register the artist
of the current song as a Content Alert.
[ ] : Touch for 2 seconds to register the current
song as a Content Alert.
For details, see Content Alerts (P.46).
SiriusXM®
42
2
Band button
Switches among bands. (SXM1/ SXM2/ SXM3/
SXM4)
3
Artwork
• Displays/hides artwork area.
• Displays the album artwork for most SiriusXM
music channels
4
Operation keys
• [1] : Display the Category search screen. For
details on search operation, see Category/
Channel search (P.44).
• DH] : Plays or pauses. See Replay (P.44).
• [CHS] [CHR] : Selects a channel.
• [
] : Touch to attenuate/restore the sound.
5
Preset list
• Touching [ ]/ [ ] allows you to change the
display size.
• Recalls the memorized channel.
• When touched for 2 seconds, stores the
currently being received channel in the
memory.
6
Indicator display
Displays the “Mix” (TuneMix™), “Scan”
(TuneScan™), (Traffic&Weather), or
(SportsFlash™) indicator and the received
signal strength of the SiriusXM tuner.
7
Function panel
Touch the left side of the screen to display the
function panel. Touch again to close the panel.
• [Direct Channel]: Touch and enter the
desired number. For details, see Direct search
(P.43).
• [SETUP]: Touch to display the SiriusXM SETUP
screen. For details, see SiriusXM Setup
(P.47).
• [Replay]/ [Live]: Touch to turn on or off the
replay mode. See Replay (P.44).
• [Traffic & Weather]
For SXV300 *1
Traffic & Weather Now™ allows you to access
the latest report whenever you want to hear
it. Select your city from the set up menu
Select a City for Traffic & Weather (P.52)
and press the [Traffic & Weather] button to
check the latest report. It will start from the
beginning.
• (White) : Played already.
• (Green) : New information arrived.
• (Purple) : Playing.
• (Gray) : No information.
For SXV200 or SXV100 *2
Turns the Traffic & Weather Jump function
on or off.
• (White) : Function on.
• (Purple) : Playing.
• (Gray) : Function off.
• [TuneScan]*3 : Allows you to hear a
few seconds of songs from each of the
SmartFavorite music channels on the current
preset band. See TuneScan™ (P.45).
• [TuneMix]*4 : When turned ON, shuffles the
preset channels on P1-P6 to play a blend
of songs from your favorite channels. See
TuneMix™ (P.45).
• [SportsFlash]*4 : Displays during SportsFlash™.
Touch to cancel the SportsFlash™ function
and return to the previous channel. See
SportsFlash™ (P.47) and SportsFlash™
setup (P.51).
*1 Compatible with SXV300 or later tuner
models. It may take a few minutes after power
on to get the first full report on your city.
Traffic channels are not available in Canada.
*2 When SXV200 or SXV100 is connected with
this unit.
*3 Compatible with SXV200 or later tuner models.
*4 Compatible with SXV300 or later tuner models.
SiriusXM®
43English
Storing Channels in Preset
Memory
You can store the current channel in memory.
1 Tune in the channel you wish to store in
the memory.
2 Touch [ ] on the right side of the screen.
3 Touch [SXM(1-4) P(1-6)] in which you
want to store the channel for 2 seconds
until a beep sounds.
Preset select
You can list and select memorized channels.
To select from the preset list
1 Touch [ ] on the right side of the screen.
Select a channel from the list.
Direct search
You can tune in a channel directly.
1 Touch [ ] on the left side of the screen.
Touch [Direct Channel].
2 Enter the channel number and touch
[Enter].
NOTE
• To clear the number you entered, touch [BS].
SiriusXM®
44
Category/Channel search
You can specify the desired category and
select a channel.
1 Touch [1].
2 Select a category.
Channel list appears.
3 Select the desired content from the list.
NOTE
• All channels in the selected category appear.
• Touching [All-Channels] displays all channels.
• Touch [Info Change] in the channel list. Select a
desired item:
content info, channel name, artist name, song
title, category name.
• Categories which have the prefix “Featured - “ are
Featured Favorites.
• Featured Favorites are groups of channels that
are created by the SiriusXM Programming
department allowing you to discover new
channels. Featured Favorite channels are dynamic
and can change often, allowing you to discover
new channels.
– You can set whether to be notified when the
featured seasonal theme is updated. (P.52)
Replay
You can replay the last 60 minutes of the
program from the current channel.
1 Touch [L] or [Replay] on the function
panel.
■[E] [F]
Press to skip to the previous/next track.
Press and hold to rewind or fast forward.
■[DH]
Plays or pauses.
■Replay time bar/ Play mode indicator
Displays the recorded data capacity and
playback position.
D, B, etc.: Current play mode indicator
■[1]
Displays a list of recorded data on a program
basis.
2 Touch [1] to display an Instant Replay List
screen.
■Instant Replay List
Touching this plays back the displayed
program.
[LIVE]: Touch to return to the live music/
content.
■[Info Change]
Touch [Info Change]. Select a desired item:
content info, channel name, artist name,
song title, category name.
SiriusXM®
45English
To return to live music/content
1 Touch the left side of the screen.
2 Touch [Live].
TuneMix™
TuneMix™ plays a unique blend of songs from
your Preset music channels of the current
SiriusXM Preset Band, allowing you to build a
custom channel from as few as two to as many
as 6 music channels. You can even skip songs
you don’t want to hear.
1 Touch [ ] on the left side of the screen.
Touch [TuneMix] to set ON or OFF.
NOTE
• Compatible with SXV300 or later tuner models.
SmartFavorites, TuneStart™
Preset channels 1 through 6 of the current
band are SmartFavorites channels.
The SiriusXM Vehicle Tuner automatically
buffers the broadcast audio content of the
SmartFavorites channels in the background.
You can rewind and replay up to 30 minutes of
any of the missed news, talk, sports or music
content on SmartFavorites channels. (see
Replay (P.44))
When tuning in a SmartFavorites channel,
songs will be played from the beginning of
each track (TuneStart™). You can enable/
disable TuneStart. (see TuneStart™ (P.52))
NOTE
• Compatible with SXV200 or later tuner models.
TuneScan™
TuneScan™ is a feature that plays samples
from the starts of multiple buffered songs
from each of the SmartFavorites channels that
predominantly play music selections.
You have easy access to a large sampling
of music content and can enjoy hearing a
full song by stopping the scan on a song of
interest.
1 Touch [ ] on the left side of the screen.
2 Touch [TuneScan] to begin scanning your
SmartFavorites channels.
You will hear a few seconds of the songs
from each of the SmartFavorite channels.
3 While your favorite song is being played,
touch [TuneScan] again to start listening
to that song.
Scan finishes and the song is played
continuously.
NOTE
• To cancel TuneScan™, touch the left side of the
screen. Touch [TuneScan].
• Touch and hold [TuneScan] to cancel TuneScan,
and the music/content which was present on the
channel before starting TuneScan will be played.
• Compatible with SXV200 or later tuner models.
SiriusXM®
46
Traffic & Weather Now™
Traffic & Weather Now™ allows you to access
the latest report whenever you want to hear
it. Select your city in the set up menu Select a
City for Traffic & Weather (P.52).
1 Touch [ ] on the left side of the screen.
2 Touch [Traffic & Weather].
The report starts from the beginning. To stop
and return to the previous channel, touch it
again.
Indicator display
• (White) : Played already.
• (Green) : New information arrived.
• (Purple) : Playing.
• (Gray) : No information.
NOTE
• Compatible with SXV300 or later tuner models.
Content Alerts
When a broadcast program related to the
registered artist, song or team starts, an Alert
Content List screen appears to allow you to
switch the current channel to the relevant
channel.
1 When the broadcast of the registered
content starts, an Alert Content List
screen appears.
2 Select a content from the list.
NOTE
• Touch [Info Change]. Select a desired item.
Artist Alert, Song Alert, GameAlert™
• To learn how to register artists and songs for the
Content Alert function, see
1
Information display
in SiriusXM® Basic Operation (P.41).
• To learn how to set up the Content Alerts
function and select Teams for alerts, see Content
Alerts setup (P.49).
SiriusXM®
47English
SportsFlash™
SportsFlash™ will notify you when a big play
happens during a game with one of your
favorite sports teams. Choose to tune in and
hear the play unfold like it was live. Continue
listening to the game or return to your
previous channel.
1 When a big play happens during one of
the games, an Alert screen appears.
■[Jump]
Touch to tune in that channel and play back
the big play.
■[Ignore]
Touch to cancel this specific SportsFlash
alert. Touching [Ignore] will ignore this
specific alert but will allow future alerts for
this game.
■[Cancel]
Touch to cancel SportsFlash alert. No alerts
for this game will be displayed afterward.
NOTE
• Compatible with SXV300 or later tuner models.
• To learn how to set up the SportsFlash alert
function, see SportsFlash™ setup (P.51).
SiriusXM Setup
1 Touch [ ] on the left side of the screen.
Touch [SETUP].
SiriusXM SETUP screen appears.
See the following sections for each
setting.
• Set up the parental code (P.48)
• Set up the Parental Control (P.48)
• Set up the skip channel select (P.49)
• Set up the Content Alerts (P.49)
• Set up the teams for SportsFlash™
(P.51)
• Select the city for Traffic & Weather Jump
or Traffic & Weather Now™ (P.52)
• Select the Featured Bands Update
Messages (P.52)
• Set up the TuneStart™ (P.52)
• Reset to the default settings (P.52)
SiriusXM®
48
Ñ Parental code
You can set a SiriusXM parental code for
Parental Control.
1 Touch [Parental Code] on the SiriusXM
SETUP screen.
Parental Pass Check screen appears.
NOTE
• The code number is set to “0000” as default.
2 Enter the current code number and touch
[Enter].
Parental Pass 1st screen appears.
3 Enter the new code number and touch
[Enter].
Parental Pass 2nd screen appears.
4 Enter the same code number as that you
entered in step 3 and touch [Enter].
The code number is confirmed and the
SiriusXM parental code is now set.
Ñ Parental Control
Parental Control is a feature that provides the
user with the ability to prevent unauthorized
access to mature content and user selected
channels.
1 Touch [Parental Control] on the SiriusXM
SETUP screen.
2 Touch [User], [Mature] or [OFF].
■[User]
Locks only the selected channels.
■[Mature]
Locks channels classified as “mature” only.
■[OFF]
Deactivates the parental mature and user
locks.
3 Enter the parental code you originally
input in as stated in Parental code
(P.48) and touch [Enter].
When selecting [User]
This allows you to limit access to any SiriusXM
channel (Parental Lock Channel).
1 Touch [Parental Lock Channel Selection]
on the SiriusXM SETUP screen.
Parental Pass Check screen appears.
NOTE
• You need to set up a parental code
beforehand as stated in Parental code
(P.48).
2 Enter the parental code you originally
input as stated in Parental code (P.48)
and touch [Enter].
Parental Lock Category Select screen
appears.
3 Touch the desired category in the list.
Displays all channels in the selected
category.
SiriusXM®
49English
NOTE
• Touch [All-Channels] to display all channels.
• To delete the parental lock channel setting,
touch [Disable All] and then touch [YES] on
the confirmation screen.
4 Touch each channel on the list and set to
ON or OFF.
[ON]: Locks the channel.
[OFF]: Unlocks the channel.
NOTE
• Touch [Info Change]. Select a desired item:
content info, channel name, artist name, song
title, category name.
Ñ Skip channel select
You can set the undesired channels to skip.
1 Touch [Skip Channel Select].
Skip Category Select screen appears.
2 Touch the desired category from the list.
Displays all channels in the selected
category.
3 Touch each channel in the list and set to
ON or OFF.
NOTE
• To delete the skip channel setting, touch
[Disable All] and then touch [YES] on the
confirmation screen.
• Touch [Info Change]. Select a desired item:
content info, channel name, artist name, song
title, category name.
• Direct Channel and Preset Memory functions
allow you to select channels.
Ñ Content Alerts setup
Activating content alert
1 Touch [Content Alerts] on the SiriusXM
SETUP screen.
Content Alerts is turned on or off.
Default is “ON”.
Selecting the content for Content Alerts
1 Touch [Content Alerts Contents Set] on
the SiriusXM SETUP screen.
2 Select the content you want to set up.
NOTE
• To cancel all alert contents, touch [Clear] and
then touch [YES] on the confirmation screen.
• Select [OFF] for the content you want to
deactivate the content alert for.
SiriusXM®
50
3 Touch each content list item you want to
check or uncheck.
NOTE
• You can select (þ) up to 60 artists or songs.
●To delete the Artist and Song
1 Touch [Delete].
2 Touch the content(s) in the list you want
to select.
■[þ All]
Selects all contents.
■[¨ All]
Clears all check marks.
3 Touch [Delete] and then touch [YES] on the
confirmation screen.
To select a Team
Get alerted when your favorite sports team
is playing on another SiriusXM channel with
GameAlert™
1 Touch [My Games].
2 Touch the desired league in the list.
3 Touch the team(s) in the list you want to
select.
NOTE
• You can select (þ) up to 30 teams.
SiriusXM®
51English
Ñ SportsFlash™ setup
Activating SportsFlash
1 Touch [SportsFlash] on the SiriusXM
SETUP screen.
SportsFlash is turned on or off.
Default is “ON”.
Selecting SportsFlash Beep
1 Touch [SportsFlash Beep] on the SiriusXM
SETUP screen.
SportsFlash Beep is turned on or off.
Default is “ON”.
Selecting the teams for SportsFlash
1 Touch [SportsFlash Team Set] on the
SiriusXM SETUP screen.
Team Set screen appears.
2 Touch [Edit].
3 Touch the desired league in the list.
4 Touch each team(s) in the list you want
to select.
5 Touch [ ] twice.
■[Edit]
Sets and removes teams.
■[Priority]
Sets the priority of a team.
■[Clear]
Removes all teams that have been set.
Touch [Clear]. When the confirmation screen
appears, touch [YES].
NOTE
• SportsFlash™ is available on SXV300 or later tuner
models.
• Up to 50 teams can be added.
Set the SportsFlash™ Team Priority
1 Touch [Priority].
2 Set the priority of a team.
Each time you touch a Team, the priority is
set of reset.
SiriusXM®
52
3 Touch [Done].
NOTE
• Priority can be set on up to 5 teams.
• When priority has already been set for 5 teams,
it cannot be set for any other team. Delete an
unnecessary team.
Ñ Select a City for Traffic &
Weather
You can select a city for which you wish to
receive SiriusXM Traffic & Weather broadcasts
and hear them from the beginning.
1 Touch [Traffic & Weather City Select] on
the SiriusXM SETUP screen.
2 Touch [T] and [U] to select a city.
Ñ Selecting Featured Bands
Update Messages
You can set whether to be notified when the
featured seasonal theme is updated.
1 Touch [Featured Bands Update
Messages] on the SiriusXM SETUP screen.
Featured Bands Update Messages is turned
on or off.
Ñ TuneStart™
1 Touch [Tune Start] on the SiriusXM SETUP
screen.
The TuneStart is turned on or off.
Default is “ON”.
Ñ Reset
1 Touch [SiriusXM Reset] on the SiriusXM
SETUP screen.
Confirmation screen appears.
2 Touch [YES].
All SiriusXM settings are reset to defaults.
Other External Components
53English
Other External Components
View Camera
NOTE
• To connect a camera, see P.91.
• To use a rear view camera, a REVERSE lead
connection is required. (P.88)
• If [Rear Camera Interruption] is active the
camera screen is displayed when you shift the
gear to the reverse (R) position.
Ñ Display the camera screen
1 Press the [FNC] button.
Popup menu appears.
2 Touch [Camera].
View camera screen appears.
3 Adjust each item as follows.
To erase the caution message, touch the
screen.
2
1
1
Switching the View Camera*1
Touch to change the front view camera and
rear view camera.
2
Camera off
Touch to exit the camera screen.
*1 When the front camera and rear camera are
connected with this unit.
Ñ Camera Setup
1 Press the [FNC] button.
Popup menu appears.
2 Touch [ ].
HOME screen appears.
3 Touch [ ].
SETUP screen appears.
4 Touch [Camera].
Camera screen appears.
5 Set each item as follows.
■[Rear Camera Interruption]
[ON] (Default): Displays the picture from the
rear view camera when you shift the gear
to the reverse (R) position.
[OFF]: Select this when no camera is
connected.
■[Parking Guidelines]
You can display parking guidelines to enable
easier parking when you shift the gear to the
reverse (R) position.
Default is “ON”.
■[Guidelines SETUP]
If you select [ON] for [Parking Guidelines],
you can adjust the parking guidelines. See To
adjust the parking guidelines (P.54).
■[Front Camera]
[ON]: Select this when the front camera is
connected.
[OFF] (Default): Select this when no camera is
connected.
■[Front Camera Interruption]
*2
[10 sec]/ [15 sec] (Default)/ [20 sec]: The front
camera screen is displayed when return
the gear from the reverse (R) position.
[OFF]: Cancel.
*2 Only when “Front Camera” is set to “ON”.
Other External Components
54
To adjust the parking guidelines
NOTE
• Install the rear view camera in the appropriate
position according to the instruction manual
supplied with the rear view camera.
• When adjusting the parking guidelines, make
sure to apply the parking brake to prevent the car
from moving.
1 Touch [Parking Guidelines] in the Camera
screen and set to ON. (P.53)
2 Touch [Guidelines SETUP] on the Camera
screen.
3 Adjust the parking guidelines by
selecting the mark.
4 Adjusting the position of the selected
mark.
A
B
CD
Make sure that lines A and B are
horizontally parallel, and that lines C and
D are of the same length.
NOTE
• Touch [Initialize] and then touch [Ye s ] to set all
the marks to their initial default position.
External audio/video players
(AV-IN)
1 Connect an external component to the
AV-IN input terminal. (P.91)
2 Select [AV-IN] as the source. (P.14)
3 Turn on the connected component and
start playing the source.
Other External Components
55English
OEM Features Operation
By connecting this unit to the bus system of
the vehicle using an iDataLink (commercially
available), this unit can access the satellite
radio source provided for the vehicle and can
display vehicle information on this unit.
1 Press the [FNC] button.
Popup menu appears.
2 Touch [ ].
HOME screen appears.
3 Touch [ ] .
4 Touch icon.
• Displays the control screen of the
Bluetooth Hands Free function provided
for the vehicle.
• Displays information about the tire
pressures of the vehicle. *
• Displays the control screen of the satellite
radio source provided for the vehicle.
• Displays the control screen of the media
player source provided for the vehicle.
• Displays the control screen of the
Bluetooth streaming source provided for
the vehicle.
• Displays information about the Radar
Detector. *
• Displays information about the
instruments such as a speedometer.
• Displays information about the air
conditioner of the vehicle. *
• Displays information about the Parking
Distance Sensor of the vehicle.
* These ADS adapter features are displayed as the
Information Window on the HOME screen. (P.12)
You can display the relevant screens by touching the
Information Window.
NOTE
• Displayable screens, button names, and screen
names vary depending on the type of the
connected iDataLink and the model of the
vehicle. For more details, access the following
URL:
www.idatalink.com/
Bluetooth Control
56
Bluetooth Control
Using the Bluetooth function allows you to use
various functions such as listening to the audio
file and making/receiving a call.
Information for using
Bluetooth® devices
Bluetooth is a short-range wireless radio
communication technology for mobile devices
such as cell-phones, portable PCs, and other
devices.
Bluetooth devices can be connected without
cables and communication with each other.
NOTE
• While driving, do not perform complicated
operations such as dialing numbers, using the
phone book, etc. When you perform these
operations, stop your car in a safe place.
• Some Bluetooth devices may not be connected
to this unit depending on the Bluetooth version
of the device.
• This unit may not work for some Bluetooth
devices.
• Connecting conditions may vary depending on
your environment.
• Some Bluetooth devices are disconnected when
this unit is turned off.
Ñ About the cell-phone and
Bluetooth audio player
This unit conforms to the following Bluetooth
specifications:
Version
Bluetooth Ver. 4.1
Profiles
Cell-phone:
HFP (V1.7) (Hands Free Profile)
SPP (Serial Port Profile)
PBAP (Phonebook Access Profile)
Audio player:
A2DP (Advanced Audio Distribution Profile)
AVRCP (V1.6) (Audio/Video Remote Control
Profile)
Sound codec
SBC, AAC
NOTE
• The units supporting the Bluetooth function have
been certified for conformity with the Bluetooth
Standard according to the procedure prescribed
by Bluetooth SIG.
• However, it may be impossible for such units to
communicate with your cell-phone depending
on its type.
Bluetooth Control
57English
Register the Bluetooth device
It is necessary to register the Bluetooth audio
player or cell-phone in this unit before using
the Bluetooth function.
You can register up to 10 Bluetooth devices.
NOTE
• Up to 10 Bluetooth devices can be registered. If
an attempt is made to register the 11th Bluetooth
device, the Bluetooth device connected on the
earliest date will be deleted to register the 11th
one.
• This unit is compatible with the Apple Easy
Pairing function. When an iPod touch or iPhone is
connected to this unit, an authentication dialog
appears. Performing operation for authentication
on this unit or iOS smartphone registers the
smartphone as a Bluetooth device.
1 Search for the unit (“KW-V****”/
“KW-M****”) from your smartphone/cell-
phone.
Complete steps 1 to 4 within 30 seconds.
2 Operate your smartphone/cell-phone
according to the displayed messages.
●Confirm the request both on the
smartphone/cell-phone.
●Input the PIN Code in your
smartphone/cell-phone.
PIN Code is set to “0000” as the default.
3 Select the function you want to use.
■HFP [Hands Free1]/ [Hands Free2]/ [No
Connection.]
Select the hands-free number to connect.
■A2DP/SPP [Audio/App]
Select if you want to use the audio player
app in your smartphone over A2DP, and the
other apps in your smartphone over SPP.
■PBAP [Phonebook DL]
Select if you want to transfer your
phonebook data.
4 Touch [Ye s ].
When data transmission and connection
have completed, the Bluetooth connection
icon appears on the screen.
Bluetooth Setup
1 Press the [FNC] button.
Popup menu appears.
2 Touch [ ].
HOME screen appears.
3 Touch [ ].
SETUP screen appears.
4 Touch [Bluetooth].
Bluetooth Setup screen appears.
See the following section for each
setting.
• Connect the Bluetooth device (P.58)
• Change the device name (P.59)
• Change the PIN Code (P.59)
Bluetooth Control
58
Ñ Connect the Bluetooth device
1 Touch [Select Device] on the Bluetooth
Setup screen.
2 Touch the name of the device you want
to connect.
Profile select screen appears.
NOTE
• If the icon is lighted, it means that the unit will
use that device.
3 Set each profile as follows.
■[TEL (HFP) 1], [TEL (HFP) 2]
Select when the device is connected with
the unit as hands-free phone 1 or 2.
■[Audio (A2DP)/App (SPP)]
Select to interwork with an application
installed in a smartphone or to use as an
audio player.
4 Touch [Close].
To delete the registered Bluetooth
device
1 Touch [Delete].
2 Touch the device name to check.
■[þ All]
Selects all Bluetooth devices.
■[¨ All]
Clears all check marks.
3 Touch [Delete].
Confirmation message appears.
4 Touch [Ye s ].
Bluetooth Control
59English
Ñ Change the device name
1 Touch [Device Name] on the Bluetooth
Setup screen.
Change Device Name screen appears.
2 Touch and hold [ ].
3 Input the device name.
4 Touch [Enter].
Ñ Change the PIN Code
1 Touch [PIN Code] on the Bluetooth Setup
screen.
Change PIN Code screen appears.
2 Touch and hold [ ].
3 Input the PIN Code.
4 Touch [SET].
Playing the Bluetooth Audio
Device
Most functions can be controlled from the
source control screen.
To select Bluetooth source, touch [BT Audio]
icon on the source selection screen. (P.14)
Ñ Bluetooth basic operation
Control screen
3
2
1
6
4 5
1
Artwork/ VU meter
• Displays/hides artwork area.
• When touched, switches the artwork to the
VU meter.
2
Play mode indicator/ Playing time
D, H : Current play mode indicator
Meanings of individual icons are as follows:
D (play), B (fast forward), A (fast backward),
H (pause), I (stop).
3
Operation keys *
• [1]: Searches for a file. See File search
(P.61).
• [E] [F]: Searches for the previous/next
content.
Touch and hold to fast forward or fast
backward.
• [D]: Plays.
• [H]: Pauses.
• [
]: Displays the Bluetooth Setup screen.
• [
] : Touch to attenuate/restore the sound.
4
JVC Streaming DJ
Bluetooth audio devices can be switched easily
to play music. See JVC Streaming DJ (P.60).
Bluetooth Control
60
5
[ ] / [ ] *
• [
] : Repeats the current track/folder. Each
time you touch the key, repeat modes are
switched in the following sequence:
File repeat ( ), Folder repeat ( ), All
songs repeat ( ), Repeat off ( )
• [
] : Randomly plays all tracks in the current
folder. Each time you touch the key, random
modes are switched in the following sequence:
Folder random ( ), All random ( ),
Random off ( )
6
Information display *
• Displays the name of track information.
• Connected device name.
* These items appear only when the audio player
which supports AVRCP profile is connected.
NOTE
• The operation buttons, indications and
information displayed on the screen differ
depending on the connected device.
• If the operation keys do not appear, operate from
the player.
• Depending on your cell-phone or audio player,
sound may be heard and controlled but text
information may not appear.
• If the volume is too low, raise it on your cell-
phone or audio player.
Ñ JVC Streaming DJ
Up to five Bluetooth audio device can be
connected and switched easily to play music.
1 Touch [ ].
A list of registered devices is displayed.
2 Touch [ ] of device name you want to
connect.
• Touching [
] displays the Bluetooth
device connection setup screen. (P.58)
• Touching [
] on the left of the
connected device ( ) disconnects
this device.
• : Device used normally.
• : Device used for JVC Streaming DJ.
3 Touch [ ] (white) on the left of the name
of the device to be played.
[
] (white) changes to [ ] (Blue) and starts
playback.
• (Gray) : Not connected.
• (White) : Connected.
• (Blue) : During playback.
4 Touch [ ].
NOTE
• If a connected Bluetooth audio device is operated
to play music, connections are switched.
• When a Bluetooth source is switched to another
one, its settings are deleted and the connection
is restored to the connection before source
switching.
Bluetooth Control
61English
Ñ File search
1 Touch [1].
2 Touch the desired file or folder.
When you touch a folder its contents are
displayed.
3 Touch the desired item in the content list.
Playback starts.
NOTE
• For operations in the list screen, see List screen
(P.17).
Using the Hands-Free Unit
You can use the telephone function by
connecting the Bluetooth telephone to this
unit.
NOTE
• While Apple CarPlay or Android Auto is
connected, the Bluetooth Hands-Free function
and two Bluetooth devices connections cannot
be used. Only the Apple CarPlay or Android Auto
Hands-Free function can be used.
Ñ Make a call
1 Press the [FNC] button.
Popup menu appears.
2 Touch [Phone].
Hands Free screen appears.
NOTE
• If your cell-phone supports PBAP, you can display
the phone book and call lists onto the touch
panel screen when the cell-phone is connected.
– Phone book: up to 1000 entries
– Up to 50 entries including dialed calls, received
calls, and missed calls
3 Select a dialing method.
• [ ]: Call using call records
• [
]: Call using the phonebook
• [
]: Call using the preset number
• [
]: Call by entering a phone number
Bluetooth Control
62
●Select the cell-phone to use
When you connect two cell-phones
1) Touch [
] to select the
phone you want to use.
●Bluetooth Setup
1) Touch [
].
Bluetooth Setup screen appears.
●Voice Recognition
1) Touch [
]. (P.63)
NOTE
• Status icons such as battery and antenna icons
may differ from those displayed on the cell-
phone.
• Setting the cell-phone in the private mode can
disable the hands-free function.
Call using call records
1 Touch [ ].
2 Select the phone number from the list.
Call using the phonebook
1 Touch [ ].
2 Touch [ ].
3 Select the initial.
• Characters with no corresponding name
will not appear.
• A first character with an accent character
such as “ü” can be searched for with a
non-accent character “u” . A character
with an accent character in a sentence
cannot be searched for.
4 Select the person you want to call from
the list.
5 Select the phone number from the list.
NOTE
• You can sort the phone numbers in the list by last
name or first name. For details, see Hands-Free
Setup (P.66).
Bluetooth Control
63English
Call using the preset number
1 Touch [ ].
2 Touch the name or phone number.
Call by entering a phone number
1 Touch [ ].
2 Enter a phone number with number keys.
3 Touch [ ].
Ñ Voice Recognition
You can access the voice recognition function
of the cell-phone connected to this unit.
You can search the cell-phone phonebook
by voice. (The functionality depends on the
cell-phone.)
1 Press the [FNC] button for 1 second.
KW-V850BT/ KW-V85BT/
KW-M750BT/ KW-M75BT
Press for 1 second
KW-M650BT
Press for 1 second
Voice Recognition screen appears.
2 Start speaking.
NOTE
• You can use the voice recognition function by
touching [ ] on the Hands Free screen.
Bluetooth Control
64
Ñ Receive a call
1 Touch [ ] to answer a phone call or
[
] to reject an incoming call.
NOTE
• While monitoring the picture from the view
camera, this screen does not appear even if a call
comes in.
To end call
1 While talking, touch [ ].
Ñ Operations during a call
●Adjust the volume of your voice
1) Touch [Speech Quality].
2) Touch [T] or [U] for [Microphone Level].
●Adjust the receiver volume
Press the [–] or [+] button.
KW-V850BT/ KW-V85BT/
KW-M750BT/ KW-M75BT
KW-M650BT
●Mute your voice
Touch [
] to mute or not to mute your voice.
●Output the dial tone
Touch [DTMF] to display the tone input screen.
You can send tones by touching desired keys
on the screen.
●Switching between speaking voice
output destinations
Touching [
]/ [ ] each time switches
speaking voice output destinations between
the cell-phone and the speaker.
●Call-waiting
When you receive a new call while talking on
the phone, you can answer the newly received
call by touching [
]. The current call is put on
hold.
Each time you touch [
], the caller will change
to the other one.
When you touch [
], the current call will end
to be switched to the call waiting on hold.
●To close the Hands-Free popup screen
Touching [×] to close the Hands-Free popup
screen. To display it again, touch [
] after
pressing the [FNC] button.
Bluetooth Control
65English
Ñ Phone number preset
You can register frequently used phone
numbers in this unit.
1 Touch [ ].
2 Touch [Edit].
3 Select where to preset.
■[Delete all]
To delete all preset numbers, touch [Delete
all] and then touch [OK] on the confirmation
screen.
4 Select how to preset.
■[Add number from phonebook]
Select the number to preset from the
phonebook. See Call using the phonebook
(P.62).
■[Add number direct]
Enter the telephone number directly and
touch [SET]. See Call by entering a phone
number (P.63).
■[Delete]
To delete a preset number, touch [Delete]
and then touch [OK] on the confirmation
screen.
Ñ Phonebook transfer
You can transfer phonebook data from your
Bluetooth smartphone using PBAP.
1 Touch [ ].
2 Touch [ ].
Phonebook data transfer starts.
NOTE
• If the Phonebook contains more than 1000
entries, Phonebook data cannot be transferred.
• If no Phonebook has been downloaded, touching
[Download Phonebook Now] will start
downloading the Phonebook.
Phonebook deletion
1 Touch [ ].
2 Touch the name to check.
■[þ All]
Checks all boxes.
■[¨ All]
Clears all check marks.
3 Touch [Delete].
Confirmation message appears.
4 Touch [OK].
Bluetooth Control
66
Hands-Free Setup
You can make various settings for the Hands-
Free function.
1 Press the [FNC] button.
Popup menu appears.
2 Touch [ ].
HOME screen appears.
3 Touch [ ].
SETUP screen appears.
4 Touch [Bluetooth].
Bluetooth Setup screen appears.
5 Touch [TEL SETUP].
TEL SETUP screen appears.
6 Set each function as follows.
■[Bluetooth HF/Audio]
Select the speakers to output the sound from
the cell-phone (such as phone call voice and
ringing tone) and Bluetooth audio player.
[Front]: Outputs sound from the front
speakers.
[All ](Default): Outputs sound from all
speakers.
■[Auto Response]*
Set the automatic response time to pick-up
an incoming call.
[OFF ](Default): Turns off the Automatic
response function.
[1]/ [5]/ [10]/ [15]/ [20]/ [25]/ [30]: Sets the
ringing time (second).
■[Auto Pairing]
When set to “ON”, the Apple Auto Pairing
function is turned on to automatically
register the iPod touch or iPhone connected
to this unit.
[ON ](Default): Turns on the Apple Auto
Pairing function.
[OFF]: Turns off the Apple Auto Pairing
function.
■[Sort Order]
Set how to sort the data in the cell-phone
phonebook.
[First]: Sorts data by the first name.
[Last ](Default): Sorts data by the last name.
■[Echo Cancel Level]
Adjust the level of echo cancellation.
Default is “0”.
■[Noise Reduction Level]
Reduce the noise generated in the
surrounding environment without changing
the microphone volume. Use this function
when the voice of caller is not clear. Default
is “0”.
* Either the auto response time set on this
unit or the time set on the cell-phone,
whichever is shorter takes effect.
7 Touch [OK].
Setup
67English
Setup
Monitor Screen Setup
You can adjust the image quality of video,
menu screen, etc.
1 Press the [FNC] button.
Popup menu appears.
2 Touch [Screen Adjust].
Screen Adjustment screen appears.
3 Adjust each setting as follows.
■[Backlight] / [Contrast] / [Black] /
[Brightness] / [Color] / [Tint]
Adjust each setting.
■[Aspect]
Select a screen mode.
[Full]: Changes the aspect ratio of video and
displays video fully on the screen.
[Normal]: Displays video at the ratio of 4:3.
[Auto]:
DVD, VCD and disc media: 16:9 video is
displayed in the Full mode and 4:3 video is
displayed in the Regular mode.
USB device: Displays video fully (vertically
or horizontally) with no ratio change.
NOTE
• Settings to adjust vary depending on the current
source.
System Setup
1 Press the [FNC] button.
Popup menu appears.
2 Touch [ ].
HOME screen appears.
3 Touch [ ].
See the following section for each
setting.
• Set up AV (P.72)
• Set up display (P.70)
• Set up the user interface (P.68)
• Set up camera (P.53)
• Set up special (P.69)
• Set up Bluetooth (P.57)
Setup
68
User Interface Setup
You can setup user interface parameters.
1 Press the [FNC] button.
Popup menu appears.
2 Touch [ ].
HOME screen appears.
3 Touch [ ].
SETUP screen appears.
4 Touch [User Interface].
User Interface screen appears.
5 Set each parameter as follows.
■[Beep]
Turn the key touch tone on or off.
Default is “ON”.
■[Information Window SETUP]
Set up the Information window displayed on
the HOME screen. (P.18)
■[Monitor Touch Control Effect]
Determine whether to show the trace of
finger under monitor touch control. (P.11)
“ON” (Default)/ “OFF”
■[Parking Assist Display]
When an ADS adapter is connected, you can
display information about obstacles around
the car.
[ON]: Always displays information.
[Dyn.] (Default): Displays information when
the sensor detects obstacles.
[OFF]: Cancels this function.
This can be set when the iDataLink
(commercially available) is connected.
■[Parking Assist Position]
Select where to display information about
obstacles on the screen (left or right).
“Left”/ “Right” (Default)
This can be set when the iDataLink
(commercially available) is connected.
■[Language Select]
Select a language.
■[Touch Panel Adjust]
Adjust the sensing position of the touch
panel. (P.69)
■[Time Format]
Select the time display format.
"12-Hour" (Default)/ "24-Hour"
■[Clock]
[[RDS-SYNC] ](Default): Synchronizes the
clock time with the RDS.
[Manual]: Set the clock manually.
■[Time Zone]
Select the time zone.
■[Clock Adjust]
If you select [Manual] for Clock, adjust the
date and time manually. (P.69)
■[DISP Key]
Select the source screen displayed when
in the popup menu screen is pressed.
[OFF]: Displays the control screen of the
current source.
[Mirroring] (Default): Switches to the App
screen from the connected iPhone/
Android device or to the Apple CarPlay
screen from the connected iPhone when
the button is pressed. (P.25)
Setup
69English
Ñ Adjust the date and time
manually
1 Touch [Clock] on the User Interface screen.
2 Select [Manual].
3 Touch [Time Zone] on the User Interface
screen.
4 Select the time zone.
5 Touch [Clock Adjust] on the User Interface
screen.
6 Adjust the date, then adjust the time.
7 Touch [Set].
Ñ Touch panel adjustment
1 Touch [Touch Panel Adjust] on the User
Interface screen.
Touch Panel Adjust screen appears.
2 Follow the instruction on the screen and
long touch the center of each [ ].
1
2
NOTE
• To cancel the touch panel adjustment, touch
[Cancel].
• To reset it to the default, touch [Reset].
Special Setup
You can setup special parameters.
1 Press the [FNC] button.
Popup menu appears.
2 Touch [ ].
HOME screen appears.
3 Touch [ ].
SETUP screen appears.
4 Touch [Special].
Special screen appears.
5 Set each parameter as follows.
■[DEMO]
Select the demonstration mode. Default is
“ON”.
■[Software Information]
Confirm the software version of this unit.
(P.69)
■[Open Source Licenses]
Display the open source licenses.
■[Initialize]
Touch [Initialize] and then touch [Ye s ] to set
all the settings to the initial default settings.
• Audio SETUP Memory is not initialized.
Ñ Software Information
You can confirm the software version of this
unit.
1 Touch [Software Information] in the
Special screen.
2 Confirm the software version.
Setup
70
NOTE
• For how to update the software, see the relevant
update procedure manual which comes with the
software.
Display Setup
1 Press the [FNC] button.
Popup menu appears.
2 Touch [ ].
HOME screen appears.
3 Touch [ ].
SETUP screen appears.
4 Touch [Display].
Display screen appears.
5 Set each parameter as follows.
■[Dimmer]
Select the dimmer mode.
[OFF]: Does not dim the display and buttons.
[ON]: Dims the display and buttons.
[SYNC ](Default): Turns the dimmer function
on or off when the vehicle light control
switch is turned on or off.
■[OSD Clock]
Select if you want to display the clock while
watching DVD video, etc.
"ON" (Default)/ "OFF"
■[Key color] (KW-M650BT only)
You can set the button illumination color.
(P.70)
■[Wallpaper Customize]
You can change the wallpaper image or
color. (P.71)
■[Viewing Angle]
If it is hard to see the image on the screen
evenly, adjust the viewing angle. The smaller
the (negative) value, the more whitish the
image on the screen looks.
"0" (Default)/ "-1"/ "-2"/ "-3"
Ñ Customizing the key color
(KW-M650BT)
You can set the button illumination color.
1 Touch [Key Color] on the Display screen.
2 Touch the desired color.
■[User]
The color you have set in the process of
[Adjust] is registered.
■[Scan]
You can set the key color to continuously
scan through the color spectrum.
■[Car Color]
This can be selected when a compatible ADS
adapter is connected.
3 Touch [ ].
To register an original color
You can register your original color.
1 Touch [User] on the Key Color screen.
2 Touch [Adjust].
3 Use [–] and [+] to adjust each color value.
4 Touch [ ].
Setup
71English
Ñ Change the wallpaper image
1 Touch [Wallpaper Customize] on the
Display screen.
2 Select an image.
*1*2
*1
Select a wallpaper color in advance.
*2
Select an original image in advance.
To select wallpaper color
1 Touch [Wallpaper Color] on the Wallpaper
Customize screen.
2 Select a wallpaper color.
3 Touch [ ].
To register an original color
You can register your original color.
1 Touch [User] on the Wallpaper Color
screen.
2 Touch [Adjust].
3 Use [–] and [+] to adjust each color value.
4 Touch [ ].
Setup
72
To register an original image
You can load an image from the connected
USB device and set it as the wallpaper image.
Before starting this procedure, it is necessary
to connect the device which has the image to
load.
1 Touch [User1 Select] on the Wallpaper
Customize screen.
2 Select the image to load.
3 Touch [Enter].
The selected image is loaded and
the display returns to the Wallpaper
Customize screen.
NOTE
• Touching [ ] rotates the image counter-
clockwise.
• Touching [
] rotates the image clockwise.
• Picture files: JPEG (.jpg, .jpeg), PNG (.png), BMP
(.bmp)
AV Setup
You can set AV parameters.
1 Press the [FNC] button.
Popup menu appears.
2 Touch [ ].
HOME screen appears.
3 Touch [ ].
SETUP screen appears.
4 Touch [AV].
AV screen appears.
5 Set each parameter as follows.
■[AV-OUT]
You can select an AV source to be output
from the AV OUTPUT port.
OFF, AV-IN, DISC (KW-V850BT/ KW-V85BT
only), USB, or iPod
• You cannot select iPod if it is connected via
Bluetooth.
• If you select iPod as the main source, you
cannot select DISC or USB as the AV output
source.
• If you select USB as the main source, you
cannot select DISC (Music CD/ Disc media)
as the AV output source.
• If you select DISC (Music CD/ Disc media)
as the main source, you cannot select USB
or iPod as the AV output source.
• If you select Spotify, Pandora, Bluetooth
audio, Apple CarPlay or Android Auto as
the main source, you cannot select DISC
(Music CD/ Disc media), USB or iPod as the
AV output source.
■[Driving Position]
Select the driving position (left or right).
“Left” (Default)/ “Right”
■[OEM SETUP]
Confirm the information about or change
the settings for using the ADS adapter.
Controlling Audio
73English
Controlling Audio
You can adjust various settings such as audio
balance or subwoofer level.
1 Press the [FNC] button.
Popup menu appears.
2 Touch [Audio].
See the following section for each
setting.
• Set up speaker / X’over (P.74)
• Controlling equalizer / subwoofer level
(P.76)
• Set listening position / DTA (P.80)
• Controlling general audio (Fader /
Balance) (P.76)
• Set volume offset (P.77)
• Performing zone control (P.78)
• Set sound effect (P.79)
• Memory/recall the audio settings
(P.82)
3-way speaker system setup
Select the appropriate crossover network
mode for the speaker system used (2-way or
3-way speaker system).
1 Press the [FNC] button.
Popup menu appears.
2 Touch [ ].
HOME screen appears.
3 Touch [ ].
Source selection screen appears.
4 Touch [AV Off].
5 Press the button 1 followed by the
button 2 for 1 second at the same time.
KW-V850BT/ KW-V85BT/
KW-M750BT/ KW-M75BT
12
KW-M650BT
1
2
Speaker system select screen appears.
6 Select the crossover network mode.
A confirmation screen appears.
7 Touch [Ye s ].
NOTE
• When the 3-way speaker system is selected, the
following functions are disabled.
– Front focus of Listening Position / DTA
– Fader for Controlling General Audio
– Zone Control
– Selection of the speakers to output sound from
the cell-phone of Bluetooth HF/Audio
– Beep for User Interface Setup
• Connecting 3-way speakers with the 2-way mode
selected can break the speakers.
Controlling Audio
74
Speaker / X’over setup
1 Press the [FNC] button.
Popup menu appears.
2 Touch [Audio].
Audio screen appears.
3 Touch [Speaker / Xʼover].
4 Select a car type.
You can select the car type and speaker
network, etc.
When you select your car type, the Delay
Time Alignment is activated automatically
(for timing adjustment of sound output for
each channel) to have the highest surround
effects.
5 Touch the speaker (1) you wish to adjust
and set each parameter (2) as follows.
1
2
■[Speaker]
You can select a speaker type and its size to
get the best sound effects.
When the speaker type and size are selected,
the speaker crossover network is set
automatically.
■[Location] (Only for Front, Rear)
Select the speaker position you have
installed.
■[Tweeter] (Only for Front)
You can set up the tweeter when you are
selecting front speakers.
None, Small, Medium, Large
■[Xʼover]*
Display the speaker crossover setup screen.
You can adjust the crossover frequency that
was set automatically when you selected the
speaker type.
For details, see Crossover network setup
(P.75)
* Only when “Speaker” is set to a mode other
than “None”.
When Speaker network is set to 3-way:
1
2
NOTE
• For how to switch to the 3-way speaker system,
see 3-way speaker system setup (P.73).
Connecting 3-way speakers with the 2-way mode
selected can break the speakers.
• Select “None” if you have no speakers.
Controlling Audio
75English
Ñ Crossover network setup
You can set the crossover frequency of
speakers.
1 Touch [Xʼover].
2 Touch the speaker to set up.
3 Set each parameter as follows.
■[HPF FREQ]
High Pass Filter adjustment. (When Front or
Rear is selected on the Speaker Select screen)
■[LPF FREQ]
Low Pass Filter adjustment. (When
Subwoofer is selected on the Speaker Select
screen)
■[Slope]*1
Set a crossover slope.
■[Gain]
Adjust the gain of the front speaker, rear
speaker, or subwoofer.
■[TW Gain] *2
Adjust the tweeter level. (When Front is
selected on the Speaker Select screen)
■[Phase Inversion]
Set the phase of subwoofer output.
Check [Phase Inversion] to shift the phase
180 degrees. (When Subwoofer is selected
on the Speaker Select screen)
*1 Only when “LPF FREQ”/“HPF FREQ” is set to
a mode other than “Through” in [Xʼover].
*2 Only when “Tweeter” is set to “Small”,
“Medium”, “Large” in [Speaker Setup].
When Speaker network is set to 3-way:
■[FREQ] (High Pass)
High Pass Filter adjustment.
■[HPF FREQ], [LPF FREQ] (Band Pass)
Band Pass Filter adjustment. (When Mid
Range Speaker is selected on the Speaker
Select screen)
■[FREQ] (Low Pass)
Low Pass Filter adjustment. (When Woofer is
selected on the Speaker Select screen)
■[Slope]*1 *2
Set a crossover slope.
■[Gain]
Set the gain of each speaker.
■[Phase Inversion]
Set the phase of tweeter, mid range, and
woofer output.
Check [Phase Inversion] to shift the phase
180 degrees.
*1 Only when “LPF FREQ”/“HPF FREQ” (Band
Pass) is set to a mode other than “Through”
in [Xʼover].
*2 Only when “FREQ” (Low Pass) is set to a
mode other than “Through” in [Xʼover].
NOTE
• For how to switch to the 3-way speaker system,
see 3-way speaker system setup (P.73).
Connecting 3-way speakers with the 2-way mode
selected can break the speakers.
Controlling Audio
76
Controlling General Audio
1 Press the [FNC] button.
Popup menu appears.
2 Touch [Audio].
Audio screen appears.
3 Touch [Fader / Balance].
4 Set each parameter as follows.
■[Fader / Balance]
Adjust the volume balance around the
touched area.
[C] and [D] adjust the right and left volume
balance.
[R] and [S] adjust the front and rear volume
balance.
■[Center]
Clear the adjustment.
Equalizer Control
You can adjust equalizer by selecting the
optimized setting for each category.
1 Press the [FNC] button.
Popup menu appears.
2 Touch [Audio].
Audio screen appears.
3 Touch [EQ / SW Level].
4 Touch the screen and set the Graphic
Equalizer as desired.
■Gain level (area in dotted frame)
Adjust the gain level by touching each
frequency bar.
You can select a frequency bar and adjust its
level by [R], [S].
■[Preset Select]
Display the screen for selecting the preset
equalizer curve. (P.77)
■[Memory]
Saves the adjusted equalizer curve as “User1”
to “User4”. (P.77)
■[Initialize]
Initialize (flatten) the current EQ curve.
■[ALL SRC]
Apply the adjusted equalizer curve to all
sources. Touch [ALL SRC] and then touch
[OK] on the confirmation screen.
■[Bass EXT] (Bass Extend Settings)
When turned on, the frequencies lower than
62.5 Hz is set to the same gain level (62.5 Hz).
Controlling Audio
77English
■[SW Level]
Adjust the subwoofer volume. This setting
is not available when Subwoofer is set to
“None”. See Speaker / X’over setup (P.74).
Ñ Recall the EQ curve
1 Touch [Preset Select].
2 Select an EQ curve.
NOTE
• [iPod] is available only for the iPod source and it is
connected via USB.
Ñ Save the EQ curve
1 Adjust the EQ curve.
2 Touch [Memory].
3 Select where to save.
Volume Offset
Finely adjust the volume of the current source
to minimize the difference in volume between
different sources.
1 Press the [FNC] button.
Popup menu appears.
2 Touch [Audio].
Audio screen appears.
3 Touch [Volume Offset].
4 Touch [+] or [–] to adjust the level.
■[Initialize]
Returns to the initial settings.
NOTE
• If you have increased the volume first, then
reduce the volume using “Volume Offset”.
Switching the current source to another source
suddenly may output extremely loud sound.
Controlling Audio
78
Zone Control
You can select different sources for front and
rear positions in the vehicle.
1 Press the [FNC] button.
Popup menu appears.
2 Touch [Audio].
Audio screen appears.
3 Touch [Zone Control].
Zone Control screen appears.
4 Touch [Zone Select].
5 Touch [Dual Zone].
6 Set each source as follows.
■[Zone Select]
Touch [Single Zone] to turn off the dual
zone function.
■[Front Source], [Rear Source]
Select an audio source for each.
■[Rear VOL.]
Adjust the rear source volume.
NOTE
• When the rear speaker sound is switched, the
audio source that is output at the AV OUTPUT
terminal is also switched to the same source.
• When the dual zone function is set to on, the
following functions are not available.
– Output from the subwoofer
– Subwoofer Level/ Bass Boost (P.79)
– Equalizer Control/ Sound Effect/ Listening
Position (P.76, 79, 80)
– Speaker Setup (P.74)
– High-resolution Sound Source File Playback
• You cannot select iPod as the Rear Source if it is
connected via Bluetooth.
• If you select iPod as the Front Source, you cannot
select DISC or USB as the Rear Source.
• If you select USB as the Front Source, you cannot
select DISC (Music CD/ Disc media) as the Rear
Source.
• If you select DISC (Music CD/ Disc media) as the
Front Source, you cannot select USB or iPod as
the Rear Source.
• If you select Spotify, Pandora, Bluetooth audio,
Apple CarPlay or Android Auto as the Front
Source, you cannot select DISC (Music CD/ Disc
media), USB or iPod as the Rear Source.
Controlling Audio
79English
Sound Effect
You can set sound effects.
1 Press the [FNC] button.
Popup menu appears.
2 Touch [Audio].
Audio screen appears.
3 Touch [Sound Effect].
4 Set each parameter as follows.
■[Bass Boost]
Set the amount of bass boost “OFF”/ “1”/ “2”/
“3”.
■[Loudness]
Set the amount of boost of low and high
tones.
“OFF”, “Low”, “High”
■[Volume Link EQ]
Reduce the driving noise by boosting
specific frequencies in the audio signal.
“OFF”, “ON”
■[Space Enhancement]
Select the feeling of sound space
enhancement.
“OFF”/ “Small”/ “Medium”/ “Large”.
This setting is not available for the Tuner
source.
■[K2]
Turn ON/OFF the K2 function.
Technology to extrapolate and supplement
with proprietary algorithm, the high-
frequency range that is cut off when
encoding.
■[Sound Response]
Virtually make the sound more realistic using
the Digital Signal Processor (DSP) system.
Select the level from “OFF”/ “1”/ “2”/ “3”.
■[Sound Lift]
You can adjust the height of speakers
virtually to suit your listening position.
“OFF”/ “Low”/ “Middle”/ “High”.
Controlling Audio
80
Listening Position / DTA
Listening Position / DTA allows you to improve
the sound field depending on the position of
the seat you sit.
Listening Position / DTA allows you to set
“Listening Position” and “Front Focus”. You
cannot set both at the same time.
1 Press the [FNC] button.
Popup menu appears.
2 Touch [Audio].
Audio screen appears.
3 Touch [Position / DTA].
• Set up Listening Position (P.80)
• Set up Front Focus (P.81)
Ñ Listening Position
Adjust the sound delay time so that the
sounds from different speakers arrive at the
listener sitting on the selected seat at the
same time.
1 Touch [Listening Position] on the Position
/ DTA screen.
2 Select a listening position from [Front R]
(Right front), [Front L] (Left front),
[Front All] (All front), and [All].
Position DTA control
You can fine-adjust your listening position.
1 Touch [Adjust].
2 Touch [Delay].
3 Touch [T] or [U] to adjust the delay time of
the selected speaker.
4 Touch [Level].
5 Touch [T] or [U] to adjust the sound level
of the selected speaker.
NOTE
• To initialize the Delay and Level settings, touch
[Initialize] and [Ye s ] on the confirmation screen.
Controlling Audio
81English
Ñ Front Focus
You can focus the imaginary sound image on
the front of the selected seat.
1 Touch [Front Focus] in the Position / DTA
screen.
2 Select a front focus position.
For [Front All] and [All], select Priority L or R
depending on which side you want to put
the imaginary sound image.
Ñ Front Focus fine adjustment
1 Touch [Adjust].
2 Touch [Delay].
3 Set each parameter as follows.
■[Sound Image LR (Front)]
Focus the sound image on the front of front
seats.
■[Sound Image LR (Rear)]
Focus the sound image on the front of rear
seats.
■[Size of the Virtual Sound Field]
Adjust the size of sound image to meet your
taste. If the sound image is shifted from the
front, move it back by [Sound Image LR
(Front)] or [Sound Image LR (Rear)].
■[Subwoofer Delay]
Adjust the delay time of subwoofer sound.
4 Touch [Level].
5 Touch [T] or [U] to adjust the sound level
of the selected speaker.
NOTE
• To initialize the Delay and Level settings, touch
[Initialize] and [Ye s ] on the confirmation screen.
Controlling Audio
82
Audio Setup memory
Audio Control settings can be memorized.
The memorized settings can be recalled at any
time.
1 Press the [FNC] button.
Popup menu appears.
2 Touch [Audio].
Audio screen appears.
3 Touch [Audio Memory].
■[SETUP Memory]
Lock or unlock the Audio SETUP Memory/
Recall/Clear.
■[Audio SETUP Memory]
Memorize the current audio settings.
• Speaker / X’over, EQ / SW Level (User Preset,
SW Level), Position / DTA, Fader/ Balance,
Sound Effect (P.73)
■[Audio SETUP Recall]
Recall the memorized audio setting.
■[Audio SETUP Clear]
Clear the Audio SETUP Memory and the
currently memorized audio settings.
Remote control
83English
Remote control
This unit can be operated using the remote
control.
The remote control is the optional accessory
(RM-RK258).
# WARNING
• Do not ingest the battery, Chemical Burn
Hazard
The remote control supplied with this product
contains a coin / button cell battery. If the
coin/button cell battery is swallowed, it can
cause severe internal burns in just 2 hours and
can lead to death.
Keep new and used batteries away from
children. If the battery compartment does not
close securely, stop using the product and
keep it away from children.
If you think batteries might have been
swallowed or placed inside any part of the
body, seek immediate medical attention.
# CAUTION
• Put the remote control in a place where it will
not move during braking or other operations.
A dangerous situation could result, if the
remote control falls down and gets wedged
under the pedals while driving.
• Do not leave the battery near fire or under
direct sunlight. A fire, explosion or excessive
heat generation may result.
• Do not recharge, short, break up or heat the
battery or place it in an open fire. Such actions
may cause the battery to leak fluid. If spilled
fluid comes in contact with your eyes or on
clothing, immediately rinse with water and
consult a physician.
• Danger of explosion if Lithium battery is
incorrectly replaced. Replace only with the
same or equivalent type.
Battery Installation
CR2025 (+side)
• Use a commercially available button battery
(CR2025).
• Insert the battery with the + and – poles
aligned properly.
– If the effectiveness of the remote controller
decreases, replace the battery.
Functions of the Remote
control Buttons
Remote control
84
Key
Name
Function
SRC Switches to the source to be played.
In hands-free mode, hangs up the
phone.
VOL + – Adjusts the volume.
AT T Lowers the volume when pressed
once.
Restores the previous volume when
pressed twice.
DISP Switches the screen between the
current source and the App screen
from the connected iPhone/Android.
FM/R
AM/S
Selects the folder to be played.
For the tuner source, selects FM/ AM
band to be received.
For the SiriusXM source, selects the
band to be received.
For the DVD/VCD source, selects the
title to be played.
E 2
F 3
Selects the track or file to be played.
For the tuner and SiriusXM sources,
switches to broadcast stations
received by the unit.
For the DVD/VCD source, selects the
chapter/scene/track to be played.
ANGLE Not used.
When a call comes in, answers the call.
DIRECT Switches to the direct search mode.
For details on the direct search mode,
see Direct search mode (P.84).
ASPECT Changes the aspect ratio.
• To confirm the current aspect ratio
setting, operate on the touch panel.
(P.67)
Numeric
Keypad
Allows you to enter the number to
search in the direct search mode.
For details on the direct search mode,
see Direct search mode (P.84).
CLR During DVD/VCD source, deletes a
character while in direct search mode.
ENT Performs the selected function.
Ñ Direct search mode
Using the remote control, you can jump
directly to the desired file, track chapter, etc.
by entering the number corresponding to the
content.
NOTE
• This operation cannot be performed for the USB
device and iPod.
1 Press the [SRC] button several times until
the desired content appears.
The available contents are different
depending on the source type.
■DVD *1
Title number/Chapter number
■VCD 1.X and 2.X (PBC OFF) *1
Track number
■VCD 2.X (PBC ON) *1
Scene number/Track number
■Music CD *1
Track number
■Tuner
Frequency value
■SiriusXM
Channel number
2 Press the [DIRECT] button.
3 Enter the number of the content you want
to play using the numeric keypad.
4 For DVD or VCD, music CD, press the
[ENTER] button. *1
For Tuner, press the [E] or [F] button.
The content corresponding to the
number you entered is played.
*1 KW-V850BT/ KW-V85BT only
Connection/Installation
85English
Connection/Installation
Before Installation
Before installation of this unit, please note the
following precautions.
# WARNINGS
• If you connect the ignition wire (red) and
the battery wire (yellow) to the car chassis
(ground), you may cause a short circuit, that
in turn may start a fire. Always connect those
wires to the power source running through
the fuse box.
• Do not cut out the fuse from the ignition wire
(red) and the battery wire (yellow). The power
supply must be connected to the wires via
the fuse.
# CAUTION
• Install this unit in the console of your vehicle.
Do not touch the metal part of this unit during
and shortly after the use of the unit. Metal part
such as the heat sink and enclosure become
hot.
NOTE
• Mounting and wiring this product requires
skills and experience. For best safety, leave the
mounting and wiring work to professionals.
• Make sure to ground the unit to a negative 12V
DC power supply.
• Do not install the unit in a spot exposed to
direct sunlight or excessive heat or humidity.
Also avoid places with too much dust or the
possibility of water splashing.
• Do not use your own screws. Use only the
screws provided. If you use the wrong screws,
you could damage the unit.
• If the power is not turned ON (“There is an
error in the speaker wiring. Please check the
connections.” is displayed), the speaker wire
may have a short-circuit or touched the chassis
of the vehicle and the protection function may
have been activated. Therefore, the speaker
wire should be checked.
• If your car’s ignition does not have an ACC
position, connect the ignition wires to a power
source that can be turned on and off with the
ignition key. If you connect the ignition wire to
a power source with a constant voltage supply,
such as with battery wires, the battery may be
drained.
• If the console has a lid, make sure to install the
unit so that the front panel will not hit the lid
when closing and opening.
• If the fuse blows, first make sure the wires
aren’t touching to cause a short circuit, then
replace the old fuse with one with the same
rating.
• Insulate unconnected wires with vinyl tape or
other similar material. To prevent a short circuit,
do not remove the caps on the ends of the
unconnected wires or the terminals.
• Connect the speaker wires correctly to the
terminals to which they correspond. The unit
may be damaged or fail to work if you share
the ¤ wires or ground them to any metal part
in the car.
• When only two speakers are being connected
to the system, connect the connectors either
to both the front output terminals or to both
the rear output terminals (do not mix front
and rear). For example, if you connect the ¢
connector of the left speaker to a front output
terminal, do not connect the ¤ connector to
a rear output terminal.
• After the unit is installed, check whether the
brake lamps, blinkers, wipers, etc. on the car
are working properly.
• Mount the unit so that the mounting angle is
30° or less.
• This unit has the cooling fan to decrease the
internal temperature. Do not mount the unit
in a place where the cooling fan of the unit is
blocked. Blocking these openings will inhibit
the cooling of the internal temperature and
result in malfunction.
Connection/Installation
86
(KW-V850BT/ KW-V85BT)
Cooling fan
(KW-M750BT/ KW-M75BT/ KW-M650BT)
Cooling fan
• Do not press hard on the panel surface when
installing the unit to the vehicle. Otherwise
scars, damage, or failure may result.
• Reception may drop if there are metal objects
near the Bluetooth antenna.
Bluetooth antenna unit
Ñ Supplied accessories for
installation
1
x1
2
(3 m)
x1
3
(M5 x 8 mm)
x6
4
(M5 x 8 mm)
x6
5 [1]
(2 m)
x1
[1] KW-M750BT/ KW-M75BT/ KW-M650BT only
Ñ Installation procedure
1) To prevent a short circuit, remove the key
from the ignition and disconnect the ¤
terminal of the battery.
2) Make the proper input and output wire
connections for each unit.
3) Connect the speaker wires of the wiring
harness.
4) Connect the wiring harness wires in the
following order; ground, battery, ignition.
5) Connect the wiring harness connector to the
unit.
6) Install the unit in your car.
7) Reconnect the ¤ terminal of the battery.
8) Perform the Initial Setup.
See Initial setup (P.8).
Connection/Installation
87English
Installing the unit
3 or 4
3 or 4
Car Bracket
NOTE
• Make sure that the unit is installed securely in
place. If the unit is unstable, it may malfunction
(eg, the sound may skip).
Ñ Microphone unit
1) Check the installation position of the
microphone (accessory 2).
2) Clean the installation surface.
3) Remove the separator of the microphone
(accessory 2), and stick the microphone to
the place shown below.
4) Wire the microphone cable up to the unit
with it secured at several positions using tape
or other desired method.
5) Adjust the direction of the microphone
(accessory 2) to the driver.
2
Fix a cable with a commercial item of tape.
Connection/Installation
88
Ñ Connecting wires to terminals
●KW-V850BT/ KW-V85BT
ILLUMI
ANT CONT
STEERING WHEEL
REMOTE INPUT
REMOTE CONT
PRK SW
REVERSE
P. CONT
Fuse (15A)
When using the optional power amplifier,
connect to its power control terminal. (Max.
200mA, 12V)
Depending on what antenna you are using,
connect either to the control terminal of the
motor antenna, or to the power terminal for
the booster amplifier of the film-type antenna.
(Max. 300mA, 12V)
Blue/White
(Power control wire)
Blue
(Antenna control wire)
To car light control switch
Orange/White
(Dimmer control wire)
Purple/White
(Reverse sensor wire) (2 m)
Light Blue/Yellow
(Steering remote control wire)
Connect to vehicle’s reverse lamp harness when
using the optional rear view camera.
To steering remote
To use the steering wheel remote control
feature, you need an exclusive remote
adapter (not supplied) matched to your car.
If no connections are made, do not let
the cable come out from the tab.
Purple/Black
To rear right speaker
To rear left speaker
To front right speaker
To front left speaker
Speaker impedance: 4-8 Ω
Purple
Green/Black
Green
Gray/Black
Gray
White/Black
White
Accessory 1
Connect to the vehicle’s
parking brake detection switch
harness. Light Green
(Parking sensor wire)
(2 m)
For best safety, be sure to
connect the parking sensor.
Ignition key switch
Red
(Ignition wire)
Yellow
(Battery wire)
Car fuse box
Battery
Black
(Ground wire) ¤
(To car chassis)
Connection/Installation
89English
ILLUMI
MUTE
STEERING WHEEL
REMOTE INPUT
REMOTECONT
PRK SW
REVERSE
P. CONT
ANT. CONT
Fuse (10A)
When using the optional power amplifier,
connect to its power control terminal. (Max.
200mA, 12V)
Depending on what antenna you are using,
connect either to the control terminal
of the motor antenna, or to the power
terminal for the booster amplifier of the
film-type antenna. (Max. 300mA, 12V)
Blue/White
(Power/antenna control wire)
Brown
To car light control switch
Not used.
Orange/White
(Dimmer control wire)
Purple/White
(Reverse sensor wire)
Light Blue/Yellow
(Steering remote control wire)
Connect to vehicle’s reverse lamp harness when
using the optional rear view camera.
To steering remote
To use the steering wheel remote control
feature, you need an exclusive remote
adapter (not supplied) matched to your car.
If no connections are made, do not let
the cable come out from the tab.
Purple/Black
To rear right speaker
To rear left speaker
To front right speaker
To front left speaker
Speaker impedance: 4-8 Ω
Purple
Green/Black
Green
Gray/Black
Gray
White/Black
White
Accessory 1
Connect to the vehicle’s
parking brake detection switch
harness.
Light Green
(Parking sensor wire)
Accessory 5 (2 m)
For best safety, be sure to
connect the parking sensor.
Ignition key switch
Red
(Ignition wire)
Yellow
(Battery wire)
Car fuse box
Battery
Black
(Ground wire) ¤
(To car chassis)
●KW-M750BT/ KW-M75BT/ KW-M650BT
Connection/Installation
90
Ñ 3-way speaker system setup
●KW-V850BT/ KW-V85BT
●KW-M750BT/ KW-M75BT/ KW-M650BT
When connecting to an external amplifier,
connect its ground wire to the car’s chassis to
avoid damaging the unit.
White/Black
Gray/Black
Green/Black
Purple/Black
Speaker impedance: 4-8 Ω
Purple
Green
Gray
White
To mid range left speaker
Subwoofer Preout Subwoofer Preout
To mid range right speaker
Mid Range Preout Mid Range Preout
To tweeter left speaker
Tweeter Preout Tweeter Preout
To tweeter right speaker
Power amplifier
(optional
accessory)
RCA Cable
(Sold separately)
Input
Speaker
Preout
NOTE
• For speaker system setup, see 3-way speaker system setup (P.73).
• For speaker setup and crossover setup, see Speaker / X’over setup (P.74).
• For how to connect speaker wires to terminals other than speaker terminals and Preout terminals, see Connecting
the system and external components (P.91) and Connecting wires to terminals (P.88).
Connection/Installation
91English
Ñ Connecting the system and
external components
●KW-V850BT/ KW-V85BT
2
1
3 4
56
10
7
8
9
●KW-M750BT/ KW-M75BT/ KW-M650BT
2
1
3
54
7
12 11
1
AV Audio output (ø3.5 mini jack)
2
FM/AM antenna input
3
When connecting to an external amplifier,
connect its ground wire to the car’s chassis to
avoid damaging the unit.
Rear Audio Preout
(Left; White, Right; Red)
Front Audio Preout
(Left; White, Right; Red)
Subwoofer Preout
(Left; White, Right; Red)
4
SiriusXM Connect Vehicle Tuner connector
For more information on how to install the
SiriusXM Connect Vehicle tuner, consult the
installation guide included with the tuner.
5
iDatalink connector
6
AV-IN input (1; Left audio, 2; Right audio, 3;
Ground, 4; Visual) (KW-V850BT/ KW-V85BT only)
1 2 3 4
7
Accessory 2: Bluetooth Microphone
8
Rear view camera input (Yellow)
(KW-V850BT/ KW-V85BT only)
9
Front view camera input (Yellow)
(KW-V850BT/ KW-V85BT only)
10
VIDEO Output (Yellow)
(KW-V850BT/ KW-V85BT only)
11
Audio input
(KW-M750BT/ KW-M75BT/ KW-M650BT only)
12
Front view camera input
VIDEO output
VIDEO input
Rear view camera input
(KW-M750BT/ KW-M75BT/ KW-M650BT only)
Connection/Installation
92
Ñ Connecting a USB device
●KW-V850BT/ KW-V85BT
USB terminal[1]
USB cable (1 m)
USB device[2]
USB device[2]
USB extension cable[2]
[1] USB maximum power supply current :
DC 5 V = 1.5 A
[2] Sold separately
●KW-M750BT/ KW-M75BT
●KW-M650BT
USB cable (1 m)
Connection/Installation
93English
Ñ Connecting an iPod/iPhone
●KW-V850BT/ KW-V85BT
USB cable (1 m)
USB terminal[1]
KS-U62 (0.8m)[3]
iPod/iPhone[2]
iPod/iPhone[2]
KS-U62 (0.8m)[3]
●KW-M750BT/ KW-M75BT
●KW-M650BT
[1] USB maximum power supply current :
DC 5 V = 1.5 A
[2] Sold separately
[3] Optional accessory
USB cable (1 m)
Connection/Installation
94
Ñ Connecting an Android smartphone
●KW-V850BT/ KW-V85BT
Android smartphone[2]
Android smartphone[2]
Micro USB to USB cable[2]
●KW-M750BT/ KW-M75BT
●KW-M650BT
[1] USB maximum power supply current :
DC 5 V = 1.5 A
[2] Sold separately
USB terminal[1]
Micro USB to USB cable[2]
USB cable (1 m)
USB cable (1 m)
Troubleshooting
95English
Troubleshooting
Problems and Solutions
If any trouble occurs, first check the following
table for possible problems.
NOTE
• Some functions of this unit may be disabled by
some settings made on this unit.
• What might seem to be a malfunction in your
unit may just be the result of slight misoperation
or miswiring.
Ñ About settings
• Cannot set up the subwoofer.
• Cannot set up subwoofer phase.
• No output from the subwoofer.
• Cannot set up the low pass filter.
• Cannot set up the high pass filter.
Subwoofer is not set to on.
Set the subwoofer to on. See Speaker / X’over
setup (P.74).
The dual zone function is enabled.
Set the dual zone function to off. See Zone Control
(P.78).
• Cannot select the output destination of the
subsource in the dual zone.
• Cannot adjust the volume of the rear speakers.
The dual zone function is disabled.
Set the dual zone function to on. See Zone Control
(P.78).
• Cannot set up the equalizer.
• Cannot set up the crossover network.
The dual zone function is enabled.
Set the dual zone function to off. See Zone Control
(P.78).
Ñ About audio operations
Radio reception is poor.
The car antenna is not extended.
Pull out the antenna all the way.
The antenna control wire is not connected.
Connect the wire correctly. See Connecting the
system and external components (P.91).
Cannot select a folder.
The random play function is enabled.
Turn off the random function.
Cannot perform repeat play during VCD playback.
The PBC function is enabled.
Turn off the PBC function.
The specified disc does not play, but another one
plays instead.
The disc is quite dirty.
Clean the disc. See Precautions on handling discs
(P.4).
The disc is severely scratched.
Try another disc instead.
The sound skips when an audio file is being
played.
The disc is scratched or dirty.
Clean the disc. See Precautions on handling discs
(P.4).
The recording condition is bad.
Record the file again or use another disc.
Ñ Others
The Touch Sensor Tone doesn’t sound.
The preout jack is being used.
The Touch Sensor Tone cannot be output from the
preout jack.
Error Messages
When you fail to operate the unit correctly, the
cause of the failure appears as the message on
the screen.
There is an error in the speaker wiring. Please
check the connections.
Protective circuit has been activated because a speaker
cord has shorted or it has come in contact with the car
chassis.
Wire or insulate the speaker cord as appropriate and
turn the power off and on again.
Hot Error
When the internal temperature of this unit rises to 60°C
or more, the protection circuit is activated and you may
not be able to operate the unit.
Use the unit again after reducing the temperature
of the unit.
Mecha Error
The disc player is malfunctioning.
Eject the disc and try inserting it again. Contact the
JVC dealer if this indicator continues blinking or the
disc cannot be ejected.
Disc Error
An unplayable disc is inserted.
Change the disc. See Playable Media and Files
(P.97).
Troubleshooting
96
Read Error
The disc is quite dirty.
Clean the disc. See Precautions on handling discs
(P.4).
Disc is upside down.
Load the disc with the labeled side up.
Region Code Error
The disc you wanted to play has a region code that
cannot be played with this unit.
See Region Codes in the World (P.99) or try
another disc.
Error 07–67
The unit is not operating correctly due to some reason
or other.
Turn the power off and on again. If the “Error 07−67”
message does not disappear, contact your nearest
JVC dealer.
No Device (USB device)
The USB device is selected as a source although no USB
device is connected.
Change the source to any source other than USB/
iPod. Connect a USB device, and change the source
to USB again.
Disconnected (iPod, Bluetooth audio player)
The iPod/Bluetooth audio player is selected as a source
although no iPod/Bluetooth audio player is connected.
Change the source to any source other than iPod/
Bluetooth. Connect an iPod/Bluetooth audio player,
and change the source to iPod/Bluetooth again.
No Media file
The connected USB device contains no playable audio
file. Media was played that doesn’t have data recorded
that the unit can play.
See Playable Media and Files (P.97) and try
another USB device.
USB device over current status detected.
The connected USB device is rated a current capacity
higher than the allowable limit.
Check the USB device. Some trouble may have
occurred to the connected USB device.
Change the source to any source other than USB.
Remove the USB device.
Ñ SiriusXM
Check Tuner
A SiriusXM tuner is not connected to this unit.
Verify that the SiriusXM Connect Vehicle Tuner cable
is securely connected to the radio.
Subscription Updated - Press Return To Continue
The SiriusXM subscription has been renewed.
Pressing the Control knob will clear the message.
SXM Chan Unavailable
The currently selected channel is unavailable.
Visit www.siriusxm.com for more information about
the SiriusXM channel lineup.
SXM Ch Unsubscribed
The currently selected channel is not subscribed to.
In the U.S.A., visit www.siriusxm.com or call
1-866-635-2349 if you have questions about your
subscription package or would like to subscribe to
this channel.
In Canada, visit www.siriusxm.ca or call 1-877-438-
9677.
SXM Check Antenna
No antenna is connected to the SiriusXM tuner.
Check that an antenna is connected to the SiriusXM
tuner. Check antenna for damages.
SXM No Signal
No SiriusXM radio signal is received.
Verify that your vehicle is outdoors with a clear view
of the sky.
Channel Locked
The selected channel has been locked by the parental
controls.
Enter the unlock code when you are asked. See
Parental Control (P.48).
Incorrect Pass Code entered
The selected channel is a mature or parental lock
channel, and locked by the parental lock or user lock
code.
Enter the correct lock code.
Appendix
97English
Appendix
Playable Media and Files
You can play various kinds of media and files on this unit.
Ñ List of playable discs (KW-V850BT/ KW-V85BT)
Disc types / Standard Support Remark
DVD DVD Video v
DVD Audio ×
DVD-VR ×
DVD-R*1v• MP3/ WMA/ AAC/ WAV/ FLAC/ Vorbis/ MPEG1/ MPEG2/
MPEG4/ H.264/ WMV/ MKV playback
• Multi-border/Multisession playback (Playback depends on
authoring conditions)
DVD-RW v
DVD+R v
DVD+RW v
DVD-R DL (Dual layer) vOnly video format
DVD+R DL (Double layer) v
DVD-RAM ×
CD Music CD*1v
CD-ROM v• MP3/ WMA/ AAC/ WAV/ FLAC/ Vorbis playback
• Multisession is supported.
• Packet write is not supported.
CD-R v
CD-RW v
DTS-CD ×
Video CD (VCD) v
Super video CD ×
Photo CD ×
CD-EXTRA rOnly music CD session can be played.
HDCD rNormal music CD sound quality
CCCD ×
Others Dualdisc ×
Super audio CD rOnly CD layer can be played.
v : Playback is possible.
r : Playback is partly possible.
× : Playback is impossible.
*1 Incompatible with 8 cm (3 inch) discs.
■Use of DualDisc
When playing a “DualDisc” on this unit, the surface
of the disc that is not played may be scratched
while the disc is inserted or ejected. Since the music
CD surface does not conform to the CD standard,
playback may be impossible.
(A “DualDisc” is a disc with one surface containing
DVD standard signals and the other surface
containing music CD signals.)
■About disc format
The disc format should be the one of the
following.
• ISO 9660 Level 1/2
• Joliet
• Romeo
• Long file name
Appendix
98
Ñ About files
The following audio and video files are supported.
■Playable Audio files
Format Bit rate Sampling frequency Bit count
AAC-LC (.m4a) MPEG2/4 AAC LC
HE-AAC(V1,V2)
8 – 320kbps, VBR 16 – 48 kHz 16 bit
MP3 (.mp3) MPEG 1/2 Audio Layer 3 8 – 320kbps, VBR 16 – 48 kHz 16 bit
WMA (.wma) Windows Media Audio
Standard L3 profile
(Version 7,8,9)
8 – 320kbps 16 – 48 kHz 16 bit
Linear PCM
(WAVE) (.wav)
RIFF waveform Audio
Format –16 – 48 kHz (Disc),
16 – 192 kHz (USB)
16/ 24 bit
FLAC (.flac) flac – 16 – 48 kHz (Disc),
16 – 192 kHz (USB)
16/ 24 bit
Vorbis (.ogg) vorbis VBR 16 – 48 kHz 16 bit
• If music of normal CD and other playback systems are recorded in the same disc, only the playback system recorded at
the first setout is played.
• WMA and AAC files with DRM cannot be played.
• Although the audio files complies with the standards listed above, they may not be played depending on the types or
conditions of media or device.
• This unit supports playback of High-Resolution Audio files.
It is recommended that a car audio system should be configured with all High-Resolution Audio compatible products
from player to speaker to enjoy its high quality sound.
■Acceptable Video files
Profile Max. Picture size Max. bit rate Audio format
MPEG-1 (.mpg, .mpeg) – 352 × 240, 352 × 288 1.5 Mbps MPEG Audio Layer 2
MPEG-2 (.mpg, .mpeg) MP@ML 720 × 480, 720 × 576 8 Mbps MPEG Audio Layer 2
H.264/MPEG-4 AVC
(.mp4, .m4v, .avi, .flv, .f4v)
Baseline Profile,
Main Profile
1920 × 1080 (30 fps) 8 Mbps MP3, AAC
MPEG-4 (.mp4, .avi) Advanced Simple
Profile
1920 × 1080 (30 fps) 8 Mbps MP3, AAC
WMV (.wmv) Main Profile 1920 × 1080 (30 fps) 8 Mbps WMA
MKV (.mkv) Video format follows H.264/MPEG-4 AVC, MPEG-4, WMV MP3, AAC, WMA, Vorbis,
FLAC
• This unit can only play back files which are smaller than 4 GB.
■Limitation on structure of file and folder
Disc media USB device
Maximum number of folder layers 8 8
Maximum number of files (per folder) 999 999
Maximum number of folders (per folder) 5000 9999
Maximum number of folders (per device) 5000 Unlimited
• You can enter a folder name and file name with 255 or fewer single-byte characters.
• Files in the folder whose folder name begins with a dot (.) cannot be played.
Appendix
99English
Region Codes in the World
The DVD players are given a region code according to the country or area it is marketed, as shown in
the following map.
1
2
4
1
5
4
5
2
1
2
6
3
■DVD disc marks
ALL
Indicates a region number. The discs with this
mark can be played with any DVD player.
8
Indicates the number of audio languages
recorded. Up to 8 languages can be recorded in
a movie. You can select a favorite language.
32
Indicates the number of subtitled languages
recorded. Up to 32 languages can be recorded.
9
If a DVD disc has scenes shot from multiple
angles, you can select a favorite angle.
16:9 LB
Indicates the type of screen for the image. The
left mark indicates that a wide image picture
(16:9) is displayed on a standard TV set screen
(4:3) with a black band at both the top and
bottom of the screen (letter box).
■Operation regulatory marks
With this DVD, some functions of this unit
such as the play function may be restricted
depending on the location where the DVD is
playing. In this case, the following marks will
appear on the screen. For more information,
refer to the disc manual.
Prohibition Mark
■Discs with limited period of use
Do not leave discs with a limited period of use in
this unit. If you load an already expired disc, you
may not be able to remove it from this unit.
Appendix
100
Code Language
aa Afar
ab Abkhazian
af Afrikaans
am Amharic
ar Arabic
as Assamese
ay Aymara
az Azerbaijani
ba Bashkir
be Byelorussian
bg Bulgarian
bh Bihari
bi Bislama
bn Bengali, Bangla
bo Tibetan
br Breton
ca Catalan
co Corsican
cs Czech
cy Welsh
da Danish
de German
dz Bhutani
el Greek
en English
eo Esperanto
es Spanish
et Estonian
eu Basque
fa Persian
fi Finnish
fj Fiji
fo Faroese
fr French
fy Frisian
ga Irish
gd Scots Gaelic
gl Galician
gn Guarani
gu Gujarati
ha Hausa
he Hebrew
hi Hindi
hr Croatian
hu Hungarian
hy Armenian
Code Language
ia Interlingua
ie Interlingue
ik Inupiak
id Indonesian
is Icelandic
it Italian
ja Japanese
jv Javanese
ka Georgian
kk Kazakh
kl Greenlandic
km Cambodian
kn Kannada
ko Korean
ks Kashmiri
ku Kurdish
ky Kirghiz
la Latin
lb Luxembourgish
ln Lingala
lo Laotian
lt Lithuanian
lv Latvian, Lettish
mg Malagasy
mi Maori
mk Macedonian
ml Malayalam
mn Mongolian
mo Moldavian
mr Marathi
ms Malay
mt Maltese
my Burmese
na Nauru
ne Nepali
nl Dutch
no Norwegian
oc Occitan
om (Afan) Oromo
or Oriya
pa Punjabi
pl Polish
ps Pashto, Pushto
pt Portuguese
qu Quechua
rm Rhaeto-Romance
Code Language
rn Kirundi
ro Romanian
ru Russian
rw Kinyarwanda
sa Sanskrit
sd Sindhi
sg Sangho
sh Serbo-Croatian
si Singhalese
sk Slovak
sl Slovenian
sm Samoan
sn Shona
so Somali
sq Albanian
sr Serbian
ss Siswati
st Sesotho
su Sundanese
sv Swedish
sw Swahili
ta Tamil
te Telugu
tg Tajik
th Thai
ti Tigrinya
tk Turkmen
tl Tagalog
tn Setswana
to Tongan
tr Turkish
ts Tsonga
tt Tatar
tw Twi
uk Ukrainian
ur Urdu
uz Uzbek
vi Vietnamese
vo Volapuk
wo Wolof
xh Xhosa
yo Yoruba
zh Chinese
zu Zulu
DVD Language Codes
Appendix
101English
Specifications
■Monitor section
Picture Size
: 6.75 inches (diagonal) wide
: 151.8 mm (W) × 79.68 mm (H)
5-31/32 × 3-1/8 inch
Display System
: TN LCD panel
Drive System
: TFT active matrix system
Number of Pixels
: 1,152,000 (800H x 480V x RGB)
Effective Pixels
: 99.99 %
Pixel Arrangement
: RGB striped arrangement
Back Lighting
: LED
■DVD player section
(KW-V850BT/ KW-V85BT)
D/A Converter
: 24/ 32 bit
Audio Decoder
: Linear PCM/ Dolby Audio/ MP3/ WMA/ AAC/ WAV/
FLAC/ Vorbis
Video Decoder
: MPEG1/ MPEG2/ MPEG4/ WMV/ H.264/ MKV
Wow & Flutter
: Below Measurable Limit
Frequency Response
• 96 kHz : 20 – 44,000 Hz
• 48 kHz : 20 – 22,000 Hz
• 44.1 kHz : 20 – 20,000 Hz
Total Harmonic Distortion
: 0.010 % (1 kHz)
S/N Ratio (dB)
: 90.5 dB
Dynamic Range
: 89 dB
Disc Format
: DVD-Video/ VIDEO-CD/ CD-DA/ DVD-R/DVD-RW/
DVD+R/+RW
Quantifying Bit Number
: 16/ 20/ 24 bit
■USB interface section
USB Standard
: USB 2.0 High Speed
File System
: FAT 16/ 32, exFAT, NTFS
Maximum Power Supply Current
: DC 5 V 1.5 A × 1
D/A Converter
: 24/ 32 bit
Audio Decoder
: MP3/ WMA/ AAC/ WAV/ FLAC/ Vorbis
Video Decoder
: MPEG1/ MPEG2/ MPEG4/ WMV/ H.264/ MKV
Frequency Response
(KW-M750BT/ KW-M75BT/ KW-M650BT)
• 192 kHz : 20 – 88,000 Hz
• 96 kHz : 20 – 44,000 Hz
• 48 kHz : 20 – 22,000 Hz
• 44.1 kHz : 20 – 20,000 Hz
Total Harmonic Distortion
(KW-M750BT/ KW-M75BT/ KW-M650BT)
: 0.0001 % (1 kHz)
S/N Ratio (dB)
(KW-M750BT/ KW-M75BT/ KW-M650BT)
: 98.5 dB
Dynamic Range
(KW-M750BT/ KW-M75BT/ KW-M650BT)
: 89 dB
Appendix
102
■Bluetooth section
Technology
: Bluetooth Ver.4.1
Frequency
: 2.402 – 2.480 GHz
Output Power
: Power Class2
Maximum Communication range
: Line of sight approx. 10m (32.8 ft)
Audio Codec
: SBC/ AAC
Profile (Multi Profile support)
• HFP (V1.7) (Hands Free Profile)
• SPP (Serial Port Profile)
• A2DP (Advanced Audio Distribution Profile)
• AVRCP (V1.6) (Audio/Video Remote Control Profile)
• PBAP (Phonebook Access Profile)
■FM tuner section
Frequency Range (step)
: 87.9 MHz – 107.9 MHz (200 kHz)
Usable Sensitivity (S/N : 30 dB)
: 9.3 dBf (0.8 μV/ 75 Ω)
Quieting Sensitivity (S/N : 46 dB)
: 15.2 dBf (1.6 μV/ 75 Ω)
Frequency Response
: 30 Hz – 15 kHz
S/N Ratio (dB)
: 75 dB (MONO)
Selectivity (± 400 kHz)
: Over 80 dB
Stereo Separation
: 45 dB (1 kHz)
■AM tuner section
Frequency Range (step)
: 530 kHz – 1700 kHz (10 kHz)
Usable Sensitivity
: 28 dBμ (25 μV)
■Video section
Color System of External Video Input
: NTSC
External Video Input Level (RCA jacks)
: 1 Vp-p/ 75 Ω
External Video Input Level (mini jack)
: 1 Vp-p/ 75 Ω
External Audio Max Input Level (mini jack)
: 2 V/ 25 kΩ
Video Output Level (RCA jacks)
: 1 Vp-p/ 75 Ω
Audio Output Level (mini jack)
: 1.2 V/ 10 kΩ
■Audio section
Maximum Power (Front & Rear)
: 50 W × 4
Typical Power Output (Front & Rear)
Full Bandwidth Power (at less than 1% THD)
: 22 W × 4
Output frequency band
: 20 – 88,000 Hz
Preout Level (V)
: 4 V/ 10 kΩ
Preout Impedance
: ≤ 600 Ω
Speaker Impedance
: 4 – 8 Ω
Graphics equalizer
Band: 13 Band
Frequency (BAND1 – 13)
: 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/
6.3k/ 10k/ 16k Hz
Gain
: -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9 dB
2-way X'Over
High pass filter
Frequency: Through, 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/
120/ 150/ 180/ 220/ 250 Hz
Slope: -6/-12/-18/-24 dB/Oct.
Gain: -8/-7/-6/-5/-4/-3/-2/-1/0 dB
Low pass filter
Frequency: 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/
150/ 180/ 220/ 250 Hz, Through
Slope: -6/-12/-18/-24 dB/Oct.
Gain: -8/-7/-6/-5/-4/-3/-2/-1/0 dB
Appendix
103English
3-way X'Over
High pass filter
Frequency: 250/ 300/ 1k/ 1.6k/ 2.5k/ 4k/ 5k/ 6.3k/ 8k/
10k/ 12.5k Hz
Slope: -12/-18/-24 dB/Oct.
Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
Band pass filter
Frequency: Through, 50/ 60/ 70/ 80/ 90/ 100/ 120/
150/ 180/ 220/ 250/ 300 Hz
250/ 300/ 1k/ 1.6k/ 2.5k/ 4k/ 5k/ 6.3k/
8k Hz , Through
Slope: -12/-18/-24 dB/Oct.
Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
Low pass filter
Frequency: 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/
150 Hz, Through
Slope: -12/-18/-24 dB/Oct.
Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
■General
Operating Voltage
: 12 V DC car battery
Installation Dimensions (W × H × D)
KW-V850BT/ KW-V85BT
: 178 × 100 × 155 mm
7 × 3-15/16 × 6-1/8 inch
KW-M750BT/ KW-M75BT/ KW-M650BT
: 178 × 100 × 75 mm
7 × 3-15/16 × 2-15/16 inch
Operational Temperature Range
: -10 °C – +60 °C
Weight
KW-V850BT/ KW-V85BT
: 2.1 kg (4.63 lbs)
KW-M750BT/ KW-M75BT/ KW-M650BT
: 1.1 kg (2.4 lbs)
NOTE
• Although the effective pixels for the liquid crystal
panel is given as 99.99% or more, 0.01% of pixels
may not light or may light incorrectly.
Specifications are subject to change without
prior notice.
Appendix
104
About this Unit
■Copyrights
• The Bluetooth® word mark and logos are registered
trademarks owned by the Bluetooth SIG, Inc. and any
use of such marks by JVC KENWOOD Corporation is
under license. Other trademarks and trade names are
those of their respective owners.
• Manufactured under license from Dolby Laboratories.
Dolby, Dolby Audio and the double-D symbol are
trademarks of Dolby Laboratories.
• is a trademark of DVD Format/Logo
Licensing Corporation registered in the U.S., Japan
and other countries.
• This item incorporates copy protection technology
that is protected by U.S. patents and other
intellectual property rights of Rovi Corporation.
Reverse engineering and disassembly are prohibited.
• Microsoft and Windows Media are either registered
trademarks or trademarks of Microsoft Corporation in
the United States and/or other countries.
• This software is based in part on the work of the
independent JPEG Group.
• The “AAC” logo is a trademark of Dolby Laboratories.
• Use of the Made for Apple badge means that an
accessory has been designed to connect specifically
to the Apple product(s) identified in the badge, and
has been certified by the developer to meet Apple
performance standards. Apple is not responsible for
the operation of this device or its compliance with
safety and regulatory standards. Please note that the
use of this accessory with an Apple product may
affect wireless performance.
• Apple, iPhone, iPod, iPod touch, and Lightning are
trademarks of Apple Inc., registered in the U.S. and
other countries.
• Apple, Siri, Apple CarPlay and Apple CarPlay logo are
trademarks of Apple Inc., registered in the U.S. and
other countries.
• Sirius, XM and all related marks and logos are
trademarks of Sirius XM Radio Inc. All rights reserved.
• Pandora, the Pandora logo, and the Pandora trade
dress are trademarks or registered trademarks of
Pandora Media, Inc., used with permission.
• SPOTIFY and the Spotify logo are among the
registered trademarks of Spotify AB.
• Android, Android Auto, Google Play and other marks
are trademarks of Google LLC.
• BlackBerry®, RIM®, Research In Motion® and related
trademarks, names and logos are the property of
Research In Motion Limited and are registered and/
or used in the U.S. and countries around the world.
Used under license from Research In Motion Limited.
• This product includes FontAvenue® fonts licenced
by NEC Corporation.FontAvenue is a registered
trademark of NEC Corporation.
• This product includes "Ubiquitous QuickBoot
TM" technology developed by Ubiquitous Corp.
Ubiquitous QuickBoot TM is a trademark of
Ubiquitous Corp. Copyright© 2017 Ubiquitous Corp.
All rights reserved.
• THIS PRODUCT IS LICENSED UNDER THE AVC
PATENT PORTFOLIO LICENSE FOR THE PERSONAL
USE OF A CONSUMER OR OTHER USES IN WHICH IT
DOES NOT RECEIVE REMUNERATION TO (¡)ENCODE
VIDEO IN COMPLIANCE WITH THE AVC STANDARD
(“AVC VIDEO”) AND/OR (¡¡)DECODE AVC VIDEO
THAT WAS ENCODED BY A CONSUMER ENGAGED
IN A PERSONAL ACTIVITY AND/OR WAS OBTAINED
FROM A VIDEO PROVIDER LICENSED TO PROVIDE
AVC VIDEO. NO LICENSE IS GRANTED OR SHALL
BE IMPLIED FOR ANY OTHER USE. ADDITIONAL
INFORMATION MAY BE OBTAINED FROM MPEG LA,
L.L.C. SEE HTTP://WWW.MPEGLA.COM
• THIS PRODUCT IS LICENSED UNDER THE MPEG-
4 VISUAL PATENT PORTFOLIO LICENSE FOR
THE PERSONAL AND NON-COMMERCIAL USE
OF A CONSUMER FOR (¡) ENCODING VIDEO IN
COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD
(“MPEG-4 VIDEO”) AND/OR (¡¡) DECODING MPEG-
4 VIDEO THAT WAS ENCODED BY A CONSUMER
ENGAGED IN A PERSONAL AND NON-COMMERCIAL
ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO
PROVIDER LICENSED BY MPEG LA TO PROVIDE
MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL
BE IMPLIED FOR ANY OTHER USE. ADDITIONAL
INFORMATION INCLUDING THAT RELATING TO
PROMOTIONAL, INTERNAL AND COMMERCIAL USES
AND LICENSING MAY BE OBTAINED FROM MPEG LA,
LLC. SEE HTTP://WWW.MPEGLA.COM.
• THIS PRODUCT IS LICENSED UNDER THE VC-1 PATENT
PORTFOLIO LICENSE FOR THE PERSONAL AND NON-
COMMERCIAL USE OF A CONSUMER TO ( i ) ENCODE
VIDEO IN COMPLIANCE WITH THE VC-1 STANDARD
(“VC-1 VIDEO”) AND/OR ( ii ) DECODE VC-1 VIDEO
THAT WAS ENCODED BY A CONSUMER ENGAGED
IN A PERSONAL AND NON-COMMERCIAL ACTIVITY
AND/OR WAS OBTAINED FROM A VIDEO PROVIDER
LICENSED TO PROVIDE VC-1 VIDEO. NO LICENSE IS
GRANTED OR SHALL BE IMPLIED FOR ANY OTHER
USE. ADDITIONAL INFORMATION MAY BE OBTAINED
FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.
COM
Appendix
105English
• libFLAC
Copyright (C) 2000-2009 Josh Coalson
Copyright (C) 2011-2013 Xiph.Org Foundation
Redistribution and use in source and binary forms,
with or without modification, are permitted provided
that the following conditions are met:
– Redistributions of source code must retain the
above copyright notice, this list of conditions and
the following disclaimer.
– Redistributions in binary form must reproduce the
above copyright notice, this list of conditions and
the following disclaimer in the documentation
and/or other materials provided with the
distribution.
– Neither the name of the Xiph.org Foundation
nor the names of its contributors may be used to
endorse or promote products derived from this
software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT
HOLDERS AND CONTRIBUTORS ``AS IS'' AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE
GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING
IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
• libvorbis
Copyright (c) 2002-2008 Xiph.org Foundation
Redistribution and use in source and binary forms,
with or without modification, are permitted provided
that the following conditions are met:
– Redistributions of source code must retain the
above copyright notice, this list of conditions and
the following disclaimer.
– Redistributions in binary form must reproduce the
above copyright notice, this list of conditions and
the following disclaimer in the documentation
and/or other materials provided with the
distribution.
– Neither the name of the Xiph.org Foundation
nor the names of its contributors may be used to
endorse or promote products derived from this
software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT
HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE
GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING
IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
• libogg
Copyright (c) 2002, Xiph.org Foundation
Redistribution and use in source and binary forms,
with or without modification, are permitted provided
that the following conditions are met:
– Redistributions of source code must retain the
above copyright notice, this list of conditions and
the following disclaimer.
– Redistributions in binary form must reproduce the
above copyright notice, this list of conditions and
the following disclaimer in the documentation
and/or other materials provided with the
distribution.
– Neither the name of the Xiph.org Foundation
nor the names of its contributors may be used to
endorse or promote products derived from this
software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT
HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE
GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING
IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
Appendix
106
■FCC WARNING
This equipment may generate or use radio
frequency energy. Changes or modifications to this
equipment may cause harmful interference unless
the modifications are expressly approved in the
instruction manual. The user could lose the authority to
operate this equipment if an unauthorized change or
modification is made.
NOTE
• This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation.
• This equipment generates,used and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions
may cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is encouraged to
try to correct the interference by one or more of
the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
– Consult the dealer or an experienced radio/TV
technician for help.
# CAUTION
Use of controls or adjustments or performance of
procedures other than those specified herein may result
in hazardous radiation exposure.
In compliance with Federal Regulations, following
are reproductions of labels on, or inside the product
relating to laser product safety.
JVC KENWOOD Corporation
2967-3, ISHIKAWA-MACHI,
HACHIOJI-SHI, TOKYO, JAPAN
THIS PRODUCT COMPLIES WITH DHHS RULES
21 CFR SUBCHAPTER J IN EFFECT AT DATE OF
MANUFACTURE.
Location: Top plate
KW-V850BT/ KW-V85BT: Top plate
KW-M750BT/ KW-M75BT/ KW-M650BT: Bottom plate
This transmitter must not be co-located or operated in
conjunction with any other antenna or transmitter.
■IC (Industry Canada) Notice
This device complies with Industry Canada's applicable
licence-exempt RSSs.
Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference, including
interference that may cause undesired operation of
the device.
# CAUTION
This equipment complies with FCC/IC radiation
exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency
(RF) Exposure Guidelines and RSS-102 of the IC radio
frequency (RF) Exposure rules. This equipment should
be installed and operated keeping the radiator at least
20cm or more away from person’s body.
Contains FCC ID: 2ALS3-3903
Contains IC: 22661-3903
Supplier’s Declaration of Conformity
Trade Name: JVC
Products: MONITOR WITH DVD RECEIVER
Model Name: KW-V850BT/ KW-V85BT
Products: MONITOR WITH RECEIVER
Model Name: KW-M750BT/ KW-M75BT/
KW-M650BT
Responsible Party: JVCKENWOOD USA
CORPORATION
2201 East Dominguez Street,
Long Beach, CA 90810, U.S.A.
PHONE: 310 639-9000
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC
RULES. OPERATION IS SUBJECT TO THE FOLLOWING
TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE
RECEIVED, INCLUDING INTERFERENCE THAT MAY
CAUSE UNDESIRED OPERATION.
■CALIFORNIA, USA
This product contains a CR Coin Cell Lithium Battery
which contains Perchlorate Material – special handling
may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Appendix
107English
■Información acerca de la eliminación
de equipos eléctricos y electrónicos
al final de la vida útil (aplicable a los
países que hayan adoptado sistemas
independientes de recogida de
residuos)
Los productos con el símbolo de un contenedor con
ruedas tachado no podrán ser desechados como
residuos domésticos.
Los equipos eléctricos y electrónicos al final de la vida
útil, deberán ser reciclados en instalaciones que puedan
dar el tratamiento adecuado a estos productos y a sus
subproductos residuales correspondientes. Póngase
en contacto con su administración local para obtener
información sobre el punto de recogida más cercano.
Un tratamiento correcto del reciclaje y la eliminación
de residuos ayuda a conservar los recursos y evita al
mismo tiempo efectos perjudiciales en la salud y el
medio ambiente.
■Informação sobre a eliminação de
pilhas
Este produto não deve ser eliminado como lixo
doméstico geral. Devolva a pilha usada ao revendedor
ou entidade autorizada para que a mesma seja
devolvida ao fabricante ou importador.
A reciclagem e a eliminação de lixo de maneira
apropriada ajudarão a conservar os recursos naturais ao
mesmo tempo que prevenirão os efeitos prejudicais à
nossa saúde e ao meio ambiente.
■Para cumplimiento de la IFT:
“La operación de este equipo esta sujeta a las
siguientes dos condiciones:
(1) es posible que este equipo o dispositivo no
cause interferencia perjudicial y
(2) este equipo o dispositivo debe aceptar
cualquier interferencia,
incluyendo la que pueda causar su operación no
deseada.”
