© 2006 Victor Company of Japan, Limited 0206KTH-CR-MU LCT2016-001B-U

If you have any problems setting up your

new TV, please call the

Helpline on 1890-582500.

If you have any problems setting up your

new TV, please call the

Helpline on 0870 330 5000.

For users in the UK :

For users in the Republic of Ireland :

WIDE LCD PANEL TV INSTRUCTIONS

Trade Mark of the DVB Digital Video Broadcasting

Project (1991 to 1996) Number : 3925, 3926, 3927, 3928, 3945

LT-26DX7BJ LT-26DX7SJ

LT-32DX7BJ LT-32DX7SJ

LT-40DS7BJ

LT-26DX7BJ

1-2 2/20/2006 11:10:17 AM

1

Information for Users on Disposal of Old Equipment ENGLISH

[European Union]

This symbol indicates that the electrical and electronic equipment should not be disposed as

general household waste at its end-of-life. Instead, the product should be handed over to the

applicable collection point for the recycling of electrical and electronic equipment for proper

treatment, recovery and recycling in accordance with your national legislation.

By disposing of this product correctly, you will help to conserve natural resources and will

help prevent potential negative effects on the environment and human health which could

otherwise be caused by inappropriate waste handling of this product. For more information

about collection point and recycling of this product, please contact your local municipal

office, your household waste disposal service or the shop where you purchased the product.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national

legislation.

(Business users)

If you wish to dispose of this product, please visit our web page www.jvc-europe.com to

obtain information about the take-back of the product.

[Other Countries outside the European Union]

If you wish to dispose of this product, please do so in accordance with applicable national

legislation or other rules in your country for the treatment of old electrical and electronic

equipment.

Attention:

This symbol is only

valid in the European

Union.

2-1 2/20/2006 11:10:18 AM

2

3

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Expanding the world of

Enjoy rich multi-media with JVC

VHF / UHF / DVB-T broadcasting

Digital camera

Video camera

Game console

Audio components

VCR DVD player

DVD recorder

Personal

computer

beautiful images

First things first!

-Warning ············································ 4

Getting started

-Names of all the parts ······················ 6

-Basic connections ···························· 8

-Connecting external devices ·········· 10

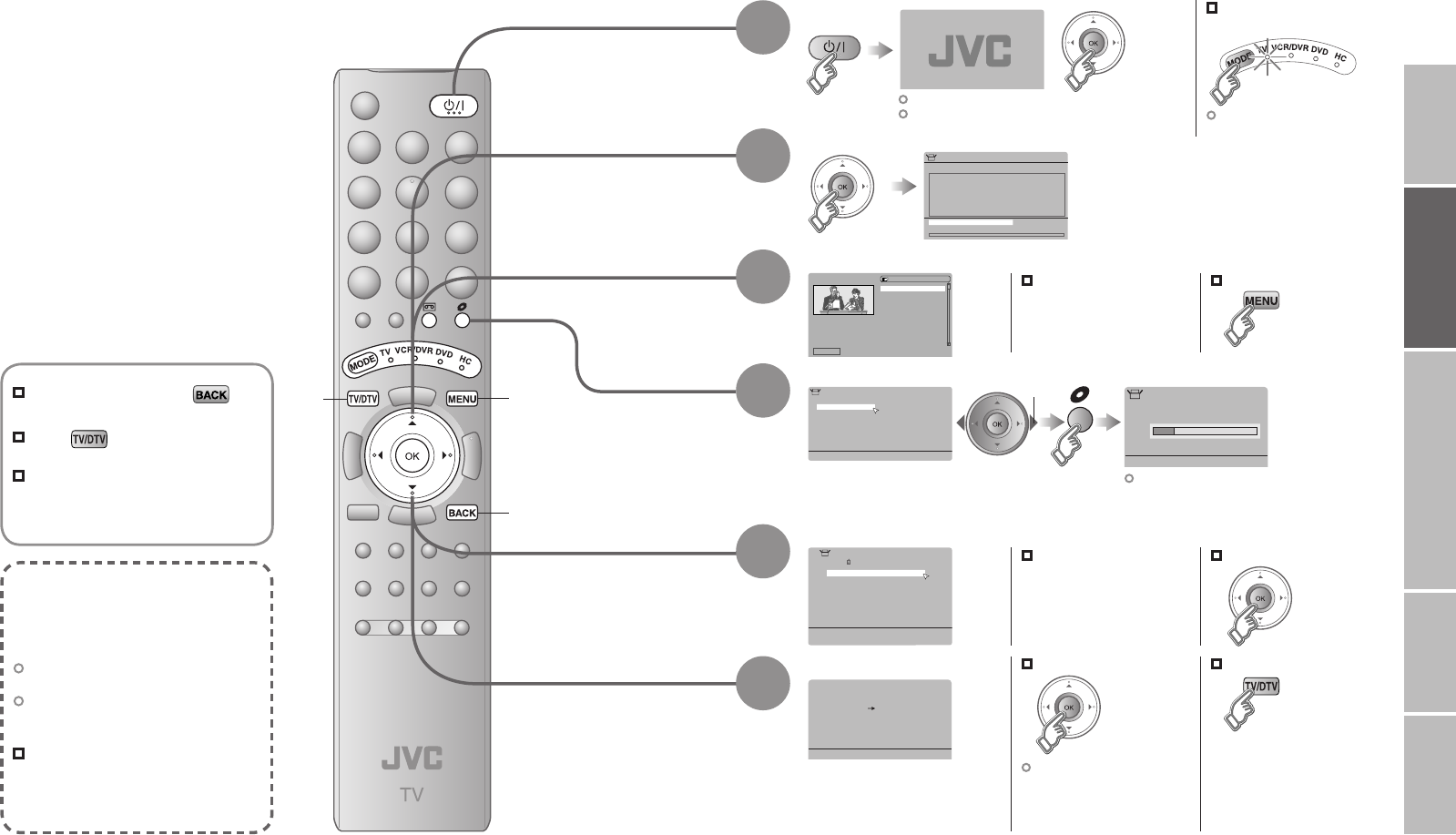

-Initial settings ································· 12

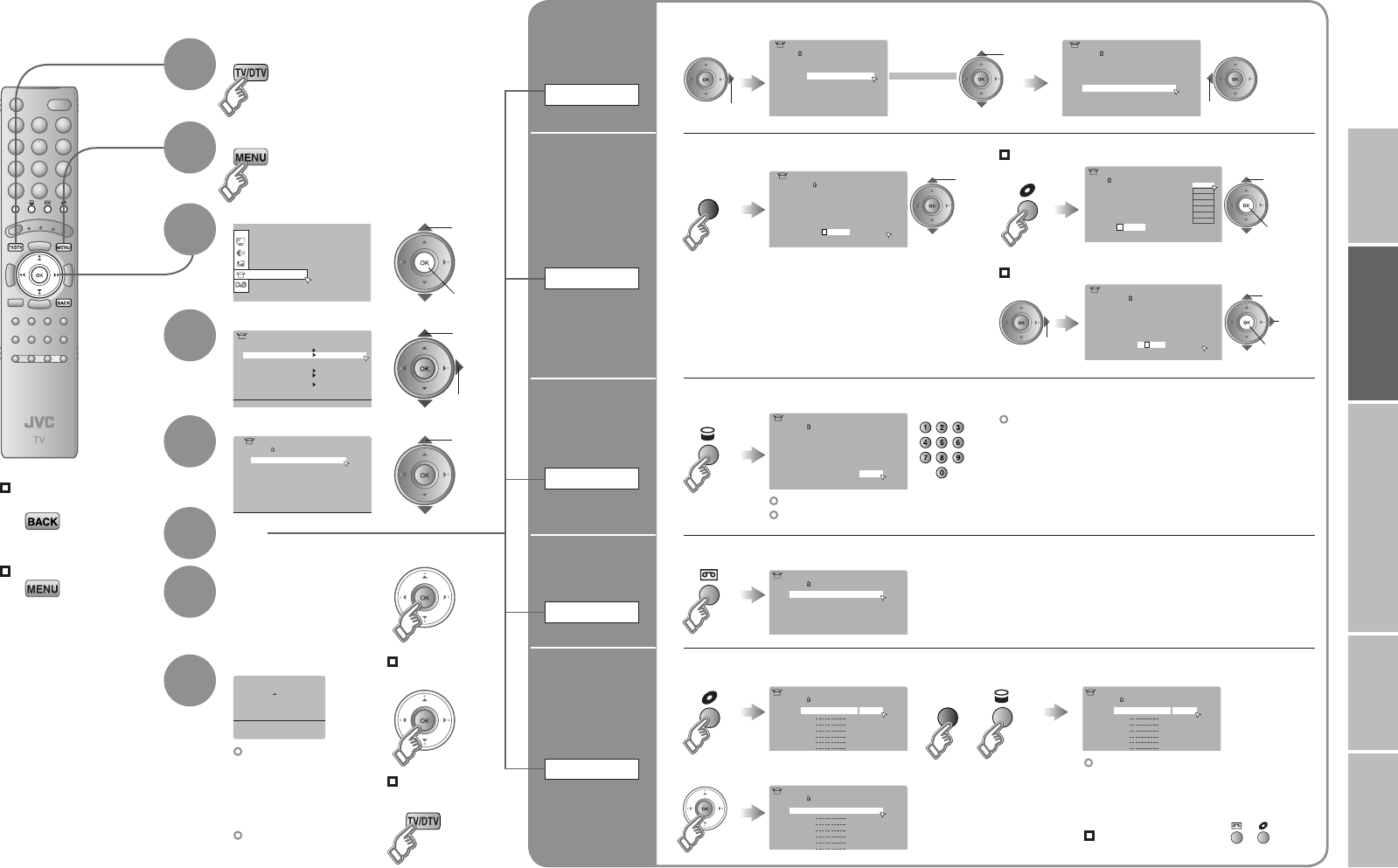

-Editing DTV channels ····················· 14

-Editing ATV channels ····················· 16

Let’s try it out

-Enjoying your new TV! ··················· 18

· TV / Teletext / EPG / Video / Menu

-Watching TV ··································· 20

-Using EPG ····································· 22

-Viewing teletext ······························ 24

-Watching videos / DVDs ················ 26

Try the advanced features

-Useful functions ······························ 28

· Multi-picture / Favourite channel

· Sleep timer / Child lock

-

Operate JVC recorders and other devices

··· 32

Just the way you like it

-Customising your TV ······················ 34

-Using DTV ······································ 36

-Advanced picture adjustment ········· 42

·

Reduce noise / Watch a more natural picture

· Set the aspect ratio, etc.

When you have trouble

-Troubleshooting ····························· 44

-CH/CC List ····································· 47

-Technical information ····················· 48

-Specifications ································· 49

Contents

* In this manual,

ATV : analogue terrestrial broadcasting (VHF / UHF)

DTV : digital terrestrial broadcasting (DVB-T)

2-3 2/20/2006 11:10:19 AM

4

5

First things

first!

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Never dismantle the

rear panel!

-It may cause an electric shock.

Never obstruct the

ventilation holes!

-It may cause overheating or a fire.

Handle LCD panel

with care!

-Use a soft, dry cloth when cleaning.

Never try to repair

the TV yourself!

If the problem cannot be solved in

“Troubleshooting” (P. 44), unplug

the power cord and contact your

retailer.

If the TV is damaged

or behaving strangely,

stop using it at once!

Unplug the power cord and contact

your retailer.

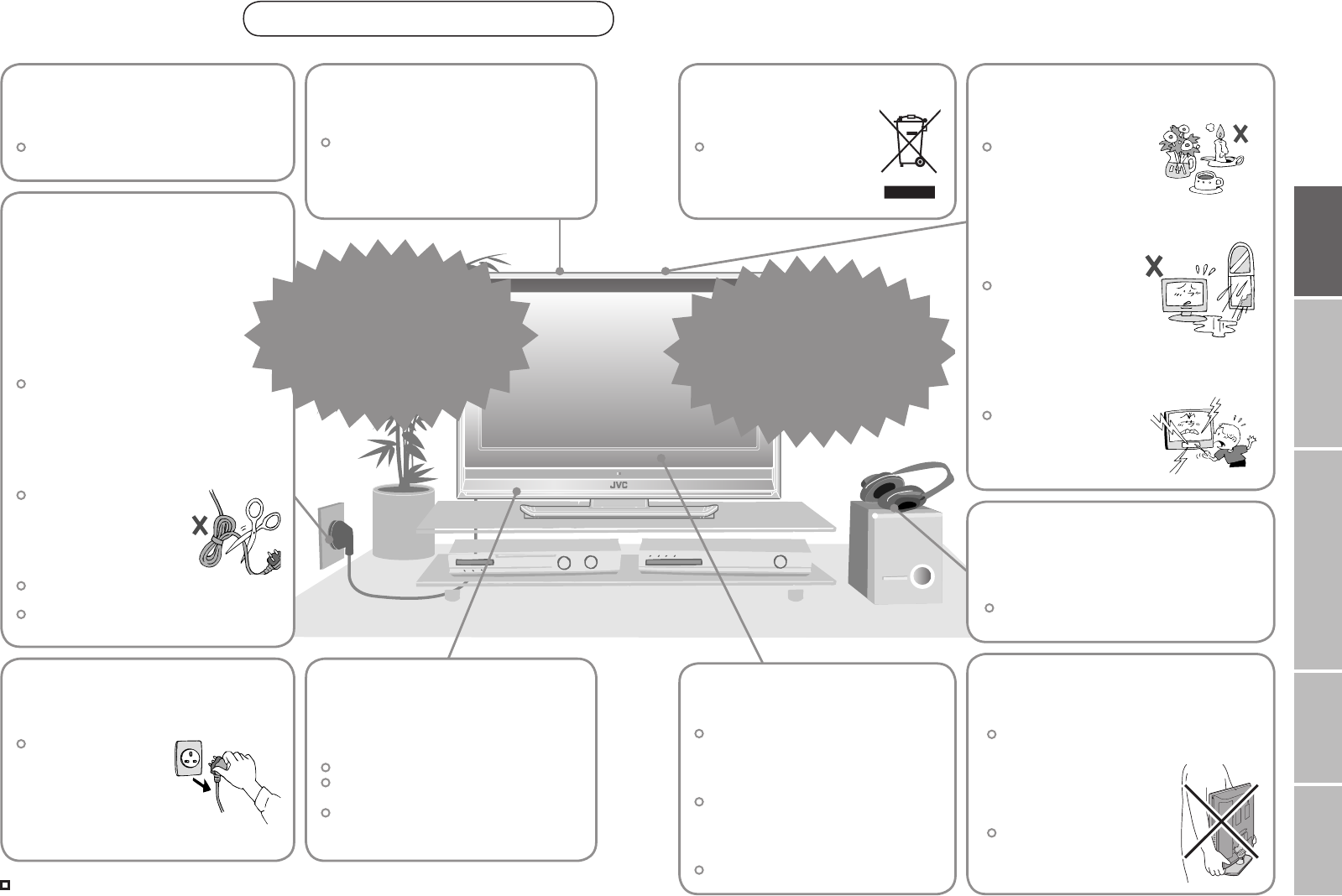

Warning

For more details on installation, usage and safety Consult your retailer

Never expose to rain or

moisture!

-To prevent fire or electric

shock, never allow

liquids to enter the unit.

Hold the TV so as not to

scratch the screen!

-Do not touch the screen when carrying the

TV.

Do not carry the

TV on your own!

-In order to prevent accidents,

ensure that the TV is carried

by two or more people.

Please follow all the guidelines below

Never listen to

headphones at high

volume!

-It may damage your hearing.

Never place anything on

the TV!

-Placing liquids, naked

flames, cloths, paper,

etc. on the TV may

cause a fire.

Never insert objects into

the cabinet openings!

-It may cause a fatal

electric shock. Take care

when children are near.

Unplug the power cord

when going out!

-The power buttons on

the remote control and

the TV unit cannot

completely turn off the

TV. (Make appropriate

arrangements for

bedridden people.)

For more details on installation, usage and safety Consult your retailer

Make enough room for

inserting and removing

the power plug!

Place the TV as

close to the outlet as

possible!

-The main power supply for this TV is

controlled by inserting or removing the

power plug.

Never cut or damage

the power cord!

-If the AC plug is not the

right shape, or the power

cord is not long enough,

use an appropriate plug

adapter or extension cable.

(Consult your retailer.)

-

If you have cut or damaged the power cord.

 “Technical information” (P. 48)

-To change the fuse in UK plugs

 “Technical information” (P. 48)

Follow this manual

regarding setup!

-Connect only to a 220-240V, 50/60Hz

AC outlet.

On disposal of the

TV!

-Follow the instruction in

“Information for Users on

Disposal of Old Equipment”

(P. 1).

When attaching the TV to

the wall, use the optional

JVC wall mounting unit!

-Consult a qualified technician.

-See the included manual on mounting

procedures.

-JVC assumes no responsibility for

damage due to improper mounting.

Do not allow the TV

to fall!

-Do not rest your elbows on, or allow

children to hang from the TV.

There is a risk that the TV will fall and

cause injuries.

4-5 2/20/2006 11:10:21 AM

6

7

Getting

started

TV/AV

MENU

/OK

P

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Turn on “3D Cinema Sound” (P. 20)

Take a snapshot

of the screen (P. 20)

View in multi-picture mode (P. 28)

When watching TV / Video

Change the aspect ratio (P. 20)

When operating a JVC VCR

or DVD (P. 26)

When choosing a favourite

channel (P. 29)

View subtitles (P. 20)

View the electronic

programme guide (EPG) (P. 22)

When watching DTV

when viewing teletext (P. 24)

When watching ATV (P. 16)

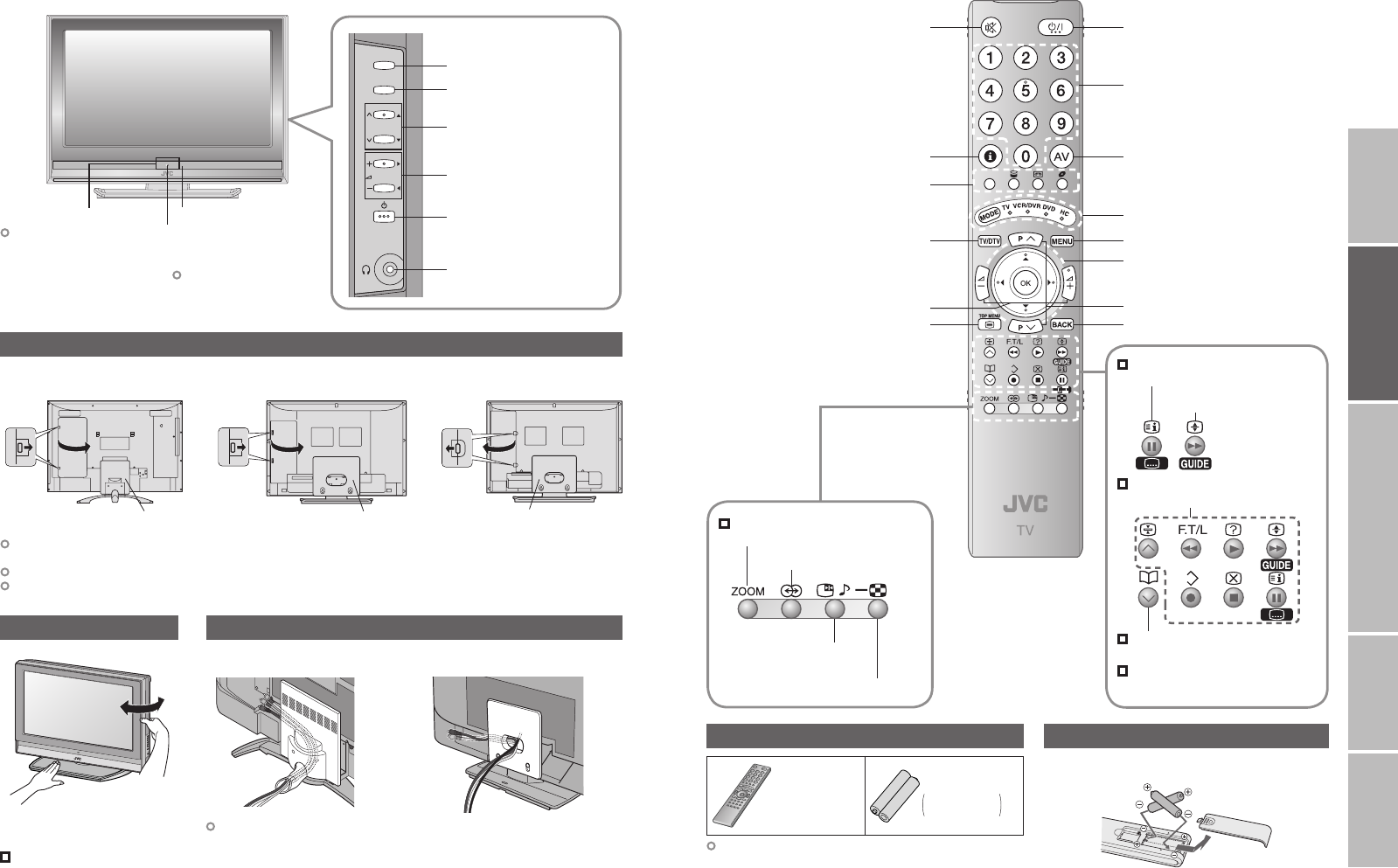

Names of all the parts

Remote control sensor

Power lamp

ON: Lit (Green)

OFF: Unlit

-Power lamp lights while

the TV is on.

 “Power Lamp” (P. 35)

Illumination lamp

-If the cover cannot be closed due to the cables being in the way

 Do not force the cover to close (leave it open).

-Connecting terminals on the back of the TV  Connecting External devices (P. 10)

-To remove the cable cover, refer to the included sheet.

-Illumination lamp lights

while the TV is on.

 “Illumination” (P. 35)

Remove the terminal cover

Direction of TV

Remote control

(RM-C1905S)

Check accessories

To ATV / DTV

Power On / Off

Change channel / page

Watch video, etc. (P. 26)

Select and

confirm settings in menus

To previous channel

Change channel / page

Switch between

“TV / VCR / DVR / DVD / HC” (P. 20)

Mute

Channel information

(P. 20)

Display on-screen menu (P. 34)

Colour buttons

Volume

To teletext (P. 24)

AAA/R03 Batteries

For confirming

the TV works

Insert the batteries

Use two “AAA/R03” dry cell batteries. Insert the batteries from

the - end, making sure the + and - polarities are correct.

Tidying the cables

Change channel / page

Volume

Power On / Off

To headphones (P. 10)

Display on-screen

menu / set

Switch between

TV / AV devices

-LT-26DX7BJ/SJ

To attach the stand, refer to the included sheet.

-To remove the cable cover, refer to the included sheet.

LT-32DX7BJ/SJ, LT-26DX7BJ/SJLT-40DS7BJ

LT-26DX7BJ/SJ

Press to

remove.

Cable cover

Press to

remove.

LT-40DS7BJ

Cable cover

Press to

remove.

LT-32DX7BJ/SJ

Cable cover

The LT-40DS7BJ model differs from illustrations on this page.

6-7 2/20/2006 11:10:31 AM

8

9

CAM

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

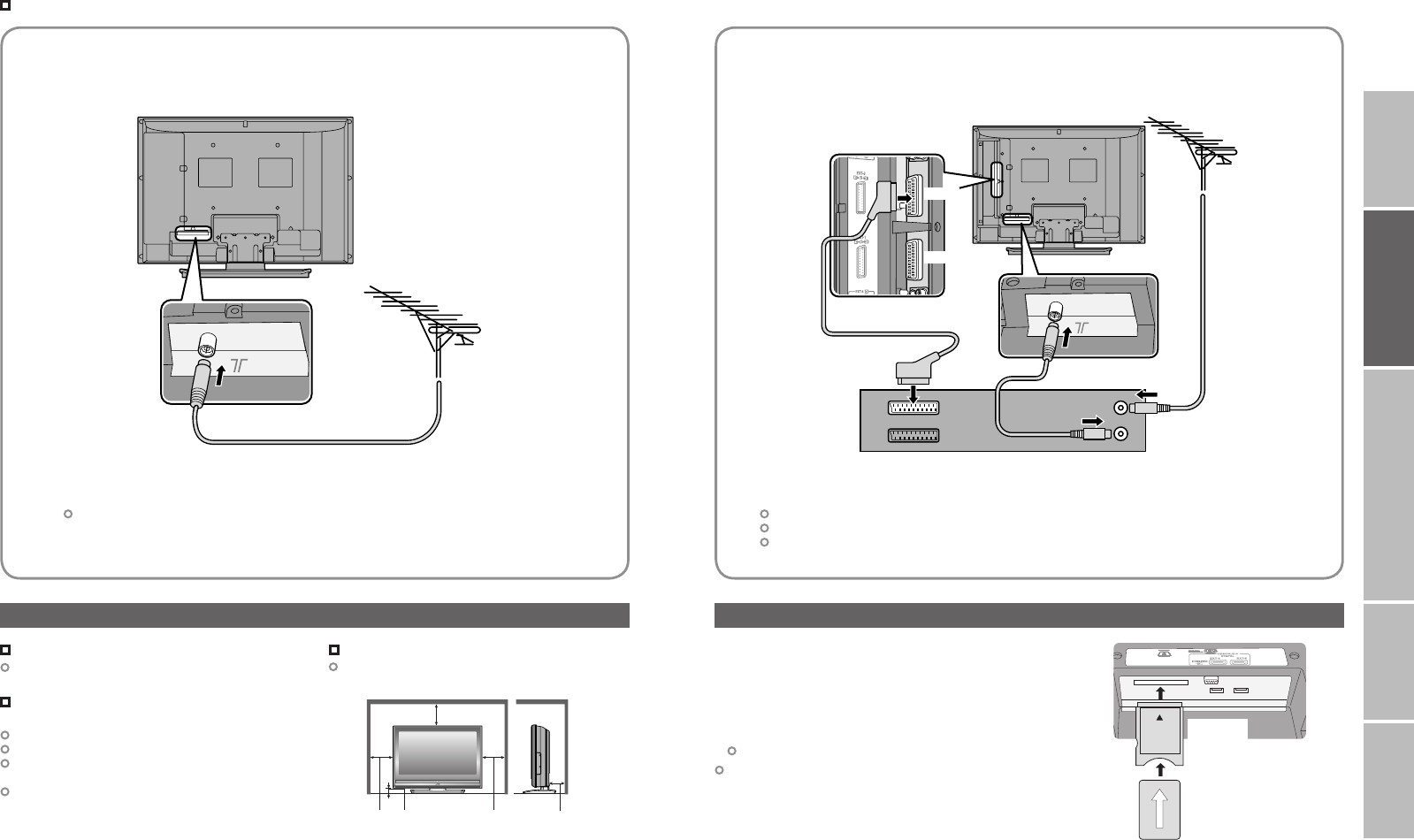

Basic connections

200mm

50mm150mm 150mm 50mm

Power requirements

-Connect the power cord only to a 220-240V,

50/60Hz AC outlet.

When attaching the TV to the wall, use the

optional JVC wall mounting unit

-Consult a qualified technician.

-See the included manual on mounting procedures.

-JVC assumes no responsibility for damage due to

improper mounting.

-200mm × 200mm mount which conforms to VESA

standards.

Installation requirements

-To avoid overheating, ensure the unit has ample

room.

Please read the user manuals of each device carefully before setup.

It is necessary to connect an aerial to watch TV.

Connect with other devices  “Connecting external devices” (P. 10)

Care when setting Watch pay-per-view

Contract with a broadcasting company beforehand.

1 Unplug the power cord

2 Insert the Viewing Card into the CAM.

3 Insert the CAM.

4 Plug the power cord, and turn the power on.

- Set pay-per-view  (P. 40)

-The CAM and Viewing Card will be sent by the broadcasting

company after contracting with them.

Connect the aerial

-After all the connections have been made, insert the plug into an AC outlet.

AERIAL

VCR / DVD recorder

-After all the connections have been made, insert the plug into an AC outlet.

-Connect “T-V LINK” compatible recording device to “EXT-2”.

-“T-V LINK”  “What is “T-V LINK”?” (P. 12)

EXT-2

Connect a VCR / DVD recorder

AERIAL

EXT-1

Viewing

Card

Conditional

Access

Module

8-9 2/20/2006 11:10:39 AM

10

11

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

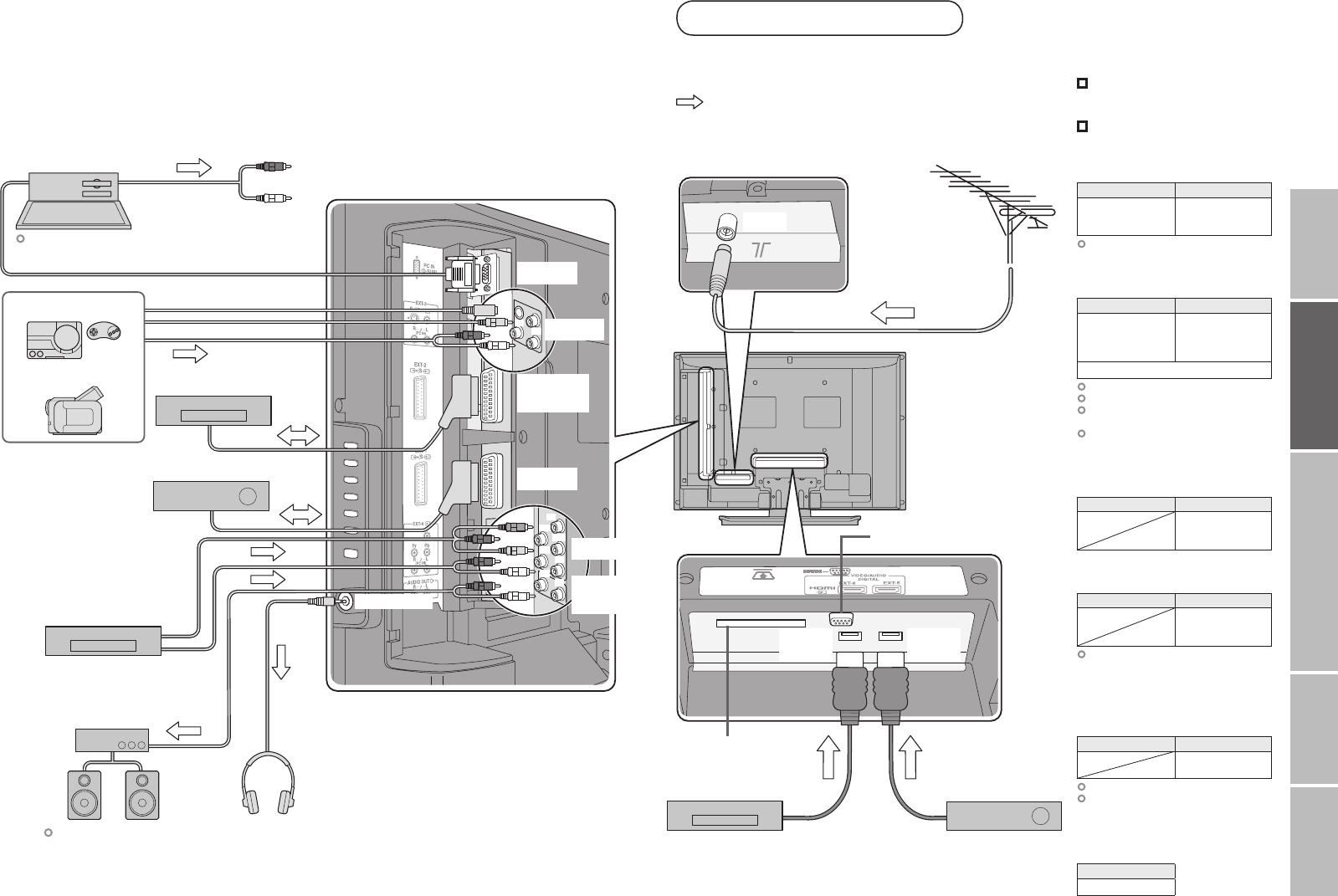

Connecting external devices

You can connect many different devices to the rear panel of the TV.

Please read the user manuals of each device before setting up.

(Connecting cables are not supplied with this TV.) : signal direction

Connect “DVI” devices

 (P. 48)

“T-V LINK”  (P. 12)

EXT-1 Watching videos

Output Input 

· Composite signal

· Sound L / R

·

Composite signal /

RGB / S-VIDEO

· Sound L / R

-Use S-VIDEO  “S-IN” (P. 27)

EXT-2 Dubbing videos

Using “T-V LINK”

Output Input 

· Composite signal

· S-VIDEO (only for

DTV)

· Sound L / R

·

Composite signal /

RGB / S-VIDEO

· Sound L / R

· T-V LINK

-Use S-VIDEO  “S-IN” (P. 27)

-Use DTV S-OUT  “S-OUT” (P. 27)

-Select dubbing sources

 “DUBBING” (P. 27)

-Connect a decoder

 “Decoder (EXT-2)” (P. 35)

EXT-3 Watching videos

Output Input 

· Composite

signal / S-VIDEO

· Sound L / R

EXT-4 Watching DVDs

OutputInput 

·

Component signal

(P. 49)

· Sound L / R

-

“Component Auto Select”



(P. 35)

EXT-5

EXT-6

Connecting

HDMI devices

Output Input 

· HDMI signal

(P. 49)

-“HDMI Setting”  (P. 35)

-EXT-6 input does not support

analogue sound.

AUDIO OUT

Listening to the TV on external speakers

Output 

· Sound L / R

VCR / DVD / other devices

AERIAL

DVD player

(HDMI compatible)

Amplifier

(L) (R)

VCR / DVD recorder

(“T-V LINK” compatible)

AUDIO

OUT

Satellite broadcast tuner

Game consoles

-Check for PC compatibility

 “Technical information” (P. 48)

DVD player

PC IN

PC

Video camera

EXT-1

EXT-2

(T-V LINK)

EXT-3

EXT-4

To “EXT-3” R/L (PC IN)

Headphones

(R)

Headphone

(L)

(Y)

(Pb)

(Pr)

(R)

(R)

(L)

(L)

EXT-6

(HDMI) EXT-5

(HDMI)

Not available.

(For service adjustments)

CAM slot

(“Watch pay-per-view” P.9)

Satellite broadcast tuner

(HDMI compatible)

-Audio signals received from

EXT-5 and EXT-6 can not

be sent to the “AUDIO OUT”

terminal.

10-11 2/20/2006 11:10:40 AM

12

13

Installation > Automatic Search

Channels:

100%

BBC ONE

BBC TWO

BBC THREE

BBC NEWS 24

BBCi

CBBC Channel

UHF CH:68

1 BBC ONE

Select Delete Edit Name Lock Favourites

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

CH 28

>> Auto Program

14%

> Auto Program

United Kingdom

Country

Ireland

01

AV

PR

02

03

04

05

06

07

08

09

ID CH/CC

BBC1 CH

21

CH 22

CH 23

CH 24

CH 25

CC 02

CC

CC 04

CC 05

03

>Edit

Download TV Recording Device

T-V LINK

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Initial settings

Register DTV / ATV channels on TV. These channels can be edited later.

(In this manual, digital broadcasting is indicated as DTV, and analogue broadcasting as ATV.)

Begin

Automatically register DTV channels

Check what was registered

Automatically register ATV channels

Check what was registered

select

Edit ATV channels

 @ in “Editing ATV

channels” (P. 16)



When not using T-V LINK

When using T-V LINK

-If “Feature Not

Available” appears :



Is a T-V LINK compatible

device connected to EXT-2?

 Is the device turned on?

-

If “ACI Start” appears, select and start settings.

(This will set up cable television channels.)

 “What is “ACI” (Automatic Channel

Installation)?” (P. 48)

Finish

4

Confirm

Edit DTV channels

 @ in “Editing DTV

channels” (P. 14)

Confirm

To the previous screen 

Exit 

MENU

BACK

What is “T-V LINK”?

Connecting the TV to a “T-V LINK”

compatible device allows :

-ATV Channels on the TV to be

instantly registered on the device.

-The “DIRECT REC” function to be

used.

 “Technical information” (P. 48)

“T-V LINK” variations

“T-V LINK” (JVC) “Q-LINK” (Panasonic)

“Megalogic” (Grundig) “Data Logic” (Metz)

“SMARTLINK” (Sony) “Easy Link” (Philips)

TV/DTV

If the “JVC” logo does not appear or

if you wish to make changes later

 DTV : “Automatic Seach” (P. 40)

ATV : “Auto Program” (P. 35)

The remote control

doesn’t work

-Confirm the mode is set to

“TV”.

-Shown only when powering on for the first time.

-The power on the unit can also be used.

3

2

1

5

6

12-13 2/20/2006 11:10:56 AM

14

15

1 BBC ONE

Edit Name Lock Favourites

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

DeleteSelect

DTV

Timers

Configuration

Installation

Common Interface

DTV

Edit PR List

1 BBC ONE

Select Delete Edit Name Lock Favourites

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

Red: Page up�

Green: Pagedown�

TV/DTV: Go to DTV�

Guide: Go to guide�

Back: Go to previous i: Exit help

MENU

OK

7 BBC THREE

Edit Name Lock Favourites

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

DeleteSelect

1 BBC ONE

Select Edit Name Lock Favourites

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

Delete

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

1 BBC ONE

Select Delete Edit Name Lock Favourites

EDIT PR LIST

The selected service will be permanently

deleted. Are you sure?

NoYes

1 BBC ONE

Select Edit Name Lock Favourites

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

40. BBC NEWS 24

51. BBCi

Delete

30. CBBC Channel

1 BBC ONE

Select Delete Lock Favourites

EDIT PR LIST

1. BBC ONE

2. BBC TWO

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

7. BBC THREE

Edit Name

1 BBC ONE

Select Delete Edit Name Lock Favourites

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCil

EDIT PR LIST

Enter PIN code

1 BBC ONE

Select Delete Edit Name Lock Favourites

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

EDIT PR LIST

BBC 3CH

1 BBC ONE

Select Delete Lock Favourites

EDIT PR LIST

1. BBC ONE

2. BBC TWO

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

Edit Name

7. BBC 3CH

1 BBC ONE

Select Delete Favourites

EDIT PR LIST

1. BBC ONE

2. BBC TWO

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

7. BBC THREE

Edit Name Lock

1 BBC ONE

Select Delete Edit Name Lock Favourites

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

EDIT PR LIST

BBC

1 BBC ONE

Select Delete Edit Name Lock Favourites

..

EDIT PR LIST

More..

Enter PIN code

9

0

1. BBC ONE

2. BBC TWO

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

7. BBC THREE

1 BBC ONE

Select Delete Edit Name Lock Favourites

..

EDIT PR LIST

More..

Enter PIN code

9

0

1. BBC ONE

2. BBC TWO

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

7. BBC THREE

1 BBC ONE

Select Delete Lock

EDIT PR LIST

1. BBC ONE

2. BBC TWO

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

7. BBC THREE

Edit Name Favourites

1 BBC ONE

Select Delete Edit Name Lock Favourites

..

EDIT PR LIST

More..

Enter PIN code

9

0

1. BBC ONE

2. BBC TWO

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

7. BBC THREE

1 BBC ONE

Select Delete Edit Name Lock Favourites

..

EDIT PR LIST

More..

Enter PIN code

9

0

1. BBC ONE

2. BBC TWO

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

7. BBC THREE

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

When coming from “Initial settings” (P. 12), skip to @.

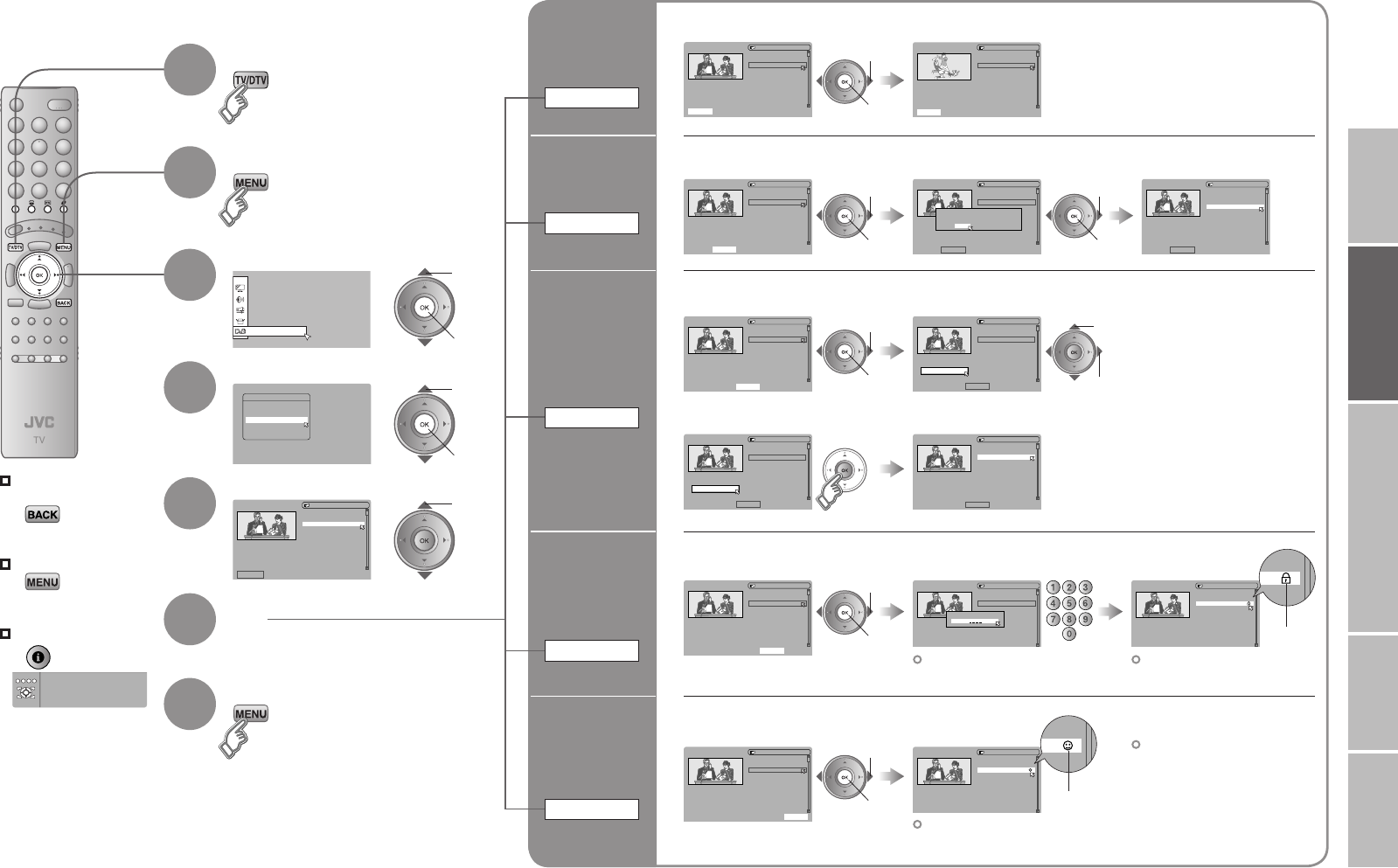

Editing DTV channels

Edit the channels registered with “Automatic search” in “Initial settings” (P. 12).

To the previous

screen



Exit



1

2

3

4

5

6

7

select

Display the menu bar

Select “DTV”

Select “Edit PR List”

Select a channel

Select DTV

Finish

Edit

Tips for operation



Confirm

the channel


Select

Edit a

channel name

Edit Name

1 Select “Select”

2 Select “Yes”

3 Decide

1 Select “Delete”

2 Change the name1 Select “Edit Name”

2 Enter PIN code1 Select “Lock”

1 Select “Favourites”

Lock icon

Favourite icon

Delete

a channel

Delete

Stop Children

from watching

specific

channels

Lock

Register your

favourite

channel

Favourites

1 select

2 next

1 select

2 delete

1 select

2 next

1 enter character

2 move position

1 select

2 next

1 select

2 set

-Default is “0000”.

 “Change PIN code” (P. 39)

-To release, repeat the

same steps.

-To release, repeat the

same steps.

-Move through only your

favourite channels

 “Favourite Mode” (P. 39)

1 select

2 view

1 select

2 next

1 select

2 next

14-15 2/20/2006 11:12:50 AM

16

17

Download TV Recording Device

T-V LINK

Set Up

Set Up

Auto Program

Component Auto Select

EXT Setting

Off

Off

Off

HDMI Setting

Edit/Manual

Decoder(EXT-2)

Attenuator

PC Position

Set Up

Auto Program

Component Auto Select

EXT Setting

Off

Off

Off

HDMI Setting

Edit/Manual

Decoder(EXT-2)

Attenuator

PC Position

01

AV

PR

02

03

04

05

06

07

08

09

ID CH/CC

BBC1 CH

21

CH 22

CH 23

CH 24

CH 25

CC 02

CC

CC 04

CC 05

03

>Edit

ID

>Manual

11

10

PR

12

13

14

15

16

17

18

19

CH

CH 35

CH 29

01

AV

PR

02

03

04

05

06

07

08

09

CH

BBC1 CH 21

BBC2 CH 22

ITV CH 23

CH4 CH 24

CH5 CH 25

CH 26

CH 27

CH 28

>Edit

ID

01

AV

PR

02

03

04

05

06

07

08

09

ID CH

BBC1 CH 21

BBC2 CH 22

ITV CH 23

CH4 CH 24

CH5 CH 25

CH 26

CH 27

CH 28

>Edit

01

AV

PR

02

03

04

05

06

07

08

09

ID CH

BBC1 CH 21

BBC2 CH 22

ITV CH 23

CH4 CH 24

CH5 CH 25

CH 26

CH 27

CH 28

A

>Edit

01

AV

PR

02

03

04

05

06

07

08

09

CHID

BBC1 CH 21

BBC2 CH 22

ITV CH 23

CH4 CH 24

CH5

MBC

M6

ID List

MCM

MDR

MOVIE

MTV

MTV3

CH 25

CH 26

CH 27

CH 28

M

>Edit

01

AV

PR

02

03

04

05

06

07

08

09

ID CH

BBC1 CH 21

BBC2 CH 22

ITV CH 23

CH4 CH 24

CH5 CH 25

CH 26

CH 27

CH 28

JVC

>Edit

01

AV

PR

02

03

04

05

06

07

08

09

ID CH

BBC1 CH 21

BBC2 CH 22

ITV CH 23

CH4 CH 24

CH5 CH 25

CH

CH 27

CH 28

30

>Edit

01

AV

PR

02

03

04

05

06

07

08

09

ID CH

BBC2 CH 22

ITV CH 23

CH4 CH 24

CH5 CH 25

CH 26

CH 27

CH 28

>Edit

ID

>Edit

11

10

PR

12

13

14

15

16

17

18

19

CH

CH 35

CH 29

>Manual

11

10

PR

12

13

14

15

16

17

18

19

ID CH

CH 30

CH 29

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Display the menu bar

Select “Set Up”

Select “Edit / Manual”

Confirm settings

Finish

When coming from “Initial settings” (P. 12), skip to @.

Select a row

Edit

Move a

channel’s

position

MOVE

Editing ATV channels

Edit the channels registered with “Auto Program” in “Initial settings” (P. 12).

To the previous

screen



Exit



8

7

6

5

4

3

2

-If “Feature Not Available”

appears :

 Is a “T-V LINK”

compatible device

connected to “EXT-2”?

 Is the device turned on?

-“T-V LINK”  (P. 12)

When not using

“T-V LINK”

When using

“T-V LINK”

Edit a

channel

name

ID

Insert

a channel

INSERT

Delete

a channel

DELETE

Register a

new channel

MANUAL

select

move out move in

select

enter

the first

character

next

column

From high

frequencies

or

When selecting a preset name from the “ID LIST”

When manually naming a channel

-Auto-search begins, and the nearest

frequency is imported.

 Repeat the previous steps until the

desired channel is displayed

From low

frequencies

1 Begin 2 Select a destination 3 Finish

1 Begin 2 Enter a channel name

2 Enter a CH number

2 Search for a channel1 Begin

3 Set

Picture fine tuning 

1 select

2 next

1 select

2 next

1 select

2 set

1 enter

2

next

column

3 set

1 Begin

-Receives the

broadcast signal.

1 Delete

1Select ATV

(red)

(red)

-CH / CC List  (P. 47)

-In Ireland, select CH/CC with 1 4.

/

16-17 2/20/2006 11:15:00 AM

18

19

Let’s try it out

· TV / Teletext / EPG / Video / Menu


IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Enjoying your new TV!

TV and Text mode

Watching TV

20

PAGE

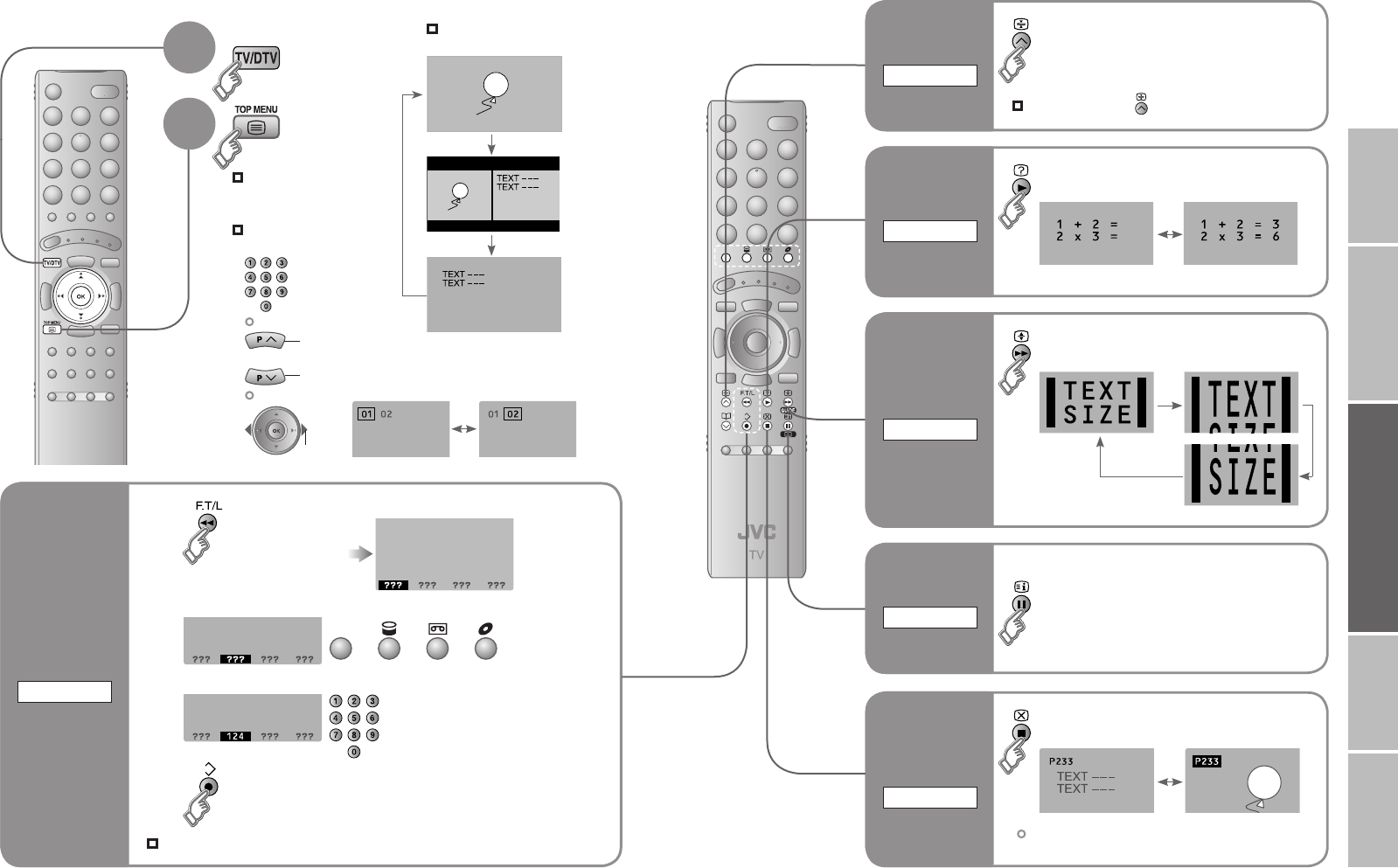

Viewing teletext

24

PAGE

26

PAGE

34

PAGE

View channel information

Change the aspect ratio

Enjoy “3D Cinema Sound”

Take snapshots of the screen

Enlarge the text

To the index page

Hold the current page

Switch briefly between teletext and TV

Bookmark your favourite pages

Reveal hidden pages

Watch high quality video (S-VIDEO)

Name connected devices

Dub videos

PC position adjustment

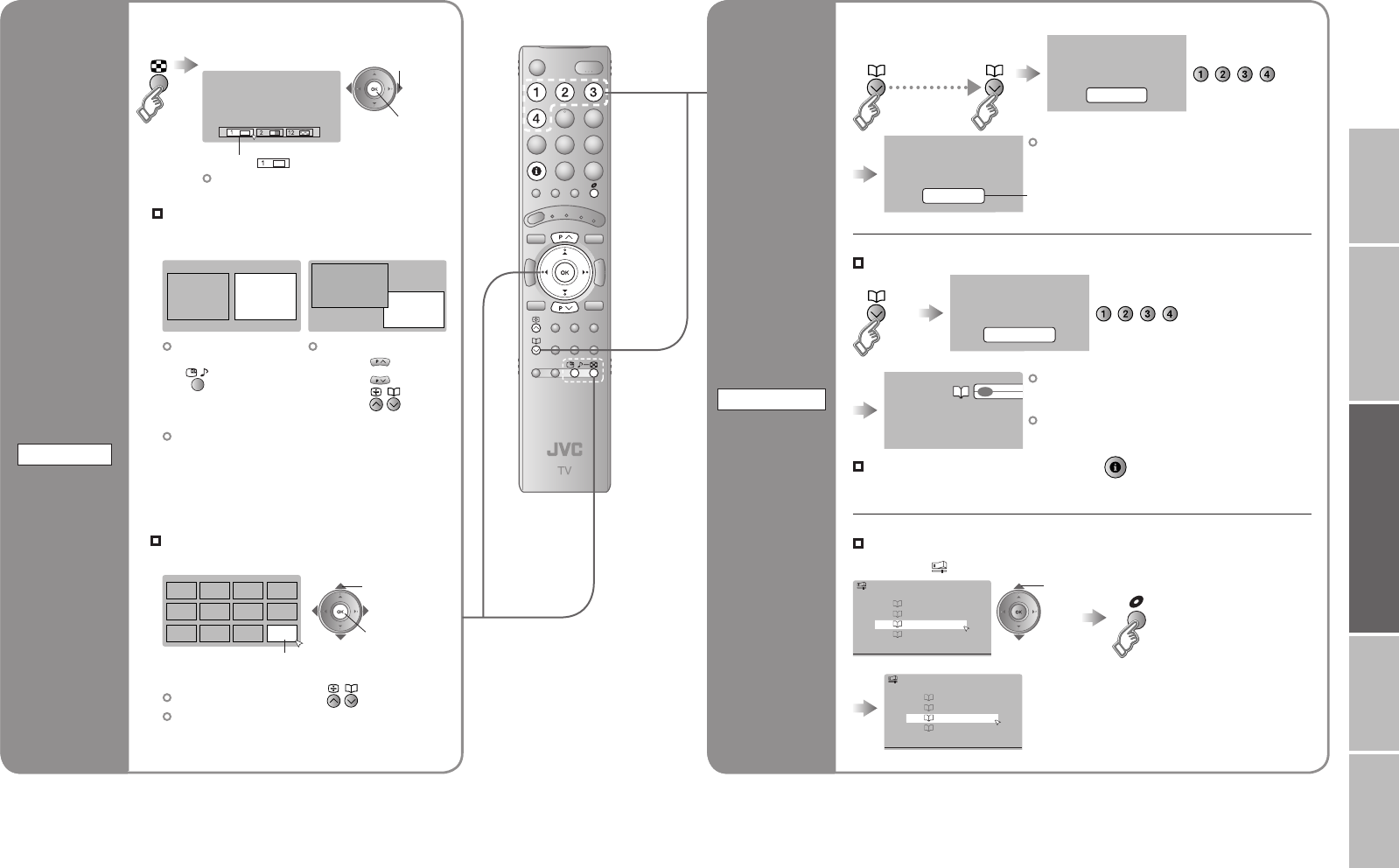

Using EPG

22

PAGE View the programme list

for 8 days

Search from a genre

Reserve a programme to

watch / record

Watching

videos / DVDs

Personal preferences

Adjust the picture

Adjust the sound

Basic settings

(channel settings, etc.)

Advanced settings

(sleep-timer / child lock, etc.)

Use DTV

(timer-record / configuration /

channel settings, etc.)

18-19 2/20/2006 11:15:19 AM

20

21

Auto

Panoramic

14:9 Zoom

16:9 Zoom

16:9 Zoom Subtitle

Full

Zoom

Regular

16 : 9 Zoom

AV

02

03

04

05

06

07

08

09

PR List

01 BBC1

High3D Cinema Sound

Subtitle ON

Today's news!

Now: 13:00-14:00 Steve Scott

Next: 14:00-14:30 Steve Scott

ITV News

13:19

CH61

41

P

MENU

/OK

TV/AV

P

BBC

AV

12 : 00

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

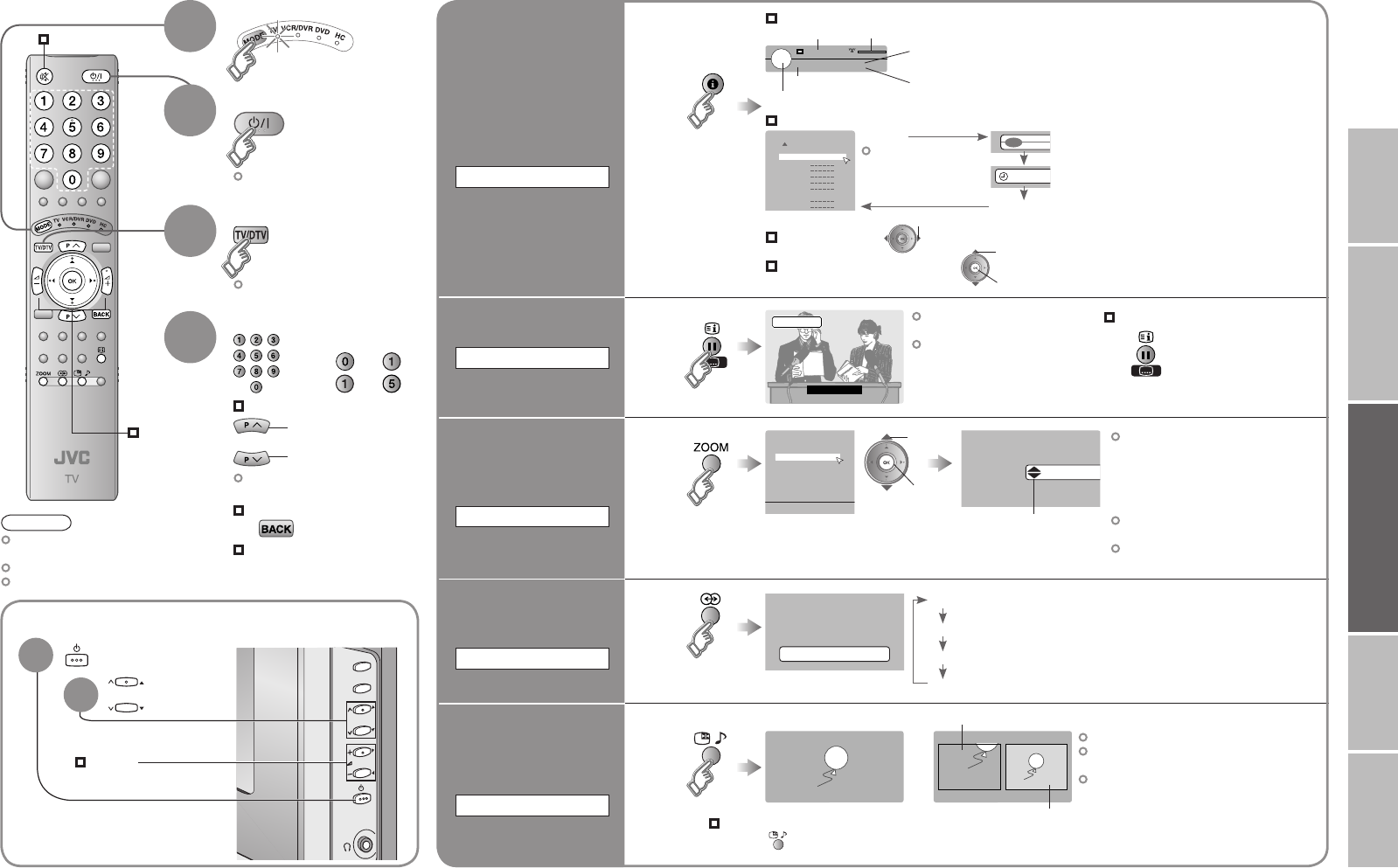

Watching TV



Switch between mono / stereo /

bilingual broadcasting

 “Stereo / t·u” (P. 35)

INFORMATION

Channel

information and

clock

Note

-To completely turn off the TV, unplug

the AC plug.

-Watch pay-per-view  (P. 40)

-Add a new station  (P. 40)

ZOOM

Change the aspect

ratio

3D CINEMA SOUND

Enjoy ambient

sound

Current programme

Still picture

-Not available when viewing DTV or PC.

-Not available when the SUB-PICTURE

is displayed.

-You cannot save or export the snapshot.

Cancel

 Press again, or change the channel

FREEZE

Take snapshots

of the screen

SUBTITLE

View subtitles

(DTV)

When ATV is selected

When DTV is selected

Name of station

Time

Channel

Reception level

Current

programme

Following

programme

Turn off subtitles



Basic operations using the side buttons

Power on

Change

the channel

Volume

2

-Shown only when

subtitles exist

-To avoid subtitle recording,

turn the subtitles off before

recording.

PR List Channel information

Time (in case of having viewed teletext)

(No indication)

-Channels

registered in

“Initial settings” will

appear here.

select

Select a page 

Select and view a channel 

1 select

2 view

High : For stereo sound

Low : For stereo sound (when the sound distorts in “High” mode)

Mono : For mono sound (emulates a stereo-like sound)

Off : Turns off “3D Cinema Sound”

-When set to “Auto”, the aspect ratio

will turn to the ratio obtained from

the information the TV received.

Without receiving aspect information,

it will be the setting in “4:3 Auto

Aspect” (P. 42)

-Not available in 1080i (1125i)

/ 720p (750p) signals.

-In PC mode, “Regular” and “Full” can

be selected.

Move the picture with

1 or 4 while this bar is

displayed

1 select

2 set

1

Select a channel

up

down

Power on

The green power lamp

on the TV lights.

Mute

-Press again to turn the screen off

and put the TV into standby mode.

Move up or down a channel

Volume

Set to “TV”

Select ATV / DTV

4

-DTV : Digital broadcasting

ATV : Analogue broadcasting

To the previous channel



-

With DTV, you can select only from

your favourite channels

 (P. 39)

3

2

1

E.g.

1 :

15 :





20-21 2/20/2006 11:15:55 AM

22

23

Electronic Programme Guide 05:27 20/10/2004

GENRE

20/10

2. BBC TWO

04:00-

History: Britain 1750-1900

21/10

7. BBC THREE

06:00-

Big Cook Little Cook

22/10

30. CBBC Channel

06:20-

Tots TV

23/10

40. BBC NEWS 24

06:30-

Bobinogs

24/10

51. BBCi

06:45-

Wide Eye

25/10

89. BBC R Scotland

07:00-

Snailsbury Tales

26/10

90. BBC R n Gaidheal

07:15-

Arthur

27/10

04:00-6:00

History: Britain 1750-1900

Secondary Schools, How industrialisation changed the day-to-day�

lives of the British people.

800. 16:9monoscope

07:30-

I Love Mummy

All

Electronic Programme Guide 05:27 20/10/2004

GENRE

20/10

2. BBC TWO

04:00-

History: Britain 1750-1900

21/10

7. BBC THREE

06:00-

Big Cook Little Cook

22/10

30. CBBC Channel

06:20-

Tots TV

23/10

40. BBC NEWS 24

06:30-

Bobinogs

24/10

51. BBCi

06:45-

Wide Eye

25/10

89. BBC R Scotland

07:00-

Snailsbury Tales

26/10

90. BBC R n Gaidheal

07:15-

Arthur

27/10

04:00-6:00

History: Britain 1750-1900

Secondary Schools, How industrialisation changed the day-to-day�

lives of the British people.

800. 16:9monoscope

07:30-

I Love Mummy

All

Genre

News

Sports

Movies

Drama

Entertainment

Lifestyle

Kids

Education

All

Electronic Programme Guide 05:43 20/10/2004

GENRE

20/10

1. BBC ONE

00:15-

Last Embrace

21/10

2. BBC TWO

�

�

22/10

7. BBC THREE

�

�

23/10

40. CBBC Chennel

�

�

24/10

40. BBC NEWS 24

�

�

25/10

51. BBCi

�

�

26/10

89. BBC R Scotland

�

�

27/10

03:25-6:00

BBC News 24

BBC ONE joins the BBC's rolling news channel for a night of news,�

with bulletins on the hour and the headlines every 15 minutes.

90. BBC R n Gaidheal

�

�

Movies

Electronic Programme Guide 06:06 20/10/2004

GENRE

21/10

22/10

30. CBBC Channel

06:30-

Bobinogs

23/10

40. BBC NEWS 24

06:45-

Wide Eye

24/10

51. BBCi

07:00-

Snailsbury Tales

25/10

89. BBC R Scotland

07:15-

Arthur

26/10

90. BBC R n Gaidheal

07:30-

I Love Mummy

27/10

04:00-6:00

History: Britain 1750-1900

Secondary Schools, How industrialisation changed the day-to-day�

lives of the British people.

800. 16:9monoscope

07:55-

Newsround

All

20/10

2. BBC TWO

06:00-

Big Cook Little Cook

7. BBC THREE

06:20-

Tots TV

REC TIMER 06:02 20/10/2004

No. Name Start End Date Mode

1�

�

BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

2�

�

BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

3 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

4 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

5 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

6 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

7 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

8 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

9 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

10�

�

BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

Start

End

Date

Mode

Name BBC TWO

06:30

06:45

20/10/2004

Once

REC TIMER 06:02 20/10/2004

No. Name Start End Date Mode

1�

�

BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

2�

�

BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

3 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

4 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

5 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

6 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

7 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

8 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

9 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

10�

�

BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

Start

End

Date

Mode

Name BBC TWO

06:30

06:45

20/10/2004

Once

Electronic Programme Guide 06:06 20/10/2004

GENRE

21/10

7. BBC THREE

06:20-

Tots TV

22/10

30. CBBC Channel

06:30-

Bobinogs

23/10

40. BBC NEWS 24

06:45-

Wide Eye

24/10

51. BBCi

07:00-

Snailsbury Tales

25/10

89. BBC R Scotland

07:15-

Arthur

26/10

90. BBC R n Gaidheal

07:30-

I Love Mummy

27/10

04:00-6:00

History: Britain 1750-1900

Secondary Schools, How industrialisation changed the day-to-day�

lives of the British people.

800. 16:9monoscope

07:55-

Newsround

All

20/10

2. BBC TWO

06:00-

Big Cook Little Cook

REC TIMER 06:02 20/10/2004

No. Name Start End Date Mode

1�

�

BBC ONE 06:30�

�

06:45 20/10/2004 Inactive�

�

2�

�

BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

3 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

4 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

5 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

6 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

7 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

8 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

9 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

10�

�

BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

REC TIMER 06:02 20/10/2004

No.

2�

�

3�

�

4�

�

5

Name

BBC ONE

BBC ONE

BBC ONE

BBC ONE

Start

00:00

00:00�

�

00:00�

�

00:00

End

00:00

00:00�

�

00:00�

�

00:00

Date

01/01/2000

01/01/2000

01/01/2000

01/01/2000

Mode

Inactive

Inactive

Inactive

Inactive

1�

�

BBC TWO 06:30�

�

06:45 20/10/2004 Active

6 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

7 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

8 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

9 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

10�

�

BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

EPG

1Select DTV

Display EPG

Find a programme

1 select

2 next

3

2

Select

a date

Select

a channel

Select

a programme

2 set

1 select

(yellow)

2 next

1 select

Search from a genre

2 Select a genre

Close EPG 

-Only programmes in the selected genre are displayed.

3 Find a programme

Reserve a

programme

to watch

Programme-

view setting

-At the start time,

the channel will

automatically change.

-If the TV’s power is off

at the start time,

nothing happens.

Cancel the reservation Select the reserved programme and press “OK”

Reserve a

programme

to record

Programme-

record setting

You can find a programme from an eight-day programme guide,

check its information, and make a reservation.

-You can check

programme content.

After !

1 While EPG is

displayed...

Display the

Genre List

1 select a

reservation

2 next

(red)

(red)

1 select a

reservation

2 set the

mode to

“Inactive”

“MENU”  “ ”  “Rec Timer”

“MENU”  “ ”  “Rec Timer”

Change a reservation

-At the start time,

the channel will

automatically change

and the device

connected to EXT-2

will begin recording

the programme.

Change with 2 3

Cancel a reservation

Enter using the

numerical keypad

Change with 2 3

(Once / Daily / Weekly)

· Set the recording device to external input mode before the start time.

· For T-V LINK incompatible devices, manually set the timer on the device.

For details, refer to the manual of the recorder.

· Make sure that recording times on the recording device do not overlap with

recording times on the TV.

· When Rec Timer has been set, the power lamp on the TV will :

Start blinking 3 minutes before the start time (green or red)

Light during recording (green or orange)

· Some T-V LINK compatible DVD recorders may not work correctly.

-

Prepare for recording

After !

Confirm the reservation

Exit Press “MENU”

Using EPG

(Electronic Programme Guide)

Reservations

22-23 2/20/2006 11:16:56 AM

24

25

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

When watching TV

TV

TEXT

Display your

favourites list

1

(RED) (GREEN) (YELLOW) (BLUE)

Select a coloured button to save your page to

Enter the number of the page to save

Save

2

3

4

TEXT

This TV can display TV broadcasts and teletext on the same channel in two windows.

Viewing teletext

Bookmark

your favourite

page

LIST MODE

Recall your favourite page

.....

Hold the current page

Display hidden information

(answers to quizzes, etc)

Returns to page “100”

or a previously designated page

Double the size of the

displayed text

Leave the current page open,

while you switch to watch TV

Release

-Useful when running a page search.

 Press the coloured button as in step 2

 Press “ ” again

Operate according to

the screen indications

to

sub-page

When DTV is selected

-View sub-pages

-Move up or down a page

Select ATV / DTV

When ATV is selected

2

Enter a teletext page

When ATV is selected

(ATV)

Hold the

current page

HOLD

(ATV)

Reveal

hidden pages

REVEAL

(ATV)

Enlarge

the text

SIZE

(ATV)

To the

index page

INDEX

(ATV)

Switch briefly

from teletext

to TV

CANCEL

(ATV)

1

up

down

(red)

24-25 2/20/2006 11:17:19 AM

26

27

Set Up

Auto Program

Component Auto Select

PC Position

Attenuator

Off

Off

HDMI Setting

Edit/Manual

Decoder(EXT-2)

EXT Setting

Off

> EXT Setting

EXT-1 Dubbing

EXT-2

EXT-4

EXT-3

TV

DTV

> EXT Setting

EXT-1 Dubbing

EXT-2

EXT-4

EXT-3

TV

DTV

> EXT Setting

EXT-1 Dubbing

EXT-2

EXT-4

EXT-3

TV

DTV

ID List

VHS

S-VHS

DVC

CAM

SAT

STB

GAME

DVD

DVR

> EXT Setting

EXT-1 Dubbing

EXT-2

EXT-4

EXT-3

TV

DTV

ID List

VHS

S-VHS

DVC

CAM

SAT

STB

GAME

DVD

DVR

> EXT Setting

EXT-1 Dubbing

EXT-2

EXT-4

EXT-3

TV

DTV

> EXT Setting

EXT-1

DVD

Dubbing

EXT-2

EXT-4

EXT-3

TV

DTV

> EXT Setting

EXT-1 Dubbing

EXT-2

EXT-4

EXT-3

TV

DTV

> EXT Setting

EXT-1 Dubbing

EXT-2

EXT-4

EXT-3

TV

DTV

1

2

3

4

5

6

7

EXT-1

EXT-2

EXT-3

EXT-4

HDMI1

HDMI2

PC

8DTV

EXT Mode

0AV

Set Up

P

MENU

/OK

TV/AV

TV/AV

P

MENU

/OK

Set Up

Auto Program

Component Auto Select

PC Position

Attenuator

Off

Off

HDMI Setting

Edit/Manual

Decoder(EXT-2)

EXT Setting

Off

Set Up

PC Position

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Watching videos / DVDs

Display the

menu bar

Select “Set Up” Select “EXT Setting”

1 select

2 next

Advanced functions

1

2

select

-The device

selection

display will

change from

E1 to S1.

-S-OUT is

not available

when EXT-2

receives an

RGB input.

Cancel this mode

Clear the name Select the blank space in 3

Set up

dubbing on

EXT-2

DUBBING

Edit names

of connected

devices

ID LIST

1 Select the EXT connected to S-VIDEO

3 Select a name from the list

1 Select the arrow 2 Select the dubbing source

2 Set S-VIDEO input

Press “ ” in 2 again

Switch

to S-VIDEO

input / output

S-IN

(DTV)

S-OUT

select

1 Select an EXT to assign a name to 2 Show the name list

1 select

2 set

select

Set the S-OUT Cancel S-IN at “EXT-2”, then select “DTV” and

press yellow button. (available only for DTV)

Record DTV with S-VIDEO Set S-OUT at “DTV”.

select

Operate the connected device and play a video

Select the video source

E.g. For EXT-1

1

To TV

2Operate JVC recorders and other devices (P. 32)

1 select

2 next

2 watch

1 select

Select the video source using

the side buttons

1

Select the

video source

2

3

Display the

menu bar

Select “Set Up” Select “PC Position”

1 select

2 next

PC position adjustment

1

21 select

2 next

31 adjust

2 set

-Shown only when “PC” is selected.

-Reset position 

26-27 2/20/2006 11:17:42 AM

28

29

Try the

advanced

features

· Multi-picture / Favourite channel

· Sleep timer / Child lock

Set 1 - 4?

Programmed!

Favourite 1 - 4?

1BBC

AV

>Favourite Setting

1PR 01

2PR 03

4PR 07

3PR 05

>Favourite Setting

1PR 01

2PR 03

4PR 07

3

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Selecting “ ” returns to normal viewing mode

(For wide aspect ratio signals)

Only the selected frame

has a moving picture.

Main Sub Main

Sub

Main

Select the number

of screens

Watch in dual-picture mode

E.g. You can watch TV and video at the same time.

-Move up or down a page 

-Not available when in DTV channels,

EXT-5, or EXT-6 input.

Useful functions

Select a channel in 12-screen mode (ATV)

All registered channels are displayed as still images.

-Switch between

the sound sources



-Change the channel

 (Main)

 (Sub)

Watch in

multi-picture

mode

MULTI-PICTURE

2 set

1 select

1 select a

channel

2 watch

-Not available in PC mode.

-When watching DTV programmes, there may

be occasions where the aspect ratio changes,

for example during commercials. In this case,

the layout of the screen in dual-picture mode

changes automatically according to the aspect

ratio signal.

Press the number

to register it on

(For 3 seconds)

Disappears after

a few seconds

select Delete

Recall the favourite channel

Check your favourite channels Press and confirm that the channels

you have registered have a d beside them

Delete a favourite channel

“MENU”  “ ”  “Features”  “Favourite Setting”

While the channel

is displayed

Press the number

you registered

-Customisations (P. 34) to the

picture of a favourite channel

get saved as well.

-“Not Memory” is displayed:

Not registered

-“Not Available” is displayed:

Already registered

FAVOURITE CHANNEL

Register a

channel to

a button

(ATV)

28-29 2/20/2006 11:17:46 AM

30

31

Features

> Features

Sleep Timer

Child Lock

Appearance

Blue Back

Favourite Setting

Type A

On

Illumination Bright

Power Lamp On

> Sleep Timer

Off

Sleep Timer

Child Lock

Appearance

Blue Back

Favourite Setting

Type A

On

Illumination Bright

Power Lamp On

> Features

>> Set ID No.

ID

> Child Lock

01

AV

PR

02

03

04

05

06

07

08

09

CH

BBC1 CH 21

BBC2 CH 22

ITV CH23

CH4 CH 24

CH5 CH 25

CH 26

CH 27

CH 28

ID

> Child Lock

01

AV

PR

02

03

04

05

06

07

08

09

CH

BBC1 CH 21

BBC2 CH 22

ITV CH23

CH4 CH 24

CH5 CH 25

CH 26

CH 27

CH 28

Features

ID

BBC1

BBC2

ITV

CH4

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Useful functions (continued)

1

2

3

4

3

4

5

7

6

Set a time

for the TV to

turn itself off

SLEEP TIMER

select

“Child Lock”

select a channel to lock

Release a channel

View a locked channel Use the numerical buttons to enter the channel number.

When n appears, press and enter your “ID No.”.

(If you forget your “ID No.”, check it in step 4.)

Lock more channels

 Repeat steps 5 and 6

1 select

“Features”

2 next

1 select

“Sleep Timer”

2 next

1 select a time in

minutes

2 set

1 enter an “ID NO.”

(a secret number of your choice)

3 set

2 to the next column

1

2

Cancel

Set the time to “0” in step 4

Remaining time

You can confirm the remaining time at step 4,

after repeating this process.

Press again in step 6

Stop

children from

watching

specific

channels

CHILD LOCK

(ATV)

2 next

1 select

“Features”

30-31 2/20/2006 11:18:13 AM

32

33

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Operate the device

Turn on the device

2

Operate JVC recorders

-Other buttons can be used to

operate the TV at any time.

-The indicator lights for 3 seconds

each time the remote control is

operated.

VCR/DVR

Operate the

VCR,

DVD recorder

or HDD recorder

DVD

Operate the

DVD player

HC

Operate the

home theatre

system

Try changing the remote control code

if you cannot operate a recorder.

Code A or 1 (Default)

3

Select a device

1

and other devices

Note

-If the battery is removed, the remote control code reverts back

to code A or 1.

-Confirm the code for your recorder by checking the manual it

came with.

-Some models of JVC devices cannot be operated with this

remote control.

-JVC DVD recorders and HDD recorders are set to code “C” or

“3” by default.

The included remote control can be used to operate JVC recorders

and other devices.

VCRs

DVD recorders

HDD recorders

Home

theatre

system

DVD playersTV (P. 6)

TV

DVDHC

VCR/DVR

Code C or 3

Press and hold Press and hold

Operate DVD / HDD recorder menus

Select VCR / DVD recorder / HDD recorder

VCR

HDD recorders

DVD recorders

Display the subtitle (DVD / HDD recorder mode)  Press “ ”

Playback / Record etc.

Display menu

Select

Display

top menu

Back to

previous menu Select a chapter

Rewind / Playback

/ Fast-forward

OK

Record / Stop / Pause

Operate DVD menus

Display the subtitle  Press “ ”

Playback etc.

Display menu

Select

Display

top menu Select a chapter

Rewind / Playback

/ Fast-forward

OK

Stop / Pause

Back to

previous menu

Operate HC menus

Display the subtitle  Press “ ”

Playback etc.

Display menu

Select

Display

top menu Select a chapter

Rewind / Playback

/ Fast-forward

OK

Stop / Pause

Back to

previous menu

Mute  Press “ ”

Volume  Press “ ”

Select a surround mode  Press “ ”

32-33 2/20/2006 11:18:15 AM

34

35

Just the way

you like it

Standard

Standard


Picture Mode Standard

Bright-1

Features

Colour Temp.

Hue

Colour

Sharp

Bright-2

Contrast

Cool


Picture Mode Standard

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Customising your TV

Display the menu bar

Select a menu

Select an item

Adjust / Configure

Move

The item will change.

Selected menu’s title

Items


Sound

Features

Set Up

To the previous

screen



Exit



1

-The menu disappears

after one minute of

inactivity.

When adjusting

with the sliding-bar

2

3

4

When selecting

from presets

2 next

1 select

select

2 set

1 adjust /

select

2 set

1 adjust

2 set

1 select

-Some items have a

sub-menu.

DTV (P. 36)

-Other settings · Change the aspect ratio  “ZOOM” (P. 20)

· Turn on “3D Cinema Sound”  “3D CINEMA SOUND” (P. 20)

Menu Item Adjustments / Configurations


Picture Mode Picture mode (Bright / Standard / Soft)

Bright-1 Backlight brightness (Darker  Brighter)

Contrast Contrast (Lower  Higher)

Bright-2 Brightness (Darker  Brighter)

Sharp Sharpness (Softer  Sharper)

Colour Colour (Lighter  Deeper)

Hue Tint (Reddish  Greenish)

Colour Temp. Colour temperature (Warm / Normal / Cool)

Features Finer picture adjustments (P. 42)

Sound

Stereo / t · uMode / Language (v : MONO / s : STEREO / t : SUB1 / u : SUB2)

Bass Low tones (Weaker  Stronger)

Treble High tones (Weaker  Stronger)

Balance Speaker balance (Left Stronger  Right Stronger)

3D Cinema Sound Ambience level (High / Low / Mono / Off)

MaxxBass *1 Emphasize the bass sound (Off / Low / High)

Voice Enhancer Sound enhancement technology (On / Off)

Features

Sleep Timer Timer for turning off the TV (P. 30)

Child Lock Stops children from watching specific channels (P. 31)

Appearance Format for displaying the channel number

(Type A / Type B)

Blue Back Displays a blue screen and mute the sound

when the signal is weak or absent (On / Off)

Favourite Setting Clear favourite channel settings (P. 29)

Illumination Lights illumination lamp (P. 6) while the TV is on (Bright / Soft / Off)

Power Lamp Lights power lamp (P. 6) while the TV is on (On / Off)

Set Up

Auto Program Select a country, it automatically registers channels (P. 13, ⁄)

Edit / Manual Change registered channels or add new ones (P. 16)

Decoder(EXT-2) For when connected to VCR with “T-V LINK” (On / Off)

Component

Auto Select

Changes the TV input to “EXT-4” when a component signal is input to

“EXT-4” (On / Off) (Not available when viewing PC)

EXT Setting For use with video players and other devices (P. 27)

HDMI Setting HDMI-1 (EXT-5) : Size (1 / 2 / Auto), Audio (Digital / Analogue / Auto)

HDMI-2 (EXT-6) : Size (1 / 2 / Auto)

Attenuator

For when the picture is not displayed because of too strong radio waves (On / Off)

PC Position PC position adjustment (P. 26)

*1 MaxxBass is a registered trademark of Waves Audio Ltd. in the USA, Japan and other countries.

34-35 2/20/2006 11:18:22 AM

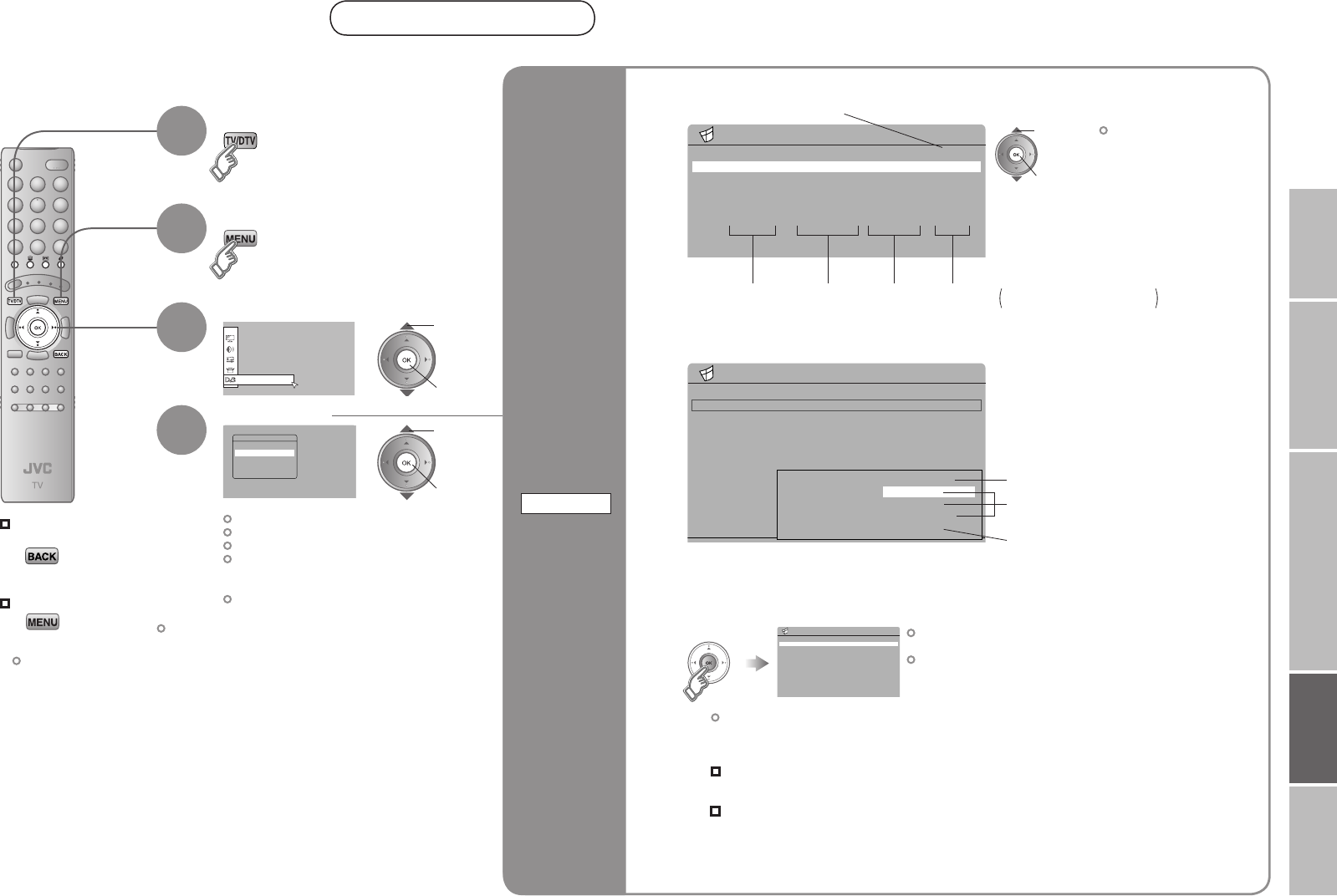

36

37

DTV

Rec Timer

Installation

Common Interface

DTV

Edit PR List

Configuration

REC TIMER 06:02 20/10/2004

No.

2�

�

3�

�

4�

�

5

Name

BBC ONE

BBC ONE

BBC ONE

BBC ONE

Start

00:00

00:00�

�

00:00�

�

00:00

End

00:00

00:00�

�

00:00�

�

00:00

Date

01/01/2000

01/01/2000

01/01/2000

01/01/2000

Mode

Inactive

Inactive

Inactive

Inactive

1�

�

BBC ONE 00:00�

�

00:00�

�

01/01/2000 Inactive�

�

REC TIMER 06:02 20/10/2004

No.

2�

�

3�

�

4�

�

5

Name

BBC ONE

BBC ONE

BBC ONE

BBC ONE

Start

00:00

00:00�

�

00:00�

�

00:00

End

00:00

00:00�

�

00:00�

�

00:00

Date

01/01/2000

01/01/2000

01/01/2000

01/01/2000

Mode

Inactive

Inactive

Inactive

Inactive

1�

�

BBC TWO 06:30�

�

06:45 20/10/2004 Active

6 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

7 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

8 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

9 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

10�

�

BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

REC TIMER 06:02 20/10/2004

No. Name Start End Date Mode

1�

�

BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

2�

�

BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

3 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

4 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

5 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

6 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

7 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

8 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

9 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

10�

�

BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

Start

End

Date

Mode

Name BBC TWO

06:30

06:45

20/10/2004

Once

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Display the menu bar

Select “DTV”

Recording

using timer

setting

Rec Timer

4

Set

Select DTV

1

2

3

Select an item

Input timer-record setting details

Select an “Inactive” column

1 select

2 set

Channels Start to End Dates Timer-record

setting state

Using DTV

DTV original function and setting, such as a recorder-linked timer-record setting,

can be selected from the DTV menu.

-Rec Timer  “

Recording using timer setting

” (P. 36)

-Configuration  “Change AV settings” (P. 38)

-Edit PR List  “Editing DTV channels” (P. 14)

-Installation  “Reset channel registration /

Register a new channel / Initialise

the DTV settings” (P. 40)

-Common Interface  “Set pay-per-view” (P. 40)

Active : timer set

Inactive : completed, cancelled

-Settings can be overwritten.

Change with 2 3

Enter using the

numerical keypad

Change with 2 3

(Once / Daily / Weekly)

-A message will be displayed if

you set past dates.

-The channel will be selected

automatically at the set start time,

and the recorder connected to

EXT-2 will start recording.

-For more details about the timer-record

setting, refer to the notice of

 “Prepare for recording” (P. 23)

Cancel a timer-record setting

 Select the column at step 1 and press 3. (Mode will be changed to “Inactive”)

Change a timer-record setting

 Select the column at step 1 and repeat steps 2 and 3.

-DTV menu cannot be operated with the

front panel buttons.

1 select

2 next

3

1

2

To the previous

screen



Exit



-The menu disappears

after one minute of

inactivity.

Timer-record setting

2 next

1 select

36-37 2/20/2006 11:18:49 AM

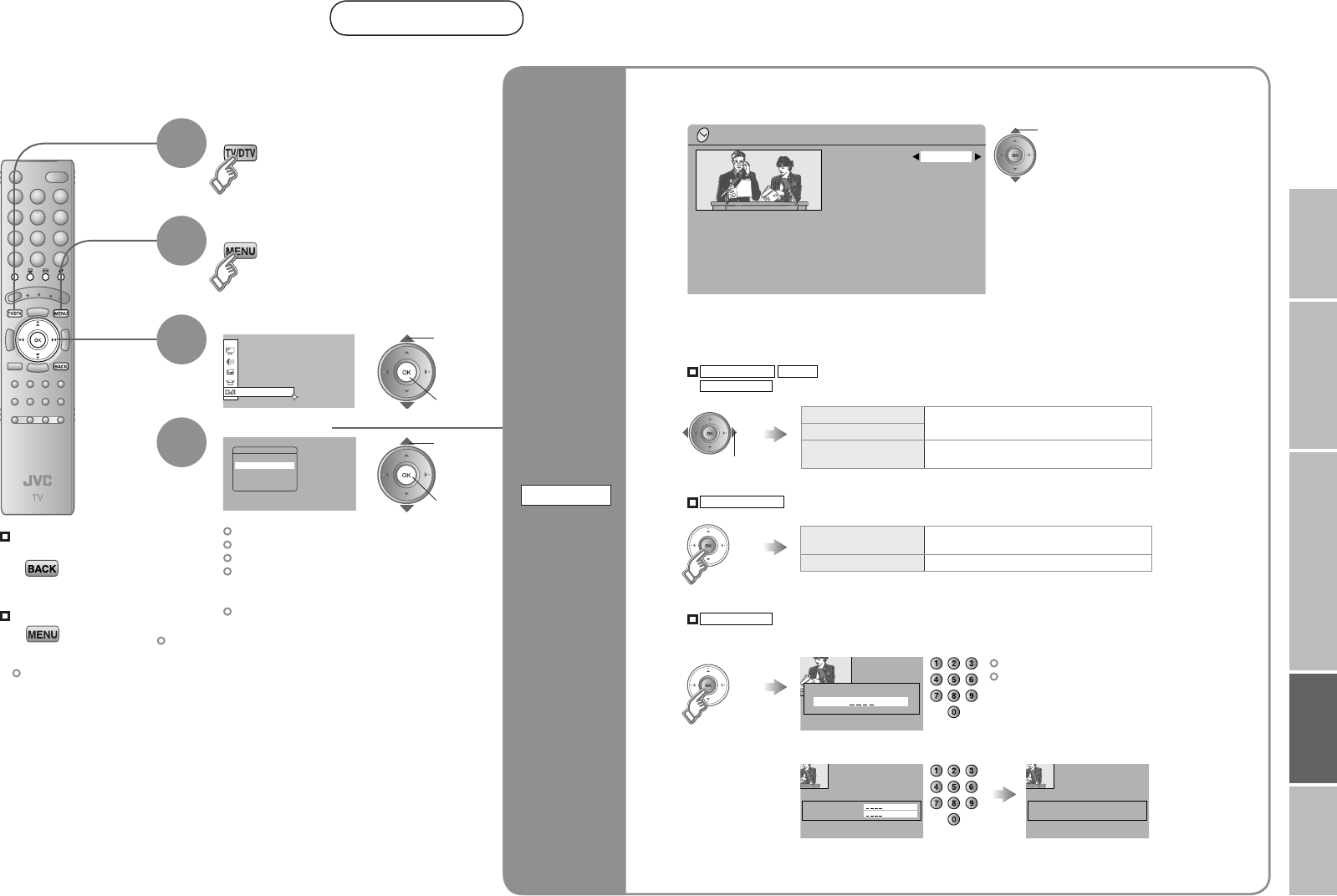

38

39

REC TIMER 06:02 20/10/2004

No. Name Start End Date Mode

1�

�

BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

2�

�

BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

3 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

4 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

5 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

6 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

7 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

8 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

9 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

10�

�

BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

CONFIGURATION

Audio Language

Subtitle

Favourite Mode

Receiver Upgrade

Enter PIN code

English

Off

V.3.3

English

PIN code changed.

CONFIGURATION

Audio Language

Subtitle

Favourite Mode

Receiver Upgrade

Enter PIN code

English

Off

V.3.3

English

CONFIGURATION

Audio Language

Subtitle

Favourite Mode

Receiver Upgrade

Enter PIN code

English

Off

V.3.3

English

Enter PIN code

REC TIMER 06:02 20/10/2004

No. Name Start End Date Mode

1�

�

BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

2�

�

BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

3 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

4 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

5 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

6 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

7 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

8 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

9 BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

10�

�

BBC ONE 00:00�

�

00:00�

�

01/01/2004 Inactive�

�

CONFIGURATION

Audio Language

Subtitle

Favourite Mode

Receiver Upgrade

Enter PIN code

English

Off

V.3.3

English

PIN code:

Confirm:

DTV

Rec Timer

Installation

Common Interface

DTV

Edit PR List

Configuration

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Using DTV

Available for changing subtitle languages for DTV, favourite channel selection,

changing PIN code, and upgrading the tuner software.

Also, you can upgrade the tuner software as newer versions become available.

AV setting

Change

AV settings

Configuration

Change settings

Select a configuration item

select

select



Audio Language

Subtitle

: Change language

Favourite Mode

: Channel selection method



Receiver Upgrade

: Upgrade tuner



Enter PIN code

: Change PIN code

2 Input a new code twice.

1 Input the current code

-Default is “0000”.

-If you forget the code

 Default the code in

“Reset channel registration”

(P. 40)

1

2

Audio Language Switch languages

(English / Welsh / Gaelic)

Subtitle

Favourite Mode Select only DTV channels registered by using

“Favourites” (P. 14) with 9 8 (On / Off)

Automatic Download Automatically and periodically

(Enabled / Disabled)

Search for New Version Download now (Press “OK” button.)

Display the menu bar

Select “DTV”

4

Select DTV

1

2

3

Select an item

-Rec Timer  “

Recording using timer setting

” (P. 36)

-Configuration  “Change AV settings” (P. 38)

-Edit PR List  “Editing DTV channels” (P. 14)

-Installation  “Reset channel registration /

Register a new channel / Initialise

the DTV settings” (P. 40)

-Common Interface  “Set pay-per-view” (P. 40)

-DTV menu cannot be operated with the

front panel buttons.

1 select

2 next

To the previous

screen



Exit



-The menu disappears

after one minute of

inactivity.

2 next

1 select

38-39 2/20/2006 11:19:49 AM

40

41

Manual Search

Factory Settings

Installation

Automatic Search

Installation > Automatic Search

Channels:

100%

BBC ONE

BBC TWO

BBC THREE

BBC NEWS 24

BBCi

CBBC Channel

UHF CH:68

Common Interface

Top Up TV

Main menu

�

Smart card information

Language

Software Download

Press Ok to select, or Exit to quit

Cancel

OK

Module information

Software Download

Do you want to upgrade your module?

No

Press Ok to select, or Exit to quit

Cancel

OK

Yes

Software Download

Searching for a new software version. Please wait...

Press Ok Exit to quit

Cancel

OK

Start automatic search? Current PR list

will be replaced.

NoYes

Installation > Manual Search

Signal Quality:

Signal Level:

Channel Number 61

Installation > Manual Search

Signal Quality:

Signal Level:

Channel Number 62

Are you sure you want to delete the PR list

and reset all settings?

Yes No

PR list Empty. Start automatic search.

Ok

DTV

Rec Timer

Installation

Common Interface

DTV

Edit PR List

Configuration

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Using DTV

Available for registration of DTV channels, initialisation of all DTV settings,

and downloading software to use pay-per-view.

Registration and setting

2 Receive the channel

1 Select “Yes”

1 select

2 next

1 select

2 next

1 Enter a channel number

1 Select “Yes” 2 Start channel registration

1 Select the broadcasting station

1 select

2 next

3 Select “Yes”

Set pay-per-

view

Common Interface

1 select

2 next

Reset

channel

registration

Register a

new channel

Initialise the

DTV settings

Installation

-Displays “Edit PR List”

(P. 14) after registering

channels.

-When receiving is

completed, a message

will be displayed and

the screen will return to 1.

Preparation : Set the CAM etc. after contracting with the broadcasting company

 “Watch pay-per-view” (P. 9)

2 Select “Software Download”

-Use this menu for settings and contract content for pay-per-view.

 For details, consult your broadcasting company

(P.12)

! in “Initial settings”

1 select

2 download

Select an installation item

1

Change setting

2

Automatic Search

: Reset channel registration



Manual Search

: Register a new channel



Factory Setting

: Initialise the DTV settings

Display the menu bar

Select “DTV”

4

Select DTV

1

2

3

Select an item

-Rec Timer  “

Recording using timer setting

” (P. 36)

-Configuration  “Change AV settings” (P. 38)

-Edit PR List  “Editing DTV channels” (P. 14)

-Installation  “Reset channel registration /

Register a new channel / Initialise

the DTV settings” (P. 40)

-Common Interface  “Set pay-per-view” (P. 40)

-DTV menu cannot be operated with the

front panel buttons.

1 select

2 next

To the previous

screen



Exit



-The menu disappears

after one minute of

inactivity.

2 next

1 select

40-41 2/20/2006 11:21:22 AM

42

43

· Reduce noise / Watch a more natural picture

· Set the aspect ratio, etc.

Super DigiPure Auto


Picture Mode Standard

Bright-1

Features

Colour Temp.

Hue

Colour

Sharp

Bright-2

Contrast

Cool


> Features

Super DigiPure

Movie Theatre

Colour Management

Picture Management

Colour System

4:3 Auto Aspect

Auto

Auto

On

On

Super DigiPure Auto

>> Colour System

Sub

Main Auto

PAL

>> 4:3 Auto Aspect

Regular

14:9 Zoom

Panoramic

Super DigiPure Auto

Movie Theatre On

Movie Theatre On

Movie Theatre On

Movie Theatre On

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Select “Picture”

By default, the TV automatically adjusts itself for the best picture.

Display the menu bar

Select “Features”

Select an item

Change settings

Super

DigiPure

Movie

Theatre

Colour

Management

Smart


Colour

System

4:3 Auto

Aspect

E.g. “Super DigiPure”

E.g. “Super DigiPure”

Finish

Advanced picture adjustment

To the previous

screen



Exit



1

-The menu disappears

after one minute of

inactivity.

2

3

4

5

6

2 next

1 select

2 next

1 select

2 next

1 select

2 set

1 select

For

natural-looking

outlines

For smooth

cinema film

Off

: Function is

turned off

On Auto

: Automatically

adjusts

: Function is

always on

For

natural-looking

pictures

Off

: Function is

turned off

On

: Maintain a natural

colour balance

Fix

bright / dark

pictures

Off

: Function is

turned off

On

: Make it easier to view

bright / dark pictures

When

there is no

colour

Main

: Main picture

Sub

: Sub-picture in

MULTI-PICTURE mode (P. 28)

1 Select the screen to change settings on

PAL

: Western

Europe

2 Select the colour system

NTSC 3.58

: USA

3.58 MHz

NTSC 4.43

: USA

4.43 MHz

Auto

: When watching

videos, etc.

Set a default

aspect ratio

Panoramic

Select a default aspect ratio for “Auto” in “Zoom” (P.20)

Regular 14:9 Zoom

16 : 9 4 : 3 14 : 9


Management

Off

: Function is

turned off

Min Max Auto

: Automatically

adjusts

MPEG Noise

Reduction

Off

: Function is

turned off

On

To reduce

MPEG video

noise

Off

: Function is

turned off

On

: When noise appears

Fix

brightness of

white areas

-Not available when

“Picture Mode” is set

to “Bright” (P. 35).

: Make it easier to view

white areas

:

When the picture

loses sharpness

: When

noise appears

42-43 2/20/2006 11:21:25 AM

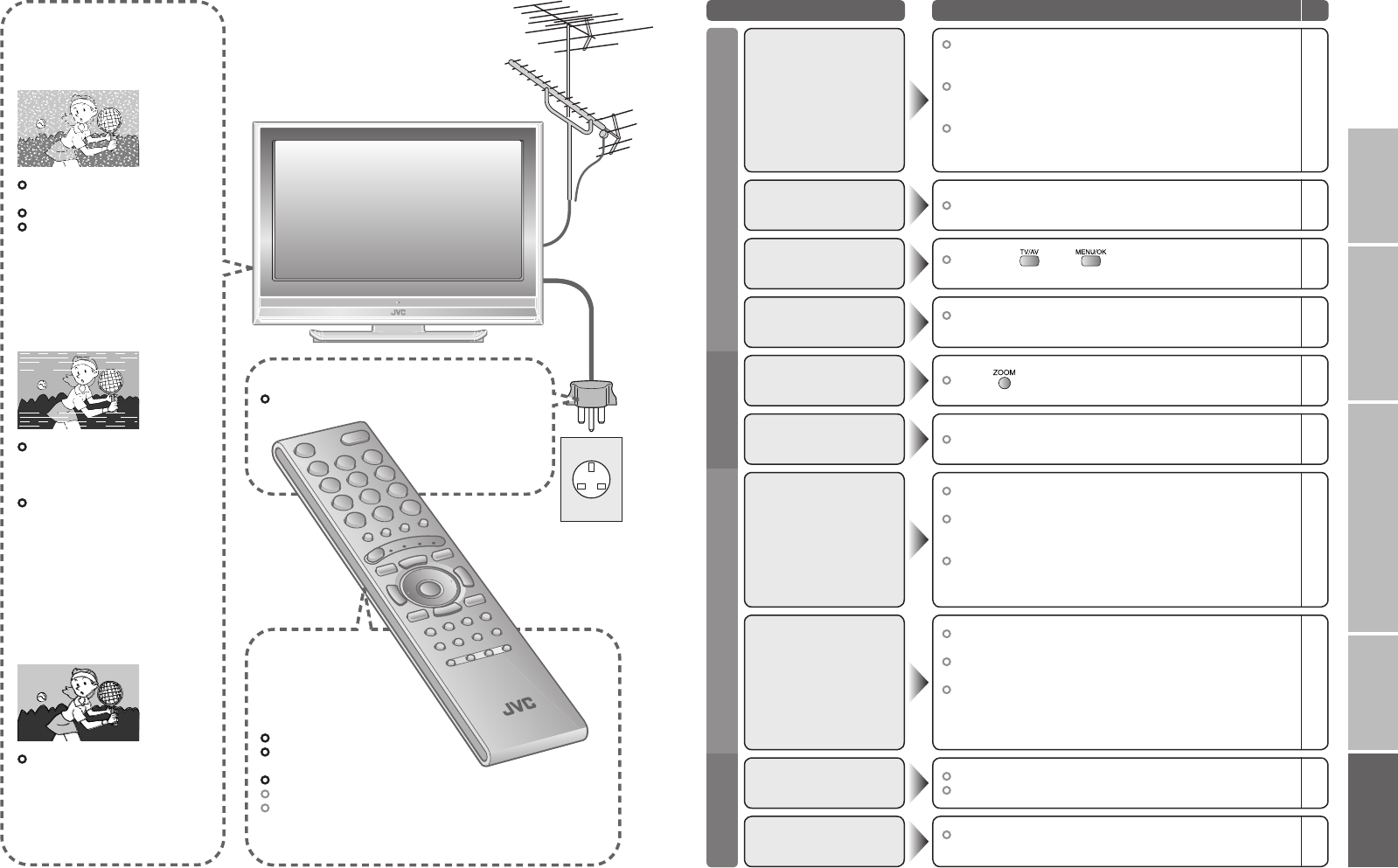

44

45

When you

have trouble

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Severe noise or

snow

Troubleshooting

Patterns, stripes

or noise

I can’t turn it on!

-Is the power cord connected to the AC outlet

correctly?

The remote

control doesn’t

work!

-Is the TV connected correctly to

the aerial?

-Change the direction of the aerial.

-Is the aerial or its cable

damaged?

 Consult your retailer

Ghosting

(Doubling of images)

-Are you receiving interference

from signals reflected off

mountains or buildings?

 Adjust the direction of your

aerial, or change to a

good-quality directional aerial

-Is the aerial receiving interference

from high-voltage power lines or

wireless transmitters?

 Consult your retailer

-Are connected devices too close

to the TV?

 Insert the minimum distance

between the aerial and the

cause of interference until no

interference

-Are the batteries flat?

-Are you more than 7 meters away

from the TV?

-Is the “MODE (TV, VDR/DVR, DVD, HC)” set to “TV”?

-When viewing teletext, the TV menu bar does not appear.

-Depending on the stability of the signal, there may be a time

lag when changing channels.

Problem Actions

page

-Is the ATV reception poor, too?

 Following the instructions in “Severe noise or snow”

can solve this problem.

-Is there a DTV transmission tower nearby?

 Turn “Attenuator” to “On”, since the radio waves

are too strong.

-There may be problems at the antenna, radio waves,

or the area you live in, where reception is bad.

Consult your retailer.

Not displayed

(black screen)

44

35

–

-Unplug TV, several minutes later plug it in again.

Remote control

stops working –

-Unnatural colour >>> Adjust “Colour” and “Bright-1”.

Check your “Colour System”.

-Noise >>> Set to the following functions.

Picture Mode : Standard

Super DigiPure : Max

-Dull picture >>> Set to the following functions.

Picture Mode : Bright

Super DigiPure : Min

Poor picture quality

35

42

35

42

35

42

-Audio signals received from EXT-5 and EXT-6 can not be

sent to the “AUDIO OUT” terminal.

No sound from the

audio component –

-If you connected S-Video output device, check the “S-IN”

setting.

-If the top of the image is distorted, check the video signal

quality itself.

-If movement appears unnatural when receiving a signal

from a DVD player, etc. with 625p (progressive-scanning),

change the output setting of the external device to 625i

(interlace-scanning).

Strange picture

when using an external

device

27

–

–

Basics Screen Picture Sound

-Hold down “ ” and “ ” on the TV

simultaneously to restart.

DTV screen is frozen –

-It is not a malfunction. Some functions (dark background)

in the menu do not work depending on the situation.

Some functions

do not work –

-Press “ ” to return to your settings.

Aspect ratio changes

unintentionally 20

-Adjust the “PC Position”.

PC screen alignment

is off 26

-Adjust the “Bass” and “Treble”.

-

If receiving a poor signal in “Stereo / t·u”, switch to “Mono”.

Poor sound 35

35

44-45 2/20/2006 11:21:30 AM

46

47

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Troubleshooting (continued)

Problem Actions

page

-To use the INSERT function (P. 16), find the CH/CC number corresponding to the TV’s channel number

from this table. If you want to know a particular TV channel’s channel menu, look in TV listings magazines or

contact the broadcaster.

-When the Country setting is United Kingdom, the CC number channels and channels from CH02 to

CH12 cannot be received.

CH/CC List

CH Channel

CH 02 E2, IR A

CH 03 E3, IR B

CH 04 E4, IR C

CH 05 E5, IR D

CH 06 E6, IR E

CH 07 E7, IR F

CH 08 E8, IR G

CH 09 E9

CH 10 E10, IR H

CH 11 E11, IR J

CH 12 E12

CH 21 E21

CH 22 E22

CH 23 E23

CH 24 E24

CH 25 E25

CH 26 E26

CH 27 E27

CH 28 E28

CH 29 E29

CH 30 E30

CH 31 E31

CH 32 E32

CH 33 E33

CH 34 E34

CH 35 E35

CH 36 E36

CH 37 E37

CH 38 E38

CH 39 E39

CH Channel

CH 40 E40

CH 41 E41

CH 42 E42

CH 43 E43

CH 44 E44

CH 45 E45

CH 46 E46

CH 47 E47

CH 48 E48

CH 49 E49

CH 50 E50

CH 51 E51

CH 52 E52

CH 53 E53

CH 54 E54

CH 55 E55

CH 56 E56

CH 57 E57

CH 58 E58

CH 59 E59

CH 60 E60

CH 61 E61

CH 62 E62

CH 63 E63

CH 64 E64

CH 65 E65

CH 66 E66

CH 67 E67

CH 68 E68

CH 69 E69

CC Channel

CC 31 S31

CC 32 S32

CC 33 S33

CC 34 S34

CC 35 S35

CC 36 S36

CC 37 S37

CC 38 S38

CC 39 S39

CC 40 S40

CC 41 S41

CC 75 X

CC 76 Y

CC 77 Z

CC 78 Z+1

CC 79 Z+2

CC Channel

CC 01 S1

CC 02 S2

CC 03 S3

CC 04 S4

CC 05 S5

CC 06 S6

CC 07 S7

CC 08 S8

CC 09 S9

CC 10 S10

CC 11 S11

CC 12 S12

CC 13 S13

CC 14 S14

CC 15 S15

CC 16 S16

CC 17 S17

CC 18 S18

CC 19 S19

CC 20 S20

CC 21 S21

CC 22 S22

CC 23 S23

CC 24 S24

CC 25 S25

CC 26 S26

CC 27 S27

CC 28 S28

CC 29 S29

CC 30 S30

Problem Actions

page

Error messageFunctionsHDMI

DTV

Screen

-Use the cable marked with HDMI logo.

No picture, no sound –

-The recorder is recording another programme, or is playing.

“ No Recording Device

Busy” –

-The recorder is not ready for recording.

Check the videotape or DVD disc.

“ No Recording Media

Problem” –

-The displayed video cannot be recorded.

“ No Recording

Possible” –

-A problem occurs at the recorder.

“No Recording” –

-DTV channels, EXT-4, EXT-5, EXT-6 inputs, and PC mode

cannot be selected in the sub-picture.

-RGB input signal of EXT-1 and EXT-2 are not available in

dual-picture mode.

Some inputs cannot

be selected in the

sub-picture

–

-Press 2 to start ACI again.

If you still receive the “ACI Error” after numerous tries,

press 3 to cancel ACI.

“ACI Error” –

-Switch “Size” in “HDMI Setting” to “1” or “2”.

Wrong screen size 35

-Check if the device is compliant with HDMI.

-Switch “Audio” in “HDMI Setting” to “Digital” or “Auto” for

HDMI devices, or “Analogue” or “Auto” for DVI devices.

(Not available for “EXT-6”.)

No sound

–

35

-Wait a little for the signal to stabilize when switching the

signal format for an “HDMI” device.

Green and distorted

screen –

-Is the T-V LINK compatible device connected to EXT-2?

-Is the SCART CABLE “Fully Wired”?

-Is the T-V LINK compatible device turned on?

After confirming all the conditions above,

press “OK” button again.

“Feature Not Available”

48

48

–

-Deleting a DTV channel may cause an error message to

appear while other channels displayed.

 Register channels again in “Automatic Search”

An error message

does not disappear 41

-LCD panels use fine dots (“pixels”) to display images.

While more than 99.99% of these pixels function properly,

a very small number of pixels may not light, or may light all

the time.

Please understand that this is not a malfunction.

Black or white dots

appear on the screen –

46-47 2/20/2006 11:21:32 AM

48

49

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

-We may change the design and specifications without notice.

Specifications

Main unit

Terminals / Connectors

Terminal name Terminal type Signal type (IN)

Signal type (OUT)

Input / Output

terminals

EXT-1 Euroconnector x 1

(SCART connector)

Composite video, S-video,

Analogue RGB, AUDIO L / R TV out

EXT-2 Euroconnector x 1

(SCART connector)

Composite video, S-video,

Analogue RGB, AUDIO L / R

Dubbing out

(S-VIDEO out is

available only for DTV

channels)

Input terminals

EXT-3

RCA connectors x 3,

S-VIDEO connector x 1

Composite video, S-video

AUDIO L / R

EXT-4 RCA connectors x 5

Analogue component

(576i (625i) / 480i (525i),

Progressive : 576p (625p) / 480p (525p),

HD : 1080i (1125i), 720p (750p)

)

AUDIO L / R

EXT-5 (HDMI-1)

HDMI connector x 1

HDMI

(576i (625i) / 480i (525i) /

576p (625p) / 480p (525p),

1080i (1125i), 720p (750p))

EXT-6 (HDMI-2)

PC INPUT D-SUB (15 pins) x 1 Analogue PC signal (P. 48)

Output

terminals

AUDIO OUT RCA connectors x 2 Audio L / R

Headphone Stereo mini-jack x 1

(3.5 mm in diameter)

Headphone

output

“T-V LINK” allows the TV to share information easily with a connected “T-V LINK” compatible device.

By using T-V LINK :

-You can send the ATV channel information programmed on the TV to the “T-V LINK” compatible device, so that

both the TV and the external device have the same channel settings. When connecting a new external device,

channel information is loaded into it, allowing channel setup to be completed very quickly. For more details, refer

to the external device’s manual.

-You can easily record the TV programme you are viewing on a “T-V LINK” compatible device by using the

“DIRECT REC” feature. For more details, refer to the external device’s manual.

-After timer-record setting, the TV will instruct the recorder to start and stop recording, via DIRECT REC.

*Macintosh* computers are not supported.

(Macintosh is a registered trademark of

Apple Computer, Inc.)

-If the signal doesn’t appear, check that the vertical

frequency on the PC is set to “60Hz”.

Technical information

Some cable companies transmit a signal called “ACI” which contains information that allows TV channels to be

registered automatically on your TV.

When an ACI signal is received, “ACI Start / ACI Skip” appears in the “Auto Program” screen.

Connect a “DVI“ device to “EXT-5 (HDMI)” using “DVI-HDMI” conversion cable. Connect analogue sound output of

the DVI device to L and R terminals in EXT-4.

-Set “Audio” in “HDMI Setting” to “Analogue” or “Auto”  (P. 35)

-EXT-6 input does not support DVI devices.

-EXT-6 input does not support analogue sound (EXT-4).

Resolution

640 x 480 (VGA)

1024 x 768 (XGA)

Vertical frequency (Hz) 60.0 60.0

What is “T-V LINK”?

What is “ACI” (Automatic Channel Installation)?

PC Signals that can be displayed

Connect “DVI” devices

Fuse

Attach a new plug following the steps below. If in doubt, contact your local retailer.

-Never connect to the larger terminal marked with an “E”, the safety earth

symbol “ ” or coloured green or green-and-yellow.

-The wires in the mains lead on this product are coloured with the following code:

· Blue: Neutral wire (connect to the black terminal, or one marked “N”)

· Brown: Live wire (connect to the red terminal, or one marked “L”)

Open the plug as illustrated on the right.

-When replacing the fuse, always use a correctly rated and approved type and

re-fit the fuse cover when finished.

If in doubt, contact your local retailer.

If you accidentally cut the power cord

Change the fuse in the plug

Important

-This TV has the CAM (Conditional Access Module) slot for watching pay-per-view.

Please note that the CAM and viewing card must be purchased separately.

Model LT-40DS7BJ LT-32DX7BJ/SJ LT-26DX7BJ/SJ

Broadcasting systems CCIR, I

Colour systems PAL

· The EXT terminals also support the NTSC 3.58/4.43 MHz system.

Channels and frequencies

-Analogue :

E21-E69 (UNITED KINGDOM)

IR A-J, E2-E12, E21-E69 (IRELAND)

-Digital : 474 MHz-850MHz (channel 21-68)

Sound-multiplex systems NICAM (I) system.

Teletext systems Analogue : FLOF (Fastext), WST (World Standard System).

Digital : MHEG 5 UK profile

Power requirements AC 220 V - 240 V, 50/60Hz

Audio output (

Rated power output

) 10 W + 10 W

Speakers 6.6 cm round x 4 5.0 cm round x 2

Power consumption

[standby]

227 W

[0.5 W]

134 W

[0.6 W]

120 W

[0.6 W]

Screen size

(visible area size measured diagonally)

101 cm 80 cm 66 cm

Dimensions (W x H x D: mm)

[without stand]

1000 x 720.5 x 293

[1000 x 670.5 x 117.3]

800 x 591.9 x 244.4

[800 x 545 x 133.5]

672 x 517.9 x 244.4

[672 x 471 x 133.5]

Weights

[without stand]

29.3 kg

[24.5 kg]

17.9 kg

[16.3 kg]

14.7 kg

[13.1 kg]

Accessories (See “Check accessories”, P. 7)

48-49 2/20/2006 11:21:32 AM
