ENGLISH

WIDE LCD PANEL TV INSTRUCTIONS

LT-42GZ78

LT-47GZ78

GGT0186-001A-H_Cover_EN.indd 1-2 24/10/2007 16:14:05

ENGLISH

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Expanding the world of

Enjoy rich multi-media with JVC

VHF/UHF

Digital camera

Video camera

Game console

Audio components

VCR DVD player

DVD recorder

Personal

Computer

beautiful images

First things ﬁrst!

-Warning ············································ 3

Getting started

-Names of all the parts ······················ 5

-Basic connections ···························· 7

-Initial settings ··································· 9

-Editing channels ····························· 11

· Registering channels

-Connecting external devices ·········· 13

Let’s try it out

-Enjoying your new TV! ··················· 15

· TV / Teletext / Video / etc.

-Watching TV ··································· 17

-Viewing teletext ······························ 19

-Watching videos / DVDs ················ 21

Try the advanced features

-Useful functions ······························ 23

· Take a snapshot

· View and search in multi-picture mode

· “Timer” / “Channel Guard”

Operate JVC recorders and other devices

··· 31

Just the way you like it

-Customising your TV ······················ 33

-Advanced picture adjustment ········· 35

Reduce noise / Watch a more natural picture

· Set the aspect ratio, etc.

When you have trouble

-Troubleshooting ····························· 37

-Technical information ····················· 40

-“CH/CC” List ··································· 43

-Speciﬁcations ································· 44

Contents

1-2 16/10/2007 09:23:36

ENGLISH

First things ﬁrst!

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Never dismantle the

rear panel!

-It may cause an electric shock.

Never obstruct the

ventilation holes!

-It may cause overheating or a ﬁre.

Handle LCD panel

with care!

-Use a soft, dry cloth when cleaning.

Never try to repair

the TV yourself!

If the problem cannot be solved in

“Troubleshooting” (P. 37), unplug

the power cord and contact your

retailer.

If the TV is damaged

or behaving strangely,

stop using it at once!

Unplug the power cord and contact

your retailer.

Warning

For more details on installation, usage and safety Consult your retailer

Never expose to rain or

moisture!

-To prevent ﬁre or electric

shock, never allow

liquids to enter the unit.

Hold the TV so as not to

scratch the screen!

-Do not touch the screen when carrying the

TV.

Do not carry the

TV on your own!

-In order to prevent accidents,

ensure that the TV is carried

by two or more people.

Please follow all the guidelines below

Never listen to

headphones at high

volume!

-It may damage your hearing.

Never place anything on

the TV!

-Placing liquids, naked

ﬂames, cloths, paper,

etc. on the TV may

cause a ﬁre.

Never insert objects into

the cabinet openings!

-It may cause a fatal

electric shock. Take care

when children are near.

Unplug the power cord

when going out!

-The power buttons on

the remote control and

the TV unit cannot

completely turn off the

TV. (Make appropriate

arrangements for

bedridden people.)

Make enough room for

inserting and removing

the power plug!

Place the TV as

close to the outlet as

possible!

-The main power supply for this TV is

controlled by inserting or removing the

power plug.

Never cut or damage

the power cord!

-If the AC plug is not the

right shape, or the power

cord is not long enough,

use an appropriate plug

adapter or extension cable.

(Consult your retailer.)

Follow this manual

regarding setup!

-Connect only to a 110-240V, 50/60Hz

AC outlet.

When attaching the TV to

the wall, use the optional

JVC wall mounting unit!

-Consult a qualiﬁed technician.

-See the included manual on mounting

procedures.

-JVC assumes no responsibility for

damage due to improper mounting.

Do not allow the TV

to fall!

-Do not rest your elbows on, or allow

children to hang from the TV.

There is a risk that the TV will fall and

cause injuries.

3-4 16/10/2007 09:23:39

ENGLISH

Getting started

RM-C1856

MODE

TV/VIDEO

MENU/OK

CHANNEL

VOLUME

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Change channel / page /

Hyper Scan

Volume

Names of all the parts

Turn on “MaxxAudio” (P. 29)

Take a snapshot of the

screen (P. 23)

View in multi-picture

mode (P. 23)

Hold the current page

Bookmark pages

Reveal hidden pages

Enlarge the text

Switch brieﬂy

between teletext and TV

To index page

Return to TV /

Watch video, etc. (P. 21)

Power On / Off

Change channel / page

To teletext (P. 19)

Select and

conﬁrm settings in menus

To previous screen

Select channel-page

Select the desired channel

number.

For Hyper Scan:

Switch between

“TV / VCR / DVD / AUDIO” (P. 31)

When watching TV / Video

Change the aspect ratio (P. 17)

Mute

When viewing teletext (P. 19)

Insert the batteries

Use two “AAA/R03” dry cell batteries.

Insert the batteries from the - end, making

sure the + and - polarities are correct.

Return to channel

you want to view

Display on-screen menu (P. 33)

Power On / Off

Remote control sensor

Power lamp

ON: Lit (Blue)

OFF: Unlit

-Power lamp lights

while the TV is on.

 “Power Lamp”

(P. 34)

To headphones (P. 13)

Display on-screen

menu / set

Switch between

TV / VIDEO devices

Change the direction of TV

Remote control

(RM-C1856)

“AAA/R03”

Batteries

Check accessories

For conﬁrming

the TV works

Colour buttons

Volume

Channel information (P. 17)

Eco sensor

-The screen

automatically

adjust brightness.

 “Eco Sensor”

(P. 41)

Press and hold

PR changes without

changing the picture. Once

you stop press or

button, picture will change to

the desired PR.

For Sub-page in dual-picture

mode:

Select channel

Select the desired channel

number.

For Hyper Scan:

PR changes without

changing the picture. Once

you stop press

MODE

button,

picture will change to the

desired PR.

Press and hold

IIIumination lamp

lights while the

TV is on.

 “IIIumination”

(P. 34)

5-6 16/10/2007 09:23:47

ENGLISH

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Connect the aerial

Basic connections

200mm

50mm150mm 150mm 50mm

VCR / DVD Player

-After all the connections have been made, insert the plug into an AC outlet.

-If both composite and S-VIDEO cables are connected, S-VIDEO will be enable.

-After all the connections have been made, insert the plug into an AC outlet.

AERIAL

Connect a VCR / DVD Player

AERIAL

Power requirements

-Connect the power cord only to a 110-240V,

50/60Hz AC outlet.

When attaching the TV to the wall, use the

optional JVC wall mounting unit

-Consult a qualiﬁed technician.

-See the included manual on mounting procedures.

-JVC assumes no responsibility for damage due to

improper mounting.

-200mm × 200mm mount which conforms to VESA

standards.

Installation requirements

-To avoid overheating, ensure the unit has ample

room.

Please read the user manuals of each device before setup.

It is necessary to connect an aerial to watch TV.

Connect with other devices  “Connecting external devices” (P. 13)

Care when setting Tidying the cables

VIDEO-1

(R)

(L)

(Y)

(Pr)

(Pb)

7-8 16/10/2007 09:23:49

ENGLISH

RM-C1856

> Language

Group-1

Group-2

Group-3

Group-4

Group-5

Teletext Language

CH/CC

CH 22

CH 23

CH 24

CH 25

CC 02

CC 04

CC 05

Edit

14%

Auto Program

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Initial settings

Set the menu language, installation location and automatically register the TV channels.

These channels can be edited later in “Editing channels” (P. 11).

To the previous screen 

If the “JVC” logo does not appear or

if you wish to make changes later

 “Language”, “Teletext language” and

“Auto Program” (P. 34)

Exit 

BACK

Begin

Select a language

Select the teletext language group

Check what was registered

1 select

-Shown only when

powering on for the ﬁrst time.

-The power on the unit can also be used.

Edit channels

 ⁄ in “Editing channels” (P. 11)

2 set

Conﬁrm

The remote control doesn’t

work

-Conﬁrm the mode is set to “TV”.

-For the teletext language group



“Language group for teletext”

(P. 40)

If the characters are unreadable.



“Language group for teletext”

(P. 40)

Automatically register channels

select

9-10 16/10/2007 09:23:54

ENGLISH

· Registering channels

RM-C1856

Set Up

Auto Program

Video-3 Setting

HDMI Setting

PC Position

Auto Demonstration

Video

Teletext Language

Edit/Manual

Video-1 Setting

Language

CH/CC

CH 22

CH 23

CH 24

CH 25

CC 02

CC 04

CC 05

Edit

CH/CC

CH 21

CH 22

CH 24

CH 25

CC 02

CC 03

CC 04

CC 05

>Edit

CH 23

> Edit

CH/CCID

CH 21

CH 22

CH 23

CH 24

CH 25

CC 03

CC 04

CC 05

CH/CC

CH 21

CH 22

CH 23

CH 24

CH 25

CC 02

CC 03

CC 04

CC 05

> Edit

PR CH/CCID

CH 21

JVC 03

CC 05

> Edit

CH/CC

CH 21

CH 22

CH 23

CH 24

CH 25

CC 02

CC 03

CC 04

> Edit

PR CH/CCID

CC 03

CC 04

CH 21

CH 22

CH 23

CH 24

CH 25

CC 02

PR CH/CC

CH 22

CH 23

CH 24

CH 25

Edit

CH/CC

CC 06

Manual

CH 02 (B/G)

> Manual

CH/CC

CC 06

08 (B/G)

CH/CC

CH 08

CC 06

Edit

> Manual

CH 08 (I)

PR CH/CC

CC 06

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Display the menu bar

Select “Set Up”

Select “Edit / Manual”

Finish

When coming from “Initial settings” (P. 9), skip to ⁄.

Select a row

Edit

Move a

channel’s

position

MOVE

Editing channels

Edit the channels registered with “Auto Program” in “Initial settings” (P. 9).

To the previous

screen



Exit



Edit a

channel

name

Insert a

channel

INSERT

Delete a

channel

DELETE

new channel

MANUAL

select

move out move in

select

1 enter the ﬁrst

character

From high

frequencies

select a system

-Receives the

broadcast

signal.

-If you can not receive the

channel you want to view,

press 3 to change the sound

system.

 “Sound system in your

country or region” (P. 40)

-Auto-search begins,

and the nearest

frequency is imported.

 Repeat the previous

steps until the

desired channel is

displayed

From low

frequencies

-“CH/CC” List  (P. 43)

1 Begin 2 Select a destination 3 Finish

1 Begin 2 Enter a channel name

2 Select a “CH / CC” 3 Enter a number

Beginning channel search

1 Begin

3 Set

Adjust

-Channel ﬁne tuning 

-If the picture or sound is unnatural 

1 select

2 next

1 select

2 next

set

1 Begin

select

1 Delete

(red)

next column

(green)

(yellow)

(blue) (green)

(blue)

(yellow)

11-12 16/10/2007 09:24:04

ENGLISH

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Connecting external devices

You can connect many different devices to the rear panel of the TV.

Please read the user manuals of each device before setup.

(Connecting cables are not supplied with this TV.)

DVD player

(HDMI compatible)

Ampliﬁer

(L) (R)

OUT

Set-top box / Digital

broadcast tuner

Game consoles

“Technical information” (P. 40)

VCR / DVD recorder

PC IN

Video camera

VIDEO-1

VIDEO-2

VIDEO-3

: signal direction

Connect a “DVI” device to

“HDMI-1”  (P. 40)

To “VIDEO-3” R/L

Headphones

(R)

Headphone

VIDEO-1

Watching videos

Output Input 

Composite signal /

Component signal /

S-VIDEO

· Sound L / R

-Use Component signal

 “Switch between video and

component signal” (P. 22)

-Use S-VIDEO

 “Using S-VIDEO” (P. 22)

VIDEO-2

Watching videos

Output Input 

Composite signal /

S-VIDEO

· Sound L / R

-Use S-VIDEO

 “Using S-VIDEO” (P. 22)

VIDEO-3

Watching DVDs

Output Input 

Composite signal /

Component signal

· Sound L / R

-Use Component signal

 “Switch between video and

component signal” (P. 22)

HDMI-1

HDMI-2

HDMI-3

Connecting

HDMI devices

Output Input 

· HDMI signal

(P. 40)

-“HDMI Setting”  (P. 34)

-HDMI-2 and HDMI-3 input does not

support analogue sound.

-Use HDMI CEC

 “What is “HDMI CEC”?” (P. 41)

OUT

Video and sound signal of a TV channel

you are viewing outputs from this

terminal

Output 

Composite signal /

S-VIDEO

· Sound L / R

-“Using OUT terminal”  (P. 22)

VCR / DVD / other devices

(L)

(Y)

(Pb)

(Pr)

(R)

(L)

HDMI-1

DVD player

(HDMI compatible)

VCR / DVD Player

IN HDMI-1

(Y)

(Pb)

(Pr)

(R) (L)

HDMI-2HDMI-3

DVD player

(HDMI compatible)

13-14 16/10/2007 09:24:06

ENGLISH

Let’s try it out

· TV / Teletext / Video / etc.


RM-C1856RM-C1856

TV mode TV and Text mode

Text mode

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Watching TV

PAGE

Enjoying your new TV!

View channel information

Change the aspect ratio

Register your favourite channels

PAGE

Customising your TV

Adjust the picture

Adjust the sound

Basic settings

(channel settings, etc.)

Advanced settings

(timer / channel guard, etc.)

Viewing teletext

PAGE Enlarge the text

To the index page

Hold the current page

Switch brieﬂy between teletext and TV

Bookmark your favourite pages

Reveal hidden pages

PAGE Watching

videos / DVDs

Watch high quality video (S-VIDEO)

Switch between video and component signal

PC position adjustment

15-16 16/10/2007 09:24:11

ENGLISH

RM-C1856

16 : 9 Zoom

Auto Panoramic

Panoramic

14:9 Zoom

16:9 Zoom

16:9 Zoom Subtitle

Full

Full Native

Zoom

Regular

CHANNEL

Return Plus

Programmed!

Return Plus

Canceled!

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Select a channel

down

Power on

2The blue

power lamp

on the TV lights DISPLAY

Channel

information

Watching TV

Mute

Note

-To completely turn off the TV, unplug

the AC plug.

-Press again to turn the screen off

and put the TV into standby mode.

Move up or down a channel

Switch between mono / stereo /

bilingual broadcasting

 “Stereo / t·u” ( P. 34)

Volume

ZOOM

Change the aspect

ratio

RETURN PLUS

Always return to

the channel you

want to view

Move the picture with

1 or 4 while this bar is

displayed

Basic operations using the side buttons

Power on

Change

the channel

Volume

PR List

PR List Channel information

(No indication)

select

Select a page 

-Channels

registered in

“Initial settings” will

appear here.

Select and view a channel 

1 select

2 view

1 select

2 set

Set to “TV”

RETURN

Return to the

last channel you

were viewing

Recall the return channel 

Hold down

for 3 seconds

Cancel

While the channel

is displayed

Hold down

for 3 seconds

Registered as return channel

While the channel

is displayed

Current channel Last channel

E.g.

1 :

15 :



-Using “Auto”

 “Auto in “Zoom”” (P. 41)

When 720p (750p) or 1080i (1125i)

or 1080p (1125p) signal is received,

the signal will be displayed as “Full or

Full Native”.

The zoom menu will not be displayed.

-In PC mode, “Regular” or “Full” can

be selected.

17-18 16/10/2007 09:24:22

ENGLISH

RM-C1856

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Enter a teletext page

down

When watching TV

TEXT

Display your

favourites list

(RED) (GREEN) (YELLOW) (BLUE)

Select a coloured button to save your page to

Enter the number of the page to save

Save

TEXT

This TV can display TV broadcasts and teletext on the same channel in two windows.

sub-page

Viewing teletext

Move up or down a page

Bookmark

your favourite

page

LIST MODE

Recall your favourite page

View sub-pages

.....

Hold the current page

Display hidden information

(answers to quizzes, etc.)

Returns to page “100”

or a previously designated page

Double the size of the

displayed text

Leave the current page open,

while you switch to watch TV

Hold the

current page

HOLD

Switch brieﬂy

from teletext

to TV

CANCEL

Release

-Useful when running a page search.

Reveal

hidden pages

REVEAL

To the

index page

INDEX

Enlarge

the text

SIZE

 Press the coloured button as in step 2

 Press “ ” again

(red) (green) (yellow) (blue)

19-20 16/10/2007 09:24:32

ENGLISH

RM-C1856

RM-C1856RM-C1856

Set Up

TV/VIDEO

CHANNEL

MENU/OK

Set Up

Auto Program

Video-3 Setting Video

Edit/Manual

Video-1 Setting

Language

Video

HDMI Setting

PC Position

Auto Demonstration

Teletext Language

Video

Video-1

Video-2

Video-3

HDMI1

HDMI2

HDMI3

7PC

AV Select

001

Set Up

Video

Auto Program

Video-3 Setting

Edit/Manual

Video-1 Setting

Language

Video

PC Position

HDMI Setting

Auto Demonstration

Teletext Language

PC Position

Set Up

MENU/OK

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Operate the connected device and play a video

Select the video source

Watching videos / DVDs

Display the menu bar

Select “Set Up”

21 select

2 next

Select “Video-1 Setting” or “Video-3 Setting”

1 select

Switch between video and component signal

Operate JVC recorders and other devices (P. 31)

Select the video source using

the side buttons

Select the

video source

2 watch

1 select

4Change settings

2 set

1 select Video : For normal

video signal

Component : For component

video signal

-If both composite and S-VIDEO cables are connected, S-VIDEO will be enable.

Display the menu bar

Select “Set Up” Select “PC Position”

1 select

2 next

PC position adjustment

21 select

2 next

31 adjust

2 set

-Shown only when “PC” is selected.

-Reset position 

(blue)

Using S-VIDEO

-Component and PC signals does not output from this terminal.

-When you are viewing video signal, no signal will output through the S-VIDEO terminal.

-HDMI-1, HDMI-2 and HDMI-3 inputs does not output from this terminal.

Using OUT terminal

Note : TV/VIDEO button select the

video source by move down.

Select the video source

by move down.

21-22 16/10/2007 09:24:42

ENGLISH

Try the advanced features

RM-C1856RM-C1856

>Timer

On Timer

Sleep Timer

Timer

Channel Guard

Appearance

Blue Back

Favourite Setting

Type A

Child Lock On

Auto Shutoff On

Power Lamp

IIIumination

Eco Sensor

Off

Features

“Customising your TV” (P. 33)

Display “Features” menu

>> On Timer

PR 03

On Timer 0 0 : 0 0

>Timer

On Timer

Sleep Timer

Timer

Channel Guard

Appearance

Blue Back

Favourite Setting

Type A

Child Lock On

Auto Shutoff On

Power Lamp

IIIumination

Eco Sensor

Off

Features

“Customising your TV” (P. 33)

Display “Features” menu

Off

Sleep Timer

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Current programme

Still picture

Selecting “ ” returns to normal viewing mode

(For wide aspect ratio signals)

Only the selected frame

has a moving picture.

Main Sub Main

Sub

Main

Select the number

of screens

Take

snapshots

of the screen

FREEZE

Watch in dual-picture mode

E.g. You can watch TV and video at the same time.

-Move up or down a page 

-Not available for HDMI-1, HDMI-2 or HDMI-3 input.

Useful functions

Cancel

 Press “ ” again, or change the channel

-Not available when the SUB-PICTURE is displayed,

or when in PC mode.

-You cannot save or export the snapshot.

Select a channel in 12-screen mode

All registered channels are displayed as still images.

-Switch between the

sound sources



-Change the channel

 (Main)

 (Sub)

Watch in

multi-picture

mode

MULTI-PICTURE

2 set

1 select

1 select a

channel

2 watch

Set a time

for the TV to

turn itself on

ON TIMER

2 next

1 select “Timer”

1 select “On Timer”

-Not available in PC mode.

Set a time

for the TV to

turn itself off

SLEEP TIMER

41 select PR Channel

Cancel Set the time to “0” in step 4

Remaining time You can conﬁrm the remaining time at step 4,

after repeating this process.

2 next

1 select “Timer”

2 set

1 select “Sleep Timer”

2 set

1 select a time in minutes

Choose the PR (channel) that you want to watch when the TV turns on.

External input and AV position can not be chosen for PR.

Set the On Timer to your desired period of time by press the number

button. When the On Timer is set to other than 00:00, the On Timer is

activated. You can set the period of time to a maximum of 12 hours in

1 minute intervals.

To off the On Timer, set the On Timer to 00:00 or press “ ” button.

Note :

If TV is not in standby mode when On Timer is reach the setting time, then TV will be

change to the speciﬁed channel automatically if already in power on mode

(blue)

>> On Timer

PR 01

On Timer 0 0 : 0 0

select

“On Timer”

2 select timer

set

23-24 16/10/2007 09:24:50

ENGLISH

“Customising your TV” (P. 33)

Automatically

adjust light

and dark

according to

the brightness

of your room

ECO SENSOR

For more details “What is “Eco Sensor”?” (P. 41)

Display “Features” menu

Features

Timer

Channel Guard

Appearance

Blue Back

Child Lock

Type A

Auto Shutoff

Favourite Setting

IIIumination

Eco Sensor

Off

Power Lamp On

3 set

1 select “Eco Sensor”

2 select “On”, “Demo”, or “Off”

Timer

Channel Guard

Appearance

Blue Back

Favourite Setting

Type A

Child Lock On

Auto Shutoff On

Power Lamp

IIIumination

Off

Eco Sensor On

Features

Set ID No.

CH/CC

CH 21

CH 22

CH 23

CH 24

CH 25

CC 02

CC 03

CC 04

CC 05

Channel Guard

“Customising your TV” (P. 33)

Display “Features” menu

“MENU”  “ ”  “Demo Mode”

(yellow)

Conﬁrm the

effect of Super

DigiPure,

MaxxAudio

and Clear

Motion Drive u

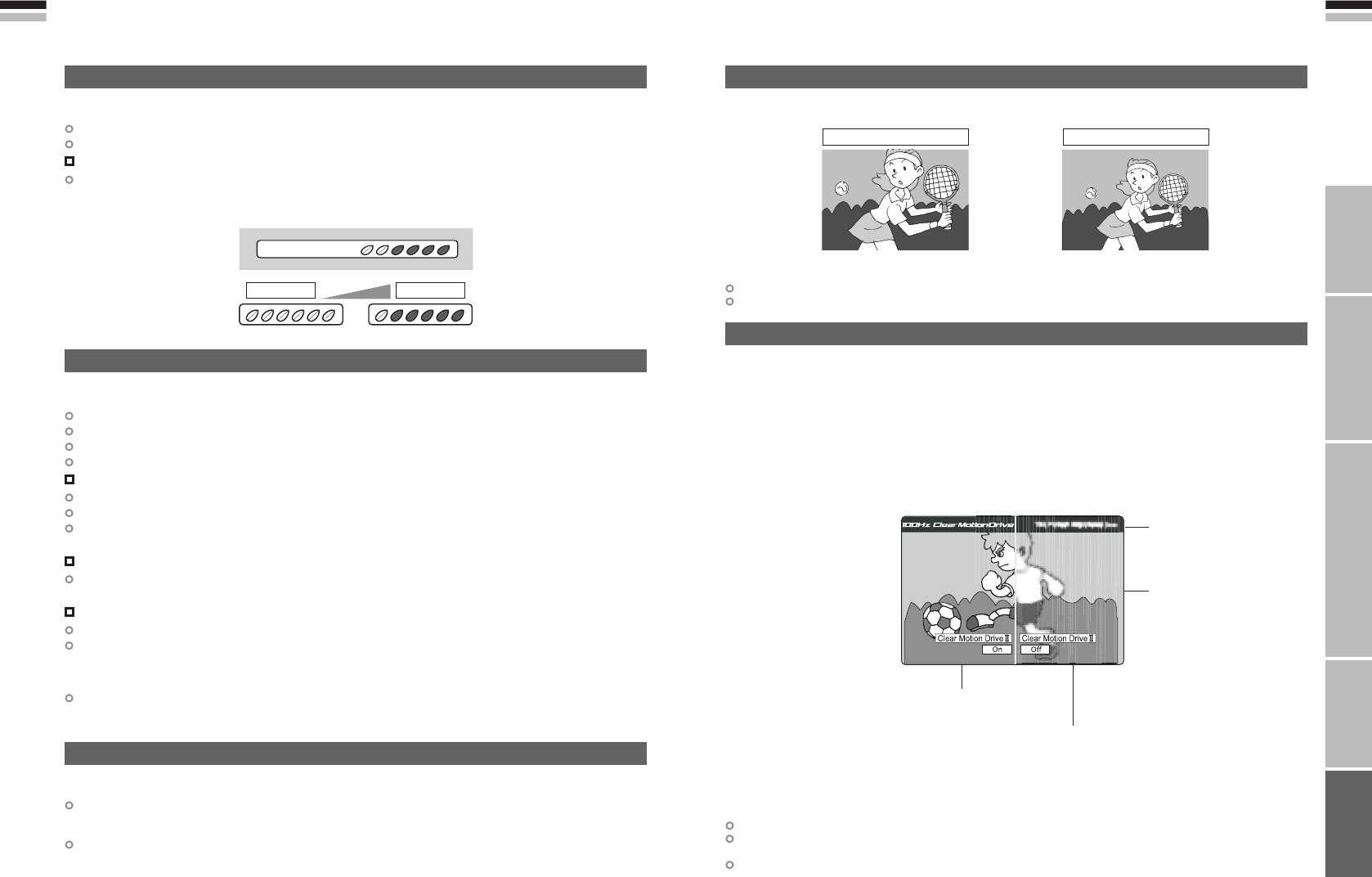

DEMO MODE

“Demo 1”

“Demo 2”

“Demo 3”

MaxxAudio

Super DigiPure

Demo 1

Demo 2

Demo 3

Demo Mode

Cancel “Demo Mode” by press “ ”

(yellow)

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Stop

children from

watching

speciﬁc

channels

CHANNEL GUARD

select

“Channel Guard”

>> Channel Guard

CH/CC

CH 21

CH 22

CH 23

CH 24

CH 25

CC 02

CC 03

CC 04

CC 05

4select a

channel to

lock

Lock more

channels

 Repeat steps

4 and 5

3 set

1 enter an “ID No.”

(a secret number of your choice)

2 to the next column

Release a channel Press “ ” again in step 5

View a locked channel Use the numerical

buttons to enter the

channel number. When

n appears, press “ ”

and enter your “ID No.”.

(If you forget your

“ID No.”, check it in

step 3.)

(blue)

RM-C1856RM-C1856

Useful functions (continued)

25-26 16/10/2007 09:25:06

ENGLISH

RM-C1856

2 3

Set 1 - 4?

Programmed!

Favourite 1 - 4?

112

1PR 01

2PR 03

4PR 07

3PR 05

Favourite Setting

> Favourite Setting

1PR 01

2PR 03

PR 07

Movie Theatre On

Displays a

blue screen

and mute

the sound

when the

signal is

weak

BLUE BACK

2 set

1 select

Set the

power to

turn off if

no signal is

received and

no operation

is performed

AUTO

SHUTOFF

“MENU”  “ ”  “Features”  “Blue Back”

Off

: Function is

turned off

: Displays a

blue screen

When the signal is weak

or absent

Displays a blue screen and

mute the sound

When no signal is received

and no operation is performed

for about 15 minutes

2 set

1 select

“MENU”  “ ”  “Features”  “Auto Shutoff”

Off

: Function is

turned off

: Set the power

to turn off

The power turns off

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Useful functions (continued)

channel to a

button

FAVOURITE

CHANNEL

Hold down

for 3 seconds

While the channel

is displayed

Press the number

to register it on

Recall the favourite channel

Disappears after a

few seconds

Press the number

you registered

-Customisations (P. 34) to the picture of a

favourite channel get saved as well.

Check your favourite channels

Press “ ” and conﬁrm that the channels you

have registered have a d beside them

Delete a favourite channel

“MENU”  “ ”  “Features”

 “Favourite Setting”

select

delete

(blue)

27-28 16/10/2007 09:25:14

ENGLISH

RM-C1856

Enjoy the


mode that

you like


MODE

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Useful functions (continued)

Enjoy the

sound

setting that

you like

MaxxAudio

MaxxAudio is a registered trademark of Waves Audio Ltd.

in the USA, Japan and other countries.

MaxxAudio

MaxxTreble

MaxxStereo

MaxxVolume

Balance

MaxxBass

Voice Enhancer

Sound

Off

HighLow MidOff

select

-Adjustments to the four sound

features of the selected preset

“MaxxAudio” to your liking.

(blue)

-To return to the default settings

(blue)

-To return to the default adjustments

“MENU”  “ ”  “Picture Mode”

Picture Mode

Contrast

Bright

Sharp

Colour

Back Light

Tint

White Balance

Features


Standard

Cool

-You can make further

adjustments to the select preset

“Picture Mode” to your liking.

adjust

select

MaxxAudio

MaxxStereo

MaxxVolume

Balance

MaxxBass

Voice Enhancer

Sound

MaxxTreble

Off

MaxxBass : Compensates low frequencies to widen

the frequency band.

MaxxTreble : Compensates high frequencies to widen

the frequency band.

MaxxStereo : Expands the stereo sound naturally.

MaxxVolume :

Maintains a uniform sound volume even

if the sound becomes loud suddenly

(during commercial breaks etc.).

3select

SoftStandardBright

select

Picture Mode

Contrast

Bright

Sharp

Colour

Back Light

Tint

White Balance

Features


Cool

Standard

adjust

Back Light : Backlight brightness (Darker  Brighter)

Contrast : Contrast (Lower  Higher)

Bright : Brightness (Darker  Brighter)

Sharp : Sharpness (Softer  Sharper)

Colour : Colour (Lighter  Deeper)

Tint : Tint for NTSC (Reddish  Greenish)

29-30 16/10/2007 09:25:19

ENGLISH

RM-C1856

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Operate the device

Turn on the device

Operate JVC recorders

-Other buttons can be used to

operate the TV at any time.

-The indicator lights for 3 seconds

each time the remote control is

operated.

VCR/DVR

Operate the

VCR,

DVD recorder

or HDD recorder

DVD

Operate the

DVD player

AUDIO

Operate the

home theatre

system

Try changing the remote control code

if you cannot operate a recorder.

Code A or 1 (Default)

Select a device

and other devices

Note

-If the battery is removed, the remote control code reverts back

to code A or 1.

-Conﬁrm the code for your recorder by checking the manual it

came with.

-Some models of JVC devices cannot be operated with this

remote control.

-JVC DVD recorders and HDD recorders are set to code “C” or

“3” by default.

The included remote control can be used to operate JVC recorders

and other devices.

VCRs

DVD recorders

HDD recorders

Home

theatre

system

DVD playersTV (P. 6)

DVDAUDIO

VCR/DVR

Code C or 3

Press and hold Press and hold

Operate DVD / HDD recorder menus Playback / Record etc.

Display menu

Select

Display

top menu

Back to

previous menu Select a chapter

Rewind / Playback /

Fast-forward

Record / Stop / Pause

Operate DVD menus Playback etc.

Display menu

Select

Display

top menu Select a chapter

Rewind / Playback /

Fast-forward

Stop / Pause

Back to

previous menu

Operate AUDIO menus Playback etc.

Display menu

Select

Display

top menu Select a chapter

Rewind / Playback /

Fast-forward

Stop / Pause

Back to

previous menu

Mute  Press “ ”

Volume  Press “ ”

Select a surround mode  Press “ ”

31-32 16/10/2007 09:25:23

ENGLISH

Just the way you like it

RM-C1856

Standard


Picture Mode Standard

Back Light

Features

White Balance

Tint

Colour

Sharp

Bright

Contrast

Cool


Picture Mode Standard

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Display the menu bar

Select a menu

Select an item

Adjust / Conﬁgure

Move

The item will change.

Selected menu’s title

Items


Sound

Features

Set Up

Customising your TV

To the previous

screen



Exit



-The menu disappears

after one minute of

inactivity.

When adjusting

with the sliding-bar

When selecting

from presets

2 next

1 select

select

2 set

1 adjust /

select

2 set

1 adjust

2 set

1 select

-Some items have a

sub-menu.

-Other settings · Change the aspect ratio  “ZOOM” (P. 17)

Menu Item Adjustments / Conﬁgurations


Picture Mode Picture mode (Bright / Standard / Soft)

Back Light Backlight brightness (Darker  Brighter)

Contrast Contrast (Lower  Higher)

Bright Brightness (Darker  Brighter)

Sharp Sharpness (Softer  Sharper)

Colour Colour (Lighter  Deeper)

Tint Tint for NTSC (Reddish  Greenish)

White Balance Colour temperature (Warm / Mid / Cool)

Features Finer picture adjustments (P. 35)

Sound

Stereo / t · u

Mode / Language (v : MONO / s : STEREO / t : SUB1 / u : SUB2 / MONO)

MaxxAudio Ambience level (Off / Low / Mid / High)

MaxxBass*1 Low tones (Weaker  Stronger)

MaxxTreble High tones (Weaker  Stronger)

MaxxStereo Expands the stereo sound naturally.

MaxxVolume Maintains a uniform sound volume even if the sound becomes loud suddenly

(during commercial breaks etc.)

Balance Speaker balance (Left Stronger  Right Stronger)

Voice Enhancer Sound enhancement technology (On / Off)

Features

Timer Set timer for turning on or turning off the TV (P. 24)

Channel Guard Stops children from watching speciﬁc channels (P. 25)

Appearance Format for displaying the channel number

(Type A / Type B)

Blue Back Displays a blue screen and mute the sound

when the signal is weak or absent (P. 28)

Child Lock Disables the front control buttons of the TV

Auto Shutoff Set the power to turn off if no signal is received and no operation is performed

for about 15 minutes (P. 28)

Favourite Setting Clear favourite channel settings (P. 27)

Illumination Lights illumination lamp (P. 5) while the TV is on (Off / Soft / Bright)

Power Lamp Lights power lamp (P. 5) while the TV is on (On / Off)

Eco Sensor Automatically adjust contrast of light and dark according to the brightness of

your room (Off / On / Demo) (P. 26)

Set Up

Auto Program Automatically registers channels (P. 10, ⁄)

Edit / Manual Change registered channels or add new ones (P. 11)

Language Select a language for on-screen menus (P. 10, Ÿ)

Video-1 Setting For use with video players and other devices (P. 22)

Video-3 Setting For use with video players and other devices (P. 22)

Teletext Language Select a language for Teletext programmes (P. 10, !)

HDMI Setting

HDMI CEC : Allows the TV to connect and control multiple HDMI CEC

enabled devices with a single remote (P. 41)

HDMI-1 : Size (1 / 2 / Auto), Audio (Auto / Analogue / Digital)

HDMI-2 : Size (1 / 2 / Auto)

HDMI-3 : Size (1 / 2 / Auto)

PC Position PC position adjustment (P. 21)

Auto Demonstration Conﬁrm the effect of Clear Motion Drive u for LCD screen (On / Off) (P. 42)

*1 MaxxBass is a registered trademark of Waves Audio Ltd. in the USA, Japan and other countries.

33-34 16/10/2007 09:25:29

ENGLISH

· Reduce noise / Watch a more natural picture

· Set the aspect ratio, etc.

RM-C1856

Super DigiPure Auto


Picture Mode Standard

Back Light

Features

White Balance

Tint

Colour

Sharp

Bright

Contrast

Cool


Pull Down

Colour Management

Picture Management

Smart Picture

MPEG Noise Reduction

Colour System

Zoom

Features

Super DigiPure Auto

Sub

Main Auto

PAL

Colour System

Zoom

Auto

Panoramic

14:9 Zoom

16:9 Zoom

16:9 Zoom Subtitle

Full

Full Native

Regular

Super DigiPure Auto

Movie Theatre On

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Select “Picture”

By default, the TV automatically adjusts itself for the best picture.

Display the menu bar

Select “Features”

Select an item

Change settings

Super

DigiPure

Pull Down

Colour

Management

Smart


Colour

System

Zoom

E.g. “Super DigiPure”

Finish

Advanced picture adjustment

To the previous

screen



Exit



-The menu disappears

after one minute of

inactivity.

2 next

1 select

2 next

1 select

2 next

1 select

select

For

natural-looking

outlines

For smooth

cinema ﬁlm

Off

: Function is

turned off

On Auto

: Automatically

adjusts

: Function is

always on

For

natural-looking

pictures

Off

: Function is

turned off

: Maintain a natural

colour balance

Fix

bright / dark

pictures

Off

: Function is

turned off

: Make it easier to view

bright / dark pictures

When

there is no

colour

Main

: Main picture

Sub

: Sub-picture in

MULTI-PICTURE mode (P. 23)

1 Select the screen to change settings on

PAL

2 Select the colour system

SECAM NTSC 3.58 NTSC 4.43 Auto

Set a default

aspect ratio

Panoramic

Select a default aspect ratio for Auto in “Zoom” (P. 17)

Regular 14:9 Zoom

16 : 9 4 : 3 14 : 9


Management

Off

: Function is

turned off

Min Max Auto

When the picture

loses sharpness

: Automatically

adjusts

MPEG Noise

Reduction

Off

: Function is

turned off

To reduce

MPEG video

noise

Off

: Function is

turned off

: When noise appers

Fix

brightness of

white areas

-Not available when

“Picture Mode” is set

to “Bright” (P. 34).

: Make it easier to view

white areas

: When

noise appears

-For colour system in your country or region.

 “Colour system in your country or region” (P. 40)

35-36 16/10/2007 09:25:36

ENGLISH

When you have trouble

-Switch “Blue Back” to “Off”.

Blue screen appears

on the screen

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Severe noise or

snow

Troubleshooting

Patterns, stripes

or noise

I can’t turn it on!

-Is the power cord connected to the AC outlet

correctly?

The remote

control doesn’t

work!

-Is the TV connected correctly to

the aerial?

-Change the direction of the aerial.

-Is the aerial or its cable

damaged?

 Consult your retailer

Ghosting

(Doubling of images)

-Are you receiving interference

from signals reﬂected off

mountains or buildings?

 Adjust the direction of your

aerial, or change to a

good-quality directional aerial

-Is the aerial receiving interference

from high-voltage power lines or

wireless transmitters?

 Consult your retailer

-Are connected devices too close

to the TV?

 Insert the minimum distance

between the aerial and the

cause of interference until no

interference

-Are the batteries ﬂat?

-Are you more than 7 meters away

from the TV?

-Is the “MODE (TV, VCR/DVR, DVD, AUDIO)” set to “TV”?

-When viewing teletext, the TV menu bar does not appear.

-Depending on the stability of the signal, there may be a time

lag when changing channels.

Problem Actions

page

-Unplug TV, several minutes later plug it in again.

Remote control

stops working –

-Switch “Child Lock” to “Off”.

Front control buttons

does not work 34

-Unnatural colour >>> Adjust “Colour” and “Back Light”.

Check your “Colour System”. If “Auto”

is selected, select the speciﬁc colour

system manually.

Noise >>> Set to the following functions.

Picture Mode : Standard

Super DigiPure : Max

Dull picture >>> Set to the following functions.

Picture Mode : Bright

Super DigiPure : Min

Poor picture quality

-If the top of the image is distorted, check the video signal

quality itself.

-If movement appears unnatural when receiving a signal from

a DVD player, etc. with 625p (progressive-scanning), change

the output setting of the external device to 625i (interlace-

scanning).

Strange picture

when using an external

device

–

Basics Screen Picture

-Press “ ” to return to your settings.

Aspect ratio changes

unintentionally 17

-Adjust the “PC position”.

PC screen alignment

is off 21

-Set “Auto Demonstration” to “Off”.

Enters “Clear Motion

Drive u” demonstration

when watching TV.

37-38 16/10/2007 09:25:39

ENGLISH

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Troubleshooting (continued)

Problem Actions

page

-“VIDEO-1 (Component signal)”, “VIDEO-3 (Component

signal)”, “HDMI-1”, “HDMI-2” and “HDMI-3” inputs and PC

mode cannot be selected in the sub-picture.

Some inputs cannot

be selected in the

sub-picture

–

-It is not a malfunction. Some functions (dark background) in

the menu do not work depending on the situation.

-LCD panels use ﬁne dots (“pixels”) to display images.

While more than 99.99% of these pixels function properly,

a very small number of pixels may not light, or may light all

the time.

Please understand that this is not a malfunction.

Black or white dots

appear on the screen –

-Some inputs does not output from OUT terminal

No picture, no sound 22

OUT terminal

Some functions do not

work –

-Wait a little for the signal to stabilize when switching the

signal format for an “HDMI” device.

Green and distorted

screen –

-Check if the device is compliant with HDMI.

-Switch “Audio” in “HDMI Setting” to “Digital” or “Auto” for

HDMI devices, or “Analogue” or “Auto” for DVI devices.

(Not available for HDMI-2 and HDMI-3)

No sound

–

-Use the cable marked with HDMI logo.

No picture, no sound –

-Switch “Size” in “HDMI Setting” to “1” or “2”.

Wrong screen size 34

-Adjust the “MaxxBass” and “MaxxTreble”.

If receiving a poor signal in “Stereo / t·u”, switch to “Mono”.

-Adjust the channel reception using “Edit/Manual”.

Poor sound

Sound

Technical information

Language group for teletext

Group Languages

Group-1 Turkish, Hungarian, English, German, French, Italian, Spanish, Portuguese, Greek, Swedish, Finnish

Group-2

Polish, Serbian, Croatian, Slovenian, Czech, Slovak, Rumanian, Hungarian, German, French, Italian, Swedish, Finnish

Group-3

Russian, Bulgarian, Lettish, Lithuanian, Estonian, Ukrainian, Serbian, Croatian, Slovenian, Czech, Slovak, English, German

Group-4 Arabic, Czech, Slovak, Hungarian, English, German, French, Italian, Spanish, Portuguese, Swedish, Finnish

Group-5 Farsi, Czech, Slovak, Hungarian, English, German, French, Italian, Spanish, Portuguese, Swedish, Finnish

Sound and Colour system in your country or region

Area Country or Region System System

Asia, Middle East

Bahrain, Kuwait, Oman, Qatar, United Arab Emirates, Yemen, etc.

Indonesia, Malaysia, Singapore, Thailand, India, etc.

B/G

PAL

China, Vietnam, etc.

D/K

Hong Kong, etc.

Islamic Republic of Iran, Lebanon, Saudi Arabia, etc.

B/G SECAM

Philippines, Taiwan, Myanmar, etc.

M NTSC

Europe

Russia, etc.

D/K SECAM

Czech Republic, Poland, etc.

PALGermany, Holland, Belgium, etc. B/G

UK, etc.

Oceania

Australia, New Zealand, etc.

B/G PAL

Africa

Republic of South Africa, etc.

IPAL

Nigeria, etc. B/G

Egypt, Morocco, etc.

SECAM

-If the characters are unreadable.  Select different teletext language group.

*Macintosh* computers are not supported.

(Macintosh is a registered trademark of

Apple Computer, Inc.)

-If the signal doesn’t appear, check that the vertical

frequency on the PC is set to “60Hz”.

Connect a “DVI” device to “HDMI-1” using “DVI-HDMI” conversion cable. Connect analogue sound output of the

DVI device to L and R terminals in IN HDMI-1.

-Set “Audio” in “HDMI Setting” to “Analogue” or “Auto”  (P. 34)

-HDMI-2 and HDMI-3 input does not support analogue sound (IN HDMI-1).

-HDMI-2 and HDMI-3 input does not support DVI devices.

PC Signals that can be displayed

Connect “DVI” devices

Use this function when stereo sound or bilingual sound is hard to hear.

-Set “Stereo / t · u” to “Mono”  (P. 34)

Monoaural sound

Resolution

640 x 480 (VGA)

1024 x 768 (XGA)

Vertical frequency (Hz) 60.0 60.0

HDMI Functions Screen

39-40 16/10/2007 09:25:40

ENGLISH

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

When “Auto” is selected in Zoom, the aspect ratio will turn to the ratio obtained from the information the TV

received.

-The aspect ratio will turn to the ratio obtained from WSS (Wide Screen Identiﬁcation Signal), video signal, or

control signal of the external devices. Without receiving the aspect information, it will be the setting in Auto in

Zoom menu. (Regular or Panoramic or 14:9 Zoom) (P. 35)

-Not available in PC mode.

You can adjust this TV so that the screen automatically adjusts to the optimum contrast of light and dark according

to the brightness of your room. This function reduces eye strain and the power consumption of this TV.

-Set “Eco Sensor”  “Eco Sensor” (P. 26)

-Make sure not to block the Eco Sensor on front of the TV (P. 5)

Using “Demo” in “Eco Sensor” You can display the effect of the “Eco Sensor” on the screen

-To fully reduce eye strain and the power consumption of this TV. Set to the following functions.

Eco Sensor: On or Demo (P. 26)

Smart Picture: On (P. 35)

Technical information

(continued)

Auto in “Zoom”

What is “Eco Sensor”?

Dark Light

Most conventional LCD panel uses 50 frames per second (50Hz) or 60 frames per second (60Hz) to display an

image which needs long holding time (time it takes to display single frame), causing blurring or ghost images when

there is rapid or complex movement across the screen – a phenomenon common to all LCD panels.

This TV is equipped with JVC’s original “Clear Motion Drive u” technology, which displays two frames (the original

plus the new interpolated frame) in the time a 50Hz or 60Hz set displays a single frame. Resulting to double the

typical rate, 100 frames per second (100Hz) or 120 frames per second (120Hz) and halve the holding time without

reducing brightness or contrast. By using this technology you will be able to reduce blurring or ghost images when

there is rapid or complex movement across the screen.

By using “Demo 3”, you can display the differences between conventional LCD (50Hz or 60Hz) and LCD panel

equipped with “Clear Motion Drive u”.

Clear Motion Drive u

*1 To simulate Moving image of conventional LCD, the TV will display two same frames at a time.

Note : The illustrations are emphasized to make clear differences between LCD panel equipped with “Clear Motion Drive u”

and conventional LCD.

-Set “Auto Demonstration” to “On” / “Off

”.  “Auto Demonstration” (P. 34)

-When set to “On”, it automatically enters demonstration every time no operation is made for approximately

3 minutes. To stop automatic demonstration, set “Auto Demonstration” to “Off

”.

-When the images are 60 frames per second (60Hz), it will be produced as 120 frames per second (120Hz).

Moving image of LCD panel

equipped with “Clear Motion Drive u”

(100 or 120 frames per second)

The “DynaPix” ticker will run

right to left

You can conﬁrm the differences

of the two LCD’s with actual

moving images

Moving image of 50Hz or 60Hz

conventional LCD (50 or 60 frames

per second)*1

What is “HDMI CEC”?

HDMI CEC (Consumer Electronics Control) allows the TV to connect and control multiple HDMI CEC enabled

devices with a single remote. CEC (Consumer Electronics Control) is an optional protocol used in HDMI.

-HDMI CEC on this TV is compliant with “High-Deﬁnition Multimedia Interface Speciﬁcation”.

-The TV does not support HDMI CEC functions that are not listed below.

-The TV does not guarantee to support use of all HDMI CEC enabled devices.

-Devices that are not enabled to HDMI CEC cannot be controlled with this TV.

Control the TV using the HDMI CEC enabled device

-Turn the TV on and switch to the video source of the operating device.

-Switch to the video source of the operating device.

-Turn the TV off with the HDMI CEC enabled device you are viewing.

* For operating instructions of the device, refer to the device’s manual.

Control the HDMI CEC enabled device using the TV

-Turn off the operating device by turning off the TV.

* Some device may not support this function. For more details refer to the device’s manual.

Send status of the TV to the HDMI CEC enabled device

-When switching the TV’s external input or channel.

-When switching the TV’s menu language.

* Information regarding behavior of the device when status is received, refer to the external device’s manual.

Turning On / Off HDMI CEC:

-Set “HDMI CEC”  “HDMI Setting” (P. 34)

* Factory default setting is “On”.

With the full HD LCD display and “Full Native”, you can enjoy full native HD resolution of 1920 x 1080. It exposes

ﬂaws in the video that were hidden when veiwing on “Full”.

What is “Full Native”?

Full Full Native

* The illustrations are emphasized to make clear differences between “Full” and “Full Native”.

-Depending on the video, noise or dark bar may appear on the edge of the screen.  Select “Full” in “Zoom”

-You cannot change the screen size from “Full Native” when receiving the 1080p (1125p) signal.

Eco Sensor

41-42 16/10/2007 09:25:50

ENGLISH

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

To use the INSERT function (P. 11), ﬁnd the “CH/CC” number corresponding to the TV’s Channel number from this

table.

US: The US channel numbers are the channel numbers used in the United States, Philippines, etc.

CCIR: The CCIR channel numbers are the channel numbers used in the Middle East, Southeast Asia, etc.

OIRT: The OIRT channel numbers are the channel numbers used in Eastern Europe, Russia, Vietnam, etc.

AUSTRALIA: The AUSTRALIA channel numbers are the channel numbers used in Australia, etc.

“CH/CC” List

CH Channel

US CCIR OIRT AUSTRALIA

CH 02 US-02 E2 R1 AU-0

CH 03 US-03 E3 AU-1

CH 04 US-04 E4 R2 AU-2

CH 05 US-05 E5 R6 AU-6

CH 06 US-06 E6 R7 AU-7

CH 07 US-07 E7 R8 AU-8

CH 08 US-08 E8 R9 AU-9

CH 09 US-09 E9

CH 10 US-10 E10 R10 AU-10

CH 11 US-11 E11 R11 AU-11

CH 12 US-12 E12 R12

CH 13 US-13

CH 14 US-14, W+29

CH 15 US-15, W+30

CH 16 US-16, W+31

CH 17 US-17, W+32

CH 18 US-18, W+33

CH 19 US-19, W+34

CH 20 US-20, W+35

CH 21 US-21, W+36 E21

CH 22 US-22, W+37 E22

CH 23 US-23, W+38 E23

CH 24 US-24, W+39 E24

CH 25 US-25, W+40 E25

CH 26 US-26, W+41 E26

CH 27 US-27, W+42 E27

CH 28 US-28, W+43 E28

CH 29 US-29, W+44 E29

CH 30 US-30, W+45 E30

CH 31 US-31, W+46 E31

CH 32 US-32, W+47 E32

CH 33 US-33, W+48 E33

CH 34 US-34, W+49 E34

CH 35 US-35, W+50 E35

CH 36 US-36, W+51 E36

CH 37 US-37, W+52 E37

CH 38 US-38, W+53 E38

CH 39 US-39, W+54 E39

CH 40 US-40, W+55 E40

CH 41 US-41, W+56 E41

CH 42 US-42, W+57 E42

CH 43 US-43, W+58 E43

CH 44 US-44, W+59 E44

CH 45 US-45, W+60 E45

CH 46 US-46, W+61 E46

CH 47 US-47, W+62 E47

CH 48 US-48, W+63 E48

CH 49 US-49, W+64 E49

CH 50 US-50, W+65 E50

CH 51 US-51, W+66 E51

CH 52 US-52, W+67 E52

CH 53 US-53, W+68 E53

CH 54 US-54, W+69 E54

CH 55 US-55, W+70 E55

CH 56 US-56, W+71 E56

CH 57 US-57, W+72 E57

CH 58 US-58, W+73 E58

CH 59 US-59, W+74 E59

CH 60 US-60, W+75 E60

CH 61 US-61, W+76 E61

CH 62 US-62, W+77 E62

CH 63 US-63, W+78 E63

CH 64 US-64, W+79 E64

CH 65 US-65, W+80 E65

CH 66 US-66, W+81 E66

CH 67 US-67, W+82 E67

CH 68 US-68, W+83 E68

CH 69 US-69, W+84 E69

CC Channel

US CCIR OIRT AUSTRALIA

CC 01 S-1 AU-5

CC 02 S-2

CC 03 S-3

CC 04 S-4

CC 05 S-5

CC 06 S-6 AU-5A

CC 07 S-7

CC 08 S-8

CC 09 S-9

CC 10 S-10

CC 11 S-11

CC 12 S-12

CC 13 S-13

CC 14 A S-14

CC 15 B S-15

CC 16 C S-16

CC 17 D S-17

CC 18 E S-18

CC 19 F S-19

CC 20 G S-20

CC 21 H S-21

CC 22 I S-22

CC 23 J S-23

CC 24 K S-24

CC 25 L S-25

CC 26 M S-26

CC 27 N S-27

CC 28 O S-28

CC 29 P S-29

CC 30 Q S-30

CC 31 R S-31

CC 32 S S-32

CC 33 T S-33

CC 34 U S-34

CC 35 V S-35

CC 36 W S-36

CC 37 W+1 S-37

CC 38 W+2 S-38

CC 39 W+3 S-39

CC 40 W+4 S-40

CC 41 W+5 S-41

CC 42 W+6

CC 43 W+7

CC 44 W+8

CC 45 W+9

CC 46 W+10

CC 47 W+11

CC 48 W+12

CC 49 W+13

CC 50 W+14

CC 51 W+15

CC 52 W+16

CC 53 W+17

CC 54 W+18

CC 55 W+19

CC 56 W+20

CC 57 W+21

CC 58 W+22

CC 59 W+23

CC 60 W+24

CC 61 W+25

CC 62 W+26

CC 63 W+27

CC 64 W+28

CC 75 X

CC 76 Y R3

CC 77 Z R4 AU-3

CC 78 Z+1 R5

CC 79 Z+2 AU-4

CC 95 A-5

CC 96 A-4

CC 97 A-3

CC 98 A-2

CC 99 A-1 -We may change the design and speciﬁcations without notice.

Speciﬁcations

Main unit

Terminals / Connectors

Model LT-42GZ78 LT-47GZ78

Broadcasting systems B / G / I / D / K / K1 / M (See “Technical information”, P. 40)

Colour systems PAL, SECAM, NTSC 3.58/4.43 MHz

Channels and frequencies

VHF low channel (VL) = 46.25 to 140.25 MHz

VHF high channel (VH) = 147.25 to 423.25 MHz

UHF channel (U) = 431.25 to 863.25 MHz

· Receives cable channels in mid band (X to Z+2, S1 to S10), super band (S11 to

S20) and hyper band (S21 to S41).

Sound-multiplex systems NICAM (I / B / G / D / K), A2 (B / G / D / K)

Teletext systems FLOF (Fastext), WST (standard system)

Power requirements AC 110 V - 240 V, 50/60Hz

Audio output (

Rated power output

) 10 W + 10 W 10 W + 10 W

Speakers (4 cm x 16 cm) Twin Oblique x 2 (4 cm x 16 cm) Twin Oblique x 2

Power consumption

[standby]

221 W

[0.5 W]

280 W

[0.5 W]

Screen size

(visible area size measured diagonally)

106 cm 119 cm

Dimensions (W x H x D: mm)

[without stand]

1007 x 707.2 x 296

[1007 x 660 x 129.1]

1121 x 773.7 x 296

[1121 x 726.5 x 129.8]

Weights

[without stand]

27.0 kg

[24.0 kg]

32.5 kg

[29.0 kg]

Accessories (See “Check accessories”, P. 5)

Terminal name Terminal type Signal type (IN)

Signal type (OUT)

Notes

Input terminals

VIDEO-1 RCA connectors x 6

S-VIDEO connector x 1

Composite video, S-video,

Analogue component

(576i (625i) / 480i (525i),

Progressive : 576p (625p) / 480p (525p),

HD : 720p (750p), 1080i (1125i))

AUDIO L / R

VIDEO-2 RCA connectors x 3

S-VIDEO connector x 1

Composite video, S-video,

AUDIO L / R

VIDEO-3

RCA connectors x 6

Composite video,

Analogue component

(576i (625i) / 480i (525i),

Progressive : 576p (625p) / 480p (525p),

HD : 720p (750p), 1080i (1125i))

AUDIO L / R

HDMI-1

HDMI connector x 1

HDMI

(576i (625i) / 480i (525i) /

576p (625p) / 480p (525p), 720p (750p),

1080p (1125p), 1080i (1125i))

HDMI-2

HDMI-3

IN HDMI-1 RCA connectors x 2 AUDIO L / R

PC INPUT D-SUB (15 pins) x 1 Analogue PC signal (P. 21)

Output

terminals

MONITOR

OUT

RCA connectors x 3

S-VIDEO connector x 1

Composite video,

S-video,

Audio L / R

Headphone Stereo mini-jack x 1

(3.5 mm in diameter)

Headphone

output

43-44 16/10/2007 09:25:53

JVC LT 47GZ78 GGT0186 001A H User Manual EN

LT-42GZ78 LT-42GZ78, LT-47GZ78 GGT0186-001A-H_EN English,

Navigation menu

Versions of this User Manual:

Views

Navigation
