JVC MX K30 LVT0860 001D User Manual 001E

MX-K10 MX-K10 LVT0860-001E English,

User Manual: JVC MX-K30 MX-K30 English,

Open the PDF directly: View PDF .
Page Count: 32

For Customer Use:

Enter below the Model No. and Serial No.

which are located either on the rear, bot-

tom or side of the cabinet. Retain this

information for future reference.

Model No.

Serial No.

LVT0860-001E

44-1074-1

[J]

COMPACT COMPONENT SYSTEM

MX-K30/MX-K10

Consists of CA-MXK30 and SP-MXK30

Consists of CA-MXK10 and SP-MXK10

BASS-REFLEX BASS-REFLEX

CD-R/RW PLAYBACK

3-CD

PLAY & EXCHANGE

ACTIVE

BASS EX.

CLOCK

/TIMER

COMPU PLAY CONTROL

ACTIVE BASS

EXTENSION

EJECT EJECT

REC / PLAY

B

CD SYNCHRO RECORDING

PLAY

A

FULL - LOGIC CONTROL

AUX CD TAPE

FM

/ AM

TAPE

A / B

CD

3

CD

2

CD

1

COMPACT COMPONENT SYSTEM

MX-K10

1 BIT

DUAL D/A

CONVERTER

PROGRAM

SOUND

MODE

REPEAT

PANDOM

PRESET

TUNING

STANDBY/ON

STANDBY

CANCEL

PHONES

REC START

/ STOP

CD

REC START DUBBING

SET

/ DEMO

V

O

L

U

M

E

DISC SKIP

R

O

C

K

I

C

L

A

S

S

C

P

O

P

FM MODE

FM /AM

AUX

SLEEP

STANDBY/ON

CD

1

CD

2

CD

3

SOUND

MODE

ACTIVE

BASS EX.

FADE

MUTING

VOLUME

PROGRAM

/RANDOM

REPEAT

TAPE

A/B

TAPE

CD

CA-MXK10SP-MXK10

CA-MXK30SP-MXK30 SP-MXK30

SP-MXK10

CD-R/RW PLAYBACK

3-CD

PLAY & EXCHANGE

ACTIVE

BASS EX.

CLOCK

/TIMER

COMPU PLAY CONTROL

ACTIVE BASS

EXTENSION

EJECT EJECT

REC / PLAY

B

CD SYNCHRO RECORDING

PLAY

A

FULL - LOGIC CONTROL

AUX CD TAPE

FM

/ AM

TAPE

A / B

CD

3

CD

2

CD

1

COMPACT COMPONENT SYSTEM

MX-K30

1 BIT

DUAL D/A

CONVERTER

PROGRAM

SOUND

MODE

REPEAT

PANDOM

PRESET

TUNING

STANDBY/ON

STANDBY

CANCEL

PHONES

REC START

/ STOP

CD

REC START DUBBING

SET

/ DEMO

V

O

L

U

M

E

DISC SKIP

R

O

C

K

I

C

L

A

S

S

C

P

O

P

FM MODE

FM /AM

AUX

SLEEP

STANDBY/ON

CD

1

CD

2

CD

3

SOUND

MODE

ACTIVE

BASS EX.

FADE

MUTING

VOLUME

PROGRAM

/RANDOM

REPEAT

TAPE

A/B

TAPE

CD

INSTRUCTIONS

Cover.fm Page 1 Thursday, April 18, 2002 3:23 PM

G-1

Warnings, Cautions and Others

For U.S.A.

This equipment has been tested and

found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to

provide reasonable protection against

harmful interference in a residential instal-

lation. This equipment generates, uses,

and can radiate radio frequency energy

and, if not installed and used in accord-

ance with the instructions, may cause

harmful interference to radio communica-

tions. However, there is no guarantee that

interference will not occur in a particular

installation. If this equipment does cause

harmful interference to radio or television

reception, which can be determined by

turning the equipment off and on, the user

is encouraged to try to correct the interfer-

ence by one or more of the following

measures:

– Reorient or relocate the receiving

antenna.

– Increase the separation between the

equipment and receiver.

– Connect the equipment into an outlet on

a circuit different from that to which the

receiver is connected.

– Consult the dealer or an experienced

radio/TV technician for help.

The lightning flash with arrowhead symbol, within

an equilateral triangle is intended to alert the user

to the presence of uninsulated “dangerous voltage”

within the product’s enclosure that may be of suffi-

cient magnitude to constitute a risk of electric shock

to persons.

The exclamation point within an equilateral triangle

is intended to alert the user to the presence of

important operating and maintenance (servicing)

instructions in the literature accompanying the

appliance.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING: TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

Warning. fm Page 1 Wednesday, De cember 1 2, 2 001 10:4 3 AM

G-2

CLASS 1 LASER PRODUCT

DANGER

1. Invisible laser radiation when open and interlock failed or

defeated. Avoid direct exposure to beam.

CAUTION

1.Do not open the top cover. There are no user

serviceable parts inside the unit; leave all servicing to

qualified service personnel.

2.Use of controls, adjustments or performance of proce-

dures other than those specified herein may result in haz-

ardous radiation exposure.

CAUTION

To reduce the risk of electric shocks, fire, etc.:

1.Do not remove screws, covers or cabinets.

2.Do not expose this appliance to rain or moisture.

3.To prevent electric shock, match wide blade of plug to

wide slot, fully insert.

CAUTION

1.Do not block the ventilation openings or holes.

(If the ventilation openings or holes are blocked by a

newspaper or cloth, etc., the heat may not be able to get

out.)

2.Do not place any naked flame sources, such as lighted

candles, on the apparatus.

3.When discarding batteries, environmental problems must

be considered and local rules or laws governing the dis-

posal of these batteries must be followed strictly.

4.Do not expose this apparatus to rain, moisture, dripping

or splashing and that no objects filled with liquids, such as

vases, shall be placed on the apparatus.

Caution — POWER switch!

Disconnect the main plug to shut the power off com-

pletely. The POWER switch in any position does not

disconnect the main line. The power can be remote

controlled.

Caution: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent dam-

age, locate the apparatus as follows:

1. Front:

No obstructions and open spacing.

2. Sides/ Top/ Back:

No obstructions should be placed in the areas shown

by the dimensions below.

3. Bottom:

Place on the level surface. Maintain an adequate air

path for ventilation by placing on a stand with a height

of 10cm (315/16 in.) or more.

15cm

(515/16in)

10cm

(315/16in)

15cm

(515/16in)

15cm

(515/16in)

15cm

(515/16in)

1cm

(7/16in)

1cm

(7/16in)

15cm

(515/16in)

CA-MXK30/

CA-MXK10

CA-MXK30/

CA-MXK10

Side viewFront view

warning.fm Page 2 Monday, February 4, 2002 4:34 PM

1

Introduction

Thank you for purchasing the JVC Compact Component System.

We hope it will be a valued addition to your home, giving you years of enjoyment.

Be sure to read this instruction manual carefully before operating your new stereo system.

In it you will find all the information you need to set up and use the system.

If you have a query that is not answered by the manual, please contact your dealer.

Features

Here are some of the things that make your System both powerful and simple to use.

❏The controls and operations have been redesigned to make them very easy to use, freeing you to just enjoy the

music.

• With JVC’s COMPU PLAY you can turn on the System and automatically start the Radio, Cassette Deck, or

CD Player with a single touch.

❏The great SEA (Sound Effect Amplifier) effects Rock, Pop and Classics are provided.

❏The Active Bass EX. (Extension) circuitry faithfully reproduces low frequency sounds.

❏A 45-station preset capability (30 FM and 15 AM) in addition to auto-seek and manual tuning.

❏CD changer function can operate 3 discs.

• Discs can be changed during play using the Carrousel tray (rotational tray).

• Continuous, random or program play of 3 discs.

❏Two Decks enabling tape dubbing.

❏Timer functions; Daily Timer, REC (Recording) Timer, and Sleep Timer.

❏You can connect various external units, such as an MD recorder.

❏The CD Player can play back a CD-R and CD-RW.

How This Manual Is Organized

• Basic information that is the same for many different functions - e.g. setting the volume - is given in the section “Basic Operations”,

and not repeated under each function.

• The names of buttons/controls and display messages are written in all capital letters: e.g. FM/AM, “NO DISC”.

• If the button names on the Unit and the Remote Control are the same, the description on where the button is used will be omitted.

• System functions are written with an initial capital letter only: e.g. Normal Play.

Use the table of contents to look up specific information you require.

We have enjoyed making this manual for you, and hope it serves you in enjoying the many features built into your System.

IMPORTANT CAUTIONS

1Installation of the System

• Select a place which is level, dry and neither too hot nor too cold. (Between 5°C and 35°C or 41°F and 95°F.)

• Leave sufficient distance between the System and a TV.

• Do not use the System in a place subject to vibrations.

2Power cord

• Do not handle the power cord with wet hands!

• Some power is always consumed as long as the power cord is connected to the wall outlet.

• When unplugging the System from the wall outlet, always pull the plug, not the power cord.

3Malfunctions, etc.

• There are no user serviceable parts inside. In case of system failure, unplug the power cord and consult your dealer.

• Do not insert any metallic object into the System.

MX-K30&K10(J).book Page 1 Wednesday, December 12, 2001 11:07 AM

2

Table of Contents

Introduction ...................................................................................................................1

Features.................................................................................................................................................... 1

How This Manual Is Organized............................................................................................................... 1

IMPORTANT CAUTIONS..................................................................................................................... 1

Table of Contents ..........................................................................................................2

Getting Started ..............................................................................................................3

Accessories .............................................................................................................................................. 3

How To Put Batteries In the Remote Control.......................................................................................... 3

Using the Remote Control ....................................................................................................................... 3

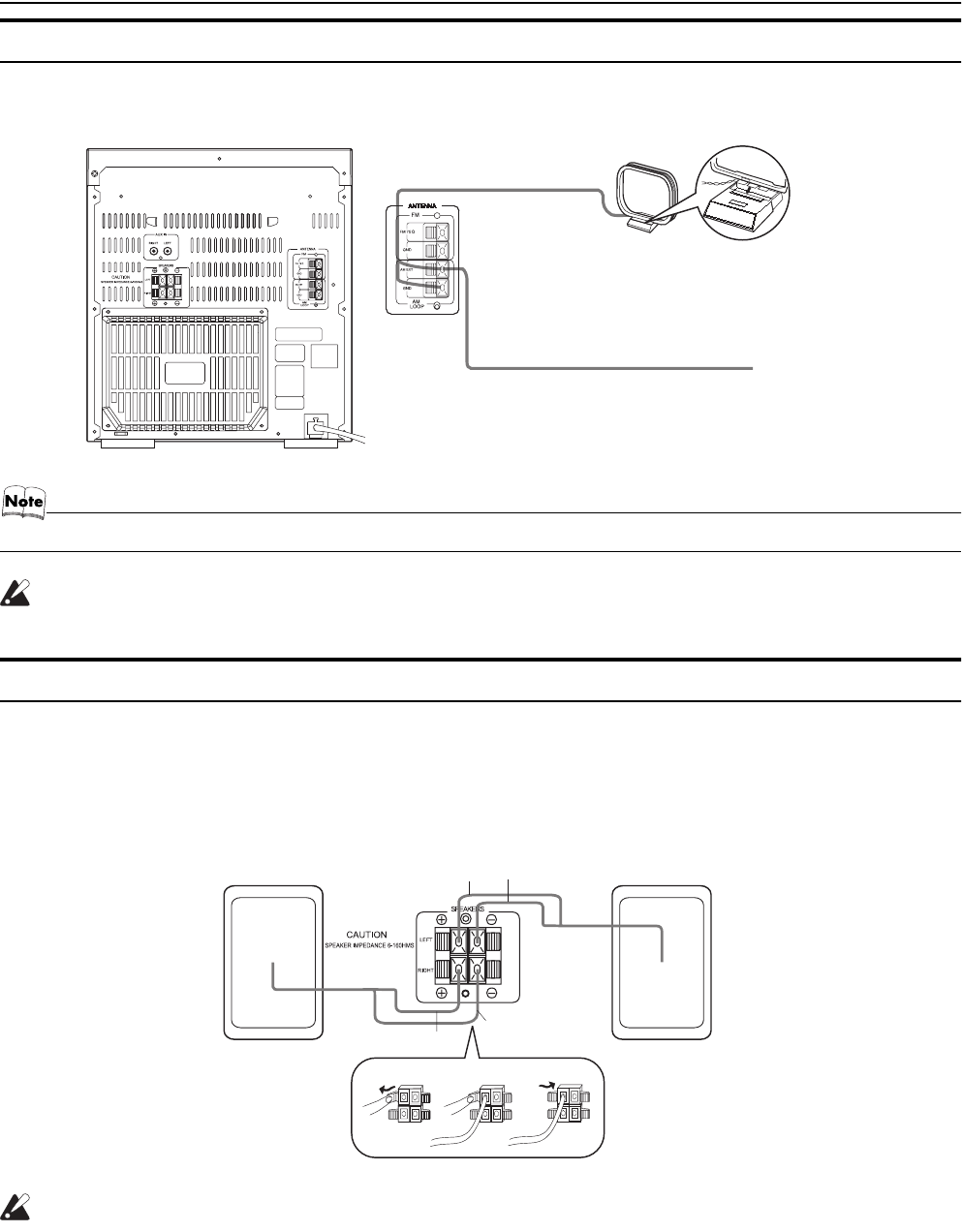

Connecting the FM Antenna.................................................................................................................... 4

Connecting the AM Antenna................................................................................................................... 5

Connecting the Speakers ......................................................................................................................... 5

Connecting External Equipment.............................................................................................................. 6

Connecting to the Wall Outlet................................................................................................................. 6

DEMO Mode ........................................................................................................................................... 6

COMPU Play........................................................................................................................................... 6

Basic Operations...........................................................................................................7

Turning the Power On and Off................................................................................................................ 7

Adjusting the Volume.............................................................................................................................. 7

Fade-out Muting (FADE MUTING) ....................................................................................................... 8

Reinforcing the Bass Sound (ACTIVE BASS EX.)................................................................................ 8

Selecting the Sound Mode (SOUND MODE)......................................................................................... 8

Entering the Number with the Remote Control (Numeric Keys)............................................................ 8

Using the Tuner .............................................................................................................9

Tuning In a Station .................................................................................................................................. 9

Presetting Stations ................................................................................................................................. 10

To Change the FM Reception Mode ..................................................................................................... 10

Using the CD Player ....................................................................................................11

To Load CDs ......................................................................................................................................... 12

To Unload CDs...................................................................................................................................... 12

Basics of Using the CD Player-Normal Play......................................................................................... 13

Programming the Playing Order of the Tracks...................................................................................... 14

Random Play.......................................................................................................................................... 15

Repeating Tracks ................................................................................................................................... 15

Tray Lock Function ............................................................................................................................... 15

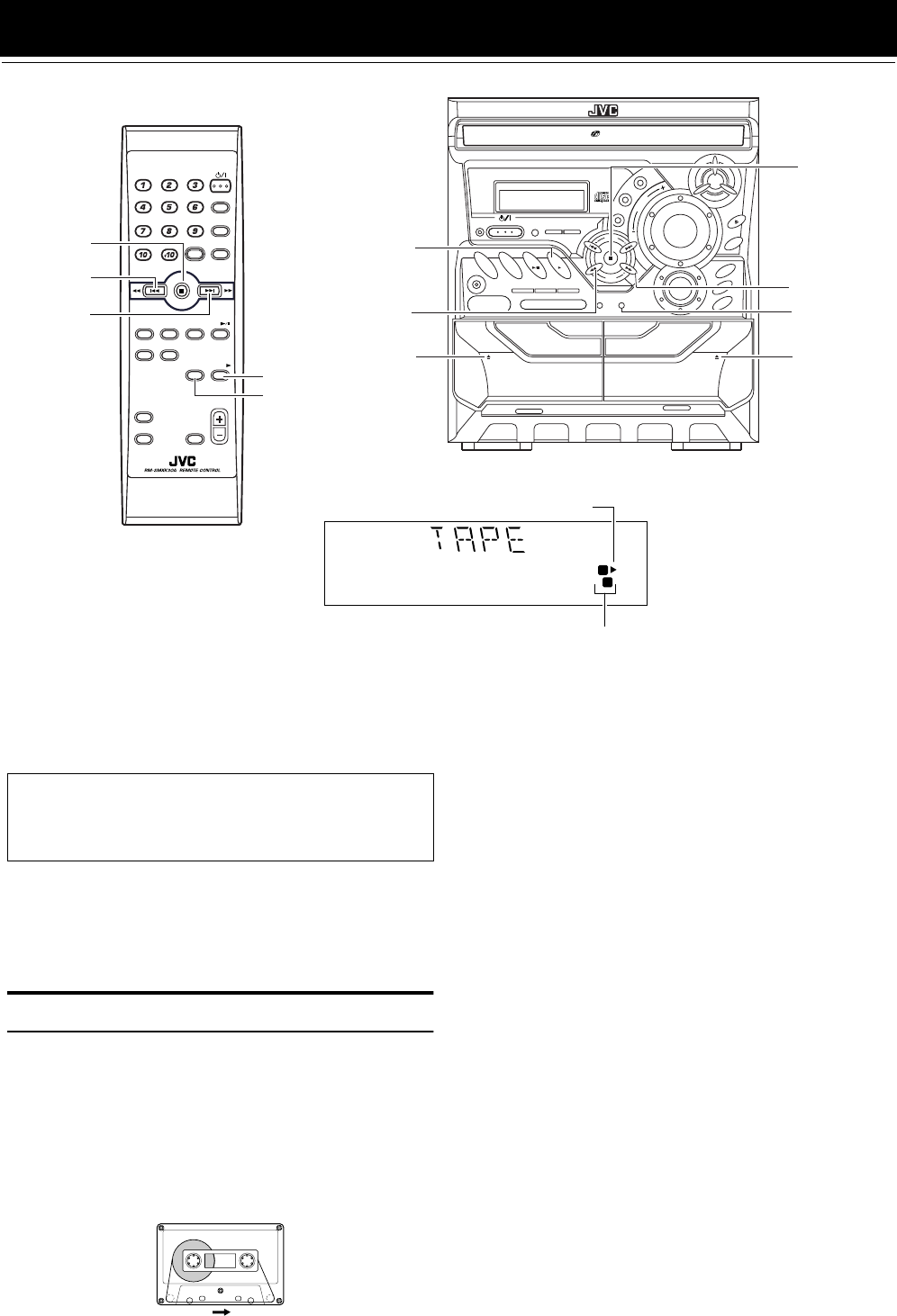

Using the Cassette Deck (Listening to a Tape) ........................................................16

Playing a Tape ....................................................................................................................................... 16

Using the Cassette Deck (Recording) ......................................................................17

Standard Recording ............................................................................................................................... 18

CD Synchro Recording.......................................................................................................................... 18

Tape to Tape Recording (DUBBING)................................................................................................... 18

Using an External Equipment ....................................................................................19

Listening to the External Equipment ..................................................................................................... 19

Using the Timers .........................................................................................................20

Setting the Clock ................................................................................................................................... 20

Setting the Daily Timer ......................................................................................................................... 21

Setting the REC (Recording) Timer ...................................................................................................... 22

Setting the SLEEP Timer ...................................................................................................................... 24

Timer Priority ........................................................................................................................................ 24

Care And Maintenance................................................................................................25

Troubleshooting ..........................................................................................................26

Specifications ...............................................................................................Back cover

MX-K30&K10(J).book Page 2 Wednesday, December 12, 2001 11:07 AM

3

Getting Started

Accessories

Make sure that you have all of the following items, which are supplied with the System.

AM Loop Antenna (1)

Remote Control (1)

Batteries (2)

FM Wire Antenna (1)

If any of these items are missing, contact your dealer immediately.

How To Put Batteries In the Remote Control

Match the polarity (+ and –) on the batteries with the + and – markings in the battery compartment.

CAUTION:

• Handle batteries properly.

❏To avoid battery leakage or explosion:

• Remove batteries when the Remote Control will not be used for a long time.

• When you need to replace the batteries, replace both batteries at the same time with new ones.

• Do not use an old battery with a new one.

• Do not use different types of batteries together.

Using the Remote Control

The Remote Control makes it easy to use many of the functions of the System from a distance of up to 7m (23 feet) away.

You need to point the Remote Control at the remote sensor on the System’s front panel.

R6P(SUM-3)/AA(15F)

CD-R/RW PLAYBACK

3-CD

PLAY & EXCHANGE

ACTIVE

BASS EX.

CLOCK

/TIMER

COMPU PLAY CONTROL

ACTIVE BASS

EXTENSION

EJECT EJECT

REC / PLAY

B

CD SYNCHRO RECORDING

PLAY

A

FULL - LOGIC CONTROL

AUX CD TAPE

FM

/ AM

TAPE

A / B

CD

3

CD

2

CD

1

COMPACT COMPONENT SYSTEM

1 BIT

DUAL D/A

CONVERTER

PROGRAM

SOUND

MODE

REPEAT

PANDOM

PRESET

TUNING

STANDBY/ON

STANDBY CANCEL

PHONES

REC START

/ STOP

CD

REC START DUBBING

SET

/ DEMO

V

O

L

U

M

E

DISC SKIP

R

O

C

K

I

C

L

A

S

S

C

P

O

P

Remote sensor

Body.fm Page 3 Friday, January 4, 2002 7:17 PM

4

Getting Started

CAUTION:

• Make all connections before plugging the System into an AC power outlet.

Connecting the FM Antenna

Using the Supplied Wire Antenna

Using an FM 75-Ohm Antenna Cable (not Supplied)

If reception is poor, connect the outside antenna.

• Before attaching a 75 ohm coaxial lead (the kind with a round wire going to an outdoor antenna), disconnect the supplied

FM Wire Antenna.

FM wire antenna (supplied)

Extend the supplied FM

Wire Antenna horizontally.

Strip vinyl shield from cut line,

twist wire core.

Outdoor FM antenna cable (not supplied)

Body.fm Page 4 Friday, March 1, 2002 5:45 PM

5

Getting Started

Connecting the AM Antenna

Rear Panel of the Unit

•Even when connecting an outside AM antenna, keep the indoor AM loop connected.

CAUTION:

•To avoid noise, keep antennas away from the System, the connecting cord and the AC power cord.

Connecting the Speakers

1. Open each of the terminals to connect the speaker wire leads.

2. Connect the speaker cords to the Speaker terminals of the Unit.

Connect the red (+) and black (–) cords of the right side speaker to the red (+) and black (–) terminals marked RIGHT on the System.

Connect the red (+) and black (–) cords of the left side speaker to the red (+) and black (–) terminals marked LEFT on the System.

3. Close each of the terminals to securely connect the cords.

CAUTIONS:

•A TV may display irregular colors if located near the speakers. If this happens, set the speakers away

from the TV.

•Use speakers with the correct impedance only. The correct impedance is indicated on the rear panel.

AM loop antenna (Supplied)

Turn the loop until you

have the best reception.

Attach the AM loop to its

base by snapping the

tabs on the loop into the

slot in the base.

AM antenna wire (not supplied)

If reception is poor, connect the outside antenna.

Right side (rear view) Left side (rear view)

Black

Red

Red

Black

Body.fm Page 5 Friday, March 1, 2002 5:45 PM

6

Getting Started

Connecting External Equipment

Connect a signal cord (not supplied) between the System’s AUX-IN terminals and the output terminals of the external MD recorder, tape

deck, etc.

You can then listen to the external source through the System.

Connecting to the Wall Outlet

Plug the AC power cord into the wall outlet.

Now, your System is at your command!

DEMO Mode

When the System is connected to the wall outlet, a DEMO mode displaying some of the system’s features automatically starts.

To turn the DEMO display off, press any of the operation buttons. The DEMO display automatically stops.

To turn the DEMO display on, press the DEMO button on the Unit for more than 2 seconds.

• The DEMO display will automatically turn on again if no button operation is made for 2 minutes. To cancel this auto DEMO

display function, press the CANCEL button on the Unit during DEMO display.

COMPU Play

JVC’s COMPU PLAY feature lets you control the most frequently used System functions with a single touch.

With One Touch Operation you can play a CD, a tape, turn on the radio, or listen to an external equipment with a single press of the play

button for that function. One Touch Operation turns the power on for you, then starts the function you have specified. If the System is not

ready (no CD or tape in place), the System still powers on so you can insert a CD or tape.

How One Touch Operation works in each case is explained in the section dealing with that function.

The COMPU PLAY buttons are:

On the Unit

CD 6 button

FM/AM button

TAPE 3 button

AUX button

CD1, CD2 and CD 3 buttons

CD Open/Close 0 button

On the Remote Control

CD 6 button

FM/AM button

TAPE 3 button

AUX button

CD1, CD2 and CD 3 buttons

Signal cord (not supplied)

Pin-plug x 2Pin-plug x 2

MD recorder, tape deck, etc. (not supplied)

CANCEL

/ DEMO

(For 2 seconds)

Body.fm Page 6 Friday, January 4, 2002 7:17 PM

7

Basic Operations

)

Turning the Power On and Off

Turning the System On

1Press the %STANDBY/ON button.

The display comes on and “WELCOME” is displayed once.

The STANDBY indicator goes out.

The System comes on ready to continue in the mode it was in

when the power was last turned off.

• For example, if the last thing you were doing was listening

to a CD, you are now ready to listen to a CD again. If you

wish, you can change to another source.

• If you were listening to the Tuner last, the Tuner comes on

playing the station it was last set to.

Turning the System Off

1Press the % STANDBY/ON button again.

“GOOD BYE” is displayed and the display goes out, except

for the clock display. The STANDBY indicator lights up. (The

display is dimmed.)

• Some power is always consumed even though power is

turned off (called Standby mode).

• To switch off the System completely, unplug the AC power

cord from the wall outlet. When you unplug the AC power

cord, the clock will be reset to AM 12:00 immediately.

Adjusting the Volume

Turn the VOLUME control on the Unit clockwise to increase the

volume or turn it counterclockwise to decrease the volume.

Press the VOLUME + button on the Remote Control to increase

the volume or press the VOLUME – button on the Remote Control

to decrease the volume.

You can set the volume level to MIN, 1-31, or MAX.

CAUTION:

• DO NOT turn on the System and/or start playing

any source without first setting the VOLUME

control to minimum, as a sudden blast of sound

could damage your hearing, speakers and/or

headphones.

For private listening

Connect a pair of headphones to the PHONES jack. No sound

comes out of the speakers.

Be sure to turn down the volume before connecting or putting on

headphones.

CD-R/RW PLAYBACK

3-CD

PLAY & EXCHANGE

ACTIVE

BASS EX.

CLOCK

/TIMER

COMPU PLAY CONTROL

ACTIVE BASS

EXTENSION

EJECT EJECT

REC / PLAY

B

CD SYNCHRO RECORDING

PLAY

A

FULL - LOGIC CONTROL

AUX CD TAPE

FM

/ AM

TAPE

A / B

CD

3

CD

2

CD

1

COMPACT COMPONENT SYSTEM

1 BIT

DUAL D/A

CONVERTER

PROGRAM

SOUND

MODE

REPEAT

PANDOM

PRESET

TUNING

STANDBY/ON

STANDBY CANCEL

PHONES

REC START

/ STOP

CD

REC START DUBBING

SET

/ DEMO

V

O

L

U

M

E

R

O

C

K

I

C

L

A

S

S

C

P

O

P

DISC SKIP

FM MODE

FM /AM

AUX

SLEEP

STANDBY/ON

CD

1

CD

2

CD

3

SOUND

MODE

ACTIVE

BASS EX.

FADE

MUTING

VOLUME

PROGRAM

/RANDOM

REPEAT

TAPE

A/B

TAPE

CD

SOUND

MODE

ACTIVE

BASS EX.

VOLUME +,–

Numeric

keys

%STANDBY/ON

Display

STANDBY indicator

PHONES ACTIVE

BASS EX.

%STANDBY/ON

SOUND MODE

VOLUME

* When the System is in use, the display shows other items as well.

For simplicity, we show here only the items described in this section.

BASS

S.MODE

BASS indicator

Sound Mode indicator

Various information

Level bar Status bar (Indicates various statuses.)

FADE MUTING

STANDBY

STANDBY/ON

STANDBY/ON

or

STANDBY

STANDBY/ON

STANDBY/ON

or

Body.fm Page 7 Thursday, March 7, 2002 5:39 PM

8

Basic Operations

Fade-out Muting (FADE MUTING)

You can mute the output with one touch operation.

To muting the output, press the FADE MUTING button on the

Remote Control. The output is faded out.

To release muting, press the FADE MUTING button once

again. The output is faded in to the previous level.

•After Fade-out Muting, turning the VOLUME control on the

unit or pressing the VOLUME button on the Remote Control

will increase the volume from MIN. setting.

Reinforcing the Bass Sound

(ACTIVE BASS EX.)

The richness and fullness of the bass sound is maintained regard-

less of how low you set the volume.

You can use this effect only for playback.

To get the effect, press the ACTIVE BASS EX. (Extension)

button.

The “BASS” indicator lights up and “ACTIVE BASS EXTEN-

SION” appears on the display.

To cancel the effect, press the button again.

The “BASS” indicator goes out and “OFF” appears on the display.

Selecting the Sound Mode

(SOUND MODE)

You can select one of 3 SEA (Sound Effect Amplifier) modes.

You can use this effect only for playback.

On the Unit

To get the effect, press one of the Sound Mode buttons, ROCK,

POP, or CLASSIC.

The selected Sound Mode name “ROCK”, “POP”, or “CLASSIC”

appears on the display. The “S.MODE” indicator also lights up on

the display.

To cancel the effect, press the currently selected mode button

again.

When the effect is canceled, the “S.MODE” indicator goes out.

For example, if the current Sound Mode is ROCK, press the

ROCK button again. “FLAT” appears on the display, showing that

no sound effect is applied.

ROCK Boosts low and high frequencies. Good for

acoustic music.

POP Good for vocal music.

CLASSIC Set for wide and dynamic sound stereo

systems.

FLAT No sound effect applies.

On the Remote Control

Press the SOUND MODE button until Sound Mode you want ap-

pears on the display.

The “S.MODE” indicator lights up on the display.

Each time you press the button, the Sound Mode changes as fol-

lows:

ROCK = POP = CLASSIC = FLAT = (back to the beginning)

To cancel the effect, press the SOUND MODE button until

“FLAT” appears on the display.

The “S.MODE” indicator goes out.

Entering the Number with the

Remote Control (Numeric Keys)

You will use the number keys on the Remote Control to enter num-

bers for presetting stations, recalling the preset stations, or pro-

gramming the playing tracks on CDs.

How to enter the number with the number keys is explained here.

Examples:

•To enter number 5, press 5.

•To enter number 15, press +10, then 5.

•To enter number 20, press +10, then 10.

•To enter number 25, press +10, +10, then 5.

Body.fm Page 8 Friday, January 4, 2002 7:17 PM

9

Using the Tuner

You can listen to FM and AM stations. Stations can be tuned in

manually, automatically, or from preset memory storage.

❏Before listening to the radio:

•Make sure that both the FM and AM antennas are correctly

connected. (See pages 4 and 5).

One Touch Radio

Just press the FM/AM button to turn on the System and start play-

ing the station you were last tuned to.

❏You can switch from any other sound source to the radio by

pressing the FM/AM button.

Tuning In a Station

1Press the FM/AM button.

The Band and Frequency you were last tuned to appear on the

display.

(If the last station was selected using the preset number, the

preset number appears first.)

Each time you press the button, the band alternates between

FM and AM.

2Select a station using one of the following

methods.

•Manual Tuning

Briefly press the 22 or ¡ button on the Unit to move

from frequency to frequency until you find the station you

want.

OR

•Auto Tuning

If you hold down the 22 or ¡ button on the Unit for 1

second or more and then release it, the frequency changes

down, or up, automatically until a station is found.

OR

•Preset Tuning (Possible only after presetting sta-

tions)

Preset tuning using the Unit:

Select the preset number you want, using the 4 or ¢

button.

Example:

Press the ¢ button until the preset number “P-12” appears

on the display. After 2 seconds, the display will show the

preset number’s band and frequency.

Preset tuning using the Remote Control:

Enter the preset number you want to recall using the numer-

ic keys. See “Entering the Number with the Remote Con-

trol” on page 8.

Example:

Press +10, then 2 to recall the preset number 12. After 2 sec-

onds, the display will show the preset number’s band and

frequency.

CD-R/RW PLAYBACK

3-CD

PLAY & EXCHANGE

ACTIVE

BASS EX.

CLOCK

/TIMER

COMPU PLAY CONTROL

ACTIVE BASS

EXTENSION

EJECT EJECT

REC / PLAY

B

CD SYNCHRO RECORDING

PLAY

A

FULL - LOGIC CONTROL

AUX CD TAPE

FM

/ AM

TAPE

A / B

CD

3

CD

2

CD

1

COMPACT COMPONENT SYSTEM

1 BIT

DUAL D/A

CONVERTER

PROGRAM

SOUND

MODE

REPEAT

PANDOM

PRESET

TUNING

STANDBY/ON

STANDBY CANCEL

PHONES

REC START

/ STOP

CD

REC START DUBBING

SET

/ DEMO

V

O

L

U

M

E

R

O

C

K

I

C

L

A

S

S

C

P

O

P

CD-R/RW PLAYBACK

3-CD

PLAY & EXCHANGE

ACTIVE

BASS EX.

CLOCK

/TIMER

EJECT EJECT

REC / PLAY

B

CD SYNCHRO RECORDING

PLAY

A

FULL - LOGIC CONTROL

AUX CD TAPE

FM

/ AM

TAPE

A / B

CD

3

CD

2

CD

1

COMPACT COMPONENT SYSTEM

1 BIT

DUAL D/A

CONVERTER

PROGRAM

SOUND

MODE

REPEAT

PANDOM

PRESET

TUNING

STANDBY/ON

STANDBY CANCEL

PHONES

REC START

/ STOP

CD

REC START DUBBING

SET

/ DEMO

V

O

L

U

M

E

R

O

C

K

I

C

L

A

S

S

C

P

O

P

DISC SKIP

FM MODE

FM /AM

AUX

SLEEP

STANDBY/ON

CD

1

CD

2

CD

3

SOUND

MODE

ACTIVE

BASS EX. FADE

MUTING

VOLUME

PROGRAM

/RANDOM

REPEAT

TAPE

A/B

TAPE

CD

FM MODE

Numeric

keys

SET

¡

* When the System is in use, the display shows other items as well.

For simplicity, we show here only the items described in this section.

kHz MHz

MONO

ST

1

Band display, Frequency display, Preset channel

FM mode indicators

FM/AM

FM/AM

22

¢

4

FM /AM

FM

/ AM

(on the Unit) (on the Remote Control)

or

PRESET

kHz MHz

or (After 2 seconds)

Body.fm Page 9 Friday, January 4, 2002 7:17 PM

10

Using the Tuner

•In AM broadcast, reception sensitivity will be changed by

turning the AM loop antenna. Turn the AM loop antenna

for best reception.

Presetting Stations

You can preset up to 30 FM stations and up to 15 AM stations.

•Preset numbers may have been set to factory test fre-

quencies prior to shipment. This is not a malfunction. You

can preset the stations you want into memory by following

one of the presetting methods below.

•During presetting stations, if no button operation is made

for 5 seconds, the display returns to the band/frequency

display. In this case, repeat steps from the beginning.

Using the Unit

1Select a band by pressing the FM/AM button.

2Press the 22 or ¡ button to tune in a

station.

3Press the SET button.

“SET” will blink for 5 seconds.

4Press the 4 or ¢ button to select the

preset number.

¢: Increases the preset number by 1.

4: Decreases the preset number by 1.

5Press the SET button.

“STORED” appears and, after 2 seconds, the display returns to

the band/frequency display.

6Repeat above steps 1 to 5 for each station

you want to store in memory with a preset

number.

To change the preset stations, repeat the same steps as

above.

•In step 4, you can select the preset number using the nu-

meric keys on the Remote Control. See “Entering the

Number with the Remote Control” on page 8.

CAUTION:

•Even if the System is unplugged or if the power

failure occurs, the preset stations will be stored

for a few days. However, in case the preset sta-

tions are erased, you will need to preset the sta-

tions again.

To Change the FM Reception

Mode

When you are tuned in to an FM stereo broadcast, the “ST (Ster-

eo)” indicator lights up and you can hear stereo effects.

If an FM stereo broadcast is hard to receive or noisy, you can select

Monaural mode. Reception improves, but you lose stereo effect.

Press the FM MODE button on the Remote Control so

that the “MONO” indicator lights up on the display.

To restore the stereo effect, press the FM MODE button on

the Remote Control so that the “MONO” indicator goes off.

SET SET

TUNING

FM

/ AM

or

FM=30, AM=15

When changing the Band

FM MODE

ST MONO

Body.fm Page 10 Friday, January 4, 2002 7:17 PM

11

Using the CD Player

The CD Player has the rotational disc tray that can accommodate

3 CDs.

You can use Normal, Program, Random, or Repeat Play.

Here are the basic things you need to know to play CDs and locate

the different tracks on them.

About the Disc Indicator

The Disc indicator consists of the following three kinds of indica-

tors:

CD-R/RW PLAYBACK

3-CD

PLAY & EXCHANGE

ACTIVE

BASS EX.

CLOCK

/TIMER

COMPU PLAY CONTROL

ACTIVE BASS

EXTENSION

EJECT EJECT

REC / PLAY

B

CD SYNCHRO RECORDING

PLAY

A

FULL - LOGIC CONTROL

AUX CD TAPE

FM

/ AM

TAPE

A / B

CD

3

CD

2

CD

1

COMPACT COMPONENT SYSTEM

1 BIT

DUAL D/A

CONVERTER

PROGRAM

SOUND

MODE

REPEAT

PANDOM

PRESET

TUNING

STANDBY/ON

STANDBY CANCEL

PHONES

REC START

/ STOP

CD

REC START DUBBING

SET

/ DEMO

V

O

L

U

M

E

R

O

C

K

I

C

L

A

S

S

C

P

O

P

DISC SKIP

CD 6

Numeric

keys

SET

¡

* When the System is in use, the display shows other items as well.

For simplicity, we show here only the items described in this section.

PRGM REPEAT

RANDOM ALL1CD

1 2 3

Track number, Playing time,

Program number, etc.

Play mode

indicator

CD1-CD3

CANCEL

22

4

REPEAT

¢

7

CD Open/

Close 0

CD1-CD3

CD 6

Disc indicators

Repeat

indicator

PROGRAM

/RANDOM

4

¢

DISC SKIP

7

Normal Play: Can continuously play all the tracks on all

the CDs.

Program Play: Can play all the programmed tracks on all

the CDs in the programmed order.

Random Play: Can play all the tracks on all the CDs in ran-

dom order.

Repeat Play: Can repeat all the tracks on all the CDs, the

tracks on one of the CDs, or just one of

tracks on one CD.

Disc Number indicator: Lights all the time.

Selected Disc indicator:Lights for the currently selected

disc number.

1

Selected Disc indicator

Disc Number indicator

Disc Rotation indicator

Disc Rotation indicator:Runs when the selected CD is

playing or paused. This indicator

goes out if a CD is not loaded for

the selected disc number.

Once the tray is ejected, the Disc

Rotation indicators for all disc

numbers are lit. However, when

the empty disc number is select-

ed, the Disc Rotation indicator for

the disc number goes out.

Body.fm Page 11 Friday, March 1, 2002 5:48 PM

12

Using the CD Player

Example of indication:

One Touch Play

The power comes on, and operations are done automatically.

❏By pressing the CD 6 button, the System will come on, and if

a CD is loaded for the disc number that was lastly selected, it

will start playing from the first track.

❏By pressing the CD1-CD3 button, the System will come on, and

if a CD is already loaded for the selected disc number, it will

start play from the first track.

To Load CDs

1Press the CD Open/Close 0 button on the

Unit to open the tray.

2Place a CD, with its label side up, onto the

tray.

Be sure that the CD is securely seated on the disc tray.

3Press the DISC SKIP button on the Unit and

place the next CD.

When you press the button, the tray turns for the next CD.

4Repeat step 3 for the last CD.

5Press the CD Open/Close 0 button on the

Unit.

The tray is closed.

• When placing a disc in the tray, be sure to position the

disc inside the recess correctly. Otherwise, the message

“No disc” will appear in the display, and the disc may be

damaged or the unit may be damaged when the tray is

opened, or it may be difficult to remove the disc from the

unit.

❏When you use an 8 cm (3'') CD, place it on the inner circle of the

tray.

❏You can load CDs while listening to the other source.

❏When power is turned off with the tray opened, the tray is auto-

matically closed.

❏If the CD cannot be read correctly (because it is scratched, for

example), “ 0 0:00” appears on the display.

To Unload CDs

Take out the CD as shown below.

1While the CD Player is stopped, press the CD

Open/Close 0 button on the Unit to open the

tray.

2Remove the CD, then press the DISC SKIP

button on the Unit.

The tray turns for the next CD.

3Repeat step 2 to remove all the CDs.

4Press the CD Open/Close 0 button on the

Unit to close the tray.

❏You can remove CDs while listening to the other source.

• You can also remove the CDs during playback. However,

in this case, you can only remove the CDs that are not be-

ing played back.

1 2 3

When CD door has ejected once and then

CD-1 is pressed. (DISC1 is selected)

Shows that this disc number is selected.

Shows that the disc is rotating.

PRESET

STANDBY/ON

STANDBY CANCEL SET

/ DEMO

DISC SKIP

With the label side up

Body.fm Page 12 Thursday, March 7, 2002 5:39 PM

13

Using the CD Player

Basics of Using the CD Player-

Normal Play

To Play CDs

1Load CDs.

2Press one of the Disc button (CD1-CD3) you

want to play.

The selected disc number (e.g. “CD-1” ) appears on the dis-

play.

The first track of the selected CD begins playing. When the

first CD finishes playing, the next and the third CDs are con-

tinuously played back.

When the last CD has finished playing, the CD Player auto-

matically stops.

Examples:

CD1 = CD2 = CD3 = (stop)

CD2 = CD3 = CD1 = (stop)

❏You can start to play the currently selected disc by simply press-

ing the CD 6 button.

While playing the CD, the following will appear on the display.

•When the Disc button (CD1-CD3) is pressed with the tray

opened, the tray is closed and the selected CD automatically

begins playing.

To stop playing the CD, press the 7 button. The following in-

formation for the CD is displayed.

To pause, press the CD 6 button. The playing time indication

blinks on the display.

To cancel pause, press the CD 6 button again. Play continues

from the point where it was paused.

To remove the CD, stop playing and press the CD Open/Close

0 button on the Unit.

Tips:

•Playing back the CD using the DISC SKIP button

You can also play the CDs using the DISC SKIP button. During

playback, each time you press the button, the next CD is automat-

ically played back. If the next disc tray is empty, the disc tray is

automatically skipped.

•Removing/changing the CDs during playback

While playing back a CD (e.g. CD-1), you can remove or change

the other CDs (e.g. CD-2 and CD-3) by pressing the CD Open/

Close 0 button. After removing or changing, press the same but-

ton to close the tray.

To Select a Track

During playback (using the 4 or ¢ button):

Briefly press the 4 or ¢ button to select the track you want to

play.

By pressing the button, you can skip to the next track or skip back

to the previous track.

•The selected track starts playing.

•Press the ¢ button once to skip to the beginning of the next

track. (You can skip to the next CD (e.g. CD-1 = CD-2 =

CD-3).)

•Press the 4 button to skip to the beginning of the current

track. Press twice quickly to skip to the beginning of the previ-

ous track. (You cannot skip back to the previous CD.)

In Stop mode (using the 4 or ¢ button):

By briefly pressing the 4 or ¢ button, the CD Player operates

in the same way as during playback, except the following points.

•The buttons are effective only for the currently selected CD.

Using the numeric keys on the Remote Control:

Using the numeric keys, you can directly select the track on the

currently selected CD.

•The selected track starts playing.

For example, press +10, then 5 to play back the track number 15.

See “Entering the Number with the Remote Control” on page 8.

Search Play

Holding down the following buttons, during playback, will fast

forward/backwards the CD so you can quickly find a particular

passage in the track you are listening to.

•22 or ¡ button on the Unit

•4 or ¢ button on the Remote Control

1 2 3

Track number Elapsed

playing time CD is playing.

1 2 3

1 2 3

Total track number Total playing time

Track number Playing time

(After 5 seconds)

Body.fm Page 13 Friday, January 4, 2002 7:17 PM

14

Using the CD Player

Programming the Playing Order

of the Tracks

You can program the playing order of the tracks on all the CDs.

Note that you can only make a program when the CD Player is

stopped.

❏You can program up to 32 tracks in any desired order including

the same tracks.

To Make a Program

1Load CDs

2In Stop mode, set the CD Player in Program

Play mode.

On the Unit

Press the PROGRAM button to light the “PRGM” indicator on the

display.

At the same time, “PROGRAM” appears on the display.

On the Remote Control

Press the PROGRAM/RANDOM button until “PROGRAM” ap-

pears on the display.

The “PRGM” indicator also lights up on the display.

Each time you press the button, the display changes as follows:

PROGRAM = RANDOM = Blank display (Normal Play) =

(back to the beginning)

•If a program is already made, the last step of the program will

be displayed.

3Press one of the Disc button (CD1-CD3) to

select the CD you want to program.

The display will change to the Program Entry display.

4Select the track you want to program.

Using the Unit

While the display is blinking, press the 4 or ¢ button to select

the track, then press the SET button within 5 seconds.

The program order number will be assigned from P-1.

Using the Remote Control

Press the numeric keys to directly enter the track number. Then,

the program order number will be assigned from P-1.

•To delete the current program step, press the CANCEL button

on the Unit.

5Repeat steps 3 and 4 to program other tracks

on the same CD or the other CD.

6To play the program, Press the CD 6 but-

ton.

For details, see “To Play the Program You Have Made” men-

tioned below.

To delete all the tracks in the program, while the CD Player

is stopped, press the 7 button.

To Modify the Program, while the CD Player is stopped, press

the CANCEL button, the last track in the program is deleted. To

add new tracks to the end of the program, repeat above steps 3 and

4.

•If you try to program a track number that does not exists

on the CD, your entry will be ignored.

•If you try to program the 33rd track, “FULL” appears on

the display.

To Play the Program You Have Made

Press the CD 6 button.

The System plays the tracks in the order you have programmed

them.

•To use Repeat Play for Program Play, press the REPEAT but-

ton to select “ALL” or “1” before starting playback. For details,

see “Repeating Tracks” on page 15.

❏You can skip to a particular program track by pressing the 4

or ¢ button during Program Play.

❏To stop playing, press the 7 button once. If you press the 7 but-

ton, while the CD Player is stopped, the program is deleted.

To Exit and Re-enter Program Play

The program you have made is stored in memory. So, you can exit

Program Play temporarily or re-enter Program Play unless you de-

lete the program.

To exit the program mode once, while the CD Player is

stopped, press the PROGRAM button on the Unit or the PRO-

GRAM/RANDOM button on the Remote Control to light off the

“PRGM” indicator. By changing the source to the other (e.g. Tun-

er), the CD Player also exits Program Play mode.

To re-enter Program Play mode, press the PROGRAM or

PROGRAM/RANDOM button until the “PRGM” indicator lights

up again.

•Even when the power is turned off (standby mode), the

programmed tracks are not deleted. So, you can re-enter

Program Play mode.

CD

1

CD

1

Disc number Track number

or

SET

PRESET

Disc number Track number

Program order number

or

Body.fm Page 14 Friday, January 4, 2002 7:17 PM

15

Using the CD Player

Random Play

The tracks of all the CDs will play in no special order when you

use this mode.

•To use Repeat Play for Random Play, press the REPEAT but-

ton to select “ALL” or “1” before starting playback. For details,

see “Repeating Tracks”mentioned below.

1In Stop mode, set the CD Player in Random

Play mode.

On the Unit

Press the RANDOM button to light the “RANDOM” indicator.

At the same time, “RANDOM” appears on the display.

On the Remote Control

Press the PROGRAM/RANDOM button until the “RANDOM”

appears on the display.

The “RANDOM” indicator also lights up on the display.

Each time you press the button, the display changes as follows:

PROGRAM = RANDOM = Blank display (Normal Play) =

(back to the beginning)

2Press the CD 6 button.

The tracks on all the CDs are played in random order.

To stop playing, press the 7 button.

To skip a track during playback, press the ¢ button to

jump to the next track in the random sequence.

To exit Random Play mode, while the CD Player is stopped,

press the RANDOM button on the Unit or the PROGRAM/RAN-

DOM button on the Remote Control again to light off the “RAN-

DOM” indicator. Normal Play resumes.

Repeating Tracks

You can repeat all tracks or individual track, as many times as you

like.

Press the REPEAT button.

The Repeat indicator changes with each press of the button, as fol-

lows:

ALL= 1CD = 1 = Blank display = (back to the beginning)

To stop playing, press the 7 button. Changing the source to the

other (e.g. Tuner) will also stop playing.

To exit Repeat mode, press the REPEAT button until the Re-

peat indicator on the display goes out.

❏Repeat mode remains in effect during the following Play Mode

changing:

Tray Lock Function

In order to safely keep the CD in the CD Player, the tray can be

electronically locked.

When the electronic lock is on, the tray cannot be opened even if

the CD Open/Close 0 button on the Unit is pressed.

Locking the Tray

1Turn on the System and enter CD mode.

2While pressing down the 7 button, press the

CD Open/Close 0 button on the Unit.

“LOCKED” appears on the display.

•If you try to open the tray by pressing the 0 button,

“LOCKED” appears on the display to let you know that the tray

has been locked.

Unlocking the Tray

Repeat above steps 1 and 2.

“UNLOCKED” appears on the display.

Now, you can use the tray normally.

REPEAT ALL: In Normal Play mode, repeats all the tracks on

all the CDs.

In Program Play mode, repeats all the tracks in

the program.

In Random Play mode, repeats all the tracks on

all the CDs in random order.

REPEAT 1CD: Repeats all tracks on one CD. (Selectable in

Normal Play only)

REPEAT 1: Repeats one track.

a. PROGRAM PLAY MODEÔNORMAL PLAY MODE

b. RANDOM PLAY MODE ÔNORMAL PLAY MODE

c. PROGRAM PLAY MODEÔRANDOM PLAY MODE

Body.fm Page 15 Friday, January 4, 2002 7:17 PM

16

Using the Cassette Deck (Listening to a Tape)

The Cassette Deck allows you to play, record, and dub audio tapes.

❏Listening to type I tape is suitable for this Cassette Deck.

The use of tapes longer than 120 minutes is not rec-

ommended, since characteristic deterioration may

occur and these tapes easily jam in the pinch-rollers

and the capstans.

One Touch Play

By pressing the TAPE 3 button, the System will come on, and if

a tape is in the deck, it will start to play. If no tape is loaded, “NO

TAPE” appears on the display, the System will come on and wait

for you to insert a tape, or select another function.

Playing a Tape

You can use either Deck A or Deck B at a time for playback.

1Press the 0 EJECT part for the deck you

want to use.

2When the cassette holder opens, put a cas-

sette in, with the exposed part of the tape

down, toward the base of the Unit.

The tape will travel from the left to right.

• If the cassette holder does not open, turn the System off,

then back on and press the 0 EJECT part again.

3Close the cassette holder gently.

When both Deck A and Deck B contain a tape, the last deck to

have a tape inserted is selected.

The selected Deck is shown by the Deck indicator “A” or “B”.

For example, when the Deck A is selected, the Deck indicator

“A” lights up.

• To change the deck, press the TAPE A/B button. Each time

you press the button, Deck A or Deck B is alternately

selected.

4Press the TAPE 3 button.

The Tape indicator (3) blinks on the display and the tape is

played back.

The Cassette Deck automatically stops when one side of the

tape has finished playing.

To stop playing, press the 7 button.

To remove the tape, stop the tape, and press the 0 EJECT part

to open the Cassette Holder.

To Fast-Wind A Tape

During playback or in Stop mode, press the ¡ (FF) button on the

Unit to fast-wind the tape onto the right side of the cassette without

playing.

During playback or in Stop mode, press the 22 (REW) button on

the Unit to fast-wind the tape onto the left side of the cassette with-

out playing.

During fast-winding the tape, the Tape indicator (3) goes out.

• The Cassette Deck automatically stops when one side of the

tape has finished playing.

❏During fast-winding the tape, you can change the tape travelling

direction by pressing the ¡ (FF) or 22 (REW) button.

CD-R/RW PLAYBACK

3-CD

PLAY & EXCHANGE

ACTIVE

BASS EX.

CLOCK

/TIMER

COMPU PLAY CONTROL

ACTIVE BASS

EXTENSION

EJECT EJECT

REC / PLAY

B

CD SYNCHRO RECORDING

PLAY

A

FULL - LOGIC CONTROL

AUX CD TAPE

FM

/ AM

TAPE

A / B

CD

3

CD

2

CD

1

COMPACT COMPONENT SYSTEM

1 BIT

DUAL D/A

CONVERTER

PROGRAM

SOUND

MODE

REPEAT

PANDOM

PRESET

TUNING

STANDBY/ON

STANDBY

CANCEL

PHONES

REC START

/ STOP

CD

REC START DUBBING

SET

/ DEMO

V

O

L

U

M

E

R

O

C

K

I

C

L

A

S

S

C

P

O

P

DISC SKIP

TAPE A/B

¡

* When the System is in use, the display shows other items as well.

For simplicity, we show here only the items described in this section.

B

A

22

4

TAPE 3

¢

7

7

TAPE A/B

TAPE 3

Deck indicators

3: Tape indicator

0 EJECT

(Deck B)

0 EJECT

(Deck A)

FM MODE

FM /AM

AUX

SLEEP

STANDBY/ON

CD

1

CD

2

CD

3

SOUND

MODE

ACTIVE

BASS EX.

FADE

MUTING

VOLUME

PROGRAM

/RANDOM

REPEAT

TAPE

A/B

TAPE

CD

Tape travelling direction

Body.fm Page 16 Friday, March 1, 2002 5:48 PM

17

Using the Cassette Deck (Recording)

Recording onto a cassette from any of the sound sources is simple.

Just place a tape in Deck B, have the source ready, make one or

two settings, and you’re ready to record. For each source, the pro-

cedure is a little bit different so we explain each separately. But

first, here are a few things to make your recordings better.

Things To Know Before You Start Recording

❏

❏❏

❏It should be noted that it may be unlawful to re-record

pre-recorded tapes, records, or discs without the con-

sent of the owner of copyright in the sound or video

recording, broadcast or cable program and in any lit-

erary, dramatic, musical, or artistic content embodied

therein.

❏The recording level, which is the volume at which the new tape

is being made, is automatically set correctly, so it is not affected

by the VOLUME Control on the System. Also, it is not affected

by adjusting the sound effects. Thus, during recording, you can

adjust the sound you are actually listening to without affecting

the recording level.

❏Two small tabs on the back of the cassette tape, one for side A

and one for side B, can be removed to prevent accidental erasure

or recording.

❏To record on a cassette with the tabs removed, you must cover

the holes with adhesive tape first.

❏Type I tape can be used for recording.

• At the start and end of cassette tapes, there is leader tape

which cannot be recorded onto. Thus, when recording

CDs, radio broadcasts, etc., wind on the leader tape first

to ensure getting the beginning of the recording.

CAUTION:

• If a recording you make has excessive noise or

static, the Unit may have been too close to a TV

which was on during the recording. Either turn

off the TV or increase the distance between the

TV and the Unit.

CD-R/RW PLAYBACK

3-CD

PLAY & EXCHANGE

ACTIVE

BASS EX.

CLOCK

/TIMER

COMPU PLAY CONTROL

ACTIVE BASS

EXTENSION

EJECT EJECT

REC / PLAY

B

CD SYNCHRO RECORDING

PLAY

A

FULL - LOGIC CONTROL

AUX CD TAPE

FM

/ AM

TAPE

A / B

CD

3

CD

2

CD

1

COMPACT COMPONENT SYSTEM

1 BIT

DUAL D/A

CONVERTER

PROGRAM

SOUND

MODE

REPEAT

PANDOM

PRESET

TUNING

STANDBY/ON

STANDBY

CANCEL

PHONES

REC START

/ STOP

CD

REC START DUBBING

SET

/ DEMO

V

O

L

U

M

E

R

O

C

K

I

C

L

A

S

S

C

P

O

P

DISC SKIP

TAPE A/B

* When the System is in use, the display shows other items as well.

For simplicity, we show here only the items described in this section.

REC

B

A

4

TAPE 3

¢

7

7

TAPE A/B

DUBBING

Deck indicators

3: Tape indicator

0 EJECT

(Deck B)

0 EJECT

(Deck A)

TAPE 3

PROGRAM

REC START/STOP

CD REC START

REC indicator

Adhesive tape

Body.fm Page 17 Friday, March 1, 2002 5:48 PM

18

Using the Cassette Deck (Recording)

Standard Recording

This is the basic method for recording any source. The System also

has special ways for recording CD to tape, and tape to tape, which

save you time and effort, as well as give you some special effects.

However, when you need to add a selection to a tape you have

made, or are combining selections from several sources on one

tape, use the method described below; just substitute the source

you want into this procedure, such as a tape in Deck A, a CD, or

the Tuner. You can also record from an external equipment with

this procedure.

To Record Any Sound Source to Tape

Follow these steps to record from any sound source onto a tape in

Deck B.

1Insert a blank or erasable tape into the Deck

B and wind past the tape leader.

2Prepare the source, by, for example, tuning

in a radio station, loading CDs, or turning on

connected equipment.

•For CD recording, see “CD Synchro Recording” mentioned

below.

•For dubbing, see “Tape to Tape Recording (DUBBING)”

described below.

3Press the REC START/STOP button on the

Unit.

The “REC” indicator lights up and the System begins record-

ing.

The Tape indicator (3) blinks on the display.

•If the tab of the cassette tape on the Deck B is removed to

prevent erasure or recording, "NO REC" will appear on the

display.

To stop during recording, press the REC START/STOP but-

ton on the Unit, or press the 7 button.

Recording an AM Station to Tape (Beat Cut)

When recording an AM broadcast, beats may be produced which

are not heard when listening to the broadcast. If this happens, press

the PROGRAM button on the Unit to eliminate the beats.

1Set to AM station and start recording.

2Press the PROGRAM button on the Unit to

eliminate the beats.

Each time you press the button, the display changes as shown

below:

CUT 1= CUT 2 = (back to the beginning)

CD Synchro Recording

Everything on the CD goes onto the tape in the order it is on the

CD, or according to the order you have set in a program.

1Prepare CDs. (See page 12.)

Press the CD1-3 button (that you want to make recording), and

then press the 7 button.

•If you want to record specific tracks only, you need to pro-

gram the tracks beforehand. (See page 14.)

2Insert a blank or erasable tape into the Deck

B and wind past the tape leader.

3Press the CD REC START button on the Unit.

“CD REC” appears on the display and the “REC” indicator

lights up. Then, the System begins CD Synchro Recording and

the tracks on the CD are recorded on the tape.

When recording of the tracks of all CDs is finished, “CD REC

FINISHED” scrolls on the display and the CD Player and Cas-

sette Deck stop.

•If the tab of the cassette tape on the Deck B is removed to

prevent erasure or recording, "NO REC" will appear on the

display.

•After the CD Player has played the entire CD or all the pro-

grammed tracks, the tape automatically stops.

To stop at any time during the recording process, press

the REC START/STOP button on the Unit or the 7 button. “CD

REC FINISHED” scrolls on the display and the CD Player and

Cassette Deck stop.

•When making SLEEP timer settings while doing CD Syn-

chro recording, set enough time to allow for the CD to fin-

ish playing, otherwise the power will go off before

recording is completed.

Tape to Tape Recording (DUB-

BING)

Recording from one tape to another is called dubbing.

You can dub tapes simply, with just a single button.

1Press the TAPE3

33

3 button, and then press the

7

77

7 button.

2Insert the source cassette you want to copy

from into Deck A for playback.

3Insert a blank or erasable cassette you want

to copy onto into Deck B for recording.

4Press the DUBBING button on the Unit.

Deck A and Deck B will start simultaneously and the "REC"

indicator lights up.

During dubbing, the Deck indicators "A" and "B" light up al-

ternately.

•If no tape is inserted into Deck A, "NO TAPE" will appear

on the display.

•If no tape is inserted into Deck B, "NO TAPE" will appear

on the display.

To stop dubbing, press the REC START/STOP button on the

Unit or the 7 button.

•During dubbing, you can hear sound effects through the

speakers or headphones. However, the sound is dubbed

without sound effects.

Tape travelling direction

REC START

CD

(When finished)

Body.fm Page 18 Friday, January 4, 2002 7:17 PM

19

Using an External Equipment

Listening to the External

Equipment

You can listen to the external equipment such as MD recorder, cas-

sette deck, or other auxiliary.

❏First, make sure that the external equipment is properly connect-

ed to the System. (See page 6.)

1Set the volume level to the minimum posi-

tion.

2Press the AUX button.

“AUX” appears on the display.

3Start playing the external equipment.

4Adjust the volume level to the level you want

listen to.

5Apply sound effects, if you wish.

•Press the ACTIVE BASS EX. to reinforce the bass sound.

•Select the Sound Mode. (See page 8.)

To exit AUX mode, select other source (e.g. Tuner).

•For operation of the external equipment, refer to its In-

structions.

CD-R/RW PLAYBACK

3-CD

PLAY & EXCHANGE

ACTIVE

BASS EX.

CLOCK

/TIMER

COMPU PLAY CONTROL

ACTIVE BASS

EXTENSION

EJECT EJECT

REC / PLAY

B

CD SYNCHRO RECORDING

PLAY

A

FULL - LOGIC CONTROL

AUX CD TAPE

FM

/ AM

TAPE

A / B

CD

3

CD

2

CD

1

COMPACT COMPONENT SYSTEM

1 BIT

DUAL D/A

CONVERTER

PROGRAM

SOUND

MODE

REPEAT

PANDOM

PRESET

TUNING

STANDBY/ON

STANDBY CANCEL

PHONES

REC START

/ STOP

CD

REC START DUBBING

SET

/ DEMO

V

O

L

U

M

E

R

O

C

K

I

C

L

A

S

S

C

P

O

P

DISC SKIP

AUX

AUX

FM MODE

FM /AM

AUX

SLEEP

STANDBY/ON

CD

1

CD

2

CD

3

SOUND

MODE

ACTIVE

BASS EX. FADE

MUTING

VOLUME

PROGRAM

/RANDOM

REPEAT

TAPE

A/B

TAPE

CD

Body.fm Page 19 Friday, January 4, 2002 7:17 PM

20

Using the Timers

The timers lets you control recording and listening functions auto-

matically.

Three types of timers are available:

DAILY Timer Use this timer to set wake up everyday to

music from any source, instead of an alarm clock.

REC (Recording) Timer

Unattended recording of radio broadcasts. You can set the

starting time and length of the recording.

SLEEP Timer Fall asleep and have your System turn off

automatically after a certain length of time.

Setting the Clock

When you plug the AC power cord into the wall outlet, the time in-

dication “AM 12:00” blinks on the display.

You can set the clock whether the System is on or off.

•The clock must be correctly set for the timers to work.

•Each setting step must be completed within approx. two

minutes. Otherwise, the setting is cleared and must be re-

peated from the beginning.

•The clock may gain or lose one to two minutes per month.

Using the Unit

1Press the CLOCK/TIMER button.

The hour digit of the time indication blinks on the display.

•If the clock is already set and “AM 12:00” is not blinking,

press the CLOCK/TIMER button repeatedly until clock set-

ting display appears on the display. In the clock setting dis-

play,

the hour digits of the current clock blink on the display.

Each time you press the CLOCK/TIMER button, the display

changes as follows:

DAILY = ON TIME = REC = ON TIME = Clock set-

ting display = Canceled = (back to the beginning)

2Press the 4 or ¢ button to set the hour.

Pressing the ¢ button moves the time forwards and pressing

the 4 button moves it backwards. Holding down the button

moves the hour rapidly.

3Press the SET button.

The minute digits of the time indication blink on the display.

•To return to the hour setting, press the CANCEL button.

4Press the 4 or ¢ button to set the

minute.

5Press the SET button.

“CLOCK OK” appears on the display. Then, the selected time

is set and the seconds start counting from 0.

CAUTION:

•If there is a power failure, the clock loses its set-

ting immediately. “AM 12:00” blinks on the dis-

play and the clock must be reset.

FM MODE

FM /AM

AUX

SLEEP

STANDBY/ON

CD

1

CD

2

CD

3

SOUND

MODE

ACTIVE

BASS EX. FADE

MUTING

VOLUME

PROGRAM

/RANDOM

REPEAT

TAPE

A/B

TAPE

CD

CD-R/RW PLAYBACK

3-CD

PLAY & EXCHANGE

ACTIVE

BASS EX.

CLOCK

/TIMER

COMPU PLAY CONTROL

ACTIVE BASS

EXTENSION

EJECT EJECT

REC / PLAY

B

CD SYNCHRO RECORDING

PLAY

A

FULL - LOGIC CONTROL

AUX CD TAPE

FM

/ AM

TAPE

A / B

CD

3

CD

2

CD

1

COMPACT COMPONENT SYSTEM

1 BIT

DUAL D/A

CONVERTER

PROGRAM

SOUND

MODE

REPEAT

PANDOM

PRESET

TUNING

STANDBY/ON

STANDBY CANCEL

PHONES

REC START

/ STOP

CD

REC START DUBBING

SET

/ DEMO

V

O

L

U

M

E

R

O

C

K

I

C

L

A

S

S

C

P

O

P

DISC SKIP

¢

* When the System is in use, the display shows other items as well.

For simplicity, we show here only the items described in this section.

SLEEP

DAILY

REC

4

SLEEP

SET

SLEEP indicator

REC (Recording) Timer indicator

CLOCK/TIMER

DAILY Timer indicator

Timer indicator

Body.fm Page 20 Friday, January 4, 2002 7:17 PM

21

Using the Timers

Setting the Daily Timer

Once you have set the Daily Timer, the timer will be activated at

the same time every day.

The Timer indicator () on the display shows that the Daily Tim-

er you have set is in effect.

You can set the Daily Timer whether the System is turned on or

off.

• Perform each setting within 30 seconds. Otherwise, set-

ting will be cleared and the procedure must be repeated

from the beginning.

• If you have made a mistake while setting the timer, press

the CANCEL button on the Unit. However, this does not al-

ways cancel the current setting. If the CANCEL button

does not work, press the CLOCK/TIMER button on the

Unit repeatedly until the display returns to the original dis-

play, and start from the first step.

Using the Unit

1Press the % STANDBY/ON button to turn on

the System.

2Press the CLOCK/TIMER button until “ON

TIME” immediately after “DAILY” appears on

the display.

At this time, “DAILY” indicator blinks and the Timer indica-

tor ( ) lights up on the display.

Each time you press the button, the display changes as follows:

DAILY = ON TIME* = REC = ON TIME = Clock setting

display = Canceled = (back to the beginning)

* : This item should be selected for the Daily Timer setting.

After 2 seconds, the System enters ON-time setting mode. The cur-

rent ON time appears on the display and the hour digits blink.

3Setting the ON time (Example: AM 10:15).

1. Press the ¢ or 4 button to set the hour you want the

System to come on, then press the SET button.

The minute digits of the ON time blink on the display.

Pressing the ¢ button moves the time forwards and press-

ing the 4 button moves it backwards.

Holding down the button moves the time rapidly.

2. Press the ¢ or 4 button to set the minute, then press the

SET button.

“OFF TIME” appears for 2 seconds, and the System enters

OFF-time setting mode. The current OFF time appears on

the display, and the hour digits blink.

4Setting the OFF time (Example: PM 1:30).

1. Press the ¢ or 4 button to set the hour you want the

System to come on, then press the SET button.

The minute digits of the ON time blink on the display.

2. Press the ¢ or 4 button to set the minute, then press the

SET button.

The System enter Music Source Selecting mode and “TUN-

ER FM” appears on the display.

5Selecting the music source.

Press the ¢ or 4 button to select the music source you

want to listen to, then press the SET button.

Each time you press the ¢ or 4 button, the display chang-

es as shown below:

TUNER FM = TUNER AM = – CD – – – = TAPE = AUX

= (back to the beginning)

According to the music source you have selected, the next op-

eration differs.

DAILY

DAILY

After 2 seconds

DAILY

TUNER FM: Tunes in to the specified preset FM station.

TUNER AM: Tunes in to the specified preset AM station.

– CD – – –: Plays the specified track on the specified CD.

TAPE: Plays a tape in Deck A.

AUX: Plays an external source.

DAILY

DAILY

DAILY

After 2 seconds

DAILY

DAILY

DAILY

Body.fm Page 21 Thursday, April 18, 2002 3:27 PM

22

Using the Timers

Preparation for each music source:

Perform the following operation according to the music source

you have selected. Then, the System enters Volume Setting

mode.

When selecting TUNER FM or TUNER AM:

Press the ¢ or 4 button to select the preset station

number, then press the SET button.

When selecting – CD – – –:

1. Press the ¢ or 4 button to select the disc number, then

press the SET button.

Each time you press the button the disc number changes as

follows:

– CD – – – = 1CD – – –= 2CD – – – = 3CD – – – = (back

to the beginning)

2. Press the ¢ or 4 button to select the track number, then

press the SET button.

Please set the disc number to which you have listened at the

last time. CD play does not start if you select other disc

number.

For example: 2CD – 12 (Disc number 2, Track number 12)

Set Daily timer CD2 after playing in CD2.

If you set Daily Timer to other CD number after playing

CD2, it will not play back at the setting time.

When selecting TAPE:

Insert a cassette tape you want to play into Deck A.

When selecting AUX:

Prepare the external equipment so that it will turn on at the ON

time set by the System.

To allow this, the equipment should have the timer function.

6Setting the volume level.

Press the ¢ or 4 button to select the volume level.

VOL – – – : The current volume level will be used.

VOL-5, -10, or -15: When the timer is turned on, the Volume

will be automatically set to the selected level.

7Press the SET button.

The timer setting is completed, and the “DAILY” indicator

stops blinking and remains lit. Each setting you have made ap-

pears on the display in the order of ON time, OFF time, music

source and volume. Then, the display returns to the display be-

fore you set the Timer.

8Press the %

%%

% STANDBY/ON button to turn

off the System.

The Timer indicator ( ) and “DAILY” indicator are lit on the

display, showing that the Daily Timer is set to on.

To change the timer setting, repeat the setting procedure from

the beginning.

When the timer ON-time comes:

The following operation will be automatically repeated every day.

•When the timer ON-time comes, and the System automatically

turns on. The music source you have set is played. The Timer

indicator ( ) blinks during timer operation.

•When the timer OFF-time comes, “OFF” blinks on the display

just before the OFF-time and the System automatically turns

off. Then, the Timer indicator ( ) remains lit on the display.

•If the System is already on when the timer ON-time

comes, the Daily Timer does not work.

Turning the Daily Timer On and Off

Once you have set the Daily Timer, it is stored in memory. So, the

Daily Timer will be activated at the same time every day until it is

canceled.

To cancel the Daily Timer temporarily:

1Press the CLOCK/TIMER button on the Unit

repeatedly until the “DAILY” appears on the

display.

2Press the CANCEL button on the Unit.

The “DAILY” indicator goes out and “OFF” appears on the

display.

The Timer indicator ( ) and “DAILY” indicator go out and

the Daily Timer is canceled temporarily.

To activate the cancelled Daily Timer:

1Press the CLOCK/TIMER button on the Unit

repeatedly until the “DAILY” appears on the

display.

The “DAILY” indicator blinks and the Timer indicator ( )

lights up on the dispaly.

2Press the SET button on the Unit.

The “DAILY” indicator remains lit. Each setting already made

appears on the display in the order of ON time, OFF time, mu-

sic source and volume, and then the display returns to the orig-

inal display.

CAUTION:

•If the System is unplugged, or a power failure oc-

curs, the timer setting will be lost in a few days.

You will need to reset the clock first, then the

timer.

Setting the REC (Recording)

Timer

With the Recording Timer, you can make a tape of a radio broad-

cast automatically whether or not you are home.

•You can set the REC Timer whether the System is on or

off.

•The volume level is automatically set to MIN when REC

Timer is used.

•Perform each setting within 35 seconds. Otherwise, set-

ting will be cleared and the procedure must be repeated

from the beginning.

•If you have made a mistake while setting the timer, press

the CANCEL button on the Unit. However, this does not al-

ways cancel the current setting. If the CANCEL button

does not work, press the CLOCK/TIMER button on the

Unit repeatedly until the display returns to the original dis-

play, and start from the first step.

DAILY

Body.fm Page 22 Thursday, April 18, 2002 3:27 PM

23

Using the Timers

Using the Unit

You can set the time in the same way as for setting the Daily Tim-

er.

1Insert a blank or erasable tape into the Deck

B and wind past the tape leader.

2Press the CLOCK/TIMER button until “ON

TIME” immediately after “REC” appears on

the display.

Then, the "REC" indicator blinks on the display.

Each time you press the button, the display changes as follows:

DAILY = ON TIME = REC = ON TIME* = Clock setting

display = Canceled = (back to the beginning)

* : This item should be selected for the REC Timer setting.

After 2 seconds, the System enters ON-time setting mode. The cur-

rent ON time appears on the display and the hour digits blink.

3Setting the ON time you want the System to

turn on.

1. Press the 4 or ¢ button to set the hour, then press the

SET button.

2. Press the 4 or ¢ button to set the minute, then press the

SET button.

“OFF TIME” appears for 2 seconds, and the System enters

OFF-time setting mode. The current OFF time appears on the

display, and the hour digits blink.

4Setting the OFF time you want the System to

turn off.

1. Press the 4 or ¢ button to set the hour, then press the

SET button.

2. Press the 4 or ¢ button to set the minute, then press the

SET button.

The System enter Preset Station Entering mode.

5Select the preset station for recording.

1. Press the 4 or ¢ button to set the band (TUNER FM or

TUNER AM), then press the SET button.

2. Press the 4 or ¢ button to set the preset number, then

press the SET button.

The REC indicator stops blinking and remains lit.

•Each setting you have made appears on the display in the order

of ON time, OFF time, radio band and the preset number.

6Press the %

%%

% STANDBY/ON button to turn

off the System, if necessary.

To change the timer setting, repeat the setting procedure from

the beginning.

When the timer ON-time comes:

•When the timer ON-time comes, the System automatically

turns on. The station you have set is played. The Timer indica-

tor ( ) blinks during timer operation.

To stop timer recording, press the 7 button.

•When the timer OFF-time comes, “OFF” blinks on the display

just before the OFF-time and the System automatically turns

off.

•The REC Timer works even if the System is turned on.

Turning the REC (Recording) Timer On and Off

Once you have set the REC Timer to record a source, the timer set-

ting is stored in memory. So, though the REC Timer turns off once

it is used, you can recall it at any time.

To cancel the REC Timer temporarily:

1Press the CLOCK/TIMER button on the Unit

repeatedly until “REC” appears on the dis-

play.

2Press the CANCEL button on the Unit.

“OFF” appears and the “REC” indicator goes out.

To activate the cancelled REC Timer:

1Press the CLOCK/TIMER button on the Unit

repeatedly until “REC” appears on the dis-

play.

The “REC” indicator also blinks on the display.

2Press the SET button on the Unit.

The “REC” indicator remains lit. Each setting already made

appears on the display in the order of ON time, OFF time, and

the preset number, and then the display returns to the original

display.

CAUTION:

•If the System is unplugged, or a power failure oc-

curs, the timer setting will be lost in a few days.

You will need to reset the clock first, then the

timer.

REC

REC

After 2 seconds

Body.fm Page 23 Friday, January 4, 2002 7:17 PM

24

Using the Timers

Setting the SLEEP Timer

Use the Sleep Timer to turn the System off after a certain number

of minutes when it is playing. By setting the Sleep Timer, you can

fall asleep to music and know that your System will turn off by it-

self rather than play all night.

•You can only set the Sleep Timer when the System is on.

Using the Remote Control

1During playback a source, press the SLEEP

button.

The “SLEEP” indicator starts blinking on the display.

2Set the length of time you want the source to

play before shutting off.

Each time you press the SLEEP button, the time length chang-

es as follows:

10 = 20 = 30 = 60 = 90 = 120 = Cancelled = (back to

the beginning)

3Wait for 5 seconds.

The “SLEEP” indicator stops blinking and remains lit, and the

display returns to the original one before setting the Sleep

Timer.

The System is now set to turn off after the number of minutes

you have set.

To Confirm the Sleep Time:

When the SLEEP button on the Remote Control is pressed, the re-

maining sleep time is displayed. Wait until the display returns to

the original display.

To Cancel the SLEEP Timer Setting:

Press the SLEEP button on the Remote Control until the “SLEEP”

indicator goes out on the display.

•Turning off the System also cancels the SLEEP Timer.

Timer Priority

Since each timer can be set independently, you may wonder what

happens if the settings overlap. Here are the priorities for each timer:

The REC Timer always has priority. This means that:

•If other timer is set to come on during a time when the REC

Timer is operating, the other timer just won’t come on at all,

so you will always get the entire program on a tape.

•If the REC Timer is set to come on while other timer is oper-

ating, the other timer will turn off just before the REC Timer

is set to turn on, and the REC Timer will then take over.

❏If the SLEEP Timer is set while DAILY Timer is operating, the

DAILY Timer settings are cancelled. However, if DAILY Tim-

er is set to come on while the SLEEP Timer is operating, the

SLEEP Timer setting will be cancelled and the System will use

the settings from the DAILY Timer.

Example 1

Example 2

SLEEP

22:00 22:30 23:00

REC Timer

SLEEP Timer

Setting

ON OFF

OFF

ON OFF

22:00 22:30

Operation

REC Timer

SLEEP Timer

The REC Timer has priorty.

22:00 22:30 23:0021:30

REC Timer

DAILY Timer

Setting

ON OFF

OFF

ON OFF

22:3021:30

Operation

REC Timer

DAILY Timer

The REC Timer has priorty.

ON

Body.fm Page 24 Friday, January 4, 2002 7:17 PM

25

Care And Maintenance

Handle your CDs and tapes carefully, and they will last a long

time.

Compact Discs

CAUTION:

•Do not use any solvent (for example, conven-

tional record cleaner, spray thinner, benzine,

etc.) to clean a CD.

General Notes

In general, you will have the best performance by keeping your

CDs and the mechanism clean.

•Store CDs in their cases, and keep them in cabinets or on

shelves.

•Keep the System’s Top Cover closed when not in use.

Moisture Condensation

Cassette Tapes

Cassette Deck

•If the heads, capstans, and pinch-rollers of the Cassette Deck

become dirty, the following will occur:

- Loss of sound quality

- Discontinuous sound

-Fading

- Incomplete erasure

- Difficulty recording

•Clean the heads, capstans, and pinch-rollers using a cotton

swab moistened with alcohol.

•If the heads become magnetized, the Unit will produce noise or

lose high frequencies.

•To demagnetize the heads, turn off the Unit, and use a head

demagnetizer (available at electronics and record shops).

•Only CDs bearing these marks can be

used with this System. However, contin-

ued use of irregular shape CDs (heart-

shape, octagonal, etc.) can damage the

System.

•Remove the CD from its case by holding

it at the edges while pressing the case’s

center hole lightly.

•Do not touch the shiny surface of the

CD, or bend the CD.

•Put the CD back in its case after use to

prevent warping.

•Be careful not to scratch the surface of

the CD when placing it back in the case.

•Avoid exposure to direct sunlight, tem-

perature extremes, and moisture.

•A dirty CD may not play correctly. If a

CD does become dirty, wipe it with a

soft cloth in a straight line from center to

edge.

Moisture may condense on the lens inside

the System in the following cases:

•After turning on heating in the room.

•In a damp room.

•If the System is brought directly from a

cold to a warm place.

Should this occur, the System may mal-

function. In this case, leave the System

turned on for a few hours until the moisture

evaporates, unplug the AC power cord, and

then plug it in again.

Recordable

ReWritable

•If the tape is loose in its cassette, take up

the slack by inserting a pencil in one of

the reels and rotating.

•If the tape is loose, it may get stretched,

cut, or caught in the cassette.

•Do not touch the tape surface.

•Do not store the tape:

- In dusty places

- In direct sunlight or heat

- In moist areas

- On a TV or speaker

- Near a magnet

Heads

Pinch-roller

Capstan

Body.fm Page 25 Friday, January 4, 2002 7:17 PM

26

Troubleshooting

•If you are having a problem with your System, check this list for a possible solution before calling for service.

•If you cannot solve the problem from the hints given here, or the System has been physically damaged, call a qualified person, such as

your dealer, for service.

Symptom Possible Cause Action

No sound is heard. •Connections are incorrect, or loose.

•Headphones are connected.

•Check all connections and make cor-

rections. (See pages 4 to 6.)

•Disconnect the headphones.

Poor radio reception •The antenna is disconnected.

•The AM Loop Antenna is too close

to the System.

•The FM Wire Antenna is not prop-

erly extended and positioned.

•Reconnect the antenna securely.

•Change the position and direction of

the AM Loop Antenna.

•Extend FM Wire Antenna to the best

reception position.

The disc tray does not open.

•The AC power cord is not plugged in.

•Tray is locked. •Plug the AC power cord.

•Unlock the tray. (See page 15.)

The CD skips. The CD is dirty or scratched. Clean or replace the CD. (See page 25.)

The CD does not play. The CD is upside down. Put the CD in with the label side up.

The cassette holder cannot be opened. During tape playing, the power cord

was unplugged. Plug in the power cord, and turn on the

System.

Unable to record. Cassette record protect tabs are re-

moved. Cover holes on back edge of cassette

with tape.

Unable to operate the Remote Control. •The path between the Remote Con-

trol and the sensor on the Unit is

blocked.

•The batteries have lost their charge.

•Remove the obstruction.

•Replace the batteries.

Operations are disabled. The built-in microprocessor has mal-

functioned due to external electrical in-

terference.

Unplug the System then plug it back in.

Body.fm Page 26 Friday, January 4, 2002 7:17 PM

27

BT-51001-5

(0301)

QUALITY SERVICE

HOW TO LOCATE YOUR JVC SERVICE CENTER

Dear Customer,

In order to receive the most satisfaction from your purchase,please read the instruction booklet before

operating the unit.In the event that repairs are necessary, please call 1 (800)537-5722 for your nearest

authorized servicer or visit our website at www.JVC.com

Remember to retain your Bill of Sale for Warranty Service.

Do not service the television yourself

Caution

To prevent electrical shock,do not open the cabinet.There are no user serviceable

parts inside.Please refer to qualified service personnel for repairs.

Accessories

To purchase accessories for your JVC product,please call toll free:1 (800)882-2345 or

on the web at www.JVC.com

TOLL FREE: 1 (800) 537-5722

http://www.jvc.com

Authorized Service Centers

®

Body.fm Page 27 Friday, January 4, 2002 7:17 PM

28

THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA AND

IN COMMONWEALTH OF PUERTO RICO.

WHAT WE WILL DO:

If this product is found to be defective, JVC will repair or replace defective parts at no charge to the original owner.

Such repair and replacement services shall be rendered by JVC during normal business hours at JVC authorized service

centers. Parts used for replacement are warranted only for the remainder of the Warranty Period. All products and parts

thereof may be brought to a JVC authorized service center on a carry-in basis except for Television sets having a screen

size 25 inches and above which are covered on an in-home basis.

WHAT YOU MUST DO FOR WARRANTY SERVICE:

Return your product to a JVC authorized service center with a copy of your bill of sale. For your nearest JVC authorized

service center, please call toll free: (800) 537-5722.

If service is not available locally, box the product carefully, preferably in the original carton, and ship, insured, with

a copy of your bill of sale plus a letter of explanation of the problem to the nearest JVC Factory Service Center, the

name and location of which will be given to you by the toll-free number.

If you have any questions concerning your JVC Product, please contact our Customer Relations Department.

WHAT IS NOT COVERED:

This limited warranty provided by JVC does not cover:

1. Products which have been subject to abuse, accident, alteration, modification, tampering, negligence, misuse, faulty

installation, lack of reasonable care, or if repaired or serviced by anyone other than a service facility authorized by

JVC to render such service, or if affixed to any attachment not provided with the products, or if the model number

or serial number has been altered, tampered with, defaced or removed;

2. Initial installation and installation and removal for repair;

3. Operational adjustments covered in the Owner's Manual, normal maintenance, video and audio head cleaning;

4. Damage that occurs in shipment, due to act of God, and cosmetic damage;

5. Signal reception problems and failures due to line power surge;

6. Video Pick-up Tubes/CCD Image Sensor, Cartridge, Stylus (Needle) are covered for 90 days from the date of purchase;

7. Accessories

8. Batteries (except that Rechargeable Batteries are covered for 90 days from the date of purchase);

There are no express warranties except as listed above.

THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS

LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN.

JVC SHALL NOT BE LIABLE FOR THE LOSS OF USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER

DAMAGES, WHETHER DIRECT, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, WITHOUT LIMITATION, DAMAGE

TO TAPES, RECORDS OR DISCS) RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH

OF THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANT-

ABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE WARRANTY PERIOD SET FORTH ABOVE.

Some states do not allow the exclusion of incidental or consequential damages or limitations on how long an

implied warranty lasts, so these limitations or exclusions may not apply to you. This warranty gives you specific

legal rights and you may also have other rights which vary from state to state.

LIMITED WARRANTY

JVC COMPANY OF AMERICA warrants this product and all parts thereof, except as set forth below ONLY TO THE

ORIGINAL PURCHASER AT RETAIL to be FREE FROM DEFECTIVE MATERIALS AND WORKMANSHIP from the date

of original retail purchase for the period as shown below. ("The Warranty Period")

PARTS LABOR

1 YR 1 YR

JVC COMPANY OF AMERICA

DIVISION OF JVC AMERICAS CORP. 1700 Valley Road

Wayne, NJ 07470

REFURBISHED PRODUCTS CARRY A SEPARATE WARRANTY, THIS WARRANTY DOES NOT APPLY. FOR DETAILS OF

REFURBISHED PRODUCT WARRANTY, PLEASE REFER TO THE REFURBISHED PRODUCT WARRANTY INFORMATION

PACKAGED WITH EACH REFURBISHED PRODUCT.

For customer use:

Enter below the Model No. which is located either on the rear, bottom or side of the cabinet. Retain this information

for future reference.

Model No. : Serial No. :

Purchase data : Name of dealer :

AUDIO-1

Body.fm Page 28 Friday, January 4, 2002 7:17 PM

0402NNMCREBET

EN

VICTOR COMPANY OF JAPAN, LIMITED

Specifications

Amplifier

Output Power

CA-MXK30 80 W per channel, min. RMS, driven into 6 Ω at 1kHz, with no more

than 10% total harmonic distortion

CA-MXK10 40 W per channel, min. RMS, driven into 6 Ω at 1kHz, with no more

than 10% total harmonic distortion

Input Sensitivity/Impedance (1 kHz)

AUX IN 300 mV/50 kΩ

Speaker terminals 6 - 16 Ω

Phones 32 Ω - 1 kΩ

15 mW/ch output into 32 Ω

Cassette Deck Section

Frequency Response

Type I (NORMAL) 63 - 12 500 Hz

Wow And Flutter 0.15% (WRMS)

CD Player

CD Capacity 3 CDs

Dynamic Range 85 dB

Signal-To-Noise Ratio 90 dB

Wow And Flutter Unmeasurable

Tuner

FM Tuner

Tuning Range 87.5 MHz - 108.0 MHz

AM Tuner

Tuning Range 530 kHz - 1 710 kHz

Unit

Dimensions

CA-MXK30 270 mm ✕ 305 mm ✕ 430 mm (W/H/D)

(10-2/5" ✕ 12" ✕ 16-15/16")

CA-MXK10 270 mm ✕ 305 mm ✕ 386 mm (W/H/D)

(10-2/5" ✕ 12" ✕ 15-1/4")

Mass

CA-MXK30 Approx. 7.5 kg (16.5 lbs)

CA-MXK10 Approx. 6.6 kg (14.5 lbs)

Speaker Specifications (each unit)

SP-MXK30

Type 3-way bass-reflex type

Speaker Unit Woofer: 13.5 cm (5-1/4") cone ✕ 1

Mid: 5cm (2") cone ✕ 1

Tweeter: 2 cm (3/4") dome ✕ 1

SP-MXK10

Type 2-way bass-reflex type

Speaker Unit Woofer: 13.5 cm (5-1/4") cone ✕ 1

Tweeter: 5 cm (2") cone ✕ 1

Power Handling Capacity

SP-MXK30 80 W

SP-MXK10 40 W

Impedance 6 Ω

Frequency Range 45 - 22,000 Hz

Sound pressure level 88 dB/W·m

Dimensions 225 mm ✕ 305 mm ✕ 245 mm (W/H/D)

(8-7/8" ✕ 12-3/16" ✕ 9-11/16")

SP-MXK30 Mass Approx. 2.98 kg (6.5 lbs)

SP-MXK10 Mass Approx. 2.67 kg (5.8 lbs)

Accessories

AM Loop Antenna (1)

Remote Control (1)

Batteries R6P (SUM-3)/AA (15F) (2)

FM Wire Antenna (1)

Power Specifications

Power Requirements AC 120 V , 60 Hz

Power Consumption

CA-MXK30 135 W (power on mode)

10 W (in Standby mode)

CA-MXK10 65 W (power on mode)

6.5 W (in Standby mode)

Design and specifications are subject to change without notice.
