JVC NX F4BB F3_NX F7_B User Manual LVT1833 003C

NX-F3B NX-F3B LVT1833-003C English,

NX-F7B NX-F7B LVT1833-003C English,

User Manual: JVC NX-F4BB NX-F4BB English,

Open the PDF directly: View PDF .
Page Count: 72

COMPACT COMPONENT SYSTEM

NX-F7

Consists of CA-NXF7,

SP-NXF7F and SP-NXF7W

NX-F3

Consists of CA-NXF3,

SP-NXF3F and SP-NXF3W

NX-F4B

Consists of CA-NXF4B,

SP-NXF4BF and SP-NXF4BW

LVT1833-003C

[B]

INSTRUCTIONS

NX-F3_NX-F7[B]-frontcover.fm Page 1 Tuesday, September 30, 2008 11:01 AM

G-1

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

CAUTION — F button!

Disconnect the mains plug to shut the power off completely (the STANDBY lamp goes off). When installing

the apparatus, ensure that the plug is easily accessible.

The F button in any position does not disconnect the mains line.

• When the system is on standby, the STANDBY lamp lights red.

• When the system is turned on, the STANDBY lamp goes off.

The power can be remote controlled.

CAUTION

• Do not block the ventilation openings or holes.

(If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able

to get out.)

• Do not place any naked flame sources, such as lighted candles, on the apparatus.

• When discarding batteries, environmental problems must be considered and local rules or laws gov-

erning the disposal of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liq-

uids, such as vases, shall be placed on the apparatus.

CAUTION

• Excessive sound pressure from earphones or headphones can cause hearing loss.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover or cabinet. There are no user serviceable parts inside the unit;

leave all servicing to qualified service personnel.

3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with

optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE THE UNIT.

Warnings, cautions and others

NX-F3_NX-F7[B].book Page 1 Friday, December 21, 2007 5:06 PM

G-2

CAUTION — Proper Ventilation

To avoid risk of electric shock and fire and to protect from damage, locate the apparatus as follows:

Top/Front/Back/Sides: No obstructions should be placed in the areas shown by the dimensions below.

Bottom: Place on the level surface. Maintain adequate air path for ventilation by placing on

a stand with a height of 10 cm more.

In addition, maintain the best possible air circulation.

Front view of the main unit and speakers (CA-NXF7 and SP-NXF7F)

Front view of the main unit and speakers (CA-NXF3 and SP-NXF3F/CA-NXF4B and SP-NXF4BF)

Side view of the main unit (CA-NXF7/CA-NXF3/CA-NXF4B)

CAUTION

• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

NX-F3_NX-F7[B]-gpage.fm Page 2 Wednesday, March 19, 2008 5:11 PM

G-3

Information for Users on Disposal of Old Equipment

[European Union]

This symbol indicates that the electrical and electronic equipment should not be

disposed as general household waste at its end-of-life. Instead, the product

should be handed over to the applicable collection point for the recycling of

electrical and electronic equipment for proper treatment, recovery and recycling

in accordance with your national legislation.

By disposing of this product correctly, you will help to conserve natural

resources and will help prevent potential negative effects on the environment

and human health which could otherwise be caused by inappropriate waste

handling of this product. For more information about collection point and recy-

cling of this product, please contact your local municipal office, your household

waste disposal service or the shop where you purchased the product.

Penalties may be applicable for incorrect disposal of this waste, in accordance

with national legislation.

(Business users)

If you wish to dispose of this product, please visit our web page www.jvc-europe.com

to obtain information about the take-back of the product.

[Other Countries outside the European Union]

If you wish to dispose of this product, please do so in accordance with applica-

ble national legislation or other rules in your country for the treatment of old

electrical and electronic equipment.

Attention:

This symbol is only

valid in the Euro-

pean Union.

Dear Customer,

This apparatus is in conformance with the valid European directives and standards regarding electromag-

netic compatibility and electrical safety.

European representative of Victor Company of Japan, Limited is:

JVC Technology Centre Europe GmbH

Company name changed in:

JVC Technical Services Europe GmbH

Postfach 10 05 52

61145 Friedberg

Germany

Warnings, cautions and others (continued)

NX-F3_NX-F7[B].book Page 3 Friday, December 21, 2007 5:06 PM

G-4

IMPORTANT for the U.K.

DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in

your home or the cable is too short to reach a power point, then obtain an appropriate safety approved

extension lead or consult your dealer.

BE SURE to replace the fuse only with an identical approved type, as originally fitted.

If nonetheless the mains plug is cut off ensure to remove the fuse and dispose of the plug immediately, to

avoid a possible shock hazard by inadvertent connection to the mains supply.

If this product is not supplied fitted with a mains plug then follow the instructions given below:

IMPORTANT:

DO NOT make any connection to the terminal which is marked with the letter E or by the safety earth

symbol or coloured green or green-and-yellow.

The wires in the mains lead on this product are coloured in accordance with the following code:

Blue: Neutral

Brown: Live

As these colours may not correspond with the coloured markings identifying the terminals in your plug

proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or

coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or

coloured red.

IF IN DOUBT - CONSULT A COMPETENT ELECTRICIAN.

SAFETY INSTRUCTIONS

“SOME DOS AND DON'TS ON THE SAFE USE OF EQUIPMENT”

This equipment has been designed and manufactured to meet international safety standards but, like any

electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.

Do read the operating instructions before you attempt to use the equipment.

Do ensure that all electrical connections (including the mains plug, extension leads and interconnections

between pieces of equipment) are properly made and in accordance with the manufacturer's instructions.

Switch off and withdraw the mains plug when making or changing connections.

Do consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.

Do be careful with glass panels or doors on equipment.

DON'T continue to operate the equipment if you are in any doubt about it working normally, or if it is dam-

aged in any way

—

switch off, withdraw the mains plug and consult your dealer.

DON'T remove any fixed cover as this may expose dangerous voltages.

DON'T leave equipment switched on when it is unattended unless it is specifically stated that it is designed

for unattended operation or has a standby mode.

Switch off using the switch on the equipment and make sure that your family know how to do this.

Special arrangements may need to be made for infirm or handicapped people.

DON'T use equipment such as personal stereos or radios so that you are distracted from the requirements

of traffic safety. It is illegal to watch television whilst driving.

DON'T listen to headphones at high volume as such use can permanently damage your hearing.

DON'T obstruct the ventilation of the equipment, for example with curtains or soft furnishings.

Overheating will cause damage and shorten the life of the equipment.

DON'T use makeshift stands and NEVER fix legs with wood screws — to ensure complete safety always

fit the manufacturer's approved stand or legs with the fixings provided according to the instructions.

DON'T allow electrical equipment to be exposed to rain or moisture.

ABOVE ALL

—

NEVER let anyone, especially children, push anything into holes, slots or any other opening in the case.

— this could result in a fatal electrical shock.

— NEVER guess or take chances with electrical equipment of any kind — it is better to be safe than sorry!

E43486–340B

✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮

✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮

NX-F3_NX-F7[B].book Page 4 Friday, December 21, 2007 5:06 PM

1

Introduction

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to obtain

the best possible performance from the unit.

Part description .............................3

Using the remote control ..............4

Inserting the batteries into the remote

control........................................................... 4

Operating the system from the remote

control........................................................... 4

Preparation.....................................5

Connecting the antennas ................................ 5

Connecting the speakers and subwoofer........ 6

Connecting a TV .............................................8

Connecting external digital audio devices..... 10

Connecting external analog audio devices ... 10

Connecting the power cable ......................... 10

Selecting the video signal type .....................11

Setting for using a SCART cable .................. 12

Basic operations..........................13

Using the number buttons.............................13

Turning on/off the main unit ..........................13

Adjusting the volume.....................................13

Turning off the sound temporarily ................. 13

Adjusting the treble/bass...............................13

Enhancing the playback sound (K2)

(Only for NX-F7) ......................................... 14

Adjusting the volume level for surround/

subwoofer sound ........................................14

Selecting the surround mode........................ 14

Selecting the headphone surround mode ..... 15

Sharpening the voice sound .........................15

Selecting the surround volume level............. 15

Using the sleep timer ....................................16

Changing the brightness of the display window ....16

Locking disc ejection..................................... 16

Listening to radio broadcasts ....17

Selecting a radio station................................ 17

Tuning in to a preset radio station................. 18

Radio Data System....................................... 18

Playing back sources from external

devices..........................................22

Playing back sources from external devices...22

Selecting the signal gain ...............................22

Basic operations of disc/file

playback .......................................23

Playing back a disc .......................................23

Playing back a file .........................................24

Display window on the main unit for

disc/file types ..............................................25

Stopping playback.........................................30

Resuming playback.......................................30

Pausing playback..........................................30

Advancing the picture frame by frame ..........30

Fast reverse/fast forward search ..................30

Playing back from a position 10 seconds

before..........................................................31

Slow motion playback ...................................31

Skipping to the beginning of a

chapter/track/file .........................................31

Selecting a chapter/track using the number

buttons ........................................................ 31

Skipping at approximately 5 minute

intervals ......................................................31

Selecting a chapter/track from the

menu screen ...............................................32

Convenient functions of disc/file

playback .......................................33

Playing back a disc/file in the desired order

(Program playback) ....................................33

Playing back a disc/file in a random order

(Random playback).....................................35

Playing back a disc/file repeatedly

(Repeat playback).......................................35

Selecting the audio language and subtitle

language .....................................................36

Magnifying the picture...................................36

Adjusting the picture quality (VFP)................37

Playing back the bonus group.......................38

Introduction

Preparation

Basic operations

Listening to radio broadcasts

Playing back sources from

external devices

Basic operations of disc/file

playback

Convenient functions of

disc/file playback

Table of contents

NX-F3_NX-F7[B]-01.fm Page 1 Wednesday, March 19, 2008 5:11 PM

Introduction

2

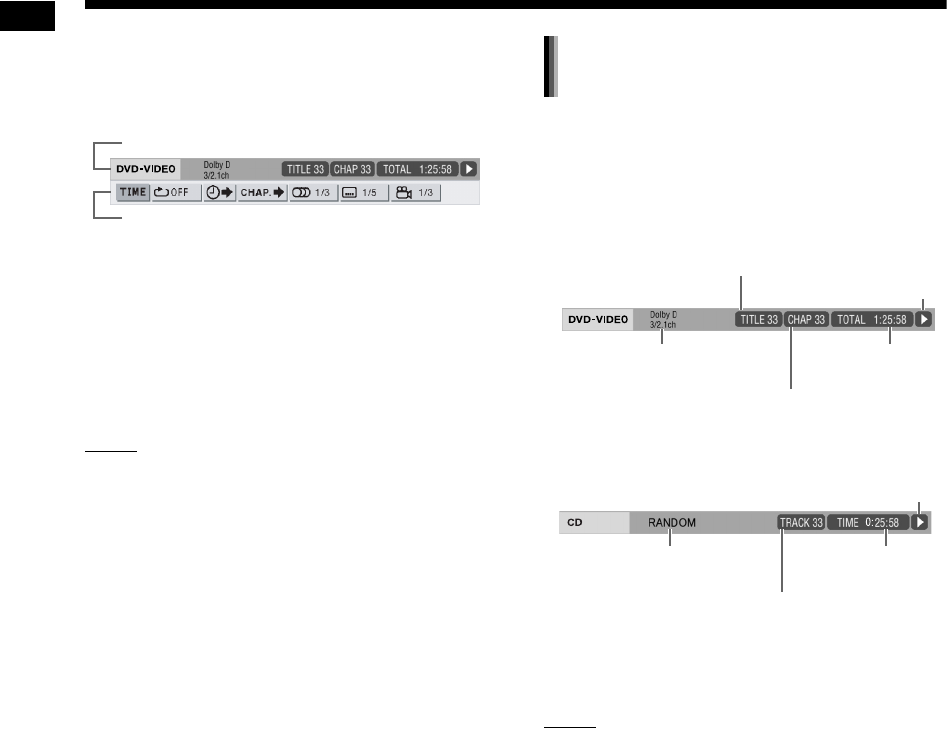

Using the status bar and the menu

bar .................................................39

Playing back a specified part repeatedly

(A-B repeat playback)................................. 41

Designating the time (Time search) .............. 41

Changing the initial settings with

the preference screen .................42

Basic operations ...........................................42

LANGUAGE .................................................. 42

PICTURE ......................................................43

AUDIO........................................................... 44

OTHERS ....................................................... 44

Language codes ..........................45

Ripping sound directly from a CD to

a USB device ................................46

Recording all tracks from a CD to a USB

device .........................................................46

Deleting a track/group from a USB device....48

Adding (Editing) a title to a track/group

on a USB device......................................... 49

Convenient functions of TV

viewing..........................................51

Listening to sound from a TV........................51

Operating a TV using the remote control ...... 52

Operating an STB using the remote control.. 53

Operating a VCR using the remote control ... 54

Basic operations of HDMI CEC...55

Notes on operation ......................56

Suitable locations for the main unit ...............56

Condensation................................................56

Cleaning the main unit ..................................56

Notes on handling .........................................56

License and trademark .................................57

Notes on discs/files .....................58

Playable disc/file types..................................58

Data hierarchy...............................................61

Handling discs...............................................61

Troubleshooting...........................62

Specifications ..............................66

Main unit

(CA-NXF7/CA-NXF3/CA-NXF4B)...............66

Speaker

(SP-NXF7F/SP-NXF3F/SP-NXF4BF) .............. 66

Subwoofer

(SP-NXF7W/SP-NXF3W/SP-NXF4BW) .....66

Supplied accessories ....................................66

Ripping sound directly from

a CD to a USB device

Convenient functions of TV

viewing

Basic operations of HDMI

CEC

Reference

How to read this manual

• This manual explains the operations assum-

ing that you will use the remote control.

Some buttons on the main unit are the same

as those on the remote control. You can use

either button in this case.

• Some diagrams in this manual are simplified

or exaggerated for the purpose of explana-

tion.

• You can operate some functions differently

from the explanation given in this manual.

• Depending on the disc/file, you may not

obtain the explained result even after follow-

ing the operation in this manual.

• The following marks refer to the usable

discs/files for the explained function.

NX-F3_NX-F7[B]-01.fm Page 2 Wednesday, March 19, 2008 5:52 PM

3

Introduction

The numbers refer to the pages in which the parts are explained.

Front view

Refer to “Display window” shown below.

Remote control sensor

*[K2] is printed on NX-F7.

[SURROUND] is printed on NX-F3/NX-F4B instead.

Rear view

Cooling fan

Display window

Part description

NX-F3_NX-F7[B]-02.fm Page 3 Friday, March 21, 2008 2:25 PM

Introduction

4

The numbers refer to the pages in which the parts

are explained.

NOTE

*[K2] is printed on the remote control for NX-F7

only.

Insert the batteries into the remote control by

matching the polarity (+ and −) correctly.

• If the range or effectiveness of the remote con-

trol decreases, replace both batteries.

Point the remote control directly at the

front of the main unit.

• Do not block the remote control sensor on the

main unit.

Inserting the batteries into

the remote control

Operating the system from

the remote control

R03 (UM-4)/AAA

(24F) type dry-cell

batteries (supplied)

Using the remote control

NX-F3_NX-F7[B]-02.fm Page 4 Wednesday, March 19, 2008 5:12 PM

5

Preparation

Setting up the AM loop antenna

NOTE

• Keep the AM loop antenna cable wrapped

around the AM loop antenna frame, otherwise

the effectiveness and sensitivity of the AM loop

antenna may be reduced.

Connecting the AM loop antenna

Turn the AM loop antenna to find the best position

for radio reception.

NOTE

• Make sure that the antenna conductors do not

touch any other terminals. This could cause poor

reception.

When radio reception with the supplied FM

antenna is poor, or when using a communal

antenna

• When using an antenna other than those sup-

plied with this system, refer to the operation

manuals for the antenna and converter for

details of connection.

• When positioning the antennas, find the best

position for reception while listening to an actual

radio program (refer to “Listening to radio broad-

casts” on page 17).

• You cannot receive an FM/AM radio broadcast

without the antenna connection.

Connecting the antennas

AM loop antenna (supplied)

If insulation covers the tips of the

antenna cable, twist and pull off

the insulation.

Main unit (rear view)

FM antenna (supplied)

Main unit (rear view) FM antenna

Stretch out the FM

antenna to the best

position for radio

reception.

Main unit (rear view)

Antenna cable

(not supplied)

Outdoor FM

antenna

(not supplied)

Converter (not sup-

plied: compatible

with 300

C

/75

C

)

Coaxial cable

(not supplied)

Depending on the radio reception

conditions, an FM feeder

antenna (not supplied: compati-

ble with 300 C) can be used. In

this case, a converter (not sup-

plied) is required.

or

Communal

antenna terminal

Preparation

Do not connect the power cable until all other connections have been made.

NX-F3_NX-F7[B].book Page 5 Friday, December 21, 2007 5:06 PM

Preparation

6

Connect the speakers to the main unit by connecting the colored connectors to the same color terminals on

the rear of the main unit.

■ IMPORTANT

• Improper speaker cable connection reduces the

stereo effect and sound quality.

• The supplied left/right speakers are magnetically

shielded, but color irregularity may occur on the

TV depending on some conditions. To prevent

color irregularity, set up the speakers following

the instructions below.

(The subwoofer is not magnetically shielded.)

1. Turn off the main power of the TV before

setting up the speakers.

2. Place the speakers enough distance from the

TV so that they do not cause color irregularity

on the TV.

3. Wait for approximately 30 minutes before

turning on the main power of the TV again.

CAUTION

• The supplied speakers are manufactured exclu-

sively for use with the supplied main unit as

parts of the NX-F7/NX-F3/NX-F4B system. Do

not connect the supplied speakers to devices

other than the supplied main unit. Doing so may

damage the speakers.

• Do not connect external speakers together with

the supplied speakers. The change in imped-

ance may damage the main unit and the speak-

ers.

Connecting the speakers and subwoofer

Right speaker

(rear view)

Left speaker

(rear view)

Speaker cableSpeaker cable

Speaker cable

Subwoofer

(rear view)

Main unit (rear view)

Red

Gray

Purple

Blue

White

You can detach the speaker cover.

(Only for NX-F7)

Speaker cover

NX-F3_NX-F7[B]-03.fm Page 6 Tuesday, September 30, 2008 11:03 AM

7

Preparation

The left and right speakers can be fitted onto commercially available speaker stands. Before fitting the speak-

ers onto commercially available speaker stands, follow the instructions shown below.

Left and right speakers for NX-F7

Detach the original speaker stands.

Left and right speakers for NX-F3/NX-F4B

Remove the speaker cables from the tabs and

slots on the speakers.

CAUTION

• The left and right speakers can be installed on a wall.

• When installing the speakers on a wall, be sure to have the speakers installed by qualified personnel.

• DO NOT install the speakers on the wall by yourself to avoid unexpected damage from them falling off the

wall due to incorrect installation or weakness in wall structure.

• Care must be taken in selecting a location for speaker installation on a wall. Injury to personnel or damage

to devices may result if the installed speakers interfere with daily activities.

Using the speakers with commercially available speaker stands

Remove the cable from

the shorter tab first.

Longer tabBottom view

Preparation (continued) Do not connect the power cable until all other connections have been made.

NX-F3_NX-F7[B]-03.fm Page 7 Friday, March 21, 2008 2:26 PM

Preparation

8

This system is designed to provide virtual surround

sound by positioning the 3 speakers in front. (The

set of the left and right speakers and the sub-

woofer refers to 2.1 channel.) The front surround

function processes input signals to create a realis-

tic sound field.

After connecting a TV, follow the instructions on

pages 11 and 12.

NOTE

• No audio signal is output from the [AV] (SCART)

terminal to the TV.

NOTE

• When you want to listen to sound from a TV,

connect the TV to the [AV] terminal as well as

the [VIDEO] terminal.

Speaker layout

Main unit

Left speaker

Subwoofer

Right speaker

Connecting a TV

Connecting a TV with the [AV]

terminal

TV

Main unit

(rear view)

To SCART terminal

SCART cable (not supplied)

Connecting a TV with the [VIDEO]

terminal

Main unit

(rear view)

TV

To a video input terminal

Composite video cable (not supplied)

NX-F3_NX-F7[B].book Page 8 Thursday, January 17, 2008 2:00 PM

9

Preparation

NOTE

• When you want to listen to sound from a TV,

connect the TV to the [AV] terminal as well as

the [COMPONENT] terminals.

■ IMPORTANT

• Connect the main unit directly to a TV (or a mon-

itor) without routing through a video cassette

recorder (VCR). Otherwise picture distortion

may occur during playback. (Routing the con-

nection through a VCR, however, does not affect

the audio quality.)

• Connecting the main unit to a VCR-built-in-TV

may also cause picture distortion during play-

back.

This system can output uncompressed digital

video signals to a TV compatible with HDMI (High

Definition Multimedia Interface).

NOTE

• The HDMI video signal type can be checked with

the “HDMI” indicator in the display window.

(Refer to “Selecting the video signal type” on

page 11.)

• If the picture is distorted while an HDMI TV is

connected, turn off the main unit and turn it on

again.

• A TV compatible with HDCP (High-Bandwidth

Digital Content Protection) can also be con-

nected to the [HDMI MONITOR OUT] terminal,

so that the uncompressed HD video signal type

can be output as well.

• This system is compatible with some basic func-

tions of HDMI CEC. (Refer to page 55.)

• When you want to listen to sound from a TV,

connect the TV to the [AV] terminal as well as

the [HDMI MONITOR OUT] terminal.

Connecting a TV with the

[COMPONENT] terminals

Main unit

(rear view)

TV

To component

input terminals

Component video cable (not supplied)

Main unit

Direct connection

TV (or monitor)VCR

Connecting a TV with the [HDMI

MONITOR OUT] terminal

Main unit

(rear view)

To an HDMI input terminal

HDMI cable (not supplied)

TV

Preparation (continued) Do not connect the power cable until all other connections have been made.

NX-F3_NX-F7[B]-03.fm Page 9 Friday, March 21, 2008 2:27 PM

Preparation

10

NOTE

• You can output the audio signal from the

[DIGITAL OUT] terminal when “DVD”, “USB” or

“DGTL IN” is selected as the source in the dis-

play window.

• When “DGTL IN” is selected as the source in the

display window, digital audio from the

[DIGITAL OUT] terminal is decoded to a linear

PCM signal.

• Connect the power cable after you complete the

other connections.

• The [STANDBY

F

] lamp on the main unit lights

up.

Connecting external digital

audio devices

Output MD player or

satellite receiver

To an optical digital

output terminal

Optical digital cable

(not supplied)

Main unit

(rear view)

Input Output

Optical digital cable

(not supplied)

To an optical digital

input terminal

Input AV amplifier with

a built-in decoder

Connecting external analog

audio devices

Connecting the power cable

Output

Input

Analog audio

device

Main unit

(rear view)

Audio cable

(not supplied)

AC outlet

Main unit

(rear view)

NX-F3_NX-F7[B]-03.fm Page 10 Wednesday, March 19, 2008 5:13 PM

11

Preparation

To view an image on the TV screen, select the

video signal type correctly according to the TV

after connecting the main unit to the TV.

■ IMPORTANT

• Slide the remote control mode

selector to [SHIFT].

1Turn on the main unit.

• Refer to “Turning on/off the main unit” on

page 13.

2Press [DVD 3] or [USB 3].

• When a disc is loaded or a USB device is

connected, press 7 to stop playback.

3Press [SCAN MODE].

• The current video signal type appears.

Example: When “RGB” is selected as the

video signal

4Press 2 or 3 (cursor) to select the

video signal type suitable for the

TV.

• When the TV is connected to the [AV] termi-

nal, select “RGB” or “Y/C”. (“RGB” is the

recommended setting.)

• When the TV is connected to the [VIDEO]

terminal, select “RGB”.

• When the TV is connected to the [COMPO-

NENT] terminals, select “576P”.

• When the TV is connected to the [HDMI MON-

ITOR OUT] terminal, the video signal type can

be selected as instructed below.

- Select “AUTO” for normal usage. (the ini-

tial setting)

- Select “576P”, “720P”, “1080I” or “1080P”

as needed. (The selectable settings differ

according to the resolution of the con-

nected TV.)

• You can also select the video signal type by

repeatedly pressing [SCAN MODE].

NOTE

• “576”, “720” and “1080” refer to the number of

the scanning lines. Generally, the larger the

number, the better picture that can be obtained.

• “I” refers to the interlaced format. “P” refers to

the progressive format. A better picture can be

obtained in the progressive format than in the

interlaced format.

• When an HDMI video signal is output, the

“HDMI” indicator lights up in the display window.

• When an HD video signal is output, the “HD”

indicator lights up.

• When “576P”, “720P” or “1080P” is selected, the

“PROGRESSIVE” indicator lights up in the dis-

play window.

5Press [ENTER].

NOTE

• It is recommended that you slide the remote

control mode selector to [AUDIO] after selecting

the video signal type. Most of the other functions

can be used when the remote control mode

selector is at [AUDIO].

• When the [AV] and [HDMI MONITOR OUT] ter-

minals are connected at the same time, the

image from the [AV] terminal is not displayed

properly.

• Even if the main unit is turned off, the video sig-

nal type setting is stored.

Selecting the video signal

type

Remote control

mode selector

2/3 (cursor)/

ENTER

Preparation (continued) Do not connect the power cable until all other connections have been made.

NX-F3_NX-F7[B]-03.fm Page 11 Wednesday, March 19, 2008 5:13 PM

Preparation

12

When the main unit and a TV are connected with a

SCART cable, follow the instructions shown below.

■ IMPORTANT

• Slide the remote control mode

selector to [AUDIO].

1Turn on the main unit.

• Refer to “Turning on/off the main unit” on

page 13.

2Press [SETTING] repeatedly to

select “SCART” in the display win-

dow.

3Press [LEVEL +] or [LEVEL

–

]

repeatedly to select the desired

setting in the display window.

• Each time you press [LEVEL +] or [LEVEL

–

],

the setting toggles between “SCART: AV”

(audio and video) and “SCART: A” (audio).

- Select “SCART: AV” when the main unit

and TV are connected only with a SCART

cable.

- Select “SCART: A” when the main unit and

TV are connected with a composite video

cable, component video cable or HDMI

cable, in addition to a SCART cable.

NOTE

• When “SCART: A” is selected, operate the con-

nected TV to select the input video signal.

Setting for using a SCART

cable

NX-F3_NX-F7[B]-03.fm Page 12 Thursday, January 24, 2008 9:18 AM

13

Basic operations

■ IMPORTANT

• Slide the remote control mode

selector to [AUDIO].

Examples:

5: [5]

15: [ 10] →

[1]

→

[5]

150: [ 10] → [ 10] → [1] → [5] → [0]

Press [AUDIO

F

] (or [STANDBY

F

]

on the main unit).

• The power of the main unit turns on and the

[STANDBY

F

] lamp (button) on the main unit

turns off.

• Press [AUDIO

F

] (or [STANDBY

F

] on the

main unit) again to turn off the power of the main

unit. (The main unit enters the standby mode.)

• With the power off, pressing any of the following

buttons also turns on the main unit.

- [DVD 3], [USB 3], [FM/AM], [AUDIO IN/DIG-

ITAL IN], [TV SOUND], 3 (playback) or 0 on

the remote control

-s3 (playback) or 0 on the main unit

The function assigned to the pressed button

starts working at the same time. (When 3 (play-

back) is pressed, “DVD” is selected as the

source in the display window.)

• An internal cooling fan turns on when the main

unit turns on. This is to prevent overheating of

the main unit. The cooling fan produces noise

during operation. This is not a malfunction.

Press [VOL +] or [VOL –] repeatedly.

• You can also adjust the volume by turning the

[VOLUME] control on the main unit.

Press [MUTING].

• Press [MUTING] again or [VOL +] or [VOL –], or

turn the [VOLUME] control on the main unit to

restore the sound. The sound is also restored

when the main unit is turned off once and turned

on.

1Press [TREBLE/BASS] repeatedly

to select “TRE” or “BASS” in the

display window.

2Press [LEVEL +] or [LEVEL –]

repeatedly to adjust the sound

quality.

• Adjustable sound quality is from -10 to +10.

Using the number buttons

Remote control

mode selector

Number

buttons*

3 (playback)

Turning on/off the main unit

Adjusting the volume

Turning off the sound

temporarily

Adjusting the treble/bass

Basic operations

(Only for NX-F7)

NX-F3_NX-F7[B].book Page 13 Thursday, January 17, 2008 2:00 PM

Basic operations

14

The K2 function is designed to provide natural

sound by improving the playback sound from low-

bit-rate digital sources.

The function compensates for sound waves dissi-

pated during digital recording compression to

approximate the original analog sound. Sound is

reproduced with more bits (24 bit) and a wider

range of frequency (128 kHz, 176.4 kHz or

192 kHz).

Press [K2] on the remote control or on

the main unit.

• When the K2 function is activated, the [K2] lamp

(button) on the main unit lights up.

• Each time you press [K2], the display changes

as follows.

- “K2 MODE1”:

Plays back a digital source with non-com-

pressed sound signals (linear PCM). Realisti-

cally reproduces the sound of the master

source.

- “K2 MODE2”:

Plays back a digital source with compressed

sound signals (Dolby digital, DTS, MP3, WMA

or WAV). This mode produces the same effect

as “K2 MODE1” for compressed sound.

- “K2 MODE3”:

Plays back a digital source with non-com-

pressed sound signals (linear PCM) and a

broader sound field than that of “K2 MODE1”.

- “K2 MODE4”:

Plays back a digital source with compressed

sound signals (Dolby digital, DTS, MP3, WMA

or WAV). This mode produces the same effect

as “K2 MODE3” for compressed sound.

-“K2 OFF”:

Cancels the K2 function.

NOTE

• The original range of frequency is automatically

detected and extended to a specific range.

You can adjust the volume level for the left and

right surround sound and the subwoofer sound

respectively.

1Press [SPK LEVEL] repeatedly to

select “SURR” or “SUBWFR” in

the display window.

• “SURR” refers to the left and right surround

sound.

• “SUBWFR” refers to the subwoofer sound.

2Press [LEVEL +] or [LEVEL

–

]

repeatedly to adjust the volume

level.

• The adjustable volume range is from -6 to +6.

Press [SURROUND].

• Each time you press [SURROUND], the display

changes in the display window as follows.

-“AUTO SUR”

When a multi-channel signal is input, surround

sound is automatically produced.

- “MOVIE”

Surround sound suitable for a movie or multi-

channel signal is produced.

- “WIDE/2CH”

When a 2ch signal is input, surround sound is

produced. The sound is broader than the one

with “MOVIE”.

-“SUPER W”

Surround sound broader than the one with the

“WIDE/2CH” is produced.

NOTE

• Depending on the signal type, surround sound

may not be produced as the surround mode set-

ting.

• During playback, when you change the surround

mode setting, sound from the [DIGITAL OUT]

terminal may be intermittent. Before recording

sound to an external device, select the desired

surround mode setting.

• This function does not work for a JPEG/ASF/

DivX/MPEG1/MPEG2 file.

Enhancing the playback

sound (K2) (Only for NX-F7)

Adjusting the volume level

for surround/subwoofer

sound

Selecting the surround mode

NX-F3_NX-F7[B]-04.fm Page 14 Wednesday, March 26, 2008 1:47 PM

15

Basic operations

You can listen to surround sound via headphones

connected to the [PHONES] terminal.

■When headphones are connected to the

[PHONES] terminal

Press [SURROUND].

• Each time you press [SURROUND], the setting

toggles between “H.P. SURR” and “H.PHONE”

in the display window.

NOTE

• The [PHONES] terminal is for connecting a pair

of headphones equipped with a stereo mini plug

(not supplied). When headphones are con-

nected, no sound is output from the speakers.

• This function does not work for a JPEG/ASF/

DivX/MPEG1/MPEG2 file.

This function allows you to easily understand dia-

log recorded on the disc/file even with the volume

down low. This function is useful when you are

watching a movie.

1Press [SETTING] repeatedly to

select “CLR VOIC” in the display

window.

• “CLR VOIC” refers to a clear voice.

2Press [LEVEL +] or [LEVEL –]

repeatedly to select “CLR: ON” in

the display window.

• Each time you press [LEVEL +] or [LEVEL –]

the clear voice function turns on and off.

• When you want to deactivate the clear voice

function, select “CLR: OFF”.

You can increase the surround volume level.

This function is effective for the following condi-

tions:

(1) When the surround mode is set to an item

other than “AUTO SUR” (Refer to page 14.)

(2) When the surround mode is set to “AUTO

SUR” and a DVD VIDEO, DVD AUDIO or DVD

VR is played back (Refer to page 23.)

(3) When the surround mode is set to “AUTO

SUR” and the source is set to “DGTL IN”

(Refer to page 22.)

1Press [SETTING] repeatedly to

select “SURR VOL” in the display

window.

2Press [LEVEL +] or [LEVEL –]

repeatedly to select the desired

setting in the display window.

• Each time you press [LEVEL +] or [LEVEL –],

the surround volume level display changes to

one of three levels. The surround volume

level increases in the order of “SURR:

NRML”, “SURR: MID” and “SURR: HIGH”.

• Select the surround volume level while lis-

tening to the actual sound to confirm the dif-

ference.

NOTE

• This function does not affect the sound with the

headphone surround mode.

Selecting the headphone

surround mode

Sharpening the voice sound

This indicator lights up when the

clear voice function is activated.

Selecting the surround

volume level

Basic operations (continued)

NX-F3_NX-F7[B].book Page 15 Thursday, January 17, 2008 2:00 PM

Basic operations

16

When the time you specify elapses, the main unit

automatically turns off.

Press [SLEEP].

• Each time you press [SLEEP], the time indicated in

the display window changes. You can set the time

to 10, 20, 30, 60, 90, 120, 150 or 180 minutes.

Example: Display when the sleep timer is

set to 60 minutes

Press [SLEEP] repeatedly to select the

time again.

Press [SLEEP] once.

Press [SLEEP] repeatedly until

“SLEEP --” appears.

Turning off the main unit cancels the sleep timer.

■When the main unit is turned on

Press [DIMMER] repeatedly.

• Each time you press [DIMMER], the brightness

changes in 3 levels.

You can lock the disc tray to prevent the disc from

being ejected.

■When the main unit is turned off

Hold down 0 on the main unit for one

or more seconds while holding down

7 on the main unit.

If you attempt to open the disc tray by pressing 0,

the disc tray does not open and “LOCKED”

appears in the display window.

To cancel the disc ejection lock, press 0 on the

main unit while holding down 7 on the main unit

again. “UNLOCKED” is displayed in the display

window.

Using the sleep timer

Changing the remaining time

Confirming the remaining time

Canceling the sleep timer

Changing the brightness of

the display window

Locking disc ejection

Setting the disc ejection lock

For the locations of the remote

control buttons, refer to page 13.

NX-F3_NX-F7[B]-04.fm Page 16 Friday, January 25, 2008 1:48 PM

17

Listening to radio broadcasts

*For the number button usage, refer to “Using the

number buttons” on page 13.

■ IMPORTANT

• Slide the remote control mode

selector to [AUDIO].

1Press [FM/AM] to select “FM” or

“AM” in the display window.

• Pressing [FM/AM] selects a radio broadcast

as the sound source.

• Repeatedly pressing [SOURCE] on the

main unit can also select a radio broadcast

as the source.

• Each time you press [FM/AM], the band tog-

gles between “FM” and “AM”.

Example: When an FM radio broadcast is

received

2Press [TUNING ] or [TUNING ]

repeatedly to select a radio station

(frequency).

• When the main unit has received an FM ste-

reo broadcast, the “ST” (stereo) indicator

lights up in the display window.

■Automatic tuning:

You can also select a radio station using auto-

matic tuning.

Hold down [TUNING ] or [TUNING ] until

the frequency starts changing, and then

release the button.

• When the main unit has received a broad-

cast, the frequency automatically stops

changing.

• You can select a specific radio station while

searching for a broadcast. Press [TUN-

ING ] or [TUNING ] to stop automatic

tuning when the desired frequency appears

in the display window.

NOTE

• If an FM stereo broadcast is difficult to hear

because of noise, you may be able to hear the

broadcast more easily by pressing [FM MODE]

to switch the sound to monaural reception. In

this case, the “MONO” (monaural) indicator

lights up in the display window. To return the

sound to stereo reception, press [FM MODE]

again. “AUTO” is displayed and the “ST” (stereo)

indicator lights up in the display window.

Selecting a radio station

Number

buttons*

Remote control

mode selector

Frequency

Stereo indicator

Preset number

(Refer to page 18.)

Listening to radio broadcasts

NX-F3_NX-F7[B].book Page 17 Tuesday, December 25, 2007 5:11 PM

Listening to radio broadcasts

18

Presetting radio stations in the main unit allows

you to easily tune in to a radio station.

You can store up to 30 FM radio stations and up to

15 AM radio stations.

1Select a radio station you want to

store.

• Refer to “Selecting a radio station” on page

17.

2Press [ENTER].

•“

--

” flashes in the display window for

approximately 5 seconds.

3While “

--

” is flashing, press the

number buttons to select the pre-

set number you want to assign.

• You can also select the preset number by

pressing [PRESET ] or [PRESET ].

4Press [ENTER] while the selected

number is flashing.

• “STORED” appears and the selected radio

station is stored.

NOTE

• When you store a radio station to a preset num-

ber to which another radio station has previously

been stored, the newly set radio station replaces

the previously stored radio station.

■When an FM or AM radio broadcast is

selected as the source

Press the number buttons to select

the preset number of the radio station

to which you want to tune in.

• You can also select the preset number by press-

ing [PRESET ] or [PRESET ].

Radio Data System allows FM radio stations to

send an additional signal along with their regular

program signals.

For example, a radio station sends its radio station

name or information on the types of broadcasted

programs such as sports or music.

You can receive the following types of Radio Data

System signals.

PS (Program Service):

Shows commonly known radio station names.

PTY (Program Type):

Shows types of broadcasted programs.

RT (Radio Text):

Shows text messages sent by the radio station.

Enhanced Other Networks:

Refer to page 21.

NOTE

• The main unit may not receive a Radio Data

System signal from a radio station if the radio

station is not transmitting the signals properly or

if the signal is weak.

Tuning in to a preset radio

station

Presetting radio stations

Tuning in to a preset radio station

Radio Data System

Alarm function

If an “ALARM” (Emergency) signal is received

from a radio station while you are listening to an

FM radio broadcast with Radio Data System, the

main unit automatically switches to the radio

broadcast sending the “ALARM” signal.

(No AM and only some FM radio stations send

broadcasts with Radio Data System.)

Receiving FM radio broadcasts with

Radio Data System

NX-F3_NX-F7[B].book Page 18 Friday, December 21, 2007 5:06 PM

19

Listening to radio broadcasts

You can refer to Radio Data System information in

the display window while listening to an FM radio

broadcast.

■When listening to an FM radio broadcast

Press [DISPLAY] repeatedly.

PS (Program Service):

While the main unit is searching for Radio Data

System information, “WAIT PS” appears and then

the radio station name is displayed in the display

window. “NO PS” appears if no signal is received.

PTY (Program Type):

While the main unit is searching for Radio Data

System information, “WAIT PTY” appears and then

the type of the broadcasted program is displayed

in the display window. “NO PTY” appears if no sig-

nal is received.

RT (Radio Text):

While the main unit is searching for Radio Data

System information, “WAIT RT” appears and then

text messages sent by the radio station are dis-

played in the display window. “NO RT” appears if

no signal is received.

NOTE

• If the main unit takes time to show the Radio

Data System information received from a radio

station, “PS”, “PTY” or “RT” may appear in the

display window.

• When PS, PTY or RT signals appear in the dis-

play window, special characters and symbols

may not be displayed correctly.

You can locate a type of radio program by specify-

ing the corresponding PTY code.

The PTY search is applicable only to the preset

radio stations.

■When an FM radio broadcast is selected as

the source

1Press [PTY SEARCH].

Display on the main unit

2Press [

PTY SELECT] or [PTY

SELECT ] repeatedly to select a

PTY code while “PTY SELECT” is

flashing in the display window.

Example: When “DOCUMENT” is selected

as a PTY code

• Refer to page 20 for the PTY codes.

3Press [PTY SEARCH].

• While the main unit is searching for a radio

program, “SEARCH” and the selected PTY

codes are displayed in the display window.

Example: When “DOCUMENT” is selected

as a PTY code

• The main unit searches 30 preset FM radio

stations, and stops when the main unit finds

the one you have selected. At this time the

selected frequency and PTY code flash.

To search for the next radio station, press

[PTY SEARCH] while the selected fre-

quency and PTY code are flashing. After the

frequency and PTY code stop flashing or if a

button is pressed, the main unit automati-

cally tunes in to the radio station.

• To stop searching, press [PTY SEARCH] or

[CANCEL].

• If no program is found, “NONE” appears in

the display window and the main unit returns

to the last received radio station.

Changing the Radio Data System

information

Searching for programs by PTY

codes (PTY search)

Listening to radio broadcasts (continued)

NX-F3_NX-F7[B].book Page 19 Thursday, January 17, 2008 2:00 PM

Listening to radio broadcasts

20

PTY codes

NONE: Undefined. FINANCE: Stock market reports, commerce and

trading.

NEWS: News. CHILDREN: Programs targeted at a young audi-

ence.

AFFAIRS: Topical program expanding or enlarg-

ing upon news-debate or analysis.

SOCIAL: Programs about sociology, history,

geography, psychology and society.

INFO: Programs the purpose of which is to

impart advice in the widest sense.

RELIGION: Religious programs.

SPORT: Programs concerned with any aspect

of sports.

PHONE IN: Involving members of the public

expressing their views either by

phone or at a public forum.

EDUCATE: Educational programs. TRAVEL: Travel information.

DRAMA: All radio plays and serials. LEISURE: Programs about recreational activi-

ties.

CULTURE: Programs concerning any aspect of

national or regional culture, including

language and theater.

JAZZ: Jazz music.

SCIENCE: Programs about natural sciences and

technology.

COUNTRY: Songs which originate from, or con-

tinue the musical tradition of the

American Southern States.

VARIED: Used for mainly speech-based pro-

grams such as quizzes, panel games

and personality interviews.

NATION M: Current popular music of the nation or

region.

POP M: Commercial music of current popular

appeal.

OLDIES: Music from the so-called “golden age”

of popular music.

ROCK M: Rock music. FOLK M: Music which has its roots in the musi-

cal culture of a particular nation.

EASY M: Current contemporary music consid-

ered to be “easy-listening”.

DOCUMENT:

Programs concerning factual matters,

presented in an investigative style.

LIGHT M: Instrumental music, and vocal or cho-

ral works.

TEST: Broadcasts for testing emergency

broadcast devices or the main unit.

CLASSICS:

Performances of major orchestral

works, symphonies and chamber music.

ALARM: Emergency announcement.

OTHER M: Music not fitting into any of the other

categories.

WEATHER: Weather reports and forecasts.

Classification of the PTY codes for some FM

radio stations may be different from the list

shown above.

For the locations of the remote

control buttons, refer to page 17.

NX-F3_NX-F7[B].book Page 20 Friday, December 21, 2007 5:06 PM

21

Listening to radio broadcasts

The Enhanced Other Networks function allows the

main unit to switch temporarily to a broadcast pro-

gram of your choice (TA, News, or Info) from a dif-

ferent radio station when you are listening to a

Radio Data System radio station.

• Enhanced Other Networks function is applicable

only to the preset radio stations.

Press [TA/News/Info] repeatedly until

the indicator of your desired program

type (TA/News/Info) appears in the dis-

play window.

• Each time you press [TA/News/Info], the indica-

tor in the display window changes.

Example: Display on the main unit

TA: Traffic announcement

News: News

Info: Programs the purpose of which is to

impart advice in the widest sense.

NOTE

• To cancel the Enhanced Other Networks func-

tion, press [TA/News/Info] repeatedly until the

program type indicator (TA/News/Info) turns off

in the display window. Changing the source or

turning off the main unit also cancels the

Enhanced Other Networks function.

• The Enhanced Other Networks data sent from

some radio stations may not be compatible with

this main unit.

• While listening to a program tuned in with the

Enhanced Other Networks function, the radio

station does not change even if another network

radio station starts broadcasting the same

Enhanced Other Networks program.

• While listening to a program tuned in with the

Enhanced Other Networks function, you can

only use [TA/News/Info] and [DISPLAY] as the

tuner operation buttons. If you press any other

button, “LOCKED” appears in the display win-

dow.

• If the radio stations toggle intermittently between

the radio station tuned in to by the Enhanced

Other Networks function and the currently tuned

radio station, press [TA/News/Info] to cancel the

Enhanced Other Networks function.

If there is no radio station broadcasting the

program you have selected:

The main unit continues tuning in to the current

radio station.

When a radio station starts broadcasting the pro-

gram you have selected, the main unit automati-

cally switches to the radio station. The program

type starts flashing in the display window.

When the program is over, the main unit goes back

to the previously tuned radio station, but the

Enhanced Other Networks function still remains

activated.

If there is a radio station broadcasting the pro-

gram you have selected:

The main unit tunes in to the program.The pro-

gram type starts flashing in the display window.

When the program is over, the main unit goes back

to the previously tuned radio station, but the

Enhanced Other Networks function still remains

activated.

Switching to a program type of your

choice temporarily

How the Enhanced Other Networks

function actually works

CASE 1

CASE 2

Listening to radio broadcasts (continued)

For the locations of the remote

control buttons, refer to page 17.

NX-F3_NX-F7[B].book Page 21 Tuesday, December 25, 2007 5:11 PM

Playing back sources from external devices

22

■ IMPORTANT

• Slide the remote control mode

selector to [AUDIO].

1Press [AUDIO IN/DIGITAL IN].

• Each time you press [AUDIO IN/DIGITAL

IN], the display changes to “AUDIO IN” or

“DGTL IN” in the display window.

• “AUDIO IN” is for selecting the device con-

nected to the [AUDIO IN] terminals.

• “DGTL IN” is for selecting the device con-

nected to the [DIGITAL IN] terminal.

• You can also select the connected device as

the source by repeatedly pressing

[SOURCE] on the main unit.

2Start playback on the connected

device.

3Adjust the volume or the sound

quality for your preference.

• Refer to page 13.

NOTE

• Refer also to the operation manual for the con-

nected device.

• You can also operate your set-top box and video

cassette recorder using the remote control of

this system. Refer to pages 53 and 54.

You can select the gain of the signal from the

[AUDIO IN] terminals. Use the initial settings for

normal operation. If the sound is too small or too

loud, change the settings.

1Press [AUDIO IN/DIGITAL IN]

repeatedly to select “AUDIO IN” in

the display window.

2Hold down [ENTER].

• “LEVEL 1” or “LEVEL 2” appears in the dis-

play window.

3Press [ENTER] repeatedly to

select “LEVEL 1” or “LEVEL 2”.

• Each time you press [ENTER], the display

toggles between “LEVEL 1” and “LEVEL 2”.

• The signal gain in “LEVEL 1” is lower than

that in “LEVEL 2”.

• The display returns to “AUDIO IN” in approx-

imately 5 seconds.

Remote control

mode selector

Playing back sources from

external devices

Selecting the signal gain

Playing back sources from external devices

NX-F3_NX-F7[B]-06.fm Page 22 Friday, January 25, 2008 1:49 PM

23

Basic operations of disc/file playback

Basic operations of disc/file playback

*For the number button usage, refer to “Using the

number buttons” on page 13.

■ IMPORTANT

• Slide the remote control mode

selector to [AUDIO].

This part explains how to play back the types of

discs shown above.

1Press 0 on the remote control or

on the main unit.

• The disc tray ejects.

2Place a disc on the disc tray.

• To play back an 8-cm disc, place it on the

inner hollow of the disc tray.

3Press [DVD 3].

• If “DVD” is selected as the source, pressing

3 (playback) can start playback.

NOTE

• Instead of using the remote control in step 3, you

can use the buttons on the main unit. Repeat-

edly pressing [SOURCE] can select “DVD” as

the source, and pressing 3 (playback) starts

playback.

• A menu screen may appear on the TV screen

after DVD playback starts. In such a case, oper-

ate the menu screen, using 5, /, 2, 3 (cur-

sor), the number buttons and [ENTER]. (Refer to

“Selecting a chapter/track from the menu

screen” on page 32.)

Number

buttons*

Remote control

mode selector

5///2/3

(cursor)/

ENTER

3 (playback)

Playing back a disc

Printed surface

Disc tray

NX-F3_NX-F7[B].book Page 23 Tuesday, December 25, 2007 5:11 PM

Basic operations of disc/file playback

24

This part explains how to play back 1) files

recorded on the loaded disc, and 2) files recorded

on a USB mass storage class device (hereinafter

referred to as “USB device”) connected to the main

unit. The operations are explained with a display of

MP3 files as an example.

NOTE

• Also refer to “Notes on files recorded on a con-

nected USB device” on page 60.

• When files of different types (audio/still picture/

video) are recorded on a loaded disc or con-

nected USB device, select the file type before

playback. (Refer to “FILE TYPE” on page 43.)

1

(To play back files on a disc)

Place a disc on the disc tray.

• Refer to steps 1 and 2 on page 23.

(To play back files on a USB device)

Connect the USB device.

NOTE

• You cannot connect a computer to the [USB

MEMORY REC/PLAY] terminal of the system.

• When connecting with a USB cable, use a USB

2.0 cable with a length of less than 1 m.

2

(To play back files on a disc)

Press [DVD 3].

(To play back files on a USB device)

Press [USB 3].

NOTE

• When a file on a USB device is played back, the

“USB” indicator lights up in the display window.

• You can also use the buttons on the main unit.

When you repeatedly press [SOURCE] to select

“DVD” or “USB” in the display window, playback

automatically starts. If playback does not start,

press 3 (playback) on the main unit.

3Press 7 to stop playback.

• The menu screen appears on the TV

screen.

NOTE

• Depending on the file type, the menu screen

appears without pressing 7. At this time, you

can skip step 3.

(Continued on the next page)

Playing back a file



Flash memory device, portable

digital audio player or other

USB mass storage class device

Numbers of the current track (file)

and total tracks (files) included in the

current group

Elapsed playback time of the

current track (MP3/WMA/

WAV/ASF file only)

Playback status

Tag information (MP3/WMA file only)

Current track (file)

Number of the total tracks

(files) recorded on the loaded

disc or connected USB device

When a file recorded on the connected USB

device is selected as the source, “USB” is dis-

played.

Numbers of the current group and total groups

recorded on the loaded disc or connected USB

device

Current group

NX-F3_NX-F7[B].book Page 24 Thursday, January 17, 2008 2:00 PM

25

Basic operations of disc/file playback

4Press 5, /, 2 or 3 (cursor) to

select a group and track.

NOTE

• You can also use the number buttons and 4

or ¢ to select a track.

• You can also select a group by another method.

(1) Slide the remote control mode selector to

[SHIFT], (2) press [GROUP/TITLE], and then (3)

use the number buttons to enter the desired

group number while “_ _” is displayed in the dis-

play window.

5Press [DVD 3], [USB 3] or 3

(playback).

NOTE

• If you have skipped step 3, you do not have to

proceed to step 5.

• JPEG files are continuously played back begin-

ning with the selected file.

• Display time for a file in slide-show playback is

approximately 3 seconds.

• Press [ENTER] to view only the selected file.

■When a disc is played back

■When a disc is stopped

• When “RESUME” is displayed in the display win-

dow, refer to page 30.

Slide-show playback

Display window on the main

unit for disc/file types

DVD VIDEO

Chapter number Elapsed playback time

[DISPLAY] is pressed.

Chapter numberTitle number

Total number of titles

[DISPLAY] is pressed.

Disc type

Basic operations of disc/file playback (continued)

NX-F3_NX-F7[B]-06.fm Page 25 Thursday, January 24, 2008 9:23 AM

Basic operations of disc/file playback

26

■When a disc is played back

• If the “BONUS” or “B.S.P.” indicator lights up dur-

ing DVD AUDIO playback, refer to pages 38 or

40.

■When a disc is stopped

• When “RESUME” is displayed in the display win-

dow, refer to page 30.

■When a disc is played back

• When a play list is played back, “PL” is displayed

instead of “PG”.

■When a disc is stopped

• When a play list is played back, “PL” is displayed

instead of “PG”.

• When “RESUME” is displayed in the display win-

dow, refer to page 30.

DVD AUDIO

Track number Elapsed playback time

[DISPLAY] is pressed.

Track numberGroup number

Track numberGroup number

[DISPLAY] is pressed.

Disc type

DVD VR

Chapter number Elapsed playback time

[DISPLAY] is pressed.

Chapter numberOriginal program

number

Original program number

[DISPLAY] is pressed.

Disc type

For the locations of the remote

control buttons, refer to page 23.

NX-F3_NX-F7[B]-06.fm Page 26 Friday, March 21, 2008 2:33 PM

27

Basic operations of disc/file playback

■When a disc is played back

• You can use the menu screen to control play-

back of a PBC compatible disc.

• To cancel the PBC function, follow the instruc-

tions below.

- Specify the track number using the number

buttons when the disc is stopped.

- Specify the track number using 4 or ¢

when the disc is stopped, and then press

[DVD 3] or 3 (playback).

• When the PBC function is canceled, the “PBC”

display disappears and the elapsed playback

time appears.

• To restore the PBC function, press [TOP MENU/

PG] or [MENU/PL], or open the disc tray once.

• Press [RETURN] to return to the upper layer

during PBC playback.

■When a disc is stopped

(When the PBC function is activated)

• When “RESUME” is displayed in the display win-

dow, refer to page 30.

• When a VCD is stopped, “VCD” is displayed as

shown above.

• When an SVCD is stopped, “SVCD” is displayed

as the disc type.

■When a disc is played back

■When a disc is stopped

VCD/SVCD

Track number Playback control

Total playback timeTotal number

of tracks

A few seconds

later

Playback control

[DISPLAY] is pressed.

Disc type Playback control

CD

Elapsed playback timeTrack number

Total number of tracks Total playback time

[DISPLAY] is pressed.

Disc type

Basic operations of disc/file playback (continued)

NX-F3_NX-F7[B]-06.fm Page 27 Friday, March 21, 2008 2:44 PM

Basic operations of disc/file playback

28

■When a file is played back

■When a file is stopped

• When “RESUME” is displayed in the display win-

dow, refer to page 30.

• The display differs according to the file type.

When a file is stopped, “MP3”, “WMA”, “WAV”,

“ASF”, “DIVX” or “MPEG” appears. (The

“MPEG” display refers to an MPEG1 or MPEG2

file.)

■When a file is played back

■When a file is stopped

MP3/WMA/WAV/ASF/DivX/MPEG1/

MPEG2 file

Track number Elapsed playback time

[DISPLAY] is pressed.

Track numberGroup number

Group number Track number

[DISPLAY] is pressed.

File type

JPEG file

File number File type

[DISPLAY] is pressed.

File numberGroup number

File number File type

[DISPLAY] is pressed.

File type

For the locations of the remote

control buttons, refer to page 23.

NX-F3_NX-F7[B].book Page 28 Tuesday, December 25, 2007 5:11 PM

29

Basic operations of disc/file playback

When a DVD VIDEO or a USB device is selected

as the source, the messages shown below are dis-

played on the TV screen to indicate the status of

the DVD VIDEO or USB device.

The indicators corresponding to the status below

light up in the display window.

■Digital signal format indicators

NOTE

• Any digital signal indicators do not light up when

an analog signal comes in.

■Dolby Surround mode indicator

■Source signal and other indicators

Messages on the TV screen

: Containing multi-view angles (Refer to

page 40.)

: Containing multi-audio languages

(Refer to page 36.)

: Containing multi-subtitle languages

(Refer to page 36.)

: The disc/file cannot accept the opera-

tion you have attempted.

: Play

: Pause

: Fast reverse/fast forward search

:

Slow motion playback (reverse/

forward directions)

NOW READING:

Appears when the main unit is reading the disc/

file information. Wait for a short time.

REGION CODE ERROR!:

Appears when the region code of the disc does

not match the code supported by the main unit.

(Refer to page 58.)

NO DISC:

Appears when no disc is loaded.

NO USB DEVICE:

Appears when a USB device is not connected.

OPEN:

Appears when the disc tray is opening.

CLOSE:

Appears when the disc tray is closing.

CANNOT PLAY THIS DISC:

Appears when attempting to play back an

unplayable disc.

CANNOT PLAY THIS DEVICE:

Appears when there are no playable files on a

USB device.

Guide icons on the TV screen

(on-screen guide)

Lights up when Dolby Digital signal comes

in.

Lights up when DTS Digital (Surround)

signal comes in.

Lights up when DVD AUDIO packed PCM

signal comes in.

Lights up when linear PCM signal comes

in.

Lights up when Dolby Pro Logic II mode is

activated.

Lights up when the left channel signal

comes in.

Lights up when the center channel signal

comes in.

Lights up when the right channel signal

comes in.

Lights up when the LFE channel signal

comes in.

Lights up when the left surround channel

signal comes in.

Lights up when the monaural surround

channel signal or 2-channel Dolby Sur-

round signal comes in.

Lights up when the right surround channel

signal comes in.

Lights up when the left/right speakers and

the subwoofer are in use. (Disappears

when headphones are connected to the

[PHONES] terminal.)

Indicators in the display window

Basic operations of disc/file playback (continued)

NX-F3_NX-F7[B]-06.fm Page 29 Wednesday, December 26, 2007 9:25 AM

Basic operations of disc/file playback

30

■When a disc/file is played back

Press 7.

When playback is stopped in the middle, playback

can be started from the stopped position.

■When a disc/file is played back

Follow any of the operations below.

*1 “RESUME” is displayed in the display window.

If 7 is pressed twice, the position where

playback has been stopped is cleared.

*2 After this operation, the position where playback

has been stopped is stored even when the main

unit is turned off by pressing [AUDIO F].

*3 When you press [AUDIO F] to turn on the

main unit again, the position where playback

has been stopped is cleared.

■When a disc/file is stopped in the middle

Press [DVD 3] or [USB 3].

NOTE

• This function does not work in program playback

or random playback.

• The stored position is cleared if the disc tray is

opened or the USB device is disconnected.

• You can deactivate the resume playback func-

tion. (Refer to “RESUME” on page 44.)

• When a file on the USB device is selected as the

source, this function may not work as explained

above.

■When a disc/file is played back

Press 8.

• To return to normal playback, press [DVD 3],

[USB 3] or 3(playback).

■When a disc/file is paused

Press 8 repeatedly.

• To return to normal playback, press [DVD 3],

[USB 3] or 3(playback).

There are two methods.

■When a disc/file is played back

• Press 1 or ¡.

Each time you press ¡, the speed increases.

To restore the normal speed, press [DVD 3],

[USB 3] or 3(playback).

• Hold down 4 or ¢.

NOTE

• For some discs/files, sound is intermittent or no

sound is produced during fast reverse/fast for-

ward search.

• The selectable speeds and displays vary by the

disc/file type.

Stopping playback

Resuming playback

Press 7 once to stop playback.*1 *2

Select a source other than “DVD” or “USB” in the

display window.*2

Press [AUDIOF] to turn off the main unit.*3

Temporarily stopping playback

Starting playback from the stored

position

Pausing playback

Advancing the picture frame

by frame

Fast reverse/fast forward

search

(only for moving images)

For the locations of the remote

control buttons, refer to page 23.

NX-F3_NX-F7[B].book Page 30 Tuesday, December 25, 2007 5:11 PM

31

Basic operations of disc/file playback

■When a disc is played back

Press .

NOTE

• You cannot go back to the previous title and orig-

inal program (play list).

■When a disc is paused

Press [ SLOW] or [SLOW ].

• Each time you press [ SLOW] or [SLOW ],

the speed increases.

• Press 8 to pause playback, and press [DVD

3]

or 3(playback) to return to normal playback.

NOTE

• No sound is produced.

• The picture motion in the reverse direction may

not be smooth.

• For a VCD, SVCD or DVD VR, slow motion play-

back can be used in the forward direction only.

■When a disc/file is played back

Press 4 or ¢ repeatedly.

NOTE

• You cannot skip to the previous track even by

pressing 4 during random playback. (Refer to

page 35.)

• You can also select a title or group. (1) Slide the

remote control mode selector to [SHIFT], (2)

press [GROUP/TITLE], and then (3) use the

number buttons to enter the desired title or

group number while “_ _” is displayed in the dis-

play window. At this time, for a DVD VR, the

“PG” or “PL” indicator lights up in the display

window.

■When a disc/file is played back

Use the number buttons to select the

chapter number or track number.

NOTE

• To cancel the PBC function for VCD/SVCD, refer

to page 27.

You can skip within a file at approximately 5 minute

intervals. This is useful especially when you want

to skip within a long file.

■When a disc/file is played back

Press 2 or 3 (cursor).

• Each time you press 2 or 3 (cursor), the play-

back position skips to the beginning of the previ-

ous or next interval. Each interval is

approximately 5 minutes.

NOTE

• Intervals are automatically assigned from the

beginning of a file.

• You can use this function only within the same

file.

Playing back from a position

10 seconds before

Slow motion playback

Skipping to the beginning of

a chapter/track/file

(only for moving images)

Selecting a chapter/track

using the number buttons

Skipping at approximately 5

minute intervals

(PBC off)

Basic operations of disc/file playback (continued)

NX-F3_NX-F7[B]-06.fm Page 31 Thursday, January 24, 2008 1:24 PM

Basic operations of disc/file playback

32

■When a disc is stopped or played back

1Press [TOP MENU/PG] or [MENU/

PL].

• The menu screen is displayed.

• Pressing [TOP MENU/PG] may not work

depending on the disc type. In this case,

press [MENU/PL].

2Press 5, /, 2 or 3 (cursor) to

select the selection menu for

chapters or tracks.

3Press [ENTER].

4Press 5, /, 2 or 3 to select the

desired chapter or track.

5Press [ENTER].

NOTE

• You can use this function only when a menu

screen is recorded on the disc.

• Depending on a disc, you may proceed to step 4

when you finish step 1.

• Playback may start for some discs without

pressing [ENTER] in step 5.

■When a disc is played back with the PBC

function activated

1Press [RETURN] once or more.

2Press the number buttons to

select the desired track.

NOTE

• For a VCD/SVCD whose menu screen has a

couple of pages, you can change the page by

pressing 4 or ¢ in step 2.

■When a disc is stopped or played back

1Press [TOP MENU/PG] to display

the original program or press

[MENU/PL] to display the play list.

Original program

Play list

• The play list does not appear when a play

list has not been recorded to the disc.

2Press 5 or / (cursor) to select the

desired title.

3Press [ENTER].

• When you have selected the original pro-

gram by pressing [TOP MENU/PG] in step

1, playback starts from the selected title.

• When you have selected the play list by

pressing [MENU/PL] in step 1, only the

selected title is played back.

Selecting a chapter/track

from the menu screen

Title name

Starting time for the title

recording

Channel information

Recording date

Total playback time for

the title

Number of chapters

included in the title

Recording date

For the locations of the remote

control buttons, refer to page 23.

NX-F3_NX-F7[B]-06.fm Page 32 Wednesday, December 26, 2007 9:23 AM

33

Convenient functions of disc/file playback

*For the number button usage, refer to “Using the

number buttons” on page 13.

■ IMPORTANT

• Some buttons change their functions according

to the remote control mode.

• Before using the functions

described in “Convenient func-

tions of disc/file playback” (other

than [AUDIO], [SUBTITLE],

[ZOOM], [VFP] or [GROUP/

TITLE]), slide the remote control

mode selector to [AUDIO].

You can program a maximum of 99 chapters or

tracks. The same chapter or track can be pro-

grammed more than once.

■When a disc/file is stopped

1Press [PLAY MODE] to display

“PROGRAM” in the display win-

dow.

• If you accidentally pressed [PLAY MODE]

twice or more, press [PLAY MODE] repeat-

edly until “PROGRAM” is displayed.

Display window

Example: TV screen for a DVD VIDEO

(Program screen)

Number

buttons*

Remote control

mode selector

5///2/3

(cursor)/

ENTER

3 (playback)

Playing back a disc/file in the

desired order (Program

playback)

(only on a loaded disc)

This indicator lights up when the program

playback function is activated.

Convenient functions of disc/file playback

NX-F3_NX-F7[B].book Page 33 Tuesday, January 15, 2008 4:39 PM

34

Convenient functions of disc/file playback

2Press the number buttons to pro-

gram tracks/chapters.

• You can refer to the program number in the

display window by pressing [DISPLAY].

Display for a DVD VIDEO

• Select a title number, and then a chapter

number.

Display for a DVD AUDIO/MP3/WMA/WAV

file

• Select a group number and then a track

number.

.

Display for a VCD/SVCD/CD

• Select a track number.

• As you finish the track selection, the total

time for the program playback is displayed.

.

Example: TV screen for a DVD VIDEO

(Program screen)

• Before selecting a bonus group of a DVD

AUDIO, cancel the “BONUS” indicator as

explained in “Playing back the bonus group”

on page 38.

NOTE

• Instead of using the number buttons, when you

press [ENTER] in the “Track/Chapter” column on

the TV screen, “ALL” appears and all the chap-

ters/tracks in the selected title/group are pro-

grammed. (Only for a DVD VIDEO/DVD AUDIO/

MP3/WMA/WAV file)

• You can erase the programmed tracks one by

one from the bottom of the list on the program

screen by pressing [CANCEL] repeatedly.

• You can erase the whole program by holding

down [CANCEL].

• Opening the disc tray also erases the program.

3Press [DVD 3] or 3(playback).

■When a disc/file is played back

Press 7.

• Playback stops and the program screen appears

on the TV screen.

■When a disc/file is stopped

Press [PLAY MODE] repeatedly to dis-

play an item other than “PROGRAM”

in the display window.

• This operation does not erase the program.

Title number Chapter number

[DISPLAY] is pressed.

Program number Chapter number

Group number Track number

[DISPLAY] is pressed.

Program number Track number

Total playback timeTrack number

[DISPLAY] is pressed.

Program number Track number

Confirming the program

Canceling program playback

NX-F3_NX-F7[B].book Page 34 Tuesday, December 25, 2007 5:11 PM

35

Convenient functions of disc/file playback

■When a disc/file is stopped

1Press [PLAY MODE] repeatedly to

display “RANDOM” in the display

window.

2Press [DVD 3] or 3(playback).

NOTE

• Each chapter or track is played back only once.

■When a disc/file is stopped

Press [PLAY MODE] repeatedly to dis-

play an item other than “RANDOM” in

the display window.

• Opening the disc tray also cancels random play-

back.

■When a disc/file is played back

Press [REPEAT].

• Each time you press [REPEAT], the repeat

mode changes.

*1For some discs/files, “REPEAT” may appear

instead of “ ”

*2“STEP” is displayed during program/random

playback.

*3Repeats the whole program during program

playback.

*4For some discs/files, no display may appear.

NOTE

• You can also use the menu bar to set repeat

playback. (Refer to page 40.)

• You can also specify a part to be played back

repeatedly by using A-B repeat playback. (Refer

to page 41.)

• The repeat mode is automatically canceled if

there is a file that cannot be played back.

• For some discs, stopping playback may auto-

matically cancel repeat playback.

• To cancel the PBC function for VCD/SVCD, refer

to page 27.

Playing back a disc/file in a

random order

(Random playback)

(only on a loaded disc)

This indicator lights up when the random

playback function is activated.

Canceling random playback

Playing back a disc/file

repeatedly (Repeat playback)

Indicator in the

display window

Display on

the TV

screen*1

Usage for the

repeat mode

TITLE Repeats the

current title.

PG

Repeats the cur-

rent original pro-

gram.

PL

Repeats the cur-

rent play list.

GROUP

Repeats the cur-

rent group.

CHAP*2Repeats the cur-

rent chapter.

TRACK

*2Repeats the cur-

rent track.

ALL

Repeats all

chapters/

tracks.*3

OFF*4Cancels repeat.

(PBC off)

1

ALL

Convenient functions of disc/file playback (continued)

NX-F3_NX-F7[B]-07.fm Page 35 Thursday, January 24, 2008 9:26 AM

36

Convenient functions of disc/file playback

■When a disc/file is played back

■ IMPORTANT

• Slide the remote control mode

selector to [SHIFT].

1Press the desired button shown

below.

Example: TV screen for the subtitle

language

2Press5 or / (cursor) to select the

desired language.

NOTE

• It is recommended that you slide the remote

control mode selector to [AUDIO] after using

these functions. Most of the other functions can

be used when the remote control mode selector

is at [AUDIO].

• Pressing [AUDIO] repeatedly also changes the

audio languages.

• Pressing [SUBTITLE] repeatedly turns the subti-

tle display on and off.

• You can only select these function settings when

the disc/file contains multiple audio languages or

subtitle languages.

• When a language code such as “AA” and “AB” is

displayed, refer to “Language codes” on page

45.

• You can also use the menu bar to set the func-

tions. Refer to page 40.

• When a DVD VR, VCD or SVCD is played back,

“ST” (stereo), “L” (left) and “R” (right) are dis-

played on the TV screen.

■When a disc/file is played back or paused

■ IMPORTANT

• Slide the remote control mode

selector to [SHIFT].

1Press [ZOOM].

• Each time you press [ZOOM], the picture

magnification changes on the TV screen.

2Select the area of image you want

to magnify by using 5, /, 2 or 3

(cursor).

• To return to normal playback, select “ZOOM

OFF” in step 1.

NOTE

• It is recommended that you slide the remote

control mode selector to [AUDIO] after using this

function. Most of the other functions can be used

when the remote control mode selector is at

[AUDIO].

• You cannot change the picture magnification

during slide-show playback of JPEG files.

• During ASF file playback, 5, /, 2 or 3 (cursor)

may not work in step 2.

• When you magnify a picture, image quality may

be deteriorated or the image may be distorted.

Selecting the audio language

and subtitle language

Function Button Available disc/file

Audio

language

[AUDIO]

Subtitle

language

[SUBTITLE]

(only for moving images)

: Audio language

: Subtitle language

Magnifying the picture

(only for moving images)

For the locations of the remote

control buttons, refer to page 33.

NX-F3_NX-F7[B].book Page 36 Thursday, January 17, 2008 2:00 PM

37

Convenient functions of disc/file playback

■When a disc/file is played back or paused

■ IMPORTANT

• Slide the remote control mode

selector to [SHIFT].

1Press [VFP].

• The current settings are displayed.

Example: TV screen for the VFP mode

2Press 2 or 3 (cursor) to select the

video fine processor (VFP) mode.

• Each time you press 2 or 3 (cursor), VFP

mode changes on the TV screen as follows.

- “NORMAL”

For normal playback. (You cannot adjust

the image quality.) Go to step 7.

- “CINEMA”

Suitable for viewing a movie in a dim room.

(You cannot adjust the image quality.)

Go to step 7.

- “USER1/USER2”

You can adjust the image quality.

Go to step 3.

3Press 5 or / (cursor) to select the

item you want to adjust.

• Each time you press 5 or / (cursor), the

item changes on the TV screen as follows.

- “GAMMA”

Controls the brightness of neutral tints

while maintaining the brightness of dark

and light portions.

(Setting range: –3 to +3)

- “BRIGHTNESS”

Controls the brightness of the display.

(Setting range: –8 to +8)

- “CONTRAST”

Controls the contrast of the display.

(Setting range: –7 to +7)

-“SATURATION”

Controls the saturation of the display.

(Setting range: –7 to +7)

-“TINT”

Controls the tint of the display.

(Setting range: –7 to +7)

- “SHARPNESS”

Controls the sharpness of the display.

(Setting range: –8 to +8)

4Press [ENTER].

Example: TV screen for “GAMMA”

5Press 5 or / (cursor) to change

the value.

6Press [ENTER].

• To adjust other items, go back to step 3.

7Press [VFP].

NOTE

• It is recommended that you slide the remote

control mode selector to [AUDIO] after using this

function. Most of the other functions can be used

when the remote control mode selector is at

[AUDIO].

• If no operation is made for several seconds dur-

ing the procedure, the settings made so far are

automatically stored.

• When the [HDMI MONITOR OUT] terminal is

connected, this function does not affect the pic-

ture quality.

Adjusting the picture quality

(VFP)

Selected VFP mode

Convenient functions of disc/file playback (continued)

NX-F3_NX-F7[B].book Page 37 Tuesday, January 15, 2008 4:39 PM

38

Convenient functions of disc/file playback

Some DVD AUDIOs may have a special group,

called “bonus group”. You can use this function

when the “BONUS” indicator lights up in the dis-

play window.

■When a disc is played back

■ IMPORTANT

• Slide the remote control mode

selector to [SHIFT].

1Press [GROUP/TITLE].

2Press ¢ repeatedly to select a

bonus group.

• “KEY_ _ _ _” appears on the TV screen, and

in the display window.

3Press the number buttons to enter

the pin code (four digits).

• The method of obtaining a pin code differs

depending on the disc.

4Press [ENTER].

• When the correct pin code is entered, the

“BONUS” indicator disappears in the display

window and the playback of the bonus

group starts.

• If an incorrect pin code is entered, try enter-

ing the correct pin code again.

Playing back the bonus group

For the locations of the remote

control buttons, refer to page 33.

NX-F3_NX-F7[B].book Page 38 Friday, December 21, 2007 5:06 PM

39

Convenient functions of disc/file playback

■When a disc/file is played back

1Press [ON SCREEN] twice.

Example: TV screen for a DVD VIDEO

2Press 2 or 3 (cursor) to select an

item you want to operate.

3Press [ENTER].

4Press 5 or / (cursor) to select

your desired setting.

NOTE

• To turn off the status bar and the menu bar,

press [ON SCREEN].

DVD VIDEO/DVD AUDIO/DVD VR

Example: Status bar for a DVD VIDEO

VCD/SVCD/CD/ASF/DivX/MPEG1/MPEG2 file

Example: Status bar for a CD

NOTE

*The playback status has the same meaning of

the guide icons on the TV screen. (Refer to page

29.)

Status bar

Menu bar

Information displayed on the status

bar

(DVD VIDEO/DVD AUDIO)

Current title/group number

(DVD VR)

Current original program number (PG)/

current play list number (PL)

Current chapter/track number

Time

Playback status*

(DVD VIDEO/DVD AUDIO/DVD VR)

Audio encoding mode

Playback mode status

(VCD/SVCD/CD)

Current track number

(ASF/DivX/MPEG1/MPEG2 file)

Repeat mode status

Time

Playback status*

Using the status bar and the menu bar

NX-F3_NX-F7[B].book Page 39 Tuesday, January 15, 2008 4:39 PM

40

Convenient functions of disc/file playback

Function list

Time display

selection

Changes the time information in the

display window and the status bar.

Instead of steps 3 and 4 on page 39,

press [ENTER] repeatedly. Each time

[ENTER] is pressed, the display

changes on the status bar.

■When a disc is played back

TOTAL :

Elapsed playback time of

the current title/group.

T.REM : Remaining time of the cur-

rent title

/group

.

TIME : Elapsed playback time of

the current chapter/track.

REM : Remaining time of the cur-

rent chapter/track.

■When a disc is played back

TOTAL : Elapsed playback time of

the current original pro-

gram/play list.

T.REM : Remaining time of the cur-

rent original program/play

list.

■When a disc is played back

TIME : Elapsed playback time of

the current track.

REM : Remaining time of the cur-

rent track.

TOTAL : Elapsed playback time of

the disc.

T.REM : Remaining time of the disc.

TIME

Repeat mode

Refer to page 35.

(For A-B repeat playback, refer to

page 41.)

Time search

Refer to page 41.

Chapter search/

track search Selects a chapter/track. Instead of

steps 4 on page 39, press the number

buttons to enter the chapter/track

number and press [ENTER].

Examples:

5 : [5]

24 : [2] → [4]

Audio language

Refer to page 36.

Subtitle language

Refer to page 36.

View angle

■When a disc is played back

Selects a view angle if the disc con-

tains multiple view angles.

Page selection ■When a disc is played back

Selects browsable still pictures

(B.S.P.) if the DVD AUDIO contains

ones and the “B.S.P.” indicator lights

up in the display window. The pictures

can be viewed as if you are turning

pages. For some pictures, you may

have to press [ENTER] or wait for a

short time after step 4 on page 39.

(chapter search)

(track search)

(only for moving images)

For the locations of the remote

control buttons, refer to page 33.

NX-F3_NX-F7[B].book Page 40 Thursday, January 17, 2008 2:00 PM

41

Convenient functions of disc/file playback

You can play back a desired part repeatedly by

specifying a start point (A) and an end point (B).

■When a disc is played back

1Press [ON SCREEN] twice.

• The menu bar appears. (Refer to page 39.)

2Press 2 or 3 (cursor) to select

.

3Press [ENTER].

4Press 5 or / (cursor) to select “A-

B”.

5Press [ENTER] at the start point of

the part to be repeated (specifying

point A).

• The icon on the menu bar is .

6Press [ENTER] at the end point of

the part to be repeated (specifying

point B).

• The icon on the menu bar is .

• The “ ” and “A-B” indicators light up in the

display window and the part between points

A and B is played back repeatedly.

There are two methods.

• Press 7.

• Select . (Select and press

[ENTER] twice.)

NOTE

• You can use A-B repeat playback only within the

same title or track.

• You cannot use A-B repeat playback during pro-

gram playback or random playback.

• To cancel the PBC function for VCD/SVCD, refer

to page 27.

• For some discs, stopping playback may auto-

matically cancel A-B repeat playback.

■When a disc is played back

1Press [ON SCREEN] twice.

• The menu bar appears. (Refer to page 39.)

2Press 2 or 3 (cursor) to select

.

3Press [ENTER].

4Enter the time using the number

buttons.

Example:

When you want to play back a DVD VIDEO from

the position of (0 hour) 23 minutes 45 seconds,

press the number buttons in the order of [ 0 ], [ 2 ],

[ 3 ], [ 4 ] and [ 5 ].

• You can skip entering the minute and sec-

ond settings.

• If an incorrect value is entered, press 2

(cursor) to delete the value and enter the

correct value.

5Press [ENTER].

• To turn off the menu bar, press [ON

SCREEN].

NOTE

• This function does not work during program

playback or random playback.

• Time search for a DVD VIDEO is from the begin-

ning of the title.

• Time search for a DVD AUDIO is from the begin-

ning of the track being played back.

• Time search for a VCD, an SVCD and a CD is as

follows:

- When the disc is stopped, time search is from

the beginning of the disc.

- When the disc is played back, time search is

within the track currently being played back.

• To cancel the PBC function for VCD/SVCD, refer

to page 27.

Playing back a specified part

repeatedly (A-B repeat

playback)

(PBC off)

Canceling A-B repeat playback

Designating the time (Time

search)

(PBC off)

Using the status bar and the menu bar (continued)

For the locations of the remote

control buttons, refer to page 33.

NX-F3_NX-F7[B]-07.fm Page 41 Thursday, January 24, 2008 9:27 AM

42

Convenient functions of disc/file playback

You can use the preference screen to change the

initial settings of the main unit according to the

environment where the main unit is used.

■ IMPORTANT

• Slide the remote control mode

selector to [SHIFT].

NOTE

• The top and bottom of the preference screen

may not be displayed on a widescreen TV.

Adjust the picture size on the TV.

■When a disc/file is stopped or no disc is

loaded (“NO DISC” is displayed in the dis-

play window)

1Press [SET UP].

• The preference screen appears on the TV

screen.

2Use 5, /, 2, 3 (cursor) and

[ENTER] to operate the preference

screen.

• Follow the description on the TV screen to

operate the preference screen.

NOTE

• It is recommended that you slide the remote

control mode selector to [AUDIO] after using this

function. Most of the other functions can be used

when the remote control mode selector is at

[AUDIO].

NOTE

• If the selected language is not recorded on the

disc/file, the optimum language set for the disc/

file is displayed.

• For a language code such as “AA”, refer to the

“Language codes” on page 45.

Remote control

mode selector

5///2/3

(cursor)/

ENTER

Basic operations

LANGUAGE

Items Contents

MENU

LANGUAGE

Select the language for the DVD

VIDEO menu screen.

AUDIO

LANGUAGE

Select the audio language for the DVD

VIDEO.

SUBTITLE Select the subtitle language for the

DVD VIDEO.

ON SCREEN

LANGUAGE

Select the language displayed on the

preference screen.

Changing the initial settings with the preference screen

NX-F3_NX-F7[B].book Page 42 Tuesday, January 15, 2008 4:39 PM

43

Convenient functions of disc/file playback


Items Contents ( : initial setting)

MONITOR

TYPE

Select the display method suitable for

your TV.

4 : 3 PS (Pan Scan) :

For a TV with conventional 4:3 aspect

ratio. When a widescreen picture is input,

the left and right edges of the picture are

not shown on the screen. (If the disc/file

is not compatible with Pan Scan, the pic-

ture is displayed at the Letterbox ratio.)

:

For a TV with conventional 4:3 aspect

ratio. When a widescreen picture is input,

black bars appear on the top and bottom

of the screen.

16 : 9 NORMAL :

For a widescreen TV whose aspect ratio

is fixed at 16:9. When a conventional

screen picture whose aspect ratio is 4:3

is input, black bars appear on the left and

right sides of the screen.

16:9 AUTO :

For a widescreen TV which automatically

detects the aspect ratio of the input

screen picture.

When a conventional screen picture is input

When a widescreen picture is input

4 : 3 LB (Letterbox)


SOURCE

Select the item suitable to the video

source.

:

The video source type (a video or film) is

automatically selected.

FILM :

To view a film or video recorded with the

progressive scan method

VIDEO :

Suitable for playing back a video

SCREEN

SAVER You can turn or OFF the screen

saver. The screen saver activates when

there is no operation made for approxi-

mately 5 minutes since a still picture was

last displayed.

FILE TYPE When files of different types are recorded

on a loaded disc or connected USB

device, select the file type before play-

back.

:

For MP3/WMA/WAV files

STILL PICTURE :

For JPEG files

VIDEO :

For ASF/DivX/MPEG1/MPEG2 files

HDMI DVI

COLOR

You can select the settings for the picture

appearance (image quality, color intensity

and black fading) on the TV connected to

the [HDMI MONITOR OUT] terminal.

STANDARD :

For normal usage

:

The main unit automatically adjusts the

picture appearance.

HDMI OUT

You can select the video signal type out-

put from the [HDMI MONITOR OUT] ter-

minal.

:

For normal usage. The main unit auto-

matically selects the output video signal

type according to the TV connected to

the [HDMI MONITOR OUT] terminal.

RGB :

Select this item if no picture appears on

the TV with the “AUTO” setting. The out-

put video signal type is set to the RGB

signal.

Items Contents ( : initial setting)

AUTO

ON

AUDIO

ENHANCE

AUTO

Changing the initial settings with the preference screen (continued)

NX-F3_NX-F7[B].book Page 43 Friday, December 21, 2007 5:06 PM

44

Convenient functions of disc/file playback

?? AUDIO

Items Contents ( : initial setting)

DIGITAL

AUDIO

OUTPUT

Select the output signal type suitable to

the device connected to the [DIGITAL

OUT] terminal. Refer to “List of relation-

ships of DIGITAL AUDIO OUTPUT pref-

erence items and output signals” on page

45.

PCM ONLY :

Device corresponding only to linear PCM

DOLBY DIGITAL/PCM :

Dolby Digital decoder or device having

the same function

:

DTS/Dolby Digital decoder or device hav-

ing the same function

NOTE

• When the [HDMI MONITOR OUT] ter-

minal is connected and “HDMI AUDIO

OUT” is set to “ON”, this setting is

deactivated.

DOWN MIX Select the signal suitable to the device

connected to the [DIGITAL OUT] termi-

nal. Set “DOWN MIX” only when “DIGI-

TAL AUDIO OUTPUT” is set to “PCM

ONLY”.

DOLBY SURROUND :

Dolby Pro Logic decoder-built-in device

:

Ordinary audio device

D (Dynamic).

RANGE

COMPRESSION

To correct the difference between high

volume and low volume when playing

back with low volume (only for a DVD

recorded with Dolby Digital).

:

The D. RANGE COMPRESSION function

automatically turns on.

ON :

The D. RANGE COMPRESSION function

is always on.

HDMI

AUDIO OUT

You can select whether or not the audio

signal from the [HDMI MONITOR OUT]

terminal is output.

ON :

The audio signal from the [HDMI MONI-

TOR OUT] is output.

:

The audio signal from the [HDMI MONI-

TOR OUT] is not output.

NOTE

• Depending on the connected TV, when

“HDMI AUDIO OUT” is set to “ON”,

only PCM signals can be output via an

HDMI cable.

STREAM/PCM

STEREO

AUTO

OFF

?? OTHERS

Items Contents ( : initial setting)

RESUME Select or OFF. (Refer to page 30.)

ON

SCREEN

GUIDE

Select or OFF. (Refer to page 29.)

CEC

You can select the usage for the HDMI

CEC functions. (Refer to page 55.)

:

For using the HDMI CEC functions nor-

mally

ON 2:

Select this item if you do not want to have

the main unit automatically turned on/off

by turning on/off the TV or external con-

nected HDMI CEC compatible devices.

All other available HDMI CEC functions

operate the same as when “ON 1” is

selected.

OFF:

For deactivating the HDMI CEC functions

DivX

REGISTRATION

The main unit has its own registration

code. You can confirm the registration

code, when necessary. Once you have

played back a disc/file on which the regis-

tration code is recorded, the registration

code of the main unit is overwritten for

copyright protection.

ON

ON

ON 1

NX-F3_NX-F7[B]-07.fm Page 44 Thursday, January 17, 2008 3:23 PM

45

Convenient functions of disc/file playback

NOTE

• Among DVD VIDEOs without copyright protection, there may be some DVD VIDEOs that output a 20- or

24-bit signal through the [DIGITAL OUT] terminal.

Language codes

List of relationships of DIGITAL AUDIO OUTPUT preference items and output

signals

Playback disc/file DIGITAL AUDIO OUTPUT preference

STREAM/PCM DOLBY DIGITAL/PCM PCM ONLY

48 kHz, 16/20/24-bit linear PCM

DVD VIDEO

96 kHz linear PCM DVD VIDEO

48 kHz, 16-bit stereo linear PCM

48/96/192 kHz, 16/20/24-bit lin-

ear PCM DVD AUDIO 48 kHz, 16-bit stereo linear PCM

44.1/88.2/176.4 kHz, 16/20/24-bit

linear PCM DVD AUDIO 44.1 kHz, 16-bit stereo linear PCM

DTS DVD VIDEO/DVD AUDIO DTS bit stream 48 kHz, 16-bit stereo linear PCM

DOLBY DIGITAL DVD VIDEO/

DVD AUDIO DOLBY DIGITAL bit stream 48 kHz, 16-bit stereo linear

PCM

CD/VCD/SVCD 44.1 kHz, 16-bit stereo linear PCM

48 kHz, 16-bit linear PCM

DTS CD DTS bit stream 44.1 kHz, 16-bit linear PCM

MP3/WMA/WAV/DivX/MPEG1/

MPEG2 file 32/44.1/48 kHz, 16-bit linear PCM

Code Language Code Language Code Language Code Language

AA Afar GD Scots Gaelic MI Maori SN Shona

AB Abkhazian GL Galician MK Macedonian SO Somali

AF Afrikaans GN Guarani ML Malayalam SQ Albanian

AM Ameharic GU Gujarati MN Mongolian SR Serbian

AR Arabic HA Hausa MO Moldavian SS Siswati

AS Assamese HI Hindi MR Marathi ST Sesotho

AY Aymara HR Croatian MS Malay (MAY) SU Sundanese

AZ Azerbaijani HY Armenian MT Maltese SV Swedish

BA Bashkir IA Interlingua MY Burmese SW Swahili

BE Byelorussian IE Interlingue NA Nauru TA Tamil

BG Bulgarian IK Inupiak NE Nepali TE Telugu

BH Bihari IN Indonesian NL Dutch TG Tajik

BI Bislama IS Icelandic NO Norwegian TH Thai

BN Bengali, Bangla IW Hebrew OC Occitan TI Tigrinya

BO Tibetan JI Yiddish OM (Afan) Oromo TK Turkmen

BR Breton JW Javanese OR Oriya TL Tagalog

CA Catalan KA Georgian PA Panjabi TN Setswana

CO Corsican KK Kazakh PS Pashto, Pushto TO Tonga

CY Welsh KL Greenlandic PT Portuguese TR Turkish

DA Danish KM Cambodian QU Quechua TS Tsonga

DZ Bhutani KN Kannada RM Rhaeto-Romance TT Tatar

EL Greek KO Korean (KOR) RN Kirundi TW Twi

EO Esperanto KS Kashmiri RO Rumanian UK Ukrainian

ET Estonian KU Kurdish RW Kinyarwanda UR Urdu

EU Basque KY Kirghiz SA Sanskrit UZ Uzbek

FA Persian LA Latin SD Sindhi VI Vietnamese

FI Finnish LN Lingala SG Sangho VO Volapuk

FJ Fiji LO Laothian SH Serbo-Croatian WO Wolof

FO Faroese LT Lithuanian SI Singhalese XH Xhosa

FY Frisian LV Latvian, Lettish SL Slovenian YO Yoruba

GA Irish MG Malagasy SM Samoan ZU Zulu

Changing the initial settings with the preference screen (continued)

NX-F3_NX-F7[B].book Page 45 Friday, December 21, 2007 5:06 PM

46

Ripping sound directly from a CD to a USB device

You can record sound from a CD to a USB device.

This function is generally called “ripping” or “digital

audio extraction”.

CAUTION

• It should be noted that it may be unlawful to

re-record pre-recorded tapes, records, or

discs without the consent of the owner of

copyright in the sound or video recording,

broadcast or cable program and in any liter-

ary, dramatic musical, or artistic work

embodied therein.

• Only a CD formatted with Compact Disc Digital

Audio (CD-DA) standard is compatible with this

function. You cannot record sound from CDs

with other formats, other types of discs, or other

sources.

• A track from a CD is digitally recorded and con-

verted into an MP3 file.

• This system uses a constant recording speed of

x1. Sound is recorded at bit rate of 128 kbps.

You cannot increase the recording speed.

*For the number button usage, refer to “Using the

number buttons” on page 13.

■ IMPORTANT

• Slide the remote control mode

selector to [AUDIO].

1Place a CD on the disc tray and

connect the USB device.

• Refer to pages 23 and 24.

2Press [DVD 3].

3Press 7 to stop playback.

4Press [REC].

• The title and number of the group appear on

the TV screen. (It may take some time until

the title and number of the group appear.)

TV screen

5Press 5 or / repeatedly to select

the desired group on the con-

nected USB device.

• You can create a new group by selecting

“NEW GROUP” on the TV screen.

• After this step, you can add (edit) a title to

the selected group. Follow step 4 to 8 in

“Adding (Editing) a title to a track/group on a

USB device” on page 49.

• To cancel the settings, press 7.

(Continued on the next page)

REC

USB 3

AUDIO

DVD 3

CANCEL

TITLE/

DELETE

7

Remote control

mode selector

Number

buttons*

5///2/3

(cursor)/

ENTER

Recording all tracks from a

CD to a USB device

Ripping sound directly from a CD to a USB device

NX-F3_NX-F7[B]-08.fm Page 46 Thursday, January 24, 2008 1:25 PM

47

Ripping sound directly from a CD to a USB device

6Press [ENTER] to start recording.

• The “REC” indicator starts flashing in the

display window.

Display window

• When recording finishes, the “REC” indica-

tor turns off.

NOTE

• When you want to quit recording, press 7.

When you press 7 after [ENTER] is pressed in

step 6, sound having been recorded before 7 is

pressed is stored. After pressing 7, if you want

to disconnect the USB device, wait until the

“REC” indicator stops flashing and disappears.

• Do not operate the main unit when “PLEASE

WAIT...” is displayed on the TV screen or “WAIT”

is displayed in the display window. Wait until the

display disappears.

• If “NO USB” appears in the display window,

check the USB device or its connection.

• “CANT REC” appears in the display window if

recording cannot continue for some reason.

- The USB device may be connected improp-

erly. Check the connection.

- You may be trying to record write protected

tracks.

- You may be trying to record sound from a CD-

R or CD-RW. The Serial Copy Management

System (SCMS) protects copyright and allows

only first-generation digital copies from the

digitally recordable source. In short, you can-

not make “a copy of a copy”.

- You may be trying to record more than the lim-

ited number of recordable tracks. You can

record up to 999 tracks to a group and 4 000

tracks to a USB device.

- The number of tracks that can be recorded to

the root group may be limited on the USB

device. The number of tracks may have

exceeded the limitation. In this case, select

another group or create a new group.

• Changes to the volume and quality of the sound

during recording do not affect the recorded

sound or the recorded sound level.

• The following functions do not affect the

recorded sound: the treble/bass adjustment

function (page 13), K2 function (page 14 [only for

NX-F7]), speaker volume level function (page

14), surround mode function (page 14), head-

phone surround function (page 15) and clear

voice function (page 15).

• When “RANDOM” is selected, operating this

function automatically cancels random playback.

CAUTION

• Do not bump or move the main unit while record-

ing sound. Such movement may interfere with

recording.

• Do not disconnect the USB device during

recording, as this may cause malfunction.

Instead of step 3 on page 46, start

playback of the desired track.

• You can use the number buttons, 4 or ¢no to

select a track.

• Finishing step 6 returns playback to the begin-

ning of the current track and only that track is

recorded.

NOTE

• You can also record only the desired track by

pausing the track instead of step 3 on page 46.

• When “RANDOM” is selected, operating this

function automatically cancels random playback.

Before proceeding to step 4 on page

46, program the desired tracks.

• Refer to steps 1 and 2 on pages 33 and 34 for

programming tracks.

• The following procedure is the same as steps 4

to 6 on page 46 and this page.

Recording only one track

Recording programmed tracks

Ripping sound directly from a CD to a USB device (continued)

NX-F3_NX-F7[B]-08.fm Page 47 Thursday, January 24, 2008 9:42 AM

48

Ripping sound directly from a CD to a USB device

1Connect the USB device.

• Refer to page 24.

2Press [USB 3].

3Press 7 to stop playback.

TV screen

4Press 5, /, 2 or 3 repeatedly to

select the desired track/group.

5Press [TITLE/DELETE] repeatedly

to select “T. DELETE” or

“G. DELETE” in the display win-

dow.

Display window

• Select “T. DELETE” to delete a track.

• Select “G. DELETE” to delete a group.

6Press [ENTER].

TV screen

• To cancel deleting the track/group, press

[CANCEL].

7Press [ENTER].

NOTE

• When “WAIT” is displayed in the display window,

you cannot start deletion. Wait until the main unit

reads signals from the USB device.

• You can also refer to messages on the TV

screen when you delete a title to a track/group

from the connected USB device. The messages

indicate the operational status and provide

instructions.

• Do not press [AUDIO F] while the main unit is

deleting a track or group. If [AUDIO F] is

pressed, the main unit automatically turns off

after the track or group is deleted.

• It may take a long time to delete a group contain-

ing many tracks.

CAUTION

• Do not bump or move the main unit while delet-

ing a track/group. Such movement may interfere

with deleting.

• Do not disconnect the USB device during delet-

ing, as this may cause malfunction.

Deleting a track/group from a

USB device

For the locations of the remote

control buttons, refer to page 46.

NX-F3_NX-F7[B].book Page 48 Tuesday, January 15, 2008 4:39 PM

49

Ripping sound directly from a CD to a USB device

1Connect the USB device.

• Refer to page 24.

2Press [USB 3].

3Press 7 to stop playback.

TV screen

4Press 5, /, 2 or 3 repeatedly to

select the desired track/group.

5Press [TITLE/DELETE] repeatedly

to select “T. TITLE” or “G. TITLE”

in the display window.

Display window

• Select “T. TITLE” to add a title to a track.

• Select “G. TITLE” to add a title to a group.

6Press [ENTER].

• The title of the selected track/group appears

in the display window.

• If the track/group does not have a title, “NO

NAME” appears instead.

• Press [CANCEL] to erase a stored title.

TV screen

7Enter a title.

• Refer to “Entering a title” on page 50.

• To cancel editing a title, press 7.

8Press [ENTER].

NOTE

• When “WAIT” is displayed in the display window,

you cannot start editing.

• If “NO USB” appears in the display window,

check the USB device or its connection.

• You can also refer to messages on the TV

screen when you add or edit a title to a track/

group on the connected USB device. The mes-

sages indicate the operational status and pro-

vide instructions.

• Do not press [AUDIO F] while the main unit is

editing a title. If [AUDIO F] is pressed, the main

unit automatically turns off after the title is edited.

• If you press [ENTER] without first entering a title,

“EDIT ERR” appears in the display window and

the following display appears on the TV screen.

At this time, press [ENTER] again to enter a title.

TV screen

CAUTION

• Do not bump or move the main unit while editing

a title. Such movement may interfere with edit-

ing.

• Do not disconnect the USB device during edit-

ing, as this may cause malfunction.

Adding (Editing) a title to a

track/group on a USB device

Ripping sound directly from a CD to a USB device (continued)

NX-F3_NX-F7[B]-08.fm Page 49 Thursday, January 24, 2008 2:27 PM

50

Ripping sound directly from a CD to a USB device

The operation is explained with the time when to

enter “F” as an example.

1Press 5 or / (cursor) repeatedly

to select the character type set-

ting.

• Each time you press 5 or / (cursor), the

selected character type setting changes to

“ABCDE”, “abcde” or “01234” on the TV

screen.

• “ABCDE” refers to uppercase characters or

symbols.

• “abcde” refers to lowercase characters or

symbols.

• “01234” refers to numerical characters.

2Press the number button [3]

repeatedly until “F” appears.

• Several characters are assigned to one but-

ton. Press the button repeatedly until the

desired character is displayed. In this exam-

ple, “D”, “E” and “F” are assigned to [3].

• For the available characters, refer to “Avail-

able characters” shown on the right.

NOTE

• When you want to move the character entry

position, press 2 or 3 (cursor) repeatedly.

• When you want to enter “NO”, “TV”, or other two

or more characters which are assigned to one

button (in this case, [6] or [8]), enter the first

character, press 3 (cursor) to move the charac-

ter entry position to the right, and then enter the

second character.

• You can enter up to 24 characters for the file title

and up to 28 characters for the folder title.

• When you want to erase a character, move the

character entry position to the desired character,

and press [CANCEL].

• When you want to enter a space, select the

space from the symbol (Refer to “Available char-

acters” shown on the right). You can also enter a

space at the end of a title by pressing 3 (cur-

sor).

• When you want to cancel title entry, press 7.

The entered characters are not stored.

• If you enter a title that already exists, “THIS

NAME ALREADY EXISTS. PLEASE USE A

DIFFERENT NAME.” appears on the TV screen.

Enter a different title.

Available characters

You can use the characters shown below by

repeatedly pressing the number buttons ([1] to [9]

and [0]). Each number button is assigned with sev-

eral characters.

*Available symbols

You can use the symbols show below by repeat-

edly pressing [1].

Entering a title

Space

For the locations of the remote

control buttons, refer to page 46.

NX-F3_NX-F7[B].book Page 50 Tuesday, January 15, 2008 4:39 PM

51

Convenient functions of TV viewing

*For the number button usage, refer to “Using the

number buttons” on page 13.

This function enables you to listen to the sound

from a TV.

To use this function, the main unit has to be con-

nected to a TV with a SCART cable. Also, be sure

that the setting for using a SCART cable has been

selected. (Refer to pages 8 and 12.)

1Press [TV SOUND].

• “TV SOUND” appears in the display window.

The TV connected to the main unit is

selected as the sound source.

• Repeatedly pressing [SOURCE] on the

main unit can also select sound from the TV

as the source.

2Turn on the TV.

3Adjust the volume or the sound

quality for your preference.

• Refer to page 13.

NOTE

• The desired sound may not be produced

depending on the connected TV.

• Refer also to the operation manual for the con-

nected TV.

Number

buttons*/

TV RETURN/

100+

Remote control

mode selector

3 (playback)

Listening to sound from a TV

Convenient functions of TV viewing

NX-F3_NX-F7[B]-09.fm Page 51 Thursday, January 17, 2008 3:24 PM

52

Convenient functions of TV viewing

You can operate your TV, set-top box (STB) and

video cassette recorder (VCR) using the remote

control of this system.

■ IMPORTANT

• Slide the remote control mode

selector to the lowest position.

1Press [TV].

2Hold down [TV F].

• Hold down [TV F] until you finish step 5.

3Press [ENTER] and release.

4Press number buttons to enter the

manufacturer code.

Examples:

For a Hitachi TV: Press [0], then [7].

For a Toshiba TV: Press [2], then [9].

When the manufacturer of your TV has 2 or more

codes, select the manufacturer codes in turn and

find the one that operates the TV and the remote

control properly.

The initial code setting is “01 (JVC)”.

5Release [TV F].

NOTE

• It is recommended that you slide the remote

control mode selector to [AUDIO] after using this

function. Most of the other functions can be used

when the remote control mode selector is at

[AUDIO].

• Manufacturer codes are subject to change with-

out notice. You may not be able to operate the

TV produced by the manufacturer.

• After replacing the batteries of the remote con-

trol, set the manufacturer code again.

Before the TV operation, select the remote control

mode for the TV.

■ IMPORTANT

• Slide the remote control mode

selector to the lowest position.

1Press [TV].

2Operate the remote control by

pointing it at the TV.

.

NOTE

• When the remote control mode selector is slid to

the lowest position and [TV] is pressed, some

buttons may not work.

• It is recommended that you slide the remote

control mode selector to [AUDIO] after using this

function. Most of the other functions can be used

when the remote control mode selector is at

[AUDIO].

Operating a TV using the

remote control

Manufacturer

Code

Manufacturer

Code

JVC 01

Nordmende

13, 14, 18,

26, 27, 28

Akai 02, 05 Okano 09

Blaupunkt 03 Orion 15

Daewoo 10, 31, 32 Panasonic 16, 17

Fenner 04, 31, 32 Philips 10

Fisher 05 Saba 13, 14, 18,

26, 27, 28

Grundig 06 Samsung

10, 19, 32,

35, 36, 37,

38

Hitachi 07, 08 Sanyo 05

Inno-Hit 09 SEG 15

Irradio 02, 05 Schneider 02, 05

Loewe 10 Sharp 20, 39, 40

Magnavox 10 Sony 21, 22, 23,

24, 25

Mitsubishi 11, 33

Telefunken

13, 14, 18,

26, 27, 28

Miver 03 Thomson

13, 14, 18,

26, 27, 28,

30

Nokia 12, 34 Toshiba 29

Setting the manufacturer code

Remote

control button Usage

[TV F]Turns on/off the TV.

[TV/VIDEO] Changes between the TV and

video input.

[CH +/

–

] Changes channels.

[TV VOL +/

–

] Adjusts volume.

Number but-

tons (1-9, 0,

100+)

Selects the channels.

[TV RETURN]

Changes between the previously

selected channel and the current

channel.

Using the remote control for the TV

operation

NX-F3_NX-F7[B].book Page 52 Tuesday, January 15, 2008 4:39 PM

53

Convenient functions of TV viewing

■ IMPORTANT

• Slide the remote control mode

selector to the lowest position.

1Press [STB].

2Hold down [STB/VCR F].

• Hold down [STB/VCR F] until you finish

step 5.

3Press [ENTER] and release.

4Press number buttons to enter the

manufacturer code.

Examples:

For an Amstrad STB: Press [0], then [3].

For a Triax STB: Press [3], then [0].

When the manufacturer of your STB has 2 or more

codes, select the manufacturer codes in turn and

find the one that operates the STB and the remote

control properly.

The initial code setting is “01 (JVC)”.

5Release [STB/VCR F].

NOTE

• It is recommended that you slide the remote

control mode selector to [AUDIO] after using this

function. Most of the other functions can be used

when the remote control mode selector is at

[AUDIO].

• Manufacturer codes are subject to change with-

out notice. You may not be able to operate the

STB produced by the manufacturer.

• After replacing the batteries of the remote con-

trol, set the manufacturer code again.

Before the STB operation, select the remote con-

trol mode for the STB.

■ IMPORTANT

• Slide the remote control mode

selector to the lowest position.

1Press [STB].

2Operate the remote control by

pointing it at the STB.

NOTE

• When the remote control mode selector is slid to

the lowest position and [STB] is pressed, some

buttons may not work.

• It is recommended that you slide the remote

control mode selector to [AUDIO] after using this

function. Most of the other functions can be used

when the remote control mode selector is at

[AUDIO].

Operating an STB using the

remote control

Manufacturer

Code

Manufacturer

Code

JVC 01, 02 Mascom 32

Amstrad 03, 04, 05,

06, 31 Maspro 13

BT 01 Nokia 24, 26, 33

Canal+ 20 Pace 10, 25, 31

Canal Satellite

20 Panasonic 15

D-Box 24 Philips 09, 23

Echostar 17, 18, 19,

21 Saba 35

Finlux 11 Sagem 22, 29

Force 28 Salora 11

Galaxis 27 Selector 29

Grundig 07, 08 Skymaster 12, 36

Hirschmann

07, 17, 37 Thomson 35

ITT Nokia 11 TPS 22

Jerrold 16 Triax 30

Kathrein 13, 14, 34 Wisi 07

Luxor 11

Setting the manufacturer code

Remote control button Usage

[STB/VCR F] Turns on/off the STB.

[CH +/

–

] Changes channels.

Number buttons (1-9, 0,

10)

Selects the channels.

Using the remote control for the

STB operation

Convenient functions of TV viewing (continued)

NX-F3_NX-F7[B].book Page 53 Tuesday, January 15, 2008 4:39 PM

54

Convenient functions of TV viewing

■ IMPORTANT

• Slide the remote control mode

selector to the lowest position.

1Press [VCR].

2Hold down [STB/VCR F].

• Hold down [STB/VCR F] until you finish

step 5.

3Press [ENTER] and release.

4Press number buttons to enter the

manufacturer code.

Examples:

For a Hitachi VCR: Press [0], then [8].

For a Toshiba VCR: Press [3], then [3].

When the manufacturer of your VCR has 2 or more

codes, select the manufacturer codes in turn and

find the one that operates the VCR and the remote

control properly.

The initial code setting is “01 (JVC)”.

5Release [STB/VCR F].

NOTE

• It is recommended that you slide the remote

control mode selector to [AUDIO] after using this

function. Most of the other functions can be used

when the remote control mode selector is at

[AUDIO].

• Manufacturer codes are subject to change with-

out notice. You may not be able to operate the

VCR produced by the manufacturer.

• After replacing the batteries of the remote con-

trol, set the manufacturer code again.

Before the VCR operation, select the remote con-

trol mode for the VCR.

■ IMPORTANT

• Slide the remote control mode

selector to the lowest position.

1Press [VCR].

2Operate the remote control by

pointing it at the VCR.

NOTE

• When the remote control mode selector is slid to

the lowest position and [VCR] is pressed, some

buttons may not work.

• It is recommended that you slide the remote

control mode selector to [AUDIO] after using this

function. Most of the other functions can be used

when the remote control mode selector is at

[AUDIO].

Operating a VCR using the

remote control

Manufacturer

Code

Manufacturer

Code

JVC 01 Nokia 16

Aiwa 02, 20

Nordmende

17, 18, 19,

31

Bell+Howell

03, 16 Orion 20

Blaupunkt 04 Panasonic 21

CGM 03, 05, 16 Philips 05, 22

Daewoo 34 Phonola 05

DIGTAL 05 Saba 17, 18, 19,

23, 31

Fisher 03, 16 Samsung 24, 25

G.E. 06 Sanyo 03, 16

Grundig 07 Sharp 26, 27

Hitachi 08, 09 Siemens 07

Loewe 05, 10, 11 Sony 28, 29, 30,

35

Magnavox 04, 05

Telefunken

17, 18, 19,

31, 32

Mitsubishi 12, 13, 14,

15 Toshiba 33

Setting the manufacturer code

Remote control button Usage

[STB/VCR F] Turns on/off the VCR.

[CH +/

–

] Changes channels.

Number buttons

(1-10, 0, 10)

Selects the channels.

3 (playback) Starts playback.

7 Stops playback.

8 Pauses playback.

¡ Fast-forwards the tape.

1 Fast-rewinds the tape.

[REC] + 3 (playback) Starts recording.

[REC] + 8 Pauses recording.

Using the remote control for the

VCR operation

For the locations of the remote

control buttons, refer to page 51.

NX-F3_NX-F7[B].book Page 54 Tuesday, January 15, 2008 4:39 PM

55

Basic operations of HDMI CEC

Consumer Electronics Control (CEC) is device controlling signals optionally employed for the High-Definition

Multimedia Interface (HDMI) standard. When devices equipped with CEC are connected, each device can

control the others.

This system is compatible with some basic functions of HDMI CEC.

• When you start playback on the main unit, the connected TV automatically turns on.

• When you select the main unit as the source of the TV, picture and sound from the main unit are automati-

cally produced.

• When you turn off the TV, the main unit automatically turns off. (This function works when “ON 1” is

selected for “CEC” in the preference screen. Refer to page 44.)

• When you select the menu screen language of the TV, and then the main unit is turned off and turned on

again, the same language is automatically selected on the main unit. (The selectable languages are limited

to those supported by this system.)

• As long as the connected TV is compatible, you can use the operations of the TV to start playback, adjust

the volume and operate other functions on the main unit.

NOTE

• This function is available only when the source is set to “DVD” or “USB”.

• This function is available when “ON 1” or “ON 2” is selected for “CEC” in the preference screen (refer to

page 44).

• For details about the CEC function, refer to the operations manuals of the connected CEC devices.

• If the power cable is not connected to an AC outlet, the CEC function does not work, even when the main

unit is connected to CEC devices.

• Not all HDMI devices are compatible with CEC. If the main unit is connected to non-CEC compatible

devices, these devices cannot be controlled using the CEC function.

• The CEC function may not work with some CEC devices. (When the main unit is connected to a non-JVC

product, the CEC function may not work.)

• The CEC function may not work depending on the settings or status of the main unit or the connected CEC

devices.

• When connecting the main unit to a TV with an HDMI cable for the first time after purchase, confirm that

“JVC” (the initial screen) appears.

• When you disconnect the HDMI cable and connect it again, confirm that “JVC” appears.

• If the CEC function does not work properly, select “OFF” for the “CEC” setting, and then select “ON 1” or

“ON 2” again. (Refer to page 44.)

TV compatible with

HDMI CEC

HDMI cable (not supplied) Main unit

External device compatible

with HDMI CEC

Basic operations of HDMI CEC

NX-F3_NX-F7[B].book Page 55 Thursday, January 17, 2008 2:00 PM

56

Reference

To minimize the need for servicing and maintain

the high quality of this system, do not place the

main unit in the following locations:

• In a position subject to high humidity or consid-

erable dust

• On an uneven or unstable surface

• Near a heat source

• Near a computer, fluorescent light or other elec-

tric appliance

• In a small room with insufficient ventilation

• In a position exposed to direct sunlight

• In a position exposed to excessive cold

• In a position exposed to strong vibration

• Near a TV, other amplifier, or tuner

• Near a magnetic source

CAUTION

• The operating temperature of this system is 5°C

to 35°C. Use in temperatures outside this range

may cause a malfunction or damage the system.

Under the following conditions, you may not be

able to operate this system properly due to con-

densation formed on the lens of the main unit:

• When you have just started an air conditioner to

warm your room

• When you have placed the main unit at an area

with high humidity

• When you have moved the main unit from a cold

place to a warm place

When condensation forms, leave the main unit

turned on, wait for approximately 1 or 2 hours, and

then operate the main unit.

When the operation panel becomes dirty, dust it

with a soft dry cloth. When the operation panel is

very dirty, wipe it with a cloth dampened with a

small amount of a neutral detergent, and then wipe

it with a soft dry cloth.

CAUTION

• Do not wipe the operation panel with thinners,

benzenes or other chemical agents. Do not

spray insecticides onto the operation panel.

These may discolor and damage the surface.

Installation of the system

• Select a place that is level, dry and neither too

hot nor too cold, and between 5°C and 35°C.

• Leave sufficient distance between the system

and the TV.

• Do not use the system in a place subject to

vibration.

Power cable

• Do not handle the power cable with wet hands!

• A small amount of power is always consumed

while the power cable is connected to the wall

outlet.

• When unplugging the power cable from the wall

outlet, always pull on the plug, not the power

cable.

To prevent malfunctions of the system

• There are no user-serviceable parts inside. If

anything goes wrong, unplug the power cable

and consult your dealer.

• Do not insert any metallic object into the system.

Note about copyright laws

Check the copyright laws in your country before

recording from CDs. Recording of copyrighted

material may infringe copyright laws.

(Continued on the next page)

Suitable locations for the

main unit

Condensation

Cleaning the main unit

Notes on handling

Important cautions

Notes on operation

NX-F3_NX-F7[B].book Page 56 Friday, December 21, 2007 5:06 PM

57

Reference

Avoid moisture, water and dust

Do not place the system in moist or dusty places.

Avoid high temperatures

Do not expose the system to direct sunlight and do

not place it near heating equipment.

When you are away

When away on travel or for other reasons for an

extended period of time, disconnect the power

cable plug from the wall outlet.

Do not block the vents

Blocking the vents may damage the system.

Care of the cabinet

When cleaning the system, use a soft cloth and fol-

low the relevant instructions on the use of chemi-

cally-coated cloths. Do not use benzene, thinner or

other organic solvents including disinfectants.

These may cause deformation or discoloring.

If water gets inside the system

Turn the system off and disconnect the power

cable plug from the wall outlet, then call the store

where you made your purchase. Using the system

in this condition may cause fire or electrical shock.

• This product incorporates copyright protection

technology that is protected by U.S. patents and

other intellectual property rights. Use of this

copyright protection technology must be autho-

rized by Macrovision, and is intended for home

and other limited viewing uses only unless other-

wise authorized by Macrovision. Reverse engi-

neering or disassembly is prohibited.

• CONSUMERS SHOULD NOTE THAT NOT ALL

HIGH DEFINITION TELEVISION SETS ARE

FULLY COMPATIBLE WITH THIS PRODUCT

AND MAY CAUSE ARTIFACTS TO BE DIS-

PLAYED IN THE PICTURE. IN CASE OF 525

OR 625 PROGRESSIVE SCAN PICTURE

PROBLEMS, IT IS RECOMMENDED THAT

THE USER SWITCH THE CONNECTION TO

THE “STANDARD DEFINITION” OUTPUT.

IF THERE ARE QUESTIONS REGARDING

OUR TV SET COMPATIBILITY WITH THIS

MODEL 525p AND 625p DVD PLAYER,

PLEASE CONTACT OUR CUSTOMER SER-

VICE CENTER.

• USE OF THIS PRODUCT IN ANY MANNER

THAT COMPLIES WITH THE MPEG-4 VISUAL

STANDARD IS PROHIBITED, EXCEPT FOR

USE BY A CONSUMER ENGAGING IN PER-

SONAL AND NON-COMMERCIAL ACTIVITIES.

• DivX, DivX Ultra Certified, and associated logos

are trademarks of DivX, Inc. and are used under

license.

• Official DivX® Ultra Certified product

• Plays all versions of DivX® video (including DivX®

6) with enhanced playback of DivX® media files

and the DivX® Media Format

• Microsoft and Windows Media are either regis-

tered trademarks or trademarks of Microsoft

Corporation in the United States and/or other

countries.

• DVD Logo is a trademark of DVD Format/Logo

Licensing Corporation.

• Manufactured under license from Dolby Labora-

tories. “Dolby”, “Pro Logic”, “MLP Lossless”, and

the double-D symbol are trademarks of Dolby

Laboratories.

• “DTS” and “DTS Digital Surround” are registered

trademarks of DTS, Inc.

• HDMI, the HDMI logo and High-Definition Multi-

media Interface are trademarks or registered

trademarks of HDMI Licensing LLC.

• HDCP is the abbreviation of “High-bandwidth

Digital Content Protection,” and is the high-reli-

able copy control technology licensed by Digital

Content Protection, LLC.

Safety Precautions License and trademark

Notes on operation (continued)

NX-F3_NX-F7[B].book Page 57 Friday, December 21, 2007 5:06 PM

58

Reference

• Even though listed above, some types may be

unplayable.

*1 Discs should be finalized before being played

back.

*2 This system may not recognize some USB

devices. This system cannot play back a file

whose data volume is more than 2 gigabytes

and a file whose data transfer rate is more than

2 Mbps.

*3 DVD VR means a DVD-R/DVD-RW recorded in

Video Recording (VR) format.

*4 A CD-R/CD-RW recorded in multi-session for-

mat (up to 20 sessions) is playable.

*5 A DVD-R recorded in multi-border format is also

playable (including dual layer discs).

*6 For files recorded on a DVD-R/DVD-RW, the

disc should be formatted with UDF Bridge.

It is possible to play back finalized +R/+RW (DVD

Video Format only) discs. “DVD” lights on the front

display panel when a +R/+RW disc is loaded.

Some discs may not be played back because of

their disc characteristics, recording conditions, or

damage or stains on them.

Only sounds can be played back from the following

discs:

MIX-MODE CD CD-G

CD-EXTRA CD TEXT

This system is designed for use with the PAL stan-

dard but you can also play back discs recorded in

NTSC format. When you play back a disc recorded

in NTSC format on the main unit connected to the

TV using a component video cable, the picture

may be distorted. To prevent picture distortion, use

a SCART cable. (Refer to page 8 for connecting a

SCART cable.)

Region code of DVD VIDEO

DVD VIDEO players and DVD VIDEO discs have

their own region code numbers. This system can

play back a DVD VIDEO whose region code num-

ber includes the system’s region code, which is

indicated on the rear panel of the main unit.

If a DVD VIDEO with an improper region code

number is loaded, playback cannot start.

• On some DVD VIDEOs, DVD AUDIOs, VCDs,

SVCDs or DivX files, their actual operation

may be different from what is explained in

this manual. This is due to the disc/file pro-

gramming and disc/file structure, not a mal-

function of this system.

Playable disc/file types

Playable discs *1

DVD VIDEO, DVD AUDIO, DVD VR

*3

, VCD, SVCD, CD,

CD-R

*4

, CD-RW

*

4

, DVD-R

*

5,

*

6

, DVD-RW

*

6

, +R, +RW

Playable files recorded on a disc *1

MP3, WMA, WAV, JPEG, ASF, DivX, MPEG1, MPEG2

Playable files recorded on a USB device *2

Examples:

Notes on discs/files

NX-F3_NX-F7[B].book Page 58 Friday, December 21, 2007 5:06 PM

59

Reference

• The following discs cannot be played back:

• DVD-ROM (except for MP3/WMA/JPEG/ASF/

DivX/MPEG1/MPEG2 format), DVD-RAM, CD-

ROM, CD-I (CD-I Ready), Photo CD, SACD, etc.

• Playing back these discs generates noise and

may damage the speakers.

• Damaged discs and discs with an unusual shape

(other than a disc of 12 cm or 8 cm in diameter)

cannot be played back.

• JVC does not guarantee the operation and

sound quality of discs not authorized by CD-DA,

which is a CD specification.

Before playback, confirm that the disc complies

with this CD specification by checking the marks

and reading notes printed on the package.

• CDs recorded in the ISO 9660 format are play-

able (except CDs recorded in the “packet write”

format (UDF format)).

• Files with an extension of “.mp3”, “.wma”, “.wav”,

“.jpg”, “.jpeg”, “.asf”, “.divx”, “.div”, “.avi”, “.mpg”,

“.mpeg” or “.mod” (extensions with mixed cases

are also acceptable) are playable.

• A disc may not be played back, or reading it may

take a long time depending on its recording con-

ditions or properties.

• The time needed for reading varies with the

number of groups or tracks (files) recorded on

the disc.

• If characters other than single-byte alphanu-

meric characters are used in the file name of an

MP3/WMA/WAV/JPEG/ASF file, the track/file

name is not displayed correctly.

• The order of tracks/groups displayed on the

MP3/WMA/WAV menu screen, and the order of

files/groups displayed on the JPEG menu screen

may be different from that of files/folders dis-

played on a computer monitor screen.

• Playing back an MP3/WMA file that contains a

still image may take a long time. The elapsed

time is not displayed until playback starts. This

elapsed time may not be displayed correctly.

• For an MP3/WMA file, a disc with a sampling fre-

quency of 44.1 kHz and transmission rate of 128

kbps is recommended.

• This system is not compatible with an MP3i or

MP3PRO file.

• This system can play back a baseline JPEG file,

excluding monochromatic JPEG files.

• This system can play back JPEG data taken with

a digital camera conforming to the DCF (Design

Rule for Camera File System) standard (when a

function such as the automatic rotation function

of a digital camera is applied, the data may no

longer conform to the DCF standard, and the

image may not be displayed).

• If data has been processed, edited or restored

with computer image editing software, the data

may not be displayed.

• This system cannot play back animations such

as MOTION JPEG files, still pictures (TIFF etc.)

other than JPEG files, or image data with sound.

• The resolution of 640 x 480 pixels is recom-

mended for JPEG files. If a file has been

recorded at a resolution of more than 640 x 480

pixels, it may take a long time to display the file.

An image with a resolution of more than 8 192 x

7 680 pixels cannot be displayed.

• The system supports ASF files recorded with the

maximum bit rate of 384 kbps and an audio

coder decoder of G.726.

• A WAV file with a sampling frequency of

44.1 kHz and a quantization bit rate of 16 bits is

recommended.

Unplayable discs

Playable MP3/WMA/WAV/JPEG/

ASF/DivX/MPEG1/MPEG2 discs/

files

Notes on MP3/WMA/WAV/JPEG/

ASF discs/files

Notes on discs/files (continued)

NX-F3_NX-F7[B]-11.fm Page 59 Thursday, January 24, 2008 1:26 PM

60

Reference

• The system supports DivX 5.x, 4.x and 3.11.

• The system supports DivX files with a resolution

of 720 x 480 pixels or less (30 fps) and 720 x

576 pixels or less (25 fps).

• Audio streams should conform to MPEG1 Audio

Layer-2, MPEG Audio Layer-3 (MP3) or Dolby

Digital.

• The system does not support GMC (Global

Motion Compression).

• Files encoded in the interlaced scanning mode

may not be played back correctly.

• Playing back a DivX file may take a long time.

The elapsed time is not displayed until playback

starts. The elapsed time may also not be dis-

played correctly.

• The stream structure of MPEG1/MPEG2 discs

and files should conform to MPEG system/pro-

gram stream.

• 720 x 576 pixels (25 fps)/720 x 480 pixels (30

fps) is recommended for the highest resolution.

• This system also supports the resolutions of 352

x 576/480 x 576/352 x 288 pixels (25 fps) and

352 x 480/480 x 480/352 x 240 pixels (30 fps).

• The profile and level should be MP@ML (Main

Profile at Main Level)/SP@ML (Simple Profile at

Main Level)/MP@LL (Main Profile at Low Level).

• Audio streams should conform to MPEG1 Audio

Layer-2, MPEG2 Audio Layer-2 or Dolby Digital

(MPEG2 files only).

The Non-DVD side of a “DualDisc” does not com-

ply with the “Compact Disc Digital Audio” standard.

Therefore, the use of Non-DVD side of a DualDisc

on this product is not recommended.

• This system is compatible with USB 2.0 Full-

Speed.

• This system may not play back some USB

devices and some files.

• This system does not support DRM (Digital

Rights Management).

• This system cannot recognize a USB device

whose rating exceeds 5V/500mA.

• When connecting a USB device, refer also to its

manual.

• Connect the USB device directly to the main unit

without routing through a USB hub.

• Disconnect the USB device after stopping play-

back or turning off this system.

• The main unit can charge a USB device when

the USB device is selected as the source.

• Always set the volume to the minimum on this

system when connecting or disconnecting a

USB device.

• JVC bears no responsibility for any loss of data

on the USB device while using this system.

Notes on DivX discs/files

Notes on MPEG1/MPEG2 discs/

files

Caution for DualDisc playback

Notes on files recorded on a

connected USB device

NX-F3_NX-F7[B].book Page 60 Friday, December 21, 2007 5:06 PM

61

Reference

DVD VIDEO/DVD VR

A DVD VIDEO consists of “titles” and each title

may be divided into “chapters”.

A DVD VR consists of “original programs” or “play

lists” and each original program/play list may be

divided into “chapters”.

DVD AUDIO

A DVD AUDIO consists of “groups” and each

group may be divided into “tracks”.

Some discs include a “bonus group” that requires

a password for playback. (Refer to page 38.)

VCD/SVCD/CD

A VCD/SVCD/CD consists of “tracks”.

In general, each track has its own track number.

(On some discs, each track may also be further

divided by indexes.)

MP3/WMA/WAV/JPEG/ASF/DivX/MPEG1/

MPEG2 files

Audio, still pictures and video are recorded as

tracks/files on a disc or a USB device. Tracks/files

are usually grouped into a folder. Folders can also

include other folders, creating hierarchical folder

layers.

This system simplifies the hierarchical construction

of files and manages folders by “groups”.

.

This system can recognize up to 4 000 tracks/files

on a disc. Also, the system can recognize up to

999 tracks/files per group and up to 99 groups on a

disc. Since the system ignores the tracks/files with

numbers exceeding 999 and the groups with num-

bers exceeding 99, these cannot be played back.

If there are any type of files other than MP3/WMA/

WAV/JPEG/ASF/DivX/MPEG1/MPEG2 files on a

disc, those files are also counted in the total num-

ber of files.

• Do not use a commercially-available non-stan-

dard shape disc (like a heart, flower or credit

card, etc.), because it may damage the system.

• Do not use a disc with tape, stickers, or paste on

it, because it may damage the system.

• Do not bend the disc.

• Scratches concentrated on a certain part cause

sound dropout.

• Be sure not to use thinners, benzenes, cleaners

for analog records, or other chemical agents.

Data hierarchy

Title 1/Original program 1/

Play list 1

Title 2/Original pro-

gram 2/Play list 2

Chapter 1 Chapter 2 Chapter 3 Chapter 1 Chapter 2

Group 1 Group 2

Track 1 Track 2 Track 3 Track 1 Track 2

Track 1 Track 2 Track 3 Track 4 Track 5

Up to 99 groups

Up to 999 tracks/files

Group 1 Group 2

Track 1

/File 1

Track 2

/File 2

Group 3 Group 4 Group 5

Handling discs

Label sticker

S

ticker

Paste

Cleaning discs

Signal surface

Wipe the disc from the center outward with a soft

cloth.

Notes on discs/files (continued)

NX-F3_NX-F7[B]-11.fm Page 61 Wednesday, March 19, 2008 5:15 PM

62

Reference

■General

(Continued on the next page)

Problem Possible cause Possible solution Reference

page

Power does not come

on.

The power cable is not con-

nected to an AC outlet.

Connect the power cable correctly. 10

You cannot operate any

button.

Some specific operations are

restricted.

This is not a malfunction. –

The remote control does

not work.

The batteries are running low. Replace the batteries. 4

You cannot operate the

main unit using the

remote control.

Function assigned to some but-

tons change according to the

remote control mode.

Slide the remote control mode

selector to [AUDIO], [SHIFT] or the

lowest position to select an appro-

priate mode to your desired func-

tion.

–

A whirring noise can be

heard.

The main unit is located close

to a TV, computer, or other

electric appliance.

Place the main unit away from a

TV, computer, or other electric

appliance.

56

No picture is produced. Improper connection. Connect all cables properly. 8-10

The picture is distorted. A video cassette recorder is

connected between the main

unit and the TV.

Connect the main unit directly to

the TV. 9

The video signal type setting is

not appropriate.

Select the video signal type suit-

able for your TV. 11

The screen size is

abnormal.

The screen size setting is not

appropriate.

Select the display method suitable

for your TV. 43

The TV screen darkens. The screen saver setting is acti-

vated.

Press any button. 43

No picture/sound is pro-

duced via the [HDMI

MONITOR OUT] termi-

nal.

A disc/file recorded in a format

incompatible with the main unit/

TV is played back.

Confirm the playable disc/file

types. 58

The connected TV is not com-

patible with HDCP.

Connect a TV compatible with

HDCP. 9

The main unit fails to recognize

the TV connected to the [HDMI

MONITOR OUT] terminal.

Disconnect the HDMI cable and

connect it again. 9

An HDMI cable longer than 5 m

(15 feet) is used.

Use an HDMI cable of 5 m (15

feet) or shorter to assure stable

operation and picture quality.

–

The picture is distorted

when the TV is con-

nected to the [HDMI

MONITOR OUT] termi-

nal.

The proportion of the picture is

not appropriate.

Connect the TV to the [AV] termi-

nal, and select the video signal

type and the output video signal

setting.

8-12

Troubleshooting

NX-F3_NX-F7[B].book Page 62 Tuesday, January 15, 2008 4:39 PM

63

Reference

■General (continued)

Problem Possible cause Possible solution Reference

page

No sound is produced. The speakers are not con-

nected correctly.

Connect the speakers correctly. 6

Headphones are connected. Disconnect the headphone plug. 15

The sound is turned off. Restore the sound. 13

If “NO AUDIO” is displayed in

the display window, the disc

may have been produced

through illegal copying.

Check the disc at the store where

it was purchased. –

The sound is weak and

can hardly be heard.

The volume level is low. Increase the volume level. 14

The sound is distorted. The volume is too high. Turn down the volume. 13

A radio broadcast has

interference from noise.

The antennas are not con-

nected correctly.

Connect the antennas correctly.

5

A radio broadcast can-

not be received.

A noise is produced

from the rear of the main

unit.

The internal cooling fan pro-

duces the noise as the fan

rotates.

The noise is not a malfunction.

The cooling fan is used to prevent

overheating of the main unit.

13

The HDMI CEC function

does not work.

The connected TV is not com-

patible with the HDMI CEC

function.

Refer to the operation manual of

the TV. –

“OFF” is selected for the “CEC”

setting.

Select “ON 1” or “ON 2” for the

“CEC” setting. 44

When you disconnect

the HDMI cable and

connect it again, the

HDMI CEC function

does not work properly.

The previous connection setting

is stored on the main unit.

Select “OFF” for the “CEC” setting,

and then select “ON 1” or “ON 2”

again. 55

Troubleshooting (continued)

NX-F3_NX-F7[B]-11.fm Page 63 Thursday, January 24, 2008 9:30 AM

64

Reference

■For a loaded disc

(Continued on the next page)

Problem Possible cause Possible solution Reference

page

A disc cannot be played

back.

If “REGION CODE ERROR!”

appears on the TV screen, the

region code number of a disc is

not compatible with this system.

(only for a DVD VIDEO)

Confirm the region code number

compatible with this system.

58

If “CANNOT PLAY THIS DISC”

appears on the TV screen, the

disc cannot be played back with

this system.

Confirm the disc type playable with

this system. 58

The disc is upside down. Place the disc on the disc tray with

the printed surface facing up. 23

Moisture has condensed on the

lens.

Leave the main unit turned on,

wait for approximately 1 or 2

hours, and then operate the main

unit.

56

You cannot change the

audio language/subtitle

language/view angle.

The disc/file does not contain

multiple audio languages/subti-

tle languages/view angles.

If only one audio language/subtitle

language/view angle is recorded

on the disc, you cannot change

the setting.

36 and 40

No subtitles are dis-

played.

The disc/file contains no subti-

tles.

If no subtitles are recorded on the

disc/file, you cannot display subti-

tles.

36

You have not selected the subti-

tle language.

Select the subtitle language. 36

“LR ONLY” is displayed

in the display window.

(only for a DVD AUDIO)

When you play back a track for

which down-mixing is prohibited

and with multi-channel sound,

the left and right sounds are

output directly as they are.

This is not a malfunction.

–

A certain point on the

disc cannot be played

back properly.

The disc is scratched or dirty. Clean or replace the disc.

61

MP3, WMA, WAV,

JPEG, ASF, DivX,

MPEG1 or MPEG2 file

cannot be played back.

The loaded disc may include

files of different types (MP3,

WMA, WAV, JPEG, ASF, DivX,

MPEG1 or MPEG2).

Select “FILE TYPE”. You can play

back only the files of the types

selected with “FILE TYPE”.

If the main unit has read the file

before you make the “FILE TYPE”

setting, reset “FILE TYPE” to the

desired file type, and then reload

the disc.

43

The disc cannot be

ejected.

Disc ejection is locked. Unlock the disc ejection. 16

NX-F3_NX-F7[B].book Page 64 Friday, December 21, 2007 5:06 PM

65

Reference

■For a connected USB device

If this system does not work properly even after taking the action in the above “Possible solution”

Many functions of this system are controlled by microprocessors that can be reset by recycling the power

supply. If pressing any button does not result in the normal action, disconnect the power cable from the outlet,

wait for a while, and connect the power cable again.

Problem Possible cause Possible solution Reference

page

Files on a USB device

cannot be played back.

If “CANNOT PLAY THIS

DEVICE” appears on the TV

screen, the files on a USB

device are not playable.

Check that the file types recorded

on the USB device are compatible

with this system. 58

MP3, WMA, WAV,

JPEG, ASF, DivX,

MPEG1 or MPEG2 file

cannot be played back.

The connected USB device

may include files of different

types (MP3, WMA, WAV, JPEG,

ASF, DivX, MPEG1 or MPEG2).

Select “FILE TYPE”. You can play

back only the files of the types

selected with “FILE TYPE”.

If the main unit has read the file

before you make the “FILE TYPE”

setting, reset “FILE TYPE” to the

desired file type, and then discon-

nect the USB device and connect

it again.

43

Troubleshooting (continued)

NX-F3_NX-F7[B]-11.fm Page 65 Wednesday, December 26, 2007 9:09 AM

66

Reference

Tuner

FM frequency: 87.50 MHz – 108.00 MHz

AM frequency: 522 kHz – 1 629 kHz

Terminal (front of the main unit)

• USB digital input terminal x 1

• Audio output headphone terminal x 1

Impedance: 16

Ω

– 1 k

Ω

Terminal (rear of the main unit)

• Audio output speaker terminals x 1

Left/right speakers:

Output power: 200 W (50 W x 4) at 3

Ω

(1 kHz/10 % THD)

Impedance: 3

Ω

– 16

Ω

Subwoofer

Output power: 150 W at 6

Ω

(100 Hz/10 % THD)

Impedance: 6

Ω

– 16

Ω

• Optical digital input terminal x 1

–23 dBm to –15 dBm

• Optical digital output terminal x 1

–23 dBm to –15 dBm

• SCART terminal x 1

• Component video output terminals x 1

Y: 1.0 Vp-p, 75

Ω

terminated

PB: 0.7 Vp-p, 75

Ω

terminated

PR: 0.7 Vp-p, 75

Ω

terminated

• Composite video output terminal x 1

1.0 Vp-p, 75

Ω

terminated

• Audio input terminals x 1

500 mV/47 k

Ω

• HDMI monitor output terminal x 1

• FM antenna terminal x 1

• AM antenna terminal x 1

USB

Compatible with USB 2.0 Full-Speed

Compatible device: USB mass storage class device

Compatible file system: FAT16, FAT32

Output power: DC 5 V 500 mA

HDMI

Output power: DC 5 V 55 mA

General

Power source: AC 230 V , 50 Hz

Power consumption (in operation): 90 W

Power consumption (on standby): 0.8 W

Dimensions (W x H x D) [including projecting parts]:

300 mm x 95 mm x 295 mm

Mass: 3.4 kg

Type: 1-way bass reflex type

Magnetically shielded type

Speaker driver:

Front ch: 5.5 cm cone

Surround ch: 5.5 cm cone

Power handling capacity:

Front ch: 50W

Surround ch: 50W

Impedance: 3

Ω

Frequency range: 80 Hz - 20 kHz

Sound pressure level:

77 dB/W•m

Dimensions (W x H x D) [including projection parts]:

89 mm x 221 mm x 125 mm

(SP-NXF7F)

88 mm x 184 mm x 125 mm

(SP-NXF3F/SP-NXF4BF)

Mass (1 speaker): 1.7 kg (SP-NXF7F)

1.2 kg (SP-NXF3F/

SP-NXF4BF)

Type: Bass reflex type

Speaker driver: 16 cm cone

Power handling capacity: 150 W

Impedance: 6

Ω

Frequency range: 30 Hz - 200 Hz

Sound pressure level:

76 dB/W•m

Dimensions (W x H x D)

:

300 mm x 301 mm x 305 mm

Mass: 8.2 kg

Remote control x 1

Batteries x 2

FM antenna x 1

AM loop antenna x 1

Designs and specifications are subject to change

without notice.

Main unit (CA-NXF7/

CA-NXF3/CA-NXF4B)

Speaker (SP-NXF7F/

SP-NXF3F/SP-NXF4BF)

Subwoofer (SP-NXF7W/

SP-NXF3W/SP-NXF4BW)

Supplied accessories

Specifications
