COMPACT COMPONENT SYSTEM

NX-PN10

INSTRUCTIONS

LVT2011-003B

[B]

cover_NX-PN10[B].fm Page 1 Tuesday, May 11, 2010 1:08 PM

G-1

Warnings, Cautions and Others

CAUTION

The button in any position does not

disconnect the mains line.

Disconnect the mains plug to shut the power off

completely (the STANDBY lamp goes off).

The MAINS plug or an appliance coupler is used

as the disconnect device, the disconnect device

shall remain readily operable.

• When the system is on standby, the STANDBY

lamp lights red.

• When the system is turned on, the STANDBY

lamp goes off.

The power can be remote controlled.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or

moisture.

CAUTION

Battery shall not be exposed to excessive heat

such as sunshine, fire or the like

CAUTION

• Do not block the ventilation openings or

holes.

(If the ventilation openings or holes are

blocked by a newspaper or cloth, etc., the

heat may not be able to get out.)

• Do not place any naked flame sources, such

as lighted candles, on the apparatus.

• When discarding batteries, environmental

problems must be considered and local rules

or laws governing the disposal of these

batteries must be followed strictly.

• Do not expose this apparatus to rain,

moisture, dripping or splashing and that no

objects filled with liquids, such as vases, shall

be placed on the apparatus.

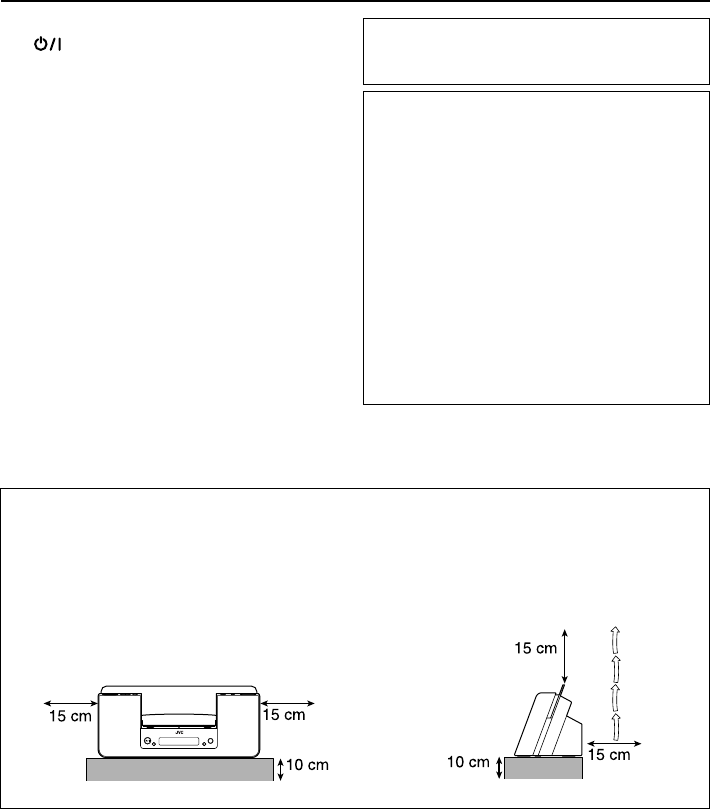

Caution: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:

1. Front: No obstructions and open spacing.

2. Sides/Top/Back: No obstructions should be placed in the areas shown by the dimensions below.

3. Bottom: Place on the level surface. Maintain an adequate air path for ventilation by placing on a

stand with a height of 10 cm or more.

Front view Side view

safety_NX-PN10[B].fm Page 1 Tuesday, May 11, 2010 1:09 PM

G-2

IMPORTANT for the U.K.

DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power

points in your home or the cable is too short to reach a power point, then obtain an appropriate

safety approved extension lead or consult your dealer.

BE SURE to replace the fuse only with an identical approved type, as originally fitted.

If nonetheless the mains plug is cut off ensure to remove the fuse and dispose of the plug

immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply.

If this product is not supplied fitted with a mains plug then follow the instructions given below:

IMPORTANT:

DO NOT make any connection to the terminal which is marked with the letter E or by the safety

earth symbol or coloured green or green-and-yellow.

The wires in the mains lead on this product are coloured in accordance with the following code:

Blue: Neutral

Brown: Live

As these colours may not correspond with the coloured markings identifying the terminals in your

plug proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter

N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter

L or coloured red.

IF IN DOUBT - CONSULT A COMPETENT ELECTRICIAN.

safety_NX-PN10[B].fm Page 2 Tuesday, May 11, 2010 1:09 PM

G-3

Information for Users on Disposal of Old Equipment and Batteries

[European Union]

Products

Battery

Notice:

The sign Pb below the

symbol for batteries indicates

that this battery contains

lead.

These symbols indicate that the electrical and electronic equipment

and the battery with this symbol should not be disposed of as general

household waste at its end-of-life. Instead, the products should be

handed over to the applicable collection points for the recycling of

electrical and electronic equipment as well as batteries for proper

treatment, recovery and recycling in accordance with your national

legislation and the Directive 2002/96/EC and 2006/66/EC.

By disposing of these products correctly, you will help to conserve

natural resources and will help to prevent potential negative effects on

the environment and human health which could otherwise be caused

by inappropriate waste handling of these products.

For more information about collection points and recycling of these

products, please contact your local municipal office, your household

waste disposal service or the shop where you purchased the product.

Penalties may be applicable for incorrect disposal of this waste, in

accordance with national legislation.

[Business users]

If you wish to dispose of this product, please visit our web page

http://www.jvc.eu/ to obtain information about the take-back of the

product.

[Other Countries outside the European Union]

These symbols are only valid in the European Union.

If you wish to dispose of these items, please do so in accordance with

applicable national legislation or other rules in your country for the

treatment of old electrical and electronic equipment and batteries.

Dear Customer,

This apparatus is in conformance with the valid European directives and standards regarding

electromagnetic compatibility and electrical safety.

European representative of Victor Company of Japan, Limited is:

JVC Technical Services Europe GmbH

Postfach 10 05 04

61145 Friedberg

Germany

safety_NX-PN10[B].fm Page 3 Tuesday, May 11, 2010 1:09 PM

Contents

Introduction.................................................2

Precautions ................................................................2

Getting Started............................................3

Connections................................................................4

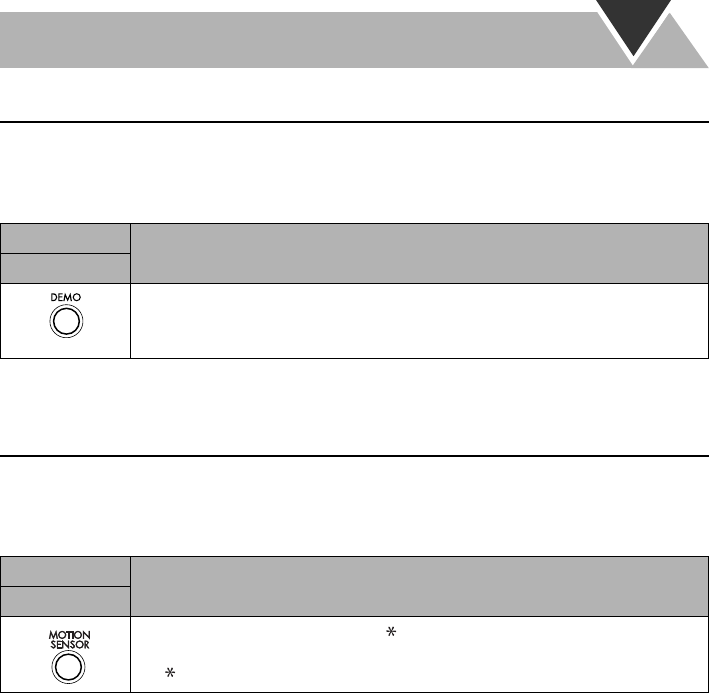

Canceling the Display Demonstration (Demo)..........6

Turning on the Power Automatically

(Motion Sensor) ..................................................6

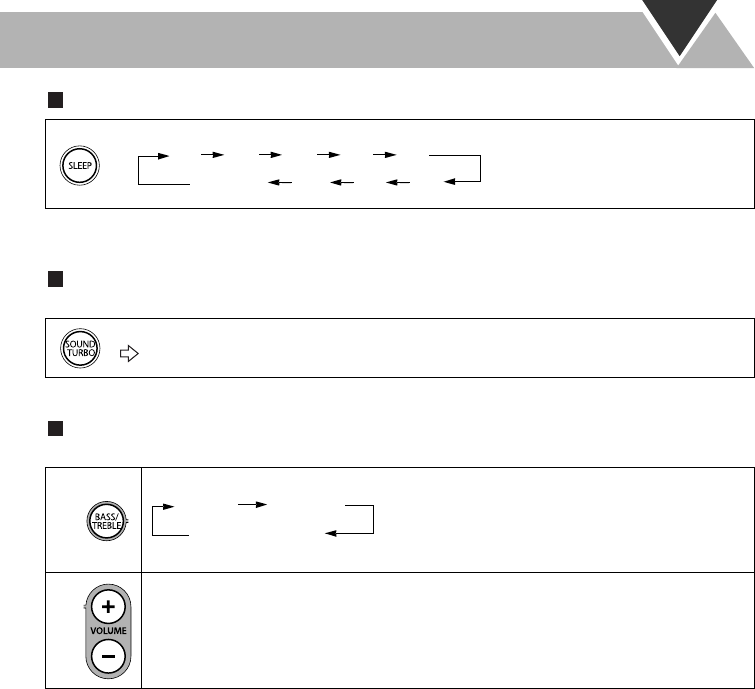

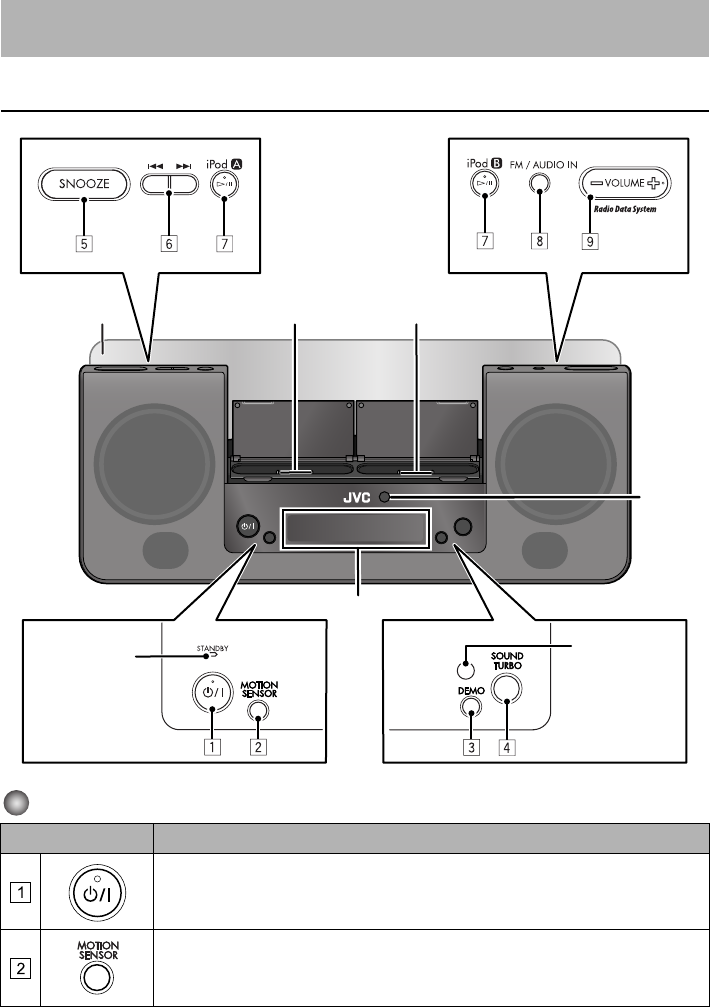

Basic Operations .........................................7

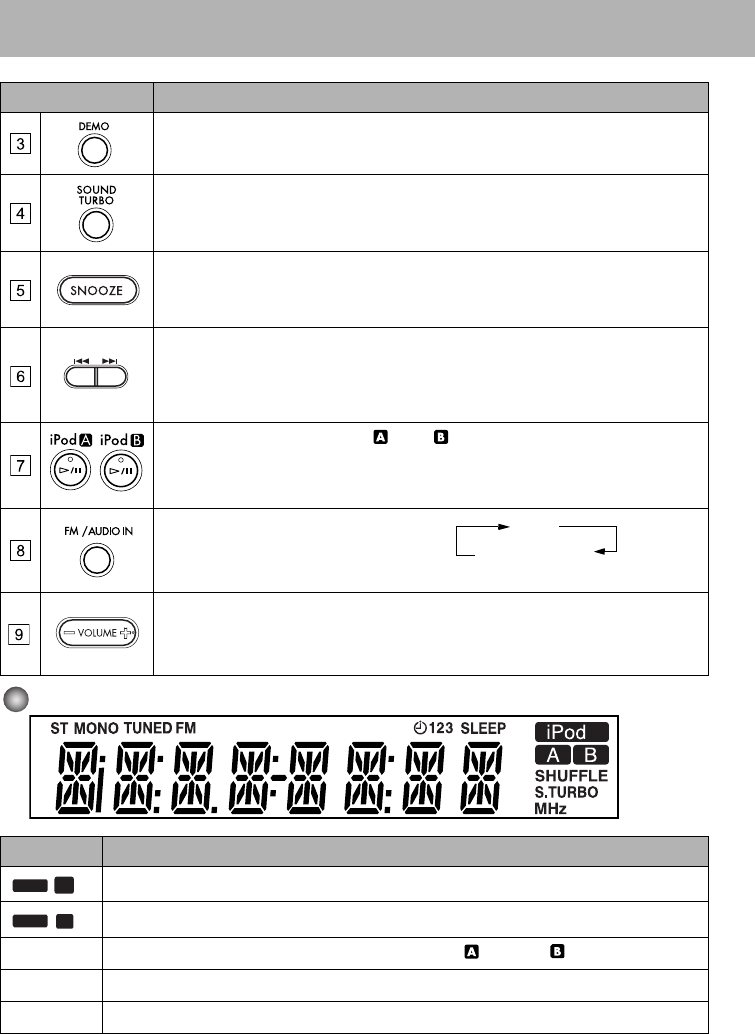

Main Unit ...................................................................7

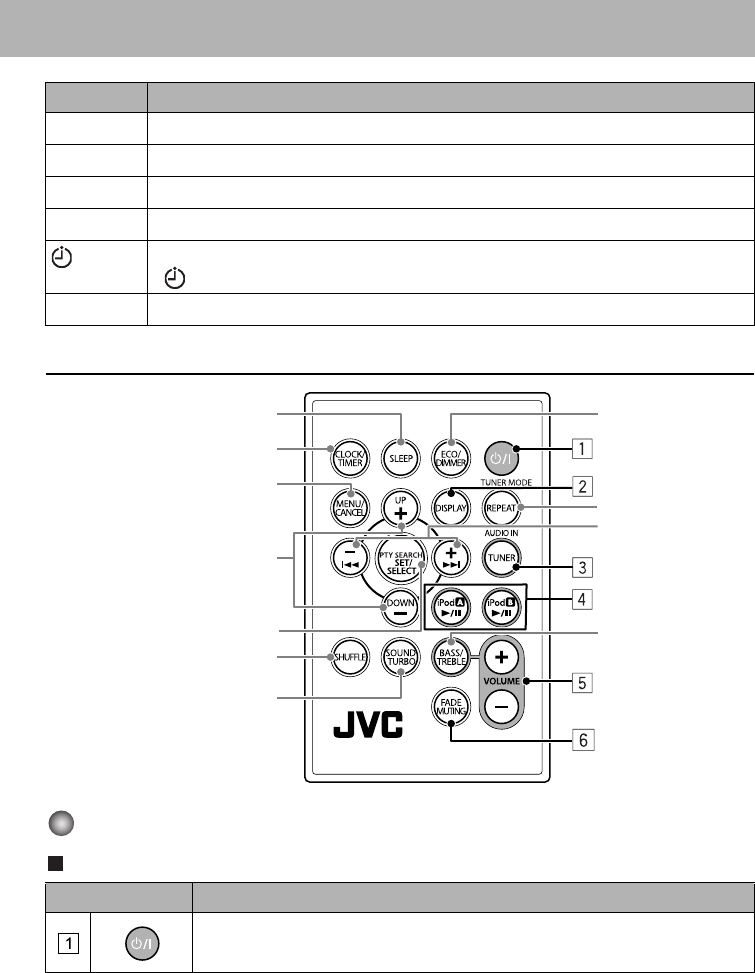

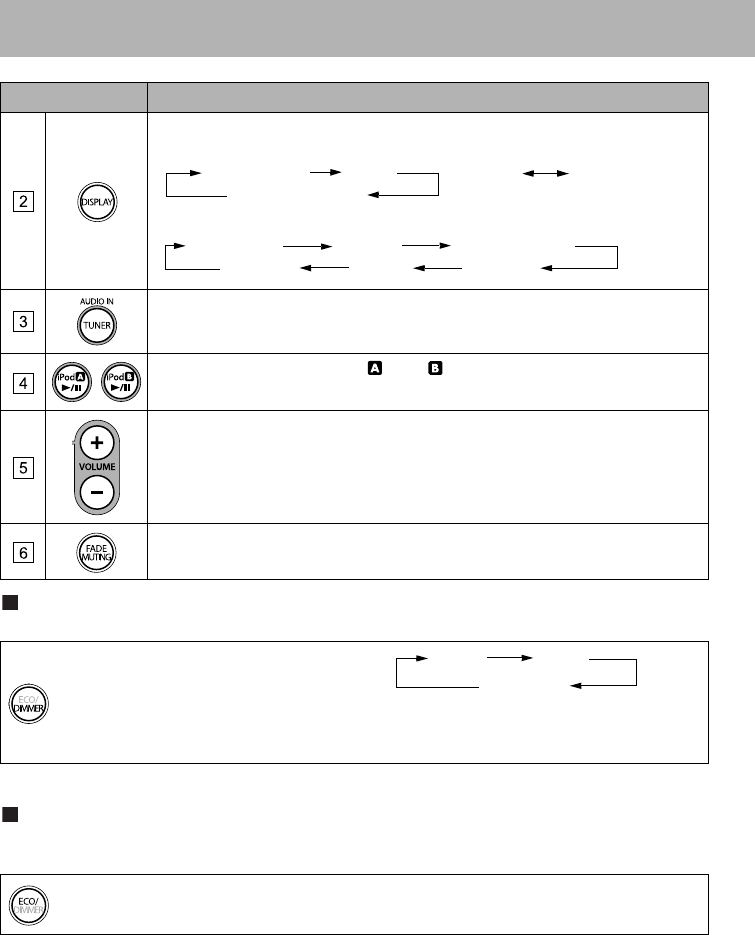

Remote Control ..........................................................9

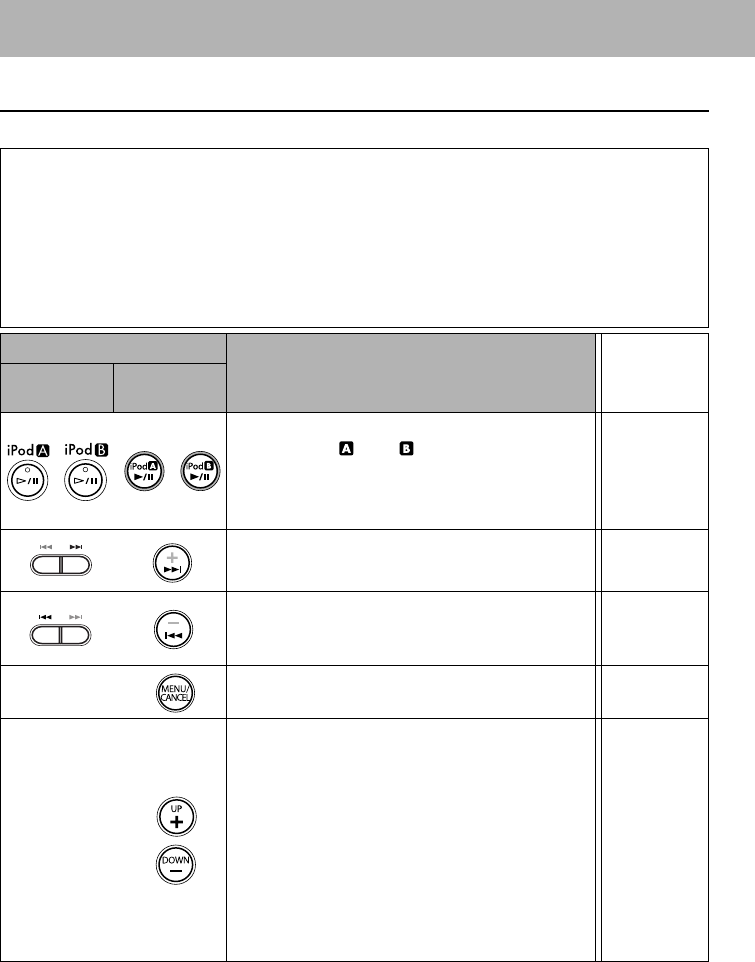

Playing Back from iPod Devices..............12

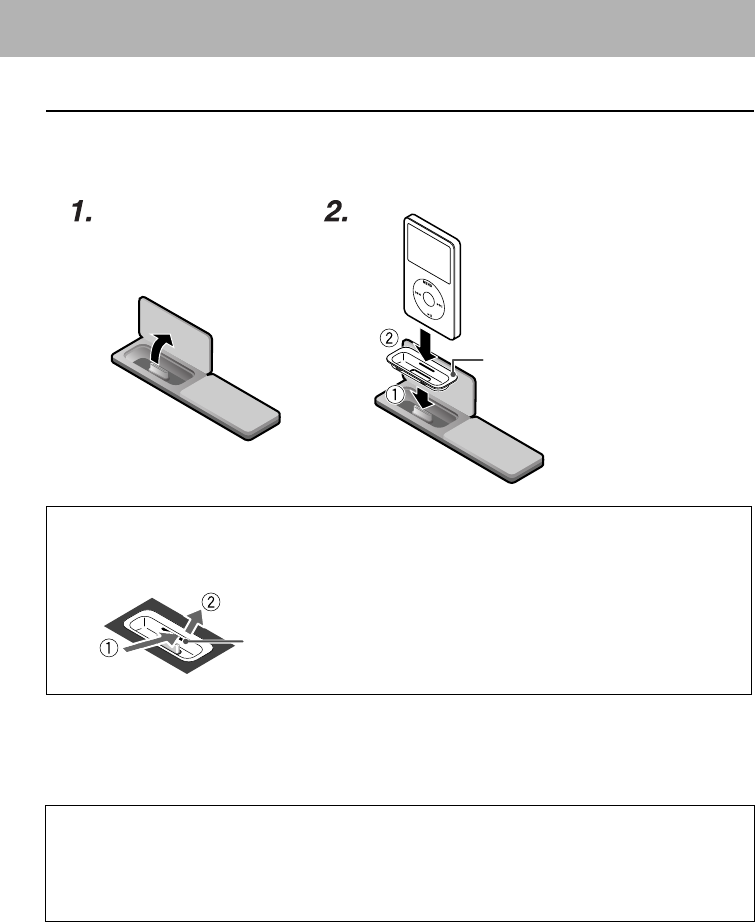

Connecting iPod.......................................................13

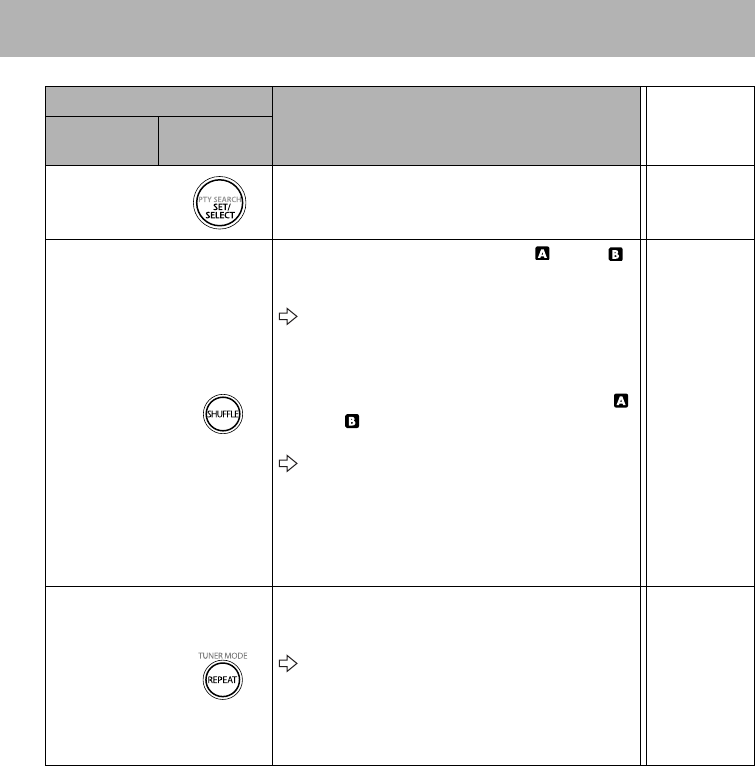

Operations ................................................................14

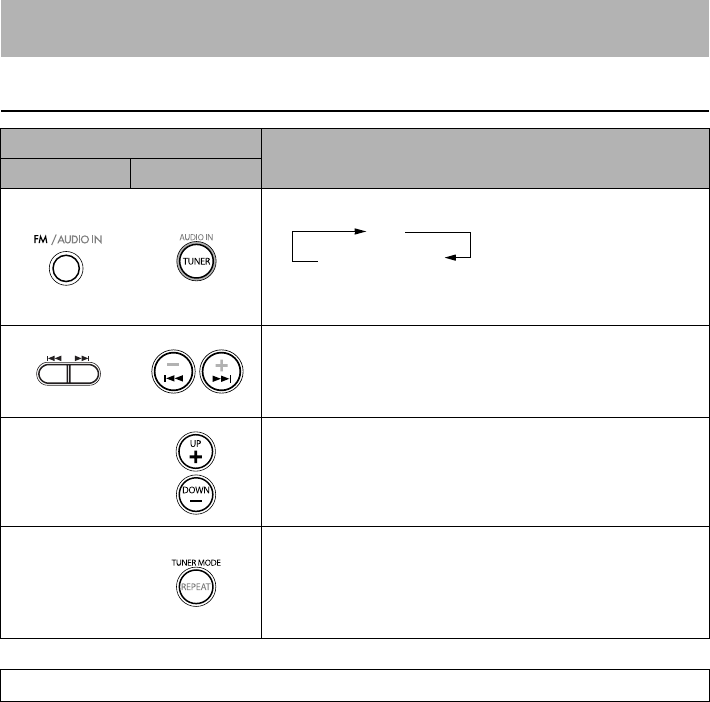

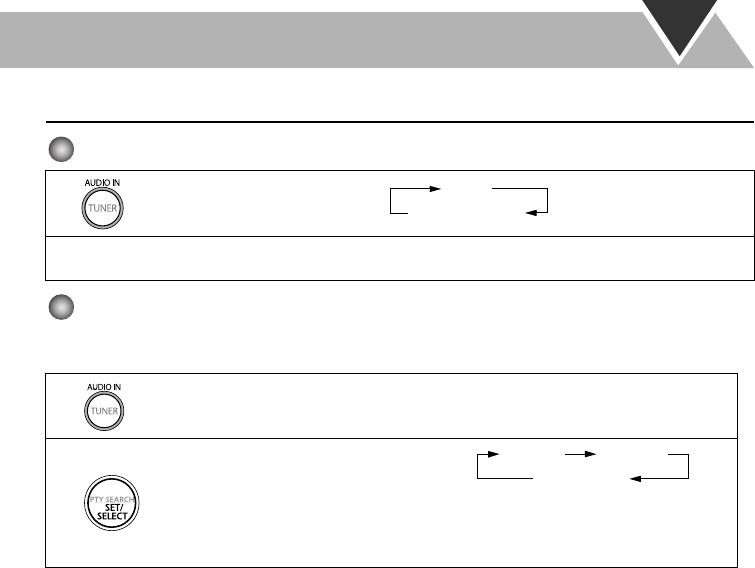

Listening to FM Broadcasts.....................17

Basic Operations ......................................................17

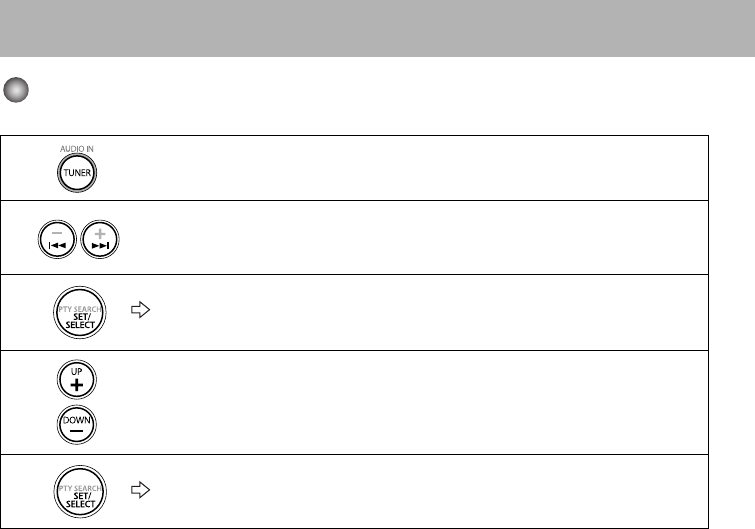

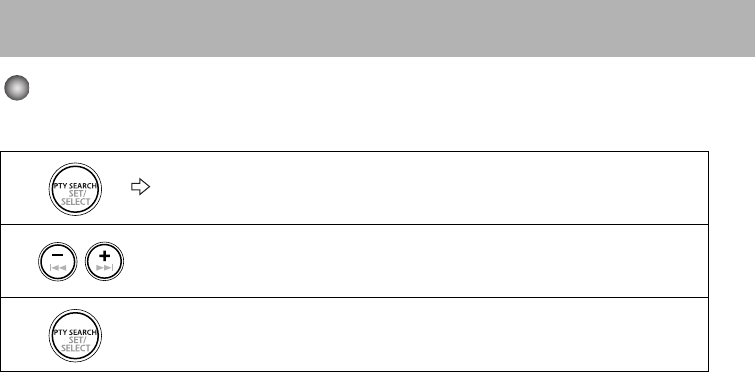

Receiving FM Stations with Radio Data System.....19

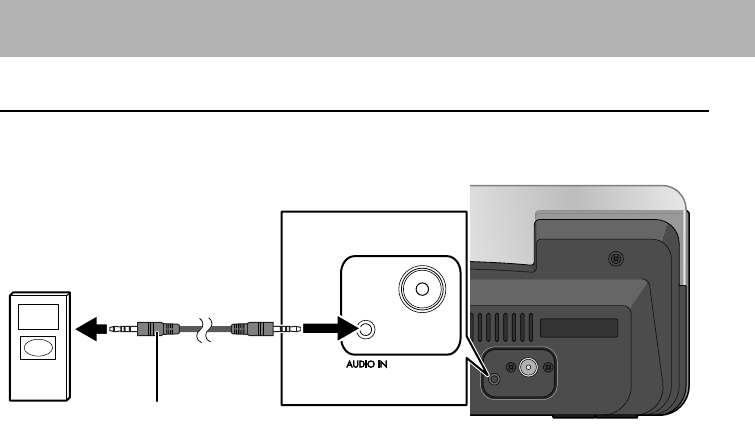

Playing Back from Other Equipment .....22

Connecting Other Equipment...................................22

Operations ................................................................23

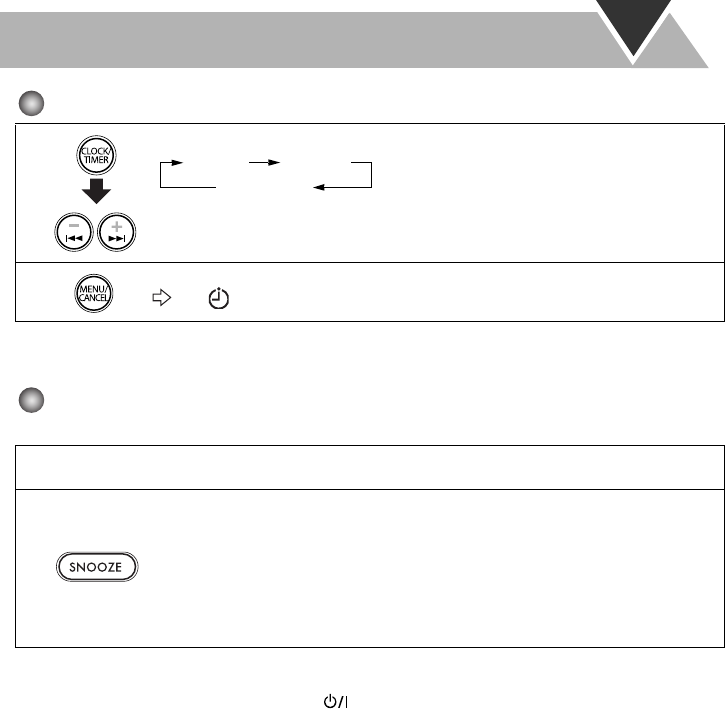

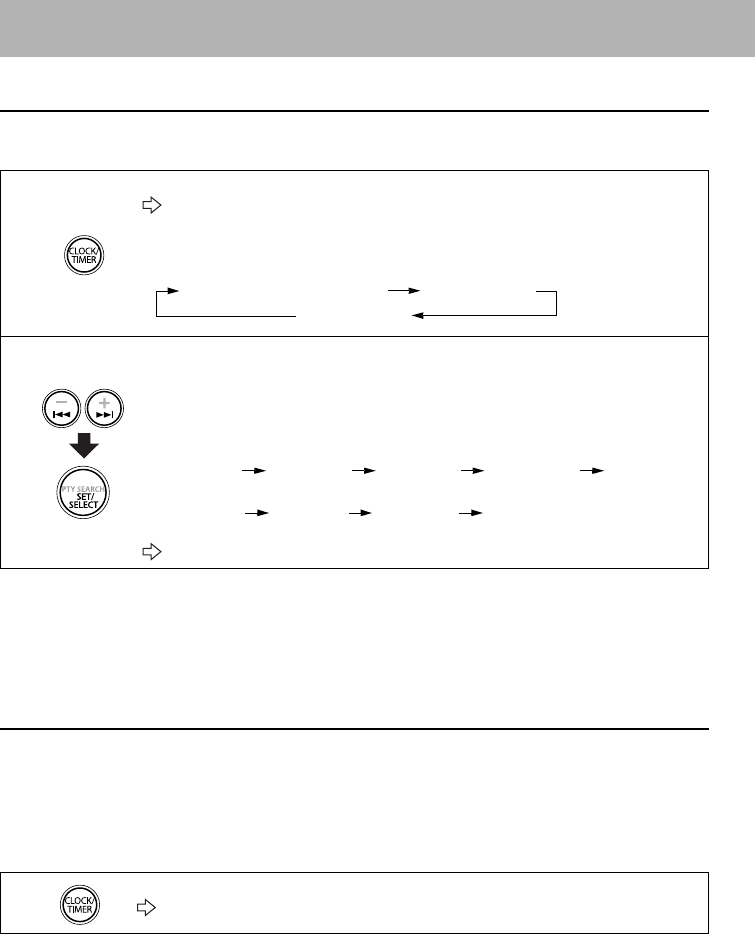

Setting the Clock and Timer....................24

Setting the Clock ......................................................24

Using Timer .............................................................24

Troubleshooting ........................................27

Specifications.............................................28

NX-PN10[B].BOOK Page 1 Monday, May 17, 2010 9:30 AM

Introduction

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and

to obtain the best possible performance from the unit.

Precautions

Installation

• Install in a place which is level, dry and neither too hot nor too cold—between 5°C and 35°C.

• Install the unit in a location with adequate ventilation to prevent internal heat buildup inside the

unit.

• Leave sufficient distance between the unit and the TV.

• Keep the unit away from the TV to avoid interference with TV.

Power Sources

• When unplugging the unit from the wall outlet, always pull on the plug, not the AC power cord.

Internal Heat

Others

• Should any metallic object or liquid fall into the unit, unplug the AC power cord and consult your

dealer before operating any further.

• If you are not going to operate the unit for an extended period of time, unplug the AC power cord

from the wall outlet.

If anything goes wrong, unplug the AC power cord and consult your dealer.

DO NOT install the unit in a location near heat sources, or in a place subject to direct

sunlight, excessive dust or vibration.

DO NOT handle the AC power cord with wet hands.

For safety, observe the following carefully:

• Make sure there is good ventilation around the unit. Poor ventilation could overheat

and damage the unit.

• DO NOT block the ventilation openings or holes. If they are blocked by a newspaper

or cloth, etc., the heat may not be able to get out.

DO NOT disassemble the unit since there are no user serviceable parts inside.

NX-PN10[B].BOOK Page 2 Monday, May 17, 2010 9:30 AM

Getting Started

Supplied Accessories

After unpacking, check to be sure that you have

all the following items. The number in

parentheses indicates the quantity of each piece

supplied.

• Remote control (1)

• Lithium coin battery CR2025 (1) (The battery

has been installed when shipped from the

factory.)

• FM antenna (1)

• AC power cord (1)

• AC adaptor (AA-R1001) (1)

If anything is missing, consult your dealer

immediately.

CAUTION:

To avoid risk of fire and to prevent damage.

• Do not use AC adaptors except the supplied

AC adaptor.

• Do not use the supplied AC adaptor for other

equipment.

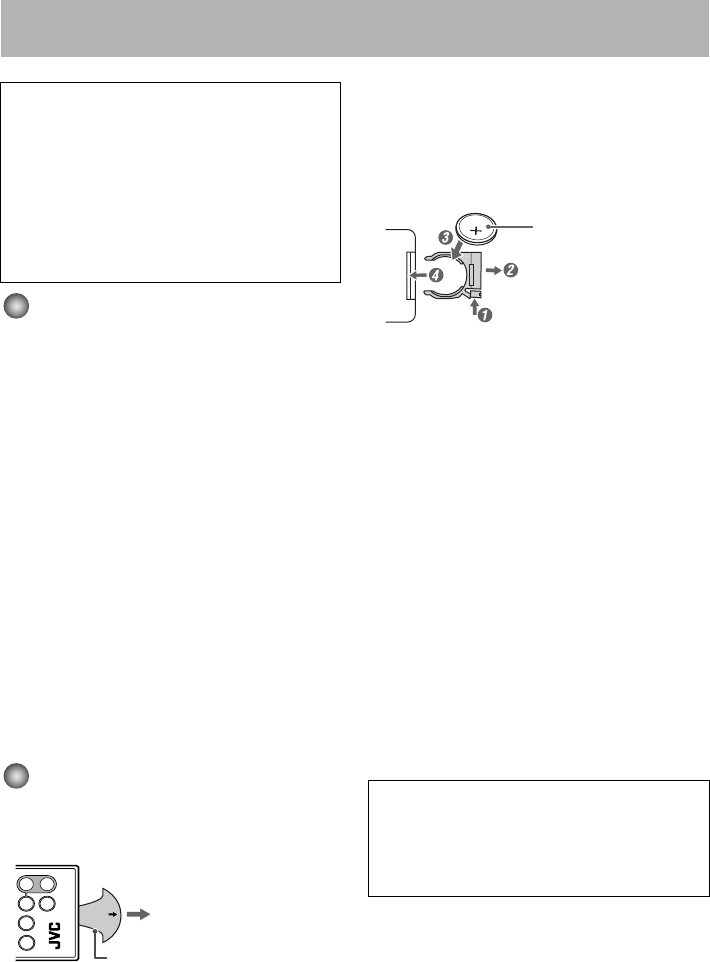

Prepare the Remote Control

When you use the remote control for the first

time, pull out the insulation sheet.

Replacing the battery in the remote control

Insert the battery into the remote control by

matching the polarity (+ and –) correctly.

• If the range or effectiveness of the remote

control decreases, replace the battery.

WARNINGS:

• Store the battery in a place where children

cannot reach. If a child accidentally swallows

the battery, consult a doctor immediately.

• Do not recharge, short, disassemble or heat

the battery or dispose of it in a fire. Doing any

of these things may cause the battery to give

off heat, crack, or start a fire.

• Do not leave the battery with other metallic

materials. Doing this may cause the battery to

give off heat, crack, or start a fire.

• When throwing away or saving the battery,

wrap it in tape and insulate; otherwise, the

battery may start to give off heat, crack, or

start a fire.

• Do not poke the battery with tweezers or

similar tools. Doing this may cause the battery

to give off heat, crack, or start a fire.

• Dispose of battery in the proper manner,

according to federal, state, and local

regulations.

• In this manual, operations using the remote

control are mainly explained; however, you

can use the buttons and controls on the unit

if they have the same (or similar) name and

marks.

• In this manual, “iPod” means both iPod and

iPhone devices. When iPhone device is

especially mentioned, “iPhone” is used in

this case.

Insulation sheet

Front side

CAUTION:

Danger of explosion if battery is incorrectly

replaced.

Replace only with the same or equivalent

type.

Rear side

Lithium coin battery

(product number:

CR2025)

NX-PN10[B].BOOK Page 3 Monday, May 17, 2010 9:30 AM

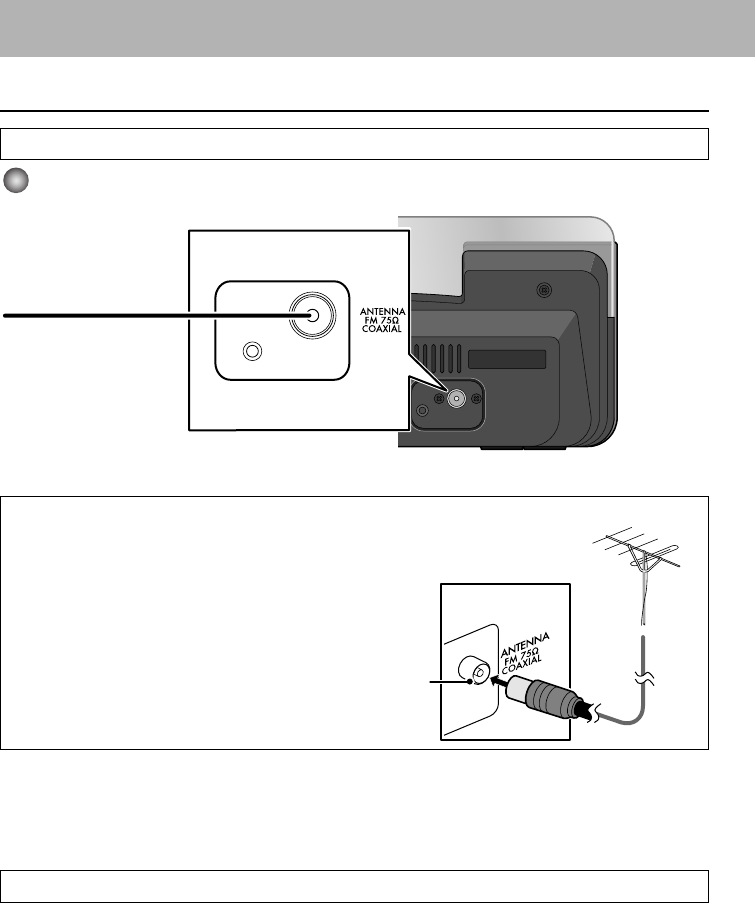

Connections

Connecting the Antenna

NOTES:

• Make sure the FM antenna does not touch any other terminals, connecting cords or the AC power

cord. Also, keep the antenna away from metallic parts of the unit, connecting cords and the AC

power cord. This could cause poor reception.

Do not connect the AC power cord until all other connections have been made.

For better FM reception

Disconnect the supplied FM antenna and

connect to an outdoor FM antenna using a 75 Ω

wire with coaxial type connector (IEC or

DIN45325).

AM band is not received with this unit.

Rear side

FM antenna (supplied):

Extend it so that you can

obtain the best reception.

Outdoor FM antenna

(not supplied)

FM 75Ω COAXIAL

terminal

(on the rear panel)

NX-PN10[B].BOOK Page 4 Monday, May 17, 2010 9:30 AM

Connecting the Video Cord to View a Video/Picture from iPod

When viewing a video/picture from iPod on your TV, use a composite video cord (not supplied) to

connect the VIDEO OUT jack on the unit and the composite video input on your TV.

• After you have connected the unit, change the video input mode on your TV. For details, also refer

to the instruction manual for your TV.

Connecting the Power Cord

Video cord (not supplied)

Rear side

To video input

Rear side

To a wall outlet

Plug in the AC power cord

only after all connections

are complete.

AC adaptor

(supplied)

AC power cord

(supplied)

NX-PN10[B].BOOK Page 5 Monday, May 17, 2010 9:30 AM

Canceling the Display Demonstration (Demo)

When you connect the AC power cord for the first time, the display demonstration starts

automatically.

• When you operate the unit, the display demonstration stops temporarily. If no operation is done

for about 2 minutes, the unit starts the display demonstration again.

• To activate again, hold down DEMO until “DEMO ON” appears on the display.

• When ECO mode is activated (P.10), the display demonstration does not function.

Turning on the Power Automatically (Motion Sensor)

When you move your hand or an object closer to Motion sensor (P.7), the unit turns on

automatically.

• iPod starts playback or an FM broadcast is received if you selected either of them last time.

• Motion Sensor works even if ECO mode is activated.

• To deactivate, press MOTION SENSOR. “M.S OFF” appears on the display.

NOTE:

• If the AC power cord is unplugged, Motion Sensor does not work.

• Deactivate Motion Sensor in the following cases to prevent the unit from turning on automatically:

– when you do not use the unit for a long time

– when you use Timer

Button

Operation

On the unit

Hold down until “DEMO OFF” appears on the display.

Button

Operation

On the unit

Press to activate Motion Sensor. “ M.S ON” appears on the display.

• When you select Clock as the display information or the unit is on standby,

“ ” is shown on the display (see page 10).

NX-PN10[B].BOOK Page 6 Monday, May 17, 2010 9:30 AM

Main Unit

Operating on the Main Unit

Buttons Operations

Turns on or off (standby) the power.

Activates or deactivates Motion Sensor (P.6).

STANDBY

lamp

Remote

control

sensor

Display (P.8)

Illumination panel

(P.10)

Dock A

(P.13)

Dock B

(P.13)

Motion

sensor

(P.6)

Basic Operations

NX-PN10[B].BOOK Page 7 Monday, May 17, 2010 9:30 AM

Display Information

Activates or deactivates the display demonstration (P.6).

Adds the powerfulness to the sound (P.11).

Stops the timer sound and restarts it 5 minutes later (P.26).

• iPod (P.14):

Press: Reverse skip/forward skip.

Hold down: Reverse search/forward search.

• FM (P.17): Tunes in to a station.

• Changes the source to iPod /iPod (P.14).

• Starts playback and pauses for iPod (P.14).

Changes the source to FM (P.17) or

AUDIO IN (P.23).

Adjusts the volume level (VOL MIN/VOL 0 to VOL MAX/VOL 30).

Symbols Description

Lights up when iPod is connected to dock A.

Lights up when iPod is connected to dock B.

SHUFFLE Lights up when Shuffle Play applies to both iPod and iPod (P.15).

S.TURBO Lights up when Sound Turbo is activated (P.11).

MHz Lights up when FM frequency is indicated.

Buttons Operations

AUDIO IN

iPod

iPod B

NX-PN10[B].BOOK Page 8 Monday, May 17, 2010 9:30 AM

Remote Control

Operating on the Remote Control

Basic operations

ST Lights up when FM stereo broadcast is received.

MONO Lights up when FM monaural reception mode is activated.

TUNED Lights up when an FM station of sufficient signal strength is tuned in.

FM Lights up when FM is selected as the source.

1/2/3 • Lights up when Timer is set (P.25).

• 1/2/3 icon flashes while Timer is working.

SLEEP Lights up when Sleep Timer is activated (P.11).

Buttons Main operations

Turns on or off (standby) the power.

Symbols Description

P.10

P.11

P.15, P.17

, P.17, P.18, P.23

P.15

P.24, P.26

P.11

P.14, P.24, P.26

P.14, P.17, P.18

P.15, P.18, P.20,

P.23 – P.25

P.14, P.17, P.18,

P.20, P.24 – 26

, P.11

, P.19

, P.14

NX-PN10[B].BOOK Page 9 Monday, May 17, 2010 9:30 AM

To dim the display and illumination panel—DIMMER

You can change the brightness of the display and illumination panel.

• Dimmer is canceled when you turn off the unit.

To activate ECO mode

Activating ECO mode allows you to reduce power consumption by turning off the display while on

standby.

• To cancel the mode, press ECO/DIMMER again. “ECO OFF” appears for a while then the clock

is shown on the display.

•The battery of iPod is not charged in ECO mode.

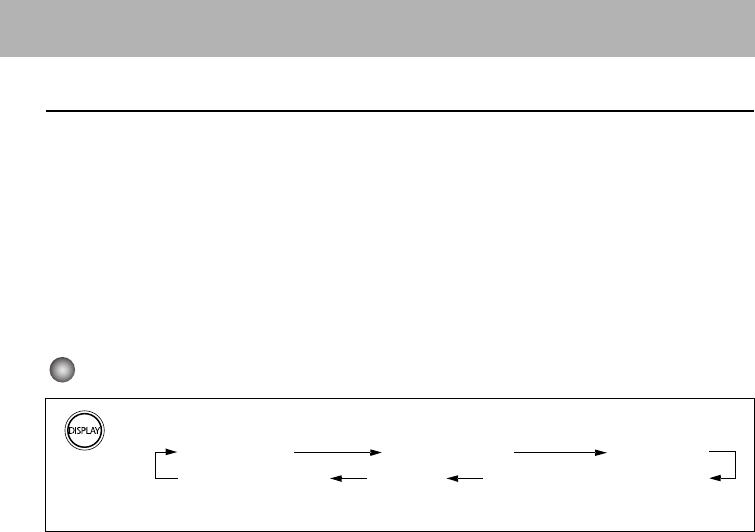

Changes the display information.

• For iPod A/iPod B/AUDIO IN:

•For FM:

• When the unit is turned off:

Changes the source to FM (P.17) or AUDIO IN (P.23).

• Changes the source to iPod /iPod (P.14).

• Starts playback and pauses for iPod (P.14).

Adjusts the volume level (VOL MIN/VOL 0 to VOL MAX/VOL 30).

Drops the volume in a moment.

• To restore the volume, press again or adjust the volume level.

Press repeatedly.

DIM 1: Dims the display and illumination panel.

DIM 2: Dims the display much more than “DIM 1” and turns off the illumination panel.

Press while the unit is on standby. “ECO ON” appears on the display for a while.

• The clock is not shown on the display when the unit is on standby.

Buttons Main operations

Source name Clock

Day of the week

Frequency Day of the week

Clock

RT PS

PTY

Clock Day of the week

DIM 1

DIM OFF

(Canceled)

DIM 2

NX-PN10[B].BOOK Page 10 Monday, May 17, 2010 9:30 AM

To turn off the unit after a certain period of time—Sleep Timer

• To check the time remaining before the shut-off time, press SLEEP once. If you press the button

repeatedly, you can change the shut-off time.

To emphasize the sound—Sound Turbo

You can add the powerfulness to the sound.

• To cancel, press SOUND TURBO again. “OFF” appears on the display.

To adjust the tone

You can adjust the bass and treble levels.

Press repeatedly to specify the time (in minutes) as follows:

Press to activate Sound Turbo.

“S-TURBO” appears for a while and S.TURBO lights up on the display.

Select the item you want to adjust.

Adjust the bass or treble level (–5 to +5).

10 20 30 60 90

120

OFF

(Canceled) 150

180

TREBLE

BASS

Canceled

NX-PN10[B].BOOK Page 11 Monday, May 17, 2010 9:30 AM

You can connect 2 iPod devices to the unit and enjoy sound and video from them.

Compatible iPod Models:

*1 Only for still picture.

*2 To view a video/picture from iPod touch on your TV, update iPod touch software to the latest

version. (Additional charges may apply.)

If iPod does not play correctly, update iPod software to the latest version.

• For details about updating iPod, check on the Apple web site <http://www.apple.com>.

•JVC does not assure the compatibility of iPod released after April 2009 with this unit.

iPod model Audio Video

iPod nano 1GB/2GB/4GB √—

iPod nano (2nd Generation) 2GB/4GB/8GB √—

iPod nano (3rd Generation) 4GB/8GB √√

iPod nano (4th Generation) 8GB/16GB √√

iPod mini 4GB √—

iPod mini (2nd Generation) 4GB/ 6GB √—

iPod (4th Generation) 20GB/40GB √—

iPod photo (4th Generation) 20GB/30GB/40GB/60GB √√

iPod video (5th Generation) 30GB/60GB/80GB √√

iPod classic 80GB/120GB/160GB √√

iPod touch 8GB/16GB/32GB √√

iPod touch (2nd Generation) 8GB/16GB/32GB √√

iPhone 4GB/8GB/16GB √√

iPhone (3G) 4GB/8GB/16GB √√

• “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been

designed to connect specifically to iPod or iPhone, respectively, and has been certified by

the developer to meet Apple performance standards. Apple is not responsible for the

operation of this device or its compliance with safety and regulatory standards.

• iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc.,

registered in the U.S. and other countries.

Playing Back from iPod Devices

NX-PN10[B].BOOK Page 12 Monday, May 17, 2010 9:30 AM

Connecting iPod

Connect iPod to dock A or B on the unit.

You can have 2 iPod devices connected at the same time.

• Make sure the unit is on standby when you connect iPod.

NOTES:

• Be careful not to damage the terminal on the dock when connecting/disconnecting iPod.

• Close the cover of the dock when you do not connect iPod to the unit.

About the battery charge of iPod

The battery of iPod is always charged through the unit except when the unit is in ECO mode (see

page 10).

• When 2 iPod devices are connected, both batteries are charged at the same time.

• For details of the battery charging, see the instruction manual for iPod.

Dock A

Dock B

Dock adapter (supplied with iPod

or sold separately)

To detach the dock adapter from the dock:

Pull up the dock adapter with your fingernail or a sharp-pointed tool using the slot.

• Be careful not to injure your fingertips or damage the terminal of the dock.

slot

NX-PN10[B].BOOK Page 13 Monday, May 17, 2010 9:30 AM

Operations

For details, also refer to the instruction manual for iPod.

*1 Not available for iPhone and iPod touch.

*2 Not equipped with iPhone and iPod touch.

NOTES:

• Before viewing a video/picture from iPod on your TV, make the appropriate video setting on

iPod. For details of the setting, see the instruction manual for iPod.

• For iPhone and iPod touch

Operate iPhone or iPod touch itself in the following cases:

– when operating the home button

– when selecting application icons on the home screen

– when dragging the slider

Buttons

Operations Control of

iPod

On the unit On the

remote

Press:

– Selects iPod /iPod as the source and starts

playback.

– Starts playback/pauses.

Hold down*1: Puts iPod in sleep mode.

38, 3, or

Press: Forward skip

Hold down: Forward search x

Press: Reverse skip/Return to the beginning of the

current track.

Hold down: Reverse search

—Goes back to the previous menu/screen. MENU*2

—

Selects an item on the menu/screen.

– Press: Selects an item.

–Hold down: Scrolls through a list. To stop

scrolling, press either one of the buttons.

• For iPhone and iPod touch: The buttons work

after starting “Music” or “Videos” by tapping

the corresponding application icon on the home

screen of iPhone and iPod touch.

• For iPod devices other than above: The buttons

work in the same way as operating the click

wheel of iPod counterclockwise/clockwise.

Click

wheel*2

NX-PN10[B].BOOK Page 14 Monday, May 17, 2010 9:30 AM

*Not equipped with iPhone and iPod touch.

Buttons

Operations Control of

iPod

On the unit On the

remote

—

Confirms an item on the menu/screen. Center

button*

—

Press: Applies Shuffle Play to iPod or iPod

selected as the source.

Select the desired shuffle mode.

“SHUFFLE” appears for a while.

• The shuffle icon lights up on the display of iPod.

• To cancel, press again until the shuffle icon

disappears.

Hold down: Applies Shuffle Play to both iPod

and iPod if connected.

Select the desired shuffle mode.

“SHUFFLE” appears for a while and

SHUFFLE lights up on the display.

• The shuffle icon lights up on the display of both

iPod devices.

• To cancel, press again until the shuffle icon

disappears.

—

Applies Repeat Play to iPod selected as the

source.

Select the desired repeat mode.

“REPEAT” appears on the display for a while.

• The repeat icon lights up on the display/screen

of iPod.

• To cancel, press again until the repeat icon

disappears.

—

NX-PN10[B].BOOK Page 15 Monday, May 17, 2010 9:30 AM

NOTES:

• JVC is not responsible for any loss of or damage to iPod that might result from the use of

this product.

• Do not touch or hit the terminals of the dock and of iPod. It might cause damage to these terminals.

• When you connect iPod to the dock, make sure the terminal on the dock is fully inserted into iPod.

• Always set the volume to the minimum level when connecting or disconnecting iPod.

• Do not carry the unit with iPod connected. You might drop it down or it might cause damage to

the connector part.

• Sound distortion may occur when playing back audio sources with a high recording level. When

distortion occurs, it is recommended to turn off the equalizer of iPod. For information on operating

iPod, see the instruction manual for iPod.

• Turn off the unit when disconnecting iPod.

• Remove iPod from the dock when you do not use it.

• When you cannot operate iPod connected through the unit or using the remote control, operate

iPod itself.

• After connecting iPod, wait until the unit is ready for operation (about 3 seconds).

NX-PN10[B].BOOK Page 16 Monday, May 17, 2010 9:30 AM

Listening to FM Broadcasts

Basic Operations

Buttons

Operations

On the unit On the remote

Selects FM as the source.

When an FM programme is broadcasted in stereo, ST (stereo)

lights up on the display (only when the reception is good).

Press: Changes the frequency.

Hold down and release: The unit starts searching for stations

and stops when a station of sufficient signal strength is found.

• To stop searching, press again.

—

Tunes in to a preset station: Press repeatedly to select a preset

station number. (For presetting stations, see page 18.)

—

Changes the FM reception mode: When an FM stereo

broadcast is hard to receive or noisy, press to improve

reception. MONO (monaural) lights up on the display.

Reception will improve though the stereo effect is lost.

• To restore the stereo effect, press again.

AM band is not received with this unit.

AUDIO IN

NX-PN10[B].BOOK Page 17 Monday, May 17, 2010 9:30 AM

Presetting Stations

You can preset 30 FM stations.

NOTES:

• When you unplug the AC power cord or if a power failure occurs, the preset stations will be erased

in a few days.

• If you store a new station onto an occupied preset number, the station previously stored on that

number will be erased.

1Select FM as the source.

2Tune in to the station you want to preset.

• You can also store the monaural reception mode for FM preset stations if

selected.

3Activate the preset number entry mode.

“SET” flashes on the display for a few seconds.

• Complete the following operations while the indication is flashing.

Select a preset number for the station you want to store.

5Store the station.

“STORED” appears on the display for a while.

NX-PN10[B].BOOK Page 18 Monday, May 17, 2010 9:30 AM

Receiving FM Stations with Radio Data System

Radio Data System allows FM stations to send an additional signal along with their regular

programme signals. With the unit, you can receive the following types of Radio Data System

signals.

PS (Programme Service): Shows commonly known station names.

PTY (Programme Type): Shows types of broadcast programmes.

RT (Radio Text): Shows text messages the station sends.

NOTE:

If you want to know more about Radio Data System, visit <http://www.rds.org.uk>.

Changing the Radio Data System Information

NOTE:

If no Radio Data System signals are sent, “NO PS,” “NO PTY” or “NO RT” appears on the display.

Each time you press the button, the display changes as follows:

PS PTY RT

Clock

(Non-Radio Data System signal)

Day of the week Frequency

NX-PN10[B].BOOK Page 19 Monday, May 17, 2010 9:30 AM

Searching for Programmes by PTY Codes (PTY Search)

You can locate a particular kind of programme from the preset stations (see “Presetting Stations”

on page 18) by specifying the PTY codes.

To continue searching to find another programme of the programme type you selected, press PTY

SEARCH while the indications on the display are flashing.

NOTES:

• To stop searching, press PTY SEARCH.

• If no programme is found, “NOTFOUND” appears on the display.

1Press twice. “SELECT” flashes on the display.

The unit enters the PTY code setting mode.

2Select a PTY code.

• For description of the PTY codes, see page 21.

3The unit searches for preset stations for the selected type of programmes and

tunes in to the one found.

NX-PN10[B].BOOK Page 20 Monday, May 17, 2010 9:30 AM

• Classification of the PTY codes for some FM stations may be different from the above list.

• The PTY codes appear on the display in order of the above list.

PTY codes

NONE No program type, undefined

program, or difficult to categorize

into particular types.

WEATHER Weather reports and forecasts.

NEWS News. FINANCE Stock Market reports, commerce,

trading etc.

AFFAIRS Topical program expanding or

enlarging upon the news⎯debate,

or analysis.

CHILDREN Programs targeted at a young

audience.

INFO Programs the purpose of which is to

impart advice in the widest sense.

SOCIAL Programs about sociology, history,

geography, psychology and society.

SPORT Programs concerned with any aspect

of sports.

RELIGION Religious programs.

EDUCATE Educational programs. PHONE IN Involving members of the public

expressing their views either by phone

or at a public forum.

DRAMA All radio plays and serials. TRAVEL Travel information.

CULTURE Programs concerning any aspect of

national or regional culture,

including language, theater, etc.

LEISURE Programs about recreational

activities.

SCIENCE Programs about natural sciences and

technology.

JAZZ Jazz music.

VARIED Used for mainly speech-based

programs such as quizzes, panel

games and personality interviews.

COUNTRY Songs which originate from, or

continue the musical tradition of the

American Southern States.

POP M Commercial music of current

popular appeal.

NATION M Current popular music of the nation or

region in that country’s language.

ROCK M Rock music. OLDIES Music from the so-called “golden

age” of popular music.

EASY M Current contemporary music

considered to be “easy-listening”.

FOLK M Music which has its roots in the

musical culture of a particular nation.

LIGHT M Instrumental music, and vocal or

choral works.

DOCUMENT Programs concerning factual matters,

presented in an investigative style.

CLASSICS Performances of major orchestral

works, symphonies, chamber music,

etc.

TEST Broadcasts for testing emergency

broadcast equipment or unit.

OTHER M Music not fitting into any of the other

categories.

ALARM Emergency announcement.

NX-PN10[B].BOOK Page 21 Monday, May 17, 2010 9:30 AM

Playing Back from Other Equipment

Connecting Other Equipment

By using a stereo mini plug cord (not supplied), you can connect other equipment with analog audio

output jacks, such as a portable audio player, etc.

• Refer to the instruction manual supplied with the equipment.

NOTE:

Make sure the unit is on standby when connecting or disconnecting other equipment.

Portable

audio player Rear side

Stereo mini plug cord

(not supplied)

To headphones or

audio out

NX-PN10[B].BOOK Page 22 Monday, May 17, 2010 9:30 AM

Operations

To Listen to Other Equipment

To Adjust the Sound Input Level from the Equipment

You can adjust the sound input level from the connected equipment if the incoming signal is too

weak or too strong.

1Select AUDIO IN as the source.

2 Start playing the equipment.

1Select AUDIO IN as the source.

Hold down to adjust the sound input level.

LEVEL 1: Ordinary input level.

LEVEL 2: Increases the input level.

LEVEL 3: Increases the input level more than “LEVEL 2.”

AUDIO IN

LEVEL 1

LEVEL 3

LEVEL 2

NX-PN10[B].BOOK Page 23 Monday, May 17, 2010 9:30 AM

Setting the Clock and Timer

Setting the Clock

Set the built-in clock before using Timer.

• You can set the clock when the unit is turned on or on standby.

• To exit from the clock setting, press CLOCK/TIMER as required.

• To correct a misentry during the process, press MENU/CANCEL. You can return to the previous

step.

• If a power failure occurs, the clock loses the setting and is reset to “0:00.” You need to adjust the

clock again.

Using Timer

Using Timer, you can wake up with music, etc.

• Deactivate Motion Sensor when you use Timer (P.6) .

• When using iPod or other equipment as the playback source, connect it to the unit beforehand.

(P.13, P.22)

• You can set Timer when the unit is turned on or on standby.

• The unit is turned off automatically 2 hours after it is turned on by Timer.

Activate the clock setting mode.

“ADJCLOCK” appears then the hour digit of the time indication flashes on

the display.

• If you have already set the clock before, press the button twice to activate the

clock setting mode.

1Set the hour while the hour digits of the time indication flashes on the

display.

2Set the minute while the minute digits of the time indication flashes on the

display.

3Select the day of the week.

“CLOCK OK” appears and the built-in clock starts working.

1Activate the timer setting mode.

“TIMER 1,” “TIMER 2” or “TIMER 3” appears on the display.

Clock settingTIMER 1/TIMER 2/TIMER 3*

Canceled

*See “Using

Timer”.

MON DAY

(Monday)

TUE DAY

(Tuesday)

WED DAY

(Wednesday)

THU DAY

(Thursday)

FRI DAY

(Friday)

SAT DAY

(Saturday) Back to the beginning

SUN DAY

(Sunday)

NX-PN10[B].BOOK Page 24 Monday, May 17, 2010 9:30 AM

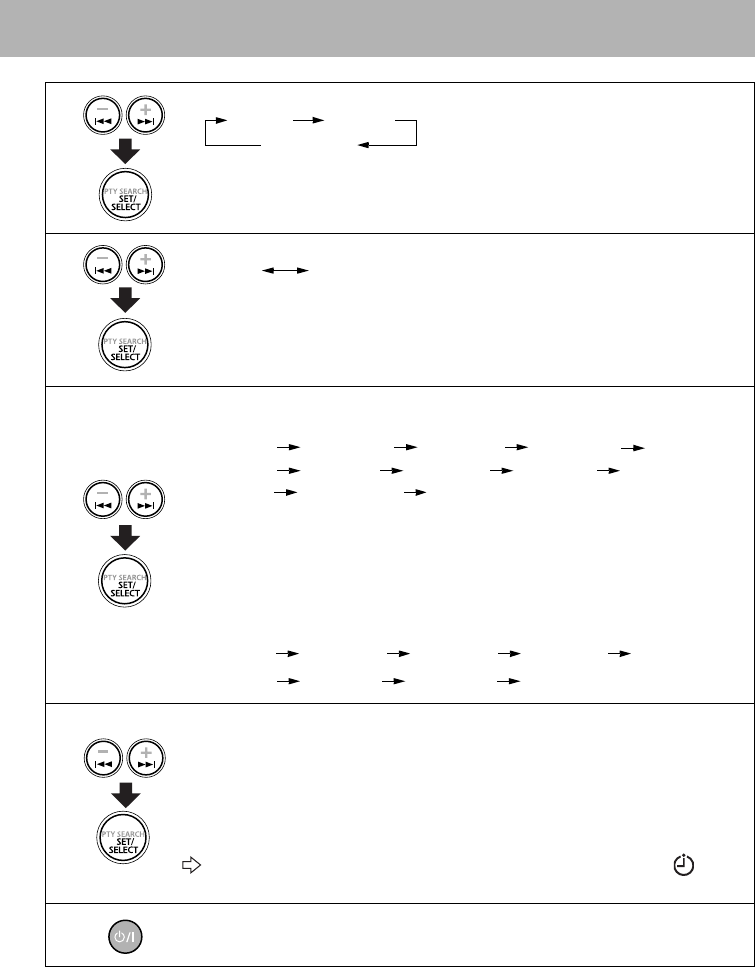

• To exit from Timer setting, press CLOCK/TIMER as required.

• To correct a misentry during the process, press MENU/CANCEL. You can return to the previous

step.

Select Timer you want to set.

Select Timer type.

WEEKLY: See step 4 below.

ONCE: Timer works once on a selected day of the week.

Select the desired day of the week.

• When “WEEKLY” is selected in step 3:

SUN DAY to SAT DAY: Timer works every week on the selected day.

MON-FRI: Timer works from Monday to Friday every week.

MON-SAT: Timer works from Monday to Saturday every week.

EVERYDAY: Timer works everyday.

• When “ONCE” is selected in step 3:

1Adjust the hour then the minute for the on-time.

2Select the playback source—“iPod A,” “iPod B,” “FM” or “AUDIO IN.”

• When “FM” is selected, select the preset number of the station you want to

listen to.

When you select “FM – – ” the preset station you last tuned in is set. (See

“Listening to FM Broadcasts” on page 17.)

3Select the volume level.

“SET OK” appears followed by the setting information, then the icon

and the timer number indicator (1/2/3) light up on the display.

6Turn off the unit (on standby).

TIMER 2TIMER 1

TIMER 3

ONCEWEEKLY

MON-FRI

EVERYDAY

MON DAY

SUN DAY TUE DAY WED DAY

THU DAY FRI DAY SAT DAY

Back to the beginningMON-SAT

TUE DAYMON DAY WED DAY

THU DAY SAT DAYFRI DAY Back to the beginning

SUN DAY

NX-PN10[B].BOOK Page 25 Monday, May 17, 2010 9:30 AM

To Cancel Timer

NOTE:

The settings you have made are memorized though you cancel Timer.

To Turn off the Timer Sound briefly—Snooze

Using Snooze, you can have the timer sound stop and restart it 5 minutes later.

• When the timer sound starts:

– If you do not press SNOOZE within 3 minutes after the timer sound starts, Snooze does not work.

–When you turn off the unit by pressing , Snooze does not work.

Select Timer you want to cancel.

2“CANCEL” flashes on the display.

The icon and the timer number indicator (1/2/3) disappear.

1Set Timer following the steps 1 to 6 on pages 24 and 25.

When the timer sound starts, press SNOOZE. The unit turns off for 5 minutes

to stop the timer sound. Timer remains activated.

• “SNOOZE” flashes on the display while the unit turns off.

5 minutes later, the unit turns on and the timer sound restarts automatically.

• To stop the timer sound again, press SNOOZE.

• After stopping the timer sound 10 times by pressing SNOOZE, Snooze is

canceled.

TIMER 2TIMER 1

TIMER 3

NX-PN10[B].BOOK Page 26 Monday, May 17, 2010 9:30 AM

Troubleshooting

If you have a problem with your unit, check this list for a possible solution before calling for service.

General

Power does not come on.

The power plug is not inserted securely. Plug

it in securely (P.5).

Power turns on even though you turned

off.

Motion Sensor is activated (P.6).

Adjustments or settings are suddenly

canceled before you finish.

There is a time limit. Repeat the procedure

again.

Operations are disabled.

The built-in microprocessor may

malfunction due to external electrical

interference. Unplug the AC power cord and

then plug it back in.

Cannot view a video/picture from iPod

on the TV.

Connect a composite video cord securely to

your TV (P.5).

Change the video input mode on your TV.

For details, refer to the instruction manual

for your TV.

Update your iPod to the latest version (P.12).

Unable to operate the unit from the

remote control.

The path between the remote control and the

remote sensor on the unit is blocked.

Point it at the remote sensor on the front

panel.

Signals cannot reach the remote sensor.

Move closer to the unit.

The batteries are exhausted.

Pull out the insulation sheet (P.3).

The unit is suddenly turned off.

The unit is turned off automatically 2 hours

after it is turned on by Timer (P.24).

iPod Operations

iPod doesn’t play though iPod /iPod

lights up on the display.

The battery is empty. Leave it connected for

more than 10 minutes.

The battery of iPod cannot be charged

through the unit.

The unit is in ECO mode. Cancel the mode

(P.10, P.13).

Radio Operations

Hard to listen to broadcasts because of

noise.

The FM antenna connection is incorrect or

loose (P.4).

The FM antenna is not properly extended

and positioned (P.4).

Timer Operations

Timer does not work.

Timer starts working only when the unit is

turned off (standby).

A power failure may have occurred. Set the

clock first, then Timer again (P.24, P.25).

Timer sound starts working again.

Snooze is activated (P.26).

Snooze does not work.

If you do not press SNOOZE within 3

minutes after the timer sound starts, Snooze

does not work (P.26).

NX-PN10[B].BOOK Page 27 Monday, May 17, 2010 9:30 AM

Specifications

Accessories

See page 3.

Amplifier

Output Power

10 W (5W+5W) at 8 Ω (10%THD)

Terminals

AUDIO IN

Input Sensitivity/Impedance (1 kHz):

LEVEL 1: 500 mV/47 kΩ

LEVEL 2: 315 mV/47 kΩ

LEVEL 3: 125 mV/47 kΩ

Dock A and B for iPod/iPhone

Compatible iPod/iPhone models:

See page 12.

Output power (each iPod dock):

DC 5 V 500 mA

VIDEO OUT (For iPod/iPhone)

Composite

Tuner

FM tuning range:

87.50 MHz – 108.00 MHz

Main Unit

Dimensions (W/H/D):

326 mm × 135 mm × 130 mm

Mass:

Approx. 1.6 kg

Speaker Specifications

Type:

Full range bass-reflex type

Speakers:

7cm cone × 2

Impedance:

8Ω

Power Specifications

Power Source:

DC 10.7 V 3 A (EXTERNAL DC IN)

AC Adaptor (AA-R1001)

INPUT:

AC 110 – 240 V , 50/60 Hz 1A

OUTPUT:

DC10.7 V 3 A

Power Consumption:

18 W (power on mode)

1.5 W or less (in Standby mode)

0.8 W or less (in ECO mode)

10 W (in Standby mode, with two iPod devices

connected.)

Design and specifications are subject to change

without notice.

NX-PN10[B].BOOK Page 28 Monday, May 17, 2010 9:30 AM

SAFETY INSTRUCTIONS

“SOME DOS AND DON’TS ON THE SAFE USE OF EQUIPMENT”

This equipment has been designed and manufactured to meet international safety standards but, like any

electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.

Do read the operating instructions before you attempt to use the equipment.

Do ensure that all electrical connections (including the mains plug, extension leads and interconnections

between pieces of equipment) are properly made and in accordance with the manufacturer’s instructions.

Switch off and withdraw the mains plug when making or changing connections.

Do consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.

Do be careful with glass panels or doors on equipment.

DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is

damaged in any way — switch off, withdraw the mains plug and consult your dealer.

DON’T remove any fixed cover as this may expose dangerous voltages.

DON’T leave equipment switched on when it is unattended unless it is specifically stated that it is designed

for unattended operation or has a standby mode.

Switch off using the switch on the equipment and make sure that your family know how to do this.

Special arrangements may need to be made for infirm or handicapped people.

DON’T use equipment such as personal stereos or radios so that you are distracted from the requirements

of traffic safety. It is illegal to watch television whilst driving.

DON’T listen to headphones at high volume as such use can permanently damage your hearing.

DON’T obstruct the ventilation of the equipment, for example with curtains or soft furnishings.

Overheating will cause damage and shorten the life of the equipment.

DON’T use makeshift stands and NEVER fix legs with wood screws — to ensure complete safety always

fit the manufacturer’s approved stand or legs with the fixings provided according to the instructions.

DON’T allow electrical equipment to be exposed to rain or moisture.

ABOVE ALL

— NEVER let anyone, especially children, push anything into holes, slots or any other opening in the

case.

— this could result in a fatal electrical shock.

— NEVER guess or take chances with electrical equipment of any kind — it is better to be safe than sorry!

✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮

cover_NX-PN10[B].fm Page 2 Tuesday, May 11, 2010 1:08 PM

NX-PN10 COMPACT COMPONENT SYSTEM

cover_NX-PN10[B].fm Page 3 Tuesday, May 11, 2010 1:08 PM

JVC NX PN10B PN10[B] User Manual LVT2011 003B

Navigation menu

Versions of this User Manual:

Views

Navigation
