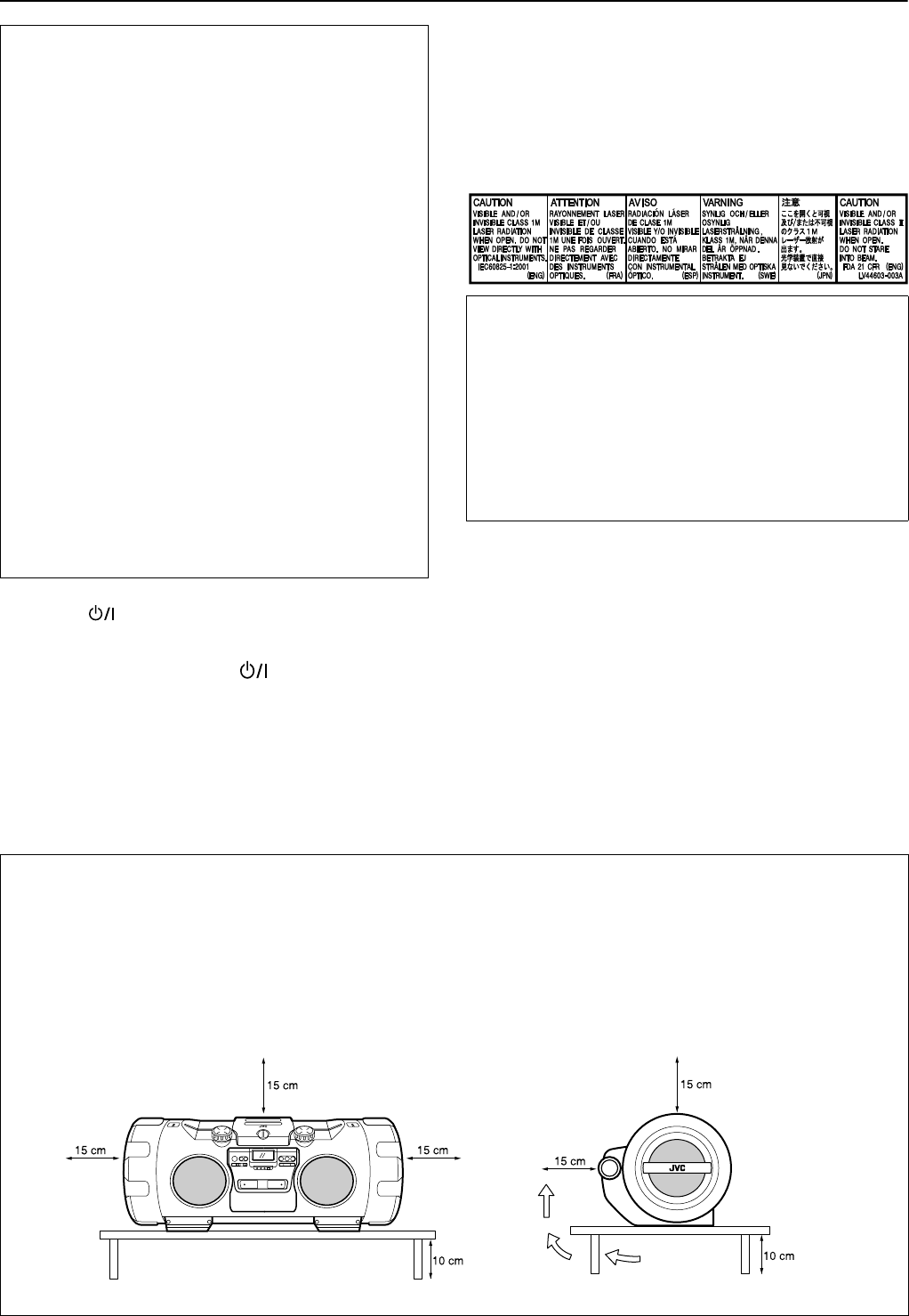

Caution: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follow:

1 Front:

No obstructions and open spacing.

2 Sides/ Top/ Back:

No obstructions should be placed in the areas shown by the dimensions below.

3 Bottom:

Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of 10 cm or more.

Front View Side View

RV-NB20B/RV-NB20W

Caution_RV-NB20[B].fm Page 1 Tuesday, January 8, 2008 11:30 AM

G-2

SAFETY INSTRUCTIONS

“SOME DOS AND DON’TS ON THE SAFE USE OF EQUIPMENT”

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment,

care must be taken if you are to obtain the best results and safety is to be assured.

Do read the operating instructions before you attempt to use the equipment.

Do ensure that all electrical connections (including the mains plug, extension leads and interconnections between pieces of

equipment) are properly made in accordance with the manufacturer’s instructions. Switch off and withdraw the mains plug when

making or changing connections.

Do consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.

Do be careful with glass panels or doors on equipment.

DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in any way—switch

off, withdraw the mains plug and consult your dealer.

DON’T remove any fixed cover as this may expose dangerous voltages.

DON’T leave equipment switched on when it is unattended unless it is specifically stated that it is designed for unattended

operation or has standby mode.

Switch off using the switch on the equipment and make sure that your family know how to do this.

Special arrangements may need to be made for infirm or handicapped people.

DON’T use equipment such as personal stereos or radios so that you are distracted from the requirements of traffic safety. It is

illegal to watch television whilst driving.

DON’T listen to headphones at high volume as such use can permanently damage your hearing.

DON’T obstruct the ventilation of the equipment, for example with curtains or soft furnishings.

Overheating will cause damage and shorten the life of the equipment.

DON’T use makeshift stands and NEVER fix legs with wood screws—to ensure complete safety always fit the manufacturer’s

approved stand or legs with the fixings provided according to the instructions.

DON’T allow electrical equipment to be exposed to rain or moisture.

ABOVE ALL

— NEVER let anyone, especially children, push anything into holes, slots or any other opening in the case—this could result in

a fatal electrical shock.

— NEVER guess or take chances with electrical equipment of any kind—it is better to be safe than sorry!

Information for Users on Disposal of Old Equipment

[European union]

This symbol indicates that the electrical and electronic equipment should not be disposed as general household waste at its

end-of-life. Instead, the product should be handed over to the applicable collection point for the recycling of electrical and

electronic equipment for proper treatment, recovery and recycling in accordance with your national legislation.

By disposing of this product correctly, you will help to conserve natural resources and will help prevent potential negative

effects on the environment and human health which could otherwise be caused by inappropriate waste handling of this

product. For more information about collection point and recycling of this product, please contact your local municipal office,

your household waste disposal service or the shop where you purchased the product.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

(Business users)

If you wish to dispose of this product, please visit our web page www.jvc-europe.com to obtain information about the take-

back of the product.

[Other Countries outside the European Union]

If you wish to dispose of this product, please do so in accordance with applicable national legislation or other rules in your

country for the treatment of old electrical and electronic equipment.

Attention:

This symbol is

only valid in the

European

Union.

RV-NB20[B].book Page 2 Monday, August 28, 2006 5:04 PM

Thank you for purchasing the JVC Powered Woofer CD System.

Before operating this system, read this manual carefully and thoroughly to obtain the best possible performance from your system, and retain

this manual for future reference.

Here are some of the things that make your system both powerful and simple to use.

General

• With JVC’s COMPU PLAY you can turn on the system and start playing the iPod connected to the iPod jack with a

single touch, as well as the radio and disc player. (Only when AC power is used.)

• Shoulder strap with carrying case for the iPod and carrying handle

• Active Clear Sound (ACS) circuit for enhancing sound reproduction

• Super woofer volume control that provides powerful bass

• Sound mode control—reproducing various sound fields

• Remote control unit that operates the disc, tuner, and iPod functions

• Locking mechanism for disc door

• Microphone/guitar input

With Quick Portable Link (QP Link) function, the system automatically switches the source to AUX when the connected auxiliary

equipment starts to play.

Disc playback mode includes Skip Play, Search Play, Repeat Play, Random Play, and Program Play.

A 45-station preset capability (30 stations in FM band and 15 stations in AM band) in addition to auto-seek and manual tuning.

Clock/timer functions, timer on/off with preset volume function, and sleep timer.



1. Where to place the system

• Select a place which is level, dry and neither too hot nor too cold (between 5°C and 35°C).

• Leave sufficient distance between the system and a TV.

• Do not use the system in a place subject to vibrations.



2. Power cord

• Do not handle the power cord with wet hands!

• Some power is always consumed as long as the power cord is connected to the wall outlet.

• When unplugging the system from the wall outlet, always pull the plug, not the power cord.



3. When carrying the system

• Remove a disc from the system.

• Disconnect all the cords from the system.



4. Malfunctions, etc.

• There are no user serviceable parts inside. In case of system failure, unplug the power cord and consult your dealer.

• Do not insert any foreign object into the system.

• The system is not waterproof or dust proof.

Table of contents

Features............................................................................ 1

IMPORTANT CAUTIONS.............................................. 1

Index of parts and controls .................................. 2

Getting started....................................................... 3

Basic operations ................................................... 7

Listening to the radio............................................ 9

Playing back discs ................................................ 10

Listening to the iPod............................................. 13

Listening to auxiliary equipment ......................... 14

Using the microphone/guitar ............................... 15

Using the timer ...................................................... 15

Care and maintenance .......................................... 17

Troubleshooting .................................................... 17

Specifications ........................................................ 18

Features

iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.

IMPORTANT CAUTIONS

EN01-06_RV-NB20[B].fm Page 1 Tuesday, September 12, 2006 11:58 AM

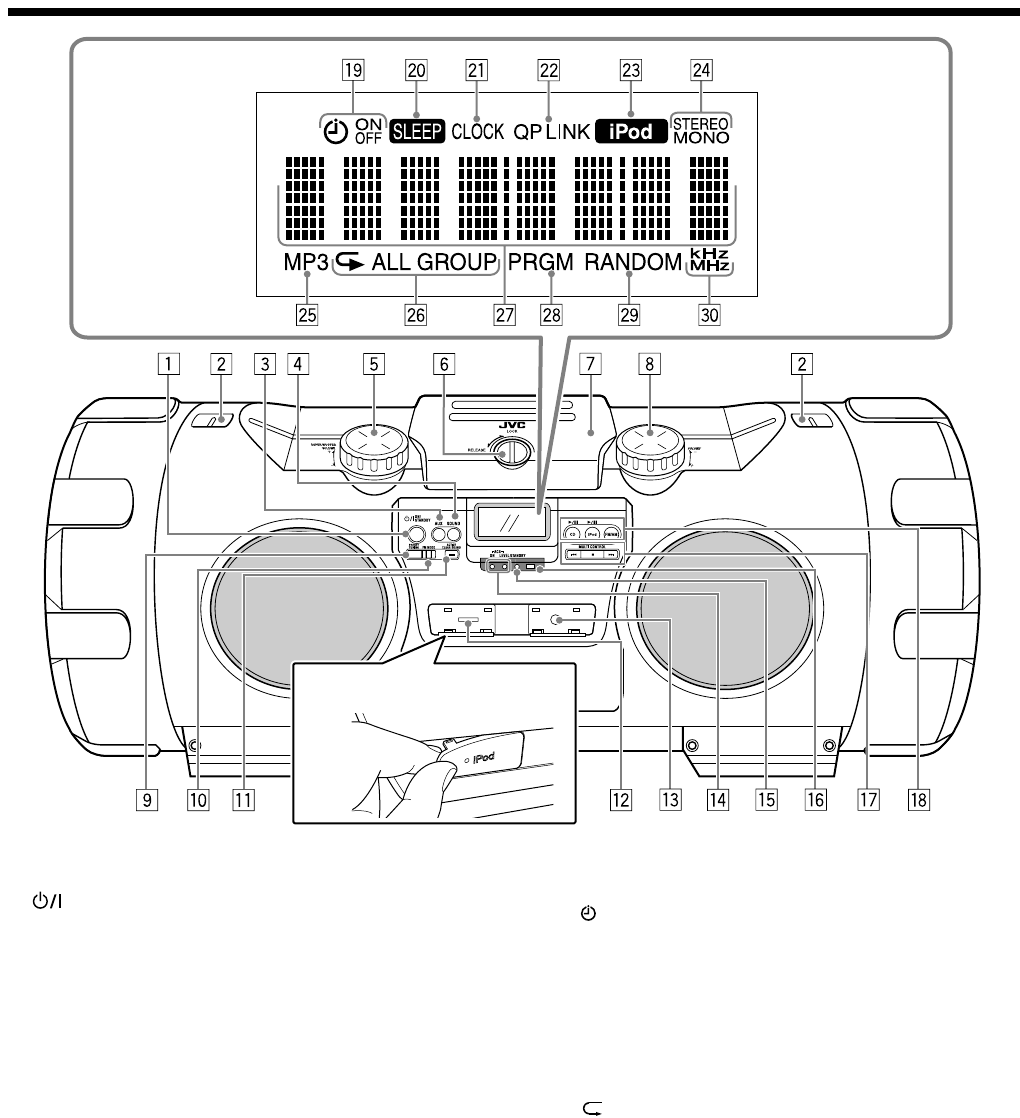

Index of parts and controls

See pages in parentheses for details.

1ON/STANDBY button (7)

2 Shoulder strap hooks (4)

3AUX button (3, 14)

• Pressing this button also turns on the system.

4SOUND button (8)

5 SUPER WOOFER VOLUME +/– control knob (8)

6 LOCK/RELEASE knob (10)

7 Disc compartment door (10)

8 VOLUME +/– control knob (7)

9 PRESET TUNING button (9)

pFM MODE button (9)

q ACTIVE CLEAR SOUND button (8)

wiPod jack (6)

eAUX jack (6)

r ACS (Active Clear Sound) indicators (8)

• ON, LEVEL

t STANDBY lamp (7)

yRemote sensor (4)

uMULTI CONTROL buttons (9 – 13)

•4 (reverse skip), 7, x (forward skip)

iSource and play mode buttons (3, 9 – 13)

•CD 6, iPod 6, FM/AM

Pressing one of these buttons also turns on the system.

Display window

oTimer indicators (16)

• (timer), ON, OFF

;SLEEP indicator (15)

aCLOCK indicator (8, 15)

sQP LINK indicator (14)

diPod indicator (13)

fFM mode indicators (9)

• STEREO, MONO

gMP3 indicator (11)

hRepeat indicators (12)

• , ALL, GROUP

jMain display

kPRGM (program) indicator (12)

lRANDOM indicator (12)

/Frequency unit indicators (8, 9)

•kHz, MHz

Display window

How to open the cover

RV-NB20[B].book Page 2 Monday, August 28, 2006 5:04 PM

See pages in parentheses for details.

1Number buttons (9, 11)

2SLEEP button (15)

3 Multi control buttons (9, 11, 15, 16)

• GROUP UP, GROUP DOWN

•4, 7, x

4 Source buttons (3, 9 – 14)

• iPod 6, CD 6, AUX, FM/AM

Pressing one of these buttons also turns on the system.

5 PLAY MODE button (12)

6 REPEAT button (12)

7 SOUND button (8)

8 ACS (Active Clear Sound) button (8)

9 ON/STANDBY button (7, 15, 16)

p DISPLAY button (8)

q CANCEL button (12, 15, 16)

w SET button (10, 15, 16)

e CLOCK/TIMER button (15, 16)

r FM MODE button (9)

t QP LINK button (14)

y MUTING button (8)

u VOLUME +/– button (7)

i SUPER WOOFER VOLUME +/– buttons (8)

With One Touch Operation you can play a disc, an iPod, or turn on the radio with a single press of the play button for that function. The system

turns on and starts playing the source if it is ready.

The COMPU PLAY buttons are: On the system and remote control

iPod 6 button

CD 6 button

AUX button

FM/AM button

Note: The COMPU PLAY feature is not effective when the system is operated on batteries or car battery (DC12V).

Getting started

Check that you have all the following items, which are supplied for the system.

Power cord (1)

Remote control (1)

Batteries—R6(SUM-3)/AA(15F) (2)

Shoulder strap with carrying case for the iPod (1)

iPod cable (1)

iPod stand (1)

If any of these items are missing, contact your dealer immediately.

Remote control

COMPU PLAY — One Touch Operation

Accessories

RV-NB20[B].book Page 3 Monday, August 28, 2006 5:04 PM

Using the carrying handles

Be sure to hold both handles when you carry the system.

If you carry the system by only one handle, because of the length

of the system, the end may drag on the ground and be damaged as a

result.

Do not lift the system by the woofer ducts, and do not insert any

foreign objects into them.

Using the shoulder strap

Attach the supplied shoulder strap (adjustable in length) to each

end of the system as illustrated.

To detach the shoulder strap, press in the metal fitting and unhook

it from the shaft.

Installing the batteries CAUTION:

To avoid battery leakage or explosion:

• Remove batteries when the remote control is not in use for an

extended period of time.

• When you need to replace the batteries, replace both batteries at

the same time with new ones.

• Do not use different types of batteries together.

Point the remote control at the remote sensor on the system’s

control panel (from a distance of up to 7 m). If you point the

remote control from the slant direction, the distance will be

shortened.

• Do not expose the remote sensor to strong direct sunlight or

artificial lighting.

• Make sure there are no obstacles between the remote sensor and

the remote control.

This system has been designed to operate an iPod (see page 13).

Compatible iPod types:

If the iPod does not play correctly, please update your iPod

Software to the latest version.

• For details about updating your iPod, check on the Apple web site

<http://www.apple.com>.

Carrying the system

Woofer duct

Carrying handle

Shoulder strap

(supplied)

iPod (not supplied)

iPod case (supplied)

Shoulder strap

Using the remote control — RM-SRVNB20A

Match the polarity (+ and –) on the batteries with the +

and – markings in the battery compartment.

R6(SUM-3)/AA(15F)

(supplied)

Remote sensor

Checking the type of your iPod

iPod nano 1G/2G/4G

iPod mini

iPod (4th Generation) 20G/40G

iPod photo (4th Generation) 20G/30G/40G/60G

iPod video (5th Generation) 30G/60G

RV-NB20[B].book Page 4 Monday, August 28, 2006 5:04 PM

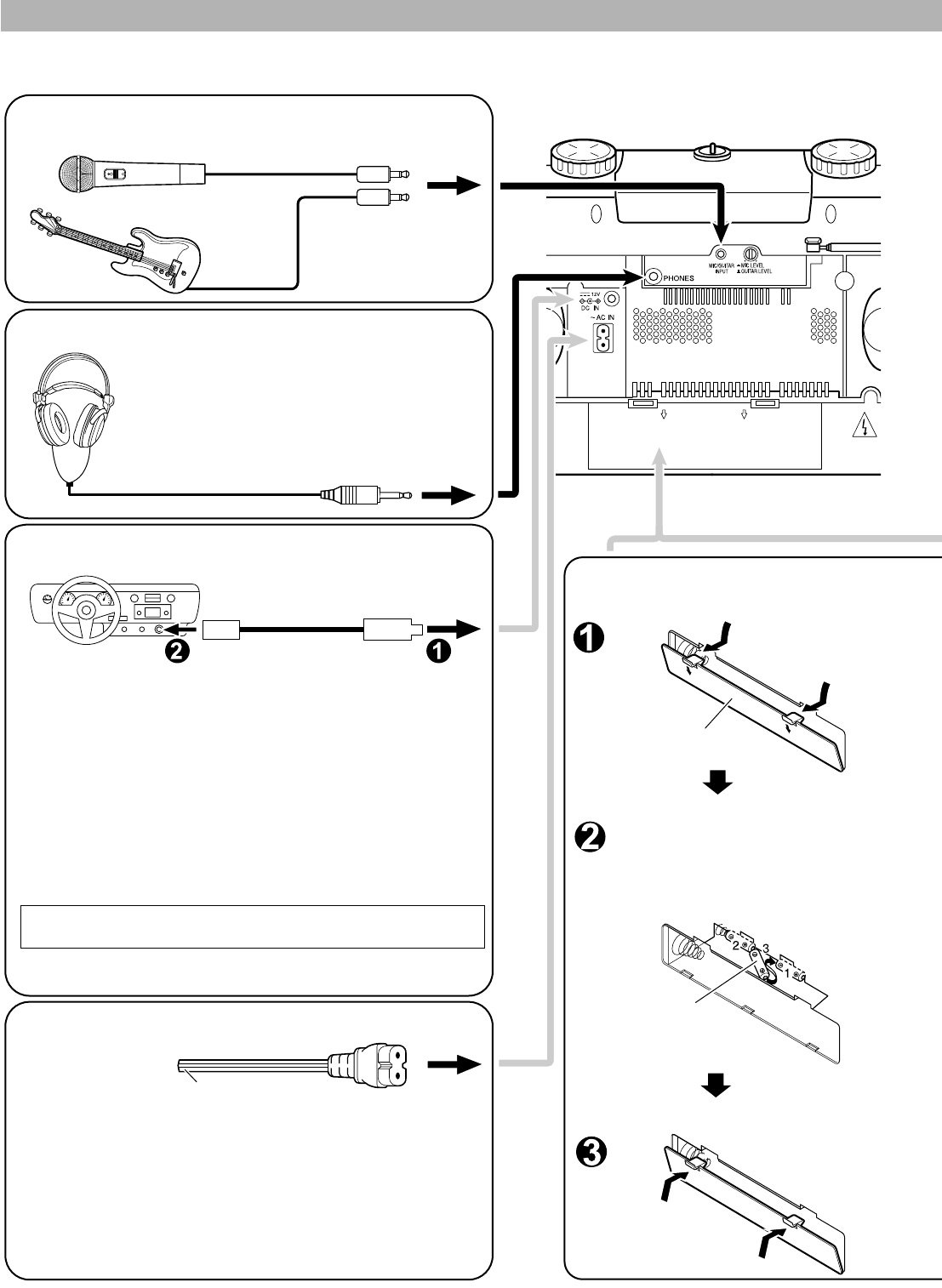

Connections

Connecting the microphone/guitar

(See page 15.)

Connecting the AC power cord

Connecting to the car battery

Power cord

CAUTIONS:

• ONLY USE THE JVC POWER CORD PROVIDED FOR

THIS SYSTEM TO AVOID MALFUNCTION OR

DAMAGE TO THE SYSTEM.

• BE SURE TO UNPLUG THE POWER CORD FROM THE

OUTLET WHEN GOING OUT OR WHEN THE SYSTEM

IS NOT IN USE FOR AN EXTENDED PERIOD OF

TIME.

CAUTIONS:

• Be sure to use the car adapter (not supplied) with the same polarity design

as the one equipped with this system to prevent mishaps or damage.

• For safety, stop the car before performing operations.

• Be sure to start the engine when you use the car adapter; otherwise, the car

battery will be exhausted.

• During transport, stabilize the system in a box, etc.

• To prevent malfunctions, do not leave the system in a car for a long time.

• If the power is supplied through the car battery, the display will be blank

with the system turned off (at standby).

Unplug the AC power cord from the system to supply the power

through the car battery; otherwise, the system does not work.

Memory backup batteries

“R6(SUM-3)/AA(15F)”

size batteries (not

supplied)

Match the polarity (+ and –) on the batteries

with the + and – markings in the battery

compartment.

Battery cover

To car’s cigarette

lighter socket (DC12V)

Car adapter (not supplied)

Rear view

(Not supplied)

Connecting the headphones (See page 7.)

(Not supplied)

Stereo mini plug

CAUTION: Make all connection before plugging the system into an AC power outlet.

RV-NB20[B].book Page 5 Monday, August 28, 2006 5:04 PM

Match the polarity (+ and –) on the

batteries with the + and – markings in

the battery compartment.

Battery cover

To remove the batteries, remove battery

“3” first.

Notes:

• The memory backup batteries will not be

consumed as long as the power is supplied

from an AC outlet, loaded 10 batteries, or

car battery (DC12V). However, if no

power is supplied to the system, the

memory backup batteries should be

replaced with new ones approximately

every 12 months to securely maintain the

contents of the memory.

• Before replacing the memory backup

batteries, always connect the AC power

cord to the system to prevent the contents

of memory from being erased.

• When a power failure occurs, the time

indication disappears from the display to

save the battery power of the memory

backup batteries.

CAUTION:

To avoid battery leakage or explosion:

• When you need to replace the batteries,

replace all batteries at the same time with

new ones. Before replacing, you need to

supply AC power to the system.

• Do not use an old battery with new ones.

• Do not use different types of batteries

together.

Operating the system on

batteries

“R20/D(13F)” size

batteries (not supplied)

To remove the batteries, remove battery

“10” first.

Notes:

• When you operate the system on mains

(AC) power or on car battery (DC12V), the

power source automatically switches from

batteries to AC or DC12V. However, you

should remove the 10 batteries when

operating on AC power or car battery

(DC12V).

• When the batteries are exhausted, the

following symptoms will occur:

– Mistracking occurs during disc playback.

– “DC OFF” flashes on the display, then the

power goes off.

If this happens, replace the batteries.

CAUTION:

To avoid battery leakage or explosion:

• Remove the 10 batteries when the system is

not in use for an extended period of time.

• When you need to replace the batteries,

replace all batteries at the same time with

new ones.

• Do not use different types of batteries

together.

• If the power is supplied through the

batteries, the display will be blank with the

system turned off (at standby).

Unplug the AC power cord from the

system to supply the power through the

batteries; otherwise, the system does

not work.

Connecting the auxiliary equipment

(See page 14.)

Auxiliary equipment (not supplied)

Stereo mini plug cable (not supplied)

Front view

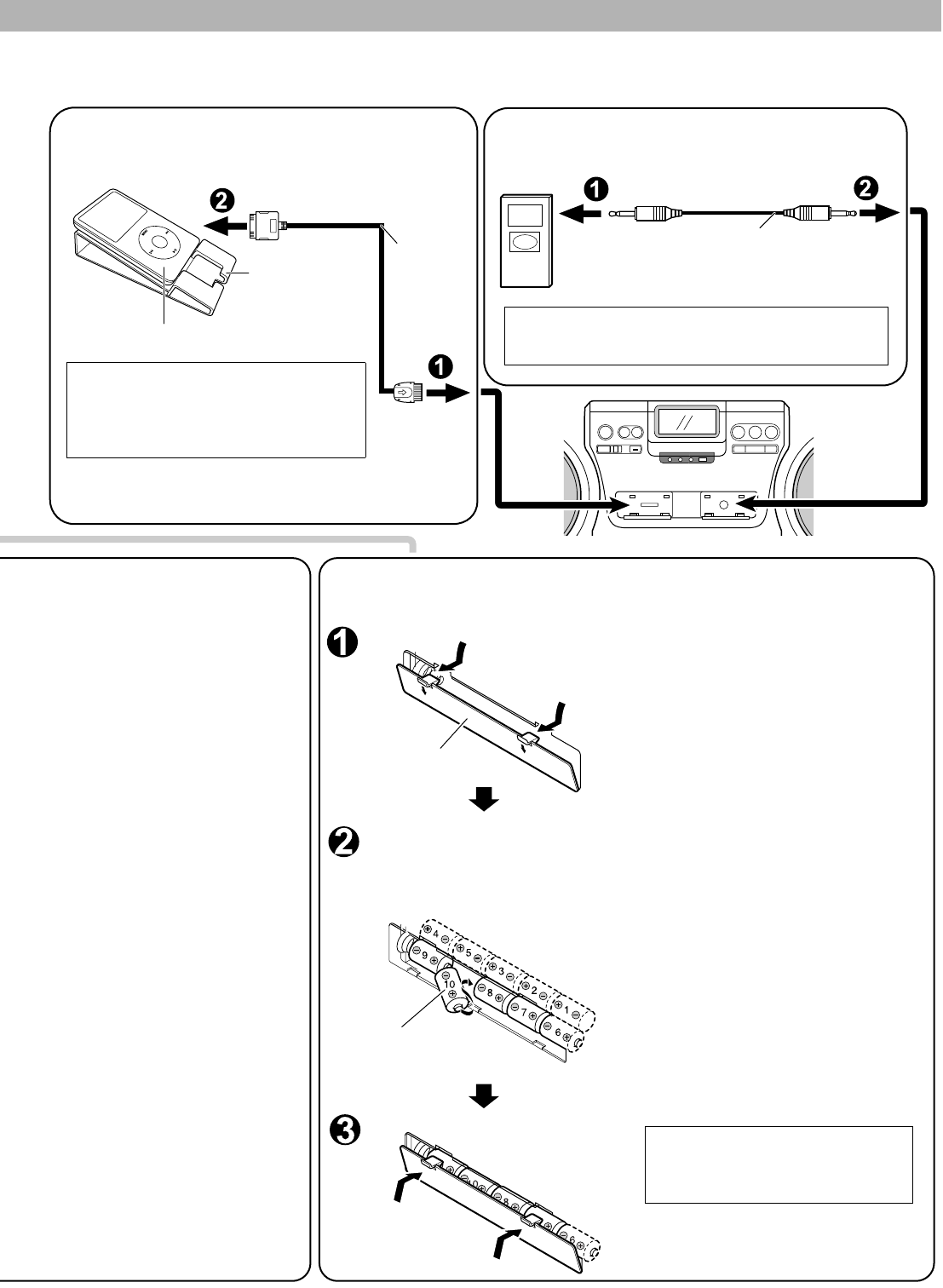

Connecting the iPod (See page 13.)

iPod (not supplied)

iPod cable

(supplied)

iPod stand

(supplied)

To dock connector To headphones jack

Disconnecting the iPod

• When disconnecting the iPod, make sure the

system is turned off.

• To remove the iPod cable from the iPod, hold

the buttons on the sides and pull.

Disconnecting the auxiliary equipment

When disconnecting the auxiliary equipment, make sure the

system is turned off.

RV-NB20[B].book Page 6 Monday, August 28, 2006 5:04 PM

Basic operations

Note: The lighting condition for the STANDBY lamp and for the

display differs depending on the power source.

* If no source is playing and no operation is done for about 4

minutes, “DC OFF” starts flashing on the display for about one

minute before the system turns off automatically (except when

the source is FM/AM or AUX, or when the microphone/guitar is

used).

Turning on the system

Press ON/STANDBY.

• When the system is operated on batteries or car battery (DC12V),

press ON/STANDBY on the system.

The STANDBY lamp goes off when the system is operated on AC

power.

The display comes on and the system is ready to continue in the

mode it was in when the power was last turned off.

Turning off the system

Press ON/STANDBY again.

The STANDBY lamp lights up when the system is operated on AC

power.

• When the AC power is used, the CLOCK indicator and the time

are displayed without backlighting.

Some power is always consumed even though power is turned

off (called standby mode).

To disconnect the system from mains (AC) supply completely,

unplug the AC power cord from the AC outlet. When you

unplug the AC power cord, the clock will be reset to “0:00” if

no memory backup batteries are installed.

You can adjust the volume level between 0 and 50.

Turn the VOLUME +/– control clockwise to

increase the volume or turn it

counterclockwise to decrease the volume.

Press VOLUME + to increase the volume or

press VOLUME – to decrease it.

When you press and hold VOLUME + or –, the volume changes

rapidly.

CAUTION:

DO NOT start playing any source without setting

the volume to minimum first, as a sudden blast of

sound can damage your hearing, speakers and/or

headphones.

For private listening

Connect a pair of headphones to the PHONES jack on the rear of

the system (see page 5). No sound comes out of the speakers.

Be sure to turn down the volume before connecting or putting on

the headphones.

SUPER WOOFER

VOLUME +/–

STANDBY lamp

VOLUME +/–

ON/STANDBY

ACS ON/LEVEL

indicator

SUPER WOOFER

VOLUME +/–

DISPLAY

ON/STANDBY

SOUND

ACS

SOUND

ACTIVE CLEAR

SOUND

MUTING

Turning the power on and off

Power source STANDBY lamp/display

• AC power • The STANDBY lamp lights when power is

turned off.

• Backlighting of the display is illuminated

when power is turned on.

• Batteries or car

battery

(DC12V)*

• The STANDBY lamp does not light.

• Backlighting of the display is not

illuminated.

• With the system turned off (at standby), no

indication is shown on the display.

On system On remote control

Adjusting the volume

Using the system

Using the remote control

On system On remote control

RV-NB20[B].book Page 7 Monday, August 28, 2006 5:04 PM

Press MUTING.

“MUTING” appears on the display.

To restore the sound, press MUTING again or adjust the volume

(see page 7).

During play, you can adjust the bass level between BASS 1

(minimum) and BASS 6 (maximum).

Turn the SUPER WOOFER VOLUME +/–

control clockwise to increase the bass level

or turn it counterclockwise to decrease the

bass level.

Press SUPER WOOFER VOLUME + to

increase the bass level or press SUPER

WOOFER VOLUME – to decrease it.

Note: This function is not effective when the headphones are in

use.

The Active Clear Sound (ACS) circuit emphasizes high-frequency

sound without lowering the signal-noise ratio, while adjusting its

output according to the input signal level. This results in a better

balance between the high-frequency sound and the low-frequency

heavy bass.

Press ACS (active clear sound) to turn it on

or off.

When it is turned on, the ACS ON indicator lights in red.

• The ACS LEVEL indicator flashes in green according to the

input signal level.

Sound modes can be selected to enhance the type of music being

played.

Press SOUND to select the sound mode.

Each time you press the button, the sound mode changes as

follows:

Sound mode selection:

BEAT: Set to this position for music with a heavy

beat, such as rock and disco music.

POP: Set to this position for light music including

popular and vocal music.

CLEAR: Set to this position for crisp and clear

sounding music with transparent highs.

FLAT (no effect): Set to this position not to apply any sound

mode.

While the power is turned on, you can see the current time (clock)

at any time, as follows.

Press DISPLAY.

Each time you press the button, the display changes as follows:

Current sound source (e.g. FM103.50 MHz) O (clock)

Note: To let the clock work, you need to set the clock first. (See

“Setting the clock” on page 15.)

Turning off the sound

temporarily

Using the remote control only

Adjusting the super woofer

volume

Using the system

Using the remote control

Activating clear sound

On remote control

On system On remote control

Selecting the sound mode

Showing the time

Using the remote control only

On system On remote control

RV-NB20[B].book Page 8 Monday, August 28, 2006 5:04 PM

Listening to the radio

You can listen to FM and AM stations. Stations can be tuned in manually, automatically, or from preset memory storage.

Before listening to the radio, fully extend the FM telescopic antenna.



1. Press FM/AM repeatedly to select either FM

or AM.

Each time you press FM/AM, the band changes between FM

and AM.

The system tunes in to the last tuned station. The following

information appears on the display.

– When “Manual Tuning” or “Auto Tuning” was used to tune in

to the last tuned station (see below), the band frequency

appears.

– When “Preset Tuning” was used to tune in to the last tuned

station (see the right column), the preset number (displayed

as “P-XX” on the display) and then the band frequency

appear.



2. Select a station using one of the following

methods.

• When you tune in to an FM stereo broadcast, the STEREO

indicator lights up and you can hear stereo effect.

If an FM stereo broadcast is hard to receive or

noisy, press FM MODE. The MONO indicator lights up and

the sound becomes monaural, but the reception improves.

When you tune in to another station, the MONO indicator

goes off and stereo effect restores automatically.

Note: AM broadcasts are monaural.

Manual Tuning

Press 4 or x repeatedly to move from frequency to

frequency until you find the station you want.

Auto Tuning

Press and hold 4 or x for one second or more.

The frequency changes automatically until a station frequency

is found.

Preset Tuning (possible only after presetting stations)

Select the desired preset number using PRESET TUNING on

the system or the number buttons on the remote control. The

preset number and then the band frequency appear on the

display.

PRESET TUNING button: Each time you press the button, the

preset number increases.

Number buttons: To select P-5, press 5.

To select P-15, press +10 then 5.

To select P-20, press +10 once then

press 10.

Notice: To adjust the reception condition

For FM: Adjust the FM telescopic antenna’s length, angle and

direction until the best reception is obtained.

For AM: Change the direction of the system to obtain the best

reception.

Placing the system near the window, for example, will

improve AM reception.

FM/AM

PRESET TUNING

FM/AM

Number buttons

FM MODE

SET

FM MODE

Tuning in to a station

(After one second)

EN07-18_RV-NB20[B].fm Page 9 Tuesday, September 12, 2006 12:05 PM

You can preset up to 30 FM stations and 15 AM stations.

Note: Preset numbers may have been set to factory test

frequencies prior to shipment. This is not a malfunction.

You can preset the stations you want into memory as

follows:

There is a time limit in doing the following steps. If the setting is

canceled before you finish, start again from step .



1. Press FM/AM repeatedly to select either FM

or AM.



2. Press 4 or x to tune in to a station.



3. Press SET.



4. Press the number buttons to select the

preset number you want.

• To select 5, press 5.

• To select 15, press +10 then 5.

• To select 20, press +10 once then press 10.



5. Press SET.

“STORED” appears on the display and the station is stored.



6. Repeat above steps to for each

station you want to store into memory with

a preset number.

To change the preset stations, repeat the same steps as

above to overwrite a new station.

CAUTION:

To prevent the preset stations from being erased

because of a power failure, etc., install memory

backup batteries in the system. (See pages 5 and

6.)

Playing back discs

This system has been designed to play back the following discs—

CD, finalized CD-R/CD-RW (recorded in audio CD format) and

CD-R/CD-RW (in MP3 format).

• This system is not compatible with the other discs such as DVD,

DVD-R, and DVD-RW.

Notes on MP3:

• The system can only recognize files (tracks) with “MP3” or

“mp3” as the extensions, which can be in any combination of

upper and lower case.

• It is recommended that you record your material at a 44.1 kHz

sampling rate, using the 128 kbps data transfer rate.

• You can play back the discs containing the tracks in music CD

format or MP3 files in ISO 9660 format.

• Some MP3 tracks or discs may not be played back because of

their characteristics or recording conditions.

• MP3 discs require a longer readout time than normal discs.

• This system recognizes up to 999 tracks on a disc (or less

depending on the recording condition of a disc).



1. Turn the LOCK/RELEASE knob

counterclockwise to open the disc

compartment door.



2. Place a disc, with its label side up as

shown above.



3. Close the disc compartment door and turn

the knob to “LOCK” position.

To remove the disc, open the disc compartment door in stop

mode.

You can place an 8 cm disc without an adapter.

If the disc cannot be read correctly (because it is scratched, for

example), “NO PLAY” or “NO DISC” appears on the display.

You can place a disc while listening to the other source.

Presetting stations

Using the remote control only

Number

buttons

REPEAT

CD 6

PLAY MODE

GROUP UP

GROUP DOWN

CANCEL

CD 6

LOCK/RELEASE

knob

Group with its play order

MP3 track with its play order

Hierarchy

Level 1 Level 2 Level 3 Level 4 Level 5

Setting a disc

EN07-18_RV-NB20[B].fm Page 10 Tuesday, September 12, 2006 12:05 PM

To play a disc



1. Set a disc.



2. Press CD 6.

The first track of the disc starts playing.

For CDs:

For MP3 discs:

• When playing an MP3 disc, the file name (then ID3 Tag if

any) is displayed at the beginning of each track.

• If no disc is inserted, “NO DISC” appears on the display and

the system remains in stop mode.

• The system automatically stops when the last track of the disc

has finished playing.

To stop playing the disc, press 7.

The following information for the disc is displayed.

For CDs:

For MP3 discs:

To pause, press CD 6. The playback time flashes on the

display.

To cancel pause, press the same button again. Playback

continues from the point where it was paused.

Note: Do not turn the LOCK/RELEASE knob during playback.

Skip Play

Press 4 or x to select the track you

want to play during playback.

•Press x once to skip to the beginning of the next track.

•Press 4 to skip to the beginning of the track being played.

Press 4 twice quickly to skip to the beginning of the previous

track.

You can also select a track in stop mode with the same buttons.

For CD: Selected track and its playback time are shown on the

display.

For MP3: Group and track numbers (then ID3 Tag if any) are

shown on the display.

To start playback, press CD 6.

Search Play

Press and hold 4 or x to fast forward/

reverse the disc during playback.

You can quickly find a particular passage in the track you are

listening to. During search play, you can hear the sound of approx.

one forth level.

To locate a track directly

Press the number buttons to directly play a

track.

• To directly play track 5, press 5.

• To directly play track 15, press +10 then 5.

• To directly play track 20, press +10 once then press 10.

(Only for MP3 discs)

• To directly play track 109, press +100 once then press 9.

• To directly play track 125, press +100, +10, +10 then 5.

To select a group (for MP3 disc)

Press GROUP UP or GROUP DOWN to

select the group you want to play during

playing the MP3 disc.

• Press GROUP UP to skip to the next group.

• Press GROUP DOWN to skip to the previous group.

You can also select a group in stop mode with the same buttons.

To play the group after selection, press CD 6.

Using the disc player—Normal

Play

Track number Playback time

MP3 indicator

Total playback time

Total track

number

Total track

number

Total group

number*

*If a disc includes more than 99 groups, “G – –” will appear on

the display.

MP3 indicator

Using the remote control only

RV-NB20[B].book Page 11 Monday, August 28, 2006 5:04 PM

You can program up to 50 tracks in any desired order including

the same tracks.

You can only make a program when the system is stopped.

While making a program, you cannot specify a group number to

select a track.



1. Set a disc.



2. Press CD 6.



3. Press 7 to stop the disc.



4. Press PLAY MODE repeatedly to select

“PROGRAM.”

The system enters the programming mode and the PRGM

indicator lights up.



5. Press the number buttons to select the

track to program.

• For detailed operations, see “To locate a track directly” on

page 11.

Example: For track 7, press 7.

* Total playback time will not appear while making a program

using an MP3 disc.



6. Repeat step to select other tracks for

the program.

• To cancel the last track programmed, press CANCEL once.



7. Press CD 6.

The system plays the tracks in the same order as you have

programmed them.

You can skip to a particular programmed track by pressing 4

or x during program play.

While stopped:

To confirm the programmed tracks, press 4 or x

repeatedly; the tracks making up the program will successively

be displayed in the programmed order.

• To add a track to the end of the program, simply press the

number buttons.

To delete the tracks in the program, press CANCEL

repeatedly. Each time you press the button, the last track will be

erased.

To delete the entire program, press and hold CANCEL

until “CLEAR!” appears on the display.

• Turning off the power will clear the program.

To exit from program mode, press PLAY MODE

repeatedly until the PRGM indicator goes off.

Each time you press the button, the play mode changes as

follows:

Normal play = PROGRAM = RANDOM = (back to the

beginning)

Note:

(For CDs) If the total playback time of the programmed tracks

exceeds 99 minutes 59 seconds, “– – : – –” will appear on the

display.

The tracks will play in no special order when you use this mode.



1. Set a disc.



2. Press CD 6.



3. Press 7 to stop the disc.



4. Press PLAY MODE repeatedly to select

“RANDOM.”

The RANDOM indicator lights up on the display.



5. Press CD 6.

The tracks are played in random order once.

To skip a track during playback, press x to skip to another

track in the random sequence. The 4 button works only to go

back to the beginning of the current track.

While stopped:

To exit from random mode, press PLAY MODE repeatedly

until the RANDOM indicator goes off.

Each time you press the button, the play mode changes as

follows:

Normal play = PROGRAM = RANDOM = (back to the

beginning)

You can repeat the tracks or individual track as many times as you

like.

Press REPEAT.

Each time you press the button, repeat indicator changes as

follows:

For CDs:

ALL = = canceled = (back to the beginning)

•ALL: Repeats all the tracks on the disc.

•:Repeats the current track.

For MP3 discs:

ALL = GROUP = = canceled = (back to the

beginning)

•ALL: Repeats all the tracks on the disc.

•GROUP: In normal play mode, repeats all the tracks in a

group.

In program and random play modes, group repeat

cannot be selected.

•:Repeats the current track.

Repeat mode (except “ GROUP”) remains in effect even

when you change the play mode.

To exit from repeat mode, press REPEAT repeatedly until the

repeat indicator on the display goes off.

Programming the playing order

of the tracks

Using the remote control only

(After 2 seconds)

Program order number

Total playback time of the programmed tracks*

Last programmed track

Random play

Using the remote control only

Repeating tracks

Using the remote control only

RV-NB20[B].book Page 12 Monday, August 28, 2006 5:04 PM

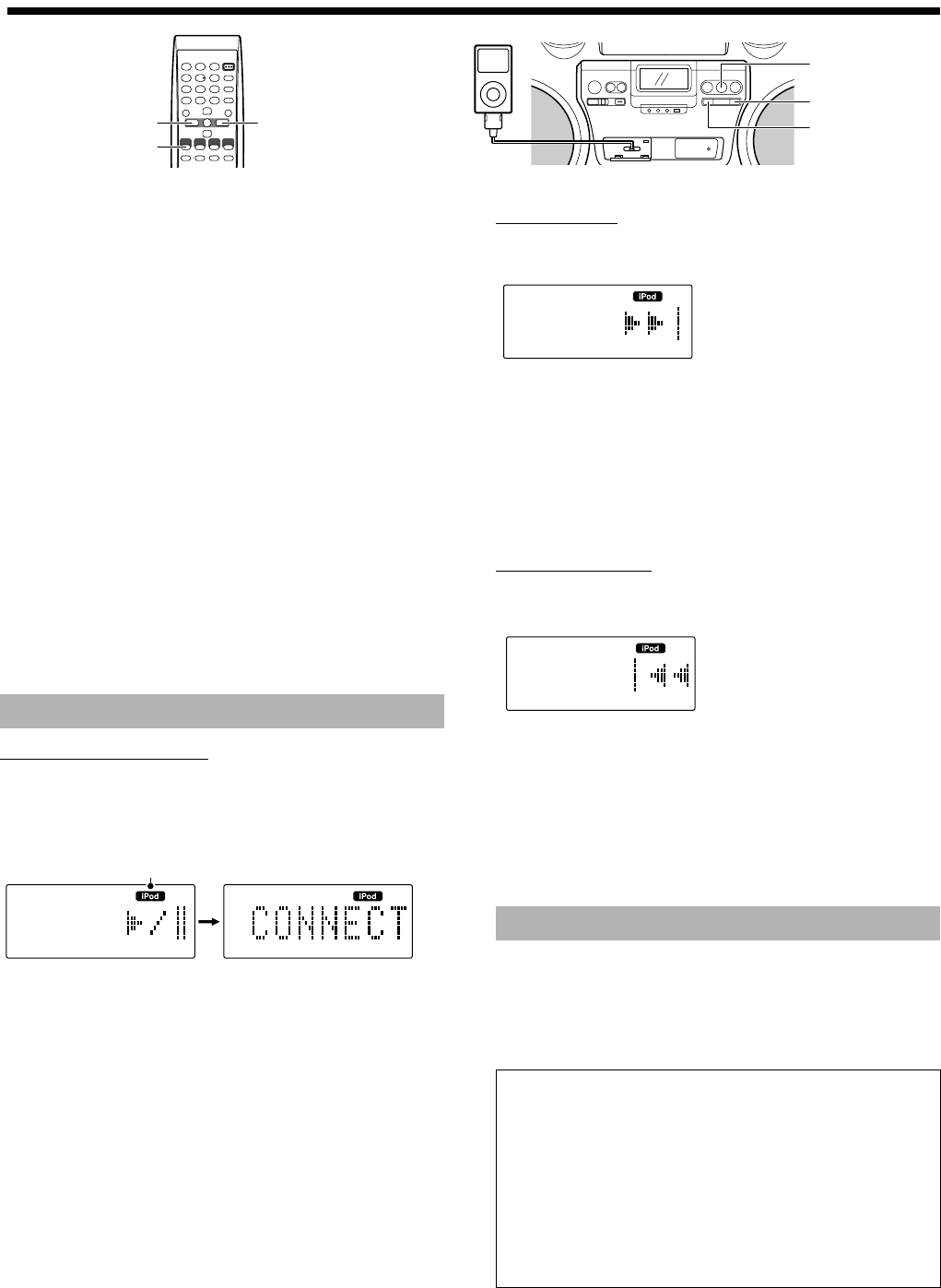

Listening to the iPod

You can operate an iPod through the system.

• Before connecting your iPod to the system, check its type and

software version (see page 4).

• Remember you cannot send any data to your iPod from the

system.

• You can also operate the iPod directly even while it is connected

to the system. For details of the operation, refer to the instructions

of your iPod.

CAUTIONS:

• The iPod battery is charged while the system is turned on. See the

iPod instruction manual about charging times.

• Sound distortion may occur when playing back audio sources

with high recording levels. Adjusting the iPod’s equalizer to

“Flat” is recommended. For information on operating the iPod,

see the iPod instruction manual.

• JVC is not responsible for any loss of or damage to iPod that

might result from the use of this product.

• When you connect your iPod to the cable, make sure it connects

all the way in.

• Do not carry the system with iPod connected. You might drop it

down or it might cause damages to the connector part.

• Do not touch or hit the iPod terminal pins or the connector pins

directly. It might cause damages to the connector part.

• Remove the iPod from the cable when you do not use.

To play the iPod



1. Set the volume level to minimum.



2. Press iPod 6.

The iPod is turned on and starts playing.



3. Adjust the volume to the desired listening

level.

To pause, press iPod 6.

To cancel pause, press the same button again. Playback

continues from the point where it was paused.

Skip Play

Press 4 or x to select the track you

want to play during playback.

•Press x once to skip to the beginning of the next track.

•Press 4 to skip to the beginning of the track being played.

Press 4 twice quickly to skip to the beginning of the previous

track.

You can also select a track with the same buttons while the iPod is

paused.

To start playback, press iPod 6.

Search Play

Press and hold 4 or x to fast forward/

reverse the track during playback.

You can quickly find a particular passage in the track you are

listening to. During search play, you can hear the sound of approx.

one forth level.

NOTE:

When iPod is selected as the source...

– “CONNECT” appears on the display with the iPod connected.

– “NO CONNECT” scrolls on the display without the iPod

connected.

Press and hold iPod 6 for about 2 seconds.

• Turning off the system* or changing iPod to another source also

turns off the iPod.

* Turning off the system may not turn off the iPod depending on

the current source.

iPod 6

Playing the iPod

iPod indicator

(After 2 seconds)

Turning off the iPod

About the battery charge of the iPod

• When the system is operated on the AC power:

The iPod battery is always charged except while FM/AM is

selected as the source.

• When the system is operated on the batteries or the car battery

(DC12V):

The iPod battery is charged only while the system is turned on

without FM/AM selected as the source.

– The iPod battery will not be charged while “DC OFF” is

flashing on the display (see page 6).

RV-NB20[B].book Page 13 Monday, August 28, 2006 5:04 PM

Listening to auxiliary equipment

You can listen to auxiliary equipment.

First make sure that the auxiliary equipment is properly connected to the system. (See pages 5 and 6.)

Note: For operation of the auxiliary equipment, refer to its instructions.



1. Set the volume level to minimum.



2. Press AUX.

“AUX” appears on the display.

• To listen to the auxiliary equipment, start playing the

auxiliary equipment.



3. Adjust the volume to the desired listening

level.



4. Apply sound effects, if you wish.

• Adjust the super woofer volume to reinforce the bass sound.

Quick Portable Link (QP Link) automatically switches the source

to AUX as the auxiliary equipment connected to the AUX jack

starts playback.

To activate QP Link

Press QP LINK repeatedly to show “QPL

ON” on the display.

The QP LINK indicator appears on the display in the following

cases to inform you that QP Link is ready to work:

– When an auxiliary equipment is connected to the AUX jack.

– When AUX is selected as the source.

To cancel, press QP LINK repeatedly to show “QPL OFF” on the

display.

How does QP Link work?

While QP Link is activated, starting playback performs the

following:

– While listening to another source,

Changes the source to AUX.

– When the power is supplied through the AC outlet and the

system is turned off,

Turns on the system and selects AUX as the source.

NOTES:

• When the sound signal from the auxiliary equipment is too weak,

QP Link may not function correctly. In this case, turn up the

volume of the auxiliary equipment so that the system can detect

the sound signal properly.

• If you change the source from AUX with QP Link turned on, QP

Link will be deactivated temporarily. In this case, the following

reactivate QP Link:

– When the auxiliary equipment is unplugged from the AUX

jack, then plugged in again.

– When the sound signal from AUX jack stops or becomes very

weak for about 30 seconds.

• If the system is turned off while QP Link is working, QP Link

will be deactivated temporarily. In this case, QP Link is

reactivated when the sound signal from AUX jack stops or

becomes very weak for about 30 seconds after the system is

turned off.

• While QP Link is activated, QP Link may start working when

you just connect the auxiliary equipment to the AUX jack or

unplug it. This is not a malfunction.

You can change the AUX jack sensitivity when QP Link

mistakenly works with detecting non-playback signals from the

auxiliary equipment, such as its switching noise.

Press and hold QP LINK.

Each time you press and hold QP LINK, the sensitivity level

changes between QPL LV1 and QPL LV2.

QPL LV1: Normally select this (initial setting).

QPL LV2: Select this when QP Link works mistakenly.

AUX

QP LINK

AUX

Listening to auxiliary

equipment

Switching to AUX

automatically—QP Link

Using the remote control only

Bubbles appear when the

system detects the sound

signal.

QP LINK indicator

Changing the AUX jack

sensitivity

Using the remote control only

RV-NB20[B].book Page 14 Monday, August 28, 2006 5:04 PM

Using the microphone/guitar

Using a microphone or a guitar (not supplied), you can mix its

sound with a source sound.



1. Make sure the MIC/GUITAR LEVEL control

on the rear of the system is properly set.

• When using a microphone, make sure the knob is pressed in

().

• When using a guitar, make sure the knob is released ( ).



2. Set the MIC/GUITAR LEVEL control to MIN

by turning it fully counterclockwise.



3. Connect a microphone or a guitar into the

MIC/GUITAR INPUT jack on the rear of the

system.



4. Start a source: disc, tuner, iPod, or

auxiliary equipment.



5. Adjust the VOLUME +/– control and the

MIC/GUITAR LEVEL control, as you play the

microphone or the guitar.

CAUTION:

DO NOT connect a bass guitar to the MIC/

GUITAR INPUT jack, as it may damage the

system.

Using the timer

The timers let you control the listening functions automatically.

When the power is first supplied, the CLOCK indicator and “0:00”

flash on the display. Set the clock.

Note:

The clock must be correctly set for the timers to work.



1. Press ON/STANDBY.



2. Press CLOCK/TIMER repeatedly until the

CLOCK indicator lights up.

The hour digit flashes on the display.



3. Press x or 4 to select the hour.

• When you press and hold the button, the hour digit changes

continuously.



4. Press SET to set the hour.

The minutes digits start flashing on the display.



5. Press x or 4 to select the minute.

• When you press and hold the button, the minute digit changes

continuously.

• If you want to change the hour setting, press CANCEL.



6. Press SET to finish setting the clock.

CAUTION:

If memory backup batteries are exhausted or not

installed, and the AC power cord is plugged in

again after being disconnected, or power is

restored after a power failure, the CLOCK

indicator will flash on the display. Set the

current time (clock) again.

Use the sleep timer to turn the system off after a certain number of

minutes when it is playing. By setting the sleep timer, you can fall

asleep to the music and know that your system will turn off by

itself rather than playing all night.

You can set the sleep timer only when the system is turned on.



1. Press SLEEP.

The SLEEP indicator lights up on the display.

Microphone/guitar mixing

CLOCK/TIMER

SET

CANCEL

SLEEP

ON/STANDBY

Setting the clock

Using the remote control only Setting the sleep timer

Using the remote control only

SLEEP indicator

RV-NB20[B].book Page 15 Monday, August 28, 2006 5:04 PM



2. Set the length of time you want the source

to play before shutting off.

Each time you press the button, it changes the number of

minutes shown on the display in this sequence:

10 = 20 = 30 = 60 = 90 = 120 = OFF = (back to

the beginning)

After setting the number of minutes for the sleep timer, the

indication will stop flashing and go off.

The system is now set to turn off after the number of minutes you

set.

To confirm the sleep time:

When SLEEP is pressed, the remaining sleep time is displayed.

Wait until the display returns to the original display.

To cancel the sleep timer:

Press SLEEP repeatedly to select “OFF.” Turning off the system

also cancels the sleep timer.

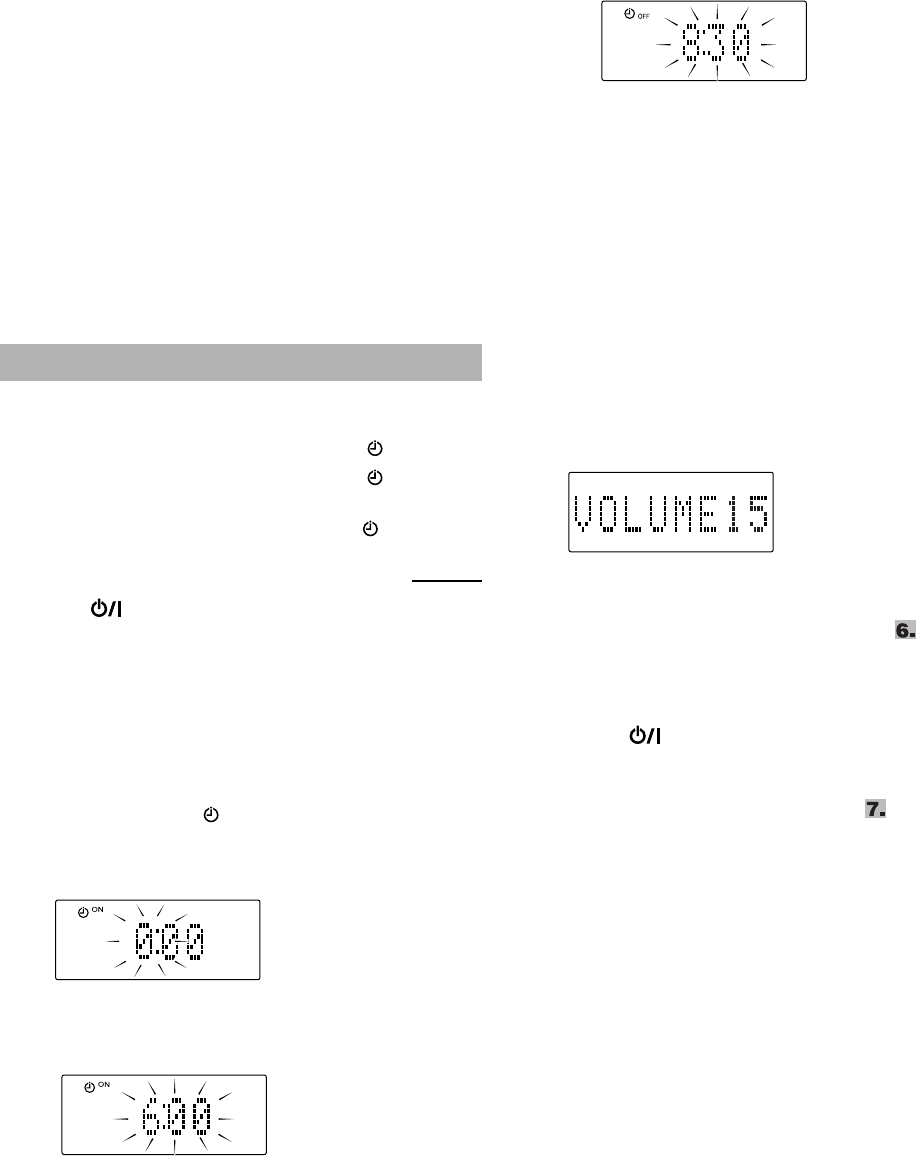

Once the timer has been set, it will be activated at the same time

everyday until the timer is turned off.

• While the timer is being set, the timer indicator ( ) lights up.

• After the timer has been set, the timer indicator ( ) also lights

up if the power is supplied through the AC outlet.

• While the timer is working, the timer indicator ( ) flashes.



1. Press ON/STANDBY.



2. Press CLOCK/TIMER.

“TIMERON?” appears.

• Press SET to activate the timer setting you have made before.

• Press CANCEL to cancel the timer.

• Go to the next step to set the timer first time (or reset the

timer).



3. Press CLOCK/TIMER again, so that the

timer indicator ( ) and ON indicator light

up.

The hour digit of the current ON time flashes on the display.



4. Set the on-time you want the system to

turn on.

(1) Press x or 4 to select the hour, then press SET.

(2) Press x or 4 to select the minute, then press SET.

The OFF indicator lights up.

• Press and hold the button to change the time rapidly.

• If you want to change the time setting, press CANCEL.



5. Set the OFF time (example: 8:30).

(1) Press x or 4 to select the hour, then press SET.

(2) Press x or 4 to select the minute, then press SET.

• Press and hold the button to change the time rapidly.

• If you want to change the time setting, press CANCEL.



6. Press x or 4 to select the music

source you want to listen to, then press

SET.

Each time you press the button, the display changes as shown

below:

TUNER = CD = iPod = (back to the beginning)



7. Press x or 4 to select the volume level,

then press SET.

– –: The current volume level will be used.

0 to 50: When the timer is turned on, the volume will be

automatically set to the selected level.

• The current timer setting appears for confirmation.



8. Before turning off the system, prepare the

music source selected in step .

TUNER: Tune in to the desired frequency (FM/AM).

CD: Set a disc.

iPod: Connect an iPod to the iPod jack.



9. Press ON/STANDBY to turn off the

system.

• When the timer turns on, the volume level gradually increases

from 0 (zero) to the preset level in step .

However, if the volume has been set to “– –”, the volume

level will be set to the last level directly.

To cancel the operation, press CLOCK/TIMER until the

display returns to the original one.

To cancel the timer, press CLOCK/TIMER once, then press

CANCEL. (“TIMEROFF” appears, only when power is on.)

To reactivate (or confirm) the canceled timer, press

CLOCK/TIMER once, then press SET. (The current timer setting

appears for confirmation.)

Notes:

• The timer cannot be set if on-time and off-time are the same.

• The timer does not work if the system is not in the standby mode

(the system needs to be in standby mode at least one minute

before the on-time).

CAUTION:

If memory backup batteries are exhausted or not

installed, and the AC power cord is disconnected

or there is a power failure, time settings will be

erased from memory. If this happens, set the

current time (clock) and perform the timer

setting again.

Setting the daily timer

Using the remote control only

RV-NB20[B].book Page 16 Monday, August 28, 2006 5:04 PM

Care and maintenance

Handle your discs carefully, and they will last a long time.

Compact discs

• This system can play back the following discs:

– Audio CD

– Finalized CD-R/CD-RW recorded in audio

CD format or MP3 format

However, continued use of irregular shape

discs (heart-shape, octagonal, etc.) can damage

the system.

• Remove the disc from its case by holding it at

the edges while pressing the case’s center hole

lightly.

• Do not touch the shiny surface of the disc, or

bend the disc.

• Put the disc back in its case after use to prevent

warping.

• Be careful not to scratch the surface of the disc

when placing it back in the case.

• Avoid exposure to direct sunlight, temperature

extremes, and moisture.

• A dirty disc may not play correctly. If a disc

does become dirty, wipe it with a soft cloth in a

straight line from center to edge.

CAUTION:

Do not use any solvent (for example,

conventional record cleaner, spray thinner,

benzine, etc.) to clean a disc.

General notes

In general, you will have the best performance by keeping your

discs and the mechanism clean.

• Store discs in their cases, and keep them in cabinets or on

shelves.

• Keep the disc compartment door closed when not in use.

Cleaning the lens

If the lens in the pickup is dirty, dropout, etc., could degrade sound.

Open the disc compartment door and clean the lens as shown.

• Use a blower (available at camera stores) to blow dust off the

lens.

• If there are fingerprints, etc. on the lens, gently wipe clean with a

cotton swab.

Moisture condensation

Moisture may condense on the lens inside the

system in the following cases:

• After turning on heating in the room.

• In a damp room.

• If the system is brought directly from a cold to

a warm place.

Should this occur, the system may malfunction.

In this case, leave the system turned on for a few

hours until the moisture evaporates, unplug the

AC power cord, and then plug it in again.

Troubleshooting

• If you are having a problem with your system, check this list for a possible solution before calling for service.

• If you cannot solve the problem from the hints given here, or the system has been physically damaged, call a qualified person, such as your

dealer, for service.

Blower

Lens

Symptom Possible cause Action

• Power does not come on. • The power cord is not connected to an

AC outlet.

• Insert the plug into the socket.

• No sound is heard. • Connections are incorrect, or loose.

• Headphones are connected.

• MP3 disc is recorded with “packet

writing.”

• Check all connections and make

corrections. (See pages 5 and 6.)

• Disconnect the headphones.

• It cannot be played. Replace the disc.

• Poor FM reception. • The FM telescopic antenna is not

properly extended and positioned.

• Fully extend the FM telescopic antenna

and turn it for the best reception.

RV-NB20[B].book Page 17 Monday, August 28, 2006 5:04 PM

Specifications

Amplifier

Output Power

(Max.) 20 W (10W + 10W) at 4 Ω (full range),

40 W (20W + 20W) at 4 Ω, 60 Hz (woofer)

(10% THD) 10 W (5W + 5W) at 4 Ω (full range),

30 W (15W + 15W) at 4 Ω, 60 Hz (woofer)

Input Sensitivity/Impedance (1 kHz)

AUX 300 mV/47 kΩ

MIC/GUITAR INPUT: Switchable

MIC 200 Ω – 2 kΩ (6.3 mm dia. plug)

GUITAR 100 kΩ – 1 MΩ (6.3 mm dia. plug)

Output Sensitivity/Impedance (1 kHz)

PHONES 16 Ω – 1 kΩ

0 – 12 mW/ch output into 32 Ω

Disc Player

Dynamic range 90 dB

Signal-to-noise ratio 95 dB

Wow and Flutter Unmeasurable

Tuner

FM Tuner

Tuning Range 87.50 MHz – 108.00 MHz

AM Tuner

Tuning Range 522 – 1 629 kHz

Antenna FM telescopic antenna

Ferrite core antenna for AM

Speakers

Full range 8 cm × 2, 4 Ω

Super woofer 16 cm × 2, 4 Ω

General

Dimensions 690 mm × 239 mm × 293 mm (W/H/D)

Mass 9.2 kg (without batteries)

10.3 kg (with batteries)

Power Specifications

Power Requirements AC 230 V , 50 Hz

DC 15 V (“R20/D(13F)” batteries [10])

External DC 12 V (car battery via

optional car adapter)

Power Supply to iPod 5 V/500 mA

Power Consumption

AC 230 V , 50 Hz 43 W (power on mode)

1.2 W (in standby mode)

External DC 12 V 2 A (power on mode)

Symptom Possible cause Action

• The track skips. • The disc is dirty or scratched. • Clean or replace the disc.

• The disc does not play (“NO PLAY” or

“NO DISC” appears).

• The disc is upside down.

• The disc is dirty or scratched.

• Put the disc in with the label side up.

• Change the disc.

• Specific files (tracks) on an MP3 disc are

not played.

• Files other than MP3 are included in the

disc.

• They cannot be played.

• iPod is not turned on. • Connection is not firmly made. • Check the connection. (See page 6.)

• iPod does not play though “CONNECT”

appears on the display.

• The battery of the iPod is empty. • Leave the iPod connected for more than

approximately ten minutes.

• iPod is not charged. • FM/AM is selected as the source.

• The system is in a standby mode when

the system is operated on the batteries or

the car battery (DC12V).

• Select any source other than FM/AM.

• Turn on the system.

• Unable to operate the remote control. • The path between the remote control and

the sensor on the system is blocked.

• The batteries have lost their charge.

• Remove the obstruction.

• Replace the batteries.

• Operations are disabled. • The built-in microprocessor has

malfunctioned due to external electrical

interference.

• Unplug the system then plug it back in

after a few minutes.

• Indicators and the display do not light up

while in standby mode.

• Batteries or DC power is used to supply

the power.

Design and specifications are subject to change without notice.

EN07-18_RV-NB20[B].fm Page 18 Tuesday, September 12, 2006 11:59 AM

MEMO

memo.fm Page 1 Monday, September 4, 2006 5:01 PM

MEMO

memo.fm Page 2 Monday, September 4, 2006 5:01 PM

RV-NB20B/RV-NB20W POWERED WOOFER CD SYSTEM

RV-NB20[B].book Page 1 Monday, August 28, 2006 5:04 PM

JVC RB NB20BB RV NB20B/RV NB20W User Manual LVT1614 003C

RB-NB20WB RB-NB20WB LVT1614-003C English,

Navigation menu

Versions of this User Manual:

Views

Navigation
